BULLETIN NO.
PN0004159
SERVICE PARTS LIST
CATALOG NO. 49-40-6205
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
5" Cutting Dust Shroud
SERIAL NO.
DATE
Nov. 2025
WIRING INSTRUCTION
R39A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

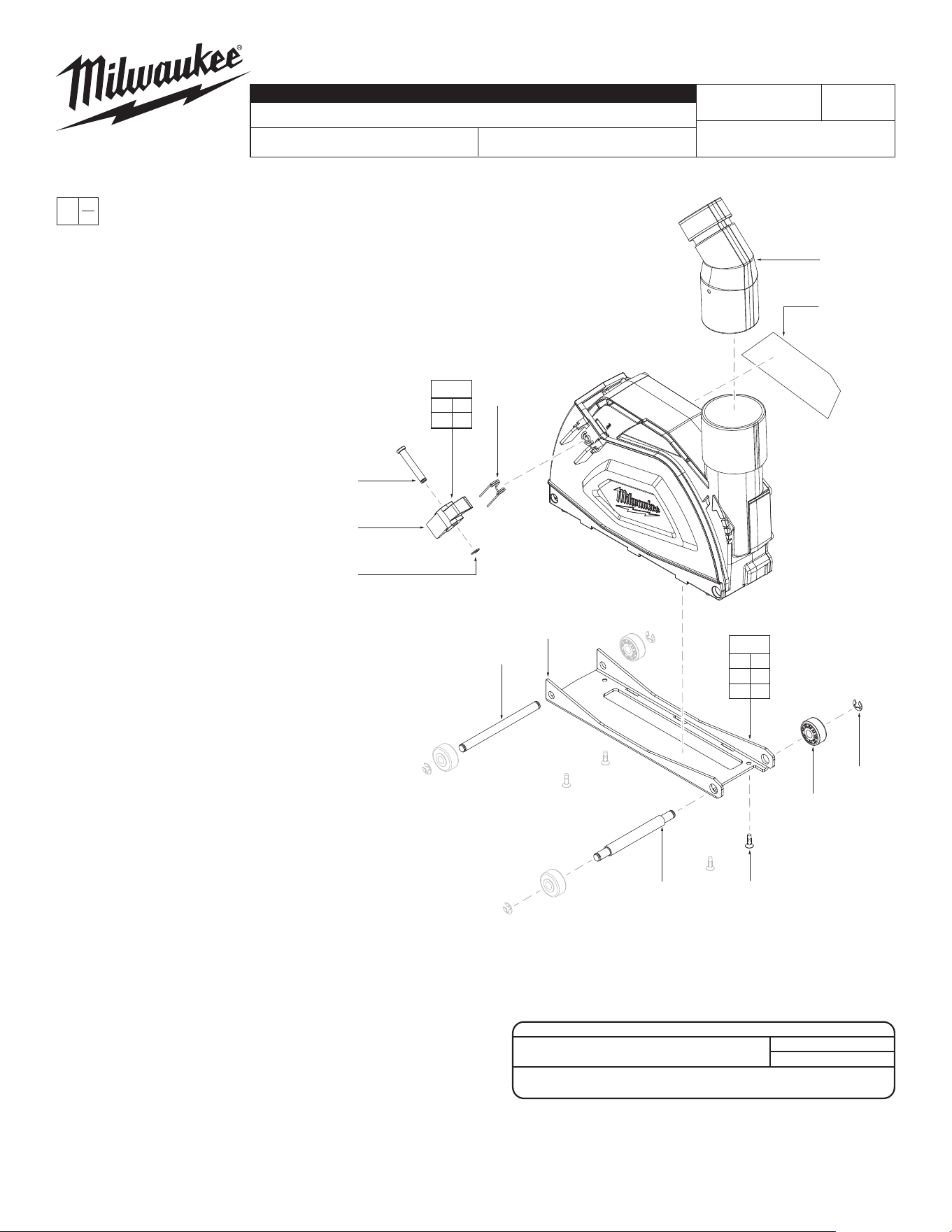

Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- E-Ring (4)
2 --------------- Wheel (4)
3 --------------- Front Wheel Shaft (1)
4 --------------- Back Wheel Shaft (1)
5 --------------- Lever (1)
6 --------------- Lever Spring (1)
7 --------------- E-Ring (1)
8 --------------- Lever Pin (1)
13 31-55-0503 Tube Connector (1)
15 --------------- M3 x 10mm Flat Hd. T-10 B Screw (4)
24 --------------- Guide Rail (1)
26 12-20-9105 Service Nameplate (1)
31 31-55-0502 Lever Kit (1)
32 31-55-0501 Guide Rail Kit (1)
FIG. SERVICE NOTES
26 A clean, dry surface is essential for proper performance
for any adhesive system. The area intended for application
of any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
15 --------------- Guide Rail 8±1 7±1
