N.WDIMENSION
MAX
MOUNTING
HEIGHT
PROJECTED
AREA
BODY
TYPE
3-5m192g 12-34m²
18.5-50.5m²
38-103m²
418g
825g
3-5m
3-5m
100-200m²
Aluminium
Aluminium
Aluminium
Aluminium
IK
RATING
IK06
IK06
IK06
IK06
1550g
147x33x122mm
227x33x182mm
297x33x242mm
410x33x326mm
3-5m
240726
10W 730 Lm
90° 50,000
>0.9
>80
>80
>80
>80
>0.9
>0.9
>0.9
50,000
50,000
50,000
90°
90°
90°
4000 Lm
8150 Lm
16450 Lm
50W
100W
240736
240716
240706
200W
INPUT
VOLTAGE
CRIDF
LIFE
SPAN
[HOURS]
BEAM
ANGLE
USEFUL
LUMEN
WATTSMODEL SKU
INTRODUCTION & WARRANTY
TECHNICAL DATA
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully
before starting the installing and keep this manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.
The warranty is valid for 6 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect
removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24
Hours a day would void the warranty. This product is warranted for manufacturing defects only.
The operating temperature range for these items is -20°C to +40°C.
INSTRUCTION MANUAL
LED FLOOD LIGHT
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR
MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC
EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
AC: 220-240V,
50/60Hz
AC: 220-240V,
50/60Hz
AC: 220-240V,
50/60Hz
AC: 220-240V,
50/60Hz
@WIDE CONE
6
6 YEAR
WARRANTY*
IN 1
CCT
3
VT-44014CCT
VT-44058CCT
VT-44110CCT
VT-44209CCT
• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the
cord is damaged, the luminaire shall be destroyed.
• Terminal block not included.
• Proper grounding should be ensured throughout the installation.
• For outdoor use.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
INSTALLATION DIAGRAM
1 2 3
4 5
WARNING
WIRE LENGTH: 120mm

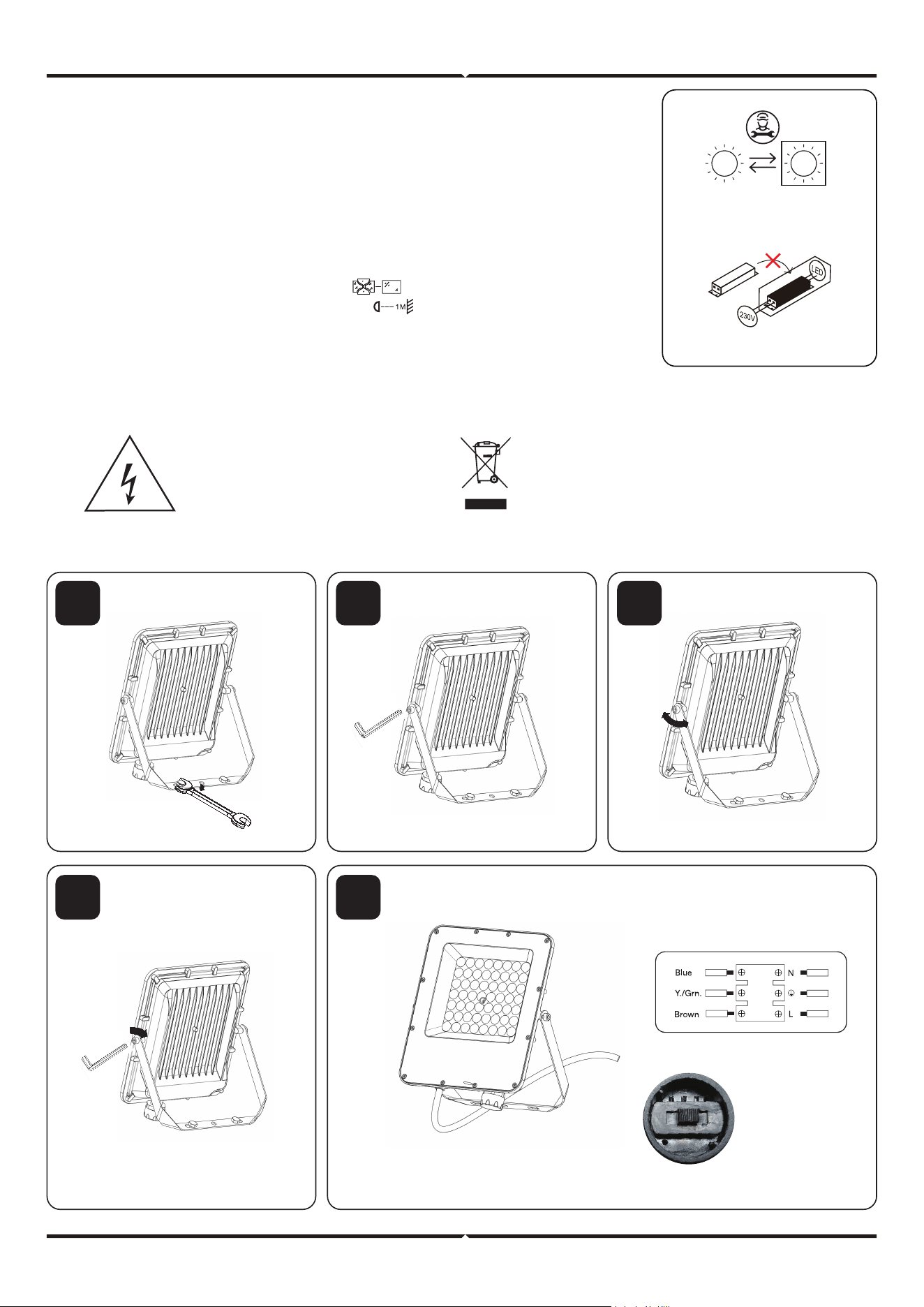

WIRING DIAGRAM
CCT
Switch
NOTE
• To reduce the risk of strangulation the flexible wiring connected to this luminaire shall
be eectively fixed to the wall if the wiring is within arm's reach.
• In order to maintain the IP protection of the product, the cable entry/gland should be
installed on the bottom side.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
Non-replaceable control gear
Replaceable light
source by a professional

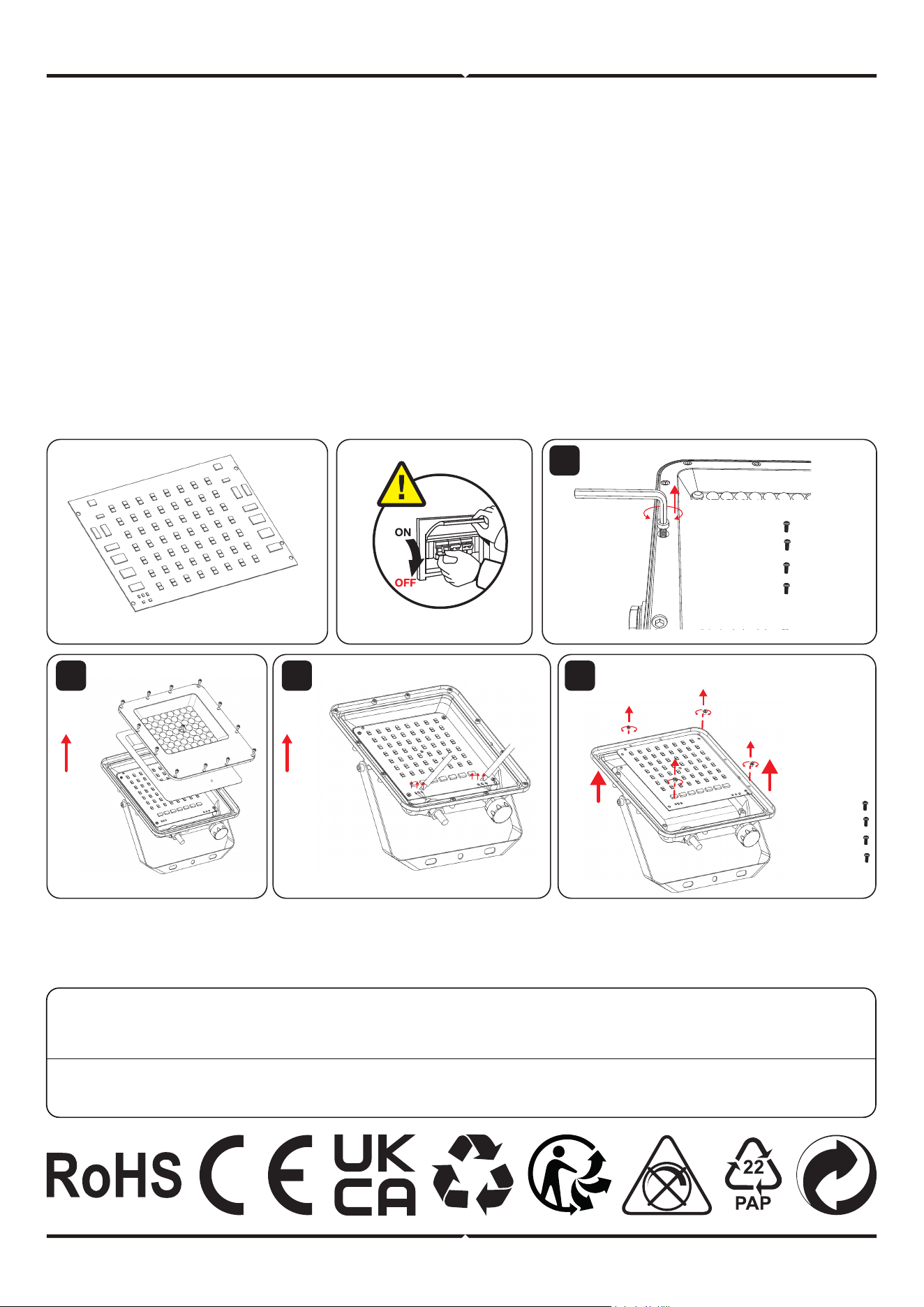

• Ensure the power is turned o before starting the installation.
• Secure the brackets to the desired surface.
• Loosen the bolts on both sides of the bracket.
• Adjust the floodlight to the desired angle.
• Tighten the bolts on both sides of the bracket to secure the position.
• Connect the floodlight wiring according to the wiring diagram.
• Set the desired color temperature using the CCT switch.
• Turn on the power and test the floodlight.
DISMANTLING INSTRUCTIONS
(For Market surveillance team only)
Note: Light source removal will void the warranty
INSTALLATION INSTRUCTIONS
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT:
[email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
[email protected] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
Important: Strictly follow the steps below during installation. Avoid applying excessive force to the
power cable. The supply connection and other external wiring conductors must be at least 3 x 1.0 mm²
VT-44014CCT-x6
VT-44058CCT-x13
VT-44110CCx15
VT-44209CCT-x22
1
VT-44014CCT-x6
VT-44058CCT-x13
VT-44110CCx15
VT-44209CCT-x22
2 3 4
