INSTRUCTION MANUAL
LED FLOOD LIGHT
WITH L STAND

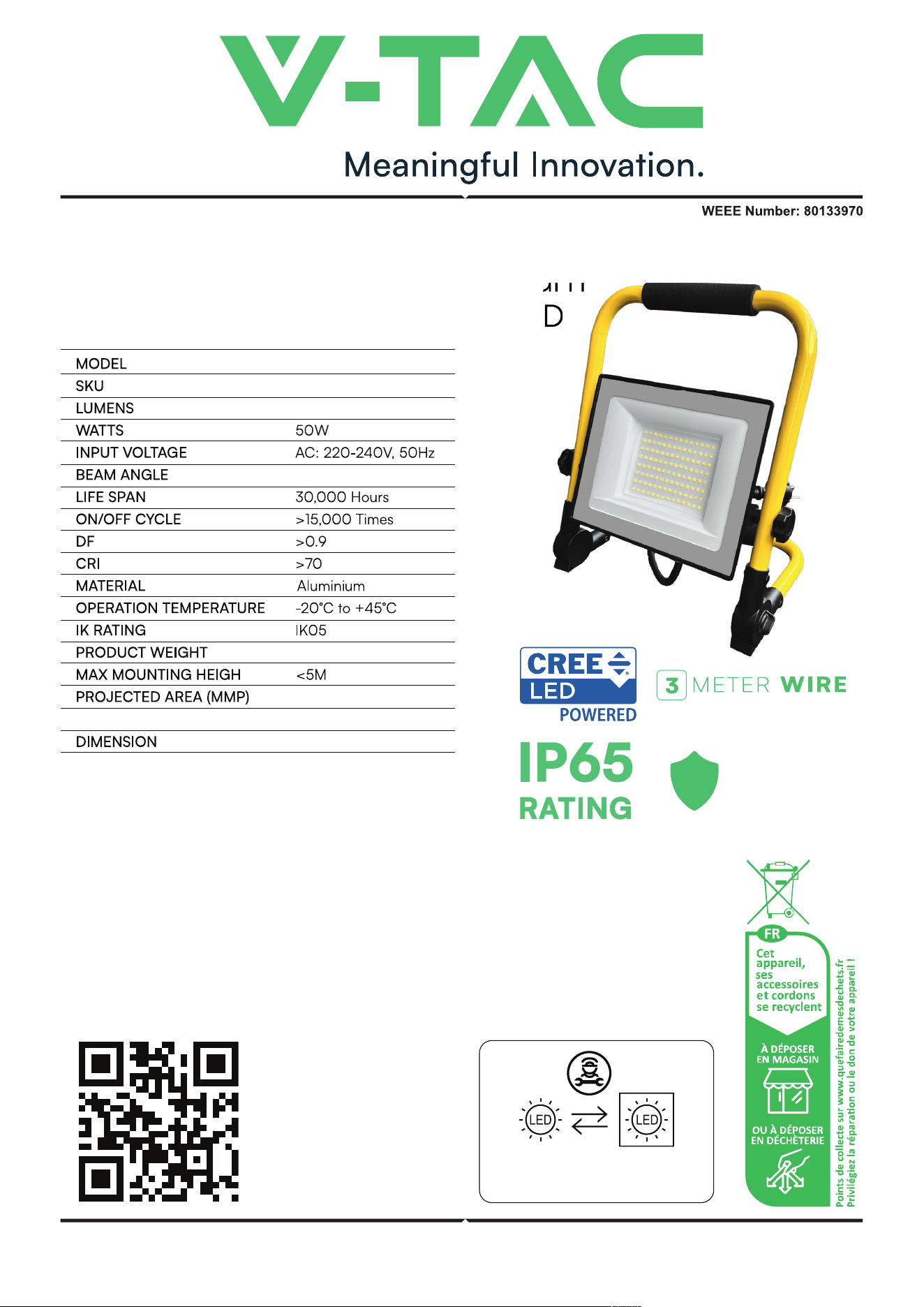

TECHNICAL DATA
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installing and keep this manual handy for future reference.
If you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best. The warranty is valid
for 6 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. The products are suitable for 10-12
Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product
is warranted for manufacturing defects only.
INTRODUCTION & WARRANTY
Replaceable (LED only)
light source by a professional
6
6 YEAR
WARRANTY*
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR
MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC
EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
4270Lm
VT-44049
242186, 242196
115°
EU Plug
236.2x57x300mm
0.48KG/PC
29600
*This product contains a light source of energy eciency
class<F>, where <F> shall be replaced by
the energy eciency class of the contained light source.
LED FLOOD LIGHT
WITH L STAND
PLUG TYPE
@WIDE CONE 120°
• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source contained in this luminaire shall only be replaced by the manufacturer or
his service agent or a similar qualified person.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.
• Terminal block not included.
• Proper grounding should be ensured throughout the installation.
• For outdoor use.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
NOTE
• To reduce the risk of strangulation the flexible wiring connected to this luminaire
shall be eectively fixed to the wall if the wiring is within arm's reach.
• In order to maintain the IP protection of the product, the cable entry/gland
should be installed on the bottom side.

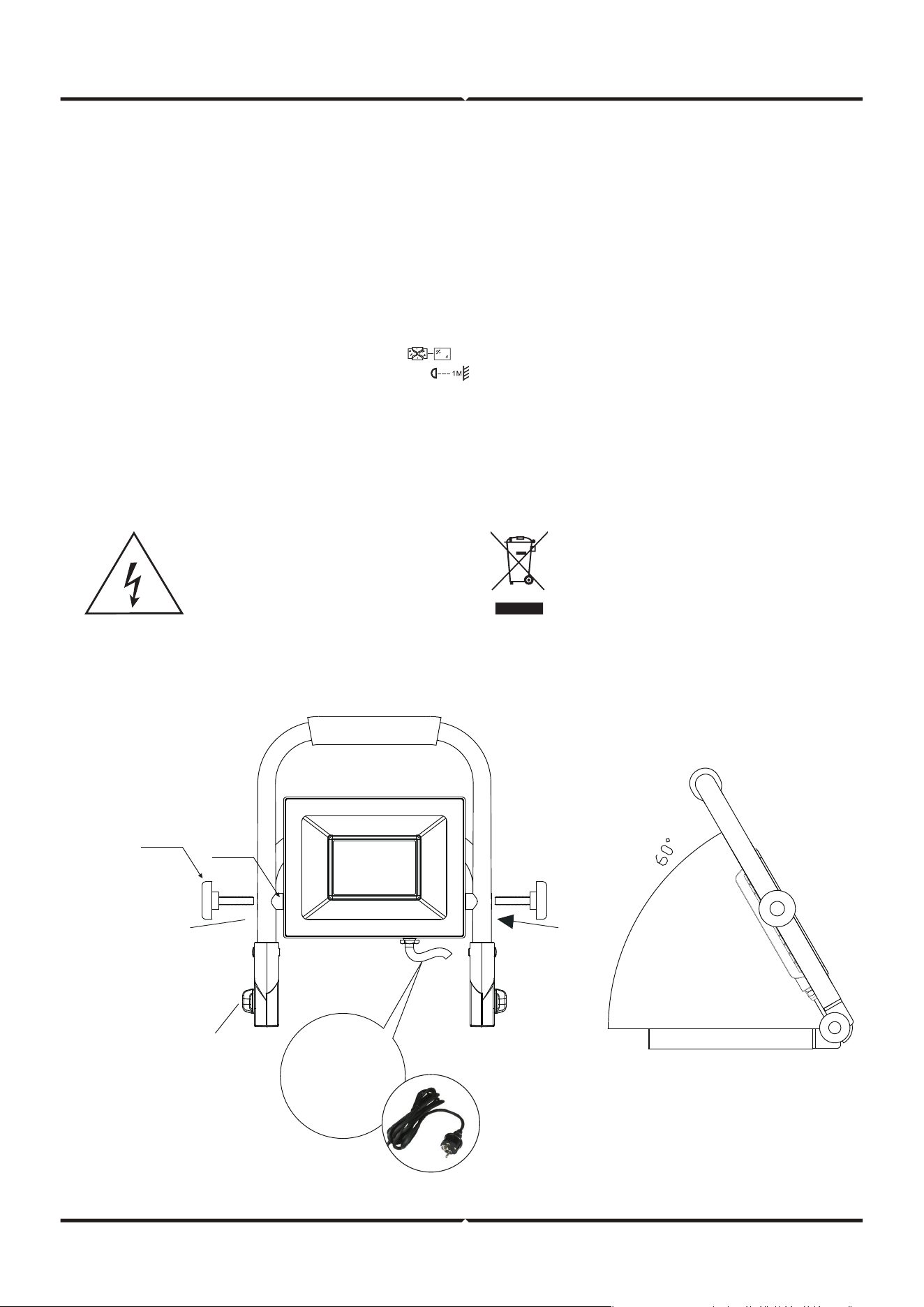

INSTALLATION INSTRUCTIONS
WARNING
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
EU PLUG
plastic
screw
plastic
gasket
Place the plastic gasket as shown
in the picture and tighten the
plastic screw
Foldable maximum angle
When adjusting the angle, first loosen
the plastic screw counterclockwise.
Aer adjusting the angle, tighten the
plastic screw clockwise.
• DO NOT USE IN AREAS WITH LIMITED VENTILATION OR OUTSIDE THE RATED AMBIENT
TEMPERATURE RANGE. *CONNECT WITH WATERPROOF CABLE HOUSE ONLY.
*ENSURE ELECTRICITY IS SWITCH OFF BEFORE INSTALLATION.
• Please do not mount to a surface that is prone to vibrations.*
Remove the screw and the bracket aerward. (Figure 1)Before drilling, mark the hole position
for fixing the bracket onto the wall (Screw not supplied). (Figure 2)
• Screw the retaining bracket to the wall with a suitable quantity of screws. (Figure 4)
• Mount the bracket back to the fixture. Adjust the floodlight according to the desired
position. Tighten the screw. (Figure 5) Connect your main cable (HO5RN-F3G1.0mm2
Recommended) with the input lead of our product through the waterproof junction box.
Note, the line (-) of the lead. (Need to use the junction box of IP65 or above, ensure to
tighten the waterproof screw) Switch on the power to make sure if the product is working.
INSTALLATION INSTRUCTION

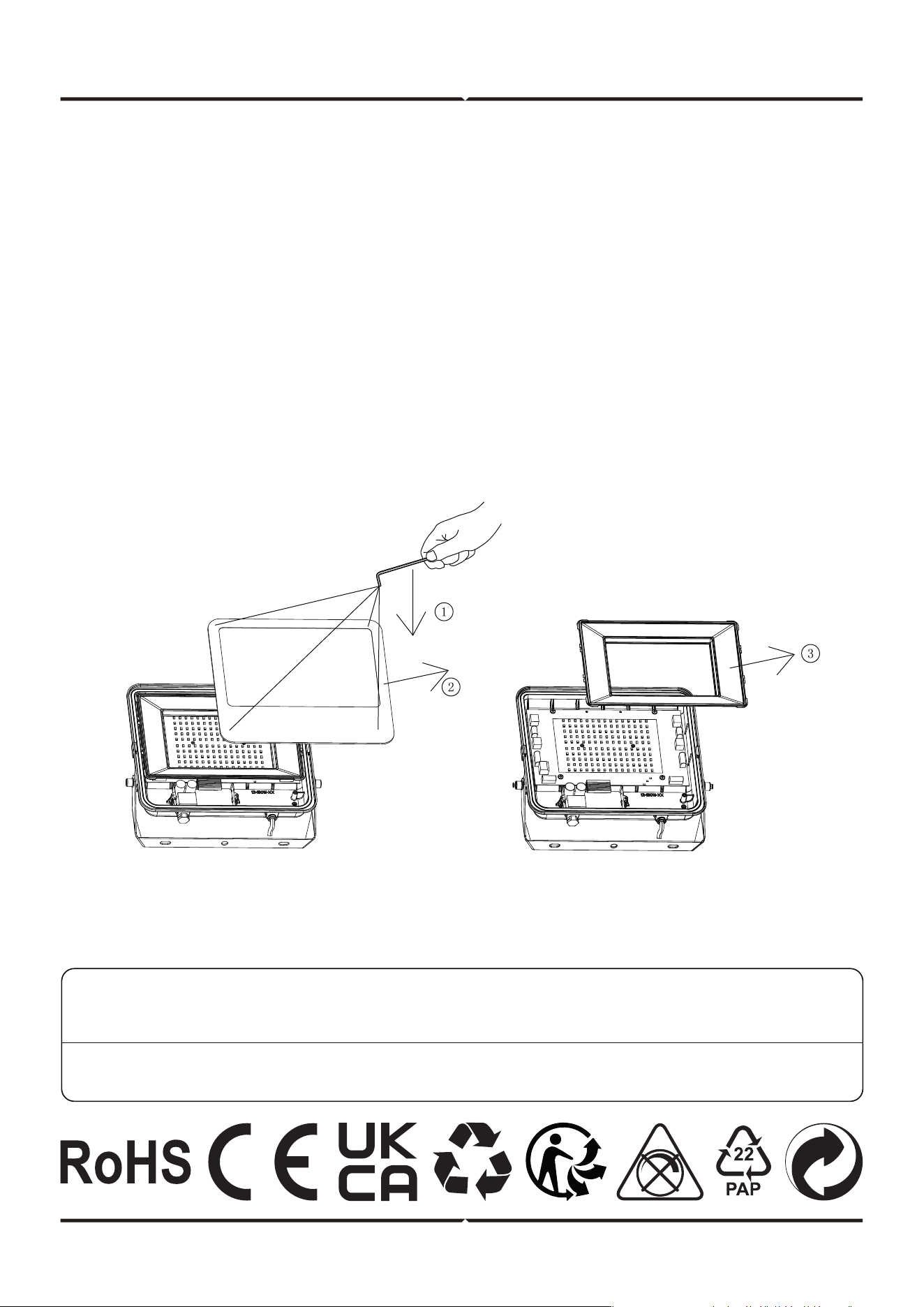

DISMANTLING INSTRUCTIONS
(For Market surveillance team only)
Note: Light source removal will void the warranty
