WEEE Number: 80133970
Ok Google
works with
LED PIR SLIM FLOODLIGHT
WITH DIRECT CONNECTION
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read
these instructions carefully before starting the installation and keep this manual handy for future
reference. If you have any another query, please contact our dealer or local vendor from whom
you have purchased the product. They are trained and ready to serve you at the best. The war-
ranty is valid for 2 years from the date of purchase. The warranty does not apply to damage
caused by incorrect installation or abnormal wear and tear. The company gives no warranty
against damage to any surface due to incorrect removal and installation of the product. The
products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day
would void the warranty. This product is warranted for manufacturing defects only.

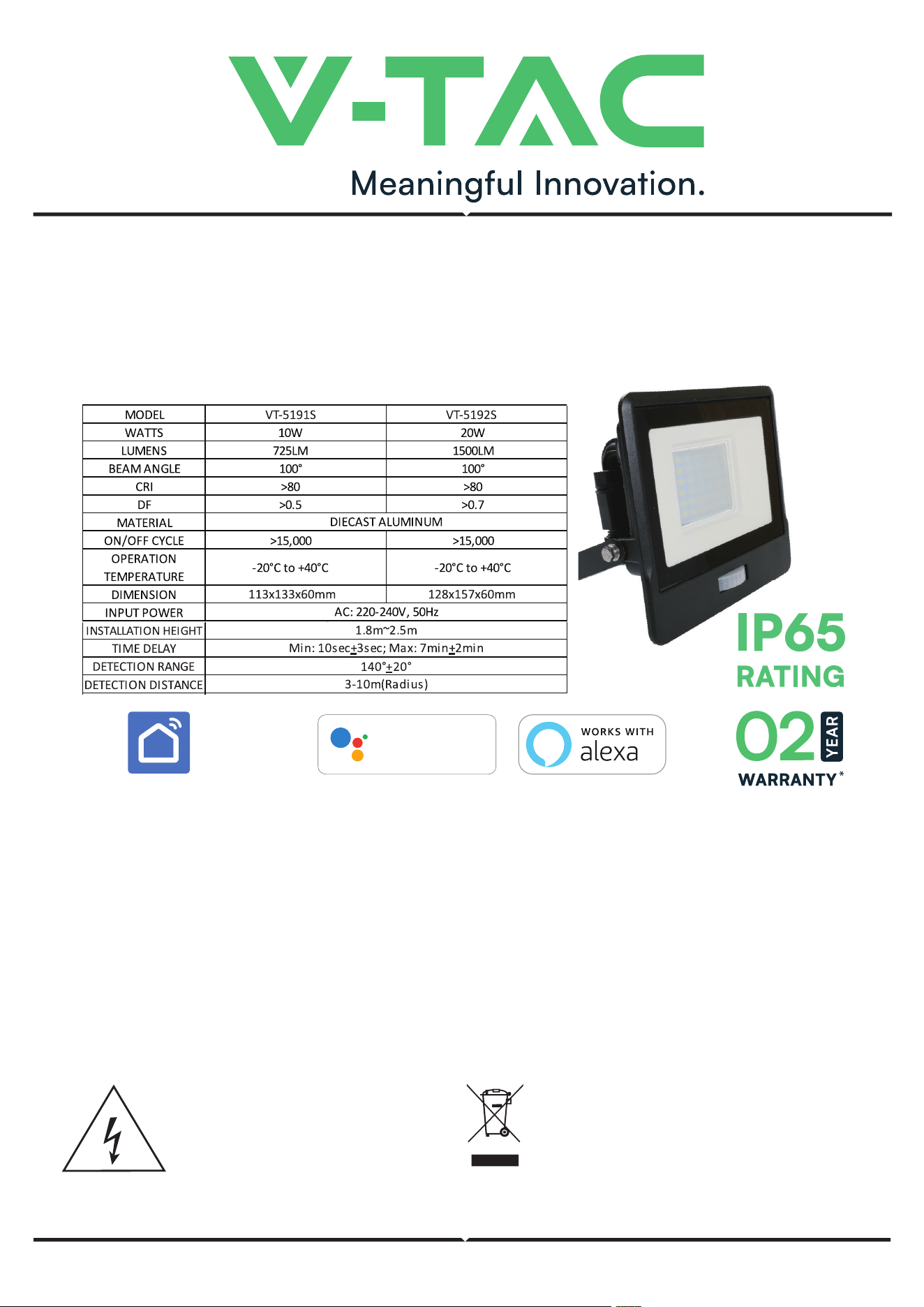

TECHNICAL DATA
INSTRUCTION MANUAL
Smart
Life
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
SAFETY WARNING
1. Please make sure to turn o the power before starting the installation.
2. Installation should only be done by a certified electrician.
3. The light source of this luminaire is not replaceable, when the light source reaches its end
of life the whole luminaire should be replaced.
4. Proper grounding should be ensured throughout the installation.
5. Luminaire are limited to indoor use and are not advisable for use in humid environment
6. Luminaire is to be used in well ventilated areas and normal installation.
7. Do not exert external force or throw on the luminaire.
9. Do not discard the luminaire with regular trash. Luminaire are made with electronic com-
ponents and should be properly disposed at designated locations with unified treatment like
traditional electronic equipment.
10. Minimum distance from lighted objects 1m.
11. Replace any cracked protective shield.
Note
1. This device requires Wi-Fi Frequency 2.4Ghz
2. Operating frequency (maximum transmitted power) 2400MHz -2483.5MHz (20dBm)
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
4. Enable Bluetooth
and Home Wifi for the
device to access your
wifi connection for
pairing
5. Click “Add a device” or
“+” in the top right corner.
6. Click on the
Lighting
choose “Light
Source (Wi-Fi)“
7. Select 2.4GHz Wi-Fi
network and enter the
password
Step 10:
V-TAC Smart Floodlight oers two types of pairing modes:
1) EZ Mode - Light flashes rapidly
2) AP mode - Slow Flash or long brightness
How to enable/reset the smart floodlight into pairing mode -
Step 1: Switch ON the floodlight, if the light is flashing rapidly
the device is in EZ mode. Please proceed to pairing the smart
device with the App. If not please follow Step 2.
Step 2: Switch the floodlight OFF-ON repeatedly 3 times with
short intervals of less than 2 seconds. Light flashes rapidly
indicating the device has entered pairing mode. Please
proceed to pairing the smart device with the App.
Note: Each time you switch the device OFF-ON repeatedly 3
times with short intervals of less than 2 seconds the pairing
mode of the device alternatively switches between EZ mode
and AP mode.
Step 12: Aer successfully pairing the luminaire with the app, you can start controlling multiple
features of the luminaire through your mobile– on/o switch, changing the colour temperature,
timing & schedules, dimming options, and more.
Step 9: Once you
have successfully
completed step 10,
you will be redirected
to below page,
where the App
searches, registers
and initializes the
device(lamp) (ref
image below).
Step 11: You can now start controlling your device with the
App. Tap the device name on the home page to
enter the controls and features of the device.
Step 10: Once your
device is successfully
added, rename the
device to your prefer-
ence.
Completed
Light
Light
Living Room
• Step 5: Sign In with your Smart Life Login credentials to Link the Smart Life device.
• Step 6: Tap on Authorize in order to proceed to linking the device.
a. Account will now be linked, please stay on the page you will be redirected in few seconds to select the
device to add to your home.
b. Select the device and tap on Next as show in image b.
Smart Life
Step 7
GOOGLE HOME SETTINGS
Step 8: Select the Home where you would like to add the Smart Life under. (Or) you can create a New home in
order to add the Smart Life to it.
Step 9: You have succesfully added Smart Life device to your Google Assistant App.
Step 10
a. You can turn the Lamp On/OFF by taping on On/O options as shown below. (OR) You can tap on
the Smart Lamp.
b. You will be redirected to page(as shown in image b) where you can control the lights “Power and
Dimming functionality”.
Google Commands
Now, you can control your smart device using voice commands on Google Assistant. Below are a few com-
mands you can use:
Ok, Google, turn on/o bedroom light,
Ok, Google, turn on/o Hall light.
THINGS TO REMEMBER BEFORE STARTING INSTALLATION
1. Smart Life App & Google Assistant App Ok, Google, set bedroom light to warm white.
2. Make sure you have Google Assistant Device
3. Smart Device - Lamp
4. Stable Wifi network
ALEXA SETTINGS
Step 1:Install the Amazon Alexa app via the App Store(iOS) or the Play Store (Android) and register. If you al-
ready have an existing account with Amazon Alexa, please proceed to logging in.
Step 2: Once you are on the Amazon Alexa home page, tap on the lower right icon –– where the arrow is
pointed–– to add a new device and skill.
Step 3: Tap on settings and tap on “skills and games” as shown below.
Step 4: Search for ‘Smart Life’ on the “Skills & Games” page as shown below.
Smart Life
Step 5: Enable the Skill
Step 6: Enter your Smart Life login ID and password and tap on “Link Now”
Step 7: Once you tap on Link Now, you will be redirected to a new page requesting for authorization(Ref Im-
age below). Tap on “Authorize”
Step 8: You will receive confirmation of the account being linked successfully (Ref Image below)
Step 9: Discover your smart device on Alexa. Once you have enabled the skill
A) You can use voice command ”Alexa discover devices” to the Alexa device which you have.
B) To add device manually on home page tap on and tap on Add device , select the device
which you are adding and tap on discover device.
Note: Discovering the device must be done every time the device’s name is changed on the app.
Smart Life has been successfully linked.
ALEXA COMMANDS
Now, you can control your smart device using voice commands on Alexa.
Below are a few commands you can use:
THINGS TO REMEMBER BEFORE STARTING INSTALLATION
1. Smart Life App & Amazon Alexa App
2. Make sure you have Amazon Alexa Device(including Echo, Echo Tap, or Echo Dot)
3. Smart Device - Lamp
4. Stable Wifi network
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
SUPPORT@VTACEXPORTS.COM V-TAC HOUSE, KELPATRICK ROAD, SLOUGH, BERKSHIRE, SL1 6BW, UK.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
Hi Alexa, Turn On/O bedroom light.
Hi Alexa, Turn On/O Hall Light.
INSTALLATION DIAGRAM
1. Switch o the power. Confirm the installation position.
2. Punch holes in building surface with impact drill.
3. Insert expansion bolt.
4. Fixed bracket.
5. Turn on the connector counterclockwise, and pass the sorted cable through the water-
proof cap and connector in turn
6. The cable is connected to the terminal, the live wire is connected and installed L, and the
zero wire is connected to N, Ground wire connected to , tighten the screw of the terminal
block.
7. Turn the connector and waterproof cap clockwise, and pay attention to the fact that the
waterproof joint nut must be tightened, otherwise there is a hidden danger of water leakage.
The rubber covered part of the outer lead should extend into the waterproof cap for more
than 15mm, otherwise there is a hidden danger of water leakage.
8. Switch on the power and test the light.
OFF
2PCS
FIG 1 FIG 2
FIG 3
FIG 5 FIG 6
FIG 7
FIG 8
FIG 4
INSTALLATION INSTRUCTION
APP INSTALLATION
Step 2: Scan the given QR code, or
download “Smart Life’ from the App
Store (iOS) or the Google Play Store
(Android).
EARTH
BLUE
BROWN
L
N
