650LB 2-BAR ADJUSTABLE TRUCK LADDER RACK
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 26500
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions
may result in serious injury. Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all
possible conditions and situations that may occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this product, but must be
supplied by the operator. Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
1
Read and understand all instructions. Failure to follow all instructions may result in serious
injury or property damage.
Do not allow persons to operate or assemble the product until they have read this manual
and have developed a thorough understanding of how it works.
Do not modify this product in any way. Unauthorized modification may impair the function
and/or safety and could affect the life of the product. There are specific applications for which
the product was designed.
Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause
accidents.
Keep children and bystanders away while assembling the truck rack. Distractions can cause
you to lose control, so visitors should remain at a safe distance from the work area.
Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards
in your work area. Some of these hazards may be hidden from your view and may cause
personal injury and/or property damage if contacted.
Carrying any load can be hazardous. All loads must be tied down securely to the rack to
prevent them from vibrating or sliding forward, backward, laterally or being blown off or
broken by unexpected wind or road hazards such as potholes.
Check each time you install the rack, load the rack, as well as daily to ensure that all
connections are tight. Periodically check welds for cracking caused by metal fatigue.
Avoid roll over by ensuring that loads are not top-heavy. High loads must be transported with
GREAT CAUTION to prevent loads from striking low overhead objects or tipping during turns,
abrupt stops, or high winds.
IMPORTANT SAFETY INFORMATION
2

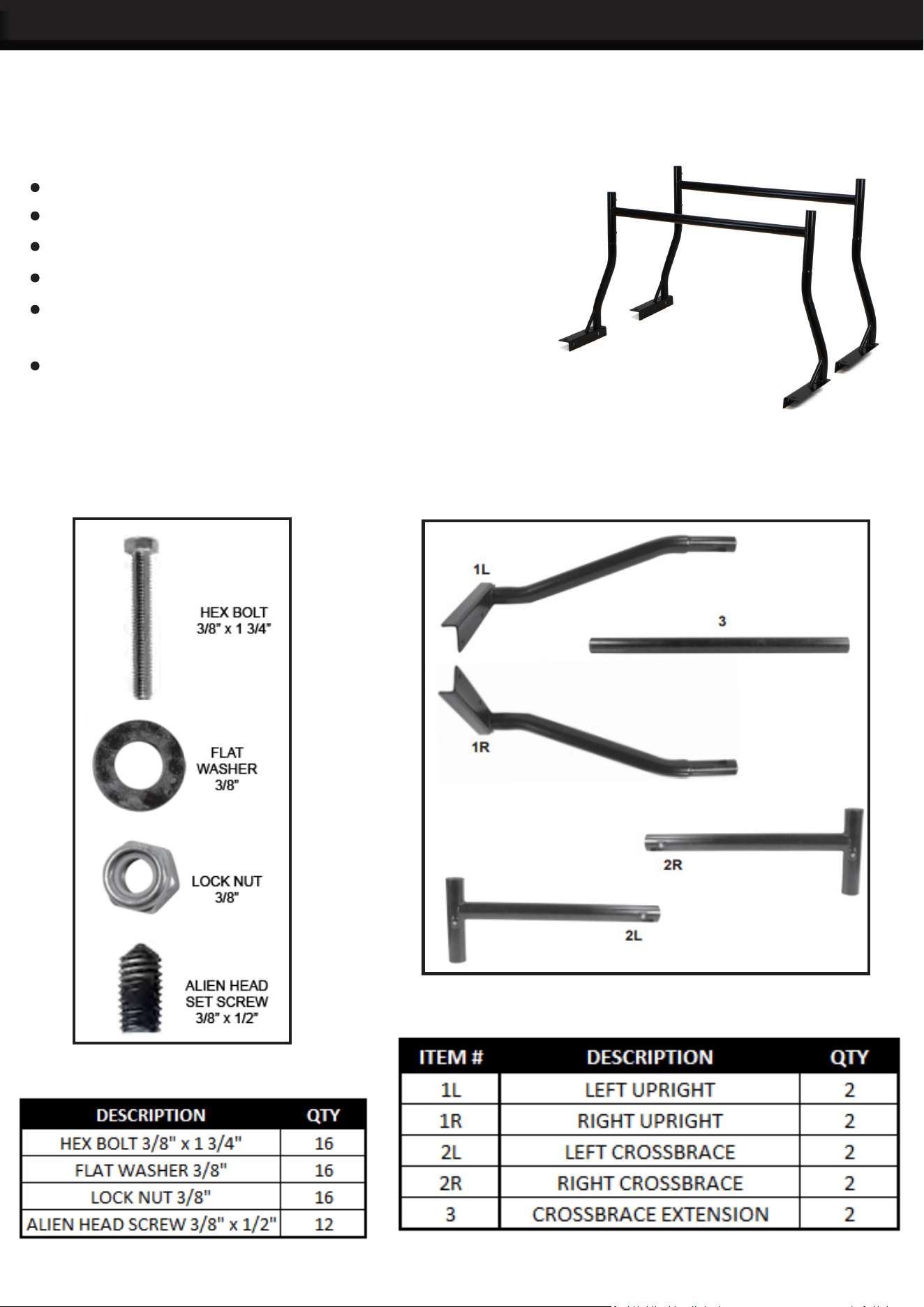

Verify that you have received the correct quantity of hardware and parts shown below.
HARDWARE LIST
PARTS LIST
This truck rack is great for hauling ladders, lumbers, pipes, and other long and big items on your
truck and pick-up. It features heavy duty durable steel construction for high durability. It is easy
to install and fit all pickup trucks as it is adjustable.
Easy To Install
Fits All Pickup Trucks
500 Lbs RATED Capacity
650 lb stationary
Max Height: approx. 32” Plus the height of your truck’s
bed
Width: Adjustable for most pickup trucks (Adjustable
width of 5’ minimum to 6’ maximum where rack
attaches to track bed)
FEATURES AND PARTS LIST
3

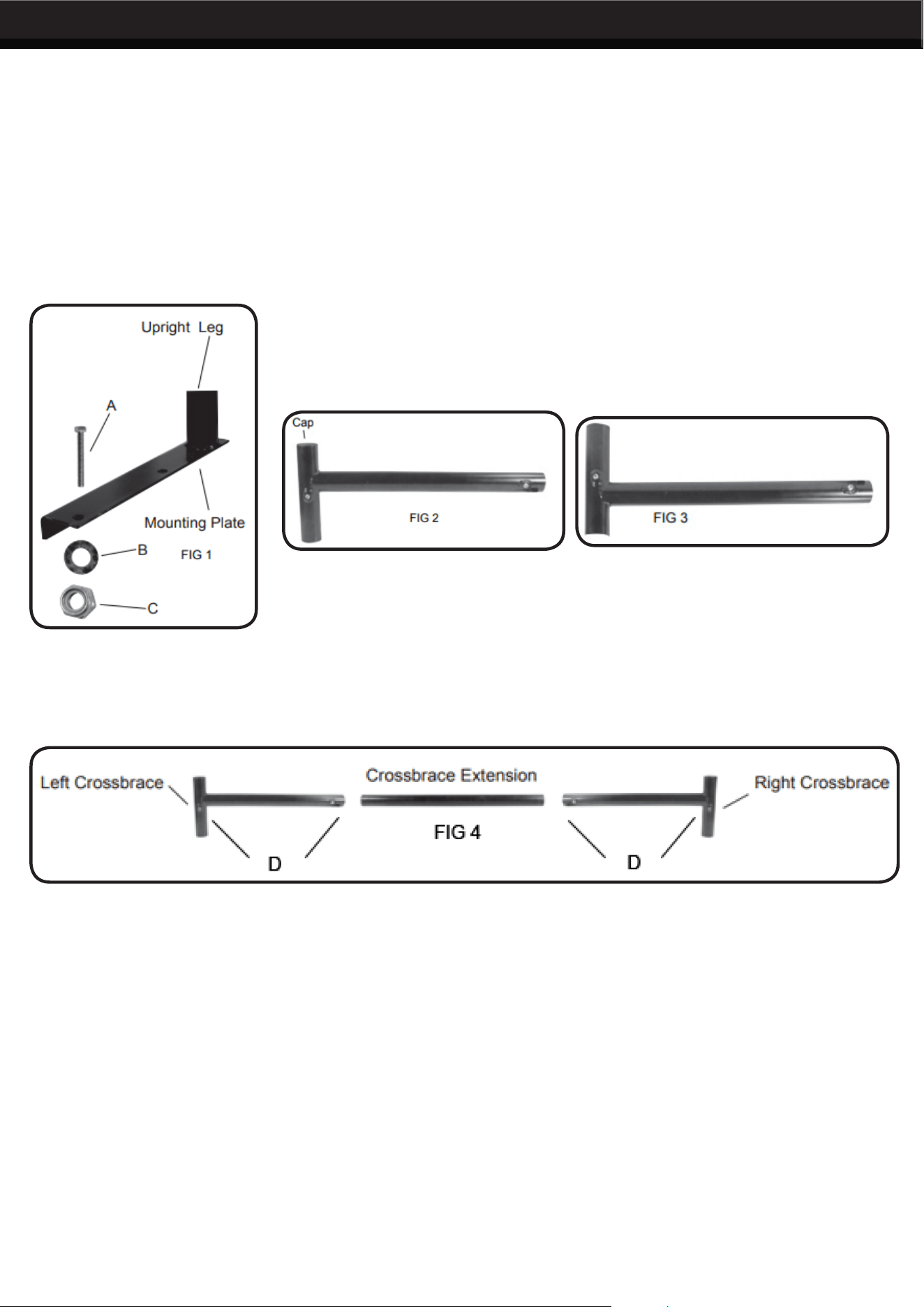

STEP 2. Set the rack to the high (FIG 2) or low (FIG 3) position, whichever is best for the cargo and
the truck, by flipping the Crossbrace. For bowed canoes, the high position is recommended. If you
choose to flip the Crossbrace, you will have to remove and replace the Caps.
STEP 1. Position the front Mounting Plate of the Upright leg as close to the cab as possible.
Locate the pre-drilled hole in the footplate that is furthest from the leg and drill a 3/8” hole
through the truck’s bed rail. (FIG 1) A second hole for a bolt must be drilled through both the
footplate and the truck’s bed rail as close as possible to the front leg without sacrificing access to
the bolt underneath the truck’s bed rail. This bolt must be accessible in order to put on the
washer and nut. Attach the footplate to the truck using bolts (A), washers (B) and nuts (C).
Repeat Step 1 as you position the remaining Upright leg for this section.
DO NOT over tighten any bolts.
STEP 3. Insert the crossbrace into the crossbrace extension (Fig 4) and set the entire assembly on
top of the upright legs. Center the crossbrace left to right and secure it with the allen head set
screws (D). Secure the crossbrace to each upright leg with the included allen head set screws.
To install the rear portion of the cargo truck rack on the truck bed, repeat the above steps.
Before drilling the mounting plate, ensure that the plate does not overhang or interfere with the
tail gate.
The cargo truck rack is not ready for use.
WARNING: DO NOT EXCEED 500LB LOAD CAPACITY
ASSEMBLY
AND OPERATION
4

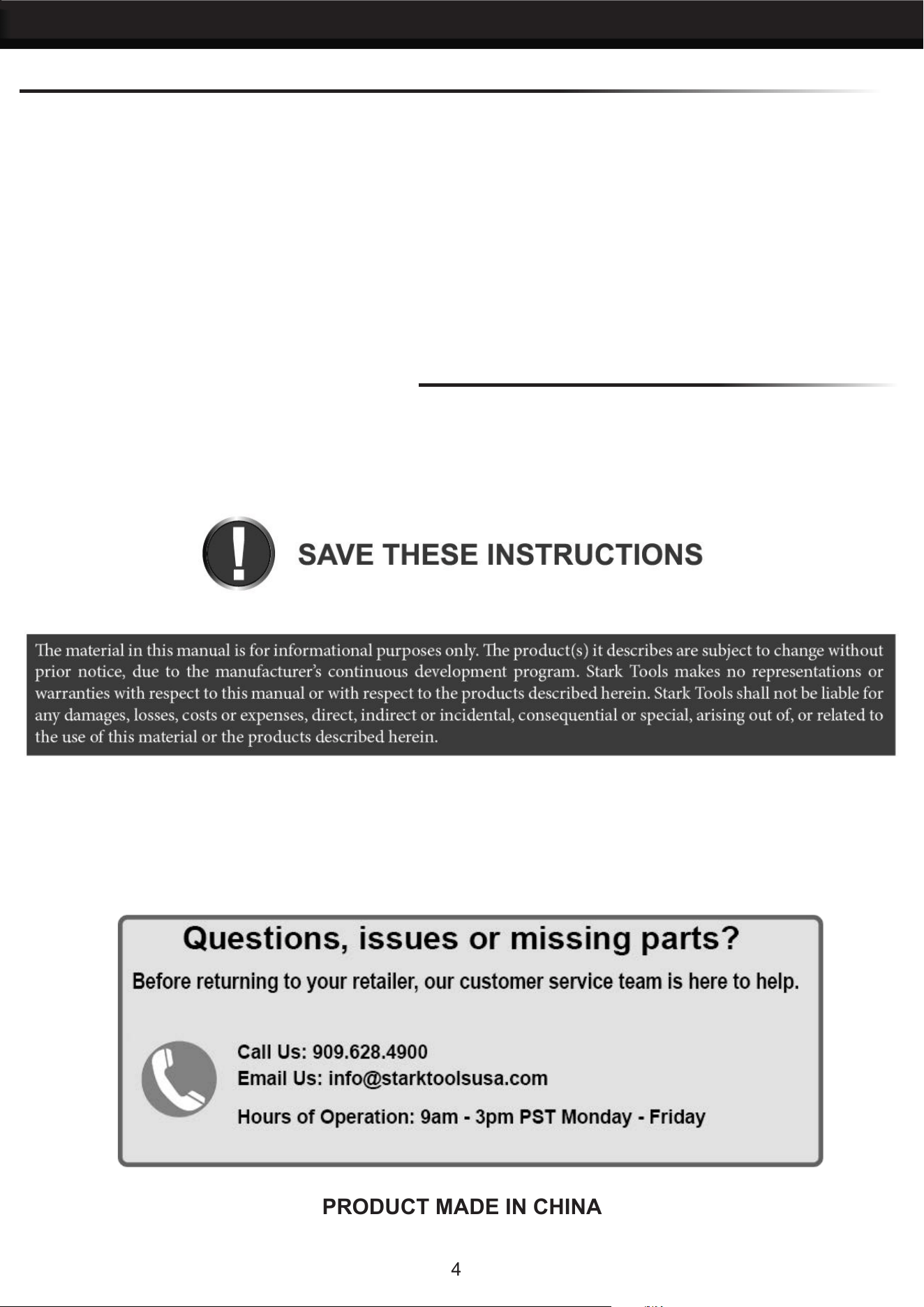

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
PRODUCT MADE IN CHINA
DISCLAIMER
