OWNER’S MANUAL AND SAFETY INSTRUCTIONS
RETRACTABLE PATIO AWNING
ITEM # 96072/96074
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.0880
1
2

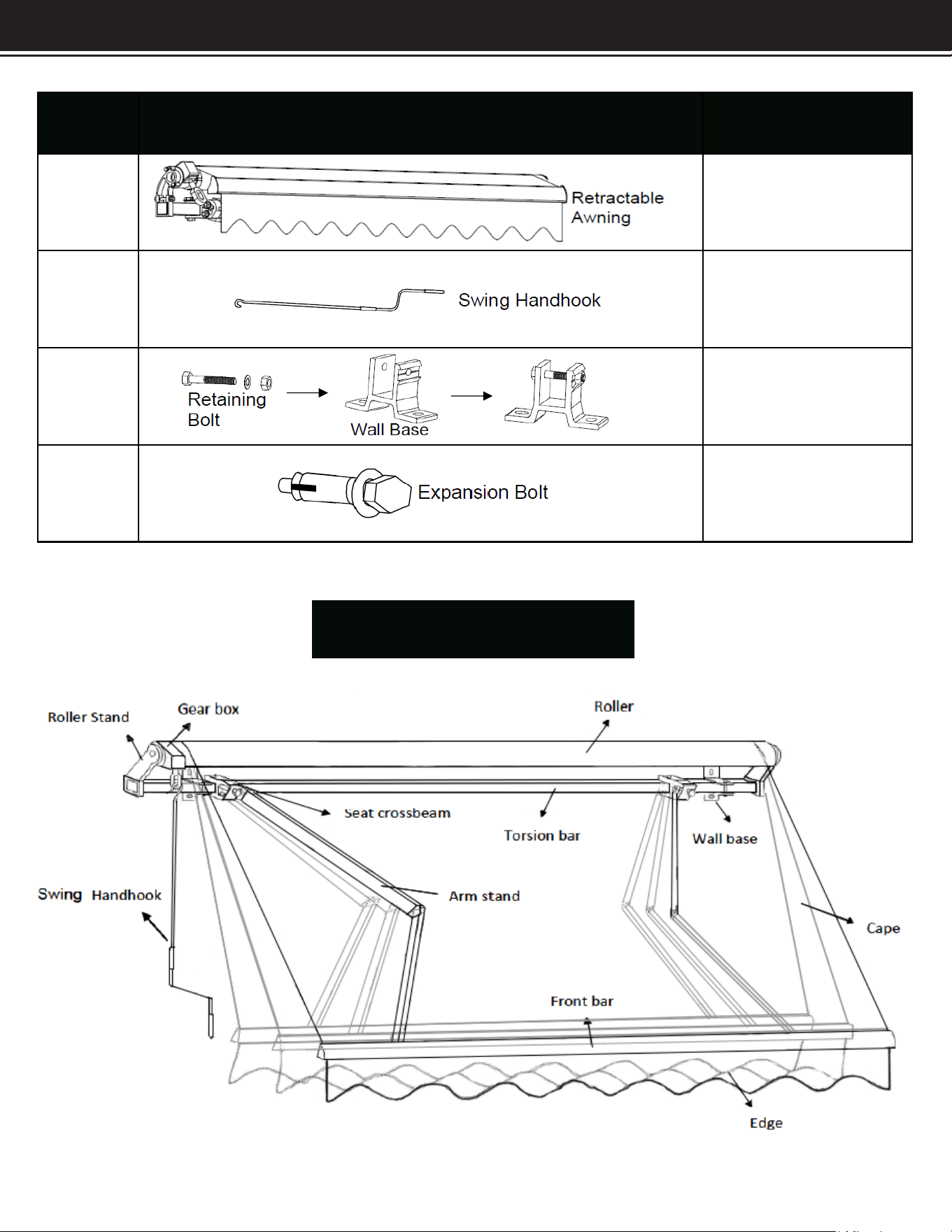

PARTS LIST AND PRODUCT VIEW
PART
NO.
QUANTITY
Product View
1PC
C 2SETS
D 4PCS
A
PART PICTURE
1PC
B
(M10)
(Φ 14)
ASSEMBLY
3
Step 1
Step 2

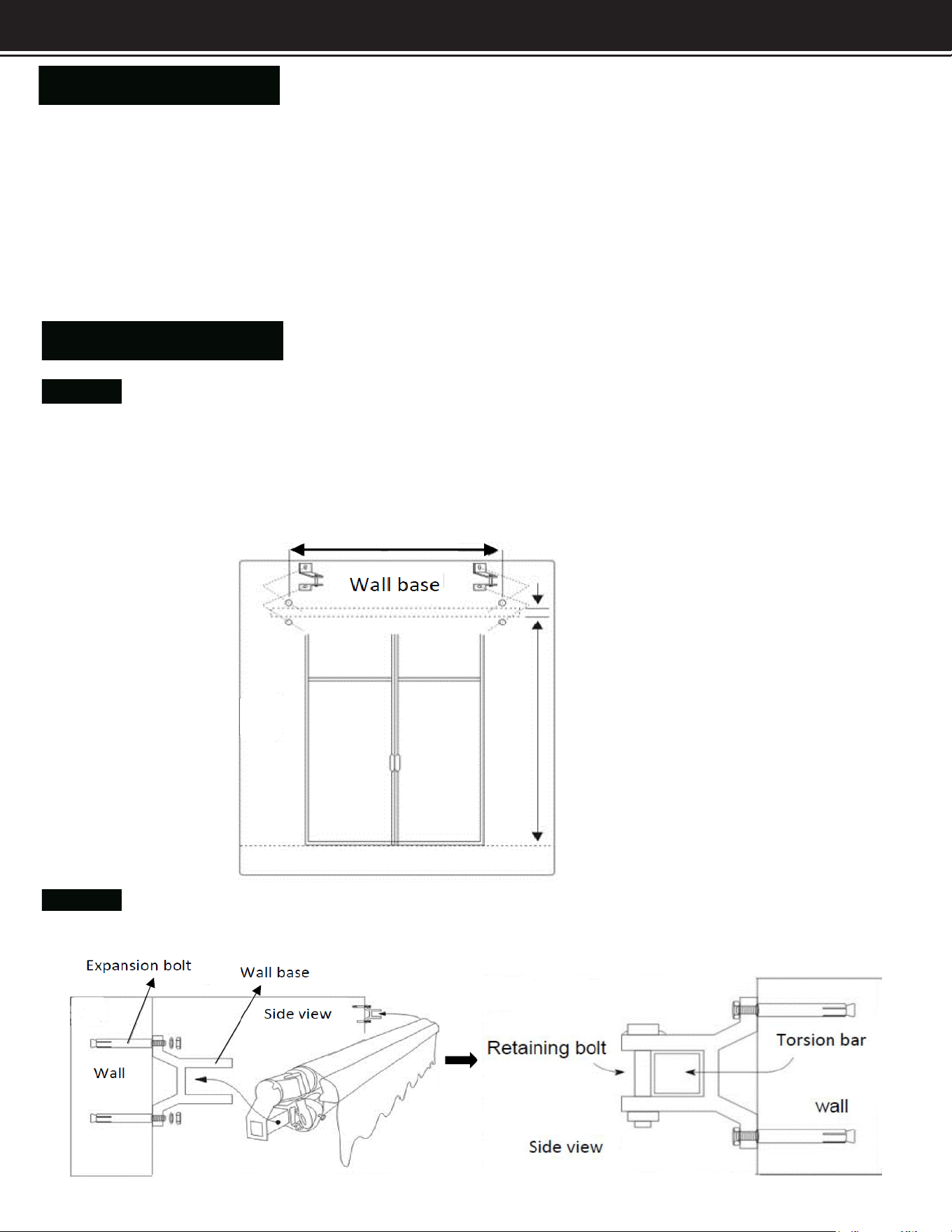

• When selecting the proper height that you want to install the bracket and awning, the space and
angle should be considered and marked on the wall.
• Install the two brackets along the line. A maximum distance of 1700mm / 67inch from each
bracket is suggested.
• The screws in the list are only suitable to be used on a concrete or solid wall.
Lift the awning into brackets and then fix it by M10 bolt.
Installation Guide
The awning can be easily installed in about 30 minutes. For safe and easy locating of the awning,
we recommend that 2 persons assist with lifting and positioning.
Suggested Tools:
1. Electric hammer
2. Φ14 shock drill
3. Level
4. Wrenches(one power socket near the position of installation is needed)
Installation Step

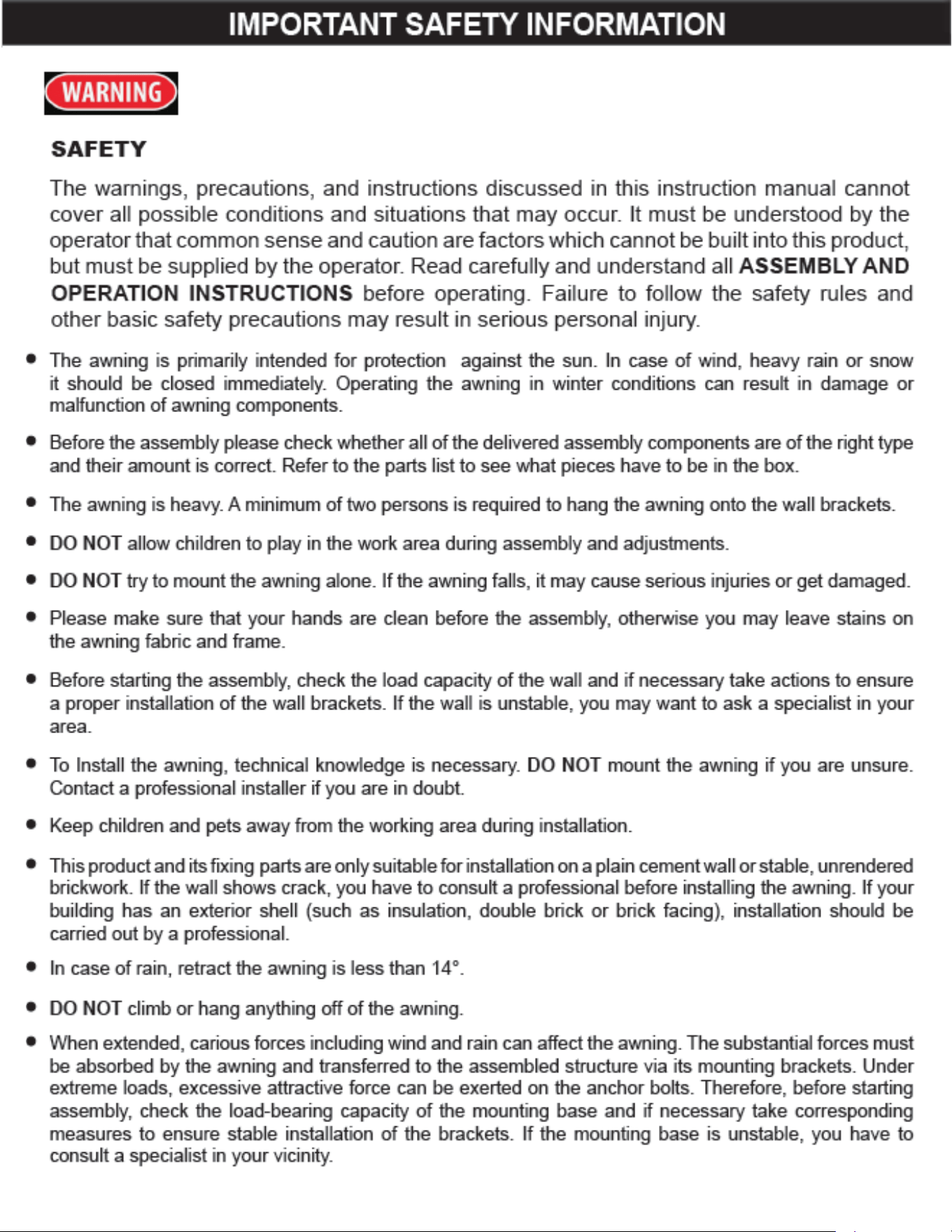

SAFETY INFORMATION
4
ASSEMBLY
Step 3
Step 4
ATTENTION
1. Do not hang clothes on any part of the awning.
2. You should often check the fixed bracket has become loose in the wind. If it loose, contact a
professional to fix.
3. The awning should be fully retracted/closed in windy conditions.
Hang the Swing Hand hook up.

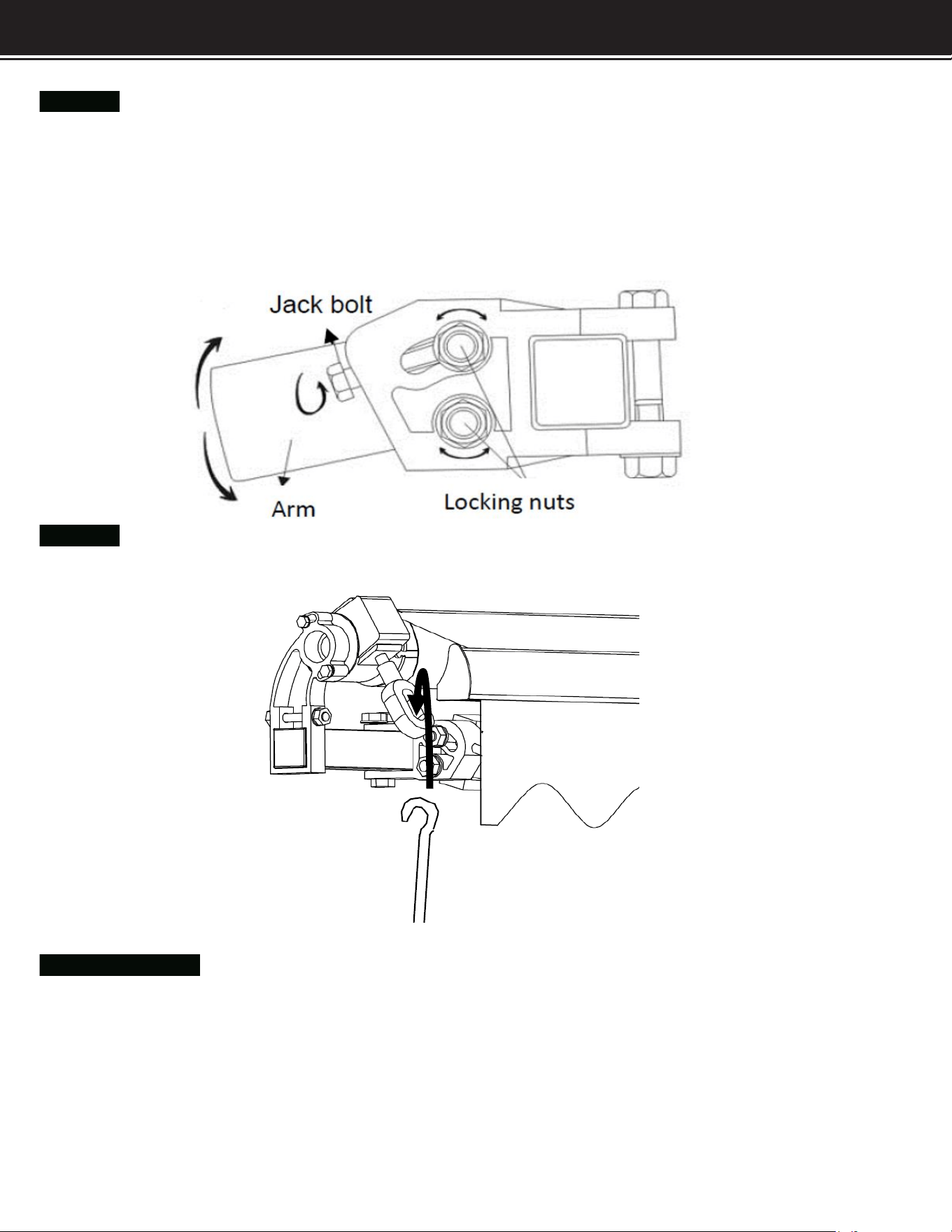

The inclination of the awning is set by adjusting the Jack bolt and Locking nuts of the two arms.
Loosen all the Jack bolt and Locking nuts, then adjust the arm:
• If you want the arm to go up, lift the arm and tighten all the Jack bolt and Locking nuts;
• If you want the arm to go down, lower the arm and tighten all the Jack bolt and Locking nuts;
3
OF NOTE
5
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
MADE IN CHINA
DISCLAIMER
