User guide
Thank you for purchasing this Samsung product.
To receive more complete service, please register your
product at
www.samsung.com
Model Serial No.
To directly go to the page that provides instructions on
how to use the manual for visually impaired users, select
the Menu Learning Screen link below.
"Menu Learning Screen" Link
Contents
Guide
Projector Screen Adjustment
6 Adjusting the screen by moving the Projector
9
Adjusting the screen by using menu items of the product
12 Adjusting the Keystone from SmartThings on the mobile
device (The Freestyle)
Connections
13 Connection Guide
15 Connecting to the network
19 Using Touch Mode (applicable to The Premiere 5 series only)
23 Displaying your mobile device screen on the Projector
25
Connection Cables for External Devices
27 Switching between external devices connected to the
Projector
30 Connection Notes
33 Using Multi Control
33 Using Storage Share
Remote Control and Peripherals
34 About the Samsung Smart Remote
36 Connecting the Samsung Smart Remote to the Projector
37 Controlling External Devices with a Samsung Remote
Control - Using the Universal remote setup
38 Learn how to use Samsung Smart Remote
38 Learn how to use Game Controller
39 Using Anynet+ (HDMI-CEC)
40 Controlling the Projector with a Keyboard, Mouse or
Gamepad
44 Entering Text using the On-Screen Virtual Keyboard
Smart Features
46 Using Smart Hub
50 Using Ambient Mode
56 About the Generative Wallpaper
58 About the Samsung Daily+ Home screen
60 Using Samsung Gaming Hub
62 Using the Home Function
63 About the For You / Discover Home Screen
66 About the Live Home Screen
67
About the Apps Home Screen
72 About the Settings Home Screen
78 Using a Samsung account
81 Using Workspace
88 Using TV Access
90 Using a larger screen by putting two screens together
91 Using the User guide
93 Using the Internet
94
Using SmartThings
99 Playing pictures/video/music
105 Using Multi View
Advanced Features
107
Using Intelligent Mode
109 Using Voice Assistants
110 Using Bixby
116 Using Game Mode
119 Using the Game Bar
124 Conguring Start Screen
Projector Viewing
125
Using the Guide
127 Setting Up Schedule Viewing
129 Using the Channel List
130 Using the channel edit function
131 Using a Personal favourites List
132 Projector-Viewing Support Functions
Picture and Sound
133 Adjusting the Picture Quality
137 Picture Support Functions
138 Setting the Viewing Environment for External Devices
139 Conguring a Sound Mode and Expert Settings
141 Using the Sound Support Functions
System and Support
145 Using the Time Functions and the Timers
148 Using the Power and Energy Saving Functions
150 Updating the Projector's Software
152 Using the Parental Settings function
153 Audio and Video Functions for the Visually or Hearing
Impaired
161 Using Other Functions
Precautions and Notes
165 Read Before Using Apps
166 Read Before Using the Internet Function
168 Read Before Playing Photo, Video or Music Files
175 Read After Installing the Projector
176 Supported Resolutions for UHD Input Signals
177 Read Before Connecting a Computer (Supported
Resolutions)
180 Supported Resolutions for Video Signals
182
Read Before Using Bluetooth Devices
183 Licences & Other Information
Troubleshooting
Picture Issues
185 The screen is ashing or has become dark
186
The picture is not bright, or the picture colours do not look
clear
186 The picture colours are black and white or do not look the
way they should look
187 The Projector automatically turns off by itself
187 Unable to power on
188 Unable to nd a Channel
188 The Projector image does not look as good as it did in the
store.
188 Displayed video looks blurry
189 The picture is distorted.
189
There is a dotted line on the edge of the screen.
190 The pattern screen appears every time I turn on the
Projector.
190 The picture won’t display in full screen.
190 The Subtitle function in the Projector menu is deactivated.
191 Subtitles appear on the Projector screen.
191 The HDR of the connected external device turns off.
Sound and Noise Issues
192 How can I connect an audio device to the Projector?
192 There is no sound or the sound is too low at maximum
volume.
192 The picture is good but there is no sound.
193 HDMI (eARC/ARC) is connected, and there is no sound.
193 The speakers are making an odd sound.
193 The sound is interrupted.
194 Whenever a function is used on the Projector or the channel
is changed, the Projector voices the activity. The Projector
explains in voice-over the video scenes displayed on the
screen.
194 The Projector audio is not being played through the
Soundbar or A/V receiver.
194 The sound is not heard clearly.
195 The volume of the external device cannot be adjusted.
195 I want to turn the Projector and audio device off and on at
the same time.
External Device Connectivity Issues
196 The "Mode Not Supported" message appears.
196
The video is OK but there is no audio.
196 I want to connect to a PC and mobile device via screen
mirroring.
197 No screen appears when connecting the Projector to an
external device.
197 I want to connect to a Bluetooth speaker.
197 The PC screen does not appear or it ickers.
Network Issues
198 Wireless network connection failed. Unable to connect to a
wireless access point. Unable to connect to the network.
198
Wired network connection failed.
199 Connected to a local network, but not to the Internet.
Anynet+ (HDMI-CEC) Issues
200 What is Anynet+?
200
Anynet+ does not work. The connected device is not
displayed.
200 I want to start Anynet+. I also want the connected devices to
turn on when the Projector is turned on.
201 I want to exit Anynet+. It is inconvenient to turn on
other devices because the Projector also turns on. It is
inconvenient because the connected devices (e.g. set-top
box) turn off together.
201
The message "Connecting to Anynet+ device..." or
"Disconnecting from Anynet+ device" appears on the screen.
201 The Anynet+ device won't play.
Remote Control Issues
202 The remote control does not work.
202 External devices cannot be operated with the Projector
remote control.
Apps
203 I cannot nd the app I want.
203 I launched an app, but it's in a different language. How can I
change the language?
203 The app does not work properly. Its image quality is poor.
204 The Smart Hub Home Screen keeps appearing whenever you
turn on the Projector.
Media Files
205 Some les are interrupted during playback.
205
Some les can't be played.
Voice Assistant Issues
206 The microphone is off.
206 The voice commands do not work well.
207 Bixby/Alexa answers although I did not call it.
207 I spoke "Hi, Bixby/Alexa" but Bixby/Alexa does not answer.
208 Voice recognition does not work with the Samsung Smart
Remote unlike other features. There is no response even if
the Voice Assistant button is pressed.
208
During voice recognition, the heavy load message appears
and the function does not work.
208 I want to see weather information of the desired area.
Other issues
209 The Projector is hot.
209
The Projector smells like plastic.
209 The settings are lost after 5 minutes or every time the
Projector is turned off.
210 The Projector is tilted to the side.
210 A POP (Projector’s internal banner ad) appears on the
screen.
210 The Projector is making a popping noise.
210 The Projector is making a humming noise.
211 The screen is off, but I hear noise.
211 The Projector narrates the screen events in voice-over.
211 Touch input does not work properly.
Diagnosing Projector operational issues
212 Self Diagnosis
213 Reset Smart Hub
213 Reset picture
213 Reset sound
Getting Support
214
Getting support through Remote Management
214 Finding the contact information for service
214 Requesting service
Accessibility Guidance
Menu Learning Screen
215 Using the Remote control
217
Using the accessibility menu
222 Using the Projector with Voice Guide on
224 Using the guide
227 Using Schedule Viewing
229 Using the Channel List
230 Using Smart Hub
233 Launching the User guide
234 Using Bixby
Guide
Learn how to use various features.
Projector Screen Adjustment
Adjust the size, keystone or focus for the projected screen by moving the Projector or using the screen adjustment
menu.
Adjusting the screen by moving the Projector
When the screen looks skewed or blurry, adjust the screen.
1.
Move the Projector left/right to adjust the angle. Install the Projector on a at surface, and move it so that the
projected screen is rectangular.
If your Projector is a model that has angle adjustment feet on the bottom, use the angle adjustment feet to
adjust the height so that the projected screen is rectangular.
Some models do not have angle adjustment feet on the bottom.
The product colour and shape may vary depending on the model.
- 6 -
2.

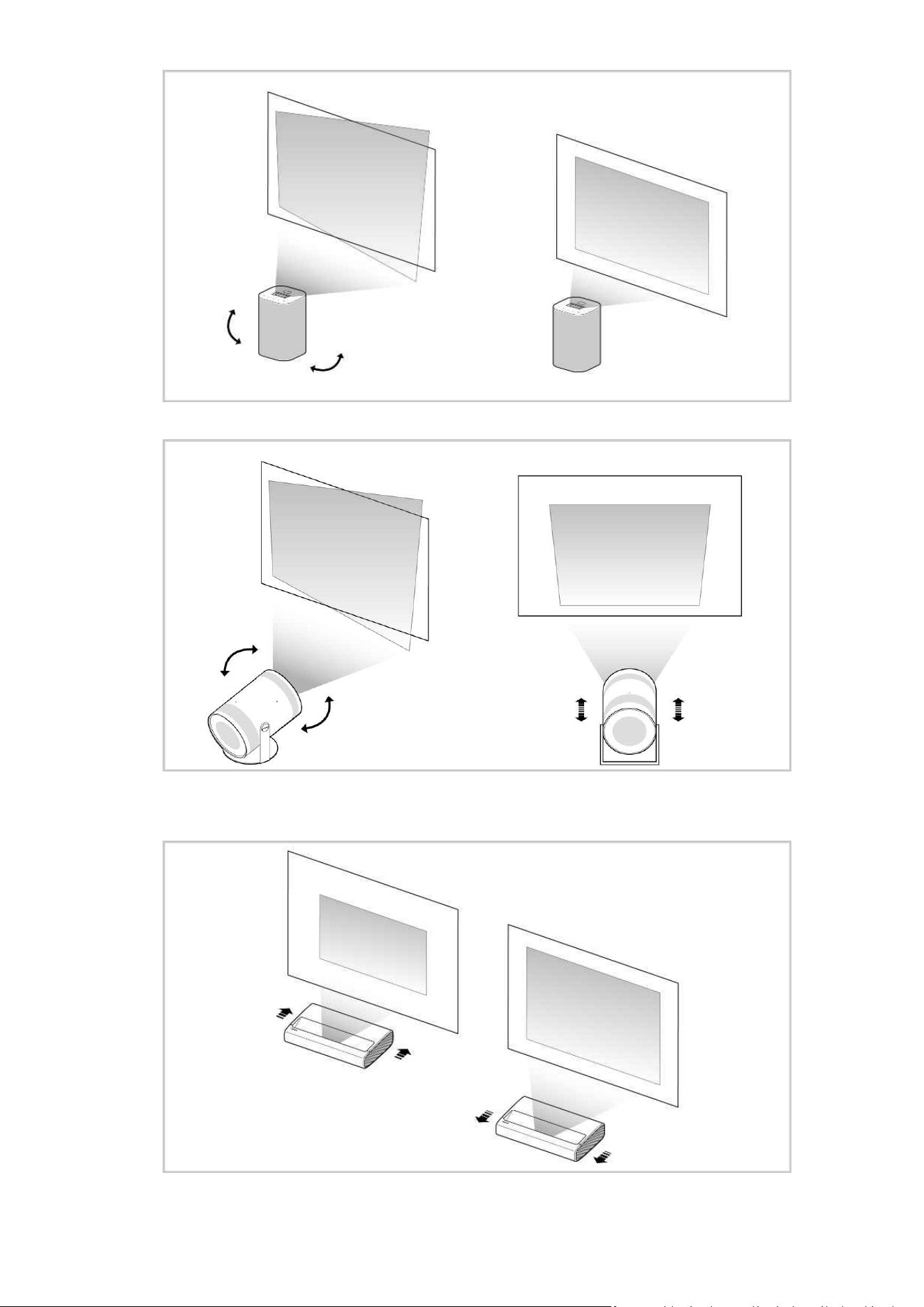

Move the Projector back and forth to adjust the screen size.
- 7 -
When the screen looks skewed or distorted, use the, Keystone ( left directional button Settings All Settings
Projector Settings Keystone) function. Try Now
When the screen looks blurry, use the Focus ( left directional button Settings All Settings Projector
Settings Focus) function. Try Now
For more information about screen adjustment, refer to "Adjusting the screen by using menu items of the product".
- 8 -
Adjusting the screen by using menu items of the product
Adjust the Projector's mode options and installation settings for your viewing environment.
Guide to screen adjustment
left directional button Settings All Settings Projector Settings
Adjust the Projector's mode options and installation settings for your viewing environment.
• Auto Keystone
By selecting the menu, you can turn on or off the Auto Keystone function.
This function may not be supported depending on the model.
Users' fine adjustment may be required, depending on the environment in which the product is used.
In Auto Keystone mode, use the directional buttons on the remote control to finely adjust the angle or shape of the
displayed screen.
• Keystone Try Now
Fix a distorted image on the screen based on the projection angle.
This function may not be supported depending on the model.
This feature may be affected by the external illuminance, the distance between the Projector and wall, and the
projection surface.
• Auto Scale
Automatically adjusts the projection screen by sensing flatness and obstacles in the projection area, to activate
the touch function.
Only The Premiere 5 series supports this feature.
This feature is enabled only when the touch stand is attached or floor projection mode is in use.

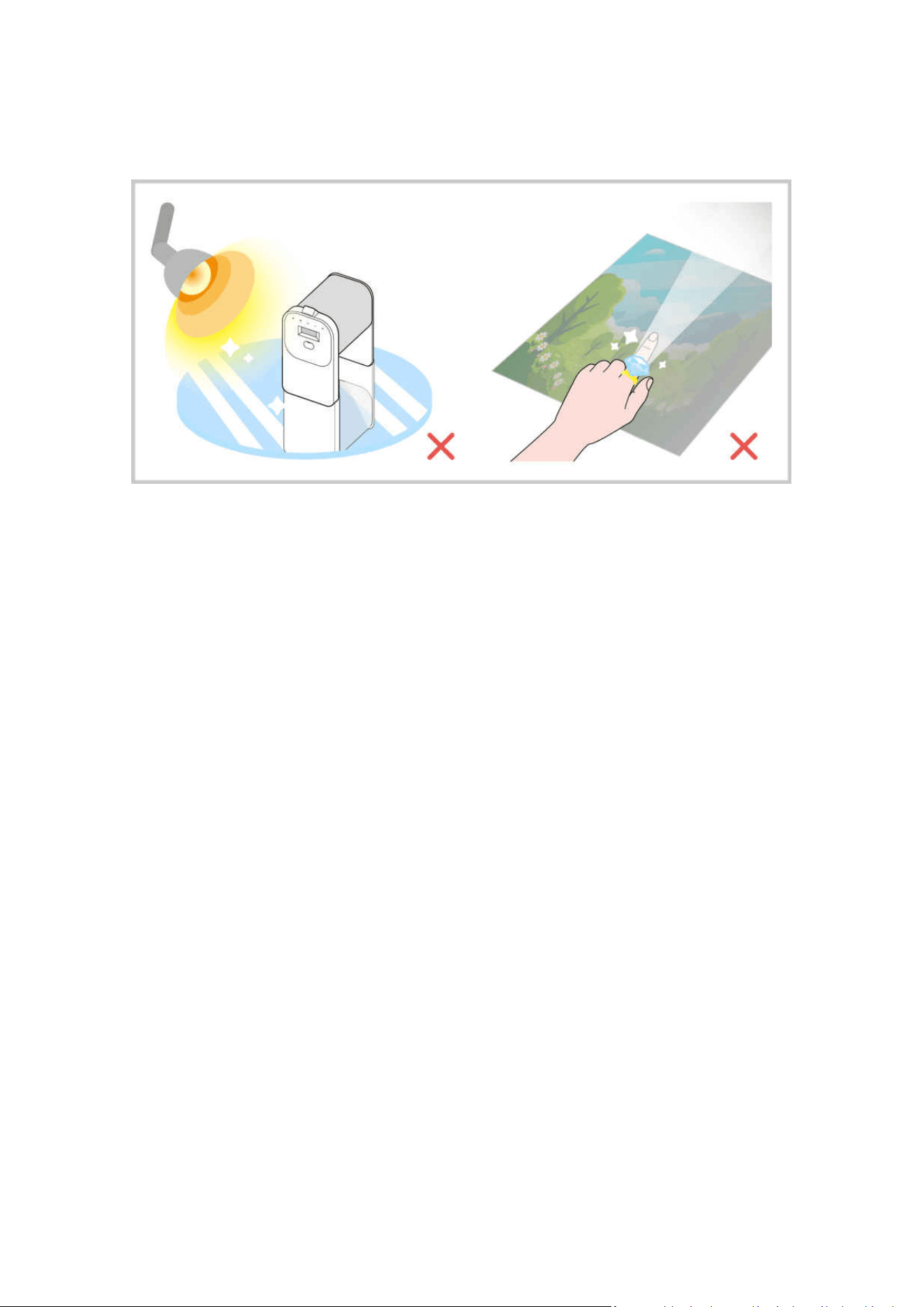

This feature may not work if:
– There are small, transparent or highly reflective objects within the touch area
– The colour of the projection surface is the same as the surroundings
– The recognised touch area is smaller than 50 % of the projection screen size
- 9 -
• Auto Focus
Set focusing mode to Auto or Manual.
This function may not be supported depending on the model.
Users' fine adjustment may be required, depending on the environment in which the product is used.
• Focus Try Now
This feature adjusts the projected screen focus.
This function may not be supported depending on the model.
• Scale and Move Screen Try Now
Enlarge or reduce the screen scale. You can also move the screen.
This feature may not support some actions, if touch mode is in use.
• Touch Activation
Activates the touch function by running touch area recognition.
Only The Premiere 5 series supports this feature.
This feature is enabled only when the touch stand is attached or floor projection mode is in use.
• Auto Flip Screen Vertically Try Now
When the direction of the Projector is changed, the screen automatically flips upside down.
This function may not be supported depending on the model.
- 10 -
•
Projection Mode Try Now
This feature changes the direction of the image projection according to the projector's installation direction.
– Front / Front Ceiling / Rear / Rear Ceiling
• Eye Protection Mode Try Now
This feature protects the user's eyes from the laser when they are close to the projector.
This function may not be supported depending on the model.
The menu name or position for this feature may vary, depending on the model.
• Rollable Screen Connection Try Now
Connect the projector and the rollable screen to automatically reveal or retract the screen when the projector is
turned on or off.
This feature is only supported for compatible Rollable Screen models.
The Rollable Screen's power must be turned on.
Install it with the IR receiver on the Rollable Screen not covered.
For the interlocking of the Projector and the Rollable Screen, place the Projector transmitter to point in the direction of
the Rollable Screen IR receiver.
When the Rollable Screen stops while running, wait and try again.
This function may not be supported depending on the model.
• High-Altitude Mode Try Now
This feature prevents the projector from overheating when operating at high altitudes.
To use the Projector at a height greater than 1219 m, turn on High-Altitude Mode. If this mode is turned on, the fan
speed increases and loud noise may be experienced.
The Projector can only be used at a height of 3048 m or less.
• Setup Guide Try Now
This guide shows you how to adjust the size and shape of the projection screen when installing Projector.
- 11 -
Adjusting the Keystone from SmartThings on the mobile device (The
Freestyle)
Use SmartThings on your mobile device to adjust the Keystone based on your viewing position.
Register the Projector to SmartThings on your mobile device. Next, from the SmartThings app on the mobile device,
select the registered Projector and then select Personal Keystone.
Follow the instructions provided in the SmartThings app to proceed.
The keystone is adjusted based on your viewing position, by analysing the current viewing environment through the
mobile device.
This feature can be useful when projecting onto a slanted wall, such as a wall of a tent, or when projecting onto the
ceiling in a bedroom.
This function may not be supported depending on the model or geographical area.
Ensure that the mobile device and Projector are connected to the same Wi-Fi network.
The availability and menu name of this feature are subject to change, depending on updates.
The screen may not look rectangular, depending on the surrounding environment. You can adjust the screen to the
appropriate shape by changing screen settings from the mobile device.
- 12 -
Connections
You can get access to the network by using a wireless access point. Using connectors, you can also connect external
devices to your Projector.
Connection Guide
You can view detailed information about external devices that can be connected to the Projector.
left directional button Connected Devices Connection Guide Try Now
It shows you how to connect various external devices such as video devices, game consoles and PCs using pictures.
If you select the connection method and an external device, the connection details appear.
The connection method and available external devices may differ depending on the model.
• Audio Device: HDMI (eARC/ARC), Optical, USB, Bluetooth, Wi-Fi
• Video Device: HDMI
• Smartphone: Screen Sharing (Smart View), Screen Sharing (Tap View), Samsung DeX, SmartThings, Camera
Sharing, Apple AirPlay, NFC on TV
• PC: HDMI, Screen Sharing (Wireless), Easy Connection to Screen, Apple AirPlay
• Input Device: Touch Stand, Remote Control, USB Keyboard, USB Mouse, USB Gamepad, USB Camera, Bluetooth
Device
• Game Console: HDMI
• External Storage: USB Flash Drive
Using HDMI Troubleshooting, you can check the connection to HDMI cable and external devices (takes approximately 2
minutes).
The connection method and available external devices may differ depending on the model.
Some functions may not be supported depending on the model or geographical area.
- 13 -
The image on your Projector may differ from the image above depending on the model and geographical area.
The menu names are displayed in the language set for your region.
- 14 -
Connecting to the network
You can get access to the network through your Projector.
left directional button Settings All Settings Connections Network Network
Settings Try Now
Congure network settings to connect to an available network.
To ensure safe and secure use of the product, connect to the network using a securely managed router.
When the network is connected, it enables casting YouTube content, DLNA, Wi-Fi Speaker, SmartThings, HBB Companion
Screen and Screen Mirroring. Services supported by software updates are subject to change.
Establishing a wired network connection (applicable to The Premiere 7/9 series only)
left directional button Settings All Settings Connections Network Network
Settings Wired
If you connect a LAN cable, the Projector automatically accesses the network.
If the Projector does not automatically connect to the network, refer to "Wired network connection failed." in
"Troubleshooting".
To connect a LAN cable, use a CAT 7 (*STP type) cable for the connection. (100/10 Mbps)
* Shielded Twisted Pair
The Projector will not be able to connect to the network if your network speed is below 10 Mbps.
This function may not be supported depending on the model.
Wired networks are not supported by some models.
- 15 -
Establishing a wireless network connection
left directional button Settings All Settings Connections Network Network
Settings Wireless
Make sure that you have the wireless access point's name (SSID) and password settings before attempting to
connect. The network name (SSID) and security key are available on the wireless access point's conguration
screen. See the wireless access point's user manual for more information.
The product colour and shape may vary depending on the model.
- 16 -
The image on your Projector may differ from the image above depending on the model and geographical area.
If no wireless access point is found, select Add Network at the bottom of the list and enter the network name (SSID).
If your wireless access point has a WPS or PBC button, select Use WPS at the bottom of the list, and then push the WPS or
PBC button on your access point within 2 minutes. The Projector will connect automatically.
To view or delete previously connected network names (SSIDs), move the focus to Manage, and then press the Select
button.
To disconnect Wi-Fi, select Disconnect in left directional button Settings All Settings Connections
Network Network Status. Try Now
Checking the network connection status
left directional button Settings All Settings Connections Network Network
Status Try Now
View the current network status.
Resetting Your Network
left directional button Settings All Settings Connections Network Reset
Network Try Now
Restore the network settings to the factory default.
- 17 -
Turning on the Projector with a mobile device
left directional button Settings All Settings Connections Network Expert
Settings Power On with Mobile Try Now
You can turn on the Projector using a mobile device connected to the same network as the Projector.
This function is available with a mobile device connected to the Projector through the SmartThings app or the Apple AirPlay
function.
Apple AirPlay may not be supported depending on the model or geographical area.
Connecting an IP control device to the Projector
left directional button Settings All Settings Connections Network Expert
Settings IP Remote Try Now
You can connect an IP control device to the Projector remotely to manage your IP device.
To use this function, Power On with Mobile must be turned on.
Turning this feature on may allow other IP control devices to control your Projector. We recommend turning this feature
on only if an authorised third-party custom controller is installed and congured specically for a Samsung Projector and if
your Wi-Fi network is password protected.
This function may not be supported depending on the model or geographical area.
Allowing to connect a wireless network
left directional button Settings All Settings Connections Network Expert
Settings Wi-Fi Try Now
You can enable the connection to Wi-Fi.
To connect a wireless network, the function must be active.
Changing the name of the Projector
left directional button Settings All Settings Support About the Projector Edit
Name Try Now
You can change the name of the Projector on the network.
- 18 -
Using Touch Mode (applicable to The Premiere 5 series only)
Use the oor projection feature by combining the Projector with the Touch Stand.
left directional button Settings Support Tips and User Guides Connection Guide
Input Device Touch Stand
This function may not be supported depending on the model.
Some apps may not support touch input.
If you turn the Projector off and on when touch mode enabled, the touch area recognition mode for calibration of projection
surface coordinates is automatically activated. For details on touch area recognition, refer to the “The pattern screen
appears every time I turn on the Projector.” section under “Troubleshooting.”
While in touch mode, use of a connected camera is restricted, regardless of whether it is connected with or without a cable.
While in touch mode, conguring Smart Edge Blending settings is restricted.
While in touch mode, conguring Keystone or Focus settings is restricted.
While in touch mode, conguring Move Screen settings under the Scale and Move Screen menu is restricted.
In touch mode, a maximum of 10 simultaneous touch inputs are supported.
The maximum number of simultaneous touch inputs may differ between apps. If ve or more touch inputs are made
simultaneously, the product’s operation may slow down in some apps.
- 19 -
Pairing Touch Stand
1.
Connect the Touch Stand to the front and rear of the Projector. Touch mode may not work properly if the Touch
Stand is not connected correctly.
For details on how to connect it, refer to the "Simple User Guide.”
Touch input may not work properly if the camera lens or IR sensor of the Touch Stand is dirty. Use a cotton swab or
soft cloth to remove any dirt.
2.
Place the Projector, connected to the Touch Stand, on a clean, level surface. If touch area recognition fails,
touch mode may be disabled.
If there is an obstacle in front of the Projector, touch-related features may not work properly. Remove any obstacles
around the Projector.
Touch mode may not work properly if the product and the projected oor are not at the same height.
Project images on a surface larger than the projected screen size. The projection screen size can be automatically
adjusted to t the environment in which the Projector is installed, using the Auto Scale feature ( left directional
button Settings All Settings Projector Settings Auto Scale).
- 20 -
Checking environment conditions for using the touch function
Touch input may not work properly under the following conditions. Avoid the following when installing or using the
Projector.
– Uneven projection surfaces
– Dark or reflective projection surfaces
– Conditions in which infrared rays emitted from any external devices (e.g., mobile devices, cameras, or remote
controls) interfere with the projection surface
– Use of the touch function in an indoor location exposed to strong natural light
– Under strong light sources, such as direct sunlight, halogen or incandescent lights
– Using an external light source (e.g., a candle) close to the Projector
– Use of the touch function while wearing a light-reflective accessory or nail art
– Use of the touch function while wearing gloves or long sleeves extending over the back of the hand
– Application of excessive force to the product
– Presence of an obstacle around the projection surface or between the product and projection surface
– Putting your hand close to the Projector light source
- 21 -
Using the Remote Control when the Touch Stand is Connected
If the Touch Stand is connected and an IR signal is present in the vicinity, interference may occur in the IR sensor
located at the bottom of the Touch Stand.
Use the Touch Lock feature to prevent your content viewing from being interrupted by unintended touch operations.
If the remote control is disconnected from the Projector, it may cause interference with the IR sensor on the touch stand. If
this occurs, point the remote control at the top of the main body of the Projector and try pairing again.
For details on how to pair with the remote control, refer to the “Connecting the Samsung Smart Remote to the Projector”
section.
- 22 -
Displaying your mobile device screen on the Projector
You can watch the screen of your mobile device on the Projector screen through Smart View, Apple AirPlay or Tap
View.
When you start screen sharing with a mobile device (Smart View/Apple AirPlay/Tap View), the Projector screen
switches to the Multi View or mobile device's screen. Watch multiple contents at the same time with the Multi View
screen.
This function may not be supported depending on the model.
For more information, refer to "Using Multi View".
This feature may not support touch input, depending on the mobile device model.
If there is a problem with using touch mode after screen sharing, move the mobile device away from the Projector. For
details, refer to the “Touch input does not work properly.” section under “Troubleshooting.”
Using Screen Sharing (Smart View)
For information on how to share the screen with your mobile device, refer to left directional button
Connected Devices Connection Guide Smartphone Screen Sharing (Smart View). Try Now
• To turn off Screen Sharing (Smart View), disconnect the mobile device or press the button on the remote
control.
• Using the Smart View menu on your mobile device, you can change the settings such as aspect ratio.
Using Apple AirPlay
Use AirPlay if you are an iPhone or iPad user. For more information, refer to left directional button
Connected Devices Connection Guide Smartphone Apple AirPlay. Try Now
This function may not be supported depending on the model or geographical area.
To use Apple AirPlay, make sure Apple AirPlay Settings is enabled.
– left directional button Settings All Settings Connections Apple AirPlay Settings*
– left directional button Settings All Settings Advanced Features Apple AirPlay Settings*
*: The menu name or position for this feature may vary, depending on the model.
- 23 -
Using Screen Sharing (Tap View)
Tap your mobile device on the Projector, you can watch the Multi View or mobile device's screen through the
Projector screen. When you tap a mobile device on your Projector while running a music app on your mobile device,
the Projector screen switches to the Music Wall screen.
1.
Enable Tap View, Tap Sound on your mobile device.
For more information about conguration, refer to "Enabling Tap View".
2.
Turn on the screen of your mobile device.
3.
Tap your mobile device on the Projector. The Projector screen switches to Multi View, Music Wall, or mobile
device's screen.
When you perform Tap View while in Ambient mode, only the mobile device's screen appears on the Projector.
4.
Watch the Multi View, Music Wall, or mobile device's screen on the Projector screen.
This function may not be supported depending on the model.
This function is available in Samsung mobile devices with Android 8.1 or higher.
Music Wall screen is a function that allows you to enjoy music along with visual video effects that change according to the
genre and beat of the music.
The displayed Projector screen may differ depending on the model.
This function enables Screen/Sound Mirroring by detecting vibrations generated when you tap the mobile device on the
Projector.
Be sure to tap away of the Projector. It may be scratched or broken to the Projector or mobile device screen.
We recommend using your mobile device with the cover in place and lightly tap it on any external edge of the Projector.
Enabling Tap View
Enable Tap View in the SmartThings app.
Depending on the SmartThings app version, you may need to register the Projector with your mobile device.
This function may not be supported depending on the model.
1.
Launch the SmartThings app on your mobile device.
2.
Select Settings ( ) in SmartThings app on your mobile device.
3.
Set Tap View, Tap Sound to on.
Upon connection for the rst time, select Allow on a pop-up window of the Projector.
- 24 -
Connection Cables for External Devices
You can view detailed information about the connection cables for external devices that can be connected to the
Projector.
• The Premiere 7/9 series
Available connection cables may differ depending on the model or geographical area.
Cable name Image Description
HDMI
to
HDMI
Each cable simultaneously transmits digital video and audio signals
from an external device to the HDMI port on the Projector.
Cables are divided into various types according to the types of input/
output ports on external devices.
HDMI
to
MINI HDMI
HDMI
to
Micro HDMI
HDMI
to
USB Type-C
HDMI
to
DisplayPort
Mini DisplayPort
to
HDMI
- 25 -
Cable name Image Description
DVI
to
HDMI
DVI to HDMI cables can transmit only digital video signals and not
audio signals. We recommend that you use HDMI to HDMI cables.
Optical
Optical cables are used to transmit audio signals to external
speakers with low signal loss.
Optical cables can't transmit video signals.
• The Freestyle,The Premiere 5 series
Available connection cables may differ depending on the model or geographical area.
Cable name Image Description
Micro HDMI
to
HDMI
Each cable simultaneously transmits digital video and audio signals
from an external device to the Micro HDMI port on the Projector.
Cables are divided into various types according to the types of input/
output ports on external devices.
Micro HDMI
to
USB type-C
Micro HDMI
to
Micro HDMI
Micro HDMI
to
Mini HDMI
- 26 -
Switching between external devices connected to the Projector
You can switch between Projector programmes and the content of external devices.
left directional button Connected Devices
When you select a connected external device on the Sources screen, the output of the selected device is displayed
on the Projector's screen.
To control a device (Blu-ray player, game console, etc.) that supports universal remote control with the Projector's remote
control, connect the device to an HDMI port on the Projector, and then turn on the device. The output displayed on the
Projector is automatically switched to the output of the device or you can congure universal remote control for the device
automatically. For more information, refer to "Controlling External Devices with a Samsung Remote Control - Using the
Universal remote setup".
When a USB device is connected to the USB port, a pop-up message appears that lets you switch easily to the media
content listed on the device.
This function may not be supported depending on the device and geographical area.
This function may not be supported depending on the model.
- 27 -
Editing the name and icon of an external device
left directional button Connected Devices
You can change the port name for a connected external device or add it to the Home Screen.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.
Move the focus to a connected external device.
2.
Press and hold the Select button. The following functions become available:
Available functions may differ depending on the port type.
1.Edit
You can rename the input ports and change the device icons.
2.Information
You can view detailed information about an external device.
3.Add to Home
You can add the port of an external device to the Home Screen for quick switching.
- 28 -
Using additional functions
You can use the SmartThings feature.
• SmartThings
It allows the Projector to connect and control the detected various devices in the same space.
For more information about SmartThings , refer to "Using SmartThings".
This function may not be supported depending on the model or geographical area.
You can use the following features on the Sources screen.
• Camera Experience
Connect a USB camera, or use the SmartThings app on your mobile phone to connect a camera.
Connect a camera to use video call, home workout, and other new features.
For details on how to connect, refer to Camera Share ( left directional button Connected Devices
Connection Guide Smartphone Camera Share).
For models that support touch mode, camera connections are not supported while in touch mode.
This function may not be supported depending on the model or geographical area.
• TV Access
By mirroring, you can watch Projector from the Projector screen.
For more information, refer to "Using TV Access."
• Connection Guide
Displays device connection instructions.
For more information, refer to "Connection Guide".
• Universal remote setup
Lets you register external devices to your Samsung remote control and control them using the Remote.
This function may not be supported depending on the model or geographical area.
For more information, refer to "Controlling External Devices with a Samsung Remote Control - Using the Universal
remote setup".
- 29 -
Connection Notes
When connecting an external device, note the following.
The number of connectors and their names and locations may differ with the model.
Refer to the external device's operating manual when connecting it to the Projector. The number of external device
connectors and their names and locations may differ with the manufacturer.
Connection notes for HDMI
• The following types of HDMI cables are recommended:
– High Speed HDMI Cable
– High Speed HDMI Cable with Ethernet
– Premium High Speed HDMI Cable
– Premium High Speed HDMI Cable with Ethernet
– Ultra High Speed HDMI Cable
• Use an HDMI cable with a thickness of 17 mm or less.
• Using a non-certified HDMI cable may result in a blank screen or a connection error.
• Some HDMI cables and devices may not be compatible with the Projector due to different HDMI specifications.
• This Projector does not support HDMI Ethernet Channel. Ethernet is a Local Area Network (LAN) built with
coaxial cables standardised by the IEEE.
Some models may not support wired networks.
• Use a cable shorter than 3 m to get the best UHD viewing quality.
UHD content may not be supported, depending on the model.
• Many computer graphics adapters do not have HDMI ports, but have DVI or DisplayPort ports instead.
If connecting a computer that does not support HDMI, use an HDMI-DVI cable or HDMI-DisplayPort cable to connect the
computer to the Projector. (This function may not be supported depending on the model.)
• When the Projector is connected to an external device such as a DVD/BD player or a set-top box via HDMI,
power sync mode will be automatically activated. In the power sync mode, the Projector continues to detect and
connect external devices via HDMI cable. This function can be deactivated by removing the HDMI cable of the
connected device.
This function may not be supported depending on the model.
- 30 -
Connection notes for audio devices
• To obtain better Projector audio quality, connect a soundbar or A/V receiver to the Projector.
• If you connect an external audio device using an optical cable, the Sound Output setting automatically changes
to the connected device. However, to make this happen, you must turn on the external audio device before
connecting the optical cable. To manually change the Sound Output setting, do one of the following:
This function may not be supported depending on the model.
– Use the Quick Settings screen to change to the connected device:
Use the Select button to select Receiver (Optical) on the Sound Output menu. ( left directional button
Settings Sound Output Select button to toggle between sound output modes). Try Now
– Use the Settings screen to change to the connected device:
Select Receiver (Optical) on the Sound Output menu. ( left directional button Settings All
Settings Sound Sound Output). Try Now
Refer to the soundbar's user manual when connecting it to the Projector.
• An unusual noise coming from a connected audio device while you are using it, may indicate a problem with the
audio device itself. If this occurs, ask for assistance from the audio device's manufacturer.
• Digital audio is only available with 5.1 channel broadcasts.
Connection notes for computers
• For the resolutions supported by the Projector, refer to "Read Before Connecting a Computer (Supported
Resolutions)".
• If you want to connect your PC and Projector wirelessly, both of them must be connected to each other on the
same network.
• When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage
system, sharing may not be supported due to the network’s configuration, quality or functionality, for example, if
the network has a NAS (Network-Attached Storage) device.
- 31 -
Connection notes for mobile devices
• To use the Smart View function, the mobile device must support a mirroring function such as Screen Mirroring or
Smart View. To check whether your mobile device supports the mirroring function, refer to the mobile device's
user manual.
• The Screen Sharing (Smart View) feature may not operate smoothly in a 2.4 GHz environment. For better
experience, 5.0 GHz is recommended. 5 GHz may not be available depending on the model.
• To use Wi-Fi Direct, the mobile device must support the Wi-Fi Direct function. To check whether your mobile
device supports Wi-Fi Direct, refer to the mobile device's user manual.
• The mobile device and your Smart Projector must be connected to each other on the same network.
• Use AirPlay if you are an iPhone or iPad user. For more information, refer to left directional button
Connected Devices Connection Guide Smartphone Apple AirPlay. Try Now
This function may not be supported depending on the model or geographical area.
• The video or audio may stop intermittently, depending on network conditions.
• When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage
system, sharing may not be supported due to the network’s configuration, quality or functionality, for example, if
the network has a NAS (Network-Attached Storage) device.
- 32 -
Using Multi Control
Connect to nearby Galaxy devices to control them using the same keyboard and mouse.
left directional button Settings All Settings Connections Multi Control
Turn on Multi Control to connect nearby Galaxy devices and use them with your keyboard and mouse.
To connect to nearby devices, turn on Multi Control, Wi-Fi and Bluetooth on the devices and logged in with the same
Samsung account.
This function may not be supported depending on the model or geographical area.
This feature may not be supported, depending on the Galaxy device model and the One UI version.
Using Storage Share
Connect to a nearby Galaxy device to access its storage and check stored les.
left directional button Settings All Settings Connections Storage Share
Turn on the Storage Share feature. The Galaxy devices in the vicinity can be found in the list under Connected
Devices. Select the intended device from the list, and access the device storage to check stored les.
To connect to those devices, make sure that Storage Share mode, Wi-Fi and Bluetooth are enabled and the same Samsung
account is logged in on all the devices.
This function may not be supported depending on the model.
This feature may not be supported, depending on the Galaxy device model and the One UI version.
- 33 -
Remote Control and Peripherals
You can control Projector operations with your Samsung Smart Remote. Pair external devices such as a keyboard
for ease of use.
About the Samsung Smart Remote
Learn about the buttons on the Samsung Smart Remote.
Button Description
(Power)
Press to turn the Projector on or off.
MIC / LED
Used as MIC when using voice recognition with the remote control. When charging the remote
control via the USB port, the LED is lit if charging is in progress. When charging is complete, the
LED is turned off.
• Do not impact the MIC hole or use a sharp object to poke into the hole.
/ (Voice
Assistant)
Runs Voice Assistant. Press and hold the button, say a command, and then release the button to
run Voice Assistant.
The supported Voice Assistant's languages and features may differ by geographical
region.
(Settings / Number /
Colour button)
You can access Setting menu / virtual numeric pad / Colour buttons / Option pad / SmartThings
directly.
• Accessing the SmartThings app using this button may not be supported, depending on the
model.
• Use this button to access additional options that are specific to the feature in use.
• Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to enter
numeric values. Select numbers and then select Done or Enter Number to enter a numeric
value.
• Press and hold for more than 1 second to activate the Focus feature.
If the Colour Button appears with a number strip on the screen, select the Colour Button
and then select a specic colour by using the directional button (up/down/left/right).
Directional button (up/
down/left/right)
Moves the focus.
Select
Selects or runs a focused item. When pressed while you are watching a broadcast programme,
detailed programme information appears.
(Return)
Press to return to the previous menu. When pressed for 1 second or more, the running function
is terminated. When pressed while you are watching a programme, the previous channel
appears.
- 34 -
Button Description
(Smart Hub)
Press to switch to the Home Screen.
(Play/pause)
When pressed, the playback controls appear. Using these controls, you can control the media
content that is playing.
To use Game Bar, press and hold the button in Game Mode.
Game Bar may not be supported depending on the model or geographical area.
(Volume)
Move the button up or down to adjust the volume. To mute the sound, press the button. When
pressed for 2 seconds or more, the Accessibility Shortcuts appears.
may not be present, depending on the model.
(Channel)
Move the button up or down to change the channel. To see the Guide screen, press the button.
When pressed for 1 second or more, the Channel List screen appears.
Press and hold the button up or down to quickly change the channel.
Launch app button
Launch the app indicated by the button.
Available apps may differ depending on the geographical area or contents provider.
This function may not be supported depending on the model or geographical area.
Use the Samsung Smart Remote less than 6 m from the Projector. The usable distance may vary with the wireless
environmental conditions.
The images, buttons and functions of the Samsung Smart Remote may differ with the model or geographical area.
To use the Samsung Smart Remote to control a compatible external device that does not support HDMI-CEC (Anynet+), you
must congure universal remote control for the device. For more information, refer to "Controlling External Devices with a
Samsung Remote Control - Using the Universal remote setup".
To use the Samsung Smart Remote to control a compatible external device that does support HDMI-CEC (Anynet+),
connect the device to an HDMI port on the Projector using an HDMI cable. For more information, refer to "Using Anynet+
(HDMI-CEC)".
If the orientation of the remote control is incorrect, some models may display an alert asking users to hold it correctly. To
turn off the alert, access Remote Grip Sensor.
– left directional button Settings All Settings General & Privacy Power and Energy Saving Remote
Grip Sensor*
– left directional button Settings All Settings General & Privacy Remote Control Remote Grip
Sensor*
*: The menu name or position for this feature may vary, depending on the model.
- 35 -
Connecting the Samsung Smart Remote to the Projector
Connect the Samsung Smart Remote to your Projector to operate the Projector.
When you turn on the Projector for the rst time, the Samsung Smart Remote pairs to the Projector automatically. If
the Samsung Smart Remote does not pair to the Projector automatically, point it at the front of the Projector, then
press and hold the and buttons simultaneously for 3 seconds or more.
If the Touch Stand is connected, point the remote control at the top of the main body of the Projector, and pair the devices.
The image, buttons or features of Samsung Smart Remote may vary, depending on the model.
- 36 -
Controlling External Devices with a Samsung Remote Control - Using the
Universal remote setup
Control the Projector and connected external devices with a Samsung remote control.
left directional button Connected Devices Universal remote setup
You can control all external devices connected to the Projector using a single Samsung remote. Run the Universal
remote setup menu to register external devices.
This function may not be supported depending on the model or geographical area.
You can also use the Anynet+ (HDMI-CEC) function to operate external Samsung devices with your Projector's remote
control without any additional setup. For more information, refer to "Using Anynet+ (HDMI-CEC)".
Specic external devices connected to the Projector may not support the universal remote feature.
Do not place any obstacles around external devices or the Projector. It may cause improper transmitted signals from the
remote control.
If you have difculty controlling external devices with the Universal Remote, try adjusting the positions of the external
devices.
This function may not operate properly depending on the Projector installation environment and the features of external
devices.
- 37 -
Learn how to use Samsung Smart Remote
You can learn how to use Samsung Smart Remote.
left directional button Settings Support Remote Control Guide
( left directional button Settings Support Tips and User Guides Remote Control
Guide)
Find details on how to use the Samsung Smart Remote.
Press the menu to use a variety of functions of the Samsung Smart Remote.
This function may not be supported depending on the model.
The menu name or position for this feature may vary, depending on the model.
Learn how to use Game Controller
You can learn how to use Game Controller.
left directional button Settings Support Game Controller Guide
( left directional button Settings Support Tips and User Guides Game Controller
Guide)
Find details on how to use the Game Controller.
Press the menu to learn more about the functions of each Game Controller button.
This function may not be supported depending on the model.
The menu name or position for this feature may vary, depending on the model.
Button layouts may vary between controllers.
- 38 -
Using Anynet+ (HDMI-CEC)
Control an external device connected via Anynet+ (HDMI-CEC) with the remote control.
You can use the Projector's remote control to control external devices that are connected to the Projector by an
HDMI cable and that support Anynet+ (HDMI-CEC). Note that you can only set up and operate Anynet+ (HDMI-CEC)
with the remote control.
Connecting an external device through Anynet+ and using their menus
left directional button Settings All Settings Connections External Device
Manager Anynet+ (HDMI-CEC) Try Now
( left directional button Settings All Settings General & Privacy External Device
Manager Anynet+ (HDMI-CEC))
1.
Set Anynet+ (HDMI-CEC) to On.
2.
Connect an HDMI-CEC-compliant device to the Projector.
3.
Turn on the connected external device.
The device is automatically connected to the Projector. After the connection process is nished, you can access the
menu of the connected device using your Projector remote and control the device.
The connecting process can take up to 2 minutes to complete.
The menu name or position for this feature may vary, depending on the model.
Read before connecting an Anynet+ (HDMI-CEC) device
Anynet+ (HDMI-CEC)-enabled devices must be connected to the Projector with an HDMI cable. Note that some HDMI cables
may not support Anynet+ (HDMI-CEC).
You can congure the Projector's *Universal Remote to control third-party cable boxes, Blu-ray players and home theatres
that do not support HDMI-CEC. For more information, refer to "Controlling External Devices with a Samsung Remote
Control - Using the Universal remote setup".
*: This function may not be supported depending on the model.
Anynet+ cannot be used to control external devices that do not support HDMI-CEC.
The Projector remote control may not work under certain circumstances. If this occurs, set up the device as an Anynet+
(HDMI-CEC)-enabled device again.
Anynet+ (HDMI-CEC) works only with external devices that support HDMI-CEC and when those devices are either in standby
mode or turned on.
Anynet+ (HDMI-CEC) can control up to 12 compliant external devices (up to 3 of the same type) except for home theatres.
Anynet+ (HDMI-CEC) can control only one home theatre system.
To listen to 5.1 channel audio from an external device, connect the device to the Projector via an HDMI cable and connect a
5.1 home theatre system directly to the external device's digital audio output connector.
If an external device has been set up for both Anynet+ and a *Universal Remote control, the device can be controlled only
with the universal remote control.
*: This function may not be supported depending on the model.
- 39 -
Controlling the Projector with a Keyboard, Mouse or Gamepad
Connecting a keyboard, mouse or gamepad to make it easier to control the Projector.
You can connect a keyboard, mouse or gamepad to control the Projector easily.
Connecting a USB keyboard, mouse or gamepad
Plug the keyboard, mouse or gamepad cable into the USB port.
This function may not be supported by some apps or external devices.
XInput USB gamepads are supported.
For more information, refer to Input Device in Connection Guide ( left directional button Connected Devices
Connection Guide Input Device).
Connecting a Bluetooth keyboard, mouse or gamepad
left directional button Settings All Settings Connections Bluetooth Try Now
If your device was not detected, position the keyboard close to the Projector, and then select Scan. The Projector scans for
available devices again.
This function may not be supported by some apps or external devices.
A maximum of four gamepads can be connected, regardless of connection method (e.g., USB or Bluetooth).
– When using two Bluetooth audio devices, it is best to use USB gamepads.
– When using one Bluetooth audio device, up to two Bluetooth gamepads can be connected.
For more information, refer to the Bluetooth device's user manual.
This function may not be supported depending on the model or geographical area.
- 40 -
Using the keyboard and mouse
Button Description
Directional keys Moves the focus
Enter key Selects or runs a focused item
ESC key Returns to the previous screen
Number keys Enter numbers
F1 key Turns on or off the Projector
F2 key
Displays the Settings menu / numeric keypad / Option pad / SmartThings app
Each time you press this button, Settings menu / virtual numeric pad / Option pad /
SmartThings app are displayed alternately.
F3 key Plays / pauses
F4 key Displays the Settings screen
F5 key Displays the Home Screen
F6 key Displays the Sources screen
F7 key Displays the Channel List
F8 key Mutes the sound
F9 / F10 key Adjusts the volume
F11 / F12 key Changes the channel
Page Up / Page Down Scrolls a webpage displayed by the Internet app.
Left-click
Selects and runs an item.
This function is not available in some apps.
You can click a menu or link to start a function as you do on a PC.
Right-click
Calling up shortcut buttons, such as / / /
Easily access a menu by right-clicking on the mouse and selecting the menu from among
the displayed shortcut buttons. Displayed shortcut buttons may differ, depending on the
screen.
The key operation may differ depending on some apps or the keyboard.
- 41 -
Using the Gamepad
Check the supported gamepads. Try Now
This function may not be supported depending on the model or geographical area.
Manufacturer Controllers Connection Force feedback
Microsoft
Xbox Series X/S controller Bluetooth O
Xbox One S controller
Bluetooth O
USB O
Xbox 360 controller USB O
Xbox Elite Wireless Controller Series 2 Bluetooth O
Xbox Adaptive controller
Bluetooth -
USB -
Sony
Dualsense Edge
Bluetooth O
USB O
Dualsense
Bluetooth O
USB O
DualShock 4
Bluetooth O
USB O
Google Stadia controller
USB Not support
Wi-Fi Not support
Amazon Luna controller
Bluetooth O
USB O
Wi-Fi Not support
Joytron CYVOX DX USB O
Logitech
F710 USB O
F510 USB O
F310 USB -
PowerA MOGA XP5-X Plus Bluetooth controller
Bluetooth -
USB -
Nvidia Shield controller
Bluetooth O
USB Not support
Nintendo
Nintendo Switch Pro
Bluetooth O
USB O
Nintendo Joy-Con (L/R) Bluetooth O
- 42 -
Some keys are not available on this product depending on controller.
Force feedback :
"Not support" (This product can’t support force feedback.)
"-" (Controllers don’t have force feedback function.)
Tizen Projector will support only XInput mode for the supported gamepads.
Xbox controllers may require rmware updates.
Controller audio output (3.5 mm port) is not available on this product.
Other controllers may or may not work for cloud gaming.
Using the controller
Button Description
Left joystick and dpad 4 way navigation
Right joystick
• Up / Down : Volume control (Up / Down)
• Left / Right : Channel control (Up / Down) on Projector screen
• Select (press) : Mute the sound
A button or X button (Sony Only) Enter (OK)
B button or O button (Sony Only) Return (Cancel)
Pressing and holding the B button or O
button (Sony Only)
Exit
Home button Smart Hub homepage
Pressing and holding the Home button (During cloud game play) Quick panel
Option button on the left Game Bar (when Game Mode is turned on and an external source is connected)
X button or button (Sony Only) Numeric buttons (123)
Pressing and holding the left and right
joysticks simultaneously
Power off (Turning power on is not possible)
The button operation may differ depending on some apps or the controller.
If you connect controller to this product by Wi-Fi solution, you cannot use UI navigation function.
- 43 -
Setting up the input devices
left directional button Settings All Settings Connections External Device
Manager Input Device Manager Try Now Try Now
( left directional button Settings All Settings General & Privacy Keyboard and
Mouse)
The menu name or position for this feature may vary, depending on the model.
• Keyboard Settings Try Now
You can set up the keyboard with the Keyboard Language and Keyboard type functions.
• Mouse Settings Try Now
You can set up the mouse with the Mouse Pointer Size, Primary Button and Pointer Speed functions.
Entering Text using the On-Screen Virtual Keyboard
Use the virtual keyboard to enter text on your Projector.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Recommend text
When you type a word you want to use as a search term, this function displays related suggestions from which you
can choose one.
- 44 -
2.Editing Buttons
By selecting any of pop-up Editing Buttons after entering characters on the virtual keyboard, you can quickly
perform the editing function.
This function is only available when the Show Editing Buttons feature is turned on.
3.Settings
Select on the virtual keyboard screen. The following options are available:
The options available may differ depending on the function running currently.
• Recommend text
– Recommended text
– Reset Recommended Text Memory
– Show Editing Buttons
• Languages and Types
Entering Text using the remote control's microphone and the on-screen virtual keyboard
When the virtual keyboard is on the screen, press and hold the button on the Samsung Smart Remote, speak into
the microphone on the Samsung Smart Remote, and then release the button. What you say appears on the screen as
text.
Entering text with your voice may not be supported for some functions.
This function may not be supported depending on the model or geographical area.
The Samsung Smart Remote may not be supported depending on the model or geographical area.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
- 45 -
Smart Features
You can enjoy various apps with Smart Hub.
Using Smart Hub
View descriptions of Smart Hub's basic functions.
From Smart Hub, you can use the Internet search function, install and use various apps, view photos and videos or
listen to music and perform more functions.
Some Smart Hub services are paid services.
To use smart functions, you should connect to a network, agree to the terms and conditions, and log in with your Samsung
account.
Some Smart Hub features may not be supported depending on the service provider, language or geographical area.
Smart Hub service outages can be caused by disruptions in your network service.
- 46 -
Displaying the Home Screen
Press the button.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Samsung Account
Go to the Samsung Account screen to create a new account or sign out of your account.
For more information, refer to "Using a Samsung account".
2. Search
Search for channels, programmes, movies, and apps offered by Smart Hub.
To use the Search service, make sure the Projector is connected to a network.
This function may not be supported depending on the model or geographical area.
3. Ambient
Set your Projector to display content you desire, such as the time or weather, when the Projector is not used.
To return to Projector mode from Ambient mode, press the left directional button Home. Press the
button to turn off the Projector.
This function may not be supported depending on the model or geographical area.
For more information, refer to "Using Ambient Mode".
- 47 -
4. Samsung Daily+
Offers a variety of practical apps, including a home workout app, video chat app and remote medical service app,
allowing you to conveniently experience different lifestyles at home.
This function may not be supported depending on the model or geographical area.
For more information, refer to "About the Samsung Daily+ Home screen".
5. Game
Play games from the Projector screen by connecting a Controller to the Projector. Congure settings to optimise
the Controller and audio device for playing games.
This function may not be supported depending on the model or geographical area.
For more information, refer to "Using Samsung Gaming Hub".
6. Home
View a variety of Projector programmes. Install various apps offered by Smart Hub, such as video, music and sports
apps, and use the apps from the Projector.
For more information, refer to "Using the Home Function".
7. Settings
Manage external devices connected to the Projector, and congure settings for various functions available on the
Projector.
For more information, refer to "About the Settings Home Screen".
8. Privacy Choices
From your Projector, easily manage the privacy policy regarding services related to Smart Hub and verify how
personal information is protected.
To use Smart Hub, you must agree to the Smart Hub service agreement and the collection and use of personal information.
Without giving consent, you cannot use the additional features and services. You can view the entire text of the Terms &
Privacy by navigating to left directional button Settings All Settings General & Privacy Terms & Privacy.
Try Now
In order to rescind your consent to mandatory terms and conditions related to Smart Hub, launch Reset Smart Hub (
left directional button Settings Support Device Care Reset Smart Hub). Try Now
This function may not be supported depending on the model or geographical area.
- 48 -
Testing Smart Hub connections
left directional button Settings Support Device Care Self Diagnosis Smart Hub
Connection Test Try Now
Resetting Smart Hub
left directional button Settings Support Device Care Reset Smart Hub Try Now
You can reset the Smart Hub settings. To reset Smart Hub, enter the PIN. You can set the PIN in Change PIN. Try Now
– left directional button Settings All Settings General & Privacy System Manager Change PIN*
– left directional button Settings All Settings General & Privacy Change PIN*
*: The menu name or position for this feature may vary, depending on the model.
- 49 -
Using Ambient Mode
Learn about the functions available in Ambient mode.
left directional button Ambient Try Now
Set your Projector to display a photo or content you desire when the Projector is not used.
This function may not be supported depending on the model.
Press the button in Ambient mode screen to enter to Ambient Home.
In Ambient mode, some functions may not be supported.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Getting to Know Ambient Mode
Press View Help to briey view information about Ambient mode, including functions.
2.App List
You can move the app to another location by selecting Edit List located at the end of the list.
This function may not be supported depending on the model.
Supported apps may vary, depending on the region.
- 50 -
3.Function and content preview
Select a preferred content and a preferred background and set them as your Ambient mode. While in Ambient
mode, press the Select button on the remote control to view the content details.
You can use the SmartThings app on a Mobile Device to select a desired content and change the settings. Indicates content
perfectly suited for the time of the day.
Available content categories may differ depending on the model or geographical area.
• Changing art work
Change the artwork to display in Ambient mode. Press the Select button on the remote control to move the
focus to an artwork. Use the left or right directional button to move to the desired art work, and then press
Select button on the remote control.
• View Details
View detailed information about the selected image.
• Favourite
Add or delete specic images in Favourite by pressing the Select button and then the Up directional button on
the remote control. To view items that are set as Favourites, navigate to Ambient Favourite.
– Favourite: The item is not set as Favourite
– Favourite: The item is set as Favourite
- 51 -
• Edit
Customise the settings to suit your preferences.
Available functions may not be supported depending on the model or content.
– Weather Filter
You can add a weather effect to content.
– Time Filter
You can select any background time format for content.
– Colour
Changes the Colour of the content.
– Colour & Theme
Changes the colour or theme of the content.
– Vibes
Selects a mood that matches the content.
– Backgrounds
Changes the background of the content.
– Shadow Effects
Applies a shadow effect that you select to the content.
– Filter
You can select an image filter effect to content.
– BGM Mode
You can add a background music to content.
- 52 -
• Screen Settings
You can adjust the settings such as content brightness, saturation, and colour tone.
Available functions may not be supported depending on the model or content.
– Brightness
Adjusts the brightness of the content.
– Saturation
Adjusts the saturation of the content.
– Colour Tone
Adjusts the colours of the content.
– Red Tone / Green Tone / Blue Tone
Adjusts the red, green, blue contrast.
Selecting Content Category
Available content categories may differ depending on the model or geographical area.
• Favourite
While in Ambient mode, press the Select button on the remote control and press Favourite to save the
displayed content to Favourite.
• Custom Ambient
Create your own virtual space with creative tools on your Mobile Device.
• Special Edition
Allows you to enjoy creative artwork and interior design content created by the world's nest artists and
designers.
• Cinemagraph
Adds a looping animation to a specic part of the photo to make it more attention-grabbing.
• My Album
Allows you to set a photo stored in your mobile device or Samsung Cloud as the wallpaper of the Ambient
mode screen.
To import photos from your mobile device or Samsung Cloud, use the SmartThings app on your mobile device.
For more information about how to congure the photo settings, select How to Select Photos.
- 53 -
• Mood
Enjoy a range of options to create the right ambience to suit your mood.
• Relaxation
Relax with a selection of calming content inspired by nature to soothe your mood.
• Décor
Allows you to select content with a sensible and beautiful design.
• Info
Allows you to select essential real-time information such as weather, temperature, time, and news.
• Artwork
Allows you to select content such as world famous photos and artwork.
• Background Theme
Allows you to select a background theme provided by Samsung.
Take a picture of a wall using the SmartThings app on your mobile device to create a custom background theme. When
you use this function, there may be a delay in image transmission and optimisation depending on network conditions.
A created Background Theme can be set as the background for content. To set it as the background for content, press
the Select button on the remote control while in Ambient mode, and select Edit.
• Lighting
Provides lighting content options in stylish and beautiful designs.
• Scene
Provides atmospheric content options to suit the mood of your choice.
• Prism
To experience amazing mood lighting, put Lens Cap on Projector.
• Routine
Enjoy a range of routines, each displaying content to suit each part of your day or create your very own routines
via the SmartThings app.
- 54 -
The image on your Projector may differ from the image above depending on the model and geographical area.
4.Ambient Screen Options
Following Ambient mode options are congurable:
This menu can be found at the bottom of the Ambient home. To congure the option settings, scroll down to the far bottom.
Available options may vary depending on the model.
• Sleep After
Sets the time when the Ambient mode screen turns off automatically.
If there is no remote control input for the set time, the screen goes off.
• Reset / Reset My Album
Reset photos saved in My Album.
• What is Ambient?
Briey view information about Ambient mode, including functions.
Entering the Projector viewing screen from Ambient Mode
To access the Projector screen from Ambient mode, press either the or button to redirect to the Ambient
mode Home Screen, press the left directional button on the remote control, and then select the Home.
If the Projector is off and the button is pressed, the Home screen appears.
- 55 -
About the Generative Wallpaper
The Generative Wallpaper feature allows users to create and display images to suit their preferences.
left directional button Ambient
It is possible to create custom pictures by displaying them on the Projector screen.
This function may not be supported depending on the model.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.
Activating the feature
Press the Generative Wallpaper banner or button to activate the feature.
2.
Selecting a keyword
Select the desired keyword of interest for the asked question, then related images are displayed.
3.
Saving an image
Select and download a single image of your choice.
A downloaded image is saved under the initially accessed Generative Wallpaper category. To view saved
images, press the button on the remote control to return to Ambient Mode.
It is possible to download only one of the displayed images.
The maximum image size that can be saved may differ, depending on the available memory in the device.
- 56 -
Selecting images
Display a specic image by selecting it from among the images saved under the Generative Wallpaper category.
Deleting saved images
Delete images to free up the memory or delete specic images that are no longer needed. To delete, select an
image item under the Generative Wallpaper category to display full screen, and then press the select button to
display a list of available images. In the image list at the screen bottom, move the focus to the image to delete, and
select the up arrow to display the icon. To delete the image, select the icon.
Deleted images cannot be restored.
- 57 -
About the Samsung Daily+ Home screen
Easily use a wide variety services provided by Samsung Daily+.
left directional button Samsung Daily+
This function may not be supported depending on the model or geographical area.
The image on your Projector may differ from the image above depending on the model and geographical area.
Provides useful services, such as home training, remote work and commerce, allowing users to conveniently
experience different lifestyles.
1.Banner
Provides information related to apps provided by Samsung Daily+.
- 58 -
2.Tab
Separates categories based on the nature of the experience provided, allowing users to quickly navigate to the
services they want.
Services supported by this feature may differ, depending on the model and region.
• Featured
Provides useful services for daily life, such as video calls, commerce and remote work. This allows users to
conveniently experience different lifestyles.
– SmartThings
It allows the Projector to connect and control the detected various devices in the same space. Conveniently
control and monitor devices in your home.
For more information, refer to "Using SmartThings".
– Workspace
Use the remote function to connect to and use a Windows PC, Mac computer, or mobile device from the
Projector.
For more information, refer to "Using Workspace".
• Health
Provides useful health-related services, such as home training and remote medical treatment.
– Workout Tracker
Connect to a nearby Galaxy Watch to view saved exercise data from the Projector screen.
For more information on Workout Tracker, refer to the user guide provided by Samsung Daily+.
To connect, make sure the Galaxy smartphone and Galaxy Watch are located in the vicinity of the Projector, and
Bluetooth is enabled and the same Samsung account is logged in on all the devices.
This function may not be supported depending on the model.
This feature may not be supported, depending on the Galaxy device model and the One UI version.
This feature may not work in some apps or on some service screens.
3.App List
Rearrange, add or delete apps, using the edit function.
4.App Preview
Provides quick access to frequently used features in the app.
- 59 -
Using Samsung Gaming Hub
Gamestream a wide variety of games right on your Projector through Samsung Gaming Hub. Connect your
controller through Bluetooth or USB.
left directional button Game
This function may not be supported depending on the model or geographical area.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Recommended
Explore a wide range of games on Samsung Gaming Hub.
2.Accessories and Music
• Controllers
Select a Controller to connect to the Projector.
For supported controller list information, refer to "Using the Gamepad".
• Audio
Select an Audio Device (e.g. Gaming Headset) to connect to the Projector.
• Music Player
Manage the music to play while playing a game.
This function may not be supported depending on the model or geographical area.
- 60 -
3.Apps and Devices
Install or remove apps or devices that are required to play games.
4.Game list
Purchase games or subscribe to service offered by the Samsung Gaming Hub. Select a game to view the game
details.
Installation of related apps is required to run some games.
The image on your Projector may differ from the image above depending on the model and geographical area.
5.Game Activity and Options
This menu is provided at the very bottom of the Samsung Gaming Hub screen. To congure Game Activity and Options,
scroll down to the very bottom.
• Game Rating Lock
Set the age limit for playing games.
The age limit is only supported to cloud game browsing domain in Gaming Hub.
• Personalisation
Tailored content is recommended, according to the games recently played by the user and the content the user
is interested in.
• Gaming Preference
Customise the game content to be displayed depending on the selected gamer type.
- 61 -
Using the Home Function
View a variety of Projector programmes. Install various apps offered by Smart Hub, such as video, music and sports
apps, and use the apps from the Projector.
left directional button Home
The image on your Projector may differ from the image above depending on the model and geographical area.
1.For You / Discover
The app makes personalised recommendations based on the user’s viewing experience. View currently popular
content, or add frequently used apps to the Home screen.
For more information about For You / Discover, refer to "About the For You / Discover Home Screen".
The name of this function may appear differently depending on the model or geographical area.
2.Live
Watch Projector programmes currently on the air. Access the Guide screen to check the broadcast schedules and
set up scheduled viewing for the programmes you want.
For more information about Live, refer to "About the Live Home Screen".
This function may not be supported depending on the model or geographical area.
3.Apps
Install a variety of apps offered by Smart Hub, such as video, music, sports and game apps, and use the apps from
the Projector.
For more information about Apps, refer to "About the Apps Home Screen".
- 62 -
About the For You / Discover Home Screen
This screen makes personalised recommendations based on the user’s viewing experience.
left directional button Home For You / Discover
The name of this function may appear differently depending on the model or geographical area.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Now Playing
Access your last watched Projector programme, app or last used input source.
2.Recommended for You / On Now
The name of this function may appear differently depending on the model or geographical area.
This function may not be supported depending on the model or geographical area.
This function may not be supported, depending on the input signal and settings.
• Recommended for You
Recommends content that are currently popular in many OTT services.
• On Now
Display a list of Projector programmes or Samsung TV Plus content items currently being aired.
3.App List
Add frequently used apps or delete apps on the Home screen, to suit your preferences.
- 63 -
4.Edit List
• Moving an item on the Home Screen
From the end of the list, select Edit List. Move the focus to the app to relocate, and press the Select button on
the remote control. Use the left or right button to reposition the app and then press Select. This repositions the
app on the Home Screen.
Alternatively, move the focus to the app to relocate, press and hold the Select button, and then press the left or
right directional button.
• Removing an item on the Home Screen
From the end of the list, select Edit List. Move the focus to the app to remove, and press the Select button on
the remote control. Select Remove from the option menu. This removes the app from the Home Screen list.
Alternatively, move the focus to the app to delete, press and hold the Select button, and then select Remove.
To add a deleted app back to the list or add a downloaded new app to the Home screen, refer to "Managing installed
apps".
- 64 -
5.Universal Guide
Universal Guide is a function that allows you to search for and enjoy various content, such as Projector shows,
dramas, and movies, in one place. Universal Guide can recommend content tailored to your preferences.
You can use this feature on your mobile device with the Samsung SmartThings app.
To access Universal Guide, press the down directional button on the remote control in Home Screen.
To enjoy the content from these apps on your Projector, they must be installed on the Projector.
When you watch some paid content, you may need to make a payment using their associated app.
Some content may be restricted depending on your network conditions and your subscriptions to paid channels.
Parental control is necessary when children use this service.
Images may look blurry depending on the service provider's circumstances.
This function may not be supported depending on the model or geographical area.
.Media Options
This menu can be found at the bottom of the For You / Discover home. To congure the option settings, scroll down to the
far bottom.
This function may not be supported depending on the model or geographical area.
• Preferences: Select a preferred service to receive content recommendations to suit your preference.
• Continue Playing: Choose content providers for Continue Playing. You can continue watching different shows
in one place from all the Continue Playing-supported content providers listed below.
• Parental Lock: Redirect to the Parental Lock menu. Turn all parental control settings on or off.
• Autoplay Sound: When you browse and preview content, you can set the sound to come out or not
automatically.
- 65 -
About the Live Home Screen
View programmes currently on the air. Access the Guide screen to check the broadcast schedules and set up
scheduled viewing for the programmes you want.
left directional button Home Live
The image on your Projector may differ from the image above depending on the model and geographical area.
This function may not be supported depending on the model or geographical area.
1.On Now
Display a list of Samsung TV Plus content items currently being aired.
This function may not be supported, depending on the input signal and settings.
2.Guide
See the programming schedules of different channels on a single screen. Use Guide to view the daily programme
schedule for each broadcaster. You can also nd out detailed information about programmes, watch a specic
programme.
For more information about Guide, refer to "Using the Guide".
- 66 -
About the Apps Home Screen
Download and run various apps from Smart Hub.
left directional button Home Apps
You can enjoy a wide range of content including video, music, sports and game apps by installing the corresponding
apps on your Projector.
To use this feature, the Projector must be connected to the network.
When Smart Hub is launched for the rst time, the default apps are automatically installed. The default apps may differ
depending on the model or geographical area.
The image on your Projector may differ from the image above depending on the model and geographical area.
- 67 -
Installing an app
1.
Move to the app you want to install, and then press the Select button. The detailed information screen appears.
2.
Select Install. When the installation is complete, the Open menu appears.
3.
Select Open to run the app immediately.
You can view installed apps on the Settings screen.
If the Projector's internal memory is insufcient, you can install some specic apps on a USB device.
You can run an app installed on a USB device only when the USB device is connected to the Projector. If the USB device is
disconnected while an app is running, the app is terminated.
You cannot run an app installed on a USB device on a PC or another Projector.
Launching an app
You can run the app desired from Downloaded App.
The icons below appear within the selected app's icon and indicate the following:
• : The app is installed on a USB device.
• : The app has a password.
• : The app needs to be updated.
• : The app supports the mirroring function.
- 68 -
About the Apps Settings
This menu can be found at the bottom of the Apps home. To congure the option settings, scroll down to the far bottom.
The image on your Projector may differ from the image above depending on the model and geographical area.
• App Settings
Manage installed apps.
For details, refer to the 'Managing installed apps' section.
• Update All
Simultaneously updates all apps that can be updated.
• Auto update
To automatically update the installed apps, set Auto update to ON.
Automatic update is enabled only when the Projector is connected to the network.
• Copyright
View the copyright information.
This function may not be supported depending on the model or geographical area.
- 69 -
Managing installed apps
To manage installed apps, access App Settings.
App Settings can be found at the bottom of the Apps screen. To access App Settings, scroll down to the bottom.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Adding apps to the Home Screen
1.
Select an app to add.
2.
Select Add to Home.
3.
After the Home Screen appears, move the selected app to the desired location.
4.
Press the Select button.
The selected app is added to the Home Screen.
If the selected app is already added to the Home Screen, this function is disabled.
2.Removing an app
1.
Select an app to delete.
2.
Select Delete.
The selected app is deleted.
Ensure that the related app data is also removed when you remove an app.
Standard apps cannot be uninstalled.
- 70 -
3.Locking and unlocking apps
1.
Select an app to lock or unlock.
2.
Select Lock/Unlock.
The selected app is locked or unlocked.
To lock or unlock an app, enter the PIN. You can set the PIN in left directional button Settings All Settings
General & Privacy Change PIN. Try Now
4.Reinstalling an app
1.
Select the app to install again.
2.
Select Reinstall.
Reinstallation starts.
5.Checking the app information details
1.
Select the app to check.
2.
Select View Details.
The app information screen appears.
You can rate an app on the View Details screen.
- 71 -
About the Settings Home Screen
Manage external devices connected to the Projector, and congure settings for various functions available on the
Projector.
left directional button Settings
The image on your Projector may differ from the image above depending on the model and geographical area.
1. Notication
You can view a list of notications for all events that occur on your Projector. A notication appears on the screen
when it is time to schedule viewing, schedule recording, etc.
If you move the focus to Notication, and then press the Select button, a notication window appears on the right
and the following functions are available:
• Delete All
You can delete all your notications.
• Settings
You can select services you want to be notied about.
When you select Allow sound, notications are displayed with a notication sound.
2. Connected Devices
Select an external device that is connected to the Projector.
For more information, refer to "Switching between external devices connected to the Projector".
- 72 -
3. Settings
When you move the focus to Settings, quick setting options appear to the right of the item. Quick Settings can be
used to quickly congure frequently used features.
The Settings items may not be supported depending on the model or geographical area.
• All Settings
Displays the Settings menu for conguring specic settings.
• Keystone
Fix a distorted image on the screen based on the projection angle.
This function may not be supported depending on the model or geographical area.
• Focus
Adjust the screen focus according to the projection distance.
This function may not be supported depending on the model or geographical area.
• Scale and Move Screen
Enlarge or reduce the screen scale. You can also move the screen.
- 73 -
• Touch Activation
Activates the touch function by running touch area recognition.
Only The Premiere 5 series supports this feature.
This feature is enabled only when the touch stand is attached or oor projection mode is in use.
• Picture Off
Turn off the Projector screen and provide only sound to reduce overall power consumption.
• Sound Output
You can select which speakers the Projector uses for audio output. To change the audio output, press the Select
button.
• Brightness
Easily congure the screen settings: Brightness, Contrast, Sharpness, Colour and Tint (G/R).
• Picture Mode
Change the picture mode for the optimal viewing experience. Press the Select button to change the Picture
Mode.
- 74 -
• Sound Mode
You can select a sound mode to optimise your listening experience. To change the sound mode, press the Select
button.
• Intelligent Mode
Improves your viewing experience by recognising your content, usage patterns, and the environment around
your Projector.
This function may not be supported depending on the model or geographical area.
For more information about the Intelligent Mode, refer to "Using Intelligent Mode".
• Bluetooth
Connect your Projector to Bluetooth devices. This can be done by selecting Bluetooth to automatically search
for Bluetooth devices.
Connecting Bluetooth devices may not be supported depending on the model or geographical area.
• Wi-Fi / LAN
Check your network connection. To check your network connection or change the connection settings, press
the Select button.
This function may not be supported depending on the model or geographical area.
• Multi View
While watching the Projector, you can simultaneously view multiple screens that are split.
For more information, refer to "Using Multi View".
This function may not be supported depending on the model or geographical area.
• Sleep Timer
You can turn off the Projector automatically at a specic time. To change the sleep time, press the Select
button.
- 75 -
• Game Mode
You can set the Game Mode to optimise the Projector screen for better gaming performance. To turn Game
Mode on or off, press the Select button.
This function is only available when an external input source is being used.
For more information, refer to "Using Game Mode".
This function may not be supported depending on the model or geographical area.
• Subtitle
You can watch Projector broadcasts with subtitles. To activate/deactivate the Subtitle function, press the
Select button. To run Accessibility Shortcuts, press the down directional button, and then select Accessibility
Shortcuts.
This function may not be supported depending on the model or geographical area.
• Digital Output Audio Format
You can select an output format for digital audio. Note that the Dolby Digital+ option is only available via HDMI
(eARC) for external devices that support the Dolby Digital+ format.
This function may not be supported depending on the model or geographical area.
• Picture Clarity
You can optimise pictures that contain a lot of motions. To turn this function on or off, press the Select button.
This function may not be supported depending on the model or geographical area.
• Screen Size
Select a suitable aspect ratio for your viewing environment. Choose the desired aspect ratio using the Select
button. To congure specic settings, press the Down button on the remote control, and select Go to Picture
Size.
This function may not be supported depending on the model or geographical area.
• Colour Tone
You can select a colour tone suitable for your viewing preferences. To change to a colour tone that you want,
press the Select button.
This function may not be supported depending on the model or geographical area.
• Energy Saving Solution
Reduce power consumption by adjusting brightness settings.
This function may not be supported depending on the model or geographical area.
- 76 -
• Power and Energy Saving
Display the Power and Energy Saving menu. Reduce energy consumption by changing your power preferences
and other energy-saving options.
This function may not be supported depending on the model or geographical area.
• Support
Displays the Support settings menu.
• Audio Language
You can change to the audio language you want to hear. To make ne adjustments, press the down directional
button, and then select Go to Audio Options.
This function may not be supported depending on the model or geographical area.
• Contrast Enhancer
You can prevent excessive differences between bright and dark areas on the Projector screen. To change the
Contrast Enhancer setting, press the Select button.
This function may not be supported depending on the model or geographical area.
• Picture Size
You can change to the picture size you want to view. To make ne adjustments, press the down directional
button, and then select Go to Picture Size.
This function may not be supported depending on the model or geographical area.
• Colour Space
You can set the spectrum of colours on the Projector screen. To change to a colour space that you want, press
the Select button. To set the detailed options, press the down directional button, and then select Colour Space
Settings.
This function may not be supported depending on the model or geographical area.
• Edit
From the end of the Settings list, select Edit. You can change the location of functions in the Settings screen.
An alternative way to move a function is to move the focus to the function to move and then press and hold the Select
button.
These functions may not be supported depending on the model or geographical area.
- 77 -
Using a Samsung account
Create and manage your own Samsung account.
left directional button Settings All Settings Samsung Account Try Now Try Now
You can view the entire text of the Terms & Policy in left directional button Settings All Settings Samsung
Account My Account About Samsung account Terms and conditions after logging in to your Samsung account.
Follow the instructions on your Projector screen to create or log in to a Samsung account.
Samsung account can be used on Projector, mobile device, and website with one ID.
This function may not be supported depending on the model.
Signing in to a Samsung account
left directional button Settings All Settings Samsung Account
Launch the camera on your mobile phone, and scan the QR code to log in to your Samsung account or create a new
account.
An alternative way to log in is to select an email address and manually enter your account, or to select a website
and access the website from your computer or mobile phone.
- 78 -
Managing your Samsung account
left directional button Settings All Settings Samsung Account My Account
When you sign in to your Samsung account, you can use the following functions:
• Edit profile
You can edit your account information.
To protect personal information, enter Edit profile and then Sign-in Method is set to Select your ID and input password
(high security).
If you want the Projector to log you into your account automatically whenever you turn on the Projector, click Stay
Signed In.
When the Projector is used by multiple people, turn off Stay Signed In to protect personal information.
• PIN Setting
Set or change your PIN.
• Payment Info
You can view or manage your payment information.
• Subscriptions
View subscription-related information.
This function may not be supported depending on the model.
• Back up
You can back up the Projector settings to your Cloud storage. When resetting or replacing the Projector, you can
also restore its settings with the backed-up settings.
- 79 -
• Product Registration
You can register the current Projector or see the registered information. You can easily receive services after
product registration.
You can see the registered information or delete it at the Samsung account website (https://account.samsung.com).
• Security and Privacy
You can read the Privacy Policy for Samsung accounts or change custom service settings.
This function may not be supported depending on the model.
• About Samsung account
You can view the user agreement and privacy policy.
For more information about the terms and conditions, special terms, select View Details.
This function may not be supported depending on the model.
• Remove Account
You can delete an account from the Projector. Although you have deleted your Samsung account from the
Projector, you are not unsubscribed.
To unsubscribe from your Samsung account, visit the Samsung accounts website (https://account.samsung.com).
This function may not be supported depending on the model.
• Sign out
When multiple people share the Projector, you can sign out of your account to prevent others from using it.
To sign out of your Samsung Account ( left directional button Settings All Settings Samsung Account),
move the focus to your account's icon, and then press the
Select button.
This function may not be supported depending on the model.
- 80 -
Using Workspace
Use the remote function to connect to and use a Windows PC, Mac, or mobile device from the Projector.
left directional button Samsung Daily+ Featured Workspace Try Now
Connect a Windows PC, Mac, or mobile device to the Projector to easily use the device.
For smooth use as in a computer, connect a keyboard and a mouse to your Projector in advance.
Using Screen Sharing (Windows PC) / AirPlay (Mac)
left directional button Samsung Daily+ Featured Workspace Windows PC
Screen Sharing
left directional button Samsung Daily+ Featured Workspace Mac Screen
Mirroring
Follow the instructions on the screen to adjust the PC settings and wirelessly connect the Projector to the PC.
This function is only available for PCs that support wireless screen sharing.
This function may not be supported depending on the model or geographical area.
Connection via Windows OS is available in Windows 10 and later versions only.
Connection via Mac OS is available in AirPlay.
Using Easy Connection to Screen
left directional button Samsung Daily+ Featured Workspace Windows PC Easy
Connection
You can easily use remote access function after installing Easy Connection to Screen on your PC.
Follow the instructions on the screen to download and install the Easy Connection to Screen PC app. Then you can
easily connect a remote PC.
1.
Download the Easy Connection to Screen PC app from http://smsng.co/easy and then install it on your PC.
2.
Log in to the same Samsung account for both Projector and PC.
3.
When the PC is turned on and connected via the network, Workspace's Home Screen displays the PC.
The Easy Connection to Screen PC app is available in Windows 10 and later versions only.
Depending on the network environment including the rewall conguration, router type, and wireless signal strength,
connection problems may occur, such as low speed, disconnection, or limited connection.
- 81 -
Connecting a Remote PC
left directional button Samsung Daily+ Featured Workspace Windows PC
Manual Connection Try Now
left directional button Samsung Daily+ Featured Workspace Mac Remote Login
Try Now
Provides Remote Desktop Connection (RDP) for remotely connecting to a PC running on Windows and Virtual
Network Computing (VNC) for a PC running on Mac. To remotely connect to a PC, you must enter the IP address of
the remote PC or select a saved prole. Enter a correct username and password. If there is any computer that can
be accessed via the same network, the found IP is displayed.
To register a frequently used PC, move the focus to Manage User Proles, and then press the Select button. When a
pop-up window appears, select Add, and then enter the PC information.
When your PC enters in power saving mode, connection is not available. It is recommended to cancel the power saving
mode.
It is recommended to connect the wired network because the screen or sound may be interrupted depending on the
network condition.
1.
Congure your computer’s settings to use the Workspace function.
Connection to Windows via the RDP protocol is available in Windows 10 Professional or higher.
Remote connection to a PC running on Mac via the VNC protocol is only supported for Mac OS X 10.5 or later.
• Windows OS:
1)
Right-click the My PC icon on Desktop or Windows Explorer and then click Properties.
2)
Click Remote Desktop and select Activate Remote Desktop.
• Mac OS:
1)
Select Menu System Preferences and then click Sharing.
2)
Select the Screen Sharing and Remote Login check box.
3)
Run the resolution changing app downloaded from App Store and then change the resolution to 1440 x
900 or lower.
If you do not change the resolution in Mac OS, the previous image may appear while connecting a remote
computer.
- 82 -
2.
Enter the required settings for connecting the computer remotely.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.PC/Prole
Enter the IP address or prole of the PC you want to connect to.
• In case of Windows, when the computer to connect is within the same network (router/AP), run "cmd" command
in Settings Network and Internet View Network Properties or in Start Run, and then run "ipconfig" to
check the IPv4 address of the computer.
• In case of Mac, you can check the IP address in Settings Remote Access.
• When the Projector and computer are not within the same network, it is required to know the public IP and
configure the router and AP. Check whether the router connected to the computer supports port forwarding.
When the company provides additional security features such as firewall, seek help from a security officer.
- 83 -
2.Username
Enter the Username of the computer. How to check the Username:
• Windows OS: Control Panel User Account Control
• Mac OS: System Preferences Users & Groups
3.Password
Enter the password for the login account.
For use of PIN, do not enter PIN but the specied password of the computer.
- 84 -
Playing Multimedia Content on a Remote PC
When you move the mouse cursor to the top of the screen after accessing a remote computer, the top bar appears.
When the sharing folder icon is clicked in the top bar, the folders shared on Windows or Mac OS appear. You can
play back any media content in a folder.
For more information about playing multimedia content, refer to "Playing pictures/video/music".
To use this function, the folder sharing option on the computer to access must have been enabled as shown below:
• Windows OS:
1.
Run Windows Explorer and then move to the folder to share.
2.
Right-click the folder and then click Properties.
3.
After the Properties window appears, click the Sharing tab and then click Advanced Sharing.
4.
After the Advanced Sharing window appears, select the Share this folder check box.
• Mac OS:
1.
Select Menu System Preferences and then click Sharing.
2.
Select the File Sharing check box.
3.
To add a folder to share, click the Add+ button at the bottom.
4.
Select a folder and then click Add+.
It is recommended to connect the wired network because the screen or sound may be interrupted depending on the
network condition.
When playing a video le via a remote computer, the screen or sound breaking may be encountered.
Using Samsung DeX
Run Samsung DeX on your mobile device to connect the software to the Projector.
Follow the on-screen instructions to connect Samsung DeX. Some models may not be searched when connecting
the Projector from a mobile device through Samsung DeX. If that is the case, follow the instructions shown on the
mobile device screen to connect the software.
This function is available only on mobile devices that support the wireless Samsung DeX.
- 85 -
Controlling your Galaxy device with the keyboard and mouse
left directional button Samsung Daily+ Featured Workspace Multi Control
Control nearby Galaxy devices with the mouse and keyboard connected to the product.
To connect to nearby devices, turn on Multi Control, Wi-Fi and Bluetooth on the devices, and ensure that the devices are
connected to the same wireless network and logged in with the same Samsung account.
This function may not be supported depending on the model or geographical area.
Using Microsoft 365
You can read or create a document after accessing the Microsoft 365 website.
Run the site in full screen mode.
URL modication is impossible in the Microsoft 365 page.
Adding the Web Service
Select the Add Web Service icon. Use the bookmarking function of the Workspace browser, you can add or delete
the web service link to or from Workspace.
To add the web service, you must be signed in to your Samsung account.
The number of web services that can be added to Workspace is limited.
Workspace browser not share data with Internet. (Web browser outside from Workspace)
- 86 -
Using Web Service
You can access the web service by selecting the web service icon added to Workspace.
The screen on the webpage may differ from that of a computer.
You can copy or paste any text. Some image formats are supported.
For easy and secured login in Web Service, Workspace Pass is additionally supported as well as Samsung Pass.
Setting Samsung Pass or Workspace Pass.
Set Samsung Pass or Workspace Pass to Use in left directional button Samsung Daily+ Featured
Workspace Run the Workspace browser (Additionally select Microsoft 365 or Add Web Service) Internet Menu
Settings General.
Workspace Pass allows you to easily manage the web service ID and password without biometric authentication on mobile
devices. For this purpose, you must be signed in to your Samsung account. The password is encrypted to be safely stored on
your Projector.
However, the log in to Workspace Pass may not work depending on the site policy.
Workspace Pass only working on Workspace.
To securely access the web service, you can use the Workspace browser's automatic shutdown or clear the history logs.
Before accessing the web service, refer to "Read Before Using the Internet Function".
Workspace browser not share data with Internet. (Web browser outside from Workspace)
The web service supports the following keyboard shortcuts:
• F1: Returns to Workspace's Home Screen.
• F5: Refresh.
• F8: Mutes the sound.
• F9/F10: Adjusts the volume.
• F11: Switches between full screen or default screen.
- 87 -
Using TV Access
By mirroring, you can watch Projector from the Projector screen.
Select and mirror the desired Projector to view the Projector content from the Projector screen.
left directional button Connected Devices TV Access
This function may not be supported depending on the model.
Connect the Projector and Projector to the same 5 GHz network.
Connecting to a Projector
Select TV Access to display a list of available Projectors to connect to. Select and connect the desired Projector to
the Projector.
After a connection is established, the Projector appears in the Connected Devices list of the Projector. To
subsequently connect to the same Projector, select the Projector from the Connected Devices list.
To disconnect from the Projector, press the or button on the remote control.
- 88 -
Controlling the connected Projector from the Projector
When content is playing, press the up directional buttons on the remote control to display the control menu of the
Projector.
1.Power
Turn on or off the connected Projector.
2.Enter Number
Press a channel number to change the connected Projector channel.
Alternatively, use the (Channel) button on the remote control to change channels.
3.Source
Change the input source connected to the Projector.
- 89 -
Using a larger screen by putting two screens together
Display content on a larger screen by putting two screens together.
Register the Projector to SmartThings on your mobile device, select the registered Projector from the SmartThings
app on the mobile device, and then select Smart Edge Blending.
Follow the instructions provided in the SmartThings app to proceed.
You can display images on a larger screen by putting the screens of two Projectors together in landscape
orientation.
To exit from the Smart Edge Blending screen, press the button on the remote control that came with the
Projector or use the SmartThings app.
Ensure that the mobile device and the two projectors are connected to the same Wi-Fi network.
Project onto a at surface with no curves or obstacles, in order for the function to work properly.
If there is a difference in brightness between the projectors, adjust the brightness of each projector through the mobile
SmartThings.
Menu names are subject to change due to updates.
Use two Projectors to project images toward the front at the same distance from the screen. The more similar the sizes of
the two projected images, the better the result obtained.
This function may not be supported depending on the model.
While in touch mode, conguring Smart Edge Blending settings is restricted.
- 90 -
Using the User guide
Control and read the manual embedded in your Projector.
Launching the User guide
left directional button Settings Support Open User guide
( left directional button Settings Support Tips and User Guides Open User guide)
The menu name or position for this feature may vary, depending on the model.
You can view the embedded User guide that contains information about your Projector's key features.
You can download a copy of the User guide from Samsung's website to view or print on your PC or mobile device (https://
www.samsung.com).
Some menu screens cannot be accessed from the User guide.
Using the buttons in the User guide
The image on your Projector may differ from the image above depending on the model and geographical area.
1. (Search)
Select an item from the search results to load the corresponding page.
2. (Recently Viewed Topics)
Select a topic from the list of recently viewed topics.
- 91 -
3. (Site Map)
It displays the lists for each item in User guide.
4. (Index)
Select a keyword to navigate to the relevant page.
This function may not be supported depending on the model or geographical area.
5.Device Care
Optimise and diagnose the condition of your Projector. You can check and clean your storage space, diagnose
problems or request technical support.
Words in blue (e.g., Internet) indicate a menu item.
The image on your Projector may differ from the image above depending on the model and geographical area.
6. (Try Now)
Allows you to access the corresponding menu item and try out the feature right away.
7. (Link)
Access an underlined topic referred to on an User guide page immediately.
- 92 -
Using the Internet
Surf the Internet on your Projector.
left directional button Home Apps Internet
left directional button Home For You Internet
This function may not be supported depending on the model or geographical area.
When you run Internet, you can see recently viewed websites or featured recommendations. When you select a
desired website, you can get immediate access to it.
You can use the Internet function more easily after connecting a keyboard and mouse.
You can scroll webpages with the directional button on the Samsung Smart Remote.
The webpages may differ from those on a PC.
Before using the Internet, refer to "Read Before Using the Internet Function".
The Internet app has an embedded Samsung Pass Settings ( left directional button Home Apps Internet
Internet Menu Settings Samsung Pass).
With Samsung Pass, you can log into the website easily and securely. When you visit the website again, you can log in with
Samsung Pass Biometrics Authentication on your mobile device without entering your ID and password.
However, this Samsung Pass login may not work depending on the website policy. For this purpose, you must have been
logged in the mobile device with a Samsung account registered in Samsung Pass.
- 93 -
Using SmartThings
It allows the Projector to connect and control the detected various devices in the same space.
left directional button Connected Devices SmartThings Try Now Try Now
left directional button Samsung Daily+ Featured SmartThings Try Now Try Now
You can control the devices registered to the SmartThings cloud and devices directly connected to this product with
a remote control.
This function may not be supported depending on the product or model.
Functions that can be controlled by remote control may not work depending on the location of the device. In this case,
move the location of the device.
Power consumption may increase as SmartThings will operate when the Projector is a low power or standby mode.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Location or Device near Projector
• Place
Displays all places connected via the SmartThings app.
• Devices near Projector
Displays all the detected devices that can be connected and controlled.
You can run the control options after selecting a desired device.
Available options may differ depending on the device.
- 94 -
2.Map View
you can check the status of registered devices.
If you log in with the same account used for the mobile SmartThings app, you can view devices, registered through
SmartThings, more intuitively from Map View.
3.Favourites
View devices or features that have been set as favourites from the Devices/Life/Routines tab.
4.Devices
View devices connected to SmartThings, and use the remote control to select and control any of the connected
devices.
.List of devices compatible with the Projector
Type Description Detail
Devices for IR remote control
(IR Snifng)
Air conditioner, air purier, robot vacuum cleaner, electric fan, humidier
Bluetooth devices Bluetooth speaker, headset, Soundbar, keyboard, mouse, game pad
SmartThings devices
For details on SmartThings devices, access https://partners.smartthings.com/supported
devices.
SmartThings devices can also be controlled from the mobile app.
For a detailed list of supported devices, visit www.samsung.com.
This function may not be available depending on the external device.
5.Life
Displays recommended Life services that can be viewed or controlled from SmartThings.
Only Life services supported by the Projector are displayed.
6.Routines
View or run scenes created from the Routines tab in the mobile SmartThings app.
- 95 -
7.Add Device
Displays the list of devices that can be registered on your Projector. You can register any by selecting a device.
8.Samsung Account
Go to the Samsung account screen to create a new account or sign out of your account.
If you are signed out of your Samsung account, select Sign In to sign in.
9.Settings
Edit devices connected to SmartThings, or congure notication settings for the devices. You can also turn on the
Sensors or the SmartThings hub feature.
SmartThings Quick access
Control most used devices by accessing the Connected Devices menu, without having to access SmartThings.
left directional button Connected Devices
Use the SmartThings Hub features Try Now
Use the SmartThings Hub features on various Samsung products to connect IoT devices (e.g., light bulbs, plugs, or
sensors) that are supported by SmartThings.
left directional button Connected Devices SmartThings Settings SmartThings
Hub
SmartThings Dongle required to connect Zigbee/Thread.
Make sure to log in to the same Samsung account on your Projector as your mobile SmartThings app.
This function may not be supported depending on the connected device type.
- 96 -
Register and manage devices via SmartThings Try Now
Registering peripheral devices of the Projector
1.
When there is a device detected near the Projector, a registration pop-up appears on the Projector screen.
When there is no device detected, the pop-up may not appear.
To connect a Bluetooth device, make sure that the device has been paired.
2.
Select Register to register the device.
To register an appliance, make sure that it uses IR and is detectable in the area around the Projector. Supported
devices and options may differ depending on the model.
Select Close. Then the device registration pop-up does not appear.
You can register a device in left directional button Connected Devices SmartThings Add Device.
left directional button Connected Devices SmartThings, you can see available options for each
device.
Supportable options may differ depending on the device.
Registering a Projector / Smart Appliance / IoT device from the mobile app
Use the mobile SmartThings app to register your Projector, smart appliances or various IoT devices. Some IoT
devices can only be registered using this mobile app. In the mobile app, tap the (Add Device) to register a device.
Connect a doorbell to your Projector, to receive a notication of the doorbell video and speak with the visitor while
watching Projector.
Only WWST (Works with SmartThings) certied doorbells are supported. Supported options may vary, depending on the
device.
- 97 -
Use the screen's sensors via SmartThings Try Now
When you activate the sensor, you can see the sensor device on the SmartThings Device tab. You can create various
IoT scenarios with Projector without purchasing a separate IoT sensor.
left directional button Connected Devices SmartThings Settings Sensors
Each sensor can be activated with user consent.
Each sensor may not be supported depending on the model.
The sound sensor is supported when the microphone switch of the Projector is turned on. The Projector microphone may
not be supported, depending on the model and region.
Control SmartThings with Bixby Try Now
With Bixby on the product, you can control devices connected to SmartThings, as well as the Projector, using voice
commands.
This function may not be supported depending on the connected device type.
Control the display device from the mobile SmartThings app Try Now
From the mobile SmartThings App, use the Projector remote control functionality, such as On/Off, Channel, Volume,
and four directional buttons. You can also use Search, Apps, Ambient mode, Mobile Cam, and other functions from
the mobile app.
Routines in the mobile SmartThings app allows you to automatically run apps installed on the Projector.
With Routines, you can turn on the Projector at your desired time and automatically run frequently used apps.
- 98 -
Playing pictures/video/music
Play media content stored on your Projector, USB devices, mobile devices, cameras, PCs, etc.
left directional button Connected Devices Connected Device Try Now
You can play media content saved on storage devices, such as USB devices, mobile devices and cameras on the
Projector.
You cannot play media content if the content or the storage device is not supported by the Projector. For more information,
refer to "Read Before Playing Photo, Video or Music Files".
Backup important les before connecting a USB device. Samsung is not responsible for damaged or lost les.
You can use the following functions on the media content list screen of a storage device.
• Filter By
Filters the media content by type of media.
• Sort By
Sorts the content list.
This function may not be supported depending on the type of external device.
• Options
Deletes or plays the selected media content in the media content list. When you select Refresh, the content list
is reloaded.
You can delete only the recorded content. To delete content, change the Filter By option to Recorded.
Recorded may not be supported depending on the geographical area.
- 99 -
Playing multimedia content on a PC or mobile device
1.
Select a device with media content in left directional button Connected Devices Sources. The
media content list in the device appears.
2.
Select a media content item from the list.
The selected content is played.
The content may not be played depending on the encoding method or le format. Furthermore, several functions may be
restricted.
Content on devices connected to the Projector via your network may not play smoothly due to network communication
problems. If this occurs, use a USB device.
Playing multimedia content on a USB device
1.
Connect a USB device to the USB port.
2.
There is a content list browser shown directly.
If a USB device that contains the content you want to play is already connected to the Projector, select the USB device
in the left directional button Connected Devices Sources screen.
3.
Select a content item to play from the list.
The selected content is played.
- 100 -
Listening to your mobile device sound through the Projector speaker using Sound Mirroring
Enjoy listening to music in your living space. Visualisations are generated on your Projector that alter and respond
to the frequency of your music.
1.
Search for and connect to your Projector from the (Bluetooth) device list on your mobile device.
2.
Select media content to play on your mobile device.
The selected media is played through the Projector speaker.
This function may not be supported depending on the model.
In some models, the image of the played content may differ depending on the mode.
If the Projector and the soundbar are connected wirelessly, the operation may be restricted.
Buttons and functions available while playing multimedia content
Press the Select button while playing any video, photo or recorded content. The following buttons appear.
The provided buttons and functions may not be supported depending on the model or geographical area.
The available buttons and functions may differ with the content you are viewing or playing.
• Pause / Play
Pauses or plays the multimedia content.
• Jump Backward / Jump Forward
Press the up directional button to move the focus to the playback control bar, and then select the left or right
directional button in the playback control bar to move backward or forward by 10 seconds in the video.
• Move to a specific playback section, move up the focus on the playback bar, and then select one of the five
thumbnails.
This function may not be supported depending on the file format.
• Stop
Stop the contents being played.
- 101 -
• Previous / Next
Displays the previous or the next multimedia content file.
If video playback time is 3 seconds or shorter and you press the button, the video starts from the beginning.
• Rewind / Fast Forward
Rewinds or fast forwards the multimedia content. To increase the rewind or fast forward speed up to 3 times
faster than normal, select the button repeatedly. To return to normal speed, select the option or press the
button.
You can use the following functions when the video is paused. Note that with the video paused, the Projector
does not play audio.
– Slow Rewind or Slow Forward: Allows you to play a video slowly backward or forward by selecting the or
option. There are 3 playback speeds. To change the playback speed, press the option repeatedly. To
return to normal speed, select the option or press the button.
• 360 Mode
Provides a 360-degree view for videos and photos.
This function may not be supported depending on the file format.
Video files using the mjpeg codec do not support a 360-degree view.
When a video or photo does not support a 360-degree view, applying 360 rotation to it may cause the screen to look
distorted.
Videos may be interrupted if 360 rotation is applied during double speed playback.
Videos that support a 360-degree view may be interrupted if 360 rotation is simultaneously applied with other
functions during playback.
This function may not be supported for some resolutions.
This function may not be supported depending on the model.
- 102 -
• 360 Auto Rotation
Automatically adjusts the video's viewing angle by analysing the amount of image changes during playback of a
video file that provides a 360-degree view. When this function is started, the rotation starts in a short time.
When 360 Auto Rotation is focused, press the Select button to change to the following modes:
– General
– Dynamic
– Natural
This function is only available when 360 Mode is selected.
When 360 Auto Rotation is activated, automatic adjustment is followed. The adjustment position may differ depending
on the image.
The video's viewing angle is manually adjusted in General mode.
This function may not be supported depending on the file format.
Video files that use the mjpeg codec do not support a 360-degree view.
When a video does not support a 360-degree view, applying 360 rotation to it may cause the screen to look distorted.
Videos may be interrupted if 360 rotation is applied during double speed playback.
Videos that support a 360-degree view may be interrupted if 360 rotation is simultaneously applied with other
functions during playback.
This function may not be supported for some resolutions.
This function may not be supported depending on the model.
• Repeat
Plays the current multimedia content repeatedly or all multimedia content files in the same folder repeatedly.
• Shuffle
Plays music files in random order.
- 103 -
• Picture Off
Plays music files with the screen off.
• Fit to Screen
Fits a photo to the screen.
• Rotate left / Rotate right
Rotates a photo left or right.
• Zoom
Zooms in a photo.
• Background Music
Pauses or resumes the background music while the Projector displays photos.
This function is available after enabling the Background Music option.
• Options
The available options may differ with the model and content.
Function Description
Slideshow Speed
Sets the slideshow speed.
If there is only one image le in the USB device, the slide show is not played.
Slideshow Effect
Applies transition effects to the slide show.
If there is only one image le in the USB device, the slide show is not played.
Background Music
Plays background music as you set in the pop-up window while the Projector displays photos.
The music les must be saved in the same USB device as the photo les.
To pause the background music, select Background Music on the playback screen bottom.
Subtitles
You can set the detailed subtitle options such as the language, sync, size and colour.
If subtitles are not displayed correctly, check the encoding setting.
Rotate Rotates the video.
Audio Language
Changes the audio language.
This function is only available if the video supports multi-track sound.
Information Displays detailed information about the current multimedia content.
- 104 -
Using Multi View
You can view multiple content items through Multi View.
left directional button Settings Multi View Try Now
This function may not be supported depending on the model.
To start Multi View, navigate to left directional button Settings Multi View. Next, select the item
you want from the Add View list. Or select Make My Own to congure a custom layout and screen. You can add
or delete a screen in the current Multi View screen by pressing the down directional key on the Samsung Smart
Remote. To add a screen, while in Multi View mode, select Add View at the bottom right to add the screen you
desire.
The image on your Projector may differ from the image above depending on the model and geographical area.
When Multi View is running, press the Select button to congure the following menus.
This function and the provided options for each menu icon may not be available depending on the model and region.
• App/Source
You can select from the content list displayed above.
• Content
You can view the currently displayed app or source.
After selecting a content item, you can control the screen or change the app and source.
- 105 -
• Maximise
View the selected screen in full screen mode.
• Return to Multi View
Reduce the maximised screen to the original size, and return to the Multi View.
• Screen Size
Selects the desired size of Multi View.
• Screen Position
Selects a position of the Multi View screen.
• Picture-in-Picture
Selects the position of a small screen on the full screen. The focusing left or right screen appears as small
window.
• Double Audio
You will hear the sound of both screens at the same time by adjusting the ratio of each screens sound.
• Bluetooth Speaker
You can hear the sound by connecting the Bluetooth speaker.
• Full Screen
Multi View is ended and then the full screen appears.
• Delete
You can delete the selected screen.
To close Multi View, press and hold the button or press the button on the Samsung Smart Remote.
This function operates only by Projector broadcasts, external devices, or apps that support Multi View.
While running Multi View, app casting from your mobile device is run on Multi View. This function is not available in some
apps.
In some models, you can view the image on the camera connected to the SmartThings app of your mobile device.
Q-Symphony is not supported by Multi View.
When an external device that connects to a receiver or Soundbar is used in Multi View, sound outputs from the Projector
speaker, not from the receiver or Soundbar.
- 106 -
Advanced Features
Use useful features available on your Samsung Projector
Using Intelligent Mode
Let the Projector analyse the surrounding and the content you are watching so that it can provide an upgraded
viewing experience.
left directional button Settings All Settings Advanced Features Intelligent Mode
Settings Intelligent Mode Try Now
In Intelligent Mode, the Projector recognises and analyses the surroundings, noise, the content and your usage
patterns to provide the best viewing experience. You can turn the options below on or off. Create your preferred
viewing environment.
This function may not be supported depending on the model or geographical area.
• Adaptive Picture Try Now
– Vision Booster
Optimises brightness and provides the best picture quality in real time, based on the lighting condition and the
content you're viewing.
- 107 -
• Adaptive Sound Settings
With AI-based content recognition, scenes such as sports events and films are automatically customised to your
preferred picture settings.
– Active Voice Amplifier / Active Voice Amplifier Pro
Analyses ambient noise and provides optimal sound depending on the noise.
This function is available only when the microphone switch of the Projector is active and the sound output is set to
Projector Speaker. The location of the microphone switch may vary depending on the model or geographical area. The
microphone on Projector is not supported depending on the model or geographical area.
While using this function, the Projector does not save the data.
This function may not be supported by some modes or apps (e.g., Game Mode).
– Adaptive Sound+ / Adaptive Sound Pro
Provides optimised sound quality by analysing the viewing space and the acoustic components of the content.
This function can be used only when the microphone switch of the Projector is active and the sound output is set to
Projector Speaker. The microphone on Projector is not supported depending on the model or geographical area.
While using this function, the Projector does not save the data.
This function may not be supported by some modes or apps. (For example, Ambient Mode, Game Mode and apps that
control the Projector sound)
This function may not be supported depending on the model.
The name of this function may appear differently depending on the model.
– Adaptive Volume Try Now
Automatically adjusts to a specific volume level while you are watching Projector. The Projector analyses your
volume usage history by time period to automatically adjust the volume when you use an app or switch to an
external input source.
This function is only available when the sound output of the Projector is set to Projector Speaker.
This function may not be supported by some apps or external devices.
This function's operation affects Auto Volume function, but it does not work the other way around.
This function operates based on your volume usage history and may not operate if the volume usage history by time
period is insufficient.
The amount of difference made by this function does not exceed +/- 5 levels from the current volume and this
function does not change the current volume if it exceeds 40.
- 108 -
Using Voice Assistants
You can change the settings of a Voice Assistant after selecting it.
Select the Voice Assistant
left directional button Settings All Settings Advanced Features Voice Voice
Assistant Try Now
Select which Voice Assistant you would like to help control your Projector.
To use this function, the Projector must be connected to the network.
This function and Voice Recognition Solution Partner may not be supported depending on the model or geographical area.
Voice Assistant only supports some languages, and the supported functions may differ depending on the geographical
area.
The Voice Wake-up function may not be supported depending on the model, Voice Assistant or geographical area.
• Bixby / Amazon Alexa
To use the Voice Assistant, follow the instructions on the Projector screen to enable the selected Voice Assistant.
To change the settings for Voice Assistant, run the Settings menu under each Voice Assistant ( left directional
button Settings All Settings Advanced Features Voice Voice Assistant). Try Now
To enable the Settings menus for each Voice Assistant, log in each Voice Assistant.
For an example of Voice command, see the Settings menus for each Voice Assistant.
- 109 -
Using Bixby
Set Voice Assistant to Bixby. Speak into the microphone on your Samsung Smart Remote or Projector to control
your Projector.
This function is available only if Voice Assistant is set to Bixby. ( left directional button Settings All Settings
Advanced Features Voice Voice Assistant) Try Now
Bixby is available only when the Projector is connected to the network.
To use Bixby, you must register and sign in to your Samsung account. Some functions may not be supported if you are not
signed in to your Samsung account.
Bixby only supports some languages and the supported functions may differ depending on the geographical area.
Bixby may not be supported depending on the model or geographical area.
The microphone on Projector is not supported depending on the model or geographical area.
Starting Bixby with voice
You can immediately start a conversation with Bixby by saying "Hi, Bixby". Say "Hi, Bixby", and the Bixby icon at the
bottom of the Projector screen is activated in Listen mode. Continue speaking.
When the distance to the Projector is within 3 to 4 m, optimal performance is provided. If Bixby does not answer, refer to "I
spoke "Hi, Bixby/Alexa" but Bixby/Alexa does not answer." in "Troubleshooting".
This function may not be supported depending on the model or geographical area.
- 110 -
Starting Bixby using buttons on the Samsung Smart Remote
You can have conversation with Bixby using the Samsung Smart Remote buttons. Press and hold the button on
your Samsung Smart Remote, say a command, and then release the button.
For details on how to use Bixby, press the button once:
• When you press the button, the icon appears at the bottom right of the screen. Press the Select button to
go to the Discover Bixby screen.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
- 111 -
Learning about the Discover Bixby Screen
The image on your Projector may differ from the image above depending on the model and geographical area.
1. Account
Log out after going to the Samsung Account screen.
If you are signed out of your Samsung account, select Account to sign in.
2. Tutorials
View tutorials related to the Bixby.
3. Settings
You can change the settings for using Bixby.
These functions may not be supported depending on the model or geographical area.
These functions can be set in Bixby Settings ( left directional button Settings All Settings Advanced
Features Voice Bixby Settings). Try Now
- 112 -
• Voice Wake-up
Congure settings on how to wake up Bixby with your voice. You can congure the following settings: Hands
free wake-up, Voice registration, Using your voice with a Soundbar's microphone, Wake-up phrase, Talk to
Bixby without wake-up, and Wake-up Sensitivity. ( Bixby Settings Voice Wake-up)
The Voice Wake-up function may not be supported depending on the model or geographical area.
This function can be used only when the microphone switch of the Projector is active. The microphone on Projector is
not supported depending on the model or geographical area.
When the distance to the Projector is within 3 to 4 m, optimal performance is provided. If Bixby does not answer, refer
to "I spoke "Hi, Bixby/Alexa" but Bixby/Alexa does not answer." in "Troubleshooting".
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
• Language and voice style
You can change Bixby's language and voice style.
The languages of the Projector and other apps will not change.
Bixby only supports some languages.
This function may not be supported in Bixby depending on the language selected.
• Bixby Feedback
Play a sound when Bixby starts and stops listening.
This function may not be supported depending on the model or geographical area.
- 113 -
• Privacy
You can permit or prohibit Bixby from utilising your personal information when you are using Bixby services.
• About Bixby
Displays the detailed terms and conditions.
4.Recommended commands
Displays recommended commands you can use to control the Projector with Bixby given the current context.
If you do not want to see the recommended commands, set Voice Hint to Off. ( left directional button
Settings All Settings Advanced Features Voice Voice Hint) Try Now
This function may not be supported depending on the model or geographical area.
5.All Services
You can learn the voice commands that let you use Bixby in various situations. Use the directional buttons to
move to the desired command, and then press the Select button. You can operate the Projector with various voice
commands.
- 114 -
Read Before Using Bixby
• The supported voice interaction languages and features may differ depending on the geographical area.
• If the language set differs from the language of your country, some features are not available.
• Bixby is available only when the Projector is connected to the network.
• Even if the Projector is connected to the network, there may be no response due to a Bixby server error.
• The existing functional specifications may be changed if Bixby is updated.
• Bixby is available only on Projectors that support it and come with remote controls that have a microphone.
• Symbols including "-" and special characters are not supported. Consequently, if a word or sentence contains
numeric values or symbols, the function may not operate properly.
• Searched results may not provide complete results.
• You may be required to pay for some apps. Consequently, you may encounter a service application or contract.
• To change the current channel by saying channel names as voice commands, you must finish Find Your Service
Provider. Find Your Service Provider can be set in left directional button Settings All Settings
General & Privacy Broadcasting Service Provider Info & Settings. Try Now
This function may not be supported depending on the model.
If the settings for the service provider are not configured yet, configure them in left directional button
Settings All Settings General & Privacy Factory data reset. Try Now
Service provider settings in initial setup may not be supported on geographical area.
• To use the voice text input function and the search function, you must consent to provisions allowing third
parties to collect and use your voice data.
• To use the Bixby function, you must:
– Agree to Smart Hub's Terms of Use.
– Agree to a guidance regarding the collection and use of personal information for the Smart Hub service.
– Consent to the collection and use of personal information for the voice interaction-based service.
Provisions for using Bixby
• The voice interaction rate differs with the volume/tone, pronunciation and ambient sound environment
(Projector sound and ambient noise).
- 115 -
Using Game Mode
You can set the Game Mode to optimise the Projector screen for better gaming performance.
Playing games on an optimised screen
left directional button Settings All Settings Advanced Features Game Mode
Settings Game Mode Try Now
When you connect a video game console such as PlayStation and Xbox, Game Mode is set to Auto. When you
connect the other game source such as PC, set the Game Mode to On through the above path. You can also set the
Game Mode quickly from Home Screen ( left directional button Settings Game Mode ).
The menu path may differ depending on the model or geographical area.
This function may not be supported depending on the model or geographical area.
The game mode is not available for normal Projector viewing.
The screen may shake somewhat.
When you press and hold the button on the Samsung Smart Remote for 1 second or more in Game Mode, the Game Bar
appears. This function may not be supported depending on the model.
When Game Mode is enabled, Picture Mode and Sound Mode are switched to Game automatically. Sound Mode may not be
automatically switched depending on the selected audio device on the Sound Output menu.
When Game Mode is set to On, some functions are not available.
To use a different external device on the same port, remove the game console connection, set Game Mode to Off, and then
connect the external device to the port.
The Game Mode functions used for Nintendo Switch™ are subject to change without prior notice.
- 116 -
Setting the Game Mode details
left directional button Settings All Settings Advanced Features Game Mode
Settings Try Now
These functions may not be supported depending on the model or geographical area.
• Virtual Aim Point Try Now
You can see the virtual aim point at the center of the screen.
This function may not be supported depending on the model or geographical area.
• Minimap Auto Detection
Automatically finds and zooms in on the minimap by analysing the screen when using the Minimap Zoom
feature.
This function may not be supported depending on the model or geographical area.
• Surround Sound Try Now
You can make your games more immersive by using intense, three-dimensional sound optimised for games.
This function may not be supported depending on the model or geographical area.
• Dynamic Black Equalizer Try Now
You can easily detect items or hidden enemies lurking in dark corners by improving visibility and object details in
dark scenes without washing out colours and contrast in brighter scenes.
This function may not be supported depending on the model or geographical area.
• Game Motion Plus Settings Try Now
You can configure the Game Motion Plus settings.
This function may not be supported depending on the model.
– Game Motion Plus
Turn on this function to obtain a softer and clearer picture quality when playing a role-playing game (RPG) or
adventure game which involves many dynamic scenes.
– Blur Reduction
Reduce game screen blur to optimise fast-moving images.
This function may not be supported depending on the model or geographical area.
- 117 -
– Judder Reduction
Remove flicker from a game video to play the game with a clearer picture quality.
– LED Clear Motion
Turn on this function to adjust the LED backlight to make dynamic scenes look clearer.
This function may not be supported depending on the model.
– Clear motion
Turn on this function to make dynamic scenes look clearer.
This function may not be supported depending on the model.
• Game Picture Expert
You can adjust the options for specific picture quality features of your game.
This function may not be supported depending on the model or geographical area.
– HDR10+ GAMING
Basic mode provides the most accurate representation of the game’s original creative intent. Advanced mode
provides enhanced representation of game content to maximise visual impact.
– Game HDR
In accordance with the HGiG (HDR Gaming Interest Group) standard, it sets the optimal image quality for HDR
games according to the brightness information of the contents.
When HDR sources are input in Game Mode, this menu is activated.
• Autorun Game Bar
Set whether or not to automatically launch the Game Bar, by enabling/disabling game mode or switching
between external inputs.
This function may not be supported depending on the model or geographical area.
- 118 -
Using the Game Bar
Control the Game Settings Monitoring and Game Enhancer Settings easily by using the Game Bar.
This function may not be supported depending on the model.
Starting the Game Bar
When Game Mode ( left directional button Settings All Settings Advanced Features (Game Mode
Settings) Game Mode) is On or Auto, press and hold the button on your Samsung Smart Remote to start the
Game Bar. Try Now
To select whether or not to automatically start Game Bar when changing the external input or enabling game
mode, enable or disable the Autorun Game Bar feature ( left directional button Settings All Settings
Advanced Features Game Mode Settings Autorun Game Bar).
Learning about the Game Bar
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Game Genre
Specify the Game Picture Mode according to the current game genre. To customise the picture quality, select
Custom 1 or Custom 2.
2.Virtual Aim Point
You can see the virtual aim point on the screen.
- 119 -
3.Screen Ratio
You can change the screen ratio from 16:9 (previous setting) to Ultra wide (21:9 or 32:9).
You have to set the resolution from your PC only once at rst time.
The Game Bar’s Screen Ratio can be changed only when the Ultra Wide resolution is supported in a game or PC. Whether or
not to support the screen ratio of 21:9 and 32:9 depends on the title of the game so be sure to consult the game company.
4.Minimap Zoom
Use the directional buttons and Select button on the remote control to zoom in on specic areas of the game screen
and adjust the zoom rate.
• For the Minimap supported resolution, refer to the table below.
Game Bar Screen Ratio Resolution set in PC
16:9 3840 x 2160 (60/*120 Hz)
21:9
2560 x 1080 (60/*120 Hz)
3840 x 1600 (60/*120 Hz)
32:9 3840 x 1080 (60/*120 Hz)
*: The refresh rate may not be supported depending on the model.
- 120 -
5.More settings
Congure specic settings to suit your preferences.
6.Game Motion Plus
Turn on this function to obtain a softer and clearer picture quality when playing a role-playing game (RPG) or
adventure game which involves many dynamic scenes.
7.Sound Output
Change the sound output device. (e.g. Projector Speaker, Soundbar, Bluetooth headset, etc.)
8.Help guide
View details on how to use each menu item.
9.Current status display
• Input Lag: Shows the status of game input lag.
• Resolution: Shows the resolution of the currently running game.
• FPS: Shows the number of frames per second in real time. If VRR is active, the frame rate changes.
• HDR: Shown as On when an HDR game is running.
• VRR: Shows the variable refresh rate.
- 121 -
Setting the Super Ultra Wide Game View
Set your PC Screen resolution to match the selected Screen Ratio in the Game Bar before activating the Super Ultra
Wide Game.
If the Projector is connected to a computer and Game Mode is set to either ON or Auto, the wide screen (21:9 or
32:9) is activated from the Game Bar.
This function may not be supported depending on the model and geographical area.
Check if the game supports Ultra Wide resolution (21:9 or 32:9).
If you set the resolution on your PC for the rst time, you can change the Screen Ratio through the Game Bar on your
Projector.
Game Bar Screen Ratio Resolution set in PC
21:9
3840 x 1600 (60 Hz)
* 3840 x 1600 (120 Hz)
2560 x 1080 (60 Hz)
2560 x 1080 (120 Hz)
32:9
3840 x 1080 (60 Hz)
3840 x 1080 (120 Hz)
*: The resolution may not be supported depending on the model.
The supportable resolutions may differ depending on the model or HDMI port connected to the PC.
After setting the resolution, check if the PC’s Window or Mac screen changes when you change the Screen Ratio on the
Game Bar of your Projector.
This function may not be supported depending on the OS or device.
If the connected external device is a gaming device, the function does not work even if you change the name of Source to
"PC".
While you are playing a game, the screen ratio cannot be changed. Before running a game, rst select the
desired screen ratio on the Game Bar and then run the game. For some games, you need to match the game
resolution with the selected screen ratio in the Game Bar.
- 122 -
Changing the Super Ultra Wide Screen position
When playing a game at the Super Ultra Wide resolution, you can adjust the game screen position to the height of
your eyes.
At the Super Ultra Wide resolution, use the (channel) buttons to move the screen position to the top, centre, or
bottom.
Troubleshooting of the game screen and audio problems
After changing the Screen Ratio on the Game Bar, if the game screen and sound are not output properly, try to solve
the problems as shown below.
• Check to see if the game supports Ultra Wide or your PC supports the Ultra Wide resolution.
• Restart the game after exiting it.
• Select the same resolution as that of the Game Bar.
• When the Screen Ratio changes properly, the screen appears as shown below.
16:9 21:9 32:9
- 123 -
Conguring Start Screen
Congure settings for the start screen that is displayed when turning on the Projector or using content.
Launching Smart Hub automatically
left directional button Settings All Settings Advanced Features Start Screen
Options Start with Smart Hub Home Try Now
Enabling Start with Smart Hub Home automatically launches Smart Hub when the Projector is turned on. Navigate
to this option to enable or disable the feature.
Automatic casting in Multi View
left directional button Settings All Settings Advanced Features Start Screen
Options Autorun Multi View Casting Try Now
Casting YouTube content from the mobile device automatically displays the content on Multi View.
It is available on the screen for any broadcast, external device, or app that supports Multi View.
This function may not be supported depending on the model.
Automatic Mirroring from Multi View
left directional button Settings All Settings Advanced Features Start Screen
Options Autorun Multi View Mirroring
If you screen mirror your mobile device, the Multi View automatically displays the device screen. Navigate to this
option to enable or disable the feature.
This function may not be supported depending on the model or geographical area.
Launching the last used app automatically
left directional button Settings All Settings Advanced Features Start Screen
Options Autorun Last App Try Now
If Autorun Last App is set to On, the last used app is automatically run when you turn on the Projector. You can turn
this function on or off. Press the Select button at the current menu.
This function may not be supported depending on the app.
This function may not be supported depending on the model.
- 124 -
Projector Viewing
You can use convenient features while watching Projector. Additionally, You can also edit your list of channels and
create a list of favourite channels.
Using the Guide
See the programming schedules of different channels on a single screen.
Press the (channel) button to access the Guide.
In the Guide, you can see the daily programme schedules for each station, see programme information, choose a
programme to watch, and set up a schedule viewing.
Service Provider settings in initial setup may not be supported on geographical area.
To view Guide, you must rst congure Time. Try Now
– left directional button Settings All Settings General & Privacy System Manager Time*
– left directional button Settings All Settings General & Privacy Time*
*: The menu name or position for this feature may vary, depending on the model.
For details on how to use the remote control, refer to the image guide at the top right.
About the Guide screen
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Edit Channels
Edit channels stored on the Projector.
For more information, refer to "Using the channel edit function".
2.Channel Filter
View channels and programmes classied by type.
- 125 -
3.Additional options related to broadcast programmes
Navigate to the desired programme and press and hold the Select button to access the following options:
These functions may not be supported depending on the model or geographical area.
• Schedule Viewing
You can schedule the viewing of a broadcast scheduled programme.
• Cancel Scheduled Viewing
You can cancel scheduled viewings.
• View Details
You can see detailed information about the selected programme. The information may differ or may not be
provided depending on the broadcast signal.
Using additional features from the Guide
From the Guide, press either the button to use additional features. Use the directional buttons to navigate to the
color button item on the numeric keypad.
These functions may not be supported depending on the model or geographical area.
• Channel Filter
You can view channels and programmes categorised by the types defined in Channel List.
• Schedule Manager
You can see the Schedule Manager screen.
For more information about Schedule Viewing, refer to "Setting Up Schedule Viewing".
- 126 -
Setting Up Schedule Viewing
Congure the Projector to show a specic channel or programme at a specic time and date.
This function may not be supported depending on the model or geographical area.
The appears next to programmes that have been congured for a scheduled viewing.
To set up a schedule viewing, you must rst set the Projector's clock and set the time. Try Now
– left directional button Settings All Settings General & Privacy System Manager Time*
– left directional button Settings All Settings General & Privacy Time*
*: The menu name or position for this feature may vary, depending on the model.
Using the schedule viewing options from the guide screen
On the Guide screen, select a programme you would like to view, press the Select button, and then select Schedule
Viewing in the pop-up menu that appears.
Using the schedule viewing options while watching a programme
1.
Press the Select button while watching Projector.
2.
The programme Info window appears.
3.
Select a programme that will be broadcast using the left or right directional buttons.
4.
Press the Select button, and then select Schedule Viewing to schedule viewing of that programme.
- 127 -
Using the viewing schedule management screen
1.
On the Samsung Smart Remote, press the button.
2.
Use the directional buttons to navigate to the control pad.
3.
Select either Schedule Manager to access the Schedule Manager screen.
Displayed menu options may vary depending on the model or geographical area.
• Schedule Viewing
Navigate to Schedules and press Schedule Viewing. Add, edit, or cancel a programme viewing schedule.
Up to thirty *Schedule Recording and Schedule Viewing events may be created.
* : This function may not be supported depending on the model.
Ensure that the Projector's Time ( left directional button Settings All Settings General & Privacy
Time) setting is correct.
– Edit
You can set the start time of a scheduled viewing. If you choose a programme from the Guide, the Start Time
can be set to up to 10 minutes before the programme.
– Delete
You can delete scheduled viewings.
– View Details
You can view detailed information about scheduled viewings.
- 128 -
Using the Channel List
Change the channel or check programmes on other digital channels.
Use the Channel List screen to change channels or see what programmes are being broadcast on other digital
channels.
Accessing the channel list
Press and hold the (Channel) button to open the Channel List.
Using the functions on the channel list screen
The Channel List screen icons indicate the following:
– : A favourite channel.
– : A locked channel.
Press the left directional button while in the Channel List screen to access the following options:
• Edit Channels
Edit the channels stored on your Projector.
• All Channels
Displays the channels that have been automatically searched.
• Samsung TV Plus
While the Projector is connected to the Internet, you can watch popular programmes or highlights for each
theme through a virtual channel at any time. As with regular channels, the Projector provides the daily
programme schedules for Samsung TV Plus.
This function may not be supported depending on the model or geographical area.
• Channel Type
Filters the list so that it includes channels of a selected type. However, Channel Type can only be used channels
contain the type information.
This function may not be supported depending on the incoming broadcast signal.
• Favourites
Displays favourite channels from Favourites 1 through Favourites 5.
It displays only the Favourites that includes the Favourite channel.
- 129 -
Using the channel edit function
Edit the channels stored on your Projector.
Accessing the channel edit screen
• Display the Guide screen, and press Edit on the left of the screen to access the edit-channel screen.
• Display the Channel List screen, and press Edit Channels on the bottom of the screen to access the edit-channel
screen.
Using the channel edit functions
The Edit Channels screen icons indicate the following:
– : A favourite channel.
– : A locked channel.
Select a channel from the Edit Channels screen to access the following options:
• Lock / Unlock
Restrict access to channels that require parental guidance. Locked channels can only be accessed by entering
the PIN.
If you want to use this function or set the password, set left directional button Settings All Settings
General & Privacy Parental Settings Apply Channel Lock to On.
For more information on setting the PIN, refer to "Setting up a password".
• Delete
After selecting a target channel to remove in Edit Channels, select Delete. Removed channels are not displayed
in the Channel List.
• Change Number
After selecting a channel to change in Edit Channels, select Change Number to change the channel number.
This function may not be supported depending on the model or geographical area.
When a channel number is changed, its channel information is not updated automatically.
• Restore Samsung TV Plus
You can restore the deleted Samsung TV Plus channels.
This function may not be supported depending on the model or geographical area.
• Save and Exit
Save the changes made under Edit Channels and exit.
- 130 -
Using a Personal favourites List
Create frequently watched channels as favourite channels.
On the Edit Channels and Channel List screens, the icon appears next to favourite channels.
Creating a Favourites List
1.
Access the Edit Channels screen.
For details on how to access the channel edit screen, refer to “Accessing the channel edit screen.”
2.
Press the left directional button on the remote control to select the desired Favourites.
3.
Press the right directional button to select Add Channels.
4.
Select the desired channel in the list on the screen.
5.
Press Add to add the selected channel to the favourites list.
Select Favourites 1 - Favourites 5 on the Edit Channels screen and the following functions are available.
Up to ve Favourites can be created, which allows each member of the family to create their own favourites list.
• Add Channels
In the channel list, select one or more channels to add in the favourite list and then select Add Channels.
• Remove
Removes one or more channels from a favourites list.
• Change order
Changes the order of one or more channels selected in a favourites list.
• Rename Favourites
Renames a favourites list.
Displayed menu options may vary depending on the model.
• Save and Exit
Saves and closes the Edit Channels screen.
- 131 -
Projector-Viewing Support Functions
Use the functions that are available while watching Projector.
Using Programme Rating Lock
left directional button Settings All Settings General & Privacy Parental Settings
Programme Rating Lock Try Now
This function may not be supported depending on the model or geographical area.
This function is useful for controlling what programmes children can watch on the Projector based on their ratings.
Programme Rating Lock does not, however, block programmes originating from external sources, such as Blu-ray
players, DVD players or USB les.
Every time you access Programme Rating Lock, you must enter the security PIN. You must also enter this PIN to
watch a blocked programme. To change the PIN, go to Change PIN.
• left directional button Settings All Settings General & Privacy System Manager Change PIN
Try Now
• left directional button Settings All Settings General & Privacy Change PIN
The menu name or position for this feature may vary, depending on the model.
For more information about how to set your password, refer to "Setting up a password".
Programme Rating Lock may not be supported depending on your input signal.
- 132 -
Picture and Sound
You can change the settings for the picture and the sound according to your preference.
Adjusting the Picture Quality
Change the Picture Mode and adjust Expert Settings.
Choosing a picture mode
left directional button Settings All Settings Picture Picture Mode Try Now
You can select the Picture Mode that provides the best viewing experience.
Entertain and Graphic are supported only when you change the external device name to PC in PC mode.
Displayed menu options may vary depending on the model or geographical area.
• Dynamic
Makes the picture brighter and clearer in bright viewing environments.
• Standard
Is the default mode suitable for general viewing environments.
• Movie
Is suitable for watching Projector or movies in a dark room.
• FILMMAKER MODE
This screen mode provides picture quality certified by UHD Alliance. The image defined as FILMMAKER MODE
automatically switches to FILMMAKER MODE while watching.
This function may not be supported depending on the model or geographical area.
FILMMAKER MODE may look darker than other picture modes.
You can change FILMMAKER MODE to a different Picture Mode. However, the changed Picture Mode will be maintained
even after watching the picture defined by FILMMAKER MODE.
FILMMAKER MODE™ logo is a trademark of UHD Alliance, Inc.
- 133 -
Conguring advanced picture settings
left directional button Settings All Settings Picture Expert Settings Try Now
Congure the screen settings to your taste by using the following functions:
• Brightness Try Now
Adjust the overall picture brightness. The closer to 50, the brighter the picture.
• Contrast Try Now
Adjust the difference between the darkest and brightest areas between objects and their background. The closer
to 50, the larger the difference.
• Sharpness Try Now
Adjust the outline sharpness of objects. The closer to 20, the sharper the object outlines.
• Colour Try Now
Adjust the chroma of a video. The closer to 50, the deeper the colours.
• Tint (G/R) Try Now
Adjust the colour tone. The higher either value, the redder or greener the video.
• Apply Picture Settings Try Now
Apply the selected picture settings to the current input source or all input sources.
• Picture Clarity Settings Try Now
Optimise a video that has many dynamic scenes.
• Contrast Enhancer Try Now
Automatically adjust the contrast to prevent excessive brightness differences between brighter and darker
areas.
• Picture Size Settings
Configure the picture size settings.
- 134 -
•
Auto HDR Remastering Try Now
Enjoy HDR-like picture quality – even with SDR content.
This function may not be supported depending on the model or geographical area.
• HDR Tone Mapping Try Now
Automatically adjusts the brightness with tone mapping processing according to the HDR content information.
This function may not be supported depending on the model or geographical area.
• Film Mode Try Now
Touch up an old video to improve the picture quality for a better viewing experience.
This function is only available when the input signal is Projector, or HDMI (1080i).
• Colour Tone Try Now
Select an appropriate colour tone, according to the viewing situation.
• White Balance Try Now
Adjust the brightness of the colours red, green and blue so that the brightest area of the picture becomes white.
• Gamma
Adjust the medium brightness of a video.
• Shadow Detail Try Now
Adjust the brightness of a dim picture. The closer to 5, the brighter the dim picture.
• Colour Space Settings Try Now
Select a range of colours that can be expressed on the picture.
• Peak Brightness
Projects the optical maximum brightness.
This function may not be supported depending on the model or geographical area.
- 135 -
•
Colour Booster Try Now
Select a range of colours that can be expressed on the picture.
This function may not be supported depending on the model or geographical area.
• Smart Calibration Try Now
Automatically adjust the picture quality of a movie to obtain the quality intended by the movie producer.
This function may not be supported depending on the model or geographical area.
To use this function, use a Smartphone that is compatible with the function. The list of compatible models is
shown below.
– Galaxy models: Galaxy S, Galaxy Note, Galaxy Fold, and Galaxy Flip Series models that were released after
January 2019
– iPhone models: Models with a Face ID function that were released after January 2019
Supported models may differ depending on the situation.
• Reset Picture Try Now
Reset the picture settings to the default values.
- 136 -
Picture Support Functions
Congure the picture settings for your Projector.
Changing the picture size settings
left directional button Settings All Settings Picture Picture Size Settings Try Now
( left directional button Settings All Settings Picture Expert Settings Picture
Size Settings)
The menu name or position for this feature may vary, depending on the model.
These functions may not be available on Samsung TV Plus and some applications.
• Picture Size Try Now
You can change the size of the picture displayed on the Projector screen to 16:9 Standard, Custom or 4:3.
Supported picture sizes differ with the input signal. For more information about supported picture sizes, refer to
"Picture sizes and input signals".
• Auto Wide Try Now
Changing the picture size automatically.
This function may not be supported depending on the model or geographical area.
• 4:3 Screen Size Try Now
You can select a picture size suitable for your geographical area while you are watching Projector in the 4:3 or
Fit to screen mode. The supported screen sizes differ with the country and this function allows you to adjust the
picture size in this case.
The 4:3 mode is not available when an external device is connected to the Projector via a Component connector or an
HDMI connector.
This function may not be supported depending on the model or geographical area.
• Fit to screen Try Now
Fitting the picture to the screen.
This function may not be supported depending on the Picture Size setting.
This function may not be supported depending on the broadcast signals.
• Zoom and Position Try Now
Adjusting the picture size or position.
This function is available only if Picture Size is set to Custom.
- 137 -
Setting the Viewing Environment for External Devices
You can optimise the Projector for viewing specic video formats.
Using Input Signal Plus
left directional button Settings All Settings Connections External Device
Manager Input Signal Plus Try Now
( left directional button Settings All Settings General & Privacy External Device
Manager Input Signal Plus)
Expands the input signal range for HDMI connections.
The menu name or position for this feature may vary, depending on the model.
If the Input Signal Plus feature is turned off, HDR signals sent from an external device cannot be received.
When you select the HDMI connector you want to use for Input Signal Plus, and then press the Select button to set the
Input Signal Plus function to On, the Projector screen may icker.
When you connect the Projector to an external device that supports only the UHD 24 Hz or UHD 30 Hz frequency or any FHD
frequency, the Input Signal Plus function may not be available. In this case, turn off the Input Signal Plus function.
For more information about the supported UHD resolutions, refer to "Supported Resolutions for UHD Input Signals".
Using HDMI black level
left directional button Settings All Settings Connections External Device
Manager HDMI Black Level Try Now
( left directional button Settings All Settings General & Privacy External Device
Manager HDMI Black Level)
Use HDMI Black Level to adjust the black level to compensate for low black levels, low contrast or dull colours
generated by external devices connected to the Projector via an HDMI cable.
The menu name or position for this feature may vary, depending on the model.
This function is only available when the input signal connected to the Projector via an HDMI connector is set to RGB444.
- 138 -
Conguring a Sound Mode and Expert Settings
Change the Sound Mode and adjust Expert Settings.
Choosing a sound mode
left directional button Settings All Settings Sound Sound Mode Try Now
You can select the available sound mode that you prefer for a content type or your listening environment.
When an external device is connected, Sound Mode may change accordingly.
This function may not be supported depending on the model.
Conguring advanced sound settings
left directional button Settings All Settings Sound Expert Settings Try Now
You can personalise the sound quality by adjusting the following settings.
Supported menu options may vary depending on the Sound Output setting.
• Balance Try Now
Adjust the volumes of the left and right speakers to balance the sound levels.
When the Projector is used in portrait mode, the Balance function may not work properly.
This function may not be supported depending on the model.
• Equaliser Try Now
Customise the Projector sound by adjusting the volume of high-pitched and low-pitched sounds.
This function is not available when the Adaptive Sound Pro or Active Voice Amplifier function is turned on.
This function is not available when the Sound Mode function is set to Adaptive Sound, Game, or Amplify.
The name and properties of this function may appear differently depending on the connected external device.
• HDMI-eARC Mode Try Now
You can connect an audio device that supports eARC via HDMI-eARC. Muting occurs temporarily during device
connection.
This function may not be supported depending on the model.
- 139 -
•
Digital Output Audio Format Try Now
Select a digital audio output format. If you select Auto option, the audio output mode automatically changes to
the mode supported by the connected soundbar or A/V receiver.
If you select the Pass-through option, audio data is output with no processing.
This function is available when the input source is HDMI and the receiver is connected via HDMI-eARC.
• Digital Output Audio Delay Try Now
Adjust the output delay time for digital audio.
This function is available when the input source is HDMI and the receiver is connected via HDMI-ARC or HDMI-eARC.
When the receiver can't process the input source, it may operate in the Auto option.
This function may not be supported depending on the model.
• Dolby Atmos Try Now
When watching Product through the embedded speakers, the virtual surround sound effect of Dolby Atmos can
be turned on or off.
This function may not be supported depending on the model.
The virtual surround sound effect does not work if the product is installed behind the screen or on the ceiling behind the
screen.
• Auto Volume Try Now
Automatically adjusts the sound to a certain level when changing channels or switching to another external
input.
• Simultaneous Optical Output
The device connected via optical always outputs sound.
This function may not be supported depending on the model or geographical area.
• Reset Sound Try Now
Reset changed sound settings.
Standard audio signals are sampled at 48 kHz while HD audio signals are sampled at 96 kHz.
Some SPDIF receivers may not be compatible with HD audio format.
- 140 -
Using the Sound Support Functions
Congure the sound settings for your Projector.
Selecting speakers
left directional button Settings All Settings Sound Sound Output Try Now
You can select which speakers the Projector uses for audio output.
If the soundbar is connected to the Projector via both HDMI and Optical, HDMI may be selected rst even if you select
Optical.
External speakers may not be controlled with the Samsung Smart Remote. When an external speaker is enabled, some
sound menus are not supported.
Samsung Projector supports the Q-Symphony function.
• Q-Symphony links Samsung speakers to your Projector speakers to play sounds from the different speakers
simultaneously, offering the ultimate surround sound experience.
It is possible to use the Q-Symphony feature with the sound bar when the Projector’s Projection Mode ( left
directional button Settings All Settings Projector Settings Projection Mode) is set to Front Ceiling or Rear
Ceiling.
This function may not be supported depending on the model.
Your Samsung Projector supports a USB sound device connection.
• USB 2.0 and higher devices are supported.
• Two USB sound devices can be connected at the same time.
Make sure to connect a USB sound device directly to a USB port. (USB hubs are not supported.)
Some USB sound device models may not be compatible with the Projector.
- 141 -
Listening to the Projector through Bluetooth devices
left directional button Settings All Settings Sound Sound Output Bluetooth
Speaker List
( left directional button Settings All Settings Sound Sound Output Bluetooth
Audio)
You can connect Bluetooth audio devices to the Projector. They must be paired using the Projector's Bluetooth
function. Refer to the user manual for your audio device such as Bluetooth speaker, soundbar and headphones for
detailed connection and usage.
If the Projector fails to nd a Bluetooth audio device, place the device closer to the Projector, and then select Scan.
When you turn on a paired Bluetooth audio device, the Projector detects it automatically, and then displays a pop-up
window. Use this pop-up window to activate/deactivate the Bluetooth audio device.
The sound quality may be affected by the condition of the Bluetooth connection.
Before using a Bluetooth audio device, refer to "Read Before Using Bluetooth Devices".
On some models, you can connect and use two Bluetooth devices simultaneously.
If multiple Bluetooth audio devices and Bluetooth input devices are simultaneously connected, sound from the audio
devices may be choppy or key data from the input devices may be dropped.
The number of Bluetooth audio devices for connection can be limited to one device, for a stable game service.
If a call comes in while you listen to Projector sound with Galaxy Buds, the Buds connects to the mobile phone and the
Projector sound is muted for connecting to the call.
When the call is ended, the Buds automatically connects to the Projector. This feature is supported only when the Projector
and mobile phone are connected to the same Samsung account.
If the Galaxy Buds is disconnected while listening to Projector sound with the Buds, the Projector sound is muted.
The menu name or position for this feature may vary, depending on the model.
Using Auto-Con. Bluetooth
left directional button Settings All Settings Connections Auto-Con. Bluetooth
Automatically connects to the last Bluetooth audio device used.
This function may not be supported depending on the model or geographical area.
- 142 -
Playing Projector sounds by conguring Q-Symphony Settings
left directional button Settings All Settings Sound Q-Symphony Setup
Use the Q-Symphony Setup feature to congure wired or wireless symphony settings.
This function may not be supported depending on the model.
Conguring wired symphony settings is possible only when a Samsung audio device that supports wired symphony
functionality is connected to HDMI or Optical.
For Samsung audio devices that support Wi-Fi and Q-Symphony, it is possible to congure wireless symphony settings.
It is not possible to turn on wired symphony and wireless symphony modes simultaneously.
A maximum of three Samsung audio devices can be connected simultaneously, depending on the device model and the
mode setting.
This feature may not be supported, depending on your Projector model and Samsung audio device.
It is possible to use the Q-Symphony feature with the sound bar when the Projector’s Projection Mode ( left
directional button Settings All Settings Projector Settings Projection Mode) is set to Front Ceiling or Rear
Ceiling.
If Samsung soundbars or Samsung wireless speakers that support Q-Symphony are connected, surround sound
conguration can be used when the following conditions are met.
• Two or more Samsung wireless speakers of the same type are connected to the same wireless network.
• A Samsung audio device that supports Wi-Fi is connected to the same wireless network as the Projector.
For details on how to connect and use a Samsung audio device that supports Wi-Fi, refer to the device user manual.
Some Samsung wireless audio devices may not support a conguration that includes soundbars.
If you turn on screen mirroring mode while using a Samsung audio device that supports Wi-Fi, the connection is
disconnected.
- 143 -
• Q-Symphony Mode
Customise Q-Symphony Mode, depending on the content type and whether or not your speakers support Q-
Symphony Mode.
– Q-Symphony
Q-Symphony links Samsung audio devices to your Projector speakers to play sounds from the different
speakers simultaneously, offering the ultimate surround sound experience.
– Stereo
Two Samsung audio devices that support Stereo serve as Stereo speakers.
This feature can be configured only when Samsung audio devices of the same model that support Stereo are
connected.
• Select Sound Device
Set different configurations by choosing audio devices according to the Q-Symphony Mode settings.
• Adjust Position
Change the positions of audio devices configured in Q-Symphony Mode.
If you set a Samsung wireless audio device as a device for wireless symphony, it is possible to set a position.
Position setting may not be supported, depending on the Samsung wireless audio device.
For device specifications, refer to the user manual for the Samsung audio device.
– Auto Set
The Auto Set feature automatically changes the positions of configured audio devices.
This function may not be supported depending on the model or geographical area.
Auto Set may not be supported, depending on the models of your Samsung wireless audio devices.
This feature may not work, depending on the Projector microphone and sound output settings.
The perceived position may not match the actual position, depending on the obstacles and reflective characteristics at
the site where the audio device is installed. Position recognition may fail, depending on the environment in which the
audio devices are installed.
• Adjust Level
Adjust the volume of audio devices configured in Q-Symphony Mode.
Adjust Level may not be supported, depending on the models of your Samsung wireless audio devices.
The Select Sound Device, Adjust Position and Adjust Level settings are saved separately for each Q-Symphony Mode
These functions may not be supported depending on the model or geographical area.
- 144 -
System and Support
You can congure system and support settings such as clock, timers, energy usage and software updates.
Using the Time Functions and the Timers
Set the current time and use the timer function.
left directional button Settings All Settings General & Privacy System Manager
Time
( left directional button Settings All Settings General & Privacy Time)
You can set the time manually or automatically. Once the time is set, you can view the current time on the Projector
anytime. Try Now
The menu name or position for this feature may vary, depending on the model.
You must set the clock in the following cases:
• The power cord is disconnected and then connected.
• The Clock Mode is changed from Auto to Manual.
• The Projector is not connected to the network.
• No broadcast signals are received.
Setting the Clock
left directional button Settings All Settings General & Privacy System Manager
Time Clock Clock Mode
( left directional button Settings All Settings General & Privacy Time Clock
Mode)
Set Clock Mode to either Auto or Manual. If you set Clock Mode to Auto, the current time is automatically set. When
Clock Mode is set to Manual, you can directly enter the current date and time. Select the Date and Time by using the
directional buttons on the remote control.
This function works only when the Projector is connected to the network.
The menu name or position for this feature may vary, depending on the model.
- 145 -
Adjusting the clock for DST and time zone
left directional button Settings All Settings General & Privacy System Manager
Time Clock Time Zone
( left directional button Settings All Settings General & Privacy Time Clock
Time Zone )
Sets the right time by setting Daylight Savings Time (DST) and your local time zone. Try Now
This function is only available when the Clock Mode is set to Auto.
This function may not be supported depending on the model or geographical area.
The menu name or position for this feature may vary, depending on the model.
• GMT
Set Greenwich Mean Time (GMT).
• DST
Automatically adjusts for Daylight Saving Time (DST).
Changing the current time
left directional button Settings All Settings General & Privacy System Manager
Time Clock Time Offset
( left directional button Settings All Settings Time Time Offset)
Time Offset adjusts the time through a network connection. Try Now
This function is available only when Clock Mode is set to Auto, the Projector is connected to a network.
The menu name or position for this feature may vary, depending on the model.
- 146 -
Using the sleep timer
left directional button Settings All Settings General & Privacy System Manager
Time Sleep Timer
( left directional button Settings All Settings General & Privacy Power and Energy
Saving Sleep Timer )
You can use this function to automatically shut off the Projector after a pre-set period of time. You can set the sleep
timer for up to 180 minutes after which it will turn off the Projector.
This function may not be supported in some viewing modes.
This function may not be supported depending on the model or geographical area.
The menu name or position for this feature may vary, depending on the model.
Turning off the Projector using the off timer
left directional button Settings All Settings General & Privacy System Manager
Time Off Timer
( left directional button Settings All Settings General & Privacy Power and Energy
Saving Off Timer )
You can set Off Timer to shut off the Projector automatically at a specic time. Off Timer is only available if the
Clock has been set.
To use this function, rst set the Time. Try Now
– left directional button Settings All Settings General & Privacy System Manager Time*
– left directional button Settings All Settings General & Privacy Time Time*
*: The menu name or position for this feature may vary, depending on the model.
This function may not be supported depending on the model or geographical area.
The menu name or position for this feature may vary, depending on the model.
- 147 -
Using the Power and Energy Saving Functions
Use the power saving functions to reduce the Projector power consumption.
Reducing the power consumption of the Projector
left directional button Settings All Settings General & Privacy Power and Energy
Saving Try Now
Reduce energy consumption by changing your power preferences and other energy-saving options.
• Energy Saving Solution Try Now
Reduce power consumption by adjusting brightness settings.
• Screen Saver Try Now
Activate a screensaver when your Projector displays a still image for two hours or more.
This function may not be supported depending on the model.
• Auto Power Saving Try Now
When the Projector is connected to Wi-Fi, this feature checks Wi-Fi signals and remote control usage data to
determine whether the Projector is used. If the Projector is left idle, the feature automatically switches off the
screen.
This function may not be supported depending on the model.
This feature may not be supported, depending on the Wi-Fi router.
• Auto Power Off Try Now
Automatically turns off the Projector to reduce unnecessary power consumption if the Projector Controller and
the remote control are not used for the set period of time.
In some regions, the Auto Power Off function may not be supported when Samsung TV Plus is operating.
- 148 -
• Sleep Timer
Set the timer to turn the Projector off automatically after up to 180 minutes.
This function may not be supported depending on the model.
This function may not be supported in some viewing modes.
The menu name or position for this feature may vary, depending on the model.
• Off Timer
You can set Off Timer to shut off the Projector automatically at a specific time.
This function may not be supported depending on the model.
This function may not be supported in some viewing modes.
To use this function, first set the Time. Try Now
– left directional button Settings All Settings General & Privacy System Manager Time*
– left directional button Settings All Settings General & Privacy Time Time*
*: The menu name or position for this feature may vary, depending on the model.
The menu name or position for this feature may vary, depending on the model.
- 149 -
Updating the Projector's Software
View your Projector's software version and update it if necessary.
DO NOT turn off the Projector's power until the update is complete. The Projector will turn off and on
automatically after completing the software update. Video and audio settings will be reset to their defaults
after a software update.
left directional button Settings Support Software Update Try Now
Updating through the network
left directional button Settings Support Software Update Update Now Try Now
Updating from the network requires an active network connection.
Updating through a USB device
left directional button Settings Support Software Update Update Now Try Now
After downloading the update le from the Samsung website and storing it on a USB device, connect the USB
device to the Projector to update.
To update using a USB device, download the update package from Samsung.com to your computer. Then, save the update
package in the USB device's top-level folder. Otherwise, the Projector will not be able to locate the update package.
Updating the Projector automatically
left directional button Settings Support Software Update Auto update Try Now
If the Projector is connected to the network, you can have the Projector's software update itself automatically while
you are watching the Projector. When the background update is completed, it is applied the next time the Projector
is turned on.
If you agree to the Smart Hub terms and conditions, Auto update is set to On automatically. If you want this function
disabled, use the Select button to turn it off.
This function may take a longer time if another network function is running concurrently.
This function requires a network connection.
This function may not be supported depending on the model or geographical area.
- 150 -
Updating through the mobile network
left directional button Settings Support Software Update Update with Mobile
Network Try Now
Use a mobile network to update the software.
This function may not be supported depending on the model or geographical area.
Security updates information
Security updates are provided to strengthen the security of your device and protect your personal information. For
more information on security updates, visit https://security.samsungtv.com.
The website supports only some languages.
- 151 -
Using the Parental Settings function
Congure content or app security settings.
left directional button Settings All Settings General & Privacy Parental Settings
Try Now
Restrict access to content or apps that require parental guidance. Locked content or apps can be accessed by
entering the password.
• Programme Rating Lock Settings Try Now
This function is useful for controlling what programmes children can watch on the Projector based on their
ratings.
For more information, refer to "Using Programme Rating Lock".
This function may not be supported depending on the model or geographical area.
• Mark Adult Channels Try Now
Enables or disables all adult services. When disabled, adult services will not be available.
This function may not be supported depending on the model or geographical area.
• Apply Channel Lock Try Now
By selecting the menu, you can turn on or off the Apply Channel Lock function.
Lock specific channels to prevent children from watching adult content.
To use this function, the PIN number is required.
• Channel Lock Settings Try Now
Set the channel to lock or unlock.
This function may not be supported depending on the model or geographical area.
• App Lock Try Now
Set the installed app to lock or unlock.
- 152 -
Audio and Video Functions for the Visually or Hearing Impaired
You can congure the functions for the visually or hearing impaired.
Running the accessibility functions
left directional button Settings All Settings General & Privacy Accessibility
Try Now
Running Accessibility Shortcuts
The Accessibility Shortcuts provide easy access to the accessibility functions. To display the Accessibility Shortcuts,
press and hold the (Volume) button for 2 seconds or more. You can easily turn on or turn off the functions
such as Voice Guide, Audio Description, Audio Subtitles, Auto Picture Off, Magnication, High Contrast, Relumino
Mode, Zoom Menu and Text, Greyscale, Colour Inversion, SeeColors Mode, Learn Remote, Menu Learning Screen,
Subtitle, Sign Language Zoom, Edit Sign Language Zoom, Multi-output Audio, Slow Button Repeat, Auto Menu Sort,
Accessibility Settings, etc.
Even if the Voice Guide is set to Off or muted, the voice guide for Accessibility Shortcuts is enabled.
The shortcut menus may not appear depending on the model or geographical area.
- 153 -
Enabling voice guides for the visually impaired
left directional button Settings All Settings General & Privacy Accessibility
Voice Guide Settings Try Now
You can activate voice guides that describe the menu options aloud to aid the visually impaired. To activate this
function, set Voice Guide to On. With Voice Guide on, the Projector provides voice guides for channel change,
volume adjust, information on current and upcoming programmes, schedule viewing, other Projector functions and
various content in the Internet and in Search.
You can go to Voice Guide, and then press the Select button to turn the function on or off.
The Voice Guide is provided in the language that is specied on the Projector Language. However, some languages are not
supported by Voice Guide even though they are listed in the Projector Language. English is always supported.
For more information about the Projector Language settings, refer to "Changing the menu language".
Changing the volume, speed, pitch and the Projector background volume of the Voice Guide
You can congure the Volume, Speed, Pitch and the Projector Background Volume of the voice guide.
Audio Description
left directional button Settings All Settings General & Privacy Accessibility
Audio Description Settings Try Now
You can activate an audio guide that provides an audio description of video scenes for the visually impaired. This
function is only available with broadcasts that provide this service.
This function is only available on digital channels.
• Audio Description
Turns the audio description function on or off.
• Audio Description Volume
Adjusts the audio description volume.
- 154 -
Setting the audio subtitles
left directional button Settings All Settings General & Privacy Accessibility
Audio Subtitles Settings
This feature audibly reads captions displayed on video content. You can change the volume or speed of audible
captions.
This function may not be supported depending on the model or geographical area.
The Projector screen is turned off but audio continues
left directional button Settings All Settings General & Privacy Accessibility
Auto Picture Off Try Now
Turn off the Projector screen and provide only sound to reduce overall power consumption. When you press a
button on the remote control other than Volume and Power while the screen is off, the Projector screen turns back
on.
This function may not be supported depending on the geographical area.
- 155 -
Enlarge the screen
left directional button Settings All Settings General & Privacy Accessibility
Magnication Try Now
Enlarge the screen to make the picture or text bigger. You can adjust the zoom level or move the zoom area by
following the displayed instructions.
Magnication may not work on some menus or screens.
This function may not be supported depending on the model or geographical area.
White text on black background (high contrast)
left directional button Settings All Settings General & Privacy Accessibility
High Contrast Try Now
You can change Smart Hub and setting menu screens to white text on a black background and change the
transparent Projector menus to opaque automatically so that text can be more easily read.
If High Contrast is on, some Accessibility menus are not available.
Enlarging the font (for the visually impaired)
left directional button Settings All Settings General & Privacy Accessibility
Zoom Menu and Text Try Now
You can enlarge the size of the font on the screen. To activate, set Zoom Menu and Text to On.
Setting the screen to black and white
left directional button Settings All Settings General & Privacy Accessibility
Greyscale Try Now
You can change the colour of the Projector screen to black and white to sharpen blurred edges caused by colours.
If Greyscale is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.
- 156 -
Inverting the screen colour
left directional button Settings All Settings General & Privacy Accessibility
Colour Inversion Try Now
You can invert the colours of the text and background for the setting menus displayed on the Projector screen to
make it easier to read them.
If Colour Inversion is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.
Setting the colour correction feature for users with colour blindness
left directional button Settings All Settings General & Privacy Accessibility
SeeColors Mode Try Now
This feature helps users with colour blindness experience richer colours.
Use this feature to customise the colours for your unique viewing conditions, to experience richer colours on the
screen.
When SeeColors Mode is in use, some menus are disabled.
This function may not be supported depending on the model.
Learning about the remote control (for the visually impaired)
left directional button Settings All Settings General & Privacy Accessibility
Learn Remote Try Now
This function helps individuals with a visual impairment to learn the positions of the buttons on the remote control.
When this function is activated, you can press a button on the remote control and the Projector will tell you its
name. Press the button twice to exit Learn Remote.
Learning about the Projector menu
left directional button Settings All Settings General & Privacy Accessibility
Menu Learning Screen Try Now
Learn the menus on the Projector screen. Once enabled, your Projector will tell you the structure and features of
the menus you select.
- 157 -
Watching Projector broadcasts with subtitles
left directional button Settings All Settings General & Privacy Accessibility
Subtitle Settings Try Now
Set Subtitle to On. Then you can watch the programme with the subtitle displayed.
This function may not be supported depending on the model or geographical area.
This function has no relationship with the features for controlling sub-titles of DVD or Blu-ray players. To control DVD or
Blu-ray subtitles, use the sub-title feature of the DVD or Blu-ray player and the player's remote control.
• Subtitle Try Now
Turns on or off the subtitle.
• Subtitle Mode Try Now
Sets the subtitle mode.
• Subtitle Language Try Now
Sets the subtitle language.
• Spoken Subtitles
Listen to an audio version of the subtitles. Only available with broadcasts that provide this service.
This function may not be supported depending on the model or geographical area.
Selecting the broadcasting subtitle language
You can select the default subtitle language. The list may vary depending on the broadcast.
• Primary Subtitle Language Try Now
Sets the primary subtitle language.
• Secondary Subtitle Language Try Now
Sets the secondary subtitle language.
Enlarging the sign language screen for the hearing impaired
left directional button Settings All Settings General & Privacy Accessibility Sign
Language Zoom Settings Try Now
You can zoom in the sign language screen when the programme you are watching provides it. First, set Sign
Language Zoom to On, and then select Edit Sign Language Zoom to change the position and magnication of the
sign language screen.
- 158 -
Listening to the Projector through Bluetooth devices (for the hearing impaired)
left directional button Settings All Settings General & Privacy Accessibility
Multi-output Audio Try Now
You can turn on both the Projector speaker and Bluetooth headphone at the same time. When this function is active,
you can set the volume of the Bluetooth headphone higher than the volume of the Projector speaker.
This function may not be supported depending on the model or geographical area.
For more information about connecting Bluetooth devices to the Projector, refer to "Listening to the Projector through
Bluetooth devices".
Conguring the repeat settings for remote control buttons
left directional button Settings All Settings General & Privacy Accessibility
Remote Button Repeat Settings Try Now
You can congure the operation speed of the remote control buttons so that they slow down when you continually
press and hold them. First, set Slow Button Repeat to On, and then adjust the operation speed in Repeat Interval.
Using Accessibility Shortcut Settings
left directional button Settings All Settings General & Privacy Accessibility
Accessibility Shortcut Settings
Set the accessibility shortcut to activate when the Volume button is pressed and held.
This function may not be supported depending on the model or geographical area.
- 159 -
Using Time to Take Action
left directional button Settings All Settings General & Privacy Accessibility
Time to Take Action
Choose how long messages, like pop-ups, stay on screen before you take action.
This function may not be supported depending on the model or geographical area.
Using Moving Text and Image
left directional button Settings All Settings General & Privacy Accessibility
Moving Text and Image
Some screen effects may be limited, but this can be helpful for those sensitive to screen motion.
This function may not be supported depending on the model or geographical area.
- 160 -
Using Other Functions
You can view other functions.
Changing the menu language
left directional button Settings All Settings General & Privacy Language Try Now
Changing the Menu Style
left directional button Settings All Settings General & Privacy Menu Style
Change the size and transparency of the menu items displayed on the screen.
This function may not be supported depending on the model or geographical area.
Checking the remote control battery level
left directional button Settings All Settings General & Privacy Remote Control
You can check the Samsung smart remote's remaining amount of the battery.
• Remote Grip Sensor
Alerts users so that they can hold the remote control correctly, if the remote-control grip sensor senses any
incorrect orientation of the remote control. When turned off, the alert turns off.
This function may not be supported depending on the model.
Adjusting the Sound Feedback volume
left directional button Settings All Settings General & Privacy Sound Feedback
Adjust the volume of the notication sound when using menu items or selecting options.
This function may not be supported depending on the model or geographical area.
- 161 -
Setting up a password
left directional button Settings All Settings General & Privacy System Manager
Change PIN Try Now
( left directional button Settings All Settings General & Privacy Change PIN)
The PIN input window appears. Enter a PIN. Enter it again to conrm it.
This function may not be supported depending on the model or geographical area.
The menu name or position for this feature may vary, depending on the model.
If you forget your PIN, you can reset it with your remote control. With the Projector turned on, press the following buttons
on the remote control in the order shown to reset the PIN to "0000" (for France and Italy: "1111").
Press (Volume) button. Volume Up Volume Down Volume Up .
Selecting Usage or Retail Mode
left directional button Settings All Settings General & Privacy System Manager
Usage Mode Try Now
( left directional button Settings All Settings General & Privacy Usage Mode)
You can set the Projector for retail environments by setting Usage Mode to Retail Mode.
For all other uses, select Home Mode.
Use Retail Mode only in a store. With Retail Mode, some functions are disabled and the Projector settings automatically
reset after a preset amount of time.
This function may not be supported depending on the model.
Retail Mode is not available from the Projector menu, but only during initial setup.
The menu name or position for this feature may vary, depending on the model.
- 162 -
Using the Maintenance Mode
left directional button Settings Support Maintenance Mode
Protect your personal information while the Projector is repaired or used by someone else. Once service mode turns
on, access to the apps or content is blocked. To back up data in which settings are saved, connect a USB stick to the
Projector.
This function may not be supported depending on the model.
Managing External Devices
left directional button Settings All Settings Connections Device Connection
Manager Try Now
When you connect external devices such as mobile devices or tablets connected to the same network as the
Projector so you can share content, you can view the list of allowed devices and connected devices.
The menu name or position for this feature may vary, depending on the model.
• Access Notification
Set whether to display a notification when an external device such as a mobile device or tablet attempts to
connect to the Projector.
• Device List
Manage a list of external devices registered to the Projector.
- 163 -
Controlling your Galaxy device with the keyboard and mouse
left directional button Settings All Settings Connections Multi Control
Turn on Multi Control to connect nearby Galaxy devices and use them with your keyboard and mouse.
To connect to nearby devices, turn on Multi Control, Wi-Fi and Bluetooth on the devices, and ensure that the devices are
connected to the same wireless network and logged in with the same Samsung account.
This function may not be supported depending on the model or geographical area.
Using AirPlay
left directional button Settings All Settings Connections Apple AirPlay Settings
Try Now
( left directional button Settings All Settings Advanced Features Apple AirPlay
Settings)
You can use AirPlay to view content from your iPhone, iPad or Mac on the Projector screen.
This function may not be supported depending on the model or geographical area.
The menu name or position for this feature may vary, depending on the model.
Restoring the Projector to the factory settings
left directional button Settings All Settings General & Privacy Factory data reset
Try Now
You can restore all Projector settings to the factory defaults.
1.
Select Factory data reset. The security PIN entry window appears.
2.
Enter the security PIN, and then select Reset. All settings are then reset. The Projector turns off and on again
automatically and displays the Initial Setup screen.
- 164 -
Precautions and Notes
You can get instructions and information that you must read after installation.
Read Before Using Apps
Read this information before using Apps.
• If you want to download new apps using Apps, first sign in to your Samsung account.
• Due to the product characteristics featured on Samsung Smart Hub, as well as limitations in available content,
certain features, applications and services may not be available on all devices or in all territories. Visit https://
www.samsung.com for more information on specific device information and content availability. Services and
content availability are subject to change without prior notice.
• Samsung takes no legal responsibility whatsoever for any interruption of app services caused by the service
provider for any reason.
• Application services may be provided in English only and available content may differ with the geographical
area.
• For more information about applications, visit the applicable service provider's website.
• An unstable network connection may cause delays or interruptions. In addition, applications may terminate
automatically depending on the network environment. If this occurs, check your network connection and try
again.
• Application services and updates may become unavailable.
• Application content is subject to change by the service provider without prior notice.
• Specific services may differ with the version of the application installed on the Projector.
• An application's functionality may change in future versions of the application. If this occurs, run the
application's tutorial or visit the service provider's website.
• Depending on the service provider's policies, certain applications may not support multitasking.
• For details on how to subscribe or unsubscribe from an app, please contact the service provider.
- 165 -
Read Before Using the Internet Function
Read this information before using the Internet function.
• File download is not supported.
• The Internet function may not be able to access certain websites, including websites operated by certain
companies.
• The Projector does not support playback of flash videos.
• E-commerce for online purchases is not supported.
• ActiveX is not supported.
• Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.
• The response to remote commands and the resulting on-screen display may be delayed while a webpage is
loading.
• Loading a webpage may be delayed or suspended completely depending on the status of the participating
systems.
• Copy and paste operations are not supported.
• When composing an email or a simple message, certain functions such as the font size and colour selection may
not be available.
• There is a limit to the number of bookmarks and the size of the log file that can be saved.
• The number of windows that can be opened concurrently is limited.
• Web browsing speed will differ with the network environment.
• Embedded videos in a webpage cannot be played at the same time while the PIP (picture-in-picture) function is
operating.
This function may not be supported depending on the model or geographical area.
• Browsing history is saved from latest to oldest, with the oldest entries being overwritten first.
• Depending on the types of video/audio codecs supported, you may not be able to play certain HTML5 video and
audio files.
• Video sources from PC-optimised streaming service providers may not play properly on our proprietary Internet
browser.
- 166 -
Read before setting up a wireless network connection
Precautions for wireless network
• This Projector supports the IEEE 802.11 a /b /g /n communication protocols. In addition to these communication
protocols, some models support all or some of the IEEE 802.11 ac /ax protocols. Video files stored on a device
connected to the Projector via a Home Network may not play back smoothly.
Some of the IEEE 802.11 communication protocols may not be supported depending on the model or geographical area.
• To use wireless network, the Projector must be connected to a wireless access point or modem. If the wireless
access point supports DHCP, the Projector can use a DHCP or static IP address to connect to the wireless
network.
• Select a channel that is not currently being used by the wireless access point. If the channel set is currently
being used by the wireless access point to communicate with another device, the result is usually interference or
a communications failure.
• Most wireless networks have an optional security system. To enable a wireless network's security system,
you need to create a password using characters and numbers. This password is then needed to connect to a
security-enabled access point.
Wireless security protocols
The Projector only supports the following wireless network security protocols. The Projector cannot connect to
non-certied wireless access point.
– Authentication Modes: WEP, WPAPSK, WPA2PSK
– Encryption Types: WEP, TKIP, AES
In compliance with the Wi-Fi certication specications, Samsung Projectors do not support WEP or TKIP security
encryption in networks running in the 802.11n mode. If the wireless access point supports WPS (Wi-Fi Protected
Setup), you can connect the Projector to your network using PBC (Push Button Conguration) or a PIN (Personal
Identication Number). WPS automatically congures the SSID and WPA key settings.
- 167 -
Read Before Playing Photo, Video or Music Files
Read this information before playing media content.
Limitations to the use of photo, video and music les Try Now
• The Projector supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass storage
devices. Types of MSC devices include external hard drives, flash card readers and digital cameras. (USB hubs are
not supported.) These kinds of devices must be connected directly to the USB port. If a USB extension cable is
used or two external hard drives are used simultaneously, a USB device cannot be recognised or files contained
in the device cannot be read. Do not disconnect USB devices while they are transferring files.
• When connecting an external hard drive, use the USB (HDD 5V 1A) port. We recommend that you use an external
hard drive with its own power adapter.
On models without the HDD 5V 1A marking, connect the drive to one of the USB (5V 1.0A/0.5A) ports.
Some models do not support the HDD 5V 1A USB port. On such models that have 5V 1.0A and 5V 0.5A USB ports,
connect the drive to one of those ports.
• Certain digital cameras and audio devices may not be compatible with the Projector.
• If there are multiple USB devices connected to the Projector, the Projector might not be able to recognise some
or all the devices. USB devices that use high-power input should be connect to the USB (HDD 5V 1A) port.
Some models do not support the HDD 5V 1A USB port. On such models that have 5V 1.0A and 5V 0.5A USB ports,
connect the drive to one of those ports.
• The Projector supports the FAT, exFAT and NTFS file systems.
• In the media contents list, the Projector can display up to 1,000 files per folder. If the USB device contains more
than 8,000 files and folders, however, some files and folders might not be accessible.
• Certain files, depending on how they are encoded, may not play on the Projector.
• Certain files are not supported on all models.
- 168 -
Supported subtitles
Subtitle formats
Name Format
MPEG-4 Timed text .ttxt
SAMI .smi
SubRip .srt
SubViewer .sub
Micro DVD .sub or .txt
SubStation Alpha .ssa
Advanced SubStation Alpha .ass
SMPTE-TT Text .xml
Video formats with subtitles
Name Container
Xsub AVI
SubStation Alpha MKV
Advanced SubStation Alpha MKV
SubRip MKV
VobSub MKV
MPEG-4 Timed text MP4
TTML in smooth streaming MP4
SMPTE-TT TEXT MP4
SMPTE-TT PNG MP4
- 169 -
Supported image formats and resolutions
File extension Format Resolution
JPEG 16320 x 12240
*.png PNG 4096 x 4096
*.bmp BMP 4096 x 4096
*.mpo MPO 15360 x 8640
*.heic HEIF 16320 x 12240
The MPO format is supported partly.
The HEIF format is may not be supported depending on the model or geographical area.
HEIF supports only the single image of grid type (grid) and its minimum resolution must be at least 512 pixels in width or
height.
Supported music formats and codecs
File extension Format Codec Note
*.mp3 MPEG MPEG1 Audio Layer 3
*.m4a
*.mpa
*.aac
MPEG4 AAC
*.ac FLAC FLAC
Supports up to 16/24 Bit, 48/96/192 kHz, 5.1
channel
*.ogg OGG Vorbis Supports up to 2 channels
*.wma WMA WMA
WMA is supported up to 10 Pro 5.1 channels.
WMA lossless audio is not supported.
*.wav wav wav
*.mid
*.midi
midi midi
Supports type 0 and type 1.
Seek is not supported.
Supports USB device only.
*.ape ape ape
*.aif
*.aiff
AIFF AIFF
*.m4a ALAC ALAC
- 170 -
Supported video codecs (The Premiere)
File
format
Container Video codecs Resolution Frame rate (fps)
Bitrate
(Mbps)
Audio codecs
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.mov
*.3gp
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.v
*.vob
*.svi
*.m2ts
*.mts
AVI
MKV
ASF
MP4
3GP
MOV
FLV
VRO
VOB
PS
TS
H.264 BP/MP/HP
3840 x 2160
3840 x 2160: 30
1920 x 1080: 60
50
AC3
LPCM
ADPCM(IMA, MS)
AAC
HE-AAC
WMA
Dolby Digital+
MPEG(MP3)
AC-4
G.711(A-Law, μ-Law)
OPUS
HEVC (H.265 - Main,
Main10)
60 50
Motion JPEG
1920 x 1080
60
20
MPEG4 SP/ASP
Window Media Video
v9 (VC1)
MPEG2
MPEG1
Microsoft MPEG-4 v1,
v2, v3
30
Window Media Video
v7 (WMV1), v8
(WMV2)
H.263 Sorenson
VP6
AV1 3840 x 2160 60 40
*.webm WebM
VP8 1920 x 1080 60 20
Vorbis
VP9 (Prole 0, prole
2 supported)
3840 x 2160 60 50
AV1 3840 x 2160 60 40
*.rmvb RMVB RV8/9/10 (RV30/40) 1920 x 1080 60 20 RealAudio 6
- 171 -
Other restrictions
• Codecs may not function properly if there is a problem with the content.
• Video content does not play or does not play correctly if there is an error in the content or container.
• Sound or video may not work if they have standard bit rates/frame rates above the Projector’s compatibility
ratings.
• If the Index Table is has an error, the Seek (Jump) function will not work.
• When playing video over a network connection, the video may not play smoothly because of data transmission
speeds.
• Some USB/digital camera devices may not be compatible with the Projector.
• HEVC codec is only available in MKV / MP4 / TS containers.
Video decoders
• H.264 FHD is supported up to Level 4.2. (Projector does not support FMO / ASO / RS)
• H.264 UHD is supported up to Level 5.1. (Projector does not support FMO / ASO / RS)
• HEVC FHD is supported up to Level 4.1.
• HEVC UHD is supported up to Level 5.1.
• VC1 AP L4 is not supported.
• GMC 2 or above is not supported.
Audio decoders
• WMA is supported up to 10 Pro 5.1 channels, M2 profile.
• WMA1, WMA lossless / Voice are not supported.
• QCELP and AMR NB/WB are not supported.
• Vorbis is supported for up to 5.1 channels.
• Dolby Digital+ is supported for up to 5.1 channels.
• The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ with the codec.
- 172 -
Supported video codecs (The Freestyle)
File
format
Container Video codecs Resolution Frame rate (fps)
Bitrate
(Mbps)
Audio codecs
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.mov
*.3gp
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.v
*.vob
*.svi
*.m2ts
*.mts
AVI
MKV
ASF
MP4
3GP
MOV
FLV
VRO
VOB
PS
TS
H.264 BP/MP/HP
1920 x 1080
60 50
AC3
LPCM
ADPCM(IMA, MS)
AAC
HE-AAC
WMA
Dolby Digital+
MPEG(MP3)
AC-4
OPUS
G.711(A-Law, μ-Law)
HEVC (H.265 - Main,
Main10)
60 50
Motion JPEG
60
20
MPEG4 SP/ASP
Window Media Video
v9 (VC1)
MPEG2
MPEG1
Microsoft MPEG-4 v1,
v2, v3
30
Window Media Video
v7 (WMV1), v8
(WMV2)
H.263 Sorenson
VP6
AV1 60 40
*.webm WebM
VP8 60 20
Vorbis
VP9 (Prole 0, prole
2 supported)
60 50
AV1 60 40
*.rmvb RMVB RV8/9/10 (RV30/40) 60 20 RealAudio 6
- 173 -
Other restrictions
• Codecs may not function properly if there is a problem with the content.
• Video content does not play or does not play correctly if there is an error in the content or container.
• Sound or video may not work if they have standard bit rates/frame rates above the Projector’s compatibility
ratings.
• If the Index Table is has an error, the Seek (Jump) function will not work.
• When playing video over a network connection, the video may not play smoothly because of data transmission
speeds.
• Some USB/digital camera devices may not be compatible with the Projector.
• HEVC codec is only available in MKV / MP4 / TS containers.
Video decoders
• H.264 FHD is supported up to Level 4.2. (Projector does not support FMO / ASO / RS)
• HEVC FHD is supported up to Level 4.1.
• VC1 AP L4 is not supported.
• GMC 2 or above is not supported.
Audio decoders
• WMA is supported up to 10 Pro 5.1 channels, M2 profile.
• WMA1, WMA lossless / Voice are not supported.
• QCELP and AMR NB/WB are not supported.
• Vorbis is supported for up to 5.1 channels.
• Dolby Digital+ is supported for up to 5.1 channels.
• The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ with the codec.
- 174 -
Read After Installing the Projector
Read this information after installing the Projector.
Picture sizes and input signals
The Picture Size is applied to the current source. The applied Picture Size will remain in effect whenever you select
that source unless you change them.
Input signal Picture size
HDMI (720p) 16:9 Standard, Custom, 4:3
HDMI (1080i, 1080p) 16:9 Standard, Custom, 4:3
HDMI (3840 x 2160p) 16:9 Standard, Custom
HDMI (4096 x 2160p) 16:9 Standard, Custom
USB (720p) 16:9 Standard, Custom, 4:3
USB (1080i/p @ 60 Hz) 16:9 Standard, Custom, 4:3
USB (3840 x 2160p @ 24/30 Hz) 16:9 Standard, Custom
USB (3840 x 2160p @ 60 Hz)
USB (4096 x 2160p @ 24/30/60 Hz)
16:9 Standard, Custom
This input signal may differ depending on the model and geographical area.
The input ports for external devices may differ depending on the model and geographical area.
Installing an anti-theft lock
An anti-theft lock is a physical device that can be used to protect the Projector against theft. Look for the lock
slot on the back of the Projector. The slot has a icon next to it. To use the lock, wrap the lock cable around an
object that is too heavy to carry and then thread it through the Projector's lock slot. The lock is sold separately. The
method of using an anti-theft lock may differ for each model. Refer to the lock's user manual for more information.
This function may not be supported depending on the model or geographical area.
- 175 -
Supported Resolutions for UHD Input Signals
Check the supported resolution for UHD input signals.
• Resolution: 3840 x 2160p
If Input Signal Plus is set to Off
Frame rate (fps)
Colour Depth /
Chroma
Sampling
RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
50 / 60 8 bit - - - O
If Input Signal Plus is set to On
Frame rate (fps)
Colour Depth /
Chroma
Sampling
RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
50 / 60
8 bit O O O O
10 bit - - O O
- 176 -
Read Before Connecting a Computer (Supported Resolutions)
Check the resolutions supported for PC input signals.
When you connect your Projector to a computer, set the computer's video card to one of the standard resolutions
listed in the tables below. The Projector will automatically adjust to the resolution you choose. Note that the
optimal and recommended resolutions are 3840 x 2160 @ 60 Hz. Choosing a resolution not included in the tables
can result in a blank or ickering screen or can turn on only the receiver of the remote control. Refer to the user
manual of your graphics card for compatible resolutions.
The native resolutions are 3840 x 2160 @ 60 Hz with the Input Signal Plus set to On. The native resolution is 3840 x 2160 @
30 Hz with the Input Signal Plus set to Off.
IBM
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
720 x 400 70 Hz 31.469 70.087 28.322 - / +
MAC
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
640 x 480 67 Hz 35.000 66.667 30.240 - / -
832 x 624 75 Hz 49.726 74.551 57.284 - / -
1152 x 870 75 Hz 68.681 75.062 100.000 - / -
- 177 -
VESA DMT
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
640 x 480 60 Hz 31.469 59.940 25.175 - / -
640 x 480 72 Hz 37.861 72.809 31.500 - / -
640 x 480 75 Hz 37.500 75.000 31.500 - / -
800 x 600 60 Hz 37.879 60.317 40.000 + / +
800 x 600 72 Hz 48.077 72.188 50.000 + / +
800 x 600 75 Hz 46.875 75.000 49.500 + / +
1024 x 768 60 Hz 48.363 60.004 65.000 - / -
1024 x 768 70 Hz 56.476 70.069 75.000 - / -
1024 x 768 75 Hz 60.023 75.029 78.750 + / +
1152 x 864 75 Hz 67.500 75.000 108.000 + / +
1280 x 720 60 Hz 45.000 60.000 74.250 + / +
1280 x 800 60 Hz 49.702 59.810 83.500 - / +
1280 x 1024 60 Hz 63.981 60.020 108.000 + / +
1280 x 1024 75 Hz 79.976 75.025 135.000 + / +
1440 x 900 60 Hz 55.935 59.887 106.500 - / +
1600 x 900 60 Hz 60.000 60.000 108.000 + / +
1680 x 1050 60 Hz 65.290 59.954 146.250 - / +
1920 x 1080 60 Hz 67.500 60.000 148.500 + / +
The resolution may not be supported depending on the model.
- 178 -
VESA CVT
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
2560 x 1440 60 Hz 88.787 59.951 241.500 + / -
The resolution may not be supported depending on the model.
2560 x 1440 @ 60 Hz resolution is not supported in Game Mode.
CTA-861
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
1920 x 1080i 50 Hz 28.125 50.000 74.250 + / +
1920 x 1080i 60 Hz 33.750 60.000 74.250 + / +
3840 x 2160 30 Hz 67.500 30.000 297.000 - / -
3840 x 2160 60 Hz 135.000 60.000 594.000 - / -
4096 x 2160 24 Hz 54.000 24.000 297.000 + / +
4096 x 2160 30 Hz 67.500 30.000 297.000 + / +
4096 x 2160 50 Hz 112.500 50.000 594.000 + / +
4096 x 2160 60 Hz 135.000 60.000 594.000 + / +
The resolution may not be supported depending on the model.
- 179 -
Supported Resolutions for Video Signals
Check the resolutions supported for video signals.
CTA-861
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
720 (1440) x 576i 50 Hz 15.625 50.000 27.000 - / -
720 (1440) x 480i 60 Hz 15.734 59.940 27.000 - / -
720 x 576 50 Hz 31.250 50.000 27.000 - / -
720 x 480 60 Hz 31.469 59.940 27.000 - / -
1280 x 720 50 Hz 37.500 50.000 74.250 + / +
1280 x 720 60 Hz 45.000 60.000 74.250 + / +
1920 x 1080i 50 Hz 28.125 50.000 74.250 + / +
1920 x 1080i 60 Hz 33.750 60.000 74.250 + / +
1920 x 1080 24 Hz 27.000 24.000 74.250 + / +
1920 x 1080 25 Hz 28.125 25.000 74.250 + / +
1920 x 1080 30 Hz 33.750 30.000 74.250 + / +
1920 x 1080 50 Hz 56.250 50.000 148.500 + / +
1920 x 1080 60 Hz 67.500 60.000 148.500 + / +
3840 x 2160 24 Hz 54.000 24.000 297.000 + / +
3840 x 2160 25 Hz 56.250 25.000 297.000 + / +
3840 x 2160 30 Hz 67.500 30.000 297.000 + / +
3840 x 2160 50 Hz 112.500 50.000 594.000 + / +
3840 x 2160 60 Hz 135.000 60.000 594.000 + / +
- 180 -
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
4096 x 2160 24 Hz 54.000 24.000 297.000 + / +
4096 x 2160 30 Hz 67.500 30.000 297.000 + / +
4096 x 2160 50 Hz 112.500 50.000 594.000 + / +
4096 x 2160 60 Hz 135.000 60.000 594.000 + / +
The resolution may not be supported depending on the model.
VESA CVT
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
2560 x 1440 60 Hz 88.787 59.951 241.500 + / -
The resolution may not be supported depending on the model.
- 181 -
Read Before Using Bluetooth Devices
Read this information before using a Bluetooth device.
This function may not be supported depending on the model or geographical area.
Restrictions on using Bluetooth
• Compatibility issues may occur, depending on the Bluetooth device. (A Mobile exclusive headphone may not be
available, depending on the environment.)
• Lip-sync errors may occur.
• The Projector and Bluetooth device may disconnect, depending on the distance between them.
• A Bluetooth device may hum or malfunction:
– When a part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the
Projector.
– When the device is subject to electrical variation from obstructions caused by a wall, corner or office
partitioning.
– When the device is exposed to electrical interference from same frequency-band devices including medical
equipment, microwave ovens and wireless LANs.
• If the problem persists, we recommend you use a wired connection.
– DIGITAL AUDIO OUT (OPTICAL) port
This function may not be supported depending on the model.
The optical port may not be supported depending on the model.
– HDMI (eARC/ARC) port
- 182 -
Licences & Other Information
Check the licences and other information and trademarks applied in your Projector.
Dolby, Dolby Atmos, Dolby Audio and the double-D symbol are registered trademarks of Dolby Laboratories
Licensing Corporation. Manufactured under license from Dolby Laboratories. Condential unpublished works.
Copyright © 2012-2021 Dolby Laboratories. All rights reserved.
This licence may not be supported depending on the model or geographical area.
The terms HDMI, HDMI High-Denition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks
or registered trademarks of HDMI Licensing Administrator, Inc.
Open Source License Notice
Open Source used in this product can be found on the following webpage. (https://opensource.samsung.com)
- 183 -
This licence may not be supported depending on the model or geographical area.
(Europe / Israel / Türkiye only)
Please visit www.samsung.com/global/ecodesign_energy to nd futher information about off mode, standby mode, and
networked standby mode associated with EU standby ecodesign regulation.
- 184 -
Troubleshooting
The following are troubleshooting solutions for each problem.
Picture Issues
When the Projector has trouble with the picture, these steps may help resolve the problem.
The screen is ashing or has become dark
If your Projector is ickering or dimming sporadically, you may need to disable some of the energy efciency
features.
Disable Energy Saving Solution or Contrast Enhancer.
• left directional button Settings All Settings General & Privacy Power and Energy Saving
Energy Saving Solution Try Now
• left directional button Settings All Settings Picture Expert Settings Contrast Enhancer
Try Now
Run Picture Test. When the tested image quality is normal, check the signal of the connected device.
• left directional button Settings Support Device Care Self Diagnosis Picture Test Try Now
- 185 -
The picture is not bright, or the picture colours do not look clear
If the screen appears too dim, try changing the settings under Reset Picture or disabling Brightness Optimisation,
Energy Saving Solution.
• left directional button Settings All Settings Picture Expert Settings Reset Picture Try Now
• left directional button Settings All Settings General & Privacy Power and Energy Saving
Energy Saving Solution Try Now
Go to Picture and adjust the Picture Mode, Contrast, Brightness, and Sharpness settings.
• left directional button Settings All Settings Picture Picture Mode Try Now
• left directional button Settings All Settings Picture Expert Settings Contrast Try Now
• left directional button Settings All Settings Picture Expert Settings Brightness Try Now
• left directional button Settings All Settings Picture Expert Settings Sharpness Try Now
• left directional button Settings All Settings Picture Expert Settings Colour Try Now
• left directional button Settings All Settings Picture Expert Settings Tint (G/R) Try Now
The picture colours are black and white or do not look the way they should
look
If the product’s colours or absolute whites/blacks seem to be off, launch Picture Test.
• left directional button Settings Support Device Care Self Diagnosis Picture Test Try Now
Check whether Greyscale is set to On.
• left directional button Settings All Settings General & Privacy Accessibility Greyscale
Try Now
- 186 -
The Projector automatically turns off by itself
If your Projector appears to turn off by itself, try disabling some of the Projector's energy efciency functions.
See if Sleep Timer has been enabled. The Sleep Timer automatically turns the Projector off after a specied period
of time.
• left directional button Settings All Settings General & Privacy System Manager Time
Sleep Timer Try Now
( left directional button Settings All Settings General & Privacy Power and Energy Saving
Sleep Timer)
The menu name or position for this feature may vary, depending on the model.
If the Sleep Timer has not been enabled, see if Auto Power Off or Off Timer has been enabled and disable it.
• left directional button Settings All Settings General & Privacy Power and Energy Saving
Auto Power Off Try Now
• left directional button Settings All Settings General & Privacy Power and Energy Saving Off
Timer Try Now
( left directional button Settings All Settings General & Privacy System Manager Time Off
Timer) Try Now
The menu name or position for this feature may vary, depending on the model.
Unable to power on
If you are having problems powering on your Projector, there are a number of things to check before calling the
service department.
Conrm that the Projector's power cord is connected correctly at both ends and that the remote control is operating
normally.
Make sure that the Projector cable is rmly connected.
- 187 -
Unable to nd a Channel
When using a broadcast receiver such as set-top box and IPProjector, check the connection to the Projector.
• left directional button Connected Devices Connection Guide Try Now
When the symptom persists, contact your service provider.
The Projector image does not look as good as it did in the store.
Store displays are tuned to a digital UHD channel or HD channel.
Change the output resolution of your devices such as digital broadcast receiver, IPProjector and set-top box to UHD
or HD.
Be sure to use an HDMI cable to enjoy high quality videos.
• left directional button Connected Devices Connection Guide Video Device HDMI
To connect the Projector with your PC, make sure that your PC's graphic card supports UHD resolutions.
For more information about the supported UHD resolutions, refer to "Supported Resolutions for UHD Input Signals".
Make sure that the set-top box or cable box supports the content or broadcast for UHD and set the resolution. For more
information, contact your service provider.
When using a Samsung TV Plus channel, check the network connection. When the network speed is slow, the app may not
work or the image quality may be poor.
Displayed video looks blurry
If you notice blurring or juddering on the screen, use the Picture Clarity Settings function to resolve the issue.
• left directional button Settings All Settings Picture Expert Settings Picture Clarity Settings
Try Now
- 188 -
The picture is distorted.
The compression of video content may cause picture distortions, especially in fast moving pictures from sports
programmes and action movies.
Remove and reconnect the power cord, and check the remote control battery.
If the signal reception is weak or poor, screen distortion may be visible but it is not a malfunction.
Mobile phones used close to the Projector (within 1 m) may cause noise on analogue and digital channels.
There is a dotted line on the edge of the screen.
Change Picture Size to 16:9 Standard.
• left directional button Settings All Settings Picture Picture Size Settings Picture Size
Try Now
• left directional button Settings All Settings Picture Expert Settings Picture Size Settings
Picture Size
Change the output resolution of your external device.
The menu name or position for this feature may vary, depending on the model.
- 189 -
The pattern screen appears every time I turn on the Projector.
If the Touch Stand is connected and the Projector turns on, the touch area recognition mode for screen calibration
is automatically activated. The projected screen may appear distorted or touch area recognition may fail, depending
on the environment in which the Touch Stand is installed.
• Environmental factors that may affect touch area recognition: An uneven or reflective projection surface,
presence of dirt or obstacles around the sensor, a smaller projection surface than the projected screen, Use of
the touch function in an indoor location exposed to strong natural light etc.
The displayed image may be different from what is shown by the Projector, depending on the model.
This feature is only available in models that support Touch Stand.
The picture won’t display in full screen.
HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) content.
Black bars will appear at the top and bottom of the screen when you watch movies that have aspect ratios different
from your Projector.
Adjust the picture size options on your external device or set the Projector to full screen.
• left directional button Settings All Settings Picture Expert Settings Picture Size Settings
Picture Size Try Now
The Subtitle function in the Projector menu is deactivated.
When an external device is connected with an HDMI or Component cable, the Subtitle function is unavailable. Adjust
the subtitle setting on the external device.
- 190 -
Subtitles appear on the Projector screen.
Turn off the Subtitle function in Subtitle Settings.
• left directional button Settings All Settings General & Privacy Accessibility Subtitle
Settings Subtitle Try Now
The HDR of the connected external device turns off.
If the Input Signal Plus feature is turned on, the range of receiving HDMI input signals is expanded, allowing you to
view HDR content sent from an external device.
• left directional button Settings All Settings Connections External Device Manager Input
Signal Plus Try Now
( left directional button Settings All Settings General & Privacy External Device Manager
Input Signal Plus)
The menu name or position for this feature may vary, depending on the model.
- 191 -
Sound and Noise Issues
When the Projector has difculties with sound, these steps may help resolve the problem.
How can I connect an audio device to the Projector?
The connection method may differ depending on the audio device such as HDMI (eARC/ARC), Optical, Bluetooth and
Wi-Fi.
For more information about how to connect an audio device, run Connection Guide.
• left directional button Connected Devices Connection Guide Audio Device
There is no sound or the sound is too low at maximum volume.
Check the volume control of your Projector, and then check the volume control of the external device (cable box or
satellite box, DVD, Blu-ray, etc.) connected to your Projector.
Check the cable connection between an external device and the Projector, and then try cable connection again.
The picture is good but there is no sound.
Check the Sound Output setting.
If it is set to Projector Speaker, check the volume setting.
• left directional button Settings All Settings Sound Sound Output Try Now
If you are using an external device, check the device’s audio output option.
For example, you may need to change your cable box’s audio option to HDMI if the box connected to your Projector
is using an HDMI cable.
To listen to computer sound, connect an external speaker to the computer’s audio output connector.
If your Projector has a headphone jack, make sure there is nothing plugged into it.
Reboot the connected device by disconnecting and then reconnecting the device’s power cord.
With a set-top box or cable box, check the cable connection and reboot the external device. When the symptom
persists, contact your service provider.
- 192 -
HDMI (eARC/ARC) is connected, and there is no sound.
Check whether Digital Output Audio Format is set to Pass-through.
If a soundbar or A/V receiver that does not support Dolby Digital+ is used and Pass-through is selected, there is no
sound when a Dolby Digital+ source is received.
It is recommended to set Digital Output Audio Format to Auto if only limited audio format is supported depending
on the performance of the connected soundbar or A/V receiver.
• left directional button Settings All Settings Sound Expert Settings Digital Output Audio
Format Auto
The speakers are making an odd sound.
Run Sound Test.
• left directional button Settings Support Device Care Self Diagnosis Sound Test Try Now
Make sure that the audio cable is connected to the correct audio output connector on the external device.
The sound is interrupted.
Sound quality may become affected if the wireless router is close to the Bluetooth speaker. Place the Bluetooth
speaker as close as possible to the Projector without obstacle between them. Do not place the wireless router close
to the Bluetooth speaker body.
To minimise interruptions, we recommend a wireless access point that uses a 5 GHz frequency. 5 GHz may not be
available depending on the model.
When the symptom persists, it is recommended to use wired connection such as HDMI (eARC/ARC) and Optical.
- 193 -
Whenever a function is used on the Projector or the channel is changed, the
Projector voices the activity. The Projector explains in voice-over the video
scenes displayed on the screen.
Turn off the Voice Guide function in Voice Guide Settings.
• left directional button Settings All Settings General & Privacy Accessibility Voice Guide
Settings Voice Guide Try Now
The Projector audio is not being played through the Soundbar or A/V
receiver.
Check the Soundbar or A/V receiver's power supply and its settings.
• When connecting the optical cable between the Projector and Soundbar or A/V receiver, make sure that the
sound output is set Receiver (Optical) on your Projector.
• In case of HDMI-eARC connection, make sure that it is connected to the eARC dedicated HDMI port on your
Projector. However, the eARC can be used only when the Soundbar or A/V receiver supports the eARC feature.
The optical port may not be supported depending on the model.
The sound is not heard clearly.
Change to an appropriate sound mode.
• left directional button Settings All Settings Sound Sound Mode Try Now
When Intelligent Mode and Adaptive Sound Pro are turned on, the sound effects are automatically adjusted to the
surroundings.
• left directional button Settings All Settings General & Privacy Intelligent Mode Settings
Intelligent Mode Try Now
( left directional button Settings All Settings Advanced Features Intelligent Mode Settings
Intelligent Mode)
This function may not be supported depending on the model.
To optimise the sound depending on the surroundings, select Adaptive Sound Pro.
• left directional button Settings All Settings General & Privacy Intelligent Mode Settings
Adaptive Sound Pro Try Now
( left directional button Settings All Settings Advanced Features Intelligent Mode Settings
Adaptive Sound Settings Adaptive Sound Pro)
This function may not be supported depending on the model.
The menu name or position for this feature may vary, depending on the model.
- 194 -
The volume of the external device cannot be adjusted.
Check the cable connection between the Projector and the external device.
When connecting an external speaker such as home theatre via HDMI, make sure it is connected to the HDMI
(eARC/ARC) port on the Projector. Make sure that the Anynet+ (HDMI-CEC) is active on your Projector. Try Now
• left directional button Settings All Settings Connections External Device Manager Anynet+
(HDMI-CEC)
( left directional button Settings All Settings General & Privacy External Device Manager
Anynet+ (HDMI-CEC))
If a device is connected via Optical*, volume control may not be possible, depending on the device.
*: The optical port may not be supported depending on the model.
I want to turn the Projector and audio device off and on at the same time.
When you connect the Samsung Soundbar to the Projector via Bluetooth, the power turns off and on together. It
may not be supported depending on the Samsung Soundbar model.
When you connect an audio device that supports HDMI eARC to the HDMI (eARC) port on the Projector, the power
turns off and on together.
- 195 -
External Device Connectivity Issues
When the Projector has difculties connecting to external devices such as a PC, game console or mobile device,
these steps may help resolve the problem.
The "Mode Not Supported" message appears.
Adjust the output resolution of the external device to a resolution supported by the Projector.
The video is OK but there is no audio.
If you are using an HDMI connection, check the audio output setting on your PC.
If you are using a DVI to HDMI cable, a separate audio cable is required.
To listen to the computer sound, connect external speakers to the audio output connection of the computer.
I want to connect to a PC and mobile device via screen mirroring.
To wirelessly connect the Projector to your PC, read the instructions at PC Screen Sharing (Wireless) in
Connection Guide, and then try to connect.
• left directional button Connected Devices Connection Guide PC Screen Sharing (Wireless)
Conrm that the Projector and your PC are connected to the same network.
To wirelessly connect the Projector to your mobile device, read the instructions at Smartphone Screen Sharing
(Smart View) in Connection Guide, and then try to connect.
• left directional button Connected Devices Connection Guide Smartphone Screen Sharing
(Smart View) Try Now
If the Projector has difculties connecting to your PC or mobile device due to surrounding radio interferences,
change the frequency of the wireless access band, and then try to connect.
- 196 -
No screen appears when connecting the Projector to an external device.
For more information about how to connect an external device, run Connection Guide.
• left directional button Connected Devices Connection Guide Try Now
Make sure that the external device is connected securely and turned on. Move to Sources to switch to other input
sources.
• left directional button Connected Devices Sources
Using HDMI Troubleshooting, you can check the connection to HDMI cable and external devices (takes
approximately 2 minutes).
• left directional button Connected Devices Connection Guide Video Device HDMI
Troubleshooting
When using a set-top box or cable box, check the broadcast signals or the network that is connected to the external
device.
I want to connect to a Bluetooth speaker.
For more information on how to connect a Bluetooth speaker, see Audio Device Bluetooth in Connection Guide.
• left directional button Connected Devices Connection Guide Audio Device Bluetooth
The PC screen does not appear or it ickers.
When the PC screen does not appear or the PC is not recognised, check the power supply of the PC and then
reconnect the HDMI cable between the PC and Projector. When the symptom persists, check that the PC is in Sleep
mode, and then set Input Signal Plus to On.
• left directional button Settings All Settings Connections External Device Manager Input
Signal Plus Try Now
( left directional button Settings All Settings General & Privacy External Device Manager
Input Signal Plus)
When the set resolution is not matched, it may cause a blank or ickering screen. For the PC supported resolution,
refer to "Read Before Connecting a Computer (Supported Resolutions)".
The menu name or position for this feature may vary, depending on the model.
- 197 -
Network Issues
When the Projector has difculties connecting to the Network, these steps may help resolve the problem.
Wireless network connection failed. Unable to connect to a wireless access
point. Unable to connect to the network.
left directional button Settings Support Device Care Self Diagnosis Smart Hub
Connection Test Try Now Try Now
Ensure that the network cable is connected and the router is powered on.
Connect your mobile device to the router via Wi-Fi.
Turn the router off and back on again. (Requires 2 to 3 minutes)
If a security key is required, make sure it has been entered correctly.
Unplug the Projector’s power cord and plug it back in or press and hold the power button for at least 3 seconds.
Make sure that there is no electromagnetic wave generating device placed between the Projector and router.
If unable to establish a wireless internet connection, connect the Projector to the wireless router via a LAN cable.
If the Projector is able to connect to the internet normally via the cable connection, there might be a problem with
the wireless router. In this case, try using a different wireless router.
Wired networks are not supported by some models.
Wired network connection failed.
Check if the LAN cable is plugged in on both ends. If it is plugged in, check if the access point is turned on. If it is on,
turn it off, wait 1 or 2 minutes, and then turn it on.
Wired networks are not supported by some models.
- 198 -
Connected to a local network, but not to the Internet.
1.
Check if the Internet LAN cable is connected to the access point's external LAN port.
2.
Check the DNS setting in IP Settings.
• left directional button Settings All Settings General & Privacy Network Network Status
IP Settings
( left directional button Settings All Settings Connections Network Network Status
IP Settings)
Wired networks are not supported by some models.
The menu name or position for this feature may vary, depending on the model.
- 199 -
Anynet+ (HDMI-CEC) Issues
When Anynet+ (HDMI-CEC) isn't working, these steps may help resolve the problem.
What is Anynet+?
You can use the Projector's remote control to control external devices that support Anynet+ (HDMI-CEC) and that
are connected to the Projector via an HDMI cable. For example, if a connected external device supports Anynet+,
you can have the connected device turn on or off when you turn the Projector on or off.
Anynet+ does not work. The connected device is not displayed.
Make sure the device is an Anynet+ (HDMI-CEC) device. From the settings menu on the device, check and conrm
that the HDMI-CEC option is enabled.
From the Projector, check and conrm that the Anynet+ (HDMI-CEC) feature is set to On.
• left directional button Settings All Settings Connections External Device Manager Anynet+
(HDMI-CEC) Try Now
• left directional button Settings All Settings General & Privacy External Device Manager
Anynet+ (HDMI-CEC)
Check and conrm that the device’s power cord is securely plugged in.
Check the device's HDMI cable connection.
Anynet+ (HDMI-CEC) cannot function under specic circumstances. (when the Projector is scanning channels or
performing Factory data reset)
When connecting or disconnecting an HDMI cable, turn the Projector off and then back on again.
The menu name or position for this feature may vary, depending on the model.
I want to start Anynet+. I also want the connected devices to turn on when
the Projector is turned on.
Check if the Anynet+ device is properly connected to the Projector, and then select Anynet+ (HDMI-CEC) menu to
see if Anynet+ (HDMI-CEC) is set to On.
• left directional button Settings All Settings Connections External Device Manager Anynet+
(HDMI-CEC) Try Now
• left directional button Settings All Settings General & Privacy External Device Manager
Anynet+ (HDMI-CEC)
The menu name or position for this feature may vary, depending on the model.
- 200 -
I want to exit Anynet+. It is inconvenient to turn on other devices because
the Projector also turns on. It is inconvenient because the connected devices
(e.g. set-top box) turn off together.
To turn off the Anynet+ function of a device connected to the Projector, turn off the Anynet+ (HDMI-CEC) function
of the device.
• left directional button Settings All Settings Connections External Device Manager Anynet+
(HDMI-CEC) Try Now
• left directional button Settings All Settings General & Privacy External Device Manager
Anynet+ (HDMI-CEC)
When Anynet+ (HDMI-CEC) is turned off, the soundbar connected via the HDMI (eARC) port does not turn off and on
together with the Projector. To prevent a specic device connected to the Projector from turning off automatically,
turn off the HDMI-CEC function on a specic device connected to the Projector.
The menu name or position for this feature may vary, depending on the model.
The message "Connecting to Anynet+ device..." or "Disconnecting from
Anynet+ device" appears on the screen.
You cannot use the remote control when the Projector is conguring Anynet+ or switching to the Projector viewing
screen.
Use the remote control after the Projector has completed the Anynet+ conguration or has switched to the
Projector viewing screen.
The Anynet+ device won't play.
You cannot use the play function when Factory data reset is in progress.
- 201 -
Remote Control Issues
When the remote control isn't working, these steps may help resolve the problem.
The remote control does not work.
The connection between the remote control and the Projector may be lost.
Point the Samsung Smart Remote at the front of the Projector, and then press and hold the and buttons
simultaneously for 3 seconds or more.
To reset a previously connected remote control, press and hold the and buttons simultaneously for more
than 3 seconds. The remote control connection is reset.
Also, if the remote control does not work properly or its response is very slow, the battery might be low or dead.
• Charge the remote control by using the USB port (C-type) on the bottom, or turn over the remote to expose the
solar cell.
– You can check remaining battery of Samsung Smart Remote with solar cell in left directional button
Settings All Settings General & Privacy Remote Control.
This function may not be supported depending on the model.
• If the remote control has batteries, replace them with new ones.
External devices cannot be operated with the Projector remote control.
Check the cable connection between the Projector and external devices.
When the symptom persists, set it manually in left directional button Connected Devices Universal
remote setup*.
*: This function may not be supported depending on the model
- 202 -
Apps
When apps aren't working, these steps may help resolve the problem.
I cannot nd the app I want.
To use smart functions, you should connect to a network, agree to the terms and conditions, and log in with your
Samsung account. If these settings were not congured during the initial setting process, you can congure Smart
Hub settings by running Apps from the Home Screen.
• left directional button Home Apps
If Smart Hub settings are complete but the app you want cannot be found on the Home Screen, you can nd the app
from Search or Apps. To add frequently used apps to the Home Screen, run the Add to Home feature from Apps.
• left directional button Home Apps App Settings List of installed apps Add to Home
I launched an app, but it's in a different language. How can I change the
language?
Languages supported by an app may be different from the Projector Language set in the menu.
The ability to change the language depends on the app's provider. Change the language from the settings menu in
the app.
The app does not work properly. Its image quality is poor.
Check the network connection. When the network speed is slow, the app may not work or its image quality may be
poor.
Uninstall and reinstall the app. For more information about app uninstallation, refer to "Managing installed apps".
The services of your application are not provided by the Projector but by the application service provider.
Refer to the Help section on the application service provider's website.
- 203 -
The Smart Hub Home Screen keeps appearing whenever you turn on the
Projector.
Turn off the Start with Smart Hub Home function in Start Screen Options.
• left directional button Settings All Settings General & Privacy Start Screen Options Start
with Smart Hub Home Try Now
( left directional button Settings All Settings Advanced Features Start Screen Options
Autorun Smart Hub)
The menu name or position for this feature may vary, depending on the model.
- 204 -
Media Files
When les don't play, this may help resolve the problem.
Some les are interrupted during playback.
This problem may occur with unsupported les or high-bitrate les. Most les can be played back, but some les
may not play smoothly.
Some les can't be played.
Some les that use an unsupported codec may not be played back.
Make sure that the codec is supported by the Projector. For more information about the supported codecs, refer to
"Read Before Playing Photo, Video or Music Files".
- 205 -
Voice Assistant Issues
When the Voice Assistant isn't working, these steps may help resolve the problem.
The microphone is off.
Turn on the microphone switch of the Projector. Each time the switch is turned on or off, the screen displays a
pop-up window showing whether the microphone is turned on or off.
If the microphone is turned off, all voice recognition features and some sound features involving the microphone do not
work.
The position and appearance of the microphone switch may differ depending on the model.
This function may not be supported depending on the model or geographical area.
The voice commands do not work well.
Voice commands may differ depending on the Voice Assistant.
Refer to the command examples for each Voice Assistant.
• Bixby: Discover Bixby
• Amazon Alexa: left directional button Settings All Settings General & Privacy Voice Amazon
Alexa Settings Try Now
left directional button Settings All Settings Advanced Features Voice Amazon Alexa
Settings
This function and Voice Recognition Solution Partner may not be supported depending on the model or geographical area.
The menu name or position for this feature may vary, depending on the model.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
- 206 -
Bixby/Alexa answers although I did not call it.
The Projector may recognise an ambient noise or everyday conversation as a call to Voice Assistant.
Turn off the Hands-free wake-up function or set the Wake-up Sensitivity to Low.
• left directional button Settings All Settings General & Privacy Voice Bixby Settings Voice
Wake-up
left directional button Settings All Settings Advanced Features Voice Bixby Settings
Voice Wake-up
• Bixby Settings Voice Wake-up
This function and Voice Recognition Solution Partner may not be supported depending on the model or geographical area.
The menu name or position for this feature may vary, depending on the model.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
I spoke "Hi, Bixby/Alexa" but Bixby/Alexa does not answer.
When the Projector is far from you or the ambient noise is so loud, the Projector may be unable to recognise your
voice.
• When the distance to the Projector is within 3 to 4 m, optimal performance is provided. Please look at your
Projector screen and speak.
Turn on the Hands-free wake-up function.
• Bixby Settings Voice Wake-up Hands-free wake-up
This function and Voice Recognition Solution Partner may not be supported depending on the model or geographical area.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
- 207 -
Voice recognition does not work with the Samsung Smart Remote unlike
other features. There is no response even if the Voice Assistant button is
pressed.
The connection between the remote control and the Projector may be lost. Try pairing the remote control with the
Projector.
Point the Samsung Smart Remote at the front of the Projector, and then press and hold the and buttons
simultaneously for 3 seconds or more.
To reset a previously connected remote control, press and hold the and buttons simultaneously for more
than 3 seconds. The remote control connection is reset.
Also, if the remote control does not work properly or its response is very slow, the battery might be low or dead.
• Charge the remote control by using the USB port (C-type) on the bottom, or turn over the remote to expose the
solar cell.
– You can check remaining battery of Samsung Smart Remote with solar cell in left directional button
Settings All Settings General & Privacy Remote Control.
This function may not be supported depending on the model.
• If the remote control has batteries, replace them with new ones.
During voice recognition, the heavy load message appears and the function
does not work.
Unplug and then plug the Projector power cord and then try again after 1 minute and 30 seconds. It may take a
while if the voice recognition server is being inspected.
I want to see weather information of the desired area.
Say with the area name included.
- 208 -
Other issues
Use these procedures to resolve other issues that may occur in relation to the product.
The Projector is hot.
Watching Projector for an extended period of time causes the panel to generate heat, which is released through the
vents on the Projector.
The vents may feel hot to the touch when the Projector has been used for an extended period of time.
Adults should exercise extra care and ensure that children do not touch the vents on the Projector.
This heat, however, is not a defect and does not affect the Projector's functionality.
The Projector smells like plastic.
This smell is normal and will dissipate over time.
The settings are lost after 5 minutes or every time the Projector is turned off.
If Usage Mode is set to Retail Mode, the Projector's audio and video settings are automatically reset every 5
minutes.
Change Usage Mode to Home Mode.
• left directional button Settings All Settings General & Privacy System Manager Usage Mode
Home Mode
( left directional button Settings All Settings General & Privacy Usage Mode Home Mode)
This function may not be supported depending on the model or geographical area.
The menu name or position for this feature may vary, depending on the model.
- 209 -
The Projector is tilted to the side.
Remove the base stand from the Projector and reassemble it.
A POP (Projector’s internal banner ad) appears on the screen.
Change Usage Mode to Home Mode.
• left directional button Settings All Settings General & Privacy System Manager Usage Mode
Home Mode
( left directional button Settings All Settings General & Privacy Usage Mode Home Mode)
This function may not be supported depending on the model or geographical area.
The menu name or position for this feature may vary, depending on the model.
The Projector is making a popping noise.
The expansion and contraction of the Projector's outer casing may cause a popping noise.
This does not indicate a product malfunction.
The Projector is safe to use.
The Projector is making a humming noise.
Your Projector utilises high-speed switching circuits and high levels of electrical current. Depending on the
Projector's brightness level, the Projector may seem slightly noisier than a conventional Projector.
Your Projector has undergone strict quality control procedures that meet our demanding performance and
reliability requirements.
Some noise coming from the Projector is considered normal and is not an acceptable cause for an exchange or
refund.
- 210 -
The screen is off, but I hear noise.
Even when the screen is off, noise may be heard if the product performs tasks in the background. Noise will not be
heard after the tasks are completed.
• For example, noise may be heard when SmartThings is operating or the network is reconnected through Wi-Fi
The Projector narrates the screen events in voice-over.
To turn off Voice Guide, move the focus from Accessibility Shortcuts to Voice Guide and then press the Select
button. You can turn on or off Voice Guide. To run Accessibility Shortcuts, see the following:
• Press and hold the (Volume) button on your Samsung Smart Remote.
Touch input does not work properly.
Touch input may not work properly if there is an obstacle between the sensor on the Touch Stand and the projection
surface on the oor. If there is any obstacle or connected device in the vicinity of the sensor on the Touch Stand,
move it away.
Place the Projector on a at, horizontal surface. Touch input may not work properly, depending on the Projector
installation status and the projection surface conditions.
If the brightness of the projection surface is not uniform, the touch function may not work properly. Adjust the
surrounding environment, or use the touch function on a projection surface with uniform brightness.
This feature is only available in models that support Touch Stand.
Touch function may not work properly in some environment conditions. Please refer to the "Checking environment
conditions for using the touch function" section before installing the product.
- 211 -
Diagnosing Projector operational issues
You can diagnose issues with your Projector and Smart Hub and run reset functions.
Self Diagnosis
left directional button Settings Support Device Care Self Diagnosis Try Now
Check whether the product is displaying images and playing sounds normally. Check whether modules and sensors
are working normally. You can also congure settings related to Smart Hub reset.
Some functions may not be supported depending on the model or geographical area.
• Power
View information on the power supply history.
• SW Version Information
Check the currently installed software version, and update the software to the latest version, if necessary.
• Video Test
Play test videos to check for problems with the screen.
• Picture Test
Use test photos to check for problems with the screen.
• Sound Test
Play test sounds to check the sound quality.
• Remote Control
Check for problems with the Remote Control connection or buttons.
• HDMI Troubleshooting
Select the HDMI port and check whether the HDMI cable is connected properly.
• Acceleration Sensor
Check whether the Acceleration Sensor is working normally.
• Light sensor
Check whether the light intensity sensor is working normally.
- 212 -
• Smart Hub Connection Test
Check the network connection.
• Wi-Fi
Check whether the Wi-Fi module is working normally. The result may appear to be a failure if there is no
available access point (AP) in the vicinity.
• Bluetooth
Check whether the Bluetooth module is working normally.
Reset Smart Hub
Resets all Smart Hub settings to their factory defaults and deletes all information related to Samsung accounts,
linked service accounts, Smart Hub service agreements and Smart Hub applications.
• left directional button Settings Support Device Care Reset Smart Hub Try Now
Reset picture
Resets current picture settings to the default settings.
• left directional button Settings All Settings Picture Expert Settings Reset Picture Try Now
Reset sound
Resets current sound settings to the default settings.
• left directional button Settings All Settings Sound Expert Settings Reset Sound Try Now
- 213 -
Getting Support
Get help directly from Samsung if you have a problem with your Projector.
Getting support through Remote Management
left directional button Settings Support Remote Management Try Now
After consenting to our service agreement, you can use Remote Management to access Remote Support and have
a Samsung service technician diagnose your Projector, correct problems and update your Projector's software
remotely via the web. You can also turn Remote Management on and off.
This function requires a network connection.
Finding the contact information for service
left directional button Settings Support About the Projector Try Now
You can view the address of the Samsung website, the call centre phone number, your Projector's model number,
your Projector's software version, Open Source License and other information you may need to get service support
from a Samsung Service Centre or the Samsung website.
You can also view information by scanning the QR code of your Projector.
You can also start this function by pressing and holding the button for 5 or more seconds. Continue holding the button
until the customer information pop-up window appears.
Requesting service
left directional button Settings Support Device Care Request Support Try Now
You can request service when you encounter a problem with the Projector. Select the item matching the problem
that you encountered, enter the required item, move the focus to Next, and then press the Select button. Select
Request Now Send or Schedule Appointment Request Send. Your service request will be registered. The
Samsung Contact Centre will contact you to set up or conrm your service appointment.
You must agree to the terms and conditions for the service request.
This function may not be supported depending on the geographical area.
This function requires a network connection.
- 214 -
Accessibility Guidance
Provides a menu and a remote control guide that aid the visually impaired.
Menu Learning Screen
Learn the menus on the Projector screen. Once enabled, your Projector will tell you the structure and features of
the menus you select.
Using the Remote control
You can see the description of the buttons on the Samsung Smart Remote.
The Samsung Smart Remote may not be supported depending on the model or geographical area.
Orientation of the Samsung Smart Remote
Hold the remote control with the buttons facing towards you. The side with the button in the upper left is the top of
the remote control.
Description of the Samsung Smart Remote
The images, buttons and functions of the remote control may differ with the model or geographical area.
From top to bottom and left to right:
• The button is at the top left.
• Of the 2 buttons below the button on the Samsung Smart Remote, the left one is the button and the right
one is the button.
• There is a small LED (microphone) between the button and the button on the Samsung Smart Remote, but
it cannot be felt by hand.
- 215 -
• Underneath these two buttons are a round button and a large outer circle button. The round button is the Select
button and the large outer circle button consists of 4 directional buttons (up / down / left / right).
• Underneath the directional button are three buttons, one on the left, one on the right and one in the centre. The
one on the left is the button and the one on the right is the button. The round button in the middle is the
button.
• Underneath the button are two thin horizontal buttons. These buttons protrude higher above the surface
than the other buttons on the remote control. The one on the left is the volume button and the one on the right
is the channel button. Push up from beneath or down from above to use these as rocker buttons to change the
channel or volume.
– Briefly press the (Volume) button to mute the sound.
– Press and hold the (Volume) button to open the Accessibility Shortcuts menu.
– Briefly press the (Channel) button to open the Guide.
– Press and hold the (Channel) button to open the Channel List.
This function may not be supported depending on the model or geographical area.
- 216 -
Using the accessibility menu
View how to use the Accessibility menu functions and description of its functions.
This function may not be supported depending on the model or geographical area.
Running the Accessibility Shortcuts menu
You can turn on or turn off the accessibility functions such as Voice Guide, Audio Description, Audio Subtitles,
Auto Picture Off, Magnication, High Contrast, Relumino Mode, Zoom Menu and Text, Greyscale, Colour Inversion,
SeeColors Mode, Subtitle, Sign Language Zoom, Edit Sign Language Zoom, Slow Button Repeat, Auto Menu Sort,
and you can move to the Learn Remote, Menu Learning Screen, Learn Gesture Functions, Multi-output Audio, and
Accessibility Settings pages.
The shortcut menus may not appear depending on the model or geographical area.
• Samsung Smart Remote
On the Samsung Smart Remote, there are two thin horizontal rocker buttons next to each other located slightly
below the middle of the remote. The one on the left is the volume button. Press and hold the volume button to
open the Accessibility Shortcuts menu.
Even if the Voice Guide is set to Off or muted, when you press and hold the volume button, the voice guide for
Accessibility Shortcuts is enabled.
Running the Accessibility menu functions using the General menu
left directional button Settings All Settings General & Privacy Accessibility
Try Now
You can also go to the Accessibility menu from the Projector settings menu. This provides more options, for
example, to change the speed of Voice Guide.
The Projector will not verbalise this menu unless Voice Guide is already turned on.
1.
Press the button.
2.
Press the left directional button to navigate to Menu, and then press the up and down directional buttons to
navigate to Settings.
3.
Press the Select button, and press All Settings to open the menu. Press Select to load the Projector’s Set menu.
4.
Press the down directional button to reach General & Privacy, and then press the Select button to open this
menu.
- 217 -
5.
Place the focus on Accessibility, and press the Select button to open the menu.
6.
The menu will appear with Voice Guide Settings as the rst selection. Highlight Voice Guide Settings, and then
press the Select button.
7.
A menu appears with the options to change Voice Guide and Volume, Speed, Pitch, Projector Background
Volume.
8.
Select the menu using the directional buttons, and then press the Select button.
The menus are activated when Voice Guide is on.
Running the Accessibility menu functions using Bixby
This function is available only if Voice Assistant is set to Bixby.
– left directional button Settings All Settings General & Privacy Voice Voice Assistant* Try Now
– left directional button Settings All Settings Advanced Features Voice Voice Assistant*
*: The menu name or position for this feature may vary, depending on the model.
Bixby may not be supported depending on the model or geographical area.
To use Bixby, the Projector must be set up and tuned and must be connected to the network. You can connect the
Projector to the network during the initial setup or do it later through the settings menu.
There are many commands you can say to control the Projector. These can be used together with Voice Guide to
give you voice input and voice output. You can use the Samsung Smart Remote but the Projector must be connected
to the network.
To speak a command, press and hold the button (located near the top right of the Samsung Smart Remote,
directly right the button) and say the command, and then release the button. The Projector will conrm the
command.
For example you can:
• Turn Voice Guide on
Press the button on the Samsung Smart Remote, and then say "Voice Guide on".
• Turn High Contrast on
Press the button on the Samsung Smart Remote, and then say "High Contrast on".
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
- 218 -
Learning about the Accessibility menu functions
• Voice Guide Settings
This function works on every screen on the Projector and when turned on verbally tells you what the Projector's
current settings are and verbally provides details about the programme you are watching. For example, it tells
you the selected volume and the current channel and gives you programme information. It also reads out the
programme information from the Guide screen.
• Audio Description Settings
You can activate an audio guide that provides an audio description of video scenes for the visually impaired. This
function is only available with broadcasts that provide this service.
This function may not be supported depending on the model or geographical area.
• Audio Subtitles Settings
This feature is intended for visually impaired viewers and audibly reads captions displayed on video content. You
can change the volume or speed of audible captions.
This function may not be supported depending on the model or geographical area.
• Auto Picture Off
Turn off the Projector screen and provide only sound to reduce overall power consumption. When you press a
button on the remote control other than Volume and Power while the screen is off, the Projector screen turns
back on.
• Magnification
Enlarge the screen to make the picture or text bigger. You can adjust the zoom level or move the zoom area by
following the displayed instructions.
Magnification may not work on some menus or screens.
This function may not be supported depending on the model or geographical area.
• High Contrast
To display all menus with an opaque black background and a white font, providing maximum contrast.
If High Contrast is on, some Accessibility menus are not available.
- 219 -
• Zoom Menu and Text
You can enlarge important elements on the menu such as the names of programmes.
• Greyscale
You can change the colour of the Projector screen to black and white to sharpen blurred edges caused by
colours.
If Greyscale is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.
• Colour Inversion
You can invert the colours of the text and background displayed on the Projector screen to make it easier to read
the text.
If Colour Inversion is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.
• SeeColors Mode
This feature helps users with colour blindness experience richer colours.Use this feature to customise the
colours for your unique viewing conditions, to experience richer colours on the screen.
When SeeColors Mode is in use, some menus are disabled.
This function may not be supported depending on the model.
• Learn Remote
Learn the names and functions of the buttons on remote control. On this screen, pressing the power button (top
left button) will turn off the Projector, but when any other button is pressed the Projector will say the button
name and briefly tell what that button does. This teaching mode helps you to learn the location and operation of
the buttons on the remote without affecting normal Projector operation. Press the button twice to exit Learn
Remote.
• Menu Learning Screen
Learn the menus on the Projector screen. Once enabled, your Projector will tell you the structure and features of
the menus you select.
- 220 -
• Subtitle Settings
You can view the subtitle in programmes that provide broadcast subtitles.
When watching a channel on an external device such as a set-top box and cable box, turn on the subtitle function on the
device. For more information, contact your service provider.
• Sign Language Zoom Settings
You can zoom in the sign language screen when the programme you are watching provides it.
• Multi-output Audio
You can turn on both the Projector speaker and Bluetooth headphone designed for the hearing impaired at the
same time. The hearing impaired can then set the volume of their Bluetooth headphone higher than the volume
of the Projector speaker without affecting the volume of the Projector speaker, allowing both the hearing
impaired and their families to listen to the Projector at comfortable sound levels.
This function may not be supported depending on the model or geographical area.
• Slow Button Repeat
You can configure the operation speed of the remote control buttons so that they slow down when you
continually press and hold them. Set Slow Button Repeat to On.
• Remote Button Repeat Settings
You can configure the operation speed of the remote control buttons so that they slow down when you
continually press and hold them.
• Auto Menu Sort
Automatically sorts your frequently used menu items.
• Accessibility Shortcut Settings
Set the accessibility shortcut to activate when the Volume button is pressed and held.
This function may not be supported depending on the model or geographical area.
• Time to Take Action
Choose how long messages, like pop-ups, stay on screen before you take action.
This function may not be supported depending on the model or geographical area.
• Moving Text and Image
Some screen effects may be limited, but this can be helpful for those sensitive to screen motion.
This function may not be supported depending on the model or geographical area.
- 221 -
Using the Projector with Voice Guide on
Turn on Voice Guide that describes the menu options aloud to aid the visually impaired.
Changing channel
You can change the channel in three of ways. Every time you change channels, the new channel details will be
announced. The ways to change the channel are below.
• Channel List
Press and hold the (Channel) button to open the Channel List. Use the up or down directional button to
move to a channel and press the Select button.
• (Channel) button
Of the two buttons that protrude from the centre of the Samsung Smart Remote, the right one is the
(Channel) button. Push up or pull down the (Channel) button to change the channel.
• Number button
Use the button on the Samsung Smart Remote to open the virtual numeric pad, enter a number, and then
select Done.
Using on-screen number entry via the Samsung Smart Remote
Use the virtual numeric pad to enter numbers e.g. to enter a channel number or to enter a PIN.
Press the button on the Samsung Smart Remote and the virtual numeric pad with 2 rows appears on screen.
Voice Guide speaks “virtual numeric pad, 6” which indicates that the number strip is on screen and the focus is on
the number 6. This strip has the following buttons:
• In the top row, a list of Most Watched Channel is shown.
• On the bottom row: From the far left: Colour pad, TTX/MIX, 1, 2, 3, 4, 5, 6, 7, 8, 9, 0, Delete
The menus may not appear depending on the model or geographical area.
The options that you can select in the virtual numeric pad may vary depending on the viewing mode.
- 222 -
Use the left and right directional buttons to move along the row, and then press the Select button to choose the
numeric pad. When you have nished selecting all the numbers you need (for example, 123), press the directional
button to move to the Done option, and then press the Select button to nish.
When entering a channel number, you can enter the number, and then select the Done option on the top row or you
can enter the channel number and wait. After a short while, the channel will change and the virtual numeric pad
will disappear from the screen.
Changing volume
• Samsung Smart Remote
Use the (Volume) button on the left to change the volume. Every time you change the volume, the new
volume level will be announced.
Of the two buttons that protrude from the centre of the Samsung Smart Remote, the left one is the
(Volume) button. Push up or pull down the (Volume) button to change the volume.
Using programme information
When watching Projector, press the Select button to view programme information which then appears at the top
of the screen. Voice Guide will say programme subtitles or audio descriptions if they are available. To view more
detailed programme information, press and hold the Select button. Voice Guide will say more details such as a
synopsis of the programme.
Press the left or right directional button to see what you can watch next on the same channel. Press the up or down
directional button to move to other channels and see which programmes are currently being broadcast on them.
Press to go back or close the programme details.
This function may not be supported depending on the model or geographical area.
- 223 -
Using the guide
See an overview of each channel's programme lineup.
When you want to know the programme information for each channel while watching a broadcast programme,
press the (Channel) button on the Samsung Smart Remote. Use the directional buttons to view the
programme information.
You can see the daily programme schedules for each broadcaster and programme information in the Guide. You can
select programmes to schedule for viewing.
You can also open the Guide using Bixby. Press and hold the button on your Samsung Smart Remote, and then
say "Guide".
This function may not be supported depending on the model or geographical area.
The information in the Guide is for digital channels only. Analogue channels are not supported.
If the Clock is not set, the Guide is not provided. Set the Clock rst.
– left directional button Settings All Settings General & Privacy System Manager Time Clock
Try Now
( left directional button Settings All Settings General & Privacy Time Clock)
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
If you need to set the clock again, follow the steps below.
1.
Press the button and press the left directional button on the remote control.
2.
Press the down directional button to move to the Settings.
3.
Press the Select button, and press the right directional button to move to the All Settings.
4.
Press the Select button to open the Projector's All Settings menu.
5.
Use the up and down directional buttons to move to the General & Privacy menu, and then press the Select
button.
6.
Use the up and down directional buttons to move to the Time menu, and then press the Select button.
7.
Select the Clock Mode menu, press the Select button, and then select Auto or Manual.
If you select Manual, you can move to the Date or Time menu below to set the time or date.
- 224 -
When you open the Guide, a table grid of channels and programmes is displayed. In the top rows, the selected lter
type and the time are shown. Each row has a channel name on the left and programmes on that channel on the
right.
In the Guide, use the up and down directional buttons to move between channels and use the left and right
directional buttons to move between programmes at different times within a channel.
You can also use the button to enter a channel number and go to that channel directly. You can use the
button to move to the programme currently broadcasting.
When you move the focus to a programme, you will hear the detailed informations about the selected programme.
When you move the focus to a different channel, you will hear the channel name and number and the programme
details. If you move to a different day, you will hear the day announced for the rst programme you reach on that
day. The day is not repeated, so if you are not sure what the day is, you can move forwards and backwards 24 hours
and then the day will be announced.
To view a programme on now
In the Guide, move to the programme currently broadcasting, and then press the Select button to go to live
Projector on the selected channel and programme.
- 225 -
Other options in the guide
In the Guide, move to a broadcast scheduled programme, and then press the Select button. A pop-up menu listing
the functions below appears.
Use the up and down directional buttons to move within this menu, and then press the Select button to choose an
item. Press to close the menu and go back to the Guide.
For the programme you are currently watching, press the Select button.
• Schedule Viewing
You can schedule the viewing of a broadcast scheduled programme.
• Cancel Scheduled Viewing
You can cancel your scheduled viewings.
This function may not be supported depending on the model or geographical area.
• View Details
You can see the detailed information on the selected programme. The information may differ with the broadcast
signal. If the information is not provided with the programme, nothing appears.
Press the Select button on the View Details option. This will open the details pop-up window for that programme
which will display a synopsis. The details pop-up window contains detailed information and the OK option. After
reading the detailed information, press the Select button on the remote control to close the pop-up window.
- 226 -
Using Schedule Viewing
Congure the Projector to show a specic channel or programme at a specic time and date.
This function may not be supported depending on the model or geographical area.
The icon appears next to programmes that have been congured for a schedule viewing.
To set up a schedule viewing, you must rst set the Projector's Clock Mode and set the time.
– left directional button Settings All Settings General & Privacy System Manager Time Clock
Clock Mode Try Now
( left directional button Settings All Settings General & Privacy Time Clock Clock Mode)
Setting up a schedule viewing
You can set up a schedule viewing on two screens.
• The Guide Screen
On the Guide screen, select a programme you would like to view, and then press the Select button. Select
Schedule Viewing on the pop-up menu that appears.
• The Programme Info Screen
Press the Select button while watching the Projector. The Programme Info window appears. Select a broadcast
scheduled programme by using the left or right directional buttons, and then press the Select button. You can
schedule watching the programme by selecting Schedule Viewing.
- 227 -
Cancelling a scheduled viewing
You have two ways to cancel a scheduled viewing.
• Cancelling a scheduled viewing from the Guide
1.
Press the (Channel) button to access the Guide.
2.
Move to to the programme to cancel the viewing schedule, and press the Select button.
3.
Move to Cancel Scheduled Viewing, and then press the Select button.
4.
When a pop-up message asking you to cancel the selected scheduled viewing appears, select Yes. The
scheduled viewing is cancelled and the Guide screen appears.
• Cancelling a scheduled viewing from Schedule Manager
1.
On the Samsung Smart Remote, press the button.
2.
Use the directional buttons to move to the control pad.
3.
Press the Select button to open Schedule Manager.
4.
Press the up directional button to move to the Schedules option.
5.
Use the down directional button to move to the list of programmes scheduled to view.
6.
Use the right directional button to move to the Delete option, and then press the Select button to delete the
selected item.
This function may not be supported depending on the model or geographical area.
- 228 -
Using the Channel List
See how to list the channels available on your Projector.
Using Channel List, you can change the channel or check programmes on other digital channels while watching
Projector.
Press and hold the (Channel) button to open the Channel List.
The focus is on the channel you are currently watching, and the name and number of the channel, along with the
programme title, are displayed.
Use the up and down directional buttons to move within the channel list (or use the (Channel) button to go
up and down a page at a time). You can also use the button to enter a channel number and go to that channel
directly.
Press the left directional button in the Channel List to move to the Category list. Use the up and down directional
buttons to move within this list. Press the Select button to choose a category you want from the Category list. The
Category list contains All, Samsung TV Plus, Favourites and Channel Type. Use the up and down directional buttons
to move to a channel you want to view, and then press the Select button.
This function may not be supported depending on the model or geographical area.
• Edit Channels
Edit the channels stored on your Projector.
• All Channels
Displays the channels that have been automatically searched.
The channels received to the currently selected Terrestrial, Cable or Satellite are displayed.
• Samsung TV Plus
While the Projector is connected to the network, you can watch popular programmes or highlights for each
theme through a virtual channel at any time. As in a general channel, it provides the daily programme schedules
of Samsung TV Plus.
This function may not be supported depending on the model or geographical area.
• Favourites
Displays Favourites 1 to Favourites 5. Use the up and down directional buttons to move between the lists of
favourites. Highlight the one you want, and then press the Select button. The channel list will now show only the
channels in this list.
• Channel Type
Filters the list so that it includes channels of a selected type. However, Channel Type can only be used channels
contain the type information.
This function may not be supported depending on the incoming broadcast signal.
- 229 -
Using Smart Hub
Learn how to use Smart Hub to access apps, games, movies and more.
Smart Hub
Use a variety of Smart Hub content offered by your Samsung Projector.
Some Smart Hub services are for pay services.
To use smart functions, you should connect to a network, agree to the terms and conditions, and log in with your Samsung
account.
Some Smart Hub features may not be supported depending on the service provider, language or geographical area.
Smart Hub service outages can be caused by disruptions in your Internet service.
Press the button. You are redirected to the Home Screen of the content you are currently using. Press the left
directional button, and try moving the focus to other items.
Use a variety of Smart Hub content, as follows: Samsung Account, Search, Ambient, Samsung Daily+, Game, Home,
Menu, Privacy Choices
Supported Smart Hub content may vary depending on the model and geographical area.
- 230 -
Using the Smart Hub Home Screen
On the leftmost part of the Smart Hub Home Screen is the static menu listed. You can quickly and easily use the
listed menu items to access the main Projector settings or external devices, search and apps.
• Samsung Account
Go to the Samsung Account screen to create a new account or sign out of your account.
For more information, refer to "Using a Samsung account".
• Search
Search for channels, programmes, movies, and apps offered by Smart Hub.
To use the Search service, make sure the Projector is connected to a network.
This function may not be supported depending on the model or geographical area.
• Ambient
Set your Projector to display content you desire, such as the time or weather, when the Projector is not used.
To return to Projector mode from Ambient mode, press the left directional button Home. Press the
button to turn off the Projector.
This function may not be supported depending on the model or geographical area.
For more information, refer to "Using Ambient Mode".
• Samsung Daily+
Provides useful services, such as home training, remote work and commerce, allowing users to conveniently
experience different lifestyles.
This function may not be supported depending on the model or geographical area.
For more information, refer to "About the Samsung Daily+ Home screen".
- 231 -
• Game
Play games from the Projector screen by connecting a Controller to the Projector. Configure settings to optimise
the Controller and audio device for playing games.
This function may not be supported depending on the model or geographical area.
For more information, refer to "Using Samsung Gaming Hub".
• Home
View a variety of Projector programmes. Install various apps offered by Smart Hub, such as video, music and
sports apps, and use the apps from the Projector.
For more information, refer to "Using the Home Function".
• Settings
Manage external devices connected to the Projector, and configure settings for various functions available on
the Projector.
For more information, refer to "About the Settings Home Screen".
• Privacy Choices
From your Projector, easily manage the privacy policy regarding services related to Smart Hub and verify how
personal information is protected.
To use Smart Hub, you must agree to the Smart Hub service agreement and the collection and use of personal
information. Without giving consent, you will not be able to use the additional features and services. You can view the
entire text of the Terms & Privacy by navigating to left directional button Settings All Settings General
& Privacy Terms & Privacy. Try Now
In order to rescind your consent to mandatory terms and conditions related to Smart Hub, launch Reset Smart Hub
( left directional button Settings Support Device Care Reset Smart Hub). Try Now
This function may not be supported depending on the model or geographical area.
- 232 -
Launching the User guide
Open the user manual embedded in your Projector.
left directional button Settings Support Open User guide
( left directional button Settings Support Tips and User Guides Open User guide)
You can view the embedded User guide containing information about your Projector's key features.
The menu name or position for this feature may vary, depending on the model.
Alternatively, you can download a copy of the User guide from Samsung's website (https://www.samsung.com).
Words in blue (e.g., Internet) indicate a menu item.
The User guide's Home Screen contains 1 row of menu icons. Use the left and right directional buttons to move
within a row. Press the Select button to open the section you want to read.
You can use the directional buttons on the remote control to use the functions on the top such as Search, Site Map, and
Index.
The User guide contains a section called "Learn Remote" in "Accessibility Guidance". This is particularly useful for
people who cannot easily see the buttons on the control or who are not clear what each button does. When you are
viewing this section of the User guide, pressing the buttons on the remote control will not affect the Projector.
- 233 -
Using Bixby
Set Voice Assistant to Bixby. Speak into the microphone on your Samsung Smart Remote or Projector to control
your Projector.
To use Bixby, your Projector must be connected to the network and you must use the microphone on your Samsung
Smart Remote.
To use Bixby, press and hold the button on the Samsung Smart Remote, say a command into the microphone on
the remote, and then release the button to run Bixby.
This function may not be supported depending on the model or geographical area.
The existing functional specications may be changed if Bixby is updated.
This function is available only if Voice Assistant is set to Bixby.
– left directional button Settings All Settings General & Privacy Voice Voice Assistant* Try Now
– left directional button Settings All Settings Advanced Features Voice Voice Assistant*
*: The menu name or position for this feature may vary, depending on the model.
The supported language may differ depending on the geographical area.
The microphone on Projector is not supported depending on the model or geographical area.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
Running Bixby
Press and hold the button on the Samsung Smart Remote. Bixby is activated in the listening mode, the Bixby
icon appears at the bottom of the Projector screen. Say a command, and then release the button. The Projector
provides feedback on how it understands the command, and then performs the commanded task.
If the Projector does not understand the command, try again with more precise pronunciation.
This function may not be supported depending on the model or geographical area.
You can nd a detailed description of the voice commands at Discover Bixby. Press the button. The icon appears at
the bottom right of the screen. Press the
Select button to go to the Discover Bixby screen.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
- 234 -
