Refrigerator

BOTTOM MOUNTED FREEZER SERIES

Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

The design and speciﬁcations are subject to change without prior notice for product improvement.

Consult with your dealer or manufacturer for details.

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

USER MANUAL

MDRB424FGD*

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read

this manual thoroughly to ensure that you know how to operate the features and

functions that your new appliance oers in a safe way.

CONTENTS

THANK YOU LETTER

------------------------------------------- 01

SPECIFICATIONS

------------------------------------------------- 02

PRODUCT OVERVIEW

------------------------------------------ 03

PRODUCT INSTALLATION

------------------------------------ 04

OPERATION INSTRUCTIONS

--------------------------------- 11

CLEANING AND MAINTENANCE

---------------------------- 15

TROUBLESHOOTING

------------------------------------------- 16

APPENDIX

---------------------------------------------------------- 19

SPECIFICATIONS

Product model MDRB424FGD

Rated Voltage/Frequency 220-240V~/50Hz

Rated Current 1.5A

Total Volume 310L

Fresh Food Storage Compartment Volume 224L

Four-star Compartment Volume 86L

Freezing Capacity 3.9kg/24h

Temperature Rise Time 8h

Overall Dimension (W x D x H) 595x630x1880mm

Importer / Address: MIDEA HOME APPLIANCES UK LTD

Conavon Court Ground Floor, 12 Blackfriars Street, Salford,

Manchester M3 5BQ UK

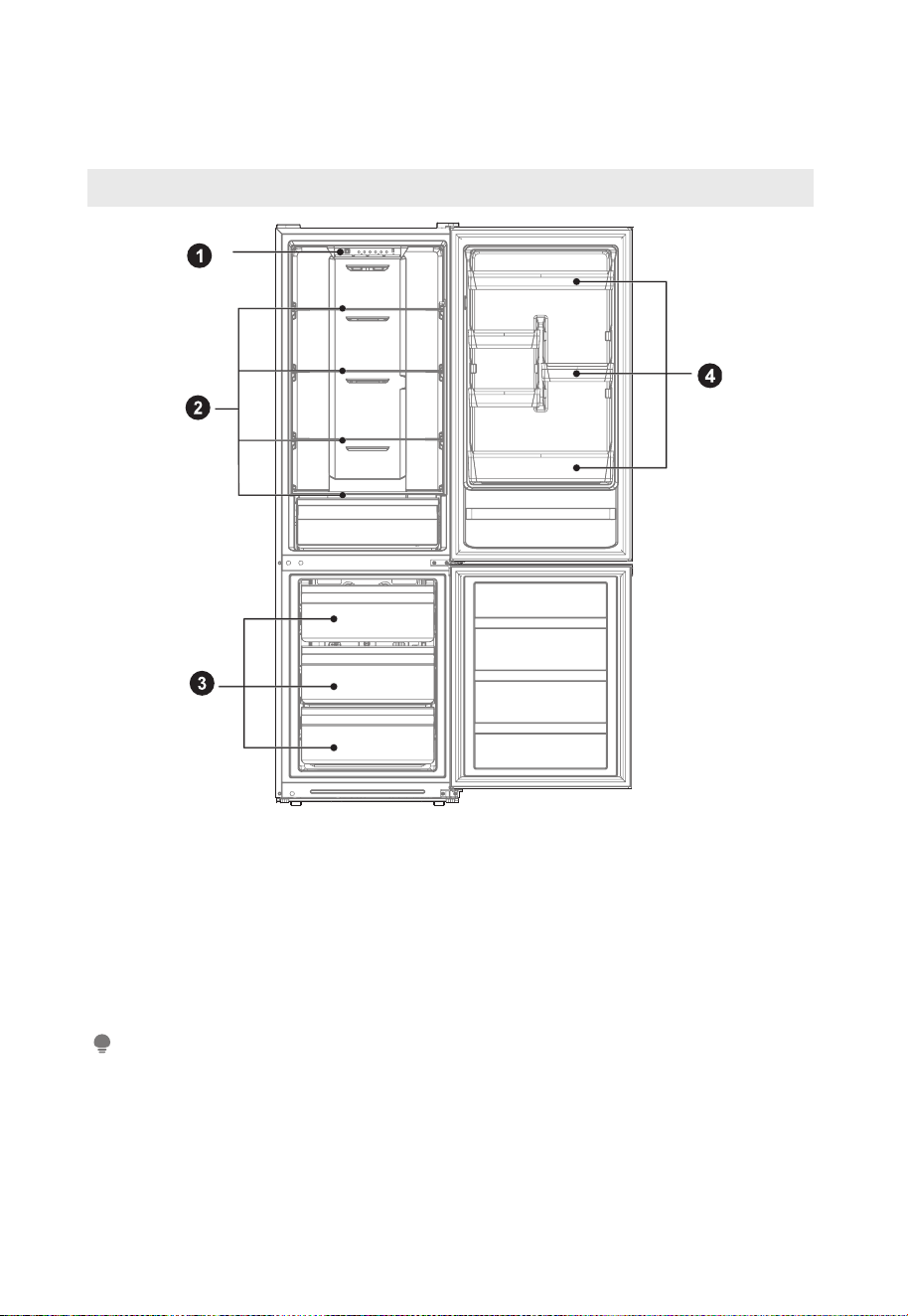

PRODUCT OVERVIEW

Names of components

LED lighting

Drawer

Shelf

Door tray

ATTENTION

The picture above is only for reference. The actual conﬁguration will depend on the physical

product or statement by the distributor.

PRODUCT INSTALLATION

Install Instruction

For refrigerating appliances with climate class

• Depending on the climate class, this refrigerating appliance is intended to be

used at ambient temperatures range as speciﬁed following table.

• The climate class can be found on the rating plate. The product may not

operate properly at temperatures outside of the speciﬁc range.

• You can ﬁnd the climate class on the product label.

Eective temperature range

• The product is designed to operate normally in the temperature range

speciﬁed by its class rating.

Class Symbol

Ambient temperature range °C

IEC 62552 (ISO 15502) ISO 8561

Extended temperate SN + 10 to + 32 + 10 to + 32

Temperate N + 16 to + 32 + 16 to + 32

Subtropical ST + 16 to + 38 + 18 to + 38

Tropical T + 16 to + 43 + 18 to + 43

Dimensions and Clearances

• Keep the air circulation free around the cabinet. When installing the unit,

ensure 10cm of free space at both sides, 10cm at the top of the unit, and not

more than 7.5cm at the rear of the unit.

ATTENTION

The picture above is only for reference. The actual conﬁguration will depend on the physical

product or statement by the distributor.

>100mm

≤75mm

>100mm

Required space for

air circulation

Top View

Space requirement diagram (when the door is open and when the door is closed)

Width Overall Height Depth

Width doors

open 135°

Depth doors

open 135°

A B C D E

595 1880 630 1015 1185

Notice: All dimensions in mm

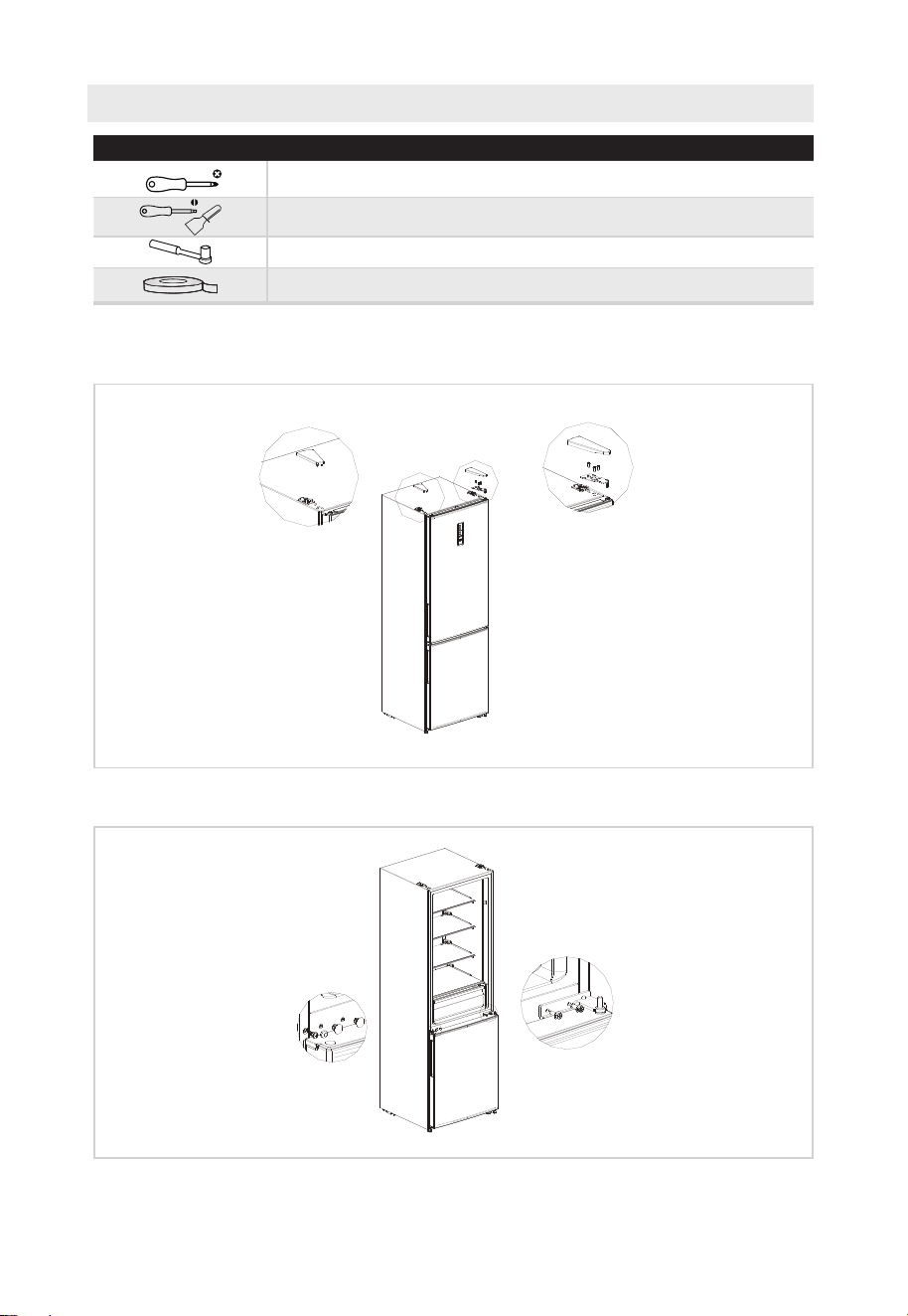

Door right-left change (optional)

List of tools to be provided by the user

Cross screwdriver

Putty knife Thin-blade screwdriver

5/16

″

socket spanner

Masking tape

Power o the refrigerator, and remove all objects from the door trays.

Dismantle upper hinge cover, disconnect the signal wires, upper hinge and hole

cap of the other side, remove the refrigerating door.

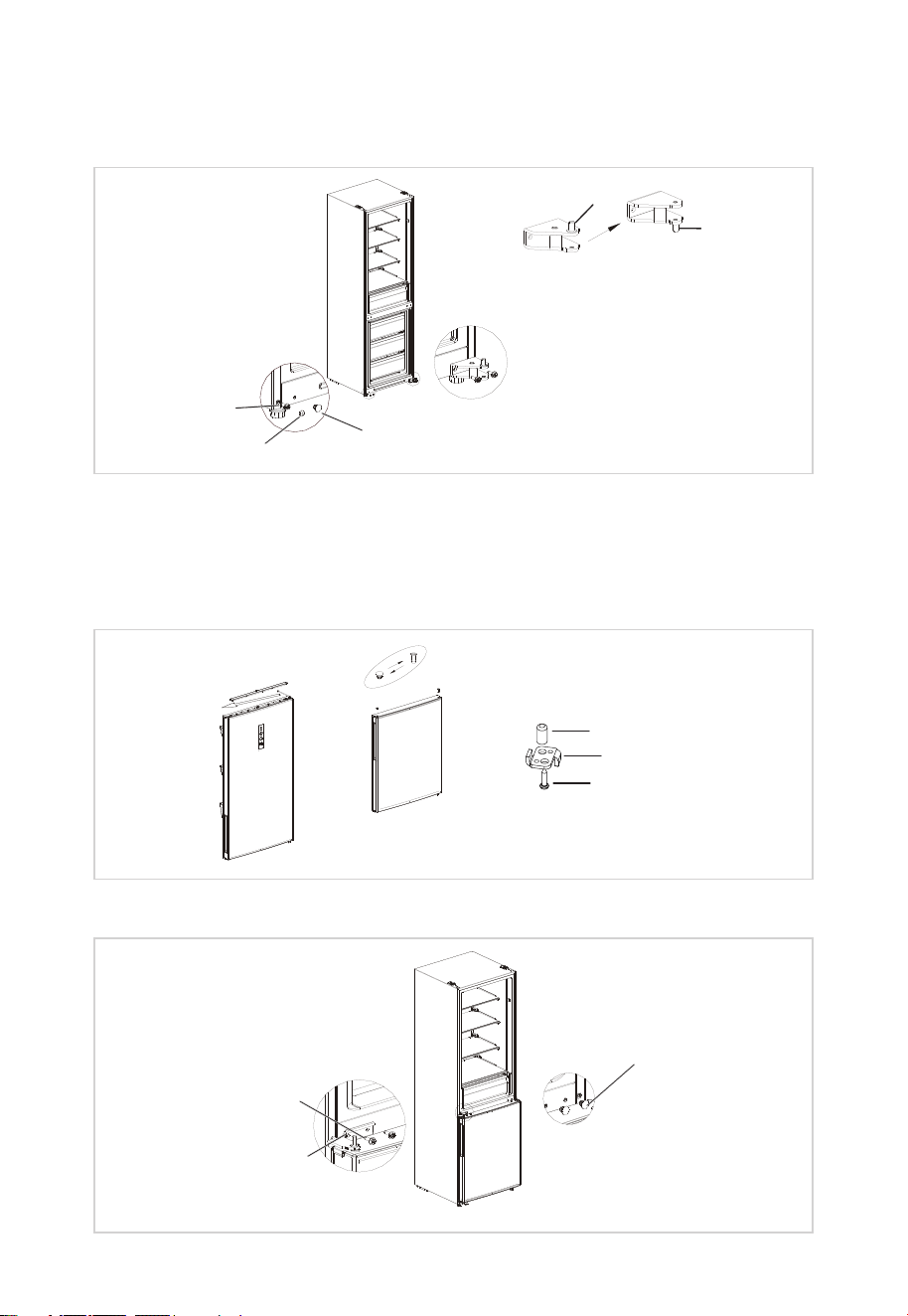

3. Dismantle the middle hinge, the screws, the screws hole caps and remove the

freezer door.

4. Dismantle the bottom hinge, hole caps and screws, Install the bottom hinge

shaft on other side of the bottom hinge, then install the hinge on the other

side.

5. Dismantle the screws, sleeve pipe and stopper on the lower end cover of the

two door bodies, and install them successively on the other side of the door

bodies . Then remove the upper end cover of the cooler door and switch the

wire harness with a sleeve pipe to the other side of the door body. Finally

install the sleeve pipe of the upper hinge on the cooler door in the hole on

the other side of upper end cover of the cooler door.

6. Put the freezer door on bot tom hinge , install the middle hinge, the screws and

the screw hole caps.

shaft

hole cap

screw

screw cap

sleeve pipe

stopper

support screw

hole cap

screw

middle hinge

7. Place the door body for the refrigerator compartment on the middle hinge,

then install the upper hinge to the other side of the cabinet, ﬁnally connect

the terminals 1, 2 for the signal wires at the side of the upper hinge and terminals

3,4 on the other side and cover the hinge cover and hole cover.

ATTENTION

The picture above is only for reference. The actual conﬁguration will depend on the physical

product or statement by the distributor

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven ﬂoor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise

to raise the unit, clockwise to

lower it.

Moving the appliance

1. Remove all food from inside the appliance.

2. Pull the power plug out, insert and ﬁx it into the power plug hook at the rear or

on top of the appliance.

3. Tape parts such as shelves and the door handle to prevent from falling o while

moving the appliance.

4. Move the appliance with more than two people carefully. When transporting

the appliance over a long distance, keep the appliance upright.

5. After installing the appliance, connect the power plug into a socket out to

switch on the appliance.

ATTENTION

Precautions before operation:

Before making changes the refrigerator must be disconnected from power.

Precautions should be taken to prevent any personal injury.

Changing the light

• Any replacement or maintenance of the LED lamps is intended to be made by

the manufacturer, its service agent or similar qualiﬁed person.

ATTENTION

This product contains a light source of energy eciency class (F).

Connecting the appliance

After installing the appliance, connect the power plug into a socket outlet.

ATTENTION

After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you

put food into the appliance. If you add food before the appliance has cooled completely, your

food may spoil.

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the

ambient temperature is high, the compressor will run more frequently and for longer,

resulting in increased energy consumption.

• Ensure that there is sucient ventilation at the base of the appliance, on the sides of

the appliance and at the back of the appliance. Never cover ventilation openings.

• Please also observe the spacing dimensions in the chapter “Installation”.

• The arrangement of drawers, shelves and racks as shown in the illustration oers the

most ecient use of energy and should therefore be retained as far as possible. All

drawers and shelves should remain in the appliance to keep the temperature stable

and save energy.

• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the

middle drawers can be removed. The top and bottom drawers and shelves should be

removed last if necessary.

• An evenly ﬁlled refrigerator/freezer compartment contributes to optimal energy use.

Therefore, avoid empty or half-empty compartments.

• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has

already cooled down increases energy eciency.

• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food

reduces the energy consumption in the refrigerator compartment and thus increases

the energy eciency.

• Open the door only as brieﬂy as necessary to minimise cold loss. Opening the door

brieﬂy and closing it properly reduces energy consumption.

• The door seals of your appliance must be perfectly intact so that the doors close

properly and energy consumption is not increased unnecessarily.

OPERATION INSTRUCTIONS

Control panel

ATTENTION

The picture above is only for reference. The actual conﬁguration will depend on the physical

product or statement by the distributor.

Key

A Temperature setting button

Display screen

temperature setting

1 8

℃

temperature setting 2

℃

temperature setting 3

℃

temperature setting 4

℃

temperature setting 5

℃

temperature setting 6 super cool

Display

When power-on the refrigerator, the display screen (including the key light) will

shine in full for 3s, then the refrigerator runs according to temperature setting 3.

Display of normal running

On the occurrence of a failure, the corresponding LED light will give a combined

display of failure code (in recycling display);

Where there is no failure, the LED light will display the existing temperature setting.

ATTENTION

The actual control panel may dier from model to model.

Operating instructions

Gear setting

• The temperature setting will be changed once every time when you press the

key SET. Then, the refrigerator will run under the new setting value after 15s.

Super cool mode:

• Enter: Circulating modulation Super cool mode.

• Operate: Indicator of Super cool lights up, the refrigerator will automatically

exit the Super cool mode after 40 hours of continuous operation at low

temperatures.

• Press the button to switch the other gear, the Super cool mode is canceled

When placing a large amount of food in the freezer compartment at one time,

it is recommended to open the Super cool mode 12 hours in advance, so as to

quickly freeze food and avoid food deterioration.

Adjustment of manual air damper knob

• Turn the air damper slider up, the actual temperature inside the freezer room

will drop, turn the air damper slider down, the actual temperature inside the

freezer room will rise.

Tips on storing food

Freezer compartment

• The freezer is designated for the storage of food frozen at very low temperature,

long-term storage of frozen food, and for the production of ice.

• Only use the shelves in the door of the freezer to store frozen food, not for storing

hot food designated for freezing.

• Do not put fresh and frozen food next to each other. The frozen food may thaw.

• When freezing fresh food (such as meat, ﬁsh or chopped meat), cut them into parts

that can be used at the same time.

• Storing frozen food: instructions are usually stated on the packages, which must be

followed. If there is no information on the packaging, food should not be stored for

longer than three months from the date of purchase.

• When purchasing frozen food, make sure that it was frozen at a suitable temperature

and that the packaging is not damaged.

• Frozen food should be kept in suitable packages to retain the quality and should be

returned to the freezer compartment as soon as possible.

• If a package of frozen food shows moisture or abnormal bulging, it is probable that

it was stored at the wrong temperature and the content is spoiled.

• The storage period for frozen food depends on the room temperature, the

thermostat setting, the frequency of opening the door of the freezer, the type of

food and the time of transporting the product from the shop to the household.

Always follow the instructions printed on the packaging and never exceed the

maximum storage time stated on the package.

Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the

refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts

of the evaporator. Storing uncovered liquids results in a more frequent need for

defrosting.

• Never put warm foods in the refrigerator. These should ﬁrst cool down at room

temperature and then be placed so as to ensure adequate air circulation in the

refrigerator.

• Foods or food containers should not touch the back wall of the refrigerator because

they could freeze to the wall. Do not keep regularly opening the door of the

refrigerator.

• Meat and clean ﬁsh (packed in a package or plastic foil) can be placed in the

refrigerator, which can be used in 1–2 days.

• Fruit and vegetables without packaging can be placed in the part designated for

fresh fruit and vegetables.

ATTENTION

The optimal temperature setting of each compartment depends on the ambient temperature.

Above optimal temperature is based on the ambient temperature of 25 °C.

Order

Compartments

TYPE

Target

storage

temp. [°C]

Appropriate food

1 Fridge +2

≤

Eggs, cooked food, packaged food, fruits and vegetables,

dairy products, cakes, drinks and other foods not suitable

for freezing.

Four-star rating

frozen

≤

-18

With freezing capacity, fast freezing speed, caWith freezing

capacity, fast freezing speed, can quickly freeze and store

food. Suitable for frozen fresh food such as seafood (ﬁsh,

shrimp, shellﬁsh), freshwater aquatic products and meat

products. Recommended for 3 ~ 6 months, the longer the

storage time, the worse the taste and nutrition.

Three-star rating

frozen

≤

-18

With freezing capacity. Suitable for frozen fresh food such

as seafood (ﬁsh, shrimp, shellﬁsh), freshwater aquatic

products and meat products. Recommended no more than

3 months.

Two-star rating

frozen

≤

-12

Only suitable for medium-term storage of already frozen

food, e.g. ice cream. Recommended no more than 1 month.

One-star rating

frozen

≤

-6

Only suitable for refrigeration, and short-term storage of

small quantities of already frozen food. Recommended no

more than 1 week.

6 0-star -6

≤

Fresh pork, beef, ﬁsh, chicken, some packaged processed

foods, etc. (Recommended to eat within the same day,

preferably no more than 3 days).

Partially encapsulated processed foods (non-freezable

foods).

7 Chill -2

≤

Fresh/ frozen pork, beef, chicken, freshwater aquatic

products, etc. (7 days below 0°C and above 0°C is

recommended for consumption within that day, preferably

no more than 2 days).

Seafood less than 0 for 15 days, it is not recommended to

store above 0°C.

8 Fresh food 0

≤

Fresh pork, beef, ﬁsh, chicken, cooked food, etc.

(Recommended to eat within the same day, preferably no

more than 3 days)

9 Wine +5

≤

+20

Red wine, white wine, sparkling wine, etc.

ATTENTION

please store dierent foods according to the compartments or target storage temperature of

your purchased.

CLEANING AND MAINTENANCE

Defrosting

• The refrigerator is made based on the air-cooling principle and thus has

automatic defrosting function. Frost formed due to change of season or

temperature may also be manually removed by disconnection of the appliance

from power supply or by wiping with a dry towel.

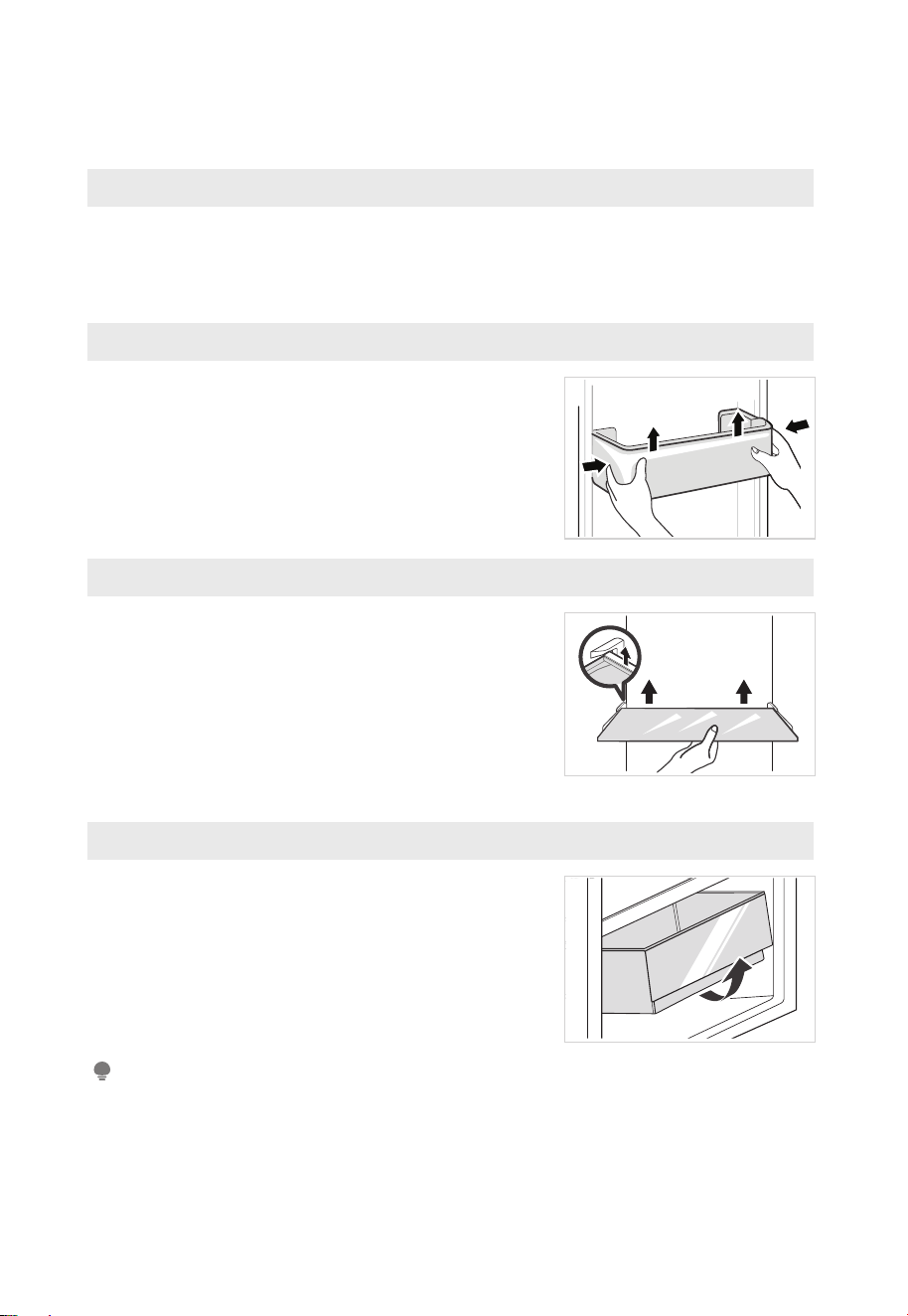

Cleaning of door tray

• According to the direction arrow in the ﬁgure

below, use both hands to squeeze the tray, and

push it upward, then you can take it out.

• After washing the tray having been taken

out, you can adjust its installing height in

accordance with your requirement.

Cleaning of glass shelf

• As the innermost part of the refrigerator liner

where contacting the shelves has a backstop,

you shall raise the shelves upward, then you can

be able to take it out.

• Adjust or clean the shelves according to your

requirement.

Cleaning the vegetable drawer

1. Remove the contents of the drawer. Hold the

handle of the vegetable drawer and pull it out

completely until it stops.

2. Lift the vegetable drawer up and remove it by

pulling it out.

ATTENTION

Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested

for cleaning. The freezer of shall be ﬁnally cleaned with clean water and dry cloth. Open the

door for natural drying before the power is turned on. Do not use hard brushes, clean steel

balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone,

banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this

may damage the fridge surface and interior.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale

service department if the issues are not solved.

Problem Possible reason

Failed operation

• Check whether the appliance is connected to power or

whether the plug is in well contact

• Check whether the voltage is too low

• Check whether there is a power failure or partial circuits have

tripped

Odor

• Odorous foods shall be tightly wrapped

• Check whether there is any rotten food

• Clean the inside of the refrigerator

Long-time operation

of the compressor

• Long operation of the refrigerator is normal in summer when

the ambient temperature is high

• It is not suggestible having too much food in the appliance at

the same time

• Food shall get cool before being put into the appliance

• The doors are opened too frequently

Light fails to get lit

• Check whether the refrigerator is connected to power supply

and whether the illuminating light is damaged

• Have the light replaced by a specialist

Door can not be

properly closed

• The door is stuck by food packages

• The refrigerator is tilted.

Loud noises

• Check whether the ﬂoor is level and whether the refrigerator

is placed stably

• Check whether accessories are placed at proper locations

Problem Possible reason

Door seal fails to be

tight

• Remove foreign matters on the door seal

• Heat the door seal and then cool it for restoration (or blow it

with an electrical drier or use a hot towel for heating)

Water pan overﬂows

• There is too much food in the chamber or food stored

contains too much water, resulting in heavy defrosting

• The doors are not closed properly, resulting in frosting due to

entry of air and increased water due to defrosting

Hot housing

• Heat dissipation of the built-in condenser via the housing,

which is normal When housing becomes hot due to high

ambient temperature, storage of too much food or shutdown

of the compressor is shut down, provide sound ventilation to

facilitate heat dissipation

Surface

condensation

• Condensation on the exterior surface and door seals of the

refrigerator is normal when the ambient humidity is too high.

Just wipe the condensate with a clean towel.

Abnormal noise

• Buzz: The compressor may produce buzzes during operation,

and the buzzes are loud particularly upon start or stop.

Thisisnormal.

• Creak: Refrigerant ﬂowing inside of the appliance may

produce creak, which is normal.

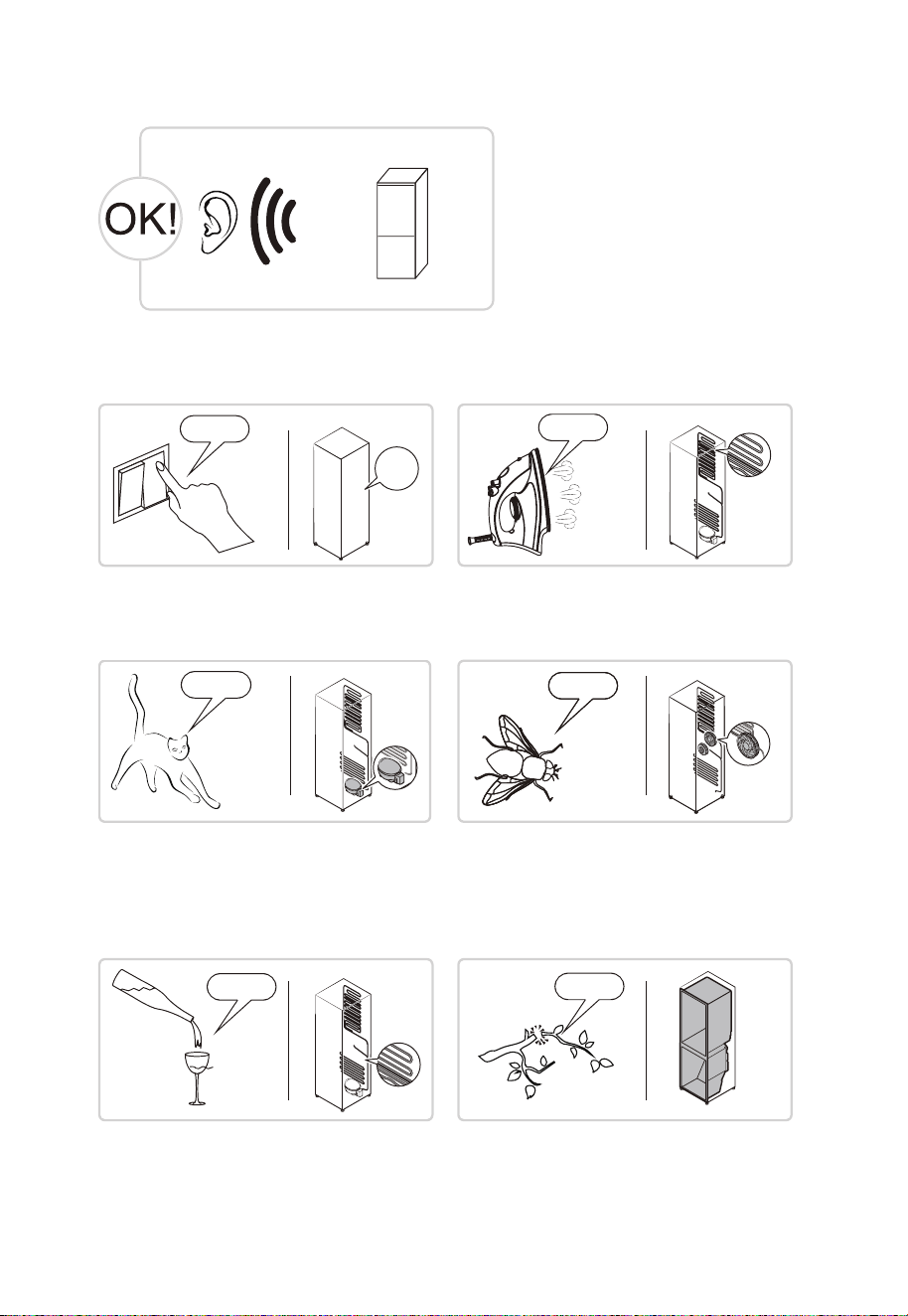

Do you hear these abnormal sounds as below? Usually these sounds are normal.

SRR

HISSS!

BLUBB!

BRRR!

CRA

CK!

CLICK:

Some electrical parts in the

refrigerator, such as electric valve will

make this noise when working. This is

normal.

HISSS:

When the refrigerant ﬂows into the

evaporator, it will make this noise. This is

normal.

CLICK！

HISSS!

BRRR:

The compressor will make this noise

when working, and the buzzes are loud

particularly upon start or stop. This is

normal.

SSSRRR:

The fan motor in the No frost

refrigerator will make this noise when

working. This is normal.

BRRR!

SSSRRR!

BLUBB:

Refrigerant ﬂowing through the

pipes in the refrigerator will make this

noise. This is normal.

CRACK

：

Cracking sound or broken

ice sound: the overall structure of the

refrigerator, air duct frost will be with the

thermal expansion and contraction of the

expansion sound, these are also normal

physical phenomenon.

BLUBB!

CRACK!

APPENDIX

Special for new European standard

The ordered parts in the following table can be acquired from Service provider

channel

Ordered part Provided by Minimum time required for Provision

Thermostats Professional maintenance

personnel
