ELECTRONIC DRUM RACK
RACK DE BATTERIE ÉLECTRONIQUE
Owner’s Manual
Benutzerhandbuch
Mode d’emploi
Manual do Proprietário
⢪欽铞僈剅
取扱説明書
歏렽佅卹
RS6
電子ドラムラック
ꨶ㶩렽佅卺
⢪欽霹僈⛼
EN DE FR PT
JAZH-CN ZH-TW
EnglishDeutschFrançais
Português
2
RS6 Owner’s Manual
English
Before using, please read this manual, and use this product in a safe and proper manner.
* Please keep this manual in a safe place for future reference.
NOTICE
• Do not place heavy objects on the product. It may result in damage.
• Do not use or keep the product in places with extremely high temperature (places in direct sunlight, close to a heater, in a
closed car, etc.) or high humidity (bathroom, outside on a rainy day, etc.). Doing so may result in deformation, discolor-
ation, damage or deterioration.
• When cleaning the product, do not use benzine, thinner or alcohol as it may result in discoloration or deformation. Please
wipe with a soft cloth or a damp cloth that has been wrung out thoroughly. If the product is soiled or sticky, use a neutral
detergent on a cloth then wipe with a damp cloth that has been wrung out thoroughly to remove any remaining detergent.
INFORMATION
• The illustrations as shown in this manual are for instructional purposes only.
• The company names and product names in this manual are the trademarks or registered trademarks of their respective
companies.
PRECAUTIONS
WARNING
If this symbol is ignored and the equipment is used improperly, fatal injury to
persons or serious damage could occur.
• Do not put burning items, such as candles, near the unit. A burning item may fall over and cause a fire.
CAUTION
If this symbol is ignored and the equipment is used improperly, there is a dan-
ger or injury to persons handling the equipment, and material damage could
occur.
• Assemble this product in the proper sequence by following the assembly instructions in this manual. Also, make sure
to tighten the bolts regularly. Failure to do so might result in damage to the product or even injury.
• Do not let small children assemble or set up this product by themselves, or they may be injured. Always assemble this
product with adult supervision.
• Be careful with the edges of the Cymbal Holders and the Tom Holders. The sharp holder ends may result in injury.
• Be sure to securely tighten bolts and other fasteners when setting up this product. In addition, be sure to proceed
slowly when loosening bolts. If this precaution is not observed, pads may fall off or the rack may collapse or fall over,
possibly causing injury.
• Always set the product on a flat and solid surface. Placement on a sloping, unstable surface or on steps may result in
the product being unstable and subject to overturning.
• Do not alter the product. Doing so may result in injury or damage/deterioration to the product.
• Do not sit or step on the rack. The rack may overturn or be damaged, resulting in injury.
• Be careful with your fingers and hands when adjusting clamps, to prevent them from becoming pinched and injured.
• Be careful around pipe ends and inside. Metal shavings, etc. may injure your fingers and hands.
• Do not attach acoustic drums to the electronic drum rack. Clamps may be damaged and drums may drop, causing
injury.
• Keep small parts out of the reach of infants. Your children may accidentally swallow them.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the product.
Precautions
3
RS6 Owner’s Manual
Precautions .................................................................. 2
Package Contents ........................................................ 4
Specifications............................................................... 4
Assembling the Rack ................................................... 6
Attaching the Holders................................................... 8
Contents
4
RS6 Owner’s Manual

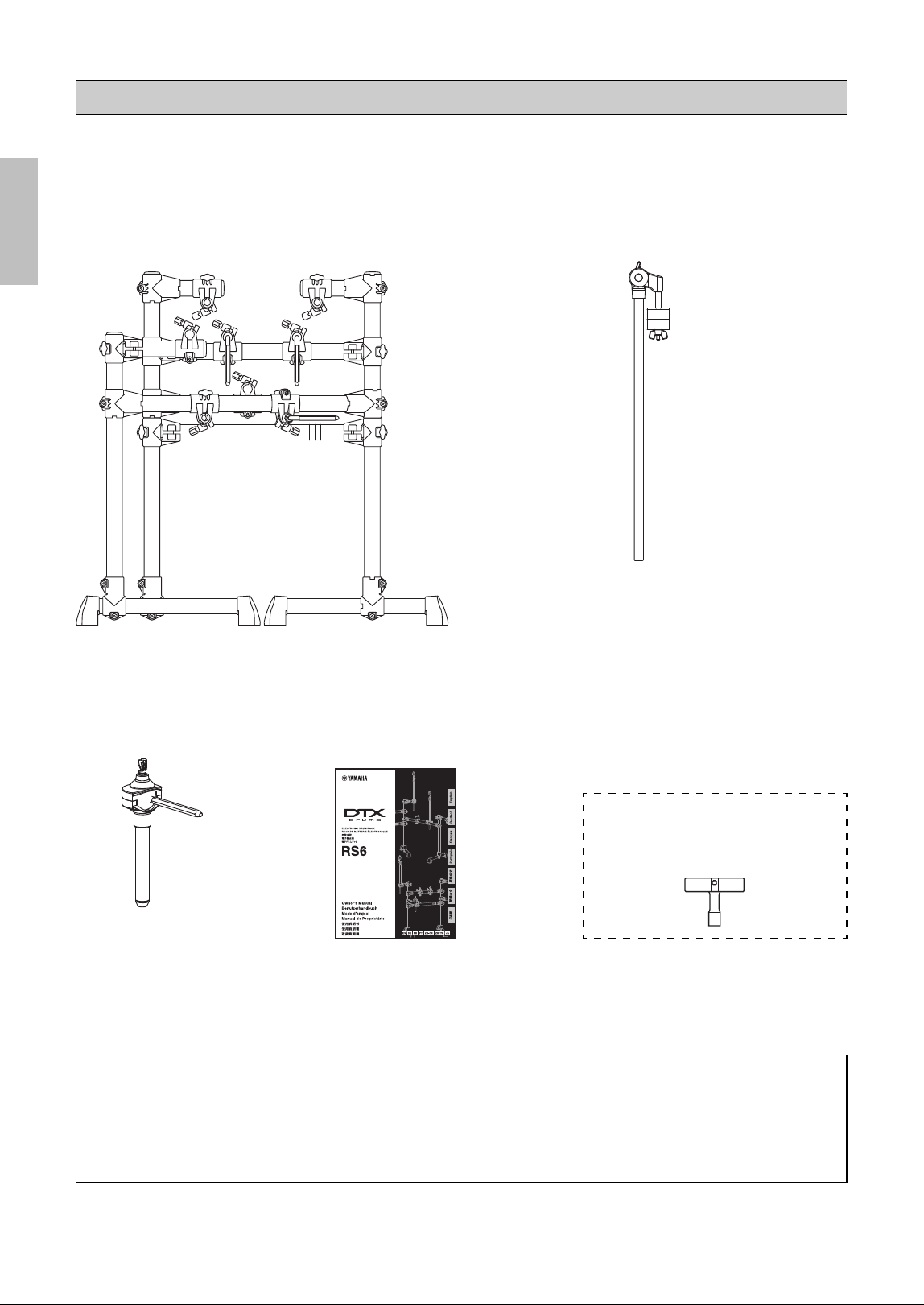

After opening up the package containing your electronic drum rack, please verify that all of the follow-
ing components are present.
Package Contents
Specifications
Weight: 10.1 kg
*: The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the
Yamaha website then download the manual file. Since specifications, equipment or separately sold accessories may not be the
same in every locale, please check with your Yamaha dealer.
Main frame (×1) Cymbal holder (×3)
Snare holder (×1) Owner’s Manual
(this booklet)
NOTE
The drum key used for assembling the
rack can be found in the pad set package.
5
RS6 Owner’s Manual

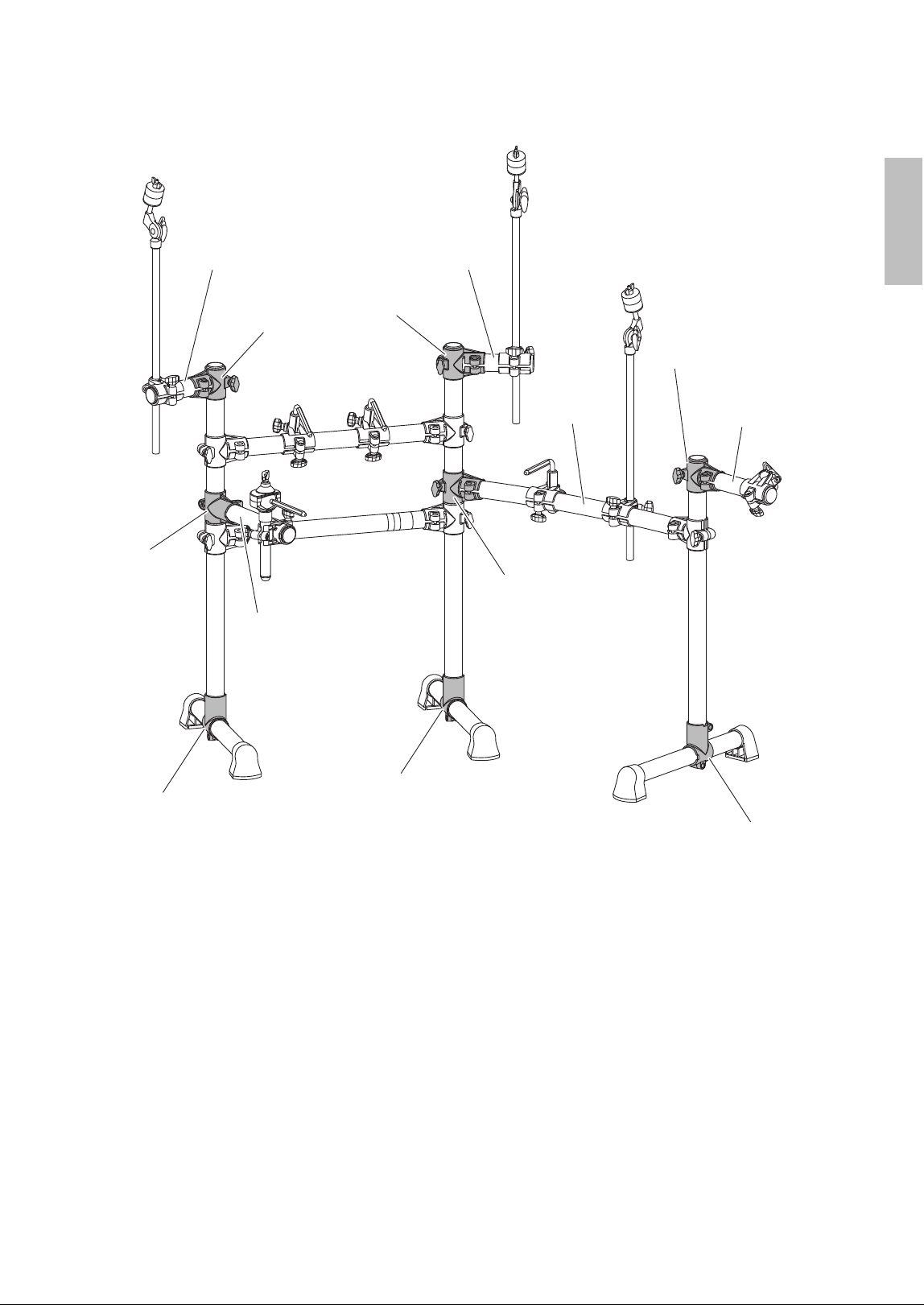

Fully-assembled rack
Cymbal arm
Clamp y
Clamp w
Clamp i
Right arm
Clamp q
Cymbal arm
Clamp u
Clamp t
Snare arm
Clamp e
Drum trigger arm
Clamp r
6
RS6 Owner’s Manual

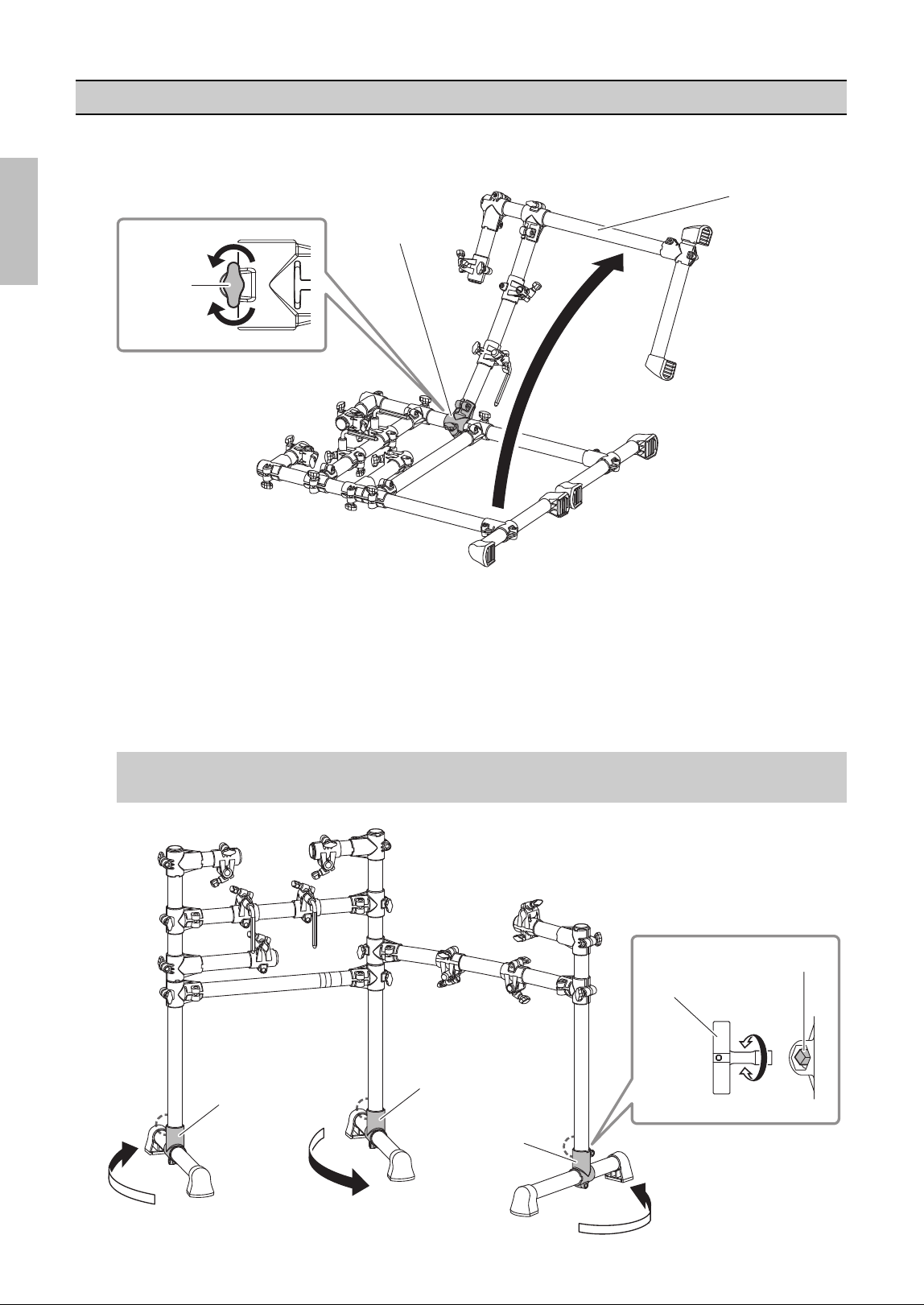

1. Lay the main frame down on a solid, level surface and loosen the clamp q bolt, open the right arm, and
then tighten the bolt again so it is secure.
2. Place the rack upright on a flat floor, and then adjust the opening of the right arm in accordance with the
space available.
3. Loosen the three key bolts in clamps w, e, and r using the drum key, open the legs and adjust the
position, and then tighten the key bolts again so they are secure.
Assembling the Rack
NOTE
The drum key can be found in the pad set package.
Clamp q
Bolt
Right arm
Loosen
Tighten
Clamp w
Clamp e
Clamp r
Key bolt
Drum key
Loosen
Tighten
7
RS6 Owner’s Manual

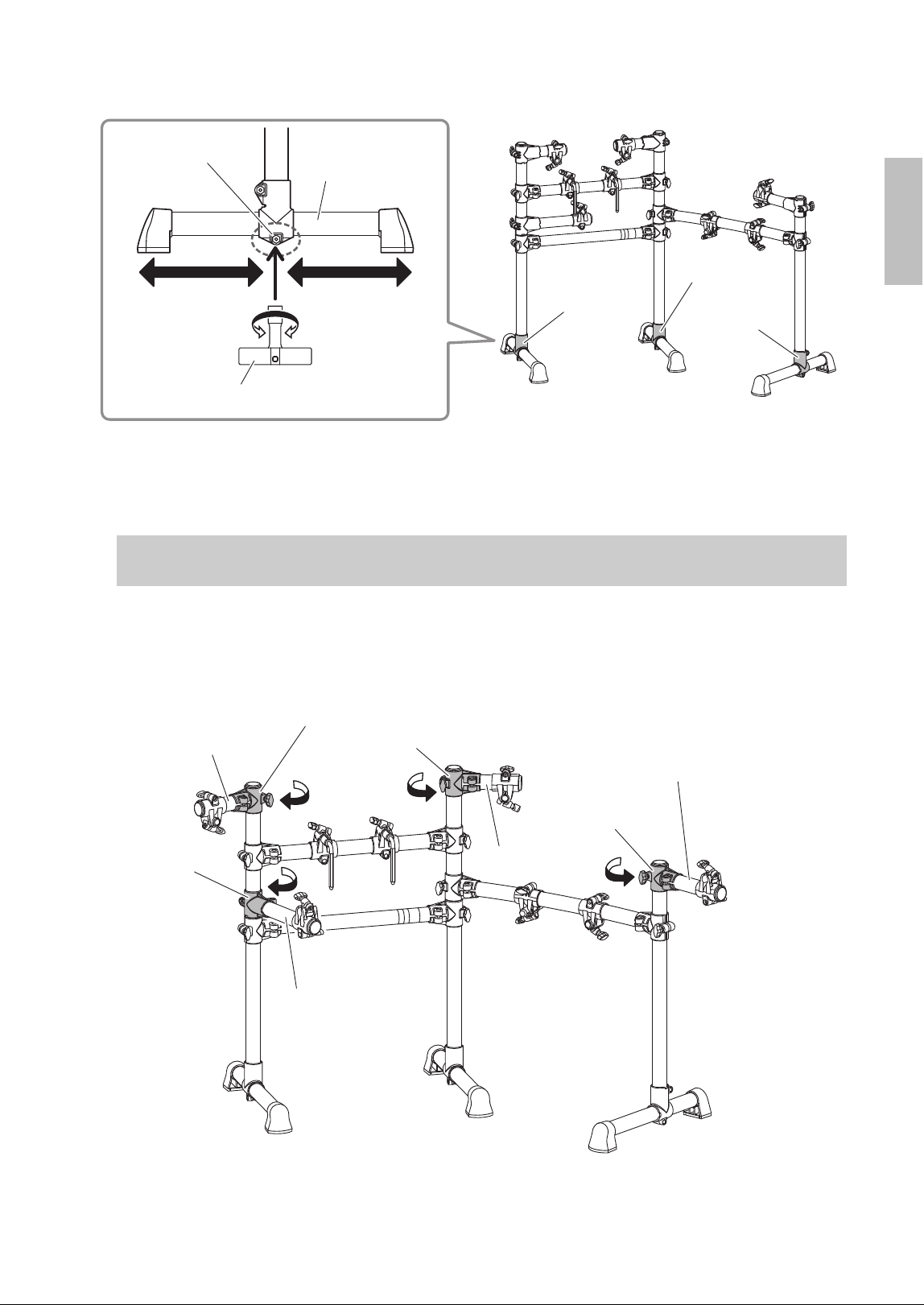

4. Slide the leg bases to adjust the position.
4-1. Loosen the three key bolts located at the bottom of clamps w, e, and r using the drum key.
4-2. Slide the leg bases to adjust the front and back positions.
4-3. Tighten the key bolts to secure the leg bases in place.
5. Loosen the clamp t, y, u and i bolts, adjust the position of the snare arm, cymbal arm, drum trigger
module arm and then tighten the bolts again so they are secure.
6. Jiggle the rack while it is upright. If it is wobbly, check for loose bolts and retighten them.
NOTE
If the rack wobbles when playing, slide the leg bases towards you until the rack is stable.
Key bolt
Loosen
Leg base
Drum key
Tighten
Clamp w
Clamp e
Clamp r
Clamp y
Clamp u
Clamp i
Clamp t
Drum trigger arm
Snare arm
Cymbal arm
Cymbal arm
8
RS6 Owner’s Manual

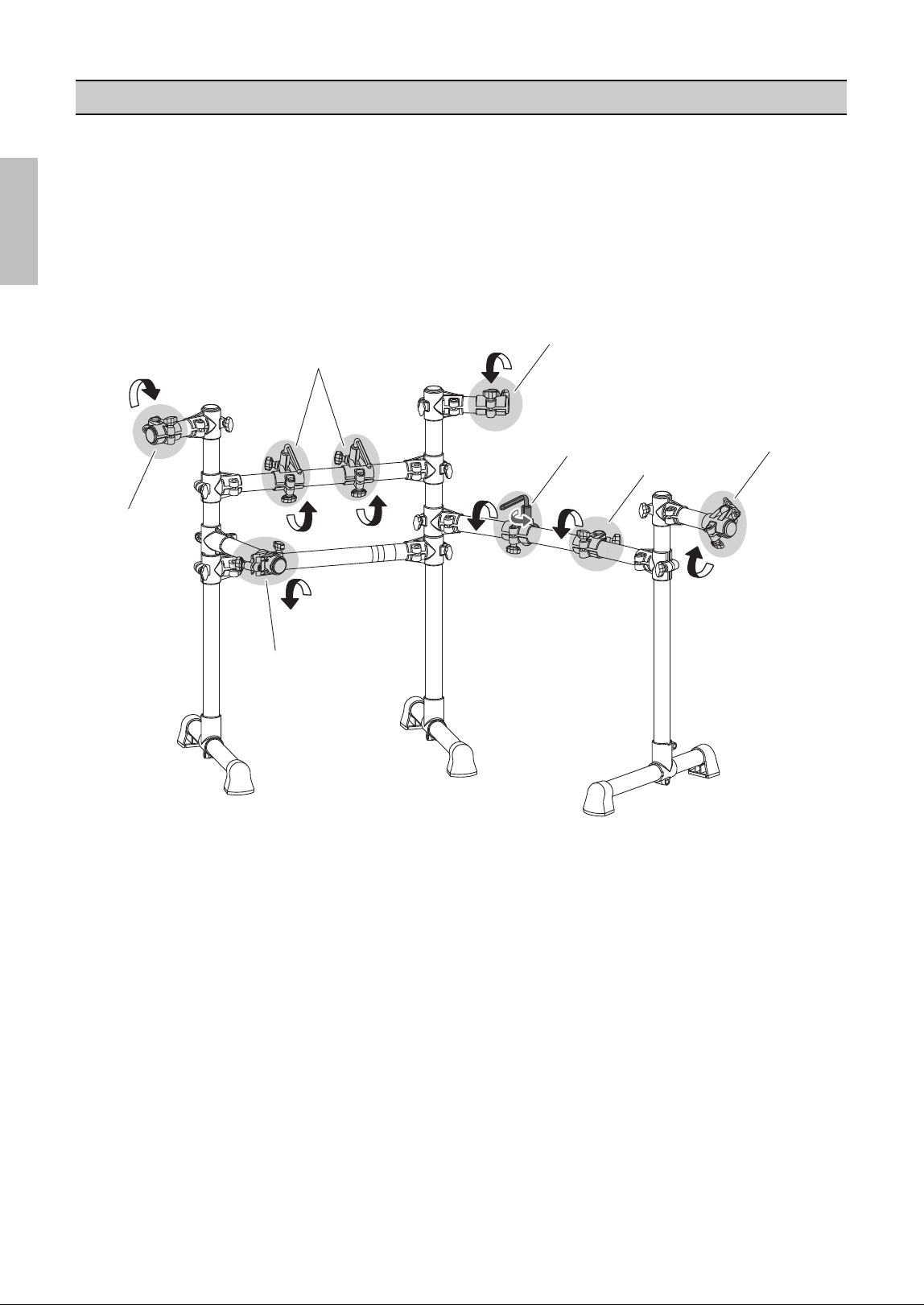

1. Loosen the bolts on the following eight clamps (A to H) and rotate or move the clamps to the positions
shown below. Following this, securely tighten all of the bolts to lock the clamps in place.
• One snare clamp (A)
• Three tom clamps (B, C, and D)
• Three cymbal clamps (E, F and G)
• One drum trigger module clamp (H)
Attaching the Holders
G
H
F
E
B
C
A
D
Tom clamps
Cymbal clamp
Cymbal clamp
Snare clamp
Drum trigger
module clamp
Tom clamp
Cymbal clamp
9
RS6 Owner’s Manual

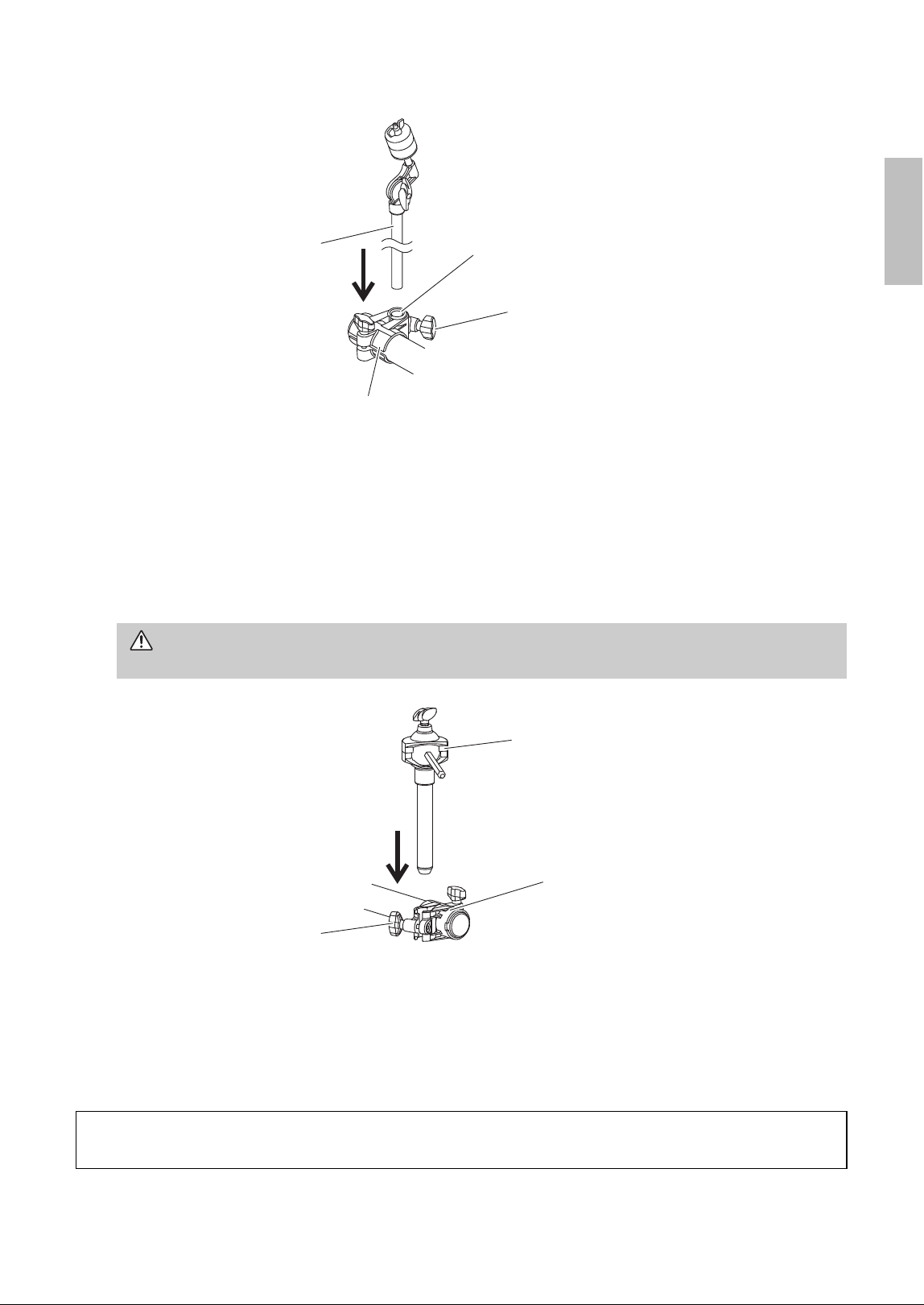

2. Attach a cymbal holder to each of the three cymbal clamps.
2-1. Loosen the bolt on the cymbal clamp.
2-2. Insert the cymbal holder.
2-3. Securely tighten the bolt on the cymbal clamp.
3. Attach the snare holder to the snare clamp.
3-1. Loosen the bolt on the snare clamp.
3-2. Insert the snare holder.
3-3. Securely tighten the bolt on the snare clamp.
CAUTION
Take special care with the snare holder as the rod has a sharp tip that could cause injury.
Your electronic drum rack is now ready. For instructions on assembling the pads and the drum trig-
ger module, please refer to the Assembly Manual that came with the pad set package.
Cymbal holder
Bolt
Cymbal clamp
Sleeve (black)
Bolt
Snare clamp
Snare holder
