Front Bumper Lights for Yamaha RMAX 1000
ZP-YJ-031102-008
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain
these installation instructions for future reference.
The Front Bumper Lights are exclusively designed for your vehicle. Please read the installation
instructions thoroughly before beginning. Installation is easier if the vehicle is clean and free of
debris. For your safety, and to ensure a satisfactory installation, perform all installation steps
correctly in the sequence shown.
INSTALLATION INSTRUCTIONS
Note: Shift vehicle transmission into “PARK”.
Turn key to “OFF” position and remove from
vehicle.

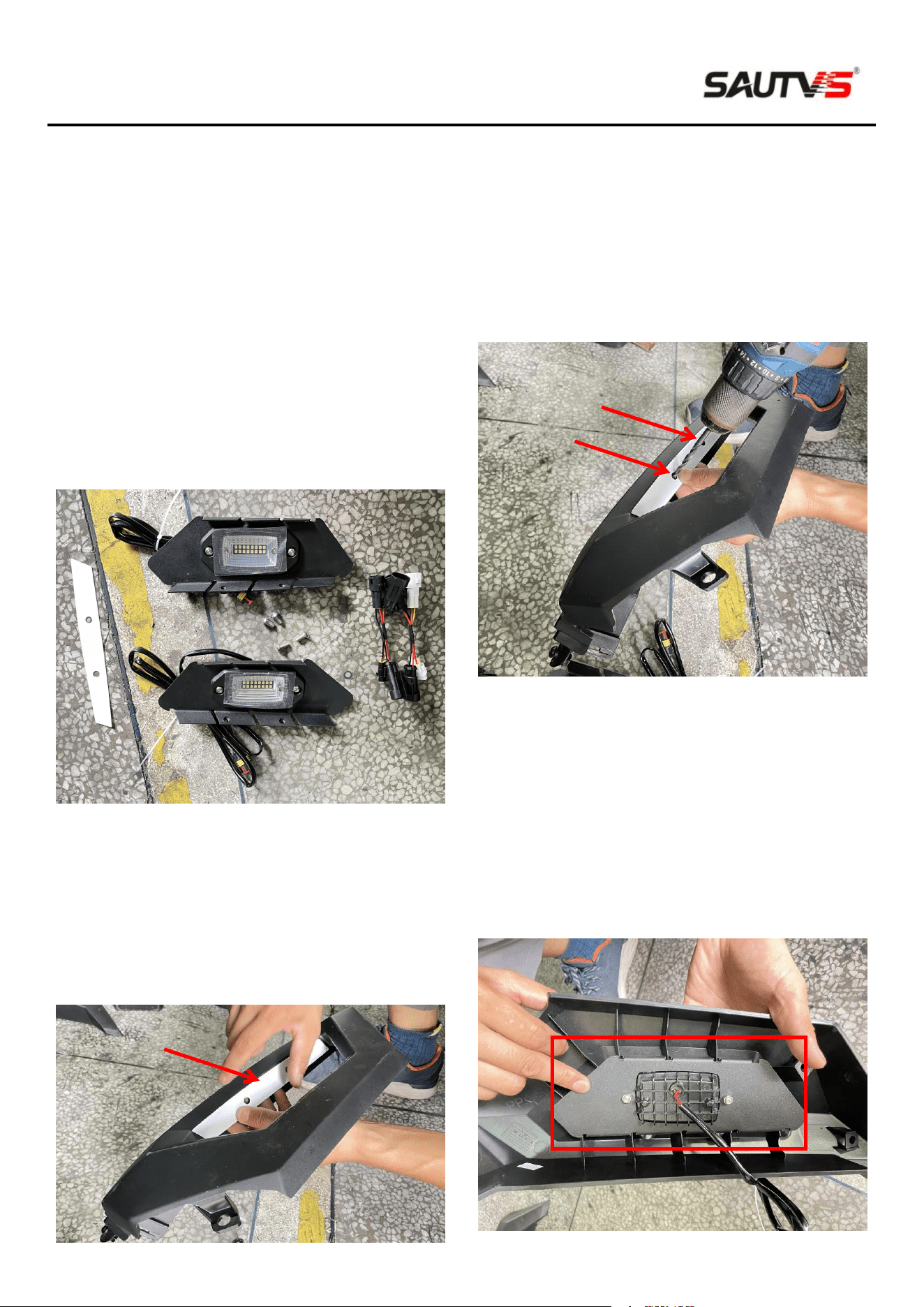

1. Product and accessories picture:
2. First, remove the plastic front fascia from
the original vehicle, take out the positioning
paper from the accessory package and place
it on the front fascia. Use a 6MM drill bit to
position and drill out screw holes on the paper.
(The positioning paper is not divided into left
and right sides and can be used in both
directions).As shown in picture:
3. Install the decorative light on the front
fascia and secure it with matching screws (the
reinforcing ribs on the back of the front fascia
need to be correspondingly stuck in the slots
on the edge of the decorative light rear
shell).As shown in picture:
Note: The one with the longer decorative lamp
wiring harness is installed on the left, while the
one with the shorter wiring harness is installed
on the right.
Front Bumper Lights for Yamaha RMAX 1000
ZP-YJ-031102-008
4. There are 2 adapter cables in the
accessory package, and you can choose to
use one of them according to your preferences.
(The adapter cable of the all black plug-in is
connected to the original vehicle's daytime
running lights, and when the daytime running
lights are turned on, the decorative lights will
light up. The adapter cable of the white plug-in
is connected to the high beam headlights, and
when the high beam lights are turned on, the
decorative lights will light up.) The following
wiring steps are to use a white plug-in adapter
wire.
Open the original vehicle hood, locate the
original headlights on the passenger side,
disconnect the high beam harness connector,
and use the matching adapter wire of the
product to reconnect it.As shown in picture:
Note: If you choose the adapter cable for the
all black plug-in, you only need to find the
original daytime running light harness plug-in,
disconnect it, and then use the adapter cable
to reconnect it accordingly.

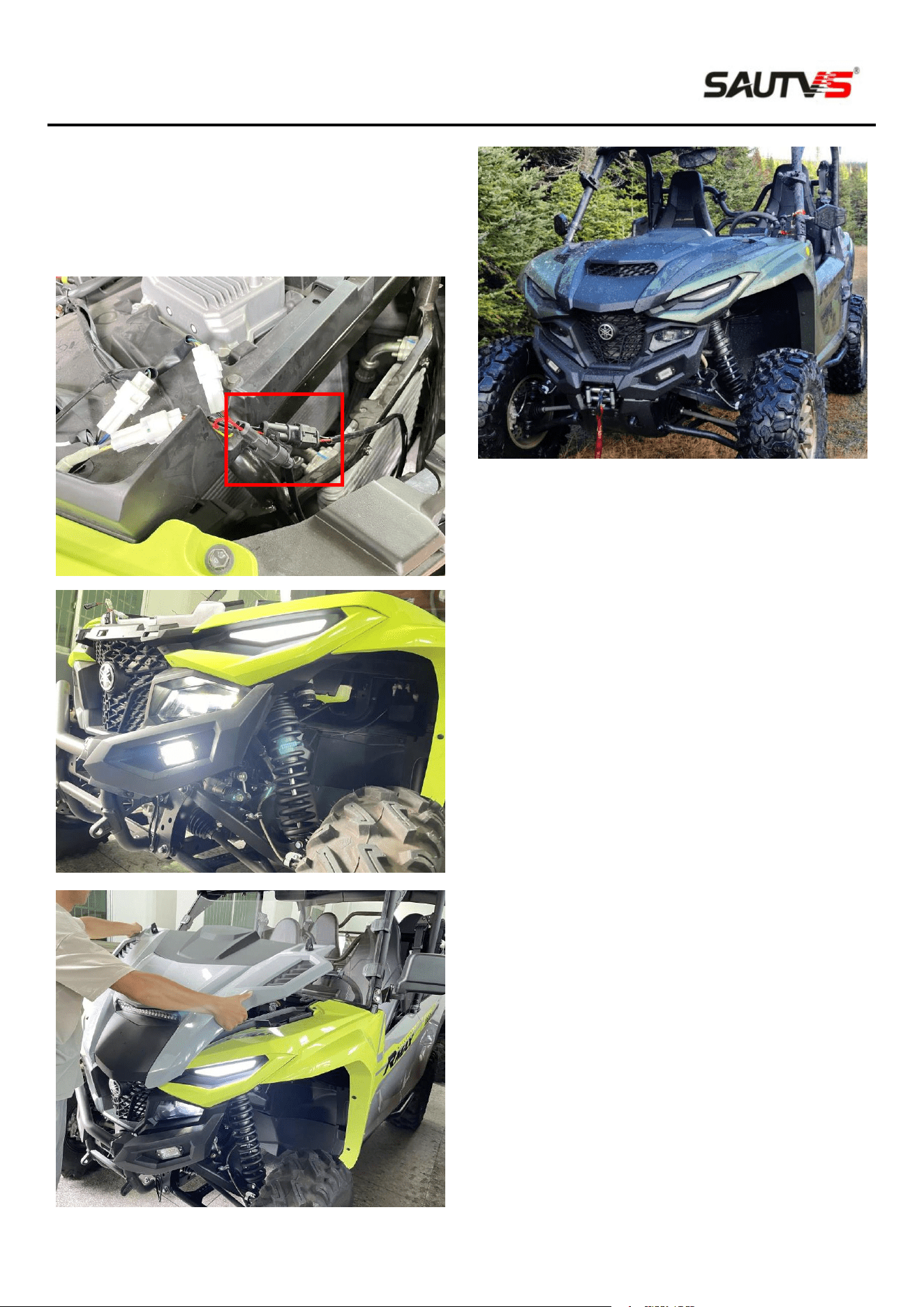

5. Thread the wire harness of the decorative
lights on both sides through the gap to the
adapter line, and connect it with the plug-in on
the adapter line. Then start the vehicle to turn
Front Bumper Lights for Yamaha RMAX 1000
ZP-YJ-031102-008
on the high beam switch of the headlight,
check whether the decorative lights are on
normally, and reinstall the front fascia to the
original vehicle after confirmation, and finally
install the cover.As shown in picture:
6. Installation finished.
Note: Please refer to the installation video in
the Amazon listing before your installation, or
contact the seller for the installation video.
