PRODUCT INSTRUCTIONS
一： Product overview
1. Product Name: Motorcycle voltage Regulator
2. Rated output voltage: 14.5V ± 0.5V
3. Rated output current: 8A
4. Rated output power: 90W
二、 Installation instructions:

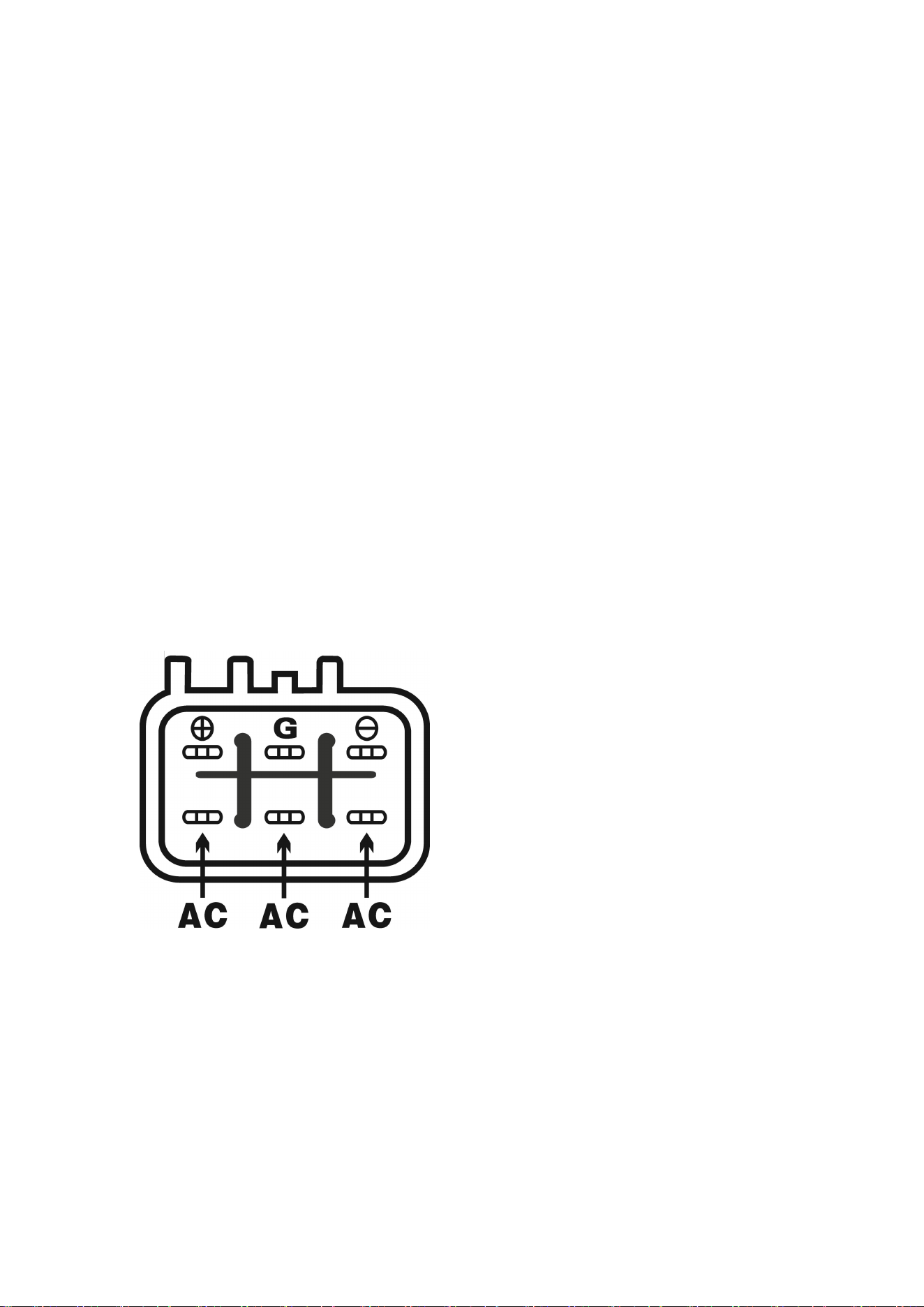

(product function pin is shown in
the picture)
Before using this product, first check whether
the product of the original vehicle is consistent
with this product, and check the positive and
negative output of this product; Whether the
AC input of magneto is consistent with the
circuit of the vehicle. It can be installed only
after confirmation. Otherwise, it will ignite
due to short circuit of power supply.
Remember! At the same time, prevent short
circuit caused by artificial modification of
vehicle lines
三、 Precautions for use:
As this product is a power electrical component, it will
generate heat during operation. It needs to be installed in
a good position for ventilation and heat dissipation
(generally, vehicles have a fixed position). It cannot be
installed in the heat source place such as engine without
authorization. In order to prevent the internal electronic
components from burning out due to overheating of the
product, warning: This product cannot be used for
refitting electrical components!
.
