SAFETY PRECAUTIONS
Before using the appliance, please read the manual carefully. To
reduce the risk of fire, electrical shock, or injury when using the
appliance, follow these basic precautions, including:
DANGER:
Read all instructions before using the ice maker.
Plug into a grounded 3-prong outlet. Do not remove the grounding prong, use
an adapter, or use an extension cord.
It is recommended that a separate circuit, serving only your appliance, be
provided. Use an outlet that is not controlled by a switch.
Never clean appliance parts with flammable fluids, as the fumes can create a
fire hazard or cause an explosion. Do not store or use gasoline or other
flammable vapors and liquids near this or any other appliance, as the fumes
pose a fire hazard or explosion risk.
Unplug the unit before cleaning or maintenance.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing.
Failure to do so can result in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is
specifically recommended in this material. All other servicing should be
referred to a qualified technician.
To prevent a child from being entrapped, keep it out of reach of children and
away from the ice maker. Remove the door but leave the shelves in place so
that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Warning:
This machine should be operated only by professionals or trained personnel,
and it must be reliably connected to the ground to ensure safety.
Use the power supply that matches the specifications listed on the nameplate,
and the voltage fluctuation should be within ±10% of the rated voltage. Wiring
must be performed by qualified professionals.
If the supply cord is damaged, it must be replaced by the manufacturer, its
- 2 -
service agent or similarly qualified persons in order to avoid a hazard.
Before performing maintenance, be sure to disconnect the power. Do not
allow water or other liquids to come into contact with the plugs, motors, or
other electrical components to prevent electric shock.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
FLAMMABLE REFRIGERANT
For your safety observe the following recommendations.
This appliance contains a small quantity of R290 ice maker which is
environmentally friendly, but flammable. It does not damage the ozone layer,
nor does it increase the greenhouse effect.
During transportation and installation, ensure that the tubing of the refrigerant
circuit is not damaged.
When handling, moving, and using the refrigerator or freezer, take care to
avoid damaging the refrigerant tubing or increasing the risk of a leak.
Avoid using or manipulating sharp objects near the appliance.
Leaking refrigerant can ignite and may cause eye injuries.
In the event any damage does occur, avoid exposure to open fires and any
device which creates a spark. Disconnect the appliance from the mains
power.
Thoroughly ventilate the room for several minutes.
Contact Customer Service for further instructions and assistance.
The ice maker quantity contained in this appliance is listed above in grams; it
is also noted on the Rating Plate of the appliance.
WARNING: During use, servicing, and disposal of the
appliance, please pay attention to the symbol similar to the
one on the left side, which is located on rear of appliance (rear
panel or compressor) and with yellow or orange color. This is
a fire risk warning symbol. There are flammable materials in
- 3 -
refrigerant pipes and compressor. Stay away from fire sources
during use, servicing, and disposal.
Note:
Note: Please keep water or other conductive liquids away from the ice maker.
When moving the ice maker, keep it at an angle of less than 45 degrees.
Do not bend the water discharge or supply pipes, so that the pipes are
damaged and water leaks out from the pipes.
The distance between the air outlets and the wall should be over 11.81 in (30
cm). Besides, keep good ventilation and ensure the ice maker is dry and
clean.
- 4 -
QUICK USAGE INSTRUCTIONS
Installation Requirements:
1. The surface of the ice maker is covered with a metal protective film, which
must be removed before use.
2. To extend the service life of the ice maker, it must be placed upright for at
least 6 hours before being turned on.
3. The main unit of the ice maker should be positioned directly above the ice
storage bin, ensuring that the left, right, and back sides are properly aligned.
4. Pay attention to personal safety when placing the main unit of the ice maker.
The main unit should not tilt more than 15 degrees and must be at least
11.81 in (30 cm) away from obstacles.
5. Please install the water inlet and outlet pipes of the ice maker host according
to the installation diagram located on the back of the host.
6.The ambient temperature for this product should not exceed 38°C, and the
inlet water temperature should not exceed 32°C.
7.If an E04 alarm occurs, please check the ambient temperature and water
temperature promptly and make corresponding adjustments.

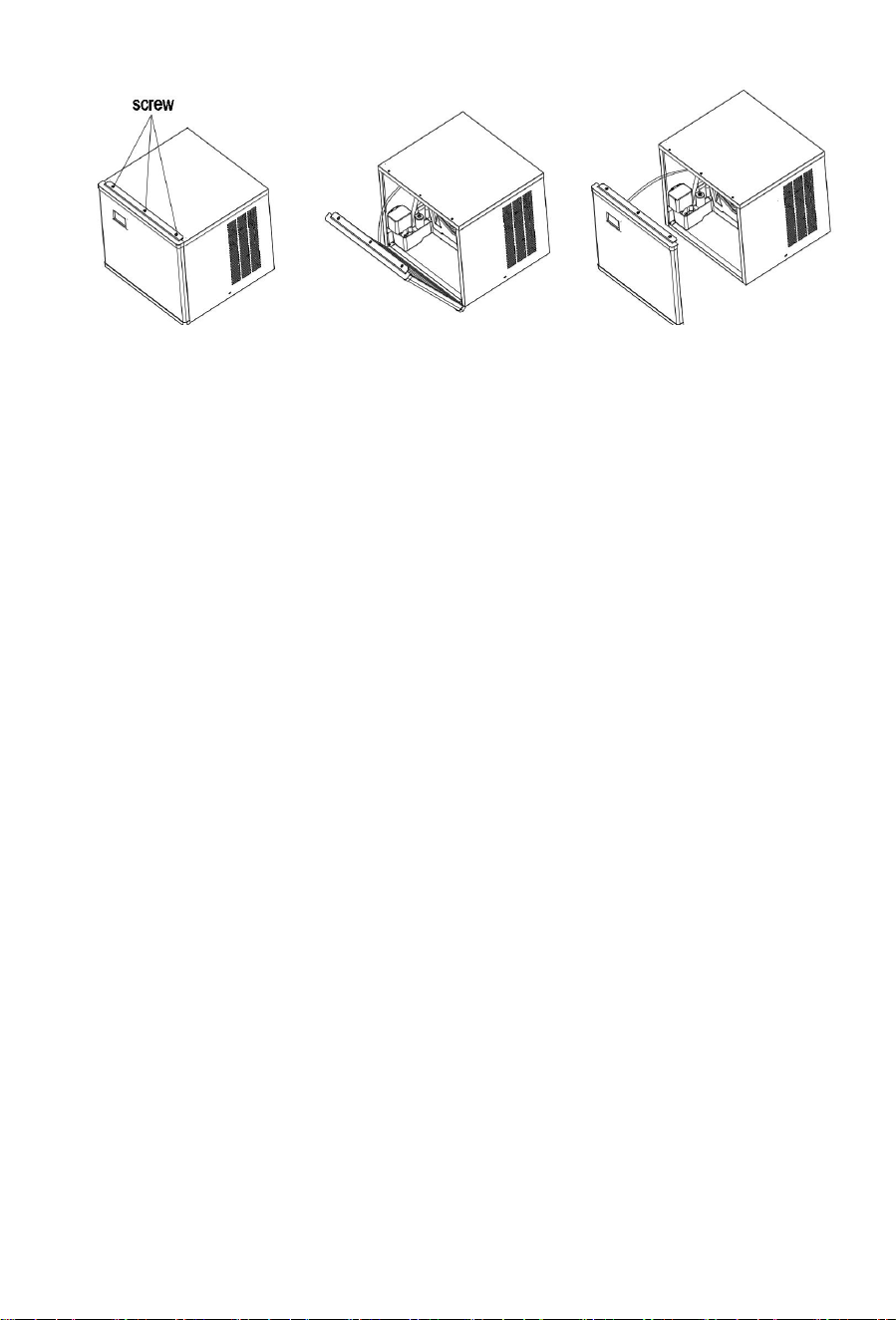

8.Before use, the protective tape must be removed. The specific steps are as
follows:
Step 1: Loosen the screws.
Step 2: Remove the tape.
- 5 -

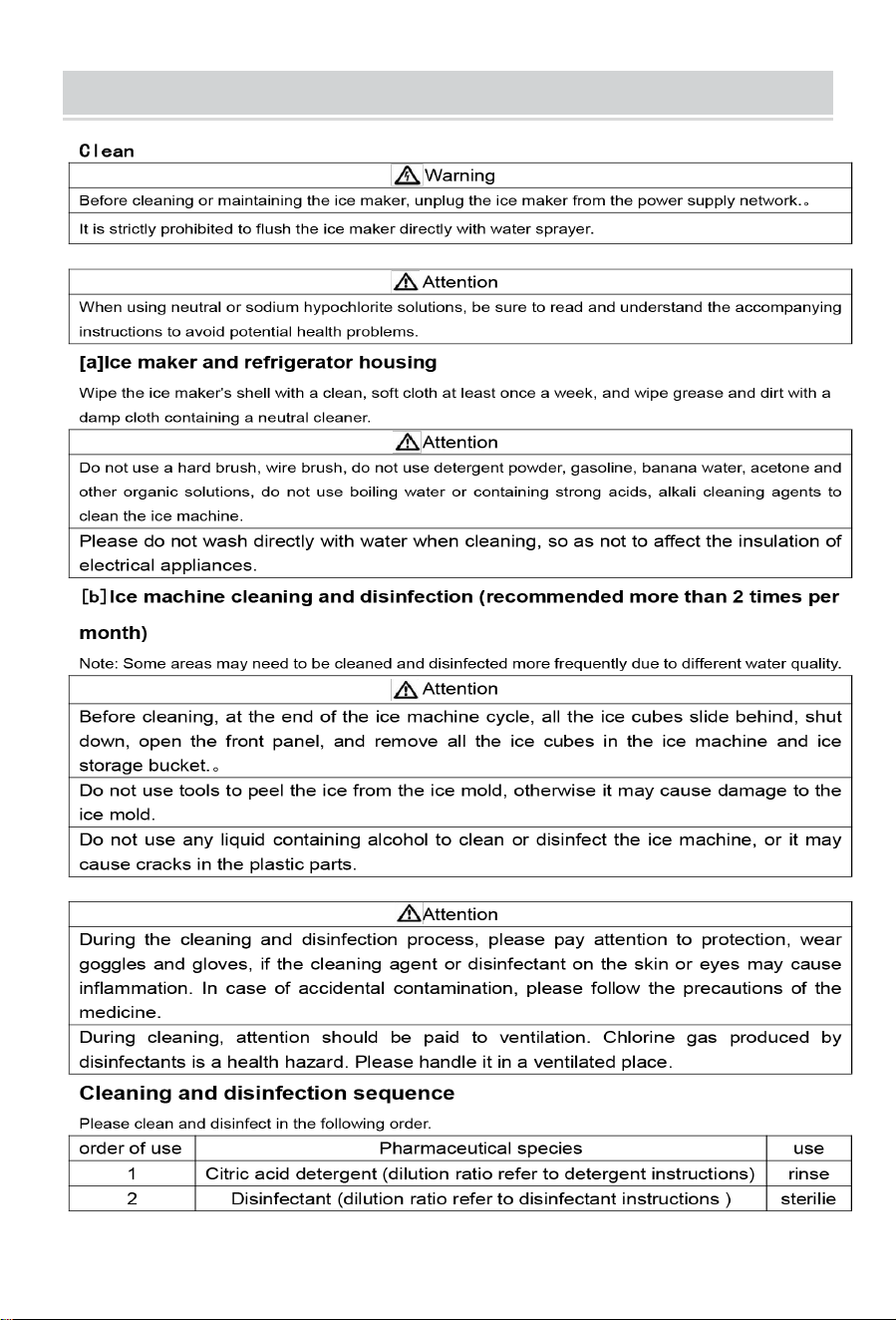

CLEANING REQUIREMENTS:
1.Due to significant differences in water quality among different regions, it is
recommended to install a water filter at the inlet to prevent impurities from
depositing and clogging pipelines.
2.Adding a water purification device to the water pipe may cause impurities to
deposit and block the water path. This is not a product quality issue. Please
clean the ice maker regularly.
3.It is recommended to clean the main water system (sink, water pump, water
pipe) every 10-14 days.
4.Before initiating the manual cleaning mode, add a prepared cleaning solution
to the water tank. Then, clean for about 40 minutes.

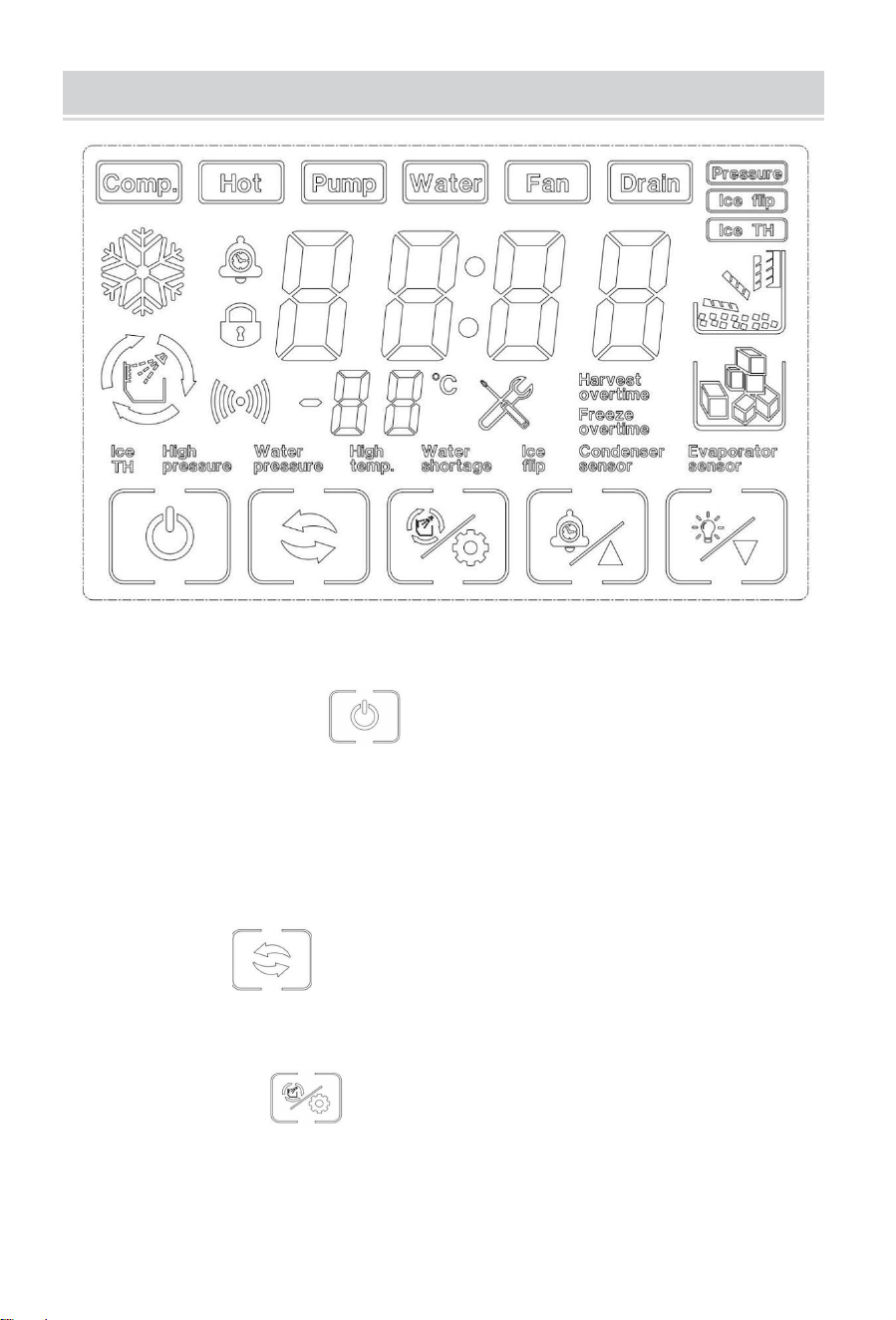

Function Description:
1.Ice Thickness Setting Function: Press the 'Reservation/ Addition' button twice
in the startup state to enter the ice thickness adjustment mode. At this time,
you can adjust the ice thickness according to the actual ice thickness by
pressing the 'Reservation/ Addition' and 'Lighting/ Reduction' buttons. It is
recommended not to set the ice thickness below the minimum setting.

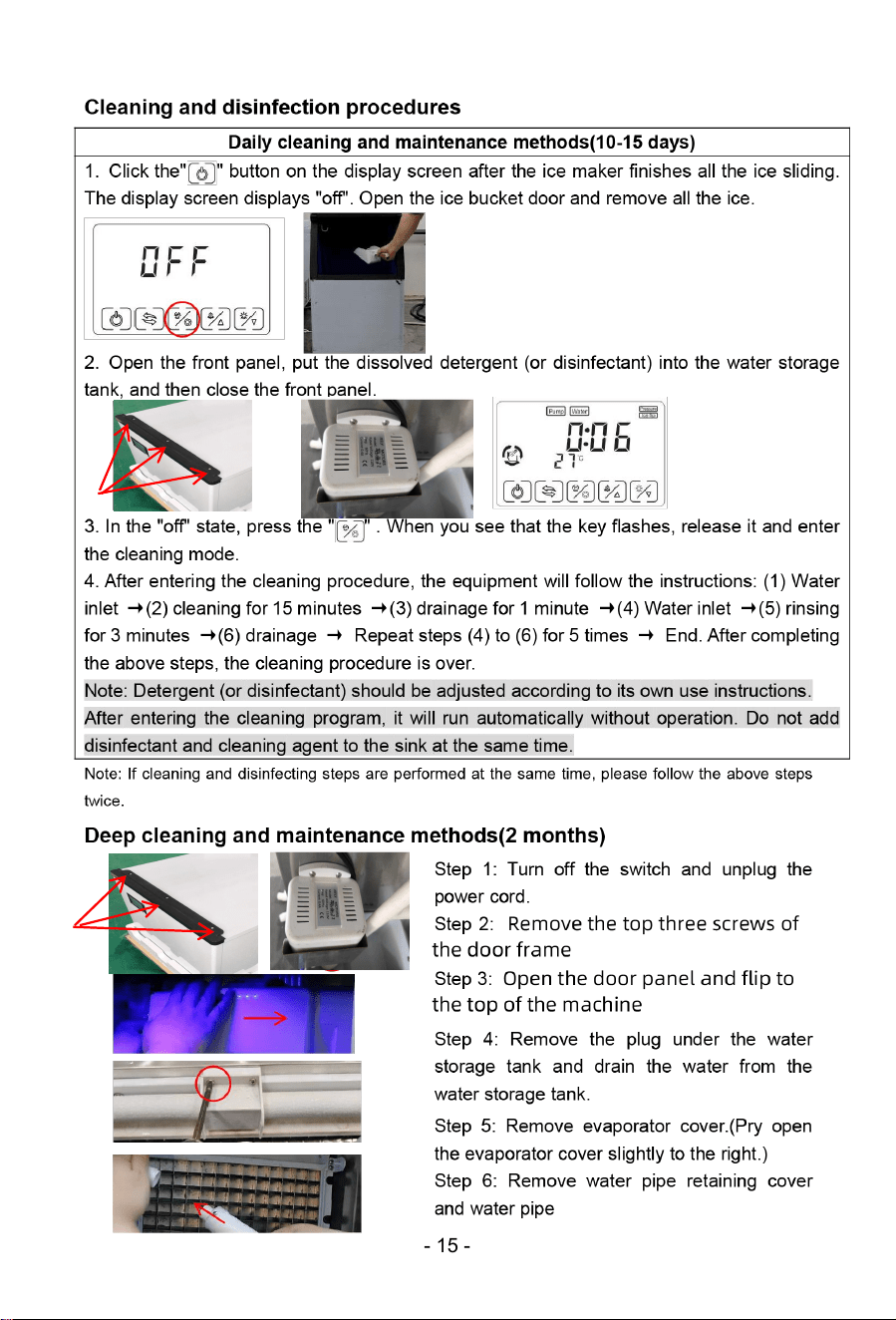

2.Cleaning Function: Press the 'Switch' button to turn the display OFF, then
press the 'Clean/Set' button to enter the cleaning mode. The cleaning time in
this mode is about 40 minutes.
SAVE THESE INSTRUCTIONS
- 6 -

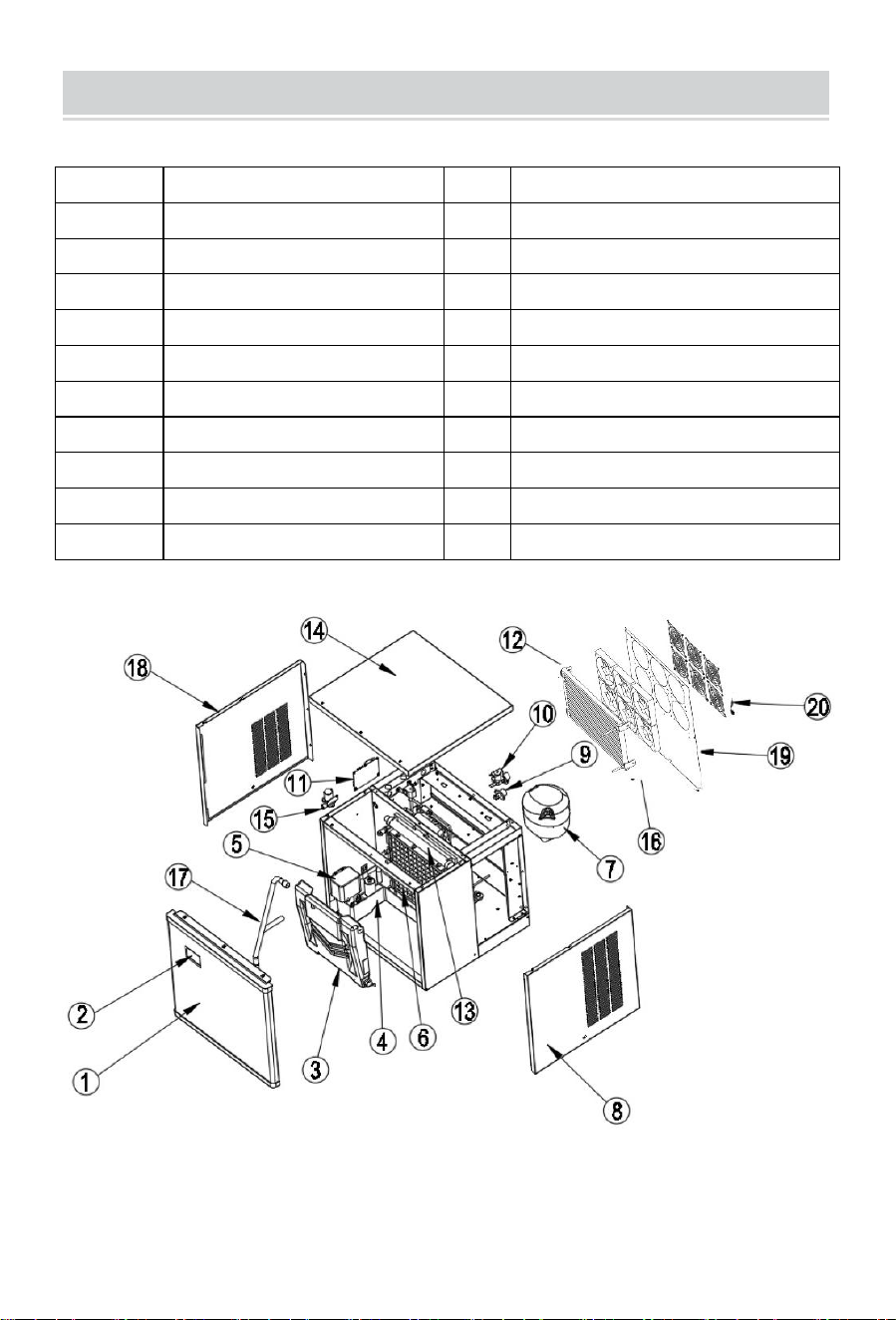

BASIC STRUCTURE
Split type

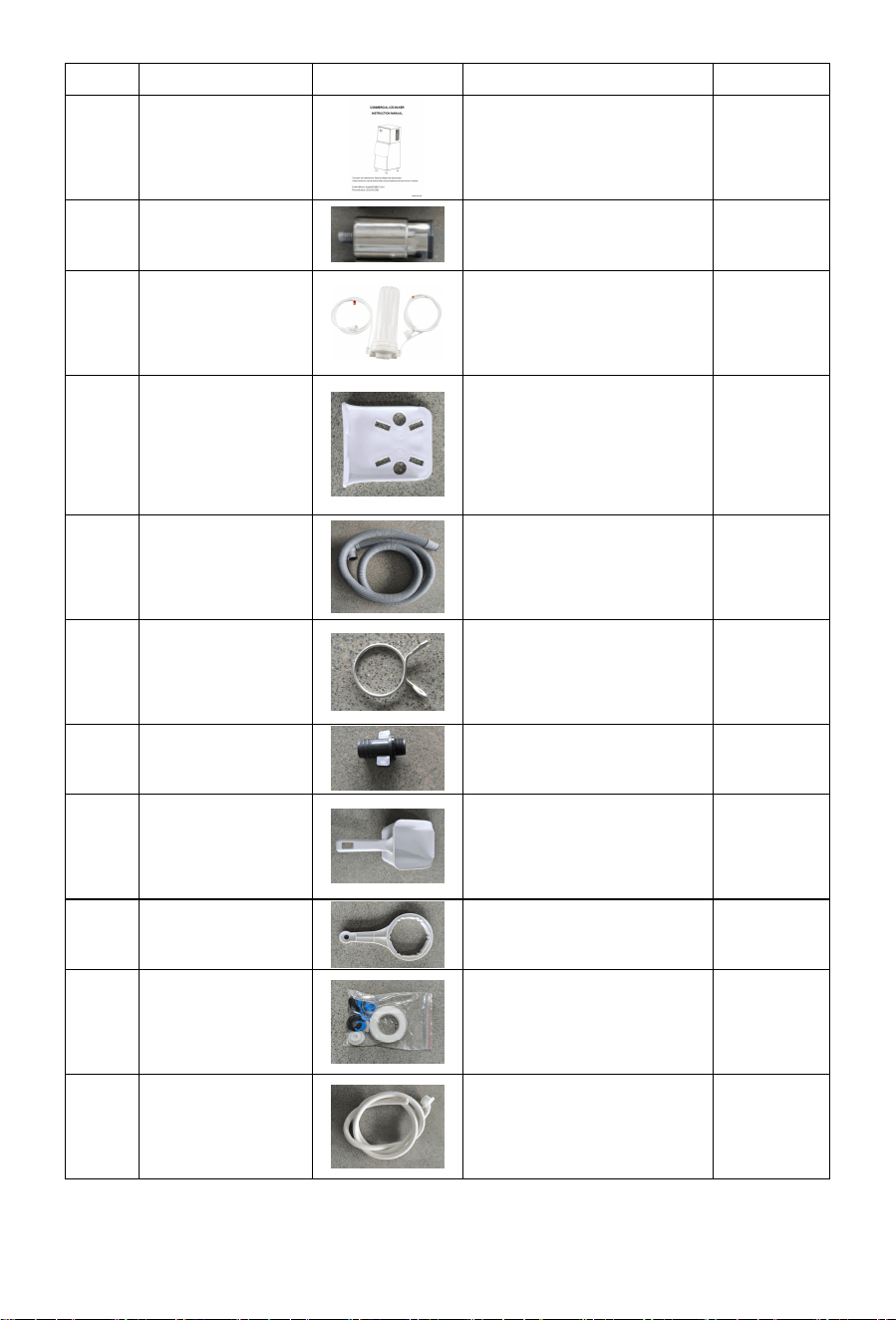

No.
Name
No.
Name
1
Front Panel
11
Electric Control Panel
2
Control Panel
12
Fan Motor
3
Evaporator Cover
13
Spray Pipe
4
Water Storage Tank
14
Top Panel
5
Water Pump
15
Drain Valve
6
Evaporator
16
Condenser
7
Compressor
17
Water Pump Outlet Pipe
8
Right Panel
18
Left Panel
9
Outfall
19
Back Shroud
10
Water Supply Valve
20
Fan Guard
- 7 -
No.
Name
Purpose
Quantity
1
Manual
Machine operating
instructions
1PCS
2
Adjustable
feet
Assemble before
using
4PCS
3
Assembled
filter
Filter water
1SET
4
Mounted
panel
Fix the filter
1PCS
5
Ice Bin Drain
Hose
Drain
1PCS
6
Hoop
Fix drain hose
1PCS
7
Drain hose
connector
Connect the drain
hose and ice bin
1PCS
8
Ice spoon
Take ice
1PCS
9
Wrench
Loosen the filter
1PCS
10
Accessory kit
If needed
1PCS
11
Water intake
hose
Intake water
1PCS
- 8 -
INSTALLATION
1.Open the case, move the ice maker to an appropriate location. Check the
packing list against the contents. If there are discrepancies, please contact
your dealer.

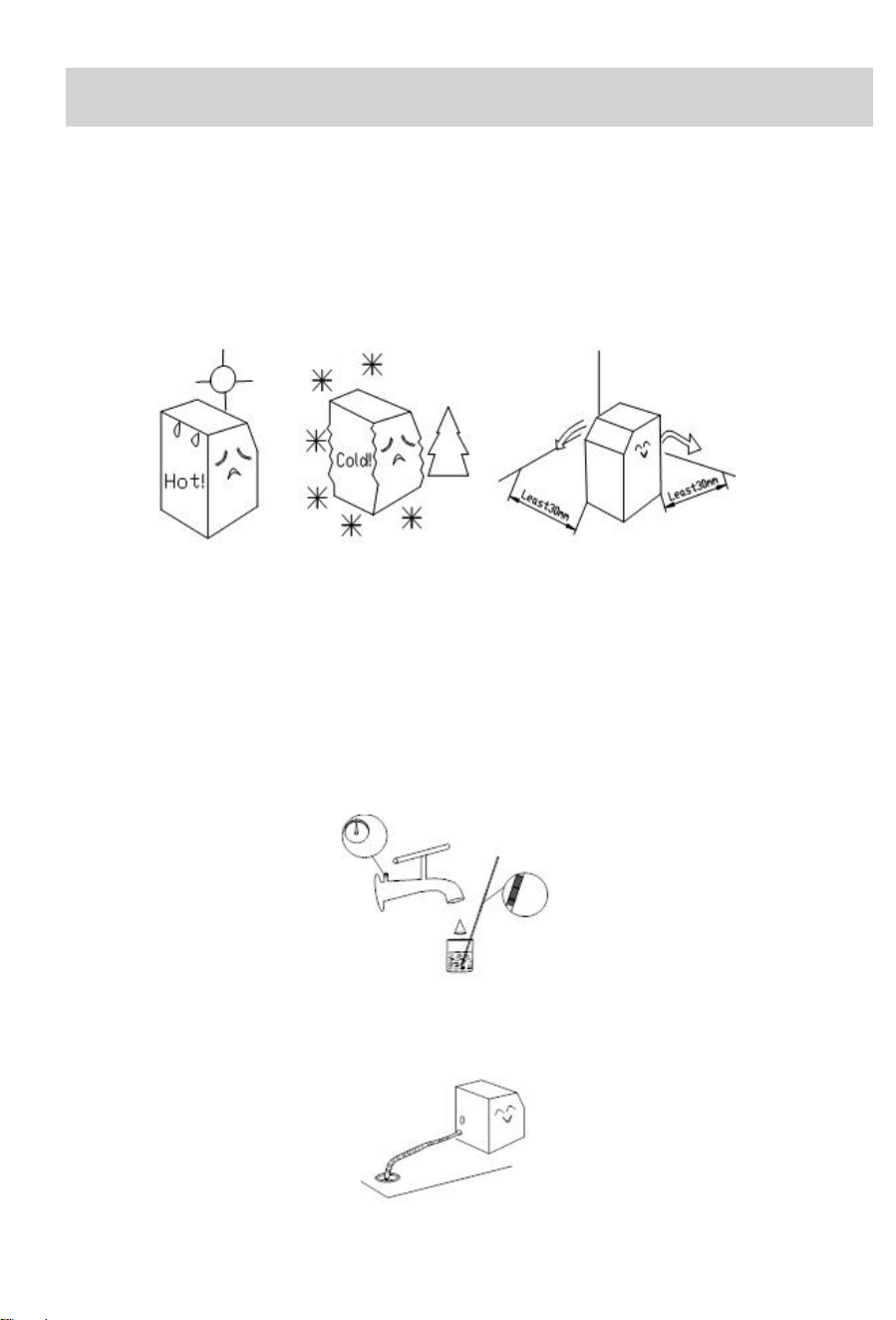

2. Operating environment
A.Environment temperature:SN/N:10
℃
~38
℃
Environment humidity: relative humidity ≤90%
The distance between the air outlets and the wall should be at least 11.81 in
(30 cm). Besides, keep good ventilation and ensure the ice maker is dry and
clean. The position to place the ice maker must be far away from the heat
source, such as a bake oven, electric cooker, etc.
B.The water source must meet sanitary standards. The water temperature
and pressure is suitable. For getting the biggest efficiency, the inlet
water temperature value should be 0.6~32℃, and the pressure should
be 0.138～0.552MPa.
C.There should be a sewer. While working, some of the water will be
discharged, so the sewer is necessary. Furthermore, the sewer must
be kept unblocked.
- 9 -
POWER SUPPLY
1.Select the proper power supply according to the voltage and power on the
nameplate.
2.Connect the power wire and supply, ensuring the yellow and green wires are
firmly connected to the ground wire.
Caution:
a.For safety, ensure the ground connection is in good condition.
b.All external wiring and appliances must conform to national
standards.
3.If the voltage fluctuation range is extensive (± 10% over the rated voltage), it
will cause many faults, such as the ice maker cannot be started, the
electronic control board is damaged, or the compressor being damaged.
Therefore, you must use a suitable automatic voltage regulator.

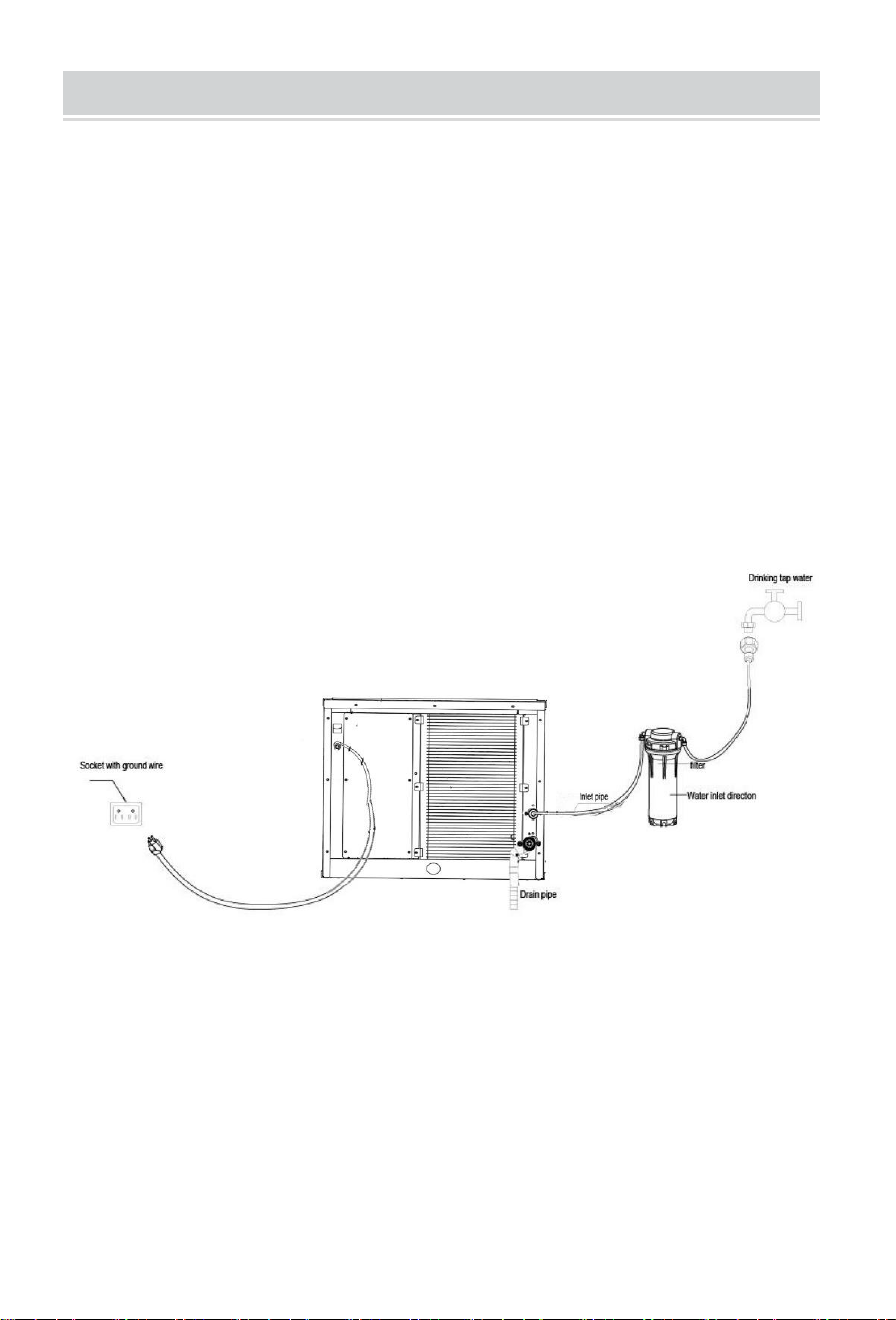

4. Remove the water supply hose from the accessory bag and connect it
between the water supply valve and the faucet. First, attach connector 1 to
the water faucet. Then, join one end of the water supply pipe, which has
steel balls, to connector 1 (ensure the end of the water supply pipe is
attached before releasing it from connector 1). Next, connect the other end,
which has a screw attachment, to the water supply valve. The valve also has
a screw at its end; tighten the valve clockwise. After completing the
installation, check the connections for leaks. You should connect the water
pipes according to the diagram on the rear panel. The flow rate of
condensate water is adjustable based on the customer's needs. (Note:
Condensate flow is related to the speed of ice production.
Warning: The water used to make edible ice must be drinking
water. Furthermore, The water temperature must be between
0.6°C and 32°C. and the pressure range should be from
0.138Mpa to 0.552Mpa.
- 10 -
5. Connect the water discharge pipe
The water discharge pipe is situated at the back of the ice maker, extended
pipe’s end to the sewer.
Attention: In order to keep the water discharged smoothly,
discharge pipe’s lowest point must be above the highest point
of the sewer, so to prevent the discharge water to flow back.
6. Ensure the main body is level
Ensure the main body is level for proper operation of the ice
maker. First, screw down the two adjustable legs into the ice
maker’s nuts. You can adjust the two legs properly if the
main body is not level.
SERVICE INSTRUCTION
1. Operation Process
Turn on the water supply valve, faucet, and power. Fill the sink with an
appropriate amount of water, then turn off the faucet.
2. Ice-Making Process
After several minutes, the water pump will start working, evenly pumping
water through the ice mold. Eventually, ice forms in the mold. When the ice
thickness sensor detects the regulated thickness of ice, the ice begins to
drop.
3. Ice-Drop Process
The water pump stops working, the water supply valve opens, and water
flows into the sink. The heating valve is turned on, leading refrigerant gas
into the ice mold. The ice root melts, and after about 2 minutes, the ice block
drops into the ice cabinet. The falling ice block hits the retaining board
(which triggers an inductive switch fixed on the right side of the retaining
board). At this point, one cycle is complete, and a new ice-making cycle will
start.
- 11 -
4. Auto-Stop
When the ice cabinet is filled with ice blocks, any additional falling ice blocks
will be trapped between the retaining board and the evaporator. The
retaining board will continue to open and cannot return to its original position.
After several seconds, the ice maker will automatically stop working. Once
the ice block trapped between the retaining board and evaporator is
removed, the retaining board will return to its original position, and the ice
maker will restart to make more ice.
5. Running Check
A. During the ice-making process, a sudden interruption of the water supply
can prevent the sink from being filled with the appropriate amount of water.
The ice maker will enter a standby mode and not produce ice as usual.
Once the water supply is restored and the ice maker is restarted, it can
resume normal operation.
B. The fan motor for the condenser is temperature-controlled. When the
condenser's surface temperature is low, the fan motor will stop to save
power. When the surface temperature rises, the fan motor will work again,
so the fan motor operates intermittently during the ice-making process.
C. When operating the commercial ice maker in a low ambient temperature,
the ice-drop process may be delayed. If this happens three times
consecutively, the ice maker will stop automatically, and the red light and the
other four lights in the electrical box will flash alternately. After restarting the
ice maker, it will return to normal operation. It is recommended not to use the
ice maker in low ambient temperatures.
- 12 -
LCD FULL PAGE DISPLAY
6. Buttons on display board
Power On / Power Off:
Press and hold for 3 seconds to turn off the ice maker.
Press the On/Off button to turn on the ice maker when it is off.
Press the On/Off button to exit setting under ice thickness setting and filling
water adjust status
Mode button:
Switch the ice making program
Clean / Set Button:
Press to enter cleaning mode when the ice maker is turned off.
- 13 -
+ / Reservation Button:
Press to adjust ice thickness during pressure equilibrium, ice making,
unloading, or ice full status.
Press to increase the value by 1. Long press the button to increase
continuously under ice thickness adjust status.
Click to set the reservation time while the ice maker is turned off.
- / Light Button:
Press to decrease the value by 1. Long press the button to decrease
continuously under ice thickness adjust status.
Instruction: when the ice maker is in the “lack-water protection” condition, it
can restart automatically after the sink is filled with appropriate water. If other
faults cause the ice maker to stop, wait for 45 minutes, then press the start
button or reconnect the power to restart the ice maker.
- 14 -

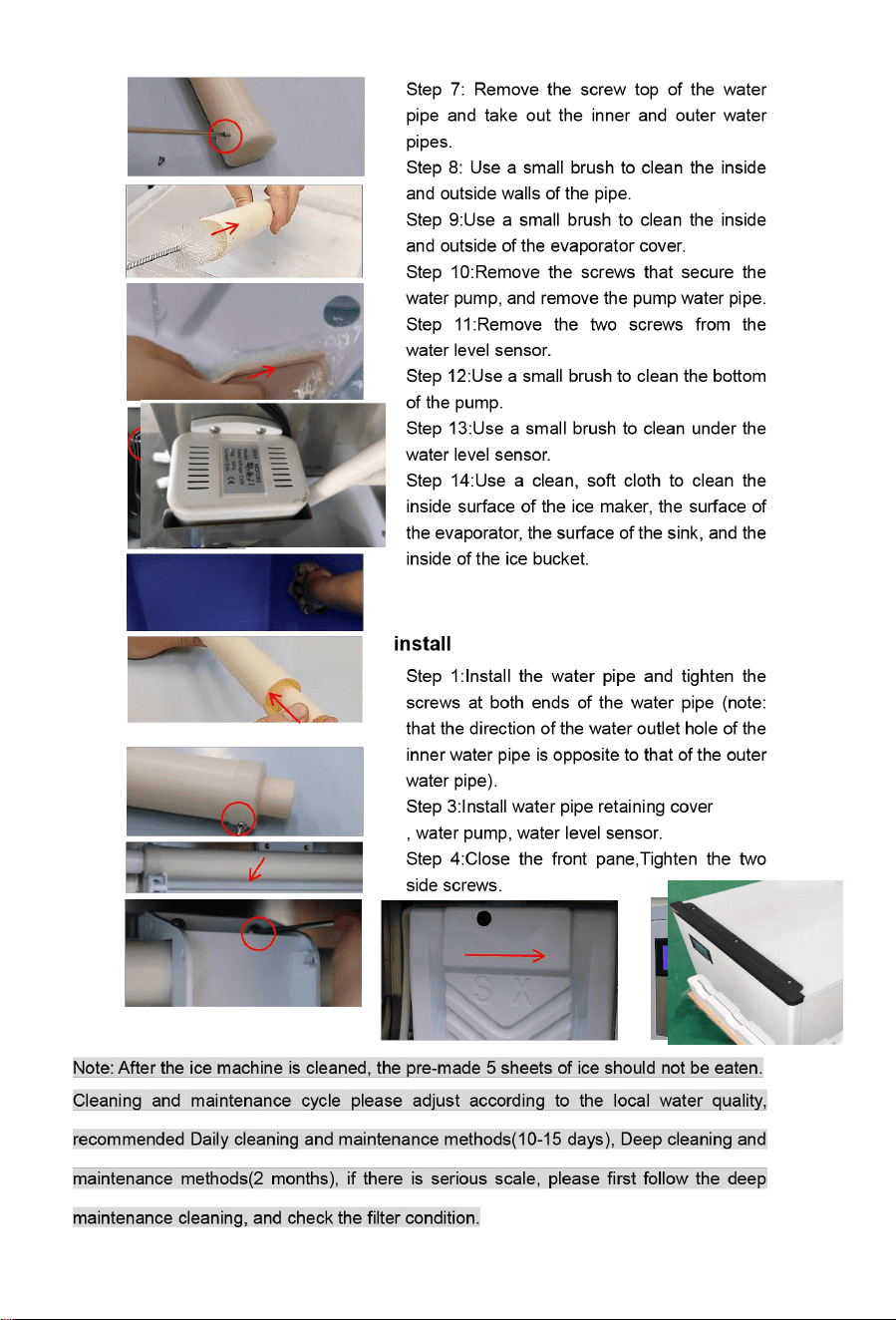

Daily Cleaning and Maintenance
- 15 -
- 16 -
- 17 -
Troubleshooting FAQ
LED
Panel
LCD
Panel
Possible Cause
Solution
E01
1. De-icing plate is
missing or
misplaced,
2. The polarity of
the magnetic
induction element
is reversed;
3. Abnormal ice full
switch;
1. Reset the ice removal plate
2. Replace the ice removal
plate/full ice sensor
3. Contact after-sales service
/visual trouble guidance/confirm
the fault point
E03
1. The ice cube
setting is too thin;
2. The water tank is
insufficient,
3. The ambient
temperature is too
low;
4. De-icing solenoid
valve failure;
1. Check and set the water
thickness parameters
(Recommended gears 0-2)
2. Check the water inlet system,
or check if the water supply is
sufficient
3.Use membrane materials to
block the ventilation inlet area
proportionally
4.Check if the ice is stuck
5.Check if the ice maker is
placed horizontally
6.Contact after-sales service for
video guidance and fault
confirmation
E04
1. The ambient
temperature is too
high;
2. The cooling
effect of the
condensing system
is poor;
3. The cooling fan
is damaged;
1. Relocate the ice maker to a
better-ventilated area, or turn on
air conditioning
2. Clean the condenser
3.The distance between the ice
maker and the obstruction
should be at least 11.81 in (30
cm)
4. Inspect whether the fan is
- 18 -
operating properly
5. Contact after-sales /confirm
the point of failure
E05
1. No water supply;
2. The water supply
pressure is too low,
3. Water tank leaks;
4. The water level
sensor fails;
5. Malfunction of
the inlet valve;
1. Check the water source or
whether the water filter is
blocked
2. Check the water supply
pressure or whether the water
filter is blocked
3. Check whether the bottle cap
at the bottom of the water tank is
tightened and sealed
4. Check for scale on the water
level switch
5.Contact after-sales/video
guidance/confirm the point of
failure
E06
1. The condenser
temperature is too
high,
2. The refrigeration
system is blocked;
3. Pressure switch
failure;
4. The main control
board is abnormal;,
1. Improve environmental
ventilation or relocate the
appliance, or tum on air
conditioning
2. Check the condenser and its
heat dissipation system
3. Contact after-sales/video
guidance/confirm the point of
failure
E11
1. The ring
temperature is too
high;
2. Poor dissipation
effect of the
condensing
system;
3. Leakage of
refrigeration
system;
1.Check if the water pump is
started and running
2.Clean the condenser
3.The distance between the ice
maker and the obstruction
should be at least 11.81 in (30
cm)
4. Contact after-sales service for
video guidance and fault
confirmation
- 19 -
TECHNICAL PARAMETER AND WIRING DIAGRAM
A. Technology parameters are on the nameplate.
B. The electrical schematic diagram is on the inner side of the board .
AFTER-SALE SERVICE
1.If you experience any issues, you can always contact our customer service
team via email at support@tittla.com.
2.Regarding any product problems or issues you encounter, our customer
service will guide you through the entire service process. We reserve the right
to re-inspect damaged or returned products.
3.If you have any warranty questions, please contact us at
Phone Number: +1(510)228-4672`
