REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

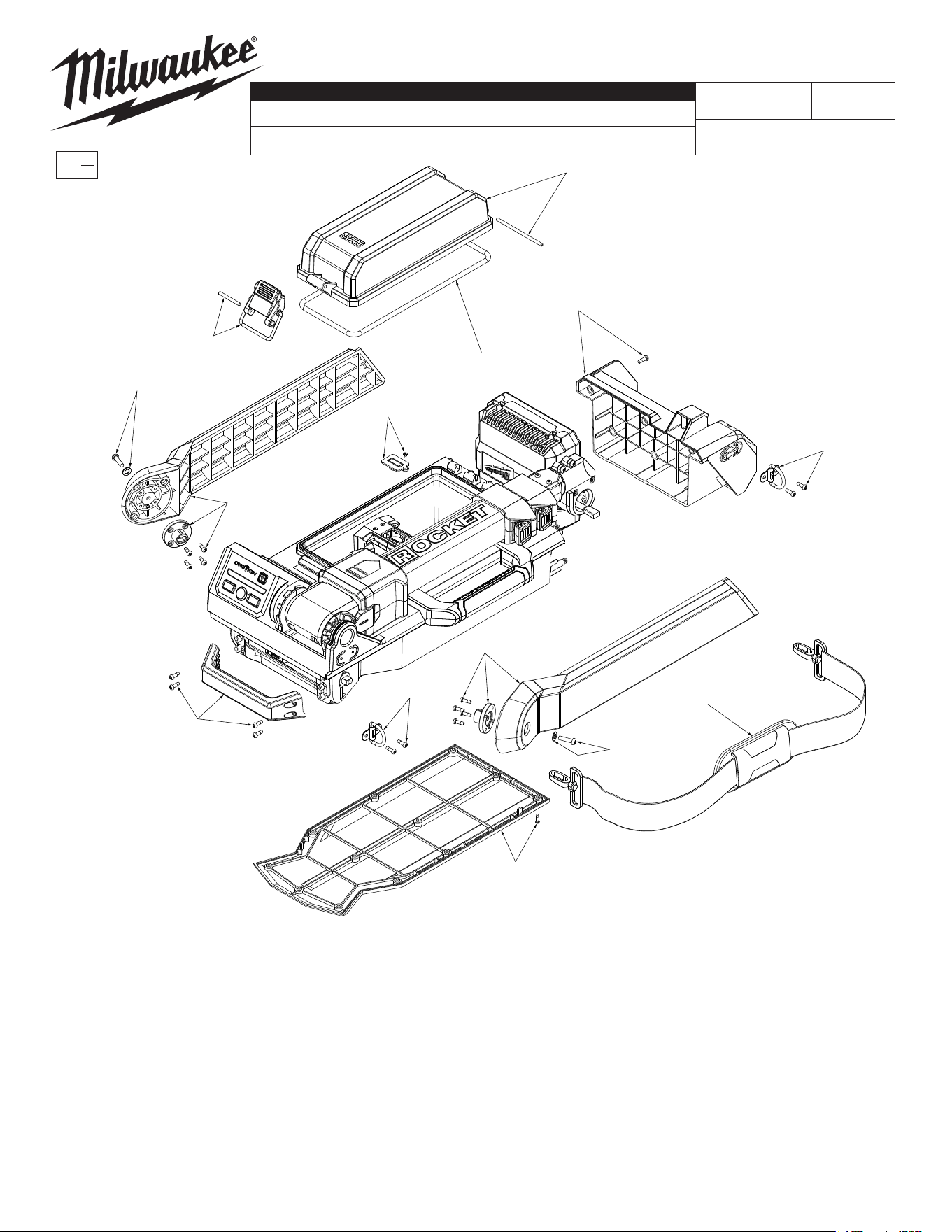

Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
11 42-68-2120 Lid Latch Kit (1)
12 31-44-2120 Lid with Pin Kit (1)
13 34-40-2121 Lid Gasket (1)
14 42-68-2121 Main Body Cap Buckle Kit (2)
15 44-04-2120 Left Leg Assembly (1)
16 44-04-2121 Right Leg Assembly (1)
17 45-04-2120 Leg Screw Kit (2)
18 50-11-2120 Coin Cell Cover and Screw Kit (1)
19 31-44-2122 Front Handle Kit (1)
20 31-44-2126 Bottom Wear Plate Kit (1)
21 31-44-2124 Main Body Cap Kit (1)
23 45-56-2120 Shoulder Strap (1)
24 12-20-1005 Service Nameplate (Not Shown) (1)
54-06-2160
M18™ ROCKET™ Dual Pack TOWER LIGHT with One-Key™
2120-20
J05A
Sept. 2018
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
15
18
21
13
12
11
17
19
14
16
17
14
23
20
(12x)
(6x)

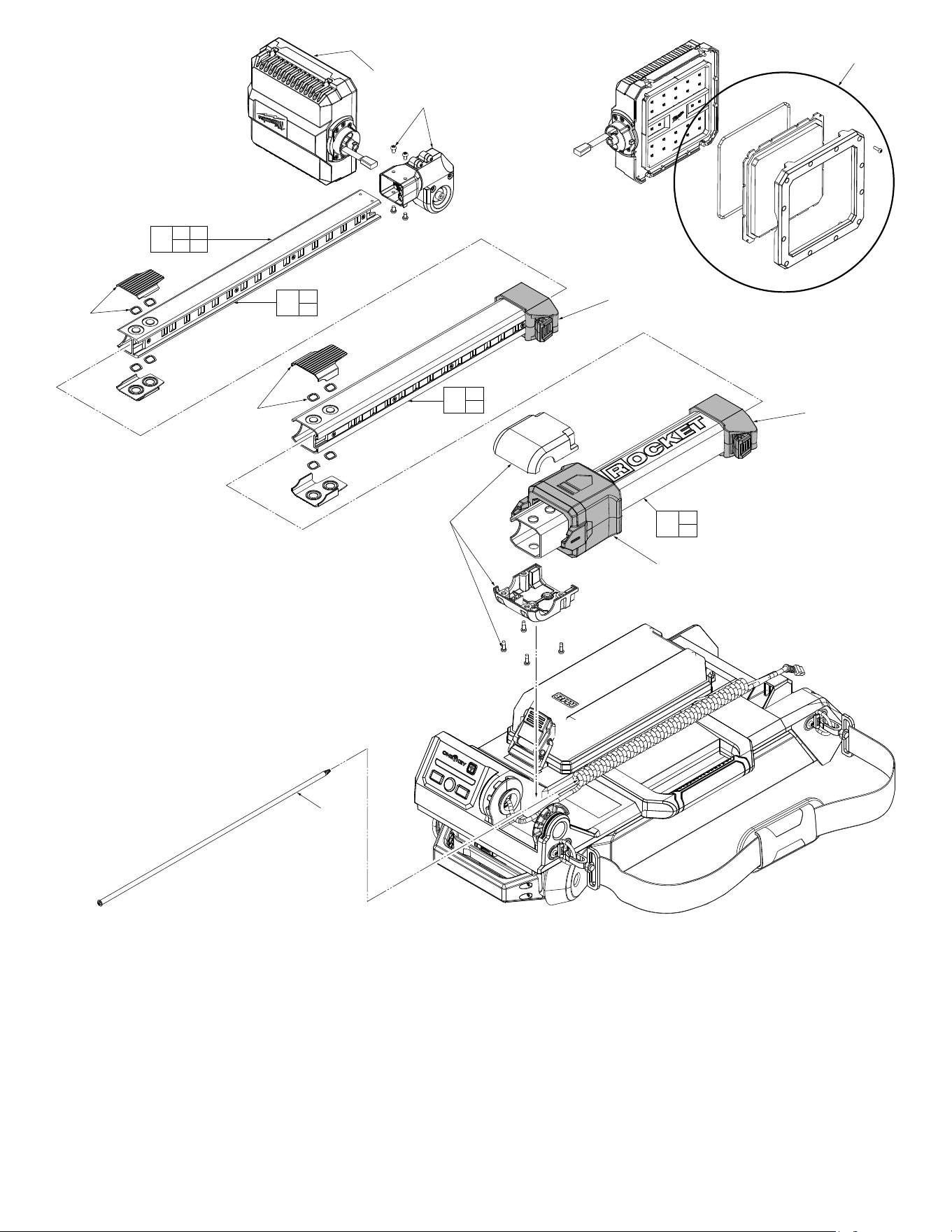

See page two for the exploded view of the
expandable pole/light assemblies.
10
(2x)
9
(2x)
5
8
6
7
4
22
1
2
10
30
6
9
31
7
32
30 31
32
33
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 44-06-2120 Lens Assembly with Wire Connection (1)
2 44-06-2125 Lens Kit (1)
4 42-78-2125 Mast Lock Assembly (1)
5 42-78-2126 Mast Lock Cover Kit (1)
6 31-17-2120 Upper Pole Clamp Kit (1)
7 31-17-2121 Middle Pole Clamp Kit (1)
8 31-12-2120 Lamp Head Kit (1)
9 44-52-2120 Middle Pole Wear Clamp Kit (Set of 2) (1)
10 44-52-2121 Upper Pole Wear Pad Kit (Set of 2) (1)
22 44-94-2120 Rod Assembly with Screw (1)
30 --------------- Upper Pole Assembly (1)
31 --------------- Middle Pole Assembly (1)
32 --------------- Lower Mast Assembly (1)
33 42-78-2120 Mast/Pole Assembly (1)
