REVISED BULLETIN
SERVICE PARTS
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, WI 53005

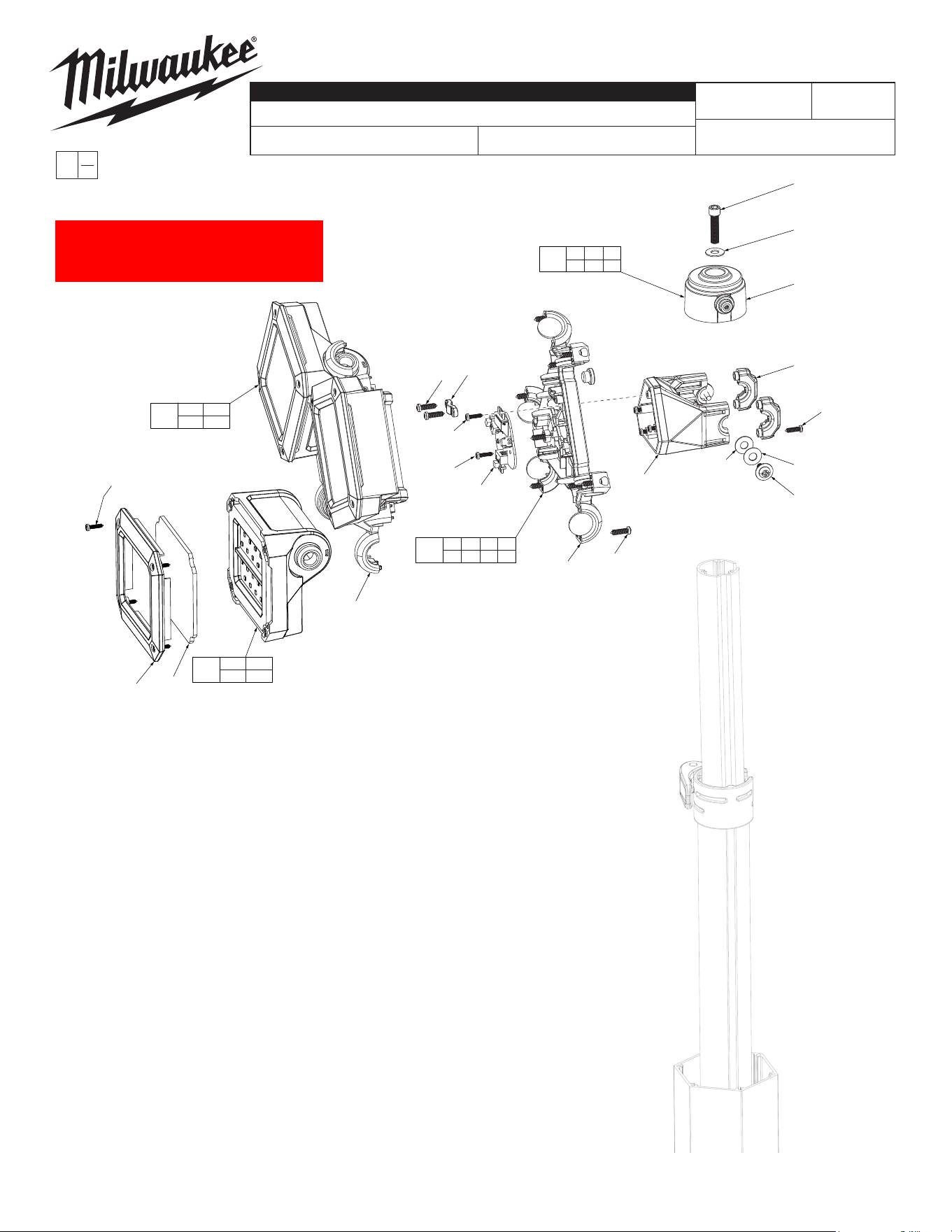

Drwg. 3
104
103
93
76
(x9)
92
13
(x4)
13
(x2)
97
91
94
(x2)
95
(x2)
88
(x2)
1
(x2)
22
90
89
96
4
(x4)
89
(x2)
14
(x4)
105
14 103
104
115
1 13 22 76
92 93 97
116
89 90 94
95 96
106
14 103
104
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-87-0016 Self Tapping Screw (2)
4 05-87-0017 M3.5 x 20mm ST Phillps Screw (4)
13 05-87-0014 M3 x 12mm ST Phillips Screw (6)
14 06-82-0229 M3 x 16mm ST Phillips Screw (4)
22 23-94-0248 Wire Holder (1)
76 05-87-0019 M3.5 x 12mm ST Phillips Screw (9)
88 22-68-0079 Light Head Base Bottom Cover (2)
89 45-88-0202 Washer (3)
90 28-06-0036 Light Head Base (1)
91 43-72-0081 Light Head Holder (1)
92 22-68-0080 Light Head Bottom Cover (1)
93 22-68-0081 Light Head Top Cover (1)
94 05-74-0066 Anti-Loose Screw (2)
95 45-88-0346 Wave Washer (2)
96 06-75-0006 M6 Hex Socket Machine Screw (1)
97 22-09-0032 Light Head Board (1)
103 44-06-0082 LED Lens (1)
104 22-68-0077 LED Lens Cover (1)
105 14-20-0190 Light Head Assembly w/ Four Wires (1)
106 14-20-0191 Light Head Assembly w/ Two Wires (2)
115 22-09-0027 Light Head Cover Kit (1)
116 42-52-0505 LED Mounting Cap w/ Washers and Screws (1)
54-06-2530
M18™ ROCKET™ LED TOWER LIGHT/CHARGER
2136-20
L60A
Jan. 2021
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
Adjustment
Screws
Adjustments may be
needed to Clamping
Assemblies 84 and 85
to prohibit sliding when latched.
Tighten or loosen adjustment screw
and flip clamp lever to the feel. If
clamping the lever seems too
difficult do not force lever.
Screw should be loosened
slightly and try securing the
lever again. If lever seems too
loose, tighten screw slightly and flip clamp lever to the feel.
Light Head Assemblies come in two dierent Light Head Assemblies come in two dierent
congurations. Light Head Assembly w/ Two congurations. Light Head Assembly w/ Two
Wires (106) and Light Head Assembly w/ Four Wires (106) and Light Head Assembly w/ Four
Wires (105).Wires (105).

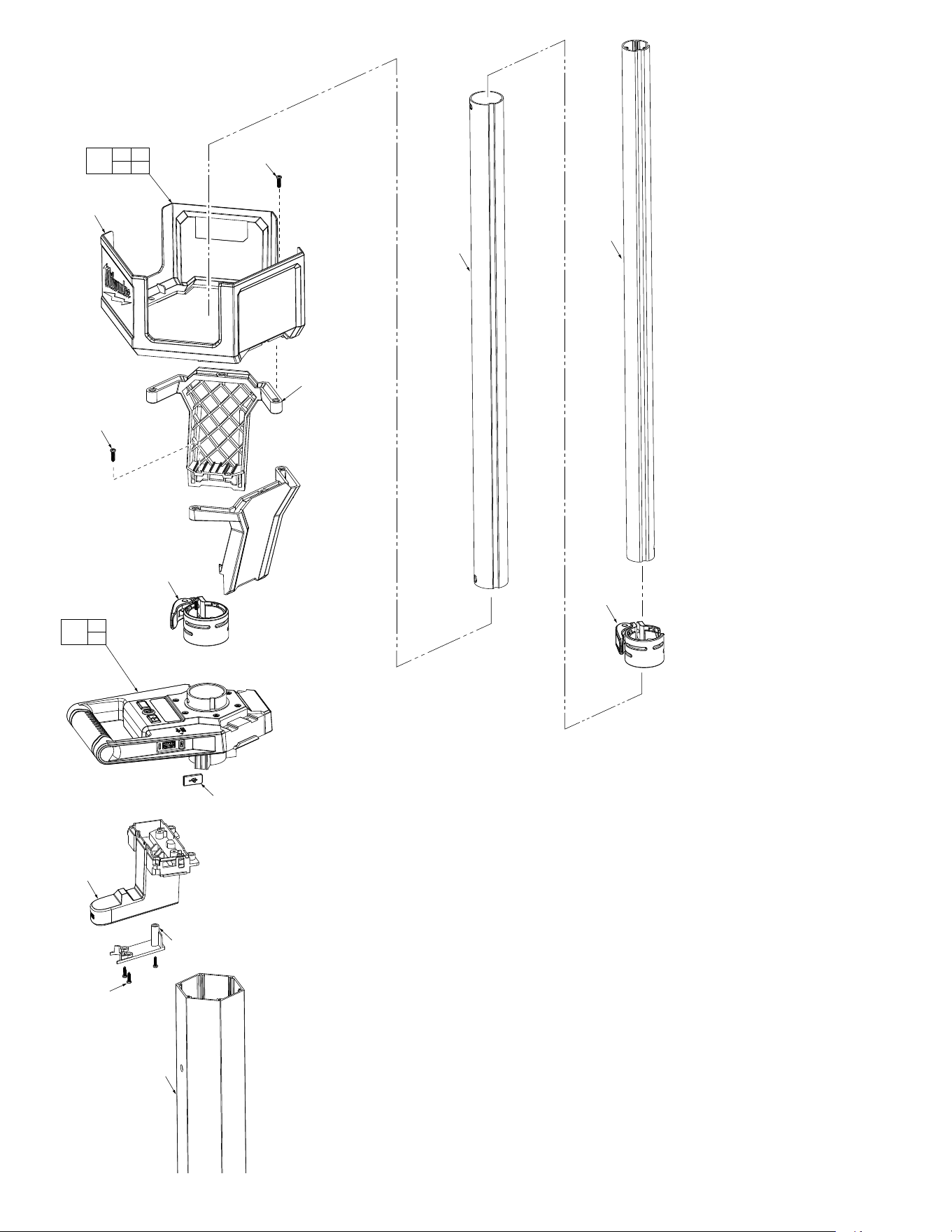

75
63
79
81
53
35
13
(x3)
67
52
83
76
(x6)
74
(x2)
1
(x4)
117
1 74
75 76
118
67
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-87-0016 Self Tapping Screw (4)
13 05-87-0014 M3 x 12mm ST Phillips Screw (3)
35 23-16-0027 Main Support Column (1)
52 28-44-0106 Carry handle Top Holder Cover (1)
53 28-44-0108 Carry Handle Top Holder (1)
63 31-17-0095 Cam Lock Base Assembly (Large) (1)
67 31-15-0181 USB Cover (1)
74 43-72-0318 Shroud Holder (2)
75 45-12-0041 Shroud (1)
76 05-87-0019 M3.5 x 12mm ST Phillips Screw (6)
79 45-76-0136 Larger Mast (1)
81 45-76-0309 Smaller Mast (1)
83 31-17-0090 Cam Lock Assembly (Small) (1)
117 31-15-0102 Shroud Kit (1)
118 14-38-0111 Control Housing Assembly (1)
REVISED BULLETIN
SERVICE PARTS
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.

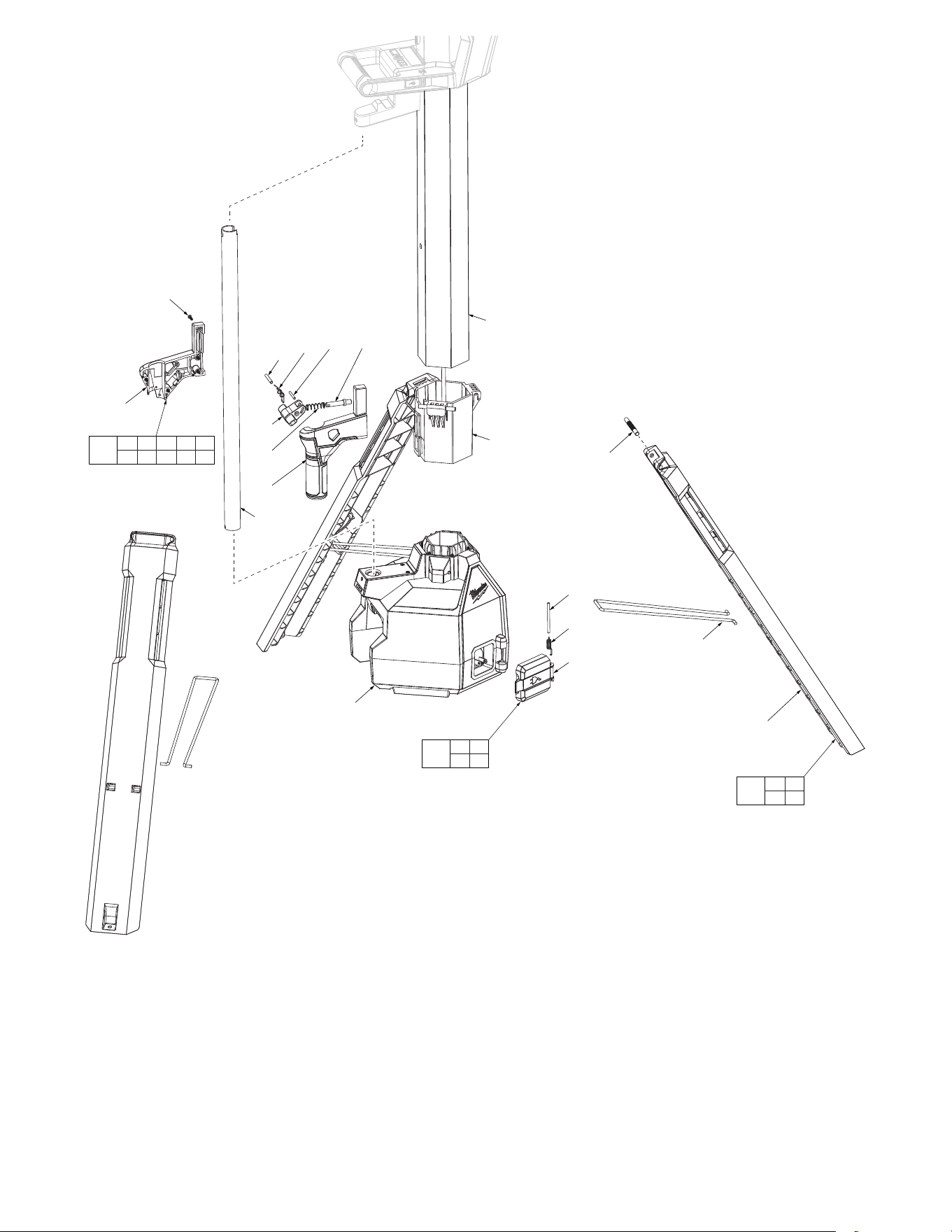

37
(x3)
36
(x3)
34
(x3)
120
10
51
40
43
38
13
(x5)
41
44
50
42
39
45
35
9
8
112
8 9
10
113
34 36
37
114
13 38 39 40 41
42 43 44 45
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
8 44-50-0016 AC Outlet Door (1)
9 40-50-0242 AC Outlet Door Spring (1)
10 44-50-0018 AC Outlet Door Pin (1)
13 05-87-0014 M3 x 12mm ST Phillips Screw (5)
34 --------------- Wire Leg Linkage (3)
35 23-16-0027 Main Support Column (1)
36 --------------- Support Leg (3)
37 44-60-1655 Leg Support Pin (3)
38 --------------- Left Carry Hanlde Housing (1)
39 --------------- Locking Pin (1)
40 --------------- Trigger Pin (1)
41 --------------- Locking Rod Spring (1)
42 --------------- Trigger Spring (1)
43 --------------- Trigger (1)
44 --------------- Right Carry Handle Housing (1)
45 --------------- Locking Rod (1)
50 45-76-0051 Small Tube (1)
51 28-06-0033 Leg Mounting Base (1)
107 12-20-0249 Service Nameplate (Not Shown) (1)
108 10-20-1018 Warning Label - Left (Not Shown) (1)
109 10-20-1019 Warning Label - Right (Not Shown) (1)
111 42-55-2137 Soft Carrying Bag (Not shown) (1)
112 31-21-0013 AC Door Kit (1)
113 14-46-0179 Leg Support Kit (3)
114 14-34-0127 Carry Handle Kit (1)
120 14-20-0142 Base w/ Electronics and Outlet (1)

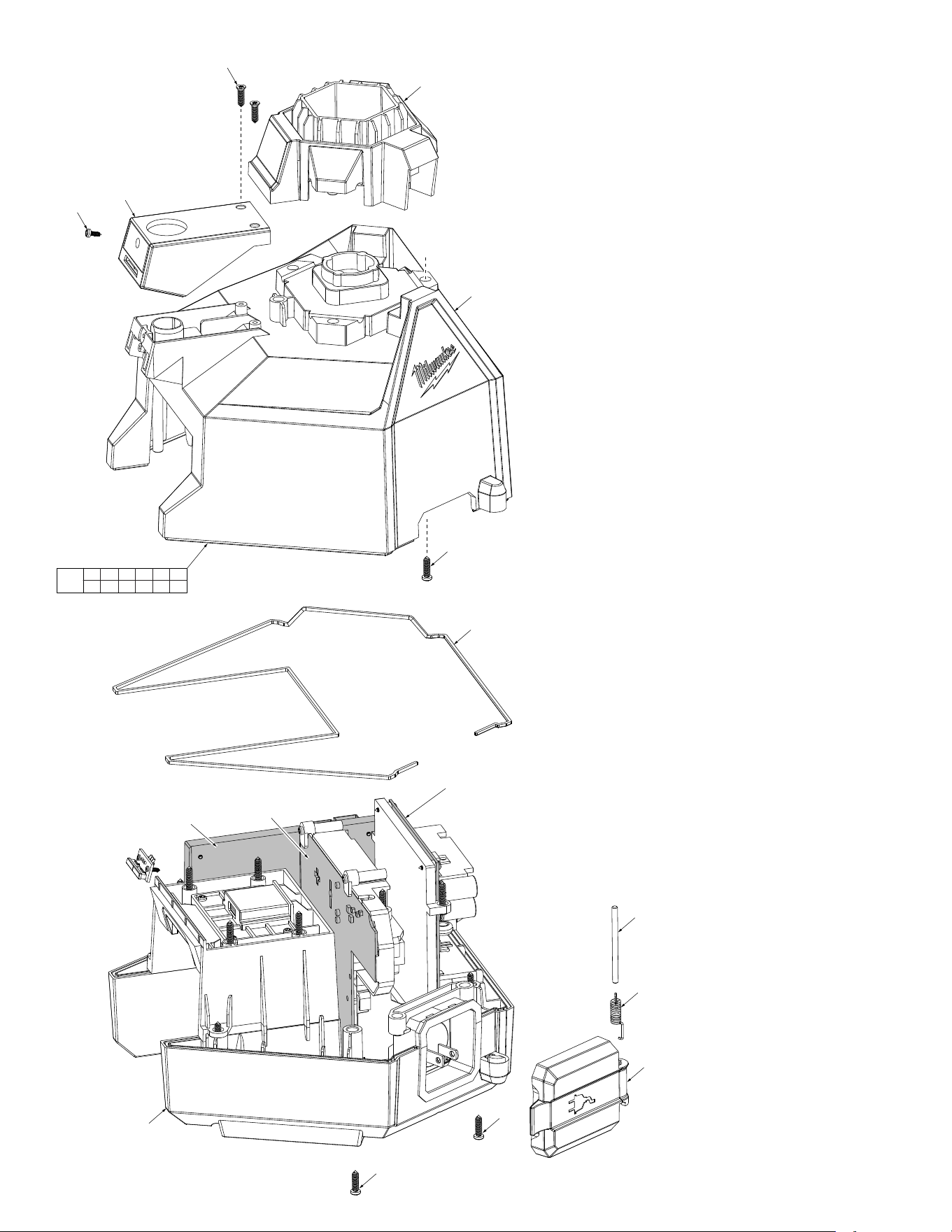

27
26
29
(x2)
33
23
3
4
(x6)
1
10
9
2
123
122
121
8
1
(x6)
120
1 2 3 4 8 9
10 23 26 27 29 33
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-87-0016 Self Tapping Screw (7)
2 22-68-0043 Bottom Cover (1)
3 22-68-0046 Bottom Cover Gasket (1)
4 05-87-0017 Self Tapping Screw (6)
8 44-50-0016 AC Door (1)
9 40-50-0242 AC Door Spring (1)
10 44-50-0018 AC Door Pin (1)
23 28-50-0036 Main Housing (1)
26 45-76-0053 Carry Pole Mounting Base (1)
27 05-87-0012 M3 x 6mm Pan Hd. T- Screw (1)
29 05-87-0011 Self Tapping Screw (2)
33 23-16-0029 Tube Mounting Base (1)
120 14-20-0142 Base w/ Electronics and Outlet (1)
121 22-80-0012 AC Board (1)
122 22-80-0022 Charger Board (1)
123 22-80-0032 Control Board (1)
