1 Cell Image size: 277 mm
2 Cell Image size: 132 mm
3 Cell Image size: 83.666 mm
4 Cell Image size: 59.5mm
BN68-24436A-01
1
2
3
4
0.98 inches (25 mm)
(25 мм) (2.5 cm)

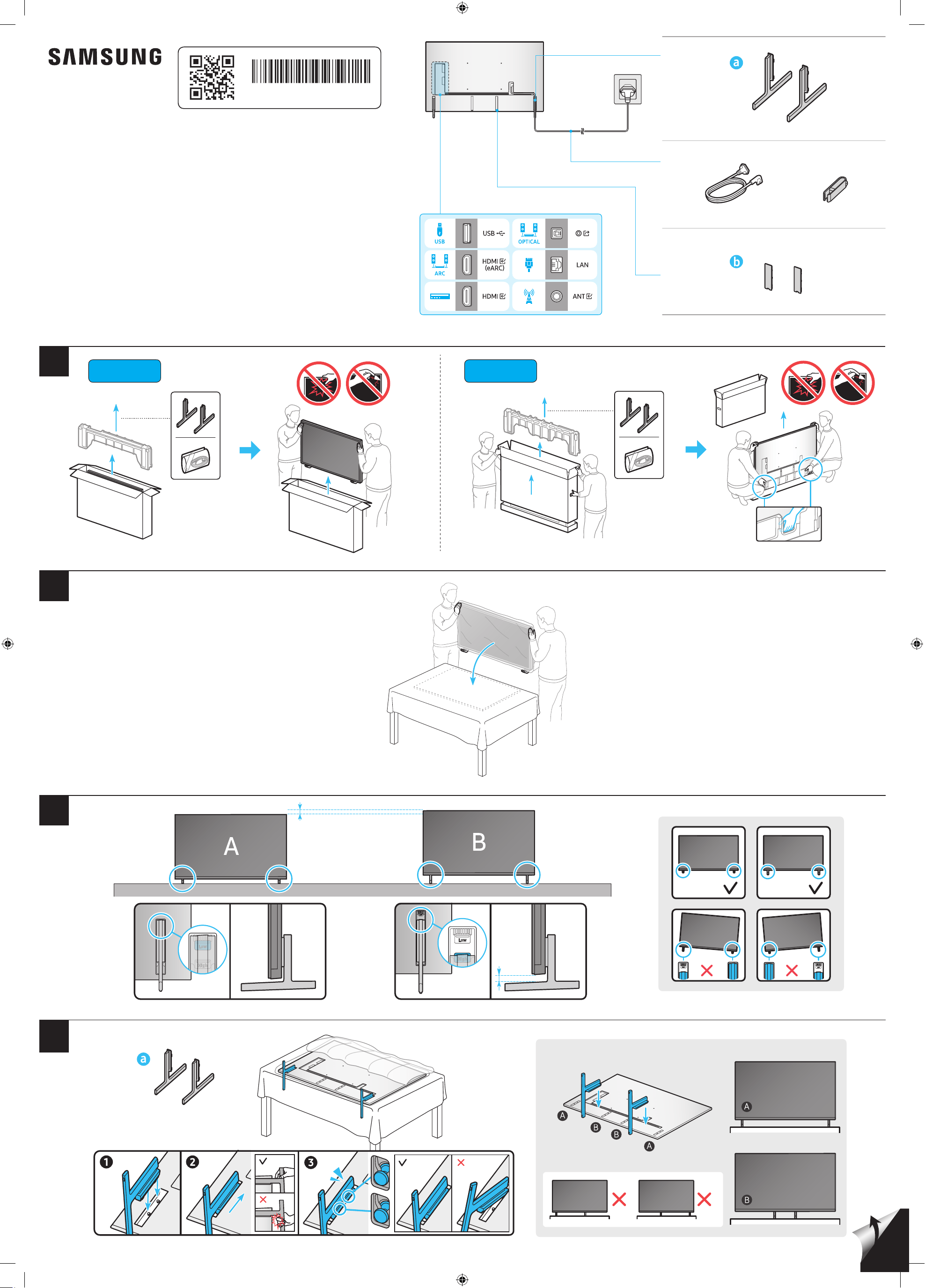

Unpacking and Installation Guide
Guide de déballage et d’installation
Guía de desembalaje e instalación
Manual de desempacotamento e instalação
Auspacken und Installationsanleitung
Guida al disimballaggio e all’installazione
Руководство по распаковке и установке
Қаптамадан шығару және орнату нұсқаулығы
Посібник з розпаковки та встановлення
Qadoqdan chiqarish va o‘rnatish qo‘llanmasi
50″- 55″ 65″- 75″
5 6
7
8
50QN8*H
50QNH8*
43.7 inches
(1110.2 mm)
(1110,2 мм)
(111.02
cm)
25.4 inches
(643.9 mm)
(643,9 мм)
(64.39 cm)
2.0 inches
(51.7 mm)
(51,7 мм)
(5.17 cm)
26.8 inches
(680.0 mm)
(680,0 мм)
(68.00 cm)
27.8 inches
(705.0 mm)
(705,0 мм)
(70.50 cm)
8.6 inches
(218.0 mm)
(218,0 мм)
(21.80 cm)
49.5 inches
(125 cm)
(125 см)
24.5 lbs
(11.1 kg)
(11,1 кг)
25.1 lbs
(11.4 kg)
(11,4 кг)
55QN8*H
55QNH8*
48.2 inches
(1224.0 mm)
(1224,0 мм)
(122.40
cm)
27.9 inches
(708.0 mm)
(708,0 мм)
(70.80 cm)
2.0 inches
(52.0 mm)
(52,0 мм)
(5.20 cm)
29.3 inches
(744.0 mm)
(744,0 мм)
(74.40 cm)
30.3 inches
(769.0 mm)
(769,0 мм)
(76.90 cm)
8.6 inches
(218.0 mm)
(218,0 мм)
(21.80 cm)
54.6 inches
(138 cm)
(138 см)
29.1 lbs
(13.2 kg)
(13,2 кг)
29.8 lbs
(13.5 kg)
(13,5 кг)
65QN8*H
65QNH8*
56.8 inches
(1442.9 mm)
(1442,9 мм)
(144.29
cm)
32.7 inches
(831.2 mm)
(831,2 мм)
(83.12 cm)
2.0 inches
(52.0 mm)
(52,0 мм)
(5.20 cm)
34.1 inches
(867.1 mm)
(867,1 мм)
(86.71 cm)
35.1 inches
(892.1 mm)
(892,1 мм)
(89.21 cm)
10.1 inches
(256.8 mm)
(256,8 мм)
(25.68 cm)
64.5 inches
(163 cm)
(163 см)
37.9 lbs
(17.2 kg)
(17,2 кг)
38.8 lbs
(17.6 kg)
(17,6 кг)
75QN8*H
75QNH8*
65.6 inches
(1666.6 mm)
(1666,6 мм)
(166.66
cm)
37.7 inches
(957.8 mm)
(957,8 мм)
(95.78 cm)
2.1 inches
(52.3 mm)
(52,3 мм)
(5.23 cm)
39.1 inches
(993.8 mm)
(993,8 мм)
(99.38 cm)
40.1 inches
(1018.8 mm)
(1018,8 мм)
(101.88 cm)
12.6 inches
(319.8 mm)
(319,8 мм)
(31.98 cm)
74.5 inches
(189 cm)
(189 см)
50.7 lbs
(23.0 kg)
(23,0 кг)
51.8 lbs
(23.5 kg)
(23,5 кг)
* : 0~9, A~Z
VESA
x (mm)
VESA
x (мм)
(mm)
(мм)
x 4
50QN8*H
50QNH8*
200 x 200
18-20 M8
55QN8*H
55QNH8*
300 x 200 18-20 M8
65QN8*H
65QNH8*
400 x 300 18-20 M8
75QN8*H
75QNH8*
400 x 300 18-20 M8
* : 0~9, A~Z
