SAFETY INFORMATION .....................................................................................................................
PACKAGE CONTENTS .......................................................................................................................
PREPARATION ...................................................................................................................................
ASSEMBLY INSTRUCTIONS .............................................................................................................4
OPERATION INSTRUCTIONS ........................................................................................................................
14
CARE AND MAINTENANCE ............................................................................................................. 19
22
TROUBLESHOOTING ......................................................................................................................
Consumer/User: Follow all warnings and instructions when using this appliance.
Assembler/Installer: This manual contains important information that is necessary for the
proper assembly and safe use of this appliance. Read and follow all warnings and instructions
before assembling and using this appliance. Leave these instructions with the consumer.
Retain these instructions for future reference.
WARNING
DANGER
1.Do not store or use gasoline, vapors,
or other flammable fluids close to this
or any other appliance.
2.An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
3.
Do not leave a lit grill unattended.
Keep children and pets away from the
grill at all times.
If you smell gas:
1.Cut off the gas to the appliance.
2. Extinguish any open flame.
3.Open the lid.
4. If the odor continues, keep away
from the appliance and immediately
call your local fire department.
4
3
1
DANGER
• Do not use in an explosive atmosphere. Keep grill area clear and free from combustible
SAFETY INFORMATION
CAUTION
• Do not use gasoline, kerosene or alcohol for lighting.
• The LP gas cylinder used with this appliance must be:
• Never keep a filled container in a hot car or car trunk. Heat will cause the gas pressure to
increase, may open the relief valve and leak the gas.
• Always open grill lid slowly and carefully as heat and steam trapped within the grill can hurt
you severely.
•
Thank you for purchasing this product! If you have any question
about the product
such as missing parts, damaged products, product assembling, operation, etc., please
contact us via our customer service phone: 818-468-1498.
Never use charcoal or lighter fluid with the grill.
(a) Constructed and marked in accordance with the Specifications for LP-Gas Cylinders
of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;
and Commission, as applicable; and
(b) Provided with a listed overfilling prevention device.
(c) Provided with a cylinder connection device compatible with the connector for outdoor
cooking appliances.This grill is not intended to be used in or installed on recreational
vehicles and/or boats.
(d) The marked cylinder water capacity or LPG capacity (in pounds) as stated by the
cylinder manufacturer(s).
1
SAFETY INFORMATION
Do not place the grill under overhead combustible construction or awnings.
The minimum clearance between the side/back of the unit and any other construction is 40
(1016.0 mm).
N
OTE: The installation must conform with local
codes or, in the absence of local codes, with
either the National Fuel Gas Code, ANSI Z223.1/
NFPA54, Natural Gas and Propane Installation
Code, CSAB149.1, or Propane Storage and Handling Code, B149.2.
WARNING
2
inches
PACKAGE CONTENTS
NOTE: Please read the picture and product list of the package contents carefully before assembly.
No. No.Description Description
Hose hook
Regulator valve
Grill heat plate
Protective cover
M6*12 screw
M5*10 screw
1
(attached to the left
of the grill body)
1
(for hose assembly
hanging)
4
(attached to the bottom
of the grill body)
Quantity Quantity
Grill body
Griddle
Match holder
Oil drip box
Bracket
Cooking grate
1
1
7 1
2
1
8
1
3
1
9
3
4
1
1
0
1
Hose assembly
1
4
5
2
11
6
1
12
3
NOTE: This product is available in two different appearances. The one with viewing window is easy
for customers to check the food condition.
PREPARATION
CAUTION
Some parts may contain sharp edges. Wear
protective gloves if necessary. Read and follow all
safety statements, warnings, assembly instructions and use and care instructions before
attempting to assemble and use.
ASSEMBLY INSTRUCTIONS
A.Installation of Brackets
Before start assembling product, make sure all parts are present. Compare parts and hardwares
with the list on the package contents page. If any part is missing or damaged, do not attempt to
assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 15 minutes with 1 person.
Tools Required for Assembly and Leak Testing: Phillips screwdriver, Spray bottle.
NOTE: Common tools used for assembly and leak testing are not included in the accessories.
Unscrew the bottom screws (11) on the same side as shown above.
��
��
4
��
Attach the bracket (5) to the bottom of the grill body with the screws (11) you just unscrewed.
Install the other bracket (5) with the same manner.
ASSEMBLY INSTRUCTIONS
5
B.Installation of Grill Heat Plate

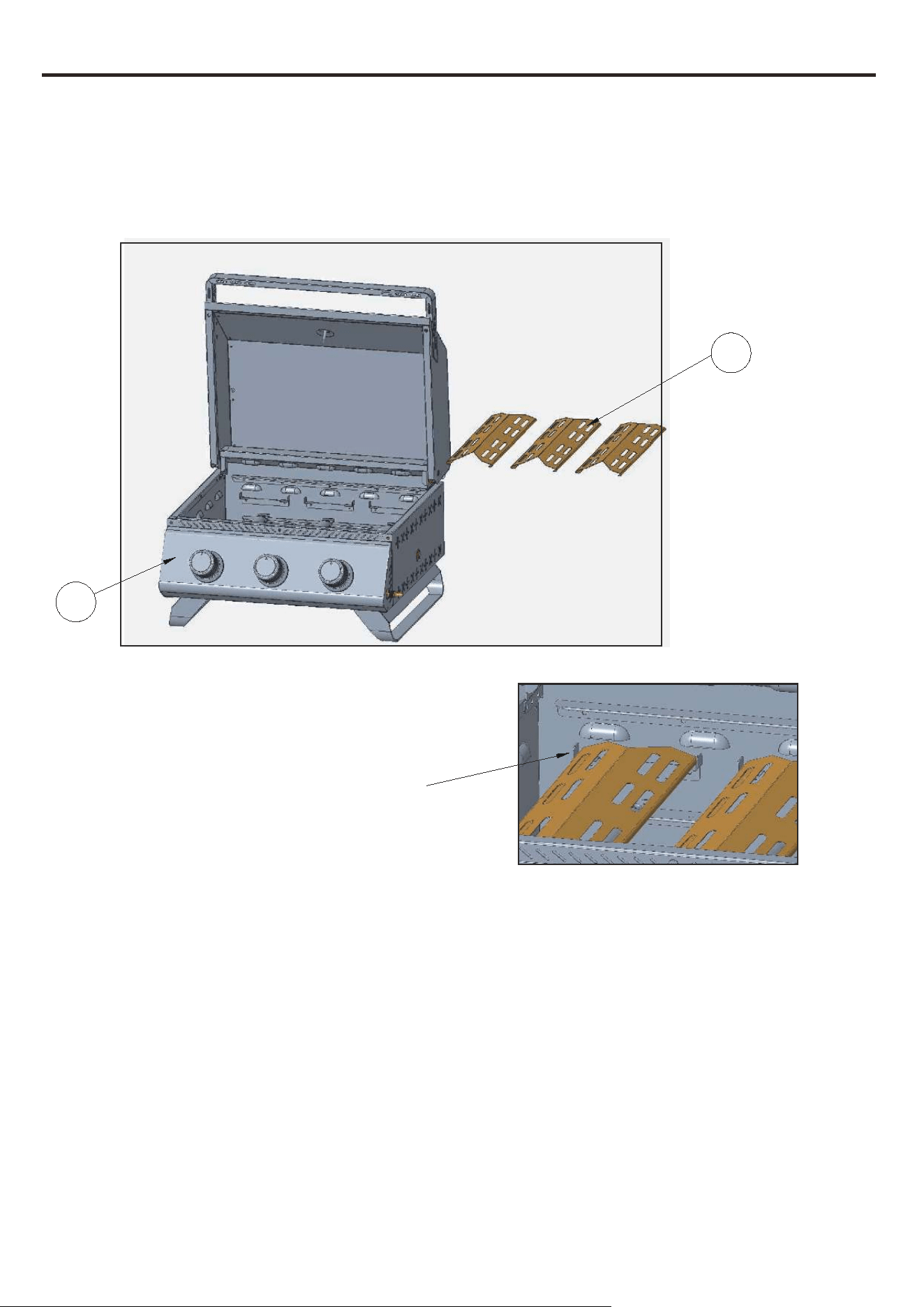

Place three pieces of grill heat plates (9) inside the grill body (1).
9
1
Note:
Place the grill heat plate (9) in the specified holder.
ASSEMBLY INSTRUCTIONS
6

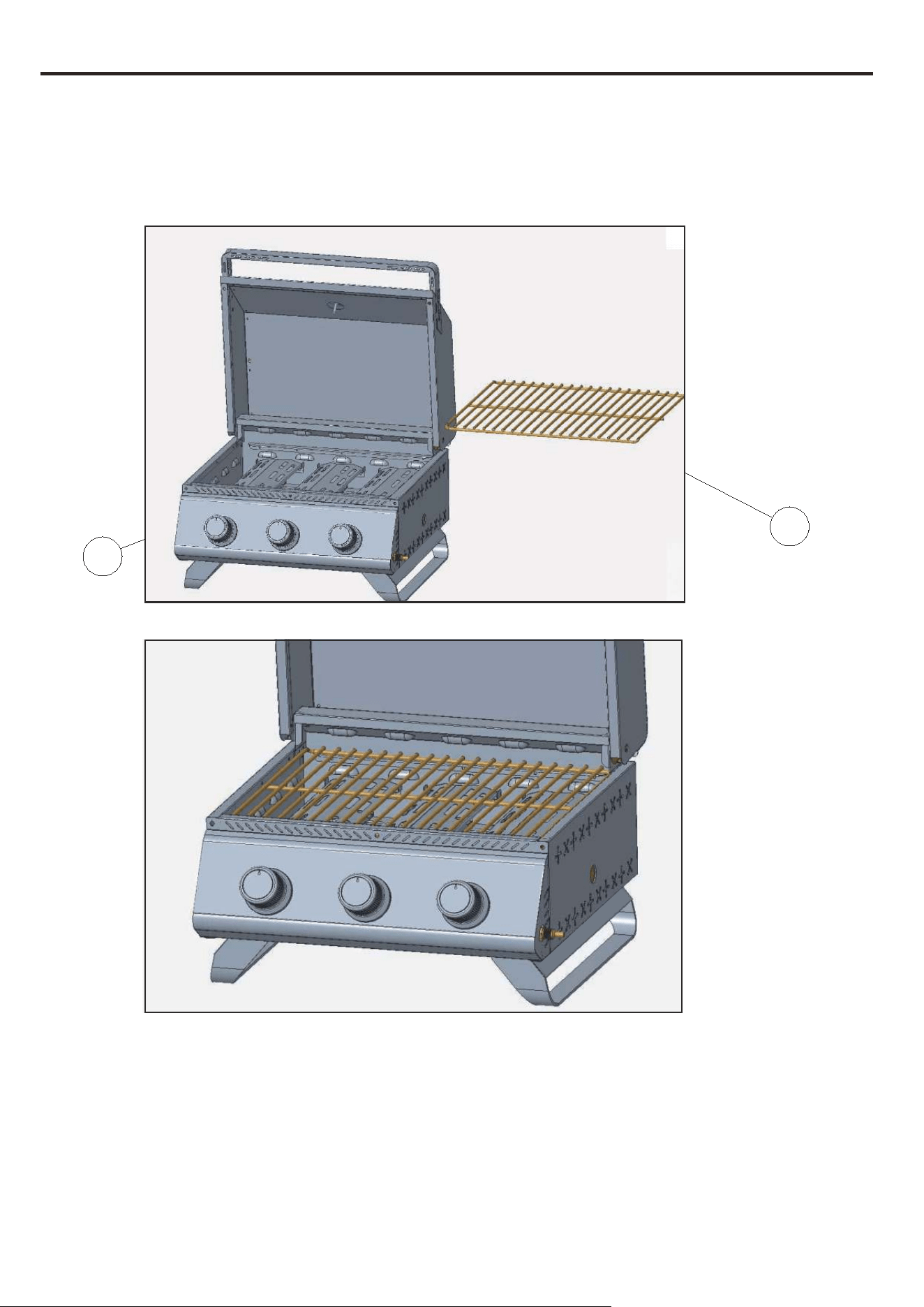

C.Installation of Cooking Grate
Place the cooking grate (6) inside the grill body (1).
6
1
ASSEMBLY INSTRUCTIONS
7

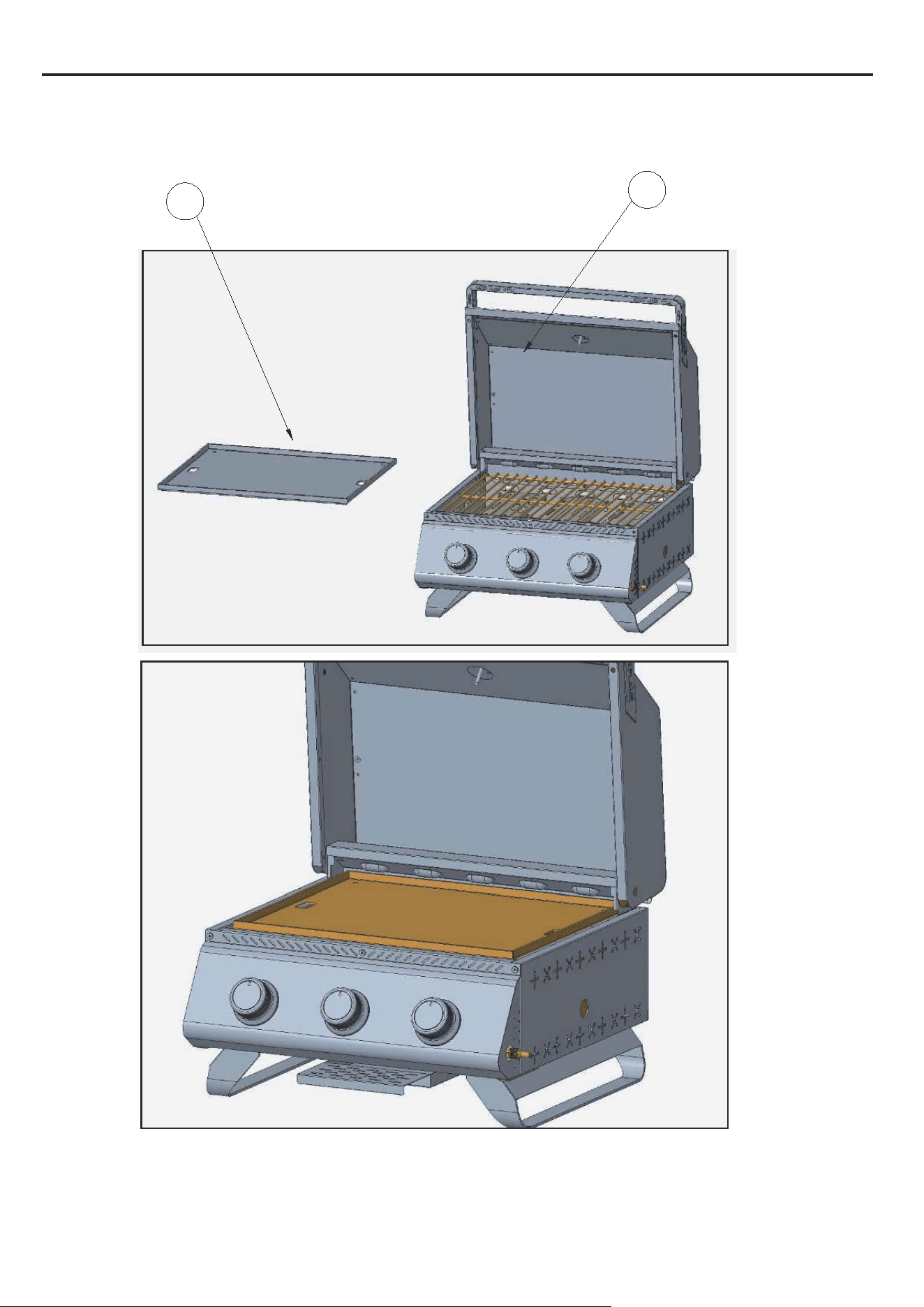

D.Placing Griddle
Place the griddle (2) upon the cooking grate inside the grill body (1) as shown above.
2
1
ASSEMBLY INSTRUCTIONS
8

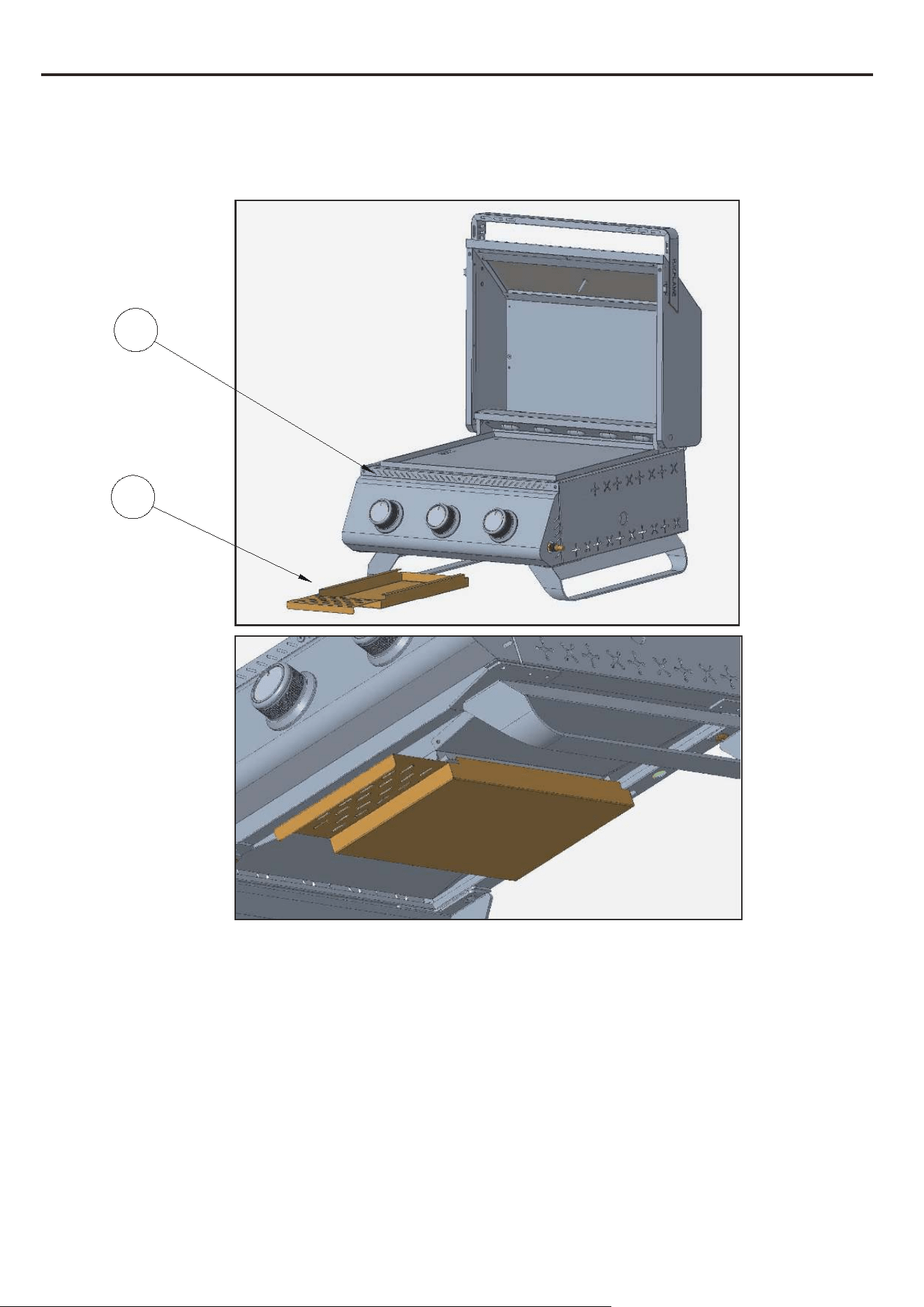

E.Installation of Oil Drip Box
Place the oil drip box (4) along the guide rails at the bottom of the grill body (1).
4
1
ASSEMBLY INSTRUCTIONS
9

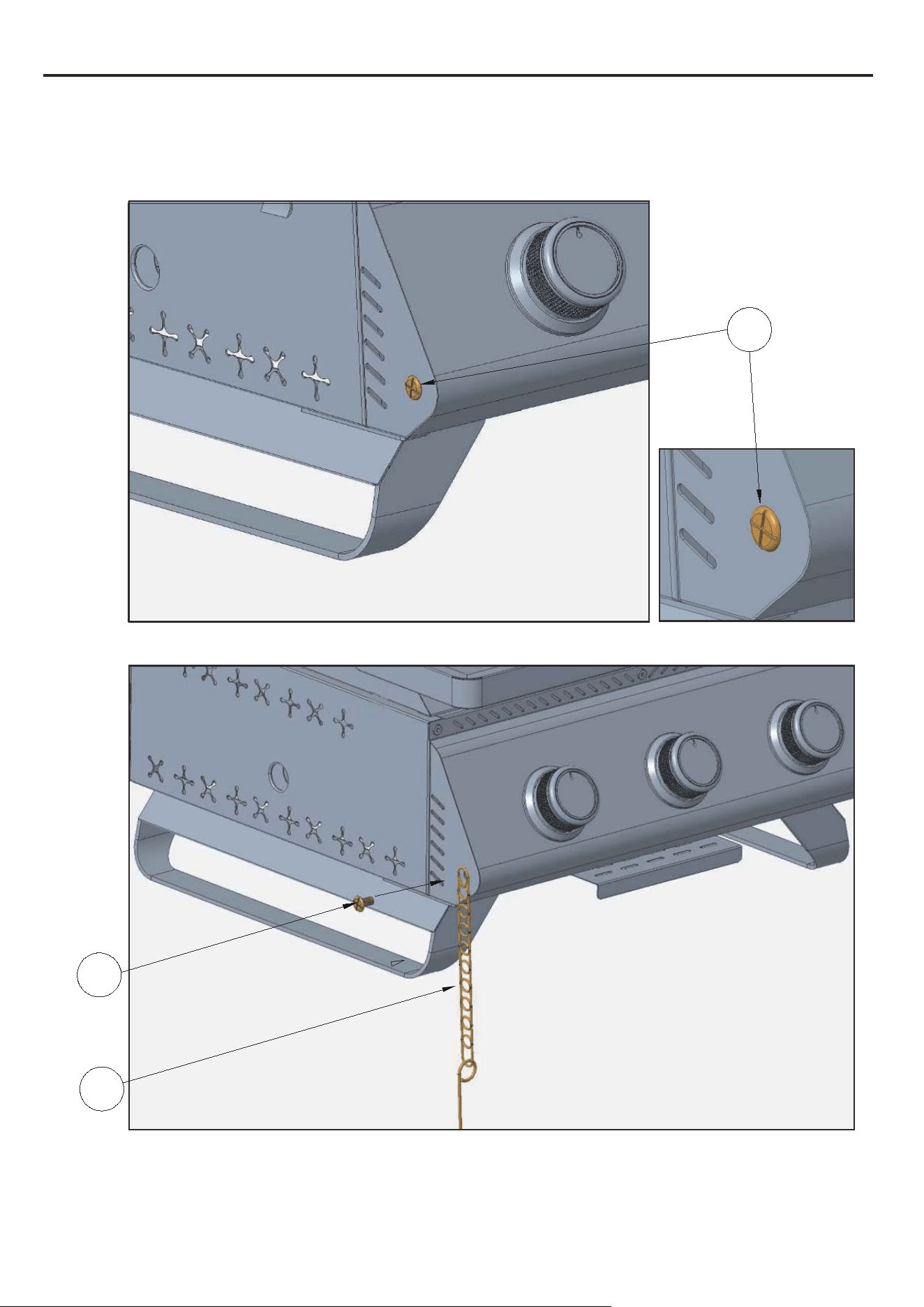

F.Installation of Match Holder
Unscrew the screw (12) in the left of the grill body. Insert the screw (12) into the end of the match
holder (3) and tighten the screw (12) to secure the match holder (3).
3
12
12
ASSEMBLY INSTRUCTIONS
10

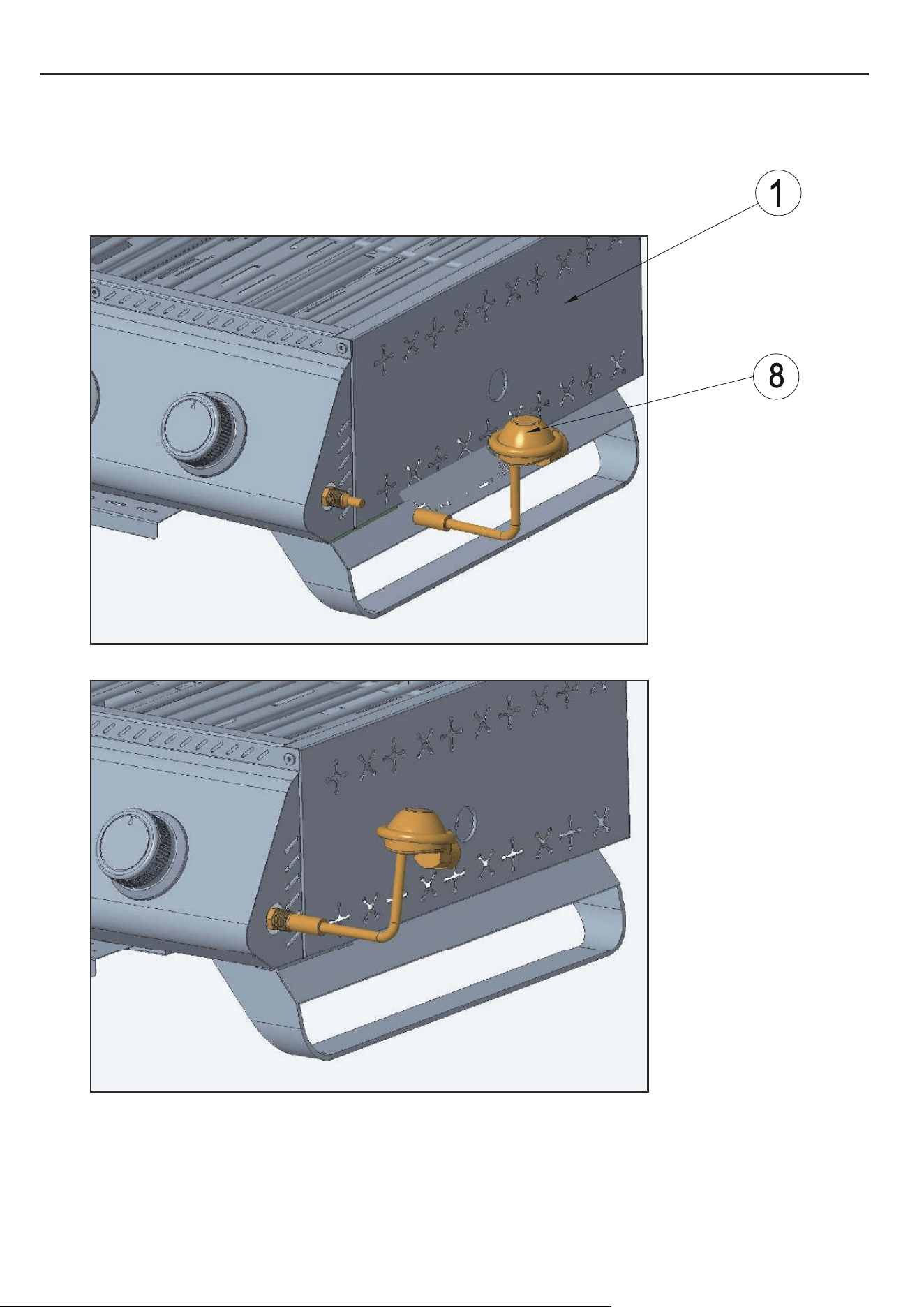

G.Installation of Regulator Valve
Turn the regulator valve (8) clockwise to connect it with the grill body (1).
ASSEMBLY INSTRUCTIONS
11

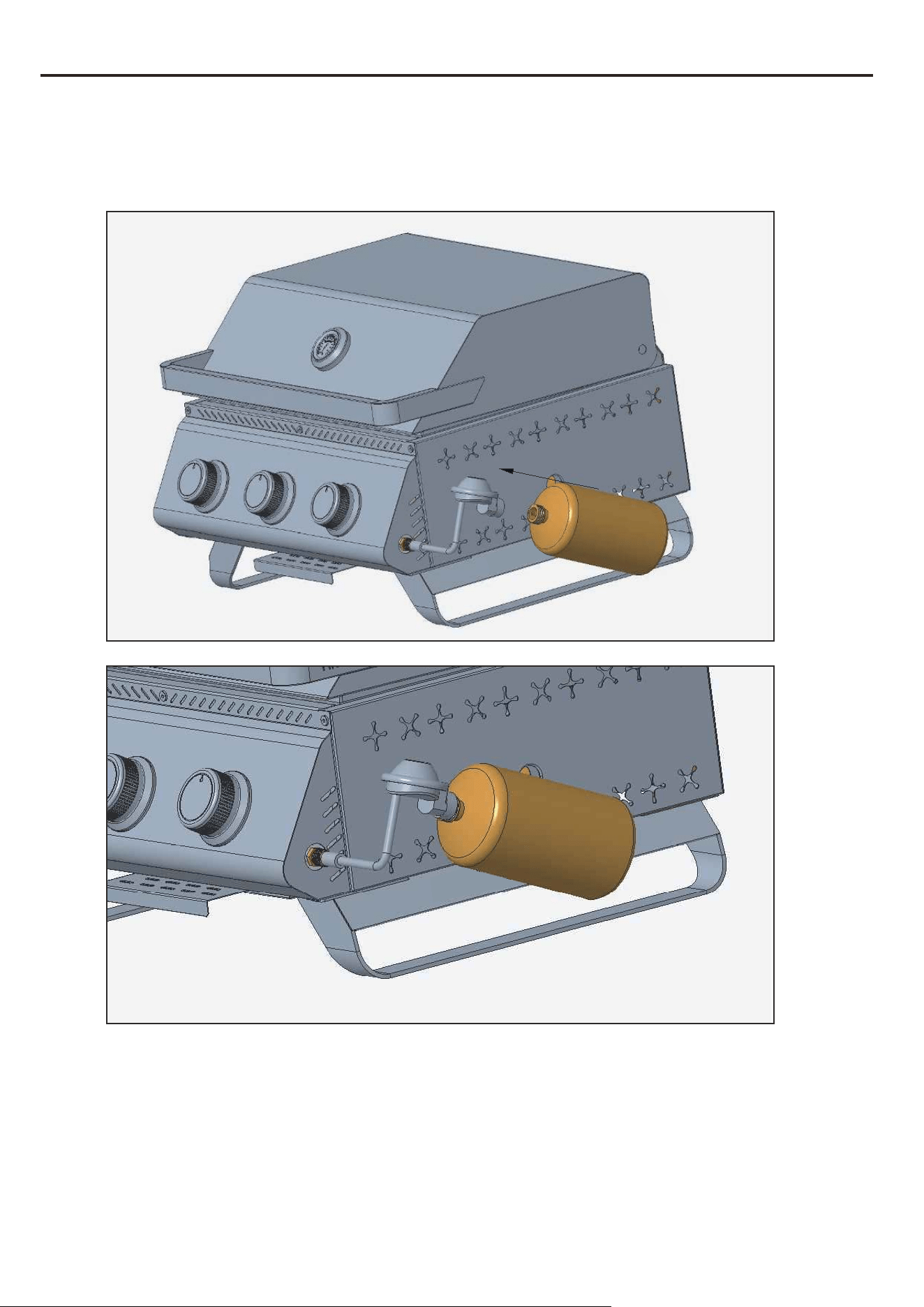

H.Installation of Propane Cylinder
Connect the propane cylinder with the regulator valve and tighten.
ASSEMBLY INSTRUCTIONS
12
I.Installation of LP Gas Tank

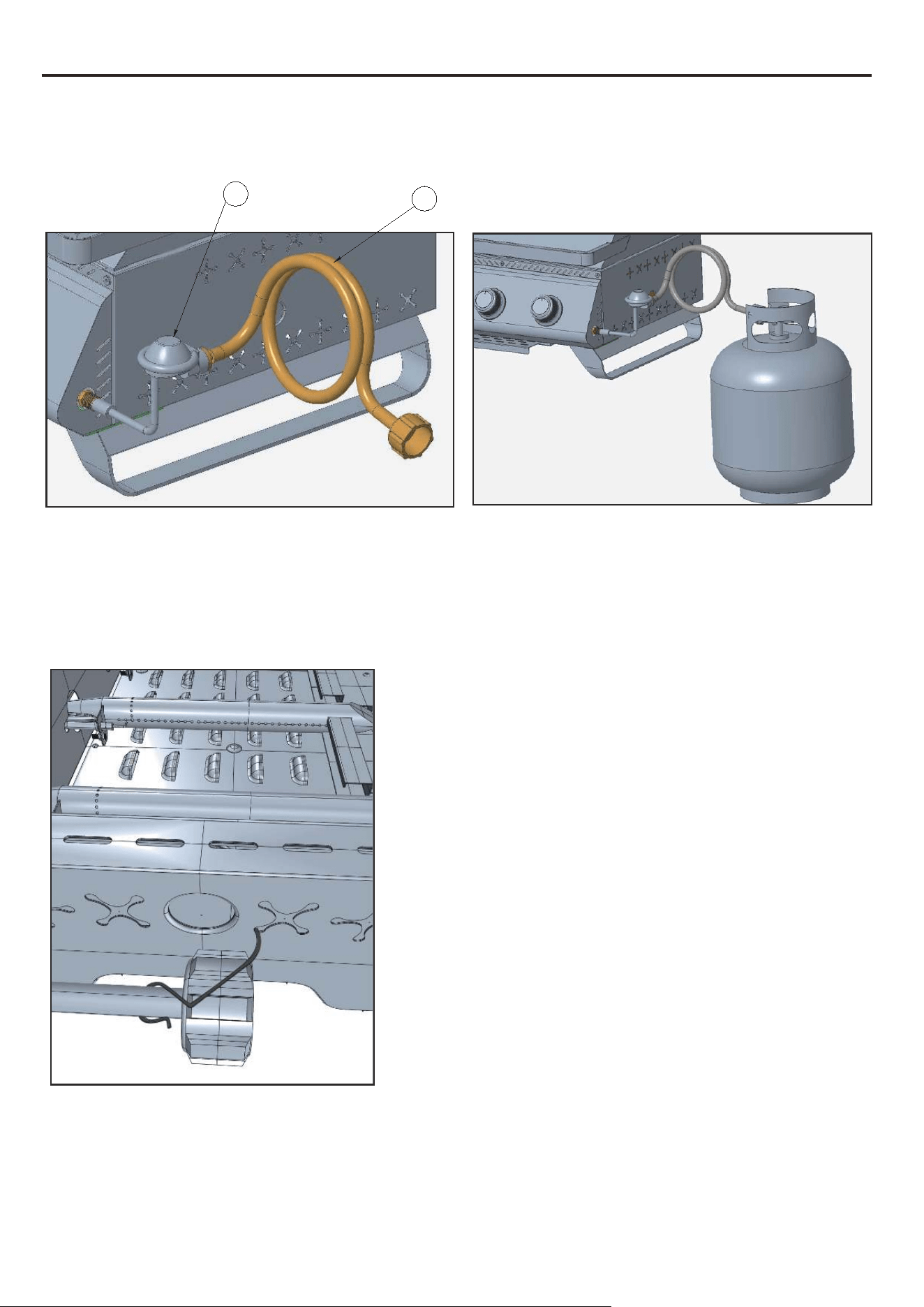

Connect the smaller threaded valve of the hose assembly (7) to the regulator valve (8) and tighten.
Connect and tighten the larger threaded valve of the hose to the threaded valve of the tank to ensure
that there is no leakage.
When the grill is not in use, hang the hose assembly(7)
on the side of the grill body with the hose hook(14).
7
8
ASSEMBLY INSTRUCTIONS
13
CHECKING FOR LEAKS
gs on the
threaded valve of the LP gas
tank, gas hose and
If you use a LP gas tank, please check for leaks:
regulator valve for leaks with a water and soap solution.
• Always perform leak test prior to lighting the grill.
• Do not smoke while testing for a leak.
• Always perform leak tests outdoors in a well-ventilated area.
• Prepare leak test solution by 50/50 ratio of liquid dish soap and water.
Total solution required is approximately 2 - 3 ounces (70 - 90 ml).
Put leak test solution in a spray bottle
• Do not use the grill until any and all leaks are corrected.
• If you are unable to correct a leak, disconnect the propane supply and call a gas appliance service
dealer.
PERFORMING LEAK TEST
.
• Ensure all control knobs are in the off position.
• Connect the gas hose to the gas supply.
• Spray leak test solution on all
• Open the cylinder valve of the LP gas tank.
gas-carrying connections an
of applied test solution indicates a gas leak. If leaks are detected
or you smell or hear gas, shut off the
gas supply valve immediately and repair or replace the defective part. Do not use the grill until
all leaks
are corrected.
WARNING
CAUTION
OPERATION INSTRUCTIONS
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT
FIRE, DAMAGE AND/OR INJURY.
14
1
the regulator valve when the grill is not in use.
The propane gas supply cylinder to be used must be constructed and marked in accordance with the
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable; and provided with a liste
Use only 20-pound cylinders (height: 18.11 inches, tank diameter: 9.84 inches, foot diameter: 8.03
inches) equipped with a cylinder connection device compatible with the connection for outdoor
cooking appliances.
The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be dropped
or handled roughly!
If the appliance is not in use, the gas cylinder must be disconnected. Storage of an appliance indoors
is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must
be stored outdoors out of the reach of children and can not be stored in a building, garage or any
other enclosed area. Your cylinder must never be stored where temperatures can reach over 125°F.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use. Only install the
type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other
types of caps or plugs may result in leakage of propane.
Before connection, be sure that there is no debris caught in the outlet of the gas cylinder, outlet of the
regulator valve or in the outlet of the burner and burner ports. Connect regulator valve and
the proper cylinder orientation to provide vapor withdrawal. NOTE: The cylinder must be fully upright
for the cylinder to have vapor withdrawal only.
17
OPERATION INSTRUCTIONS
15
OPERATION INSTRUCTIONS
WARNING
WARNING
In the connection process, make sure:
• the regulator valve
inlet connector mates with the cylinder valve o
CONNECTING THE LP TANK
.
The
cylinder valve
on the LP tank must be closed. Make sure that the
cylinder valve
is turned
threaded valve outlet. Be sure the nipple is centered in the valve outlet.
Use carefully – do not cross-thread the connection.
.
Hand-tighten the regulator valve
clockwise until it comes to a full
stop. Firmly tighten it by hand only. Do not use tools.
To Disconnect: Fully close the cylinder
valve by turning
clockwise.
Turn the
regulator valve
clockwise
to a
full stop. The cylinder supply system must be arranged for vapor withdrawal.
.
Check that the control knobs on the
grill body
are
turned off.
.
Remove the protective cap from the LP tank valve and the regulator valve of the hose
.
.
counterclockwise until the regulator assembly detaches.
Hold the regulator valve in one hand and insert the nipple into the
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT
FIRE, DAMAGE AND/OR INJURY.
16
counterclockwi
4. Hold down and turn the gas control knob anticlockwise to light the fire. If ignition does not take
place within 5 seconds, immediately turn the control knob to the off position. Wait 5 minutes and
repeat step 4 above or refer to lighting instructions in the manual.
5. Repeat step 4 above to ignite all other burners. If the burner still does not light, check that if there
is gas in the cylinder and follow the fire rod/match lighting instructions.
Note: Check the Troubleshooting Guide on page 22 for more information.
se.
Lighting The Grill
Remove all hangings or plastic straps, if present. Before you cook on your new gas grill, it is important
to clean your grill with heat. To do this, operate the grill for approximately 15 minutes with the lid closed
and the control knobs in the highest position. This will clean the internal parts by burning off any residue
and odor from the manufacturing process.
WARNING
Read instructions before lighting.
CAUTION
ion, immediately TURN OFF the
cylinder valve and then TURN OFF the control knobs.
1. Check that the control knobs are at the
off
position.
2. Open cylinder valve at tank fully by turning
3. Open the lid during lighting.
OPERATION INSTRUCTIONS
17
Press in the corresponding control knob and rotate counter-clockwise. The burner should
light immediately.
SH
UTDOWN INSTRUCTIONS
1. Turn control knobs
2. Close cylinder valve of the tank fully by turning
3. Close
clockwise to the off
position.
the lid.
clockwise.
Turn off LP supply at the cylinder when the appliance is not in use.
CAUTION
Make sure all burners controls are off except for the burner being lit and the have been lit.
Make sure the lit
rod/match
is close to the burner port
LIGHTING THE GRILL WITH
THE FIRE ROD/MATCH
1. Open the lid.
2. Insert the fire rod into the match holder or place a match between the circular wires.
3. Light the fire rod/match.
4.
.
5.
6. Repeat 2–5 steps to light
the remaining burners.
7. Adjust burners to desired cooking settings.
OPERATION INSTRUCTIONS
18
drip
Cooking
Grates
The best time to"burn-off" the cooking grates is after every use (approx. 15 minutes). The grill is already
hot from cooking thus requiring less fuel to obtain necessary temperature for "burn-off ".
To "burn-off" or heat to clean your grill, tur the burners to highest position and run for 15 minuteswith the
lid closed. Then tumn off the bumers and use a wire brush to clean excess food residuefrom the grates.
CARE AND MAINTENANCE
19

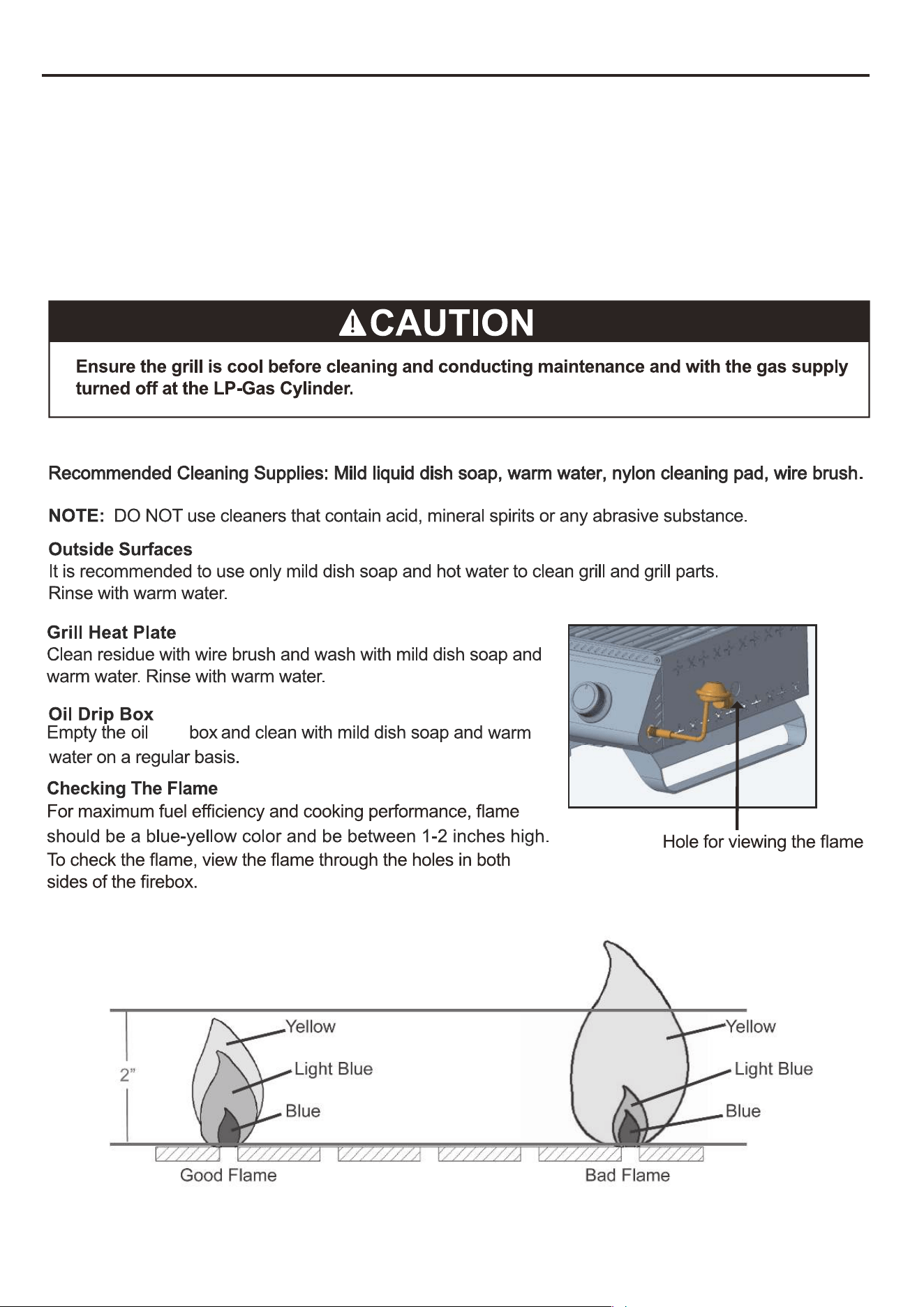

Removing The Burner Assembly - Make sure the grill is cool
7. Ensure the burner is free of any damage. If any damage is found, replace it with a new burner.
8. Clear the end of the burner
1. Make sure all control knobs are in the
off
position, the gas supply valve is closed, and the
gas hose is disconnected from the gas supply.
2. Remove the cooking grate, grill heat plates.
3.Remove the screws at end of the burner tubes as shown in the figure.
4.Slide the main burners out.
5. Detach the igniter wire from the burner tube.
DO NOT use pliers or any other tool as it may
damage the tube or wire.
6. Clear all burner ports of clogs. Use of a pin or a paper clip works well.
of insect nests, dirt or debris.
Screw
CARE AND MAINTENANCE
20
Wrong
Wrong
burner inlet
gas valve orifices
Correct
WARNING
may result, possibly
causing
serious bodily injury.
Other Care and Maintenance
ing
K
ing
1. Ensure that gas value orifices inside the grill body are correctly positioned inside burner inlet
(venturi). It is recommended that view the correct position from the bottom of the grill.
2. The use of a flashlight may be necessary to ensure the correct position.
3. It is recommended to view the correct position through the vent holes of the grill body as shown
in the
figure below.
4. Reattach each burner with the screw and reattach the igniter wire to burner tube.
Re-installing the Burner Assembly
.
.
CARE AND MAINTENANCE
21
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
Excessive
Flare Ups
Low Heat.
.
1.
The burner tube may
be
covered with grease or residue.
Insufficient gas pressure to
the unit.
3. Replace the burner tube.
3.
Cracked or broken burner tube.
1. Clean the grill components.
2. Shed the fat from meat and use
non-oil based marinades.
3. Lower temperature accordingly.
1. Grease and/or residue build-up
on grill heat plates or in firebox.
2. Excessive dripping of fat or
marinade from food.
3. Cooking temperature is too
high.
Call a qualified service agency to
check the gas supply pressure and
correct the pressure.
1. Clean the burner tube.
2. Check the connection and reconnect
any loose or disconnected wire.
2. The
burner tube may have
a loose or disconnected wire.
If you have any questions regarding the product, please call customer service at 818-468-1498.
The burner does
not light by using
the ignition
procedure(weak
or no sparking
generated).
TROUBSHOOTING
22
1. Cylinder valve is not on or fully
2. Empty tank.
3
. Poor connection between the
regulator valve and the propane
cylinder or the threaded valve
of the LP gas cylinder.
4. Burner inlet is blocked.
5. Wrong connection
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
The burner will not
light with the fire .
N
OTICE: Some states do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not
which may vary from state to state.
The rod
not reach burners.
Empty tank.
Poor connection between the
regulator valve and the propane
cylinder or the threaded valve of
the LP gas cylinder.
Burner inlet blocked.
1. Use the fire rod correctly as instructed in
LIGHTING THE GRILL WITH THE FIRE ROD
/MATCH section.
2. Check the fuel level and replace the tank if
necessary.
3. Turn off grill knobs first. Check the
connection between the regulator valve and
the propane cylinder. Or close the cylinder
valve of the LP gas tank and check the
connection between the regulator valve and
the threaded valve of the LP gas tank.
3. Turn off grill knobs first. Check the
connection between the regulator valve and
the propane cylinder. Or close the cylinder
valve of the LP gas tank and check the
connection between the regulator valve and
the threaded valve of the LP gas tank.
4. Clean the burner inlet (venturi) and the
burner as described by Care and
Maintenance section in the manual.
1. Fully open the cylinder valve by turning
counterclockwise.
2. Check the fuel level and replace the fuel if
necessary.
4. Clean the burner inlet (venturi) and burners
as described by Care and Maintenance
5. Connct the regulator valve and the propane
cylinder or the LP gas tank using the correct
method as shown in step H or I in the
ASSEMBLY INSTRUCTIONS section.
section in the manual.
opened.
rod.
TROUBSHOOTING
23
IMPORTANT
Simply call our customer service department for any consulting:
818-468-1498
818-468-1498
818-468-1498
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO
BAJO GARANTÍ
Sólo hay que llamar nuestro departamento de servicio
al cliente en
caso de tener preguntas o i
nquietudes:
A.
ROWAN ELECTRIC APPLIANCE LLC
818-468-1498
Thank you for purchasing this product! If you have any question
about the product such as missing parts, damaged products,
product assembling, operation, etc., please contact us via our
customer service phone: 818-468-1498.
