1
批准 Approved by： 陈国飞
TOASTER
INSTRUCTION MANUAL
MODEL: TA01321A-UL
Read this manual thoroughly before using and save it for future reference
2
Guangdong Xinbao Electrical Appliances Holdings Co., LTD
ADDRESS: ZHENGHE SOUTH ROAD, LELIU TOWN, SHUNDE DISTRICT,FOSHAN CITY, GUANGDONG PROVINCE, CHINA
IMPORTANT SAFEGUARDS
When using electrical appliance. Basic safety precautions should always be followed
including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cord, plugs, or (state specific part or
parts in question) in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting
on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions or has been damaged in any manner. Return appliance to the nearest
authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may
cause injuries.
8. Do not use outdoors (this item may be omitted if the product is specifically intended for
outdoor use).
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other
hot liquids.
12. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect,
turn any control to "off", then remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Oversize foods, metal foil packages, or utensils must not be inserted in a toaster as
they may involve a risk of fire or electric shock.
15. A fire may occur if toasters are covered or touching flammable material, including
curtains, draperies, walls, and the like, when in operation.
16. Do not attempt to dislodge food when toaster is plugged in. (This may be omitted if
toaster employs sheathed type heating elements.)
17. Do not operate unattended.
18. When heating toaster pastries, always use the lightest toast color setting.
The bread may burn, therefore do not use the toaster near or below combustible material,
such as curtains.
3
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Save these instructions.
1. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are older than 8
and supervised.
2. Keep the appliance and its cord out of reach of children less than 8 years.
3. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. For Europe market:
6. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are older than 8
and supervised.
7. Keep the appliance and its cord out of reach of children less than 8 years.
8. The surfaces are liable to get hot during use.
9. The door or the outer surface may get hot when the appliance is operating.
10. The bread may burn, therefore do not use the toaster near or below combustible
material, such as curtains.
11. The Hot surface warning symbol is marked on the appliance means that the appliance
may be hot during use.
Notes on the cord plug
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk
of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not
4
fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not modify the plug in any way.
Notes on the cord
a) A short power-supply cord (or detached power-supply cord) is to be provided to
reduce risks resulting from becoming entangled in or tripping over a long cord.
b) Longer detachable cord or extension cord is available and may be used if care is
exercised in their use.
c) If a long detachable power-supply cords or extension cord is used,
Ⅰ.The marked electrical rating of the detachable power-supply cord or extension
cord should be at least as great as the electrical rating of the appliance, and.
Ⅱ.The cord should be arranged so that it will not drape over the countertop or
tabletop where it can be pulled on by children or tripped over unintentionally.
Ⅲ .If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord.

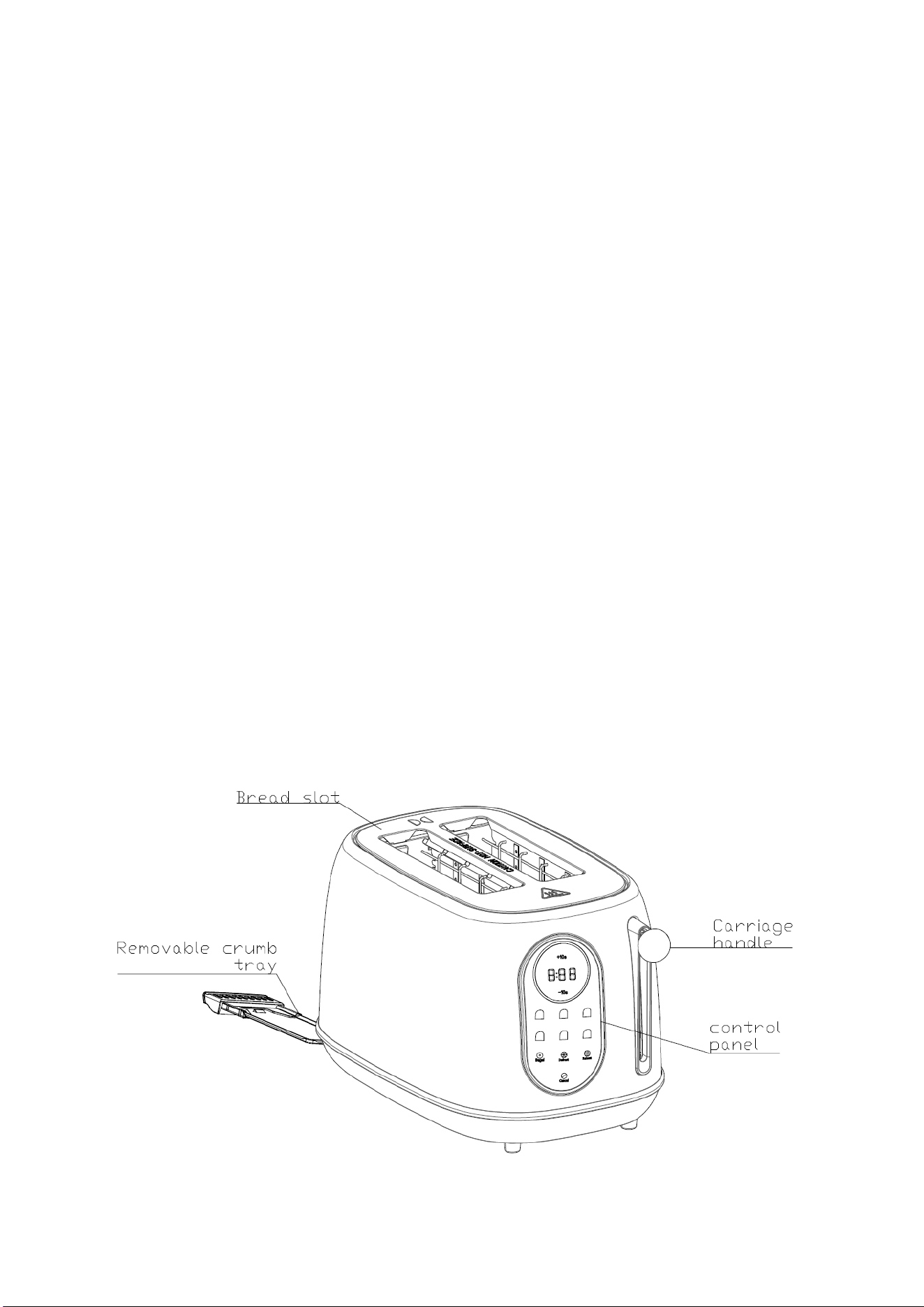

KNOW YOUR TOASTER
5
FOR THE FIRST USE
As there is manufacturing residue or oil remained in the toaster or heat element, usually it
will emit the odor for the first use. It is normal and will not occur after several times use,
for the first use it is suggested the operation according to the below steps, except without
bread, then let the toaster cool down and begin toasting the first slice.
USING YOUR TOASTER
1. Put bread slice into the bread slot, it can be inserted two slices at most every time. Only
the regular slice can be placed into the bread slot.
Note: Make sure the crumb tray is completely positioned in place before using.
2. Plug the power cord into the outlet.
3. Set color control knob to your desired color. There is 6-position level, the lowest is
white and the highest is puce. The bread slice can be toasted to golden color at the position
of “3”.
Note: 1) Toasting color for one side is darker than that for double bread at the same level.
2) If toasted continuously, toasting color for the latter bread is darker than the color
of previous cycle at the same level.
4. Press carriage handle down vertically until it is positioned in place, the indicator of
Cancel will be illuminated, and toasting begins. Once the bread has been toasted to the
preset color, the carriage handle will be automatically sprung up, and you can remove the
bread readily.
Note: The carriage handle can only be latched when the appliance connects to the power supply.
5. During the toasted process, you may observe the toasting color. If it is satisfactory, you
may interrupt the toasting process by pressing the Cancel button at any time.
NOTE: During toasting, you may also observe the toasting color. If it is satisfactory,
you can press the Cancel button to cancel the operation at any time, but never lift
carriage handle to cancel toasting.
6. If the bread has been taken out from refrigerator. Set color control knob to your desired
color. Press carriage handle down vertically until it is positioned in place, then press
DEFROST button and the indicator of DEFROST will be illuminated. In this mode it
will be toasted to your desired color.
7. If you want to REHEAT the cold toasted bread. Turn the knob to the heating position,
Press carriage handle down vertically until it is positioned in place, In this mode toasting
time is fixed, so long as time is running over, the carriage handle will automatically spring
6
up and end up the reheating process.
8. If you only want to toast one side of the bread slice. Press carriage handle down
vertically until it is positioned in place, set color control knob to your desired color, then
press the Bagel button and the indicator will be illuminated. In this mode the heat elements
in outer sides are heating. But the heat elements in the middle sides will not heating. Once
the bread has been toasted to the preset color, the carriage handle will automatically pop
up.
9. If you want to cancel baking bread，you need to press and hold the cancel button for 0.5
seconds to trigger the cancel function.The bread will pop up and the work will be
cancelled,which is more effective in precenting accidental touch from causing
cancellation.
CAUTION
1. Remove all protective wrappings prior to toasting.
2. If toaster starts to smoke, Press the press key to stop toasting immediately.
3. Avoid toasting the food with extremely runny ingredients such as butter.
4. Never attempt to remove bread jammed in the slots without unplugging the toaster from
the electrical outlet first. Be sure not to damage the internal mechanism or heating
elements when removing bread.
5. The bread slot is only applicable for toasting regular bread slice
6. In order to achieve uniform color we recommend that you should wait minimum 30s
between each toasting so that color control can reset automatically.
CLEANING AND MAINTENANCE
1. Before cleaning, unplug from the appliance and let the appliance cool down completely.
2. Wipe the outside with soft dry cloth, never use metal polish.
3. Pull out crumb tray at the bottom of toaster and empty it. If toaster is used frequently,
accumulated bread crumbs should be removed at least once a week. Make sure the crumb
tray is completely closed before using the toaster again.
7
4. When not use or storage, the power cord may be wound under the bottom of toaster.
ENVIRONMENT FRIENDLY DISPOSAL
You can help protect the environment!
Please remember to respect the local regulations:
hand in the non-working electrical equipments to
an appropriate waste disposal centre.
