User Manual
WINE COOLER&BEVERAGE CENTER
JC-90VEL-F
Thank you for purchasing this product! Please read the instructions carefully before using your
product. If you have any questions about the product, please contact us via Amazon Message or
customer service number: 213-4467172 or 661-4358826
.
INSTALLATION
STOP
Follow the Instructions Below
Prior to Using the Beverage Center !
Do not plug the beverage center into a power
outlet until it has been resting in its upright
position for at least four (
4
) hours.
If the beverage center has been laid on its side, placed upside
down or tilted more than 45
°
during moving or transpo, it is
extremely impoant to allow the refrigerant and compressor
oil to separate and settle so the compressor operates properly.
Failure to do so will cause severe mechanical problems with the
unit's motor/compressor.
TRANSPORT
Use two or more people to move the beverage center.
Do NOT use stainless steel handle to move or lift the unit.
VENTILATION SPACE
In order for the beverage center to function efficiently, it MUST be placed in an adequately
ventilated space to allow for heat dissipation. It is impoant to allow at least 2 inches (50 mm) of
space on each side and above the unit, and 4 inches (100 mm) of space behind the unit.
The door requires approximately 22 inches (558 mm) of space in front of the beverage
center to open. To fully utilize the unit, space should be allowed for the door to open fully to 160
°
.
STABLE SURFACE
The beverage center must be placed on a flat, stable surface. Adjust the unit's front
leveling legs to assure quiet operation and prevent rattling when the compressor activates.
IMRNT:
- Never place the unit on soft materials such as foam, plastic or thick textured carpeting.
-
Make sure the unit and door are aligned. Use the adjustable legs (front only)to align the
unit and/or the screws under the triangular bracket cover to align the door. See page
4 for more detailed instructions on accessing the metal bracket.
1

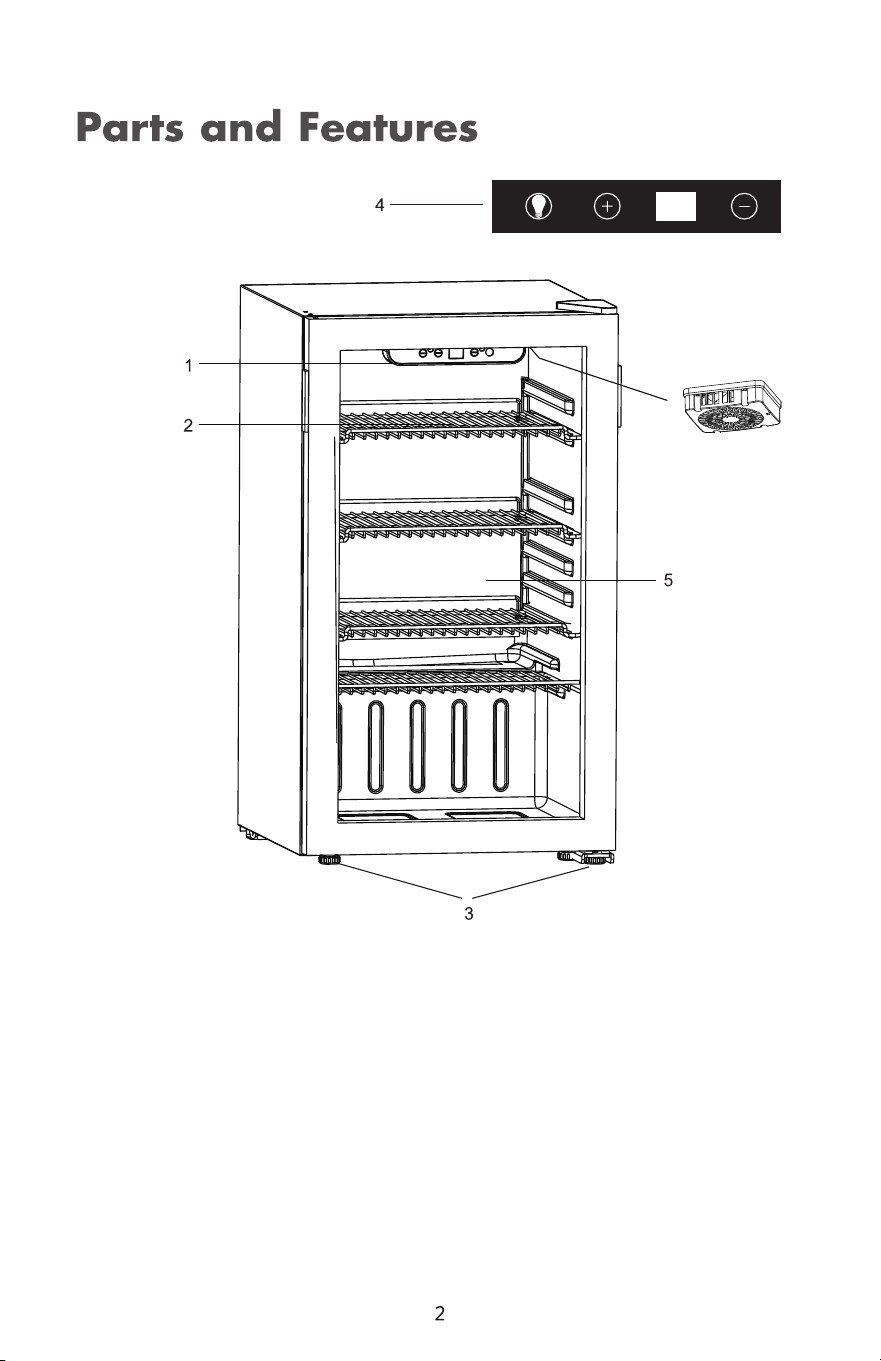

1.Interior Light
2.Wire Shelves（4）
3.Adjustable Leveling Legs
4.Touch Control Panel
5.Tinted Double Pane Glass Door
7.Fan
6.Drip Tray in Back（not shown）
7
INSTALLATION
POWER SUPPLY
T
his beverage center is equipped with a 11560Hz single phase motor.
Do not use a ground-fault circuit interrupter (GFCI) outlet to connect the unit. (Fig. A.)
The power plug is a standard grounded three-prong non-polarized flush mount, which
allows for easier connection to power outlets.
The power plug must be connected to the outlet directly, and never to an extension cord.
IMPORNT: Do not cut or remove the third ground prong from the power cord.
POWER CORD
Never shoen or lengthen the power cord. Do not fold or coil the power cord.
IORNT - Never place the excess length of power cord into the compressor enclosure in the
back of the beverage center. This action creates a dangerous heat build-up which can
melt the cord, cause an electrical hazard and may potentially cause a fire.
Touching the power cord to the compressor at the back of the unit during operation can create an
electrical hazard and damage the compressor.
If the power cord is damaged, it must immediately be replaced by a trained service provider, as
special tools are required.
CLEAN BEFORE USE
IMPORNT: Never use with an extension cord. Power cord length is 5 feet long (1524 mm).
To remove any manufacturing dust and residual odors, wipe the beverage center inside and
out with a damp cloth and a solution of baking soda and warm water (2 tbsp. baking soda to 1 qt.
water). Wipe away any residual baking soda with a clean moist cloth. Allow to dry before operating.
Periodically clean the beverage center with a sponge or cloth moistened with mild soapy water,
or baking soda and water.
PROTECT FROM MOISTURE
Heavy moisture in the environment can cause degradation to the insulation, as well as rust to the
cabinet, compressor and / or power supply.
Do not spray the beverage center with water.
PROTECT FROM HEAT
Place the beverage center away from any heat source or direct sun.
Do not operate your beverage center outdoors or in an environment with high
temperatures and I or high humidity, such as garages, attics or outdoor patios.
The temperature variances will create condensation on the glass door.
Do not cover the beverage center with tarps or other items while operating, as this may
cause overheating.
3
INSTALLATION
DOOR REVERSAL INSTRUCTIONS
TOOLS NEEDED: Phillips screwdriver #2 or 5/16" (8 mm) socket tool and thin flathead screwdriver.
The beverage center is shipped with the door hinge brackets attached on the right side.
The door may be reversed to allow opening from the le side.
If you plan on reversing the door hinges, DO NOT plug the beverage center into the
power outlet. And the screwdriver is not included.
REMOVE GLASS SHELVES BEFORE REVERSING THE DOOR.
IMRNT: NEVER LAY THE BEVERAGE CENTER ON ITS BACK.
The compressor and motor components are installed at the back of the beverage
center and may easily be damaged if the unit is placed on its back.

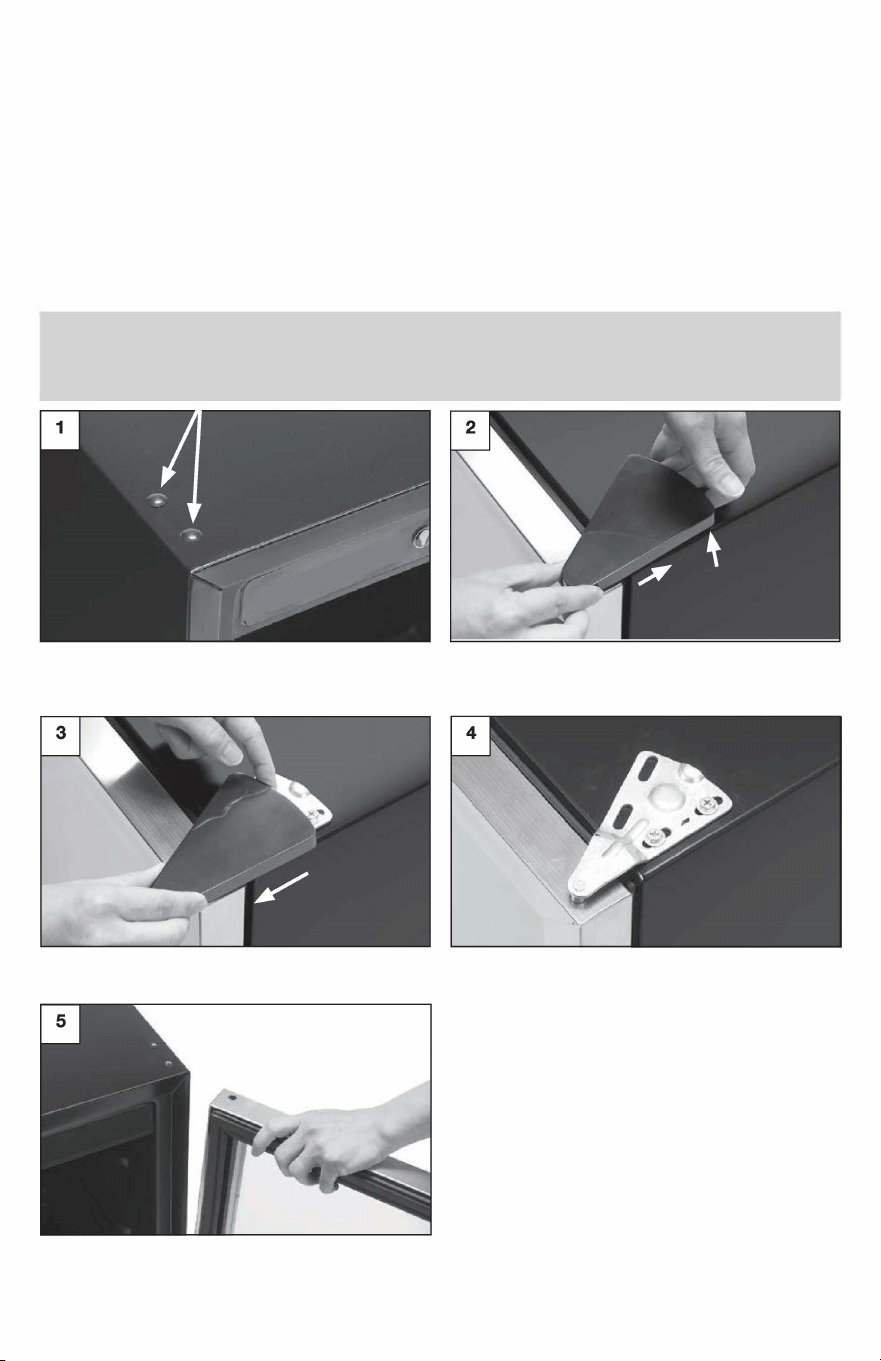

Gently remove the plastic hole inse plugs from
the left side of the beverage center with a thin
flathead screwdriver. Save the plugs for Step 11.
Slide the cover toward the front of the beverage
center and lift off.
Lift and remove the door.
4
Loosen the triangular bracket cover by pushing the
bracket cover toward the back of the beverage
center and simultaneously pulling up.
Remove the metal bracket by unscrewing the three
screws.
INSTALLATION
DOOR REVERSAL INSTRUCTIONS
---
Switch Axel
Inse Position
✓

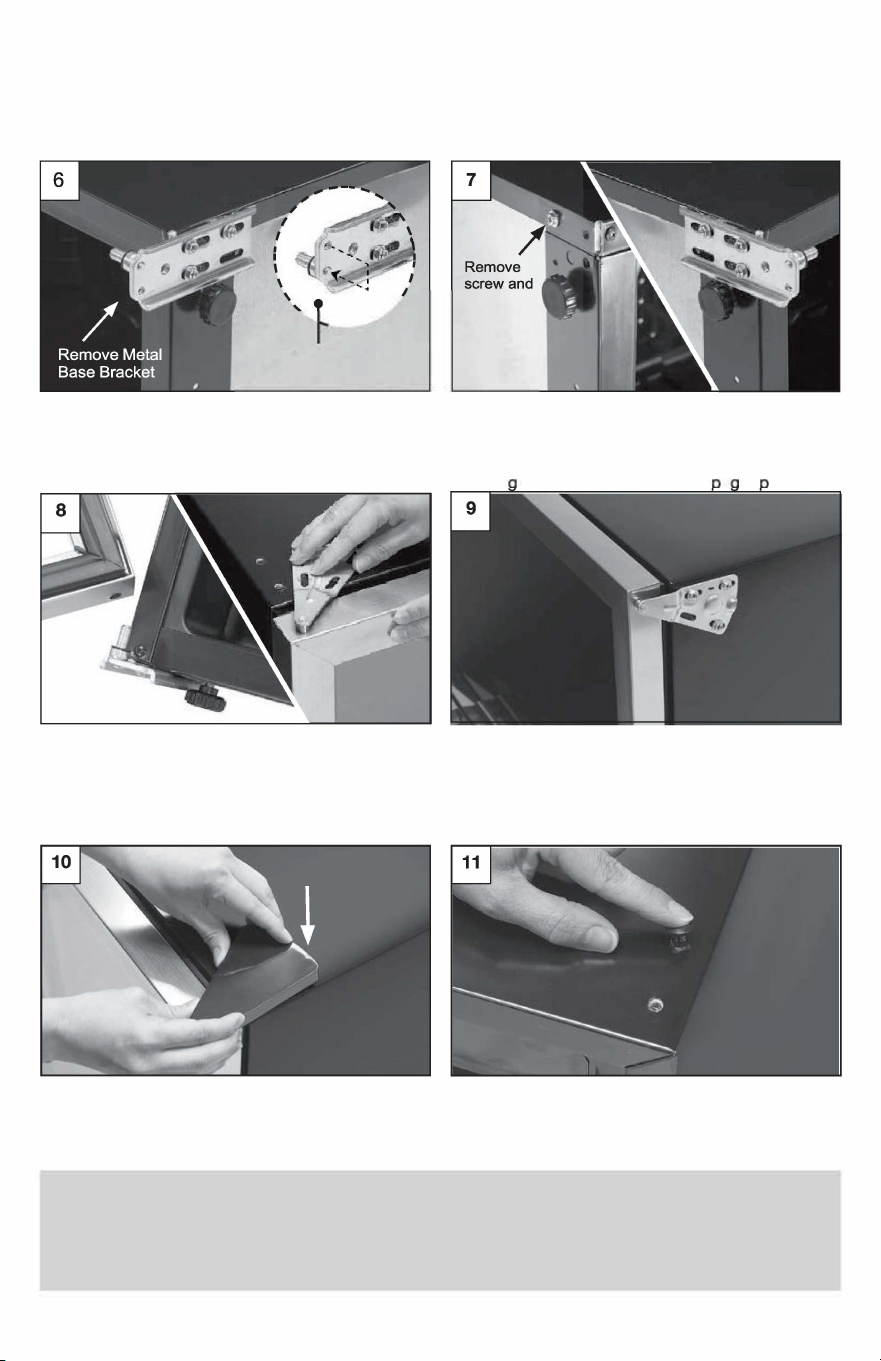

With the unit on its side, remove the bottom
metal base bracket with a nylon washer. Unscrew
the axle insert with a flathead screwdriver. Screw
into the opposite hole of the metal base bracket.
To reattach the door, place the door onto the bottom
axle insert. Place the top bracket into the door and
align the metal bracket holes over the holes in the
top of the unit cabinet. Tighten the three screws to
hold in place.
Reinstall the triangular bracket cover by carefully
threading the bracket cover onto the metal bracket
and pressing it down.
re-inse
into the
opposite
side
Gently place the beverage on opposite side to
complete the door reversal. Remove screw and
re-insert into the opposite side. Re-attach the
metal base bracket with nylon washer on the
new hin e side. Lift the unit to an u ri ht osition.
The rubber gasket should be compressed on all
sides of the door. If the gasket is more compressed
on one side, the metal bracket position should be
adjusted. Make sure the door is level. Once the door
position is finalized, securely tighten the screws.
Reinstall all plastic hole inse plugs. The re-installation
of the plastic hole inse plugs is impoant to
maintain the seal and integrity of the insulation. Extra
inses are included in case the plugs are damaged
during removal.
IMPORNT: It is extremely impoant to wait at least six hours before plugging the
beverage center into a power outlet. During the door reversal process, the refrigerant and
compressor oil fluids are mixed. It is impoant to allow the refrigerant and compressor oil to
separate and settle so the compressor operates properly. Failure to do so will cause severe
mechanical problems, perhaps even the destruction of the unit's motor/compressor, and will void
the warranty.
5
INSTALLATION
USING YOUR BEVERAGE CENTER
Staup
Connect the power cord to a standard wall outlet. Do not use a GFCI outlet to connect the unit
(see page 3). After the connection, you will immediately hear a sho beep.
Temperature - Adjustable Thermostat Control
The default temperature is 4守F. Use the 0 and
0
buttons to set the desired temperature
between the range of 32
°
F - 61
°
F.
The display will flash while the temperature is being set. After a few seconds, it will reve to its
current internal temperature reading The digital display reading will adjust as the unit cools.
While the unit is adjusting to the new setting
,
press the
0
+ or
0
- buttons to view the selected
temperature setting.
If there is a power outage, the unit will reve to the last temperature setting once power is restored.
Loading Beverages
When first loading the beverage center to full capacity, we recommend the following steps
to effectively cool a large number of beverages.
1. Use the Adjustable Thermostat Control to set the temperature to 43
°
F (also the default
temperature).
2. Allow the beverage center to cool for a minimum of two hours.
3. Load the beverages. To achieve maximum capacity, refer to the loading diagrams.
4. Aer initially filling with beverages, the internal temperature will rise as indicated on the display.
5. Once the beverage center has cooled the beverages to 4守F, use the Adjustable
Thermostat Control to select a desired cooler internal temperature (the lowest temperature
setting is 40
°
F).
6. Allow several hours for the beverage center to cool to the desired lower temperature.
Note: It is normal for temperature variances to occur inside the unit, and areas near the door will
ha
ve slightly warmer temperatures.
6
INSTALLATION
LED LIGHT
Press the button to turn the LED light on and off.
To enhance the lifespan of the LED light and conserve energy, it is recommended to
predominantly utilize the natural light for loading and selecting beverages.
SHUTDOWN
If the beverage center will not be in
use for a long period of time, disconnect it from the power
outlet, clean the inside thoroughly and leave the door open to prevent mildew.
SAFETY WARNING
The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
This beverage center should not be positioned within a recessed or enclosed cabinet. It is
designed for freestanding installation only. This unit is not designed to be installed in an RV,
garage or any outside installation.
The surface of the compressor may become hot during normal operation. Do not touch it as this
may cause injury.
OTHER DANGERS
Keep the beverage center away from any combustible or volatile liquids or gases,
including gasoline, oil, alcohol, paint, paint thinners and solvents. Such chemicals should never be
stored in the unit.
7
DEFROSTING
Frost may develop on the interior back panel of the unit when the temperature setting is very low
and the unit is not fully stocked with beverages. The presence of frost may force the unit to run
continuously and thus increase internal temperature.
To defrost the beverage center:
1. Use the 0 and 0 buttons to increase the temperature until the compressor turns o.
2. Allow the internal ice/frost buildup to melt. Ensure the internal drain (located at the middle back
of the lower shel is not clogged.
3. During this time, the melted frost flows through an internal drain into a holding pan on top of the
compressor. The heat of the compressor evaporates the liquid.
4. Reset the temperature to 43
°
F and allow it to cool for at least one hour.
5. Adjust to the desired temperature setting.
CLEANING AND MAINTENANCE
It is impoant to periodically clean and maintain the beverage center. When performing
maintenance, make ceain the unit is unplugged from the power outlet.
Wipe the inner and outer surfaces of the beverage center clean with a damp cloth. If
needed, use a gentle detergent or a solution of baking soda and water. Remove any residue with
clean water and a soft cloth, then dry with another cloth.
Once clean, you may use a common kitchen appliance wax on outer suaces.
Inspect, clean and maintain the rubber gasket around the door. A small amount of petroleum jelly
applied to the bracket side of gaskets will keep the gasket pliable and ensure a good seal.
IMRNT:
- Do NOT use hot water, harsh detergents, gasoline, kerosene, solvents, acids or anything
flammable to clean the beverage center. These can damage the paint and degrade
the plastic components.
- Do NOT spray the beverage center with water as this may cause rust and degrade
the insulation.
- Do NOT clean glass shelves with hot water when they are cold. Shelves may break if
exposed to sudden temperature changes or impact. For your protection, tempered glass is
designed to shatter into many small pebble-size pieces.
- If any replacement components are required, they must be obtained from Tramontina's
Customer Service Depament. This ensures the correct replacement components are
provided, and minimizes the risk of possible ignition due to incorrect pas or improper
service.
8

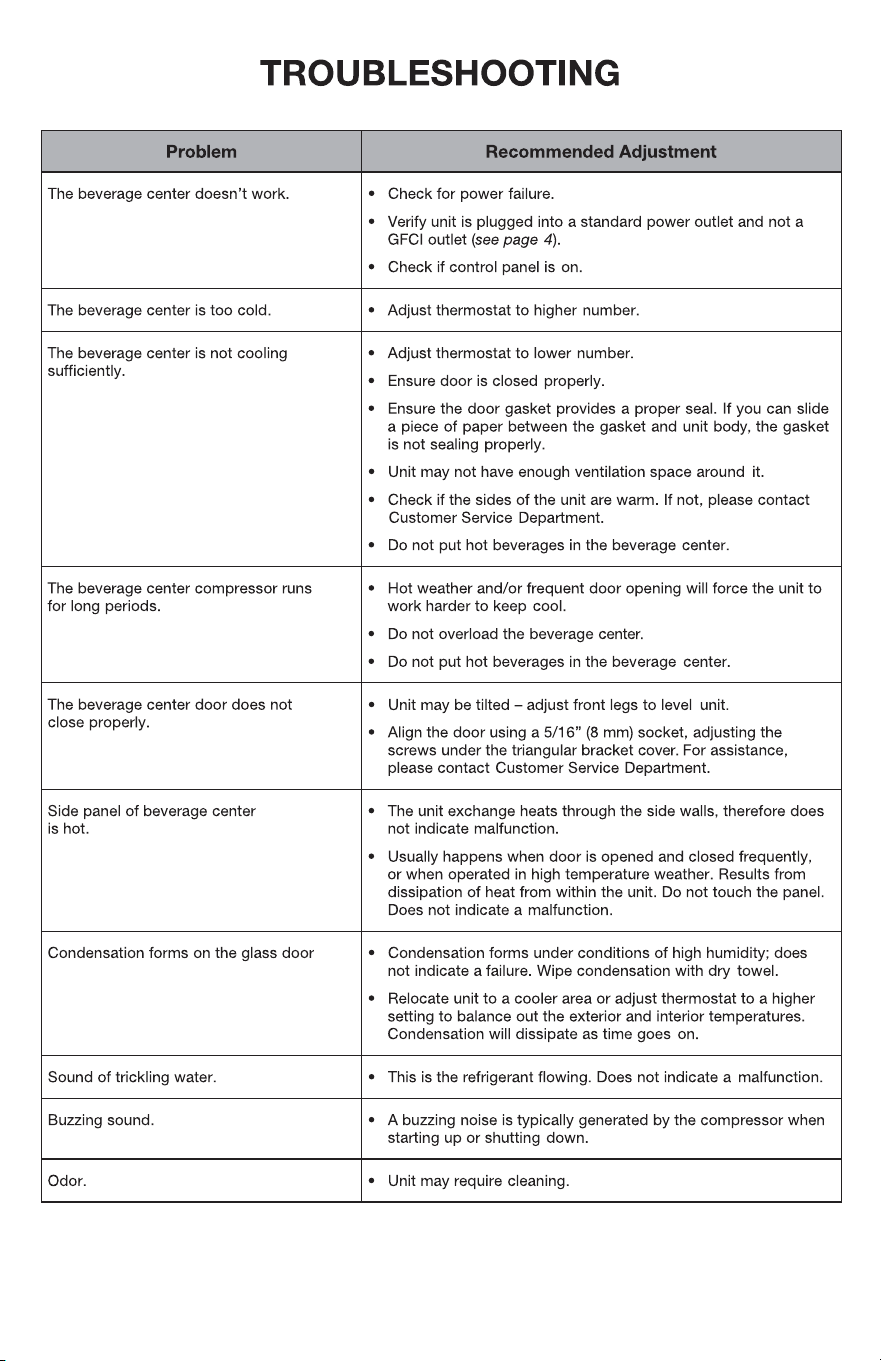

9

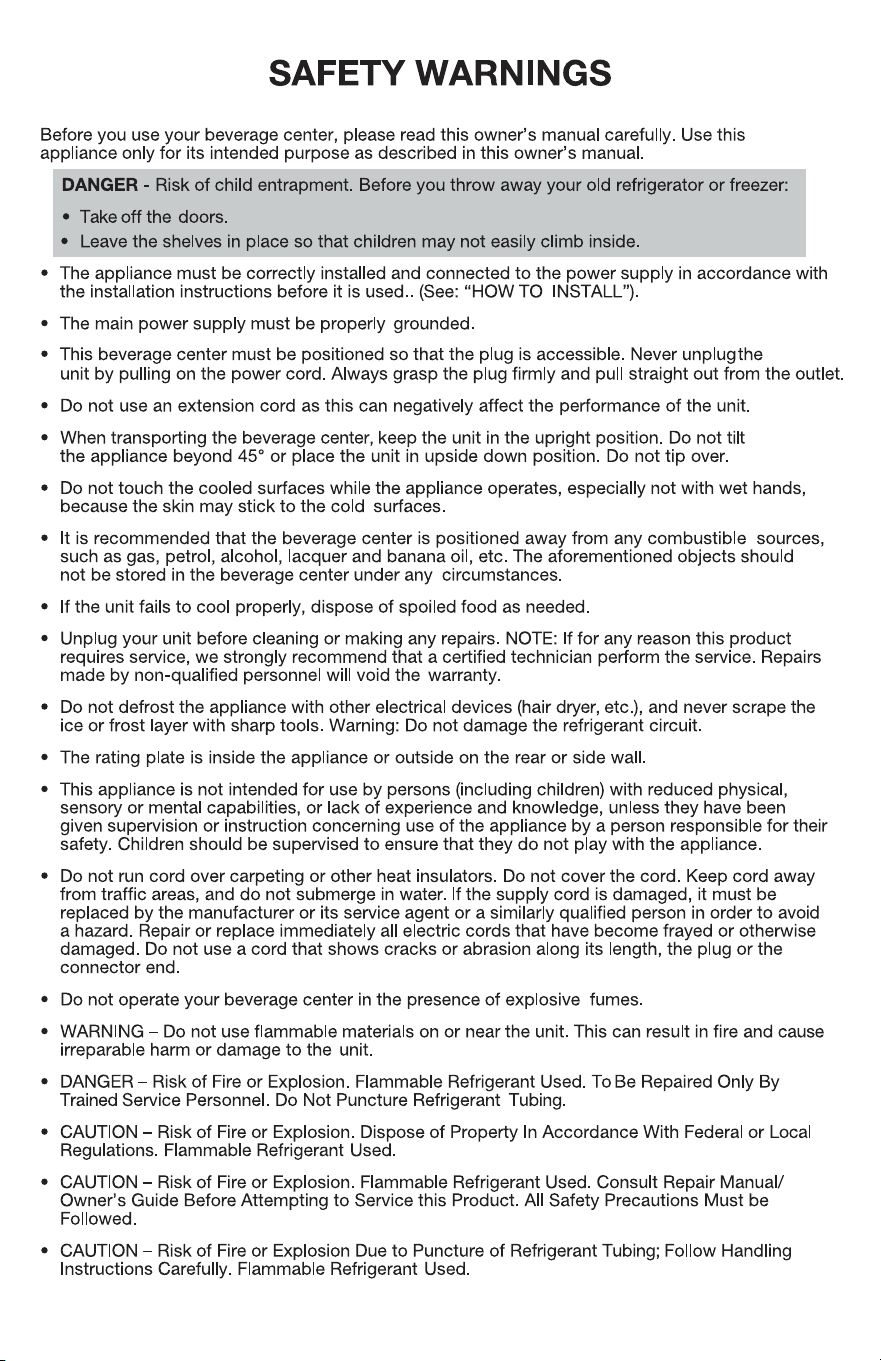

10

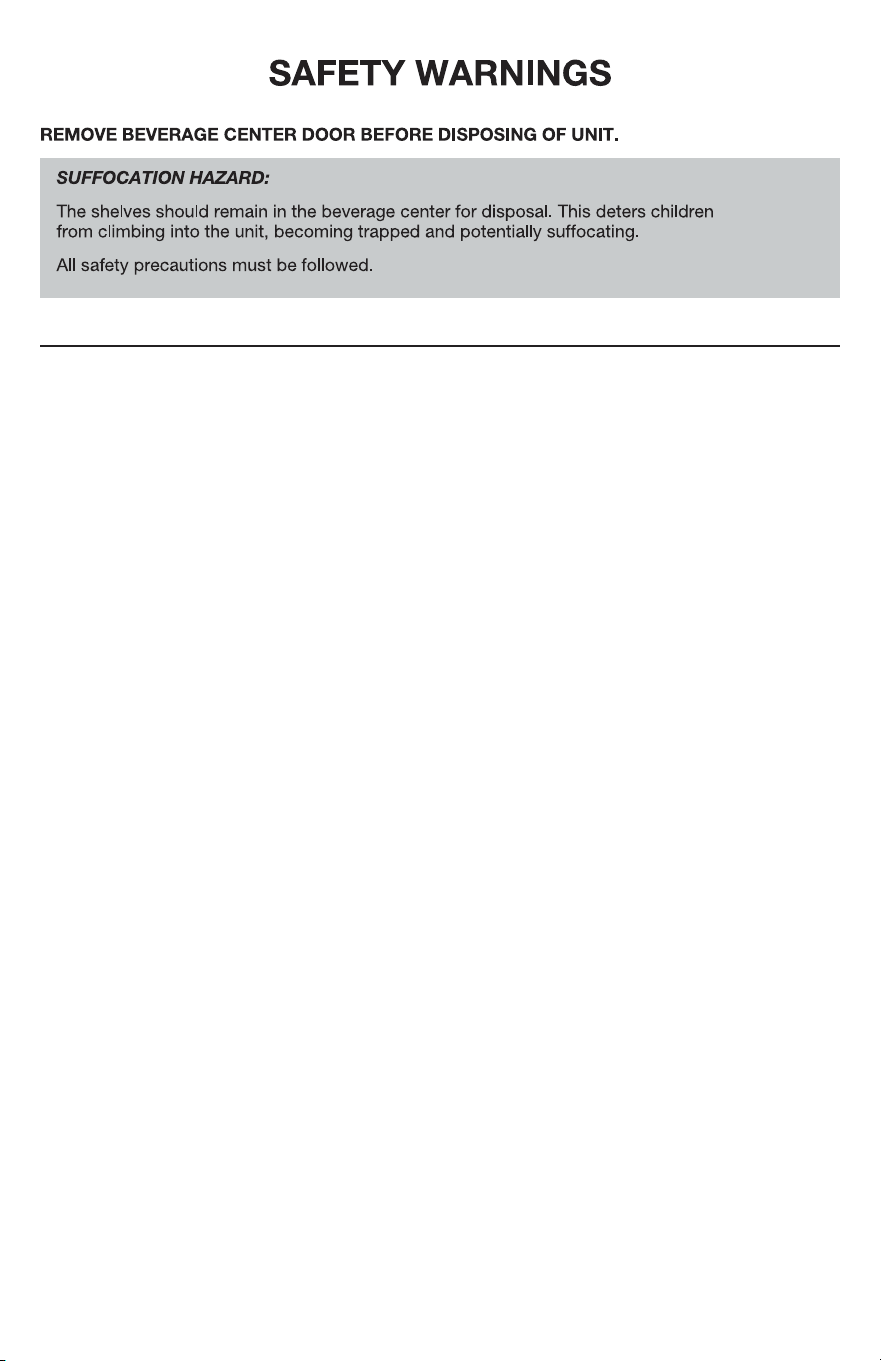

11
IMPORTANT
Please call our customer service department for any questions or
concerns:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.
AVIS
Veuillez appeler le service à
la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO
GARANTÍA.
Thank you for purchasing this product! If you have questions about assembly or operation of this
product, are missing parts, or if the product is damaged, please contact us via Amazon Message or call
customer serve Phone: 213-4467172 or 661. -4358826.
V2
Address: ROWAN ELECTRIC APPLIANCE LLC 28407 Ascent Way,
Santa Clarita, CA 91350 Phone: 213-4467172 or 661-4358826
