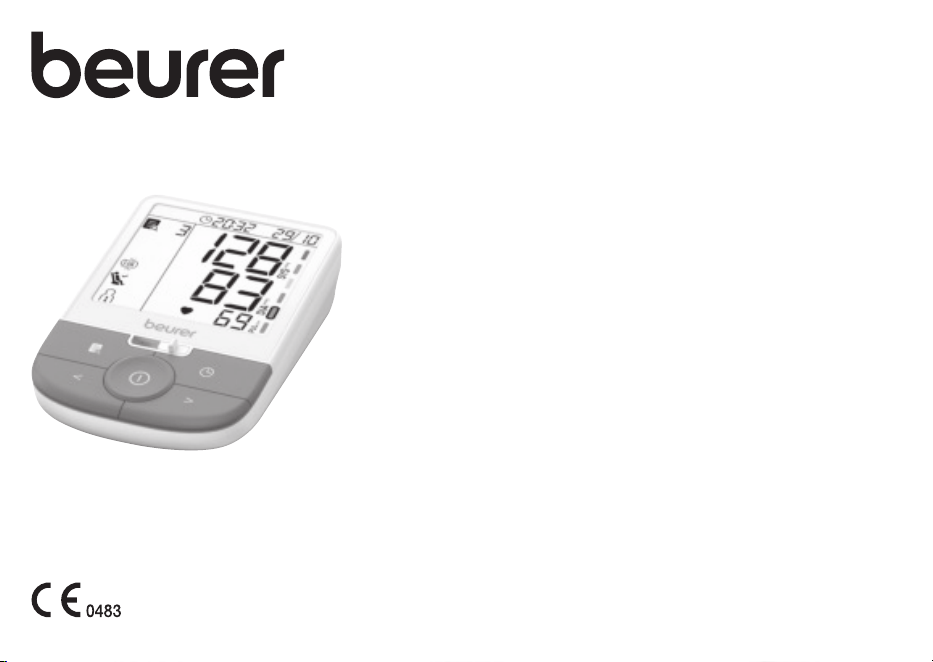

EN Upper arm blood pressure monitor
Instructions for use
BM 53
2
B
C
D
x3
mmHg
kPa
SYS
mmHg
kPa
DIA
/min
PUL
1 2
AVG
AM
PM
/
AFIB
OK
25
24
23
22
21
20
19
12
161718 15
13
14
1
2
8
7
10
11
6
9
1 2 3 4
5
A
4 x 1,5 AAA (LR6)
3
1. INCLUDED IN DELIVERY
Check that the exterior of the cardboard delivery packaging is
intact and make sure that all contents are present. Before use, en
-
sure that there is no visible damage to the device or accessories
and that all packaging material has been removed.
If you have any doubts, do not use the device and contact your
retailer or the specified Customer Services address.
• Blood pressure monitor
• Upper arm cu (22-42 cm)
• Instructions for use
• Batteries, see chapter “Technical specifications”
• Storage bag
2. SIGNS AND SYMBOLS
The following symbols are used on the device, in these instruc-
tions for use, on the packaging and on the type plate for the de-
vice:
WARNING
Indicates a potentially impending danger. If it is not avoided,
death or serious injury will occur.
ENGLISH
Read these instructions for use carefully. Observe the warnings and safety notes. Keep
these instructions for use for future reference. Make the instructions for use accessible
to other users. If the device is passed on, provide the instructions for use to the next user
as well.
1. Included in delivery ................................................................3
2. Signs and symbols .................................................................3
3. Intended purpose ................................................................... 5
4. Warnings and safety notes .....................................................5
5. Device description ..................................................................8
6. Usage ..................................................................................... 8
6.1 Initial use .......................................................................... 8
6.2 Before the blood pressure measurement ........................9
6.3 Taking a blood pressure measurement .......................... 10
6.4 Evaluating the results ..................................................... 11
6.5 Displaying and deleting measured values .....................14
7. Cleaning and maintenance ................................................... 14
8. Accessories and/or replacement parts ................................15
9. Troubleshooting .................................................................... 15
10. Disposal ...............................................................................15
11. Technical specifications .......................................................16
12. Guarantee/service ................................................................17
CONTENTS
4
CAUTION
Indicates a potentially impending danger. If it is not avoided,
slight or minor injuries may occur.
Product information
Note on important information
Observe the instructions
Read the instructions before starting work and/or
operating devices or machines
Disposal in accordance with the Waste Electrical and
Electronic Equipment EC Directive – WEEE
Do not dispose of batteries containing harmful sub-
stances with household waste
Manufacturer
CE labelling
This product satisfies the requirements of the applica
-
ble European and national directives.
B
A
Marking to identify the packaging material.
A = material abbreviation, B = material number:
1–7 = plastics, 20–22 = paper and cardboard
Separate the product and packaging elements and
dispose of them in accordance with local regulations.
IP20
Protected against solid foreign objects 12.5mm in
diameter and larger
Direct current
The device is suitable for use with direct current only
UDI
Unique device identifier (UDI)
Identifier for unique product identification
Batch designation
Item number
S
N
Serial number
Medical device
Type BF applied part
Galvanically isolated applied part (F stands for “float
-
ing”); meets the requirements for leakage currents for
type B
Temperature range
Humidity range
Atmospheric pressure limitation
Importer symbol
Type number
Date of manufacture
Swiss authorised representative
5
3. INTENDED PURPOSE
Intented use
The blood pressure monitor (hereinafter, device) is intended for
the fully automatic, non-invasive measurement of arterial blood
pressure and pulse values on the upper arm.
It is designed for self-measurement by adults in a domestic en
-
vironment.
Intended users
The blood pressure measurement is suitable for adult users
whose upper arm circumference is within the range printed on
the cu.
The device is also ideal for taking blood pressure measurements
on women who are pregnant and people with diabetes.
Clinical benefits
The user can record their blood pressure and pulse values quickly
and easily using the device. The recorded values are classified
according to internationally applicable guidelines and evaluated
graphically. Furthermore, the device can detect any irregular heart
beats that occur during measurement and inform the user via a
symbol in the display. The device saves the recorded measure
-
ments and can also output average values of previous measure-
ments. The recorded data can provide healthcare service pro-
viders with support during the diagnosis and treatment of blood
pressure problems, and therefore it plays a part in the long-term
monitoring of the user’s health.
Indications
In the event of hypertension or hypotension, the user can inde-
pendently monitor their blood pressure and pulse values at home.
However, the user does not need to be suering from hyperten
-
sion or arrhythmia in order to use the device.
Contraindications
WARNING
• Do not use the blood pressure monitor on newborns, children
or pets.
• Persons with reduced physical, sensory or mental capabilities
should be supervised by a person responsible for their safety
and receive instructions from that person on how to use the
device.
• Do not use the device if you are using electrical implants (e.g.
pacemakers).
• Do not use the device if you have metal implants.
• Do not use the cu on people who have undergone a mastec
-
tomy or who have had their lymph nodes removed.
• Do not place the cu over wounds as this may cause further
injury.
• Make sure that the cu is not placed on an arm whose arteries
or veins are undergoing medical treatment, e.g. intravascu
-
lar access or intravascular therapy, or an arteriovenous (AV)
shunt.
• Do not use the device on people with allergies or sensitive
skin.
Undesirable side eects
• skin irritation
• negative impact on blood circulation
4. WARNINGS AND SAFETY NOTES
General warnings
WARNING
• The measurements you take are for your information only –
they are not a substitute for a medical examination! Discuss
6
your measured values with your doctor and never make your
own medical decisions based on them (e.g. regarding medi
-
cine doses).
• The device is only intended for the purpose described in these
instructions for use. The manufacturer is not liable for damage
resulting from improper or incorrect use.
• Using the blood pressure monitor outside your home envi
-
ronment or while on the move (e.g. while travelling in a car,
ambulance or helicopter, or while undertaking physical activity
such as playing sport) can influence the measurement accura
-
cy and cause incorrect measurements.
• Cardiovascular diseases may lead to incorrect measurements
or have a detrimental eect on measurement accuracy.
• Do not use the device at the same time as other medical elec
-
trical devices (ME equipment). This could cause the measur-
ing device to malfunction and/or an inaccurate measurement.
• Do not use the device outside of the specified storage and op
-
erating conditions. This could lead to incorrect measurements.
• Only use the cus included in delivery or described in these
instructions for use with the device. Using a dierent cu may
lead to inaccurate measurements.
• Note that when inflating the cu, the functions of the limb af
-
fected may be impaired.
• Do not perform measurements more frequently than neces
-
sary. Due to the restriction of blood flow, some bruising may
occur.
• Blood circulation must not be stopped for an unnecessarily
long time during the blood pressure measurement. If the de
-
vice malfunctions, remove the cu from the arm.
• Place the cu on the upper arm only. Do not place the cu on
other parts of the body.
• Keep packaging material away from children. There is a risk
of suocation.
• Keep away from children, pets and pests.
• The air line poses a risk of strangulation for small children.
• Small parts may present a choking hazard for small children if
swallowed. They should therefore always be supervised
• Do not drop, step on or shake the device.
• Do not disassemble the device as this may cause damage,
faults and malfunctions.
• Do not modify the device.
• If you have any of the following conditions, it is essential you
consult your doctor before using the device: Cardiac arrhyth
-
mia, circulatory disorders, hypotension, chills, shivering
• To rule out a dierence between sides, the measurement
should initially be taken on both arms.
• Never operate the device during maintenance work. Mainte
-
nance work includes maintenance, inspection and repair.
General precautions
CAUTION
• The blood pressure monitor is made from precision and elec-
tronic components. The accuracy of the measurements and
service life of the device depend on its careful handling.
• Protect the device and its mains adapter from impacts, humid
-
ity, dirt, marked temperature fluctuations and direct sunlight.
• Ensure the device is at room temperature before taking a
measurement. If the measuring device has been stored close
to the maximum or minimum storage and transport tempera
-
tures and is placed in an environment with a temperature of
20°C, it is recommended that you wait approx. 2 hours before
using the measuring device.
7
• Do not use the device in the vicinity of strong electromag-
netic fields and keep it away from radio systems or mobile
telephones.
• We recommend removing the batteries if the device is not go
-
ing to be used for a prolonged period of time.
• Avoid any mechanical restriction, compression or bending of
the cu line.
Notes on handling batteries
WARNING
• Risk of explosion! Risk of fire! Failure to comply with
the following points can result in personal injury or cause
overheating, leakage, venting, breakage, explosion, or fire on
the battery.
• This device contains non-rechargeable batteries which must
not be charged.
• Do not throw batteries into a fire.
• Never charge, forcibly discharge, heat, disassemble, open,
crush, deform, encapsulate, or modify batteries.
• Never short-circuit batteries or battery compartment contacts.
• Protect the batteries from direct sunlight, rain, heat, and water.
• Exposure of batteries to an environment with extremely high
temperatures or an extremely low air pressure may result in
explosion or leakage of flammable liquids and gases.
• Dispose of defective and discharged batteries immediately
and properly (see chapter on disposal).
• Do not use modified or damaged batteries.
• Always select the correct battery type.
• Always insert the batteries correctly, taking into account the
polarity (+ / -).
• Never mix batteries of dierent manufacturers, capacities
(new and used), size, or type within a device.
• If a battery has leaked, put on protective gloves and clean the
battery compartment with a dry cloth.
• If fluid from a battery comes into contact with your skin or
eyes, wash the aected areas with water and seek medical
assistance.
• Choking hazard! Keep batteries out of the reach of children.
Seek medical attention immediately if swallowed. Swallowing
them may cause burns, severe internal injuries, and death.
• Never allow children to replace batteries without adult
supervision.
CAUTION
• Store batteries in a well-ventilated, dry, and cool place in a
non-conductive container in which the batteries cannot be
short-circuited to each other or by other metal objects.
• Keep batteries clean and dry.
• Keep batteries away from water.
• If the device is not going to be used for a long period of time,
remove the batteries from the battery compartment.
NOTICE
• Do not use rechargeable batteries.
Notes on electromagnetic compatibility
CAUTION
• The device is suitable for use in all environments listed in these
instructions for use, including domestic environments.
8
• The device may not be fully usable in the presence of elec-
tromagnetic disturbances. This could result in issues such as
error messages or the failure of the display/device.
• Avoid using this device directly next to other devices or
stacked on top of other devices, as this could lead to faulty
operation. If, however, it is necessary to use the device in the
manner stated, this device as well as the other devices must
be monitored to ensure they are working properly.
• The use of accessories and/or replacement parts other than
those specified or provided by the manufacturer of this device
could lead to an increase in electromagnetic emissions or a
decrease in the device’s electromagnetic immunity; this can
result in faulty operation.
• Keep portable RF communication devices (including periph
-
eral equipment, such as antenna cables or external antennas)
at least 30 cm away from all device parts, including all cables
included in delivery.
• Failure to comply with the above can impair the performance
of the device.
5. DEVICE DESCRIPTION
The associated drawings are shown on page 2.
1
Cu
2
Cu line
3
Cu connector
4
Connection for cu con-
nector (left-hand side)
5
Risk indicator
6
Slider for user selection
7
Settings button
8
START/STOP button
9
Function buttons < / >
10
Memory button
11
Connection for mains adapter
Information on the display
12
Time and date
13
Systolic pressure
14
Diastolic pressure
15
Risk indicator
16
Calculated pulse value
17
Cardiac arrhythmia symbol
/
Pulse symbol
18
AFib
19
User memory
20
Resting indicator display
21
Cu position control
OK
22
Multiple measurement
23
Memory display: average
value
, morning ,
evening
24
Memory space number
25
Low battery indicator
6. USAGE
6.1 Initial use
Inserting the batteries
• Remove the battery compartment cover on the back of the
device
A
.
• Insert the batteries (see chapter “Technical specifications”).
Insert the batteries, making sure the polarity is correct accord
-
ing to the label
A
.
• Close the battery compartment cover.
If the
symbol is displayed and does not disappear, meas-
urement is no longer possible. Replace all the batteries. Once the
batteries have been removed from the device, the date and time
must be set again. Any saved measured values are retained.
9
Operation with the mains part
You can also operate this device with a mains part (not included in
delivery). However, before connecting the device with the mains
part, please ensure that you have removed the batteries from the
device. During mains operation, there must not be any batteries in
the battery compartment, as this could damage the device.
• To avoid any potential damage, the device may only be oper
-
ated with a mains part that meets the specifications described
in the chapter “Technical specifications”.
• Furthermore, the mains part must only be connected to the
mains voltage that is specified on the type plate.
• Insert the mains adapter into the connection provided for this
purpose on the rear side of the blood pressure monitor.
• Then insert the mains plug of the mains part into the mains
socket.
• After using the blood pressure monitor, unplug the mains part
from the mains socket first and then disconnect it from the
blood pressure monitor. As soon as you unplug the mains
part, the blood pressure monitor loses the date and time set
-
ting but the saved measured values are retained.
Adjusting the settings
Make sure that the device’s settings have been set correctly so
you can make full use of all its functions. Otherwise you will not
be able to save your measured values with the date and time and
access them later.
There are two dierent ways to access the settings menu:
• Before initial use and after each time you replace the battery:
When inserting batteries into the device, you will be taken to
the relevant menu automatically.
• If the batteries have already been inserted:
With the device switched on, press and hold
for approx.
three seconds.
Set these settings in the order shown below:
Hour format
➔
Date
➔
Time
Press
to confirm your selection each time.
Time format
Time format flashes:
• Press < / > to select the time format
Date
The year flashes:
• Press < / > to select the year
The month flashes:
• Press < / > to select the month
The day flashes:
• Press < / > to select the day
If the time format is set to the 12-hour format, the order in
which the day and month are displayed is reversed.
Time
The hour flashes:
• Press < / > to select the hour
The minutes flash:
• Press < / > to select the minutes
6.2 Before the blood pressure measurement
General rules when measuring your own blood
pressure
• In order to generate an informative profile of changes in your
blood pressure that can be used for comparisons, you should
measure your blood pressure regularly and always at the same
time of day.
10
Measure your blood pressure twice a day: once in the morn-
ing after getting up and once in the evening.
• Always perform the measurement when you are suciently
physically rested. Avoid taking measurements at stressful
times.
• Do not take a measurement within 30 minutes of eating, drink
-
ing, smoking or exercising.
• Before the initial blood pressure measurement, make sure al
-
ways to rest for about 5minutes.
• If you want to take several measurements in succession,
always make sure that you leave 5 minutes between each
measurement.
• Repeat the measurement if you have doubts about the meas
-
ured value.
Attaching the cu
You can measure your blood pressure on either arm. Some devi-
ations between the values in the right and left arm are perfectly
normal. Always perform the measurement on the arm with the
higher blood pressure values. Consult your doctor about this be
-
fore starting self-measurement.
• Always measure your blood pressure on the same arm.
• Only use the device with the cu supplied, based on your up
-
per arm circumference.
• Before taking the measurement, check the fit using the index
mark described below.
1. Expose your upper arm. The circulation of the arm must not
be hindered by tight clothing or similar.
2. Place the cu with the bottom edge approx. 2-3 cm above
your elbow. Adjust the device so that the mark
and the cu
line are directly over the artery
B
.
The cu should be fastened so that two fingers fit under the
cu when it is closed
B
.
3. Now insert the cu line into the connection for the cu con
-
nector.
4. The cu is suitable for you if the index mark
is within the
OK range after fitting the cu.
Adopting the correct posture
• Sit in a comfortable upright position when taking the blood
pressure measurement. Lean back so that your back is sup
-
ported.
• Place your arm on a surface
D
.
• Place your feet flat on the ground next to one another.
• The cu must be level with your heart.
• Stay as still as possible during the measurement and do not
talk.
Selecting the user
This device has two users with 100 memory spaces each in order
that you can save measurements from two dierent people sep
-
arately from each other.
If multiple people are using the device, make sure that the correct
user has been selected before each measurement:
• Use the slider
6
to set the desired user.
6.3 Taking a blood pressure measurement
Requirement: cu attached, user selected.
Measurement
1. Press
. All display elements are briefly displayed.
2.
The start screen welcomes you for selected or for select-
ed . From this start screen you can access all menu items,
e.g. user memory.
11
3.
Press again to start the measurement. The cu inflates
itself automatically. The measurement process starts. is
displayed as soon as a pulse is detected.
To cancel the measurement, press
.
4. The systolic pressure, diastolic pressure and pulse measure
-
ments are displayed. The cu position control symbol
OK
is
displayed throughout the entire measurement. If the cu is
too loose, and will be displayed. In such cases, the
measurement is cancelled after approx. 15 seconds and the
device switches itself o.
is displayed if the measurement could not be performed
properly. In this case, please refer to the “Troubleshooting”
section.
If necessary, re-attach the cu after 1 minute.
The device switches o automatically after approx. 30sec
-
onds. The value is saved to the selected or most recently
used user.
Multiple measurement
1. Press
. All display elements are briefly displayed.
2.
The start screen welcomes you for selected or for select-
ed . From this start screen you can access all menu items,
e.g. user memory.
3.
Multiple measurement can be selected by pressing < or >.
flashes on the display. To start the measurement, con-
firm with .
The cu inflates itself automatically. The measurement starts.
4.
The device displays the first measurement cycle for 3 seconds
and then performs a regular measurement that is repeated
three times. In the second and third cycle, a 30-second count-
down is also displayed, indicating the time to wait until the
next measurement.
To cancel the measurement, press
.
5.
After the third measurement, the average measurement of sys-
tolic pressure, diastolic pressure and pulse is displayed and
indicated with .
The cu position control symbol
OK
is displayed through-
out the entire measurement. If the cu is too loose, and
will be displayed. In such cases, the measurement is
cancelled after approx. 5 seconds and the device switches
itself o.
is displayed if the measurement could not be performed
properly. In this case, please refer to the “Troubleshooting”
section.
If necessary, re-attach the cu after 1 minute.
The device switches o automatically after approx. 30sec
-
onds. The value is saved to the selected or most recently
used user.
6.4 Evaluating the results
General information about blood pressure
• Blood pressure is the force with which the bloodstream press-
es against the arterial walls. Arterial blood pressure constantly
changes in the course of a cardiac cycle.
• Blood pressure is always stated in the form of two values:
- The highest pressure is the systolic blood pressure. This
occurs when the heart muscle contracts and blood is
pumped into the blood vessels.
- The lowest pressure is the diastolic blood pressure. This
occurs when the heart muscle has completely relaxed again
and the heart is filling with blood.
• Fluctuations in blood pressure are normal. Even during re
-
peat measurements, there may be considerable dierences
between the measured values. One-o or irregular measure
-
12
ments therefore do not provide reliable information about the
actual blood pressure. Reliable assessment is only possible
when you perform the measurement regularly under compa
-
rable conditions.
Cardiac arrhythmia
The device can identify heart rhythm abnormalities during the
blood pressure measurement. If
is displayed after the meas-
urement, this indicates that an irregularity has been detected in
your pulse.
Repeat the measurement if
is displayed.
When assessing your blood pressure, only use the results that
have been recorded without any irregularities in your pulse.
Consult your doctor if
is displayed frequently. Only they can
determine, through an examination, whether there is an abnor
-
mality.
Risk indicator
Measured blood pres-
sure value range
Classification
Risk
indicator
colour
Systolic
(inmmHg)
Diastolic
(in mmHg)
≥ 180 ≥ 110
Stage 3 high blood
pressure (severe)
1
Red
160 – 179 100 – 109
Stage 2 high blood
pressure (moderate)
1
Orange
140 – 159 90 – 99
Stage 1 high blood
pressure (mild)
1
Yellow
130 – 139 85 – 89 High normal
1
Green
120 – 129 80 – 84 Normal
1
Green
< 120 < 80 Optimal
1
Green
Measured blood pres-
sure value range
Classification
Risk
indicator
colour
Systolic
(inmmHg)
Diastolic
(in mmHg)
< 90 < 60 Low blood pressure
2
Orange
1
Source:
2
Source:
The risk indicator
5
/
15
indicates which category the recorded
blood pressure values fall into. If the measured values are in two
dierent categories (e.g. systolic pressure in the “high normal”
range and diastolic pressure in the “normal” range), the risk in
-
dicator always indicates the higher range – “high normal” in the
example described.
Note that these default values are for general guidance only,
as individual blood pressures may vary.
Please note that self-measurement at home usually results in val
-
ues lower than those recorded at a doctor’s surgery. Consult your
doctor at regular intervals. Only they are able to give you personal
target values for controlled blood pressure, particularly if you are
receiving medical therapy.
Low blood pressure
WARNING
Low blood pressure (hypotension) can be a health hazard and
cause dizziness or fainting. Blood pressure is considered low if
systolic and diastolic pressure are below 90/60 mmHg (source:
National Health Service, 2023).
Seek medical attention if you suddenly suer from low blood
pressure.
13
Atrial fibrillation
Atrial fibrillation is one of the most common forms of cardiac ar-
rhythmia and is characterised by an irregular heartbeat associat-
ed with an increased risk of stroke, heart failure and other heart
complications.
While the final diagnosis of atrial fibrillation can only be made by
a medical examination, the Beurer AFIB technology of this device
enables it to be detected with a high level of accuracy. During the
blood pressure measurement, possible atrial fibrillation is detect
-
ed and displayed after the measurement with the
symbol in
combination with the
symbol. If arrhythmias, such as atrial
fibrillation, are present, the displayed blood pressure value may
be incorrect. If the
symbol is displayed after a blood pres-
sure measurement, repeat the measurement. Rest for 5 minutes
beforehand. Do not move or speak during the measurement. If
the
symbol appears for the first time and more frequently,
please promptly consult your doctor. If you have previously been
diagnosed with atrial fibrillation, follow your doctor’s instructions
regarding what to do in the event that AFIB is detected by the
device.
Do not perform self-diagnosis and self-treatment based on the
measurements, but rather always follow the doctor’s instructions.
Resting indicator (using HSD diagnostics)
One of the most common errors made when taking a blood pres-
sure measurement is not ensuring that the user’s circulatory sys-
tem is suciently at rest when taking the measurement. In this
case, the measured systolic and diastolic blood pressure values
do not represent the blood pressure at rest. However, it is this
blood pressure at rest that should be used to assess the meas
-
ured values.
This blood pressure monitor uses integrated haemodynamic sta
-
bility diagnostics (HSD) to measure the user’s haemodynamic
stability when taking the blood pressure measurement. This ena
-
bles it to indicate whether the blood pressure was taken when the
user’s circulatory system was suciently at rest.
The measured blood pressure value was obtained
when the user’s circulatory system was suciently
at rest and reliably represents the blood pressure
at rest.
Indicates that the value was obtained when the
user’s circulatory system was not suciently at
rest. The blood pressure values measured in this
case generally do not represent the blood pressure
at rest. The measurement should therefore be
repeated after a period of physical and mental rest
lasting at least 5minutes.
No resting
indicator
symbol is
displayed
During the measurement it was not possible to
determine whether the user’s circulatory system
was suciently at rest. In this case too, the meas
-
urement should be repeated after a period of rest
lasting at least 5 minutes.
The user’s circulatory system not being suciently at rest can
be the result of various factors, such as physical stress, mental
strain/distraction, speaking or experiencing cardiac arrhythmia
during the measurement.
In an overwhelming number of cases, HSD will give a very good
guide as to whether the user’s circulatory system is rested when a
blood pressure measurement is taken.
However, certain patients suering from cardiac arrhythmia or
chronic mental conditions may remain haemodynamically unsta
-
ble even in the long-term, something which persists even after
repeated periods of rest. The accuracy of the results for the blood
pressure at rest is reduced in these users.
14
Like any medical measurement method, the precision of HSD is
limited and it can lead to incorrect results in some cases. Never
-
theless, the blood pressure measurements taken when the user’s
circulatory system is suciently at rest represent particularly re
-
liable results.
6.5 Displaying and deleting measured values
User
The results of every successful measurement are saved with the
date and time. If there are more than 120 measurements, the old
-
est measurements are deleted.
Press
on the start screen and select the desired user using
the slider.
Average value
is displayed:
The average value of all this user’s saved measured values is dis
-
played.
1. Press >.
is displayed:
The average value of the morning measurements for the last 7
days is displayed (morning: 5:00–9:00).
2. Press >.
is displayed:
The average value of the evening measurements for the last 7
days is displayed (evening: 18:00–20:00).
Individual measured values
1.
If you press > again, the last individual measurement is dis-
played (in this example, measurement 3).
2.
If you press < / > again, you can view the individual meas-
ured values.
3.
To switch the device o again, press for approx. 2 seconds.
Press to exit the menu.
Deleting measured values
1. To delete all of a user’s saved measured values, go to the re-
spective user memory.
The display shows
and the average value of all stored
measured values of this user.
2. Press and hold < and > for approx. 5 seconds.
for / for appears in the display. All val-
ues of the selected user are deleted.
The device switches o automatically.
Reset the device to factory settings
1. To delete all saved measured values and settings, select the
user memory.
Press >. The display shows
.
2. Press and hold < and > for approx. 15 seconds.
appears in the display. All data stored on the device is
deleted; the device is reset to factory settings.
The device switches o automatically.
7. CLEANING AND MAINTENANCE
• Clean the device and cu carefully using only a slightly damp
cloth.
• Do not use any cleaning solutions or solvents.
• Under no circumstances hold the device or cu under water,
as this can cause liquid to enter and damage the device and
cu.
• If you store the device and cu, do not place heavy objects on
the device and cu. The cu line should not be bent sharply.
15
• Remove the batteries if the device is not going to be used for
a long period of time.
8. ACCESSORIES AND/OR REPLACE-
MENT PARTS
Accessories and/or replacement parts are available at
www.beurer.de, under “Service”. Please state the corresponding
order number.
Designation Item number and/or order number
Universal cu 164.503
Mains adapter (EU) 072.78
Mains adapter (UK) 072.79
9. TROUBLESHOOTING
Error
message
Possible cause Solution
Unable to record
a pulse.
Please wait one minute and re-
peat the measurement. Ensure
that you do not speak or move
during the measurement.
The measured
blood pressure is
outside the meas
-
urement range.
There is a
pneumatic system
error.
Repeat the measurement.
Ensure that the cu line is
correctly connected and that
you do not move or speak.
Error
message
Possible cause Solution
An error occurred
during the meas
-
urement.
Please wait one minute and re
-
peat the measurement. Ensure
that you do not speak or move
during the measurement.
The inflation pres-
sure is higher than
300mmHg.
Please take another measure
-
ment to check whether the cu
can be correctly inflated. Make
sure that neither your arm
nor other heavy objects are
pressing on the line, and that
the line is not bent.
There is a system
error.
If this error message appears,
please contact Customer
Services.
The batteries are
nearly flat.
Insert new batteries into the
device.
10. DISPOSAL
Repairing and disposing of the device
• Do not repair or modify the device yourself. Proper operation
can no longer be guaranteed in this case.
• Do not open the device except for the battery compartment.
Failure to comply will invalidate the warranty.
• Repairs must only be carried out by Customer Services or au
-
thorised retailers. Before making a complaint, first check the
batteries and replace them if necessary.
16
• The device must not be disposed of with household waste.
Dispose of the device at a suitable local collection or
recycling point in your country. Dispose of the device in
accordance with EC Directive – WEEE (Waste Electrical
and Electronic Equipment). Please contact the local authori
-
ties responsible for waste disposal if you have any questions
regarding disposal.
Disposal of the batteries
• Used, completely discharged batteries must not be disposed
of with household waste. Dispose of the batteries in specially
designated collection boxes, at recycling points or at electron
-
ics retailers. You are legally required to dispose of the batteries
correctly.
• The codes below are printed on batteries containing harmful
substances:
- Pb = battery contains lead
- Cd = battery contains cadmium
- Hg = battery contains mercury
11. TECHNICAL SPECIFICATIONS
Type BM 53
Measurement
method
Oscillometric, non-invasive blood pressure
measurement on the upper arm
Measurement
range
Cu pressure 300 mmHg,
systolic pressure 50 – 280 mmHg,
diastolic pressure 30 – 200 mmHg,
pulse 40 – 199 beats/minute
Display
accuracy
Systolic pressure ± 3 mmHg,
diastolic pressure ± 3 mmHg,
pulse ± 5% of the displayed value
Measurement
uncertainty
Max. permissible standard deviation according
to clinical testing: systolic pressure 8 mmHg,
diastolic pressure 8 mmHg
Memory 2 x 100 memory spaces
Dimensions L 140 mm x W 94 mm x H 46 mm
Weight Approx. 419 g ± 5 g (without batteries, with cu)
Cu size 22 to 42 cm upper arm circumference
Operating
conditions
+ 10 °C to + 40 °C, 10 – 85 % relative humidity
(non-condensing), 700 – 1060 hPa ambient
pressure
Storage and
transport
conditions
-20 °C to + 55 °C, ≤ 90% relative humidity
Power supply
4 x 1.5 V
AAA batteries
Battery life Lasts for approx. 300 measurements depending
on the blood pressure and inflation pressure
Product life
cycle to be
expected
Information on the life cycle of the product can
be found at beurer.com
Classification Internal power supply, IP20 no AP or APG, con
-
tinuous operation, type BF applied part
The serial number is located on the device or in the battery com
-
partment.
Technical specifications are subject to change without notification
to allow for updates.
• This device conforms with the European standard
EN60601-1-2 (in accordance with CISPR-11, IEC 61000-3-2,
IEC 61000-3-3, IEC 61000-4-2, IEC 61000-4-3,
IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6,
IEC 61000-4-7, IEC 61000-4-8, IEC 61000-4-11) and is sub
-
17
ject to particular precautions with regard to electromagnetic
compatibility. Please note that portable and mobile HF com
-
munication systems may interfere with this device.
• The accuracy of this blood pressure monitor has been careful
-
ly checked and developed with regard to a long useful life. If
the device is used for commercial medical purposes, it must
be regularly tested for accuracy by appropriate means. Pre
-
cise instructions for checking accuracy may be requested
from the service address.
Mains part
Model no. LXCP12X-050100BG
Input 100 – 240 V, 50 – 60 Hz, 0.5 A max
Output 5 V DC, 1A, in conjunction with Beurer blood
pressure monitors only
Manufacturer Shenzhen Iongxc power supply co., ltd.
Protection This device is double protected and has a pri
-
mary-side cutout switch which disconnects the
device from the mains in case of malfunction.
Ensure that you have removed the batteries
from the battery compartment before you use
the mains part.
Polarity
Insulated/protection class 2
Housing and
protective
covers
The housing of the mains part protects users
from touching live parts or parts that could be
live (for example with their fingers, or with a
needle or checking hook).
The user must not touch the patient and the
output connector of the AC/DC mains part at
the same time.
12. GUARANTEE/SERVICE
Further information on the guarantee and guarantee conditions
can be found in the guarantee leaflet supplied.
Notification of incidents
For users/patients in the European Union and identical regula
-
tion systems, the following applies: If during or through use of
the product a major incident occurs, notify the manufacturer and/
or their representative of this as well as the respective national
authority of the member state in which the user/patient is located.
Subject to errors and changes
18
19
20
654.59_BM53_2025-11-20_07_IM2_BEU_MDR_EN
Beurer GmbH
•
Söflinger Str. 218
•
89077 Ulm, Germany
www.beurer.com
•
www.beurer-healthguide.com
Beurer UK Ltd., Suite 16, Stonecross Place, Stonecross Lane North, WA3 2SH Lowton
United Kingdom
