BMCCPD8004/BMCCPD8006
Mega Tall Storage Cabinet
Tools Required
1/2”
© 2023 Suncast Corporation, Batavia, IL 0361365D
To learn about other Suncast products, please call:
1-855-477-1260 or 1-630-381-6309.
Product Feedback? email us at: [email protected]
E

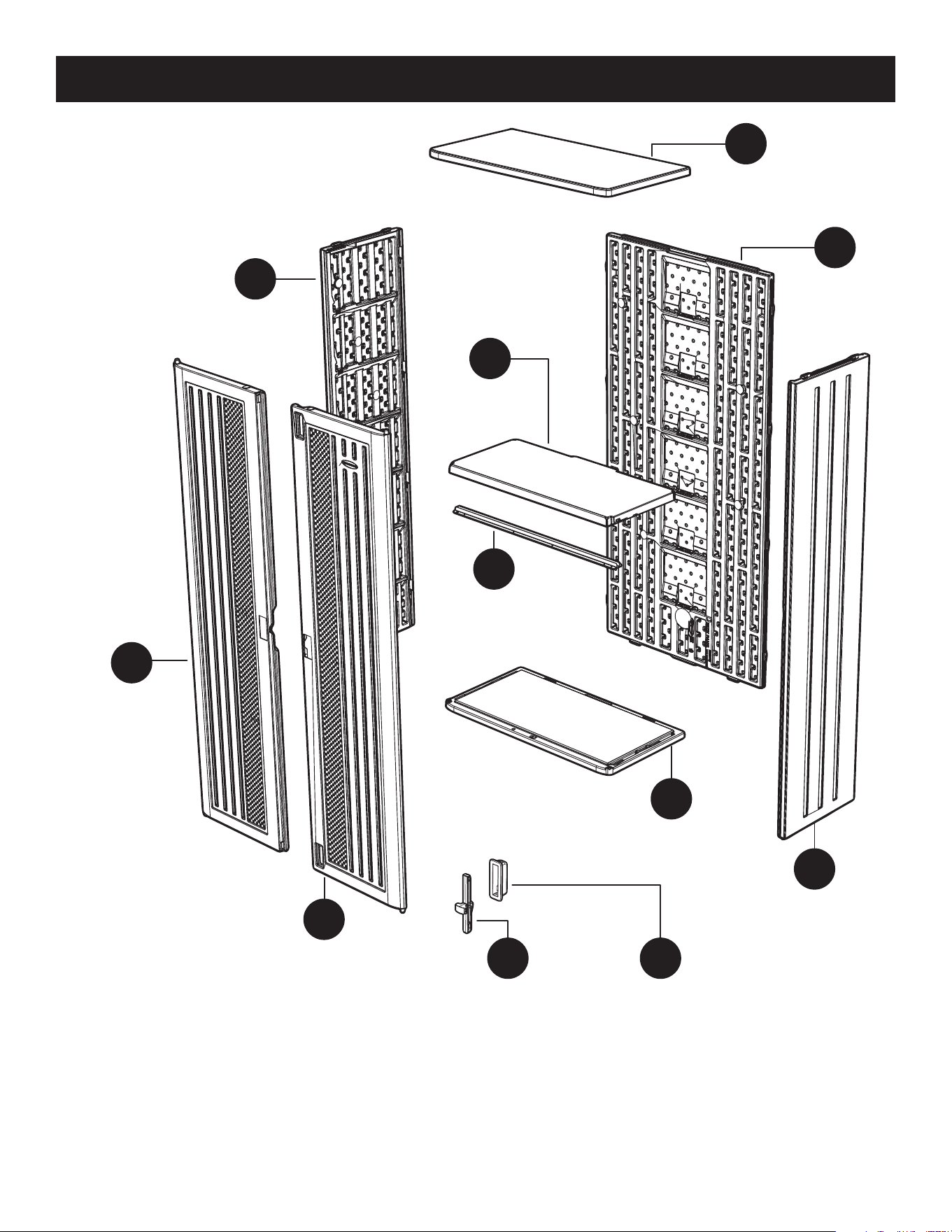

Top Panel
H
Left Door Panel
G
Right Door Panel
K
0101222
Door Latch Housing
J
0101221
Door Latch Pin
A
Bottom Panel
Shelf Panel
F
L
L-Bracket
x2 / Shelf
D
Back Panel
C
Left Side Panel
B
Right Side Panel

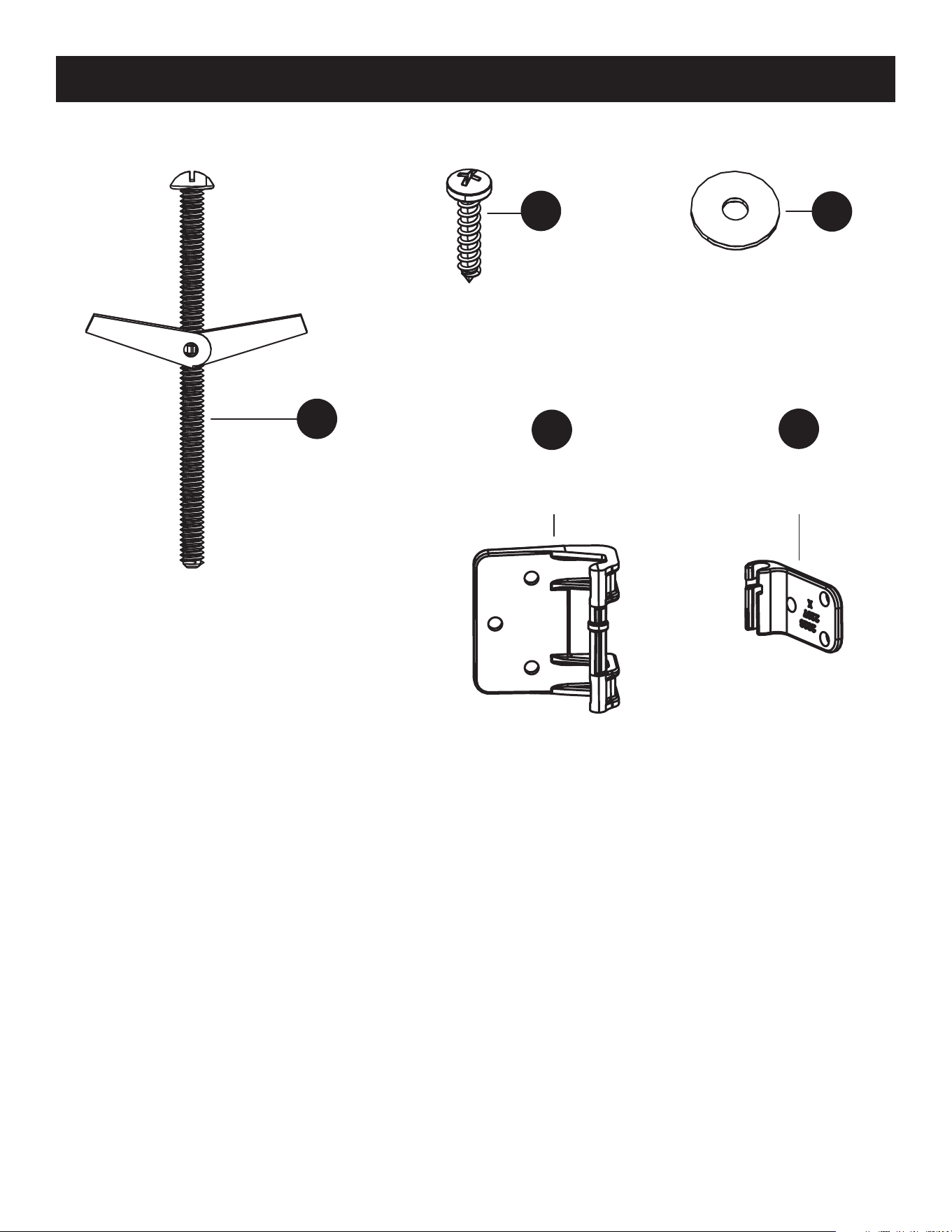

Parts
AA
0631149
#10 x .75
Pan Head Screw
BB
0631258
Toggle Anchor
x2
CC
0631257
#10 Washer
x2
P
0102626
Hinge Side Panel
N
0102627
Hinge Door Panel
Hardware
4
BEFORE YOU BEGIN
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
• Check for all parts before you begin assembly.
Using the provided parts check list, verify that you have all the parts required to construct your
cabinets.
• Assistance is required during parts of the assembly.
CAUTION
• Not intended for storage of flammable or caustic chemicals.
• Not intended for usage by children.
• To avoid risk of suffocation, do not allow children to play inside container.
• This product may become susceptible to impact damage in freezing temperatures.
• Do not store near excessive heat.
• Exercise caution when moving fully loaded product. This product is not intended for transporting
heavy objects. Use as a stationary storage device only.
• Do not sit or stand on top.
• Do not store items on top.
• Max load 200lbs. per shelf.
• Mounting to wall studs is recommended.
• Mount flush and level to wall.
• Do not stack units.
CARE AND CLEANING
Exposure to the elements (such as dust, plant and animal life, moisture and sunlight) encourages moss,
algae, and mold to grow on outdoor items. To maintain the look of your product, we recommend cleaning
it each year with mild soap and water. DO NOT use bleach, ammonia, or other caustic cleaners, and DO
NOT use stiff bristle brushes. Failure to perform annual cleaning could result in permanent staining of the
plastic. This is not a manufacturing defect and is not covered under warranty.
5
2
1
3
C B
E
1
2
3
2
D
D
B
C
1
2
1
C
A
A
C
Smooth Side Up
Align tabs on left side panel (C) with slots on bottom
panel (A). Lower side panel into slots and lock in place
by sliding panel towards front. Repeat with right side
panel (B).
Align and engage tabs on back panel (D) with slots on
side panels (C/B). Push panel D down to lock in place.
Align slots on top panel (E) with tabs on side panels
(C/B). Lower top panel and lock in place by sliding
panel towards front. Top will overhang front slightly.

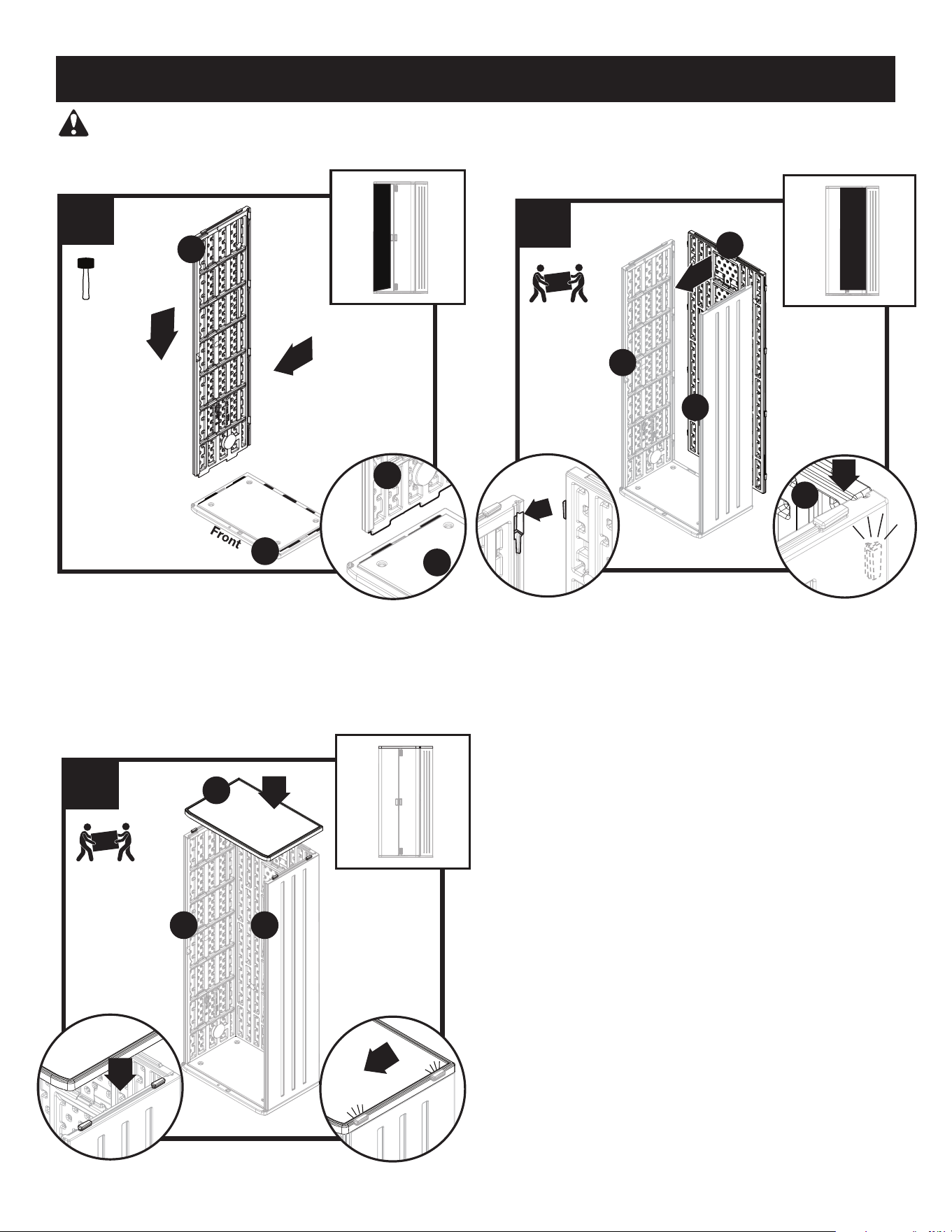

ASSEMBLY
Make sure all tabs are engaged before locking panels together in Steps 1-3.
6

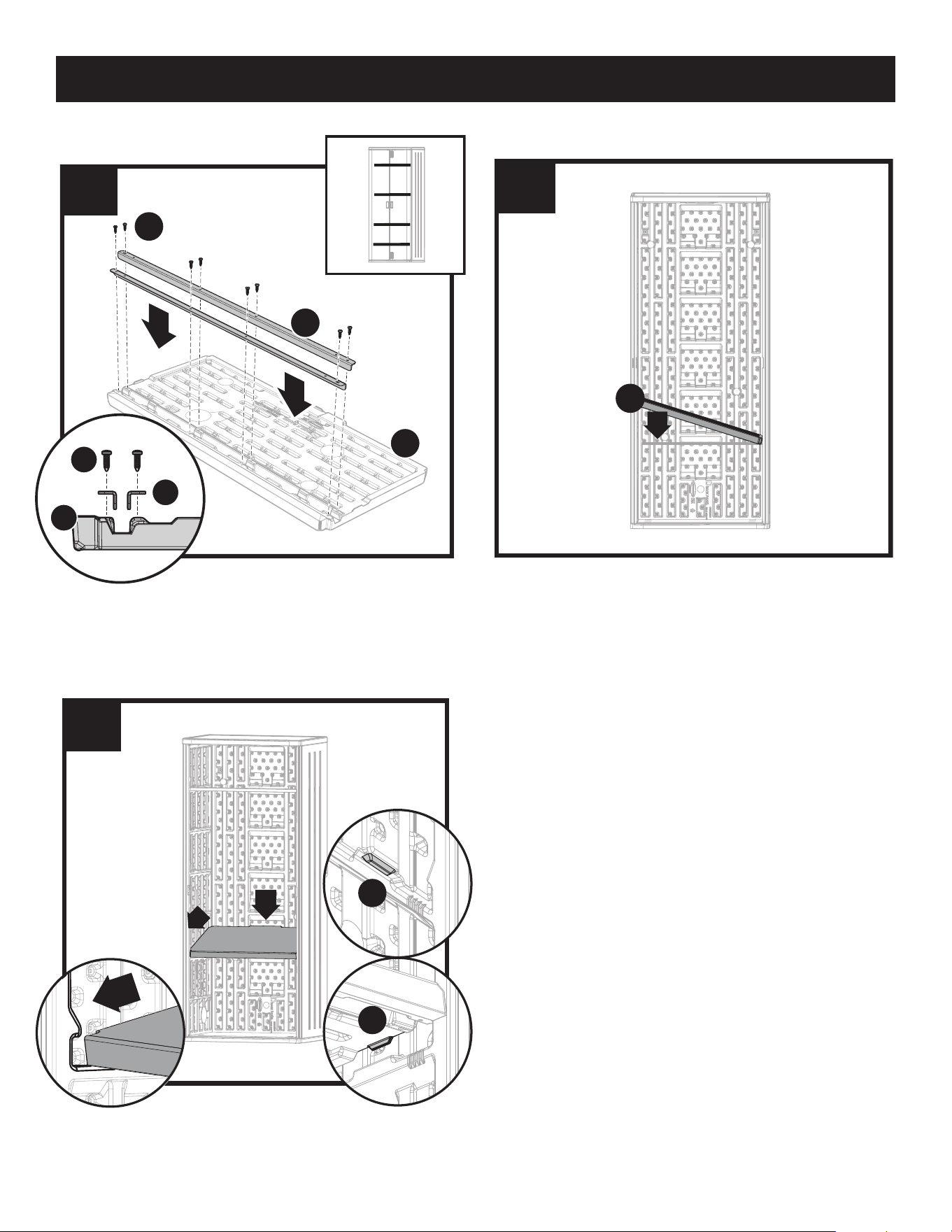

Attach two L-brackets (L) to one shelf (F) using four
screws (AA) on each L-bracket. Repeat for remaining
shelves.
4
AA
L
F
F
L
AA
x8
x2
Insert shelf (F) on angle. Move to a level position while
holding in hands.
IMPORTANT: Tab (XX) on shelf must engage with slot
(YY) on the inside of side panels for each shelf. Push
side panels inward to engage.
Tilt shelf (F) forward and place front corners of shelf into
indented area on side panels. Push down on back of
shelf to snap into position. Repeat steps for remaining
shelves. Insert middle shelf last.
5
F
2
1
6
YY
XX
SHELF INSTALLATION
7
Insert door latch housing (K) into top right door (G)
and snap into place. Insert door latch (J) into door
latch housing. Push latch pin down so it is fully
seated in latch housing. Push down with force until
you hear a snap. Slide latch up and down to confirm
it slides properly.
Note: You may need a screw driver to push the latch
pin down. Push with force.
2
2
1
1
K
7
J
G
G
Before proceeding, please take
notice of teeth on housing that
will face upward when installed
on top of right door.
K

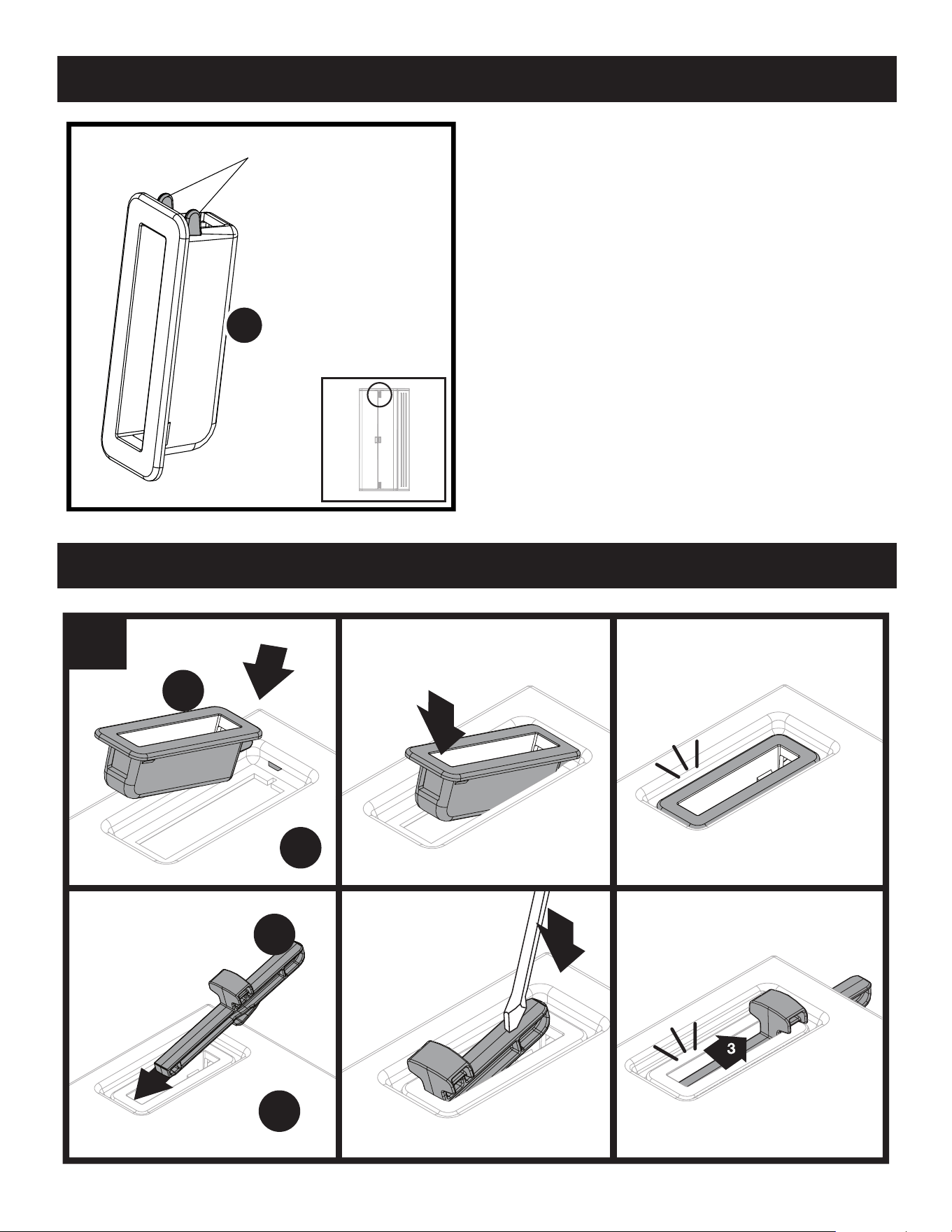

ASSEMBLY-DOORS
TOP OF DOOR HOUSING AND LATCH PIN
8
2
1
2
1
G
K
8
J
G
Before proceeding, please take
notice of teeth on housing that will
face downward when installed on
bottom right of door.
K
Insert door latch housing (K) into bottom right door
(G) and snap into place. Insert door latch (J) into door
latch housing. Push latch pin down so it is fully seated
in latch housing. Push down with force until you hear
a snap. Slide latch up and down to confirm it slides
properly.
Note: You may need a screw driver to push the latch
pin down. Push with force.
ASSEMBLY-DOORS (CONTINUED)

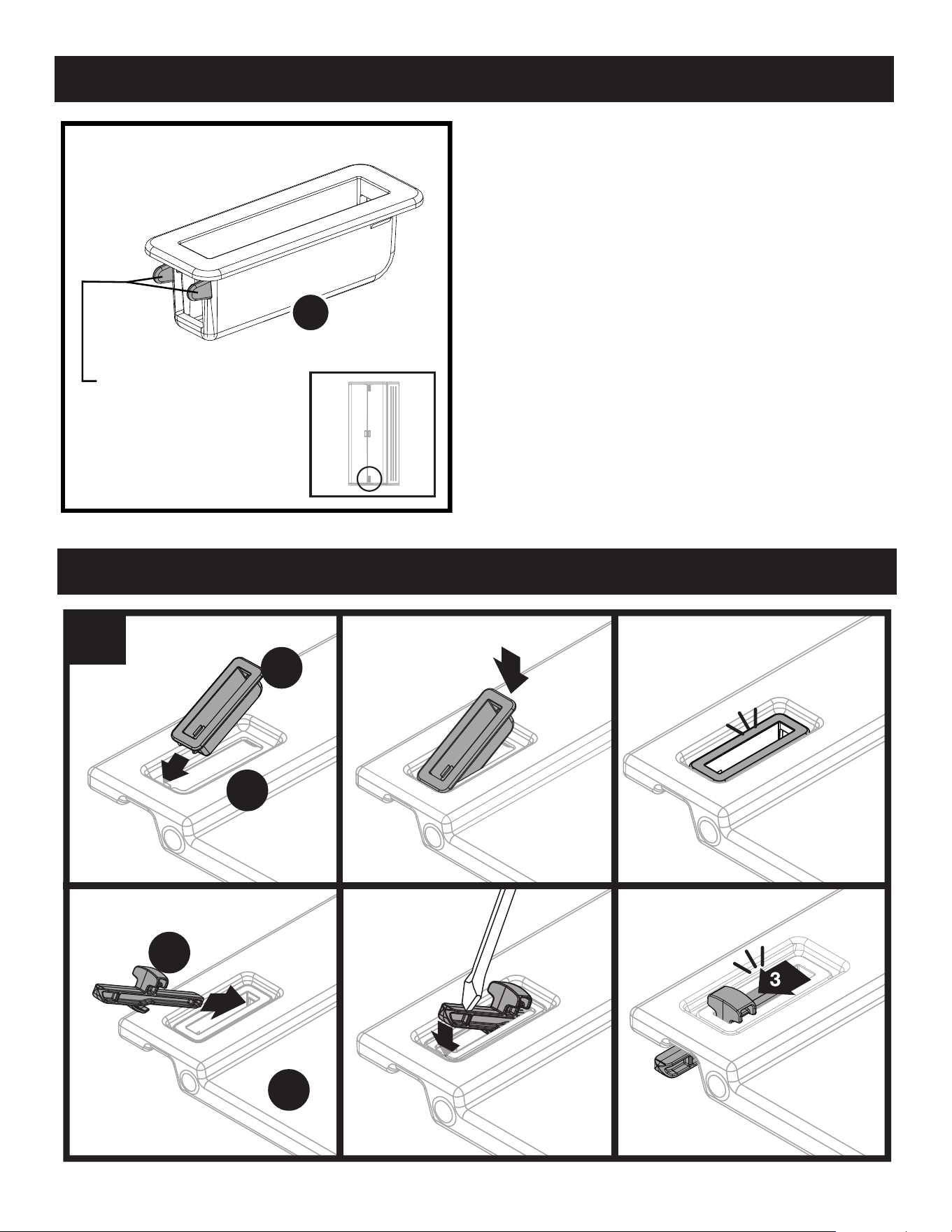

BOTTOM OF DOOR HOUSING AND LATCH PIN
9
9
H
H
H
1
2

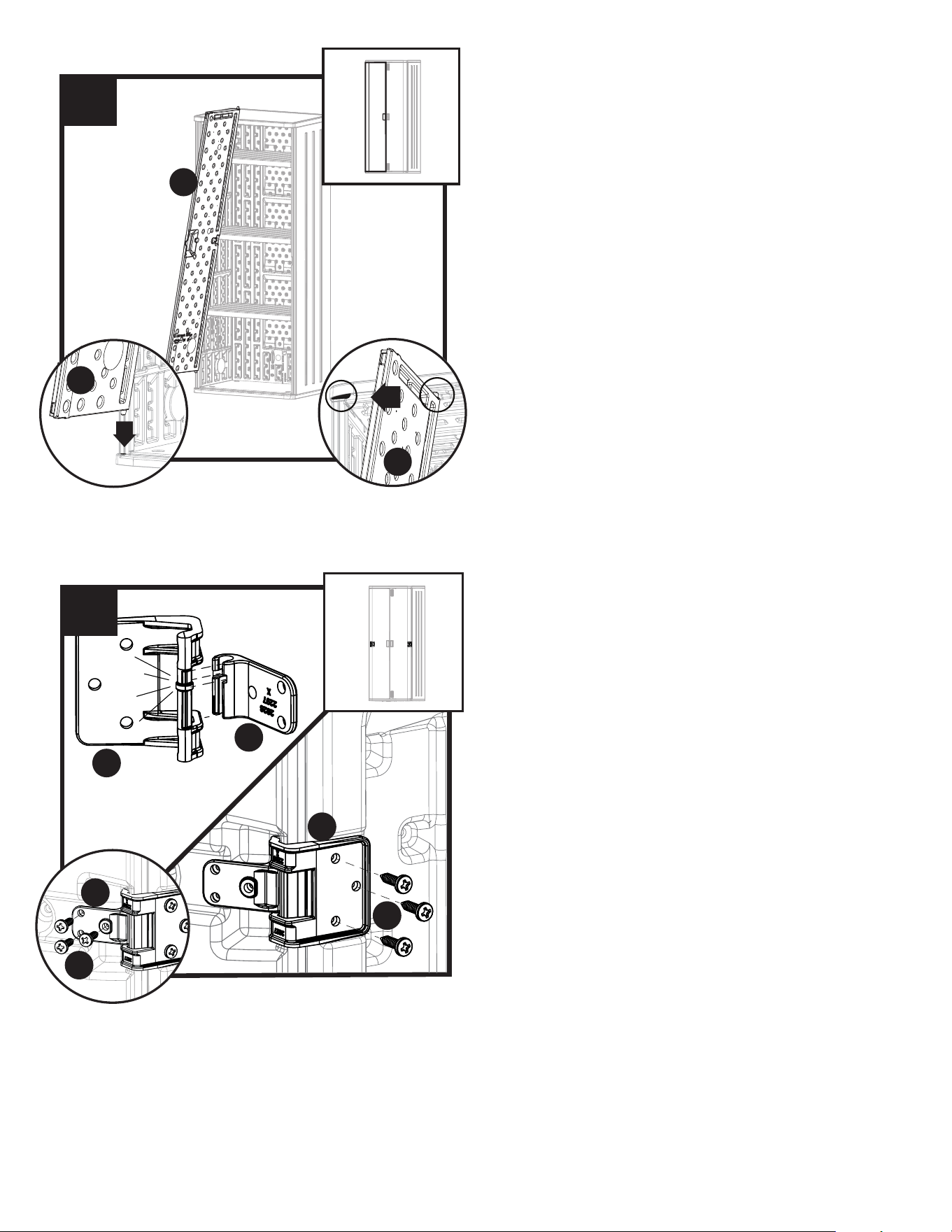

With left door (H) in the open position, place door into
hinge receptacle on bottom left of cabinet. Insert hinge
pin under top panel and slide to the left into hinge
receptacle. Repeat with right door (G).
N
N
P
P
AA
x3
AA
x3
10
Snap hinge part (P) onto hinge part (N) as shown.
Attach hinge side (N) to left side panel (C) using three
screws (AA). Attach hinge side (P) to left door (H) using
three screws (AA). Repeat on right side.
10
x2
BB
CC
D
X
x2
DD
Note: Securing cabinet to wall is easier with shelves
removed.

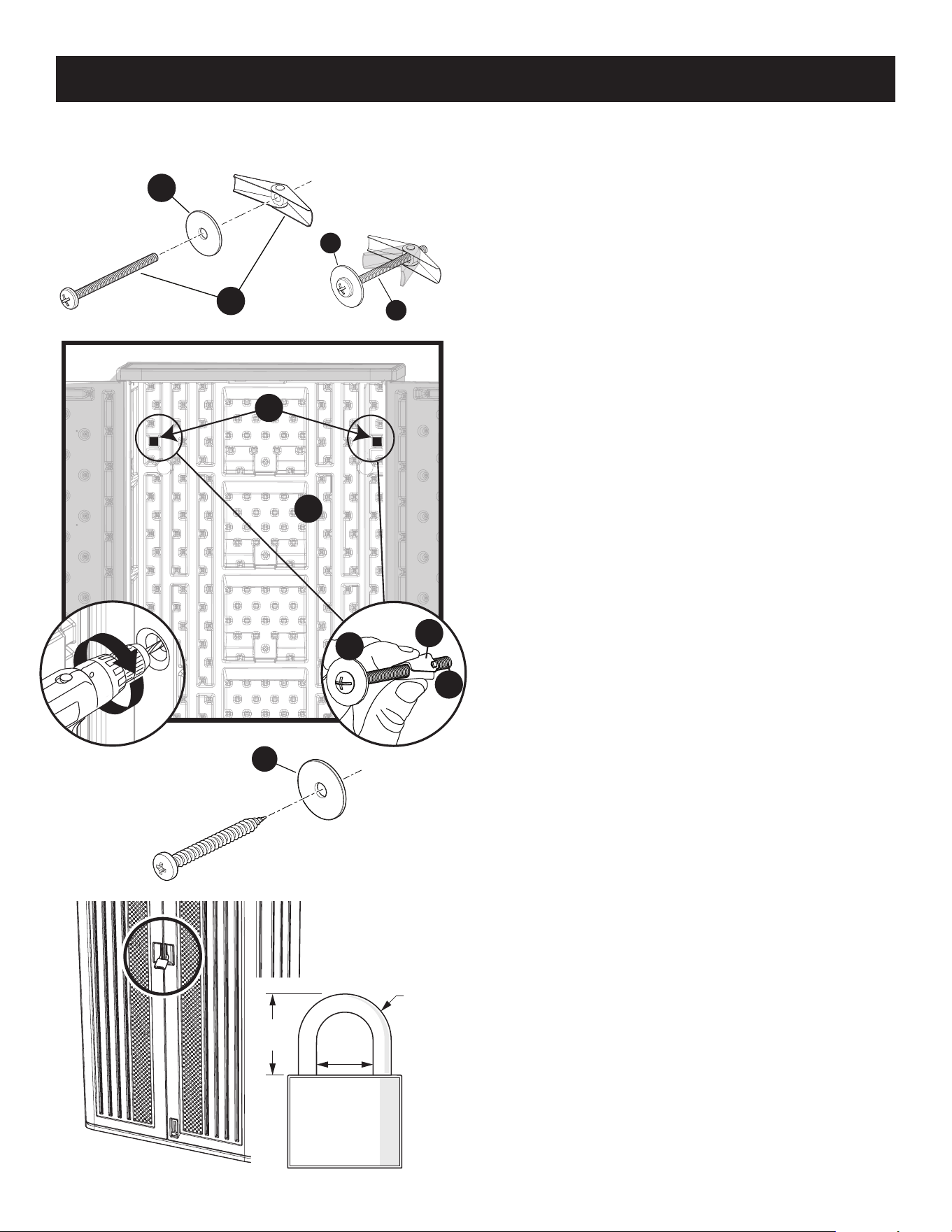

Drywall Mounting:
Remove the bolts from the toggle anchors (BB). Apply
washers (CC) to bolts and reinstall bolts to toggle nut.
Be sure toggle nut is oriented properly onto bolt.
Using a 1/2” drill bit, drill through the two provided
locations (X) on Back Panel (D). Place cabinet in desired
location. With a pencil, mark the hole locations on the
wall and drill through the wall with 1/2” drill bit.
Close toggle bolt wings (DD) before putting through 1/2˝
hole or it will not fit. Wings on toggle bolt need to be
positioned near the end of the bolt.
While holding cabinet in place, put toggle bolt through
drilled holes in cabinet and wall. Tighten screws to
secure cabinet to wall. Do not overtighten as damage
to product may occur.
Stud Mounting:
Apply washers (CC) to two #10 x 2” screws
(not included).
Using a 1/4” drill bit, drill through the two provided
locations (X) on Back Panel (D). Place cabinet in
desired location. With a pencil, mark the hole locations
on the wall. Drill pilot holes in the wall and stud with a
1/8” - 5/32” drill bit.
While holding cabinet in place, place #10 x 2” screws
(not included) with washers (CC) through drilled holes
in cabinet and into wall pilot holes. Tighten screws to
secure cabinet to wall. Do not overtighten as damage
to product may occur.
With doors closed, attach a 5/16˝ lock (not provided).
Mounting the cabinet to a wall for added stability is recommended.
MOUNTING CABINET TO WALL
CC
BB
CC
5/16"
(12.7 cm)
Max.
5/16"
(12.7 cm)
Max.
3/4"
(7.6 cm)
1 1/2"
Max.
CC
BB
11
WARRANTY
SUNCAST COMMERCIAL
®
ONE Year Limited Warranty
Your SUNCAST COMMERCIAL
®
item has a ONE YEAR LIMITED WARRANTY against product failure
resulting from defects in manufacturing or materials. The warranty period starts on the delivery date.
Incidental and consequential damages are not covered.
Warranty Claims
To file a warranty claim contact the manufacturer, SUNCAST
®
CORPORATION, 701 North Kirk Road,
Batavia, Illinois, 60510. Call toll free (855) 477-1260 or visit www.suncastcommercial.com. SUNCAST
®
will replace only the parts that failed under the terms of the warranty. In some cases, the replacement
parts may not be identical, but they shall be of equal or greater performance than the original part. We
require proof of purchase. We require evidence of the failure. Warranty excludes shipping and handling
charges.
WARRANTY LIMITATIONS
THIS WARRANTY COVERS ONLY DEFECTS THAT AFFECT THE FORM, FIT OR FUNCTION OF
THE UNIT. It excludes natural aging of the unit, discoloration, ordinary wear and tear, ordinary weathering,
sunlight fading, or rust. It excludes staining caused by mold, mildew or tree sap and damage caused by
animals including insects, vermin or houshold pets. The warranty does not cover damage caused by Acts
of Nature including but not limited to: wind in excess of 50 mph; tornado; hurricane; microburst; hail; flood;
blizzard; extreme heat; pollution or fire events.
The following actions void the warranty: improper assembly; use above intended and reasonable
capacity; misuse; abuse; failure to perform ordinary maintenance. Modification of the original product
voids all warranties. Suncast assumes no liability for any modified product or consequences resulting
from failure of a modified product.
Suncast is not responsible for: loss of use of the unit; labor for repair, inspection fees or disposal costs.
THIS WARRANTY IS NONTRANSFERABLE. IT EXCLUDES FLOOR MODELS, CLEARANCE AND
OPEN BOX UNITS.
THE MANUFACTURER’S LIABILITY HEREUNDER IS LIMITED SOLELY TO THE REPLACEMENT
OF THE DEFECTIVE PRODUCT OR PART AND THE MANUFACTURER SHALL IN NO EVENT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES WHICH MAY RESULT FROM
ANY DEFECT IN MATERIAL OR WORKMANSHIP OR FROM THE BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. Some states do not allow the exclusion or limitation of incidental or consequential damages; the
limitation or exclusion may not apply to you.
