USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
Download the app
& activate product
Window Inverter
CONTENTS
02SAFETY PRECAUTIONS
01CONTENTS
12WHAT IS IN THE BOX
13BEFORE GETTING STARTED
14INSTALLATION OVERVIEW
21GET TO KNOW THE AC
22GET TO KNOW THE FEATURES
CLEANING & MAINTENANCE 25
TROUBLESHOOTING TIPS 26
REMOTE CONTROL 28
APP INSTRUCTIONS 33
WARRANTY 40
01
THANK YOU FOR CHOOSING MIDEA!
Before using your new Midea product, please review this manual thoroughly to
ensure safe and effective operation of its features and functions.
This manual contains helpful tips for the proper use and maintenance of the air
conditioner. Implementing preventive care can save significant time and money
throughout the unit's lifespan.
To prevent injury to the user, or personal and property damage, these instructions
must be followed.
Incorrect operation due to ignoring of instructions may cause harm or damage.
The level of risk is shown by the following indications.
SAFETY PRECAUTIONS
WARNING
WARNING
This symbol indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
This symbol indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
Explanation of Symbols
Plug in power plug properly. Otherwise, it may cause electric shock or fire due to
excess heat generation. Do not operate or stop the unit by inserting or pulling
out the power plug. It may cause electric shock or fire due to heat generation.
Do not damage or use an unspecified power cord. It may cause electric shock or
fire. If the power cord is damaged, it must be replaced by the manufacturer, an
authorized service center or similarly qualified persons in order to avoid a hazard.
Always install circuit breaker and a dedicated power circuit. Incorrect installation
may cause fire and electric shock. Do not operate with wet hands or in damp
environment. It may cause electric shock. Airflow should not be directed solely
at room occupants, as this could create a hazardous situation.
Always ensure effective grounding. Incorrect grounding may cause electric shock.
Do not allow water to flow into electrical parts. Failure to do so may result in
unit malfunction or electric shock. Do not modify power cord length or share
the outlet with other appliances. It
may cause electric shock or fire due to heat
generation.
Unplug the unit if strange sounds, smell, or smoke are present. It may cause fire
and electric shock. Do not use the socket if it is loose or damaged. It may cause
fire and electric shock. Do not open the unit during operation. It may cause electric
shock.
Keep firearms stored safely, as they may pose a fire risk. Do not use the power
cord close to heating appliances. It may cause fire and electric shock. Do not
use the power cord near flammable gas or combustibles, such as gasoline,
benzene, thinner, etc. It may cause an explosion or fire.
Ventilate room before operating air conditioner if there is a gas leakage from
another appliance. It may cause explosion, fire and burns.
Do not disassemble or modify unit. It may cause failure and electric shock.
02
When the air filter is to be removed, do not touch the metal parts of the unit. It
may cause injury. Ventilate room well when used together with a stove, etc.
Oxygen deficiency may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth.
Appearance may be deteriorated due to change of product color or scratching of
its surface. Do not clean the air conditioner with water. Water may enter the unit
and degrade the insulation. It may cause electric sh
ock. Do not use for special
purposes. Do not use this unit to preserve precision devices, food, pets, plants,
and art objects. lt may cause deterioration of quality, etc.
Cease operation and close windows during a storm or hurricane. Keeping
windows open may lead to water entering the home and soaking household
furniture.
When the unit is to be cleaned, switch off and turn off the circuit breaker.
Do not clean the unit when power is on as this may result in fire and electric
shock and may cause injury.
Always insert the filters securely. Operation without a filter may result in
malfunction. Please clean filter once every two weeks.
CAUTION
CAUTION
Do not place obstacles around air-inlet or inside the air-outlet. Failure to do so
may result in unit malfunction or accident. Do not place heavy objects on
the power cord and make sure the power cord is not crushed. Otherwise there is
a risk of fire or electric shock. Avoid drinking water drained from the air
conditioner, as it may contain contaminants that could pose health risks.
Use caution when unpacking and installing. Sharp edges could cause injury.
circuit breaker. Isolate supply by taking the power-plug out and contact a
If water enters the unit, turn the unit off at the power outle
t and switch off the
qualified service technician.
This unit is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
unit by a person responsible for their safety.
Hold the plug by the head of the power plug when taking it out. Otherwise it
may cause electric shock and damage.
Turn off the main power switch when not using the unit for a long time.
Otherwise it may cause unit malfunction or fire.
Installation must be per
formed in accordance with the requirement of NEC and
CEC by authorized personnel only.
Do not operate the air conditioner in a wet room such as a bathroom or laun-
dry room.
The unit with electric heater shall have at least 1 meter space to the com-
bustible materials.
Contact the authorized service technician for repair or maintenance of this unit.
Contact the authorized installer for installation of this unit.
Children shou
ld be supervised to ensure that they do not play with the air
conditioner.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard
.
The unit shall be installed in accordance with national wiring regulations.
03
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/ C-5-24
Indoor temp:
O
32-80 F/
O
0-27 C
O O O O
64-109 F/18-43
C (64-125
F/18-52 C
for special tropical models)
O
60-90 F/
O
16-32 C
NOTE
Note: Performance may be reduced outside of these operating temperatures.
This air conditioner is designed to be operated under the following conditions:
NOTE
Operation of Current Device

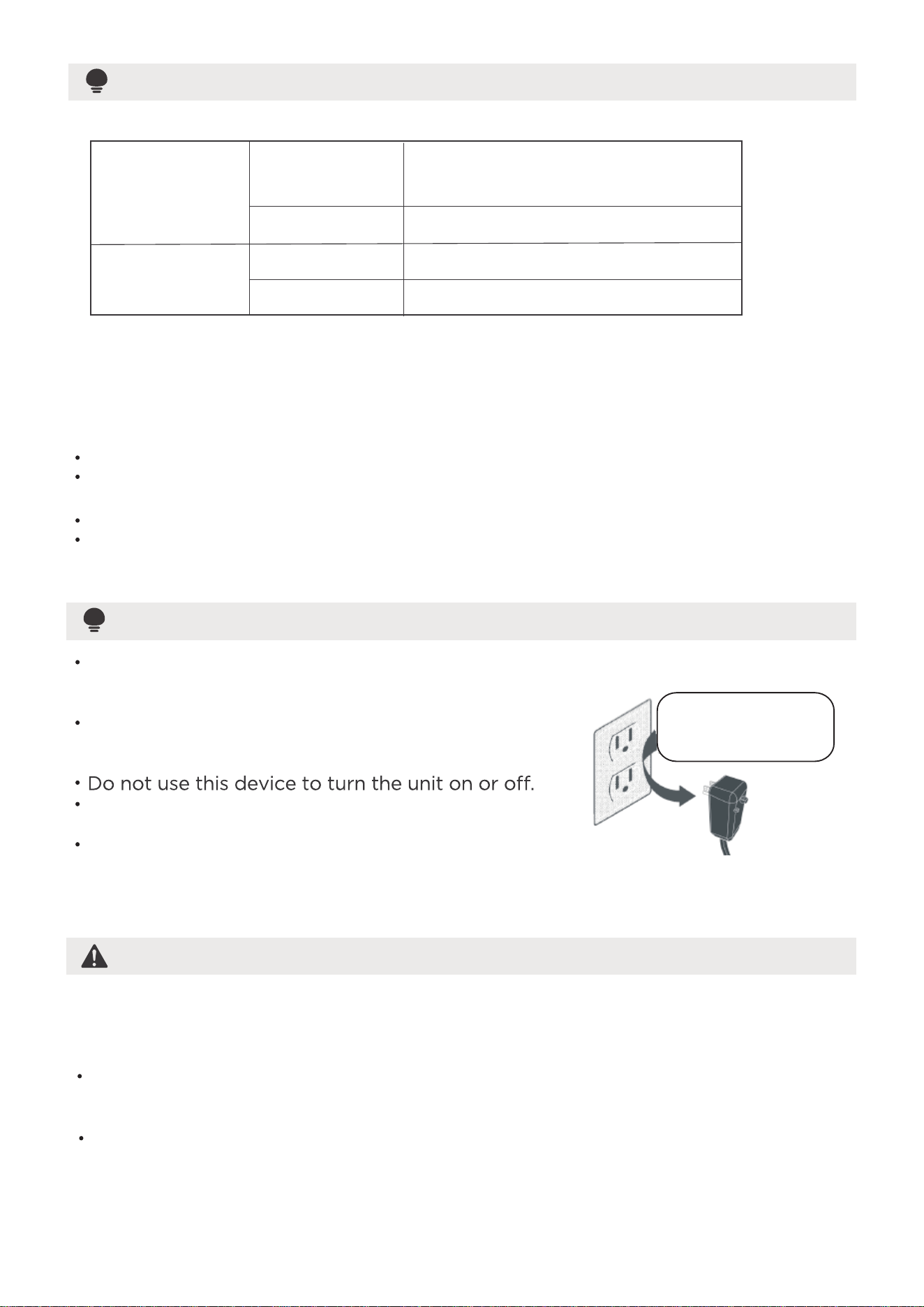

The power supply cord contains a current measuring device that detects damage
to the power cord. Test your power supply cord as follows:
Plug in the air conditioner.
The power supply cord will have TWO buttons on the plug head. Press the TEST
button. A click will be heard as the RESET button pops out.
Press the RESET button again. A click will be heard as the button engages.
The power supply cord is now supplying electricity to the unit. (On some
products this is also indicated by a light on the plug head) .
Grounding type wall receptacle
Power supply cord with 3-prong
grounding plug and current
detection device.
Always make sure the RESET button is pushed
in for correct operation.
If the power supply cord does not reset when
the TEST button is pressed or cannot be reset,
it must be replaced. Please contact customer
service for assistance.
The power supply cord with this air conditioner
contains a current detection device designed
to reduce the risk of fire.
In the event that the power cord is damaged, it
cannot be repaired – it must be replaced with a
cord from the product manufacturer.
WARNING
The complete electical rating of the air conditioner is stated on the serial plate.
Refer to the rating when checking the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize shock and fire
hazards, proper grounding is important. The power cord is equipped with a
three-prong grounding plug for protection against shock hazards.
The air conditioner must be used in a properly grounded wall receptacle. If the
wall receptacle is not adequately grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Electrical Information
04
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prongs.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
To reduce the risk of fire, electrical shock, or injury to persons when using the air
conditioner, follow basic precautions, including the following:
Ensure that the electrical service is sufficient for the selected model. This
information can be found on the serial plate, which is located on the side of the
the cabinet and behind the grille.
For Your Safety
Prevent Accidents
If the air conditioner is to be installed in a window, clean both sides of the glass
first. If the window is a triple-trackty pew which includes creen panel, remove the
screen completely before installation.
Be sure the air conditioner has been securely and correctly installed according to
the installation instructions in this manual.
Save this manual for possible future use in removing or installing this unit.
When handling the air conditioner, be careful to avoid cuts from sharp metal fins
on front and rear coils.
Avoid fire hazard or electric shock. Do not use an extension cord or an adapter
plug. Do not remove any prongs from the power cord.
Do not run air conditioner without side protective cover in place. This could result
in mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
05
Electronic Work
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE MAIN POWER
TO THE SYSTEM.
NOTE:
Please strictly follow the wiring label attached to the machine for all
wiring connections. The wiring diagram may vary for different unit. Please refer
to the wiring diagram on the unit. The above wiring diagram is a simplified
version for preliminary illustration purposes only.
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
Electronic Type
06
WARNING：
SAFETY PRECAUTIONS for R32 refrigerant model
CAUTION:
Risk of fire
flammable materials

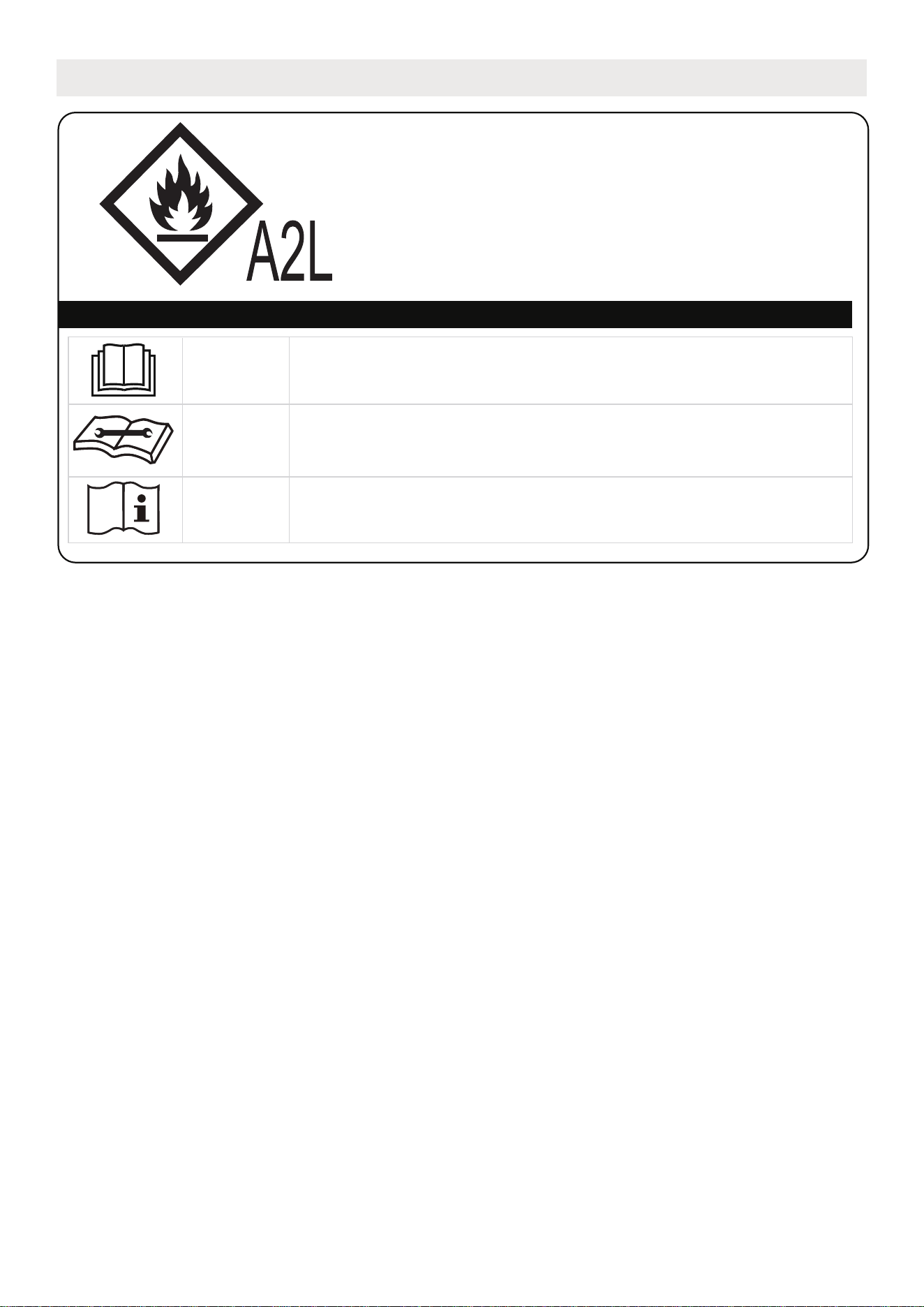

Explanation of symbols displayed on the unit
CAUTION
This symbol indicates that the operation manual should
be read carefully.
CAUTION
This symbol indicates that a service personnel should be
handling this equipment with reference to the
installation manual.
CAUTION
This symbol indicates that information is available such
as the operating manual or installation manual.
- Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the use of flammable
refrigerants.
- DO NOT modify the length of the power cord or use an extension cord to power
the unit.
- DO NOT share a single outlet with other electrical appliances. Improper power
supp
ly can cause fire or electrical shock.
- Please follow the instruction carefully to handle, install, clear, service the unit
to avoid any damage or hazard.
- When maintaining or disposing the unit, the refrigerant shall be recovered
properly, shall not discharge to air directly.
- Compliance with national gas regulations shall be observed.
- Keep ventilation openings clear of obstruction.
- The unit shall be stored so as to prevent mechanical damage from occurring.
- A warning that the unit shall be stored in a well-ventilated area where the room
size corresponds to the room area as specified for operation.
- Any person who is involved with wo
rking on or breaking into a refrigerant circuit
should hold a current valid certificate from an industry-accredited assessment
authority, which authorizes their competence to handle refrigerants safely in
accordance with an industry recognised assessment specification. All training shall
follow the ANNEX HH requirements of UL 60335-2-40 4th Edition.
Examples for such working procedures are:
• Breaking into the refrigerating circuit;
• Opening of sealed components;
• Opening of ventilated enclosures.
07
1) Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks
are necessary to ensure that the risk of ignition is minimized. For repair to the
refrigerating system, the following precautions shall be complied with prior to
conducting work on the system.
2) Work procedure
Work shall be undertaken under a controlled procedure so as to minimize the risk of
a flammable gas or vapor being present while the work is being performed.
3) General work area
All maintenance staff and others working in the local area shall be instructed on the
nature of work being carried out. Work in confined spaces shall be avoided.
The area around the workspace shall be sectioned off. Ensure that the conditions
within the area have been made safe by control of flammable material.
4) Checking for presence of refrigerant
The area shall be
checked with an appropriate refrigerating detector prior to and
during work, to ensure the technician is aware of potentially flammable atmospheres.
Ensure that the leak detection equipment being used is suitable for use with
flammable refrigerants. (i.e. non-sparking, adequately sealed or intrinsically safe)
5) Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated
parts, appropriate fire extinguishing equipment shall be available to hand. Have a
dry powder or CO
2 fire extinguisher adjacent to the charging area.
6) No ignition sources
No person carrying out work in relation to a refrigerating system which involves
exposing any pipe work that contains or has contained flammable refrigerant shall
use any sources of ignition in such a manner that it may lead to the risk of fire or
explosion. All possible ignition sources, including smoking, should be kept sufficiently
far
away from the site of installation, repairing, removing and disposal, during which
flammable refrigerant can possibly be released to the surrounding space. Prior to
work taking place, the area around the equipment is to be surveyed to make sure
that there are no flammable hazards or ignition risks. "No Smoking" signs shall be
displayed.
6. Information on servicing
See transport regulations.
1. Transport of equipment containing flammable refrigerants
See local regulations.
2. Marking of equipment using signs
See national regulations.
3. Disposal of equipment using flammable refrigerants
4. Storage of equipment
Storage package protection should be constructed such that mechanical
damage to the equipment inside the package will not cause a leak of the
refrigerant charge. The maximum number of pieces of equipment permitted to
be stored together will be determined by local regulations.
5. Storage of packed (unsold) equipment
The storage of the unit should be in accordance with the applicable regulations
or instructions, whichever is more stringent.
08
7) Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking
into the system or conducting any hot work. A degree of ventilation shall continue
during the period that the work is carried out. The ventilation should safely disperse
any released refrigerant and preferably expel it externally into the atmosphere.
8) Checks to the refrigerating equipment
Where electrical components are being changed, they shall be fit for the purpose
and to the correct specifications. At all times the manufacturer's maintenance and
service guidelines shall be followed. If in doubt consult the manufacturer's technical
department for assistance. The following checks shall be applied to installations
using flammable refrigerants: the actual refrigerant charge is in accordance with the
room size within which the refrigerant containing parts are installed; the ventilation
machinery a
nd outlets are operating adequately and are not obstructed; if an
indirect refrigerating circuit is being used, the secondary circuit shall be checked for
the presence of refrigerant; marking to the equipment continues to be visible and
legible.
Markings and signs that are illegible shall be corrected; and refrigerating pipe or
components are installed in a position where they are unlikely to be exposed to
any substance which may corrode refrigerant containing components, unless the
components are constructed of materials which are inherently resistant to being
corroded or are suitably protected against being so corroded.
9) Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks
and component inspection procedures. If a fault exists that could compromise safety,
then no electrical supply shall be connected to the circuit until it is satisfactorily dealt
with. If the fault cannot be corrected immediately but it is necessary to continue
operation, an adequate temporary solution shall be used.
This shall be reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include: That capacitors are discharged: this shall be done
in a safe manner to avoid possibility of sparking; that there no live electrical
components and wiring are exposed while charging, recovering or purging the
system; that there is continuity of earth bonding.
7. Sealed electrical components shall be replaced.
8. Intrinsically safe components must be replaced.
Check that cabling will not be subject to wear, corrosion, excessive pressure,
vibration, sharp edges or any other adverse environmental effects. The check shall
also take into account the effects of aging or continual vibration from sources such
as compressors or fans.
9. Cabling
09
When breaking into the refrigerant circuit to make repairs—or for any other
purpose - conventional procedures shall be used. However, for flammable
refrigerants it is important that best practice be followed, since flammability is
a consideration. The following procedure shall be adhered to:
-Safely remove refrigerant following local and national regulations;
-Evacuate;
-Purge the circuit with inert gas (optional for A2L);
-Evacuate (optional for A2L);
-Continuously flush or purge with inert gas when using flame to open circuit; and
-Open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if
venting is not allowed by local and national codes. For units containing flammable
refrigerants, the system shall be purged with oxygen-free nitrogen to render the
appliance safe for flammable refrigerants. This process may need to be repeated
several times. Do not use compressed air or oxygen to purge refrigerant systems.
F
or units containing flammable refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the system with oxygen-free nitrogen and
continuing to fill until the working pressure is achieved, then venting to
atmosphere, and finally pulling down to a vacuum (optional for A2L).
This process shall be repeated until no refrigerant is within the system (optional
for A2L). When the final oxygen-free nitrogen charge is used. the system shall be
vented down to atmospheric pressure to enable work to take place. The outlet
for the vacuum pump shall not be close to any potential ignition sources, and
ventilation shall be available.
11. Removal and evacuation
Under no circumstances shall potential sources of ignition be used in the searching
for or detection of refrigerant leaks. A halide torch (or any other detector using a
naked flame) shall not be used.
The following leak detection methods are deemed acceptable for systems
conta
ining flammable refrigerants. Electronic leak detectors shall be used to detect
flammable refrigerants, but the sensitivity may not be adequate, or may need
re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.)
Ensure that the detector is not a potential source of ignition and is suitable for the
refrigerant used. Leak detection equipment shall be set at a percentage of the LFL
of the refrigerant and shall be calibrated to the refrigerant employed and the
appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids
are suitable for use with most refrigerants but the use of detergents containing
chlorine shall be avoided as the chlorine may react with the refrigerant and corrode
the copper pipe-work. If a leak is suspected, all naked flames shall be removed/
extinguished. If a leakage of refrigerant is found which requires brazing, all of the
refrigerant shall be recovered from the system, or isolated (by means of shut o
ff
valves) in a part of the system remote from the leak. Removal of refrigerant shall
be according to Removal and evacuation.
10. Detection of flammable refrigerants
Before carrying out this procedure, it is essential that the technician is completely
familiar with the equipment and all its detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in
case analysis is required prior to re-use of reclaimed refrigerant. It is essential
that electrical power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that: Mechanical handling equipment
is available, if required, for handling refrigerant cylinders; all personal protective
equipment is available and being used correctly; the recovery process is
supervised at all times by a competent person; recovery equipment and
cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be
removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's
instructions.
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
sure that the cylinders and the equipment are removed from site promptly and
all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system
unless it has been cleaned and checked.

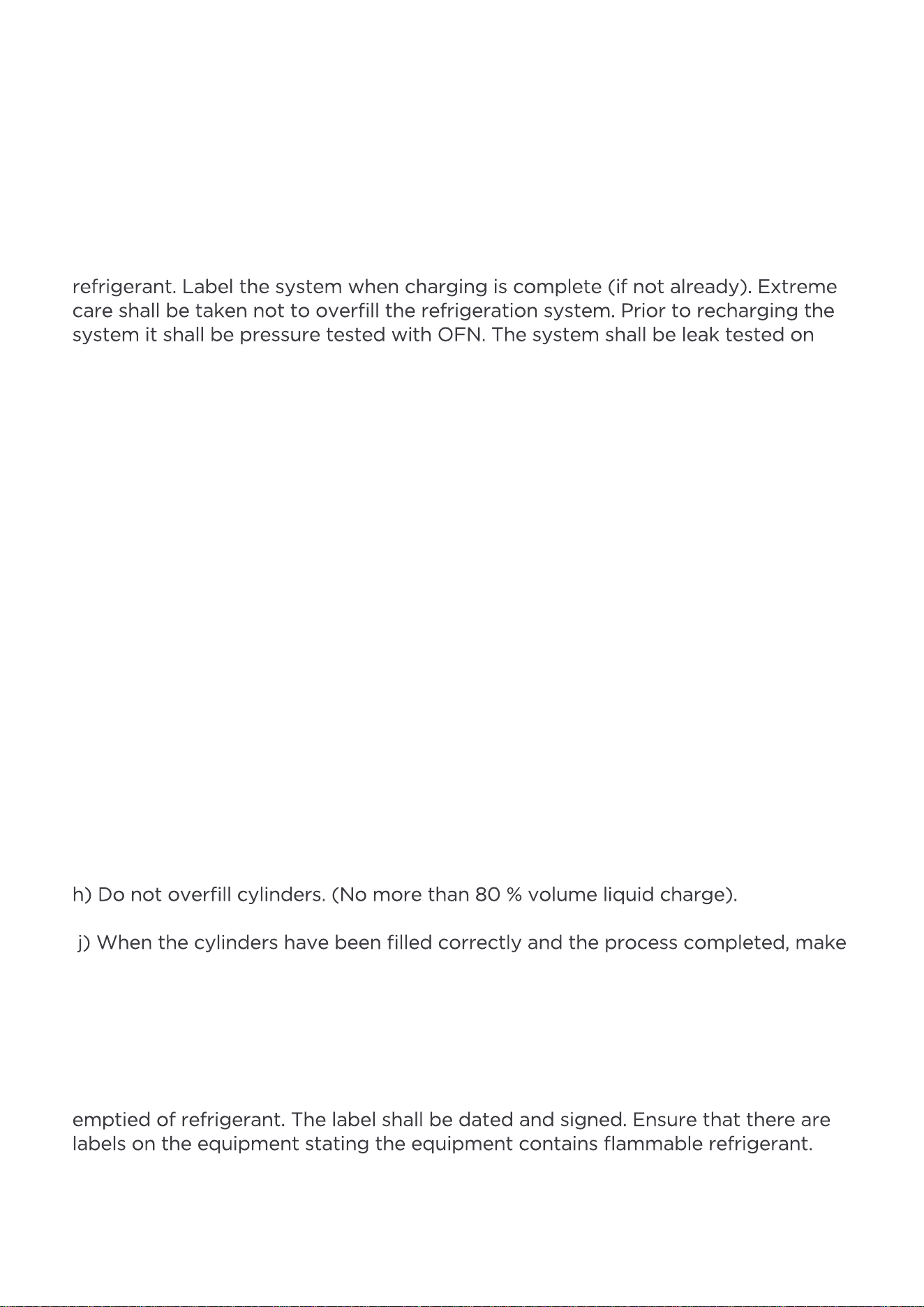

In addition to conventional charging procedures, the following requirements shall
be followed.
Ensure that contamination of different refrigerants does not occur when using
charging equipment.
Hoses or lines shall be as short as possible to minimize the amount of refrigerant
contained in them.
Cylinders shall be kept in an appropriate position according to the instructions.
Ensure that the refrigeration system is earthed prior to charging the system with
completion of charging but prior to commissioning. A follow up leak test shall be
carried out prior to leaving the site.
12. Charging procedures
13. Decommissioning
Equipment shall be labeled stating that it has been de-commissioned and
14. Labeling
10
11
When removing refrigerant from a system, either for servicing or decommissioning,
it is recommended good practice that all refrigerants are removed safely. When
transferring refrigerant into cylinders, ensure that only appropriate refrigerant
recovery cylinders are employed. Ensure that the correct number of cylinders for
holding the total system charge is available. All cylinders to be used are designated
for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders
for the recovery of refrigerant). Cylinders shall be complete with pressure relief
valve and associated shut-off valves in good working order. Empty recovery
cylinders are evacuated and, if possible, cooled before recovery occurs. The
recover
y equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery of
addition, a set of calibrated weighing scales shall be available and in good working
order. Hoses shall be complete with leak-free disconnect couplings and in good
condition.
The recovered refrigerant shall be processed according to local legislation in the
correct recovery cylinder, and the relevant waste transfer note arranged. Do not
compressor oils are to be removed, ensure that they have been evacuated to an
ignition sources to accelerate this process. When oil is drained from a system, it
shall be carried out safely.
15. Recovery

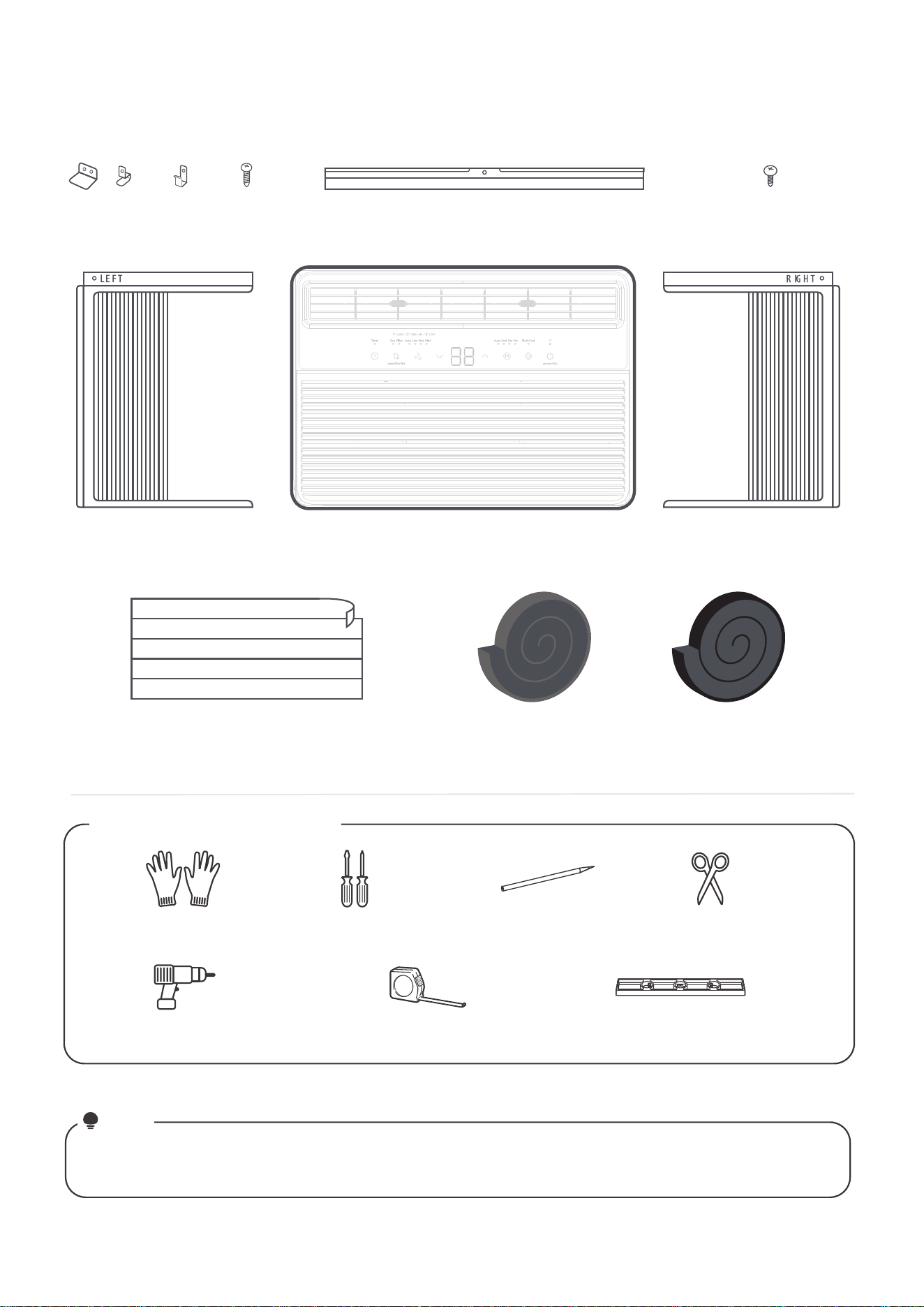

WHAT IS IN THE BOX
The purchased unit may differ in appearance; please refer to the actual materials for
reference.
X4
X2
X2
X7
Top Rail 3/8in Screws
1/2in Screws and
Safety Lock(3 Types)
Frame Assembly(Left)
Frame Assembly(Right)
Foam insert(E-Star model only)
Window Sash Seal
Foam (with glue)
Window Sash Seal
Foam (non glue)
Window Type Room
Air Conditioner unit
NOTE
LevelRuler or tape measureDrill
*Not Included
PencilGloves Screwdriver Scissors
Prepare the following tools
12

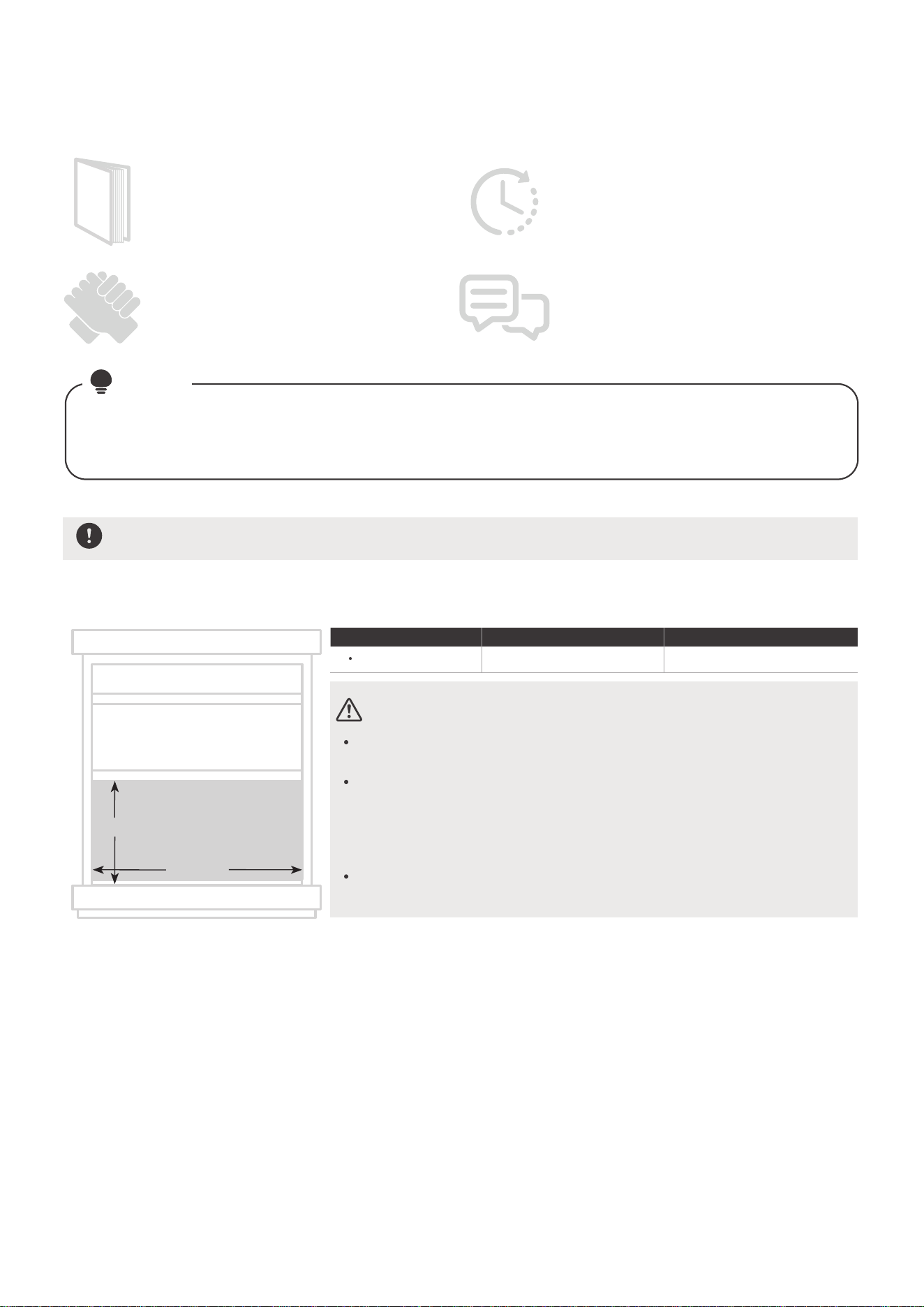

BEFORE GETTING STARTED
NOTE
Installing the AC should take
about 60 minutes.
The installation must be car-
ried out in strict accordance
with the instructions in this
manual.
Manual
Assistance from a helper is
advised.
Customer Service:
1-866-646-4332
Save the packaging and these Installation Instructions for future reference.
The original package is the best way to store unit during winter, or when not
in use.
WINDOW REQUIREMENTS
23in to 36in
(584mm to 914mm)
H
The air conditioner is designed to install in standard double hung windows with
opening widths of 23 to 36 inches (584mm to 914mm).
14in (356mm)
15-1/2in (394mm)
Window opening height
8000~10000Btu/h
12000~14500Btu/h
H
CAUTION
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord.
Do not change the plug on the power cord of the air conditioner.
Aluminum house wiring may present special problems - consult
a qualified electircian. When handling unit, be careful to avoid
cuts from sharp metal edges and aluminum fins on front and rear
coils.
The rear of the unit must be outdoors, not inside a building or
garage.
13

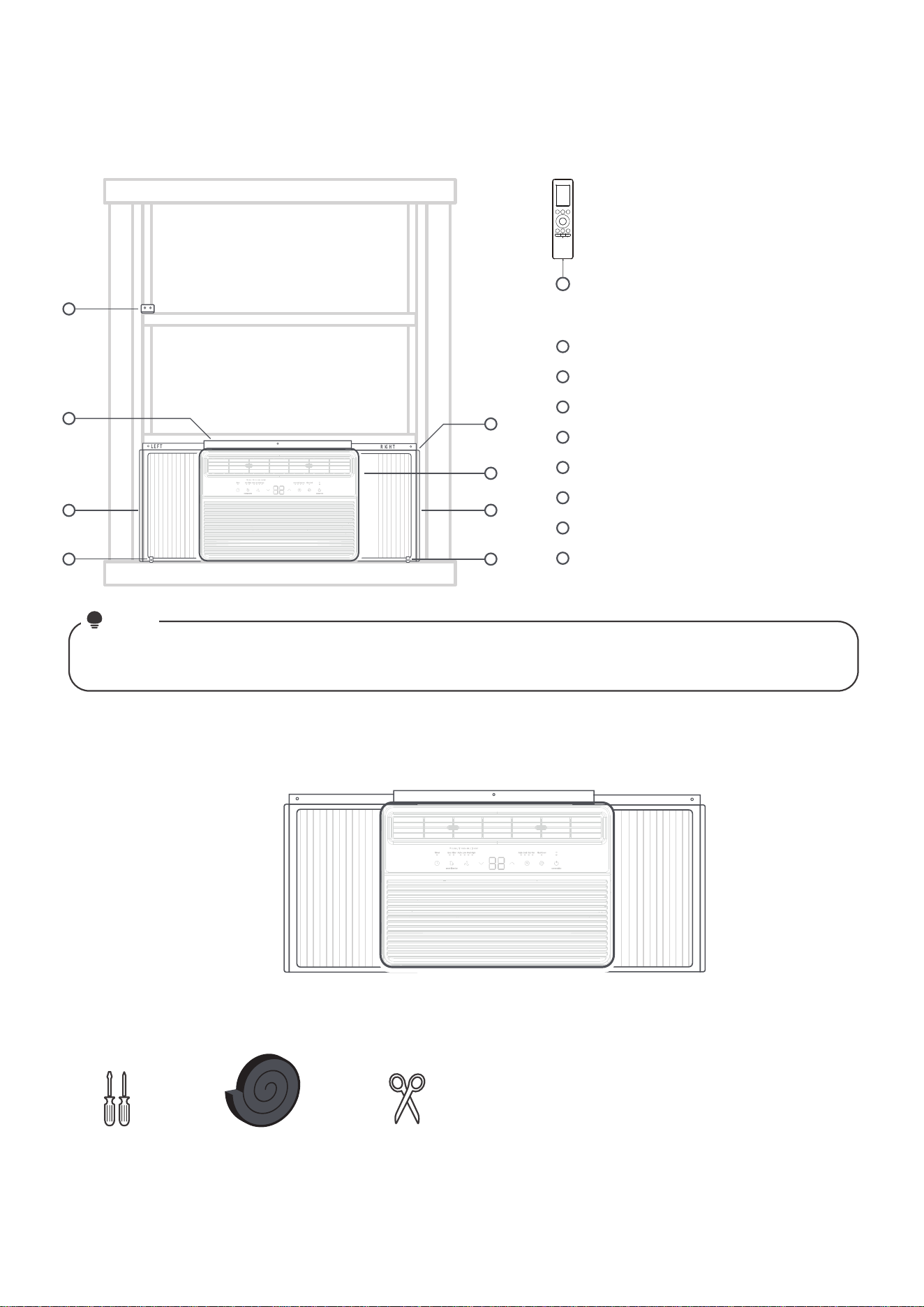

INSTALLATION OVERVIEW
1
2
3
4 4
5
6
7
8
Top Rail and 3/8in Screws
Air Conditioner unit
1
2
3
4
5
6
7
8
Safety Lock and 1/2in Screws
Safety Lock and 1/2in Screw
Frame Assembly (Left)
Frame Assembly (Right)
Window Sash Seal Foam
Remote controller
Illustrations in this manual are for explanatory purposes. The actual shape of
the indoor unit may be slightly different. The actual shape shall prevail.
NOTE
.TINU CA EHT LLATSNIPETS 1
What you need.
14
RIGHT
LEFT

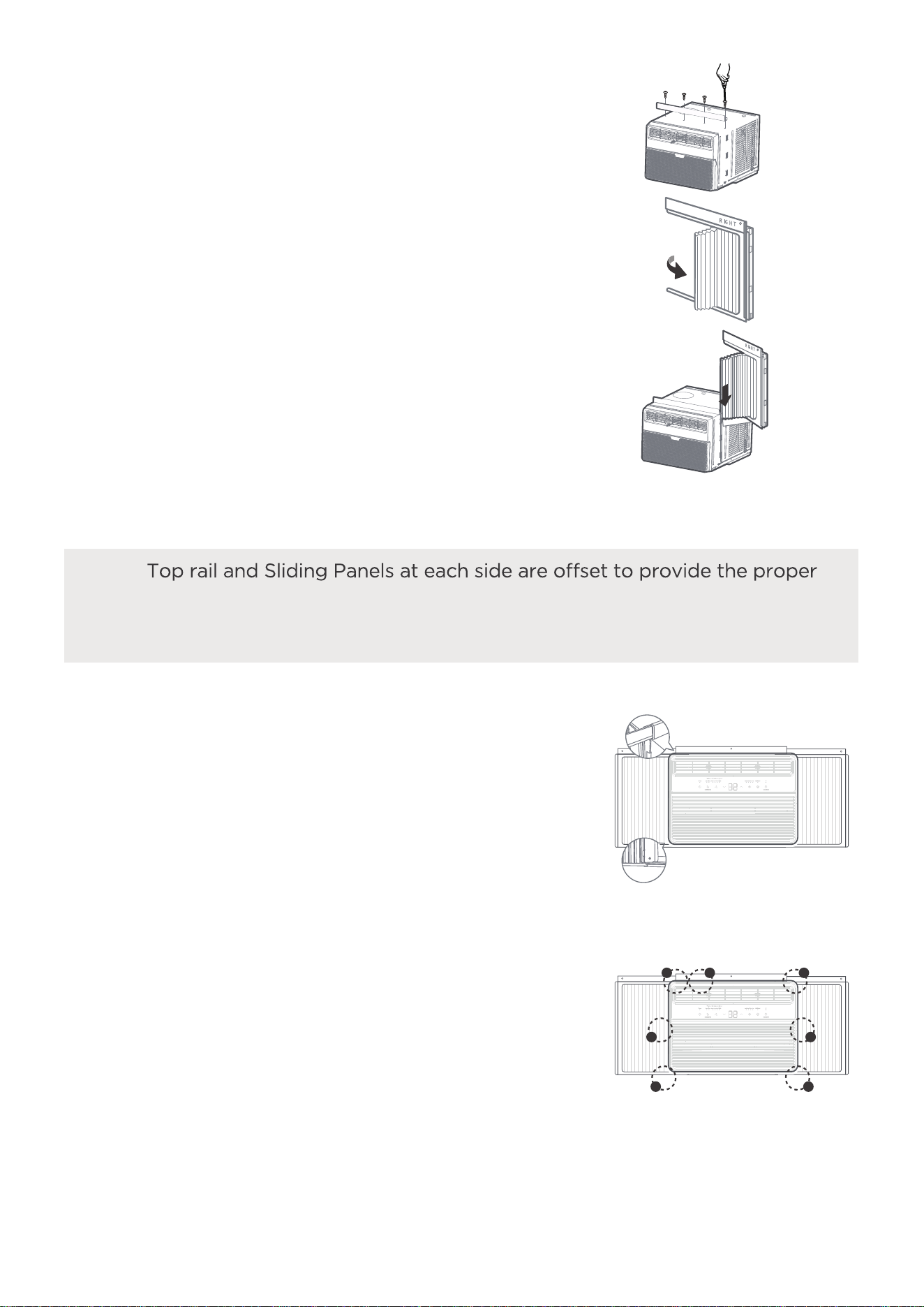

Install the AC.
(1)Install the top rail on the AC.
Install the Top Rail on the AC with 4 Screws
(3/8in). For safety reasons, all 4 screws MUST be
securely fastened.
(2)Pull the panels.
(3)Install the frame assembly.
Slide the left and right panels halfway into the
frame assembly.
Insert the panel into the side slot of the AC, pay
attention to the left and right differences of the
panel.
NOTE:
pitch to the rear of (5/16 "). This is necessary for proper condensed water utiliza-
tion and drainage. If the side panels are not being used, it is important to
maintain this pitch toward the rear.
(4)Fasten the panels to the AC.
Stretch the wind screen outward and insert the upper
and lower frame strips of the panels into the AC
card slot.
(5)The AC unit is done.
Before the next installation phase, please
confirm the following installation is in place.
A. Insert the upper and lower frame strips of the panels
into the cabinet card slot.
B. Top Rail on the AC with 4 Screws.
C. Insert the panel on the side of the AC.
15
RIGHT
LEFT
C
AA
C
B
A A
RIGHT
LEFT

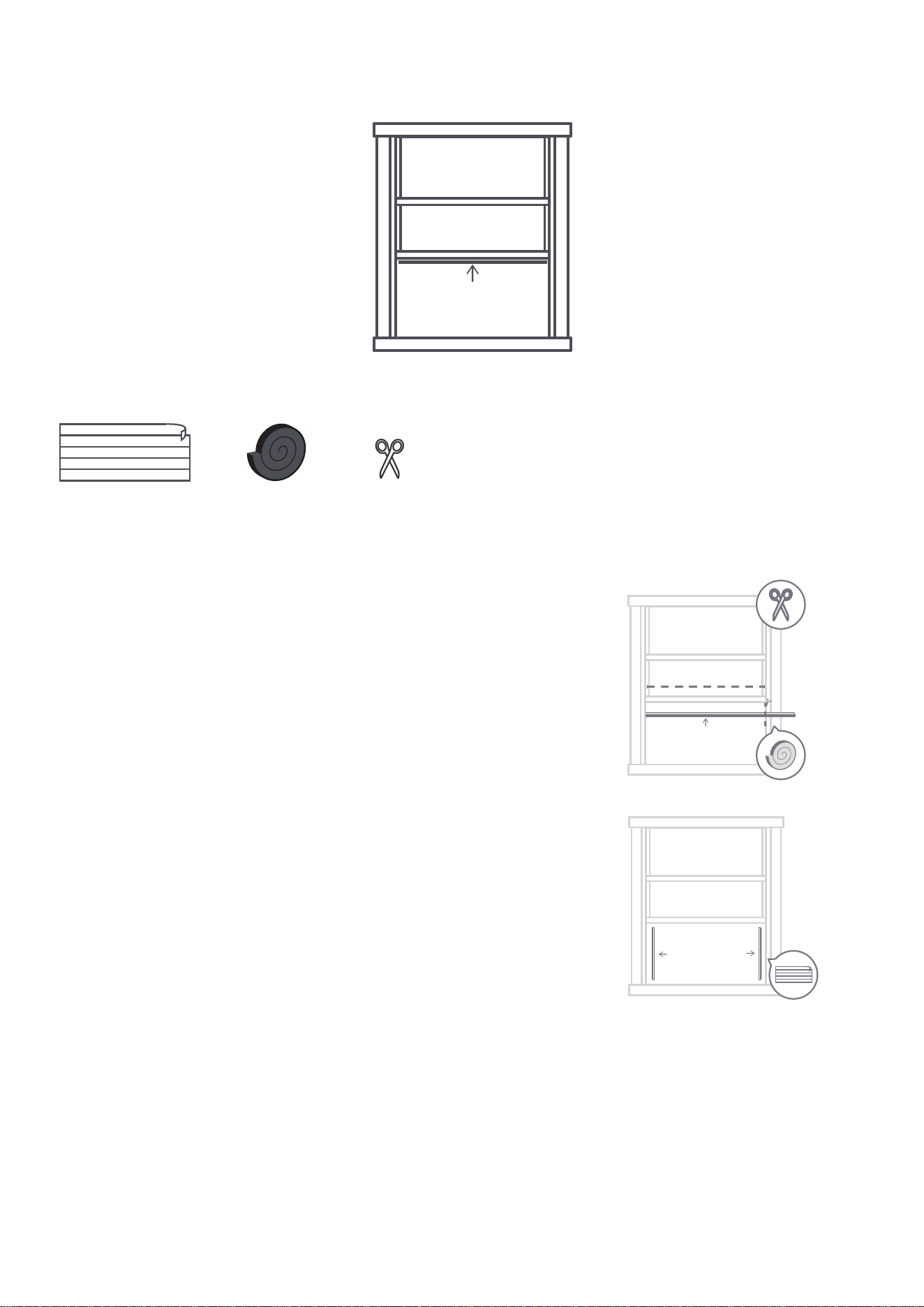

PETS 2
INSULATE THE WINDOW.
What the need.
(1)Cut the seal foam to the width of the window,
and stick it of the underside.
Cut the adhesive foam to the width of the window,
then stick it of the underside of the window.
In order to improve the operation of the unit and reduce
the noise generated during operation, it is necessary to
seal the gaps with foam.
(2)Insert the foam to the gaps on the side.
If the window already has a liner or insulation strip,
skip this step.
•
16
RIGHT
LEFT

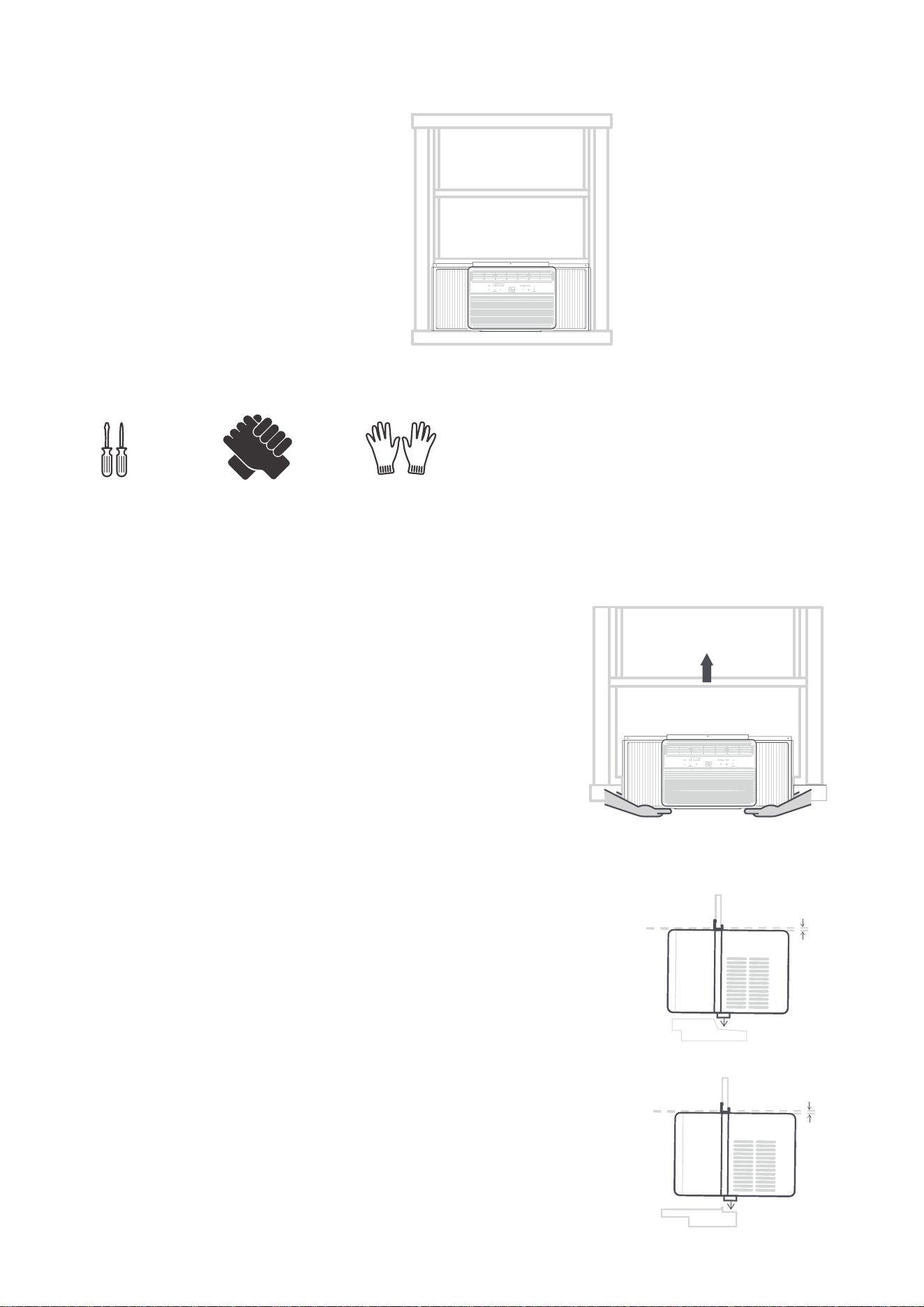

STEP 3
LIFT THE AC INTO THE WINDOW.
What you need.
(1)With an assistant, lift the assembled AC into the
window frame.
Ensure this step is completed with an assistant.
Carefully lift the assembled AC into the window
frame, making sure someone is securely holding
the back of the unit.
•
It can be helpful to rest the unit on the inside
window sill until ready for proper repositioning.
Improper handling may result in injury to
individuals or damage to property.
•
Verify that the air conditioner is tilted back
approximately 3° to 4° toward the outside.
After proper installation, condensate should not
drain from the overflow drain hole during normal
use. If it does, adjust the slope accordingly.
(2)Properly position the bottom bar BEHIND the
inside window sill.
Properly position the bottom bar behind the
inside window sill and insert it into the bottom
horizontal channel of the window frame.
The front of the bottom bar should be pressing
up against the back edge of the sill.
Wooden Windows
Angle：3-4°
OutsideInside
OutsideInside
Vinyl-Clad Windows
Angle：3-4°
17
RIGHT
LEFT

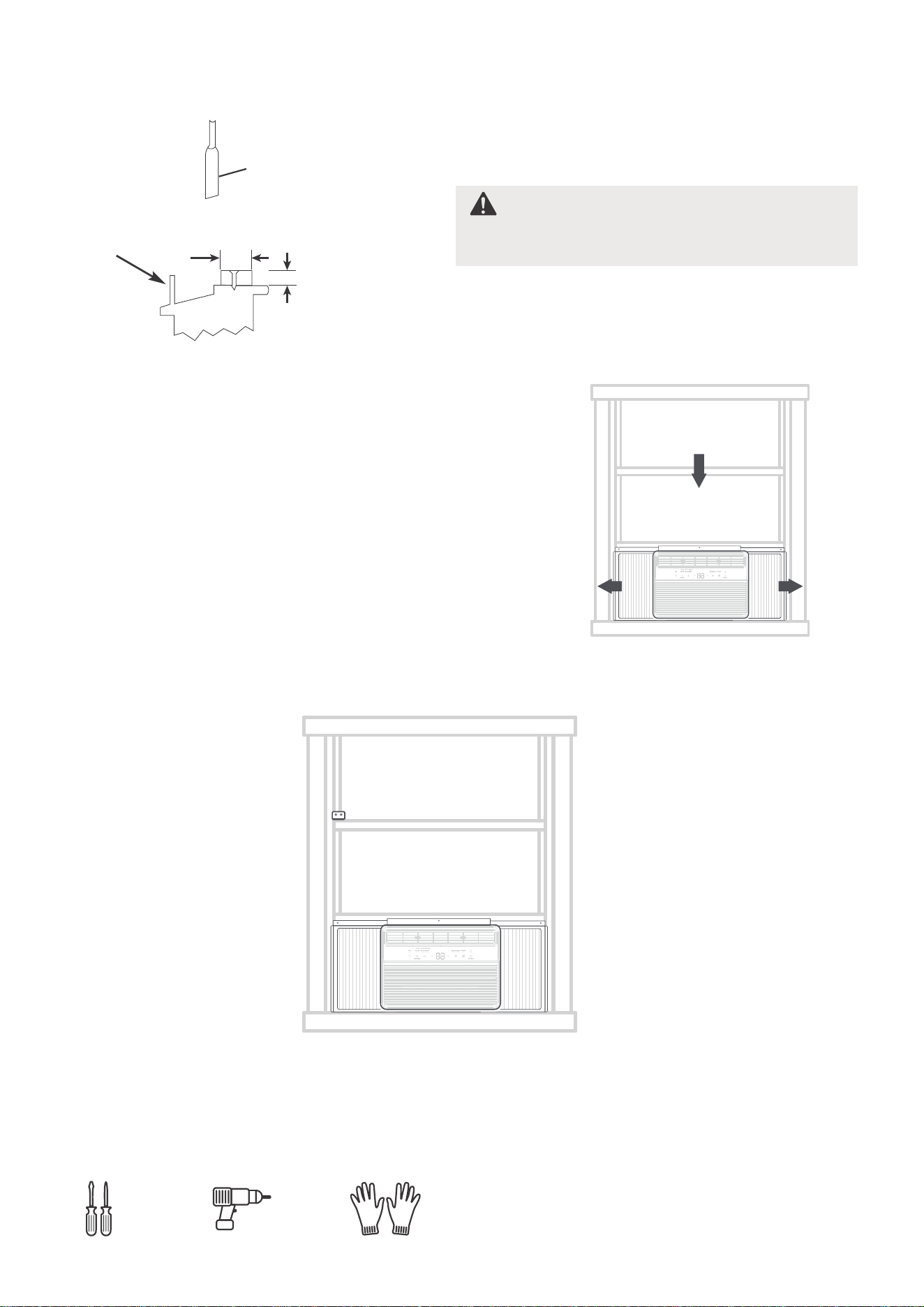

Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
Once the AC is centered and the bottom bar is
successfully positioned, close the window down
onto the AC, behind the top bar. See diagram
above. Pull the panels to the side of the window.
(3)Close the window onto the AC, and pull
the panels to the side of the window.
Lift the AC into the window.
CAUTION
If storm window blocks AC,
Please install according to the figure above.

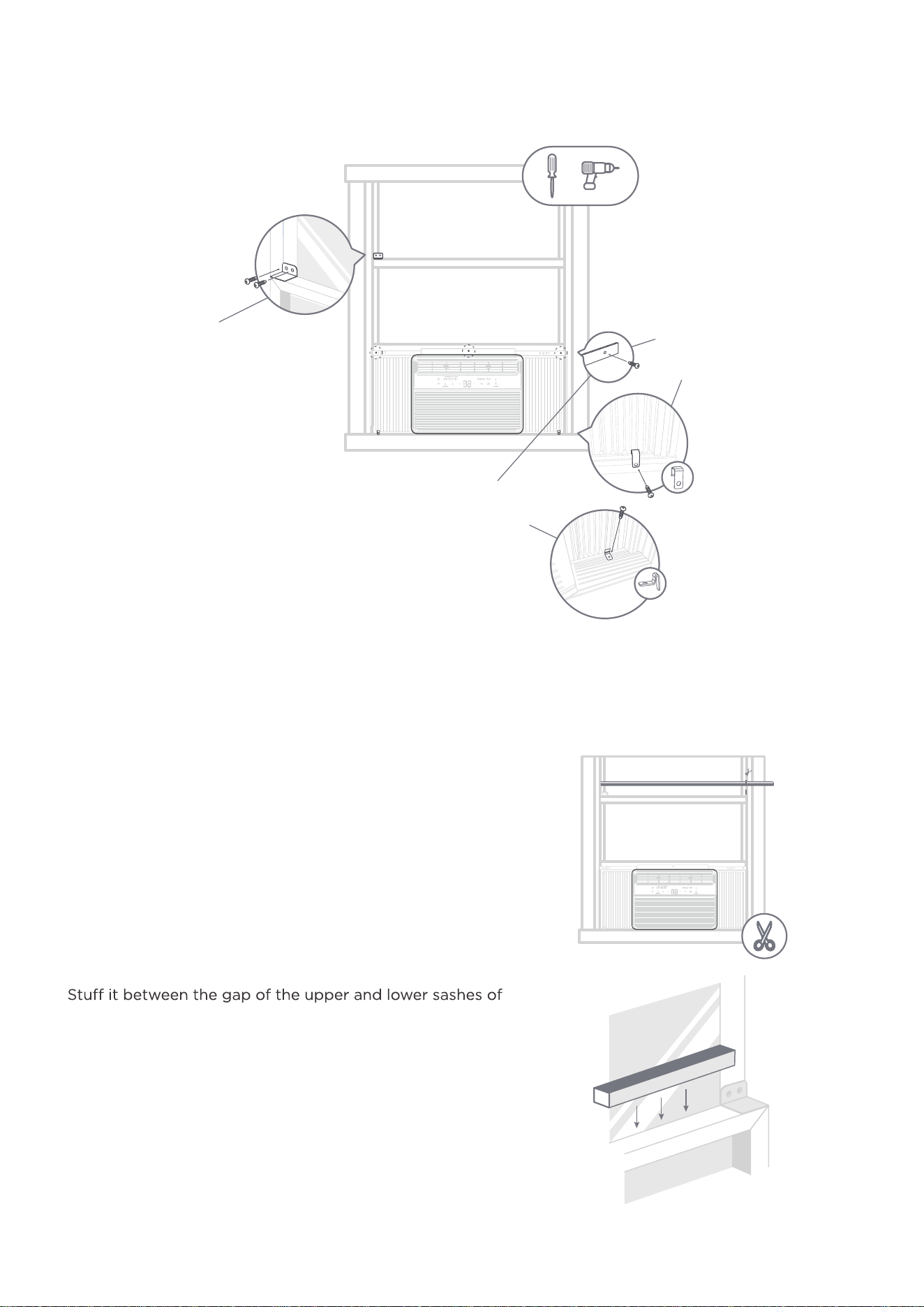

STEP 4
What you need.
SECURE THE AC.
18
RIGHT
LEFT
RIGHT
LEFT
Follow the above instructions and drive the screws.
Secure the AC.
(1)Drive locking screws.
or
Drive 1/ 2" (12.7 mm) locking
screws through the frame lock and
into the sill (Only wooden windows).
NOTE: To prevent window sill
from splitting, drill 1/8 " (3mm)
pilot holes before driving screws.
1/8 " (3mm) pilot holes
before driving screws. Drive
1/ 2" (12.7mm)locking screws
through frame holes into
window sash (Only wooden
windows) .
Drive 1/ 2" (12.7 mm) locking screws
through the frame lock and into the
window sash (Only Vinyl-Clad windows).
NOT
E: Before driving the screws, use
a drill to drill 5 holes through the holes
in the frame lock and frame extensions
into the windows sash as
shown.
Ensure that the foam is cut from the non-adhesive sides.
Measure and cut the foam to match the width of the
window from the left to the right side.
(2)Cut the non-adhesive insulation foam to fit the width
of the window.
the window.
This will plug any air gaps and help keep out bugs
and draft.
(3)Use the non-adhesive foam to fill the gaps in the window.
19
1
2
ADDITIONAL NOTES
Add wood as shown in Caution illustration on page 16, or remove storm window
before air conditioner is installed. If storm window frame must remain, be sure
the drain holes or slots are not caulked or painted shut. Accumulated rain water
or condensation must be allowed to drain out.
Removing AC From Window
windows, and unscrew safety sash lock. Remove screws installed through frame
and frame-lock. Keep a firm grip on air conditioner, raise sash and carefully
remove. Be carefully not to spill any remaining water while lifting unit from
window. Store parts with air conditioner.
High Pitched Chatter
-
ing cycle.
Sound of Rushing Air
At the front of the unit, the sound of rushing air from the fan may be audible.
Gurgle/Hiss
“Gurgling or hissing”noise may be heard due to refrigerant passing through
evaporator during normal operation.
Vibration
Unit may vibrate and make noise because of poor wall or window construction
or incorrect installation.
Pinging or Switching
Droplets of water hitting condenser during normal operation may cause “ping-
ing or swishing” sounds. Th
is noise can be reduced by removing the water plug
at the bottom of unit’s rear as shown below. Removing this plug will lower the
energy effciency of the unit.
Note: Don’t try to drill any holes on the base pan to eliminate the normal
sounds, otherwise it will void the warranty.
If AC is Blocked by Storm Window.
Normal Sounds
Noise when unit is working
In mute mode, the compressor may become more audible for about 3
minutes, which is normal. A "da-da" sound may occur for thirty seconds
upon startup as the compressor activates, and this is also normal.
20

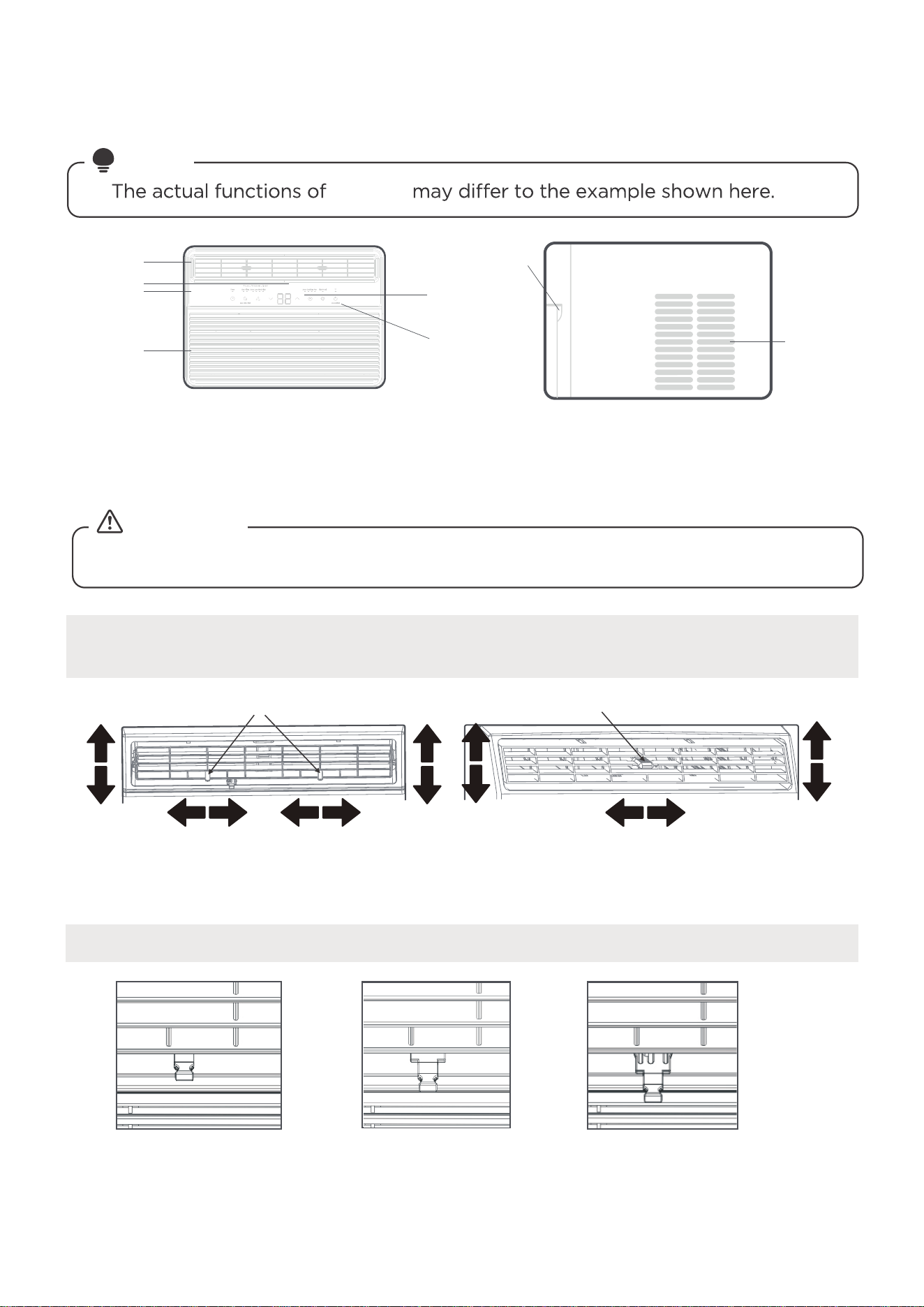

GET TO KNOW THE AC
Strainer
disassemble
buckle
Display
(Electronic
control panel
only)
Air Direction
Status display
Louvers
the unit
Power key
Front Intake
Grille
(The filter is
behind this)
Rear
Condenser
Vents
NOTE
Adjust the air conditioning direction.
Air conditioning louvers
Do not stick fingers in the air outlet, it may cause injury.
CAUTION
Four-way adjustment (up or down, left or right) -
For 06K/08K/10K/12K/14K
Fresh air vent control - For 12/14K
The louvers will direct the air flow Up or Down (on some models) and Left or Right throughout the room
as needed. Pivot horizontal louvers until the desired Up/Down direction is obtained. Move the Lever(s)
from side to side until the desired Left/Right direction is obtained.
Lever Lever
Fig.B (FRESH AIR)
cord.
Fig.A (CLOSE)
Fig.C (VENT)
The fresh air vent allows the air conditioner to:
1. Recirculate inside room - Fresh (See Fig.A)
2. Draw fresh air into the room - Fresh air (see Fig.B)
3. Exhaust air from the room - Vent (see Fig.C)
21

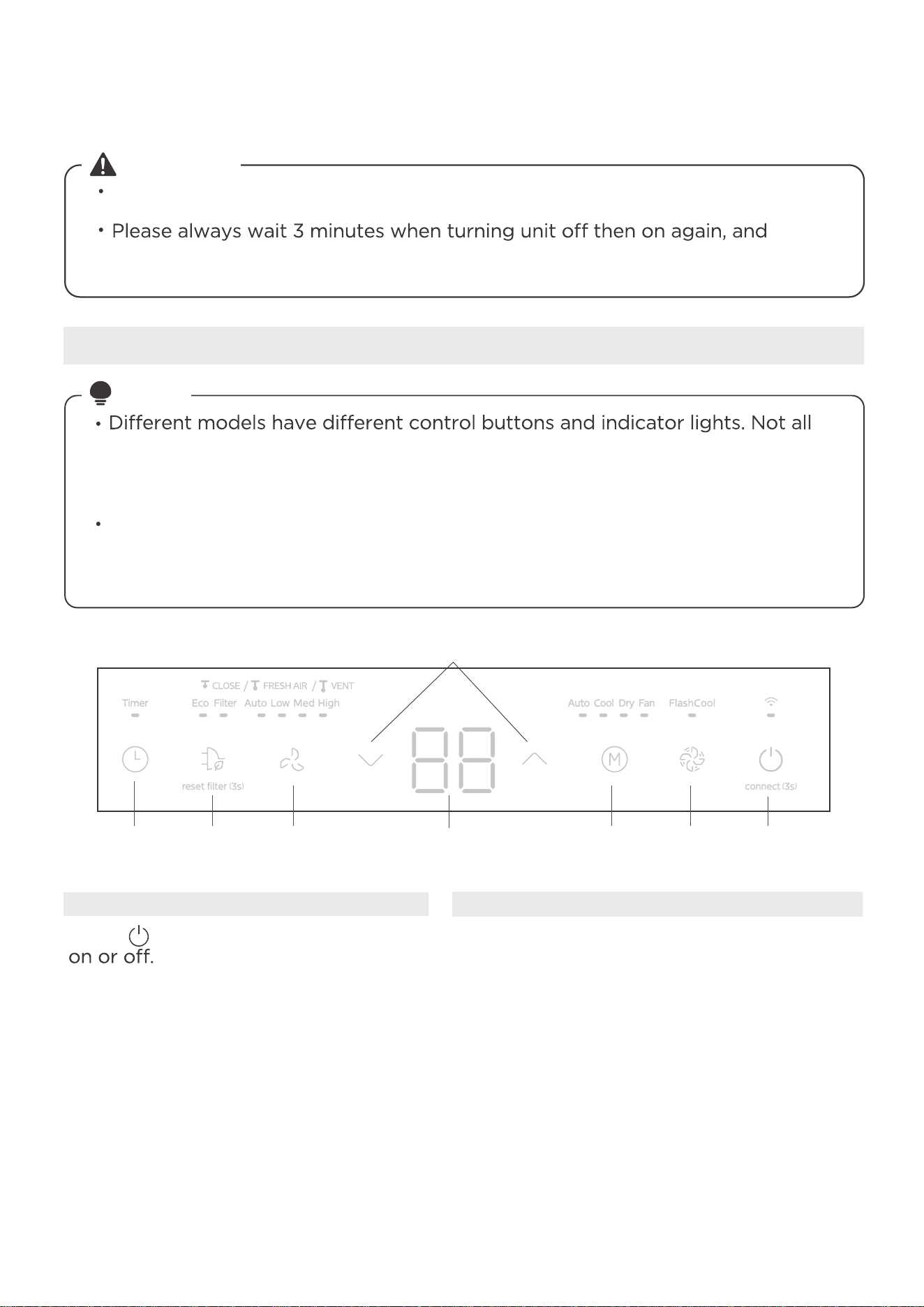

GET TO KNOW THE FEATURES
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the
IMPORTANT SAFETY INSTRUCTIONS before operating this unit.
when changing from cool to fan and back to cool. This prevents
compressor from overheating & possible circuit breaker tripping.
Electronic control operating instructions
the control buttons and indicator lights describing below are available for
the unit purchased. Please check the control panel of the unit purchased.
The unit can be controlled by the unit control alone or with the remote
controller.
The function of the operation panel is based on typical model, the function
is the same with the air conditioner while some differences may exist in
appearance.
NOTE
8
4
12
53
67
1. TO TURN UNIT ON OR OFF:
Press POWER button to turn unit

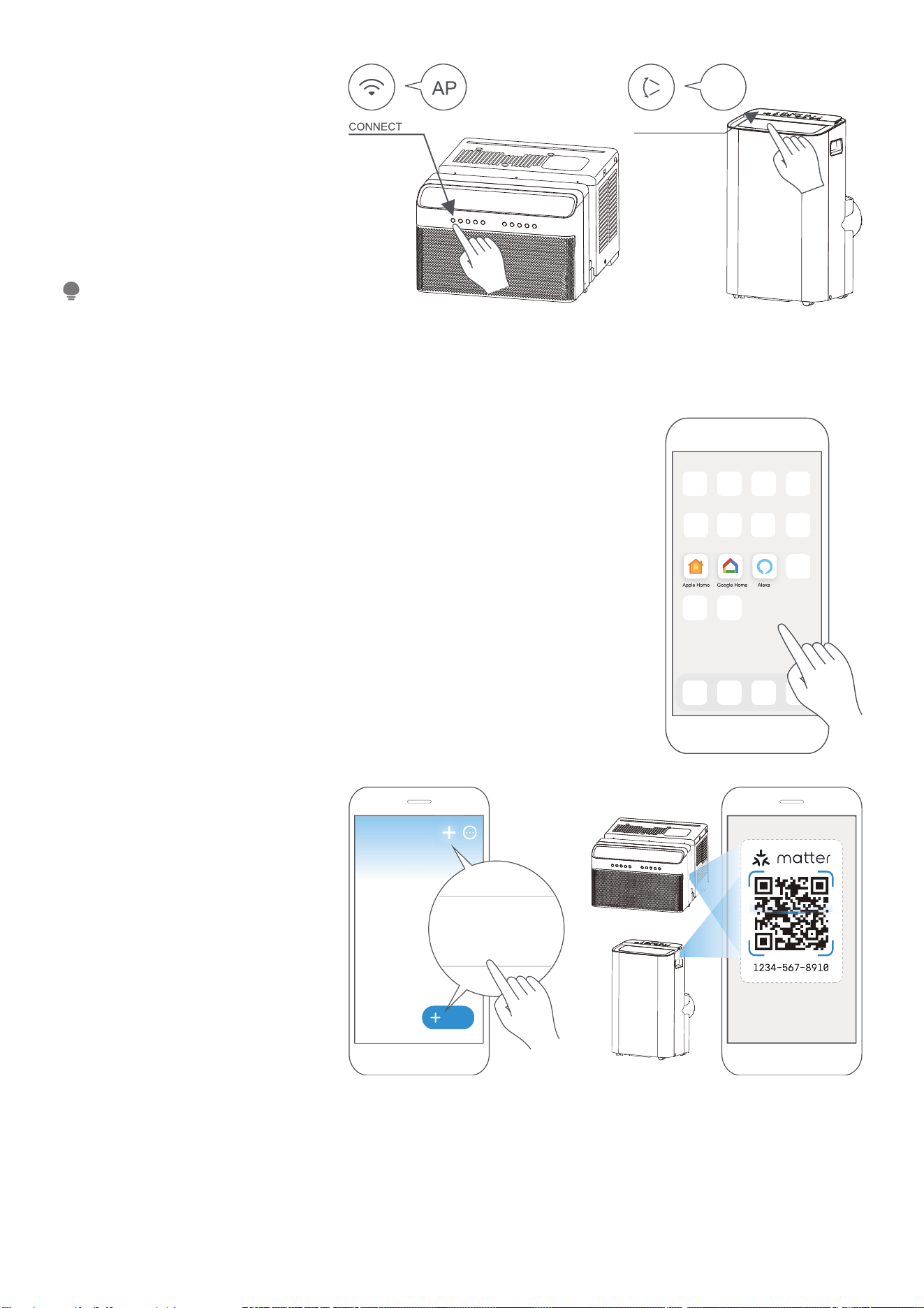

Wireless button
Press and hold on the POWER button
for 3 seconds to initiate the Wireless
connection mode.
2. FLASHCOOL FUNCTION:
Press this button to initiate the FlashCool
function. FlashCool provides maximum
cooling and sets the fan to the highest
speed. The unit will operate in this mode
until the mode is changed, the fan speed is
adjusted, or the function is turned off. The
unit will then return to normal cooling
operation with the fan speed set to high.
NOTE: Cool mode must be set before
selecting FlashCool mode.
22
4. TO CHANGE TEMPERATURE SETTING:
NOTE: Press or hold either UP or DOWN
button until the desired temperature is
shown on the display. This temperature
will be automatically maintained anywhere
between 60°F (16°C ) and 86°F (30°C).
For the display to show the actual room
temperature, refer to the "To Operate on
Fan Only" section.
Press UP/DOWN button to change
temperature setting.
3. TO ADJUST FAN SPEEDS:
Press Fan button to select the Fan
Speed in four steps-Auto, Low, Med or
High. Each time the button is pressed,
the fan speed mode is shifted. For some
models, the fan speed can’t be adjusted.
5. TO SELECT THE OPERATING MODE:
To choose operating mode, press Mode
button. Each button press selects a mode
in the following sequence: Auto, Cool,
Dry, Heat (for cooling-only models, this
option is absent), and Fan. The indicator
light beside will be illuminated and
remained on once the mode is selected.
The unit will initiate automatically the
Energy Saver function under Cool, Dry,
Auto (only Auto-Cooling and Auto-Fan)
modes.
To operate on COOL mode :
• Choose Cool Mode to set the cooling
function. Use the Up and Down buttons to
choose the desired temperature. When
Cool Mod
e is selected, the fan speed can
be adjusted by pressing the fan button.
• In this mode, the fan speed cannot
be adjusted, it starts automatically at a
speed according to the room tempera-
ture.
• Use this function only when cooling is
not desired, such as for room air
circulation or to exhaust stale air (on
some models). (Remember to open the
vent during this function, but keep it
closed during cooling for maximum
cooling effciency.)
To operate on Fan-Only
• During this function, the display wi
ll
show the actual room temperature,
not the set temperature as in the cool-
ing mode.
• In Fan-Only mode, the temperature is
not adjusted.
To operate on Dry mode:
• In this mode, the air conditioner will
generally operate in the form of a
dehumidifier. Since the conditioned
space is a closed or sealed area, some
degree of
cooling will continue. On Dry
mode, the fan speed is controlled at
Auto automatically.
Press and hold on on the ECO for 3
seconds to initiate the res
et filter
connection mode.
Press ECO button to initiate this function.
This function is available on COOL, DRY,
AUTO (only AUTO-COOLING and
AUTO-FAN) modes.
The fan will continue to run for 3 minutes
after the compressor shuts off. The fan
then cycles on for 2 minutes at 10 minute
intervals until the room temperature is
above the set temperature, at which time
the compressor turns back on and
cooling starts.
6. ENERGY SAVER FEATURE:
This feature is a reminder to clean the
The LED (light) will illuminate after
250 hours of operation. To reset after
cleaning the filter, press the ECO
To operate on Auto feature:
• When the unit is set to AUTO mode,
it will automatically select cooling,
heating (not applicable to cooling-only
models), or fan-only operation on the
selected temperature and the
temperature of the room.
23

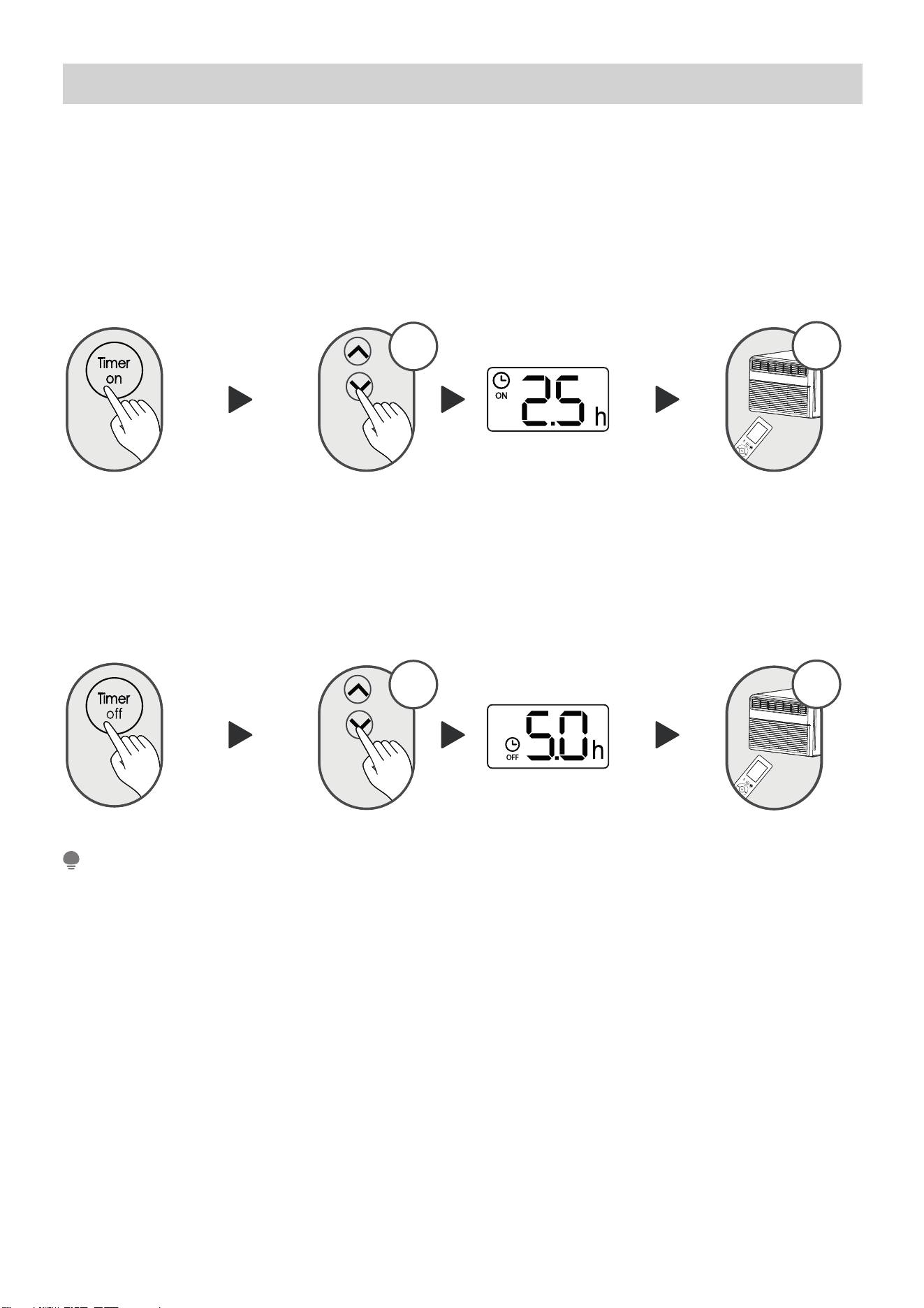

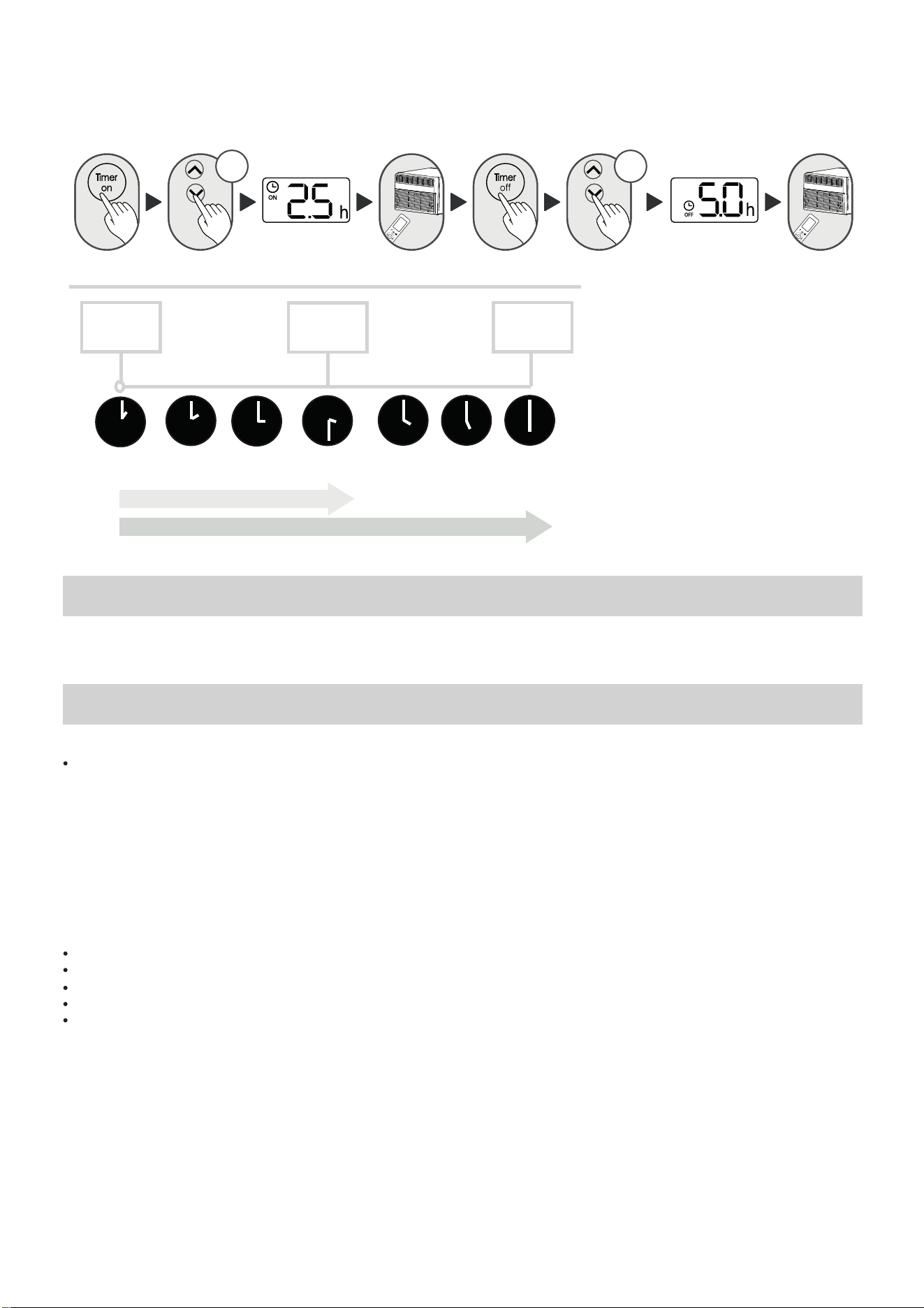

7. TIMER: AUTO START/STOP FEATURE:
• Press Timer button, the TIMER ON
or TIMER OFF indicator light illumi-
nates. It indicates the Auto Start or
Auto Stop program is initiated. For
some units, keep pressing the Timer
button will cancel the timer settings.
• Press or hold the UP or DOWN
button to change the Auto time by
0.5 hour increments, up to 10
hours,then at 1 hour increments up to
24 hours. The control will count down
the time remaining until start.
• The selected time wil
l register in 5
seconds, and the system will auto-
matically revert back to display the
previous temperature setting or room
temperature when the unit is on.
(when the unit is off, there is no display).
• Turning the unit ON or OFF at any
time or a djusting the timer setting to
0.0 will cancel the Auto Start/Stop
timed program.
8. DISPLAYS:
Shows the set temperature in "°C" or
"°F" and the Auto-timer setings.
While on Fan only mode, it shows the
room temperature. If the room
temperature is too high or low, it will
display
"HI" or "LO".
Displays
24

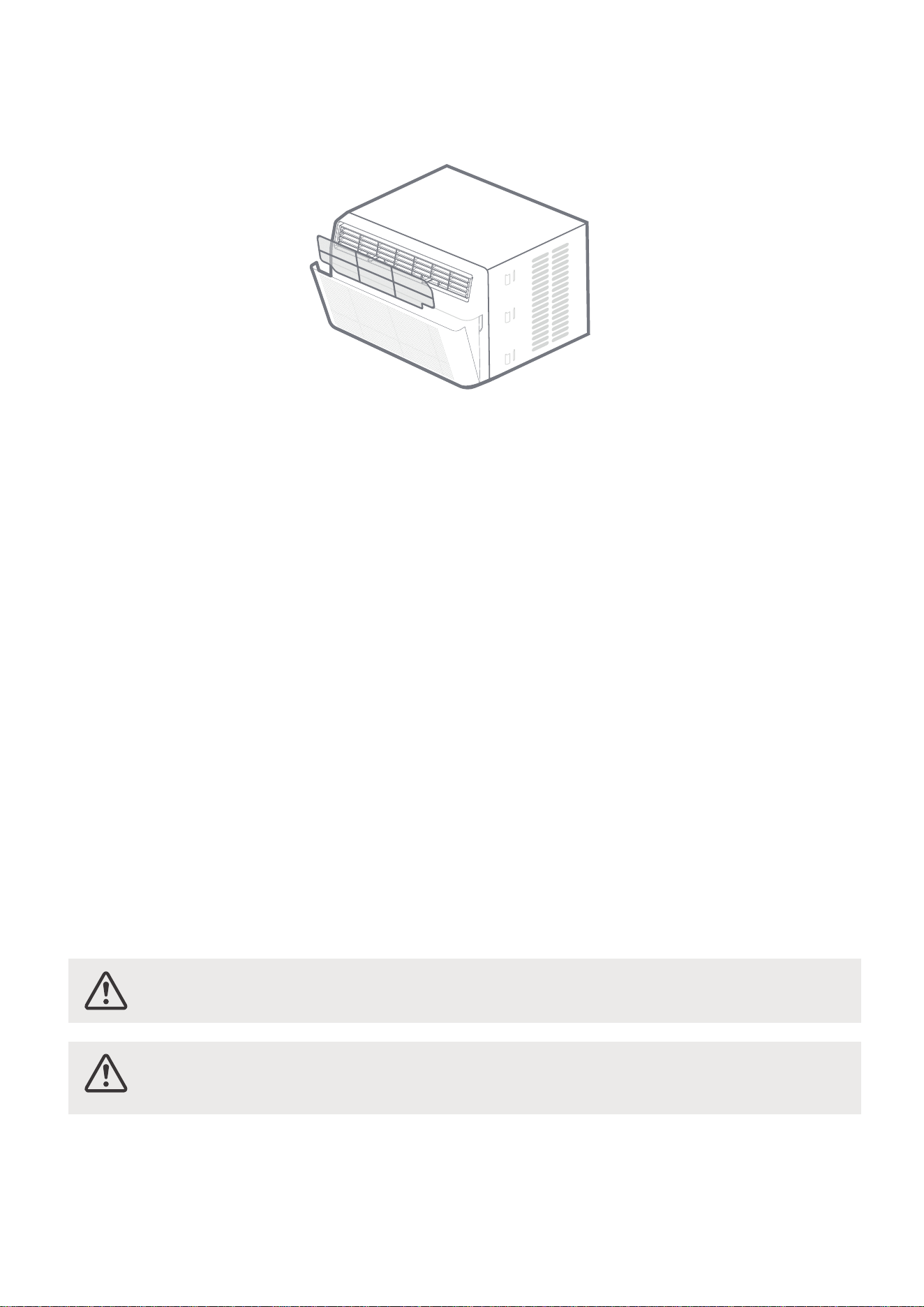

CLEANING & MAINTENANCE
Check the air filter once a month to see if cleaning is necessary.
CAUTION: Clean the air conditioner occasionally to keep it looking new. Be sure to
unplug the unit before cleaning to prevent shock or fire hazards.
CAUTION: If the air conditioner is to be stored during the winter, carefully uninstall the unit
from the window according to the installation instructions. Store the unit in the original
carton or cover it with plastic.
The air filter should be checked at least once a month to see if cleaning is necessary.
Trapped particles in the filter can build up and cause an accum
ulation of frost on the
cooling coils.
• Push the vent handle to the Vent Closed position (where applicable). Open the
front panel.
• Take the filter by the center and pull up and out.
• Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet
and front may be dusted with an oil-free cloth or washed with a cloth dampened in
a solution of warm water and mild liquid dishwashing detergent. Rinse thoroughly
and wipe dry.
• Wash the filter using liquid dishwashing detergent and warm water.
Rinse filter
thoroughly. Gently shake excess water from the filter. Be sure the filter is
thoroughly dry before replacing. Filter can be cleaned with a vacuum rather than
washing.
Note: Never use hot water over 40°C ( 104°F ) to clean the
air filter. Never attempt
to operate the unit without the air filter.
Cabinet Cleaning
• Never use harsh cleaners, wax or polish on the cabinet front.
• Be sure to wring excess water from the cloth before wiping around the controls.
Excess water in or around the controls may cause damage
to the air conditioner.
• Plug in air conditioner.
25
Air conditioner
cooling, but room
is too warm - NO
ice forming on
cooling coil behind
decorative front.
Dirty or restricted air filter. Clean air filter. Refer to Cleaning and Maintenance section.
Temperature is set too High, set temperature to a Lower setting.
TROUBLESHOOTING TIPS
Before scheduling a service call, please consult the chart below. It is designed to help
identify common issues that are not attributable to defects in workmanship or
materials. Reviewing this chart may assist in resolving problems more efficiently and
cost-effectively.
Air conditioner
does not start.
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type
or reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Power is OFF. Turn power ON.
Air from unit does
not feel cold
enough.
Room temperature below 60°F (16°C). Cooling may not occur until room
temperature rises above 60°F (16°C).
Set to a Lower temperature.
Air conditioner
cooling, but room
is too warm - ice
forming on cooling
coil behind
decorative front.
Outdoor temperature below 64°F (18°C). To defrost the coil, set FAN ONLY mode.
Air filter may be dirty. Clean filter. Refer to Cleaning and Maintenance section.
To defrost, set to FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN
ONLY mode. Then, set temperature to a Higher setting.
Problem Solution
Temperature sensor behind the air filter element is touching the cold coil.
Compressor stopped when changing modes. Wait for 3 minutes after setting to
the COOL mode.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air
distribution. Clear blockage in front of unit.
Air directional louvers positioned improperly. Position louvers for better air
distribution.
Problem Solution
Air conditioner
rapidly
Noise when unit is
cooling
Dirty or restricted air filter. Clean air filter.
Air movement sound. This is normal. If too loud, set to a slower FAN setting.
An open doors, windows, or registers may allow cold air to escape. Close any
doors, windows or registers.
The room may be too warm. Allow additional time to remove “Stored heat” from
walls, ceiling, floor and furniture.
For better cooling effect, the wind wheel outside the window machine will make
a splash. The rear side drain plug can be removed if the sound is not desired.
(Standard installation angle of window machine 3°-5° degrees)
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring
air past cooling coils more frequently.
Window vibration - poor installation. Refer to installation instructions or check
with installer.
26
Water dripping
INSIDE when unit
is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water
drainage. Refer to installation instructions - check with installer.
Noise when unit is
working
Water dripping
OUTSIDE when
unit is cooling.
Unit is removing large quantity of moisture from humid room. This is normal
during excessively humid days.
Remote Sensing
Deactivating
Prematurely (Only
remote models)
Remote control not located within range. Place remote control within 20 feet
and pointed in the general direction of the air conditioner unit.
Remote control signal obstructed. Remove obstruction.
Room too cold
Set temperature too low. Increase setting temperature.
The design and specifications are subject to change without prior notice for product improvement.
Any updates to the manual will be uploaded to the Midea website (www.midea.com/us), please check for
the current version.
When the mute mode is used to start the unit, due to the compressor being hot,
the sound of the compressor may be more prominent. Lasting for about 3
minutes is normal.
A "da-da" sound may occur for thirty seconds when the unit is turned on due to
the compressor starting. It is normal.
Problem
Solution
27

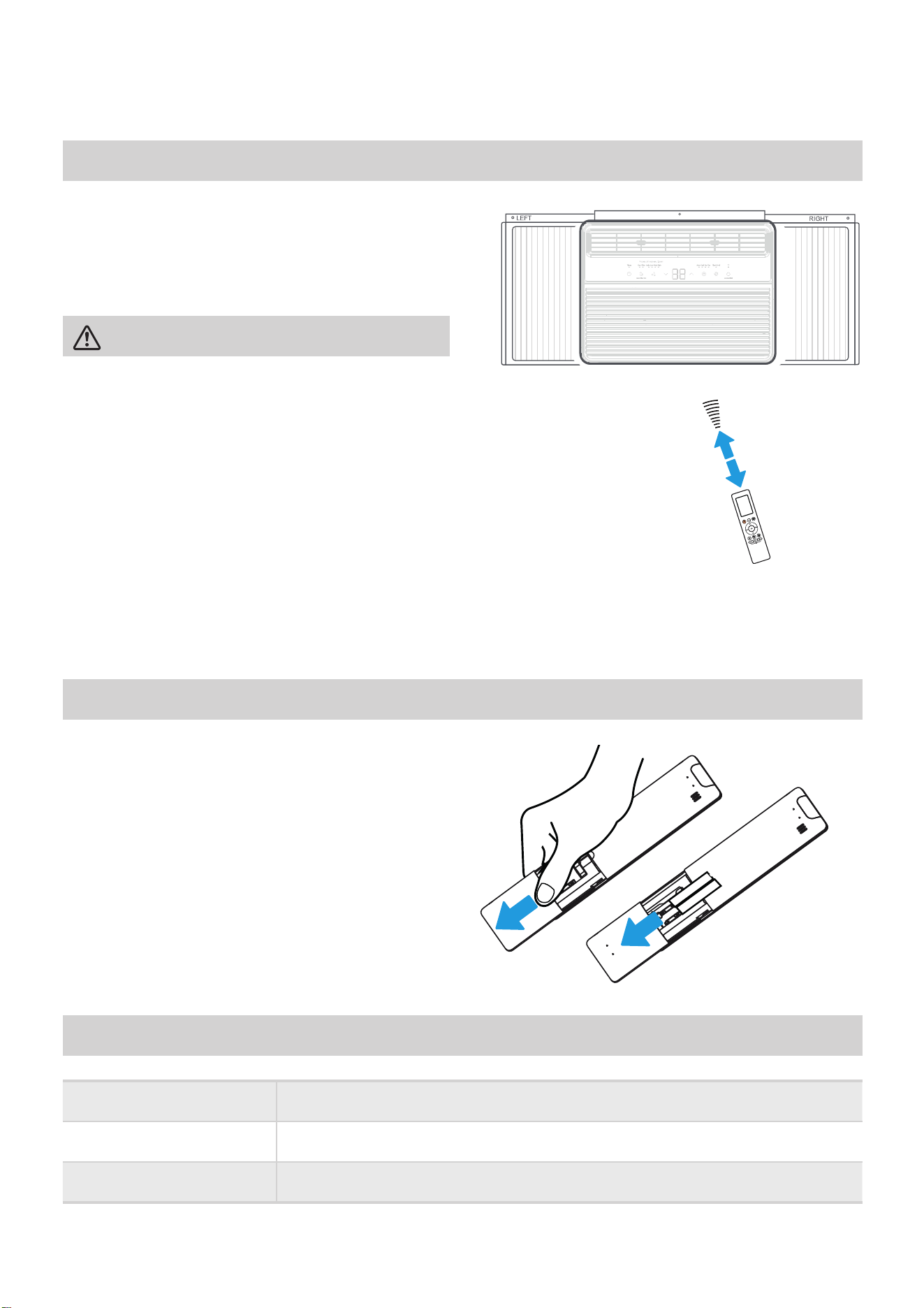

Handling the Remote Control
Inserting and Replacing Batteries
Remote Control Specifications
Location of the remote control
Use the remote control within a distance of 26 ft. (8m)
from the air conditioner, pointing it towards the unit.
The unit will beep when it receives a signal.
26 ft (8 meters)
CAUTION
• The air conditioner will not operate if curtains,
doors or other materials block the signals from the
remote control to the unit.
• Prevent any liquid from spilling onto the remote
control. Do not expose the remote control to
direct sunlight or heat.
• If the infrared signal receiver on the indoor unit is
exposed to direct sunlight, the air conditioner may
not function properly. Use curtains to prevent the
sunlight from falling on the receiver.
• If other electrical appliances react to the remote
control, either move these appliances or consult
the local dealer.
The air conditioning unit may come with two batteries
(some units). Put the batteries in the remote control
before use.
1. Slide the back cover from the remote control
downward, exposing the battery compartment.
2. Insert the batteries, paying attention to match
up the (+) and (-) ends of the batteries with the
symbols inside the battery compartment.
3. Slide the battery cover back into place.
Rated Voltage 3.0V (Dry batteries R03/LR03x2)
Signal Receiving Range 26 ft (8 m)
Environment -5 °C ~ 60 °C (23°F ~ 140°F)
REMOTE CONTROL
28

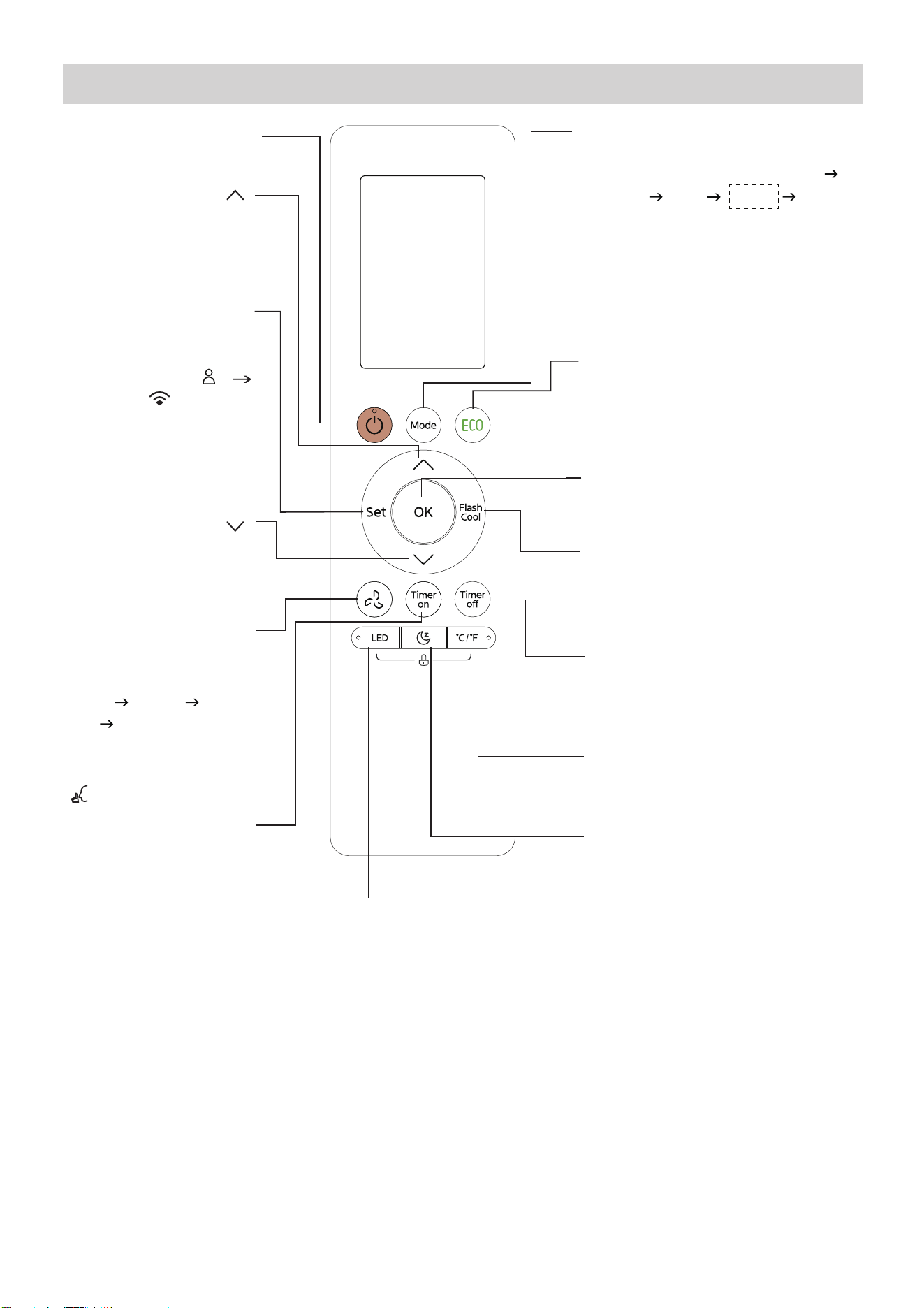

Function Buttons
29
Increases temperature in
1°C increments.
Max. temperature is
86°F (30°C).
Decreases temperature
in 1°C increments.
Min. temperature is
60
°F (16°C .)
Scrolls through operation
functions as follows:
ComfortSense ( )
AP mode( )
The selected symbol will
flash on the display area,
press the OK button to
confirm.
AUTO LOW
MED HIGH
Selects fan speeds in
*Press for 3 seconds to
activate Silence Mode.
( )
the following order:
Turn the unit's LED display and control
panel beeping on and off.
LED
°C/°F
The temperature display
between the °C & °F.
SLEEP
Saves energy during
sleeping hours.
ON/OFF
SET
Turns the unit on or off.
MODE
OK
Scrolls through operation
modes as follows:
AUTO
COOL
DRY
HEAT
FAN
TIMER ON
TIMER OFF
TEMP
TEMP
Used to confirm the
selected functions
Sets timer to turn unit off
(see page 31-32 for
instructions)
Sets timer to turn unit on
(see page 31-32 for
instructions)
FAN SPEED
NOTE: Please do not select
HEAT mode if the machine
you purchased is cooling
only type.
Heat mode is not supported
by the cooling only appliance.
ECO
Press this button to activate
the Energy saving mode.
Press it again to stop the
function.
FlashCool
Enables unit to reach preset
temperature in shortest
possible time.

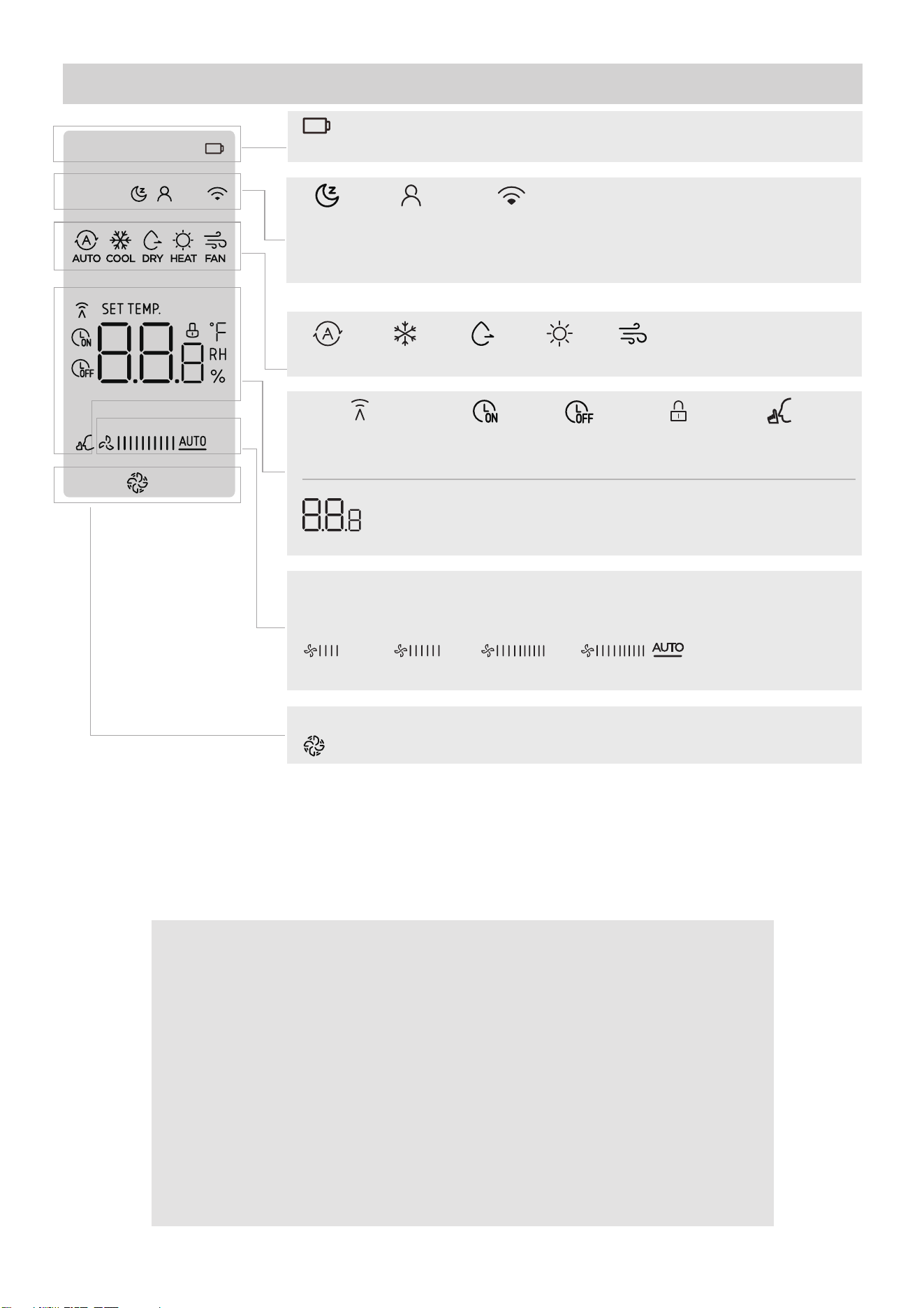

Remote Screen Indicators
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: RG10G5(B2)/BGCEFU1
Responsible Party U.S. Contact Information
Midea America Corporation
300 Kimball Dr
Parsippany NJ
07054
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Telephone number or internet contact information: Midea.com/us
FCC Compliance Statement ( products subject to Part 15)
Note:
All indicators shown above are for information purposes. During the actual operation,
only the relevant indicators will be shown on the display.
Temperature/Timer/Fan speed display
Displays the set temperature by default, or fan speed
or timer setting when using TIMER ON/OFF functions.
Low battery (If flashes)
AUTO COOL DRY HEAT FAN
MODE display Displays the current mode
Transmission
Indicator
Timer
OFF
Lock
Feature
Timer
ON
Silence
Mode
LOW MED HIGH
Flash Cool/Heat Mode
Comfort
Sense
Wireless
control
*
Sleep
mode
FAN SPEED display
AUTO
Displays selected fan speed:
This fan speed can not be adjusted in
AUTO
or
DRY
mode.
30
Setting the TIMER
TIMER ON/OFF
TIMER ON SETTING
TIMER OFF SETTING
Set the amount of time after which the unit will automatically turn on/off.
Press TIMER ON button to
initiate the ON time
sequence.
Press TIMER OFF button to
initiate the OFF time
sequence.
Press up or down button to set
the desired time to turn on the
unit.
Press up or down button to set
the desired time to turn on the
unit.
Point remote to unit and wait
1 second the TIMER ON will be
activated.
Point remote to unit and wait
1 second the TIMER OFF will be
activated.
1secx5
1secx10
1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minute increments with each press,
up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (i.e. press 5 times to get
2.5h, and press 10 times to get 5h,). The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.
NOTE
31
Declaration of Conformity
TIMER ON & OFF SETTING (example)
Keep in mind that the time periods set for both functions refer to hours after the current time.
x5
Timer
starts
2.5 hours later
5 hours later
Current
time 1PM
2:00PM 3:00PM 3:30PM 4PM 5PM 6PM
Unit turns
ON
Unit turns
OFF
x10
We hereby declare that this AC is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
NOTES FOR USING REMOTE CONTROL
The device could comply with the local national regulations.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Example: If current time is 1:00PM,
to set the timer as above steps,
the unit will turn on 2.5h later
(3:30PM) and turn off at 6:00PM.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not approved by the party responsible for compliance could void user’s authority to
operate the equipment.
In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1 ) This device may not cause harmful interference;
(2) this device must accept any interference received, including interference that may cause undesired
operation.
32
Specification of Wireless Module
Precautions
1. Supports operating systems: iOS 10+ or Android 5+.
2. In the event of an OS update, there may be a delay between the OS update and a related software update,
during which your OS may or may not be supported until a new version is released. Specific mobile devices
or network issues may prevent the system from functioning properly, and Midea will not be responsible for
any problems arising from incompatibility or network-related issues.
3. This Smart AC only supports WPA-PSK/WPA2-PSK (recommended) encryption.
4. To ensure proper scanning of the QR code, the smartphone must have a camera with at least 5 megapixels.
5. Due to unstable network connectivity, requests may time out. If this happens, re-run the network
configuration.
6. Due to unstable network connectivity, commands may time out. If this happens, the smartphone app and
the actual product may display conflicting information. The information displayed on the actual product is
always the most accurate available. Refresh the app to re-sync.
Midea will not be responsible for any problems that could be caused by incompatibility or network issues,
wireless router and mobile phone.
NOTE
33
APP INSTRUCTIONS
Model: US-SK109 Dimensions: 41 x 24 x 5 (mm)
Operation Temperature: 0°C ~ 45°C / 32°F ~ 113°F
Antenna Type: Printed PCB Antenna
Operation Humidity: 10% ~ 85%
Frequency: WLAN 2400-2483.5 MHz
Power Input: DC 5V/500 mA
Maximum Transmitted Power: <20 dBm Max
1. How to Use SmartHome App
Ensure that the mobile phone is connected to the wireless network. Bluetooth must be turned on.
The device must also be powered up.

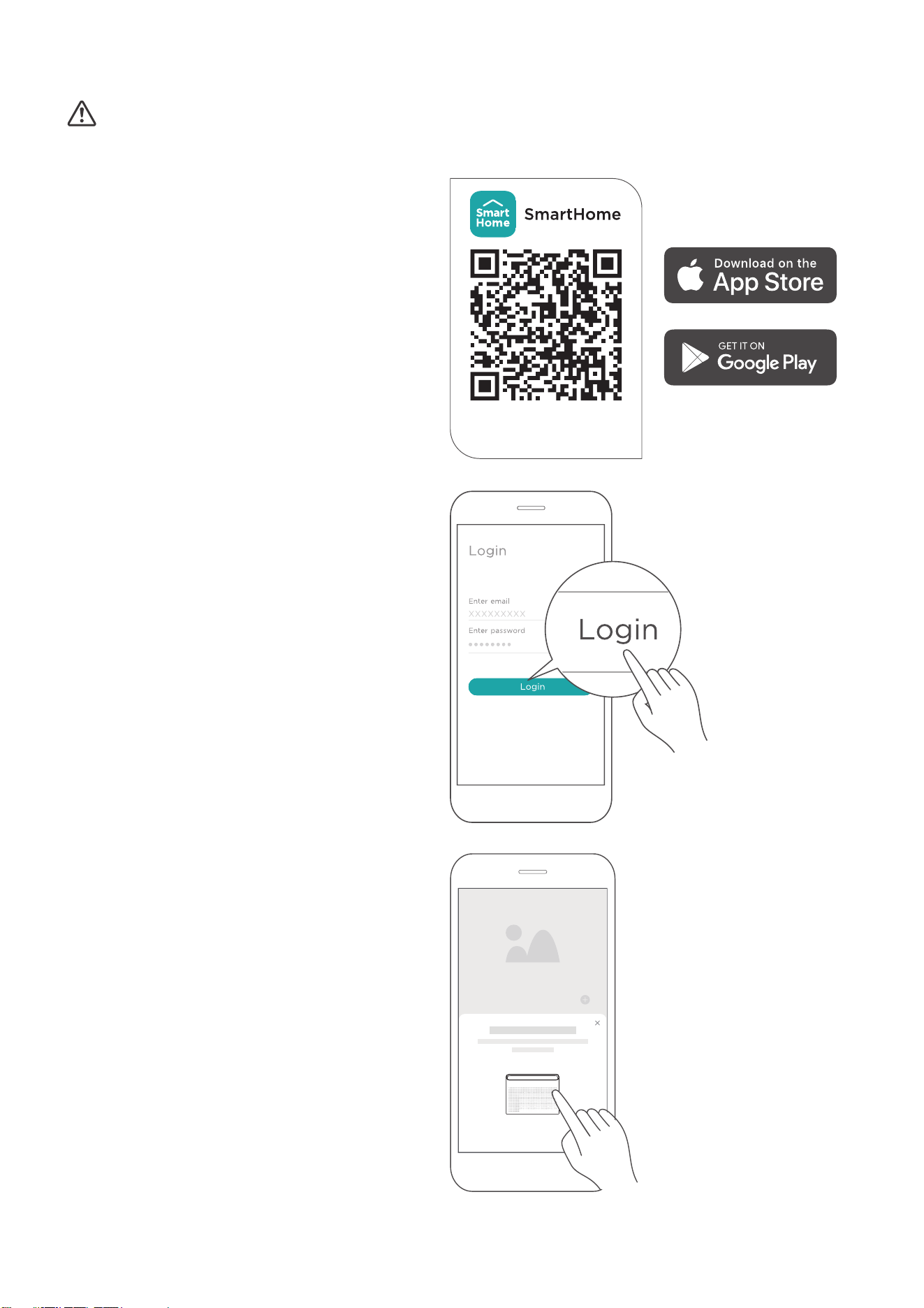

STEP 1: Download the SmartHome App
Scan the QR code below to download the
SmartHome app from the app store or search for
it directly on the Google Play Store or Apple’s
App Store.
STEP 2: Log in
Open the SmartHome app and log in with an
existing account or create a new one.
Alternatively, a third-party login platform
can also be used.
STEP 3: Connecting the Device
1) Upon logging in, a message may appear
stating "Smart devices discovered
nearby." Tap to add the device.
Download the app
& activate product
34
Figure 1
For Window AC For Portable AC
Add device
35

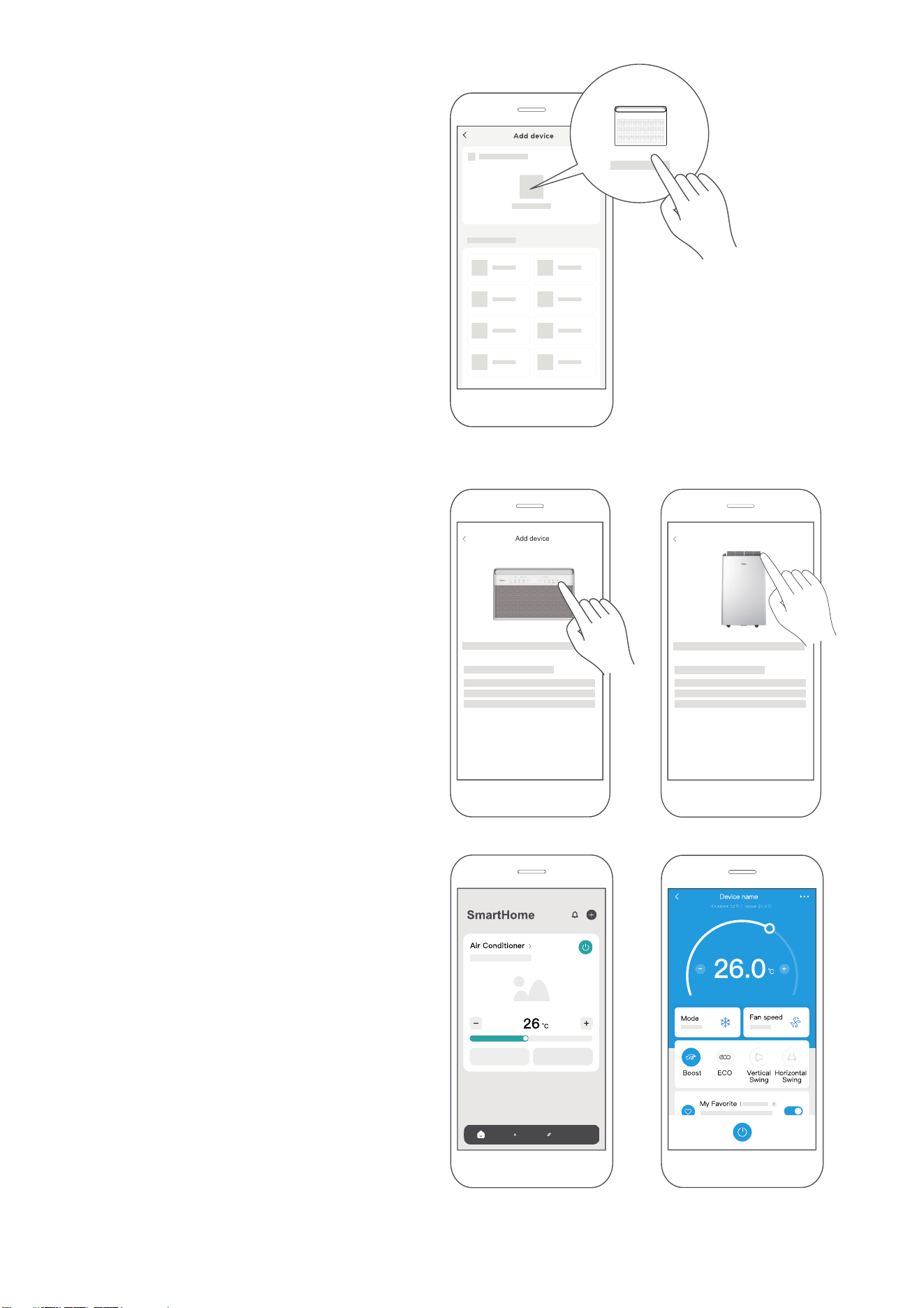

2) If no message appears, tap on "+" and
select the device from the list of nearby
available devices. If the device is not
listed, it can be added manually by
selecting the appropriate device
category (i.e. Window AC).
3) Follow the steps in the app to connect
the device to the wireless network. If the
connection fails, refer to the additional
instructions provided in the app.
STEP 4: Controlling the Device
After pairing successfully, a "card" will be
created for the device in the SmartHome app.
Shortcuts for basic functions will appear on the
"card" such as changing the temperature or
switching the device on or off.
Tapping on the "card" will reveal additional
features and settings. The actual UI design
may look different from examples due to app
updates.
*"Card" is shown on Figure
1
2. How to Use Matter
Matter is a connectivity technology that unifies the smart home by allowing devices and ecosystems (such
as Alexa, Google Home and Apple Home) to speak the same language thus creating exciting new features
and use cases.
To use Matter, at least one Matter-enabled smart speaker from Amazon, Google, or Apple, along with its
respective app, is required.
• If a Matter-enabled smart speaker is available, proceed to the "How to Use Matter" instructions in the
following pages.
• If a Matter-enabled smart speaker is not available, Matter cannot be used at this time. However, full
product functionality can still be achieved through the SmartHome app. For instructions, refer to the
"How to Use SmartHome App" section on page 34-35.
Connect the air conditioner through Matter
Make sure the mobile device is connected to the wireless router.
Wireless router should support and turn on IPv6. Please make sure the smartphone connects to 2.4G
but not 5G network.

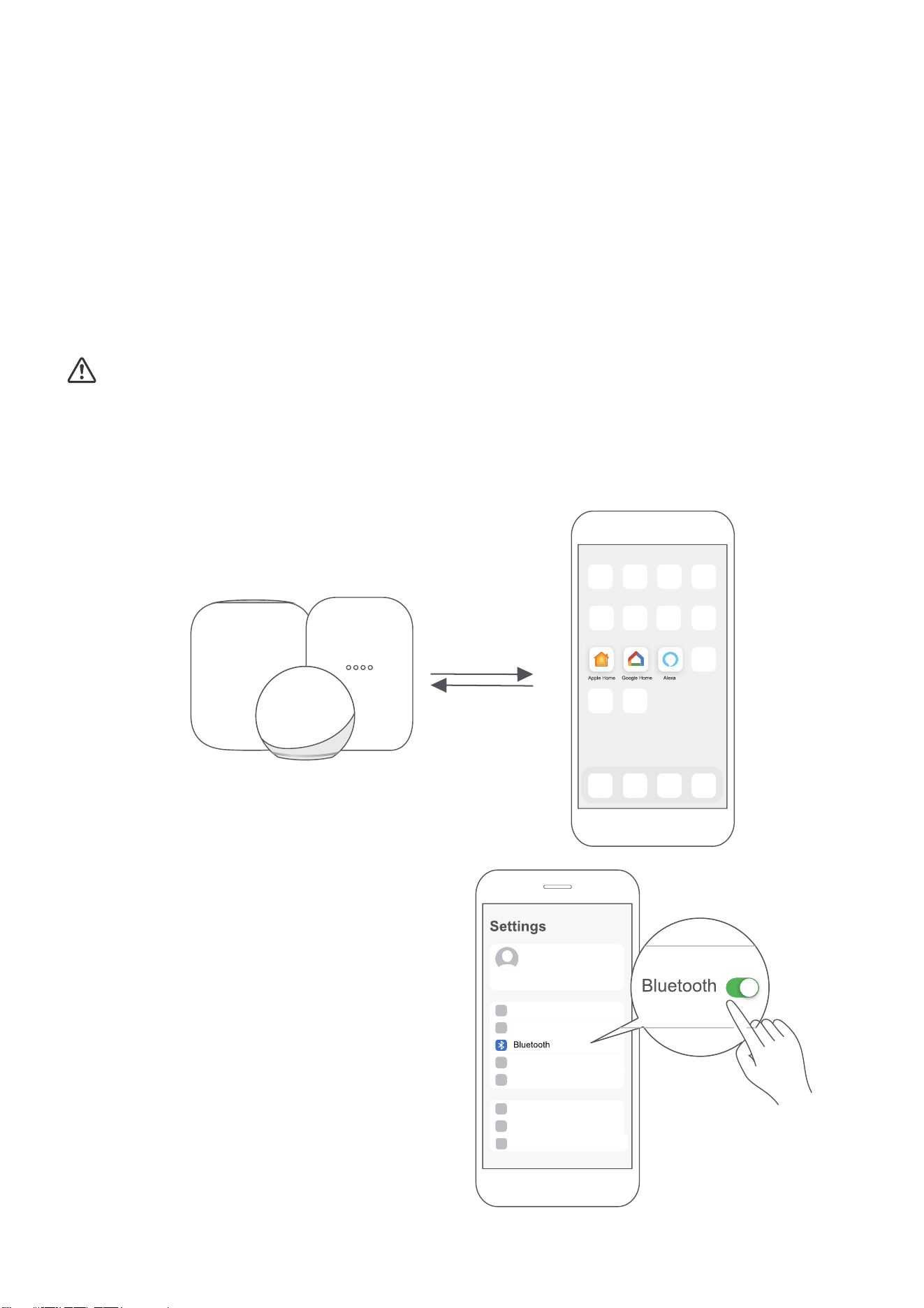

STEP 1: Connect to Smart Speakers
Select the preferred ecosystem (Alexa, Google Home, or Apple Home) and ensure that a Matter-enabled
product, such as a smart speaker, is connected to the wireless router.
STEP 2: Turn On Bluetooth
Turn on Bluetooth on the mobile device.
36
STEP 3: Enter AP Mode
Window AC: Hold down the
CONNECT / Power button for
3 seconds to begin the pairing
process (“AP” will appear on the
AC’s display).
Portable AC: Hold down the SWING
/ Power button for 3 seconds to
begin the pairing process (“AP” will
appear on the AC’s display).
STEP 4: Open App
Open the Alexa, Google Home or Apple Home app on the mobile device.
Window AC
AP
SWING
Portable AC
Entering AP pairing mode may
vary between different AC models,
please follow the instructions of
the AC panel.
NOTE
Add
Add Device/Accessory
scan
Matter QR code
STEP 5: Scan Matter QR code
Tap the “+” and “Add Device/
Accessory” or tap “+Add” in the
app and then select Matter device
and scan the Matter QR code found
on the side of the AC device.
Follow the respective instructions
in the Alexa, Google Home or
Apple Home app to complete the
pairing process.
37
• Setup processes and features may vary between ecosystems.
• The functions shown in the Alexa, Google Home or Apple Home apps may change with updates to their
products or apps.
• Make sure the Matter enabled app is up to date to ensure the best experience.
• Periodically, the device's software will update to improve the experience. Device software updates can be
• Use of the Works with Apple badge means that an accessory has been designed to work specifically with the
technology identified in the badge and has been certified by the developer to meet Apple's performance
standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards.
accomplished through the SmartHome app.
•
is developed by the Connectivity Standards Alliance TM. This brand, related logos, and marks
are trademarks of the Alliance, all rights reserved.
NOTE
Air conditioner

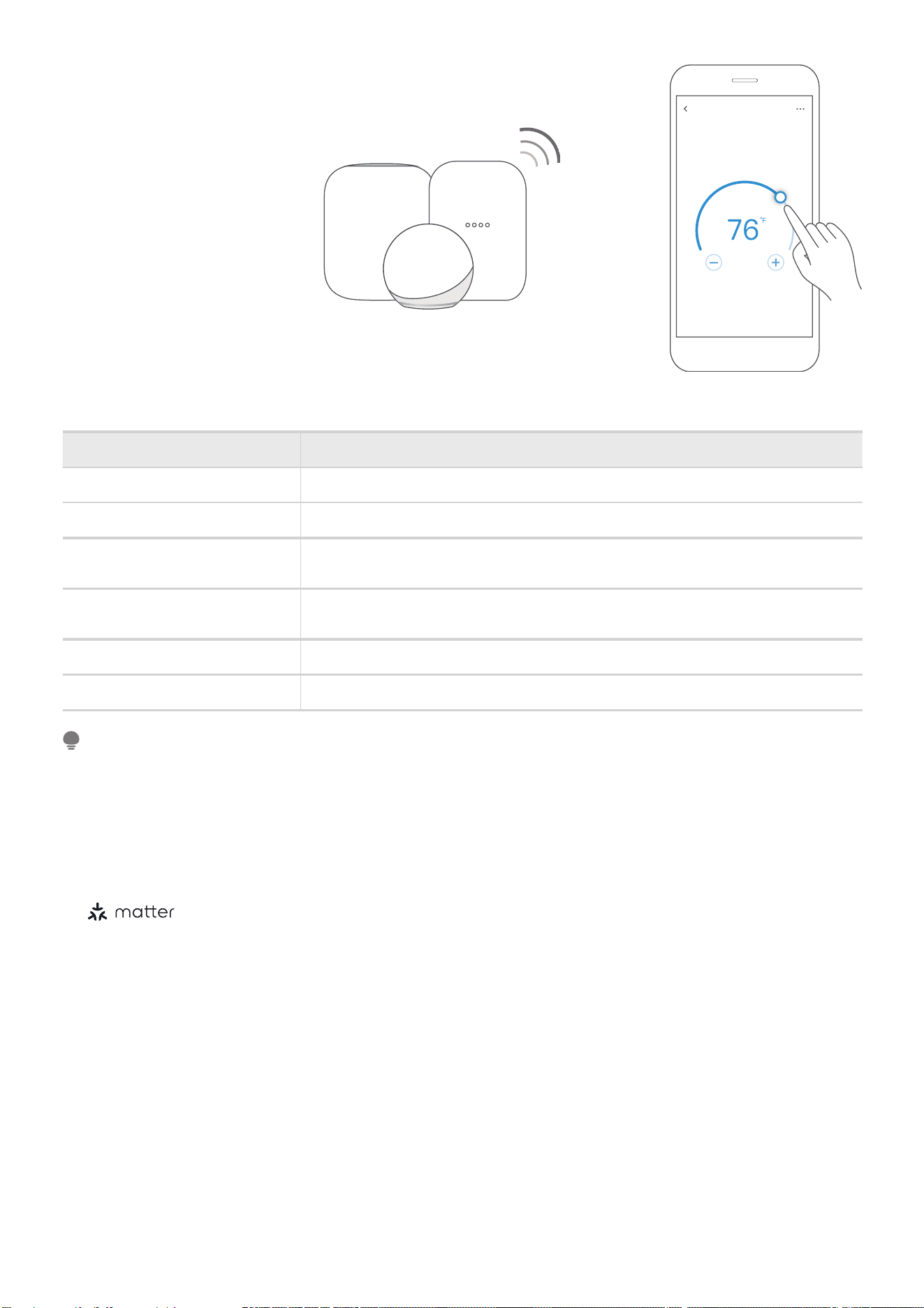

STEP 6: Control Device
After pairing is successful, the
AC's temperature, mode settings
etc. can be controlled through
the respective ecosystem app
and smart speaker.
Due to a compatibility issue, the
temperature value shown in the
Alexa, Google Home or Apple
Home app may be 1 degree
different from that displayed on
the air conditioner. However,
this will not impact the device’s
ability to cool the room.
App & Smart Speakers can support Matter only when using these versions or above.
noisreVeciveD
5.61SOienohPi
5.61doP emoH elppA
Android
Google Play services min version: 22.36.15
Google Home app (GHA) min version: 2.58.24.1 - dogfood
Google Home Hub
Google Hub fi rmware min version: 1.56.324896
(appears on hub as Chromecast fi rmware version)
713635.2.2ppA axelA
6559344909eciveD ohcE axelA
38
Declaration of Conformity
FCC ID: 2ADQOMDNA23
IC: 12575A-MDNA23
This device complies with Part 15 of the FCC Rules and Industry Canada’s licence exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference;
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
Only operate the device in accordance with the instructions supplied.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with FCC radiation exposure limits set forth for an uncontroll
ed environment. In order
to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20cm (8 inches) during normal operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
