BG-FES12G
4K/1080P 12G/6G/3G/HD/SD-SDI Extender over Single Mode
SFP-Type Fiber Optic
User Manual
BZBGEAR BG-FES12G PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-FES12G PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Technical Specifications 6
Operation Controls and Functions 7
Connection Diagram 8
Application Example 9
Tech Support 10
Limited Product Warranty Terms 10
Mission Statement 10
Copyright 10
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-FES12G PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precautions
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacture
● Product specifications may be subject to technical upgrades without further notice
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-FES12G PRODUCT MANUAL
Introduction
The BG-FES12G is a 12G/6G/3G/HD/SD-SDI SFP single mode fiber optic extender that is
an economical solution. It is designed for transmission of multi-rate SDI video with
embedded audio and metadata over single-mode fiber optic cables. The transmitter module
receives one 12G/6G/3G/HD/SDI electrical input, perfectly converts SMPTE 292M, SMPTE
259M, SMPTE 424M, SMPTE 2082 or DVBASI electrical SDI signal to single-mode optical
SDI signals. The receiver module receives the optical signal and then converts it to an
electrical SDI signal. BG-FES12G is immune to pathological patterns (SMPTE RP-198) and
does not introduce any flickering. This feature further guarantees the transmission quality
over optical fiber.
Both transmitter and receiver provide equalizing and reclocking at the input unit in order to
reconstruct the signal for consistent quality. The BG-FES12G is perfect for broadcasting
applications including video production, video editing, studio-to-studio, and studio-to-CATV
headends. In addition, since transmission of content is inherently secure and immune to
outside interference, fiber applications are favored in government, military, and medical
environments.
Features
● Enable transmission of digital video signal over optical fiber*
➢ up to 10 km (6.25 miles)
● Standard SFP-type fiber optic connector
● Supports the following protocols:
➢ SMPTE 259M (270Mbps)
➢ SMPTE 259M (360Mbps)
➢ SMPTE 292M / HDTV (1.485Gbps and 1.485/1.001Gbps)
➢ SMPTE 424M / HDTV (2.97Gbps and 2.97/1.001Gbps)
➢ SMPTE 2082-1 / HDTV (5.94Gbps and 5.94/1.001Gbps)
➢ SMPTE 2082-2 / HDTV (11.88Gbps and 11.88 /1.001Gbps)
➢ DVB ASI (270Mbps)
● Immune to RP-198 pathological patterns
● Automatic reclocking
● One SDI loop out
● 12G/6G/3G/HD/SDI Input signal detection LED
Note:
1. RP-198 is the Pathological Patterns.
2. Fiber type: M = multi-mode; S = single-mode.
3. Maximum transmission length is dependent upon the optics module.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-FES12G PRODUCT MANUAL
Packing List
● 1x BG-FES12G
● 2x 5V power adapter
● 1x User Manual
● 1х Quick Start Guide
Technical Specifications
Technical
SDI standard
SD-SDI/ HD-SDI/ 3G-SDI/ 6G-SDI/12G-SDI
Auto HD/SD-SDI detection
Yes
Supported protocols
SMPTE 259M (270Mbps / 360Mbps), DVB ASI (270Mbps)
SMPTE 292M / HDTV (1.485Gbps and 1.485/1.001Gbps)
SMPTE 424M / HDTV (2.97Gbps and 2.97/1.001Gbps)
SMPTE 2082-1 / HDTV (5.94Gbps and 5.94/1.001Gbps)
SMPTE 2082-2 / HDTV (11.88Gbps and 11.88/1.001Gbps)
Data rates
270 / 1483 / 1485 / 2967 / 2970 / 5940 / 11880Mbps
Video bandwidth
[11.88Gpbs & 11.88/1.001Gbps]
Video support
[HD] 720p@50/59.94/60, 1035i@50/59.94/60, 1080i@50/59.94/60,
1080p@24/30,1080p@60,[email protected], 4K2K@30, 4K2K@60
[SD] [email protected], PAL@50Hz
SDI signal type
SMPTE 2082-2, SMPTE 2082-1, SMPTE-424M, SMPTE-292M, SMPTE-259M, DVB-ASI
Auto reclocker mode
Automatic detection: 270Mbps / 1.483Gbps / 1.485Gbps / 2.97Gbps / 2.967Gbps /
5.94Gbps / 5.934Gbps / 11880Gbps / 11868Gbps
Automatic bypass: 177Mbps / 360Mbps / 540Mbps
Output impedance
75Ω
Fiber Transmission
10km (6.25mi)
Loop-out
Transmitter: 1 reclocking SDI loop-out
Receiver: N/A
Input
Transmitter: 1x BNC [SDI] 1x Optical SFP [SDI]
Receiver: 1x Optical SFP [SDI]
Output
Transmitter: 1x BNC [SDI] (optional loop-out)
Receiver: 1x BNC [SDI]
BNC connector
75Ω inter-locked socket
Audio support
Yes
PCB Stack-up
4-layer board [impedance control — differential 100Ω ; single 50Ω ]
RP-198 pathological patterns
Immune
Optical fiber connector
SFP-type
Mechanical
Housing
Metal case
Dimensions [L x W x H]
Model: 2.9" x 2.9" x 1.0" [74 x 74 x 26mm]
Package: 5.5" x 7.9" x 3" [140 x 200 x 75mm]
Carton: 1'5" x 1'4" x 11.8" [420 x 400 x 300mm]
Weight
Model: 7.4 oz [211g]
Package: 15.4 oz [440g]
Power supply
5V 2A DC Inter-locked power supply
Power consumption
3 Watts [max]
Operation temperature
32~104°F / 0~40°C
Storage temperature
-4~140°F / -20~60°C
Relative humidity
20~90% RH [no condensation]
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-FES12G PRODUCT MANUAL

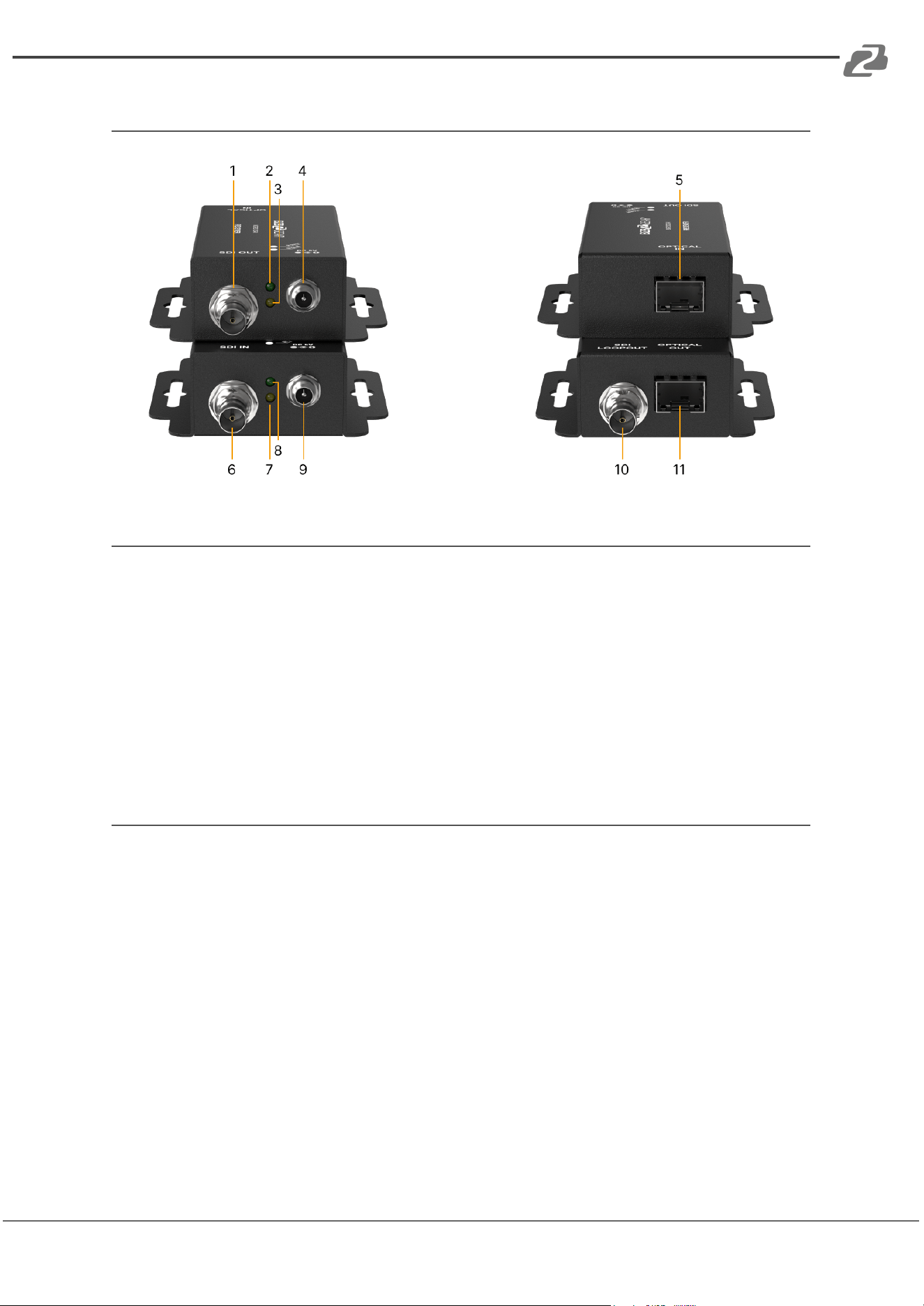

Operation Controls and Functions
Receiver Panel
1. SDI OUT: 12G/6G/3G/HD/SD-SDI output.
2. Power LED: The LED illuminates green when the device is powered.
3. Signal LED: Signal indicator illuminates yellow when the receiver establishes a
connection to the transmitter.
4. DC 5V: 5V DC power jack.
5. Optical IN: Optical in from the transmitting unit.
Transmitter Panel
6. SDI IN: 12G/6G/3G/HD/SD-SDI input.
7. Signal LED: Signal indicator illuminates yellow when the transmitter establishes a
connection to the receiver.
8. Power LED: The LED illuminates green when the device is powered.
9. DC 5V: 5V DC power jack.
10. SDI Loopout: 12G/6G/3G/HD/SD-SDI loopout.
11. Optical OUT: Optical output to the receiver unit.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-FES12G PRODUCT MANUAL

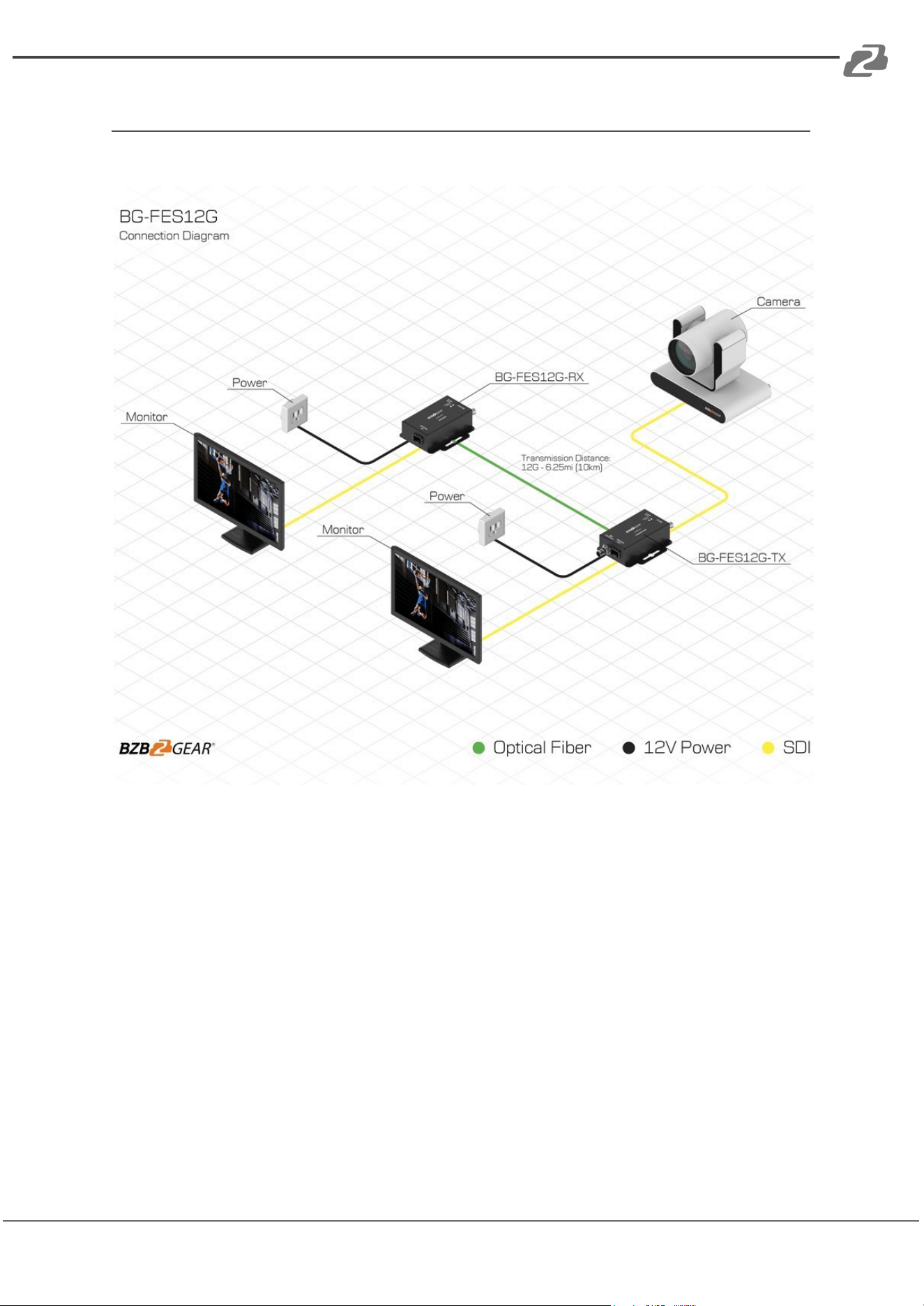

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-FES12G PRODUCT MANUAL

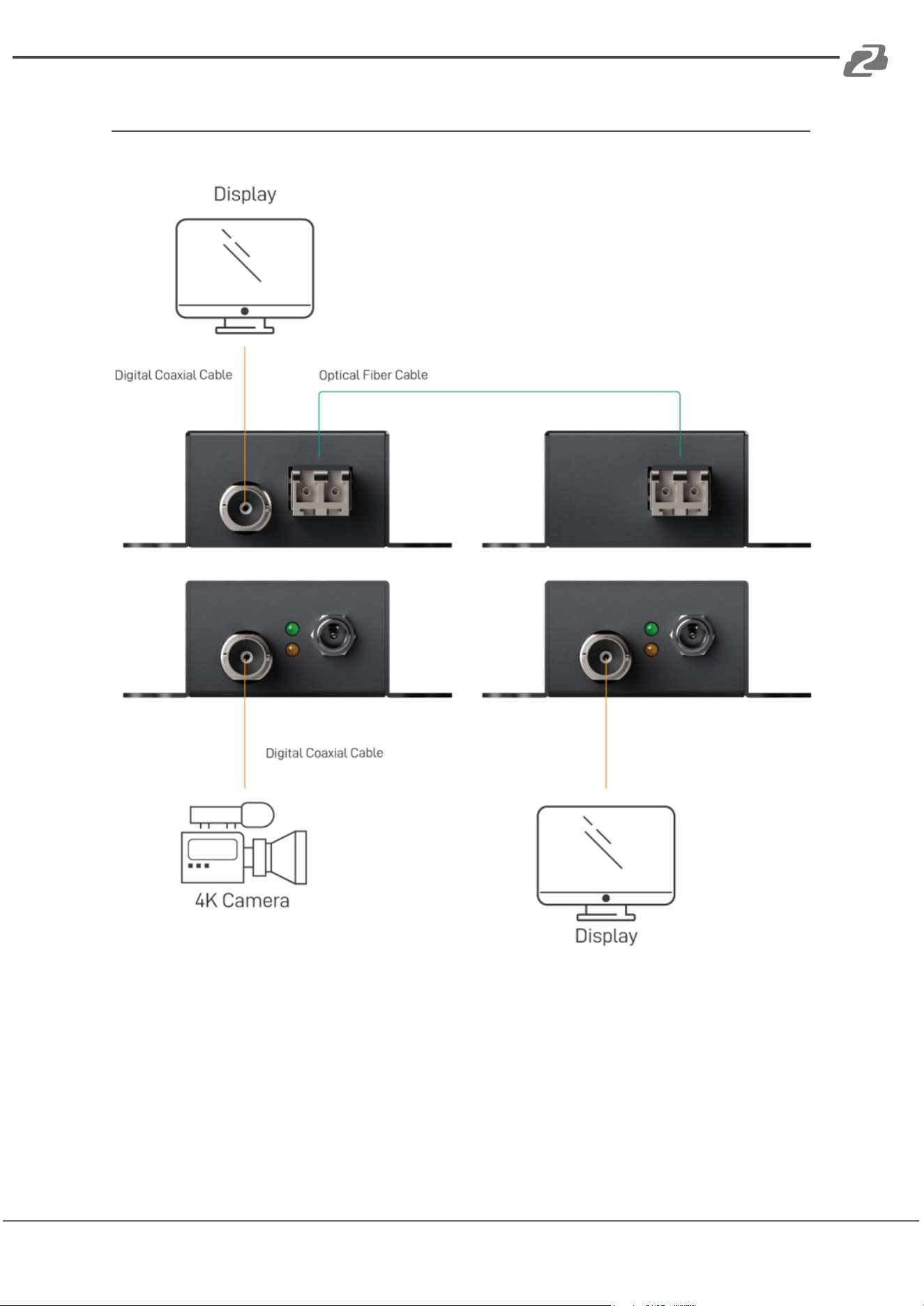

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-FES12G PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
