EN
FULLY AUTOMATIC ESPRESSO/
CAPPUCCINO MACHINE
Translation of the original manual
SES 8100BK
SES 8100BK
A
PUSH
9
1
3
5
7
11
13
15
1
3
5
7
9
11
13
15
1
2
3
4
5
6
7
8
9
10
11
12
13
16
17
18
19
14
15
A
20
21
22
23
24
25
26
B
HOTWATER
MILK FROTHCLEAN BREWER CLEAR DREGS CLEAR GRINDERNO BEAN NO WATER
WARNING CLEAN
LATTE CAPPUCCINO AMERICANO DOUBLE ESPRESSO ESPRESSO
+
+
!
1 2 3 4 5 6
151413121110987
C1
C2
EN Side view
CZ Postranní pohled
SK Postranný pohľad
HU Oldalnézet
PL Widok z boku
RU Вид сбоку
HR Pogled sa strane
GR Вид сбоку
D1 D2 D3
E
PUSH
F1
F2
G1 G2
9
1
3
5
7
11
13
15
1
3
5
7
9
11
13
15
- 1 -
07/2025
2025, .
EN
Fully Automatic Espresso / Cappuccino Machine
User Manual
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND STORE FOR FUTURE USE.
• This appliance is not to be used by children. Keep this
appliance and its power cable out of the reach of children.
• The appliance may be used by persons with reduced
physical, sensory or mental abilities or lack of experience
and knowledge, provided they are supervised or have
been instructed on the safe use of the appliance and
understand the potential hazards.
• Children must not play with the appliance.
• Cleaning and maintenance must not be carried out by
children.
• If the power cord is damaged, have it replaced in
aprofessional service centre in order to prevent
adangerous situation. Never use the appliance if the
power cord is damaged.
• Always clean the parts of the appliance that come into
contact with food with clean warm water and alittle neutral
dishwashing liquid, rinse them with clean water and wipe
dry.
WARNING:
Incorrect use may lead to injury.
- 2 -
07/2025
2025, .
• Always disconnect the appliance from the power supply
when leaving it unattended and before assembly,
disassembly or cleaning.
• This appliance is intended for household use.
• It is not intended for use in areas such as:
– kitchenettes in shops, offices and other workplaces;
– agricultural farms;
– by guests inhotels, motels andother living areas;in bed
and breakfast establishments.
WARNING:
Prevent the plug from getting wet.
WARNING:
The outer surface of the appliance heats up during
use and may be hot for some time after use. Be very
careful.
• The appliance must not be placed in acabinet when in
use.
WARNING:
The filling hole must not be opened during use.
Do not do submerge the power cord, plug or
appliance in water or any other liquid.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Safety
• Before connecting the appliance to apower outlet, make sure that its nominal voltage indicated on the rating plate matches the electrical voltage of
the socket.
• Connect the appliance only to aproperly earthed socket. For safety reasons, we do not recommend using adaptors or extension cables.
• Do not place the appliance on windowsills, sink drain trays or unstable surfaces. Always place the appliance on astable, flat and dry surface.
• Do not place the appliance on an electric or gas stove or near an open flame.
• Never use the appliance in the immediate vicinity of abath, shower or swimming pool.
• Use the appliance only for its intended purpose.
• Use the appliance according to the instructions in this user manual. Failure to do so may result in injury, damage to the appliance, or ahazardous
situation.
• Use the appliance only with the original accessories supplied with it.
- 3 -
07/2025
2025, .
• Leave at least 15 cm of free space around and above the appliance to ensure proper air circulation during operation.
• Do not place any items on the top surface of the appliance.
• Fill the water tank with clean, cold water. Do not pour hot water or other liquids into it or place any objects inside it.
• Before turning on the appliance, make sure that:
– the drip tray with grid is installed in its place;
– the water tank is filled with asufficient amount of water and is properly installed in its position;
– the bean hopper is filled with fresh coffee beans.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety in Use
• The water level must not exceed the maximum mark.
• Take extra care when operating the appliance to avoid scalding with hot water or steam.
• The hot water function may only be used continuously for amaximum of one emptying of the entire water tank.
• When using the appliance, check the water level in the water tank regularly. If the water level falls below the minimum mark, refill the water tank.
Before adding water, first turn off the appliance and disconnect it from the power socket.
• Use the built-in coffee grinder only for grinding coffee beans. Do not use it for any other purposes.
• Ensure that no hair or other items enter the grinder area during the grinding process. The coffee bean hopper lid should always be properly closed
unless you are refilling coffee beans or adjusting the grind fineness.
• The appliance is equipped with abuilt-in thermal fuse that shuts it off when the pump is idling to prevent damage. If such asituation occurs, unplug
the power cable and allow the appliance to cool down for at least 30 minutes. Then you can use it again.
• Do not move the appliance with acoffee cup located on the grid of the drip tray.
• Ensure that the power cable does not come into contact with hot surfaces.
• Unplug the appliance from the power socket by pulling the plug, not the power cord. Otherwise, you may damage the power cable or the socket.
• Do not submerge the appliance, power cable or plug in water or any other liquid.
• Make sure that the power cable and plug do not come into contact with water or other fluids.
• To avoid the risk of electric shock, do not repair or modify the appliance yourself. All repairs should be carried out by an authorised service centre.
Tampering with the appliance may result in the loss of your legal rights regarding faulty performance or warranty for quality.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EXPLANATION OF SYMBOLS PLACED ON THE PRODUCT OR INTHE ACCOMPANYING DOCUMENTATION
The product meets all the basic requirements of the applicable EU directives.
This symbol on products or accompanying documents means that used electric or electronic products must not be added to ordinary
municipal waste.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
- 4 -
07/2025
2025, .
• Thank you for purchasing our SENCOR product; we hope it will serve
to your satisfaction.
• Before using this appliance, please familiarise yourself with the user
manual, even if you are already familiar with using similar types of
appliances. Use the appliance only as described in this user manual.
Keep the manual for future reference.
• It is recommended to keep the original packaging, packing material,
receipt and confirmation of the extent of the seller'sliability or warranty
certificate at least for the duration of the legal right to file defect
claims or the quality warranty. When transporting the appliance,
we recommend repackaging it in the original box provided by the
manufacturer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE COFFEE MACHINE
A1 Bean hopper lid
A2 Grinding coarseness regulator
A3 Bean hopper, capacity 200 g
A4 Control panel
A5 Coffee dispensing brewing
head (height is adjustable)
A6 Coffee outlet cover
A7 Drip tray grid
A8 Drip tray
A9 Water tank lid
A10 Water tank, capacity 1.5 l
A11 Main power switch
A12 Power cord socket
A13 Service door
A14 Ground coffee dispensing
channel cover
A15 Tamper
A16 Brewing centre
A17 Bracket Seat Switch
A18 Coffee grounds container
A19 Inner tray
A20 Inlet opening
A21 Stopper
A22 Milk frothing system
A23 Milk container lid
A24 Milk tube
A25 Mild container, capacity 750ml
A26 Connecting hose
Not shown: Cleaning brush, power cord
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE CONTROL PANEL
B1 HOT WATER button: hot
water dispensing
B2 LATTE button:start brewing
latte
B3 CAPPUCCINO button: start
brewing cappuccino
B4 AMERICANO button: start
brewing Americano
B5
DOUBLE ESPRESSO button:
start brewing espresso (2 cups)
B6 ESPRESSO button: start
brewing Espresso (1 cup)
B7 : Coffee machine power
on/off button
B8 MILK FROTH button: frothing
milk
B9 : Indicator light: empty
bean hopper warning
B10 Indicator light: for empty
water tank warning
B11 Indicator light: warning
for cleaning the brewing unit
B12 Warning indicator light
B13 Indicator light: full coffee
grounds container warning
B14 : Manual cleaning button
B15
button: grinder emptying
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BEFORE FIRST USE
• Before first use, remove the appliance and its accessories from the
packaging and discard all promotional labels and tags. Remove the
protective foil from the display.
• Check that neither the appliance nor any of its components is
damaged.
• Remove the protective foil from the display.
• Install the appliance on aflat, dry and clean surface.
• Remove the water tank, the brewing centre, the milk frothing system
and the milk container. Wash them with clean water and asmall
amount of neutral kitchen detergent. Then rinse them properly with
clean water, dry them and put them back in place.
• Secure the drip tray properly to the appliance.
• Wipe the outer surface of the appliance with aslightly damp cloth and
then wipe dry properly.
• Fully unwind the detachable power cord and connect it to the socket
at the back of the appliance.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PREPARING THE COFFEE MACHINE BEFORE USE
Filling the water tank
1. Carefully open the lid of the tank. The lid serves as ahandle.
2. Pull up the lid to remove the water tank from the back of the appliance.
3. Remove the protective cap from the outlet of the water tank. It serves
as protection during transport and must be removed before using the
coffee machine.
4. Fill the water tank with clean water up to the maximum mark and
insert it back into the appliance. Make sure that the water tank is
properly installed in its place.
Note:
The water you pour into the water tank should ideally be
at room temperature (approximately 25 °C). Too cold water
can negatively affect the final taste of the coffee beverage.
Caution:
The maximum capacity of the water tank is 1.5 l.
Do not overfill it.
Never fill the water tank with warm or hot water,
sparkling water or other liquids such as milk. This
could damage the appliance.
Never fill the water tank by pouring water into in while
it is inserted inside the appliance. You risk splashing
the appliance overfilling the water tank.
Note:
Do not leave water in the water tank for more than one day.
For preparing quality fresh coffee, it is necessary to always
use fresh water. Using water that is not fresh will affect the
taste of the final beverage.
Filling the coffee bean hopper
1. Remove the coffee bean hopper lid.
2. Pour roasted coffee beans into the hopper and close the lid. Do not
leave the lid of the bean hopper open, otherwise the coffee beans will
lose their aroma more quickly.
Caution:
Themaximum capacity of the hopper is 200 g of
coffee beans. Do not overfill it.
Never fill the hopper with ground or instant coffee,
caramelised or otherwise specially treated coffee
beans, cocoa beans or other items that may damage
the appliance.

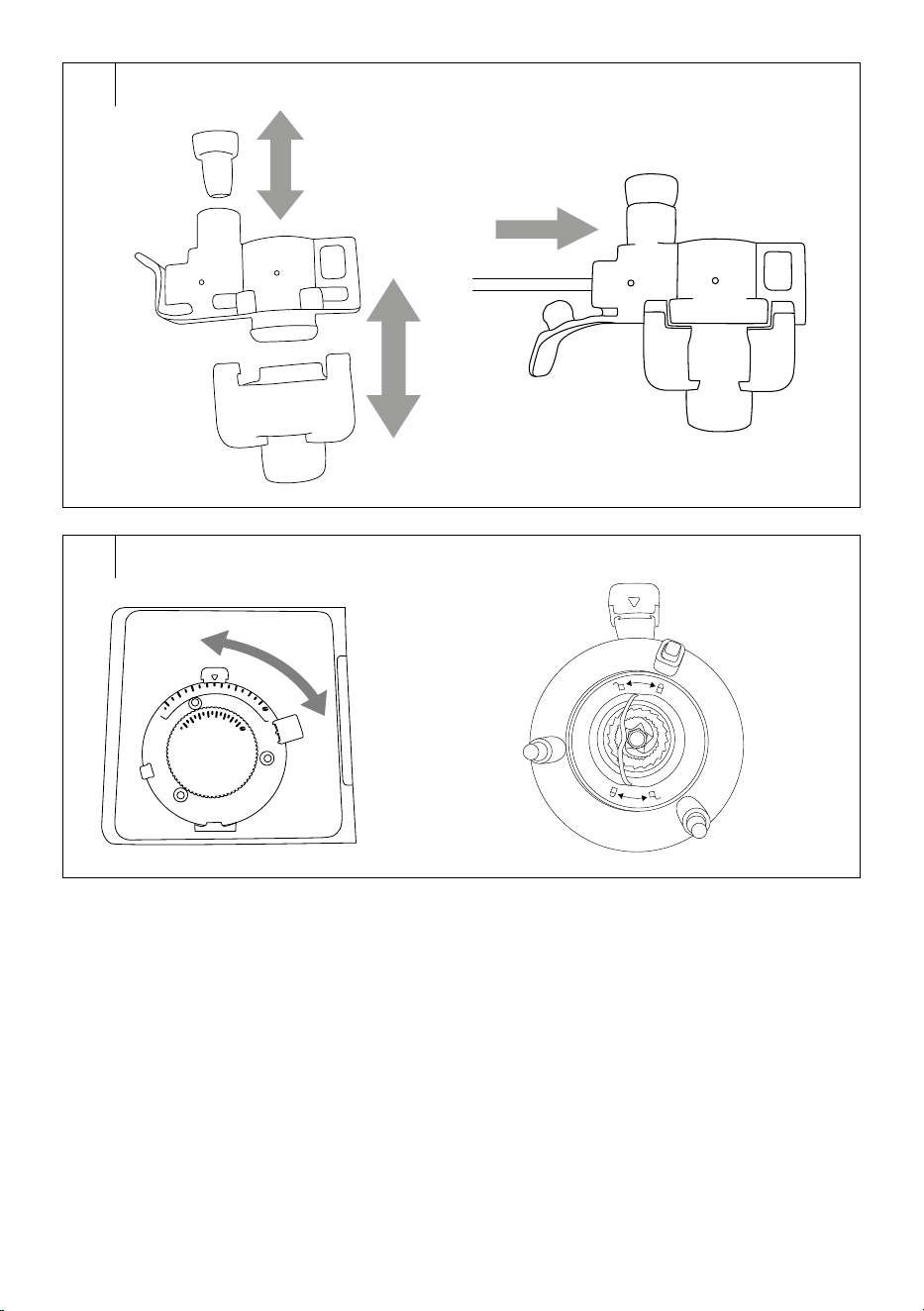

Adjusting the grind fineness
Use the grinding coarseness regulator to adjust the appropriate
coarseness of the ground coffee. Grinding coarseness adjustment is
possible only when the grinder is in operation. The new coarseness
setting will take effect after the second or third coffee preparation following
the grinding coarseness change.
1. You can adjust the coarseness of the grinding in 15 levels by using
the grinding coarseness regulator, which is located inside the bean
hopper. For first use, we recommend setting the grinding coarseness
to 8 and then adjusting as needed.
EN
Fully Automatic Espresso / Cappuccino Machine
User Manual
- 5 -
07/2025
2025, .
2. Turn the regulator clockwise to set acoarser grind, turn
counterclockwise to set afiner grind. Always adjust by one level.
Try it out by preparing afew cups of coffee and then readjust as
needed.
3. Only adjust the grinding coarseness when the grinder is running.
Otherwise, damage to the appliance may occur.
4. If the brewed coffee flows out very slowly, it means that the beans
are ground too finely and acoarser grind should be set. If the brewed
coffee flows out too quickly, it means that the grains are ground too
coarsely and afiner grind should be set.
Milk container
If you are planning to make latte, cappuccino, or need to froth milk,
assemble the milk container as follows:
1. Pour fresh, cold milk into the container. Always fill below the
maximum level. The maximum capacity of the milk container is
750ml.

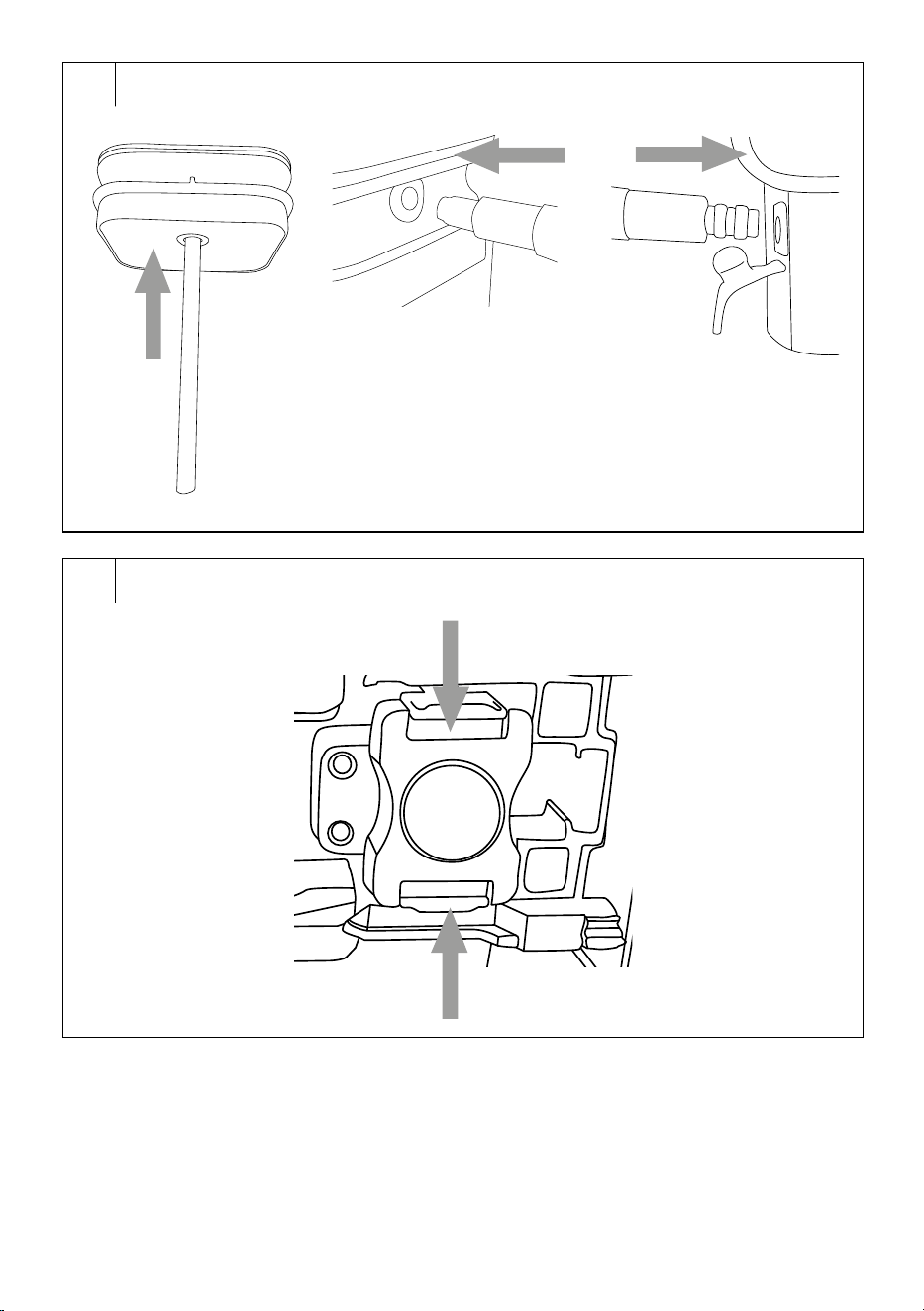

2. Insert the milk tube into the hole on the inner side of the lid (Figure D1).
3. Place the milk container on astable and flat surface at asufficient
distance from the coffee machine.
4. Put the lid on the container.
5. Insert one end of the connecting hose into the hole in the lid of the milk
container (Figure D2).
6. Remove the plug from the inlet opening in the milk frothing system
and insert the other end of the connecting tube into the hole (Figure
D3).
Adjusting the Head Height
• The head can be moved up/down according to the height of the cup
in which you will be preparing the coffee. First, slide the head up to
the maximum height, insert the cup, and then adjust the height of the
head above the cup. In the case of larger or taller cups, it is possible
to temporarily remove the drip tray to get more space for the cup.
When the preparation is finished, put the drip tray back into the coffee
machine.
Brewing unit
• Gently press on the bottom part of the service door where the
indentation with PUSH sign is located. The service door will swing
open. Remove it and check that the brewing centre is properly
installed. When inserting the brewing unit into the coffee machine,
align the arrow on the brewing unit with the arrow above the brewing
unit compartment. After checking, reattach the service door.
• If you remove and reinsert the brewing centre and hear aclick, it
indicates that the brewing centre is properly installed.
• If the warning indicator light is continuously on, the brewing unit is
not installed correctly.
• If the
warning indicator light blinks when you press the beverage
preparation button, the service door is not closed properly.
Coffee Grounds Container and Inner Tray
• Gently press on the bottom part of the service door where the
indentation with PUSH sign is located. The service door will swing
open. Remove it and check if the coffee grounds container and the
inner tray are properly installed in their place.
• If the warning indicator light is constantly on, the inner tray or
coffee grounds container is not installed correctly.
Drip Tray
• Attach the grid to the drip tray.
• Attach the assembled drip tray to the lower front wall of the coffee
machine and gently push the tray into the machine.
• The tray must be firmly secured to prevent the cup with hot beverage
from tipping over during preparation.
• Water from the spout flows into the drip tray during each rinse, self-
cleaning, and also any coffee that may spill during brewing. Therefore,
clean and empty the drip tray daily.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USING THE COFFEE MACHINE
• Place the coffee machine on aflat, dry and clean surface at
asufficient distance from the power socket. Ensure there is enough
free space around it for manipulation, at least 15 cm on all sides.
• Make sure that the water tank is refilled with fresh water, the bean
hopper has an adequate amount of coffee beans, and that the
appliance is properly assembled.
• Plug the power cable connector into the socket in the coffee machine
and connect the power cable plug to the power socket.
Note:
When refilling water and coffee beans, always follow the
instructions provided in chapter “Filling the Water Tank”
and “Filling the Bean Hopper”.
Turning On the Coffee Machine, Rinsing, and Preheating
• Switch the main power switch at the back of the coffee machine to the
A11 “I” (on) position. You will hear asound alert and the control panel
will briefly light up. Once it goes off, the coffee machine automatically
switches to the standby mode.
• Place acup or bowl under the coffee spout.
• Press the button to turn the appliance on. The button will start
blinking and the
button will light up. The coffee machine starts
heating up, and the preparation process begins, during which water
is pumped into the internal circuit, the grinder is checked, and the
coffee spout is rinsed, with asmall amount of water flowing into the
cup. During this time, the grinder and pump will briefly operate. This
is normal.
• At the same time, the steam delivery system will warm up and, during
this time, the CAPPUCCINO, LATTE, HOT WATERand
MILK FROTH
will start blinking. The coffee machine cannot be operated during
this time.
• Once the control buttons light up, the coffee machine is ready to use.
Note:
The coffee machine will automatically rinse if it has been
in standby mode for more than 4 hours and always after
turning it on with the main power switch.
Turning off the coffee machine
• When you have finished using the coffee machine, press the button
to turn it off. The coffee machine will switch to the standby mode.
• To completely turn it off, switch the main power switch to the “0”
position (off) and unplug the power cord from the power socket.
Note:
The coffee machine is equipped with an automatic standby
mode feature. This occurs after 28 minutes of inactivity.
This is normal.
Preparing Espresso (1 and 2 Cups) and Americano
1. Place acup, mug or glass under the head. Adjust the height of the
head by moving it up or down depending on the size of the cup, mug
or glass. If the cup or glass is too tall, you may remove the drip tray.
After removing the cup or glass, return the drip tray to its place.
2. Press the ESPRESSO button (for preparing 1 cup of espresso),
DOUBLE ESPRESSO button (for preparing 2 cups of espresso), or the
AMERICANO button (for preparing Americano). The selected button
will light up, the other buttons will turn off except for the button
.
3. The coffee machine will automatically start the process of grinding,
dosing, tamping the coffee, and dispensing it.
4. Once the coffee dispensing process is complete, you will hear asound
alert, the button will briefly blink, indicating that the coffee machine
is heating up to operating temperature. Once the control panel lights
up, the coffee machine is ready to make another coffee.
• Preparing 2 cups of espresso involves two consecutive preparations of
1 cup of espresso. Do not remove the cup from under the head until the
preparation of the second cup is complete.
- 6 -
07/2025
2025, .
• Preparing Americano coffee consists of preparing 1 cup of Espresso
and hot water. Do not remove the cup from under the head until the
hot water dispensing is finished.
• You can cancel the preparation of espresso or americano by pressing
the corresponding button.
Note:
During the coffee preparation process, you may hear the
sound of the grinder and pump, and after preparation, the
sound of used ground coffee being expelled into the coffee
grounds container. These are normal sounds.
Note:
At the beginning of the coffee dispensing process, coffee
may drip slowly (2 to 3 seconds after brewing), and then
the full coffee dispensing will start. After the dispensing is
complete, the coffee may drip from the spout for about 6 to
8 seconds. This is normal.
Preparing Latte/Cappuccino
1. Assemble the milk container according to the instructions inthe
“
Milk
Container
”
section.
2. Make sure that the connecting tube is correctly inserted in the
container lid and in the milk frothing system.
Note:
To achieve rich and creamy froth, we recommend using
properly chilled milk (around 5°C) with aminimum fat
content of 3%.
3. Place acup, mug or glass under the head. Adjust the height of the
head by moving it up or down depending on the size of the cup, mug
or glass. If the cup or glass is too tall, you may remove the drip tray.
After removing the cup or glass, return the drip tray to its place.
4. Press the CAPPUCCINO button (to make acappuccino) or LATTE
button (to make alatte). The pressed button will light up.
5. The coffee machine will automatically start the preparation process for
latte or cappuccino.
6. Once the preparation is complete, you will hear asound alert, and
the button will blink briefly, indicating that the coffee machine is
heating up to operating temperature. Once the control panel lights up,
the coffee machine is ready to make another coffee.
7. Disconnect the connecting tube and store any remaining milk in the
container in the refrigerator.
8. Close the hole for connecting the A20 milk hose with the A21 cap
andthen press the milk foaming button to clean the foaming part.
Note:
When cleaning, we recommend using atall cup to prevent
splashing hot water.
• You can cancel the preparation of cappuccino or latte by pressing the
corresponding button.
• When the preparation is complete, it is necessary to clean the milk
frothing system, the connecting tube, and the milk container if it is
empty. Follow the instructions in the “Cleaning and Maintenance”
section.
Note:
After the preparation of cappuccino or latte, the overheating
protection mechanism is activated. During this time, the
HOT WATER indicator light will slowly blink. This is normal.
If you need to dispense hot water, allow the coffee machine
to cool down for 3 to 5 minutes.
Frothing milk
1. Assemble the milk container according to the instructions inthe “Milk
Container” section.
2. Make sure that the connecting tube is correctly inserted in the
container lid and in the milk frothing system.
Note:
To achieve rich and creamy froth, we recommend using
properly chilled milk (around 5°C) with aminimum fat
content of 3%.
3. Place acup, mug or glass under the head. Adjust the height of the
head by moving it up or down depending on the size of the cup, mug
or glass. If the cup or glass is too tall, you may remove the drip tray.
After removing the cup or glass, return the drip tray to its place.
4. Press the MILK FROTH button. The pressed button will light up.
5. The dispensing of hot milk and milk froth will start. Approximately
160ml of hot milk and milk froth will flow into the cup.
6. Once the preparation is complete, you will hear asound alert, and
the button will blink briefly, indicating that the coffee machine is
heating up to operating temperature. Once the control panel lights up,
the coffee machine is ready to make another coffee.
7. Disconnect the connecting tube and store any remaining milk in the
container in the refrigerator.
8. Close the hole for connecting the A20 milk hose with the A21 cap
andthen press the milk foaming button to clean the foaming part.
Note:
When cleaning, we recommend using atall cup to prevent
splashing hot water.
• You can cancel milk frothing by pressing the MILK FROTH button.
• When the preparation is complete, it is necessary to clean the milk
frothing system, the connecting tube, and the milk container if it is
empty. Follow the instructions in the “Cleaning and Maintenance”
section.
Note:
After the preparation of cappuccino or latte, the overheating
protection mechanism is activated. During this time, the
HOT WATER indicator light will slowly blink. This is normal.
If you need to dispense hot water, allow the coffee machine
to cool down for 3 to 5 minutes.
Dispensing hot water
1. Place acup, mug or glass under the head. Adjust the height of the
head by moving it up or down depending on the size of the cup, mug
or glass. If the cup or glass is too tall, you may remove the drip tray.
After removing the cup or glass, return the drip tray to its place.
2. Press the HOT WATER button and the coffee machine will start
dispensing hot water. Approximately 120 ml of hot water will flow into
the cup.
3. Hot water dispensing will stop automatically, you will hear asound
alert, the button will briefly blink, indicating that the machine is
heating up to operating temperature. Once the control panel lights up,
the coffee machine is ready to make another coffee.
You can cancel hot water dispensing by pressing the HOT WATER button.
Caution:
The water is very hot and improper handling can
cause serious burns. Be careful when handling hot
contents.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USER SETTINGS
Setting the Volume of Coffee Dispensed
The coffee machine allows you to adjust the volume of dispensed coffee
according to your preferences. The settings you make will be saved to the
memory of the coffee machine.
1. Place acup, mug or glass under the head.
2. Press the (ESPRESSO
,
DOUBLE ESPRESSO or AMERICANO)
beverage button for the beverage you want to prepare. The pressed
button will light up.
3. Once the machine starts dispensing coffee, press and hold the
selected beverage button until the beep sounds and the selected
beverage button blinks.
4. Keep the button pressed until the desired volume of coffee is
dispensed into the cup. Release the button and the volume of
dispensed coffee will be saved to the appliance memory.
- 7 -
07/2025
2025, .
The range of coffee volume is as follows:
• 1 cup of Espresso: 30–100 ml
• 2 cups of Espresso: 2x (30–100 ml)
• Americano: 110–180 ml
Setting the Milk Dispensing Time
The coffee machine allows you to adjust the volume of dispensed milk
according to your preferences. The settings you make will be saved to the
memory of the coffee machine.
1. Place acup, mug or glass under the head.
2. Press the beverage button (CAPPUCCINO or LATTE) for the drink you
want to prepare. The pressed button will light up.
3. Once the machine starts dispensing milk, press and hold the selected
beverage button until the beep sounds and the selected beverage
button blinks.
4. Keep the button of the selected beverage pressed until the desired
amount of milk is dispensed into the cup. Release the button and the
volume of dispensed milk will be saved to the appliance memory.
The range of milk volume is as follows:
• Cappuccino: 30–100 ml (coffee) + 10–40 seconds (milk)
• Latte: 30–100 ml (coffee) + 10–40 seconds (milk)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EMPTYING THE GRINDER
This function is used to empty the grinder and remove any coffee beans
inside it if you won't be using the coffee machine for an extended period to
prevent them from deteriorating.
1. Empty the coffee bean hopper.
2. Press the
button to start the grinder emptying function. The
button will light up.
3. The grinder will stop after about 15 seconds. If the grinder is still full,
run the function again.
4. Empty the coffee grounds hopper.
You can cancel the emptying function of the grinder by pressing the
button.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STANDBY MODE
• Press the button and the coffee machine will switch to standby
mode. In this mode, the control panel will be off and no buttons will
function.
• Press the button to cancel the standby mode and turn on the
coffee machine.
Note:
The coffee machine is equipped with an automatic standby
mode feature. This occurs after 28 minutes of inactivity.
This is normal.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FACTORY RESET
• If you need to restore the factory settings and erase all your
customised settings, perform afactory reset.
• Press the ESPRESSO and
DOUBLE ESPRESSO buttons
simultaneously for 2 seconds. You will hear asound alert indicating
the factory reset has been competed.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
Before cleaning, turn off the coffee machine and switch the main power
switch to the “0” position. Unplug the power cord from the power socket
and let the appliance cool down.
Caution:
Do not use abrasive cleaning agents, solvents, etc.
to clean any parts of the appliance, as these could
damage the surface of the appliance. None of the
components of this appliance are dishwasher safe.
Caution:
To prevent the risk of electric shock, do not immerse
the appliance, power cable, or plug into water or any
other liquid.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DAILY CLEANING AND MAINTENANCE
• Regular cleaning and maintenance are crucial for the proper
functioning and longevity of the appliance.
• Before cleaning, turn off the appliance, unplug it and allow it to cool
down.
Automatic Rinsing
Each turn on and off of the coffee machine is accompanied by ashort
flushing of the entire system. In both cases, both the outlet and the
brewing unit are flushed. Asmall amount of water will flow from the outlet,
so place acup under the outlet with amin. volume of 100ml. When
the brewing unit is flushed, some of the water gets into the spent coffee
grounds container. This is normal. Therefore, we recommend regularly
emptying the spent coffee container so that the coffee does not come in
contact with the rinsing water. Pour the water from the rinse, clean the
containers, dry them and return them to their place.
Manual Rinsing
Manual flushing of the system, including the outlet and the milk system,
is recommended as aprecaution or when the appliance has not been
used for an extended period of time. The flushing can also be performed
without the milk container attached. In this case, it is necessary to close
the hole for connecting the A20 milk container with the A21 plug. In the
case of flushing, including the milk container, it is necessary to fill the
container with water instead of milk.
1. Press the button to initiate the manual rinsing process. Several
rinses and hot water dispensing will occur. Pour out the water.
2. The manual rinsing processwill automatically stop, you will hear
asound alert and the button will briefly blink, indicating that the
machine is heating up to operating temperature. Once the control
panel lights up, the coffee machine is readyfor the coffee preparation.
3. You can cancel the manual rinsing process by pressing the
button
.
Note:
Manual flushing is alarger flushing of the entire system.
In both cases, the outlet and the brewing unit are flushed,
or the milk system. Alarger amount of water will flow out
of the outlet, so place acup under the outlet of volume of
min. 300ml. When the brewing unit is flushed, some of the
water gets into the spent coffee grounds container. This is
normal. Therefore, we recommend regularly emptying the
spent coffee grounds container so that the coffee does not
come in contact with the rinse water. Pour the water from
the rinse, clean the containers, dry them and return them
to their place.
Drip tray
The drip tray should be emptied daily.
• Carefully pull out the drip tray from the coffee machine. Remove the
grid. Empty its contents over the sink.
• Clean the drip tray and grid with warm water and alittle dishwashing
detergent. Rinse and wipe dry.
• Be careful when handling the A18 tray to avoid scalding. It may
contain hot water.
• Place the grid back onto the drip tray and insert into the coffee
machine.
Coffee Grounds Container and Inner Tray
Empty the coffee grounds container whenever the warning indicator
light
comes on. The coffee grounds container has acapacity of 8
coffee servings or 4 if it is aDouble Espresso drink (the grinder grinds
two servings in arow). When emptying the container, ensure the coffee
machine is turned on to reset the counter.
- 8 -
07/2025
2025, .
• Gently press on the bottom part of the service door where the
indentation with PUSH sign is located. The service door will swing
open. Remove it and carefully slide out the inner tray with the coffee
grounds container.
• Empty the coffee grounds container into the municipal waste or
compost.
• Empty the contents of the drip tray over the sink.
• Clean the inner tray and coffee grounds container with warm water
and alittle dishwashing detergent. Rinse and wipe dry.
• Insert the coffee grounds container into the inner tray and slide the
inner tray back into the coffee machine. Reattach the service door.
Note:
Empty the coffee grounds container and clean the brewing
unit whenever the coffee machine is turned on. If you
empty the container or clean the brewing unit while the
coffee machine is turned off, the counter will not reset.
Brewing unit
We recommend cleaning the brewing centre at the same time as
emptying the coffee grounds container.
• Gently press on the bottom part of the service door where the
indentation with PUSH sign is located. The service door will swing
open. Remove it.
• Press both latches on the brewing unit and remove it from the coffee
machine (Figure E).
• Wash it under running water and then dry it properly.
• Insert the brewing centre back into the coffee machine, aligning the
arrow on the brewing centre with the arrow above the brewing centre
compartment. Aclick indicates that the brewing centre is correctly
installed.
• Reattach the service door.
Note:
If the warning indicator light is continuously on, the
brewing unit is not installed correctly.
If the warning indicator light blinks when you press the
beverage preparation button, the service door is not closed
properly.
Water Tank
Remove the water tank, rinse it with clean water, dry it and put it back in
its place.
Milk Frothing System
To prevent milk from settling in the system and creating unwanted odours,
it is important to clean it after each use.
1. Place acup or glass under the head.
2. Fill the milk container with clean water and attach it to the inlet
opening (see Figure D3).
3. Press the
button to initiate the manual rinsing process. Several
rinses and hot water dispensing will occur. Pour out the water.
4. The manual rinsing process will automatically stop, and you will hear
asound alert, the button will briefly blink, indicating that the coffee
machine is heating up to operating temperature. Once the control
panel lights up, the coffee machine is ready to make another coffee.
5. You can cancel the manual rinsing process by pressing the
button.
6. Allow the coffee machine cool down for awhile so that you can
remove the milk frothing system and clean it manually.
7. Carefully remove the coffee spout cover by pressing its sides and
pulling it away from the spout.
8. Remove the milk frothing system, disassemble it (Figure F1), rinsing all
parts under running water.
9. It is important to clean the milk inlet opening with athin object (e.g.
aneedle) (Figure F2).
10. Thoroughly dry all parts and then reassemble them - see figure C1
and C2.
Milk Container, Milk Tube and Connecting Hose
1. Disconnect the connecting hose from the container lid.
2. Remove the lid from the milk container and pour out the remaining
contents of the milk container.
3. Remove the milk tube from the underside of the lid.
4. Wash the milk container, lid, milk tube and connecting hose in warm
water with asmall amount of neutral dishwashing detergent. Rinse
under clean water and dry properly.
5. If necessary, you can use aneedle to remove debris from the holes at
the ends of the connecting hose and in the lid where the connecting
hose is inserted.
6. Before assembling, make sure that both ends of the connecting hose
are clean and dry.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REGULAR MAINTENANCE
Perform regular maintenance of the coffee machine at least once aweek.
Coffee Bean Hopper and Grinder
1. Empty the coffee beans from the hopper and store them in an airtight
container.
2. Start the emptying function of the grinder
.
3. Turn the grinding coarseness regulator counterclockwise until the
base on the regulator is aligned with the notches on the grinder
(figure G1).
4. Lift the regulator upward and remove it from the grinder.
5. Lift the handle of the upper grinding stone and turn it counterclockwise
in the direction of the “ “ symbol.
6. Remove the upper grinding stone and clean it using acleaning brush.
If necessary, you can use avacuum cleaner with the brush nozzle
fitted and the suction power set to low. If the stones are clogged with
coffee bean oil, we recommend degreasing them.
7. Clean the lower grinding stone and chamber using acleaning brush.
8. Insert the upper grinding stone into the grinding chamber, aligning the
“ “ symbol with the arrow on the grinder outlet (Figure G2).
9. Rotate the handle of the upper grinding stone clockwise in the
direction of the “ “ symbol. Lower the handle.
10. Attach the grinding coarseness regulator, ensuring that the tabs on the
regulator fit onto the notches on the grinder (Figure G1) and rotate the
regulator clockwise.
Bracket Seat Switch
1. While the coffee machine is switched on, simultaneously press the
andDOUBLE ESPRESSO buttons until they start blinking.
2. The brewing unit holder will enter the brewing coffee position.
3. Open the service door and wipe the bracket and the area underneath it.
4. After cleaning, close the service door and then press the
andDOUBLE ESPRESSO buttons simultaneously. The bracket will
retract back to its original position.
Ground Coffee Dispensing Channel
The ground coffee dispensing channel can be cleaned using the following
steps.
1. Press the
andESPRESSO buttons simultaneously until they start
blinking.
2. The cover of the ground coffee dispensing channel, located above the
tamper, will open.
3. Open the service door and use acleaning brush to remove any dirt
from the channel. The dirt will fall into the coffee grounds container.
Clean the container as well.
4. When the ground coffee dispensing channel is clean, close the service
door and press the
andESPRESSO
buttons simultaneously. The
cover of the ground coffee channel will close.
Caution:
Do not insert your fingers into the ground coffee
dispensing channel. There is arisk of injury. Use only
the supplied cleaning brush to clean. Do not use other
items to clean the ground coffee dispensing channel.
- 9 -
07/2025
2025, .
Outer Surface of the Coffee Machine
To clean the outer surface of the appliance, use aclean, slightly damp
cloth. Then wipe everything thoroughly dry.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCALING
• Mineral deposits from water can accumulate in the internal circuitry
of the coffee machine with regular use. This is anatural process.
Therefore, regular descaling is necessary. Mineral deposits can spoil
the taste of your coffee.
• The coffee machine is equipped with abuilt-in counter that keeps
track of the number of prepared coffees, and once it reaches 500,
the descaling process should be performed. In such acase, the HOT
WATER and
buttons will start blinking simultaneously.
1. Fill the water tank with asolution of water and descaling agent.
Use Sencor descaling agent suitable for Espresso-type coffee
machines and follow the instructions given in the descaling
agent'saccompanying documentation.
2. Place asufficiently large bowl under the head.
3. Press and hold the HOT WATER and
buttons simultaneously. The
coffee machine will enter the descaling mode.
4. The descaling process takes about 10 minutes. The control buttons
will slowly blink from left to right. Leave the coffee machine to
complete the descaling process.
5. Once the descaling process is complete, theHOT WATER and
buttons will turn off.
6. Remove the water tank and refill it with clean, cold water. Place it back
into the coffee machine and activate the manualrinsing process.
Storage
• If the appliance will not be used for an extended period, unplug it
from the power socket, let it cool down, and clean it following the
instructions provided above.
• Before storing, ensure that the appliance and all accessories are
thoroughly clean and dry.
• Store the appliance in adry, clean, and well-ventilated place away
from extreme temperatures and out of the reach of children or pets.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING
Problem Cause Solution
The indicator light
is flashing.
Insufficient water in
the tank.
Refill the water tank.
The
warning
indicator light is
blinking.
Incorrectly inserted
service door.
Properly insert the
service door.
The
warning
indicator light is lit.
Improperly inserted
brewing unit;
improperly inserted
coffee grounds
container and inner
tray.
Insert the brewing
unit, coffee grounds
container and inner
tray correctly.
The indicator
light is lit.
Insufficient coffee
beans in the hopper.
Add coffee beans to
the hopper.
The indicator light
is on.
The coffee grounds
container is full.
Empty the coffee
grounds container and
inner tray.
The indicator light
is on.
Brewing centre needs
to be cleaned.
Remove the brewing
centre and clean it.
Then, reinsert it.
Problem Cause Solution
The HOT WATER
button is blinking.
Water heater
overheating protection
mechanism is
activated.
Turn off the coffee
machine and
disconnect it from the
power source. Let it
cool down for 3 to 5
minutes and then you
can use it again.
The ESPRESSO
button and
warning indicator
light are blinking
simultaneously.
Grinder motor
malfunction.
Turn off the coffee
machine, wait for
awhile, then turn it
on again.
The and
indicator lights
are blinking
simultaneously.
The coffee machine
has ground coffee for
16 cycles with each
grinding time being
less than 5 minutes.
Turn off the coffee
machine and
disconnect it from
the power source.
Let it cool down for 5
minutes and then you
can use it again.
The HOT WATER
button and
warning indicator
light are blinking
simultaneously.
The flow meter has
no signal and the
water dispensing is
abnormal.
Add water to the water
tank.
The LATTE button and
warning indicator
light are blinking
simultaneously.
Hall sensor has no
signal and brewing
centre is not
functioning properly.
Turn off the coffee
machine, wait for
awhile, then turn it
on again.
Weak milk froth The ground coffee is
too coarse.
Turn the coarseness
regulator clockwise
to adjust the grinder
setting.
You are using
unsuitable roasted
coffee beans.
Use roasted coffee
beans specially for
Espresso machines.
Slow or dripping
coffee flow.
The ground coffee is
too fine.
Turn the coarseness
regulator
counterclockwise
and adjust the grinder
setting.
The coffee machine is
not dispensing coffee.
The coffee spout is
clogged.
Clean the coffee
spout, for example,
using athin object.
The coffee machine
does not switch on.
The plug is not
inserted correctly into
the power socket.
Check the plug
connection in the
power socket.
The power cable is not
inserted correctly in
the socket at the back
of the coffee machine.
Check the power
cable connection.
Main power switch is
in the “0” position.
Switch the main
power switch to the “I”
position.
You have not pressed
the button.
Press the button to
turn the appliance on.
The brewing unit
cannot be removed.
The brewing centre is
blocked.
Contact an authorised
service centre.
and
indicator lights are lit
simultaneously.
Coffee grounds
container needs to be
emptied and brewing
centre needs to be
cleaned.
Empty the coffee
grounds container
and clean the brewing
centre.
Wait about 3 seconds
before reattaching.
- 10 -
07/2025
2025, .
Problem Cause Solution
The indicator light
is on, but the coffee
grounds container is
empty.
The internal counter
has not been reset
after emptying the
container or cleaning
the brewing centre.
Always wait for
about 3 seconds
for the counter to
reset after emptying
the coffee grounds
container or cleaning
the brewing centre.
Empty the coffee
grounds container
and clean the brewing
unit whenever the
machine is turned
on. If you empty the
container or clean the
brewing unit when
the machine is turned
off, the counter will
not reset.
The grinder grinds
but does not dispense
ground coffee.
Deeply roasted beans
may have oil on their
surface. If the coffee
beans are wet or have
too much oil on their
surface, the ground
coffee dispensing
channel will be
blocked.
Press and hold
the
and
ESPRESSO
buttons
simultaneously for 2
seconds, and they will
start blinking.
Open the service
door and remove the
ground coffee from
the ground coffee
dispensing channel
using abrush. Close
the service door once
the ground coffee
starts to falls freely.
Press and briefly
hold the
andESPRESSO (1 cup
espresso) buttons and
they will turn off.
The coffee machine is
too noisy.
It is normal for the
coffee machine to
make noise during
operation.
If the coffee machine
starts to make
adifferent kind of
noise, lubricate the
brewing centre.
Note:
If the problem is not listed in the table or if the problem
persists, turn off the coffee machine, disconnect it from the
power source, and contact an authorised service centre.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TECHNICAL SPECIFICATIONS
Rated voltage range ..............................................................................220–240 V~
Rated frequency ...................................................................................................50 Hz
Rated input power ..............................................................................................1350W
Noise level .........................................................................................................70 dB(A)
The declared noise emission level of the appliance is 70 dB(A), which
represents alevel Aof acoustic power with respect to areference acoustic
power of 1 pW.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VALUES PROVIDED ACCORDING TO COMMISSION REGULATION
EU 2023/826
Off mode
Power consumption in off mode –
Time needed for the equipment to automatically
reach off mode
–
Standby mode
Power consumption in Standby mode 0.4 W
Time needed for the equipment to automatically
reach standby mode
28 min
Networked standby mode (Wi-Fi)
Power consumption in networked standby –
Time needed for the equipment to automatically
reach networked standby mode
–
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION ON DISPOSAL
OF USED PACKAGING MATERIAL
Dispose of used packaging material at the designated municipal waste
disposal site.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC
EQUIPMENT
Used electrical andelectronic products must not be disposed of in
ordinary municipal waste. To enable the proper disposal, renewal and
recycling of these products, deliver them to the designated collection
points. Alternatively, in some European Union states or other European
countries the products can be returned to the local retailer when buying
an equivalent new product. By disposing of this product correctly, you
help to conserve valuable natural resources and prevent any potential
adverse impact on the environment and human health that could result
from improper waste disposal. For more details, contact your local
authority or nearest collection point. Fines may be imposed for the
improper disposal of this type of waste as per national regulations.
For business entities in European Union States
If you wish to dispose of electrical and electronic equipment, please
request the necessary information from your retailer or supplier.
Disposal in other countries outside the European Union
To dispose of this product elsewhere, request the necessary information
on the correct disposal method from local authorities or your retailer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changes to text and technical parameters are reserved.
FAST ČR, a.s.
U Sanitasu 1621
CZ-251 01 Říčany
www.sencor.com
info@sencor.cz
