SES 8500BK
EN
FULLY AUTOMATIC ESPRESSO /
CAPPUCCINO MACHINE
Translation of the original manual
SES 8500BK
A
PUSH
9
1
3
5
7
11
13
15
1
3
5
7
9
11
13
15
1
2
3
4
5
6
7
8
9
10
11
12
13
16
17
18
19
14
15
A
20
21
22
23
24
25
26
B
Espresso
Double
Espresso
Caffe Latte
Cappucino
Home
Clean
Set
Brew
1
2
3
4
5
6
C1
C2
D1 D2 D3
E
PUSH
F1 F2
G1 G2
9
1
3
5
7
11
13
15
1
3
5
7
9
11
13
15
– 1 –
06/2024
2024, .
EN
Fully Automatic Espresso / Cappuccino Machine
Important Safety Instructions
READ CAREFULLY AND STORE FOR FUTURE USE.
• This appliance is not to be used by children. Keep this
appliance and its power cable out of the reach of children.
• The appliance may be used by persons with reduced
physical, sensory or mental abilities or lack of experience
and knowledge, provided they are supervised or have
been instructed on the safe use of the appliance and
understand the potential hazards.
• Children must not play with the appliance.
• Cleaning and maintenance must not be carried out by
children.
• If the power cable is damaged, have it replaced in
aprofessional service centre in order to prevent
adangerous situation. It is forbidden to use the appliance
with the power cable damaged.
• Always clean the parts of the appliance that come into
contact with food with clean warm water and alittle neutral
dishwashing liquid, rinse them with clean water and wipe
dry.
WARNING:
Incorrect use may lead to injury.
Always disconnect the appliance from the power
supply when leaving it unattended and before
assembly, disassembly or cleaning.
– 2 –
06/2024
2024, .
• This appliance is intended for household use.
It is not intended for use in areas such as:
– kitchenettes in shops, offices and other workplaces;
– agricultural farms;
– hotel or motel rooms and other living areas;
– bed and breakfast establishments.
WARNING:
Avoid spilling on the plug.
WARNING:
The outer surface of the appliance heats up during
use and may be hot for some time after use. Be very
careful.
The appliance must not be placed in acabinet when
in use.
WARNING:
The filling hole must not be opened during use.
• Do not do submerge the power cable, plug or appliance in
water or any other liquid.
• Before connecting the appliance to apower socket, make sure that its nominal voltage indicated on the rating plate matches the electrical voltage of
the socket.
• Connect the appliance only to aproperly earthed socket. For safety reasons, we do not recommend using adaptors or extension cables.
• Do not place the appliance on windowsills, sink drain trays or unstable surfaces. Always place the appliance on astable, flat and dry surface.
• Do not place the appliance on an electric or gas stove or near an open flame.
• Never use the appliance in the immediate vicinity of abath, shower or swimming pool.
• Use the appliance only for its intended purpose.
• Use the appliance according to the instructions in this user manual. Failure to do so may result in injury, damage to the appliance, or ahazardous
situation.
• Use the appliance only with the original accessories supplied with it.
• During operation, aclear space of at least 15 cm must be left around and above the appliance to ensure sufficient air circulation.
• Only use the top surface of the appliance to heat up cups. Do not use it to store items.
• Fill the water tank with clean, cold water. Do not pour hot water or other liquids into it or place any objects inside it.
• Before turning on the appliance, make sure that:
– the drip tray together with the grid is installed in position;
– the water tank is filled with asufficient amount of water and is properly installed in position.
• The water level must not exceed the maximum mark.
• Take extra care when operating the appliance to avoid scalding with hot water or steam.
• The hot water function may only be used continuously for amaximum of one emptying of the entire water tank.
– 3 –
06/2024
2024, .
• When using the appliance, check the water level in the water tank regularly. If the water level falls below the minimum mark, refill the water tank.
Before adding water, first turn the appliance off and disconnect it from the power socket.
• Use the built-in coffee grinder only for grinding coffee beans. Do not use it for any other purposes.
• Ensure that no hair or other items enter the grinder area during the grinding process. The coffee bean hopper lid should always be properly closed
unless you are refilling coffee beans or adjusting the grinding coarseness.
• The appliance is equipped with abuilt-in thermal fuse that shuts it off when the pump is idling to prevent damage. If such asituation occurs, unplug
the power cable and allow the appliance to cool down for at least 30 minutes. Then you can use it again.
• Do not move the appliance with acup of coffee placed on the drip tray grid or with cups placed on the surface designed to heat them up.
• Ensure that the power cable does not come into contact with hot surfaces.
• Unplug the appliance from the power socket by pulling the plug, not the power cable. Otherwise, damage to the power cable or the socket may
occur.
• Do not submerge the appliance, power cable or plug in water or any other liquid.
• Make sure that the power cable and plug do not come into contact with water or other fluids.
• To avoid the risk of electric shock, do not repair or modify the appliance yourself. All repairs should be carried out by an authorised service centre.
Tampering with the appliance may result in the loss of your legal rights regarding faulty performance or warranty for quality.
– 4 –
06/2024
2024, .
• Thank you for purchasing our SENCOR product; we hope it will serve
to your satisfaction.
• Before using this appliance, please familiarise yourself with the user
manual, even if you are already familiar with using similar types of
appliances. Use the appliance only as described in this user manual.
Keep the manual for future reference.
• It is recommended to keep the original packaging, packing material,
receipt and confirmation of the extent of the seller'sliability or warranty
certificate at least for the duration of the legal right of defective
performance or quality guarantee. When transporting the appliance,
we recommend packaging it again in the original box provided by the
manufacturer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE COFFEE MACHINE
A1 Bean hopper lid
A2 Grinding coarseness regulator
A3 Bean hopper, capacity 200 g
A4 Interactive touch control panel
A5 Coffee spout head (adjustable
height)
A6 Coffee spout cover
A7 Drip tray grid
A8 Drip tray
A9 Water tank lid
A10 Water tank, capacity 1.5 l
A11 Main power switch
A12 Power cord socket
A13 Service door
A14 Ground coffee dispensing
channel cover
A15 Tamper
A16 Brewing centre
A17 Bracket Seat Switch
A18 Coffee grounds container
A19 Inner tray
A20 Inlet opening
A21 Stopper
A22 Milk frothing system
A23 Milk container lid
A24 Milk tube
A25 Mild container, capacity
750ml
A26 Connecting hose
Not shown: cleaning brush, power
cord
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE CONTROL PANEL
B1 Beverage menu
B2 Wi-Fi icon
B3 Button to enter the coffee
machine settings
B4 Button to start automatic
cleaning
B5 Button to enter the user
settings of the selected
beverage
B6 Button to start the selected
beverage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BEFORE FIRST USE
• Before first use, remove the appliance and its accessories form the
packaging and discard all promotional labels and tags. Check that
neither the appliance nor any of its components is damaged.
• Install the appliance on aflat, dry and clean surface.
• Remove the water tank, the brewing centre, the milk frothing system
and the milk container. Wash them with clean water and asmall
amount of neutral kitchen detergent. Then rinse them properly with
clean water, dry them and put them back in place.
• Secure the drip tray properly to the appliance.
• Wipe the outer surface of the appliance with aslightly damp cloth and
then wipe dry properly.
• Fully unwind the detachable power cord and connect it to the socket
at the back of the appliance.
• Toensure optimal service life of the appliance, it is necessary to rinse
the internal components with hot water several times before first use.
Follow the instructions in the"Rinsing the Coffee Machine” section.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INTERACTIVE TOUCH CONTROL PANEL
• The SES 8500BK coffee machine is equipped with an interactive
touch control panel withcontrol buttons. Use the pads of your fingers
to press the buttons, not the fingertips. It is important to maintain
constant contact with the button when pressing it. Do not press the
buttons with force. Press the button where its symbol is located.
• We recommend that you set your preferred language according to
the instructions in the "COFFEE MACHINE SETTINGS/Language
Settings" section, as instructions, alerts, and warnings with
descriptions of required actions appear on the control panel. Follow
both the instructions in this manual and the instructions on the control
panel.
• The default language of the coffee machine is English.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PREPARING THE COFFEE MACHINE BEFORE USE
Filling the Water Tank
1. Carefully open the lid of the tank. The lid serves as ahandle.
2. Remove the water tank from the rear of the appliance.
3. Fill the water tank with clean water up to the maximum mark and
insert it back into the appliance. Make sure the tank is properly
installed.
Note:
The water you pour into the water tank should ideally be
at room temperature (approximately 25 °C). Too cold water
can negatively affect the final taste of the coffee beverage.
Warning:
The maximum capacity of the water tank is 1.5 l.
Do not overfill it.
Never fill the water tank with warm or hot water,
sparkling water or other liquids such as milk. This
could damage the appliance.
Never fill the water tank by pouring water into in while
it is inserted inside the appliance. There is arisk of
spilling the appliance or overfilling the water tank.
Note:
Do not leave water in the water tank for more than one day.
For preparing quality fresh coffee, it is necessary to always
use fresh water. Otherwise, the taste of the final beverage
may be negatively affected.
Filling the Coffee Bean Hopper
1. Remove the coffee bean hopper lid.
2. Pour roasted coffee beans into the hopper and close the lid. Do not
leave the lid of the hopper open, otherwise the coffee beans will lose
their aroma more quickly.
Note:
Themaximum capacity of the hopper is 200 g of
coffee beans. Do not overfill it.
Never fill the bean hopper with ground or instant
coffee, caramelised or otherwise specially treated
coffee beans, cocoa beans or other items that may
cause damage to
the appliance.

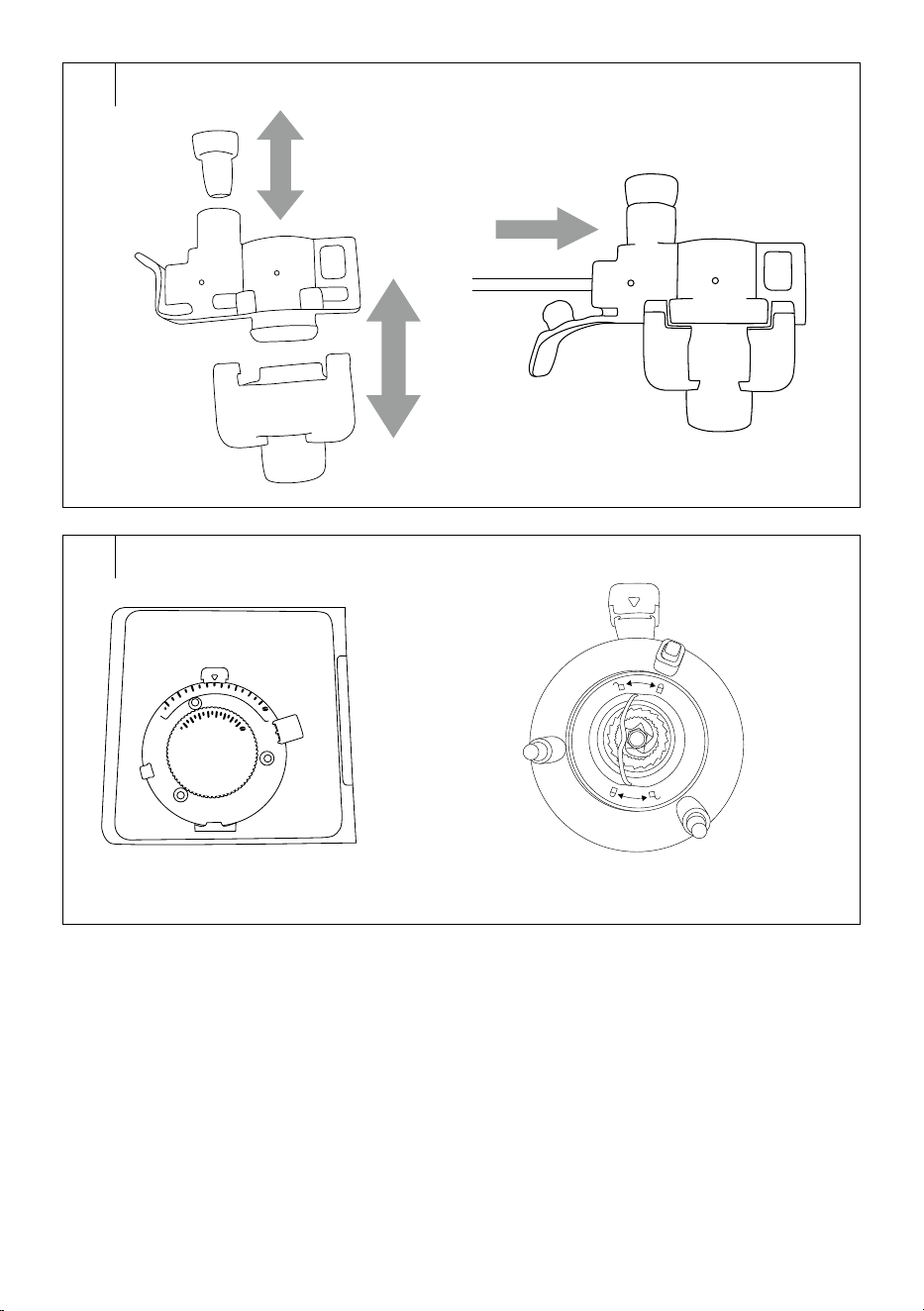

Grinding Coarseness Regulator
Use the grinding coarseness regulator to adjust the appropriate
coarseness of the ground coffee. Grinding coarseness adjustment is
possible only when the grinder is in operation. The new coarseness
setting will take effect after the second or third coffee preparation following
the grinding coarseness change.
EN
Fully Automatic Espresso / Cappuccino Machine
User Manual
– 5 –
06/2024
2024, .
1. Use the grinding coarseness regulator inside the coffee bean hopper
to adjust the coarseness in 15 levels. For first use, we recommend
setting the grinding coarseness to 8 and then adjusting as needed.
2. Turn the regulator counterclockwise (towards coarseness 15) for
coarser grinding, and clockwise (towards coarseness 1) for finer
grinding. Always adjust by one level. Try it out and then readjust as
needed.
3. Only adjust the grinding coarseness when the grinder is running.
Otherwise, damage to the appliance may occur.
4. If the brewed coffee flows out very slowly, it means that the beans
are ground too finely and acoarser grind should be set. If the brewed
coffee flows out too quickly, it means that the grains are ground too
coarsely and afiner grind should be set.

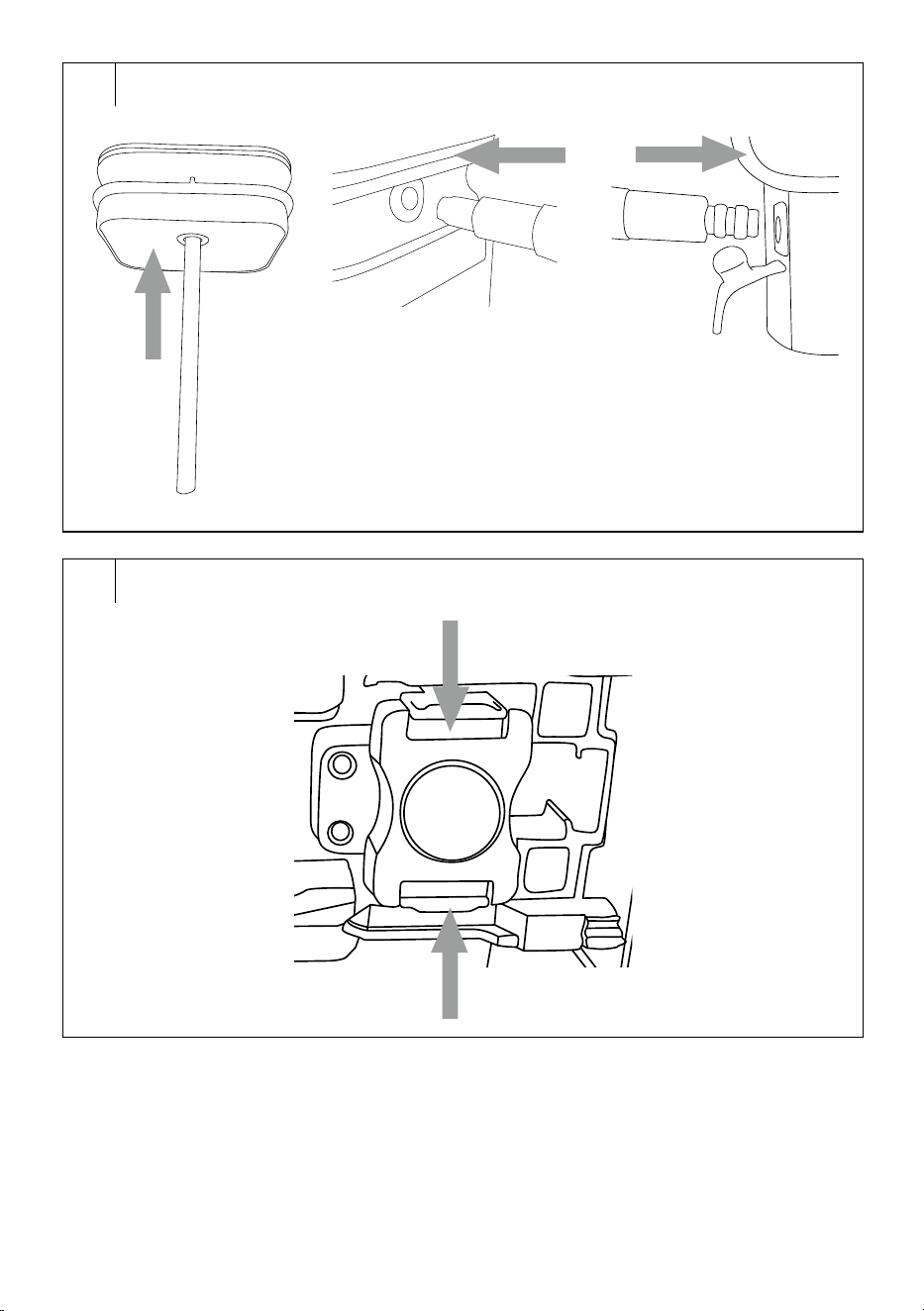

Milk Frothing System
If you are preparing latte, cappuccino, or need to froth milk, it is necessary
to attach the milk frothing system. Follow these steps:
1. Carefully remove the coffee spout cover by pressing its sides and
pulling it away from the spout.
2. Attach the milk frothing system to the coffee spout from below
(Figure C1). Push gently upwards and then secure it onto the base
so that the round shape of the spout fits into the round cutout (Figure
C2).
3. Reattach the coffee spout cover.
Milk Container
If you are planning to make latte, cappuccino, or need to froth milk,
assemble the milk container as follows:
1. Pour fresh, cold milk into the container. Do not exceed the maximum
mark. The maximum capacity of the milk container is 750 ml.
2. Insert the milk tube into the hole on the inner side of the lid (Figure
D1).
3. Place the milk container on astable and flat surface at asufficient
distance from the coffee machine.
4. Put the lid on the container.
5. Insert one end of the connecting hose into the hole in the lid of the
milk container (Figure D2).
6. Remove the plug from the inlet opening in the milk frothing system
and insert the other end of the connecting tube into the hole (Figure
D3).
Adjusting the Head Height
• The head can be moved up/down according to the height of the cup in
which you will be preparing the coffee. First, place the cup under the
head and then adjust the height.
Brewing Centre
• Gently press on the bottom part of the service door where the
indentation is located. The service door will swing open. Remove it and
check that the brewing centre is properly installed. The arrow on the
brewing centre should be aligned with the arrow above the brewing
centre compartment. After checking, reattach the service door.
• If you remove and reinsert the brewing centre and hear aclick, it
indicates that the brewing centre is properly installed.
Coffee Grounds Container and Inner Tray
• Gently press on the bottom part of the service door where the
indentation is located. The service door will swing open. Remove it
and check that the coffee grounds container and the inner tray are
properly installed.
Drip Tray
• Attach the grid to the drip tray.
• Attach the assembled drip tray to the lower front wall of the coffee
machine and gently push the tray into the machine.
• The tray must be firmly secured to prevent the cup with hot beverage
from tipping over during preparation.
• Water from the spout flows into the drip tray during each rinse, self-
cleaning, and also any coffee that may spill during brewing. Therefore,
clean and empty the drip tray daily.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USING THE COFFEE MACHINE
• Place the coffee machine on aflat, dry and clean surface at
asufficient distance from the power socket. Ensure there is enough
free space around it for manipulation, at least 15 cm on all sides.
• Make sure the water tank is filled with fresh water, there is asufficient
amount of coffee beans in the hopper, and the appliance is properly
assembled.
• Plug the power cable connector into the socket in the coffee machine
and connect the power cable plug to the power socket.
Note:
When refilling water and coffee beans, always follow the
instructions provided in sections “Filling the Water Tank”
and “Filling the Coffee Bean Hopper”.
Turning On the Coffee Machine, Rinsing, and Preheating
• Switch the main power switch at the back of the coffee machine to the
“I” (on) position. An audio alert will sound, and the control panel will
display the symbol
andClick to start.
• Place acup or bowl under the coffee spout.
• Press the
button to turn on the coffee machine.
• The control panel will display the cleaning icon Cleaning up, and the
machine will start the preparation, checking, and rinsing process,
during which asmall amount of water will flow out of the coffee spout.
You may hear the pump or movement of internal components during
this time. This is anormal occurrence.
Note:
If you need to skip the cleaning andpreparation process,
press Cancel on the control panel.
• The machine will then start to preheat. The control panel will display
the startup screen, and the drinks Caffe Latte, Cappuccino, Frothed
Milk and Hot Water will slowly blink, indicating that the machine is
preheating.
• When the drink icons stop blinking and light up, the coffee machine is
preheated and ready to use.
Turning Off the Coffee Machine
• If you are not using the coffee machine, switch the main switch to the
"0" (off) position and unplug the power cable from the power socket.
Energy Saving Mode
• The control panel will dim after 15 minutes of inactivity. To light up the
control panel again, touch it with your finger.
• The coffee machine is equipped with an automatic standby mode
feature. This occurs after 28 minutes of inactivity. To turn the coffee
machine back on, click on the control panel with your finger. Press the
button to turn on the coffee machine. The coffee machine will turn
on and starts to preheat.
• If the coffee machine has been in standby mode for more than 4
hours, the cleaning, preparation, and rinsing process will start first.
Then it will start heating up.
Preparing Espresso (1 and 2 Cups) and Americano
1. Place acup, mug or glass under the head. Adjust the height of the
head by moving it up or down depending on the size of the cup, mug
or glass. If the cup or glass is too tall, you may remove the drip tray.
After removing the cup or glass, return the drip tray to its place.
2. Press the Espresso button (for preparing 1 cup of espresso), Double
Espresso button (for preparing 2 cups of espresso), or the Americano
button (for preparing Americano coffee).
3. Press the Brew button.
4. The coffee machine will automatically start the process of grinding,
dosing, tamping the coffee, and dispensing it. The control panel will
display the progress of the beverage preparation.
5. Once the coffee dispensing process is complete, an audible alert will
sound, and the control panel will display that the beverage has been
prepared. After awhile, the control panel’shome screen will appear.
The drinks Caffe Latte, Cappuccino, Frothed Milk andHot Water
will slowly blink, indicating that the coffee machine is preheating.
When the drink icons stop blinking and light up, the coffee machine
is preheated and ready to use.
– 6 –
06/2024
2024, .
• Preparing Double Espresso involves two consecutive preparations of 1
cup of Espresso. Do not remove the cup from under the head until the
preparation of the second cup is complete.
• Preparing Americano coffee consists of preparing 1 cup of Espresso
and hot water. Do not remove the cup from under the head until the
hot water dispensing is finished.
• You can cancel the preparation of Espresso, Double Espresso or
Americano coffee by pressing the Cancel button.
If you wish to adjust the parameters of your coffee, follow the instructions
in the “USER SETTINGS” section.
Note:
During the coffee preparation process, you may hear the
sound of the grinder and pump, and after preparation, the
sound of used ground coffee being expelled into the coffee
grounds container. These are normal sounds.
Note:
At the beginning of the coffee dispensing process, coffee
may drip slowly (2 to 3 seconds after brewing), and then
the full coffee dispensing will start. After the dispensing is
complete, the coffee may drip from the spout for about 6 to
8 seconds. This is anormal occurrence.
Preparing Caffe Latte/Cappuccino
1. Install the milk frothing system to the coffee spout following the
instructions in the “Milk Frothing System” section and assemble the
milk container according to the instruction in the “Milk Container”
section.
2. Make sure that the connecting tube is correctly inserted in the
container lid and in the milk frothing system.
Note:
To achieve rich and creamy froth, we recommend using
properly chilled milk (around 5°C) with aminimum fat
content of 3%.
3. Place acup, mug or glass under the head. Adjust the height of the
head by moving it up or down depending on the size of the cup, mug
or glass. If the cup or glass is too tall, you may remove the drip tray.
After removing the cup or glass, return the drip tray to its place.
4. Press the Cappuccino button (to make acappuccino) or Caffe Latte
button (to make alatte).
5. Press the Brew button.
6. The coffee machine will automatically start the preparation process
for Caffe Latte or Cappuccino. The control panel will display the
progress of the beverage preparation.
7. Once the coffee dispensing process is complete, an audible alert will
sound, and the control panel will display that the beverage has been
prepared. After awhile, the control panel’shome screen will appear.
The drinks Caffe Latte, Cappuccino, Frothed Milk andHot Water
will slowly blink, indicating that the coffee machine is preheating.
When the drink icons stop blinking and light up, the coffee machine
is preheated and ready to use.
8. Disconnect the connecting tube and store any remaining milk in the
container in the refrigerator.
• You can cancel the preparation of Cappuccino or Caffe Latte by
pressing the Cancel button.
• When the preparation is complete, it is necessary to clean the milk
frothing system, the connecting tube, and the milk container if it is
empty. Follow the instructions in the “Cleaning and Maintenance”
section.
• If you wish to adjust the parameters of your coffee, follow the
instructions in the “USER SETTINGS” section.
Note:
After the preparation of Cappuccino or Caffe Latte, the
overheating protection mechanism is activated. If you need
to dispense hot water, allow the coffee machine to cool
down for 3 to 5 minutes.
Milk Frothing
1. Install the milk frothing system to the coffee spout following the
instructions in the “Milk Frothing System” section and assemble the
milk container according to the instruction in the “Milk Container”
section.
2. Make sure that the connecting tube is correctly inserted in the
container lid and in the milk frothing system.
Note:
To achieve rich and creamy froth, we recommend using
properly chilled milk (around 5°C) with aminimum fat
content of 3%.
3. Place acup, mug or glass under the head. Adjust the height of the
head by moving it up or down depending on the size of the cup, mug
or glass. If the cup or glass is too tall, you may remove the drip tray.
After removing the cup or glass, return the drip tray to its place.
4. Press the Frothed Milk button.
5. Press the Brew button.
6. The dispensing of hot milk and milk froth will start. The milk frothing
process will be displayed on the control panel.
7. Once the frothed milk dispensing process is complete, an audible
alert will sound, andthe control panel will display the information
that the frothed milk dispensing has been completed. After awhile,
the control panel’shome screen will appear. The drinks Caffe Latte,
Cappuccino, Frothed Milk andHot Water will slowly blink, indicating
that the coffee machine is preheating. When the drink icons stop
blinking and light up, the coffee machine is preheated and ready to
use.
8. Disconnect the connecting tube and store any remaining milk in the
container in the refrigerator.
• You can cancel milk frothing by pressing the Cancel button.
• When the preparation is complete, it is necessary to clean the milk
frothing system, the connecting tube, and the milk container if it is
empty. Follow the instructions in the “Cleaning and Maintenance”
section.
• If you wish to adjust the parameters of milk frothing, follow the
instructions in the “USER SETTINGS” section.
Note: After milk frothing is complete, the overheating
protection mechanism is activated. If you need to dispense
hot water, allow the coffee machine to cool down for 3 to
5 minutes.
Dispensing Hot Water
1. Place acup, mug or glass under the head. Adjust the height of the
head by moving it up or down depending on the size of the cup, mug
or glass. If the cup or glass is too tall, you may remove the drip tray.
After removing the cup or glass, return the drip tray to its place.
2. Press the Hot Water button.
3. Press the Brew button.
4. The hot water dispensing will start. The progress of the hot water
dispensing will be displayed on the control panel.
5. Once the hot water dispensing process is complete, an audible
alert will sound, andthe control panel will display information that
the hot water dispensing has been completed. After awhile, the
control panel’shome screen will appear. The drinks Caffe Latte,
Cappuccino, Frothed Milk andHot Water will slowly blink, indicating
that the coffee machine is preheating. When the drink icons stop
blinking and light up, the coffee machine is preheated and ready to
use.
• You can cancel hot water dispensing by pressing the Cancel button.
• If you wish to adjust the parameters of the hot water, follow the
instructions in the “USER SETTINGS” section.
Warning:
The water is very hot and improper handling can
cause serious burns. Be careful when handling hot
contents.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USER SETTINGS
Setting the Volume of Espresso, Double Espresso andAmericano Coffee
The coffee machine allows you to adjust the volume of dispensed coffee
according to your preferences. The settings you make will be saved to the
memory of the coffee machine.
1. Place acup, mug or glass under the head.
2. Press the button of the beverage you want to prepare.
– 7 –
06/2024
2024, .
3. Press the Set button. The menu for setting the volume of the
dispensed coffee will appear.
4. Swipe up or down to select the desired volume. This will be
highlighted on the control panel.
5. Press the Start button to start the preparation.
The range of coffee volume is as follows:
• Espresso: 40–50–60–70–80 ml
• Double Espresso: 2 times 40–50–60–70–80 ml
• Americano: 120 or 200 ml
Setting the Volume of Coffee andMilk for Caffe Latte andCappuccino
The coffee machine allows you to adjust the volume of dispensed coffee
and milk according to your preferences. The settings you make will be
saved to the memory of the coffee machine.
1. Place acup, mug or glass under the head.
2. Press the button of the beverage you want to prepare.
3. Press the Set button. The menu for setting the volume of the
dispensed coffee and milk will appear.
4. Swipe up or down to select the desired volume. This will be
highlighted on the control panel.
5. Press the Start button to start the preparation.
The range of coffee and milk volume is as follows:
• Caffe Latte: 40–50–60–70–80 ml (coffee); 40–50–60–70–80–
90–100 ml (milk)
• Cappuccino: 40–50–60–70–80 ml (coffee); 40–50–60–70–80–
90–100 ml (milk)
Setting the Volume of Frothed Milk
The coffee machine allows you to adjust the volume of frothed milk
according to your preferences. The settings you make will be saved to the
memory of the coffee machine.
1. Place acup, mug or glass under the head.
2. Press the Frothed Milk button.
3. Press the Set button. The menu for setting the milk volume will
appear.
4. Swipe up or down to select the desired volume (120–160–200–
240–280 ml). This will be highlighted on the control panel.
5. Press the Start button to start the preparation.
Setting the Volume of Hot Water
The coffee machine allows you to adjust the volume of dispensed hot
water according to your preferences. The settings you make will be saved
to the memory of the coffee machine.
1. Place acup, mug or glass under the head.
2. Press the Hot Water button.
3. Press the Set button. The hot water volume setting menu will
appear.
4. Swipe up or down to select the desired volume (150–200–250–
300 ml). This will be highlighted on the control panel.
5. Press the Start button to start the preparation.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COFFEE MACHINE SETTINGS
• To enter the coffee machine settings, press the
button inthe upper
right corner.
• Click on the selected item to enter its settings. Here you can adjust the
settings of the coffee machine according to your preferences.
• Swipe left/right on the control panel to view the next settings menu.
• Click
to return to the previous screen.
Brightness of the Control Panel
• Adjust the brightness of the control panel by moving the point on
the bar towards+ or –. Move the point towards+ to increase the
brightness, move the point towards– to decrease the brightness.
Anumerical brightness value from 1 to 5 will be displayed on the
control panel.
Language Settings
Select the desired language of the coffee machine.
Clean the Coffee Powder Channel
• Use this option when cleaning the coffee machine. Click "OFF",
this will change to "ON" and the coffee powder channel cover will
open. Clean it according to the instructions inthe “CLEANING AND
MAINTENANCE / REGULAR MAINTENANCE / Coffee Powder
Channel” section.
• After cleaning, click "ON" to switch it back to "OFF".
Clean the Bracket Seat Switch
• Use this option when cleaning the coffee machine. Click "OFF",
this will change to "ON" and the bracket seat switch will enter the
brewing coffee position. Clean it according to the instructions inthe
“CLEANING AND MAINTENANCE / REGULAR MAINTENANCE /
Bracket Seat Switch” section.
• After cleaning, click "ON" to switch it back to "OFF".
• If the service door is left uninstalled or not properly fitted, the machine
will warn you that the service door must be fitted first.
Revert to Default Setting
• If you need to restore the factory settings and erase all your
customised settings, perform afactory reset.
• Click Confirm to confirm and the coffee machine will restore the
factory settings, or click Cancel to return to the control panel home
screen.
Software Version
• Here you will find information about theversion of the software used
for the coffee machine, the touch panel and the model number of the
coffee machine.
Wi-Fi
• Here you will be able to reset the Wi-Fi (WIFI Reset) or turn off the
Wi-Fi (Close WIFI).
• Reset Wi-Fi: Click WIFI Reset, the Wi-Fi will be reset andthe button
will light up green.
• Turn off Wi-Fi: Click Close WIFI, the Wi-Fi will turn off andthe button
will change to TurnON WIFI. To turn on the Wi-Fi, click TurnON WIFI.
Descaling
• Use this option to descale the coffee machine.
• Press the Descaling button to start the descaling process. For
more information see the “CLEANING AND MAINTENANCE /
DESCALING“ section.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATION USING THE MOBILE APPLICATION
• The coffee machine can be controlled via the Sencor HOME
application.
• Download the application to your smart phone, sign up and control the
coffee machine via the application.
• If you already have the application installed, add the coffee machine
to your devices.
Adding the Coffee Machine to the Device List viaQR Code
• The coffee machine can also be added to the Sencor HOME app using
the QR code provided below. On the home screen of the application,
click on the “+” icon and on the Add device screen, click on the [–]
icon in the top right corner.
• After scanning the QR code, you will be prompted to select aWi-Fi
network. Select the network, enter your password andclick “Next”.
• If prompted toreset the device, enter the coffee machine settings and
select "WiFi". Here, click on WIFI Reset, the Wi-Fi will reset andthe
button will light up green. Return to the home screen of the coffee
machine control panel and the Wi-Fi icon will flash. This indicates that
the coffee machine is ready to pair. Instructions can also be found on
the application screen.
• Inthe application, confirm that the Wi-Fi light is blinking, then click
“Next”.
– 8 –
06/2024
2024, .
• Click on “Connect”. Then, in the Wi-Fi settings on your mobile
device, connect the Wi-Fi to the coffee machine. Then go back to the
application andwait for the coffee machine to pair.
• In the device list on the main screen, click on the coffee machine icon
to access its controls.
QR code for adding the control panel of the coffee machine to the Sencor
HOME app
Manually add the coffee machine to the device list
• On the home screen, click on “Add Device” or the “+” in the top right
corner, and then click on "Add Device".
• Ascreen with appliance categories and alist of appliances will appear.
• Click on “Kitchen Appliances” and select the coffee machine model
from the list of products.
• On the next screen, you will be prompted toselect aWi-Fi network.
Select the network, enter your password andclick “Next”.
• If prompted toreset the device, enter the coffee machine settings and
select "WiFi". Here, click on WIFI Reset, the Wi-Fi will reset andthe
button will light up green. Return to the home screen of the coffee
machine control panel and the Wi-Fi icon will flash. This indicates that
the coffee machine is ready to pair. Instructions can also be found on
the application screen.
• Inthe application, confirm that the Wi-Fi light is blinking, then click
“Next”.
• Click on “Connect”. Then, in the Wi-Fi settings on your mobile
device, connect the Wi-Fi to the coffee machine. Then go back to the
application andwait for the coffee machine to pair.
• In the device list on the main screen, click on the coffee machine icon
to access its controls.
Functions of the Coffee Machine
The list below shows the most important functions of the coffee machine
that can only be set in the application.
– create alist of your favourite beverages, including their names
– set the temperature of the prepared beverage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
Before cleaning, set the main switch to the “0” position, unplug the
power cable from the power socket and allow the appliance to cool down
properly.
Warning:
Do not use abrasive cleaning agents, solvents, etc. to
clean any parts of the appliance that could damage
the surface of the appliance. None of the components
of this appliance is dishwasher safe.
Warning:
To prevent the risk of electric shock, do not immerse
the appliance, power cable, or plug into water or any
other liquid.
Quick Cleaning
The quick cleaning function is suitable for quickly removing dirt from the
brewing head andinternal pipes.
1. Place acup, mug or glass of at leas 100 ml under the head.
2. Press the Clean button. On the screen, click on the Clean button
and the coffee machine will automatically start the quick cleaning
function.
3. The quick cleaning process will stop automatically, however, you
can end it by pressing the Cancel button again.
4. When the quick cleaning is complete, the home screen of the control
panel will be displayed.
Note:
We recommend that you run the quick cleaning function
after each use, especially if you want to prepare an
Espresso after preparing aCappuccino or Caffe Latte.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daily Cleaning and Maintenance
Regular cleaning and maintenance are crucial for the proper functioning
and longevity of the appliance. At the end of the use of the coffee
machine, we recommend to do aquick cleaning, the procedure of which
is described above.
Drip Tray
The drip tray should be emptied daily.
• Carefully pull out the drip tray from the coffee machine. Remove the
grid. Empty its contents over the sink.
• Clean the drip tray and grid with warm water and alittle dishwashing
detergent. Rinse and wipe them dry.
• Be careful not to scald yourself when handling the tray. It may contain
hot water.
• Place the grid back onto the drip tray and insert into the coffee
machine.
Coffee Grounds Container and Inner Tray
Empty the coffee grounds container whenever awarning appears on the
control panel. The coffee grounds container has acapacity of 8 coffee
servings. When emptying the container, ensure the coffee machine is
turned on to reset the counter.
• Gently press on the bottom part of the service door where the
indentation is located. The service door will swing open. Remove it and
carefully slide out the inner tray with the coffee grounds container.
• Empty the coffee grounds container into the municipal waste or
compost.
• Empty the contents of the drip tray over the sink.
• Clean the inner tray and coffee grounds container with warm water
and alittle dishwashing detergent. Rinse and wipe them dry.
• Insert the coffee grounds container into the inner tray and slide the
inner tray back into the coffee machine. Reattach the service door.
Brewing Centre
We recommend cleaning the brewing centre at the same time as
emptying the coffee grounds container.
• Gently press on the bottom part of the service door where the
indentation is located. The service door will swing open. Remove it.
• Press both latches on the brewing centre and remove it from the
coffee machine (Figure E).
• Wash it under running water and then dry it properly.
• Insert the brewing centre back into the coffee machine, aligning the
arrow on the brewing centre with the arrow above the brewing centre
compartment. Aclick indicates that the brewing centre is correctly
installed.
• Reattach the service door.
Note:
If the brewing centre is not installed correctly or the service
door is not closed properly, awarning message will be
displayed on the control panel.
Water Tank
Remove the water tank, rinse it with clean water, dry it and put it back in
its place.
Milk Frothing System
To prevent milk from settling in the system and creating unwanted odours,
it is important to clean it after each use.
1. Place acup or glass under the head.
2. Fill the milk container with clean water.
3. Install the milk frothing system to the coffee spout according to the
instructions in the “Milk Frothing System” section.
4. Start the quick cleaning process andallow the coffee machine to
complete the process.
5. Carefully remove the coffee spout cover by pressing its sides and
pulling it away from the spout.
– 9 –
06/2024
2024, .
6. Remove the milk frothing system, disassemble it (Figure F1), and
rinse all parts under running water.
7. It is important to clean the milk inlet opening with athin object (e.g.,
aneedle) (Figure F2).
8. Thoroughly dry all parts and then reassemble them.
Milk Container, Milk Tube and Connecting Hose
1. Disconnect the connecting hose from the container lid.
2. Remove the lid from the milk container and pour out the remaining
contents of the milk container.
3. Remove the milk tube from the underside of the lid.
4. Wash the milk container, lid, milk tube and connecting hose in warm
water with alittle neutral dishwashing detergent. Rinse them under
clean water and dry properly.
5. If necessary, you can use aneedle to remove debris from the
holes at the ends of the connecting hose and in the lid where the
connecting hose is inserted.
6. Before assembling, make sure that both ends of the connecting hose
are clean and dry.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REGULAR MAINTENANCE
Perform regular maintenance of the coffee machine at least once aweek.
Coffee Bean Hopper and Grinder
1. Empty the coffee beans from the hopper and store them in an
airtight container.
2. Start the emptying function of the grinder.
3. Turn the grinding coarseness regulator counterclockwise until the
base on the regulator is aligned with the notches on the grinder
(Figure G1).
4. Lift the regulator upward and remove it from the grinder.
5. Lift the handle of the upper grinding stone and turn it
counterclockwise in the direction of the “open lock” symbol.
6. Remove the upper grinding stone and clean it using acleaning
brush.
7. Clean the lower grinding stone and chamber using acleaning brush.
8. Insert the upper grinding stone into the grinding chamber, aligning
the “closed lock” symbol with the arrow on the grinder outlet (Figure
G2).
9. Rotate the handle of the upper grinding stone clockwise in the
direction of the “closed lock” symbol. Lower the handle.
10. Attach the grinding coarseness regulator so that the base on the
regulator fits onto the notches on the grinder (Figure D1), and rotate
the regulator clockwise.
Bracket Seat Switch
1. Press the
button inthe top right corner to enter the coffee
machine settings.
2. Here click on Bracket Seat Switch (Clean the Bracket Seat Switch).
3. Click "OFF", this will change to "ON" and the bracket seat switch will
enter the brewing coffee position (Figure H).
4. Open the service door and wipe the bracket and the area underneath
it.
5. After cleaning, close the service door andclick "ON" to switch it back
to "OFF". The bracket will retract back to its original position.
Coffee Powder Channel
1. Press the
button inthe top right corner to enter the coffee
machine settings.
2. Here click on Clean the Coffee Powder Channel.
3. Click "OFF", it will change to "ON" and the coffee powder channel
cover, which is located above the tamper, will open.
4. Open the service door and use acleaning brush to remove any dirt
from the channel. The dirt will fall into the coffee grounds container.
Clean the container as well.
5. After cleaning, close the service door andclick "ON" to switch it back
to "OFF". The cover of the coffee powder channel will close.
Outer Surface of the Coffee Machine
To clean the outer surface of the appliance, use aclean, slightly damp
cloth. Then wipe everything thoroughly dry.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCALING
Mineral deposits from water can accumulate in the internal circuit of the
coffee machine with regular use. It is anatural process. Therefore, regular
descaling is necessary. Mineral deposits can adversely affect the taste of
the coffee being brewed.
The coffee machine is equipped with abuilt-in counter that keeps track of
the number of prepared coffees, and once it reaches 500, the descaling
process should be performed. Inthis case, anotification for descaling will
appear on the control panel.
1. Fill the water tank with asolution of water and descaling agent.
Use adescaling agent suitable for espresso-type machines and
follow the instructions given in the descaling agent'saccompanying
documentation.
2. Place abowl under the brewing head. Remove the drip tray as
needed and move the head as low as possible.
3. Click on Descaling, anotification about thelength of the descaling
process will appear. Click on Confirm to start the descaling process.
4. Allow the coffee machine to complete the descaling process.
5. Once the descaling process is complete, the completion notification
will appear on the control panel. The home screen will be displayed
and the coffee machine will start heating up.
6. Remove the water tank, clean it and refill with clean, cold water.
Insert it back into the coffee machine andstart the quick cleaning
process.
The descaling process can be performed before the notification appears.
In this case, proceed as follows:
1. Fill the water tank with asolution of water and descaling agent.
Use adescaling agent suitable for espresso-type machines and
follow the instructions given in the descaling agent'saccompanying
documentation.
2. Remove the drip tray as needed and move the head as low as
possible.
3. Press the
button inthe top right corner to enter the coffee
machine settings.
4. Here, click on Descaling.
5. Click on Descaling, anotification about thelength of the descaling
process will appear. Click on Confirm to start the descaling process.
6. Allow the coffee machine to complete the descaling process.
7. Once the descaling process is complete, the completion notification
will appear on the control panel. The home screen will be displayed
and the coffee machine will start heating up.
8. Remove the water tank, clean it and refill with clean, cold water.
Insert it back into the coffee machine and start the quick cleaning
process.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EMPTYING THE GRINDER
This function is used to empty the grinder and remove any coffee beans
inside it if you won't be using the coffee machine for an extended period to
prevent them from deteriorating.
1. Empty the coffee bean hopper.
2. Press the Clean button and click on Empty on the screen. Confirm
the selection by clicking Yes. The grinder emptying function will
start. Select No to go back onestep.
3. The grinder will stop after about 15 seconds. If the grinder is still full,
run the function again.
4. Empty the coffee grounds hopper.
You can cancel the emptying function of the grinder by pressing the
Cancel button.
Storage
• If the appliance will not be used for an extended period, unplug it
from the power socket, let it cool down, and clean it following the
instructions provided above.
• Before storing, ensure that the appliance and all accessories are
thoroughly clean and dry.
• Store the appliance in adry, clean, and well-ventilated place away
from extreme temperatures and out of the reach of children or pets.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
– 10 –
06/2024
2024, .
MESSAGES ON THE CONTROL PANEL AND THEIR MEANING
Message Meaning What to do
Lack of water Insufficient water in
the tank.
Refill the water tank.
Brew system error The service door
is open.
Reattach the service
door.
The grinding
coarseness
regulator is not
properly installed.
Correctly install
the grinding coarse
regulator.
The inner tray is not
in its correct place.
Insert the inner tray in
its place.
Warning improperly
assembly of the
brewing centre
The brewing centre
is not inserted
correctly.
Insert the brewing
centre correctly into the
coffee machine.
Lack of coffee beans Insufficient coffee
beans in the hopper.
Add coffee beans to the
hopper.
Clean the brewing
centre
Brewing centre
needs to be
cleaned.
Remove the brewing
centre and clean it.
Then, reinsert it.
Residue Bin Full Alert The coffee grounds
container is full.
Empty the coffee
grounds container and
inner tray.
The hot water indicator
is blinking.
Water heater
overheating
protection
mechanism is
activated.
Turn off the coffee
machine and
disconnect it from the
power source. Let it cool
down for 3 to 5 minutes
and then you can use
it again.
Error message
0X1000.
Grinder motor
malfunction.
Turn off the coffee
machine, wait for
awhile, then turn it on
again.
The grinder system is
overheated. It will take
time to cool down. (The
grinder is overheated. It
will take awhile to cool
down.)
The coffee machine
has ground coffee
for 16 cycles with
each grinding time
being less than 5
minutes.
Turn off the coffee
machine and
disconnect it from the
power source. Let it cool
down for 5 minutes
and then you can use
it again.
Error message
0X0008
The flow meter has
no signal and the
water dispensing is
abnormal.
Add water to the water
tank.
Error message
0X0010
Hall sensor has
no signal and
brewing centre
is not functioning
properly.
Turn off the coffee
machine, wait for
awhile, then turn it on
again.
TROUBLESHOOTING
Problem Cause Solution
Weak foam The ground coffee
is too coarse.
Turn the coarseness
regulator clockwise
to adjust the grinder
setting.
You are using
unsuitable roasted
coffee beans.
Use roasted coffee
beans specially for
Espresso machines.
Weak milk foam The milk frothing
system is dirty.
Clean the milk frothing
system according
to the instructions
in “EVERYDAY
CLEANING AND
MAINTENANCE/ Milk
Frothing System”.
Slow or dripping coffee
flow.
The ground coffee
is too fine.
Turn the coarseness
regulator
counterclockwise
and adjust the grinder
setting.
Coffee machine does
not dispense coffee.
The coffee spout is
clogged.
Clean the coffee spout,
for example, using athin
object.
Coffee machine cannot
be turned on.
The plug is not
inserted correctly
into the power
socket.
Check the plug
connection in the power
socket.
The power cable
is not inserted
correctly in the
socket at the
back of the coffee
machine.
Check the power cable
connection.
Main power
switch is in the “0”
position.
Switch the main power
switch to the “I” position.
You did not press
the
button.
Press the button to
turn the coffee machine
on.
The brewing centre
cannot be removed.
The coffee machine
is not fully turned
off.
Turn off the coffee
machine with the
button andthen switch
the main power switch
to the “0” position.
The brewing centre
is blocked.
Contact an authorised
service centre.
The coffee machine
emits too much milk
froth, or milk jets too
much from the milk
nozzle.
The milk is not cold
enough or is not
suitable formilk
frothing.
The recommended
milk temperature for
frothing is 5 to 10 °C. We
recommend using whole
milk with afat content of
at least 3%.
The milk frothing
system is dirty.
Cleaning the milk
frothing system.
Alternately, amessage
about afull coffee
grounds container and
anotification to clean
the brewing centre are
displayed.
Coffee grounds
container needs
to be emptied
and brewing
centre needs to be
cleaned.
Empty the coffee
grounds container
and clean the brewing
centre.
Wait about 3 seconds
before reattaching.
– 11 –
06/2024
2024, .
The notification of the
full container or the
cleaning of the brewing
centre is still displayed
on the control panel.
The internal
counter has
not been reset
after emptying
the container
or cleaning the
brewing centre.
Always wait for about 3
seconds for the counter
to reset after emptying
the coffee grounds
container or cleaning the
brewing centre. Empty
the coffee grounds
container and clean the
brewing centre after
switching on the coffee
machine. If you empty
the container or clean
the brewing centre while
the coffee machine is
turned off, the counter
will not reset.
The grinder grinds
but does not dispense
ground coffee.
Deeply roasted
beans may have
oil on their surface.
If the coffee beans
are wet or have too
much oil on their
surface, the ground
coffee dispensing
channel will be
blocked.
Clean the coffee powder
channel according
to the instructions
inthe ”CLEANING
AND MAINTENANCE
/ REGULAR
MAINTENANCE
/ Coffee Powder
Channel” section.
The coffee machine is
too noisy.
It is normal for the
coffee machine to
make noise during
operation.
If the coffee machine
starts to make adifferent
kind of noise, lubricate
the brewing centre.
If the problem is not listed in the table or if the problem persists, turn off
the coffee machine, disconnect it from the power source, and contact an
authorised service centre.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TECHNICAL SPECIFICATIONS
Rated voltage range ........................................................................... 220−240 V~
Rated frequency ................................................................................................. 50Hz
Rated input power .......................................................................................... 1350 W
Noise level ......................................................................................................70 dB(A)
The declared noise emission level of the appliance is 70 dB(A), which
represents alevel Aof acoustic power with respect to areference acoustic
power of 1 pW.
We reserve the right to change the text and technical specifications.
SENCOR hereby declares that the radio device type SES 8500BK
complies with the 2014/53/EU directive. The full text of the EU
Declaration of Conformity is available at: www.sencor.eu.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED
PACKAGING MATERIAL
Dispose of used packaging material at the location designated by the
municipality for waste disposal.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on the products or accompanying documents
indicates that used electrical and electronic products
should not be disposed of with regular municipal waste.
For proper disposal and recycling of these products, deliver
them to designated collection points. Alternatively, in some
European Union states or other European countries the
products can be returned to the local retailer when buying
an equivalent new product. By properly disposing of this
product, you help preserve valuable natural resources and contribute to
preventing potential negative impacts on the environment and human
health resulting from improper waste disposal. For further details, contact
your local authorities or the nearest collection point. Fines may be
imposed for improper disposal of this type of waste in accordance with
national regulations.
For Business Entities in European Union States
To dispose of electric or electronic equipment, request necessary
information from your retailer or supplier.
Disposal in Other Countries Outside the European Union
This symbol is valid in the European Union. To dispose of this product
elsewhere, request necessary information on the correct disposal method
from local authorities or your retailer.
This product complies with all the essential requirements of
the applicable EU directives.
