MOVA Diver A10
User Manual
Robotic Pool Cleaner
The illustrations in this manual are for reference only. Please refer to the actual product for accuracy.
2
EN
1. Safety Instructions
•Always disconnect the appliance from the supply before assembling,
disassembling or cleaning.
•To protect against the effect of freezing, the appliance shall not be left
outside during freezing weather conditions.
•The appliance is a Class III appliance that it must only be supplied at
SELV.
1.1 Safety Regulations
•
READ AND FOLLOW ALL INSTRUCTIONS.
•
SAVE THESE INSTRUCTIONS.
•Remove the robotic pool cleaner from the pool before allowing people to
enter the pool.
•When examining the robotic pool cleaner, make sure the robotic pool
cleaner is switched OFF.
•Charge the battery only in the temperature range between 5°C to 45°C /
41°F to 113°F.
•This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.
•The unit must be connected only to a supply circuit that is protected by
a ground-fault circuit interrupter (GFCI). This GFCI should be tested on
a routine basis. To test the GFCI, push the test button. The GFCI should
interrupt power. Push the reset button. Power should be restored. If
the GFCI fails to operate in this manner, the GFCI is defective. If the
GFCI interrupts power to the power unit without the test button being
pushed, a ground current may be flowing, indicating the possibility of
an electric shock. Do not use the power unit. Disconnect the power unit
and contact the manufacturer for assistance.
•Use only the original battery charger.
•The battery charger must be supplied through a residual current device
(RCD) having a rated residual operating current not exceeding 30mA.
•The power cord is not user-replaceable. If the power cord is damaged,
stop using the battery charger and contact the service center for repair.
Do not use extension cord to connect the battery charger to electric
3
EN
supply; provide a properly located outlet.
•DO NOT USE the robotic pool cleaner and/or its battery / power pack
in case of mechanical damage to the robotic pool cleaner and/or its
battery.
•To avoid the risk of fire and burns, DO NOT open, crush, heat, or burn
the battery case.
•Keep hands and fingers away from impeller motor area and driving belt
mechanism to avoid injury.
•Position the battery charger at least 3.5 m / 11.48 ft from pool edge
during operation.
•For continuous protection against possible electric shock, place the
battery charger at least 11 cm / 4.33 in above ground.
•When lifting the robotic pool cleaner, take care to prevent back injury.
•Do not use the robotic pool cleaner if you have added liquid flocculant
or any other clarifier to the pool water. These substances obstruct and
damage the robot's filters.
•The Lithium-Ion battery in this product is non-replaceable. It should be
recycled at certified battery electronics recyclers that accept batteries.
Batteries should NOT be discarded in the trash or put in municipal
recycling bins. Do not disassemble the battery.
•The robotic pool cleaner must not be used when people are in the water.
•Switch off the pump from the supply mains before carrying out user
maintenance such as cleaning the filter.
•Only use the supply unit provided with this appliance.
1.2 FCC/IC Statement
This device complies with Part 15 of the FCC Rules / Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation
is subject to the following two conditions: (1) this device may not cause
harmful interference. (2) this device must accept any interference received,
including interference that may cause undesired operation.Changes
or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
4
EN
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
1.3 MPE Reminding
To satisfy FCC/IC RF exposure requirements, a separation distance of 20
cm/7.87 in or more should be maintained between the antenna of this
device and persons during device operation.
To ensure compliance, operations at closer than this distance is not
recommended.
1.4 IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety
precautions should always be followed including the following:
•
READ AND FOLLOW ALLINSTRUCTIONS.
•
This appliance shall not be used by children. Cleaning and user
maintenance shall not be carried out by children.
•Prevent unintentional starting. Ensure the switch is in the off position
before connecting to battery pack, picking up or carrying the appliance.
Carrying the appliance with your finger on the switch or energizing
appliance that have the switch on invites accidents.
•Recharge only with the charger specified by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of fire
when used with another battery pack.
•Use appliances only with specifically designated battery packs. Use of
any other battery packs may create a risk of injury and fire.
•When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects,
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
•Under abusive conditions, liquid may be ejected from the battery.
If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery
may cause irritation or burns. (This advice is considered correct for
5
EN
conventional NiMh, NiCd, lead acid and lithium-ion cell types. If this
advice is incorrect for a cell design that differs from these, then the
correct advice may be substituted.)
•Do not use a battery pack or appliance that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
•Do not expose a battery pack or appliance to fire or excessive
temperature. Exposure to fire or temperature above 130° C may
cause explosion. The temperature of 130° C can be replaced by the
temperature of 265 ° F.
•Follow all charging instructions and do not charge the battery pack or
appliance outside of the temperature range specified in the instructions.
Charging improperly or at temperatures outside of the specified range
may damage the battery and increase the risk of fire.
•It is recommended to charge the robot in a cool, dry indoor environment.
Charging under direct sunlight outdoors may cause the robot to
overheat, triggering temperature protection and resulting in an inability
to charge properly.
•Have servicing performed by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the
product is maintained.
•Do not modify or attempt to repair the appliance or the battery pack (as
applicable) except as indicated in the instructions for use and care.
•Do not expose the appliance or battery to excessive temperatures.
•Be aware of the risk of terminals of the battery or terminals of the
adapter being short circuited by metal objects.
•The button cell battery on the MCU must not be replaced by the
consumer.
1.5 Correct Disposal of this Product
This marking indicates that this product should not be disposed of with
other household waste throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To
recycle your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can safely
recycle this product.
The remote surveillance is for the absolute private use of non-public,
private owned places for the pure self-protection and single control
6
EN
1.6 Symbols and Decals
Before charging, read the instructions.
Direct current
Alternating current
8
IP classification
Class Ⅲ
Water Temp Max: 45 ° C/113 ° F
Maximum working depth: 3 m
WARNING –
It is not permitted to dispose of this product as normal household waste. Ensure that the
product is recycled in accordance with local legal requirements.
1.7 Water Conditions for Robot Use
Chlorine 10 - 12 PPM
PH 7.0 - 7.8
Temperature 5-45℃ (41–113℉)
Salt Maximum 5500 PPM
Ingress Protection IPX8 for robotic pool cleaner
intended only. Please be aware of the local data protection based legal
obligations in case of use. No surveillance of public places, especially
with clandestine intent and on the part of the employer without justified
reasons. Such not justified use is in the risk and responsibility of the user
only.
7
EN
2. Product Introduction

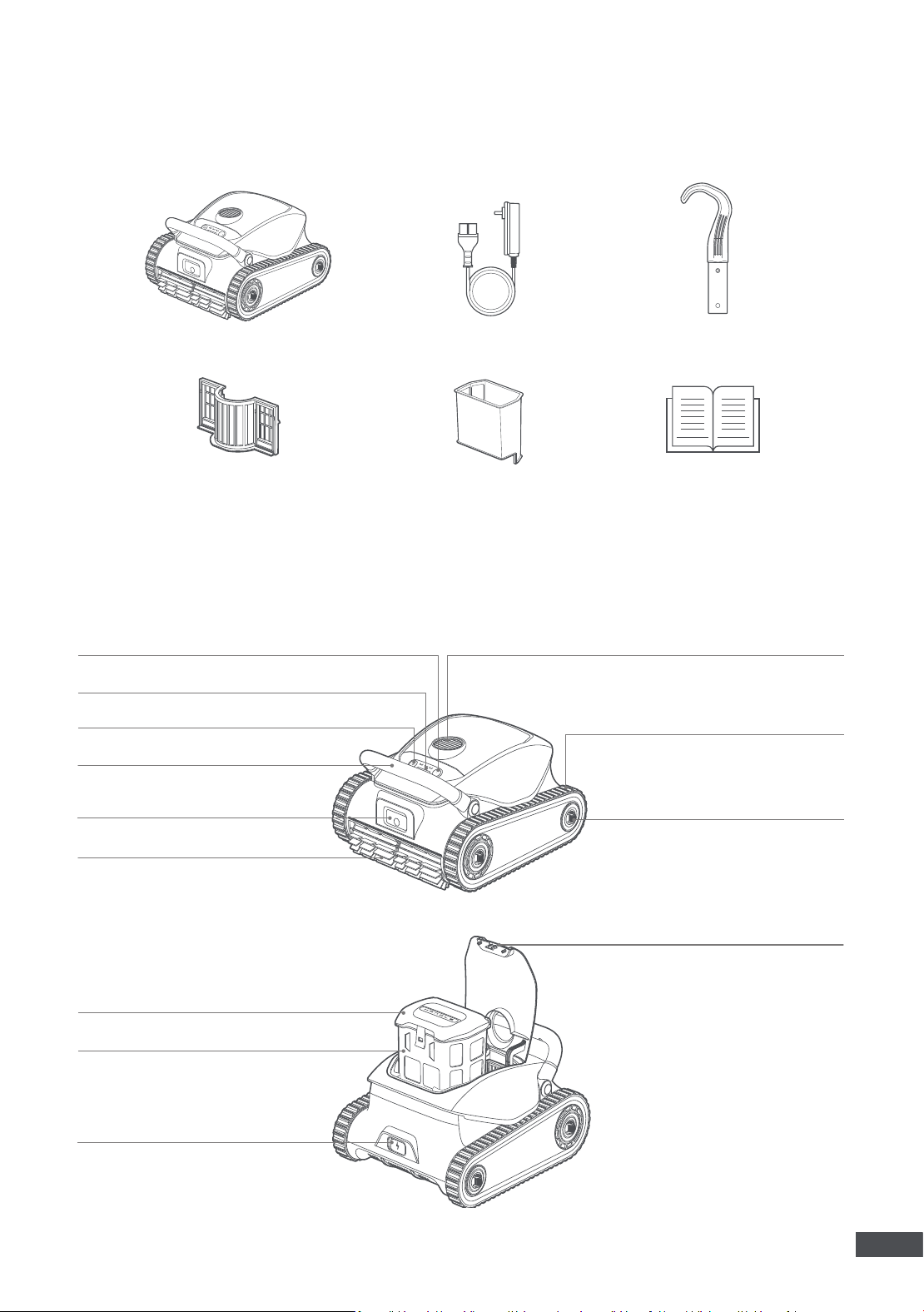

2.1 What’s in the Box
Robot
Fine Filter
Charger
Retrieval Hook
User Manual and
Quick Start Guide
Note:
The illustrations provided in this manual are for reference only. Please refer to the actual product for
accuracy.
2.2 Product Structure
Mode Button
LED Indicator
Power Button
Handle
Sensor Fusion Module
Roller Brush
Water Outlet
Track Wheel×2
Guide Wheel×4
Filter Basket Cover
Filter Basket
Charging Port
Press-to-Open Switch
Ultra-fine Filter
(pre-installed)
8
EN

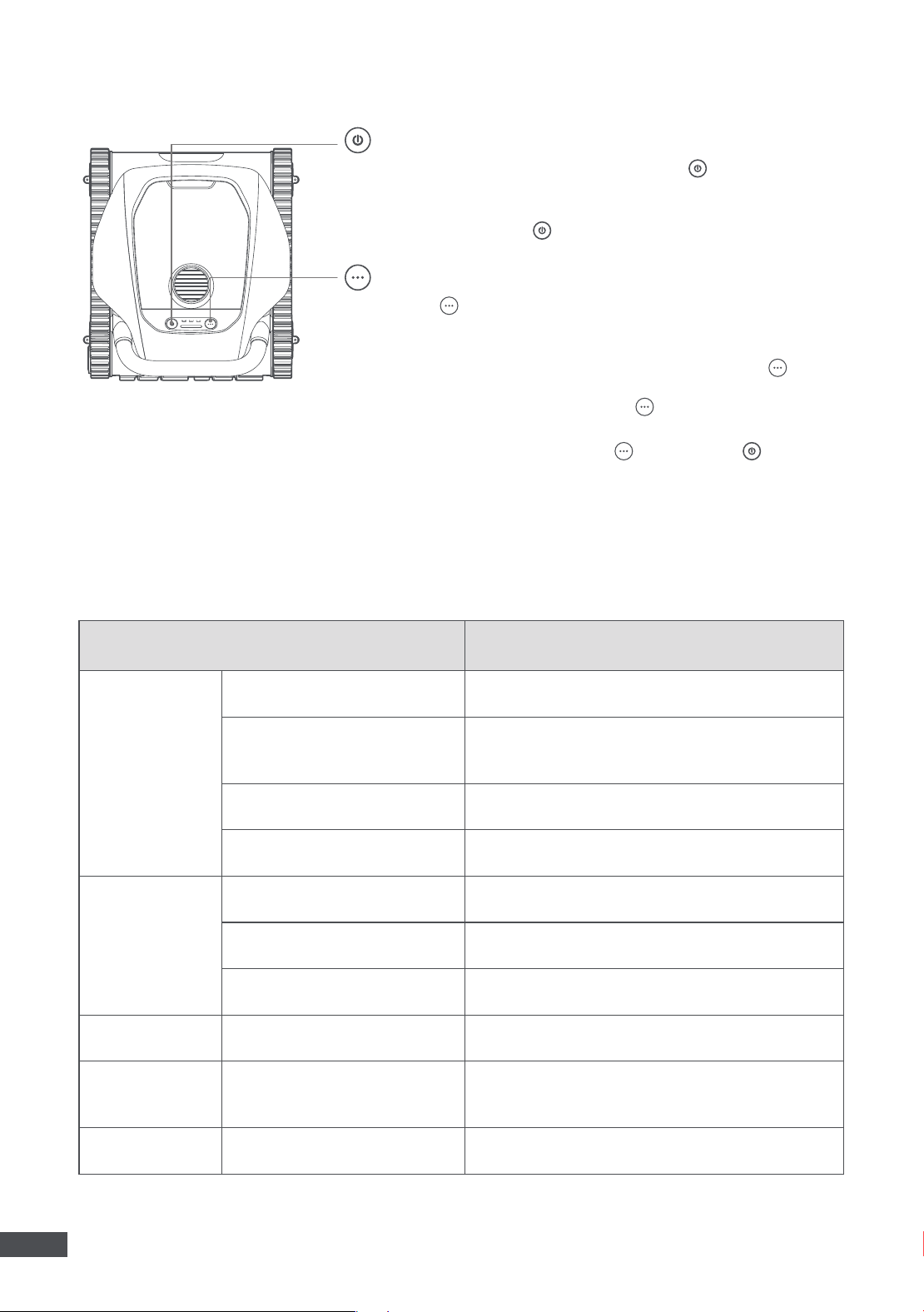

2.3 Controls on the Robot
Power
•To turn the robot on or off, press and hold for 3 seconds.
The LED indicator will blink green to show that the action was
successful.
•
Press and hold the
for 10 seconds to force shutdown.
Mode
•Press to choose a cleaning mode from: Floor Only, Wall Only
or Complete mode. The indicator below the cleaning mode will
light up when the mode is selected.
•To enable the Bluetooth pairing mode, press and hold for
3 seconds. A blinking blue light indicates that the robot is in
Bluetooth pairing mode. Press the twice to exit the Bluetooth
pairing mode.
•To factory reset the robot, hold and then press twice. The
indicator light will blink white to show that the robot is restoring
the factory settings.
2.4 Status LED
Light Effects Robot Status
Operation
Breathing Green (On) Powered on.
Breathing Green/Orange/Red
(Off)
Powered off.
Solid Green/Orange/Red Performing tasks underwater.
Blinking White Restoring factory settings.
Charging
Solid Green Battery Level
=
100%
Blinking Green 50%≤Battery Level
<
100%
Blinking Orange Battery Level
<
50%
Error Blinking Red An error has occurred.
Hotspot
Configuration
Blinking Blue (Rapid) In Bluetooth pairing mode.
Firmware Update Colourful Flowing Light Performing OTA updates.
9
EN

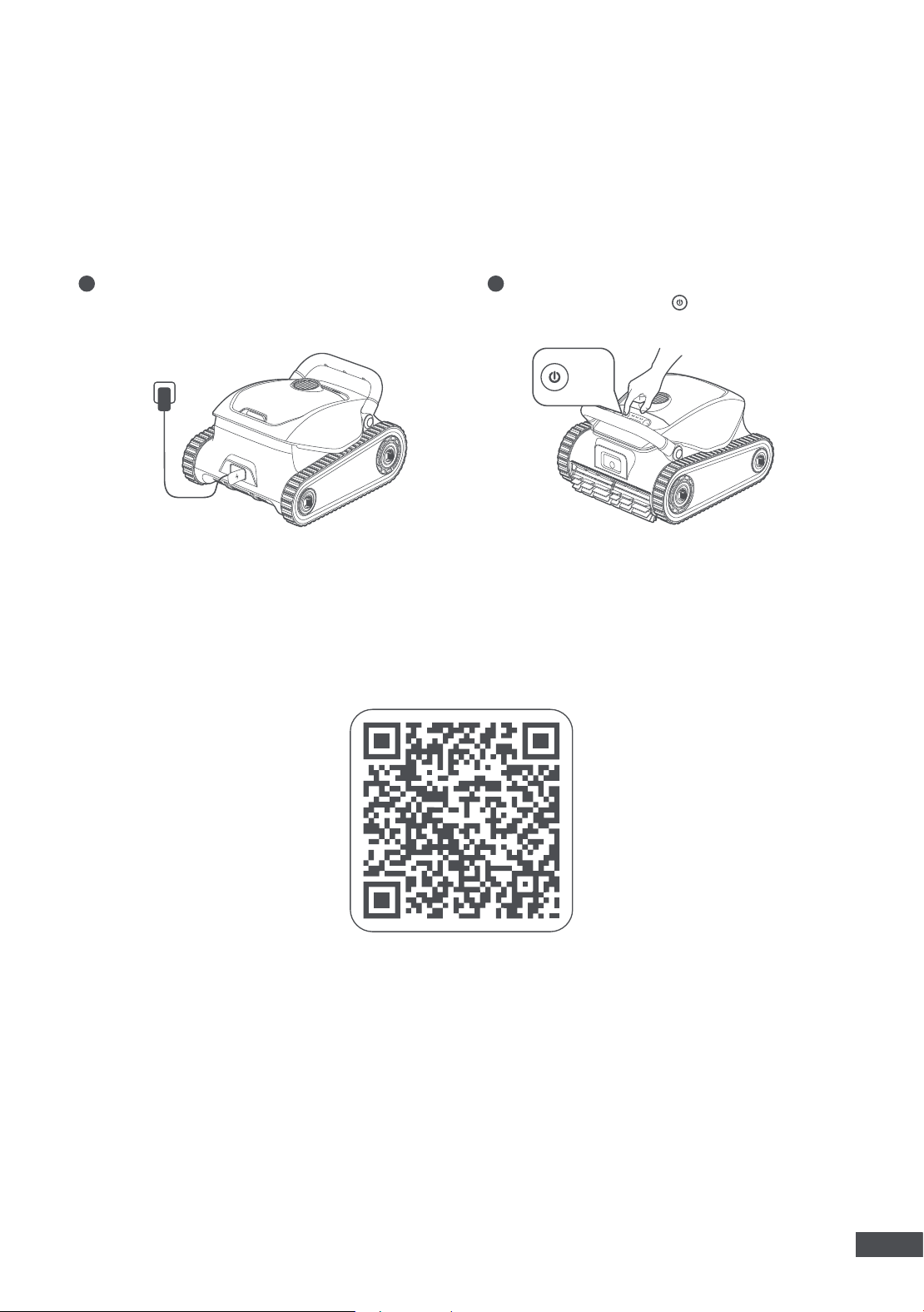

3.1 Charging
3. Preparations Before First Time Use
Caution:
•Do not charge the robot in direct sunlight.
•Before charging, remove the charging port cover to check if there is any residual water in the charging port. If
so, wipe the charging port dry first.
1
Connect the charging cable to the robot's
charging port and plug the charger into an
electrical outlet.
2
Fully charge the battery, then disconnect the
charger. Press and hold for 3 seconds to turn
on the robot.
3.2 Install the MOVAhome App
Scan the QR code below to download the MOVAhome app, or search for "MOVAhome" in the App Store or
Google Play. After installation is complete, please create an account and log in.
Before setting up the network, please check the following:
•Ensure the robot is turned on.
•Ensure that both your mobile device and the robot are within the same Wi-Fi network coverage range with a
strong signal.
•Ensure the current Wi-Fi network is the single-band network of 2.4 GHz frequency or the dual-band network
of 2.4/5 GHz frequency.
•Ensure the Bluetooth function on your mobile device is enabled.
•Bring the phone close to the robot (within 1m).
3s
10
EN
3.3 Get Your Robot Online
1
Open MOVAhome app.
2
You can add your robot in one of the following methods:

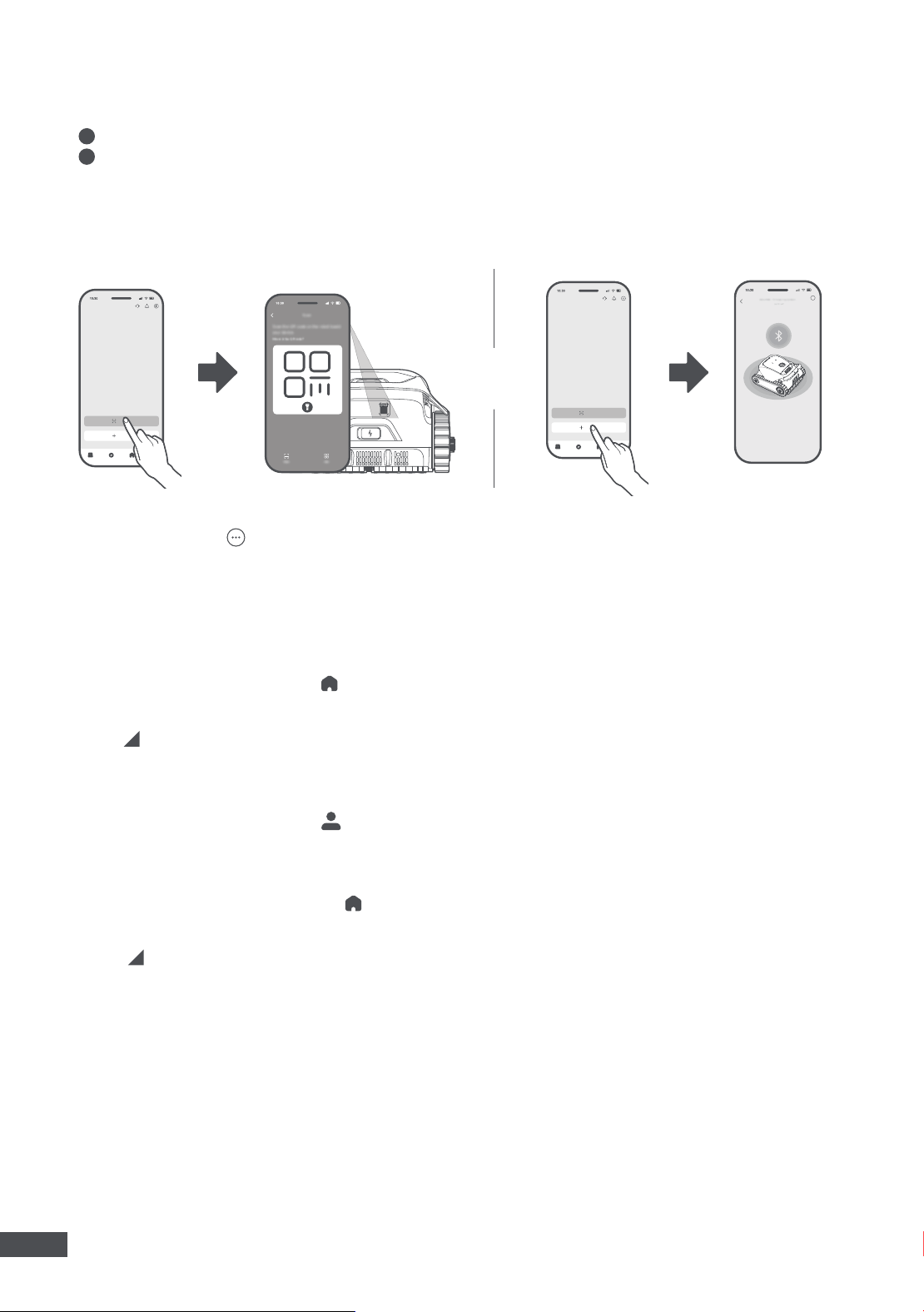

a. Scan QR code to connect: Navigate to
Device
page and tap
Scan QR code to connect
. Scan the QR code on
or inside the robot. Follow the onscreen instructions to complete the connection.
b. Add manually: Go to
Device
page and tap
Add
. Select your robot model. Follow the onscreen instructions to
complete the connection.
Note:
Press and hold on the robot for 3 seconds to activate Bluetooth pairing mode. The indicator light will
blink blue when the robot is ready to pair.
OR
How to unbind the robot?
The robot is automatically bound to the MOVAhome account once pairing is successful. Each device can only
be bound to one account. It cannot be bound to another account at the same time. To pair the robot with a new
account, you need to unbind it first. To unbind it:
1. Open the MOVAhome app. Go to
。
2. Locate your robot's name. If you have multiple robots bound to your MOVAhome account, swipe left or right
to access the page of the robot you want to edit.
3. Tap next to the robot's name.
4. Select
Delete
.
How to log out of your MOVAhome account or delete it?
1. Open the MOVAhome app. Go to > Settings > General > Account
。
2. Select
Log Out
or
Delete Account
.
How to share your robot?
1. Open the MOVAhome app and go to
。
2. If you have multiple robots bound to your MOVAhome account, swipe left or right to access the page of the
robot you want to share.
3. Tap next to the robot's name.
4. Select
Device Sharing
.
Note:
The MOVA development team will continuously conduct OTA (Over-the-Air) updates and maintenance
on the firmware and app. Please check for update notifications or enable the Auto-update function to keep the
firmware and app up-to-date and enjoy more features.
?
11
EN
4. Operations
Caution:
•Ensure that no humans or pets are in the pool. Remove any objects from the pool to prevent interference with
the robot's operation and to avoid potential damage to the robot.
•Please turn off the pool circulation or heating system before cleaning.
Note:
•Do not interfere with the robot during underwater operation.
•Ensure the robot is fully charged before use.
4.1 Select Cleaning Mode
The robot can be operated for pool cleaning without a network connection. Set up your cleaning task by
pressing the buttons directly on the robot before you submerge it.
1
Press and hold for 3 seconds to turn on the robot.
2

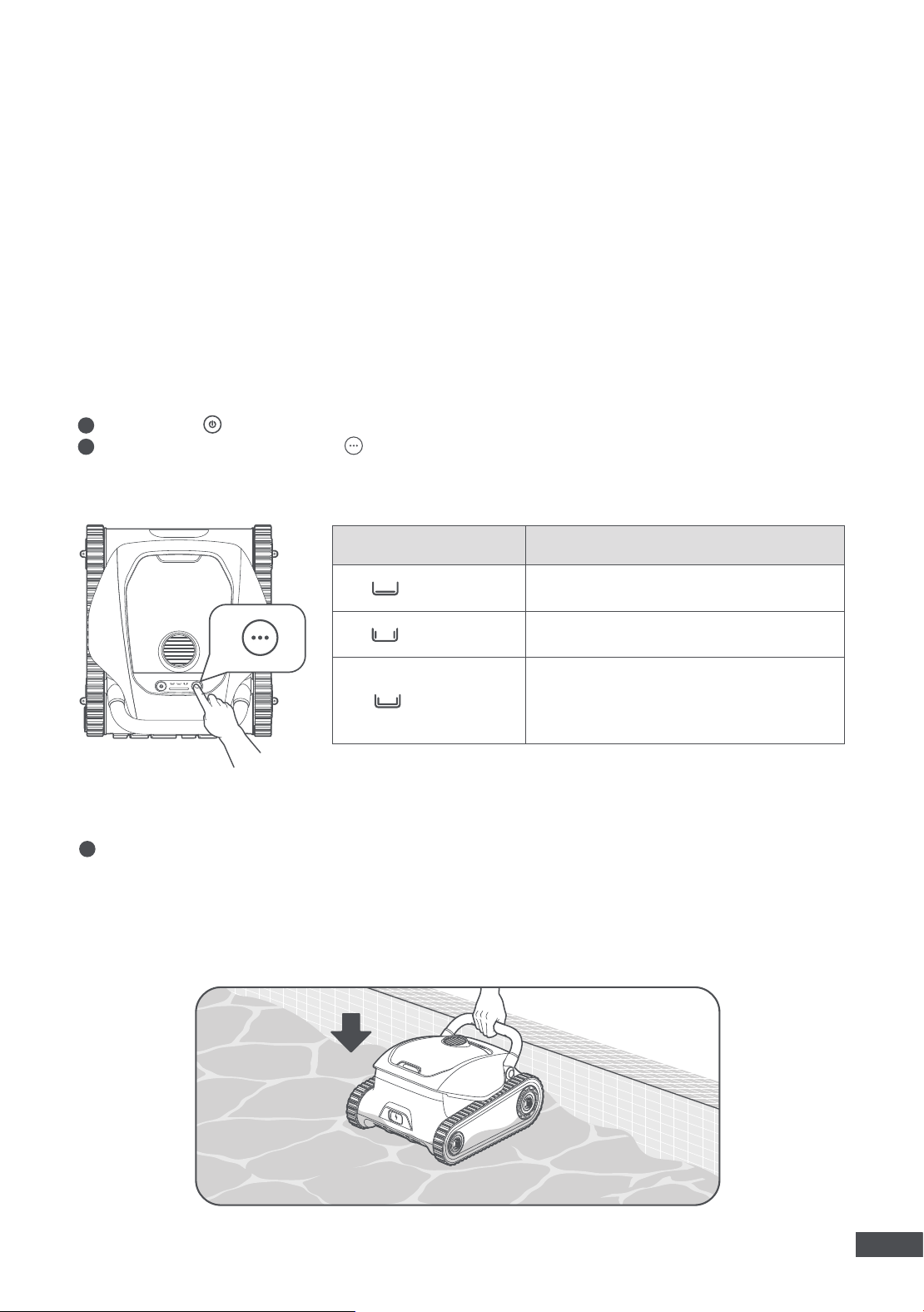

Select a cleaning mode by pressing on the robot. The indicator light will turn solid blue below the
corresponding icon.
Note:
Always turn on the robot on a level surface to ensure proper sensor calibration before placing it in the
water.
Note:
If no mode is selected, the robot will run in Floor Only Mode by default.
Cleaning Mode Coverage
Floor Only
Clean the pool floor once until the battery
level is low.
Walls Only
Clean the pool walls twice until the battery
level is low.
Complete
Clean the pool floor and walls until the
battery level is low. The robot continuously
moves forward and turns around once it is
out of the water.
1
Submerge the robot in the pool.
Note:
•The robot will automatically turn off after 10 minutes of inactivity when not in the water.
•The pump motor and track wheels will activate only after the robot lands on the pool floor.
•When placing the robot in the water, keep it at least 20 cm / 7.87 in away from the pool wall to prevent
damage.
•Please make sure the charging port cover is securely closed before placing the robot in the pool.
4.2 Start Cleaning
12
EN
Note:
•If the initial calibration is unsuccessful, the robot will retry.
•Network connections aren't available while the robot is underwater.
•When the robot is working underwater, the camera will be activated for navigation and positioning.
2
After the robot lands stably on the pool floor, it will perform sensor calibration for 5 seconds. The cleaning
cycle will begin as soon as the robot completes the calibration.

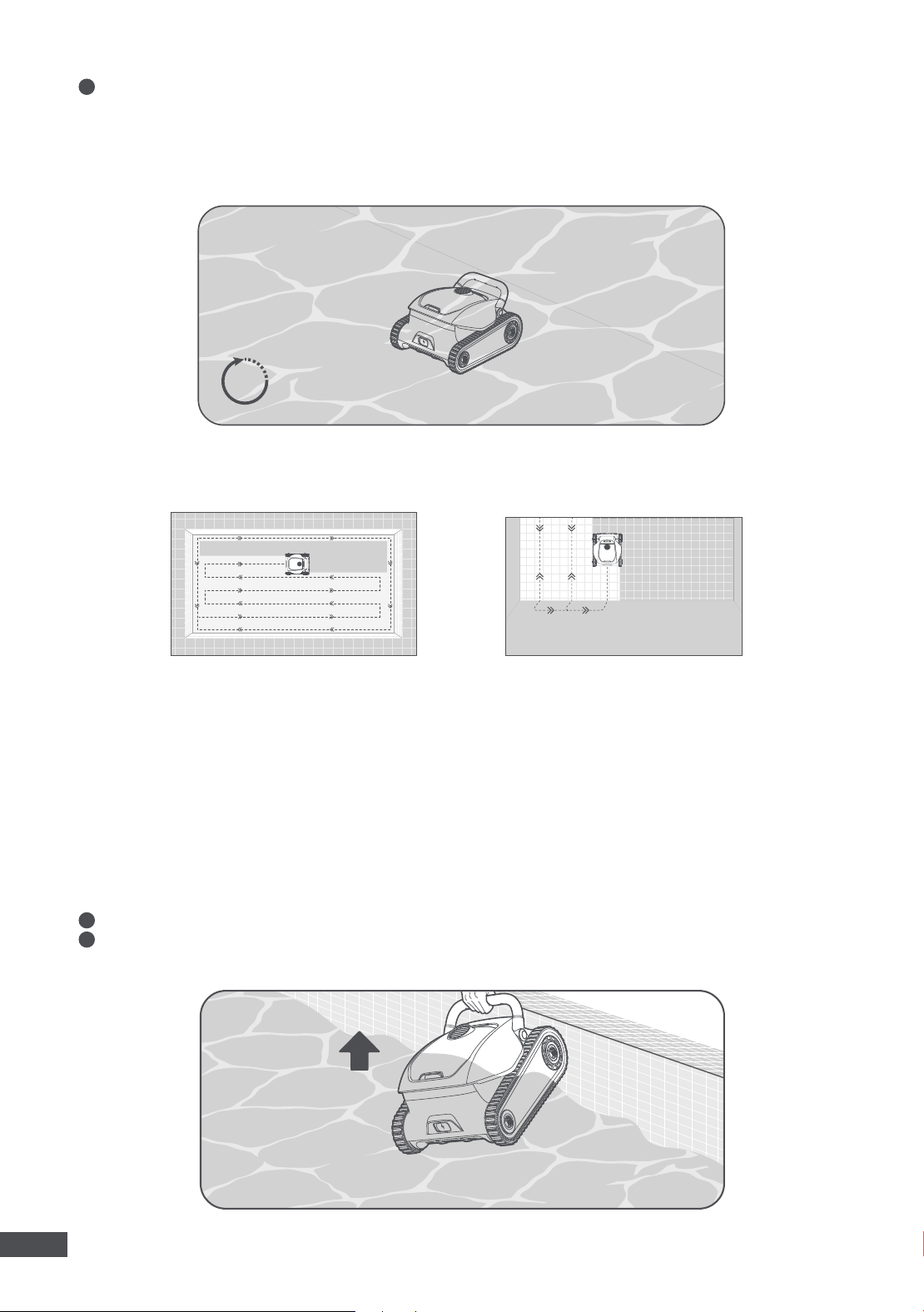

4.3 Cleaning Path
Clean pool floor Clean pool wall
4.4 Retrieval
When the robot is waiting at the waterline
：
1
Grab the robot by the handle and remove it from water.
2
The water contained in the robot will be released automatically to make the robot lighter for easier retrieval.
If you do not remove the robot within 5 minutes, it will return to the floor near the wall and turn off after a
standby period. The auto-parking function can be turned on/off in the MOVAhome App.
Note:
•Please be careful when lifting the robot out of the pool, as it becomes heavier when filled with water.
•After each use, please drain any remaining water from the robot and ensure it is completely dry.
5S
13
EN
When the robot is waiting on the pool floor:
1

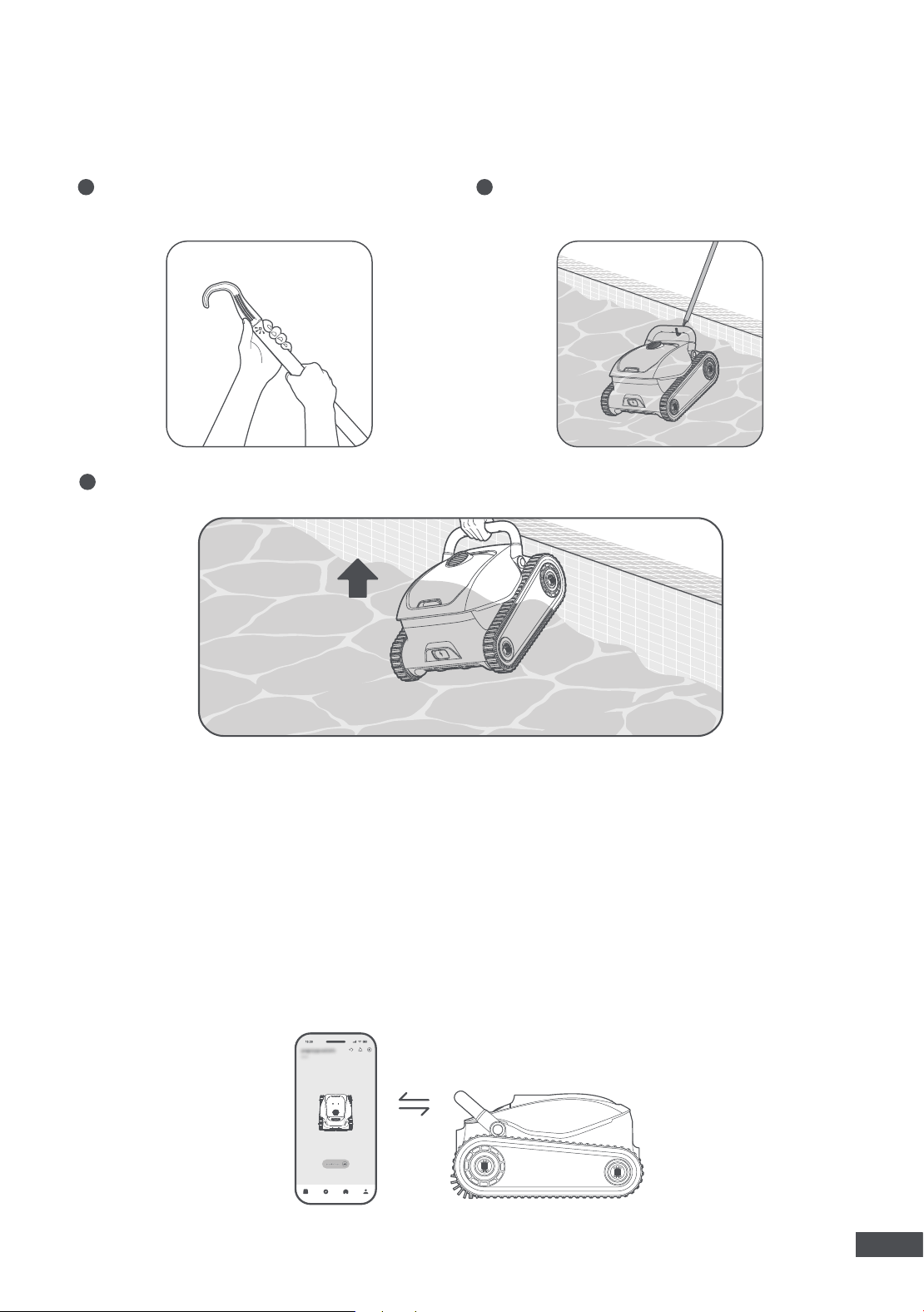

Attach the hook to a standard pool cleaning pole (not
included).
2
Secure the hook onto the robot handle and bring
the robot to the waterline.
Note:
The robot will automatically climb up the wall and wait at the waterline for 5 minutes when the battery is
low (≤10%), an error occurs, or the cleaning cycle is complete. If you do not remove the robot within 5 minutes,
it will return to the floor near the wall and turn off after a standby period.
3
Pull up the robot by the handle and hold it vertically to allow any remaining water to drain.
4.5 Data Synchronization Upon Surfacing
When the robot is out of the water and resumes network connections, it will initiate data transmission with
the app. This allows you to access detailed information about the cleaning cycle, including the duration, area
covered and any issues encountered.
Note:
•Ensure that both the robot and your phone are in a Wi-Fi environment with a strong signal to enable
successful data transmission between the robot and your mobile device.
•Please be aware that the data of the cleaning cycle may be subject to inaccuracies depending on the pool’s
complexity.
14
EN
5. Cleaning and Maintenance
5.1 Clean the Filter Assemblies
After each use, it is recommended to rinse the filter basket to prevent clogging. The fine filter shown in the
illustrations is used for filtering fine debris. It is optional to use.
1

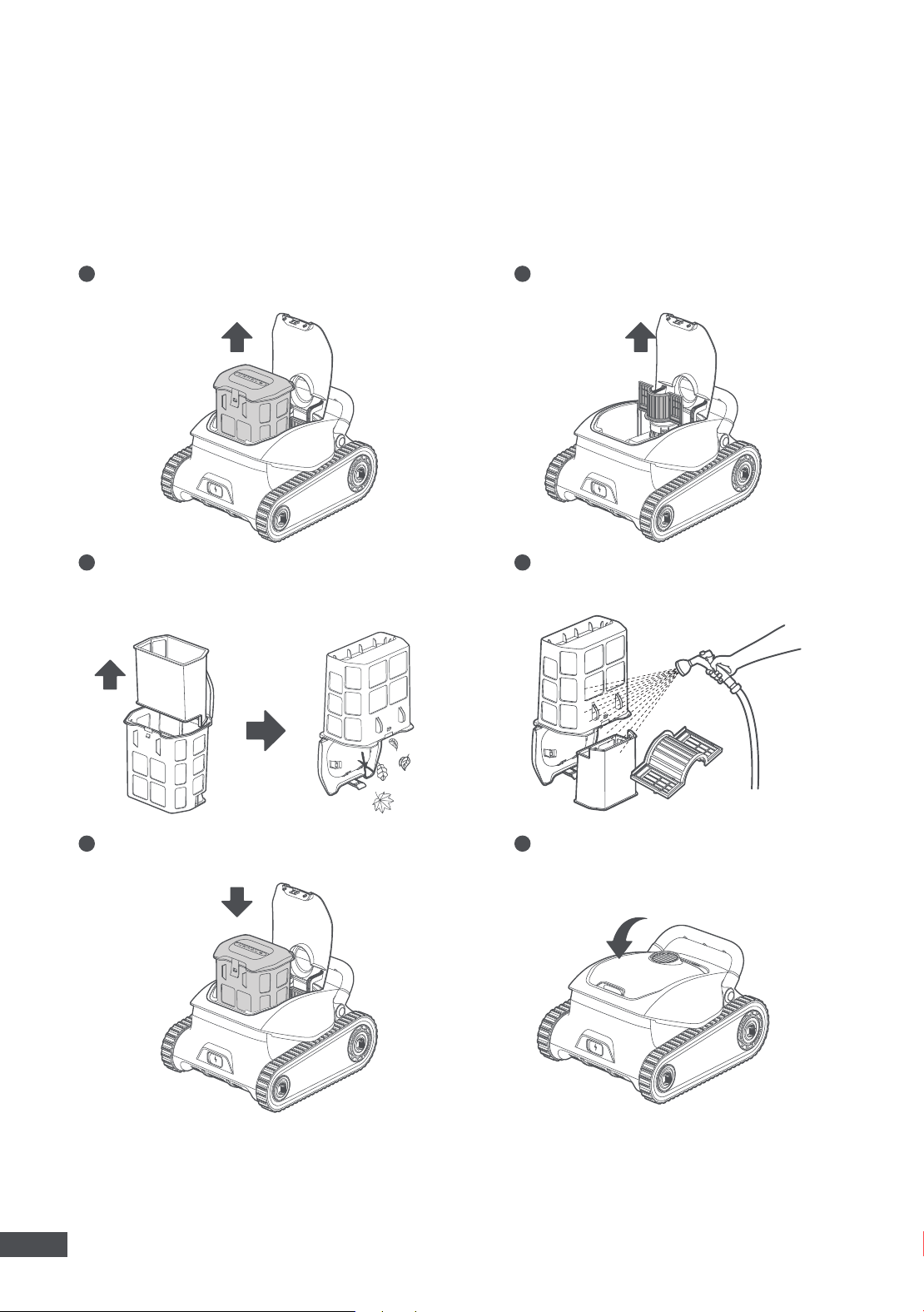

Push the filter basket button to open the filter basket
cover and take out the filter basket.
3
Open the top cover of the filter basket. Empty all
debris such as hair, twigs or sand. Separate the ultra-
fine filter and the filter basket.
5
Put them back into the robot.
2
Take out the fine filter.
4
Rinse them thoroughly with a hose.
6
Close the filter cover.
Warning:
Please turn off the robot before cleaning and maintenance to prevent injury.
Notes:
•The ultra-fine filter is designed for filtering fine debris like sand, dirt, and certain types of algae.
•It is recommended to clean the ultra-fine filter after each cleaning task.
•The replaceable ultra-fine filter is a consumable item and should be replaced regularly to maintain optimal
efficiency.
15
EN

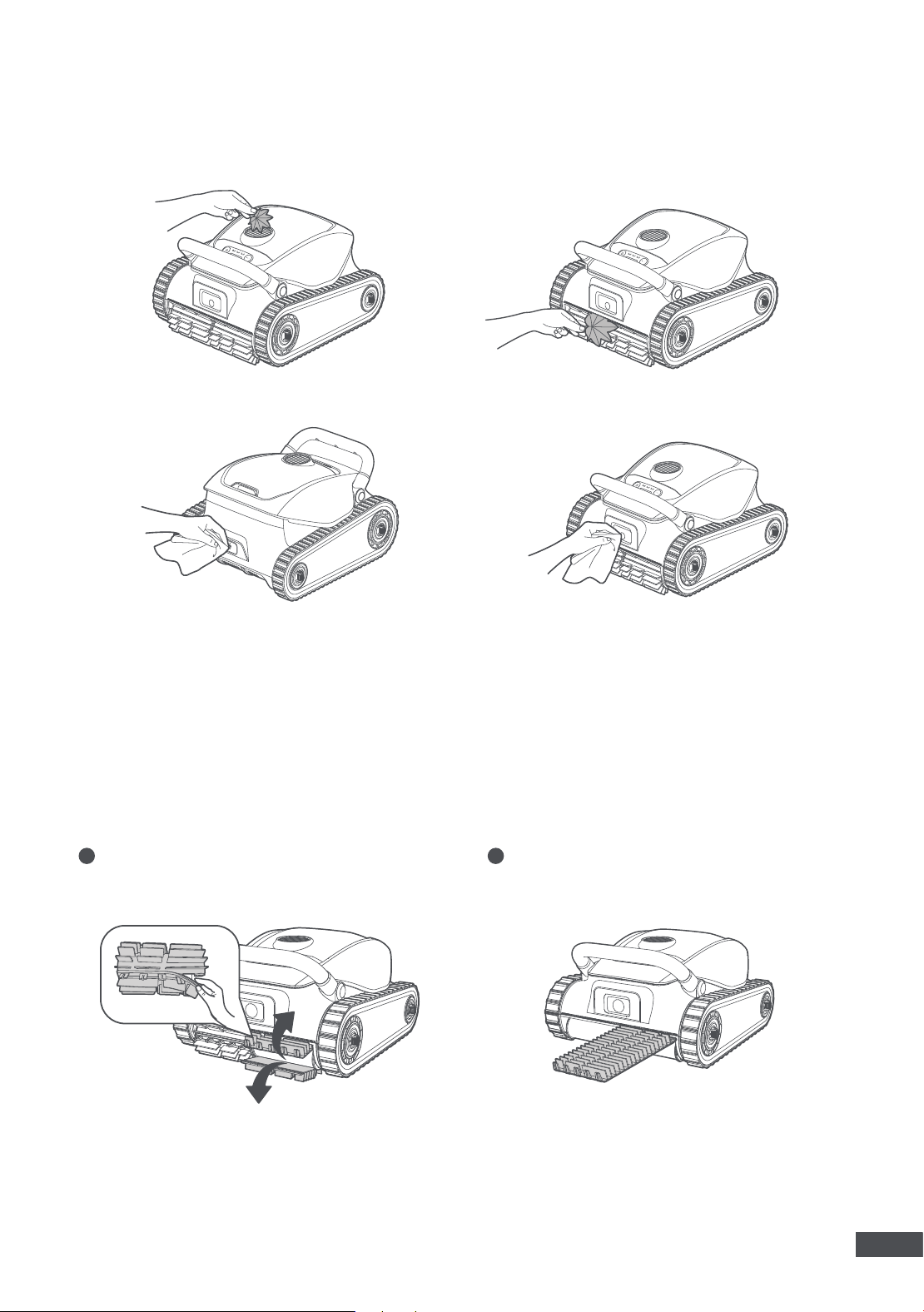

After each use, ensure that the water outlet and roller brushes are free from hair, dirt, and other debris. If
necessary, rinse them with a hose. Wipe the charging port and sensors dry after cleaning.
It is recommended to regularly check the condition of the track wheels and the roller brushes, and replace
them as needed to ensure optimal cleaning performance. If replacements are necessary, please use the official
components.
5.2 Clean the Water Outlet and Roller Brushes
5.3 Replace the Roller Brushes and the Tracks
Water Outlet
Charging Port
Roller Brushes
Sensor Fusion Module
Replace the roller brushes
1
Unfasten the silicone buckles on the roller
brushes to remove them.
2
Replace the roller brush with a new one and
fasten the silicone buckles.
16
EN

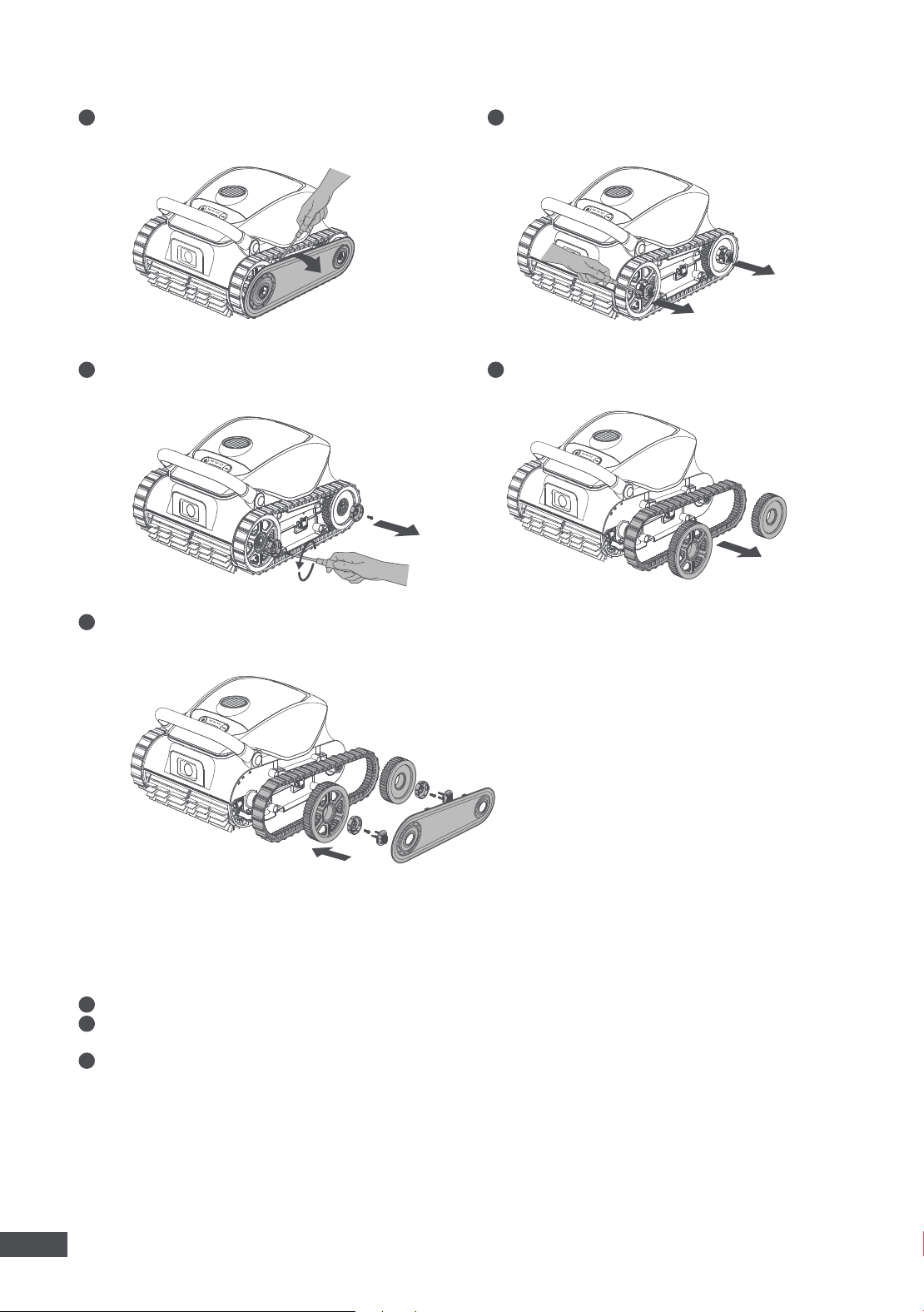

Replace the tracks
1
Remove the side panel from the robot.
3
Remove the screws and the wheel retainer.
5
Replace the track with a new one. Reinstall all the
components in place.
2
Remove the guide wheel brackets from the
wheels.
4
Pull the wheels and the track together to remove
them.
6. Winter Storage and Transport
1
Remove the robot from the pool and drain all water.
2
Turn off the robot and disconnect it from the power source before storage. It is recommended to store the
robot with a battery level of 80 –100%.
3
Store the robot in a place with an ambient temperature between -20 ℃ (-4 ℉ ) and 70 ℃ (158°F). Ensure the
following conditions are met:
•Store the robot indoors in a cool, dry location, protected from direct sunlight, rain, or frost.
•Keep the robot away from extreme temperatures, flames, and areas accessible to children.
•Protect it from dust if stored for an extended period.
•Before using the robot again, please fully charge the battery.
17
EN
7. Troubleshooting
Issues Causes Solutions
The robot fails to
connect to the app.
1. The robot is operating underwater.
2. There is an issue with the robot’s
Wi-Fi or Bluetooth connection.
3. The current Wi-Fi signal is too weak.
4. The robot has not yet been
connected to the network.
1. Ensure the robot is not submerged
in water.
2. Ensure that the Wi-Fi router is
functioning correctly.
3. Move your phone closer to the robot
or place the robot nearer to the Wi-Fi
router.
4. Refer to the Wi-Fi connection
instructions and try again.
5. If the issue persists, please contact
after-sales service.
The robot fails to move
along the boundary of
the pool floor.
1. Sensors may be blocked by debris or
fail to function properly.
2. The pool layout is too complex.
3. The robot didn't perform calibration
before entering water.
1. Clean all sensors thoroughly and try
again.
2. Restart the robot on a level ground
and wait for a while for it to calibrate.
3. If the issue persists, contact after-
sales service.
The robot fails to stick
closely to the pool wall
while cleaning the walls.
1. The filter basket may be clogged
with debris.
2. The curvature of the wall is too
steep.
1. Clean the filter basket thoroughly
before trying again.
2.The robot is not designed to navigate
pool walls with excessive curvature.
The robot is unable to
move or is moving slowly
on the pool floor.
1. Sensors may be blocked by dirt or
malfunctioning.
2. The filter basket may be clogged
with dirt or debris.
3. Debris may be obstructing the drive
gears.
1. Clean all sensors thoroughly.
2. Ensure the roller brushes are free
from tangles and debris.
3. Try to move the track wheels
forward or backward to remove any
obstructions between the drive gears.
Charging fails.
1. Excess water residue on the
charging port.
2. The charger may be damaged.
1. Dry the charging port thoroughly
before attempting to charge again.
2. If the issue persists, please contact
after-sales service.
The cleaning results are
not as good as expected.
1. The filter basket is full or clogged
with debris.
2. Residual debris inside the filter
basket compartment is reducing
suction power.
3. The suction power of the current
cleaning mode may be insufficient.
4. The filter basket's pores are too
large to trap fine particles.
1. Promptly clean the filter basket.
2. Use a pressure washer to clean the
filter basket compartment and remove
any debris.
3. Increase the suction power to
a stronger setting and restart the
cleaning process.
4. Install the fine filter.
18
EN
Issues Causes Solutions
The robot can’t climb up
the pool wall.
1. The filter basket is full or clogged
with debris.
2. The curvature of the wall is too
steep, causing the robot to become
stranded.
1. Promptly clean the filter basket.
2. The robot is not designed to
navigate pool walls with excessive
curvature.
The LED indicator on
the robot shows blinking
red.
An error is detected.
1. Place the robot on a flat, even
surface and restart it. Wait for 30
seconds before submerging the robot
again and trying once more.
2. Update the firmware to the latest
version and try again.
3. If the issue persists, please contact
after-sales service.
The robot is stuck.
The robot is stuck on the pool floor
and unable to escape.
Manually retrieve the robot and restart
the cleaning cycle.
The robot fails to update. The Wi-Fi signal is too weak.
Move the robot to an area with a
stronger Wi-Fi signal and retry.
19
EN
8. Specifications
Name
Robotic Pool Cleaner
Brand
MOVA
Model
PIXZ5111
Dimensions (W×L×H)
388.6 × 221.0 × 444.5mm
(1.27 × 0.725 × 1.46ft)
Cleaning Mode
Floor/Wall/Complete
Maximum Pool Area
180 m² (1900 sq.ft)
Maximum Suction Power
6000 GPH
Filter Basket Capacity
3.5 L
Charger Model
GC44-252150-1C
Battery Type
Lithium-ion battery
Capacity
7800 mAh*
Run Time
4 hrs*
Charging Time
5-6 hrs
Charge Temperature
5℃~53℃ (±2℃)
（
41℉–127.4℉
）
Charger Voltage
24.9Vdc
Charger Input
100~240Vac
Charger Output
24.9V 1.5A
Operation Frequency
50hz or 60Hz
Storage Temperature
-20° C~70° C
（
-4°F~158°F
）
Standards Frequency Band
Bluetooth 2400~2483.5 MHz
WiFi (20MHz) 2400~2483.5 MHz
Note:
* 7,800 mAh refers to the maximum nominal capacity measured using the standard charge/discharge method.
The data is based on our in-house lab testing, actual performance may vary depending on environmental
conditions and battery health.
* The robot delivers up to 4 hours of runtime when operating in pool floor cleaning mode at standard suction
power.
* The specifications are subject to change as we continually improve the product. For the latest information,
please visit our website at https://www.mova.tech.
* The above statistics are from MOVA Laboratory and may vary depending on the operating conditions.
Manufacturer:
Wavefuture Robotics Technology (Suzhou) Co., Ltd.
Address:
1/F, Building B, No. 7 Qian Zhu Road, Taihu Street, Wuzhong District, Suzhou,
Jiangsu Province, P.R.China
MADE IN CHINA
