User Manual
Handler V10
Swimming Pool Cleaner
The illustrations in this manual are for reference only. Please refer to the actual product for accuracy.
2
EN
1. Safety Instructions
1.1 Safety Regulations
•READ AND FOLLOW ALL INSTRUCTIONS.
•SAVE THESE INSTRUCTIONS.
•Please read the instructions very carefully and keep the information
they contain. By referring to these instructions, familiarize yourself
with the product, learn how to use it correctly, and note the safety
precautions to be taken.
•This product can be used by children aged 8 years and above,
persons with reduced physical, sensory, or mental capabilities,
or a lack of experience and knowledge, if they have been given
supervision or instruction concerning the use of the product in a
safe way, and if they understand the hazards involved.
•Children shall not play with the product. Take appropriate
precautions to ensure that children have no access to the product.
•The user of the product is responsible for any third parties in the
work area.
•The user is responsible for any local safety and installation
regulations (ask your electrician for advice).
•Do not operate the product with people or animals in the pool.
•While operational, do not place your hands into any part of the
product, as this may result in injury.
•Watch your steps and maintain balance when working near the
poolside.
•Before using the product for the first time, have an electrician
check the necessary electrical protection measures.
•Use the product only for the purposes specified in the instructions.
•When charging, make sure that the product is plugged into a
socket in a place where there is no risk of flooding and is protected
against moisture.
•If the product fails, any necessary repair work must be performed
only by a professional electrician.
•The product is specially designed for the underwater environment,
3
EN
rather than a universal product.
•Water temperature: 4-50 °C/39.2-122 °F.
•Please turn off the product before charging. While charging, your
product should be kept in a cool, well-ventilated area. Do not
cover your product while charging, as this may cause components
to overheat.
•Please ensure that the product and charger are dry before
charging.
•Please use the original charger to charge the product.
•If there is any damage to the charger, please stop charging.
•If there is any damage to the power cord, it must be replaced by
the manufacturer or authorized personnel to avoid danger.
•To reduce the risk of electric shock, do not use an extension cord
to charge your product and instead only charge it via a dedicated
wall outlet.
•Do not use the product when it's charging or when it is connected
to the charger.
•To avoid unnecessary harm, keep hair, body, or clothes away from
the dirt sucker, since it has a suction force when working.
•Do not dismantle the product arbitrarily.
•If the product is damaged, it must be replaced by the manufacturer,
its service agent, or similarly qualified persons to avoid potential
hazards.
•Please avoid using the product to clean sharp objects; otherwise,
the product and filter bag may be damaged.
•Never let the product run dry, and never operate it with the intake
fully closed. The manufacturer's warranty shall lapse if the pump is
damaged due to it being allowed to run dry.
•Ensure the product is turned off while not in use or while
performing maintenance.
•When not in use, store the product indoors, in a cool, well-
ventilated area.
4
EN
1.2 FCC/IC Statement
This device complies with Part 15 of the FCC Rules / Innovation,
Science and Economic Development Canada’s licence-exempt
RSS(s). Operation is subject to the following two conditions: (1) this
device may not cause harmful interference. (2) this device must
accept any interference received, including interference that may
cause undesired operation.Changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
1.3 MPE Reminding
To satisfy FCC/IC RF exposure requirements, a separation distance of
20 cm/7.87 in or more should be maintained between the antenna of
this device and persons during device operation.
5
EN
To ensure compliance, operations at closer than this distance is not
recommended.
1.4 Correct Disposal of the Product
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse
of material resources. To recycle your used device, please use the
return and collection systems or contact the retailer where the
product was purchased. They can safely recycle this product.
1.5 Symbols and Decals
Before charging, read the instructions.
Class Ⅱ appliance
Direct current
Alternating current
8
Moisture protection rating
Maximum water temp: 50 °C/122 °F
Maximum submersion depth: 3 m
WARNING –
It is not permitted to dispose of this product as normal household waste. Ensure
that the product is recycled in accordance with local legal requirements.
6
EN
2. Product Introduction

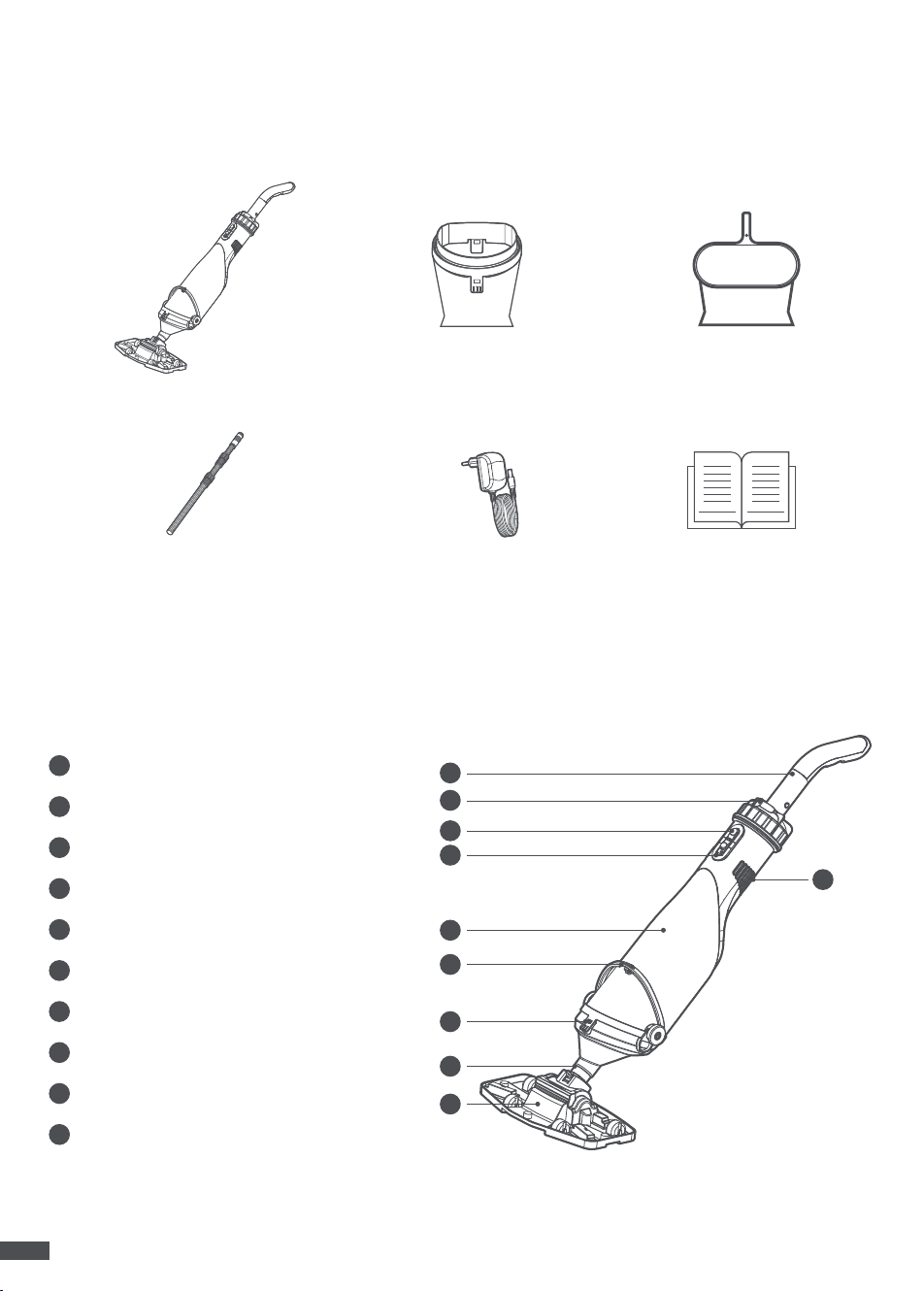

2.1 What’s in the Box
2.2 Product Structure
Pool Vacuum * 1
Extension Pole * 1
Filter Bag * 3 (30μm * 1,
300μm * 2)
Skimmer Net * 1
Charger * 1 User Manual * 1
Note:
Do not overextend or vigorously stretch the extension pole when adjusting the length to avoid
damaging it.
Note:
The illustrations provided in this manual are for reference only. Please refer to the actual product
for accuracy.
1
Vacuum Head
2
Check Valve
3
Filter Bag Ring
4
Locking Handle
5
Pump Casing
6
Charging Port
7
Power Button
8
LED Indicator
9
Handle
10
Water Outlet
1
2
3
4
5
6
7
8
9
10
7
EN
4.1 Operating Conditions
4.2 Installation
Note:
If both battery level is less than 10 % and the suction load reaches the set load simultaneously,
the indication of battery level takes priority, and the red light will stay on until the vacuum automatically
powers off.
1. The maximum temperature of the medium to be pumped in a continuous operation should not exceed
50 °C/122 °F.
Note:
The material used as a medium includes swimming pool water, clear water, and rain.
2. This pool cleaner is not to be used to clean combustible, gaseous, or explosive fluids.
3. Scope of application: Small-scale swimming pool, fishpond, bathing pool, and landscaped pool.

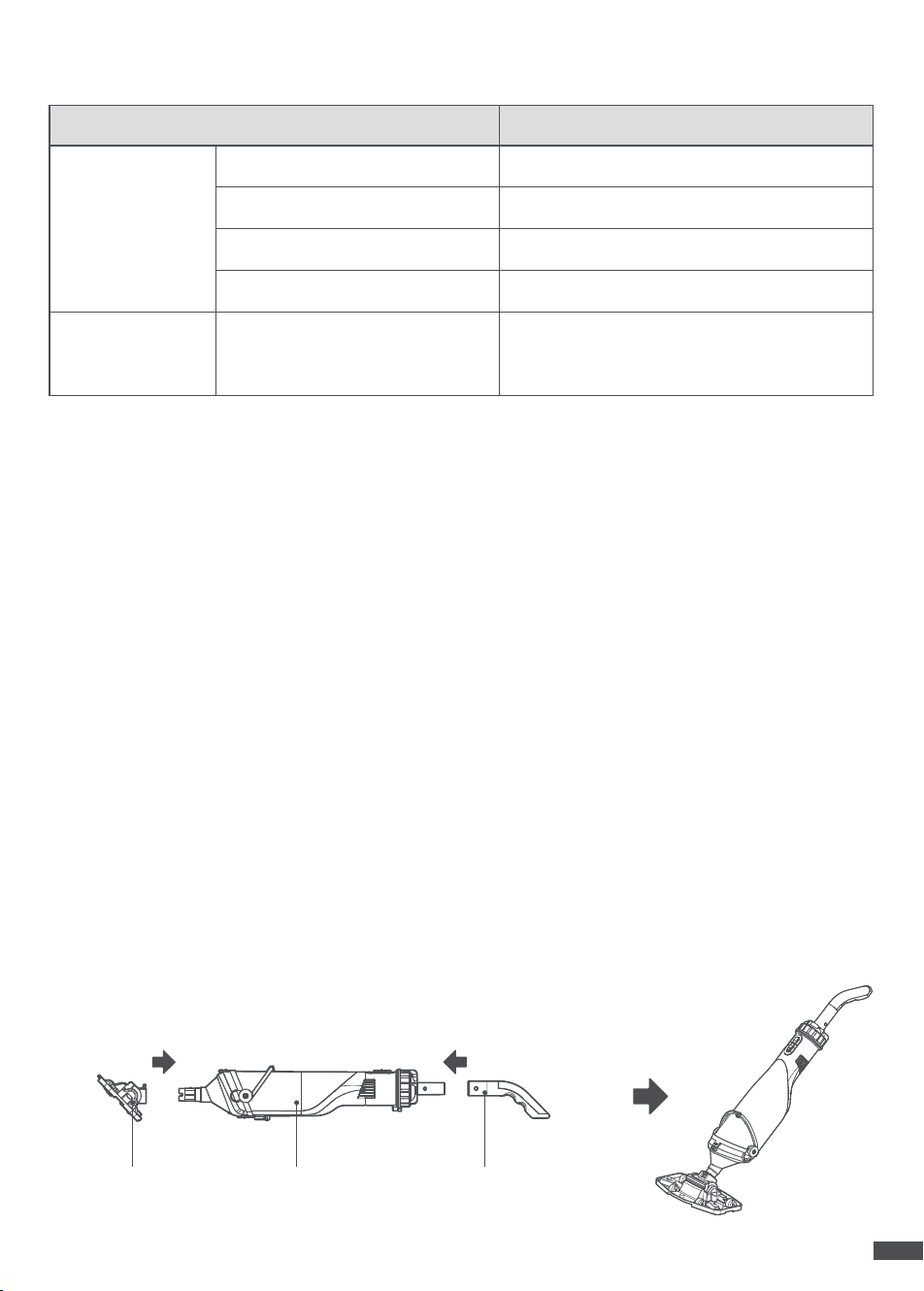

To assemble a complete vacuum, the handle and vacuum head should be installed into the pump in
order as the figure shows.
Note:
Make sure the handle and the vacuum head are fully inserted in place; otherwise, they may
loosen from the pump when cleaning.
3. LED Indicator
4. Operation
Indicator Effect Vacuum Status
Indication of
battery level
Solid Green (~ 10 s) 50 %≤Battery Level
Blinking Green (10 times) 20 %≤Battery Level<50 %
Solid Red (~ 10 s) 10 %≤Battery Level<20 %
Solid Red (until shut down) Battery Level<10 %
Indication of
suction
Blinking Red
The load current reaches the set value, and
the vacuum will automatically power off
after 1 minute.
Vacuum Head Pump Handle
8
EN
4.3 Charging
4.4 Start Cleaning

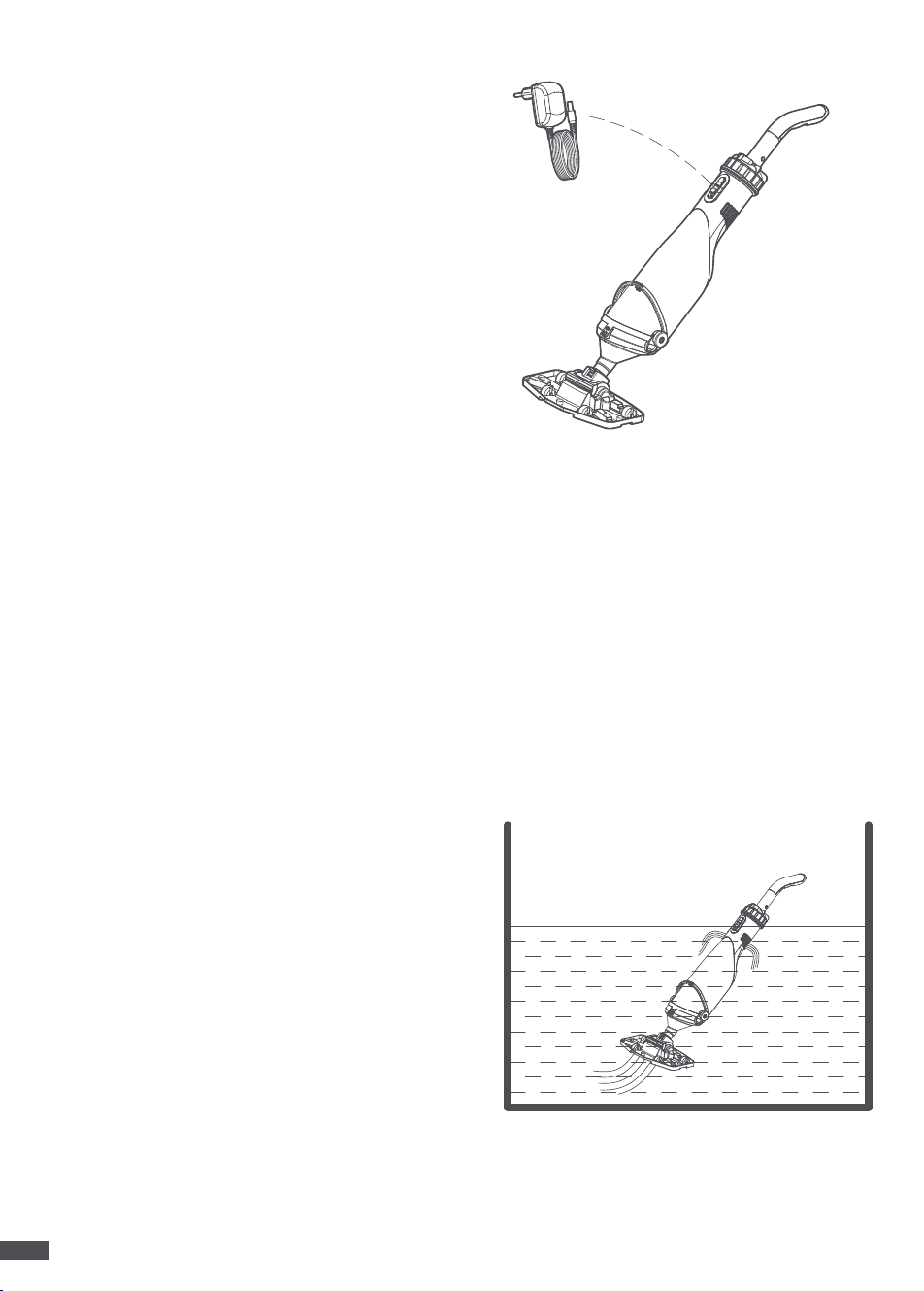

Before the first use, please fully charge the vacuum.
1. Open the vacuum's charging port rubber plug to
check if there is any residual water in the charging
port. If so, wipe the charging port dry first.
2. Connect the charging cable to the vacuum's
charging port and plug the charger into a fixed
power outlet.
3. Fully charge the battery, then disconnect and
unplug the charger.
1. Push down the Power button to turn on the
vacuum and put it into water to start cleaning.
2. Press and tightly secure the charging port rubber
plug before immersing the vacuum.
3. In the power-on status, push up the Power
button to turn off the vacuum.
Caution:
The priming water level of the pool should
be higher than 20 cm when the vacuum is in normal
operation.
Note:
•During normal charging, the LED indicator will blink red and will stay green when fully charged.
•The vacuum takes approximately 1.5 hours to fully charge. After being fully charged, the vacuum can
work for about 50-60 minutes.
Warning:
•Charging in the presence of water can damage the charging port and may cause an electric shock
hazard.
•Do not charge the vacuum in direct sunlight.
•Do not use the vacuum when it's charging or when it is connected to the charger.
Priming water level is 20 cm
9
EN
5.1 Clean the Filter Bag
5.2 Storage
After each use, it is recommended to rinse the filter bag to prevent clogging.

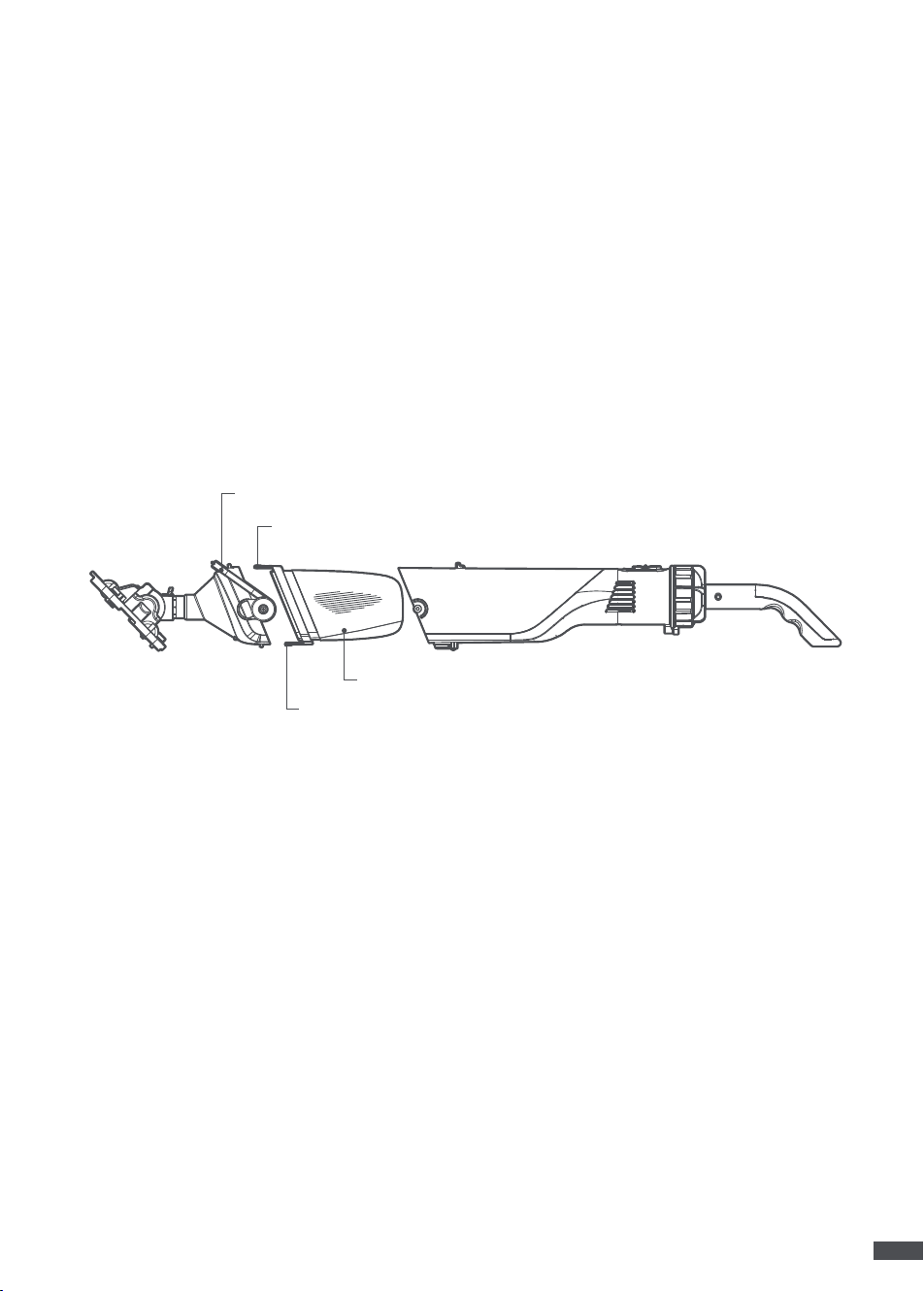

1. When cleaning the filter bag, please open the locking handle, and the buckles attached to the filter
bag.
2. Pull out the filter bag, and take out the waste in it. Rinse the filter bag thoroughly with water and dry
it.
3. After cleaning completes, secure the locking handle and the buckles in place.
1. If the vacuum is not going to be used for a long time or has to be removed for the winter months,
rinse it out with water, empty it completely, and allow it to dry.
2. After long stoppages, make sure the rotor turns correctly by briefly powering the vacuum on and off.
3. If there is a risk of frost, the vacuum must be emptied completely.
5. Maintenance
The pool vacuum is basically maintenance-free. To ensure a long service life, however, we recommend
regular checks and care.
Warning:
Please turn off the vacuum and unplug it before cleaning and maintenance to prevent injury.
Locking Handle
Front Filter Bag Buckle
Filter Bag
Rear Filter Bag Buckle
10
EN
Problem Reasons Solutions
Fail to clean the debris.
The battery runs out.
Recharge the vacuum, and it can
work for 50-60 minutes after
being fully charged.
The impeller is damaged.
Contact the dealer to repair or
replace the impeller.
The impeller is blocked.
Turn off the vacuum and check
the impeller. Contact professional
personnel to clean the blockage.
The filter bag is full. Clean the waste in the filter bag.
Debris gets out from
the front parts.
The check valve is damaged. Change the check valve.
Waste gets out
of the filter bag.
The filter bag is damaged. Change the filter bag.
The handle/extension
pole fails to connect.
The connective V-Cord is
damaged.
Change the V-Cord.
The vacuum fails to
charge.
The battery is damaged.
Contact the dealer to replace the
battery. To avoid damaging the
vacuum, please buy the original
lithium battery.
The charger is damaged.
Contact the dealer to replace the
charger. To avoid damaging the
vacuum, please buy the original
charger.
6. Troubleshooting
Warning:
To avoid dangers, all installations, including repair and replacement of components, should
be conducted by authorized service personnel.
11
EN
7. Specifications
Name MOVA Handler V10
Model PCT 403 T-1.5 SL
Power Rating 0.05 HP
Charger Input 100-240 V, 50/60 Hz, 0.8 A
Charger Output 21.5 V 1.5 A
Charger Model US: XH 2150-1500 W
Nominal Voltage DC 18V
Battery Capacity 2.0 AH
Charging Time 90 mins
Battery Life 50-60 mins
Maximum Flow Rate 1110 GPH (4200 LPH, 70 LPM, 18.5 GPM)
Particulate Matter Size <0.98 inch
Maximum Water Temperature 50 °C
Working Water Depth 0.2-3.0 m
Manufactured by
Wavefuture Robotics Technology (Suzhou) Co., Ltd.
1/F, Building B, No. 7 Qian Zhu Road, Taihu Street, Wuzhong District, Suzhou,
Jiangsu Province, P.R.China
