PLEASE READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE USE.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN BODILY
INJURY, AND/OR PROPERTY LOSS.
RETAIN INSTRUCTION MANUAL FOR FUTURE USE.
MODEL:FM25CH
Voltage Range：115
V/60Hz
INSTRUCTION MANUAL
1
STRUCTURE
Product Feature
1.
The appliance adopts semiconductor refrigeration technology, no vibration in the work,
low power consumption and environmental protection.
2.
The storage in the box is clear at a glance with glass door.
3.
The air cooling system is used to realize the natural air circulation inside the humidor
avoid the prevents temperature imbalance and local mildew.
4.
Temperature and humidity touch control mode, interior temperatures 15-22℃(59°F-
72°F) and Humidity range 60%-7
5%.
5.
The condensed water can be automatically recovered and recycling.
6.
The white sponge inside the water box is used for humidifying.
Install the cigar humidor
1. Place cigar humidor on a floor that is strong enough to support it when it is fully
loaded. To level cigar humidor, adjust the leveling legs at the bottom. (The maximum
adjustable height is 10mm)
2. Locating the unit in an indoor dry environment, and avoid locating in moist areas.

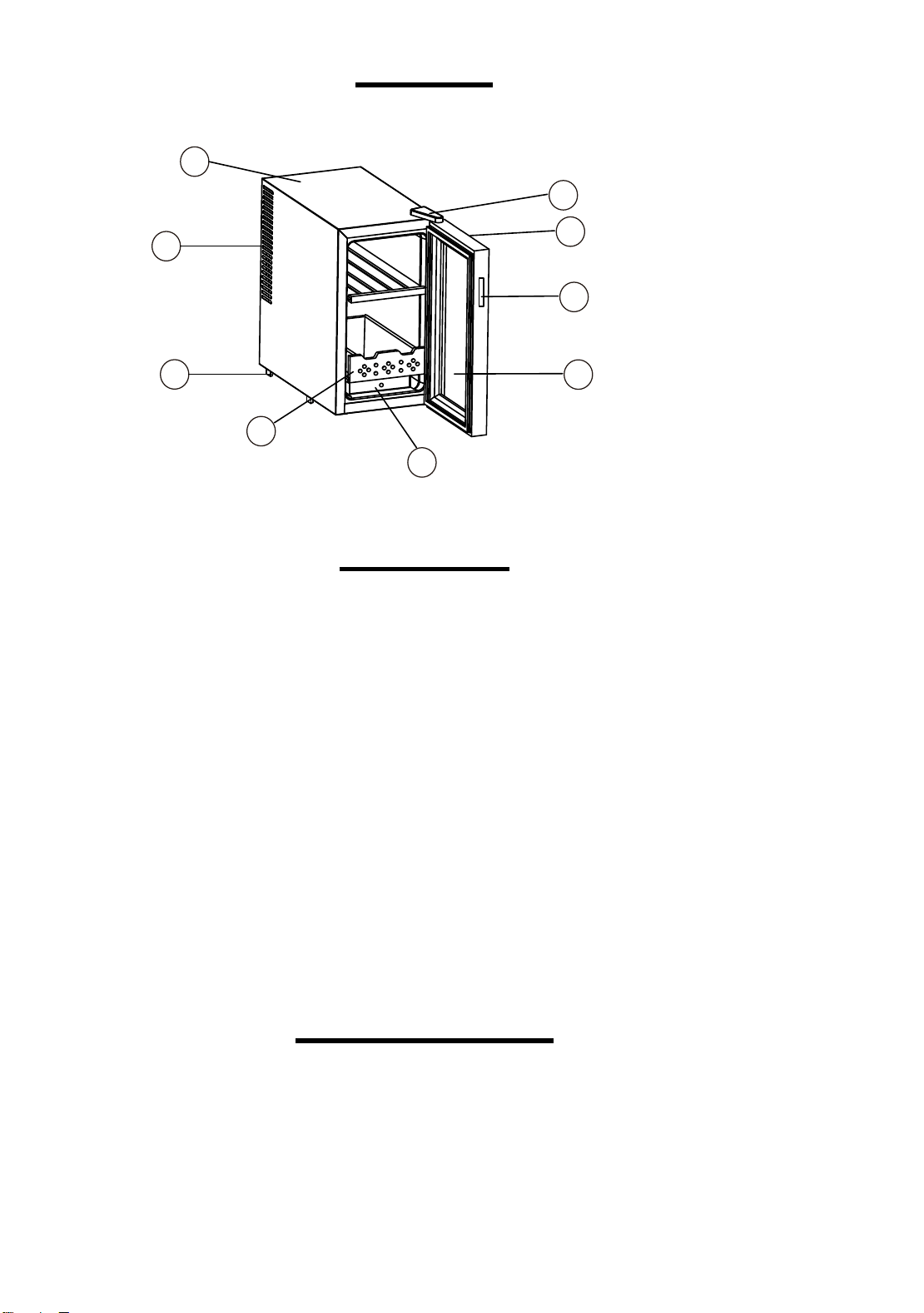

1. Cabinet
2. Vent hole
3. Adjustable leg
4. Shelves
5.
Top Hinge
6.
Handle
7.
Glass door have lock
8.
Water box
9.
Temperature and
humidity control
6
8
9
5
2
1
3
4
7
2
3. Locate the cigar humidor away from direct sunlight and sources of heat (stove,
heater, radiator, etc.)
4. Plug the cigar humidor into an exclusive, properly installed-grounded wall outlet. Do
not under any circumstances cut or remove the third (ground) prong from the power
cord. Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized Products service center.
5. Place cigar after 2 hours power on.
SAFETY PRECAUTIONS
Please follow below instructions when use:
1. Please read carefully manual before use.
2. The appliance only be used indoor.
3. Make sure the voltage on the rating label is the same as the voltage used, select a
three-hole socket with ground wire.
4. When you are not using or cleaning products, need remove the plug of the power
cable first. Do not remove or insert the power plug with wet hands.
5. If the power cable is damaged or the product cannot run normally, send the product
to the nearest service center for repair.
6. Except normal cleaning, the maintenance center designated by the supplier shall be
responsible for product maintenance.
7. The product must be effectively grounded, the supplier is not responsible for any
damage caused by non-benign grounding. If in doubt,please contact a qualified
electrician.
8. Please do not allow children to climb on any part of the appliance, lest the appliance
topple over.
9. Do not store or use gasoline or any other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
10. Please do not put any water containers or pour water on the top of the appliance.
11. If the appliance is not used for a long time, please unplug it.
12. Do not hit the glass door.
3
Moving cigar humidor
Unplug the power cord, remove all items.
Tape the door shut.
It is recommended to use original product packaging when transported to distant place.
Warning:
1. If the supply cord is damaged, it must be replaced by the manufacturer or service
agent or similarly qualified person in order to avoid hazard.
2. Please screw off the door before throwing it away.
3. Please keep the appliance away from any flammable substances.
4. To avoid a hazard due to the instability of the appliance, it must be fixed
according to the instructions.
5. Do not use electrical appliances inside the food storage compartments of the
appliance.
6. This appliance is not intended for use by persons (including children) with reduced
physical,
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
9. Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
T
he symbol is a warning symbol for risk of fire/flammable material.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
W
ARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear
of the appliance.
4
OPERATING YOUR CIGAR HUMIDOR

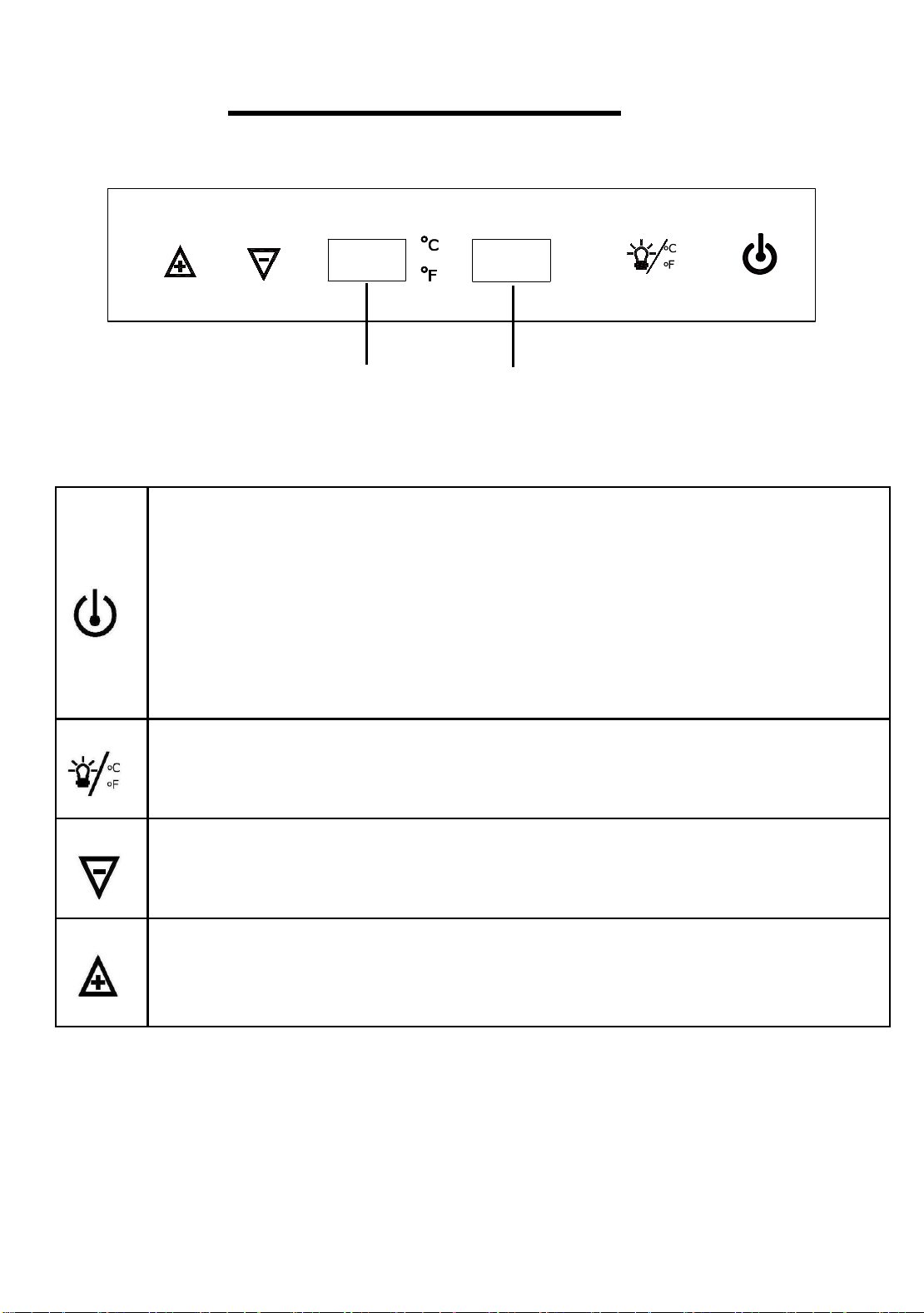

Temperature settings
Temperature
display
Humidity
display
Press this button to turn on the appliance, and press 3 seconds to turn off the
appliance.
Left LED shown temperature, Right LED shown humidity.
Press this button, Left LED flashing and shown original set temperature, enter the
temperature setting state;
Press again, Right LED flashing and shown original set humidity, enter the
humidity
setting state
LED will display the actual temperature and humidity
after 5 seconds
if
no operation.
Turns the interior light on or off .
Toggles the temperature display between Celsius and Fahrenheit for press 3 seconds.
Press this button to adjusts the temperature and humidity in 1 degree decrements, and
will display
the actual temperature and humidity after 5 seconds if no opera
tion.
Press this button to adjusts the temperature and humidity in 1 degree increments,
and
will
display the actual temperature and humidity after 5 seconds if no operation.
NOTE:
That's normall which temperature deviation is ±4° and humidity deviation is ±5%RH.
50-77 the performance may be affected if the temperature exceeds this range.
It is recommended install the cigar humidor in a place where the ambient temperature is between
F
°F,
%RH
5
Replacement of lighting
The light is LED, if not light, please contact professional or send to the nearest repair
center for repair
Cleaning your Cigar humidor
1. Normally, clean and maintain the cigar humidor every six months.
2. Turn off the power, unplug the appliance, and remove all items including shelves.
Wash the inside surfaces with a neutral detergent, then dry with a clean and soft cloth.
3. Do not rinse the cigar humidor with water.
4. Do not use hot water, gasoline, acid detergent, benzene, acid to clean the cigar
humidor. Pay attention to the regular maintenance of the door sealing, do not damage
the door seal. Check whether the power cable is damaged after cleaning.
5. After the power supply is plugged in and the power cable plug is inserted in place,
check whether the power cable plug is abnormally hot.
TROUBLE SHOOTING
1. Cannot refrigerate
● Check power supply is normal or not.
●
Check the power plug is plugged in properly.
● Is the power cable intact.
2. Poor refrigeration effect
● The temperature set too high.
● The ambient temperature too high or the ambient ventilation poor.
●
The door is opened too often.
3. Noise or unusual sound
●
The cigar humidor is not level.
● Anything else on the top of cigar humidor.
● Foreign matter enter the inside fan.
6
The following are not machine faults
● Dew condensation on the surface of glass door：
When the environment humidity is bigger, the moisture in the air touches the glass
door of the cigar humidor, dew condensation on the surface of glass door. You can
adjusts the temperature increments to reduce dew conde nsation. The lower inner
temperatur e will produce dew condensation, please use dry cloth to wipe the glass
surface condensation.
● Dew condensation on the inner wall:
When t
he environ ment humidity is bigger, open the door too often or too long, will
cause dew condensation on the inner wall. Especially the refrigeration system, the
condensation water w ill flow and enter the water box from the drain hole.
Warning
● Do not block the cigar humidor drain
● It is necessary to check the water box at the bottom of inside the cigar humidor, filled
2/3 filtered water or mineral water, period of c hanging water is once every half month.
● It is recommended to rep
lace the white sponge inside the water box every two
months.
7
DISPLAY PCB
ELECTRIC PRINCIPLE DIAGRAM
AC 115V/60Hz
THERMOELECTRIC
MODULE
POWER PCB
Humidifying Fan
NTC
Temperature
sensor
NTC
Humidity
sensor
LED LIGHT
Outside Fan
Inside Fan
Heater strip
MADE IN CHINA
