BUILT-IN WINE COOLER
MODEL
：KMYL600
Support Phone : (213)432-5433
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Table of Contents
Diagram and Description
......................................................................................................................................................................
3
Important Safety Instructions
......................................................................................................................................................................3
Safety Tips
...............................................................................................................................................................................................
5
Installation Instructions
.........................................................................................................................................................................
7
Installing The Handle
.............................................................................................................................................................................
7
Operation Instructions
..........................................................................................................................................................................
7
Setting Temperature
..............................................................................................................................................................................
8
Care and Maintenance
..........................................................................................................................................................................
9
Racking Configuration
...........................................................................................................................................................................
9

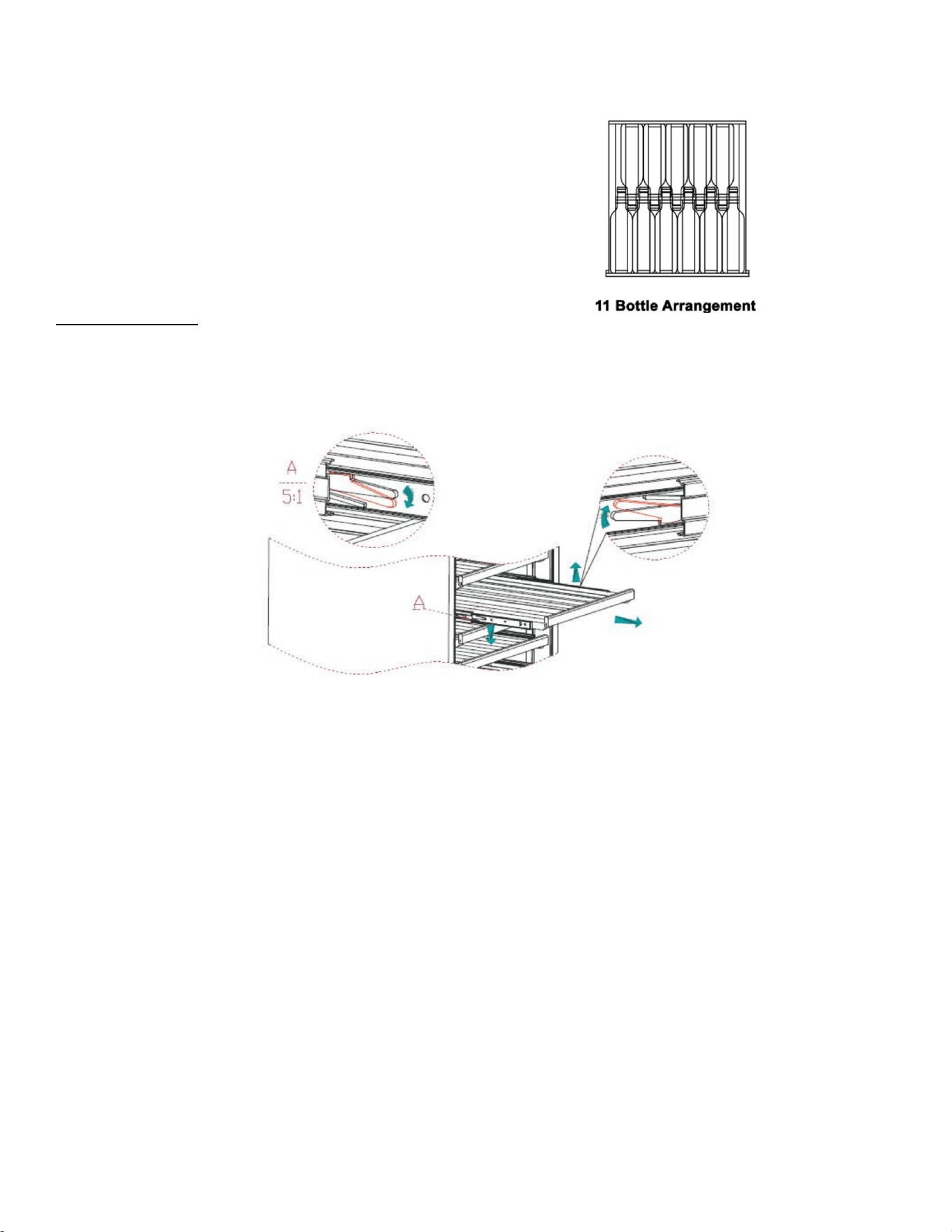

Moving Racks
..........................................................................................................................................................................................
10

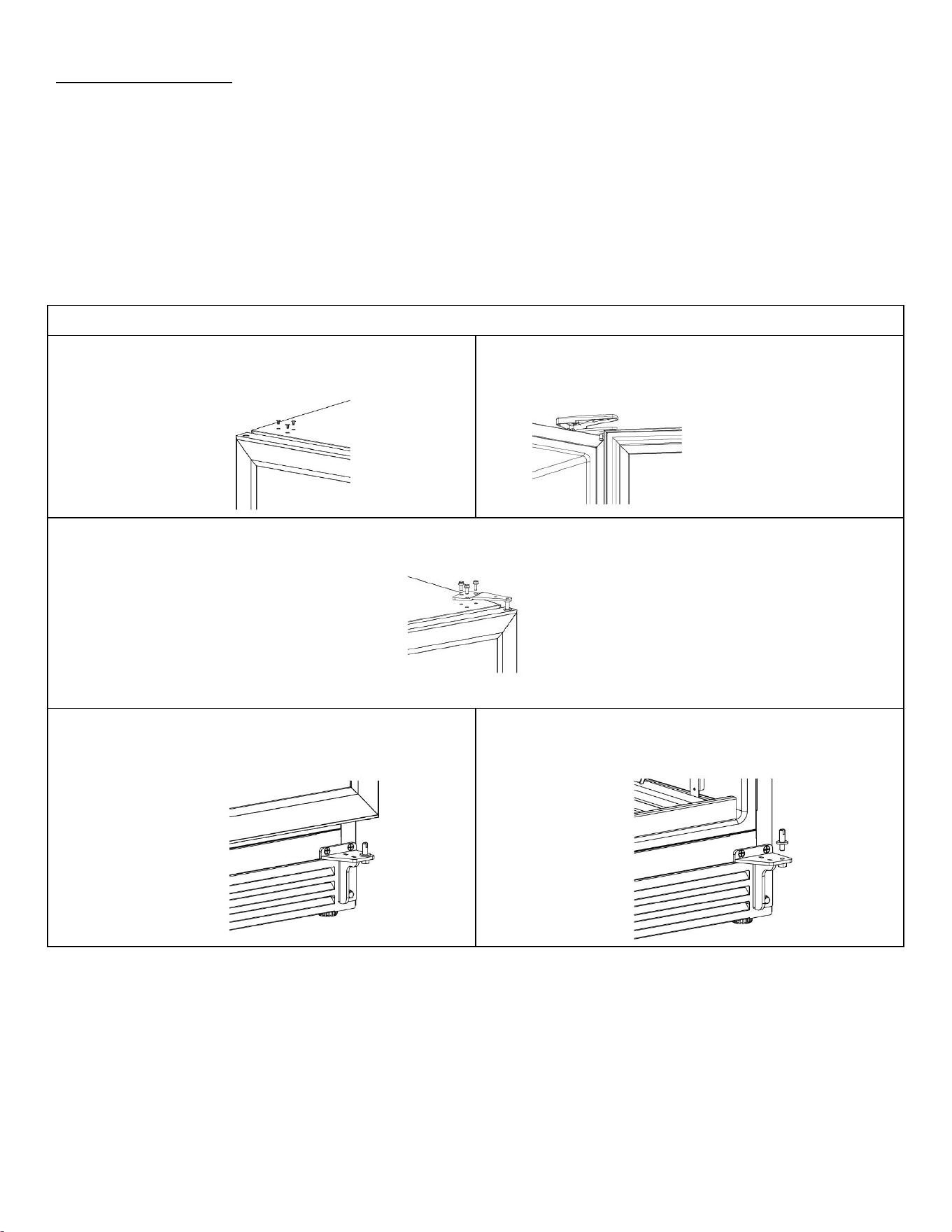

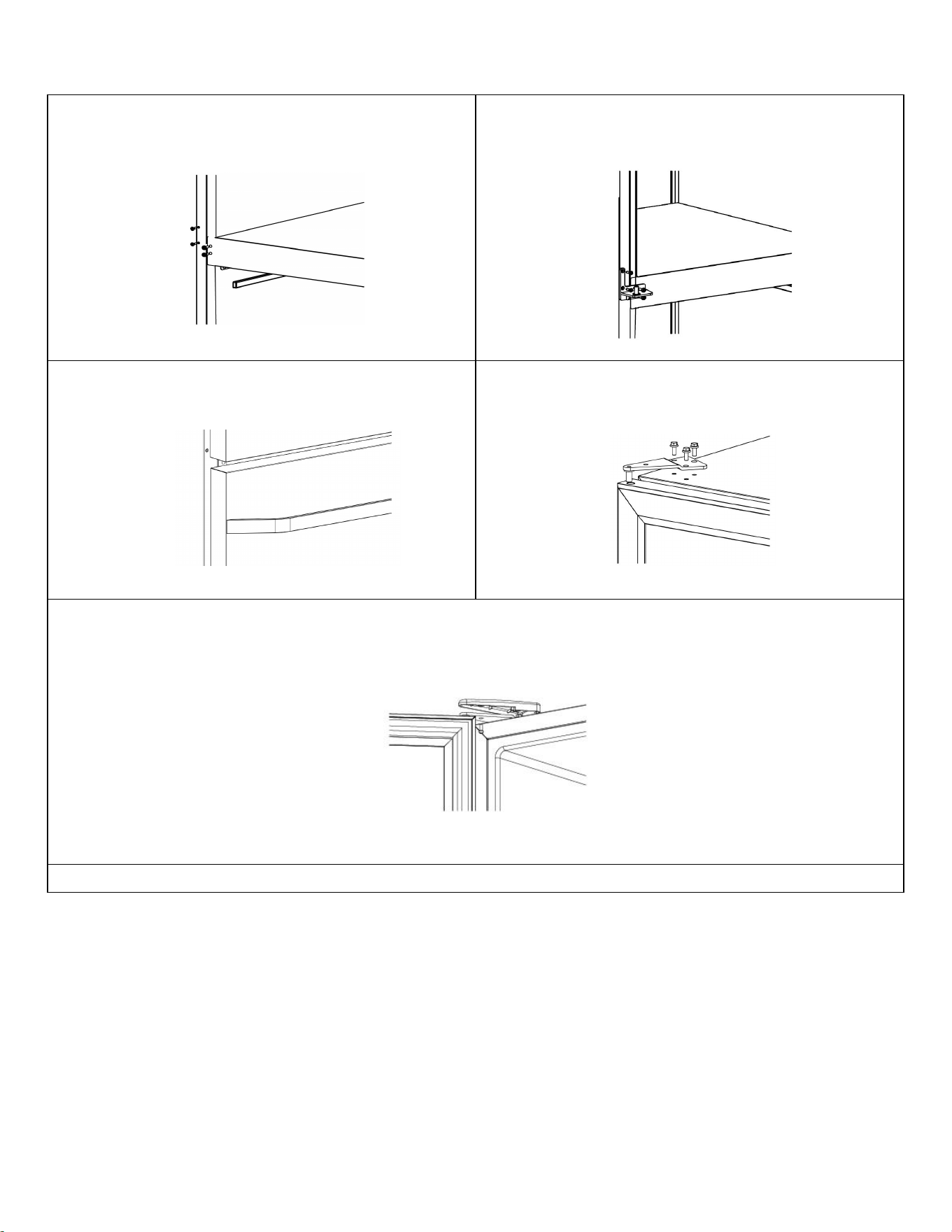

Reverse the door
....................................................................................................................................................................................
11
Troubleshooting
..................................................................................................................................................................................
13
Charcoal filtration system.................................................................................................................................................................. 14
Technical Specifications
................................................................................................................................................................
........
14
Warranty Terms
................................................................................................................................................................................
15
.....
..
..
3

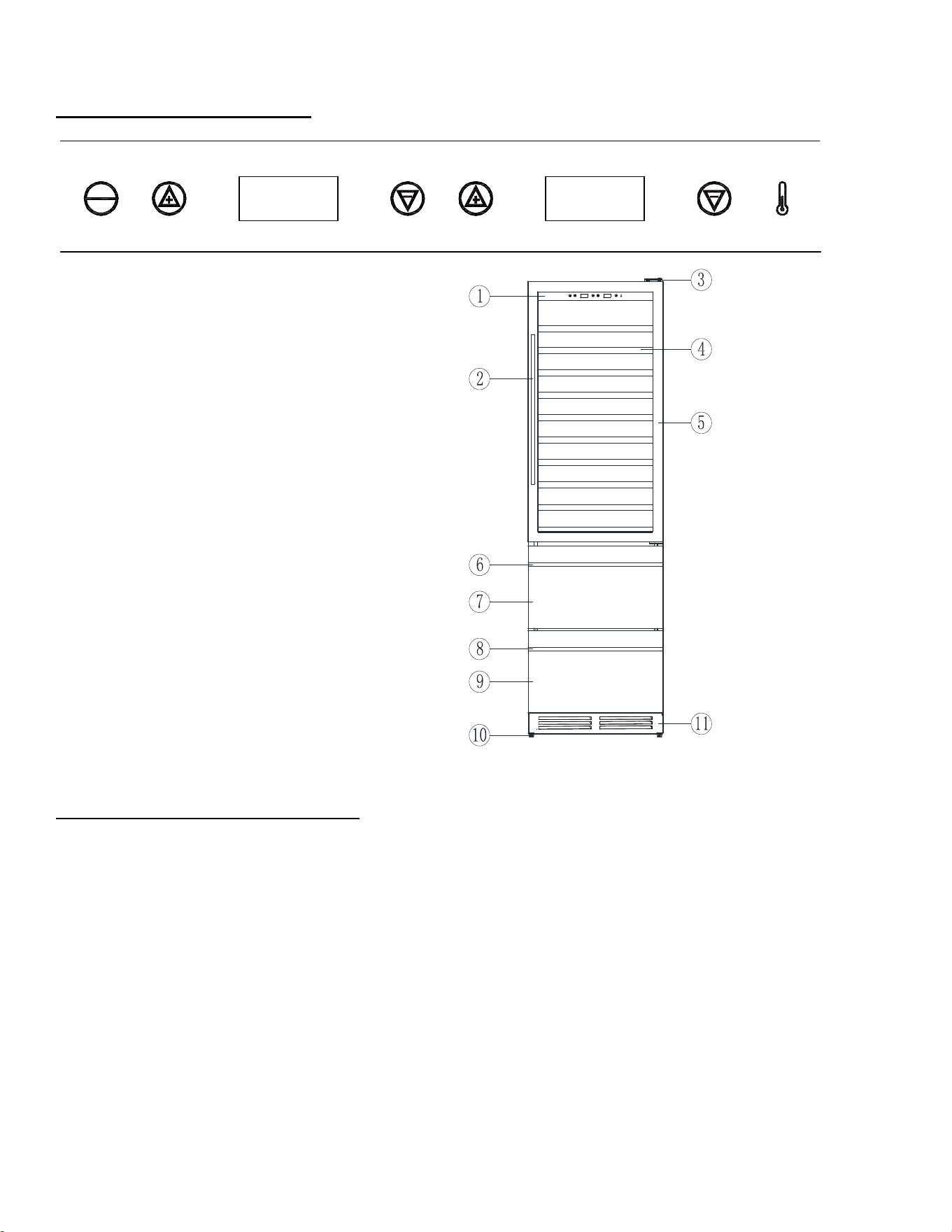

Diagram and Description
1. Control Panel
2. Handle
3. Door Hinge
4. Storage Shelf
5. Door
6. 54L Drawer Handle
7. 54L Drawer Door
8. 54L Drawer Handle
9. 54L Drawer Door
10.Adjustable Feet
11.Kickplate
Important Safety Instructions
-The appliance is intended to be used exclusively for storage of wine.
-Make sure the voltage/current marked on the rating label corresponds with your supply voltage. Plug into a grounded
3-pin outlet, do not remove grounding pin, do not use an adapter, and do not use an extension cord.
-Do not connect or disconnect the electric plug when your hands are wet.
-Ensure enough peoples to move and install the appliance to avoid any damage to the appliance or injury to the peoples.
-T
o ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed. Locate the unit
away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
-This appliance is not intended for use by young children.
-Do not use this appliance for other than its intended purpose.
-The use of attachments not recommended by the manufacturer may be hazardous.
SET
LIGHT
CF/
LOWERUPPER
SET
LIGHT
CF/
LOWERUPPER
4
-When you dispose the appliance, take off the door and leave the shelves in place so that children may not easily climb
inside. And make sure the coolant circuit, particularly the heat exchanger at the back/bottom of the unit not be
damaged. The symbol on the product or its packaging indicates that this product is not to be handled as normal
household waste and it is to be taken to a recycling collection point for electrical and electronic goods.
-Component parts shall be replaced with like components and that servicing shall be done by factory authorized service
personnel.
IMPORTANT SAFETY INFORMATION
DANGER! RISK OF CHILD ENTRAPMENT
Before you throw away your old appliance:
1. Take off the doors.
2. Leave the shelves in place so that children may not easily climb inside.
CAUTION：To prevent a child from being entrapped, keep out of reach of children and not in the vicinity or appliance.
Refrigerants
R600a is a kind of high performance green refrigerants, derived from natural ingredients, does not damage the ozone
layer, without the greenhouse effect. Its characteristic is the strong cooling performance, low power consumption. All
refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you
are getting rid of an old refrigeration product, check with a qualified disposal company for instructions.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock
by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with
a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
WARNING- Improper use of grounding can result in a risk of electric shock.
1. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt
exists as to whether the appliance is properly grounded.
2. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-
slot receptacle that will accept the plug on the appliance. The marked electrical rating of the extension cord shall be not
less than 120V, 5A.
MOVING THE APPLIANCE
1. Turn off the wine cooler and unplug from the outlet.
2. Securely tape down all loose items inside.
3. Close the door.
4. Do not lift or pull the door or door handle during transportation.
5. When moving, the appliance can not be tilted over 45 degrees as possible damage to the sealed system could occur.
6. Take care to avoid strong vibration or impact to the appliance.
7. When moving the wine cooler, do take care and avoid to damage the refrigerant tube, risk of fire or explosion.
Three-pronged (grounding plug)
Properly polarized and grounded outlet
5
Safety Tips
Before using this appliance, it must be properly positioned and installed as described in this manual, so please read
carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow these basic precautions.
Plug into a grounded outlet. Do not under any circumstances cut or remove the third ground prong from
the power cord supplied, do not use an adapter, and do not use an extension cord.
It is recommended that a separate circuit, serving only your appliance be used. Do not use outlets that can
be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids and do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical
shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this
manual. All other servicing should be referred to a qualified technician.
Use two or more people to move and install appliance. Failure to do so can result in back or other injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose
a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit must be installed
in an area protected from the element, such as wind, rain, water spray or drips.
The appliance should not be located next to ovens, grills or other high heat sources or in areas of extreme cold.
The appliance must be installed in accordance with state and local codes. A standard electrical supply 115V AC
only, 60 Hz), properly grounded in accordance with the National Electrical Code and local ordinances is required.
Do not kink or pinch the power supply cord of appliance.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the appliance to be leveled in order to work properly. You may need to make several
adjustments to level it.
Never allow children to operate, play with or crawl inside the appliance. Child entrapment and suffocation are
not just problems of the past, junked or abandoned appliances are still dangerous. When no longer using your
old wine cellar, take off the door and leave the shelves in place so that children may not climb inside easily.
Do not use solvent-based cleansers or abrasives on the interior as they may damage or discolor the interior.
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an
extension cord with this appliance.
If the appliance is going to be used in an area that is prone to power surges/outages, it is suggested that you
use a power surge protector. The surge protector that you select must have a surge block high enough to
protect the appliance it is connected to. Damages due to power surges are not considered a manufacturer
covered defect and will void your product warranty.
The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.
Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do
not use a cord with cracks or abrasion damage along its length or at either end. When moving the appliance, be
careful not to damage the power cord.
Do not use this apparatus for other than its intended purpose.
Failure to heed these safety warnings may result in extensive product damage, serious personal injury, or death.
6
1.This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
6. When positioning the appliance, ensure the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
8. Keep ventilation openings, in the appliance enclosure or in the built-in structure,clear of obstruction.
9. Do not use mechanical devices or other means to accelerate the defrosting process,other than those
recommended by the manufacturer.
10. Do not damage the refrigerant circuit.
11. Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
12. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
13. This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
14. To avoid contamination of drink, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the temperature in the compartments of
the appliance.
– Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h, flush the water system connected to a water supply if
water has not been drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.
WARNING:Risk of fire / flammable materials
The coolant circuit of this unit contains the refrigerant lsobutane (R600a),a natural gas that-is flammable and
of high environmental compatibility. Make sure no parts of the coolant circuit get damaged-during transport
and installation of the appliance.
7
Installation Instructions
BEFORE USE:
Remove the exterior and interior packaging.
Before connecting the unit to the power source, let it stand upright for approximately 8 hours. This will reduce
the possibility of a malfunction in the cooling system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
≥30mm clearance for 4 sides of this cooler when built into cabinet.
Place the unit on a flat, solid floor that is strong enough to support it when it is fully loaded. To level the
appliance, adjust the front leveling leg at the bottom of the unit.
When moving your wine cellar, please do not incline it more than 45 degrees.
Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight
may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient
temperatures may also cause the unit to perform improperly. The optimal ambient temperature range is 18°C -
26°C
Avoid locating the unit in damp areas.
Plug the wine cellar into an exclusive, properly installed and grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power
and/or electrical grounding should be directed to a certified electrician or authorized products service center.
After plugging the appliance into a wall outlet, allow the unit to cool down for 3 to 4 hours before placing
wine bottles or beverage cans in the appliance.

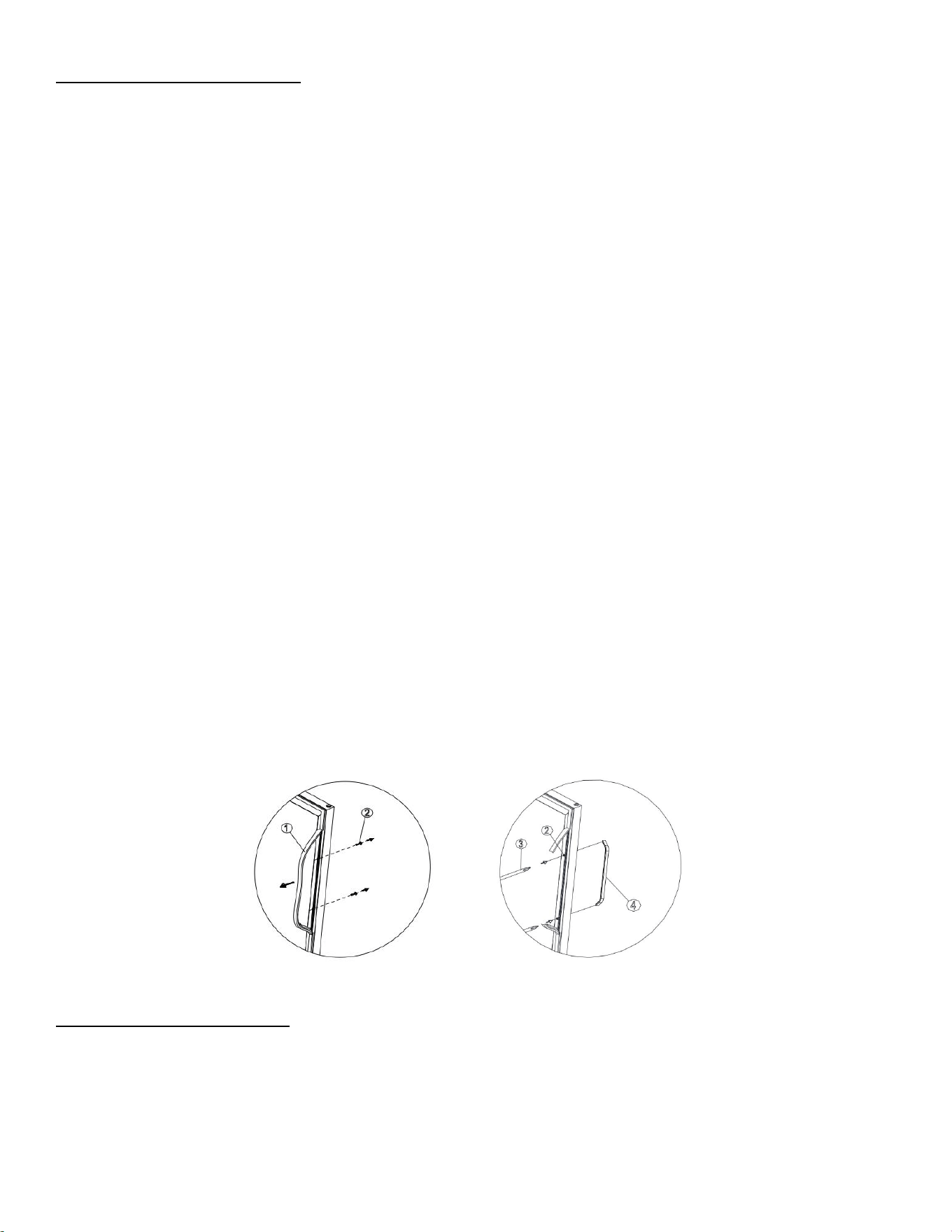

Installing The Handle
1.Pull away the door gasket in the area where the handle is to be installed, as Illustration #1. The gasket is easily
removed by hand, no tools are necessary.
2. Align the handle with the pre-installed screws on the door frame. Tighten the screws with a screwdriver until the
handles secure tightly against the door frame, as Illustration #2. (Do NOT over tighten as this will cause damage to the
handle assembly).
3. Replace the door gasket to its original position.
Illustration #1 Illustration #2
Operation Instructions
The wine cellar should be placed in an area where the ambient temperature range is between 18-26 degrees. If the
ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing
your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate.
Upper: 5-22°C(41°F - 72°F)，lower drawer: 3-18°C(37°F - 64°F)
8

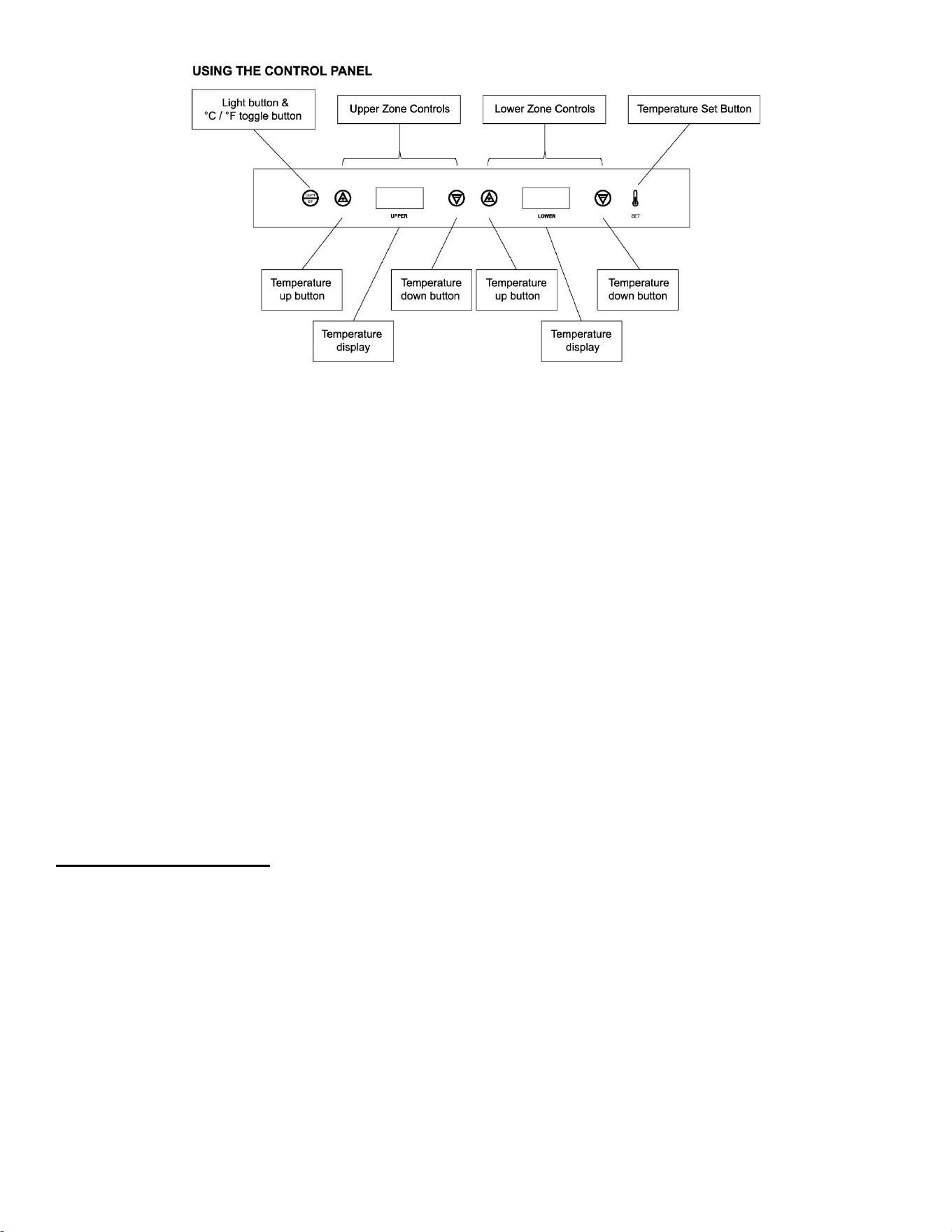

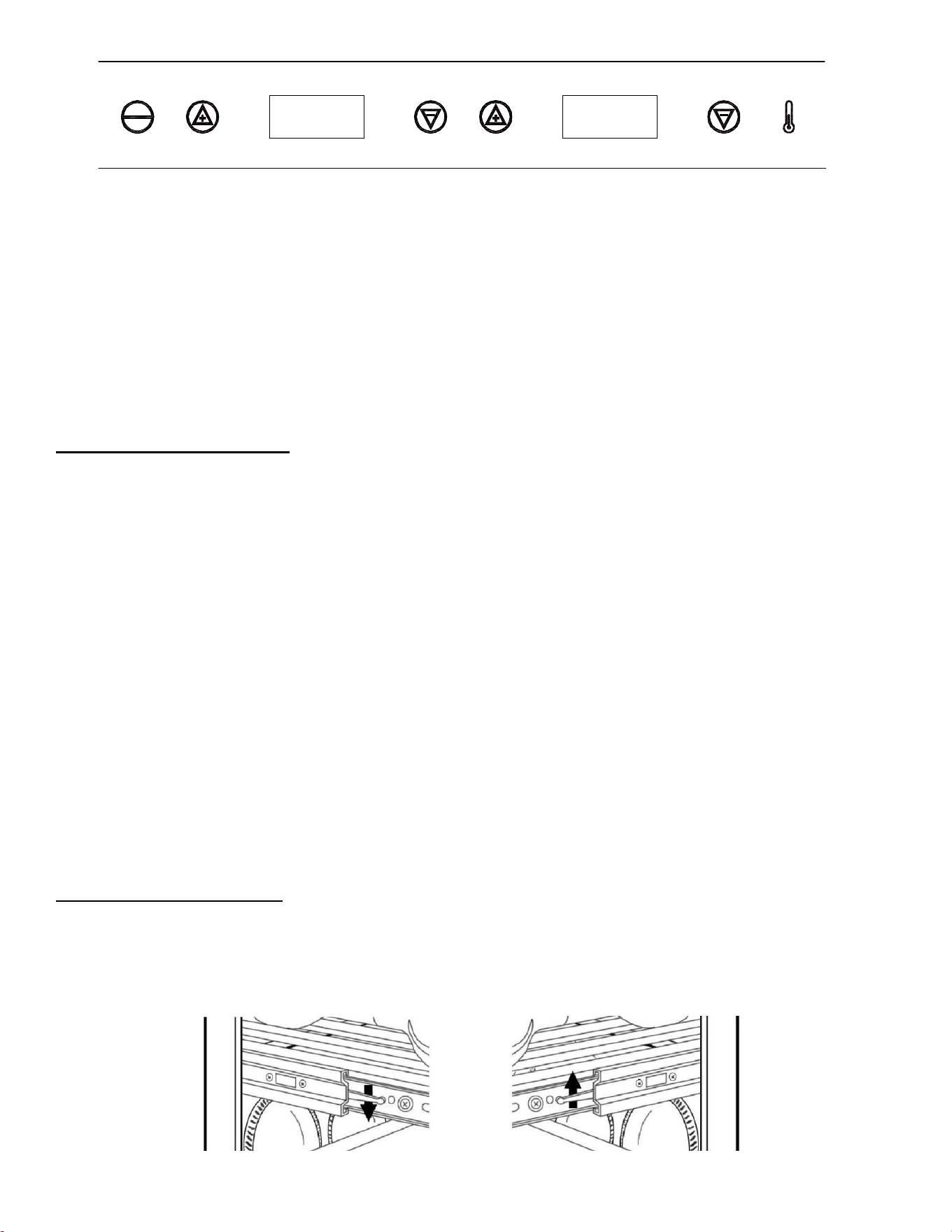

To set the desired temperature for the upper or lower zone, press the Temperature Set button, and then use the
Temperature up and down buttons to set the zone to the desired temperature.
Light: Turns the interior light on or off
°C / °F – To toggle the temperature display between Celsius and Fahrenheit, press the button for 3 seconds.
NOTE: If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. The
unit contains compressor protection which will prevent the unit from starting until this time period has elapsed.
When you use the wine cooler for the first time or restart the wine cooler after having been shut off for a long time,
there could be a few degrees variance between the temperature you select and the one indicated on the LED readout.
This is normal and once the wine cooler is running for a few hours the display will be correct.
STORAGE CAPACITY
Bottles differ in size and dimensions. The actual number of bottles you are able to store may vary from the amount
quoted.
Bottle capacities are approximate maximums when storing traditional 750ml bottles and include bulk storage.
Setting Temperature
The Wine Cellar has a wide enough temperature range to store either red or white wine, depending on your preference.
Different varietals of wine require different temperature settings. Red wine is generally stored between 10°C(50°F) and
18°C(65°F) , while white wines are stored between 4°C( 40°F) and 10°C (50°F) . White wine can be stored at red wine
temperatures for a short period of time (less than three months), and flash chilled before serving.
You can set the temperature as you desire by touching the UP or DOWN button. When you touch the buttons for the
first time, the LED readout will show the original temperature set at the manufacturing facility. Each push of the button
will adjust the temperature by one degree in the desired direction. Please be aware that the desired temperatures may
fluctuate depending on whether the interior light is ON or OFF and depending on the orientation of the bottles.
9
PLEASE NOTE:
.
In the event of a power interruption, all previous temperature settings will be automatically saved and
each compartment will return to the previous temperature setting.
.
If the unit is unplugged, loses power, or is turned off, you must wait 3 to 5 minutes before restarting. Attempting
to restart the wine cellar before this time has elapsed may prevent it from starting.
.
When you use the wine cellar for the first time or restart the wine cellar after having been shut off for a long
time, there will be a few degrees variance between the temperature you select and the one indicated on the
LED readout for the first few hours of operation. After a few hours of operation, the temperature will normalize
to the displayed temperature.
Care and Maintenance
Cleaning your wine cellar:
.
Turn off the power, unplug the appliance, and remove all items including all shelves.
.
Wash the inside surfaces with warm water and baking soda solution. The solution should be about
2 tablespoons of baking soda to a quart of water.
.
Wash the shelves with a mild detergent solution.
.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse and wipe dry with a clean soft cloth.
.
Dust the front grill and back of the unit twice yearly. Make sure the power is off before cleaning.
. It is recommended to clean the unit completely inside and out yearly to maximize the longevity of the product.
Moving your wine cellar:
.
Remove all bottles and any other items you may have inside the unit.
.
Securely tape down all loose items (shelves) inside your appliance and tape the door shut.
.
Turn the adjustable leg up to the base to avoid damage.
.
Be sure the appliance stays secure in the upright position during transportation.
.
Protect the outside of the appliance with a blanket or similar item.
Racking Configuration
Disperse your bottles evenly throughout the unit so as not to concentrate weight in any one area. This also helps to
provide an even temperature range throughout the unit. Make sure that bottles are not all grouped together either at
the top or bottom of the cabinet. The maximum capacity per shelf is 20kgs. Never try to pull out more than one rolling
shelf at a time as it can cause the appliance to tip forward.
SET
LIGHT
CF/
LOWERUPPER
10
You can remove a shelf to accommodate larger diameter bottles on the shelf below it. To remove a shelf, pull it out as
far as you can. There are levers on each side of the shelf near the rollers. Left the lever on the left hand side and push
down the lever on the right hand side to remove the shelf from the tracks.
Moving Racks
To remove a rolling shelf.Remove all bottles.Pull the shelf out as far as it will go. Push the left side lever downward while
pushing the right side lever upwards (as illustrated below).Remove the shelf.
11
Reverse the door
This appliance is designed with a reversible door feature. You may configure the opening direction the left or from the right as
you like. Please follow the operations below to reverse the door.
NOTE: If desired, please change the door swing prior to installation of the appliance.
CAUTION: To avoid personal injury to yourself and/or damage to property, it is highly recommended that someone assist you
during the door reversal operations.
Removing the door
1. Turn off the unit and disconnect the power plug from the wall outlet.
2. Remove the plastic caps on the left side top of the unit.
(Keep the plastic caps and use for covering holes on the right
side after the door is reversed.
3. Remove the plastic cap from the upper hinge cover.
4. Hold the door, loosen the screws and remove the upper hinge. Make sure to hold the door during this step.
5. Lift the door and take it out from the lower hinge and
place it on a padded surface to avoid damage and
scratches.
6. Unscrew and remove the lower hinge and door pin.
Keep the hinge and pin in accessory bag for future use.
12
Installing the door
1. Remove one screw and two rubber caps covering the
holds on the left side of lower hinge position.
2. Take the lower hinge for left side from the accessory
bag. Install it to the left side lower hinge position.
3. Turn the door 180° and put it onto the left side lower
hinge and hold it at close position.
4. Reverse the upper hinge direction, and fix it on the top
of the door. Do not fully tighten the screws until the top of
the door is level with the top of the unit.
5. Fix the upper hinge on the top of the unit. Adjust the door to make sure it is level with the top of the unit. Then
tighten all the screws. Put on the hinge cover.
6. Put on the plastic caps to cover the holes on the other side.
13
Troubleshooting
There are many common issues you may experience with your wine cellar that can be solved very easily, without
the need of a service call. Try the tips below to troubleshoot your unit should you experience any problems:
PROBLEM
POSSIBLE CAUSE
Wine cellar does not operate
Not plugged in or the appliance is turned off
The circuit breaker tripped or a fuse has blown out
Wine cellar is not cold enough
Check the temperature control setting
External environment may require a higher setting
The door is opened too often
The door is not closed completely
The door gasket is not sealing properly
Wine cellar is turning on and off frequently
The room temperature is hotter than normal.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work
Not plugged in.
The circuit breaker tripped or a fuse has blown.
The light bulb has burned out.
The light button is “OFF”.
Vibrations
Check to assure that the Wine cellar is on a level surface.
The wine cellar seems to make too much noise
A faint humming noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds caused by
the flow of refrigerator in your wine cellar.
Contraction and expansion of the inside walls may cause
popping and crackling noises.
The wine cellar is not on a level surface.
The door will not close properly
The wine cellar is not on a level surface.
The gasket is dirty.
The shelves are out of position.
Condensation forming inside of the cabinet
Condensation occurs when too much ambient air gets into the
cabinet. Wipe off the doors and walls and leave door closed
as long as possible.
Check that the door gasket and the charcoal filter are properly
in place.
14
Charcoal filtration system
Your wine is a living object that breathes through the cork of its bottle. In order to preserve the quality and taste of your fine wines,
they must be stored at the ideal temperature and ambient conditions. Your wine cooler is equipped with an active charcoal filtration
system to ensure air purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines.
To replace the filter
1
Remove the bottles of wine stored on the two (2) shelves in front
of the filter.
Turn Left to remove filter.
2
Remove the shelves and set aside to be replaced once you have
changed the filter
3
Hold the filter and turn it at 45 degrees in the counter-clockwise
direction and then pull it out.
4
Remove the existing filter and replace with a new one.
5
Put the new filter into the hole and then turn the filter at 45
degrees in clockwise direction.
Technical Specifications
Model
Wine Cooler
Climate Class
Please refer to the information indicated on the product. You will find the
information on the rating label on the back of the unit as well as inside the cooling
compartment. The circuit diagram is displayed on the back of the unit as well as
inside the cooling compartment
Refrigerant Gas
Refrigerant Charge
Temperature Range (°C)
Input Power
Rated Frequency
Rated Voltage
Internal volume
Net Weight
Gross Weight
Foaming Agent
External Dimension (mm)
15
Warranty Terms
Warranty Period
in the product within 15 days upon receipt of the product.
Warranty Exclusions
1. Products subjected to unauthorized repair, misuse, collision, neglect, mishandling, soaking, accident,
2. Products subjected to improper use or whose labels or security tags have been torn off or altered.
3. Products whose warranty has expired.
4. Products damaged due to force majeure, such as fire, flood, lightening, etc.
Warranty Claim Procedure
can always contact our customer service through email at [email protected].
2. Our customer service will guide you through the whole service procedure regarding any product
issue or problem you have encountered.
We reserve the right to reexamine damaged or returned products.
Contact Card
Support Phone : (213)432-5433
Support Email : [email protected]
