BG-EXH-4KFE
4K 18Gbps HDMI 2.0 Fiber Extender Kit up to 10 km with Included
SFP+ Modules and USB KVM/Bi-Directional IR/RS-232
and Audio De-Embedding Support
User Manual
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 9
EDID DIP Switch Configurations (Transmitter) 10
IR Pin Definition 12
Connection Diagram 13
Troubleshooting 14
Tech Support 15
Limited Product Warranty Terms 15
Mission Statement 16
Copyright 16
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
Introduction
The BG-EXH-4KFE is a high-performance HDMI™ over fiber extender designed to
transmit uncompressed 4K Ultra HD video signals over long distances with
exceptional stability and signal integrity. Supporting up to 18Gbps bandwidth and
HDMI 2.0b/HDCP 2.2 compliance, it delivers resolutions up to 4K@60Hz 4:4:4 with
full HDR support, making it suitable for demanding professional AV environments.
Using single-mode fiber, the system can extend signals up to 10km, while optional
multi-mode fiber support (OM4) enables distances up to 300m via SFP modules.
In addition to video transmission, the BG-EXH-4KFE integrates comprehensive
control and signal management features including bi-directional IR and RS-232
pass-through, USB 1.1 keyboard and mouse extension, and advanced EDID
management for flexible system compatibility. The transmitter includes a
loop-through HDMI output for local monitoring, while the receiver supports audio
de-embedding for standalone audio routing. With its compact metal housing, strong
anti-interference design, and robust long-distance transmission capability, this
extender is ideal for control rooms, broadcast systems, digital signage, and
large-scale commercial installations.
Features
● 18Gbps HDMI 2.0b Transmission: Supports high-bandwidth 18Gbps video signals
for uncompressed 4K Ultra HD performance up to 4K@60Hz 4:4:4.
● Ultra-Long Distance Fiber Extension: Transmits HDMI™ signals up to 10km over
single-mode fiber cable, ensuring reliable long-range AV distribution.
● Multi-Mode Fiber Compatibility: Supports OM4 multi-mode fiber transmission up
to 300m using SFP modules for flexible deployment options.
● HDCP 2.2 & HDMI™ 2.0b Compliance: Fully compatible with modern protected
content sources and displays for seamless integration.
● Full HDR & Advanced Color Support: Passes HDR10, HDR10+, Dolby Vision, and
HLG with deep color up to 12-bit for enhanced image quality.
● Advanced Audio Format Support: Handles LPCM up to 7.1CH and major
Dolby/DTS formats including Dolby TrueHD and DTS-HD Master Audio.
● Bi-directional IR Control: Enables remote control of source or display devices from
either end of the system for flexible operation.
● RS-232 Pass-Through Control: Supports serial command transmission for
integration with third-party control systems.
● USB KVM Extension (Keyboard/Mouse): Extends USB 1.1 signals for remote
keyboard and mouse control functionality.
● HDMI Loop-Out on Transmitter: Provides local monitoring of the source signal
directly from the transmitter unit.
● Audio De-Embedding on Receiver: Extracts analog audio from HDMI signal for
external audio system integration.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
● Advanced EDID Management: Ensures optimal compatibility between source and
display devices with selectable EDID modes.
● Compact Metal Housing Design: Durable, lightweight enclosure for professional
rack or surface-mounted installations.
● Low Power & High Stability Operation: Efficient 5V power design with strong
anti-interference and stable long-distance transmission performance.
Packing List
● 1× 18Gbps HDMI™ over Fiber Extender (Transmitter)
● 1× 18Gbps HDMI™ over Fiber Extender (Receiver)
● 2× 5V/2A Multinational Locking Power Supplies
● 1× USB Cable (Type A to Type B, 1.5m)
● 1× IR Blaster Cable (1.5m)
● 1× IR Wideband Receiver Cable (1.5m)
● 3× 3-pin 3.5mm Phoenix Connectors (Male)
● 4× Mounting Ears
● 8× Machine Screws (KM3×4)
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
Specifications
TECHNICAL
HDMI™ Compliance
HDMI™ 2.0b
HDCP Compliance
HDCP 2.2
Video Bandwidth
18Gbps
Video Resolution (Max)
Up to 4K@60Hz (3840×2160), 4:4:4
Supported Resolutions
4K@60/50Hz, 4K@30/25Hz, 1080p@60/50Hz, 1920×1200, 1360×768,
1280×720, 1024×768
Color Space
RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth
8/10/12-bit
HDR Support
HDR10, HDR10+, Dolby Vision, HLG
Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX,
DTS-96/24, DTS-HD Master Audio, DSD
Fiber Type
10G SFP+ module
Transmission Distance
Up to 10km (single-mode fiber), up to 300m (OM4 multi-mode)
IR Level
5Vp-p
IR Frequency
20K–60KHz (wideband)
ESD Protection
IEC 61000-4-2: ±8kV air, ±4kV contact
CONNECTIONS
Transmitter Inputs
1× HDMI IN, 1× IR IN (3.5mm), 1× USB-B (HOST), 1× RS-232 (3-pin
phoenix)
Transmitter Outputs
1× HDMI OUT (loop out), 1× IR OUT, 1× LC Fiber OUT
Transmitter Control
1× USB-C (service/firmware)
Receiver Inputs
1× LC Fiber IN, 1× IR IN
Receiver Outputs
1× HDMI OUT, 1× IR OUT, 1× AUDIO OUT (3-pin phoenix)
Receiver USB
2× USB-A (keyboard & mouse)
Receiver Control
1× RS-232 (3-pin phoenix), 1× USB-C (service)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
MECHANICAL
Housing
Metal enclosure
Color
Black
Dimensions (W × D × H)
5.7in × 3.1in × 0.91in [144mm × 78mm × 23mm] (TX/RX)
Weight
TX: 0.74lb [337g] / RX: 0.73lb [330g]
Power Supply
5V/2A locking power adapter (AC 100–240V, 50/60Hz)
Power Consumption
TX: 5W max / RX: 5W max
Operating Temperature
32°F to 104°F / 0°C to 40°C
Storage Temperature
-4°F to 140°F / -20°C to 60°C
Operating Humidity
20%–80% RH (non-condensing)
Storage Humidity
10%–90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
Operation Controls and Functions
Front and Rear Panel

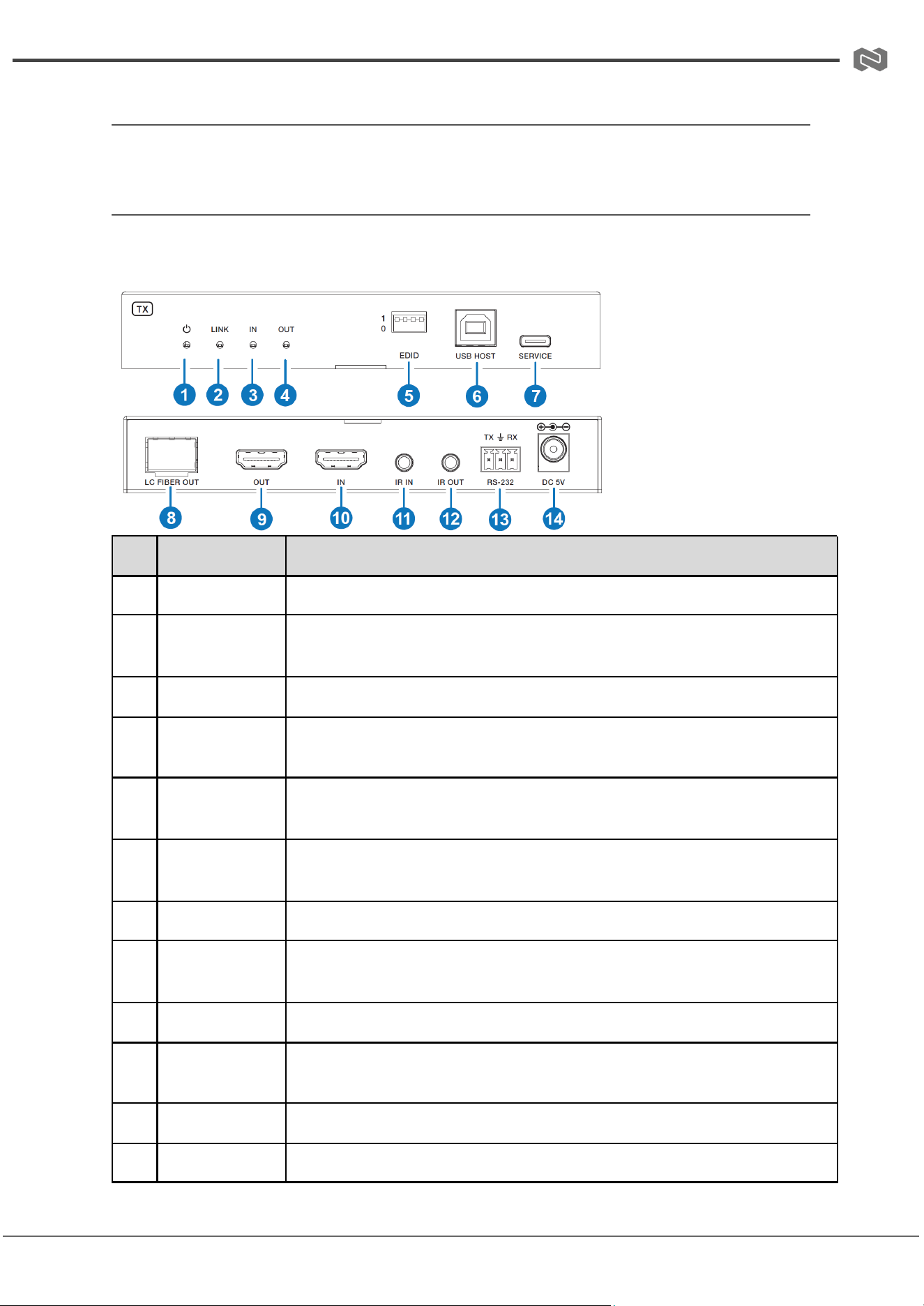

Transmitter Panel
No.
Name
Function Description
1
POWER LED
Red LED illuminates when the transmitter is powered on.
2
LINK LED
Green LED stays on when a stable fiber link is established between TX and
RX.
3
IN LED
Green LED indicates an active HDMI input signal is detected.
4
OUT LED
Green LED indicates an HDMI display device is connected to the loop-out
port.
5
EDID DIP
Switch
Used for selecting EDID mode (copy RX/TX EDID or predefined HDR/SDR
resolutions and audio formats).
6
USB HOST
USB Type-B port used to connect the transmitter to a host PC for USB KVM
function.
7
SERVICE
USB-C port for firmware updates and service use.
8
LC FIBER OUT
Fiber optic LC output port connected to the receiver’s LC FIBER IN port.
9
HDMI OUT
HDMI loop-out port for local display connection or monitoring.
10
HDMI IN
HDMI input port for source devices such as PC, Blu-ray player, or media
device.
11
IR IN
3.5mm IR receiver input for remote control signal reception.
12
IR OUT
3.5mm IR blaster output for transmitting IR control signals.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
13
RS-232
3-pin phoenix connector for serial pass-through control between TX and RX.
14
DC 5V
5V/2A locking power input connector.
EDID DIP Switch Configurations (Transmitter)
The EDID DIP switch on the transmitter allows selection of predefined EDID profiles or pass-through
EDID modes for optimal compatibility between source and display devices.
DIP
Setting
EDID Mode
Video / Audio Configuration
1111
Copy RX HDMI OUT
EDID
Reads EDID directly from receiver display device
1110
Copy TX HDMI OUT
EDID
Reads EDID from local loop-out display on transmitter
1101
4K60 (4:4:4) HDR
4K@60Hz 4:4:4 + HDR, PCM 2.0CH
1100
4K60 (4:4:4) HDR
4K@60Hz 4:4:4 + HDR, PCM 5.1CH
1011
4K60 (4:4:4) HDR
4K@60Hz 4:4:4 + HDR, PCM 7.1CH
1010
4K60 (4:4:4) SDR
4K@60Hz 4:4:4 + SDR, PCM 2.0CH
1001
4K60 (4:4:4) SDR
4K@60Hz 4:4:4 + SDR, PCM 5.1CH
1000
4K60 (4:4:4) SDR
4K@60Hz 4:4:4 + SDR, PCM 7.1CH
0111
1080p60 HDR
1080p@60Hz + HDR, PCM 2.0CH
0110
1080p60 HDR
1080p@60Hz + HDR, PCM 5.1CH
0101
1080p60 HDR
1080p@60Hz + HDR, PCM 7.1CH
0100
1080p60 SDR
1080p@60Hz + SDR, PCM 2.0CH
0011
1080p60 SDR
1080p@60Hz + SDR, PCM 5.1CH
0010
1080p60 SDR
1080p@60Hz + SDR, PCM 7.1CH
0001
1920×1200 SDR
1920×1200 + SDR, PCM 2.0CH
0000
User Defined EDID
(Default)
Custom EDID loaded via SERVICE port (factory default:
1080p60 SDR, 2.0CH)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL

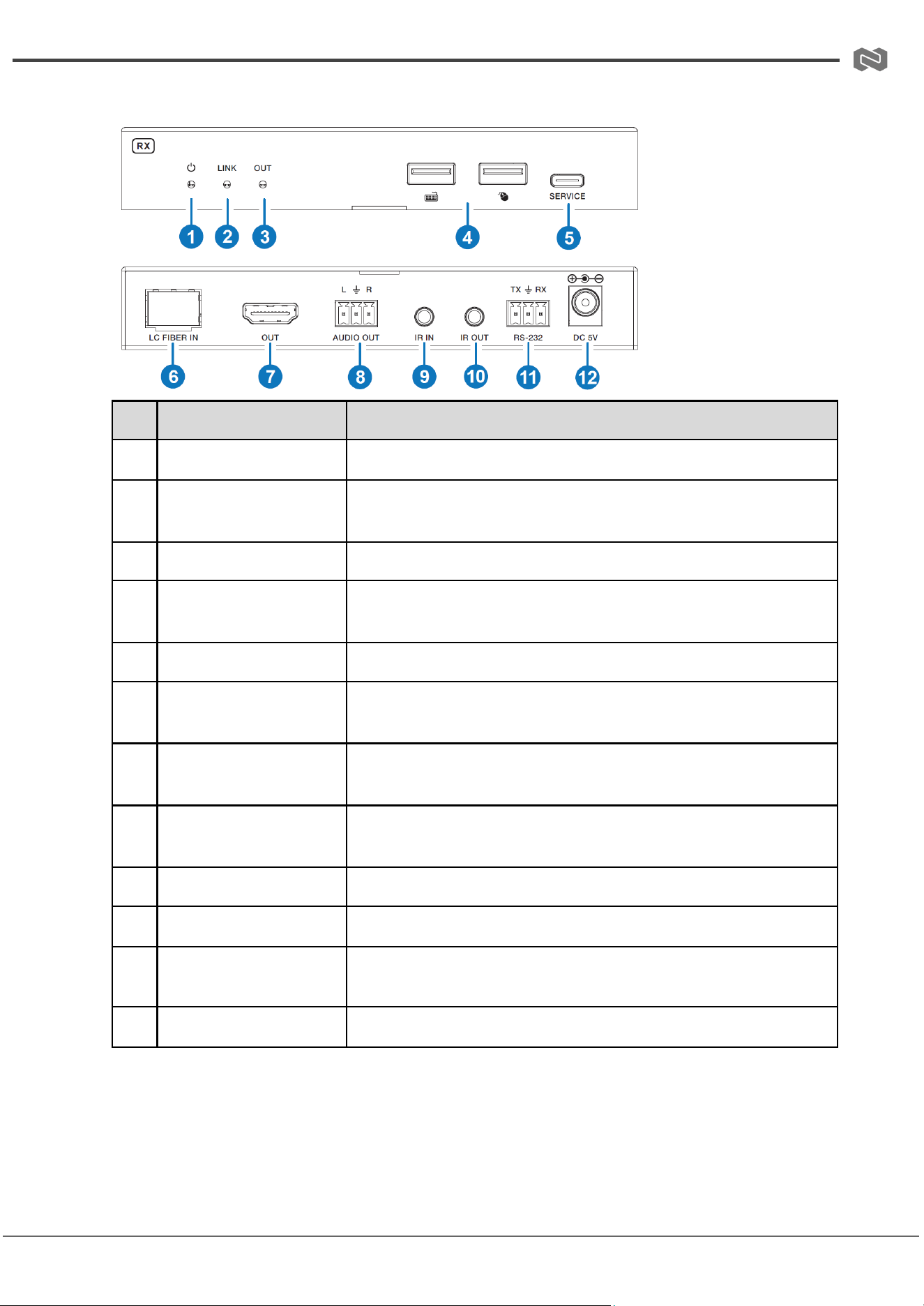

Receiver Panel
No.
Name
Function Description
1
POWER LED
Red LED illuminates when the receiver is powered on.
2
LINK LED
Green LED stays on when a stable fiber link is established between
TX and RX.
3
OUT LED
Green LED indicates an active HDMI display connection.
4
USB (Keyboard &
Mouse)
USB-A ports for connecting keyboard and mouse for KVM
extension.
5
SERVICE
USB-C port for firmware updates and service use.
6
LC FIBER IN
Fiber optic LC input port connected to the transmitter’s LC FIBER
OUT port.
7
HDMI OUT
HDMI output port for connection to display devices such as TVs or
monitors.
8
AUDIO OUT
Analog audio de-embedding output (L / GND / R) for external audio
systems.
9
IR IN
3.5mm IR receiver input for remote control signal reception.
10
IR OUT
3.5mm IR blaster output for transmitting IR control signals.
11
RS-232
3-pin phoenix connector for serial pass-through control between TX
and RX.
12
DC 5V
5V/2A locking power input connector.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL

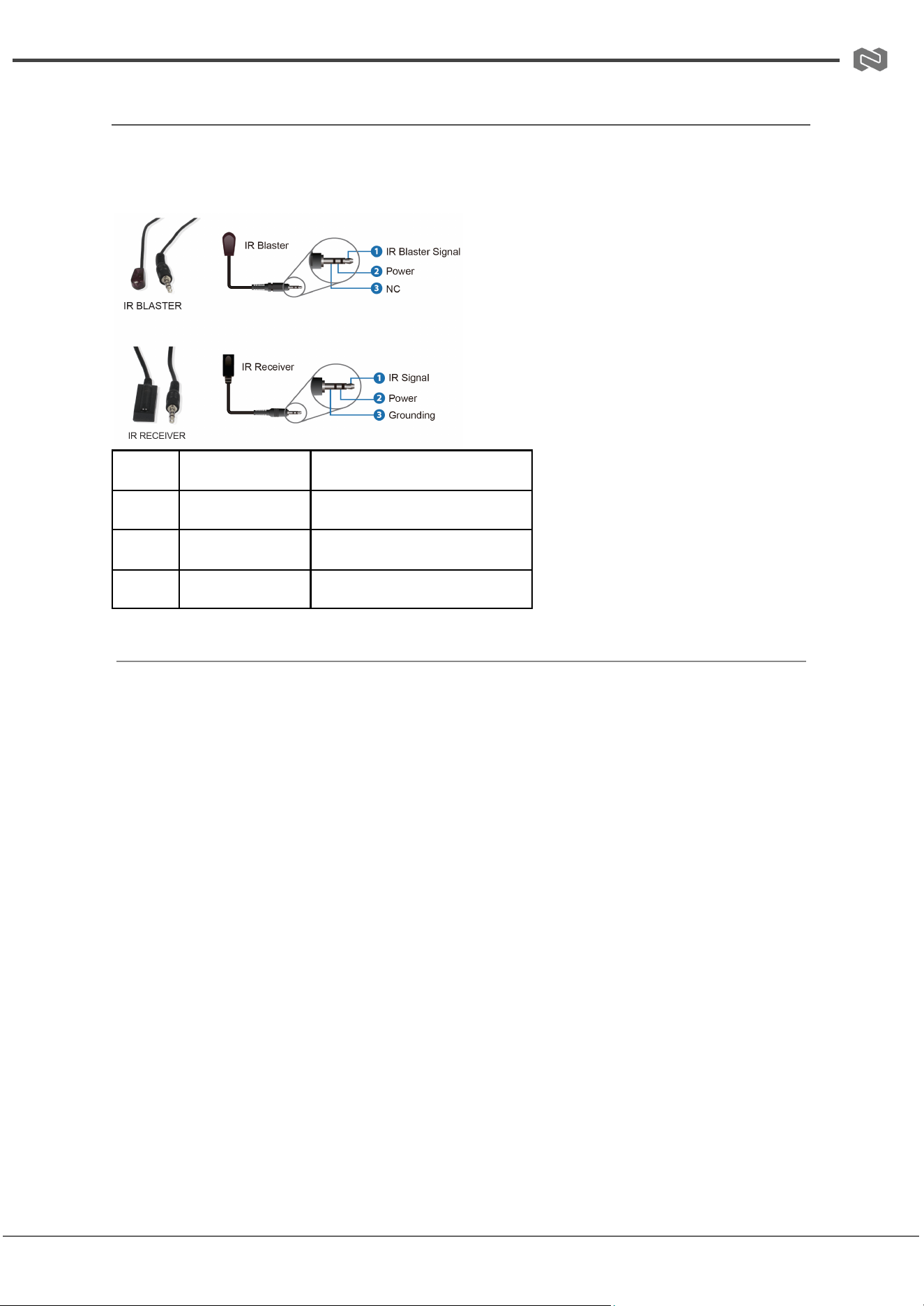

IR Pin Definition
The IR receiver and IR blaster cables use a standard 3.5mm connector with the following
pin configuration:
Pin
Signal
Description
Tip
IR Signal
Infrared signal input/output
Ring
VCC (5V)
Power for IR module
Sleeve
Ground (GND)
Signal ground reference
IR Operation Notes
● When the IR receiver and remote control are within ±45°, the effective transmission
distance is approximately 0–5 meters.
● When the IR receiver and remote control are within ±90°, the effective transmission
distance is approximately 0–8 meters.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL

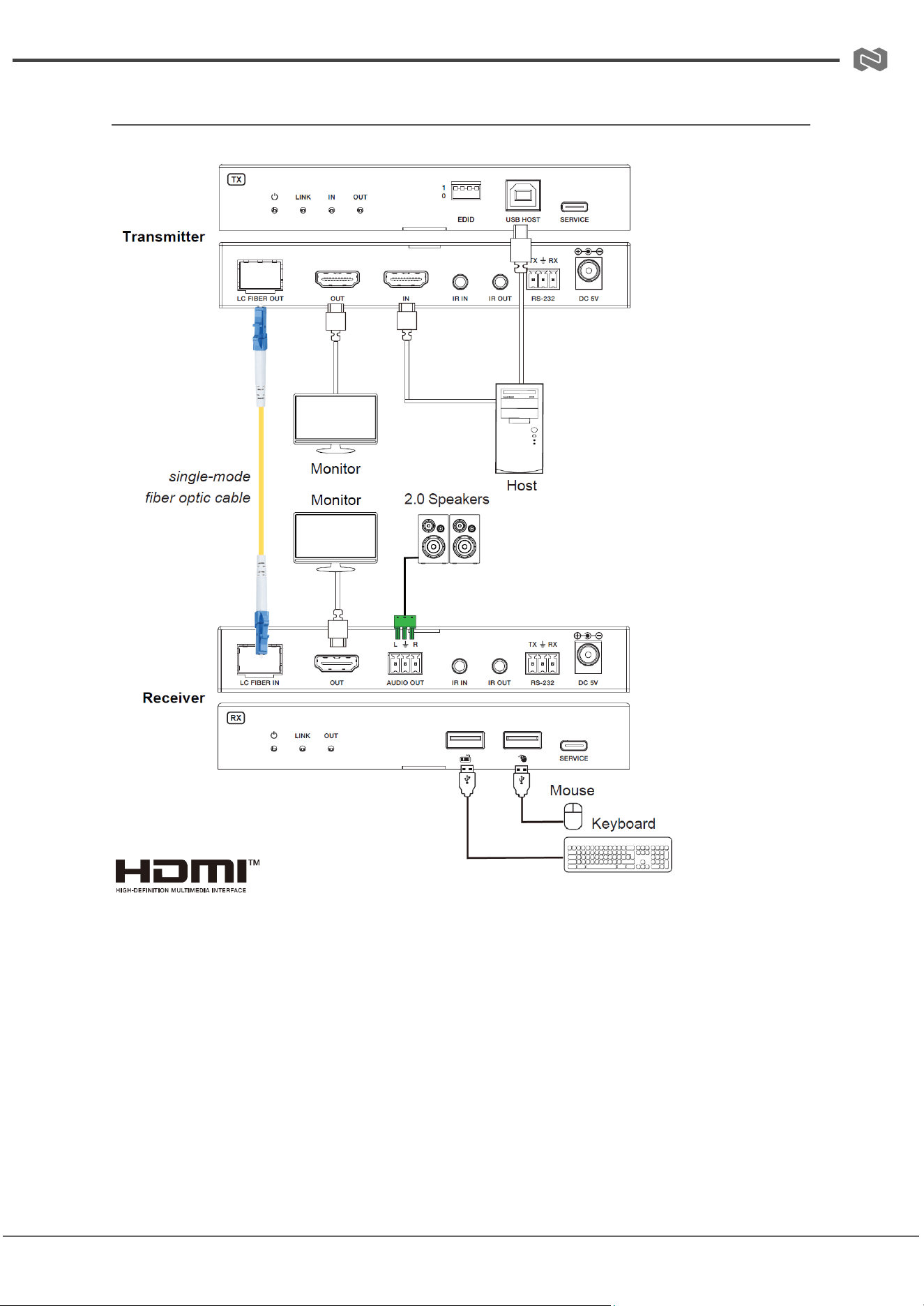

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-EXH-4KFE PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
