Remove the TransceiverInstall the Transceiver
10GBase SFP+ LC Transceiver

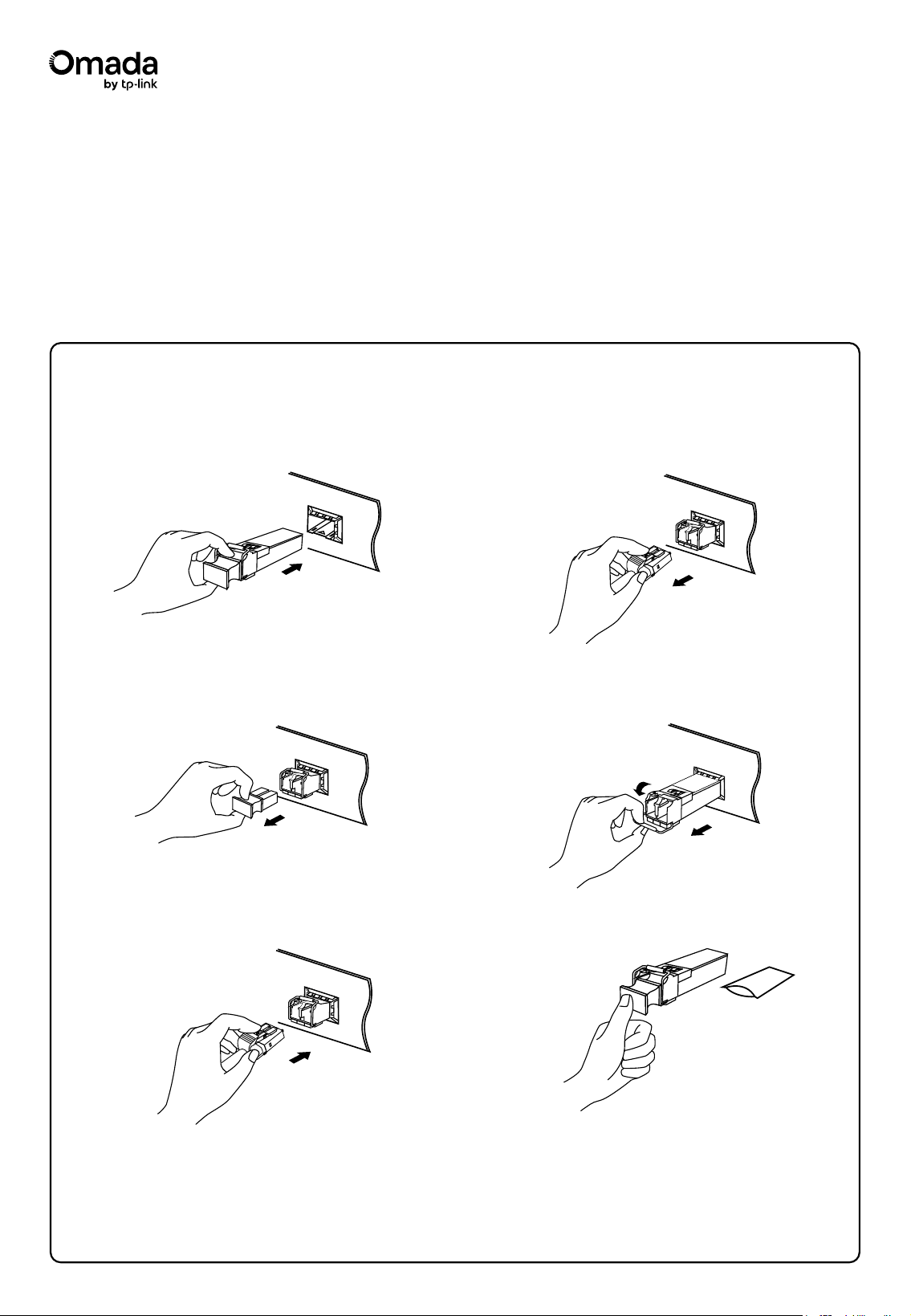

1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Insert the transceiver into the slot and rmly press it into place.
3. Remove the protective dust plug from the transceiver.
4. Plug ber-optic cables into the transceiver. Note that the transceiver
works without any additional conguration.
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Disconnect the network ber-optic cables from the transceiver.
4. Reinstall the protective dust plug in the transceiver’s optical bores and
place it on antistatic mat or a static shielding bag.
3. Pull the safety latch downwards to release the transceiver, and then
pull it out from the slot.
Installation Guide
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the transceiver’s optical bores until you are ready to make a connection.
Caution:
DO NOT point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
©2025 TP-Link 7100000063 REV2.0.0
Product Operating Temperature 0˚C to 70˚C (32˚F to 158˚F)
Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F)
Storage Humidity 5% to 90% RH, Non-condensing
Operating Humidity 10% to 90% RH, Non-condensing
Environmental and Physical Specications
TP-Link hereby declares that the SFP+ LC Transceiver is in compliance with the
essential requirements and other relevant provisions of directives 2014/30/EU,
2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at
https://www.tp-link.com/en/support/ce/
EU declaration of conformitySafety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need
service, please contact us.
Avoid using this product during an electrical storm. There may be a remote risk
of electric shock from lightning.
Do not point or stare directly into the beam or into the optical port of the
transceiver when it is operating, as this can injure your eyesight.
Caution – Use of controls or adjustments or performance of procedures other
than those specied herein may result in hazardous radiation
TP-Link hereby declares that the SFP+ LC Transceiver is in compliance with the
essential requirements and other relevant provisions of the Electromagnetic
Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations
2016.
The original UK Declaration of Conformity may be found at
https://www.tp-link.com/support/ukca/
UK declaration of conformity
CAN ICES-003 (A)/NMB-003(A)
Industry Canada Statement
FCC compliance information statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Product Name: 10GBase-SR SFP+ LC Transceiver/10GBase-LR SFP+ LC Transceiver
Model Number: SM5110-SR/SM5110-LR
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the
applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the
equipment is properly maintained and operated.
Issue Date: 2025-3-11
This is a class A product. In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.
CE Mark Warning
E
xplana�on of the symbols on the product label
S
ymbols may vary from products. The label is at the bottom of the product.
Symbol
Explanation
Class I I equipment
Class I I equipment with functional earthing
Alternating current
Direct current
Pol a rity of d.c. power connector
For indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy eciency Marking
Protective earth
Earth
Fra me or chassis
Functional earthing
Caution, hot surface
Caution
Operator's manual
Stand-by
"ON"/"OFF" (push-push)
Fus e
Fuse is used in neutral N
Caution, avoid listening at high vol ume l evels for l ong periods
Dis connection, a ll power plugs
m Switch of mini-gap construction
µ
Switch of micro- gap construction (for US version)
Switch of micro-gap / micro-disconnection construction
(for other versions except US)
ε Switch without contact gap (Semiconductor switching device)
RECYCLING
This product bears the selective sorting symbol for Waste
electrical and electronic equipment (WEEE). This means that
this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.
User has the choice to give his product to a competent recycling
organization or to the retailer when he buys a new electrical or
electronic equipment.
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних
документів та вимогам, що передбачені чинними законодавчими актами України.
Only use the same transceiver model between switches for fast and reliable connectivity.

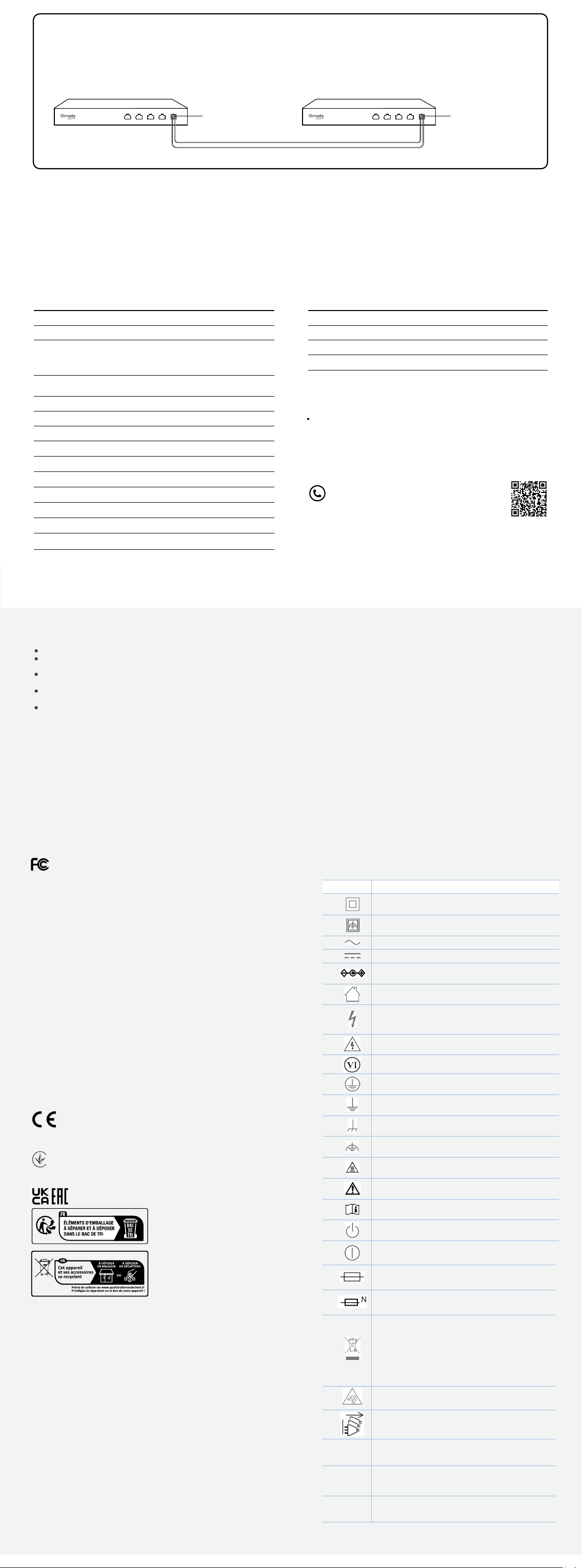

Connection
General Specications
Specications
Switch Switch
SM5110-SR
Fiber
SM5110-SR
Compatible Products
Note:
The transceiver may be incompatible with other vendors’ devices.
We recommend that you use only Omada transceivers on your Omada devices.
Omada switches/media converters with 10G SFP+ Slots
Port Type
Cable
Data Rate
Wave Length
10 Gbps
LC Duplex
3.3 V
FCC, CE
Standards and Protocols
Model
Max. Cable Length
Power Support
Safety & Emission
Yes
Yes
DDM
SFP+ MSA
Yes
Hot Swappable
850 nm
50/125 or 62.5/125 μm
Multi-mode Fiber
300 m (OM3)
SM5110-SR
IEEE 802.3ae
TCP/IP
SFF-8472
SM5110-LR
1310 nm
9/125 μm
Single-mode Fiber
10 km
For simplicity, we will take SM5110-SR as an example.
Max. Laser Output Power
Class 1Laser Class
For technical support, replacement services, user guides,
and more, please visit
https://support.omadanetworks.com/, or simply scan
the QR code.
1.12mW (0.5dBm)
