851158-00
2025
1/6

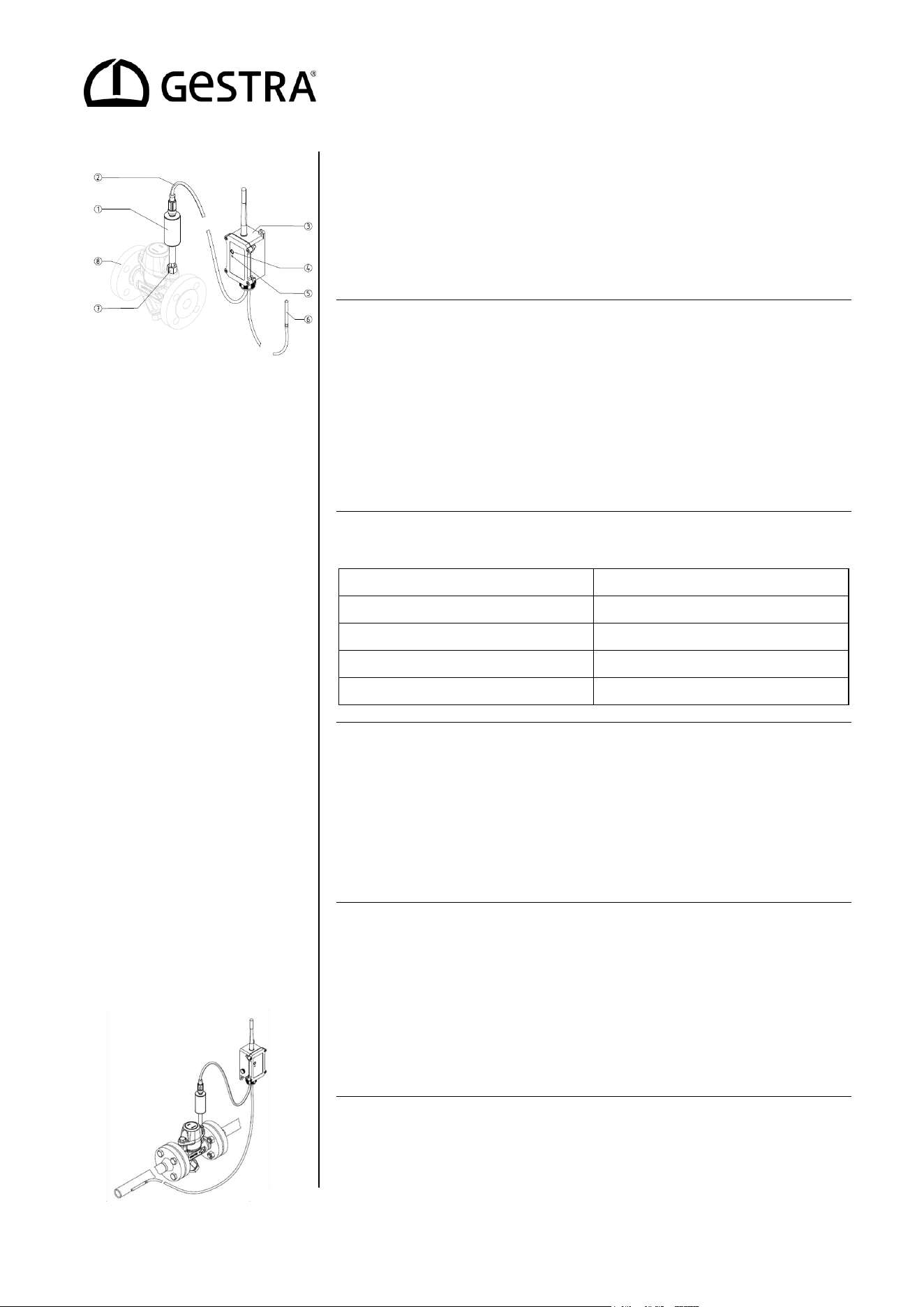

MSBN-2 LoRa Node with MSBS Sensor
System Description
Continuous steam trap monitor for testing steam traps for loss of steam and banking up of
condensate. The MSBN-2 LoRa Node with MSBS Sensorequipment is used for monitoring
steam traps for loss of steam and banking up of condensate
Monitoring enables the early detection of faulty steam traps and banking up of condensate. The
early detection of faulty valves increases the efficiency of the plant as a whole and reduces its
energy consumption. The detection of banked up condensate prevents damage and malfunctions in
the plant as a whole.
Function
Monitoring of a steam trap by the device is carried out using temperature measurements and ultrasonic
measurements via a piezoelectric element. The measurements are performed automatically at regular
intervals.
The temperature sensor (external PT100) measures the temperature at the measuring point.
The recorded data is analysed within the LoRa node and transmitted to the LoRa gateway (accessory).
Data transmission takes place via a network protocol using LoRaWAN radio technology.
The temperature readings from the external PT100 sensor can also be transmitted.
The evaluation of the measurement results is based on sound values, temperature, and the
parameters of the steam trap being tested.
Technical data
Ambient conditions
Area of application Indoors and outdoors
Maximum altitude 2000 m (6562 ft)
Protection against ingress of foreign bodies Suitable for industrial use
Pollution degree 4
Admissible ambient temperature -40 – 85°C (-40 – 185°F)
Connections
Sensor thread: M6
The equipment sensor can be installed at the following measuring points:
• in a pressure-bearing screw (PBS), in place of a cover screw in the steam trap. With 90°
adapter (ADP) if necessary.
▪ Replace the standard strainer cap of the condensate drain with a specific type of strainer cap
featuring an MSB connection.
▪ Fastened to the pipe by a clip (RFC)
Available accessories
The following accessories are available for the equipment:
• Pressure-bearing screw (PBS) of steel or stainless steel
• 90° adapter (ADP)
• Strainer cap with sensor interface (STC)
• Clips (RFC) for mounting on pipes
• LoRa gateway
Further accessories are available on request.
MSBN-2 LoRa Node with MSBS Sensor
The MSBN-2 LoRa Node with MSBS
Sensor equipment is used to monitor steam
traps for loss of steam and banking up of
condensate at differential pressures. The
measurement results are shown on the
GESTRA dashboard. The monitoring
enables the early detection of faulty steam
traps, water hammer and banking up of
condensate. The early detection of faulty
steam traps increases the efficiency of the
plant as a whole and reduces its energy
consumption. The detection of banked up
condensate prevents damage and
malfunctions in the plant as a whole.
The equipment monitors steam traps using
ultrasonic and temperature measurements
taken by a piezo element. These
measurements are performed automatically
at regular intervals. The temperature
sensor (external PT100) measures the
temperature at the measuring point. The
measured data is analysed in the MSBN ...
LoRa node and transferred to the LoRa
gateway
(accessory). The data is transferred by
LoRa wireless technology via network
protocol. The temperature measurements
taken by the external PT100 can also be
transferred. The measurement results are
analysed on the basis of the sound and
temperature values and parameters of the
steam trap under test. To use the
equipment, a LoRa gateway and LoRa
network server are required for displaying
readings.
851158-00
2025
2/6
MSBN-2 LoRa Node with MSBS Sensor
Materials
Komponente
Spezifikation
MSBS-2 Sensor Housing 1.4404 / 316L
LoRa Node MSBN-2 housing Polycarbonate (PC)
Battery Lithium-metal-battery (Li-SOCl
2
)
The equipment and its components contain electronic parts
Pressure and temperature ratings
Assembly Storage/ operating temperature °C (°F) IP rating
Sensor MSBS-2
-40 — 85 (-40 — 185) IP66 / IP67
LoRa Node MSBN-2
Permissible media temperature depending on ambient temperature at an installation angle of 45
Ambient temperature °C (°F) Fluid temperature °C (°F)
-40 — 70 (-40 — 158) 550 (1.022)
>70 — 80 (>158 — 176) 450 (842)
>80 — 85 (>176 — 185) 350 (662)
Measurement accuracy
Measuring point Loss of steam Temperature*
PBS 1 kg/h + 5% from final value —
ADP 1 kg/h + 5% from final value —
RFC 3 kg/h + 30% from final value —
MSBS-2 (PT100) — +/- 1 K
External Temp. Element (PT100) — +/- 1 K
*Surface temperature can deviate from fluid temperature
MSBN-2 MAX
MSBN-2
HVIN
MSBN-2 MAX
MSBN-2
MODEL
Bluetooth module with integrated microcontroller and accompanying components
which are assembled on the model “MSBN-2 MAX” and not assembled on the
model “MSBN-2”.
851158-00
2025
3/6
MSBN-2 LoRa Node with MSBS Sensor

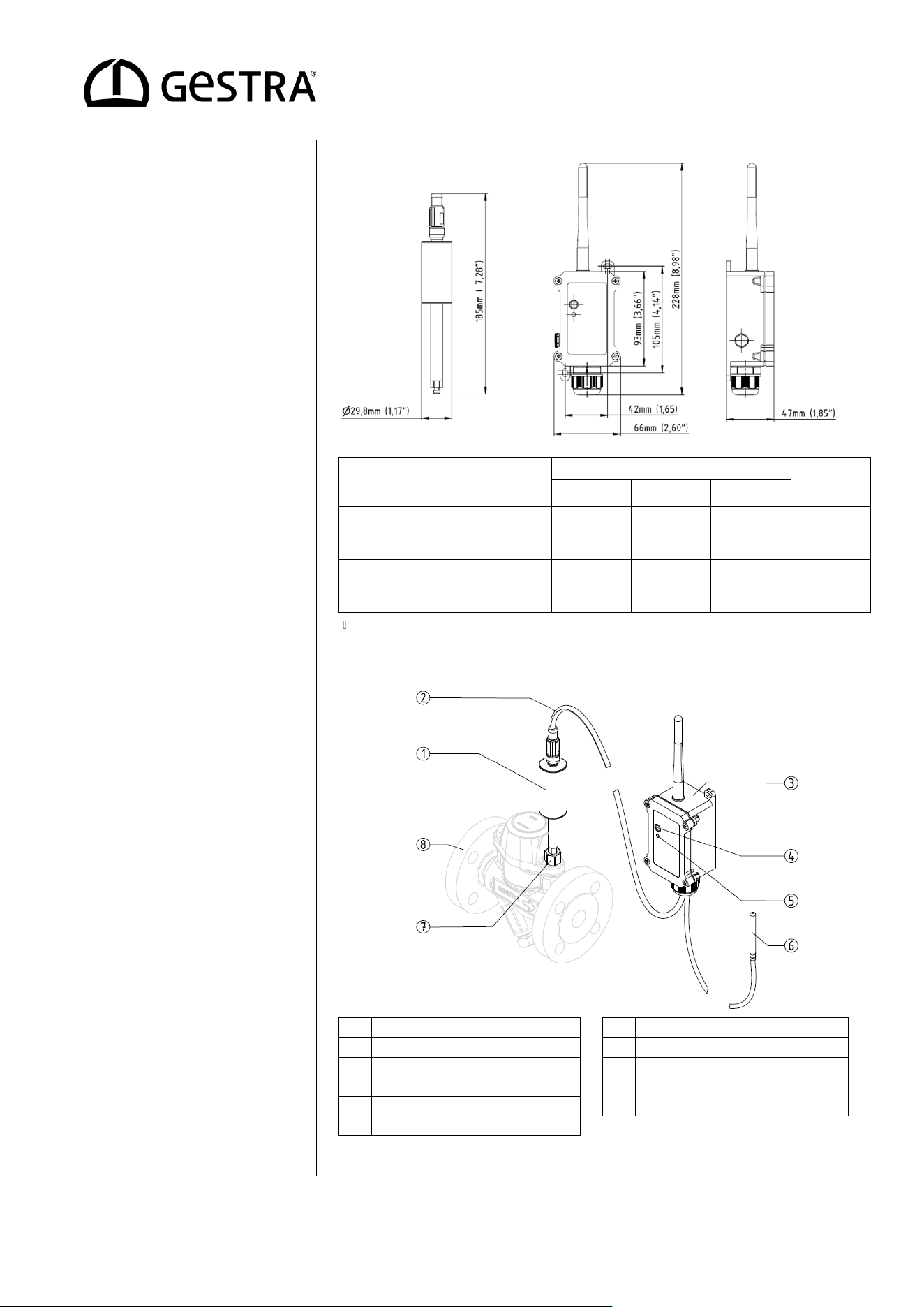

Dimensions and weight
Assembly
Measures mm(in)
Weight g (lbs)
Length/height
Wide/
Length/height
Sensor MSBS-2 (incl. Connector)
185 (7,28“) 29,8 (1,17“)
–
160 (0,35)
Cable (MSBN-2 to MSBS)
1
1.400 (55“)
– – –
Cable length of temperature sensor PT100
3.000 (118“)
– – –
LoRa Node MSBN-2
228 (9,0“) 66 (2,6“) 47 (1,85“) 200
(0,44)
2
1
Mounting dimension for cable fastening: 100 mm (3,94”), cable bending radius >25 mm (0,98”)
2
Including connection cable
MSB-2
Nr. Designation Nr. Designation
1 MSBS-2 sensor 6 Temperature sensor (PT100)
2 Connecting cable 7 Pressure-bearing screw PBS (accessory)
3 LoRa Node MSBN-2
8
Steam trap (BK 45 shown here as an
example)
4 Button
5 Status LED
851158-00
2025
4/6
MSBN-2 LoRa Node with MSBS Sensor
Performance profile
▪ Continuous steam trap monitoring for steam traps (e.g. GESTRA BK, MK and UNA)
▪ Measurement evaluation is carried out within the device.
▪ Measurement and evaluation results are included in the LoRa payload.
▪ Connection to LoRa network server via LoRaWAN radio technology (AES encryption).
▪ Optional: Display of measurement and evaluation results on the GESTRA Dashboard. For
this, data from the LoRa network server is securely transmitted to the GESTRA Dashboard
using TCP-IP with the latest TLS version.
CoMApp
▪ Fast and efficient support during installation and maintenance of continuous steam trap
monitoring
▪ Transmits metadata of installed devices and ensures unmistakable integration into the
GESTRA IoT platform
▪ Requires a data connection (Wi-Fi or mobile data) to load the MSB app or transmit data. Use
of the MSB app without an active data connection is also possible.
GESTRA Dashboard
The equipment can be connected to the GESTRA dashboard, which offers the following advantages::
▪ Access to the GESTRA dashboard via a web page (logins are provided by GESTRA)
▪ Real-time display of measured data via a web browser
▪ Display of measurement and analysis results in the dashboard
▪ Summary of results from all condensate drainers
▪ Clear overview of the connected condensate drainers
▪ Ability to correlate live data from the condensate drainers with live data from other devices
(e.g., steam boilers, steam flow meters)

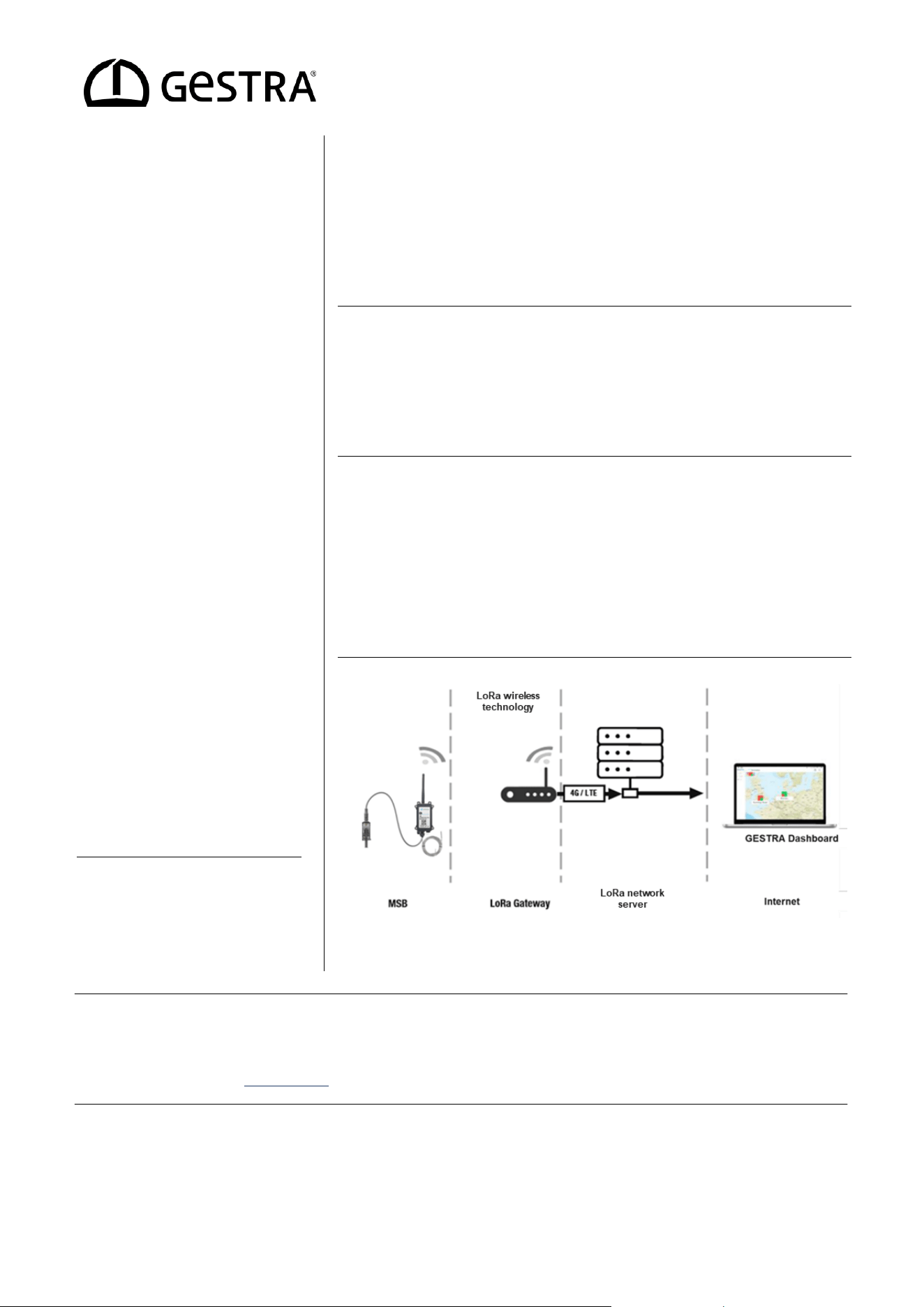

MSB Integration in Dashboard using LoRa wireless technology
GESTRA AG
Münchener Straße 77, 28215 Bremen, Germany
Telefon +49 421 3503-204 Telefax +49 421 3503-393
E-mail info@de.gestra.com, Web www.gestra.com
809256-00/mm-2025 cmp · GESTRA AG · Bremen
How to order
MSBN-2 LoRa Node with MSBS Sensor
The continuous steam trap monitoring
system MSB-2 consists of a sensor and a LoRa
node for the automatic inspection of steam traps
for steam losses and condensate backup.
Early detection and reporting of defective
steam traps is achieved through monitoring
using temperature measurements and
ultrasonic measurements via a piezoelectric
element.
Measurements are carried out continuously
and automatically at regular intervals.
The recorded data is analyzed within the
LoRa node and transmitted to the LoRa
gateway (accessory). Data transmission is
carried out via LoRa radio technology.
Options
Connection to the GESTRA dashboard for
visualizing the measured values and derived
figures such as CO₂ emissions and costs due to
steam losses.
Accessories
• Pressure bearing srew (PBS) made of steel
or stainless steel for mounting on GESTRA
steam traps
• 90° adapter (ADP)
• Strainer cap with sensor interface (STC)
• Clamps (RFC) for mounting on pipelines
• LoRa gateway
Further accessories are available on request.
Please not our general terms of business
Directives and standards
You can find details on the conformity of the
equipment and the relevant standards and
directives, where applicable, in the
Declaration of Conformity and associated
certificates or approvals.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
IC Caution:：
This device complies with Innovation, Science, and Economic Development Canad licence-
exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes:
(1) l'appareil nedoit pas produire de brouillage, et
5/6
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
FCC/IC Radiation Exposure Statement:
This equipment complies with FCC/ISED radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator& your body.
L'appareil est conforme aux limites d'exposition aux rayonnements spécifiées par la
FCC/ISED pour les environnements non contrôlés. La distance entre le radiateur et
le corps doit être d'au moins 20 cm lors de l'installation et du fonctionnement de
l'appareil.
