TR6A800S1 Wifi6+Ble 5.2 Module User Manual

V0.1 - Feb. 2025

TR6A800S1 datasheet

S P E C I F I C A T I O N

TR6A800S1

IEEE 802.11b/g/n/ax SDIO 1T1R+BLE 5.2

Combo Module

If one receives this document from Truly Electronics Co., Ltd. (hereinafter referred to as "Truly Electronics"), it indicates that one has agreed

to the following terms. If one does not consent to the following terms, please cease the use of this document.

The copyright of this document is owned by Truly Electronics Co., Ltd., and any rights not explicitly granted herein are reserved. This

document involves the proprietary information of Truly Electronics. Without the prior written permission of Truly Electronics, no entity or

individual may duplicate, disseminate, distribute, utilize or disclose this document, as well as any pictures, tables, data and other

information contained therein.

This product conforms to the design requirements regarding environmental protection and personal safety. The storage, use and disposal

of the product should comply with the requirements stipulated in the product manual, relevant contracts or relevant national laws and

regulations.

The company reserves the right to modify and improve the products described in this manual without prior notification; meanwhile, it

reserves the right to revise or withdraw this manual at any time.

If there is any ambiguity or obscurity in the text of this user manual, please consult the company or the distributor promptly.

Address: North Of The Dong Chong Road,Truly IndustrialArea, Shanwei City,Guangdong Province,China.

Website:https://www.truly.com.hk

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

Contents

1. Device Overview ...........................................................................................................................................3

1.1 Descriptions ........................................................................................................................................... 3

1.2 Features ................................................................................................................................................. 3

1.2.1 General Features ............................................................................................................................3

1.2.2 Wi-Fi Key Features ......................................................................................................................... 3

1.2.3 Bluetooth Key Features .................................................................................................................. 4

1.3 Functional Block Diagram ...................................................................................................................... 5

2. Pin Configuration and Functions .................................................................................................................. 5

2.1 Module Pin Diagram ...............................................................................................................................5

2.2 Pin Functions ......................................................................................................................................... 6

3. Specifications ............................................................................................................................................... 8

3.1 General Characteristics ......................................................................................................................... 8

3.2 RF Characteristics ..................................................................................................................................9

3.2.1 Receiver RF Specifications ............................................................................................................ 9

3.2.2 Transmitter RF Specifications ...................................................................................................... 11

3.2.3 Bluetooth RF Specifications ......................................................................................................... 13

4. Application and Implementation ................................................................................................................. 14

4.1 Application Diagram .............................................................................................................................14

5. Mechanical and Package ........................................................................................................................... 15

5.1 Mechanical Size ................................................................................................................................... 15

5.2 Recommended Land Pattern ...............................................................................................................15

5.3 Package Information ............................................................................................................................ 16

6. Thermal Reflow .......................................................................................................................................... 16

7. Ordering Information .................................................................................................................................. 17

8. Revision History ..........................................................................................................................................17

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

1. Device Overview

1.1 Descriptions

The TR6A800S1 is a highly integrated module that supports 1T1R 802.11 b/g/n/ax with Wireless

LAN (WLAN) SDIO (SDIO 1.1/2.0/3.0) interface controller and

BLE5.2 for wireless application

combined with BPSK, QPSK, 16QAM, 64QAM 、 256QAM and up to 1024QAM modulation of the

individual subcarriers, and compatible coding rate of 1/2, 2/3, 3/4, 5/6, provide up to 286Mbps for IEEE

802.11ax. The TR6A800S1 MAC supports 802.11e for multimedia applications, 802.11i and WAPI for

security.The TR6A800S1 provides a complete solution for a high-performance integrated wireless and

Bluetooth device.It suitable for STB,TVs,tablets,phones,IPC and other fields such as consumer

electronic devices, and can also be applied to the fields with high reliability requirements,such as

industrial interconnection.

The TR6A800S1 provides a complete solution for a high-performance integrated wireless and

Bluetooth device.

1.2 Features

1.2.1 General Features

 Supports 3.3V power supply

 Supports SDIO/USB2.0/HCI_UART/PCM interface

 Integrated low power timer and watchdog

 512 bits eFuse

 CMOS MAC, Baseband PHY and RF in a single module for IEEE 802.11b/g/n/ax compatible WLAN

 IEEE 802.11i (WPA, WPA2, WPA3). Open, shared key, and pair-wise key authentication services

 IEEE 802.11k Radio Resource Measurement

 WAPI(Wireless Authentication Privacy Infrastructure) certified

 Wi-Fi Direct supports wireless peer to peer application

 IEEE802.11h DFS,TPC,Spectrum Measurement

1.2.2 Wi-Fi Key Features

 IEEE 802.11b/g/n/ax compatible WLAN

 CMOS single-chip fully-integrated RF, Modem and MAC

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

 Support 2.4GHz Wi-Fi6

 Support 20/40MHz bandwidth

 Data rates up to 286.8Mbps@TX and 229.4Mbps@RX

 Support STA, AP, Wi-Fi Direct modes concurrently

 Support STBC, beamforming

 Support Wi-Fi6 TWT

 Support Two NAV, Buffer Report, Spatial reuse, Multi-BSSID, intra-PPDU power save

 Support LDPC

 Support MU-MIMO, OFDMA

 Support DCM, Mid-amble, UORA

 OFDM with BPSK, QPSK, 16QAM, 64QAM and 256QAM and 1024QAM modulation. Convolutional

Coding Rate: 1/2, 2/3, 3/4, and 5/6

 Support WEP/WPA/WPA2/WPA3-SAE Personal, MFP

1.2.3 Bluetooth Key Features

 Supports all the mandatory and optional features of Bluetooth Low Energy

 HS-UART /SDIO3.0/USB2.0 as HCI

 PCM/IIS interface for audio data transmission

 Supports advanced master and slave topologies

 Use an optimization method to assess channel quality, AFH enhancement

 Support SCO and eSCO link

 CVSD/MSBC/PLC

 SSP/Secure Connection

 Low power mode (sniff, sniff sub-rating)

 Supports LE Audio

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

1.3 Functional Block Diagram

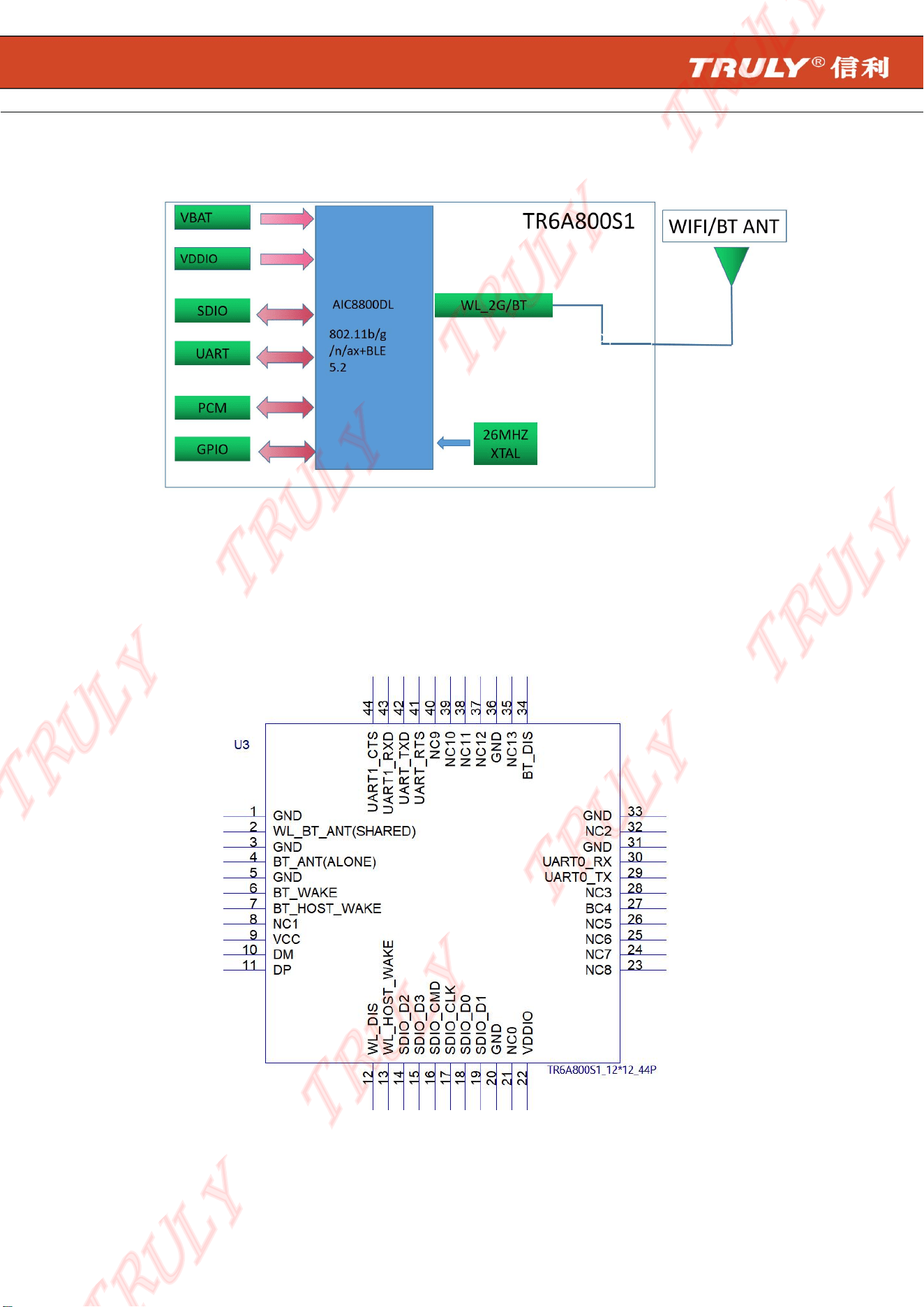

Figure 1. Block Diagram of TR6A800S1

2. Pin Configuration and Functions

2.1 Module Pin Diagram

Figure 2.Pin Diagram of TR6A800S1

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

2.2 Pin Functions

Pin Name

Description

GND Ground

ANT WLAN and BT RF input/output port

GND Ground

4 NC No connect, keep floating

NC No connect, keep floating

6 HOST_WAKE_BT/TCK Host wake up BT

7 BT_WAKE_HOST/TMS BT wake up Host

8 GND Ground

9 VBAT 3.3V power supply

10 USB-DM USB data plus

11 USB-DP USB data minus

12 WL_REG_ON Chip Enable pin(high enable/ low disable)

13 WL_WAKE_HOST WLAN wake up Host

14 SDIO_DATA_2 SDIO port data 2

15 SDIO_DATA_3 SDIO port data 3

16 SDIO_CMD SDIO Command line

17 SDIO_CLK SDIO Clock line

18 SDIO_DATA_0 SDIO port data 0

19 SDIO_DATA_1 SDIO port data 1

20 GND Ground

21 NC No connect, keep floating

22 VDDIO I/O power supply

23 NC No connect, keep floating

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

24 NC No connect, keep floating

25 PCM_OUT PCM data output

26 PCM_CLK PCM clock

27 PCM_IN PCM data input

28 PCM_SYNC PCM sync signal

29 UART0_TX GPIO

30 UART0_RX GPIO

31 GND Ground

32 NC No connect, keep floating

33 GND Ground

34 HOST_WAKE_WL Host wake up WLAN

35 NC No connect, keep floating

36 GND Ground

37 NC No connect, keep floating

38 NC No connect, keep floating

39 NC No connect, keep floating

40 NC No connect, keep floating

41 UART_RTS High-Speed UART1 TX

42 UART_TXD No connect, keep floating

43 UART_RXD No connect, keep floating

44 UART_CTS High-Speed UART1 RX

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

3. Specifications

3.1 General Characteristics

Category Descriptions

Dimension L*W*H :12.0mm (±0.3mm)*12.0mm (±0.3mm)*2.1mm (±0.2mm)

Standard IEEE 802.11b/g/n/ax+BLE 5.2

Frequency Band 2.4GHZ Band: 2412~2500MHZ

Bandwidth

20/40 MHz

Data Security WEP,WPA/WPA2/WPA3

Frequency Error

<±20ppm/802.11b/g/n/ax

Rx Sensitivity

2.4G:

11b 11M:-91dBm@8% PER

11g 54M: -77dBm@10% PER

11n HT20 MCS7: -75dBm@10% PER

11n HT40 MCS7: -72dBm@10% PER

11ax HE40 MCS11: -62dBm@ 10% PER

Data Rate

802.11b [11,5.5,2 and 1Mbps]

802.11g [54,48,36,24,18,12,9&6Mbps]

802.11n HT20:up to 72.2Mbps

802.11n HT40:up to 150Mbps

802.11ax HE20:up to 143.4Mbps

802.11ax HE40:up to 286.8Mbps

Ambient Temperature -30℃~70℃

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

Storage Temperature -40℃~85℃

Antenna External antenna

Operating System Linux /Android

Operating Voltage VBAT:3.3V;VDDIO:1.8V or 3.3V

3.2 RF Characteristics

All measurements are made under nominal supply voltage, room temperature and conducted conditions at

each antenna port rather than antenna.

3.2.1 Receiver RF Specifications

Parameter Conditions Min. Nom. Max. Unit

Receive input frequency

2.4GHz

802.11b/g/n/ax

mode

2400 - 2500 MHz

Receiver sensitivity

802.11b

1Mbps

FER<8%,

Packet size=

1,024bytes

- - -82 dBm

2Mbps - - -80 dBm

5.5Mbps - - -78 dBm

11Mbps - - -76 dBm

802.11g

6Mbps

PER<10%,

Packet size=

1,024bytes

- - -82 dBm

9Mbps - - -81 dBm

12Mbps - - -79 dBm

18Mbps - - -77 dBm

24Mbps - - -74 dBm

36Mbps - - -70 dBm

48Mbps - - -66 dBm

54Mbps - - -65 dBm

MCS0. - - -82 dBm

MCS1. - - -79 dBm

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

802.11n

(HT20)

PER<10%,

Packet size=

4,096bytes

MCS2 - - -77 dBm

MCS3. - - -74 dBm

MCS4. - - -70 dBm

MCS5. - - -66 dBm

MCS6. - - -65 dBm

MCS7. - - -64 dBm

802.11n

(HT40)

MCS0.

PER<10%,

Packet size=

4,096bytes

- - -79 dBm

MCS1. - - -77 dBm

MCS2 - - -74 dBm

MCS3. - - -71 dBm

MCS4. - - -67 dBm

MCS5. - - -63 dBm

MCS6. - - -62 dBm

MCS7. - - -61 dBm

802.11ax

(HE20)

MCS0.

PER<10%,

Packet size=

4,096bytes

- - -82 dBm

MCS1. - - -79 dBm

MCS2 - - -77 dBm

MCS3. - - -74 dBm

MCS4. - - -70 dBm

MCS5. - - -66 dBm

MCS6. - - -65 dBm

MCS7. - - -64 dBm

MCS8. - - -59 dBm

MCS9. - - -57 dBm

MCS10. - - -54 dBm

MCS11. - - -52 dBm

MCS7.

-61

dBm

MCS0.

PER<10%,

Packet size=

4,096bytes

- - -79 dBm

MCS1. - - -76 dBm

MCS2 - - -74 dBm

MCS3. - - -71 dBm

MCS4. - - -67 dBm

MCS5. - - -63 dBm

MCS6. - - -62 dBm

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

MCS8.

-56

dBm

MCS9.

-54

dBm

MCS10.

-51

dBm

MCS11.

-49

dBm

Maximum input level

802.11b

FER<8%

-10

dBm

802.11g

FER<10%

-20

dBm

802.11n

FER<10%

-30

dBm

802.11ax

FER<10%

-20

dBm

3.2.2 Transmitter RF Specifications

MCS7. - - -61 dBm

MCS8. - - -56 dBm

MCS9. - - -54 dBm

MCS10. - - -51 dBm

MCS11. - - -49 dBm

Maximum input level

802.11b FER<8% -10 - - dBm

802.11g FER<10% -20 - - dBm

802.11n FER<10% -30 dBm

802.11ax FER<10% -20 dBm

Parameter Condition Min. Nom. Max. Unit.

Receive input frequency

802.11b/g/n/ax 2.4GHz 2400 - 2500 MHz

Transmit power

802.11b 11Mbps 17 17.62 19 dBm

802.11g 54Mbps dBm

802.11n

HT20, MCS7 dBm

HT40, MCS7 dBm

802.11ax

HE20,MCS11 dBm

HE40,MCS11 dBm

Spectrum mask

802.11b

-22MHz<f<f

-11MHz&f

+11MHz<f

+22MHz

- - -30 dBr

-55MHz<f<f

-22MHz&f

+22MHz<f

+55MHz

- - -50 dBr

802.11g

±9MHz

- - 0 dBr

±11MHz

- - -20 dBr

±20MHz

- - -28 dBr

±30MHz

- - -40 dBr

±9MHz

- - 0 dBr

±11MHz

- - -20 dBr

TRULY

17 18.17 19

17 18.88 19

17 18.16 19

17 18.6 19

17 18.62 19

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

24Mbps - - -16 dB

36Mbps - - -19 dB

48Mbps - - -22 dB

54Mbps - - -25 dB

802.11n

MCS0. - - -5 dB

MCS1. - - -10 dB

MCS2 - - -13 dB

MCS3. - - -16 dB

MCS4. - - -19 dB

MCS5. - - -22 dB

MCS6. - - -25 dB

MCS7. - - -28 dB

MCS0. - - -5 dB

MCS1. - - -10 dB

MCS2 - - -13 dB

MCS3. - - -16 dB

802.11n

±20MHz

- - -28 dBr

±30MHz

- - -45 dBr

802.11ax (HE40)

±19.5MHz

- - 0 dBr

±20.5MHz

- - -20 dBr

±40MHz

- - -28 dBr

±60MHz

- - -40 dBr

Center frequency tolerance

802.11b -25 - +25 ppm

802.11g/n/ax -20 - +20 ppm

EVM (Error Vector Magnitude)*

802.11b

1Mbps - - 35 %

2Mbps - - 35 %

5.5Mbps - - 35 %

11Mbps - - 35 %

802.11g

6Mbps - - -5 %

9Mbps - - -8 dB

12Mbps - - -10 dB

18Mbps - - -13 dB

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

802.11ax

MCS4. - - -19 dB

MCS5. - - -22 dB

MCS6. - - -25 dB

MCS7. - - -27 dB

MCS8. - - -30 dB

MCS9. - - -32 dB

MCS10. - - -35 dB

MCS11. - - -35 dB

3.2.3 Bluetooth RF Specifications

Parameter Conditions Minimum Typical Maximum Unit

Frequency range 2402 2480 MHz

LE 1M - -95 - dBm

LE 2M - -93 - dBm

Output power

Class 1/GFSK 2.28 dBm

Class 2/GFSK 0.3 1.84

2.3 dBm

TRULY

0.3

2.3

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

4. Application and Implementation

4.1 Application Diagram

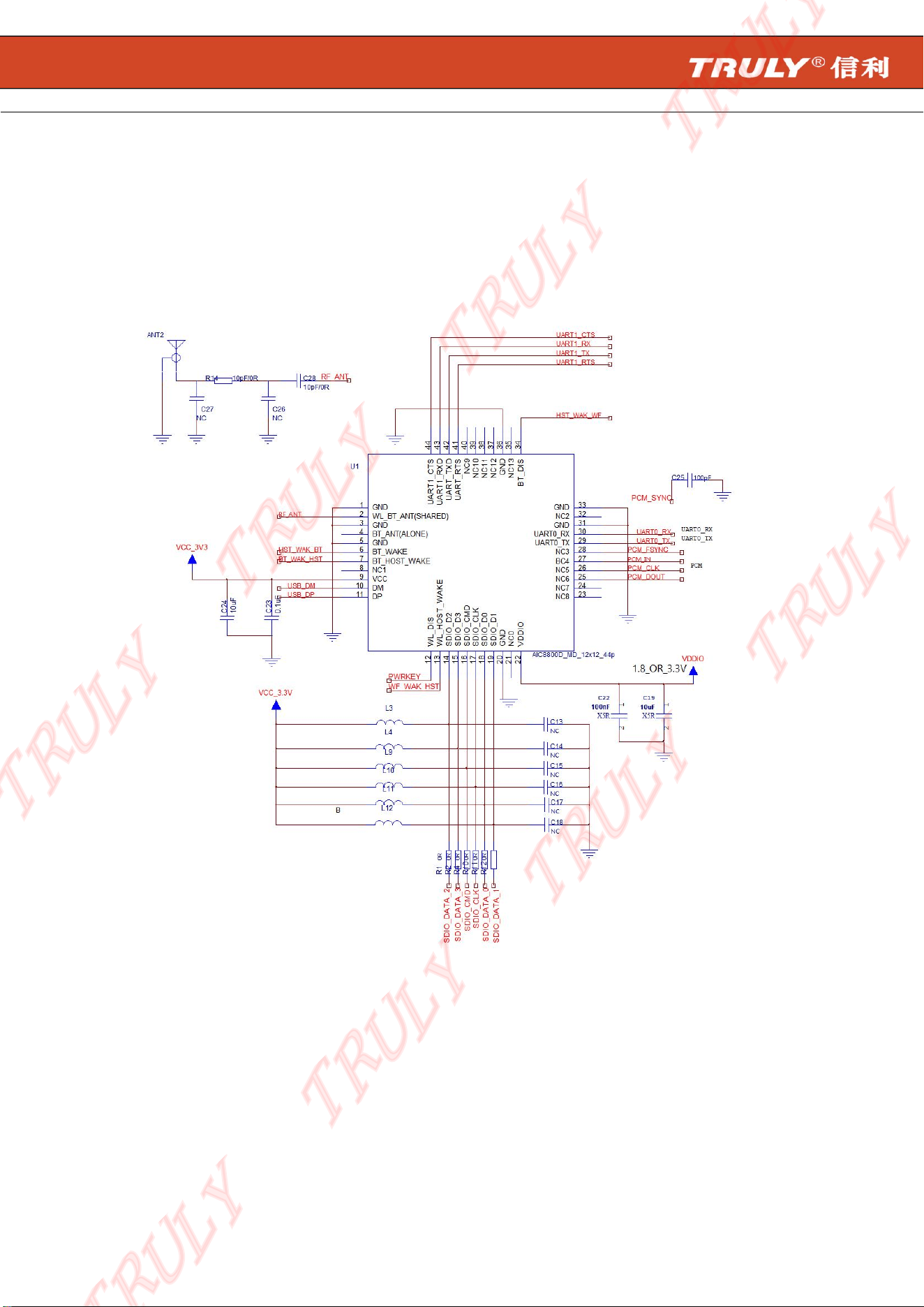

Figure 3. Application Schematic Diagram of TR6A800S1

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

5. Mechanical and Package

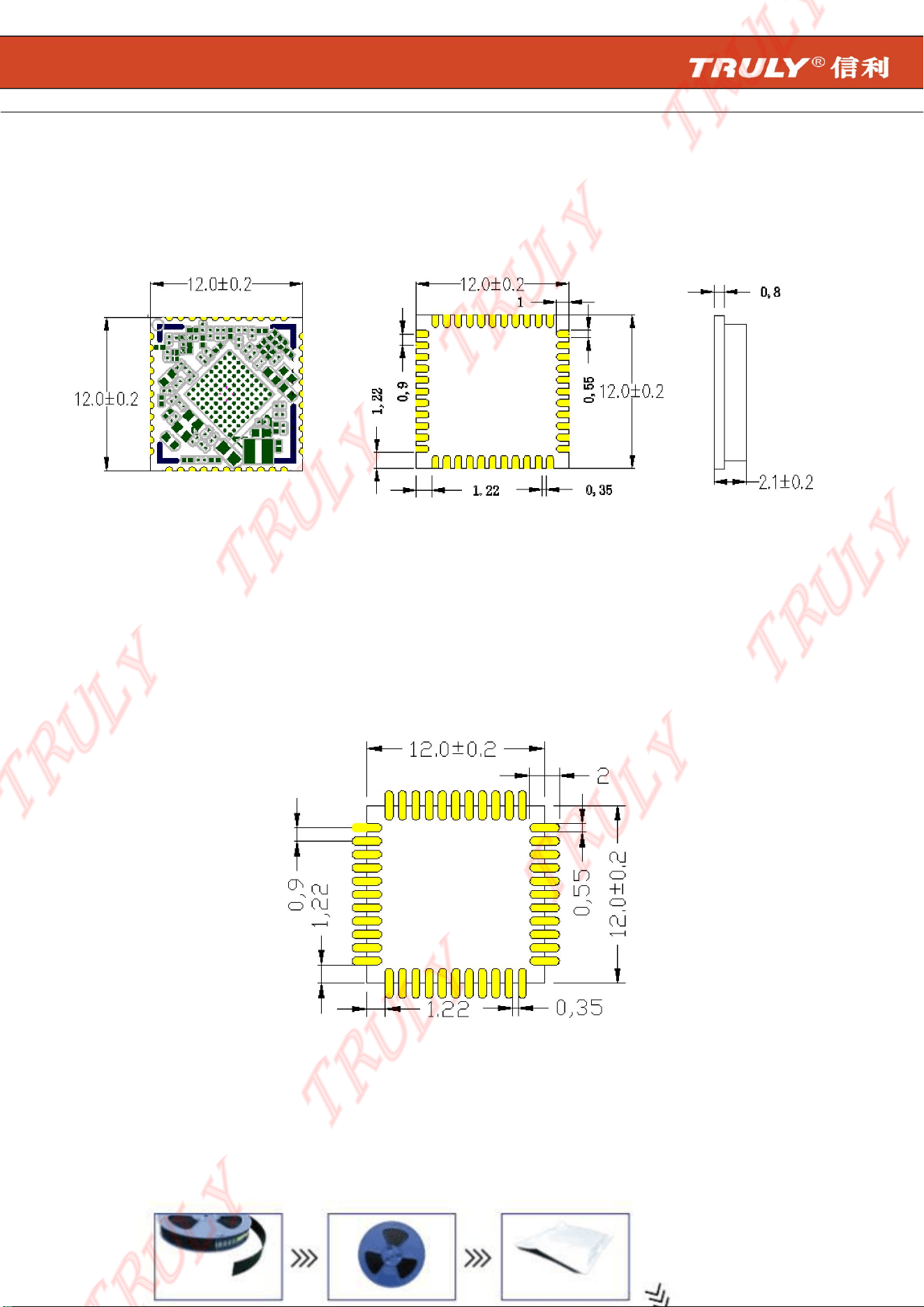

5.1 Mechanical Size

Note:L*W*H: 12.0mm (±0.3mm)*12.0mm (±0.3mm)*2.1mm (±0.2mm)

Figure 4. Mechanical Size of TR6A800S1

5.2 Recommended Land Pattern

Figure 5. On Board Pad Suggest: (Unit: mm)

5.3 Package Information

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

Figure 6. Brief Packaging Process of TR5R822S2 Modules

6. Thermal Reflow

Referred to IPC/JEDEC standard.

Peak temperature: <250°C

Number of times: ≤2

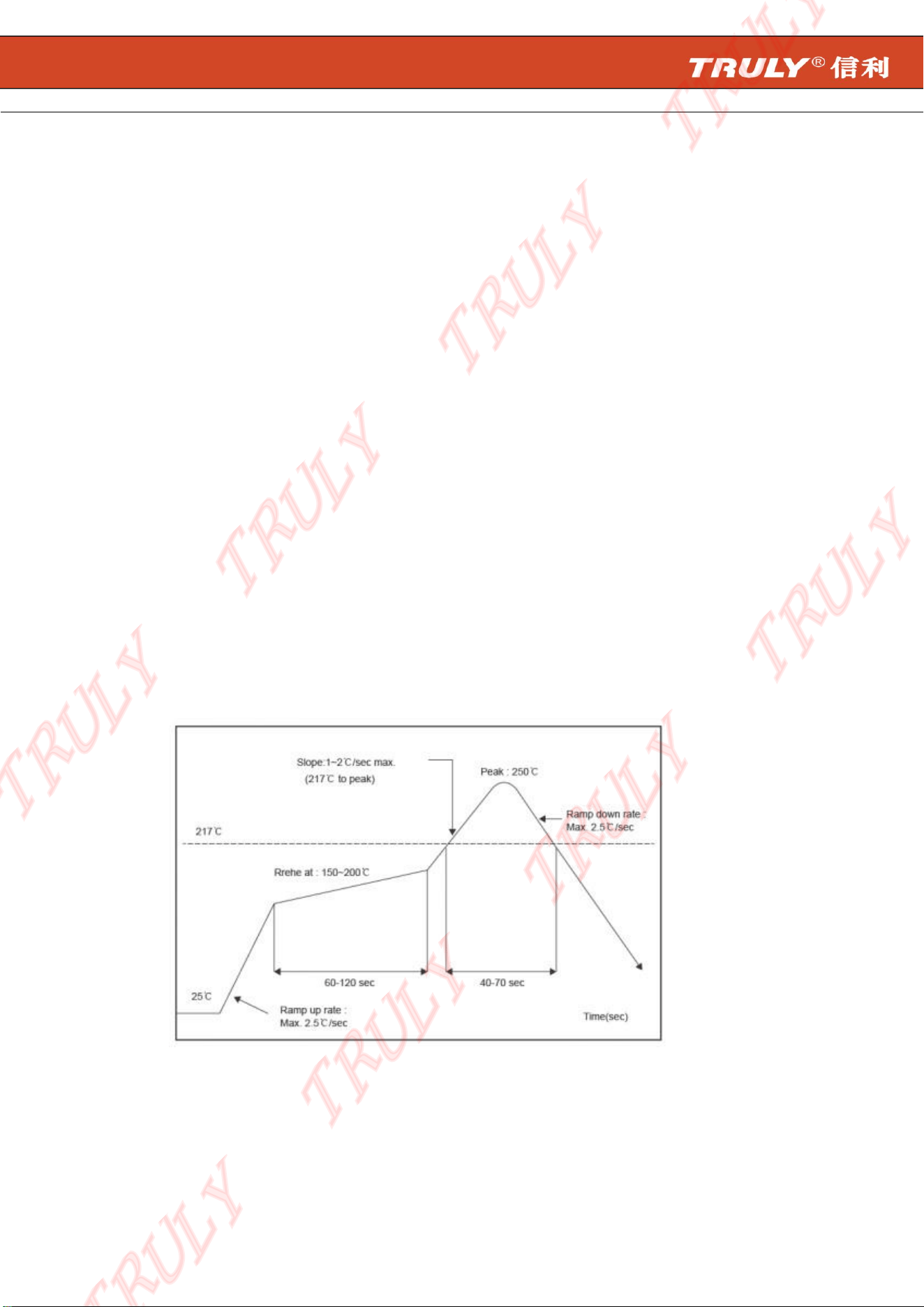

Figure 7. Recommended Reflow for Lead Free Solder

Note: The module is recommended not to go through reflow oven twice.

7. Ordering Information

TRULY

V0.1 - Feb. 2025

Page

of 17

TR6A800S1 datasheet

8. Revision History

Part NO. Working Voltage ANT Shielding Cover Remark

TR6A800S1 3.3V 1 antennas Included SDIO

Version Change Content Reviser Date

V0.1 Draft Version Grant 2025.02.22

TRULY

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired

operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

The modular can be installed or integrated in mobile or fix devices only. This modular cannot be

installed in any portable device.

Any company of the host which install this modular with Single modular approval should perform the test

of radiated emissionand spurious emission according to FCC part 15C : 15.247 and 15.209 requirement,

Only if the test result comply with FCC part 15C : 15.247 and 15.209 requirement, then the host can be

sold legally.

FCC Radiation Exposure Statement

This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between

the radiator and user body.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates

uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help.

OEM INTEGRATION INSTRUCTIONS:

This device is intended only for OEM integrators under the following conditions:

The module must be installed in the host equipment such that 20 cm is maintained between the antenna

and users, and the transmitter module may not be co-located with any other transmitter or antenna. The

module shall be only used with the internal on-board antenna that has been originally tested and certified

with this module. External antennas are not supported. As long as these 3 conditions above are met,

further transmitter test will not be required.

However, the OEM integrator is still responsible for testing their end-product for any additional compliance

requirements required with this module installed (for example, digital device emissions, PC peripheral

requirements, etc.). The end-product may need Verification testing, Declaration of Conformity testing, a

Permissive Class II Change or new Certification. Please involve a FCC certification specialist in order to

determine what will be exactly applicable for the end-product.

Validity of using the module certification:

In the event that these conditions cannot be met (for example certain laptop configurations or co-location

with another transmitter), then the FCC/IC authorization for this module in combination with the host

equipment is no longer considered valid and the FCC ID/IC of the module cannot be used on the final

product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product

(including the transmitter) and obtaining a separate FCC authorization. In such cases, please involve a

FCC/IC certification specialist in order to determine if a Permissive Class II Change or new Certification is

required.

Upgrade Firmware:

The software provided for firmware upgrade will not be capable to affect any RF parameters as certified

for the FCC/IC for this module, in order to prevent compliance issues.

End product labeling:

This transmitter module is authorized only for use in device where the antenna may be installed such that

20 cm may be maintained between the antenna and users. The final end product must be labeled in a

visible area with the following: “Contains FCC ID: 2BOHY-800S1”.

Information that must be placed in the end user manual:

The OEM integrator has to be aware not to provide information to the end user regarding how to install

or remove this RF module in the user's manual of the end product which integrates this module. The end

user manual shall include all required regulatory information/warning as show in this manual.

2.2 List of applicable FCC rules

List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically

establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies.

DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B/ICES-003) since that is not a

condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below

concerning the need to notify host manufacturers that further testing is required.

Explanation: This module meets the requirements of FCC part 15C(15.247)

2.3 Summarize the specific operational use conditions

Describe use conditions that are applicable to the modular transmitter, including for example any limits

on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or

compensation for cable loss, then this information must be in the instructions. If the use condition

limitations extend to professional users, then instructions must state that this information also extends

to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such

as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands.

Explanation:

2.4 Limited module procedures

If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible

for approving the host environment that the limited module is used with. The manufacturer of a limited

module must describe, both in the filing and in the installation instructions, the alternative means that

the limited module manufacturer uses to verify that the host meets the necessary requirements to

satisfy the module limiting conditions.

A limited module manufacturer has the flexibility to define its alternative method to address the

conditions that limit the initial approval, such as: shielding, minimum signaling amplitude, buffered

modulation/data inputs, or power supply regulation. The alternative method could include that the

limited module manufacturer reviews detailed test data or host designs prior to giving the host

manufacturer approval.

This limited module procedure is also applicable for RF exposure evaluation when it is necessary to

demonstrate compliance in a specific host. The module manufacturer must state how control of the

product into which the modular transmitter will be installed will be maintained such that full

compliance of the product is always ensured. For additional hosts other than the specific host

originally granted with a limited module, a Class II permissive change is required on the module grant

to register the additional host as a specific host also approved with the module.

Explanation: The Module is not a limited module.

2.5 Trace antenna designs

For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB

Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information

shall include for the TCB review the integration instructions for the following aspects: layout of trace

design, parts list (BOM), antenna, connectors, and isolation requirements.

a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length,

width, shape(s),

dielectric constant, and impedance as applicable for each type of antenna);

b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency,the

wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c)

The parameters shall be provided in a manner permitting host manufacturers to design the printed

circuit (PC) board layout;

d) Appropriate parts by manufacturer and specifications;

The EUT has one external dipole antenna, the antenna cannot be replaced by other authorized

antennas, and the gain of each replacement antenna is no more than 2.5dBi

2.6 RF exposure considerations

It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a

host product manufacturer to use the module. Two types of instructions are required for RF exposure

information: (1) to the host product manufacturer, to define the application conditions (mobile, portable

– xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to

provide to end users in their end-product manuals. If RF exposure statements and use conditions are not

provided, then the host product manufacturer is required to take responsibility of the module through a

change in FCC ID/IC (new application).

Explanation: This module complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment, This equipment should be installed and operated with a minimum distance of 20

centimeters between the radiator and your body." This module is designed to comply with the FCC

statement, “Contains Transmitter Module FCC ID: 2BOHY-800S1 Or Contains FCC ID:

2BOHY-800S1”.

2.7 Antennas

A list of antennas included in the application for certification must be provided in the instructions. For

modular transmitters approved as limited modules, all applicable professional installer instructions must

be included as part of the information to the host product manufacturer. The antenna list shall also

identify the antenna types (monopole, PIFA, dipole, etc. (note that for example an “omni-directional

antenna” is not considered to be a specific “antenna type”)).

For situations where the host product manufacturer is responsible for an external connector, for example

with an RF pin and antenna trace design, the integration instructions shall inform the installer that

unique antenna connector must be used on the Part 15 authorized transmitters used in the host product.

The module manufacturers shall provide a list of acceptable unique connectors.

Explanation: The EUT has a Dipole antenna, and the antenna utilizes an RA-SMA connector, making it

difficult to replace.

Brand Model Name Antenna Type Connector Gain (dBi) Note

TRULY A25458101 Dipole RA-SMA

2.4G:2.5 2400-2500MHz

e) Test procedures for design verification; and

f) Production test procedures for ensuring compliance.

The module grantee shall provide a notice that any deviation(s) from the defined parameters of the

antenna trace, as described by the instructions, require that the host product manufacturer must notify

the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive

change application is required to be filed by the grantee, or the host manufacturer can take

responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive

change application.

Explanation:

No, The module with a dipole antenna

2.8 Label and compliance information

Grantees are responsible for the continued compliance of their modules to the FCC/IC rules. This includes

advising host product manufacturers that they need to provide a physical or e-label stating

“Contains FCC ID” with their finished product. See Guidelines for Labeling and User Information for RF

Devices – KDB Publication 784748.

Explanation: The host system using this module, should have label in a visible area indicated the following

texts: “Contains Transmitter Module FCC ID: 2BOHY-800S1 Or Contains FCC ID:

2BOHY-800S1”.

2.9 Information on test modes and additional testing requirements

Additional guidance for testing host products is given in KDB Publication 996369 D04 Module Integration

Guide. Test modes should take into consideration different operational conditions for a stand-alone

modular transmitter in a host, as well as for multiple simultaneously transmitting modules or other

transmitters in a host product.

The grantee should provide information on how to configure test modes for host product evaluation for

different operational conditions for a stand-alone modular transmitter in a host, versus with multiple,

simultaneously transmitting modules or other transmitters in a host.

Grantees can increase the utility of their modular transmitters by providing special means, modes, or

instructions that simulates or characterizes a connection by enabling a transmitter. This can greatly simplify

a host manufacturer’s determination that a module as installed in a host complies with FCC/IC

requirements.

Explanation: Host manufacturer must perfom test of radiated & conducted emission and spurious

emission, etc according to the actual test modes for a stand-alone modular transmitter in a host, as well as

for multiple simultaneously transmitting modules or other transmitters in a host product. Only when all

the test results of test modes comply with FCC requirements, then the end product can be sold legally.

2.10 Additional testing, Part 15 Subpart B/ICES-003 disclaimer

The grantee should include a statement that the modular transmitter is only FCC authorized for the specific

rule parts (i.e., FCC/IC transmitter rules) listed on the grant, and that the host product manufacturer is

responsible for compliance to any other FCC/IC rules that apply to the host not covered by the modular

transmitter grant of certification. If the grantee markets their product as being Part 15 Subpart B/ICES-003

compliant (when it also contains unintentional-radiator digital circuity), then the grantee shall provide a

notice stating that the final host product still requires Part 15 Subpart B/ICES-003 compliance testing with

the modular transmitter installed.

Explanation: The module without unintentional-radiator digital circuity, so the module does not require an

evaluation by FCC Part 15 Subpart B. The host shoule be evaluated by the FCC Subpart B.

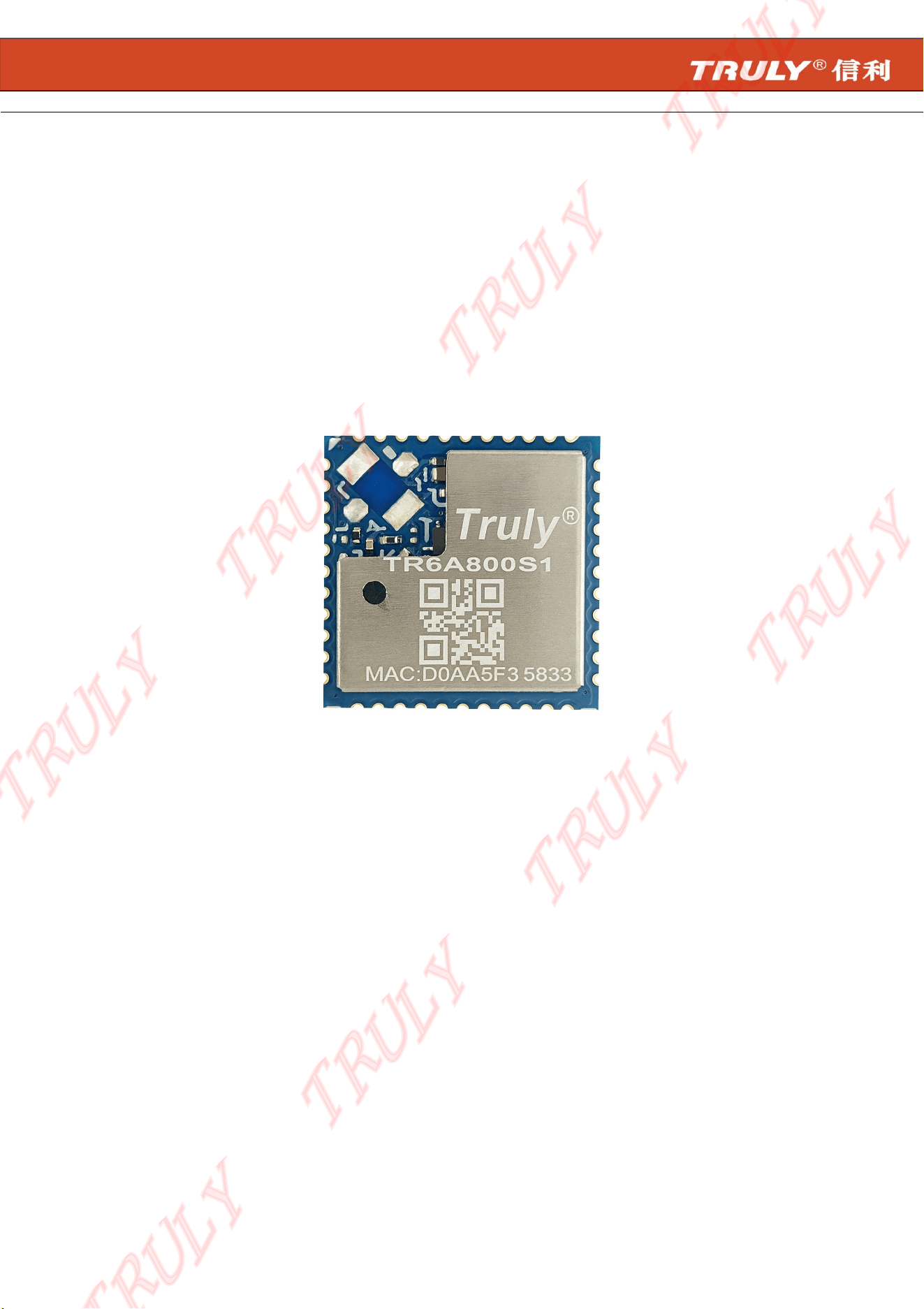

TR6A800S1 Wifi6+Ble 5.2 Module

Product's Documents

User Manual

Specifications

TRULY TR6A800S1 Questions and Answers

Related Products

FLUKE 1775 Three-Phase Power Quality Analyzer with current probes and WiFi/BLE adaptor, 8 kV

FLUKE 1777 Three-Phase Power Quality Analyzer with current probes and WiFi/BLE adaptor, 8 kV

Soundcore D2431 Nebula P1 Portable Projector with Detachable Modules, 650 ANSI Lumens, 1080P Full HD, 20W Truly 2.0 Surround Sound, 130° Built-in Gimbal, Auto Adjustment, 180 Big Screen, Carry Handle

Sony INZONE Buds Truly Wireless Gaming Headset WFG700N/B

Sony INZONE Buds Truly Wireless Gaming Headsets WFG700N/W

Oraimo OEB-E03D Roll Truly Wireless Earbuds Half in Ear Bluetooth Earbuds
