BenQ RCI080 Bt Remote User Manual

Digital Projector

User Manual

800ST

V 1.00

2 Warranty and Copyright information

Warranty and Copyright information

Limited warranty

BenQ warrants this product against any defects in material and workmanship, under normal

usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is

found to be defective within the warranty period, BenQ's only obligation and your exclusive

remedy shall be replacement of any defective parts (labor included). To obtain warranty

service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in

accordance with BenQ's written instructions, especially the ambient humidity must be

in-between 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 4920 feet,

and avoiding to operate the projector in a dusty environment. This warranty gives you specific

legal rights, and you may have other rights which vary from country to country.

For other information, please visit

www.BenQ.com.

reproduced, transmitted, transcribed, stored in a retrieval system or translated into any

language or computer language, in any form or by any means, electronic, mechanical,

magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ

Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with

respect to the contents hereof and specifically disclaims any warranties, merchantability or

fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this

publication and to make changes from time to time in the contents hereof without obligation to

notify any person of such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are

copyrights of their respective companies or organizations.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI

Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

4 Table of Contents

Table of Contents

Warranty and Copyright information .............................................................................. 2

Important safety instructions ......................................................................................... 5

Introduction ................................................................................................................... 8

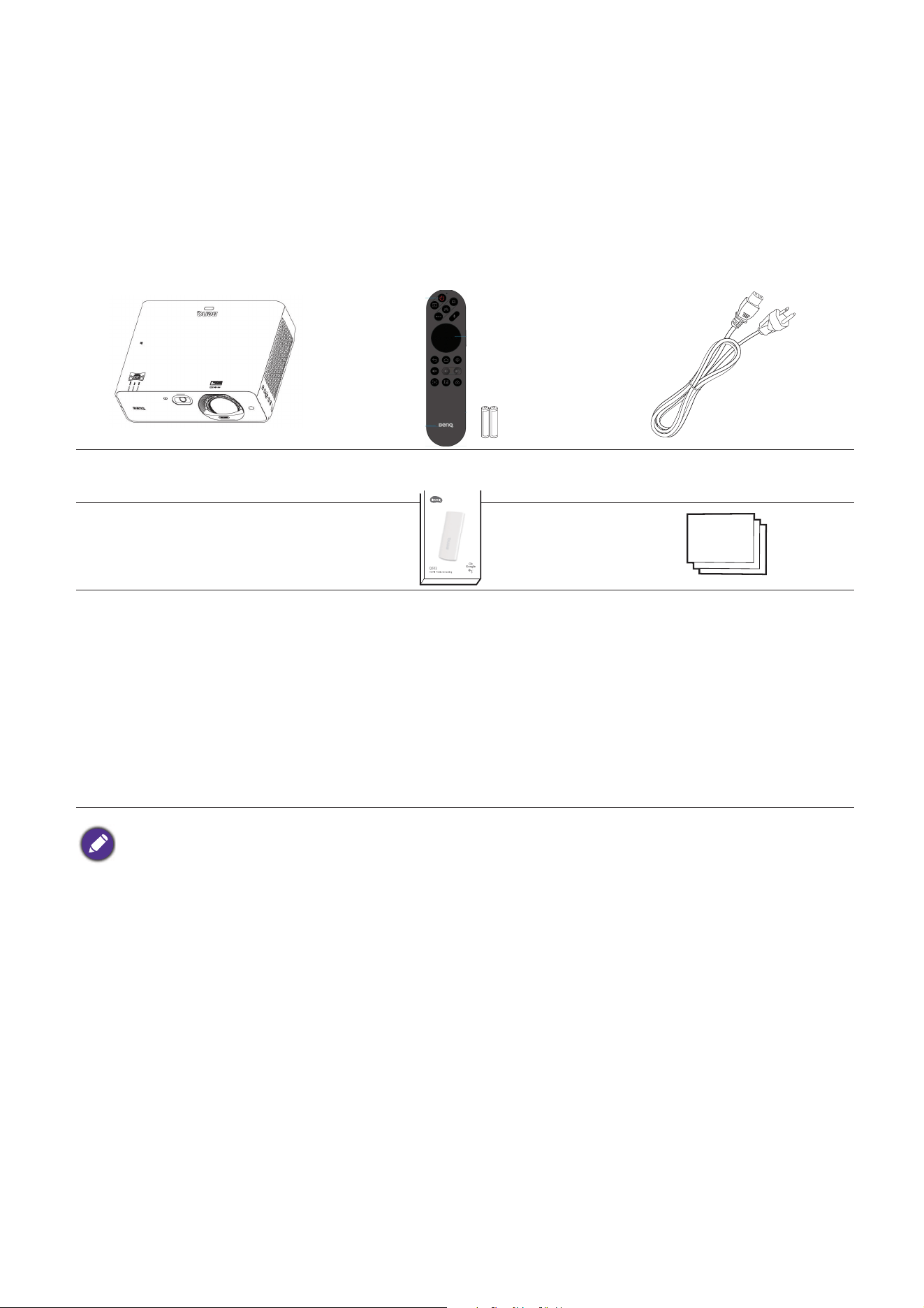

Shipping contents ............................................................................................................. 8

Projector exterior view ................................................................................................... 11

Terminals ........................................................................................................................ 12

Controls and functions................................................................................................... 13

Positioning your projector ............................................................................................ 15

Choosing a location ........................................................................................................ 15

Obtaining a preferred projected image size.................................................................. 16

Mounting the projector ................................................................................................... 17

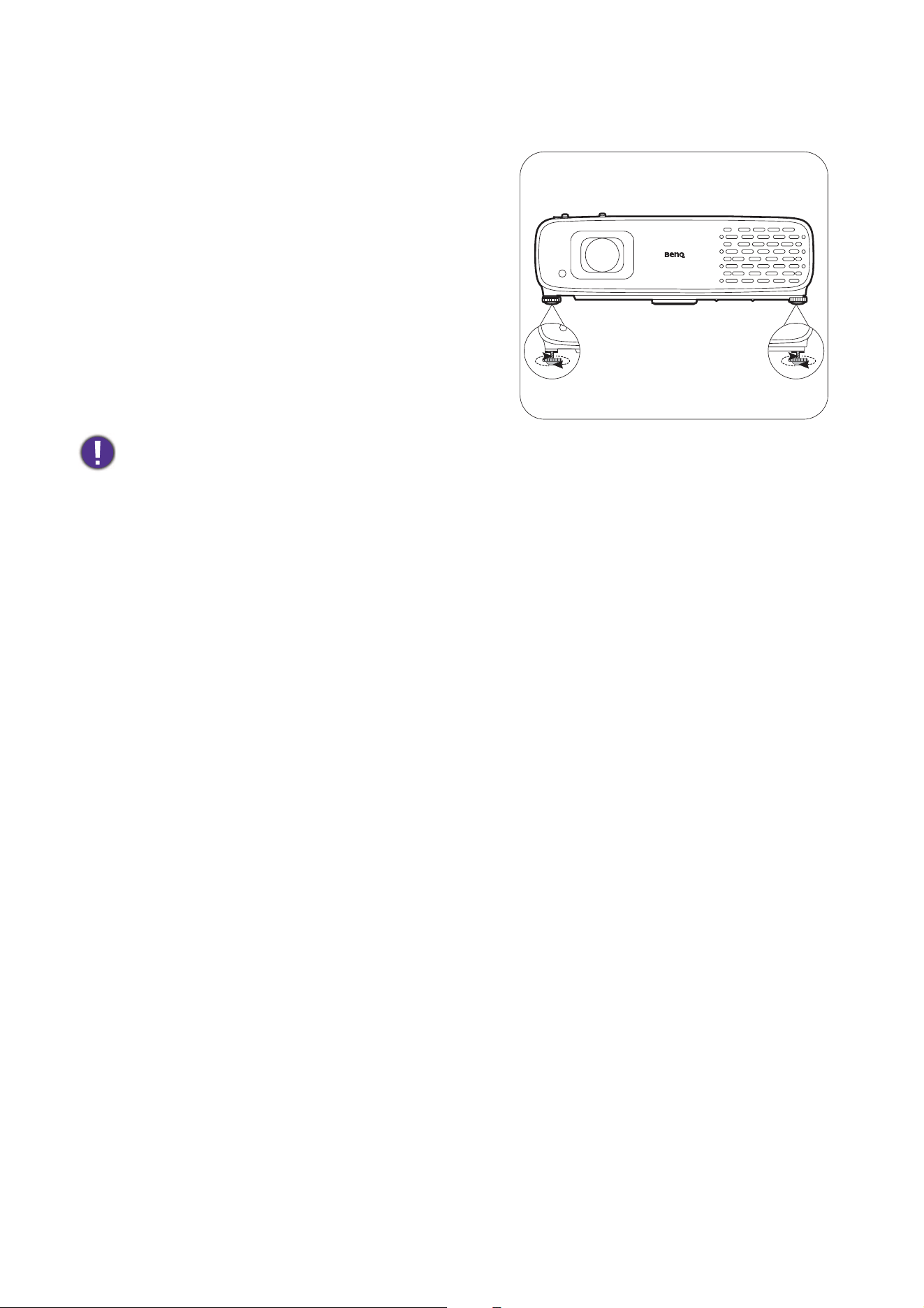

Adjusting the projector position .................................................................................... 19

Adjusting the projected image....................................................................................... 20

Connection .................................................................................................................. 22

Operation ..................................................................................................................... 23

Starting up the projector ................................................................................................ 23

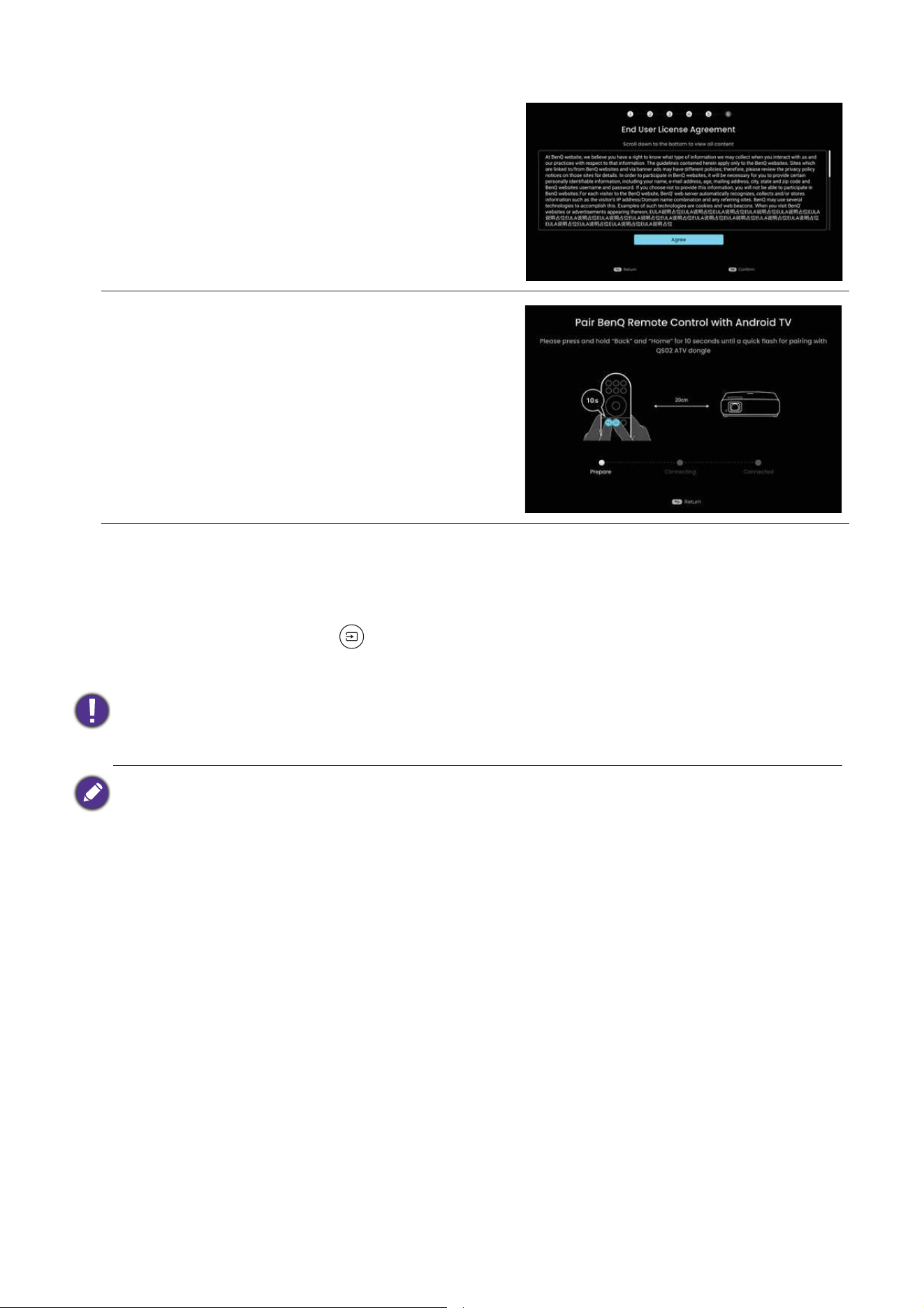

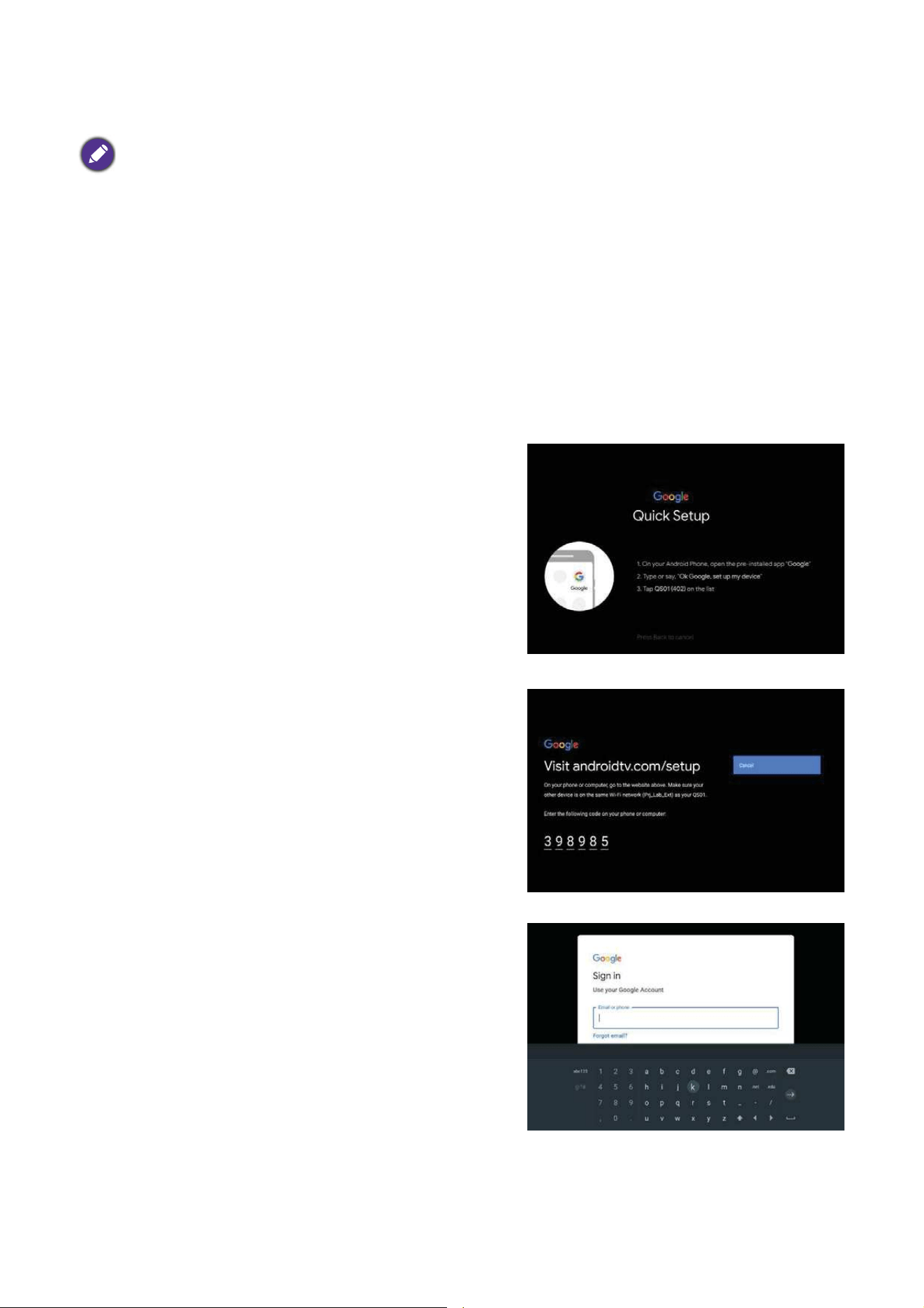

Setting up the Android TV dongle (regional specific) .................................................. 26

Using the menus............................................................................................................. 28

Securing the projector .................................................................................................... 29

Switching input signal .................................................................................................... 29

Presenting from a Media Reader................................................................................... 30

Shutting down the projector........................................................................................... 31

Menu operation ........................................................................................................... 32

Basic menu ..................................................................................................................... 32

Advanced menu.............................................................................................................. 33

Maintenance ................................................................................................................ 50

Care of the projector ....................................................................................................... 50

Light source information................................................................................................ 51

Troubleshooting .......................................................................................................... 54

Specifications .............................................................................................................. 55

Projector specifications ................................................................................................. 55

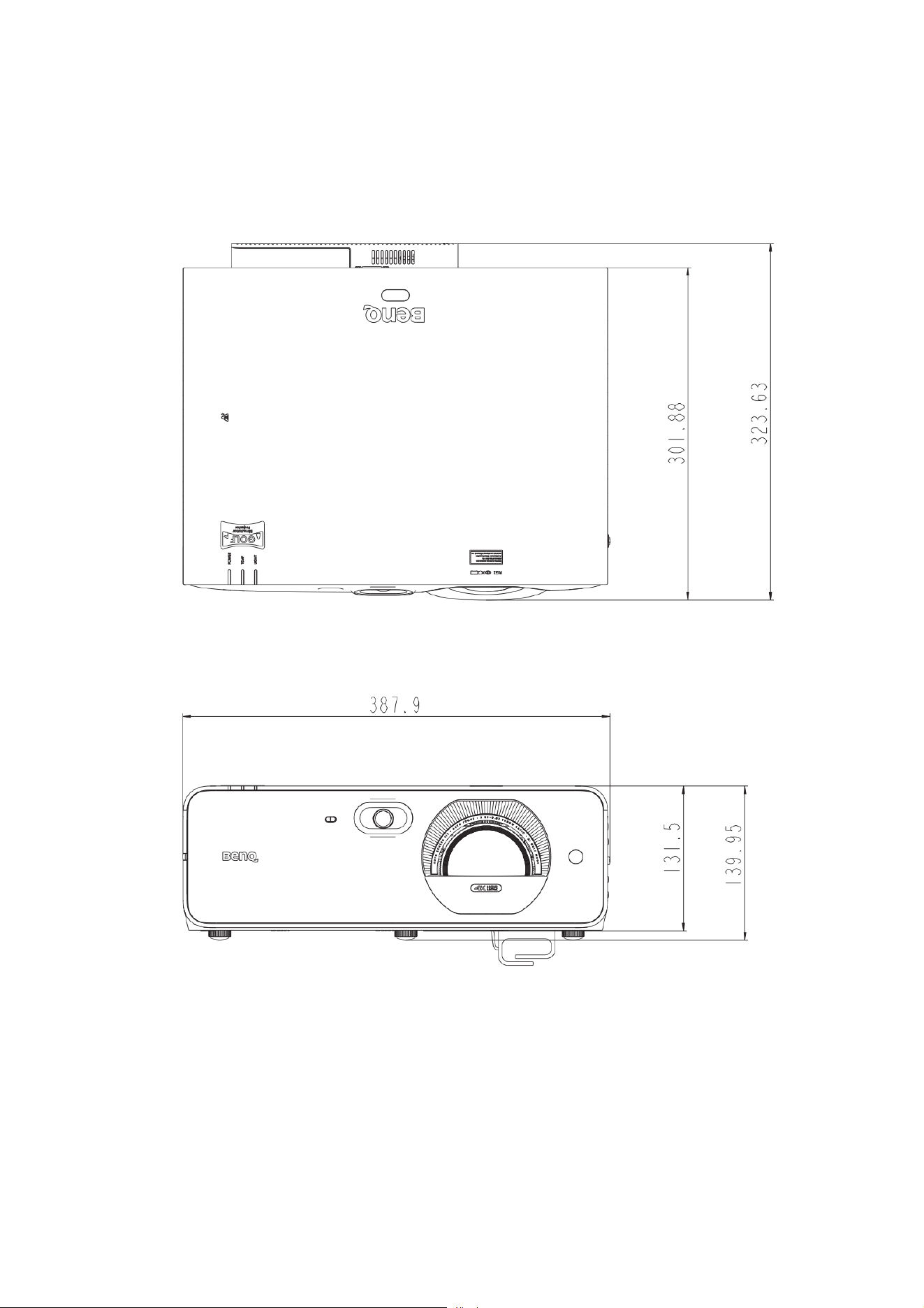

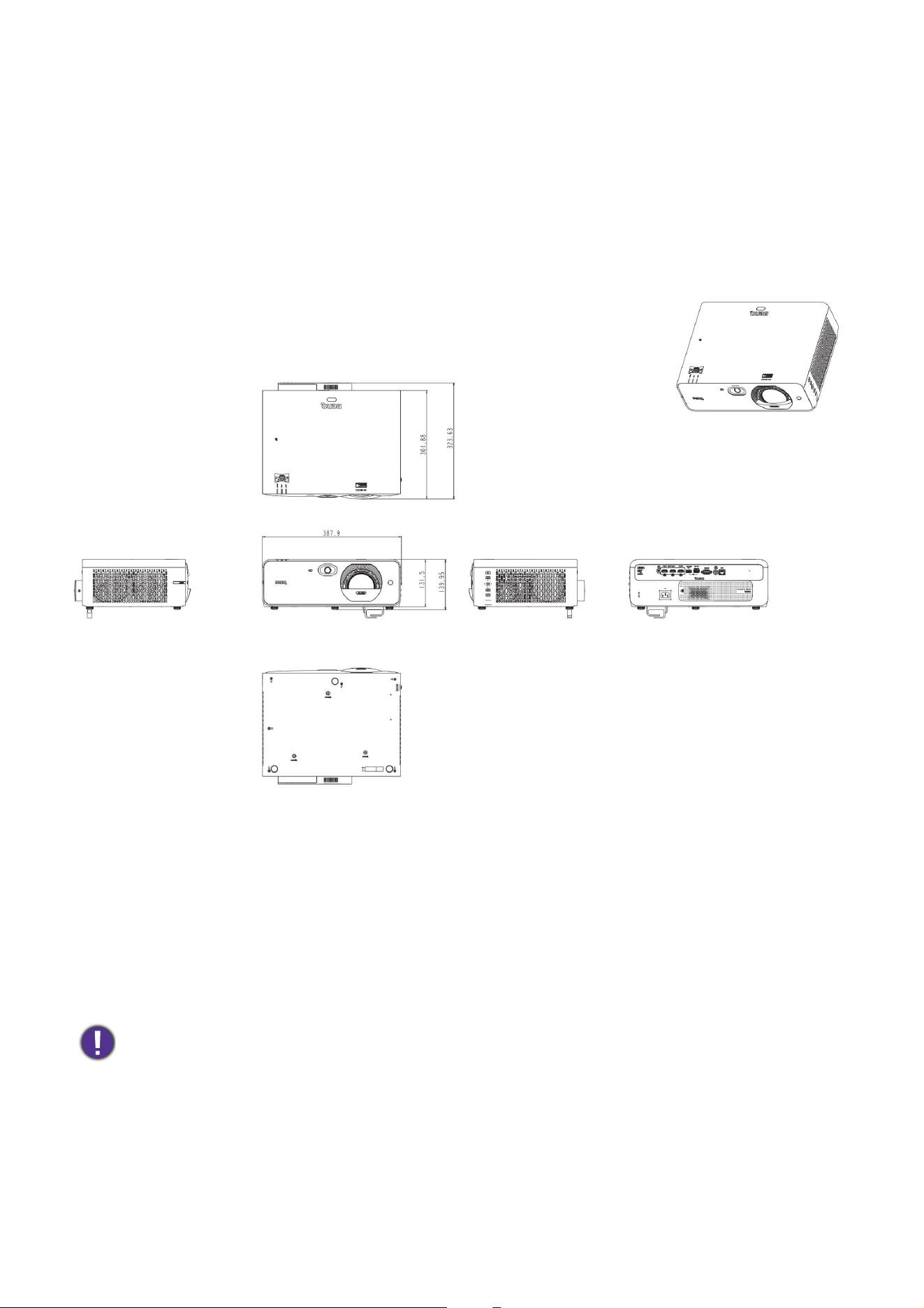

Dimensions ..................................................................................................................... 56

Timing chart.................................................................................................................... 57

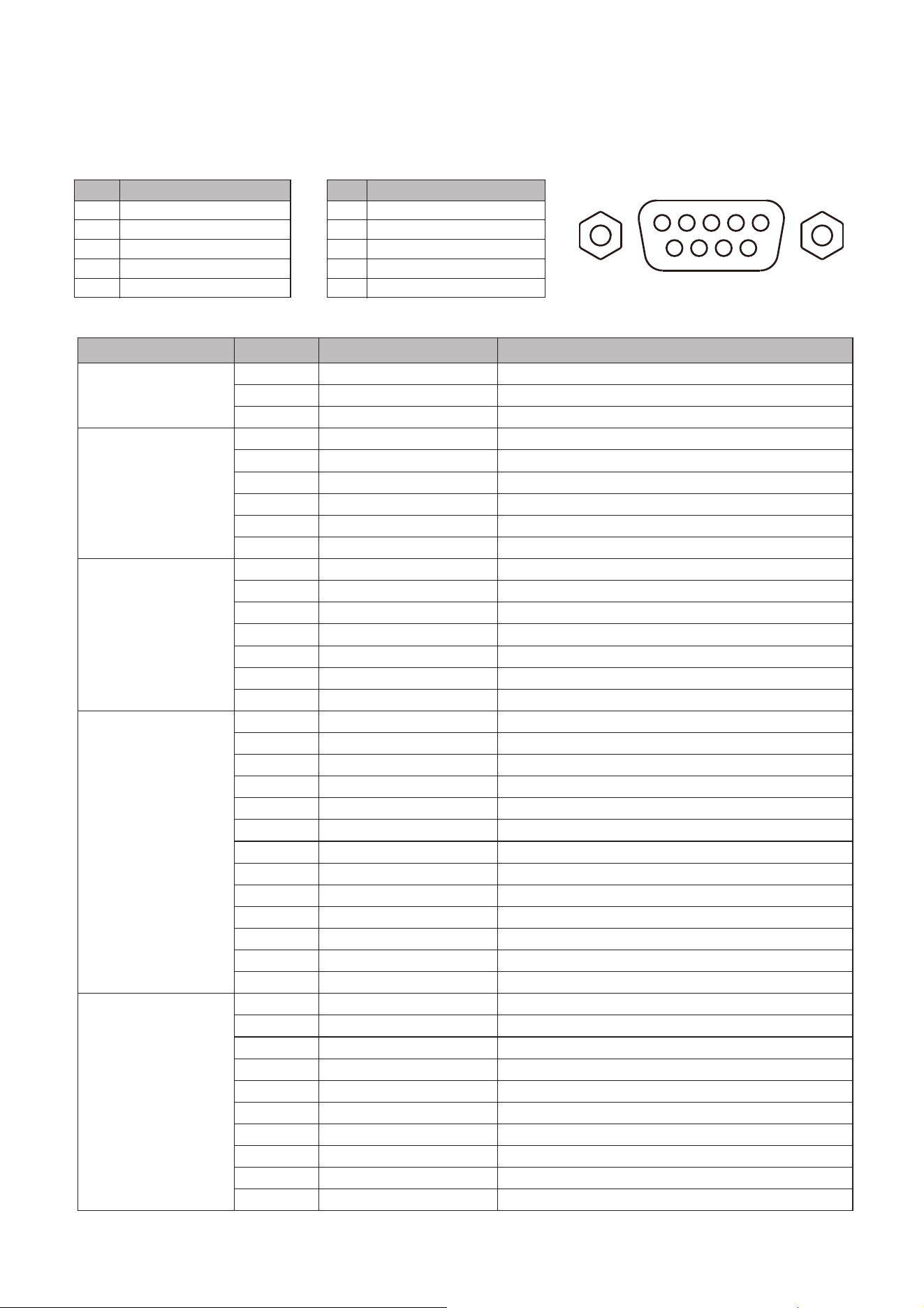

RS232 command ............................................................................................................ 60

5Important safety instructions

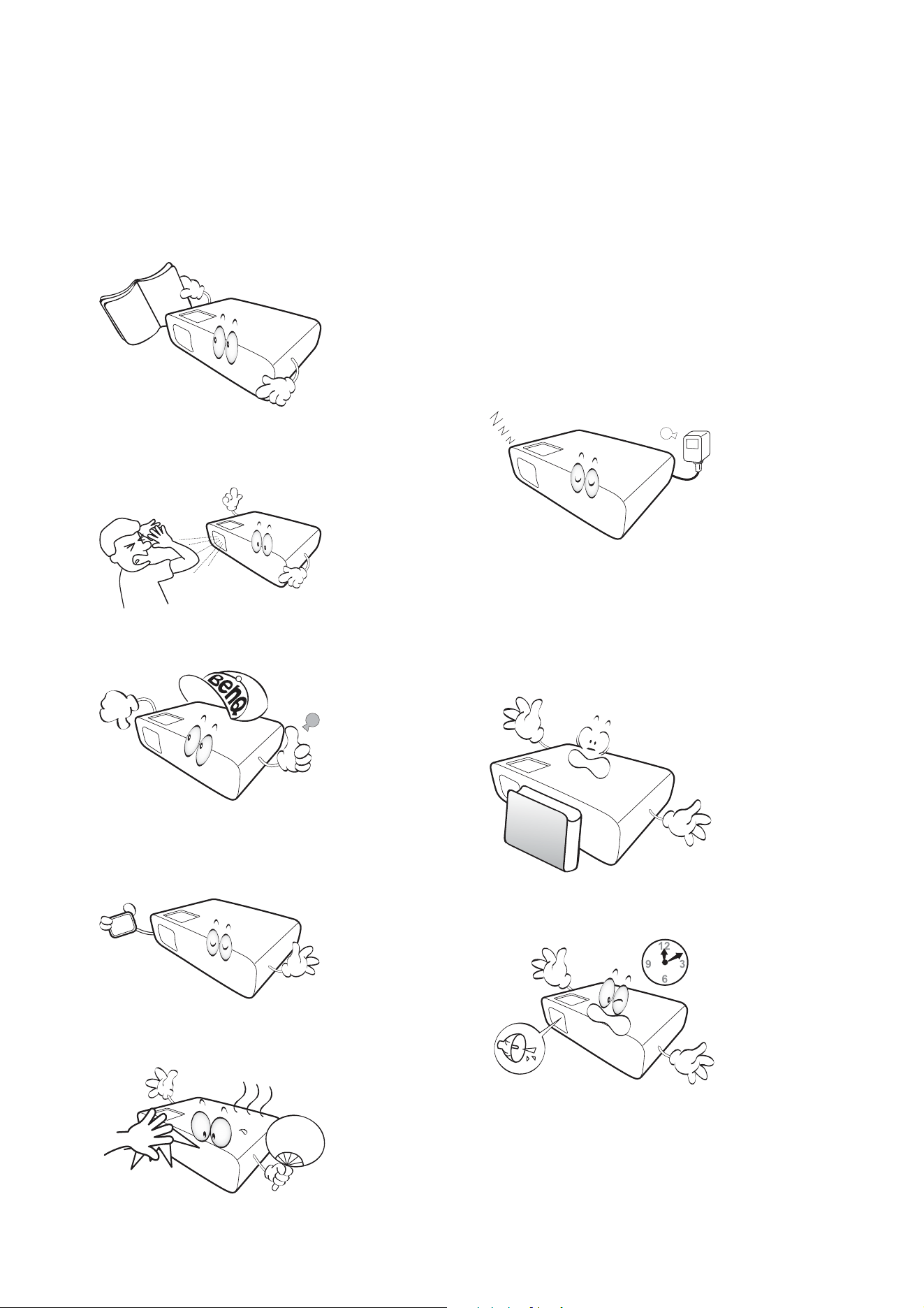

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you

follow the instructions mentioned in this manual and marked on the product.

1. Please read this manual before you

operate your projector. Save it for future

reference.

6. In some countries, the line voltage is

NOT stable. This projector is designed to

operate safely within a mains voltage

between 100 to 240 volts AC, but could

fail if power cuts or surges of ±10 volts

occur. In areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect your

projector through a power stabilizer,

surge protector or uninterruptible power

supply (UPS).

7. Do not block the projection lens with any

objects when the projector is under

operation as this could cause the

objects to become heated and deformed

or even cause a fire. To temporarily turn

off the light source, press the ECO

BLANK button.

8. Do not operate light sources beyond the

rated light source life.

2. Do not look straight at the projector lens

during operation. The intense light beam

may damage your eyes.

3. Refer servicing to qualified service

personnel.

4. Always open the lens shutter (if any)!or

remove the lens cap (if any) when!the

projector light source is on.

5. The light source becomes extremely hot

during operation.

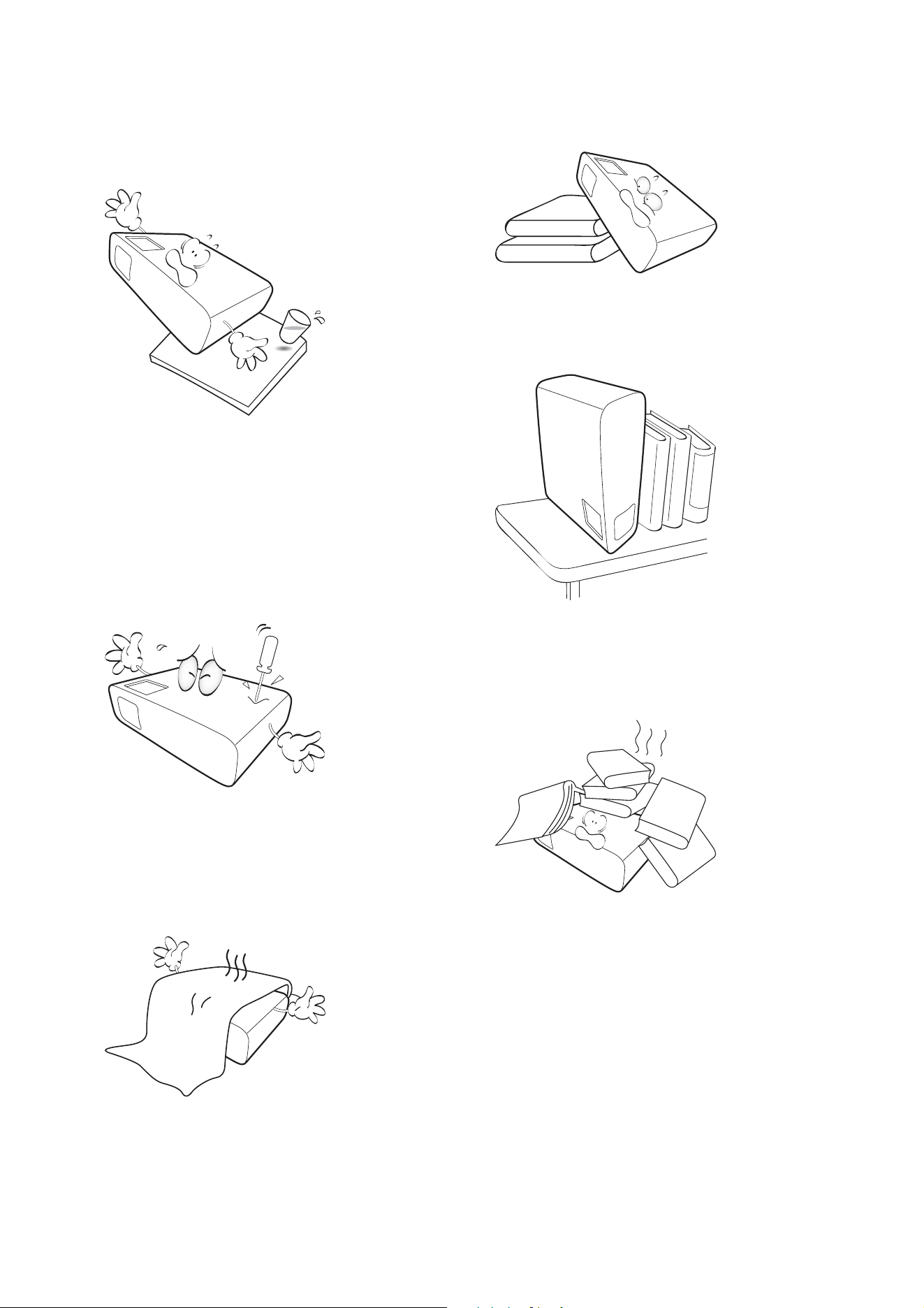

6 Important safety instructions

9. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

10. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death

if you should come into contact with

live parts.

Under no circumstances should you

ever undo or remove any other covers.

Refer servicing only to suitably qualified

professional service personnel.

11. Do not block the ventilation holes.

- Do not place this projector on a blanket,

bedding or any other soft surface.

- Do not cover this projector with a cloth or any

other item.

- Do not place inflammables near the projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

12. Always place the projector on a level,

horizontal surface during operation.

13. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

14. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector, doing

so may result in accidents and possible

injury.

15. When the projector is under operation,

you may sense some heated air and

odor from its ventilation grill. It is a

normal phenomenon and not a product

defect.

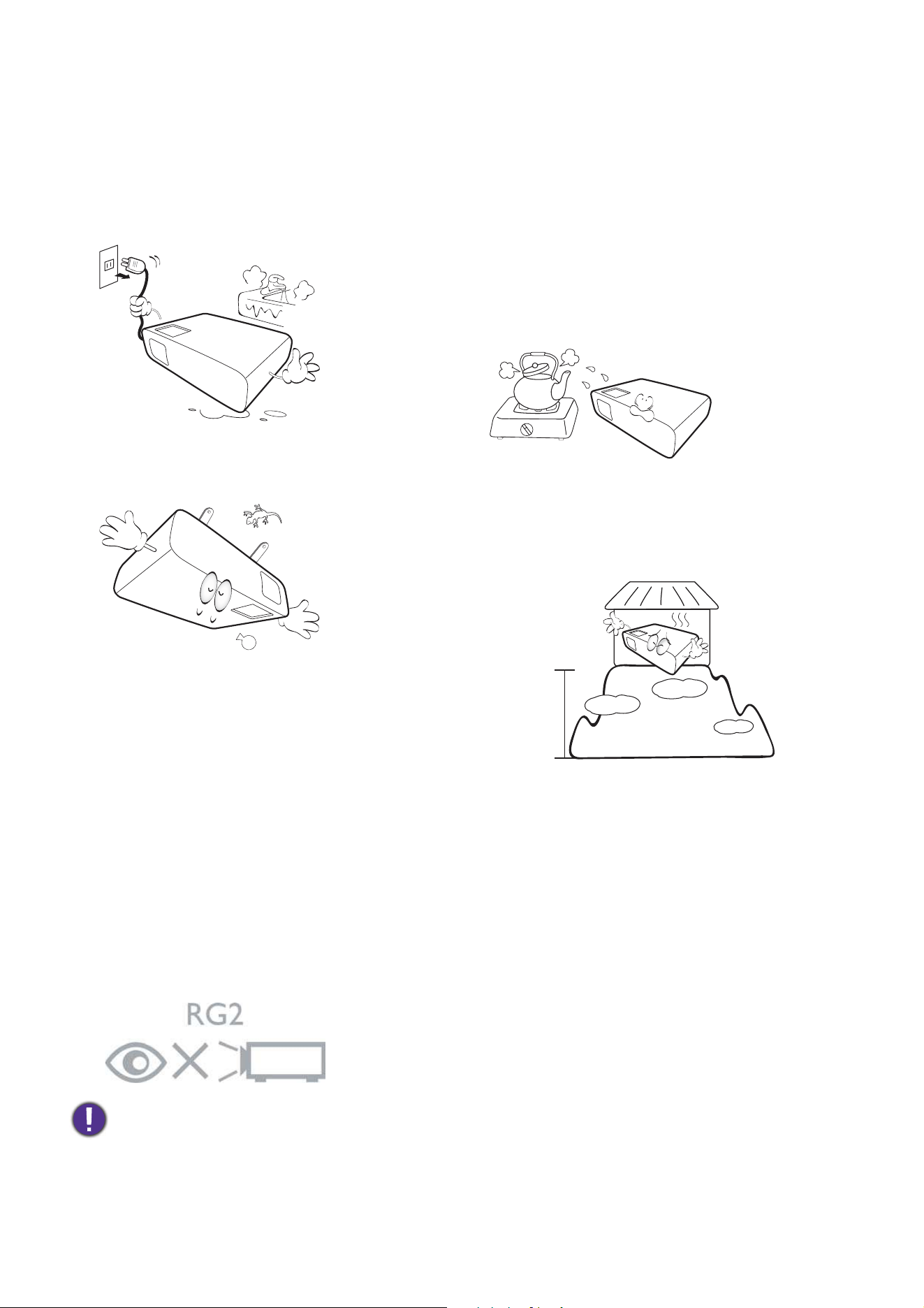

7Important safety instructions

Risk Group 2

1. According to the classification of photobiological safety of light sources and light source

systems, this product is Risk Group 2, IEC 62471-5:2015.

2. Possibly hazardous optical radiation emitted from this product.

3. Do not stare at operating light source. May be harmful to the eyes.

4. As with any bright source, do not stare into the direct beam.

To avoid damaging the DLP chips, never aim a high-power laser beam into the projection lens.

16. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet, disconnect

it from the power supply's power outlet

and call BenQ to have the projector

serviced.

17. This product is capable of displaying

inverted images for ceiling mount

installation.

18. This apparatus must be earthed.

19. Do not place this projector in any of the

following environments.

- Space that is poorly ventilated or confined.

Allow at least 50 cm clearance from walls and

free flow of air around the projector.

- Locations where temperatures may become

excessively high, such as the inside of a car

with all windows rolled up.

- Locations where excessive humidity, dust, or

cigarette smoke may contaminate optical

components, shorten the projector's life span

and darken the image.

- Locations near fire alarms

- Locations with an ambient temperature above

40°C / 104°F

- Locations where the altitudes are higher than

3000 m (10000 feet).

3000 m

(10000

feet)

0 m

(0 feet)

IC statement





- English:

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (

盫

) This device may not cause interference,

and (

盬

) This device must accept any interference, including interference that may cause undesired

operation of the device.

- French:

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio ex-

empts de licence. L'exploitation est autorisée aux deux conditions suivantes:

(

盫

) l'appareil ne doit pas produire de brouillage, et

(

盬

) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d'en compromettre le fonctionnement.

RF exposure statement:

Radiation Exposure Statement: The product comply with the Canada portable RF exposure limit

set forth for an uncontrolled environment and are safe for intended operation as described in this

manual.

Déclaration d'exposition aux radiations : Le produit est conforme aux limites d'expossition pour

les appareils portable RF pour les Etats-Unis et le Canada établies pour un environnement non

contrôlé.

FCC statement



This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part

盫盯

of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that in-

terference will not occur in a particular installation. If this equipment does cause harmful interfer-

ence to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following mea-

sures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

-Consult the dealer or an experienced radio/TV technician for help.

Any Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

The

device

has

been

evaluated

meet

general

exposure

requirement.

The

device

can

used

portable exposure

condition

without

restriction.

This radio should NOT be installed and operating simultaneously with other radio

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Hereby, [BenQ Corporation], declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive 2014/53/EU.



The full test of the EU

declaration of conformity is available at the following internet address: https://

www.benq.eu/en-eu/index.html

Radio Equipment Regulations 2017 (S.I. 2017/1206)

NCC

䆖䃎

ǋᗇሙ傇䅹᰾ѻվ࣏⦷ሴ乫ಘᶀˈ䶎㏃Ṩ߶ˈޜǃ୶㲏ᡆ֯⭘㘵൷нᗇ󰪖㠚䆺ᴤ乫⦷ǃ࣐བྷ࣏⦷ᡆ䆺

ᴤ৏䁝䀸ѻ⢩ᙗ৺࣏㜭Ǆվ࣏⦷ሴ乫ಘᶀѻ֯⭘нᗇᖡ丯伋㡚ᆹޘ৺ᒩᬮ⌅䙊ؑ˗㏃Ⲭ⨮ᴹᒩᬮ⨮䊑

ᱲˈ៹・ণڌ⭘ˈі᭩ழ㠣❑ᒩᬮᱲᯩᗇ㒬㒼֯⭘Ǆࡽ䘠⌅䙊ؑˈᤷ׍䴫ؑ㇑⨶⌅㾿ᇊ֌ᾝѻ❑㐊䴫䙊

ؑǄվ࣏⦷ሴ乫ಘᶀ丸ᗽ⌅䙊ؑᡆᐕᾝǃ、ᆨ৺䟛Ⱳ⭘䴫⌒䕫ሴᙗ䴫₏䁝ۉѻᒩᬮǄǌ

This product bears the selective sorting symbol for

aste electrical and electronic

equipment (

EEE). This means that this product must be handled pursuant to European

directive 2012/1

/EU in order to be recycled or dismantled to minimi

e its impact on the

environment.

User has the choice to give his product to a competent recycling organi

ation or to the

retailer when he buys a new electrical or electronic equipment.

8 Introduction

Introduction

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items are

missing, please contact your place of purchase.

Standard accessories

Projector

Remote control RCI080 with batteries

(Availability of batteries varies by region)

Power cord

ATV dongle

User documents

• The supplied accessories will be suitable for your region, and may differ from those illustrated.

• The warranty card is only supplied in some specific regions. Please consult your dealer for detailed

information.

Quick

Guide

9Introduction

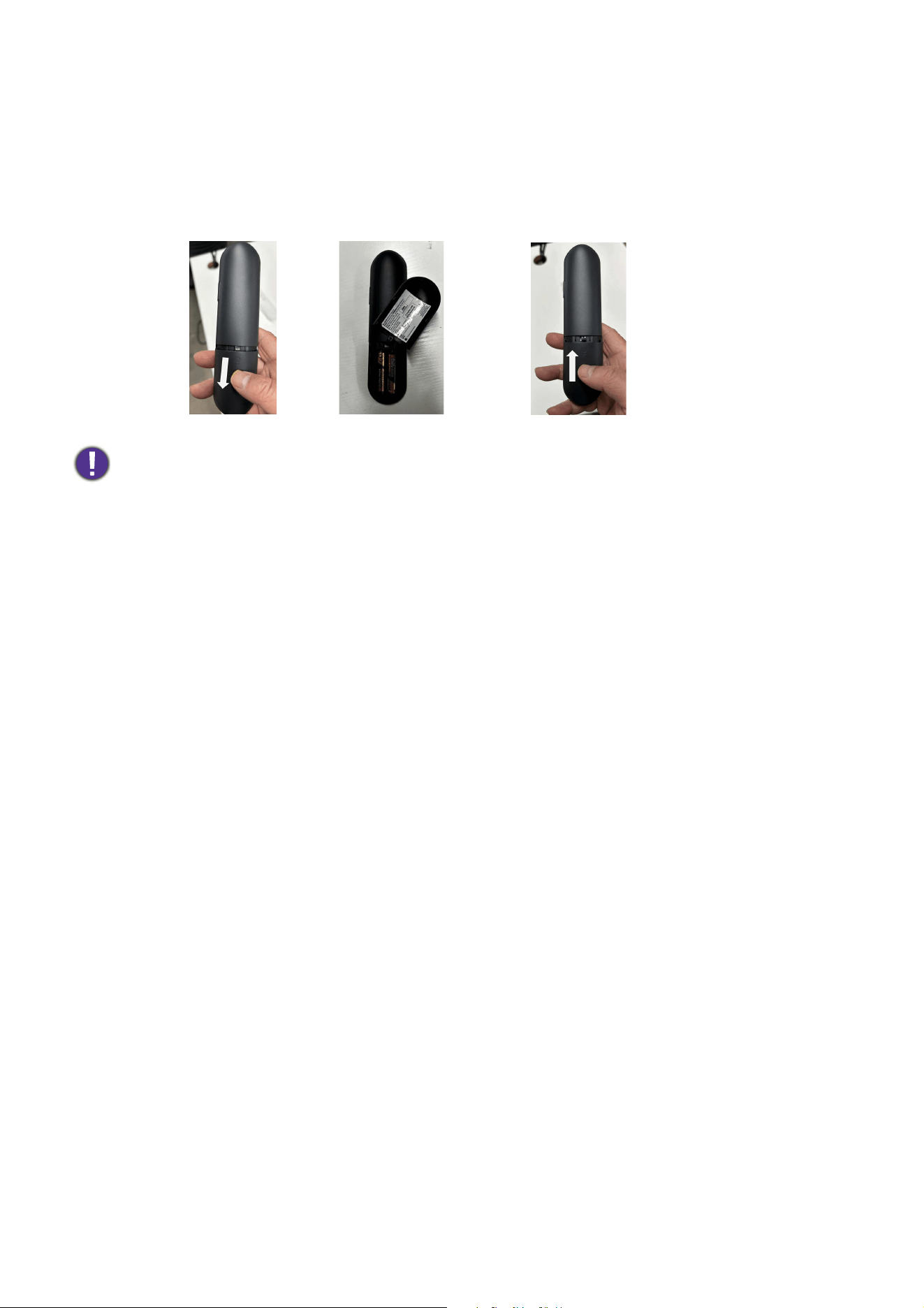

Replacing the remote control batteries

1. Press and slide off the battery cover, as illustrated.

2. Remove the old batteries (if applicable) and install two AAA batteries. Make sure that the

positive and negative ends are positioned correctly, as illustrated.

3. Slide the battery cover in until it clicks into place.

• Avoid leaving the remote control and batteries in an excessive heat or humid environment like the

kitchen, bathroom, sauna, sunroom or in a closed car.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used batteries according to the manufacturer's instructions and local environment

regulations for your region.

• Never throw the batteries into a fire. There may be danger of an explosion.

• If the batteries are dead or if you will not be using the remote control for an extended period of time,

remove the batteries to avoid damage to the remote control from possible battery leakage.

10 Introduction

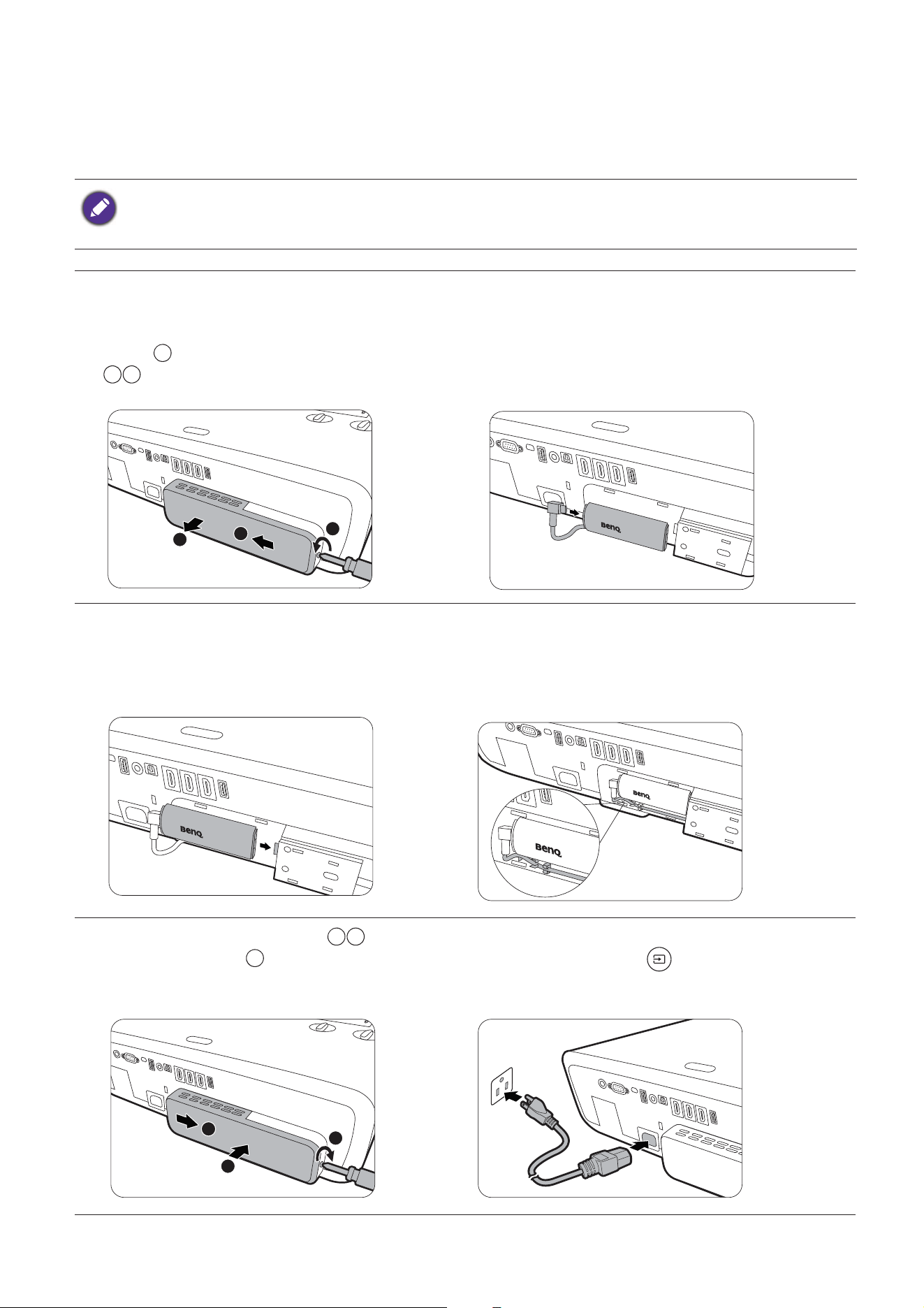

Installing the Android TV dongle (regional specific)

To install the dongle, see the instructions below. With a successful installation, you can enjoy

more entertainment programs through this projector.

• Required for product supplied with an Android TV dongle.

• The supplied streaming dongle varies by region. In some of the regions, the Android TV dongle is

supplied and you need to make installation and setup properly before use.

1. Make sure the projector is turned off

and the power cord is disconnected.

2. Loosen the screw that secure the

cover . Slide to remove the cover

3. Plug the USB Micro B cable to the dongle.

4. Plug the dongle to the HDMI* port on

the projector.

*This HDMI port is for connecting with the

Android TV dongle only.

5. Fit the USB Micro B cable in place below

the dongle.

6. Replace the projector cover , and

tighten the screw .

7. Connect the power cord to the projector

and turn it on. Press /SOURCE to select

Android TV.

11Introduction

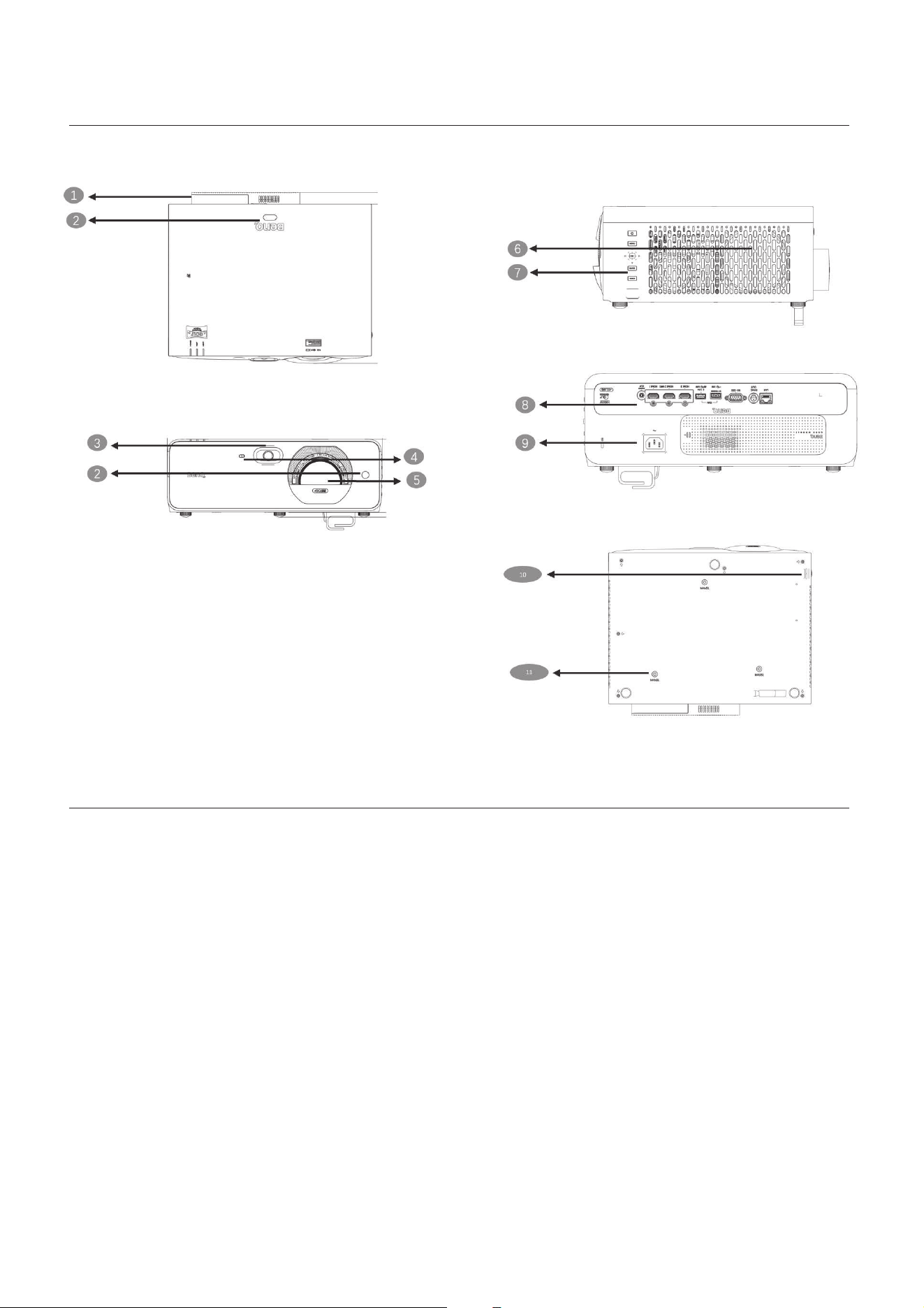

Projector exterior view

1. Android TV dongle port

See

Installing the Android TV dongle

(regional specific) on page 10

for how to

remove the cover.

2. IR remote sensor

3. Camera

4. TOF

5. Projector Lens

6. Vent (air inlet)

7. External control panel

See

Controls and functions on page 13.

8. Connector panel

See

Terminals on page 12.

9. AC power jack

10. Kensington anti-theft lock slot

11. Ceiling mount holes

12 Introduction

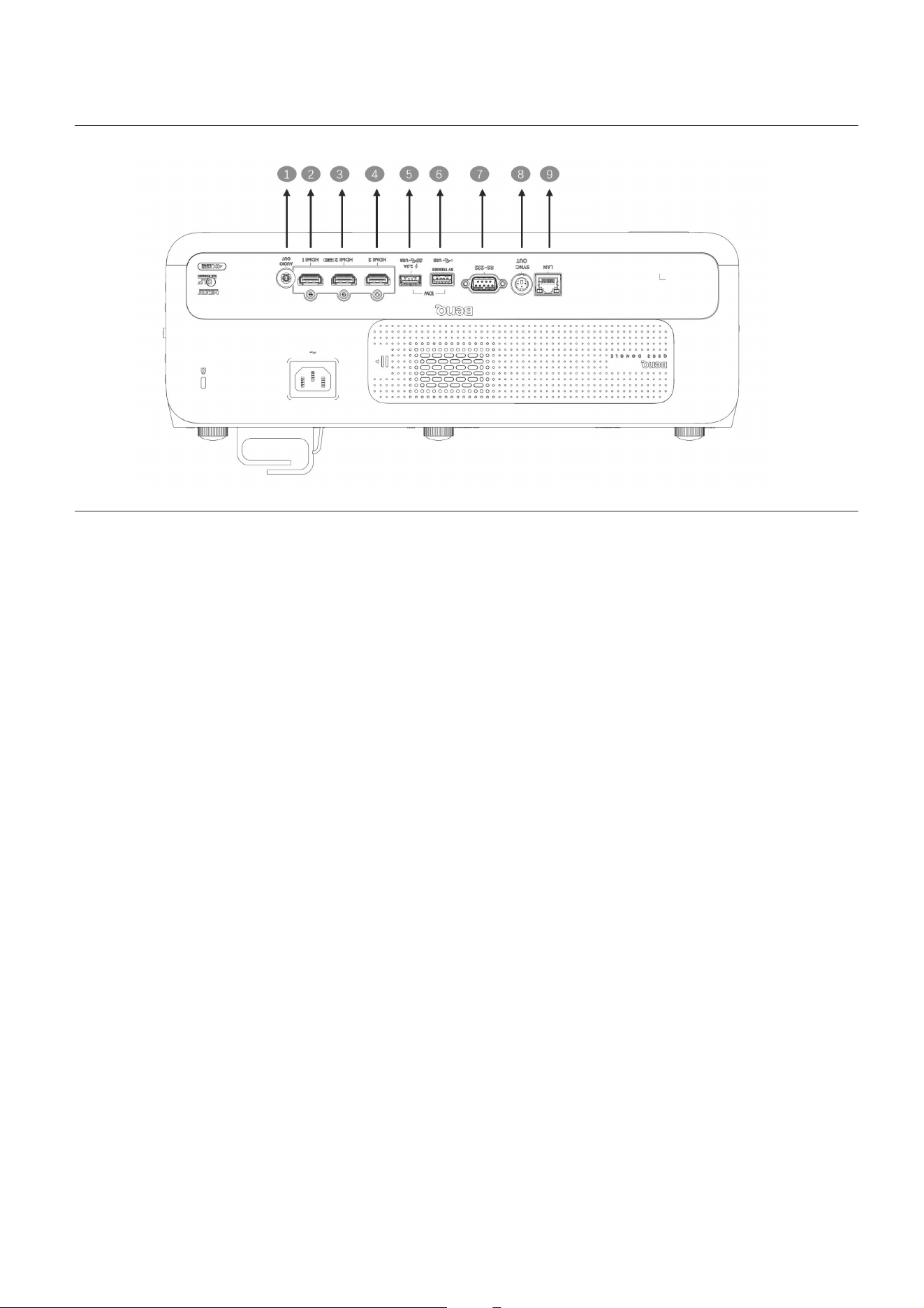

Terminals

1. Audio output jack

2. HDMI input port 1

3. HDMI input port 2(eARC)

4. HDMI input port 3

5. USB 3.0 type-A port

6. USB 2.0 type-A port

7. RS-232 control port

8. 3D sync port

9. LAN port

13Introduction

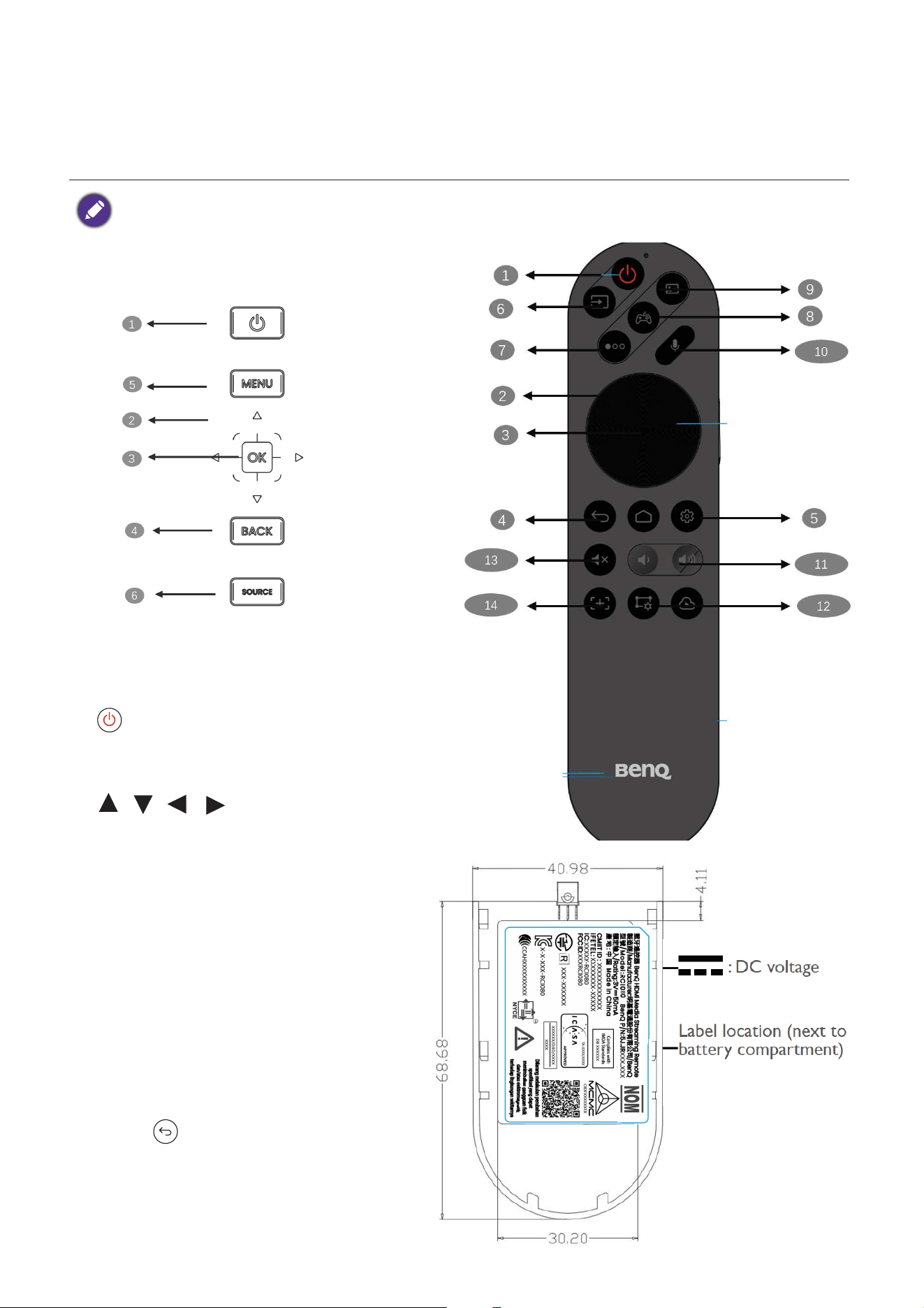

Controls and functions

Projector & Remote control

All the key presses described in this document are available on the remote control or projector.

1. POWER

Toggles the projector between standby

mode and on.

2. / / /

When the On-Screen Display (OSD) or

the ATV menu is activated, these keys

are used as directional arrows to select

the desired menu items and to make

adjustments.

When OSD and Android TV menu is

inactive, workable under CEC-capable

sources only.

3. OK

• Confirms the selected Android TV or

On-Screen Display (OSD) menu item.

• Under ATV media playback, plays or

pauses a video or audio file.

4. BACK/

Goes back to previous OSD menu, exits

and saves menu settings.

14 Introduction

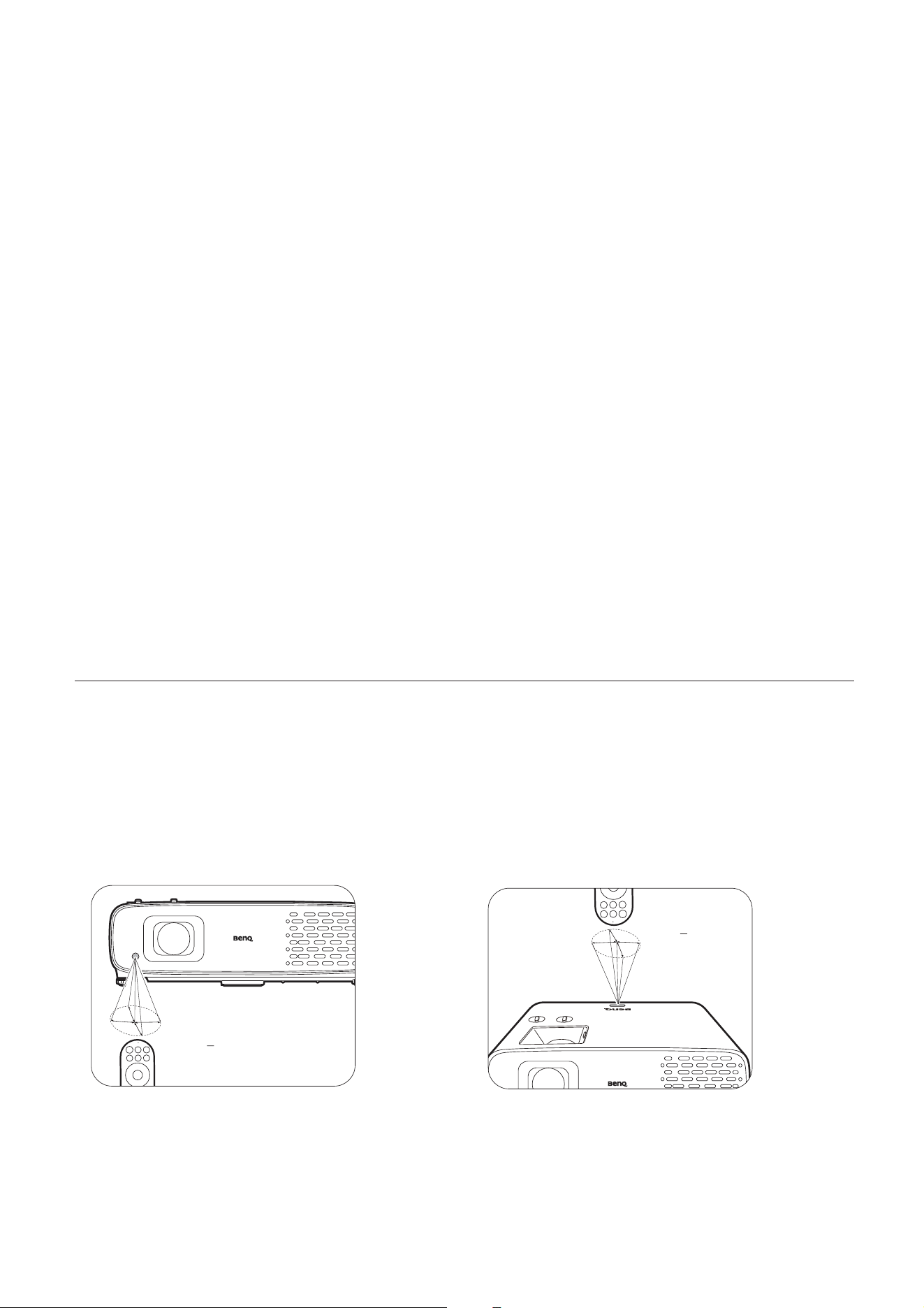

Remote control effective range

The remote control must be held at an angle within 30 degrees perpendicular to the projector's

IR remote control sensor(s) to function correctly. The distance between the remote control and

the sensor(s) should not exceed 8 meters (~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor(s) on the

projector that might obstruct the infra-red beam.

• Operating the projector from the front • Operating the projector from the top

7. Preset key

8. Game mode

Switch to game picture mode

9. Picture mode

Switch picture mode

10. Voice Control

Press and hold to activate the voice

assistant or voice search. Hold this key

and speak to the microphone at the top of

the remote control while using voice assis-

tant.

11. Volume control

Decreases or increases the projector

volume.

12. Screen Fit

Active auto screen fit

5. MENU/

Turns on/off the On-Screen Display

(OSD) menu.

6. SOURCE

Display the source selection bar.

15Positioning your projector

Positioning your projector

Choosing a location

Before choosing an installation location for your projector, take the following factors into

consideration:

• Size and position of your screen

• Electrical outlet location

• Location and distance between the projector and the rest of your equipment

The projected image size and vertical offset depend on how far you place the projector, and the

zoom setting you choose. There is more information from

Projection dimensions on page 16

which can help decide exact distance and height of your projector.

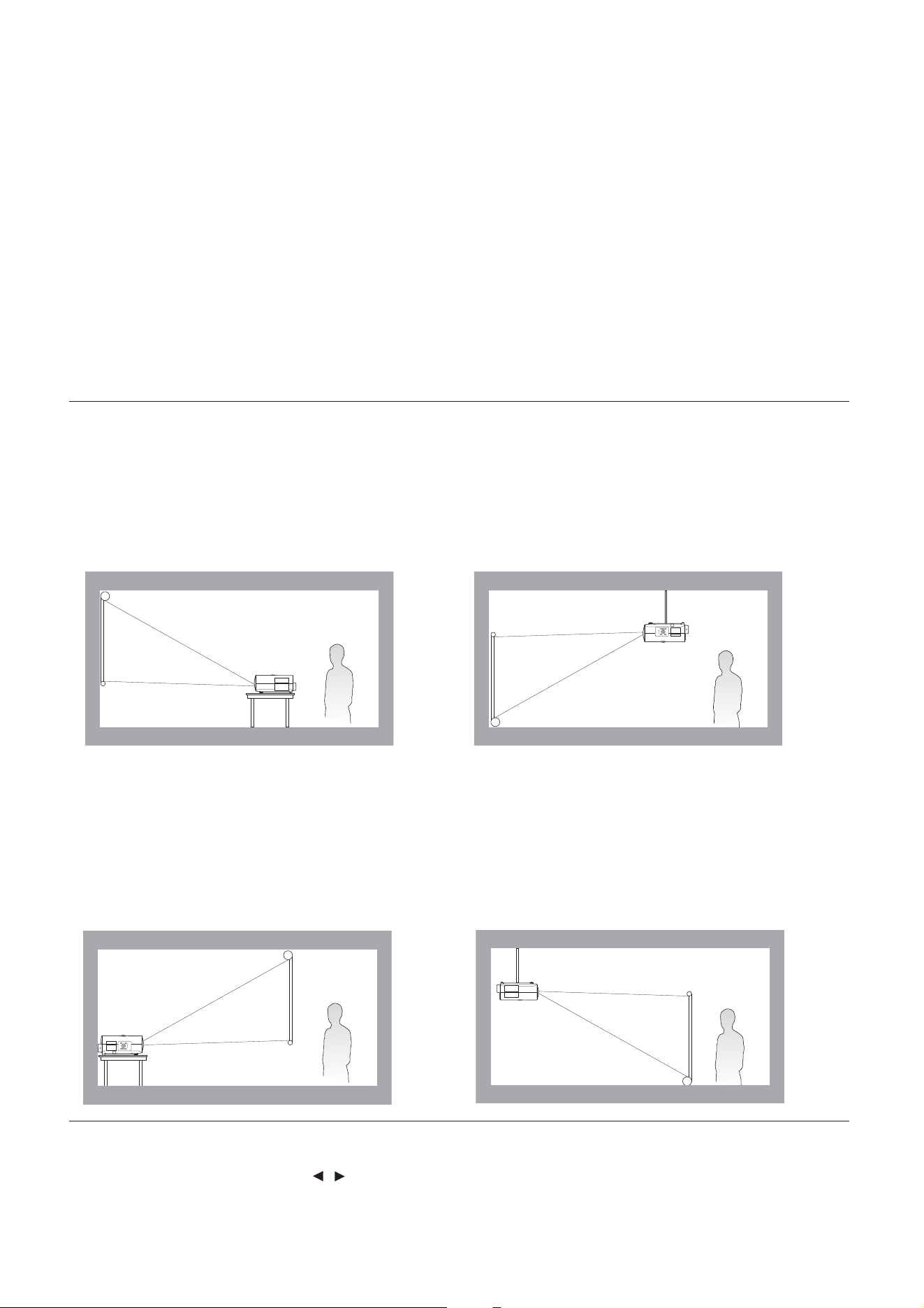

You can install your projector in the following ways.

After turning on the projector, the projector will automatically select a suitable setting for the

way the projector is installed. If not, go to the Advanced menu - Installation > Projector

Position, press OK and press / to select a setting.

1. Front

Select this location with the projector

placed on the table in front of the screen.

This is the most common way to position

the projector for quick setup and

portability.

2. Front Ceiling

Select this location with the projector

suspended upside-down from the ceiling in

front of the screen. Purchase the BenQ

Projector Ceiling Mount Kit from your

dealer to mount your projector on the

ceiling.

3. Rear

Select this location with the projector

placed on the table behind the screen. Note

that a special rear projection screen is

required.

4. Rear Ceiling

Select this location with the projector

suspended upside-down from the ceiling

behind the screen. Note that a special rear

projection screen and the BenQ Projector

Ceiling Mount Kit are required for this

installation location.

16 Positioning your projector

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting, and the video format each

factors in the projected image size.

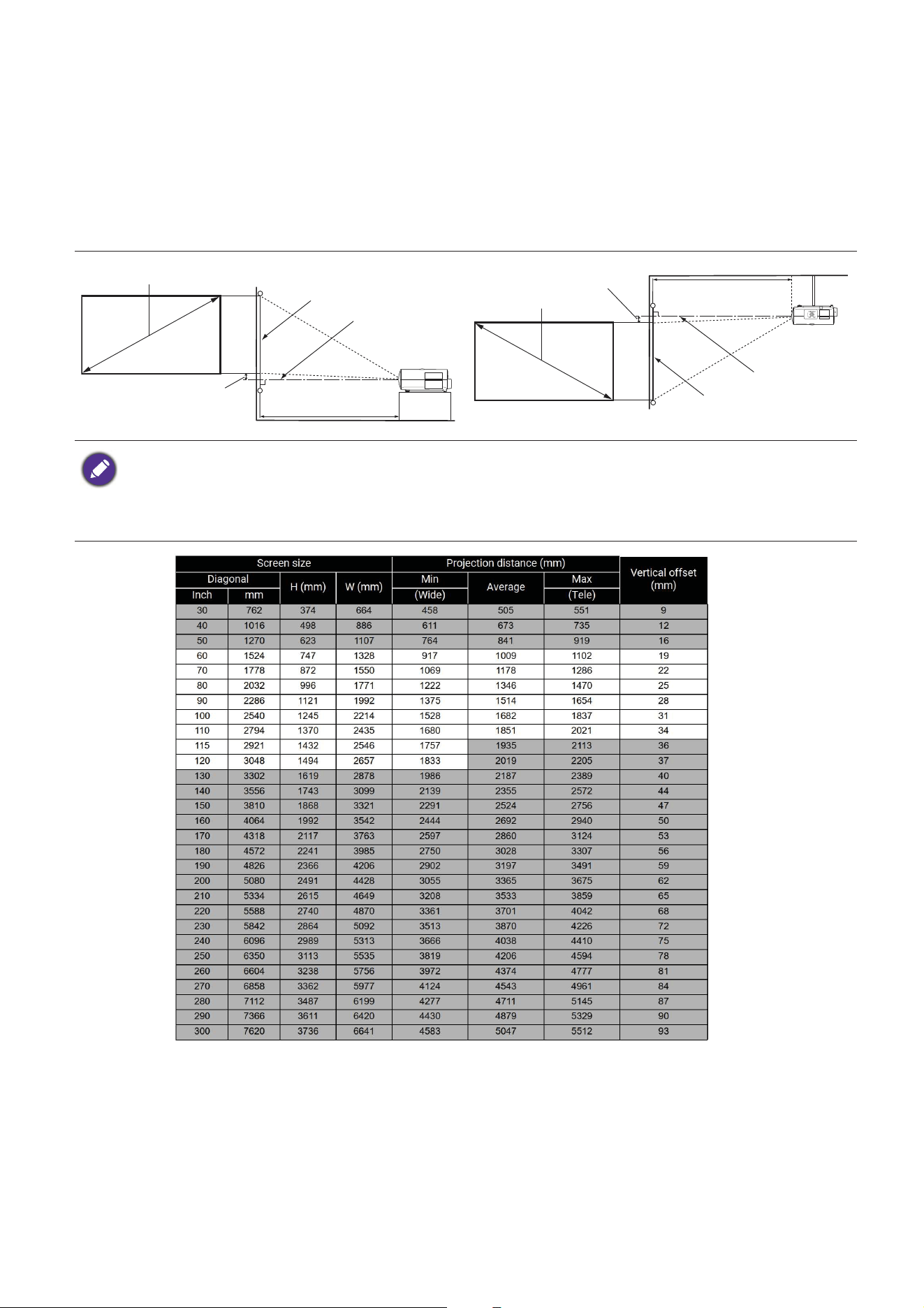

Projection dimensions

• The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio

For example, if you are using a 120-inch screen, the recommended projection distance is 3500

mm.

If your measured projection distance is 300 cm, the closest match in the

"Distance from screen

(mm)"

column is 2914 mm. Looking across this row shows that a 100'' (about 2.5 m) screen is

required. The projected image will be slightly higher/lower than the lens centerline with 125

mm vertical offset.

• *The vertical offset value is the vertical distance from the bottom edge of the image (when the projector

is placed on a table, diagram on the left), or top edge of the image (when the projector is ceiling

mounted, diagram on the right) to the centerline of lens.

• Due to the lens optical characteristics, every projector has its vertical offset ratio. The vertical offset

value normally gets larger while the projection distance increases.

Projection distance

Centerline of lens

Screen

16:9 Screen diagonal

Vertical offset (A)*

Projection distance

Centerline of lens

Screen

16:9 Screen diagonal

Vertical offset (A)*

17Positioning your projector

Mounting the projector

If you intend to mount your projector, we strongly recommend that you use a proper fitting

BenQ projector mounting kit and that you ensure it is securely and safely installed.

If you use a non-BenQ brand projector mounting kit, there is a safety risk that the projector may

fall down due to an improper attachment through the use of the wrong gauge or length screws.

Before mounting the projector

• Purchase a BenQ projector mounting kit from the place you purchased your BenQ projector.

• BenQ recommends that you also use a security cable to secure both the base of the mounting

bracket and the security bar on the projector. This will perform the secondary role of

restraining the projector should its attachment to the mounting bracket become loose.

• Ask your dealer to install the projector for you. Installing the projector on your own may cause

it to fall and result in injury.

• Take necessary procedures to prevent the projector from falling off such as during an

earthquake.

• The warranty doesn’t cover any product damage caused by mounting the projector with a

non-BenQ brand projector mounting kit.

• Consider the surrounding temperature where the projector is ceiling mounted. If a heater is

used, the temperature around the ceiling may be higher than expected.

• Read the user manual for the mounting kit about the range of torque. Tightening with torque

exceeding the recommended range may cause damage to the projector and subsequently

falling off.

• Make sure the power outlet is at an accessible height so that you can easily shut down the

projector.

To optimize your projection quality, we suggest doing the projection by referring to the values listed in the

non-gray rows.

All measurements are approximate and may vary from the actual sizes.

BenQ recommends that if you intend to permanently install the projector, you should physically test the

projection size and distance using the actual projector in situ before you permanently install it, so as to

make allowance for this projector's optical characteristics. This will help you determine the exact mounting

position so that it best suits your installation location.

18 Positioning your projector

Ceiling/Wall mount installation diagram

Please refer to the user manual of the mounting kit or contact BenQ service center if any installation

problem occurs.

Ceiling/Wall mount screw: M4

(Max L = 25 mm; Min L = 20 mm)

20 Positioning your projector

Adjusting the projected image

Adjusting the projection angle

If the projector is not placed on a flat surface or

the screen and the projector are not

perpendicular to each other, the projected

image becomes trapezoidal. You can screw the

adjuster feet to fine-tune the horizontal angle.

To retract the feet, screw the adjuster feet in a

reverse direction.

Fine-tuning the image size and clarity

Do not look into the lens while the light source is on. The strong light from the light source may cause

damage to your eyes.

1. Adjust the projected image to the size that

you need using the zoom ring.

2. Sharpen the image by rotating the focus

ring.

21Positioning your projector

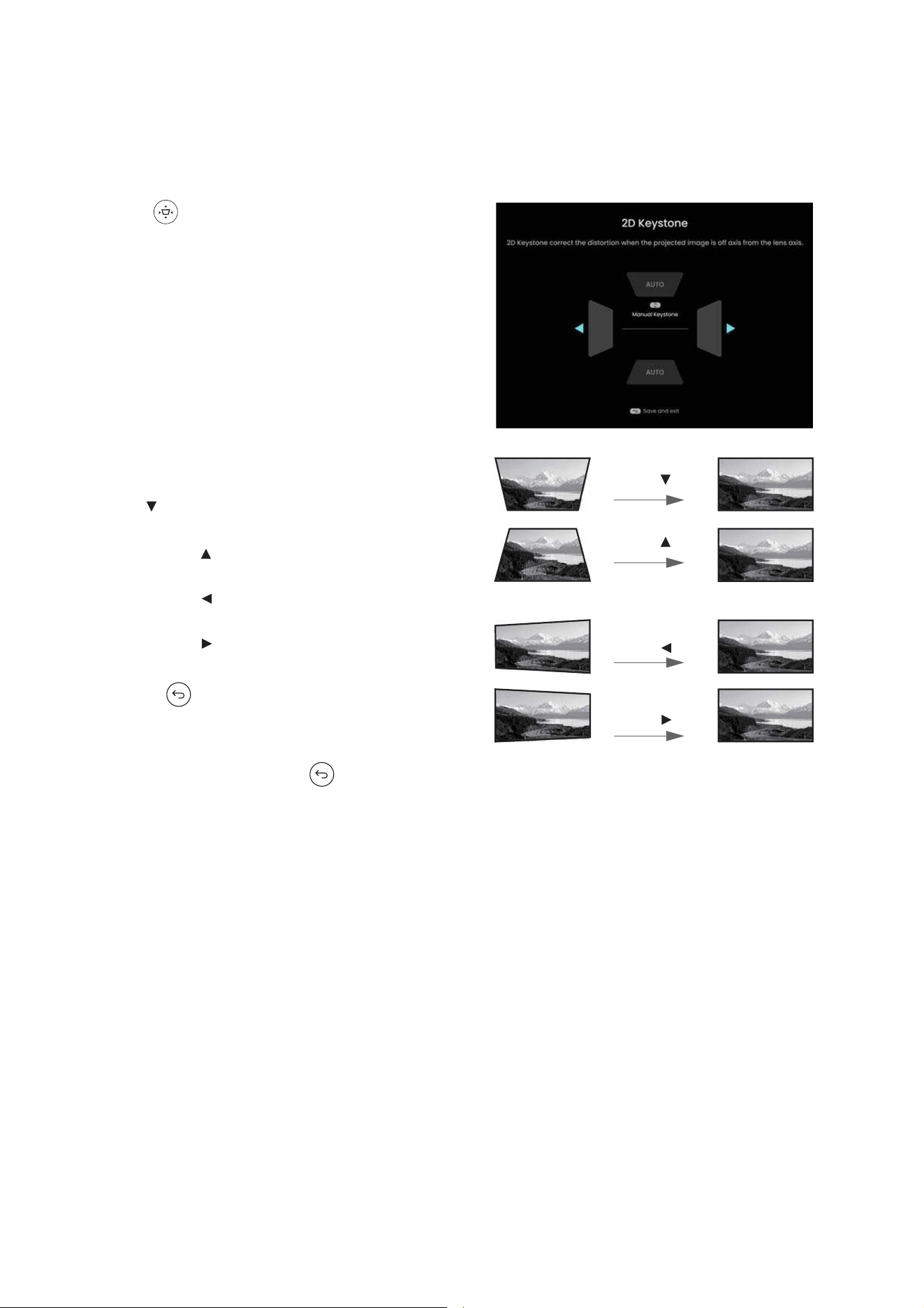

Correcting keystone

Keystoning refers to the situation where the projected image becomes a trapezoid due to

angled projection.

To correct the distorted image:

1. Press on the remote control, or display

the 2D Keystone correction page from the

following menus.

• The setup wizard during the projector initial

setup

• The Basic menu system

• The Installation menu of the Advanced menu

system

2. After the 2D Keystone correction page

appears:

• To correct keystoning at the top of the image,

use .

• To correct keystoning at the bottom of the

image, use .

• To correct keystoning at the right side of the

image, use .

• To correct keystoning at the left side of the

image, use .

• To reset the keystone values, press

BACK/ for 2 seconds.

• To automatically correct the vertical sides of

the distorted image, press OK for 2 seconds.

3. When done, press BACK/ to save your

changes and exit.

Press .

23Operation

Operation

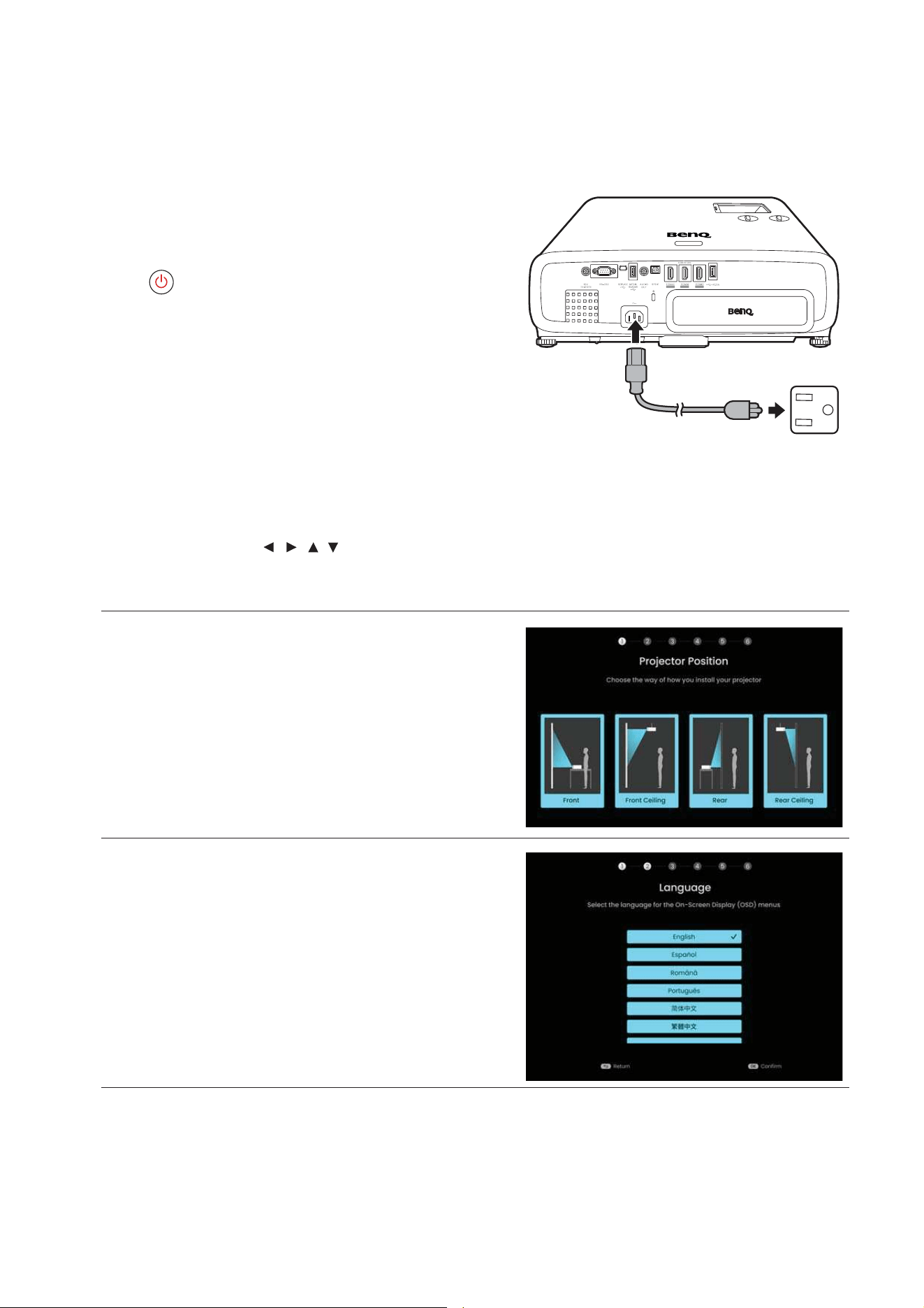

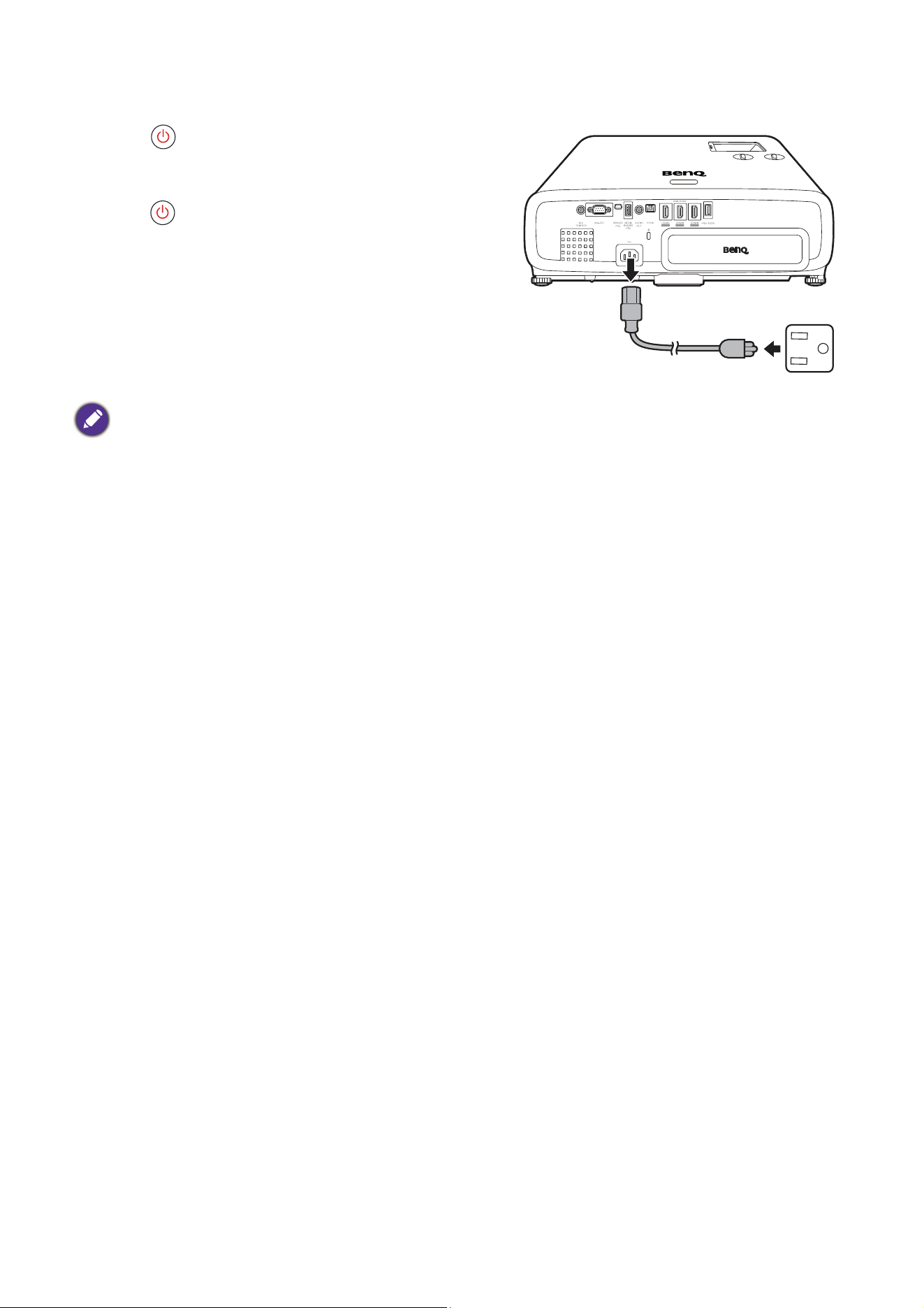

Starting up the projector

1. Plug the power cord. Turn on the power outlet

switch (where fitted). The power indicator on the

projector lights orange after power has been

applied.

2. Press on the projector or remote control to

start the projector. The power indicator flashes

green and stays green when the projector is on.

The start up procedure takes about 15 seconds. In

the later stage of starting up, a start-up logo is

projected.

(If necessary) Rotate the focus ring to adjust the

image clearness.

3. If this is the first time you turn on the projector, the

setup wizard appears to guide you through setting

up the projector. If you have already done this,

skip this step and move on to the next step.

• Use the arrow keys ( / / / ) on the projector or

remote control to move through the menu items.

• Use OK to confirm the selected menu item.

Step 1:

Specify Projector Position.

For more information about projector position,

see

Choosing a location on page 15.

Step 2:

Specify OSD Language.

4K 120Hz

24 Operation

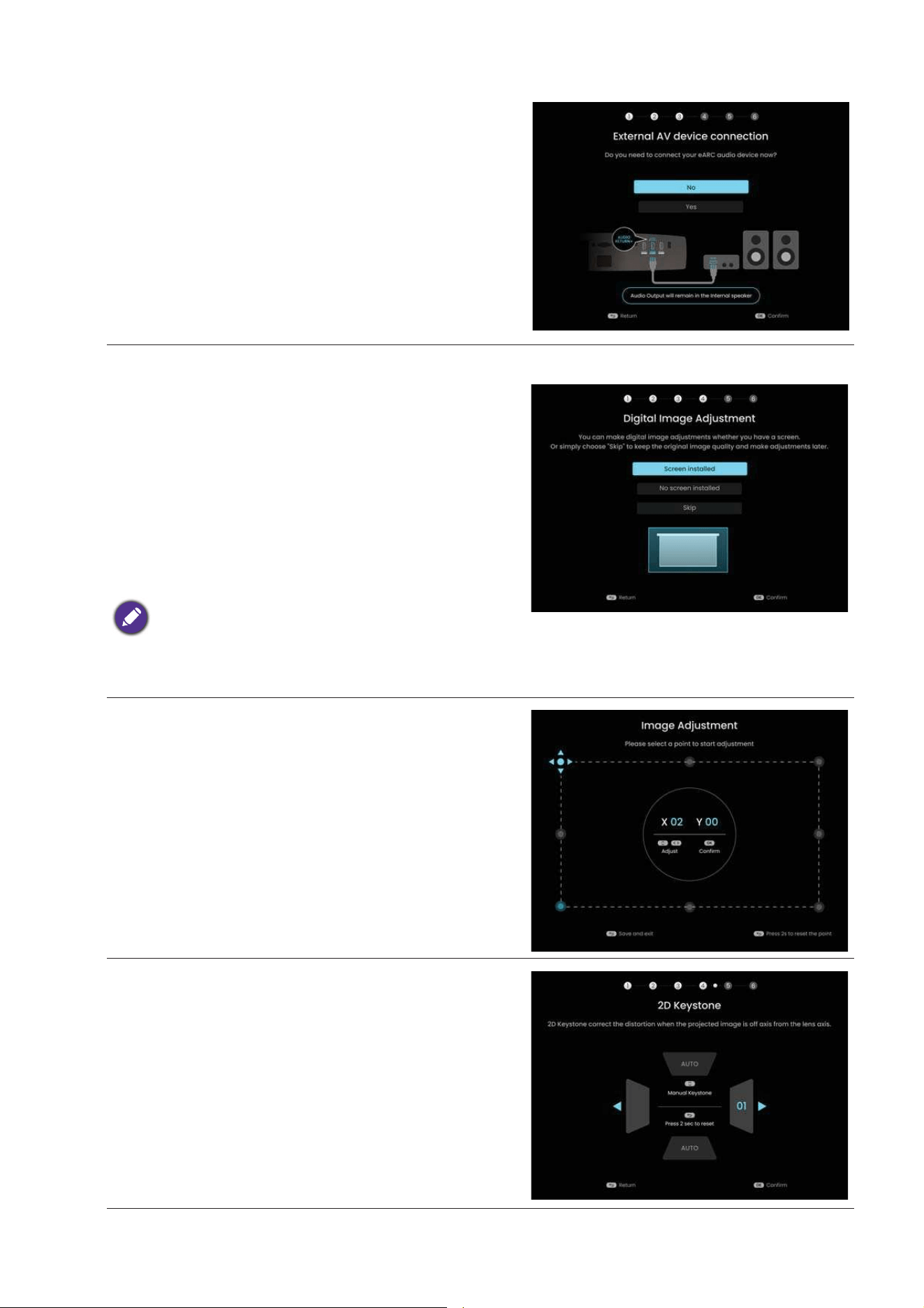

Step 3:

Confirm whether you want to connect to an eARC

device.

Step 4:

Adjust the image based on the environment in

which the projector is installed.

• Screen installed: faster installation with digital

image adjustment. This option performs image

corner adjustments.

• No screen installed: faster installation with

digital image adjustment. This option performs

2D keystone.

• Skip: This option does not make image

adjustment at this moment.

Using image adjustments in this step will slightly alter

the image quality. If you do not want the image quality

to be altered, select Skip.

Step 4-1:

Adjust the image corners.

For more information, see

Corner Fit on page

Step 4-2:

Specify 2D Keystone and choose to activate

auto vertical keystone.

For more information about keystone, see

Correcting keystone on page 21.

25Operation

4. Switch all of the connected equipment on.

5. The projector will search for input signals. The current input signal being scanned appears.

If the projector does not detect a valid signal, the message “No Signal” will appear until an

input signal is found.

You can also press SOURCE/ to select your desired input signal. See Switching input

signal on page 29

Step 5:

Agree the End User License Agreement.

Step 6:

Pair the remote control with the Android TV

dongle.

• Please use the original accessories (e.g. power cord) to avoid possible dangers such as electric shock

and fire.

• If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds

before energizing the light source.

• The Setup Wizard screenshots are for reference only and may differ from the actual design.

• If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the

message “Out of Range” displayed on the background screen. Please change to an input signal which is

compatible with the projector's resolution or set the input signal to a lower setting. See

Timing chart on

page 57

• If no signal is detected for 3 minutes, the projector automatically enters saving mode.

26 Operation

Setting up the Android TV dongle (regional specific)

Before you start

Check that you have:

• A Wi-Fi Internet Connection

• A Google Account

Set up your device

There are 3 options to set up your device:

• Required for product supplied with the Android TV dongle.

• You should install the dongle first as instructed in

Installing the Android TV dongle (regional specific) on

page 10

• Screens and procedures vary by product. Simply follow the on-screen instructions.

• Quick Setup using an Android phone

• Using your phone or computer

• Using your remote control

27Operation

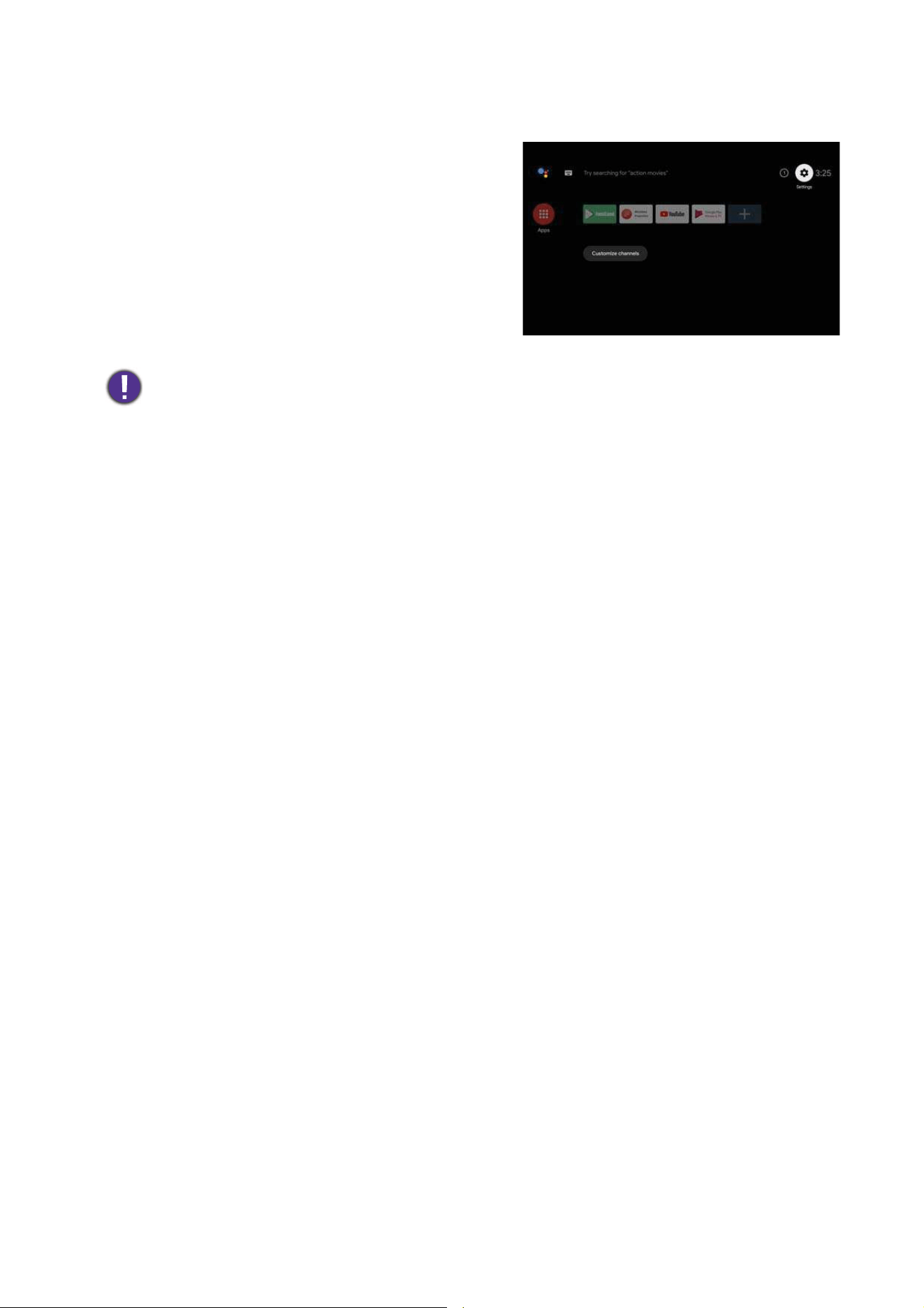

Display Android TV home screen

• For more information, visit https://support.google.com/androidtv/.

• Refer to the user documentations of your Android TV dongle for further operating instructions.

28 Operation

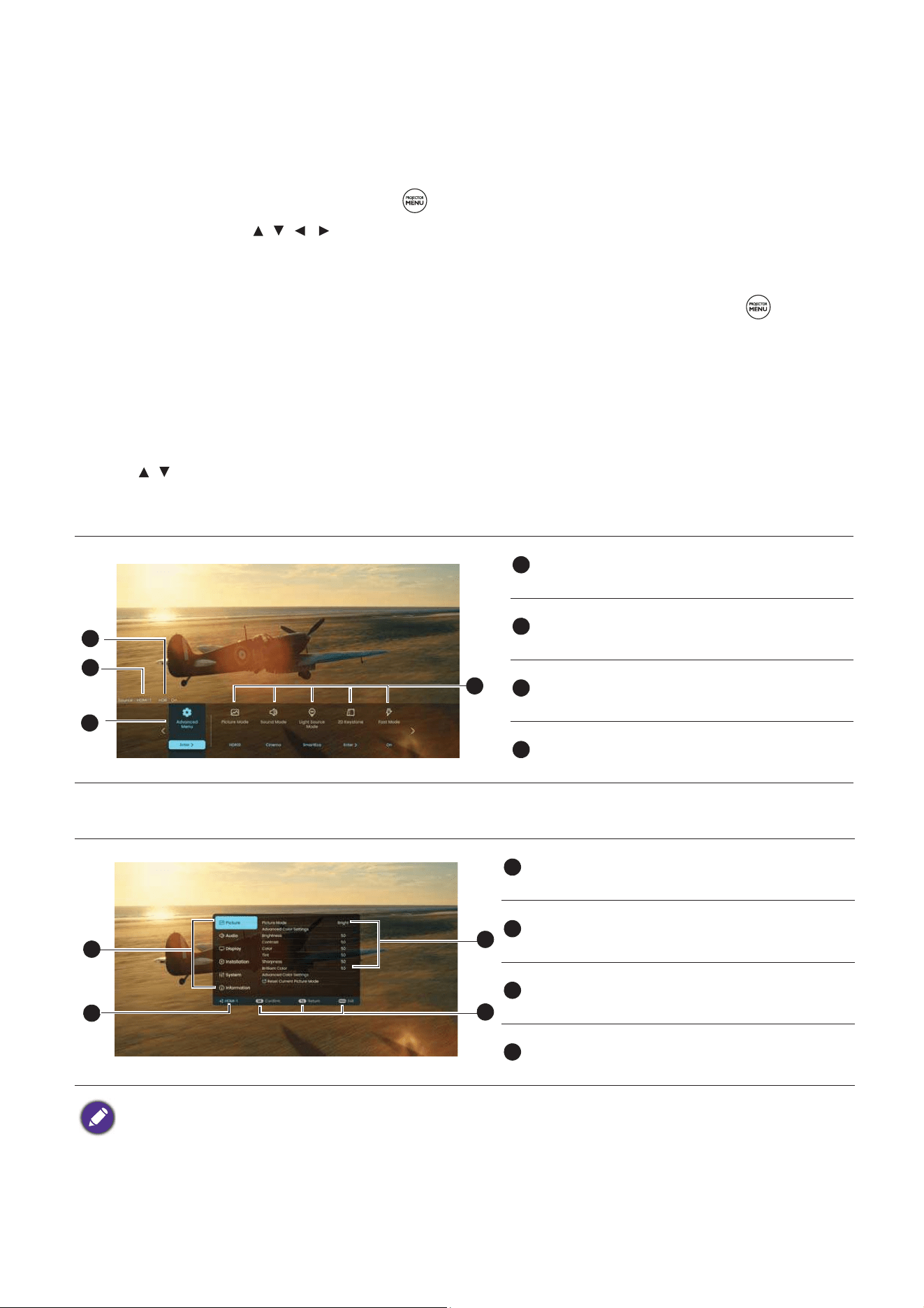

Using the menus

The projector is equipped with 2 types of On-Screen Display (OSD) menus for making various

adjustments and settings. The Basic OSD menu provides primary menu functions while the

Advanced OSD menu provides full menu functions.

To access the OSD menu, press MENU/ on the projector or remote control.

• Use the arrow keys ( / / / ) on the projector or remote control to move through the menu

items.

• Use OK on the projector or remote control to confirm the selected menu item.

The first time you use the projector (after finishing the initial setup), press MENU/ , and the

Basic OSD menu will be displayed.

If you intend to switch from the Basic OSD menu to the Advanced OSD menu, select Advanced

Menu and press OK. Your projector will switch to the Advanced OSD menu.

Likewise, when you wish to switch from the Advanced OSD menu to the Basic OSD menu,

follow the instructions below:

1. Go to System > Menu Settings > Menu Type and press OK.

2. Use / to select Basic and press OK. Your projector will switch to the Basic OSD menu.

Overview of the Basic OSD menu.

Overview of the Advanced OSD menu.

HDR status

Current input signal

Advanced menu

Main menus

Main menu

Current input signal

Sub-menu and status

Function keys

The OSD screenshots are for reference only, and may differ from the actual design.

29Operation

Securing the projector

The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a security

cable to secure the projector. A security bar is located on the right side of the projector. See

item 16 on

page 11. Insert a security cable to the opening of the security bar and secure it to a

nearby fixture or heavy furniture.

You can also purchase a lock, such as the Kensington lock, to secure the projector. There is a

Kensington lock slot on the rear side of the projector. See item 14 on

page 11. A Kensington

security cable lock is usually a combination of key(s) and the lock. Refer to the lock’s

documentation for finding out how to use it.

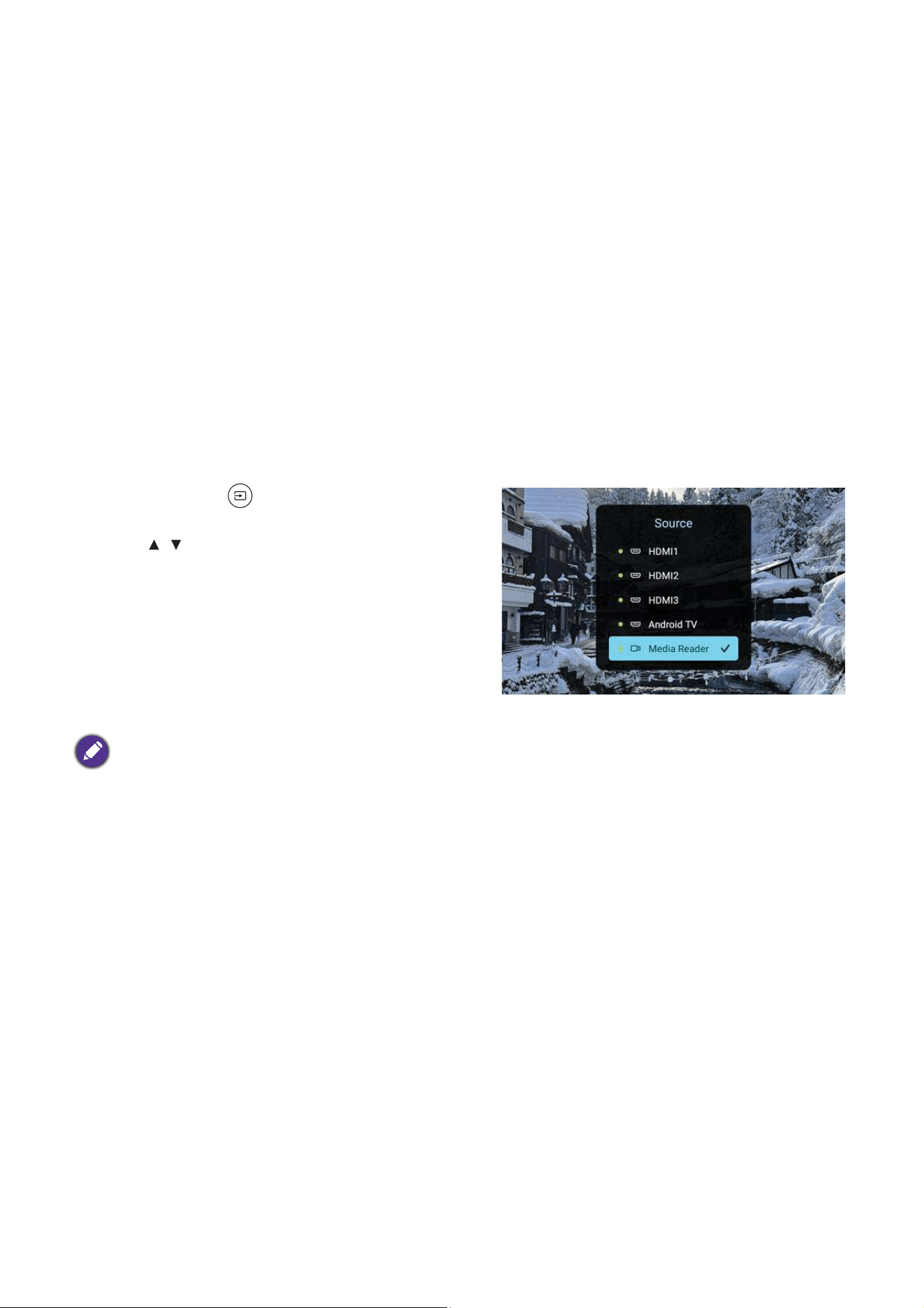

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only

display one full screen at a time. When starting up, the projector automatically searches for the

available signals.

Be sure the Advanced menu - Display > Auto Source Search is On if you want the projector to

automatically search for the signals.

To manually select the source:

1. Press SOURCE/ . A source selection bar

appears.

2. Press / until your desired signal is selected

and press OK.

Once detected, the picture from the selected

source will appear. If there is multiple

equipment connected to the projector, repeat

steps 1-2 to search for another signal.

• The brightness level of the projected image will change accordingly when you switch between different

input signals.

• For best display picture results, you should select and use an input signal which outputs at the

projector’s native resolution. Any other resolutions will be scaled by the projector depending upon the

“aspect ratio” setting, which may cause some image distortion or loss of picture clarity. See Aspect

Ratio on page 41

30 Operation

Presenting from a Media Reader

The MEDIA READER (USB) port on the projector allows you to browse the image and document

files stored on a USB flash drive connected to the projector. It can eliminate the need for a

computer source.

Supported file formats

Viewing files

1. Plug a USB flash drive into the MEDIA READER port on the back of the projector.

2. Press SOURCE/ and select Media Reader. The projector displays the built-in media

reader main page.

3. Press

/ to select the file type and press to enter the local disk device.

4. Select the folder or a file you want to display and press OK.

5. After a file is displayed, press OK to call out the function bar. You can press

/ to select

the function and press OK to enact the selected item.

Music Video Photo

• MP3 (.mp3)

• MP2 (.mp2)

• M4A (.m4a)

• Lossless (.flac)

• WAV (.wav)

• AVI (.avi)

• MOV (.mov)

• MPEG program stream (.mpg,

.mp4)

• 3GP (.3gp, .3g2)

• ASF (.asf)

• VOB (.vob)

• DAT (.dat)

• TS (.ts)

• MPEG-4 (.m4v)

• FLV (.flv)

• JPG/JPEG

• BMP

• PNG

31Operation

Shutting down the projector

1. Press and a confirmation message will

appear prompting you. If you don't respond in a

few seconds, the message will disappear.

2. Press a second time. The power indicator

flashes orange, the projection light source shuts

down, and the fans will continue to run for

approximately 15 seconds to cool down the

projector.

3. Once the cooling process finishes, the power

indicator becomes a steady orange and fans

stop. Disconnect the power cord from the power

outlet.

To protect the light source, the projector will not respond to any commands during the cooling process.

4K 120Hz

32 Menu operation

Menu operation

Please note that the on-screen display (OSD) menus vary according to the signal type selected

and the projector model you are using.

The menu items are available when the projector detects at least one valid signal. If there is no

equipment connected to the projector or no signal detected, limited menu items are accessible.

Basic menu

Structure

(Ref. Page)

Options

Advanced Menu (

47)

Picture Mode (

34)

Bright/Bright Cinema/AI Cinema/Cinema/

FILMMAKER MODE/3D/HDR AI Cinema/HDR10/

FILMMAKER MODE (HDR)/HDR10+/

HLG/ISF Night/ISF Day/User

Sound Mode (

40) Cinema/Music/Game/Sports

Light Source Mode (

39) Normal/ECO/Low Dynamic/High Dynamic

Digital Image

Adjustment

(

44) 2D Keystone

H: -30 – +30

V: -30 – +30

(

44) Corner Fit

Top Left/Top Right/

Bottom Left/Bottom Right

Mask (

44) Top/Bottom/Left/Right/Reset

Fast Mode (

36) Off/On/ALLM

HDR Brightness (

39) -2/-1/0/1/2

Information (49)

Detected Resolution

Picture Mode

Light Source Mode

3D Format

Color System

Light Source Usage

Time

Firmware Version

Service Code

Edit

Move

Changes the order of menu options.

Show/Hide

Shows or hides certain menu options.

33Menu operation

Advanced menu

1. Main menu: Picture

Structure

Menu Options

Picture Mode

Bright/Bright Cinema/

AI Cinema/Cinema/

FILMMAKER MODE/3D/

HDR AI Cinema/HDR10/

FILMMAKER MODE (HDR)/HDR10+/

HLG/ISF Night/ISF Day/User

User Management

Load Settings

From

Bright Cinema/

FILMMAKER MODE/

Cinema

Rename User

Mode

Fast Mode Off/On/ALLM

Brightness 0–100

Contrast 0–100

Color 0–100

Tint 0–100

Sharpness 0–15

Advanced Color

Settings

Gamma Selection 1.8/2.0/2.1/2.2/2.3/2.4/2.5/2.6/BenQ

Color Temperature

Tuning

Color Temperature

Native (for Bright picture mode)

Normal/Cool/Warm (for the rest of the

picture modes)

R Gain/

G Gain/

B Gain

0–200

R Offset/

G Offset/

B Offset

0–511

Reset Color

Temperature

Tuning

Adv. Color

Temperature

Tuning

5%/10%/20%/

30%/40%/50%/

60%/70%/80%/

90%/100%

R/G/B 0–100

Reset

Color Management

R/G/B/C/M/Y/F Hue/Saturation/Gain

W R Gain/G Gain/B Gain

Reset

Wide Color Gamut

Off0

34 Menu operation

Function descriptions

Advanced Color

Settings

(Continued)

CinemaMaster

Color Enhancer 0–18

Pixel Enhancer 4K 0–20

Motion Enhancer

Off/Low/Middle/High

Global Contrast

Enhancer

Off/Low/Middle/High

Local Contrast

Enhancer

Off/Low/Middle/High

Dynamic Tone

Mapping

Off0

Light Source Mode

Normal/ECO/Low Dynamic/

High Dynamic

HDR Brightness -2/-1/0/1/2

Noise Reduction Off/Low/Middle/High

Reset Current

Picture Mode

Reset/Cancel

Menu Descriptions

Picture Mode

The projector is preset with several predefined picture modes so that you

can choose one to suit your operating environment and input signal picture

type.

• Bright

Maximizes the brightness of the projected image. This mode is suitable for

environments where extra-high brightness is required, such as using the

projector in well lit rooms.

• Bright Cinema

Offers 100% REC709 color gamut at higher brightness level, this mode is

suitable for playing movies in a dim environment like living room with a

small amount of ambient light.

• AI Cinema

Automatically optimizes the image quality by adjusting parameters such

as saturation, brightness, contrast and picture mode in real time based on

changes of the projected content.

• Cinema

Offers 100% REC709 color gamut and deepest contrast at lower brightness

level, this mode is suitable for playing movies in a totally dark environment,

as if in a commercial cinema.

• FILMMAKER MODE

This mode is best for watching movies with accurate color and the deepest

contrast at lower brightness level in rooms with a bit of ambient light, as if

in a commercial cinema.

• When this mode is selected, 24P True Cinema will be set to On automatically .

• If FILMMAKER MODE is changed to others, 24P True Cinema will revert to the previous

setting.

35Menu operation

Picture Mode

• 3D

Optimized to bring up 3D effects when watching 3D contents.

This mode is only available when 3D function is enabled.

• HDR AI Cinema
