FIREGLIDER One
Manual
Safety Instructions
This device is intended as a mouse for use on a PC in dry indoor areas. For
your own safety, always follow the instructions below and make sure that the
device is not damaged before use. In addition, only use compatible cables
and authorized accessories The manufacturer’s guarantee will be void if the
product or any installed hardware components are damaged due to improper use
or non-compliance with these safety instructions. Should any problems occur
with the product, contact our technical customer support at support@sharkoon.
com.
• WARNING! Choking hazard due to small parts. Danger of strangulation.
Keep the device and its cabling away from children under the age of 6
years!
• WARNING! Risk of electric shock from electrical parts. Keep the device
away from liquids!
• WARNING! Epileptic seizures caused by flashing lights. Only use the device
in well-lit rooms or, if possible, deactivate the device’s lighting! If in doubt,
seek medical advice before use!
• CAUTION! Damage to joints due to poor body posture. Be aware of the
correct ergonomic positioning of your chair and equipment and take regular
breaks!
• DANGER! Explosion hazard from heat and mechanical impact. Only use the
device in normal indoor areas and do not allow it to fall or be knocked or be
subject to any other kind of force.
• WARNING! Explosion hazard if exposed to liquids or flammable gases. Do
not store the device in environments with unusual air pressure or with
temperatures above 45 °C.
• PLEASE NOTE! Damage to the battery due to deep discharge. Recharge the
built-in battery at least occasionally!
• PLEASE NOTE! The power output of the charger should be at least 0.2
watts, the minimum required by this wireless device. To achieve the maxi-
mum charging rate for this device, the output power of the charger should
be at least 5.0 watts.
01
Specifications
General:
Type: Dual Mode
Wireless Communication: 2.4 GHz
Max. Wireless Range: 10 m
Max. DPI/CPI: 12,000
Min. DPI/CPI: 400
Sensor: Optical
Chip: PixArt PAW3311
Onboard Memory for Game Profiles:
Capacity of Onboard Memory: 512 kB
Max. Polling Rate: 1,000 Hz
Lift-O Distance: 2 mm
Frames Per Second: Self-Adjusting
Inches Per Second: 300
Max. Acceleration: 35 g
Mouse Feet: 3, PTFE
Color Versions: Black, White
Weight without Cable: 50 g
Dimensions (L x W x H): 127.5 x 64 x 40 mm
Supported Operating Systems: Windows
Button Properties:
Number of Buttons: 5
Main Button Switches: Huano
Operating Life Cycles of Buttons: Min. 20 Million Clicks
DPI Properties:
DPI Levels: 400; 800; 1,600; 3,200; 6,400: 12,000
DPI Switch:
DPI Indicator: LED
Battery Properties:
Type: Lithium-Ion
Capacity: 300 mAh
Battery Life: Max. 100 Hours
Recharge Options: Wired (USB)
Cable and Connectors:
Connector: USB-C to USB-A
Textile-Braided Cable:
Cable Length: 180 cm
Package Contents:
FIREGLIDER One, Additional Set of Mouse Feet, USB Power and Data Cable,
USB Nano Receiver
02
A
B
D
C
E
F
G
H
I
J
Overview
A Left Mouse Button
B Scroll Wheel
C Right Mouse Button
D DPI and battery
status indicator
E Thumb Button 2
F Thumb Button 1
G DPI Switch
H Mode Switch
I Compartment for
USB Nano Receiver
J USB Connector
03
Remove USB Nano Receiver
04
Remove Protection Foil
05
3

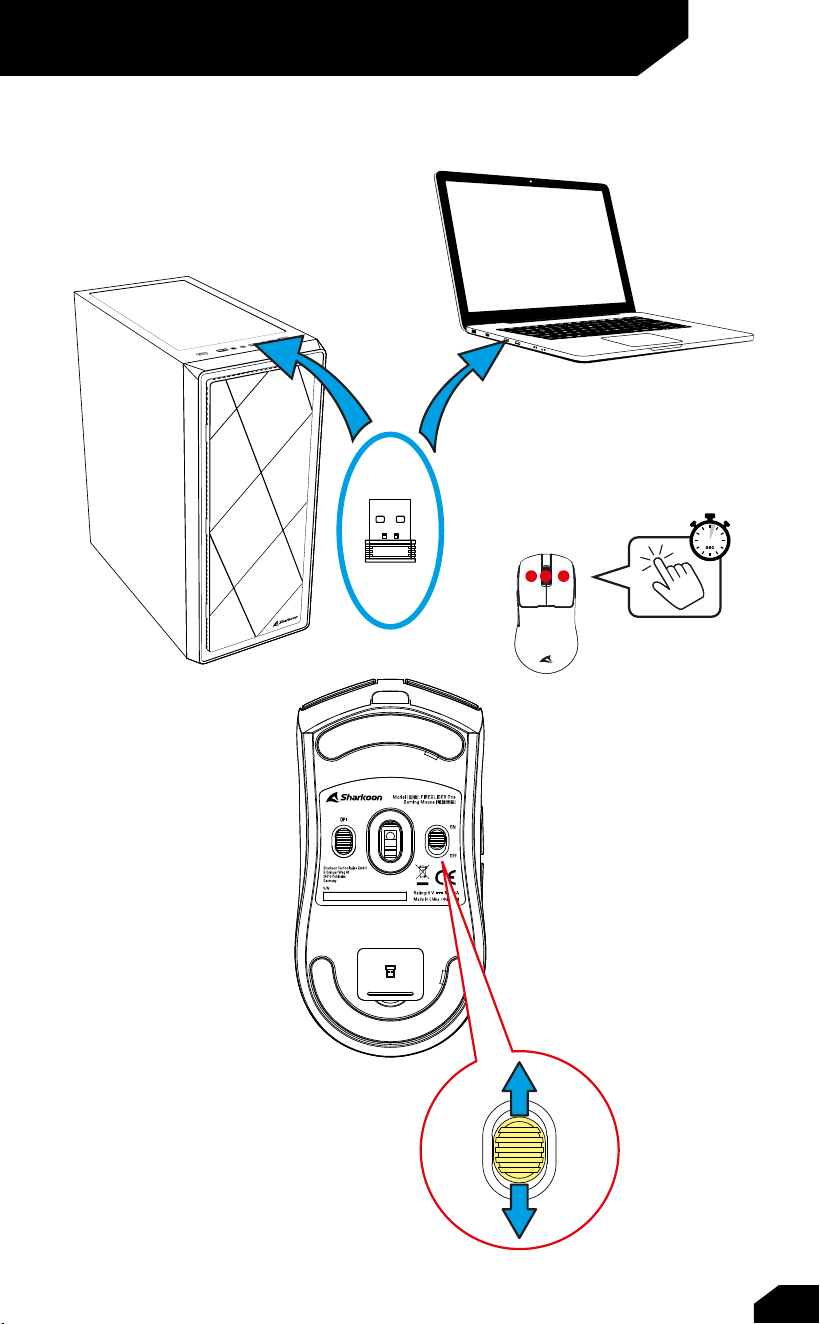

Connect via USB Nano Receiver
Up: Wireless,
illumination on
Down: Wireless,
illumination o
06

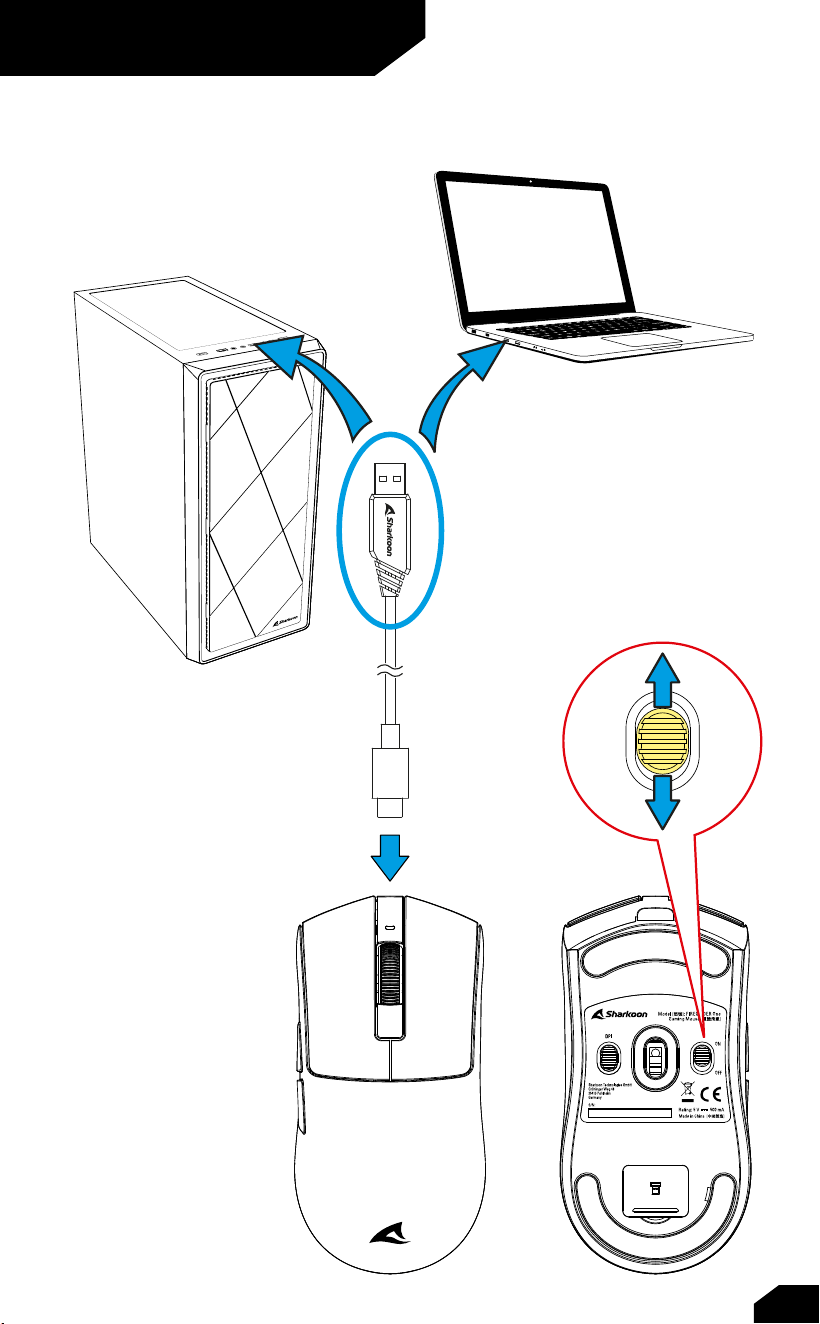

Connect via Cable
07

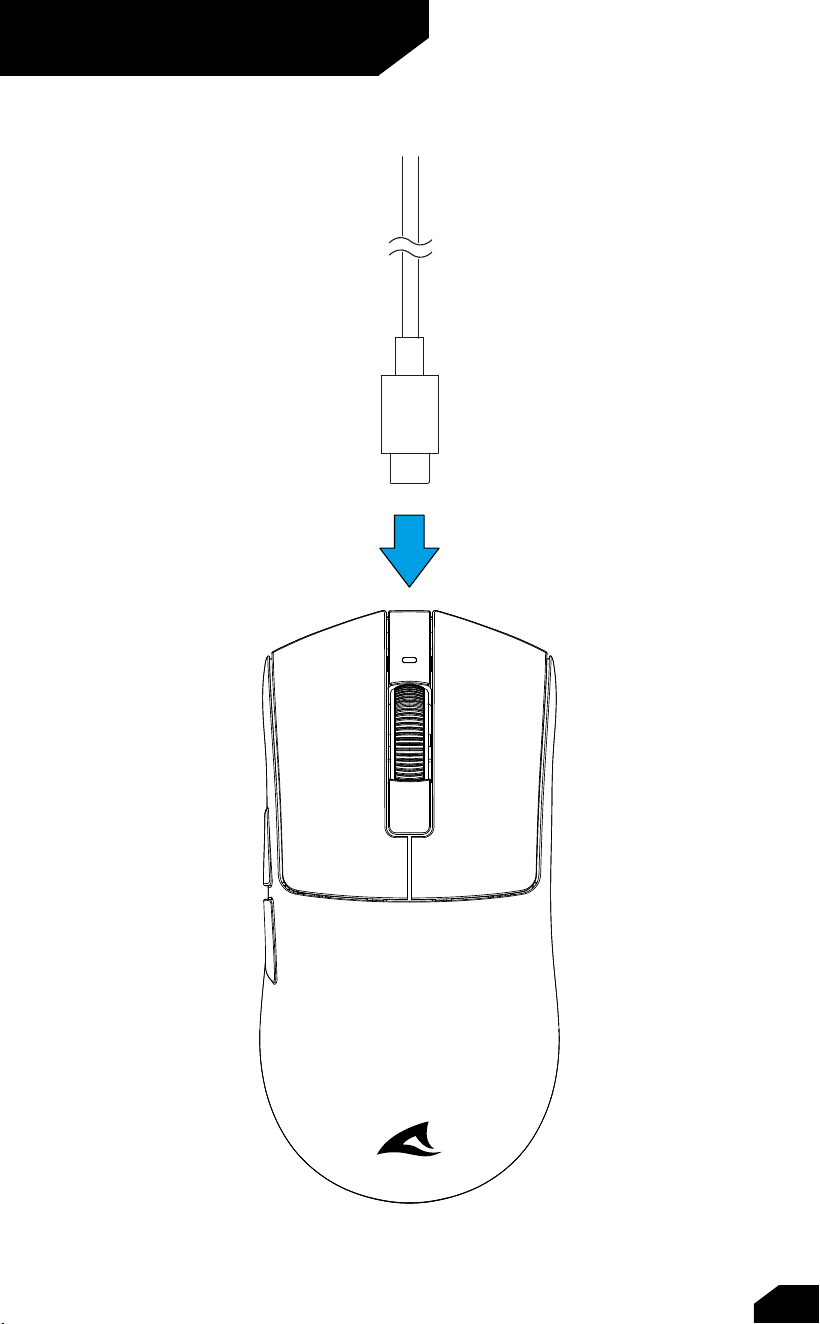

Charge the Mouse
08

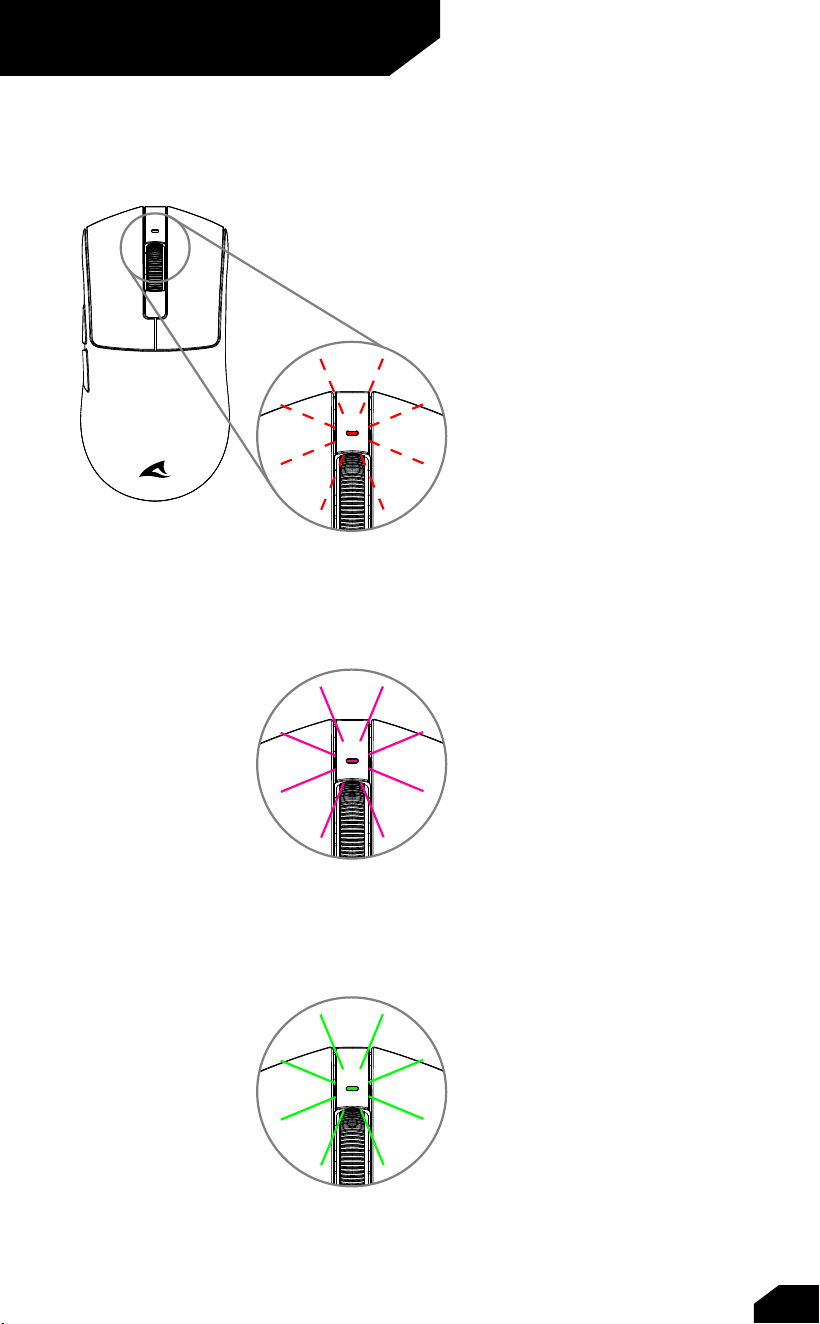

See Battery Status
Low battery level
Charging
Charged
09
Select DPI Levels
400 DPI
800 DPI
1,600 DPI
3,200 DPI
6,400 DPI
12,000 DPI
Pressing the DPI selection button cycles through the DPI levels; the DPI
and battery status indicator briefly flashes in the color shown here:
10

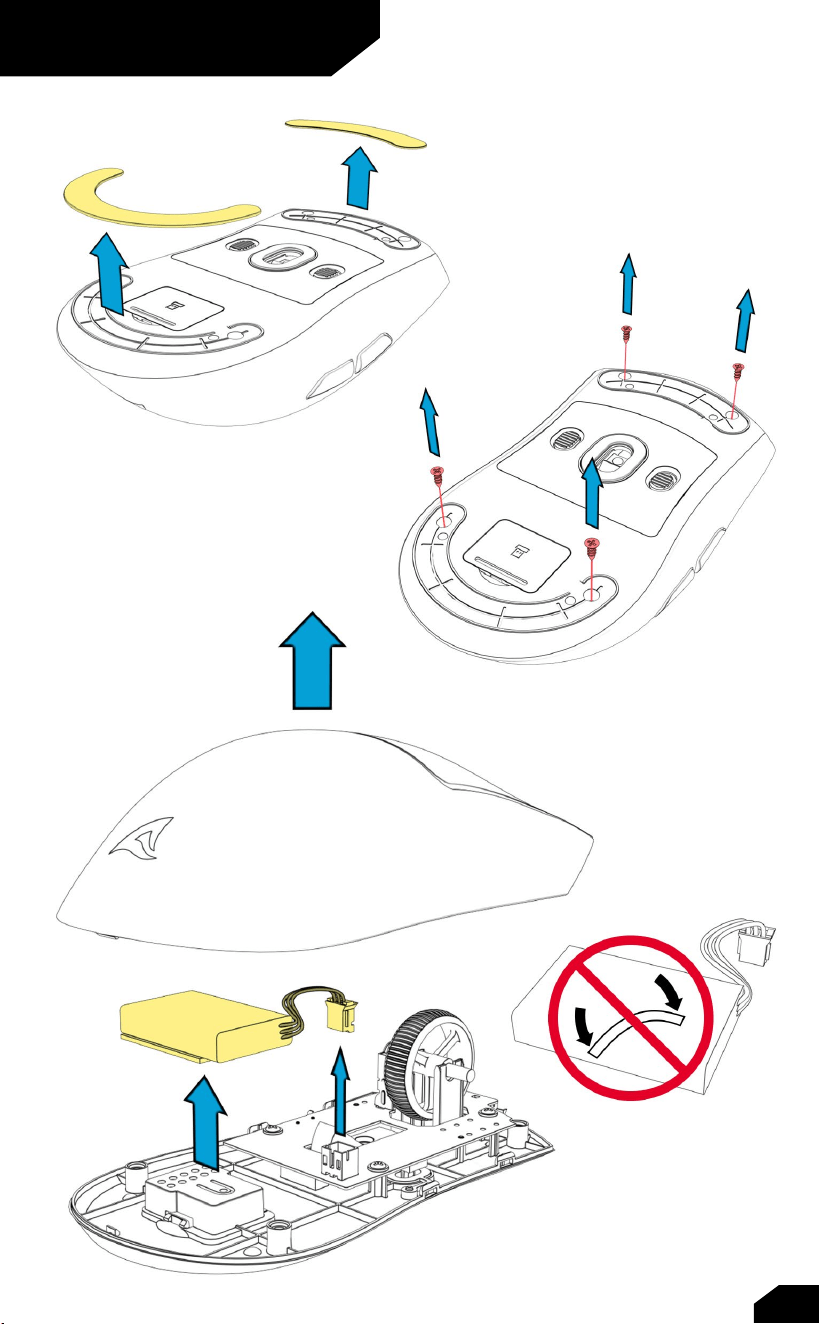

Recycle Battery
11
EU Declaration of Conformity
Sharkoon Technologies GmbH hereby declares that this device complies with
the RoHS (2011/65/EU) and R.E.D (2014/53/EU) directives.
The full EU Declaration of Conformity is available on the website
https://www.sharkoon.com/Download/Gaming/Mouse/FIREGLIDER_One/
CE.zip
Frequency Range: 2.400 GHz – 2.480 GHz
EIRP Transmit Power: ≤ 2 dBm
Operating Temperature: -10 °C – +40 °C
Legal Disclaimer
For potential loss of data, especially due to inappropriate handling, Sharkoon
assumes no liability.
All named products and descriptions are trademarks and/or registered
trademarks of the respective manufacturers and are accepted as protected.
As a continuing policy of product improvement at Sharkoon, the design and
specifications are subject to change without prior notice. National product
specifications may vary.
All rights reserved especially (also in extracts) for translation, reprinting,
reproduction by copying or other technical means. Infringements will lead to
compensation. All rights reserved especially in case of assignation of patent
or utility patent. Means of delivery and technical modifications reserved.
Disposal of your old products
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product,
it means the product is covered by the European Directive 2012/19/EU.
Dispose of waste electrical and electronic equipment in accordance with the
regulations in your country and do not dispose of your old electrical and elec-
tronic equipment with normal household waste. Rechargeable and single-use
batteries must be disposed of separately from other waste. The correct dispos-
al of your old product will help prevent potential negative consequences to the
environment and human health.
Note
12
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
·
Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and
receiver.
· Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician
for help.
Caution: Any changes or modifications to this device not explicitly
approved by manufacturer could void your authority to operate
this equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
RF Exposure Information
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure
condition without restriction.
