3-SSD28
INSTALL GUIDE
Model No.HeightWidthDepth
Model No.HeightWidthDepth
C3SSD28
C3SSD28
Cutout Dimensions for Island
Overall Product Dimensions
12 3/4"
14"
CUTOUT WIDTH
CUTOUT
HEIGHT
GRILL OPENING WIDTH
FRONT VIEW
1
1
/2" MIN
SUGGESTED
FOR
FRAMING
INTERIOR
DEPTH
TOP VIEW
25 1/2"
OVERALL
HEIGHT
14"
25
1
/2"
12
3
/4"
OVERALL WIDTH
OVERALL WIDTH
EXTERIOR
DEPTH
CUTOUT WIDTH
25
1
/2"

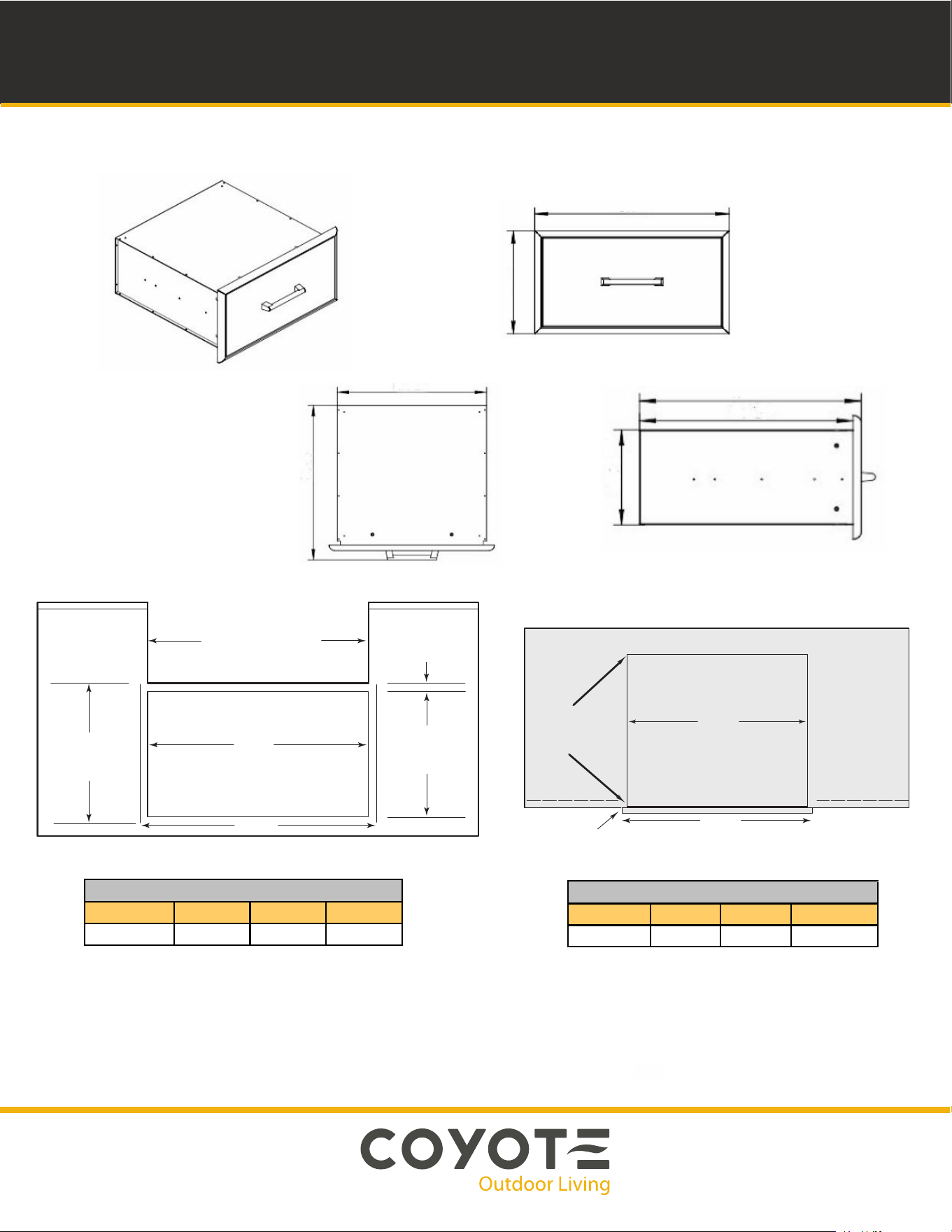

DIMENSIONAL RENDERINGS
The drawer has a gasket to keep moisture out and is capable of holding 80 lbs
2 anchor points are located on each side of the doors interior frame (top, bottom, left and right)
Due to wide variance of possible building materials, anchors are not included
When inserting your anchors be sure to use a framing square to ensure the door is not pulled out of square
Additional framing and/or support underneath the rear (hanging portion) of the cabinet is recommended
These specs are accurate but we always suggest having the product physically on site to ensure full understanding of how this
product will coordinate with your build
25 3/8"
27 1/8"
26 1/8"
27 1/8"
27 1/8"
1"
Install Notes:
27 1/8"
14"
26 1/8"
25 1/8"
25 1/4"
27 3/4"
12 1/4"
25 1/8"
