1
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Español p. 17
SC24478
ITEM #5971306/5979038/5979040/5979042
MODEL #43305/43382/43383/43384

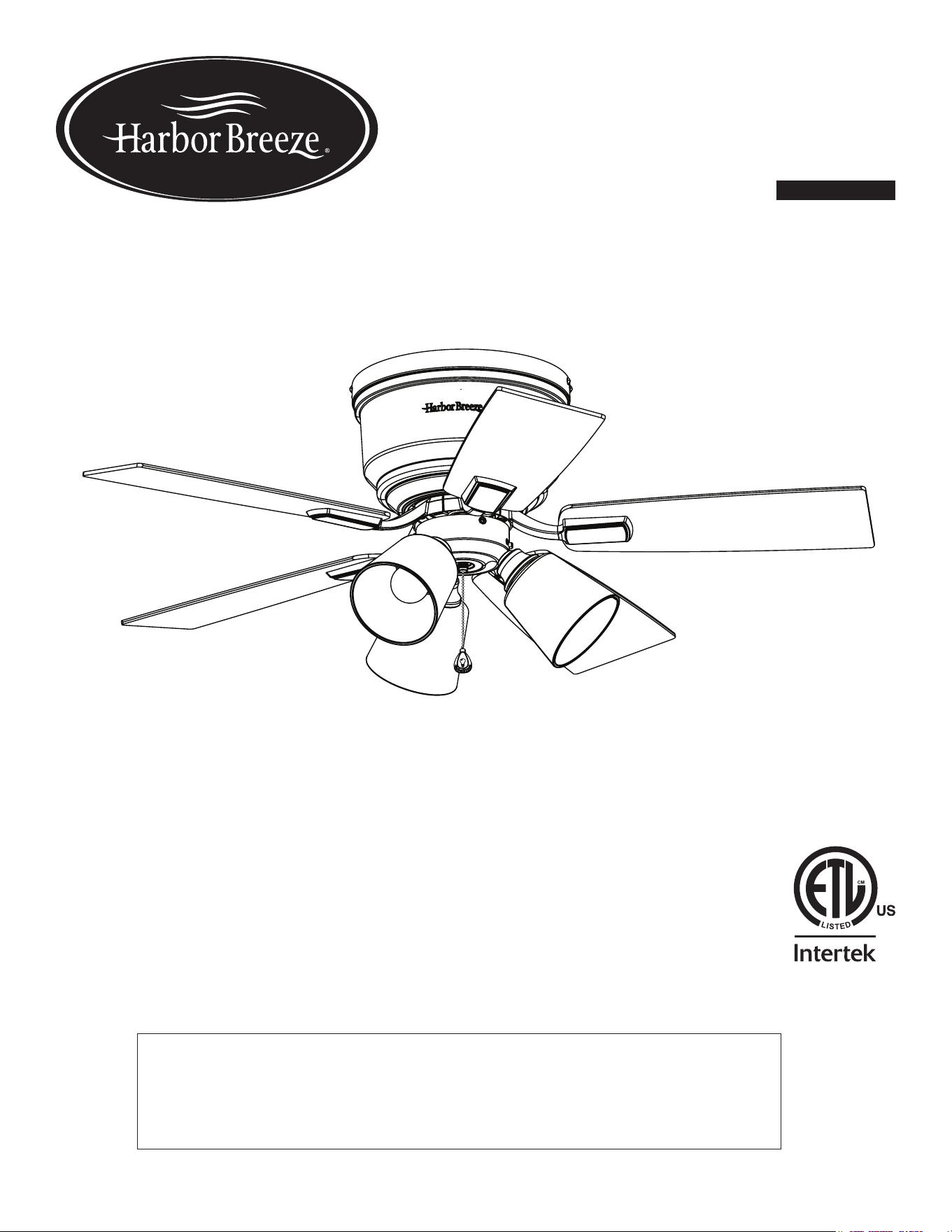

42-INCH COACHMAN
CEILING FAN
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, or missing parts?
Before returning, contact us at:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday or at [email protected].
2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................6
Wiring ..........................................................................9
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Instructions .............................................................13
Care and Maintenance ............................................................14
Troubleshooting ..................................................................14
Limited Lifetime Warranty ..........................................................15
Replacement Parts List ............................................................16
33

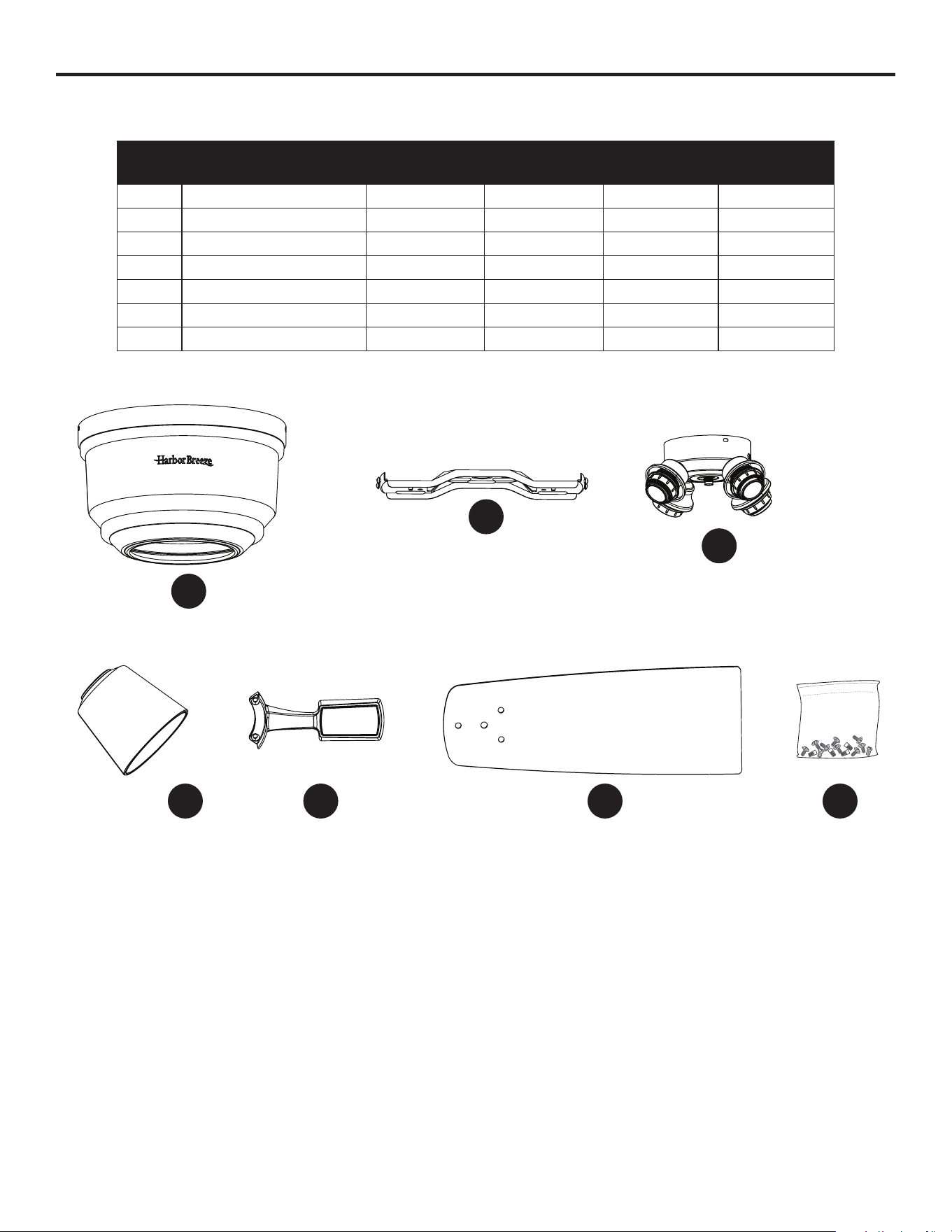

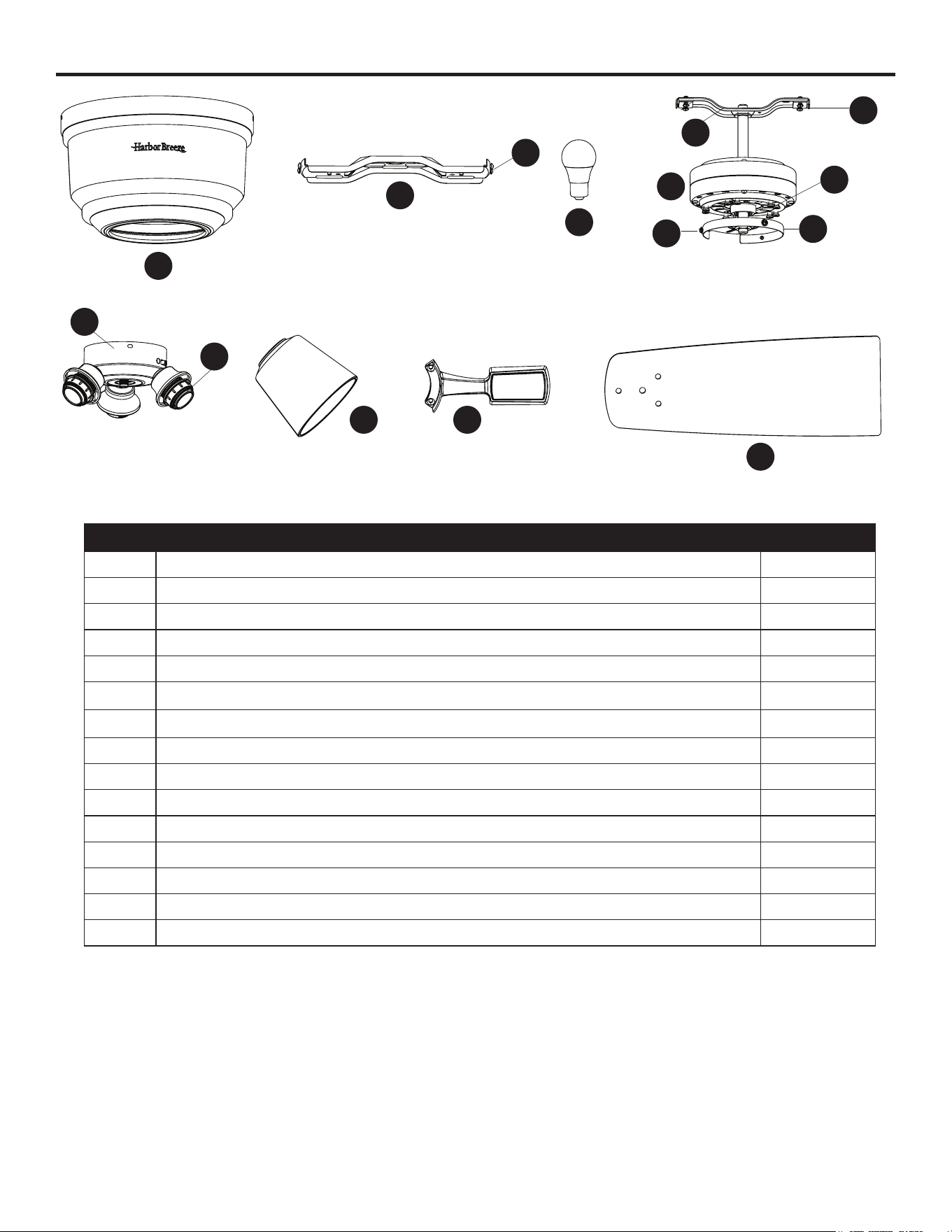

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Motor Housing 1
B Upper Mounting Bracket 1
C Bulb 3
D Lower Mounting Bracket (preassembled to Motor [E]) 1
E Motor 1
F Fitter Plate (preassembled to Motor [E]) 1
G Light Kit 1
H Glass Shade 3
I Blade Arm 5
J Blade 5
K Socket Ring (preassembled to Light Kit [G]) 3
L Motor Screw (preassembled to Motor [E]) 10
M Lower Bracket Screw (preassembled to Lower Mounting Bracket [D]) 4
N Fitter Plate Screw (preassembled to Fitter Plate [F]) 3
O Motor Housing Screw (preassembled to Upper Mounting Bracket [B]) 4
A
B
O
C
D
L
N
E
M
F
J
IH
G
K
4

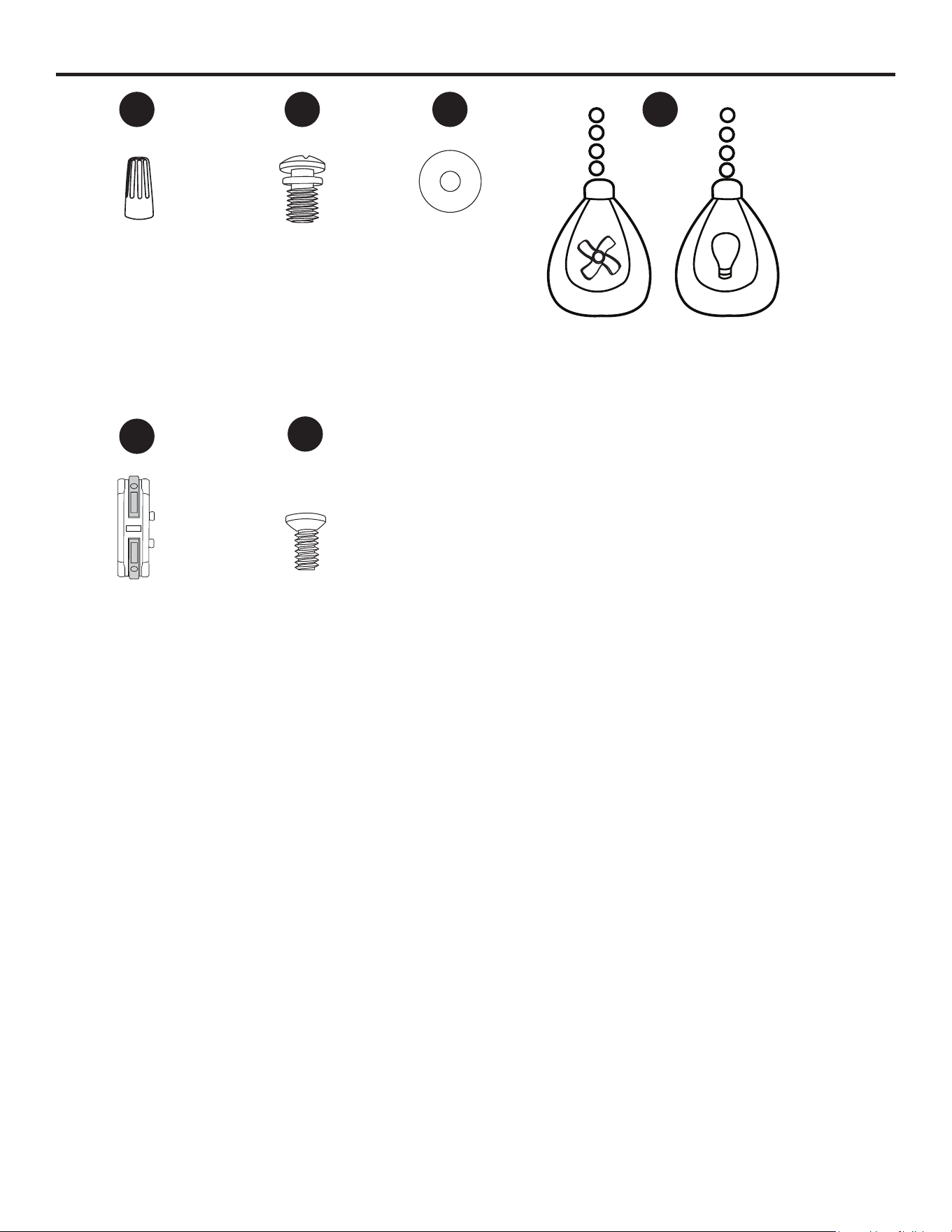

HARDWARE CONTENTS
Wire Connector
Qty. 1
+ 1 extra
Blade Screw
Qty. 5
+ 1 extra
Blade Washer
Qty. 5
+ 1 extra
Pull Chain Extension
Qty. 2
Push-in
Connector
1 extra
Motor Screw
1 extra
AA
FF
BB CC DD
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
XX
5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 15.3 lb.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use a full-range dimmer switch
to control the fan speed.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
INITIAL INSTALLATION
1. Turn o the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
1
HKC-US, 3350 Players Club Pkwy. #225, Memphis, TN 38125, 1-888-251-1003
7
INITIAL INSTALLATION

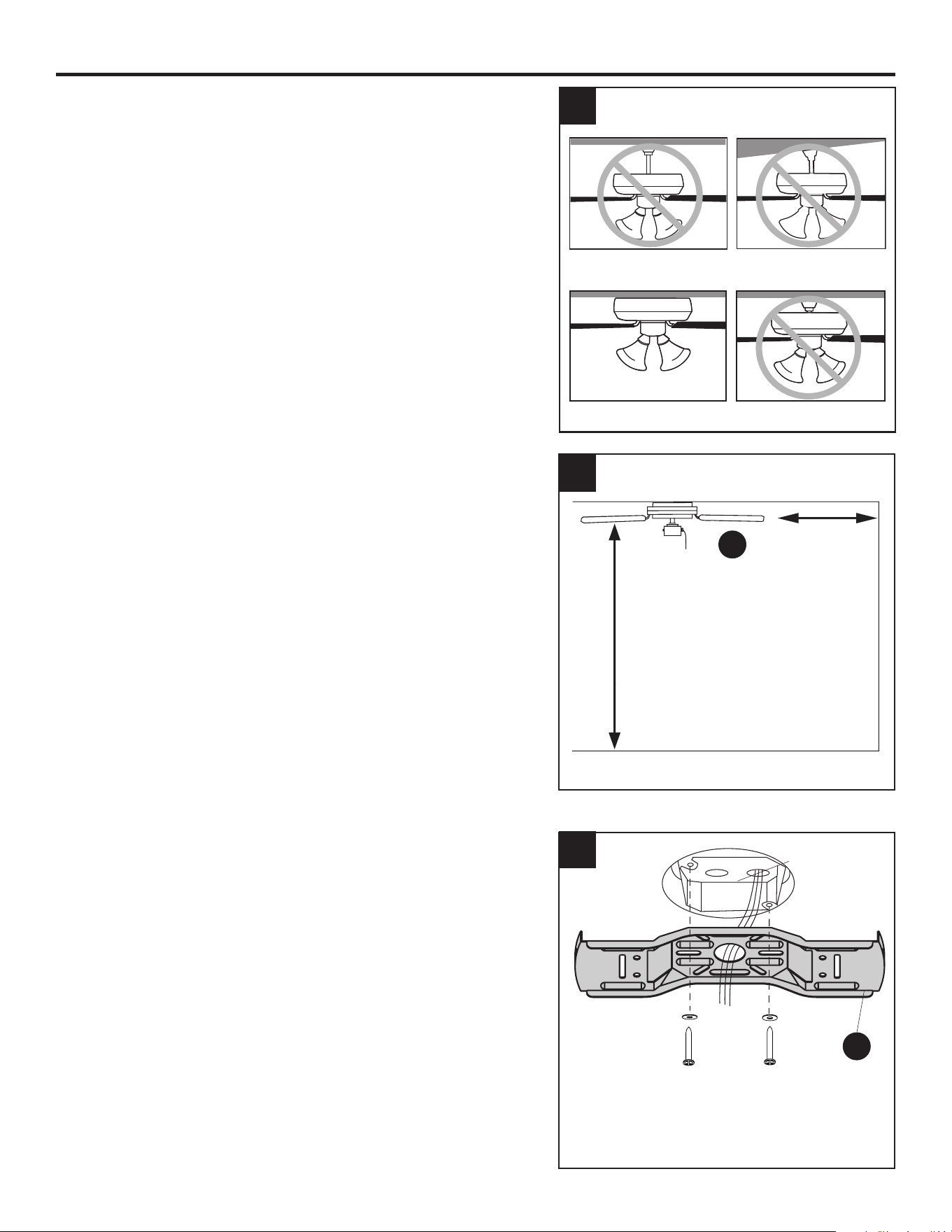

2. This fan is intended for Flushmount installation.
Standard Mounting, Angle Mounting, and Closemount
installations are not available.
3. Ensure the blades (J) will be at least 30 in. from any
obstructions and will be at least 7 ft. above the oor.
4. Secure the upper mounting bracket (B) to the
outlet box (not included) using screws and washers
provided with the outlet box.
CAUTION: It is very important that you use the proper
hardware when installing the upper mounting bracket
(B) as it will support the fan.
3
B
Outlet Box
J
4
Standard Mounting
Flushmount Closemount
Angle Mounting
2
7 ft. Min
30 in. Min
8
INITIAL INSTALLATION

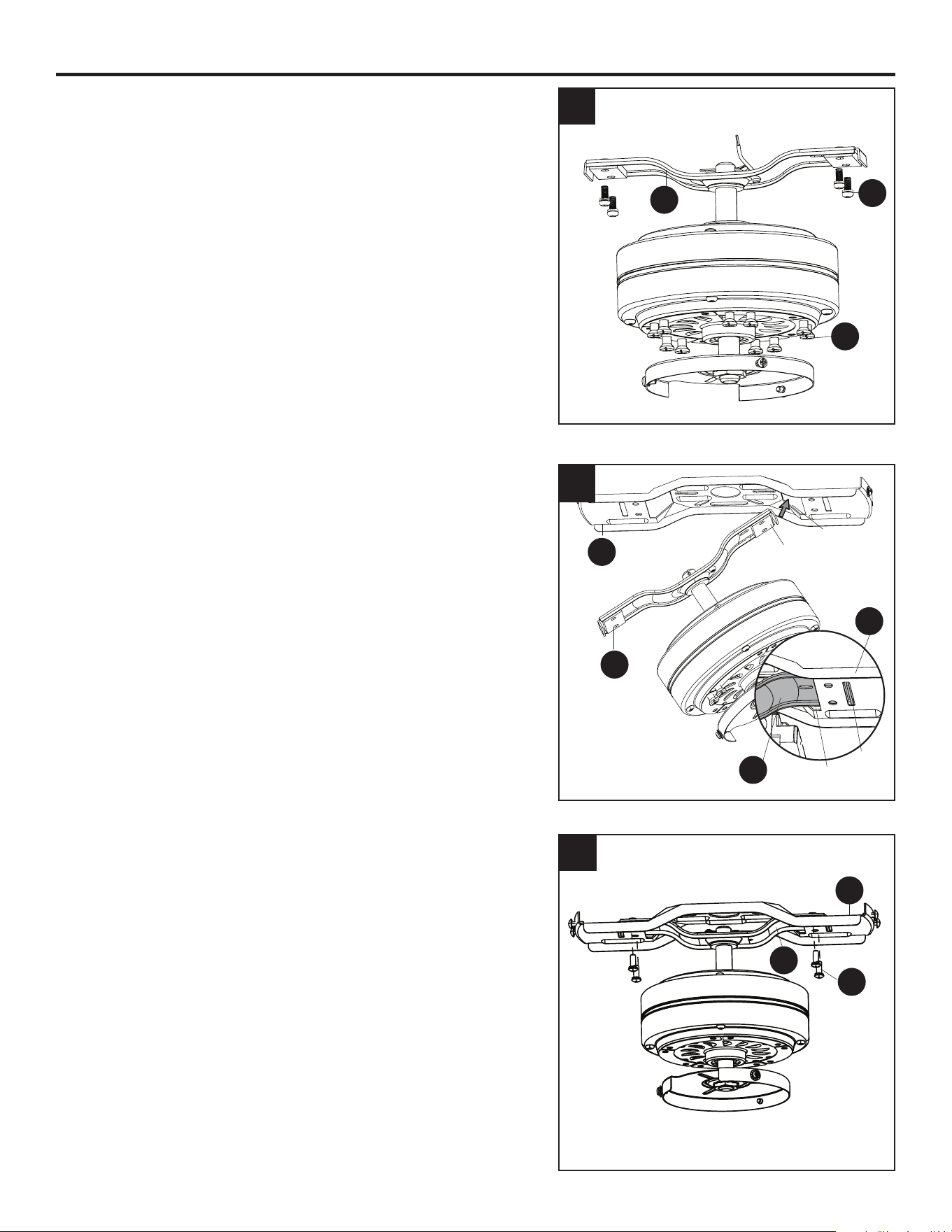

5. Remove the lower bracket screws (M) from
underneath the lower mounting bracket (D). Remove
the 10 motor screws (L) from the motor (E) and save
for later use.
Note: The notch in the tter plate allows a Phillips
screwdriver (not included) access to motor screws (L).
Note: Make sure to keep loose hardware separate to
avoid confusion during installation.
6. Place one tab of the lower mounting bracket (D) into a
slot in the upper mounting bracket (B). Then slide the
second tab of the lower mounting bracket (D) into the
second slot on the upper mounting bracket (B) until all
four holes are in alignment.
7. Re-install the previously removed lower bracket
screws (M) to secure the lower mounting bracket (D)
and the upper mounting bracket (B).
5
6
5
M
L
D
7
M
D
B
B
B
D
Tab
Tab
Slot
Slot
Notch
D
9

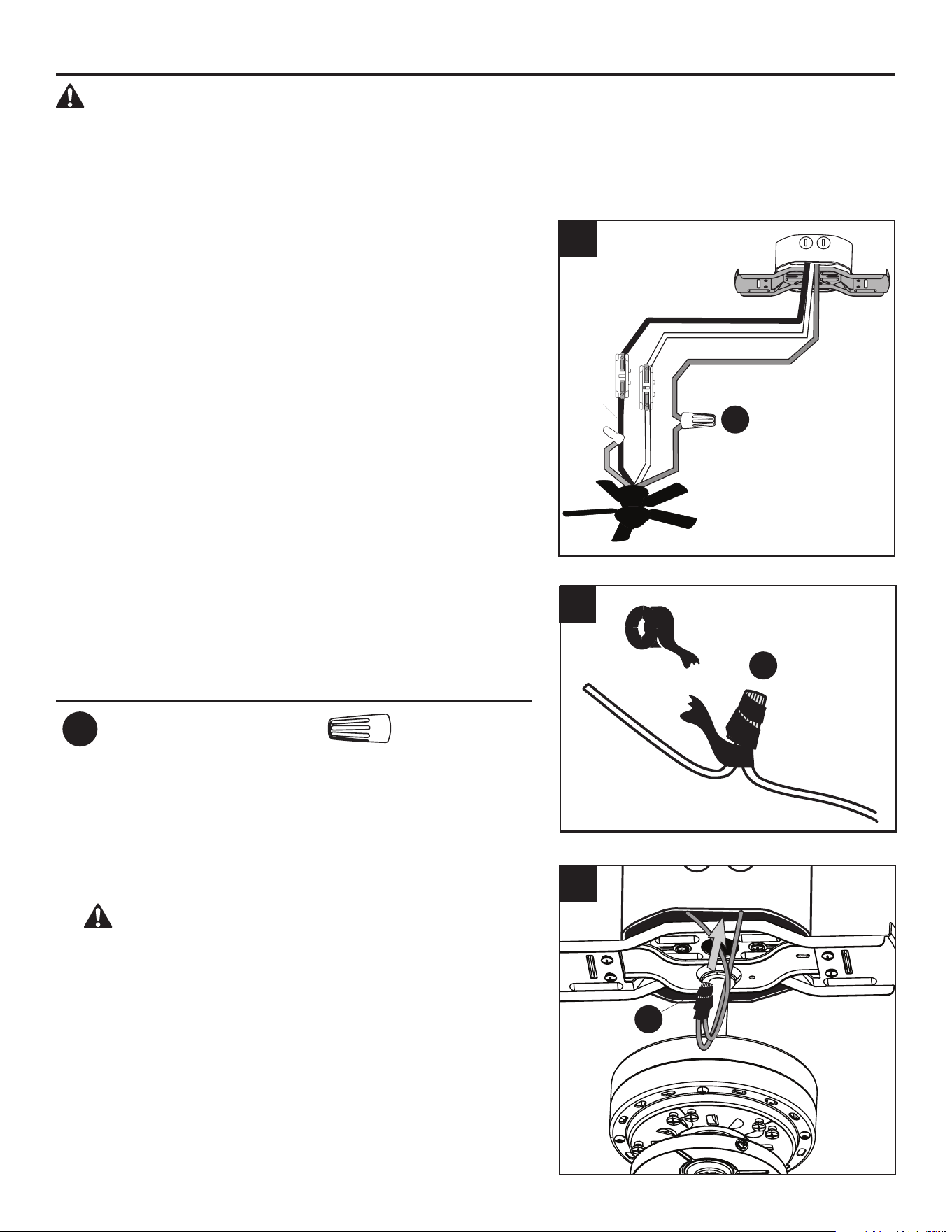

WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a Ground (Green or Bare) wire is present.
1. Connect household supply and fan wires according to
the diagram and these steps:
• Use wire connector (AA) to connect the green wires
from the lower mounting bracket (D) to the bare/
green (ground) supply wire.
• Lift the lever and then push the White (neutral)
supply wire into the empty hole of the wire connector
preassembled to the white wire from motor (E) and
then lower the lever to secure wire.
• Lift the lever and then push the Black (hot) supply
wire into the empty hole of the wire connector
preassembled to the black wire from the motor (E)
and then lower the lever to secure wire.
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the blue (light power) fan
wire for separate light and fan control.
Note: If household supply wires are dierent
colors than referred to above, it is recommended a
professional electrician determines the proper wiring.
Hardware Used
AA
Wire Connector x 1
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black
Blue
White
Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the
Green and White wire connections on the opposite
side of the outlet box from the Black and Blue wire
connections.
1
3
AA
AA
2
AA
10
FINAL INSTALLATION

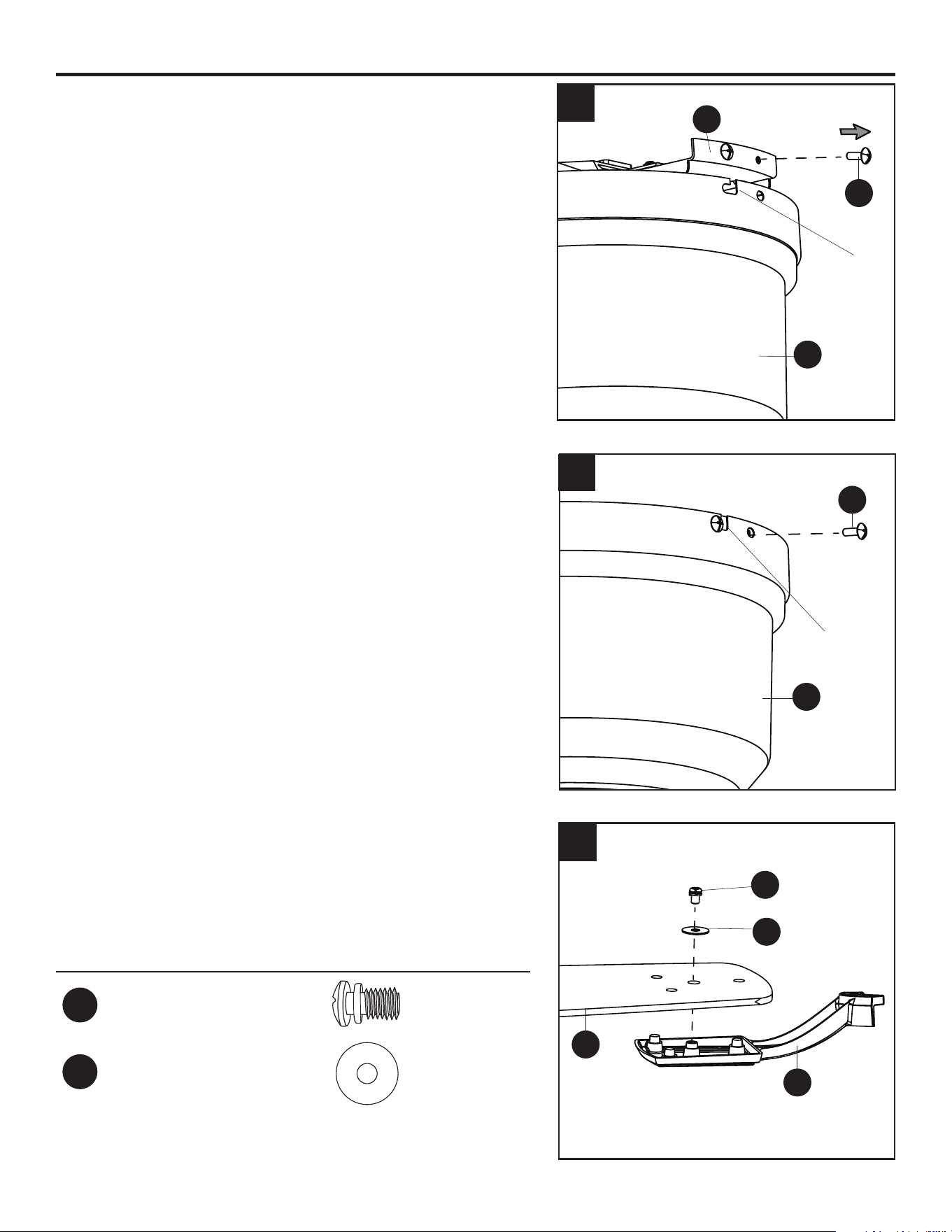

1. Temporarily lift the motor housing (A) to the upper
mounting bracket (B) to determine which two motor
housing screws (O) in the sides of the upper mounting
bracket (B) align with the slotted holes in the top edge
of the motor housing (A). Partially loosen the two motor
housing screws (O) that align with the slotted holes.
Remove the other two motor housing screws (O) from
the upper mounting bracket (B).
2. Slide the motor housing (A) over the motor (E),
aligning the slotted holes in the motor housing (A) with
the loosened motor housing screws (O) in the upper
mounting bracket (B). Twist the motor housing (A)
clockwise to lock. Then re-insert the two previously
removed motor housing screws (O) and securely
tighten all screws.
3. Align blade arm studs with their corresponding holes
in the blade (J) and then insert the blade screw (BB),
blade washer (CC) to attach one blade arm (I) to a
blade (J). Tighten the blade screw (BB). Repeat this
step for the remaining blades (J) and blade arms (I).
Hardware Used
BB
Blade Screw x 5
CC
Blade Washer x 5
3
1
2
A
B
O
A
J
I
BB
CC
Slotted
Hole
Slotted
Hole
O
11
FINAL INSTALLATION

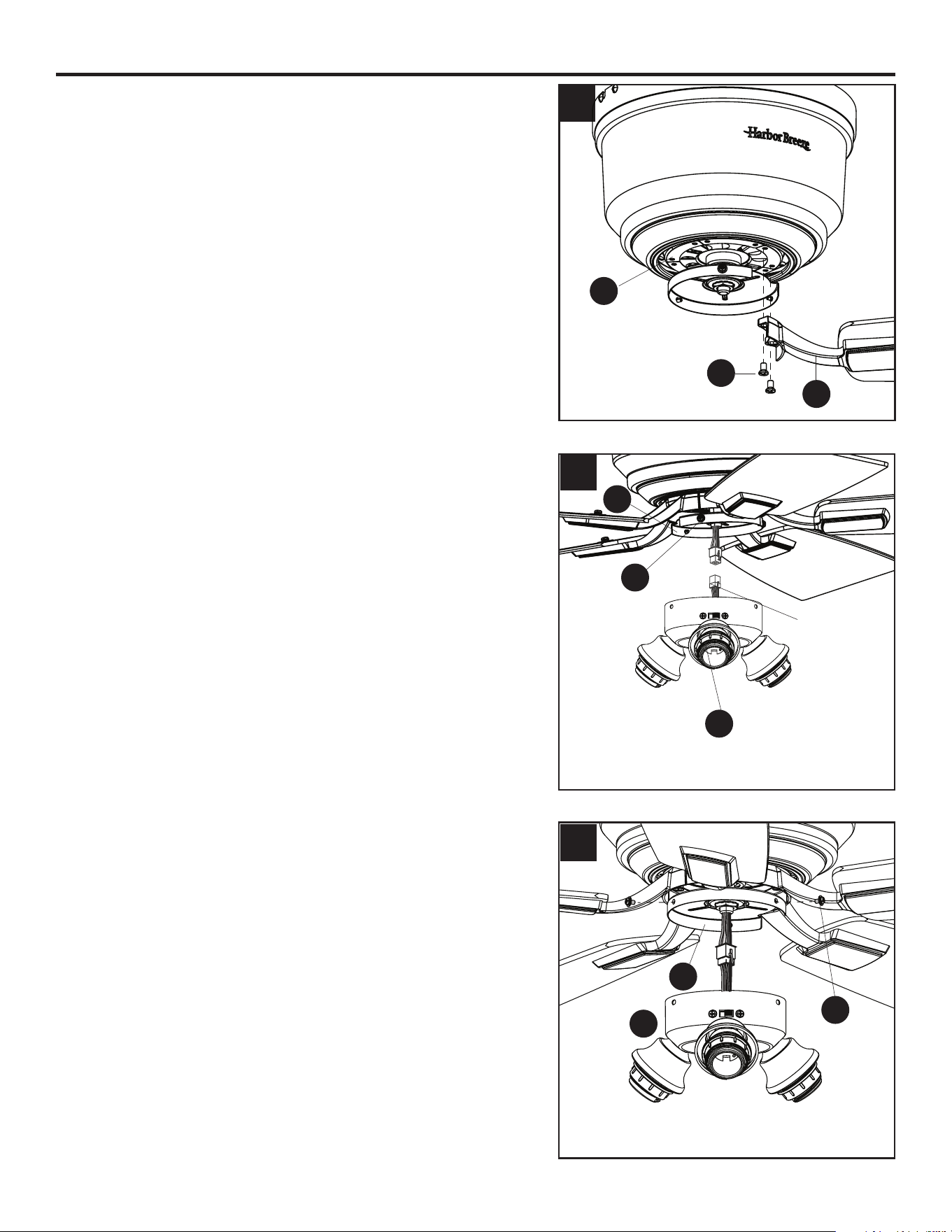

4. Install the blade arm (I) to the underside of the motor
(E) with motor screws (L) previously removed (Step 5,
page 8). Tighten with Phillips screwdriver.
Repeat for each blade arm (I).
5. Remove the tter plate screws (N) preassembled to
the tter plate (F). Then, connect the 9-pin connectors
from the tter plate (F) and the light kit (G).
6. Secure the light kit (G) to the tter plate (F) by
reinstalling the tter plate screws (N).
6
G
N
F
9-pin
Connectors
4
I
E
L
5
N
F
G
12

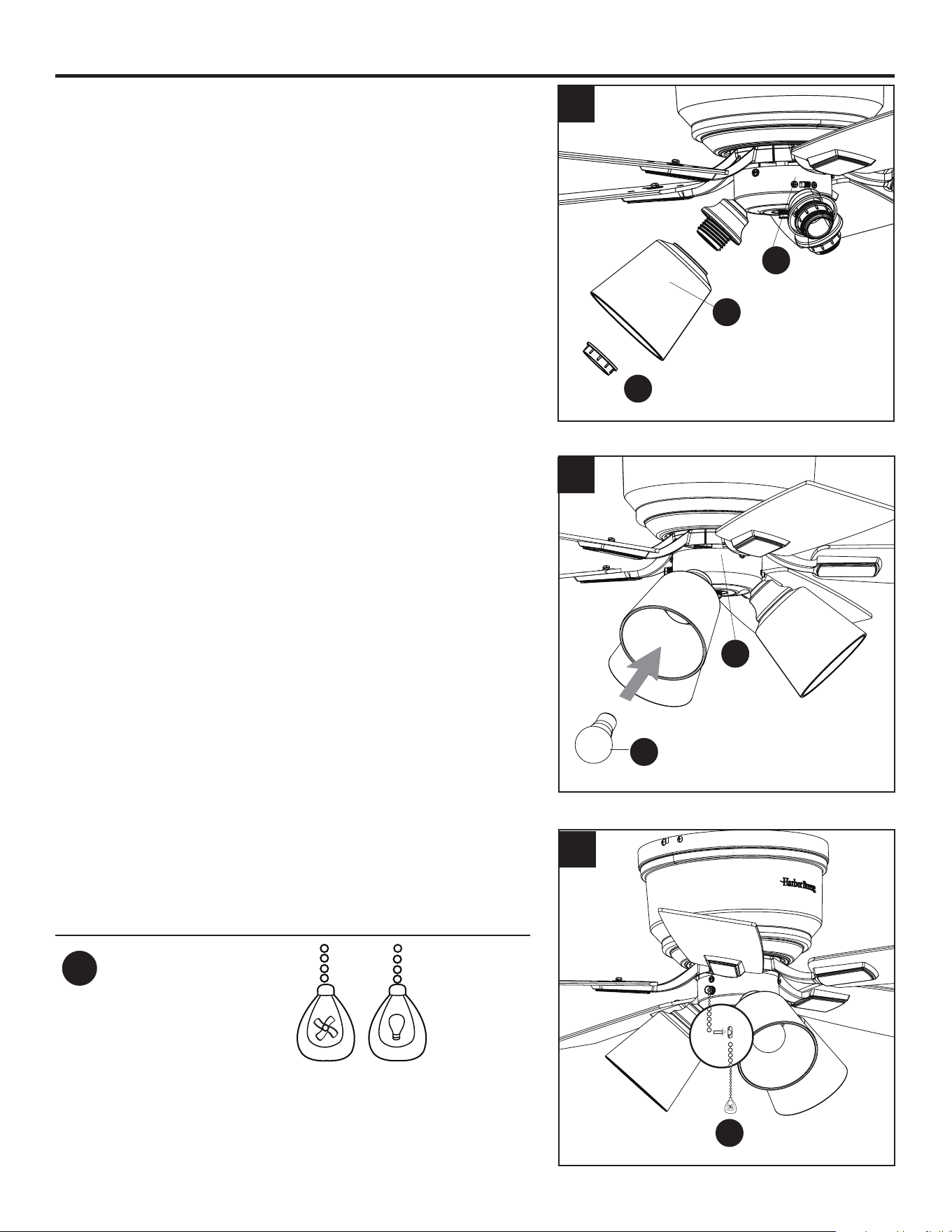

FINAL INSTALLATION
7. Unscrew the socket ring (K) from the socket of the
light kit (G). Then lift the glass shade (H) into the light
cup. Secure the glass shade (H) by reinstalling the
socket ring (K).
8. Install bulbs (C) into the sockets of the light kit (G).
9. Attach the pull chain extensions (DD) or custom pull
chain extensions (not included) to the fan and light
pull chains (if applicable).
Hardware Used
DD
Pull Chain
Extension
x 2
Turn on power supply to the fan.
Assembly is complete.
H
G
G
K
7
8
C
9
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
DD
13

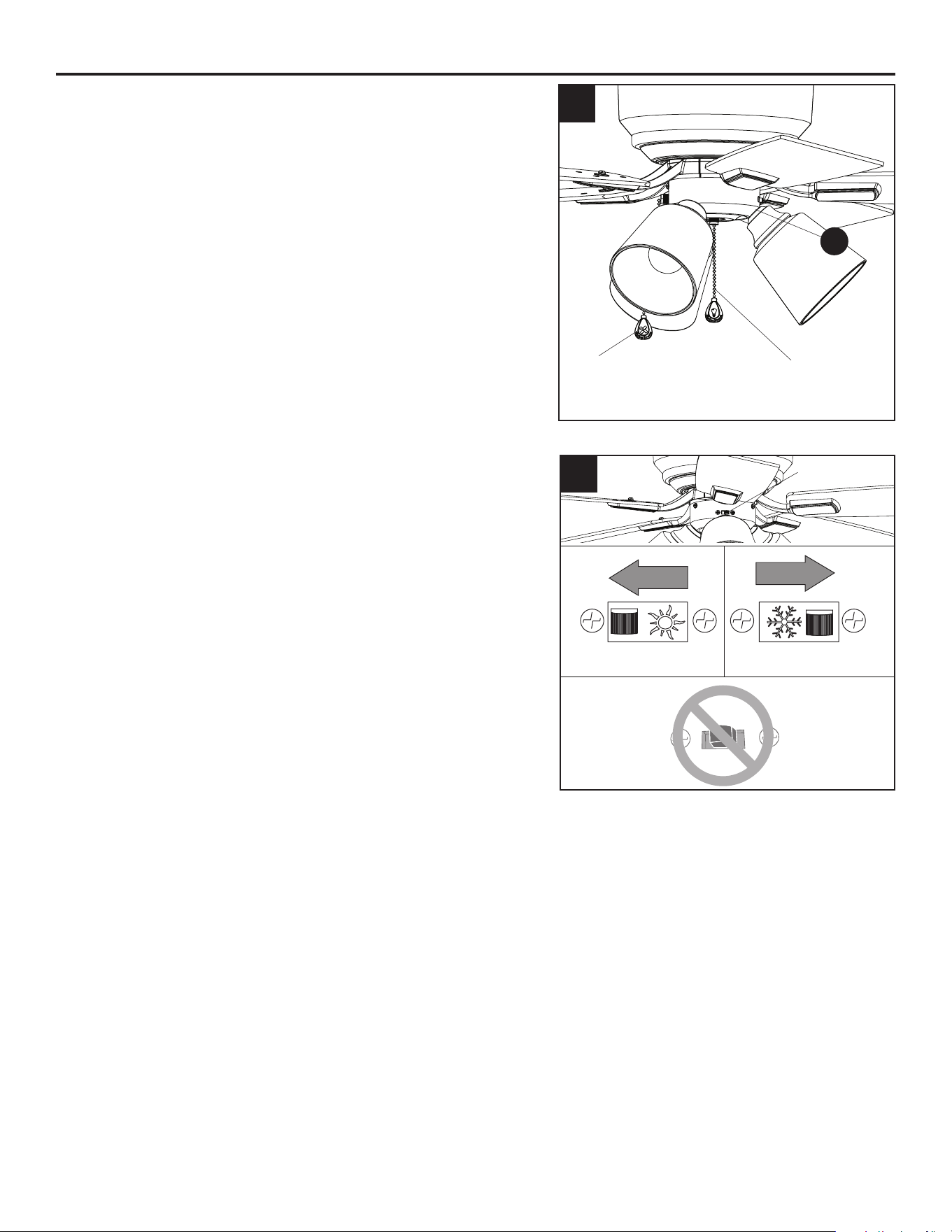

OPERATING INSTRUCTIONS
1. The pull chain has four positions to control the fan
speed. One pull is HIGH, two is MEDIUM, three is
LOW, and four turns the fan OFF. The pull chain in the
center of the light kit (G) turns the lights ON and OFF.
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a dierence
in your comfort. Note: Wait for the fan to stop before
moving the reverse switch located on the tter plate (F).
In warmer weather, push the reverse switch left to
display a sun icon, which will result in downward airow
creating a wind chill eect (Fig. 2a).
In cooler weather, push the reverse switch right to
display a snowake icon, which will result in upward
airow that can help move hot air o the ceiling area
(Fig. 2b).
Important: The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
1
2
Fan Pull
Chain
Light Pull
Chain
Reverse
Switch
G
Fig. 2c
Fig. 2a Fig. 2b
14
CARE AND MAINTENANCE
At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush
or lint-free cloth to avoid scratching the nish. Clean the blades with a lint-free cloth.
Bulb Replacement: Use 40-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The power is o or the fuse is
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the fuse.
2. Turn the power o. Loosen the
canopy and check all connections.
3. Check that the connectors from the
light kit and fan are connected properly.
4. Push the reverse switch completely
to the left or right.
There is excessive
wobbling.
1. The blades and/or blade are loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
1. Check and tighten all screws that
hold the fan blades to the blade arms
and the blade arms to the motor.
2. Switch one blade with a blade from
the opposite side. Or balance the
fan using a blade balancing kit (sold
separately).
3. Turn o the power. Loosen the
motor housing and verify the upper
mounting bracket is secure to the
electrical outlet box. The bracket must
be ush without movement against
the outlet box.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire connection.
1. Re-install the bulb(s).
2. Ensure the 9-pin connectors in the
light kit are connected properly.
3. Turn the power o and check all
connections at the ceiling outlet box.
15
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. Wall control is not compatible with
the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade arms
and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured to
the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that the
screws are tight.
LIFETIME LIMITED WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects
in workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one
year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within
the rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of
metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach
of warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees to
replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable
or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to
you.
16
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
PART DESCRIPTION #5971306
PART#
#5979038
PART#
#5979040
PART#
#5979042
PART#
A Motor Housing 4A000028070 4A000028080 4A000028090 4A000028100
B Upper Mounting Bracket 4L000005400 4L000005400 4L000008200 4L000007760
G Light Kit 4L000018150 4L000018160 4L000018170 4L000018140
H Glass Shade 4A168010001 4A168010001 4A168010001 4A168010001
I Blade Arm 4A077760002 4A077760003 4A077760004 4A077760001
J Blade 4A086780001 4A086780002 4A086780003 4A086780004
HW Hardware Kit 4L000018220 4L000018230 4L000018240 4L000018250
10127-PB · 042224
A
B
G
H I
J
HW
