instruction manual
FCC Compliance and License Requirements"
SECTION 1 – FCC LICENSE WARNING (Required by 47 CFR § 95.393(b)(4))
WARNING: This device contains a GMRS (General Mobile Radio Service) transmitter that is not
authorized for operation without an individual FCC license. Operating the GMRS function of
this device without first obtaining an FCC license is a violation of federal law. Information on
obtaining a license, including application forms (FCC Form 605) and instructions, is available
on the FCC website at www.fcc.gov or by calling 1-888-CALL-FCC.
SECTION 2 – PROHIBITION ON NETWORK CONNECTION (LINKING)
NOTICE – Network Access Restriction: It is strictly prohibited to use the POC (Push-to-Talk
over Cellular) function of this device to relay, retransmit, or forward any voice communication
received from the GMRS transmitter over the internet or any other public or private network.
This device shall not be used as a network link or bridge for GMRS communications. Any such
use violates FCC rules regarding prohibited connections (47 CFR § 95.1733 and § 95.1749).
SECTION 3 – UNAUTHORIZED ADJUSTMENTS (Required by 47 CFR § 95.393(b)(2)(3))
NOTICE: Any adjustments, modifications, or replacements of components (including antennas,
transmitters, or frequency-determining elements) that are not expressly approved by the
manufacturer or the party responsible for compliance could void the user's authority to
operate this equipment under FCC rules and may result in violation of 47 CFR Part 95.
SECTION 4 – DISTINCTION BETWEEN GMRS AND POC FUNCTIONS
DEVICE OPERATION STATEMENT:
●GMRS Mode: Requires an individual FCC license. This mode operates on radio frequencies
allocated to the General Mobile Radio Service and is subject to all rules under 47 CFR Part 95.
●POC Mode: Operates via commercial cellular networks (e.g., 4G/5G/LTE/Wi-Fi). This mode
does not require an FCC GMRS license. The POC function is subject to the terms and
conditions of the cellular service provider and is not considered a part of the GMRS
transmitter for FCC certification purposes.
●These two modes are functionally independent. The presence of the POC function does not
eliminate or alter the license requirement for the GMRS transmitter.

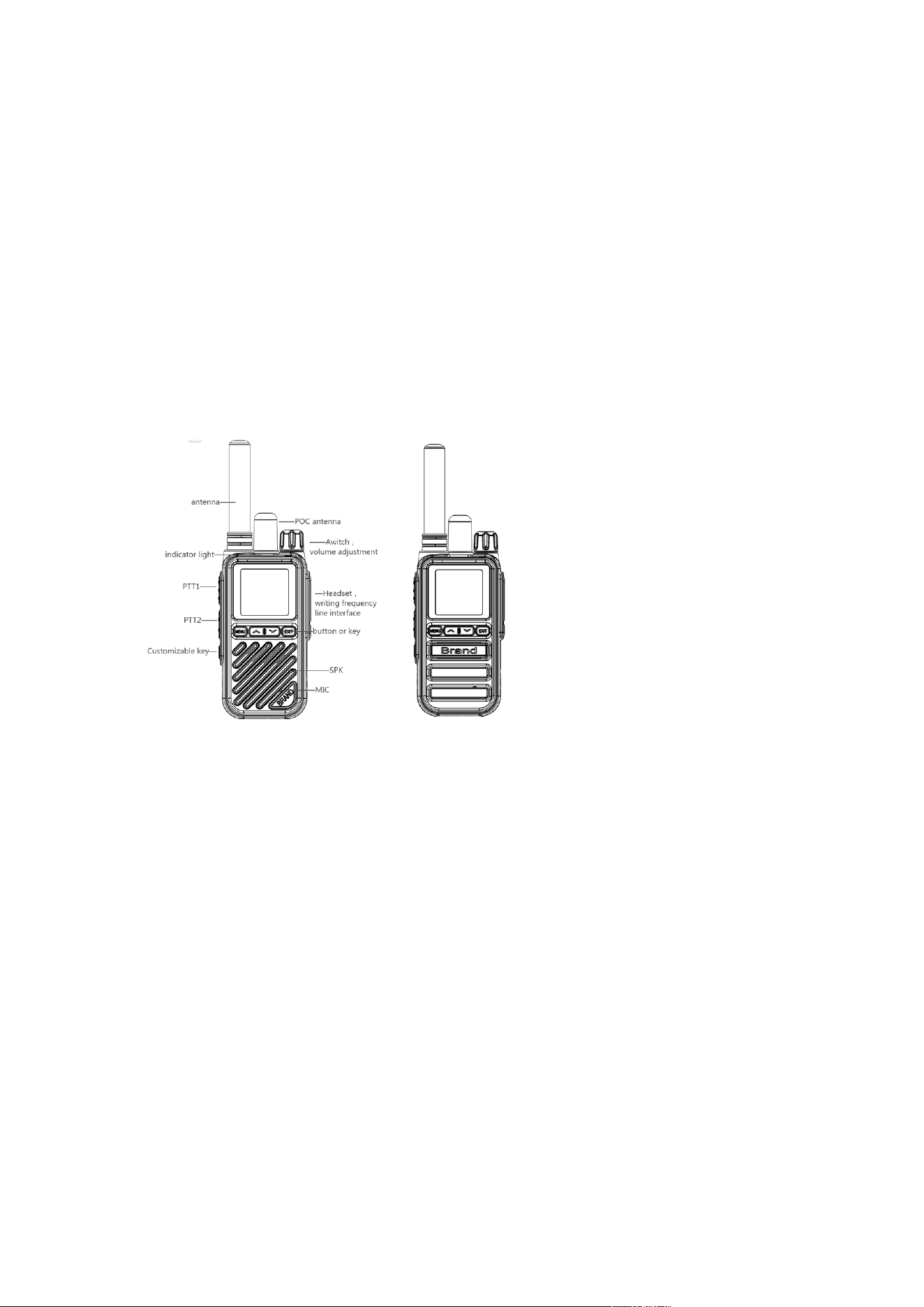

SECTION – 5 Product structure diagram
The keyboard has 4 keys: Menu (Green), Up, Down, and Back (Red)
Long press the green key to turn the keyboard lock on and off
Long press the red button to send SOS
SECTION – 6 Operation Instructions

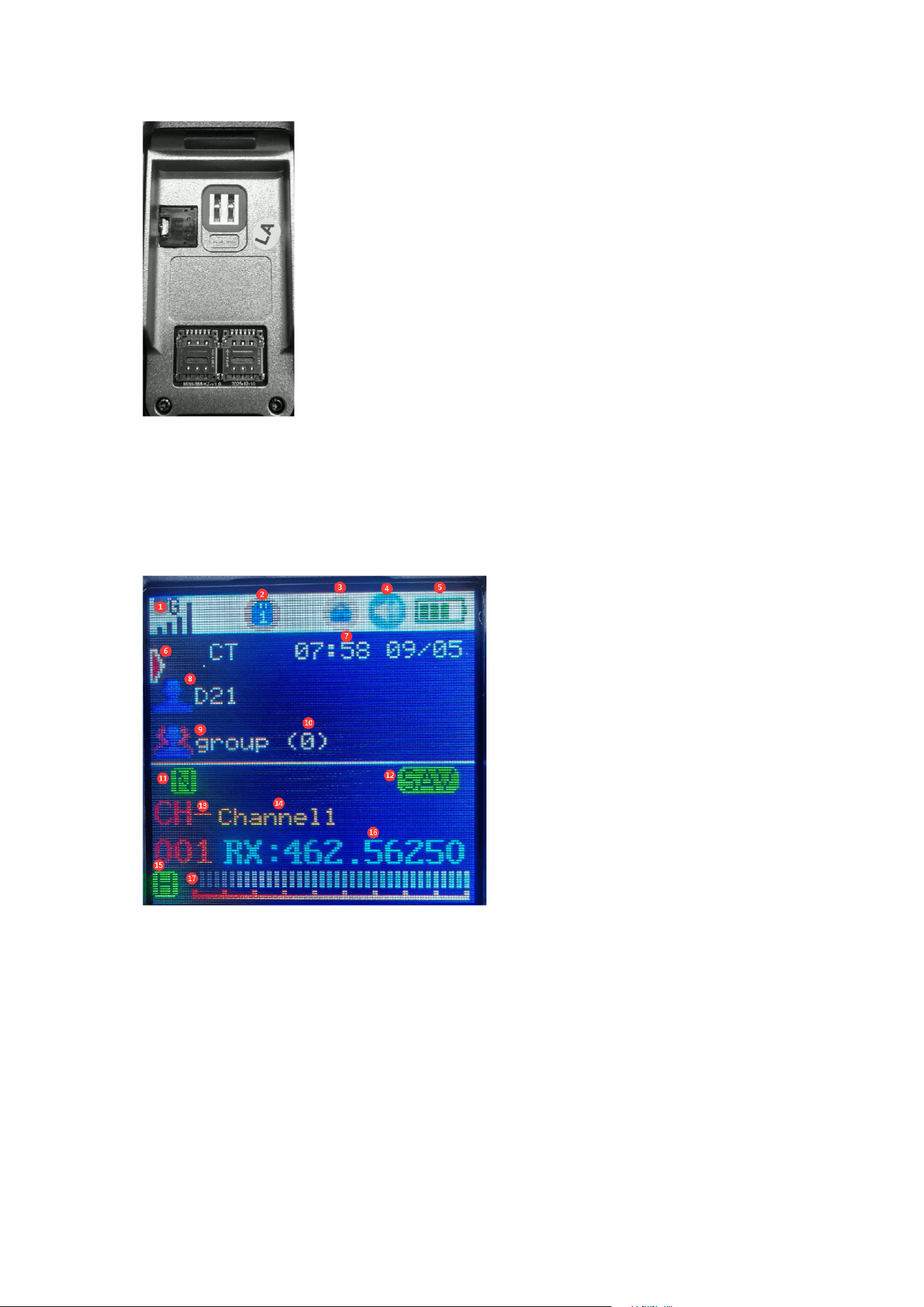

1.The device requires POC functionality and needs a SIM card; the SIM card slot is located on the
back of the device.
2.Install the battery and antenna on the device
3.Turn the device switch to the maximum
4.After powering on, wait for the POC to log into the platform, then press PTT1 to send after
logging in.
5.Press PTT2 to transmit on the channel frequency
6.Device Show annotations
① POC signal strength bars
② SIM Card 1 or 2
③ keyboard lock
④ Sound output method icon is a speaker
⑤ Battery power
⑥ Primary selection icon, use the headset wire PTT to transmit the currently
selected POC or channel
⑦ Date and Time
⑧ POC username
⑨ POC Group Name
⑩ Current number of online users in the POC group
⑪ Channel bandwidth Narrowband(12.5KHz)
⑫ Channel Standby Power Saving
⑬ channel number
⑭ Channel alias
⑮ power leve( L＜0.5W，H＜5W)
⑯ channel frequency
⑰ Analog channel field strength （Received field strength is green，The
launch
field strength is red）
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1) this device may not cause harmful interference, and 2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
RF Exposure Statement
SAR tests are conducted using standard operating positions according standards
with the device transmitting at its highest certified power level in all tested frequency
bands, although the SAR is determined at the highest certified power level, the actual
SAR level of the device while operating can be well below the maximum value.
This model product has been tested and meets the RF exposure guidelines with the
test distance 25 mm for face up condition. The highest SAR1g value is 0.554W/Kg
for face held and 1.331W/Kg for Body worn. The use of belt clips, holsters and similar
accessories should not contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply with RF exposure
requirements, and should be avoided.
This radio GMRS complies with RF exposure limits for general population/
uncontrolled RF exposure environment at operating duty factors of up to 50%.
