PPHP1250KT
12" Active/Passive Speaker Combo Kit
User Manual
Please read this manual carefully before operating the speaker. Please store this manual with
you for future speaker.
Introduction
Congratulations on your purchase!
We encourage you to take a few minutes to read this manual, which describes the
product and includes step-by–step instructions to help you to enjoy the product
features. Read and understand all the safety instructions before using your product.
If you have any questions about this product, its installation or its operation, please
contact your retailer or customer service.

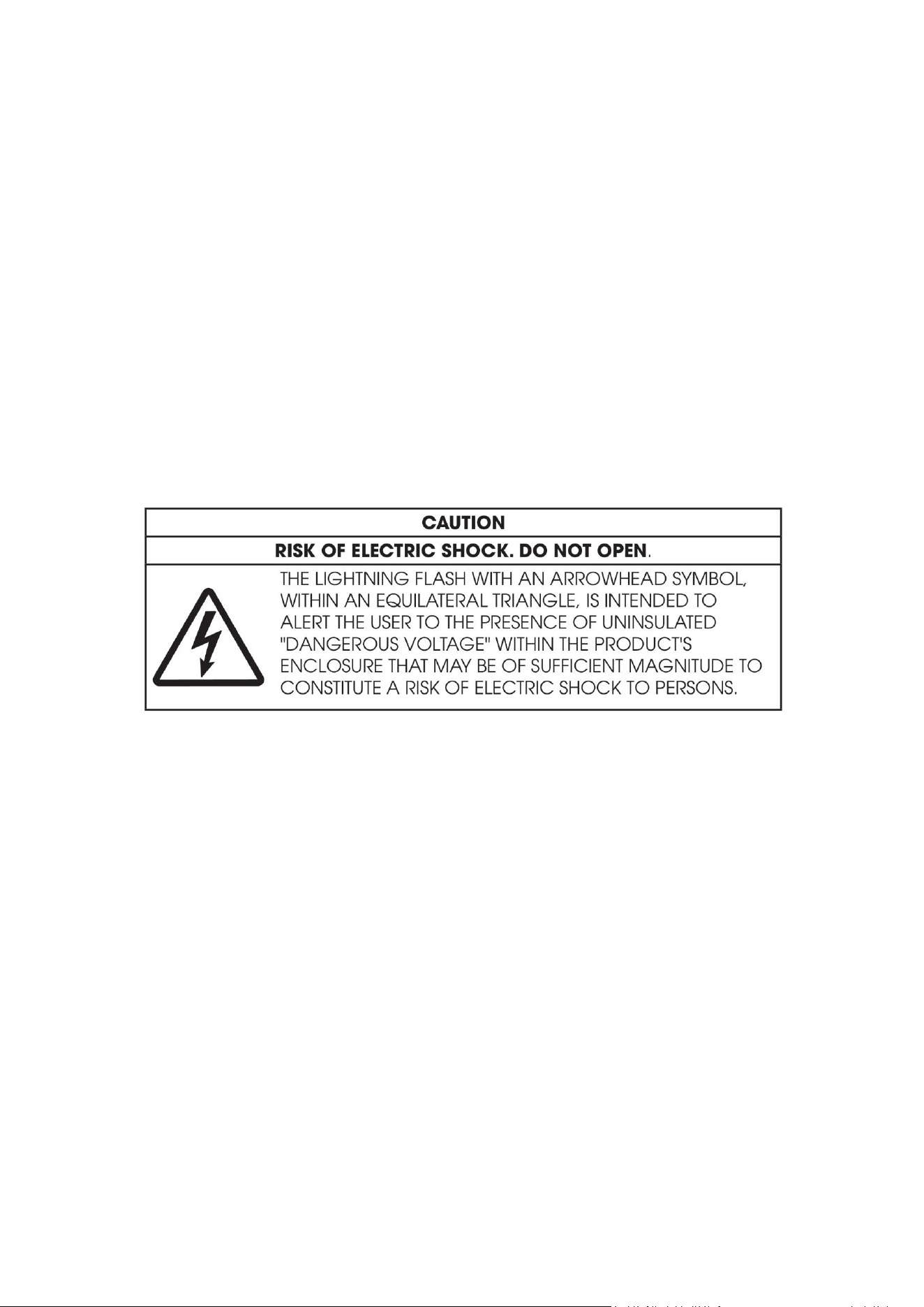

Important Safety Instructions
1. Read all warnings.
2. Follow all instructions.
3. The apparatus shall not be exposed to dripping or splashing. Do not place any
objects filled with liquids such as vase on the apparatus.
4. Do not block any ventilation openings. A minimum distance of 30cm around the
apparatus must be maintained.
5. Do not install this apparatus near any heat sources such as radiators, heat registers,
stoves or other apparatus (including amplifiers) that produce heat.
6. No naked flame sources, such as lighted candles should be place on the apparatus.
7. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
8. Use only attachments and accessories specified by the manufacturer.
9. Unplug this apparatus during lightning storms or when unused for long duration.
PRODUCT OVERVIEW
Section 1:
a. DSP mode: Standard/Vocal Boost/Live/Floor monitor&Wall
b. PRESET: short press to select DSP mode
c. LCD display
d. USB: Insert a USB storage device to play back your stored music.
e. MODE: Short press to select BLUETOOTH /USB
/VOL-: Short press for previous song, long press for volume down.
/VOL+: Short press to skip to next song, long press to increase volume.
/: Short press to Play & Pause the music.
Section 2:
a. MIC /LINE input volume for CH1&CH2: Rotate the knob to adjust the MIC
volume to your desired level.
b. MIC /LINE input switch
c. MIC /LINE XLR &6.35 Jack input
d. MIC ECHO volume for CH1&CH2: Rotate the knob to adjust the MIC echo
volume to your desired level.
e. BASS: Rotate the knob to adjust BASS to your desired level.
f. TREBLE: Rotate knob to adjust treble settings to your desired levels.
g. VOLUME: Rotate knob to adjust master volume settings to your desired levels
h. 3.5MM aux /RCA / input at CH3
i. MIX XLR output
Section 3:
a. POWER: Press to switch on /off the speaker.
b. SPEAKON output to a passive speaker box with 4 ohm
c. AC Power: Connect the detachable power cord to speaker and plug in to the
main wall outlet
Section 4:
a. SPEAKON input
SPECIFICATION
General
Power Requirement AC110V 60Hz
Weight 31.96Kgs
Dimension 820X447X823mm
Operation temperature +5degree C -+ 35 degree C
Audio Section
ACTIVE SPEAKER:
Woofer:12" steel frame woofer 2" voice coil 8 ohm
Driver:1" titaniuam diaphrgam driver 8 ohm
Amplifier:Class D power 1500W+150W
USB/Bluetooth
DSP preset
PASSIVE SPEAKER:
Woofer:12" steel frame woofer 2" voice coil 8 ohm
Driver:1" titaniuam diaphrgam driver 8 ohm
Accessories
2x tripod stand
1x wired microphone
1x 3m speaker cable with speakon
1x AC power cable
1xInstruction manual
Note: Specifications are subject to change for continuous improvement without prior notice.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
