CONTENTS
Safety regulations
Safe use 4
Children and vulnerable people 7
User manual
Models 8
Description 8
Information according regulation (EU only) 66/2014 9
Before first use 10
During use 10

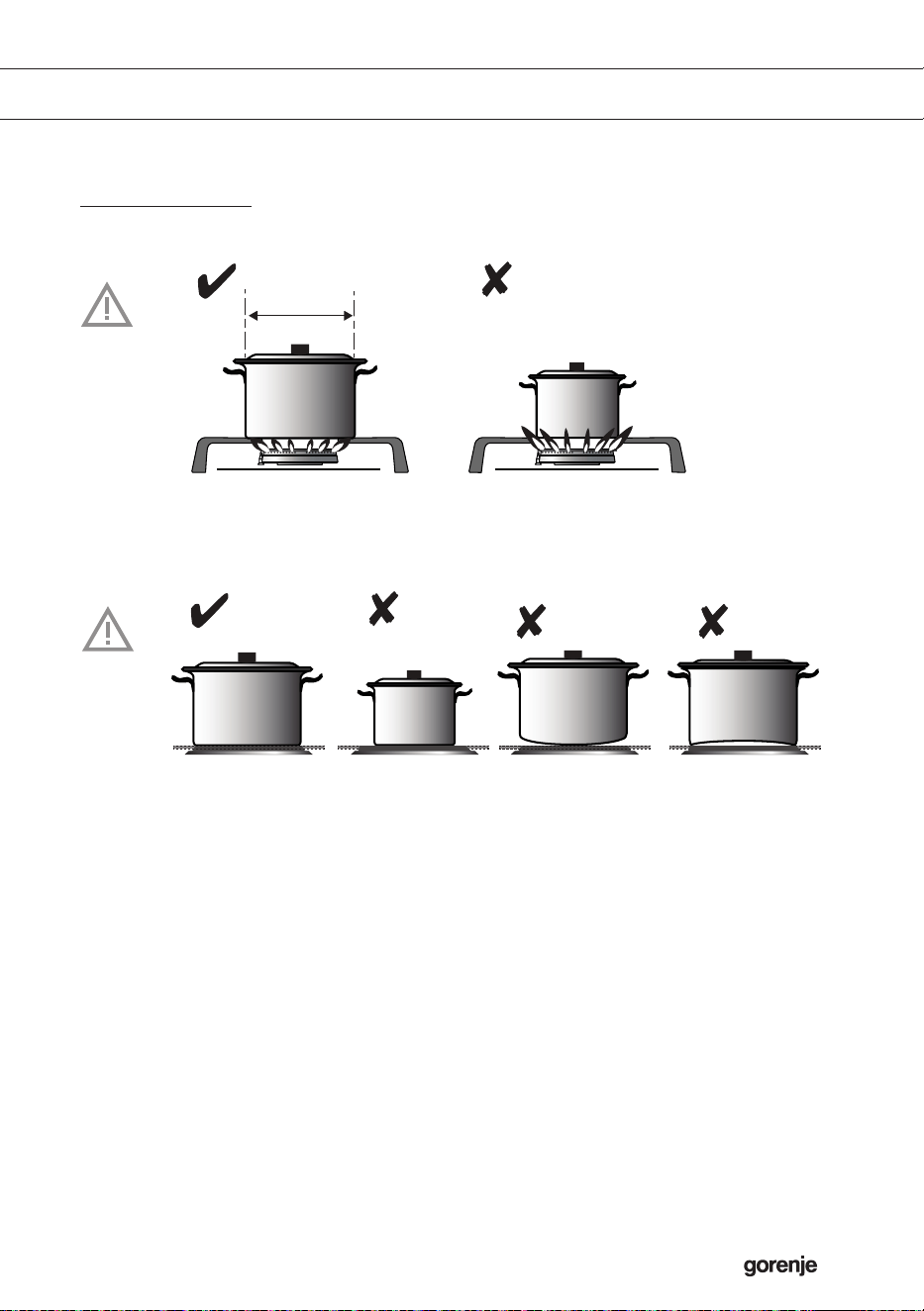

Cookware 11
Control 12
Accessories 13

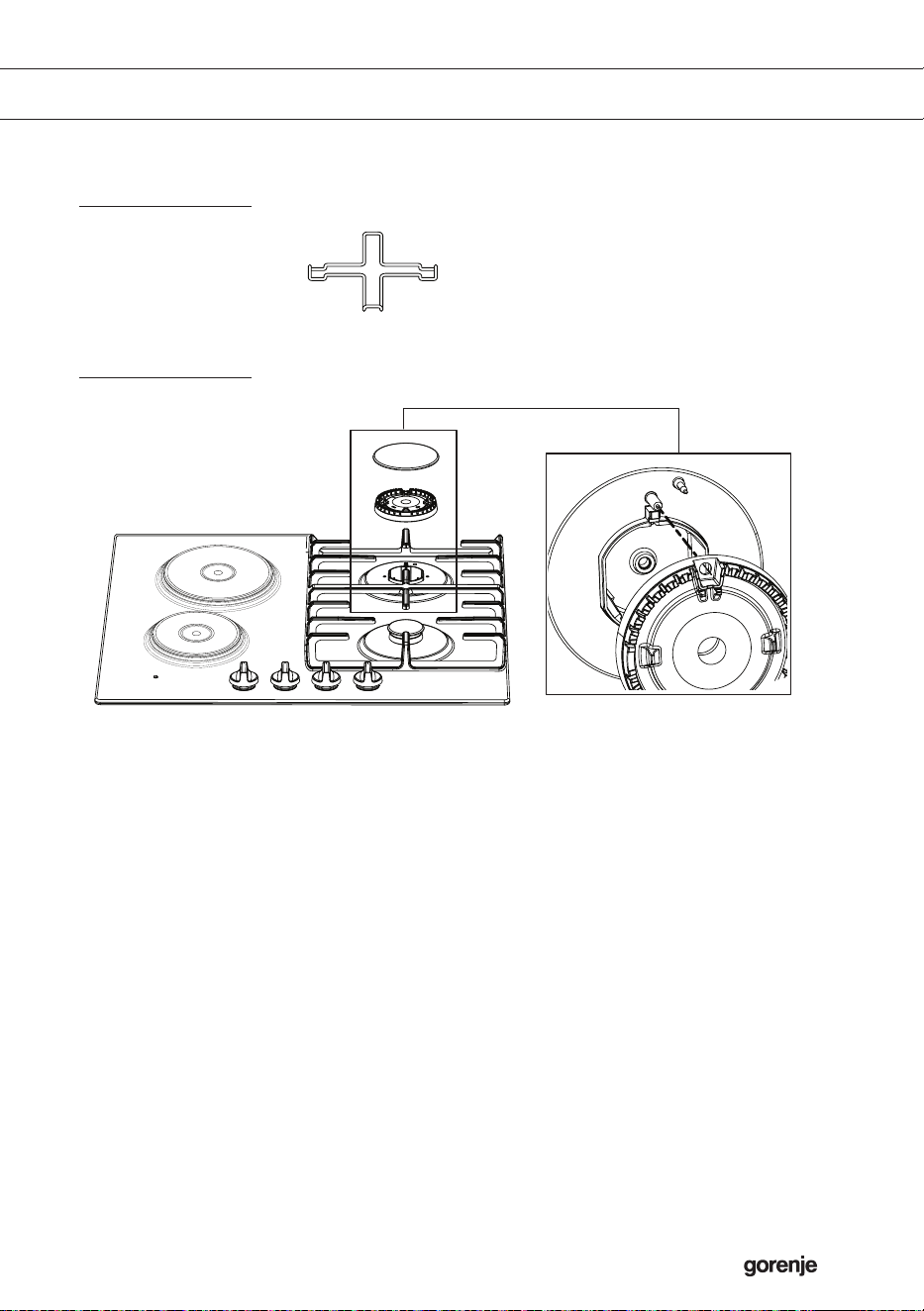

Burner position 13

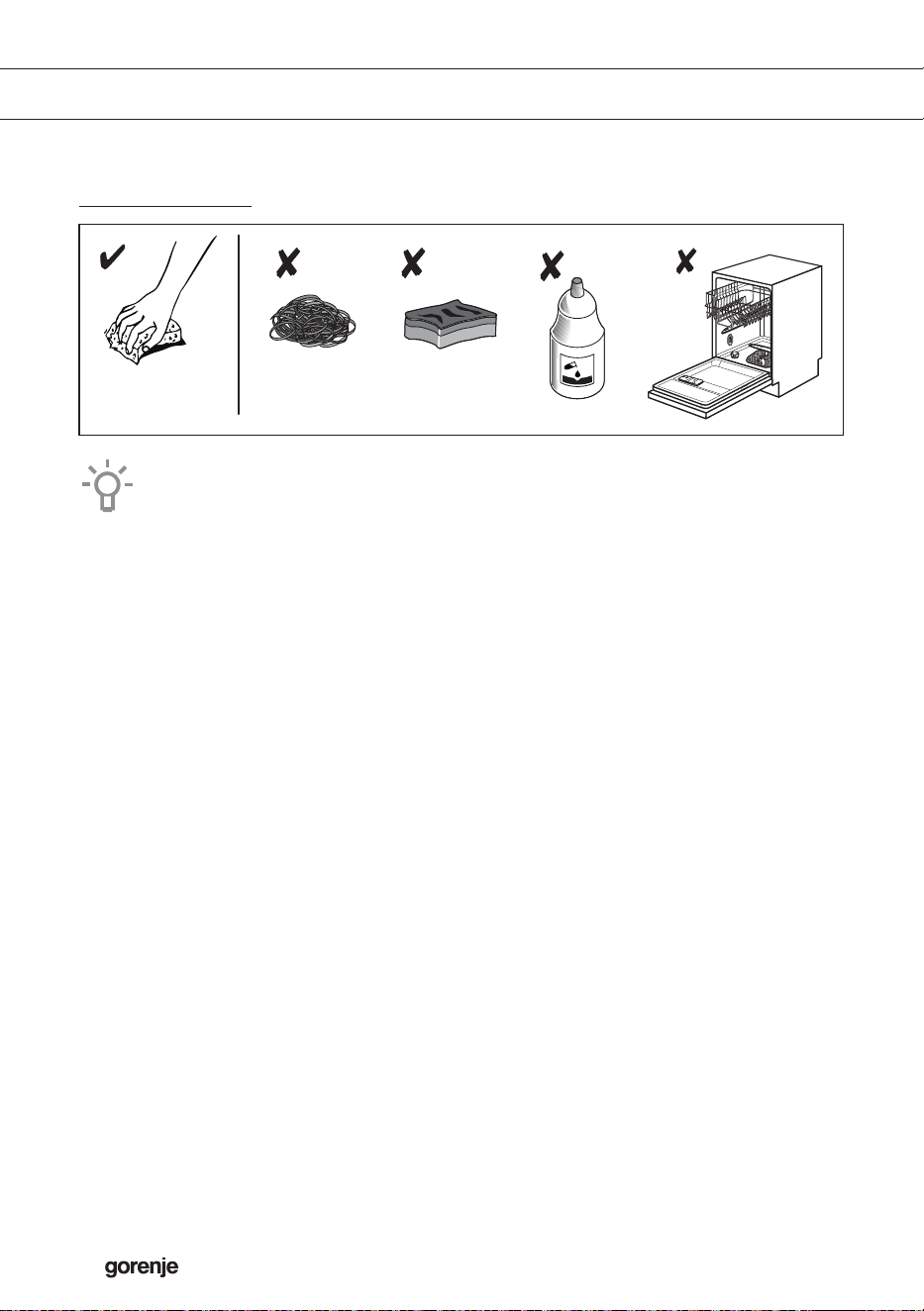

Cleaning 14
On/off- & Residual heat indicator 16
Faults table 17
Installation instruction
Safety regulations 18
Service 18

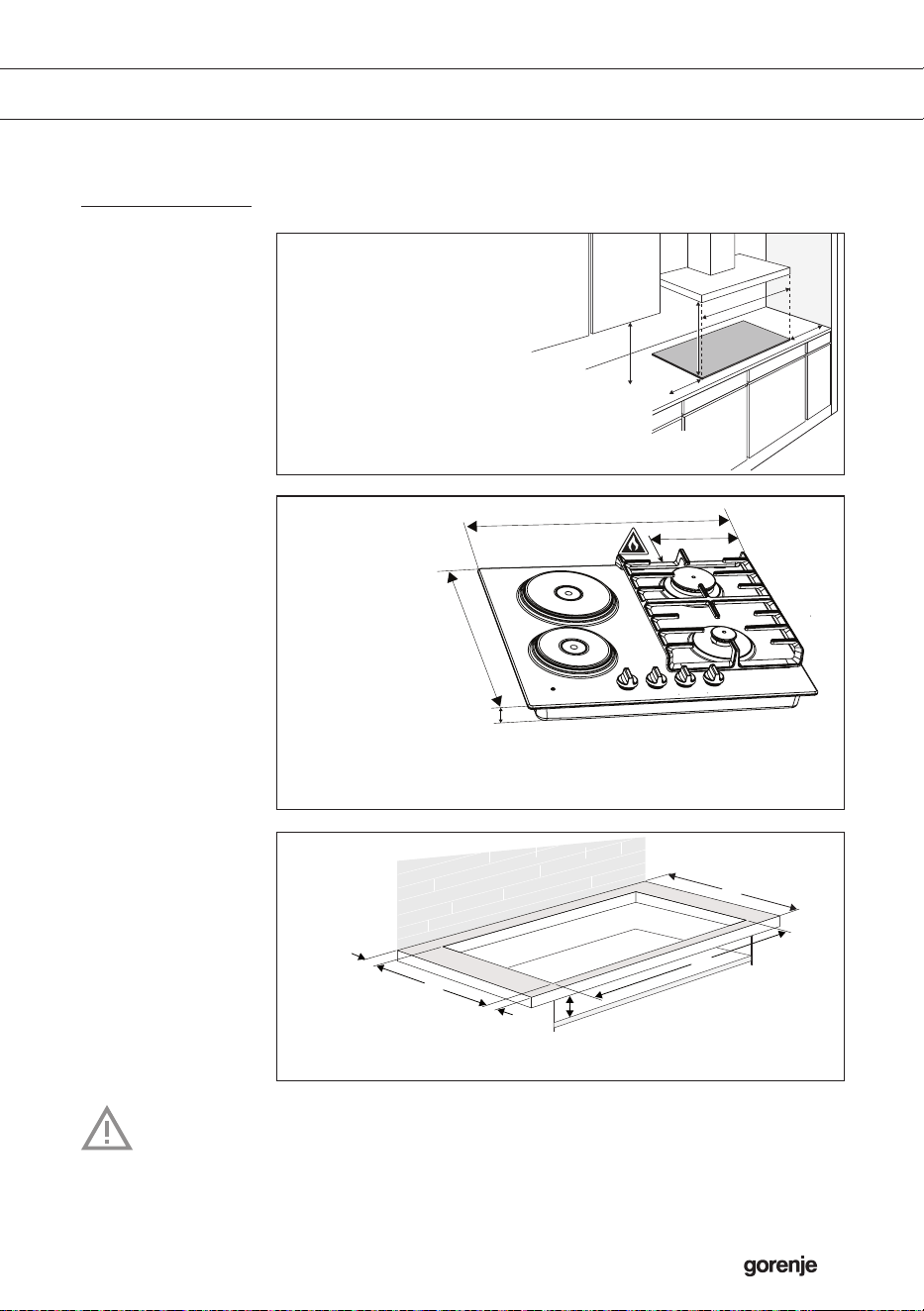

Preparations for installation 19
Sealing tape 20
Gas connection 21
Built in 21
Connecting & testing 21
Conversion instruction
Conversion instruction 22
Conversion table 22
Power table (kW-gr/h) 23
Converting nozzles 23
Converting by-pass screws 24
Check for gas tightness and operation 25
Start up 25
Checking operation 26
Environmental considerations
Disposal of packaging and appliance 27
EN 4
SAFETY REGULATIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!
Safe use
• The manufacturer cannot be held liable for any damage
resulting from failure to follow the safety instructions and
warnings.
• Damage caused by incorrect connection, incorrect fitting, or
incorrect use is not covered by the warranty.
• WARNING: this appliance and the accessible parts will
become hot during use. Do not touch hot parts. Keep
children younger than 8 away from the appliance unless
they are under continuous supervision.
• WARNING: danger of fire: never leave anything on the hob.
• CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
• WARNING: cooking with fat or oil on a hob without
supervision can be dangerous and can lead to fire.
• NEVER try to extinguish a fire with water. Instead, switch
the appliance off and then cover the flames with for
example a lid or a fire blanket.
• Never flambé under a cooker hood. The high flames can
cause a fire, even if the cooker hood is switched off.
• WARNING: use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance.
The use of inappropriate guards can cause accidents.
• The hob is only to be used for the preparation of food.
The unit is not designed for heating rooms.
• Do not warm closed tins on the hob. There will be a build-
up of pressure that will cause tins to explode. You might get
injured or scalded.
EN 5
SAFETY REGULATIONS
• Never cover the appliance with a cloth or something similar.
If the appliance is still hot or is switched on, there is a risk
of fire.
• Do not use the appliance as a worktop. The appliance may
accidentally be switched on or still be hot, which means
objects could melt, become hot or catch fire.
• Do not use the appliance in temperatures below 5 °C.
• The appliance should not be placed or used outdoors.
• When you use the hob for the first time you will notice a
“new smell”. Don’t worry, this is normal. If the kitchen is well
ventilated, the smell will soon disappear.
• The appliance is not intended to be operated by means of
an external timer or separate remote control system.
• Never open the casing of the appliance.
• Never use a pressure cleaner or steam cleaner to clean
the hob.
• The ceramic top is extremely strong, but not unbreakable.
For example, a spice jar or sharp utensil falling on it could
cause it to break.
• WARNING “In case of hotplate glass breakage”:
- shut immediately off all burners and any electrical
heating element and isolate the appliance from the power
supply.
- do not touch the appliance surface.
- do not use the appliance.
• CAUTION: The use of a gas cooking appliance results
in the production of heat, moisture and products of
combustion in the room in which it is installed. Ensure that
the kitchen is well ventilated especially when the appliance
is in use. Keep natural ventilation holes open or install a
mechanical ventilation device (mechanical extractor hood).
EN 6
SAFETY REGULATIONS
• The burner components are hot during and immediately
after use. Do not touch them, and avoid contact with
non-heat resistant materials.
• The electric heating elements get very hot during use
and also remain hot for some time after use. Do not allow
small children near the hob during and soon after cooking.
• Never immerse hot burner caps and pan supports in cold
water. The rapid cooling can damage the enamel.
• The distance between the pan and a knob or
non-heat resistant wall should always be greater than
two centimeters. In case of smaller distances the high
temperature may cause the knobs or wall to discolour
and/or deform.
• Always use the pan supports and suitable cookware.
• Always place the pan on the pan support. Placing the
pan directly on the burner cap can result in dangerous
situations.
• Aluminum trays or foil are not suitable as cooking utensils.
They can burn into the burner caps and pan supports.
• The hob can only function effectively if the burner
components have been assembled using the guide ridges.
Ensure that the pan supports lie properly against each
other and flat on the drip tray. Only then can the pans be
positioned stably.
• Keep oven gloves or oven cloths away from the flame.
• Do not use griddle plates or baking plates.
EN 7
SAFETY REGULATIONS
Children and vulnerable people
• This appliance can be used by children aged 8 years
and over, as well as by people with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge, provided they are supervised and instructed
in the safe use of the appliance and understand the
hazards involved.
• Do not allow children to play with the appliance. Do not
allow children to clean or maintain the appliance unless
supervised.
• Do not keep objects that children might find interesting in
cupboards above or behind the appliance.
• The heating elements/burners heat up during use and
stay hot for a while afterwards. Keep young children away
from the hob during and immediately after cooking.
EN 8
USER MANUAL

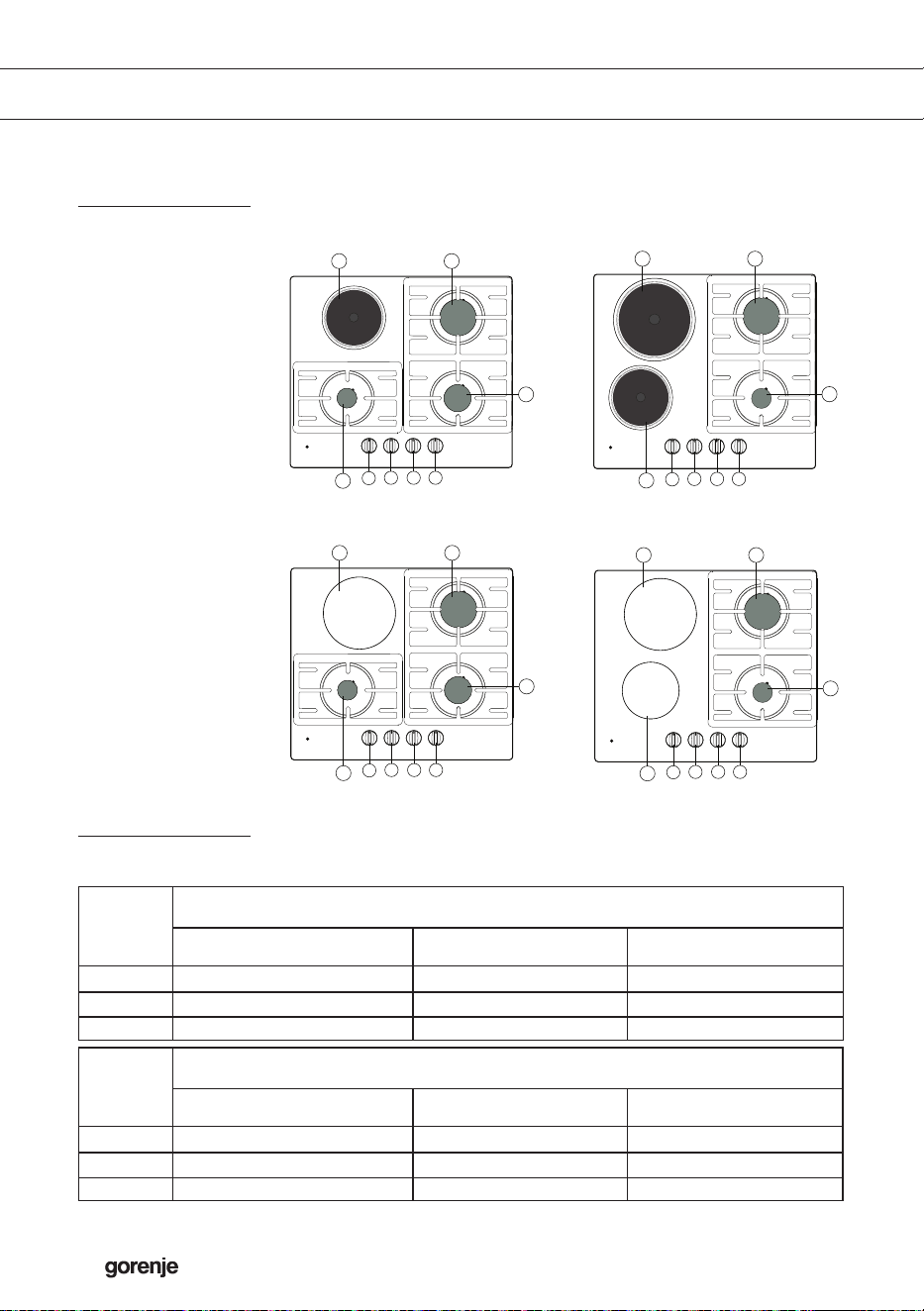

Models
Aa:
Auxiliary burner
Bb:
Semi-rapid burner
Cc:
Rapid burner
Dd:
ø180 mm heating
element
Ee:
ø145 mm heating
element
Description
Gas burners
G20 / 20 mbar
Burner
BGH6xxA
BGR6xxA
BGH6xxB
BGR6xxB
Aa Auxiliary 1.00 kW 1.00 kW
Bb Semi-rapid 1.80 kW
Cc Rapid 3.00 kW 3.00 kW
G30 / 30 mbar
Burner
BGH6xxA
BGR6xxA
BGH6xxB
BGR6xxB
Aa Auxiliary 1.05 kW / 76 g/h 1.05 kW / 76 g/h
Bb Semi-rapid 1.80 kW / 130 g/h
Cc Rapid 3.00 kW / 216 g/h 3.00 kW / 216 g/h
A
B
C
E
e
b
a
c
A
B
C
D
d
b
a
c
E
A
C
D
e
a
d
c
E
A
C
D
e
a
d
c
BGH6xxA
BGR6xxA BGR6xxB
BGH6xxB
EN 9
USER MANUAL
G30 / 50 mbar
Burner
BGH6xxA
BGR6xxA
BGH6xxB
BGR6xxB
Saudi
Arabia
Aa Auxiliary 1.05 kW / 76 g/h 1.05 kW / 76 g/h 76 g/h
Bb Semi-rapid 1.90 kW / 137 g/h 130 g/h
Cc Rapid 3.00 kW / 216 g/h 3.00 kW / 216 g/h 216 g/h
Electric heating element
Nominal Power (Max. heat setting) [W]
Heating element
BGH6xxA BGH6xxB BGR6xxA BGR6xxB
Dd ø 180 mm 2000 1800 1800
Ee ø 145 mm 1500 1500 1200
Information according regulation (EU only) 66/2014
Measurements according EN60350-2 (G20-20 mbar)
Model identification BGH6xxA BGH6xxB BGR6xxA BGR6xxB
Type of hob Mixed gas & electric hob
Number of electric heating elements 1 2 1 2
Heating technology per electric heating
elements
Solid plates Radiant heating elements
Diameter electric heating
element
Large heating
element:
Ø 180 mm Ø 180 mm
Small heating
element:
Ø 145 mm Ø 145 mm Ø 180 mm Ø 145 mm
Energy consumption per
kg (ECelectric cooking)
Large heating
element:
193.6 Wh/kg 182.9 Wh/kg 189.7 Wh/kg
Small heating
element:
184.3 Wh/kg 190.4 Wh/kg 189.9 Wh/kg
Number of gas fired burners 3 2 3 2
Energy efficiency per
gas burner (EEgas
burner) in %
Semi-rapid
burner:
58.8 58.8
Rapid burner: 56.3 56.3 56.3 56.3
EN 10
USER MANUAL
Before first use
BGH6xxA/B:
• Turn on the electric heating elements (without a pan) for 3-5 minutes at maximum power.
During this time, the protective coating forms a durable layer on the electric heating
elements. There may appear some smoke the first time the elements are heating up.
BGR6xxA/B:
• Clean the heating elements with a damp cloth.
• Turn on the electric heating elements (without a pan) for 3-5 minutes at maximum power.
During use
BGH6xxA/B
• Stainless steel parts around the electric heating elements may discolor due to the thermal
load during cooking.
After turning the electric heating elements off it will remain hot for a prolonged
period of time. Avoid contact with the electric heating elements during this time.
BGR6xxA/B:
• The temperature of the heating elements is internally controlled by constantly switching
the element on and off. When the heating element is turned on, a clear red glow is present.
When the heating element is set to a low heating setting, the element is switched off more
frequently and for a longer period of time.
After turning the electric heating elements off it will remain hot for a prolonged
period of time. This is indicated by the residual heat indicator. Avoid contact with
the electric heating elements during this time.
EN 11
USER MANUAL
Cookware
Gas burners
Electric heating elements
BGH6xxA/B & BGR6xxA/B
• Always keep a minimum distance of 1 cm between the control knobs and a pan.
• Always keep the pans within the edges of the hob.
• The bottom surface of the pans and the electric heating elements should always be clean
and dry to ensure good heat conduction and prevent damage to the cooking surface.
• When cooking in a pot made of refractory and heat-resistant glass or porcelain, follow the
instructions of the manufacturer.
• Make sure the pan always has enough fluids in them. Empty pans may cause the hob to
overheat, resulting in a damaged worktop or hob.
max. 24 cm
EN 12
BGH6xxA/B &
BGR6xxA/B

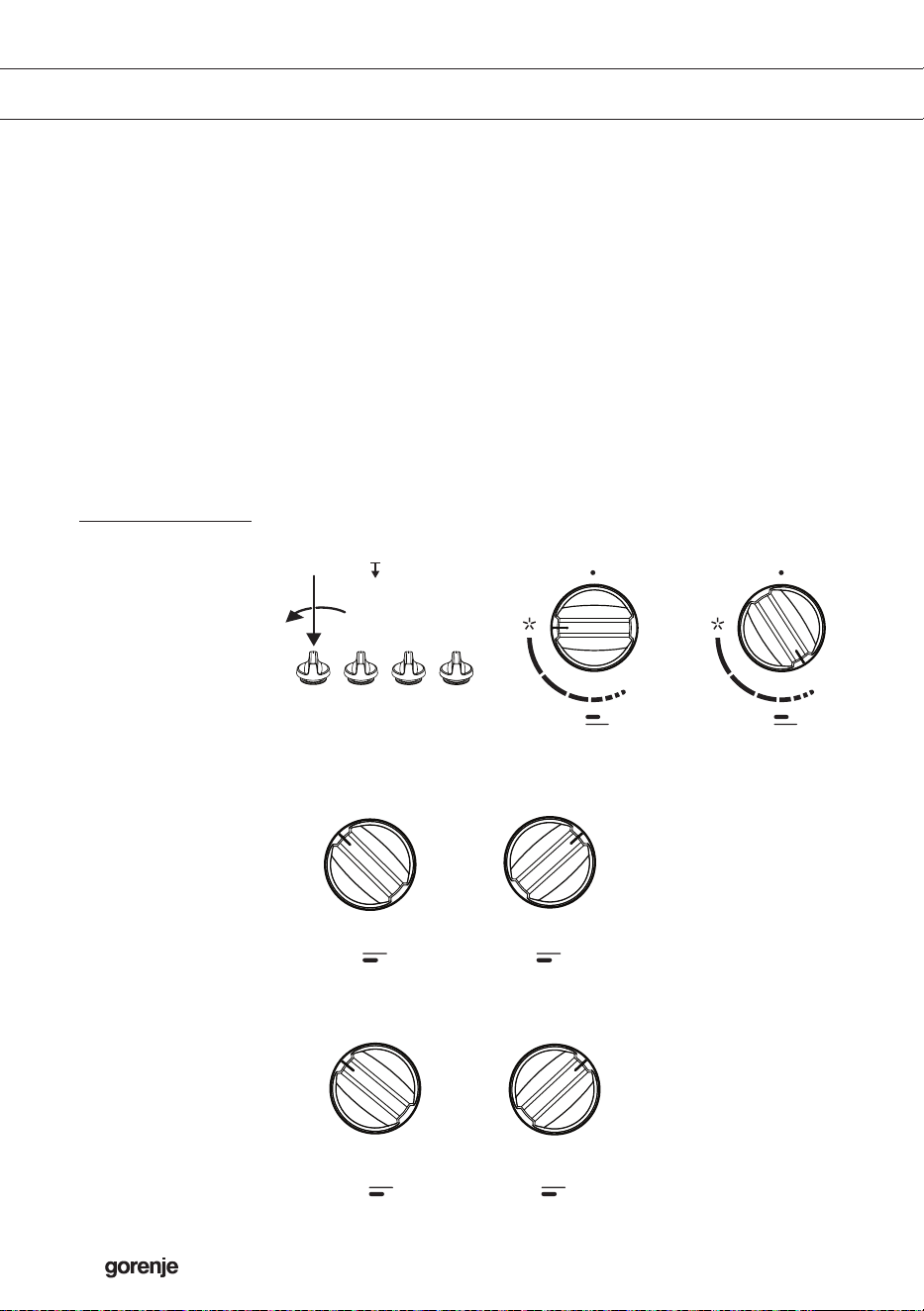

Control of gas
burners
(1) Push
(2) Turn left + hold
(3) Hold down 3 sec.
BGR6xxA/B
• Do not use pans with a rough bottom as they may scratch the cooking surface.
• Sand (e.g., vegetables) may scratch the cooking surface.
• Do not move the dish on the cooking surface, this may result in scratches.
• The cooktop is solid but not resistant to pinpoint strikes. Make sure that no hard and/or
sharp objects fall on it as it may damage the surface.
• Sugar and sweet foods can greatly damage the glass ceramic surface. Remove them
immediately with the scraper to avoid damage to the surface, even if the hob is still warm.
• Do not cook on the cooking surface in a thin-walled aluminum pan and foil, as well as
plastic containers. These materials can melt and damage the hob.
Control
1
2
3
4
5
6
0
1
2
3
4
5
6
0
6
5
4
1
9
2
3
7
8
0
6
5
4
1
9
2
3
7
8
0
1
2
3
4
5
6
0
1
2
3
4
5
6
0
6
5
4
1
9
2
3
7
8
0
6
5
4
1
9
2
3
7
8
0
BGH6xxA/B
Control of electric
heating elements
BGR6xxA/B
Control of electric
heating elements
USER MANUAL
high setting
low setting
3 sec.
high setting low setting
high setting
low setting
EN 13
USER MANUAL
Accessories
Burner position
Suits Auxiliary
burner:
EN 14
USER MANUAL
Cleaning
We recommend that you clean the appliance after each use. This prevents that over
cooked food can damage the glass surface.
BGH6xxA/B
Daily cleaning
• Use warm water with some dishwashing detergent to clean the area around the electric
heating elements. Before doing so, use a sponge to soften any stubborn residues.
Heavy polluted electric heating elements
• All dirty heating elements should be cleaned thoroughly immediately after use, when the
heating elements are cooled down. If the heating elements are less stained, it suffices to
wipe them with a damp cloth soaked in water and some detergent. If the element is heavily
soiled, use a steel sponge (wire scrubber) soaked with detergent. After cleaning, the heating
elements should always be wiped dry.
• Salt-containing liquids, dished that have boiled over, or moisture, can damage the heating
elements. Therefore, always wipe the heating elements clean and dry.
Maintenance
• To condition the electric heating elements, occasionally use some sewing machine oil, or
conventional products for cleaning and care, available in the market. Never use butter,
bacon / lard, or similar substance (risk of corrosion). If the heating element is slightly warm,
the detergent will penetrate the pores more quickly.
EN 15
USER MANUAL
BGR6xxA/B
Daily cleaning
1. Use a damp cloth and a mild cleaning agent (washing-up liquid) to clean the appliance.
2. Dry the appliance with a paper towel or a cloth.
Heavily polluted glass
1. Immediately remove any food remains, burned grease, sugar or stubborn stains from the
glass ceramic hob using a scraper, even if the hob is still hot! Sugar and/or other food
related remains may permanently damage the glass ceramic surface.
• Hold the scraper at the correct angle (45° to 60°) in relative to the glass. Gently press
the scraper against the glass and slide it over the surface to remove the dirt. Make sure
the plastic handle of the scraper (in some models) does not come into contact with a hot
heating element.
• Do not press the scraper perpendicularly against the glass.
• Do not scratch the hob surface with the tips of the scraper blade. This can cause permanent
scratches in the glass.
2. After you have removed the stubborn stains from the glass, use the steps of the daily
cleaning to clean the hob.
3. If the cleaning results is not at your satisfaction you can repeat the above cleaning steps as
often as needed.
Do not use abrasive cleaning agents, because they can cause scratches.
Do no use steel wool, scourers or any type of sharp objects to clean the appliance
The hob can still be very hot due to the cooking process! Do not touch the surface
directly. If desired use gloves to prevent burning while cleaning directly after
cooking.
EN 16
On/Off- & Residual heat indicator
1
1. On/Off indicator:
Indicates whether one or multiple heating elements are turned on.
Warning! If the heating element is turned off, the On/Off indicator will also turn off.
However, the electric heating elements will remain hot for a prolonged period of time
after turning off. Risk of injury when touching the hot heating element during this time.
1 2 3
1. On/Off indicator:
Indicates that one or multiple heating elements turned on.
2. Residual heat indicator rear heating element:
Indicates that the rear heating element is (still) hot.
3. Residual heat indicator front heating element:
Indicates that the front heating element is (still) hot.
Warning! Risk of injury when touching the hot heating element.
USER MANUAL
BGH6xxA/B:
BGR6xxA/B:
EN 17
USER MANUAL
Faults table
Following is some advice on rectifying some common problems.
What happened...? Possible cause What to do?
The burners will not burn.
The ame is uneven / unstable.
Flame is uneven due to a
wrong gas power setting.
Have an expert check the
gas pipeline!
The ame from the burners
suddenly changes.
Wrongly assembled parts of the
kitchen hob.
Assemble the burner
correctly.
Burner ignition takes more time. Wrongly assembled parts of the
kitchen hob.
Assemble the burner
correctly.
The ame is extinguished
shortly after ignition.
Knob pressed too short or to
weakly.
Keep the knob pressed for a
longer period of time.
The grid has discolored in the
burner area?
This is a commonplace
phenomenon resulting from
high temperature.
Clean the grid with a metal
care detergent.
Electric power supply in general
is interrupted?
The fuse may be blown. Check the fuse in the fuse
box and replace it if it is
blown.
Electric ignition of the burners
no longer works?
There are food or detergent
residues between the spark
plug and the burner.
Open and carefully clean the
opening between the spark
plug and the burner.
The burner cover looks
unappealing.
Regular dirt. Clean the burner covers with
a metal care detergent.
A slight smell is noticeable
the rst time electric heating
elements are used.
The new appliance is
heating up.
This is normal and will
disappear once it has been
used a few times.
Ventilate the kitchen.
A visit by a service technician during the warranty period will be charged if the appliance
is not functioning because of improper use. Store these instructions in a place where
they are always readily accessible; if you pass the appliance on to another person, the
instructions should also be included.
If the problem persists despite observing the instructions above, call an authorized
service technician. Elimination of any errors or warranty claims that resulted from
improper connection or use of the appliance is not covered by our warranty. In such
cases, the costs of repair are borne by the user.
EN 18
INSTALLATION INSTRUCTION
Safety regulations
• This appliance should only be connected by a registered installer.
• Prior to installation, ensure that the local distribution conditions (voltage, frequency,
nature of the gas and gas pressure) and the adjustment of the appliance are
compatible.
• This Appliance must be earthed.
• The voltage, frequency, power, type of gas and the country for which the appliance
has been designed are shown on the appliance rating plate.
• The electrical connection must comply with national and local regulations.
• The wall plug socket and plug should always be accessible.
• If a stationary appliance is not fitted with a supply cord and a plug, or with other
means for disconnection from the supply mains having a contact separation in all
poles that provide full disconnection under overvoltage category III conditions, the
means for disconnection must be incorporated in the fixed wiring in accordance with
the wiring rules. Using an omnipolar switch with a contact separation of at least 3
mm fitted in the supply cable will fulfil this requirement.
• The connection cable must hang freely and should not be fed through a drawer.
• Gas connection 1/2” ISO 228 / ISO 7-1 / EN 10226-1 (1/2” ISO 228 / 1/2” ISO 228
FR only).
• The gas connection must comply with national and local regulations. See appliance
label for technical gas data.
• This appliance is not connected to a combustion products evacuation device. It shall
be installed and connected in accordance with current installation regulations.
• Particular attention shall be given to the relevant requirements regarding ventilation.
• We recommend that the gas hob be connected by means of a fixed pipe. Connection
using a specially designed safety hose is also permitted.
• The pipe behind the oven must be made entirely out of metal.
• A safety hose may not be bent and must not come into contact with moving parts of
kitchen units.
• The gas supply valve must always be placed in an easily accessible position.
• The worktop into which the hob is fitted should be flat.
• The walls and the worktop surrounding the appliance must be heat resistant up to at
least 85 °C. Even though the appliance itself does not get hot, the heat of a hot pan
could discolour or deform the wall.
• Bottom kitchen element must be equipped with a built-in horizontal shelf at a
distance of not less than 15 cm from the bottom surface of the worktop. The space
between the shelf and the cooktop must be empty and may not be used for storage
of utensils.
Service
• Faulty parts may only be replaced by original parts. The manufacturer can only
guarantee that original parts meet safety requirements.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
EN 19
INSTALLATION INSTRUCTION
Preparations for installation
Warning:
Bottom kitchen element must be equipped with a built-in horizontal shelf at a distance
of not less than 150 mm from the bottom surface of the worktop. The space between
the shelf and the cooktop must be empty and may not be used for storage of utensils.
A (mm) B (mm) C (mm) D (mm) E (>mm) F
600 560 490 60 50 150
E
C
D
F
B
A
A
B
C
D
D
A (mm) B (mm) C (mm) D (mm)
min. 650 min. 600 min. 450 min. 120
A (mm) B (mm) C (mm) D (mm)
BGH6xxA/B 600 520 52 138
BGR6xxA/B 600 522 52 138
T >60º C
T <60º C
A
B
C
D
A (mm) B (mm) C (mm) D (mm) E (>mm) F
600 560 490 60 50 150
E
C
D
F
B
A
A
B
C
D
D
A (mm) B (mm) C (mm) D (mm)
min. 650 min. 600 min. 450 min. 120
A (mm) B (mm) C (mm) D (mm)
BGH6xxA/B 600 520 52 138
BGR6xxA/B 600 522 52 138
T >60º C
T <60º C
A
B
C
D
A (mm) B (mm) C (mm) D (mm) E (>mm) F
600 560 490 60 50 150
E
C
D
F
B
A
A
B
C
D
D
A (mm) B (mm) C (mm) D (mm)
min. 650 min. 600 min. 450 min. 120
A (mm) B (mm) C (mm) D (mm)
BGH6xxA/B 600 520 52 138
BGR6xxA/B 600 522 52 138
T >60º C
T <60º C
A
B
C
D
Appliance
dimensions:
Built-in dimensions:
Free space around
appliance:
EN 20
INSTALLATION INSTRUCTION
Accessibility
A (mm) B (mm) C (mm) D (mm) E (>mm) F
600 560 490 60 50 150
E
C
D
F
B
A
A
B
C
D
D
A (mm) B (mm) C (mm) D (mm)
min. 650 min. 600 min. 450 min. 120
A (mm) B (mm) C (mm) D (mm)
BGH6xxA/B 600 520 52 138
BGR6xxA/B 600 522 52 138
T >60º C
T <60º C
A
B
C
D
A (mm) B (mm) C (mm) D (mm) E (>mm) F
600 560 490 60 50 150
E
C
D
F
B
A
A
B
C
D
D
A (mm) B (mm) C (mm) D (mm)
min. 650 min. 600 min. 450 min. 120
A (mm) B (mm) C (mm) D (mm)
BGH6xxA/B 600 520 52 138
BGR6xxA/B 600 522 52 138
T >60º C
T <60º C
A
B
C
D

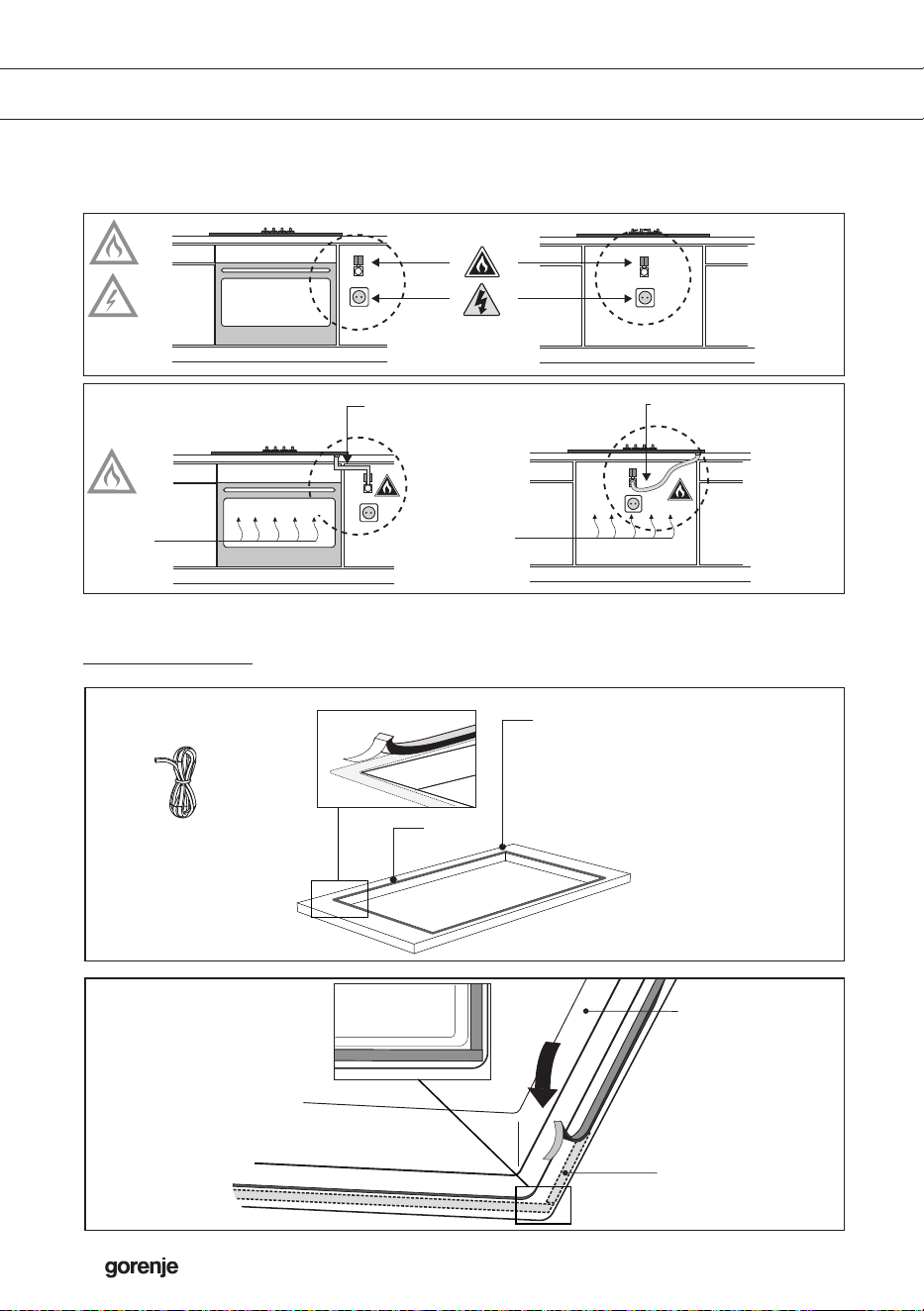

Sealing tape
05
C
C
C
C
1/2” ISO 228
1/2" ISO 7-1 / EN 10226-1
05
C
C
C
C
1/2” ISO 228
1/2" ISO 7-1 / EN 10226-1
BGH6xxA/B:
BGR6xxA/B:
oven
metal
safety hose
oven
Worktop
Hob
EN 21
INSTALLATION INSTRUCTION

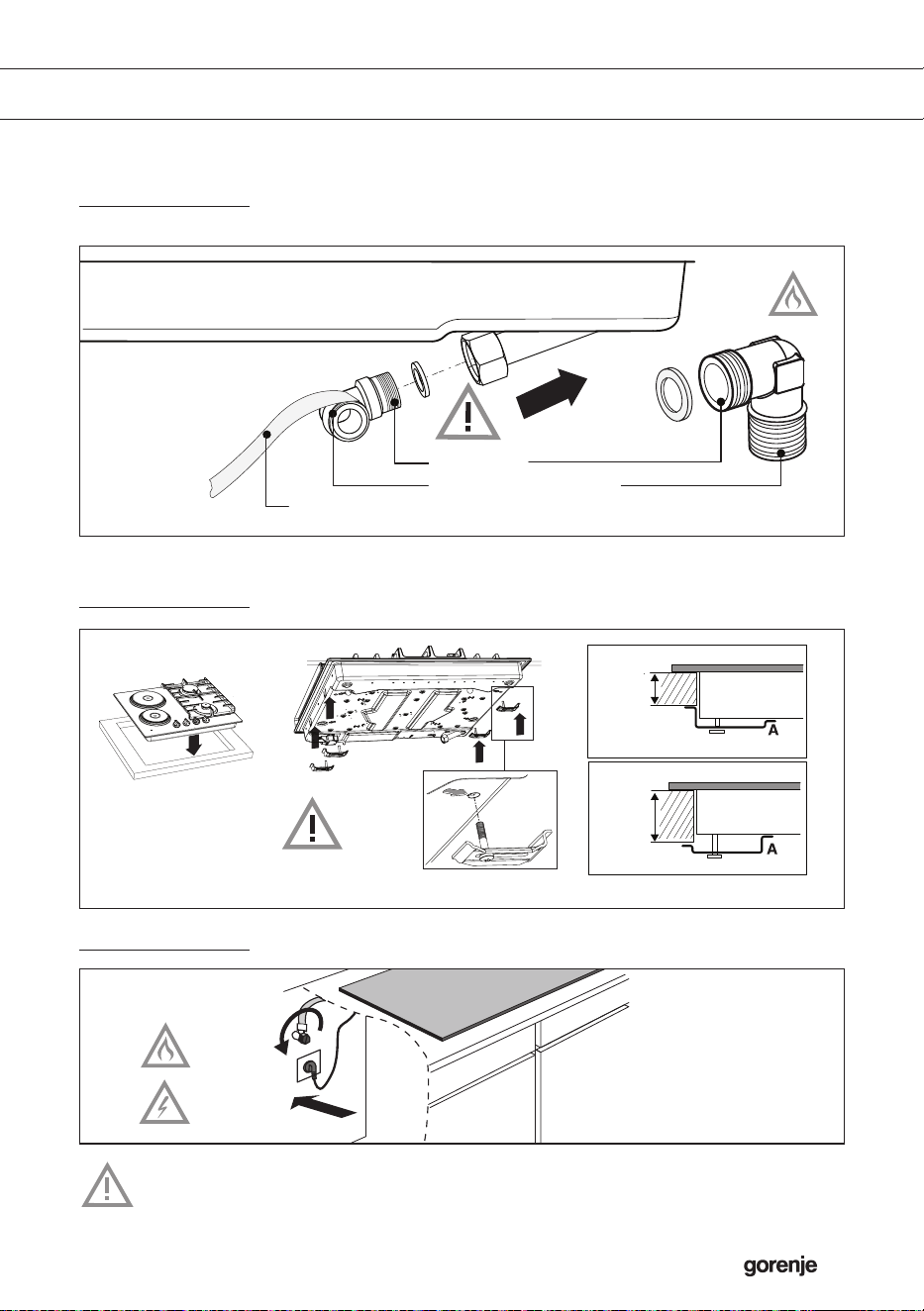

Gas connection
05
C
C
C
C
1/2” ISO 228
1/2" ISO 7-1 / EN 10226-1
Built in
Connecting & testing
05
C
C
C
C
1/2” ISO 228
1/2" ISO 7-1 / EN 10226-1
Check if connections are gastight.
05
C
C
C
C
1/2” ISO 228
1/2" ISO 7-1 / EN 10226-1
05
C
C
C
C
1/2” ISO 228
1/2" ISO 7-1 / EN 10226-1
PTFE tape
Min.
20 mm
Max.
50 mm
EN 22

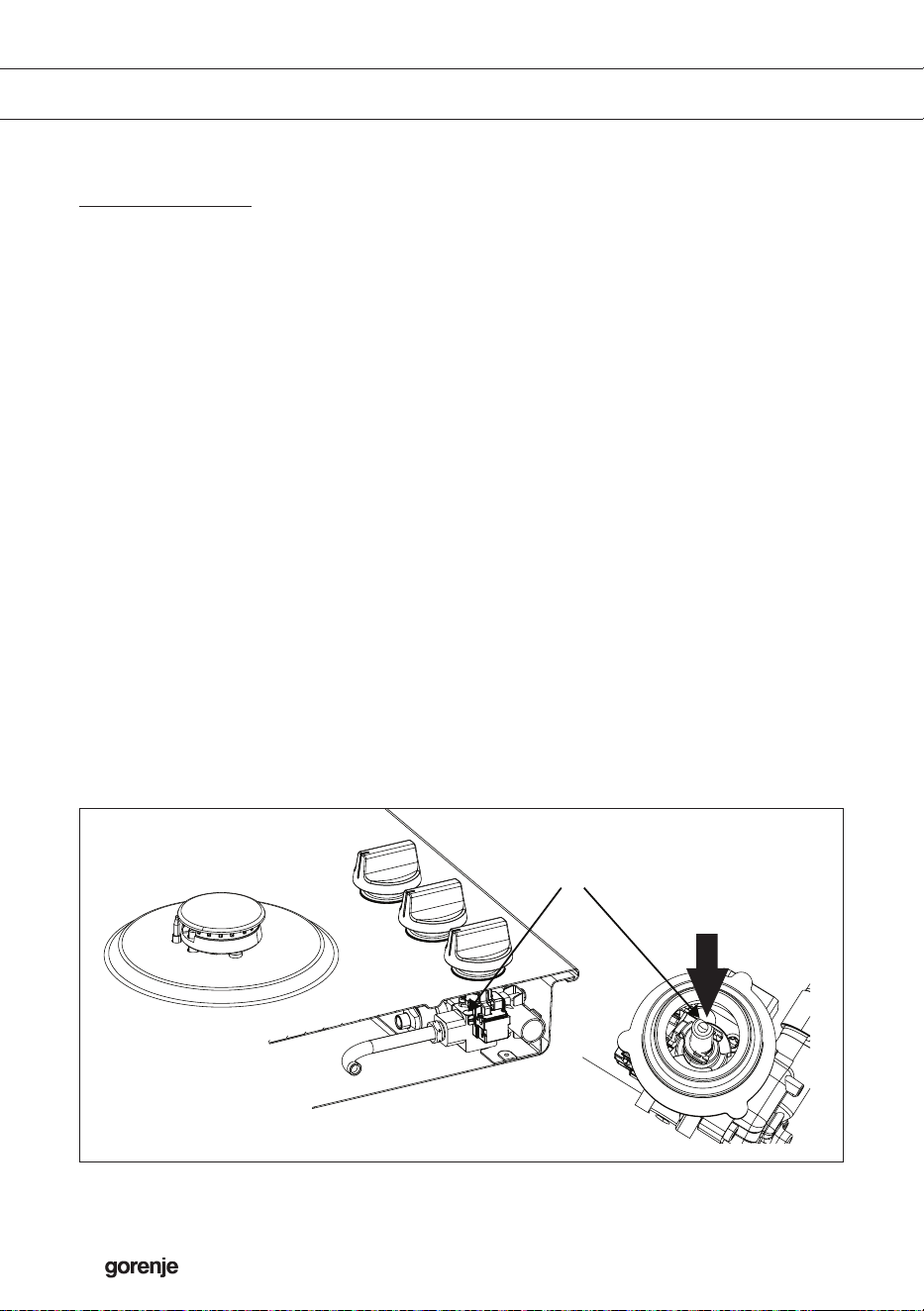

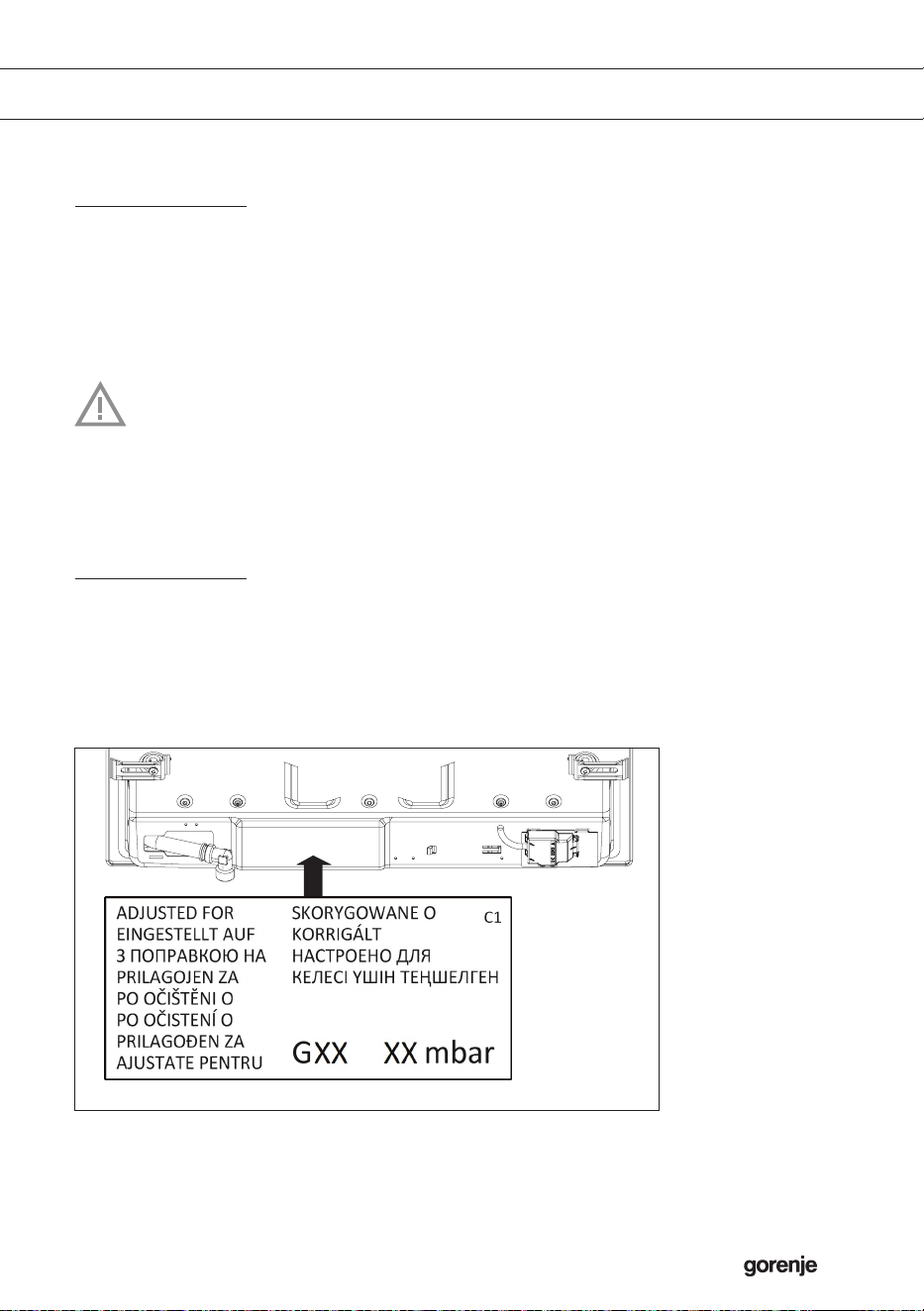

CONVERSION INSTRUCTION
Conversion instruction
Adjusting for a different gas type!
Attention! Performing of these instructions by a non-qualified engineer can lead to
dangerous situations. The supplier is not responsible for the consequences (the arising
of a hazardous situation and/or damage to persons or goods) caused by incorrect
performance of these instructions by engineers who are not employees of the supplier.
Consequential damage arising through inexpert performance of these instructions is
not accepted.
With this conversion-set your gas hob can be converted to different gasses.
See conversion Table.
Conversion table
Gas
type
P
mBar
Modification Auxiliary Semi rapid Rapid
nozzle nozzle nozzle
G20 20 - 72 97 128
Convert from G20 / 20 mbar to:
G20 13
Replace nozzle & no action by-pass
84 115 145
G25 20
Replace nozzle & no action by-pass
77 105 134
G30/
G31
28-
30/37
Replace nozzle & screw in bypass
(see 3A)
50 65 85
G150 8
Replace nozzle & adjust bypass
(see 3C)
145 200 290
G30 50
Replace nozzle & screw in bypass
(see 3A)
43 60 75
Gas
type
P
mBar
Modification Auxiliary Semi rapid Rapid
nozzle nozzle nozzle
G30 30 - 50 65 85
Convert from G30 / 30 mbar to:
G20 20
Replace nozzle & adjust bypass
(see 3C)
72 97 128
EN 23
Power table (kW-g/h):
G20
13 mbar
G25
20 mbar
G30-G31
28-30/37 mbar
G30
50 mbar
Saudi Arabia
G30 50 mbar
G150
8 mbar
Auxiliary burner 1.05 1.05 1.05/76 1.05/76
76 g/h
1.10
Semi-rapid burner 1.95 1.95 1.80/130 1.90/137
130 g/h 1.85
Rapid burner
3.10 3.10 3.00/216 3.00/216 216 g/h 3.00
Contents of conversion set
• Nozzles for burners and (if applicable) by-pass screws for gas taps.
• Data label with the modified gas specifications and setting.
Tools needed:
T1 Socket spanner (7mm)
T2 Screw driver flat blade (4mm)
T3 Nose pliers
T4 Leak test spray
Converting nozzles
Please note: disconnect the appliance from the power supply. Prevent damage of the
worktop. Lay down parts of the appliance on a protected base.
For converting to a different type of gas, the nozzles have to be changed. The values are
also marked on the nozzle.
1. Remove pan supports, burner heads, crowns and
covers (see picture A1). Pull off the control knobs
vertically.
2. Use the socket (T1) to remove the old nozzles and
place the new nozzles inside the burner cups (see
picture A1).
CONVERSION INSTRUCTION
A1
1
2
T1
EN 24
CONVERSION INSTRUCTION
Converting by-pass screws
Depending on the gas type to which the appliances will be converted, there are two ways to
adjust the by-pass screws.
Please check the conversion table in the column “Modification”, if the by-pass screws have to be
screwed completely in (see action 3A below), replaced by a different by-pass screw (see action
3B below) or adjusted (see action 3C below).
The values are also indicated on the top of the by-pass screws.
The by-pass screws can be reached from the top of the hob when the knobs are removed
(B1 and B2).
3A. Screw the by-pass screws (3) of all gas taps completely in by using the flat-blade
screwdriver (T2).
3B. Remove the by-pass screws by using the flat-blade screwdriver (T2) and the nose pliers (T3).
Place the new by-pass screws with the nose pliers and screw the by-pass screws of all gas
taps in, by using the flat-blade screwdriver.
3C. Adjust the by-pass screws (3) of all gas taps by using the flat-blade screwdriver (T2) until a
stable flame is established with a minimal gas flow. Please check if the flame is stable in
cold and hot condition of the burner.
T2+T3
T2+T3
3
B1
B2
EN 25
CONVERSION INSTRUCTION
Check for gas tightness and operation
When the appliance is connected to the gas supply, use leak test spray to check the gas
tightness:
1. Seal the injector.
2. Open the gas tap.
Attention: press and open tap to override the thermo-electric safety device and
keep it pressed down.
3. Spray leak test spray over all gas connections and check for gas tightness.
4. Repeat this for every burner.
Start up
1. Reinstall the knobs, burner parts and pan supports.
2. Check if the appliance is connected to the correct gas type and pressure.
3. Open the main gas valve.
4. Insert the plug into the power socket.
EN 26
CONVERSION INSTRUCTION
Checking operation
1. Ignite the burners.
2. Check whether the flame profile is normal, uniform and stable for the complete ratio:
• Check if the flame does not smother in simmer rate;
• Check if the flames are not ‘blowing off’ at maximum rate;
• No long, yellow flames should be visible during operation.
3. Paste the data label with the modified gas specifications and setting over the current data
label with old specification (at the under site of the appliances nearby the gas connection).
EN 27
ENVIRONMENTAL CONSIDERATIONS
Disposal of the appliance and packaging
Sustainable materials have been used during manufacture of this
appliance.
The appliance packaging is recyclable. The following may have been
used:
• cardboard;
• paper;
• polyethylene film (PE);
• CFC-free polystyrene (PS-rigid foam);
• polypropylene tape (PP).
Dispose of these materials in a responsible manner and in accordance
with government regulations.
To designate the requirement for separate collection of household
electrical appliances, the symbol of a crossed-out dustbin is applied to
the product.
This means that at the end of its working life, the product must not be
disposed of as urban waste. It must be taken to a special local authority
differentiated waste collection centre or to a dealer providing this
service. Disposing of a household appliance such as this hob separately
avoids possible negative consequences for the environment and health
and enables the constituent materials to be recovered, resulting in
significant savings in energy and resources.
Please note! Do not throw a broken ceramic glass plate in the glass
recycling bin but take this to the Municipality's waste recycling
centre.
Declaration of conformity
We hereby declare that our products satisfy the applicable European
directives, orders and regulations, as well as the requirements stated in
the referenced standards.
Gorenje gospodinjski aparati, d.o.o.
Address: Partizanska 12, 3320 Velenje, Slovenia
Phone: +386 (0)3 899 10 00
Fax: +386 (0)3 899 28 00
www.gorenje.com
797176 / VER 1 / 25-06-2019
en (09-19)
