OWNER’S GUIDE
Hazardous Locations Refrigerator and Freezer with
Mechanical Temp Control
Table of Contents
RECEIVING AND SHIPPING DAMAGE HANDLING ............................................... 2
SAFETY ............................................................................................................... 3
RELEASE OF LIABILITY ........................................................................................ 3
ELECTRICAL INFORMATION ............................................................................... 4
INSTALLATION .................................................................................................... 5
OPERATION ........................................................................................................ 7
Quick Troubleshooting Guide ............................................................................ 8
Maintenance and Cleaning .............................................................................. 11
Hydrocarbon Service Notes ............................................................................. 13
Factory Warranty Policy .................................................................................. 14
PN: 21642 Rev. 5.10.19
P a g e | 2
Each refrigerator or freezer is carefully inspected to meet our high standard quality
assurance policy, before it ships to you. Unfortunately, shipping damage can happen
during transportation to you. There are two general types of shipping damage. The
first is visible damage. This type of damage includes visible loss, damage, shortage or
any external evidence of loss or damage that is visible at time of delivery. This type of
damage must be noted in detail on your delivery receipt. Make sure the driver signs
and dates the delivery receipt, acknowledging the damages. We also recommend
taking many pictures to demonstrate and document the damaged area(s). This must
happen at the time of delivery or it won’t happen at all. Keep a copy for your records
and send another to the carrier’s damage claims department along with a formal
request for an inspection report. Follow up with a phone call. Their contact information
can be found on the carrier’s web site.
The second type of shipping damage is concealed damage. This type of damage will
probably not be apparent at time of delivery and may not be discovered until
unpacking and inspecting the unit. Remember, time is of the essence here. You should
unpack and inspect the unit as soon as possible. Each day that passes reduces the
likelihood that the carrier will pay the claim. As soon as the concealed damage is
discovered, stop unpacking and retain all packing materials. Take many pictures to
demonstrate and document the concealed damage area(s). Contact the carrier by
phone to report the claim. Note the date and time and person you spoke with. Get a
claim number. Follow up with a written letter referencing the claim number and
including a formal request for an inspection. Again, consult the carrier’s website for
specific claim instructions and follow them precisely.
AS STATED ABOVE, THE CARRIER IS YOUR SOLE SOURCE FOR SATISFACTION OF
A DAMAGE CLAIM. UNDER NO CIRCUMSTANCES SHOULD THE MERCHANDISE BE
RETURNED TO THE MANUFACTURER. NO RETURNS WILL BE ACCEPTED WITHOUT
PRIOR AUTHORIZATION.
RECEIVING AND SHIPPING DAMAGE HANDLING
P a g e | 3
For your safety
•
DO NOT store any unsealed chemical material in this refrigerator or freezer.
Corrosive fumes from chemical material can linger inside of the chamber
and cause serious damage to the refrigeration coils. Storing unsealed
chemical material in this equipment will void the factory product warranty.
•
Keep all flame sources or heat objects away from this refrigerator or freezer.
•
Disconnect power before servicing this refrigerator or freezer.
This is a hazardous Locations storage refrigerator or freezer. All laboratory safety
rules must be followed during the operation of this refrigerator or freezer.
Before you start to use this refrigerator, please take a moment to:
•
Connect your remote alarm contacts system, or auto dialer, to the refrigerator’s
alarm system (if any).
•
If your refrigerator model does not have an alarm system, you can install
your 3
rd
party alarm into our refrigerator via the 3/8” access porthole.
Please see “Field Monitor Probe Installation” Section.
•
Develop an emergency backup plan and designate a different refrigerator or
freezer to store the contents, if this refrigerator has an unforeseen issue.
IF YOU PLAN TO STORE IRREPLACEABLE AND/OR HIGH VALUE PRODUCTS IN THIS
UNIT TAKE THE PROPER PRECAUTIONS NOW.
The manufacturer’s sole obligation under this warranty is limited to either repair or
replacement of parts, subject to the additional limitations below. This warranty neither
assumes, nor authorizes any person to assume obligations other than those expressly
covered by this warranty.
NO CONSEQUENTIAL DAMAGES. The manufacturer is not responsible for economic
loss, profit loss, or special indirect or consequential damages, including without
limitation, losses, or damages arising from contents spoilage claims whether
because of refrigeration or mechanical failure.
California Residents Only:
WARNING: This product can expose you to chemicals including chromium
which is known to the state of California to cause cancer and birth defects or
other reproductive harm. For more information go to P65Warnings.CA.gov
SAFETY
RELEASE OF LIABILITY
P a g e | 4
•
The supply circuit to this cabinet must conform to NEC (National Electrical Code).
Consult the cabinet Serial-Data plate for voltage, cycle, phase, and amp
requirements before making connection.
•
SUPPLY VOLTAGE SHOULD NOT VARY MORE THAN 5% FROM SERIALPLATE
RATINGS.
•
Per UL, NFPA, and OSHA guidelines, this refrigerator or freezer can only be
powered by “hard-wire” only. There are 18 inches of factory-sealed harness for
power source. Consult with your electrician before installation. Your harness
should be located in a vapor-proof conduit, to prevent flammable gasto leak
into the power connection.
ELECTRICAL INFORMATION
P a g e | 5
Please take a moment to follow the steps below, before using this equipment.
1.
Find a suitable location to install this refrigerator (or freezer)
2.
Level this refrigerator (or freezer)
3.
Set up the shelves inside (if applicable)
4.
Install the optional monitor probe for field installation
5.
Ready to use
1.
SUITABLE LOCATION
Ambient Temperature – Unlike a household refrigerator, this equipment is designed
for scientific / medical application. Many components are heavy duty and extra sized
to meet the ultimate temperature performance. Therefore, the sounds generated
from its operation may not be accepted by everyone in the room. Please take the
operation sound factor into consideration and locate this refrigerator accordingly.
Please ensure the ambient temperature is climate-controlled, between 65°F to 85°F
to achieve the ultimate temperature performance.
Clearance Space – We require 2 to 3 inches of clearance space around the unit. This
makes it easier to maneuver it for annual maintenance or service.
2.
LEVELING
Once this refrigerator or freezer is at its final location, please level your refrigerator,
because it is critical to equipment operation. Here are a few benefits to a good leveled
refrigerator (or freezer):
1.
Moving mechanical parts, such as fan or compressor, would have less chances
to fail, since it is in the designed upright position.
2.
Reduce noise.
3.
Door(s) would close properly.
4.
Condensate water would flow out the refrigerator properly.
To level this equipment, set a leveler in each corner on the top. If the equipment is not
level, adjust either the leveling legs or casters.
We recommend that the refrigerator (or freezer) is slightly tilted backward (5°.)
This allows the non-self-closing door to shut properly and condensate water flow
out more easily.
INSTALLATION
P a g e | 6
3.
READY TO USE
Once you ensure the electrical service is adequate and Steps 1 and 2 are followed, you
are ready to use this refrigerator (or freezer). Simply plug in the power cord into the
wall outlet.
This refrigerator (or freezer) is factory set to run at its ultimate temperature
performance. There should not be a need to adjust the temp settings. If you feel the
temp settings must be adjusted, please refer to “TEMPERATURE ADJUSTMENT” section
in this manual for more details.
P a g e | 7
Temperature Controller System
Product Description
The mechanical temperature controller is designed to provide temperature control of
refrigerators or freezers. It is located in the exterior rear top location of refrigerator
or freezer, inside of the metal enclosure.
Setting 1 will operate the refrigerator or freezer at warmest setting and
setting 7 (some models maximum setting is 9) will be the coldest setting.
After making an adjustment, please allow 8 hours’ operation before making a
new adjustment.

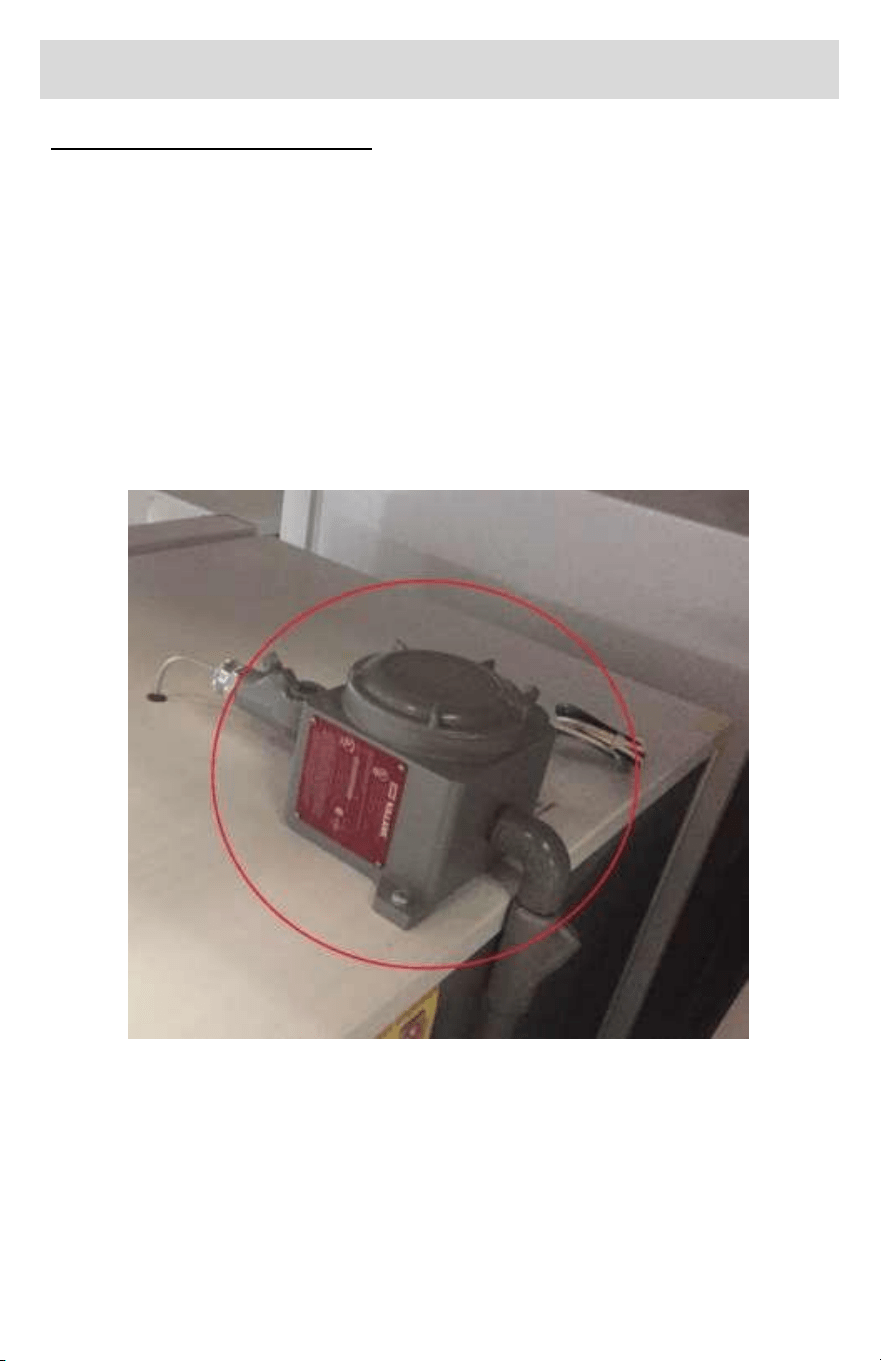

Mechanical Temperature Controller – located in the rear top location of
refrigerator or freezer, inside of the metal enclosure.
OPERATION
P a g e | 8
Check these items before calling for service
PROBLEM:
POSSIBLE CAUSE / SOULTIONS:
Unit does not run
•
Electrical circuit is not 110-120V 60Hz.
•
The power harness is not secured or
connected correctly.
•
No power at the source. Check to make sure
breaker is not tripped or fuse is not blown.
Additionally, make sure unit is not plugged
into a Ground Fault Circuit Interrupter (GFCI)
type of outlet.
Unit does not
maintain at the
proper
temperature
•
Check the room temperature. We recommend
the refrigerator or freezer should be placed in
an air-conditioned room between 65°F to
85°F. If the room temp is too warm, the
refrigerator or freezer may not be able to
maintain the interior temp at proper range.
•
Door is not closed properly.
•
Amount of stored product is overloaded.
•
Product replacements are pushed against rear
wall or interrupted the proper refrigerator air
circulation. For the proper air circulation,
place the products evenly on each shelf. Do
not push against the refrigerator’s rear or side
walls.
•
Evaporator is blocked by frost or ice. Remove
the products, unplug the refrigerator or
freezer power, and allow the unit to defrost. If
the problem still exists, call for service.
•
3
rd
party thermometer is placed incorrectly.
For proper temperature monitoring, the
thermometer should be place in the middle of
refrigerator.
PLEASE NOTE! Prior to shipment, each refrigerator and
freezer has been calibrated and tested at proper
temperature range.
Quick Troubleshooting Guide
P a g e | 9
Appliance runs too
long
•
Prolong door openings.
•
Control set too cold.
•
Room temperature is high which will make the
unit work harder to keep cool.
Temperature of
external wall
surface is warm
•
The exterior walls can be as much as 30
degrees warmer than room temperature due
to the embedded condenser coils. This is
normal when the unit is operating.
Compressor noises
•
Compressor may be overheated. Please check
the room temp and ensure the range is within
65°F to 85°F. If the problem still exists, call for
service.
Moisture collects
inside
•
Door gasket is not sealing properly. Check for
debris, cracks, and items passing through door
at the gasket.
•
The refrigerator or freezer is facing a doorway
or is underneath of air conditioning vent.
Relocate the unit or redirect air vent.
•
Too many door openings. Minimize time door
is open.
•
Hot, humid weather increases condensation.
•
Make sure there is a water trap (U-shaped
loop) in the drain tube near the compressor.
This will “trap” a small amount of water in the
loop and prevent air from entering the
chamber through the tube.
Moisture collects
on outside surface
•
Hot, humid weather increases condensation.
•
As humidity decreases, moisture will
disappear.
Odor inside the
unit
•
Interior needs to be cleaned. See section on
maintenance and cleaning in this manual.
•
Make sure product containers are tightly
sealed to prevent leakage
Door will not close
•
The unit is not level. Refer to the Leveling
section at the beginning of this manual
•
Check for dirt and debris or items passing
through the door seal.
MOISTURE DURING THE SUMMER SEASON
The amount of moisture, condensation, or high humidity related issues increase
during the summer and, in most cases, will self-resolve when the weather cools
down. Please note a refrigeration system will NOT generate moisture or water but
simply condenses the moisture that is already in the chamber. Keeping the unit in an
P a g e | 10
air conditioned, low humidity space will resolve many issues. Other things you should
check
1.
Location of the refrigerator (See Quick Troubleshooting Guide above)
2.
Door sealing and frequency of door opening event (SeeQuick
Troubleshooting Guide above)
3.
Make sure there is a water trap (U-shaped loop) in the drain tube nearthe
end. This will “trap” a small amount of water in the loop and prevent air
from entering the chamber through the tube.
BEFORE CALLING THE MANUFACTURER’S TECHNICAL SUPPORT DEPARTMENT,
please have the unit’s model and serial number ready as well as the problem
description. The model and serial number is located on the serial tag which can be
found on the interior left upper wall of the unit.
P a g e | 11
CLEANING
PART
CLEANING
AGENTS
TIPS AND PRECAUTIONS
Interior
and Door
Liners
Soap and water
Baking soda and
water
Use 2 tablespoons of baking
soda in 1 quart of warm water
Be sure to wring excess water
out of sponge or cloth before
cleaning around controls, light
bulb or any electrical parts.
Door
Gaskets
Soap and water
Wipe gaskets and their seating
surfaces with a clean soft cloth
Shelves
Soap and water
Do not wash removable shelves
in dishwasher
Exterior
and
Handles
Soap and water
Non-Abrasive
Glass Cleaner
Do not use commercial
household cleaners, ammonia,
or alcohol to clean handles
Use a soft cloth to clean
smooth handles
Do not use a dry cloth to clean
smooth handles
Clean the glass with a mild detergent and water on a soft cloth or sponge. Rinse with
water and wipe dry.
For Sliding door units, dust and debris can begin to build up in the door track. To
clean the door, track the doors should be removed and the track cleaned with mild
detergent and water on a soft cloth or sponge. Rinse with clean water and wipe dry.
Contact technical support if you have difficulty removing the doors.
Maintenance and Cleaning
P a g e | 12
For Swinging door units, pay attention to the gasket and its seating surfaces.
Any debris buildup on these can cause air leaks into the compartment resulting
in condensation as well as reduced efficiency.
CONDENSER MAINTENANCE
Air is pulled through the condenser continuously during operation. Along with this air
come impurities like dust, lint, grease, etc.
These impurities accumulate in the condenser. Dirty condensers result in inefficient
operation, compressor failure and potential product loss which are not covered by
warranty.
If you keep the condenser clean, you will minimize your service expense and lower
your electrical costs. The condenser requires scheduled cleaning every 30 day (or
more frequently in dirty environments).
Proper cleaning involves removing dust from the condenser. This can be
accomplished using a soft brush, by vacuuming, and by blowing through the
condenser coils with pressurized air, CO2, or nitrogen.
• REMEMBER, THE CLEANING OF THE CONDENSER IS NOT COVERED BY THE
WARRANTY AND IS YOUR RESPONSIBILITY. ANY DAMAGE CAUSED BY FAILURE
TO KEEP THE CONDENSER CLEAN IS ALSO NOT COVERED BY THE WARRANTY.

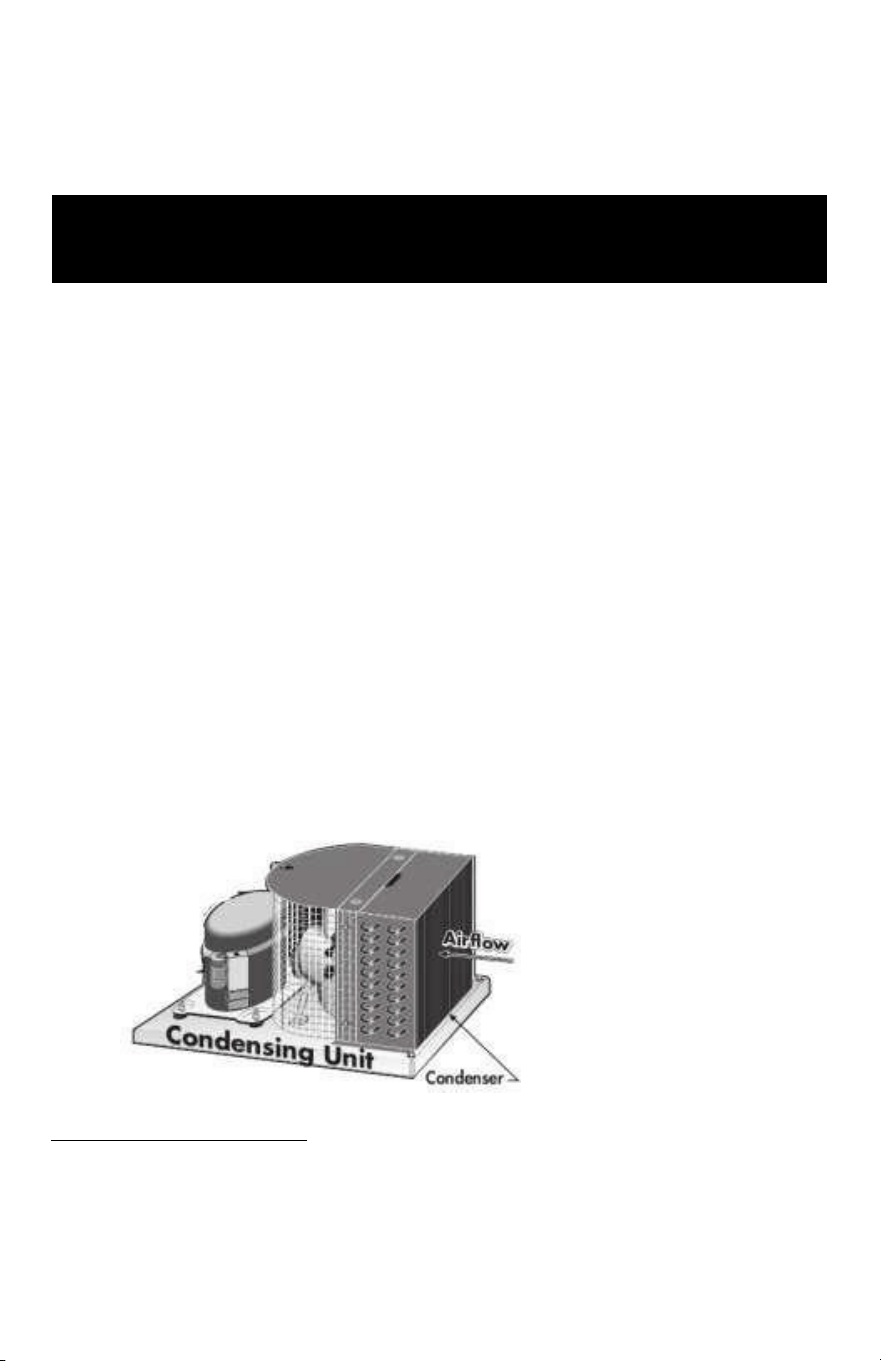

CLEANING THE CONDENSER
1.
Disconnect the electrical power to the unit
2.
Removed the louvered grill at the base of the unit. Locate the condensing unit.
3.
CAUTION: Use eye protection while performing the steps 4-6 to avoid eye injury.
IMPORTANT WARRANTY INFORMATION
P a g e | 13
4.
Vacuum the dirt from the condenser coil fins. Use a soft brush to help dislodge
the dirt from the coil fins and around the coil ends.
5.
When properly cleaned, you should be able to see through the condenser unit
(try shining a flashlight through to the other side).
6.
If necessary, use compressed air, CO2 or Nitrogen to blow through the coils.
Limit air pressure to approx. 30 psi.
7.
When finished, be sure to replace the louvered grill as it provides protection for
the condenser.
8.
Reconnect the electrical power to the unit.
P a g e | 14
Horizon Scientific, Inc. warrants to the original purchaser every new Horizon Scientific,
Inc. refrigerated unit, the cabinet and all parts thereof, to be free from defects in
material or workmanship, when such unit is installed, used, and maintained in
accordance with provided instructions. The warranty period starts two weeks from
the date of shipment from Horizon Scientific, Inc. This two-week period allows ample
shipping time so that the warranty will go into effect at approximately the same time
your equipment is delivered. Unless subject to prior written agreement with Horizon
Scientific, Inc., this warranty does not allow for any warranty start deferment greater
than two weeks from date of shipment due to a delayed installation and/or start-up.
By purchasing any product from Horizon Scientific, Inc., you and any entity for which
you are purchasing acknowledge and agree to every provision contained herein, and
all other Notices and Terms provided to Purchaser by Horizon Scientific, Inc., which
are hereby incorporated.
Under this warranty, Horizon Scientific, Inc., through its authorized service
organizations, will repair, or at its option, replace any part found to contain a
manufacturing defect in material or workmanship without charge to the owner for
parts and service labor. Replacement or repaired parts will be warranted for only the
unexpired portion of the original warranty. Horizon Scientific, Inc. will not assumeany
shipping or cartage costs for parts under warranty. These costs shall be paid by the
customer.
ADDITIONAL COMPRESSOR WARRANTY
In addition to the standard warranty, Horizon Scientific, Inc. warrants its hermetically
and semi-hermetically sealed compressors to be free from defects in both material and
workmanship under normal use and service in addition to the standard warranty
period. Compressors determined by Horizon Scientific, Inc. to have been defective
within this extended time period will, at Horizon Scientific, Inc.'s option, be either
repaired or replaced with a compressor or compressor parts of similar design and
capacity.
The compressor warranty applies only to hermetically and semi-hermetically sealed
parts of the compressor and does not apply to any other parts or components,
including, but not limited to, cabinet, paint finish, temperature control, refrigerant,
metering device, driers, motor starting equipment, fan assembly or any other electrical
components.
Horizon Scientific, Inc.’s sole obligation under this warranty is limited to either repair
or replacement of parts, subject to the additional limitations below. This warranty
neither assumes nor authorizes any person to assume obligations other than expressly
covered by this warranty.
Factory Warranty Policy
P a g e | 15
NO CONSEQUENTIAL DAMAGES. Horizon Scientific, Inc. is not responsible for
economic loss; profit loss; or special, indirect or consequential damages, including
without limitation, losses or damages arising from contents spoilage claims whether
because of refrigeration failure, electrical failure, power failure, or compressor
failure. HORIZON SCIENTIFIC, INC.’S MAXIMUM CUMULATIVE LIABILITY RELATIVE TO
ALL CLAIMS AND LIABILITIES, INCLUDING OBLIGATIONS UNDER ANY INDEMNITY,
WHETHER OR NOT INSURED, SHALL NOT EXCEED THE COST OF THE PRODUCT(S)
GIVING RISE TO THE CLAIM OR LIABILITY.
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only
in favor of the original purchaser/user to whom delivered. Any such assignment or
transfer shall void the warranties herein made and shall void all warranties, express or
implied, including any warranty of merchantability of fitness for a purpose. NO
IMPLIED WARRANTY OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR
PURPOSE. There are no other warranties, express, implied, or statutory, except the
standard warranty and the additional compressor warranty as described above. These
warranties are exclusive and in lieu of all other warranties, including implied warranty
and merchantability of fitness for a purpose. There are no warranties which extend
beyond the description on the face hereof, whether based on contract, warranty, tort
(including negligence), strict liability, indemnity, or any other legal theory, and
whether arising out of warranties, representations, instructions, installations, or non-
conformities from any cause. Purchaser further acknowledges that the purchase price
of the Product reflects these warranty terms andremedies.
ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR
INSTALLATION, FIRE, FLOOD OR OTHER EXTERNAL CAUSES.
Horizon Scientific, Inc. is not responsible for the repair or replacement of any parts that
Horizon Scientific, Inc. determines have been subjected after the date of manufacture
to alteration, neglect, abuse, misuse, accident, damage during transit or installation,
fire, flood or other external causes. It does not apply to defects resulting from failure
to properly install, operate or maintain the product in accordance with the printed
instructions provided, or damage caused by the storage of any corrosive material that
comes in contact with the interior or exterior portions of the cabinet, or the use of
spark producing equipment or containers (such as galvanized or carbonized steel
containers) that come in contact with any interior portion of the cabinet.
OUTSIDE U.S./CANADA. This warranty does not apply to, and Horizon Scientific, Inc.
is not responsible for, any warranty claims made on products sold or used outside the
United States and Canada.
CHOICE OF LAW/VENUE. The laws of the State of South Carolina shall govern the
validity, interpretation and enforcement of this warranty, regardless of conflicts of law
principles. Purchaser agrees that proper venue for any action to enforce the terms of
this warranty shall be the Dorchester County District Courts, South Carolina. Purchaser
P a g e | 16
submits the jurisdiction of such courts over the Purchaser and the subject matter of
any such action. Any action for breach of these warranty provisions must be
commenced within one (1) year after that cause of action has accrued.
WARRANTY CLAIMS. To obtain prompt warranty service, simply contact the
manufacturer at 800-648-4041. Horizon Scientific, Inc.’s shipping records showing
date of shipment shall be conclusive in establishing the warranty period. All claims
should include: model number of the refrigerator, the serial number of the cabinet,
proof of purchase, date of installation, and all pertinent information supporting the
existence of the alleged defect. Any repairs must be authorized by Horizon for the
warranty to be honored.
