Quick Setup Guide
Read the guide carefully and ensure you have fully understood its contents before operating this device for the first time.
English
20327496 A
A
B
Paragraphs beginning with the symbol indicate important instructions, tips or conditions for the following settings.
For your own safety and the optimal performance of your device, ensure to read the safety instructions before performing any
installation.
Compatibility with 3rd party products, software and services are not guaranteed. We cannot be held liable for any damage or loss suered
whilst operating, using or connecting to incompatible devices or apps.
The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such
rights in that content. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation
in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the
rights of the content you wish to record or playback.
Read these instructions
Follow all instructions
Heed all warnings
Keep these instructions
All rights reserved.
▌Important Notice
▌Safety Instructions
To ensure safe and correct use of this product, always comply with the following precautions to avoid dangerous situations and damage to your device:
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to
alert the user to the presence of uninsulated dangerous voltage within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
Class II product: This symbol indicates that it does not require a safety connection of protective earthing (ground).
C
The intended use and ambient conditions
for this device
This device is intended for the rendering of video and audio signals,
on a table-top, in a home or oce environment. It must not be used
in rooms with a high level of humidity or dust concentration. The
warranty is only valid if used as intended by the manufacturer.
WARNING
High humidity and dust concentration may lead to current leaks in
the device. To reduce the risk of re or electric shock:
- Do not expose this device to rain, moisture, dripping or splashing
water, and do not place objects lled with liquids, such as vases,
cups, etc. on or over the device.
- Do not touch the device with wet hands.
- Do not expose to direct air-conditioning and keep candles or
other naked ames away from the device at all times.
If the device is moved from a cold environment to a hot environment,
leave it switched o for at least an hour to avoid condensation. If
used outside, make sure it is protected from moisture.
If you notice anything unusual, immediately remove the power plug.
In case of re, use preferably a CO
2
gas or powder re extinguisher. If
such extinguishers are not accessible, try to isolate the electrical supply
before using a water re extinguisher.
The device may fall, causing serious personal injury or death. Many
injuries, particularly to children, can be avoided by taking simple
precautions such as:
- ALWAYS use cabinets or stands or mounting methods
recommended by the manufacturer of the device.
- ALWAYS use furniture that can safely support the device.
Power Supply
Incorrect voltages can damage the device. Only connect this device
to a power supply with the correct voltage and frequency noted on
the type plate, using the supplied power cable.
The power plug must be easily accessible so that the device can be
disconnected at all time. The device is live, even if in standby mode,
as long as the device is connected to a power outlet.
It is recommended that this device is placed on a dedicated circuit.
- Do not overload the power outlets by connect too many
appliances to the same outlet. Overloaded wall outlets, extension
cords, etc. are dangerous and can result in electric shock and re.
- ALWAYS ensure the device is not overhanging the edge of the
supporting furniture.
- ALWAYS educate children about the dangers of climbing on
furniture to reach the device or its controls.
- ALWAYS route cords and cables connected to your device so they
cannot be tripped over, pulled or grabbed.
- NEVER place the device in an unstable location.
- NEVER place the device on tall furniture (for example, cupboards
or bookcases) without anchoring both the furniture and device to
a suitable support.
- NEVER place the device on cloth or other materials that may be
located between the device and supporting furniture.
- NEVER place items that might tempt children to climb, such as
toys and remote controls, on the top of the device or furniture on
which the device is placed.
If your existing device is being retained and relocated, the same
considerations as above should be applied.
D
After power o, do not turn it on again in 5 seconds. Frequent
switching power supply in a short period of time can cause abnormal
device.
Power plug and power cable
- Do not touch the power plug with wet hands.
- Do not place heavy objects on the power cable. Route the cable
so that it is not kinked or laid over sharp edges, walked on or
exposed to chemicals. A power cable with damaged insulation
can cause electric shock and re.
-
Pull the power plug, NOT on the cable when disconnecting. The
cable can become damaged and cause a short circuit if pulled on.
- Do not place the power cable near a high temperature object.
- Do not move the device with the power cable plugged into a
socket.
- Do not use a damaged or loose power cable, or a damaged
socket outlet.
- Do not use any power cords other than the one supplied with this
device.
-
MAIN plug on the power cord is used as the disconnect device,
the disconnect device and socket-outlet shall be easily accessible.
Air ventilation and high temperatures
Install your device only where there is proper ventilation, and ensure
that there is at least 30 cm free space on the sides and 5 cm free
space on the back for air circulation. Excessive heat and obstruction
of ventilation could lead to re or early failure of some electric
components.
- Do not block any ventilation openings with newspapers,
tablecloths, curtains, etc.
- Do not dry clothing etc. on top of the device.
- Take care not to touch the ventilation openings since they may
become hot.
- Do not insert foreign objects into the device through the vents.
Warning about o-gassing
New furniture, carpet, paint, building materials and electronics can
release chemicals into the air through evaporation. After you set your
device up and turn it on for the rst time, you may notice a slight
smell within a couple of hours. This is because some components
of device are heating up for the rst time. The materials that we use
fully meet the environmental requirements and regulations. Your
device is working just ne and the fumes from the o-gassing will
diminish eventually.
Supervision
- Do not let children play unsupervised close to the device. It could
tip over, be pushed o or pulled down from the stand surface
and injure someone.
- Do not allow a switched-on device to run unattended.
Volume
Loud music and noise may lead to irreparable damage to hearing.
Extreme volumes should be avoided, especially during long-term
exposure and when using headphones.
If you hear a drumming noise in your ears, turn down the volume or
temporarily stop using headphones.
E
Thunder Storms
Pull out the power plug from the device during a thunderstorm.
Overvoltage caused by lightning strikes can damage the device via
the wall socket.
Long periods of absence
As long as the power plug is connected to a live socket outlet, the
device will consume power even in standby mode. The power plug
should be disconnected during long periods of absence.
Cleaning and care
CAUTION:
Unplug the power cord prior to cleaning the device.
Clean the device, the screen, and the remote control with a soft,
moist, clean and colour-natural cloth only. Do not use any chemicals.
- Do not subject the surfaces to insect repellent, solvent, thinner or
other volatile substances. This may degrade the surface quality.
- Do not spray water or other liquids directly on the device. Liquid
inside the device could lead to product failure.
- Also wipe the power plug with a dry cloth at regular intervals.
Service/Repair
Never remove the cover/back of the device; there are no user
serviceable parts inside. Refer all service to qualied service personnel.
Packaging
Keep the anti-moisture materials and plastic bags out of reach of
children.
Plastic bags can cause suocation and the anti-moisture material is
harmful if swallowed. If swallowed by mistake, force the patient to
vomit and visit the nearest hospital.
Modication
Do not attempt to modify this product in any way. Unauthorized
modication could void the warranty of this device, cause electric
shock and re.
Remote Control batteries
- Do not disassemble the product or attempt to remove the battery
by yourself.
- Do not dispose it into re.
- Do not crush or puncture the battery.
- Prevent it from falling down.
- Use the correct charging device.
- Be sure to dispose of battery correctly.
- Do not expose battery to excessive heat such as sunshine, re or
the like.
Disposal
Refer to the recycling section of this guide.
F
Laser
Do not look directly at the lens when this device is on because
the laser light may damage your eyes!
- This product comes with a laser module. Do not tear or modify this
device in any manner; otherwise, it may result in personal injury.

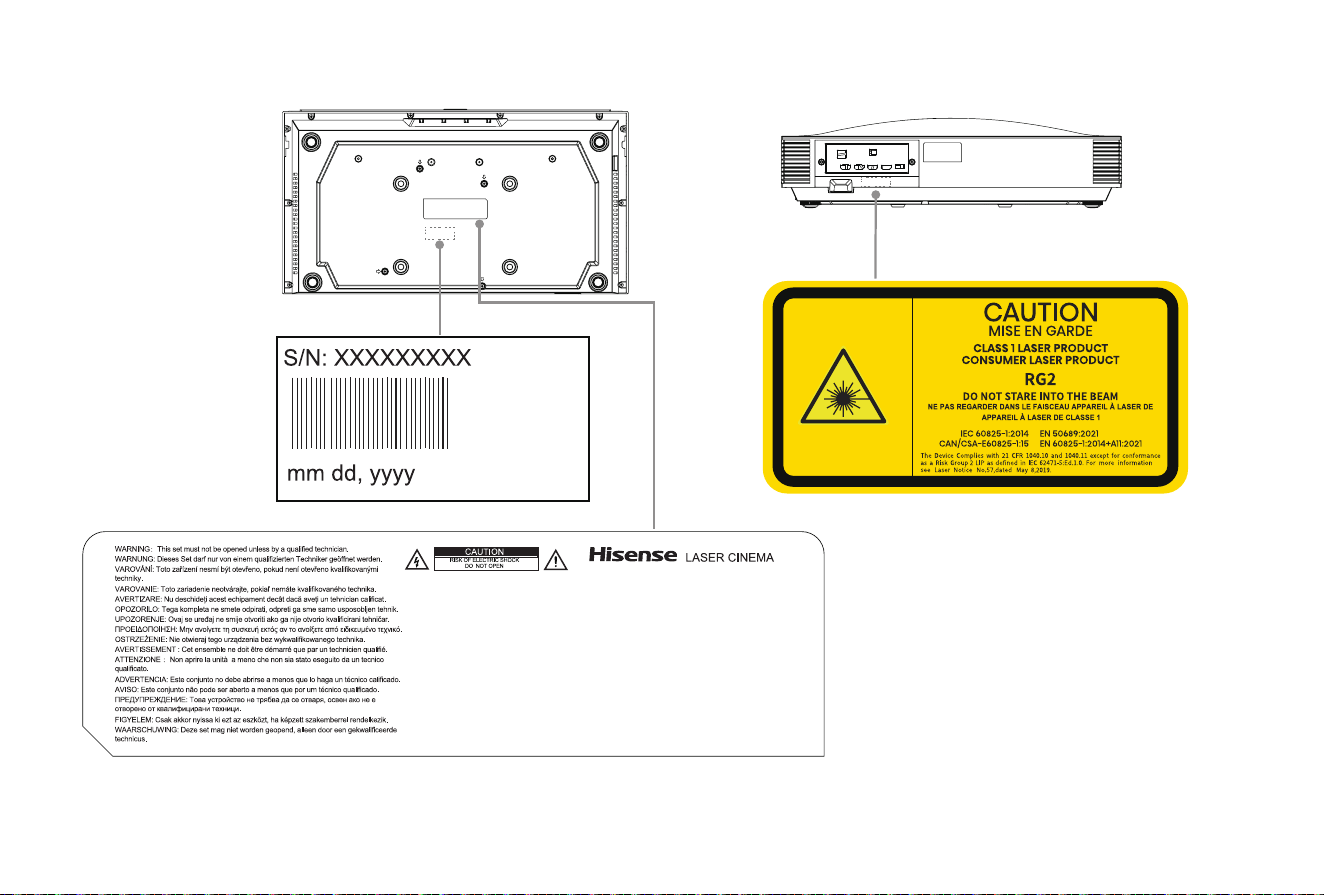

RG2
As with any bright light source, DO NOT STARE INTO THE
BEAM IEC 62471-5: 2015
CLASS 1 LASER PRODUCT
λ = 459-471nm/523-537nm/635-651nm
Wavelength 459-471nm/523-537nm/635-651nm
CLASS 1 LASER PRODUCT IEC 60825-1: 2014
CAUTION:
Use of controls or adjustments or performance of procedures
other than those specied herein may result in hazardous
radiation exposure.
- If this device requires a repair, please wear laser eye
protection with an optical density OD that is 4 or higher and
has a wave length of 459-651nm.
- Do not place any water-containing vessel on this device, such
as cosmetics or liquid medicine.
- If any object or water enters this device, please unplug this
device and contact the service sta of Hisense.
- Do not place any exposed re source (e.g. burning candle) on
this device. Keep away from high temperature and heat.
- Do not expose the battery to direct sunlight or candle light.
- Keep air vents on both sides clear from any objects to prevent
the device from overheating inside.
- To avoid a short circuit, product damage or electric shock, do
not use any sharp object or metal to touch the ports or other
openings on the device.
- If this device has been in a warm environment, allow any built-
up condensation to evaporate rst BEFORE you switch the
device on.
- Do not allow a child to stand on or climb up this device.
- Do not place any object above or in front of the lens because the
laser light could cause the object to become ammable.
- Clean the lens periodically with a clean cloth and make sure
the device is turned o before you start.
1
Table of Contents
Accessories List 1
Laser Cinema Diagram 2
STEP 1. Mount the Screen 2
STEP 2. Install the Laser Cinema 2
STEP 3. Align the Projected Image 7
STEP 4. Use Your Remote 9
STEP 5. Proceed with the Screen Setup Menu 11
Maintenance 12
Troubleshooting 13
Product Specications 14
Recycling / Licenses 15
Congratulations on the purchase of your new Laser Cinema! This Guide will walk you through a few easy steps to set
up your Laser Cinema.
Please visit Hisense ocial website for more details.
Figures and illustrations are provided for reference only and may dier from actual product appearance.
Parts of the software function change with the system upgrade.
NOTE: The accessories list above may vary depending on
specic model, country or region. Please refer to the actual
accessory bag.
Accessories List
• Laser Cinema × 1
• Remote control × 1
• Gloves for handling the Laser Cinema × 2
• Power cord × 1
• Laser Cinema Quick Setup Guide × 1
• Laser Cinema Warranty Card × 1
• Cleaning kit for the lens × 1
• C-shape blocks × 2
• C-shaped Block Installing Instruction × 1
2
Laser Cinema Diagram STEP 1 Mount the Screen
If you have purchased a screen, then refer to the specific
screen installation guide.
STEP 2 Install the Laser Cinema
Be sure to protect the lens when you handle this device.
We recommend to connect all cables to the ports on the
back of the Laser Cinema before positioning the Laser
Cinema. (Audio, video, Ethernet cables and external
devices are not included in the accessory bag.)
Check to ensure that you have selected the right cables
for the ports and that they are connected securely. Loose
connections can affect the quality of the picture image and
colour.
Remote control receiver
Power Indicator
Lens with laser
Eye protection sensor
Auto screen
alignment
camera
Power button
Air vents
3
LAN
HDMI 1
Ultra High-Speed
HDMI 3 (eARC)
4K@60Hz
DIGITAL AUDIO OUT
HDMI 2
Ultra High-Speed
HDMI 4
4K@60Hz
USB 1
DC 5V 1A (MAX)
AC
Ethernet (a router for Internet connection is needed)
Digital audio adapter
External audio devices
Audio Amplier
Speakers
HDMI
External AV devices
VCR DVD Player
Set-top Box
Satellite Receiver
Laptop
Video
Camera
USB 2 (5V 0.5A)
NOTE:
When connecting a hard disk or a USB hub, always connect the mains
adapter of the connected device to the power supply. Exceeding a
total current consumption may result in damage. The maximum current
consumption of the USB 2.0 device is 500mA and the maximum current
consumption of the USB 3.0 device is 1A.
For non-standard and large-capacity individual mobile hard disks,
if the pulse current is larger than or equal to 1A, it may cause the
device to restart or self-lock. The Laser Cinema is therefore not
compatible with this type of drive.
The voltage output of the USB is 5V.
4
LAN (Wired setup)
To connect your Laser Cinema to the network, connect the LAN port on the back of your Laser Cinema to an external modem or
router using a LAN (Ethernet/Cat 5) cable. See the illustration below.
Wireless setup
To connect your Laser Cinema to your network wirelessly, you need a wireless router or modem. See the illustration below.
NOTE:
You must use the built-in Wireless LAN Adapter to use a wireless network because the set doesn’t support external USB network
adapters.
If the wireless router supports DHCP, your Laser Cinema can connect more easily to the wireless network.
If you apply a security system other than the systems listed below, it will not work with the Laser Cinema.
Security system: WPA, WEP, WPA2, WPA3.
In order to guarantee smooth network, the distance between router and Laser Cinema should be less than 10 metres.
Laser Cinema PORT
Modem Cable
LAN CableLAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
Wireless router with DHCP
LAN Cable
Wireless LAN Adapter
built-in Laser Cinema
5
Laser beam
Plug the power cord into a power socket.
Press the POWER button to switch on the device.
WARNING: Poor ventilation will cause the device to
overheat or become damaged.
• Do not block the ventilation openings or place any object on
the device.
• Do not place the device in any narrow, enclosed or poorly
ventilated space.
To ensure proper ventilation of the device, the minimum space
must be maintained as shown in the diagram below.
30 cm
30 cm
5 cm
Ceiling installation
The device can be installed on the ceiling through the four
threaded holes on the bottom of the device.
Please use a certied ceiling mount for the installation and
ensure that four M6×10 certied bolts are used to secure the
device to the mount.
Select a suitable ceiling mount based on the weight of the device
and the pattern of the mounting holes on the bottom of the
device, as shown below.
Only qualied professionals should perform the installation.
Using defective mounts or bolts, or improper installation, can
result in personal injury or property damage.
The user shall assume full legal and nancial responsibility for
any personal injury, property damage, or consequential losses
arising from:
• Use of non-certied installation materials
• Improper installation practices deviating from specications
• Failure to implement safety measures
5.1 inches
(130.0 mm)
6.7 inches
(170.0 mm)
Power Cord
6
Image size and projection distance
NOTE:
The sizes of the projected image for each projection distance may dier depending on the actual installation environment.
X
Y
B
B
A
Projected Image
Projected Image
Size (inch)
X(mm) Y(mm) A(mm) B(mm)
80 1771 996 92 320
90 1993 1121 135 350
100 2214 1245 177 380
110 2435 1370 219 410
120 2657 1494 261 440
130 2878 1619 304 470
140 3100 1743 346 500
150 3321 1868 388 530
160 3542 1992 431 559
170 3764 2117 473 589
180 3985 2241 515 619
190 4207 2366 557 649
200 4428 2490 600 679
7
• Follow the steps below, only if they apply to your situation.
• Adjust the height of the screen until the projected image is
parallel with the screen.
• Rotate the feet with an overlooking view, and do not look
directly at the lens when the console is on because the laser
light may damage your eyes.
STEP 3 Align the Projected Image
If the bottom of the image is lower on the left (right) and higher
on the right (left), rotate the console counterclockwise (clockwise)
until the bottom of the image is parallel with the screen.
PARALLEL THE BOTTOM OF THE IMAGE WITH THE SCREEN
FIT THE BOTTOM OF THE IMAGE TO THE SCREEN
Move the console to the right Move the console to the left Move the console closer to the
screen
Move the console farther from
the screen
8
ADJUST THE UPPER-RIGHT/UPPER-LEFT OF THE IMAGE
FILL THE TOP OF THE IMAGE TO THE SCREEN
Rotate the console
counterclockwise until the
bottom of the image is parallel
to the screen
Rotate the console clockwise
until the bottom of the image is
parallel to the screen
Rotate the front-right foot
clockwise
Rotate the front-left foot
clockwise
Rotate the front-left and front-right feet
clockwise
Rotate the back-left and back-right feet
clockwise
Rotate the front feet counterclockwise
if the back feet are already at their
maximum height
9
STEP 4 Use Your Remote
BUTTONS ON YOUR LASER CINEMA REMOTE
BUTTON DESCRIPTION
Power on/Standby
Input source selection
APP Quick access to APPs
Press to enter Menu
Custom button, provides quick access to its user-
dened function
Four colour
buttons /
Special function buttons
D-pad (up/down/left/right navigation buttons)
OK Conrm selection
Under the Menu or App, return to the previous place;
For some models, long press to be used as EXIT
Display the Home screen
EXIT Exit the menu or exit the application
VOL Volume (up/down)
Brightness (up/down) (only available in several
picture modes)
Activate the microphone
Mute and restore sound;
For some models, long press to be used as
SUBTITLE
NOTE:
• The button descriptions are only provided as a reference. Actual
remote control may vary depending on model, country/region.
• The included remote control will vary depending on models,
countries/regions. Check information according to the actual remote
control in the accessory bag.
Playpad keys
Number button Input numbers
P.MODE Quick access to picture mode
S.MODE Quick access to sound mode
Home Open V Home experience
Activate AI assistant
This feature cannot be enabled in some scenarios.
The following buttons are only for some live TV apps and may not be
applicale in some models/countries/regions.
CH Switch channel
GUIDE
Display the Electronic Program Guide;
For some models, long press to be used as CH.LIST
TEXT
Turn on/o the teletext function;
For some models, long press to be used as INFO
CH.LIST Display the Channel List on the screen
INFO
Display the current program information;
For some models, long press to be used as TEXT
SUBTITLE
Activate or deactivate the subtitle mode
10
CHARGING THE REMOTE CONTROL
You can charge the remote by
exposing the solar cell to light or
using a USB type-C cable(not
provided).
The type-C port is used for quick
charging. When charging by type-C
port, the red indicator will blink.
When fully charged, the indicator will
stop blinking first and then turn off.
solar cell
type-C port
(5V,
≥
500mA)
NOTE:
• Figures and illustrations are provided for reference only and
may dier from actual product appearance.
• The battery is not user replaceable. Do not try to remove
or change the internal battery by yourself, cause it may
cause damage to the battery/device, personal injury, re or
explosion.
• When you do not use the remote control, place it face up to
make the solar cell expose to light. This will extend the remote
control's operating time.
• Exposing the battery to environments with extremely high
temperatures can result in explosion or the leakage of
ammable liquid or gas.
• Battery chemicals can cause skin irritation. If chemicals come
into contact with your skin, wash immediately.
• Disposal of a battery into re or a hot oven, or mechanically
crushing or cutting of a battery, that can result in an explosion.
• Always handle the remote control with care to prevent it from
falling down.
• A battery subjected to extremely low air pressure that may
result in an explosion or the leakage of ammable liquid or gas.
REMOTE CONTROL RANGE INFORMATION
• The remote control can work up to 8 metres in front of the Laser
Cinema. (This distance is used for an unpaired infrared device.)
• Remote control angle: with the remote sensor as the highest point
and 6 metres away, the horizontal control angle is within ±30°,
while the vertical angle is within ±15°. (This distance is used for
an unpaired infrared device.)
PAIRING THE REMOTE CONTROL (ONLY FOR BLUETOOTH
REMOTE CONTROL)
Pair the remote to the Laser Cinema after the device is switched on.
Keep the remote control within 3 metres from the Laser Cinema and
press any button (except power and mic button) to pair.
NOTE:
• In special cases, press and hold [ ] button to pair.
• If an unknown error occurs with the remote control, it would
be caused by interference. Try to eliminate the cause of the
interference and pair it again.
• If an unknown error occurs with the remote control, please
recharge by using type-C port and activate the remote control.
• The remote cannot be paired to the Laser Cinema with the Laser
Cinema in standby mode.
11
STEP 5 Proceed with the Screen Setup Menu
PROJECTION MODE
If you need to ip the image over top-to-bottom and/or left-to-
right, select the Projection Mode.
NOTE:
• Obstacles between the host device and the screen, foreign
objects on the screen surface, dark-colored walls, and strong
ambient lighting may interfere with the automatic geometric
correction. Ensure all obstacles and foreign objects are
removed, use a lighter-colored wall, and minimize ambient
light before initiating automatic geometric correction.
• This function is available only for screen of 100" and 120".
• Since screen type signicantly impacts the performance of
automatic geometric correction, we strongly recommend using
the Hisense Ambient-Resisting Screen for optimal results.
• Manual correction may be required for ne-tuning if auto
correction is unsatisfactory.
AUTOMATIC GEOMETRIC CORRECTION
1. Adjust the Laser Cinema position by using the levelling feet
as needed, and ensure the frame of the screen is located
inside the rectangular border.
2. Click Next to continue.
3. An auto-correction pattern will be displayed below, and the
correction process will complete automatically.
4. If the auto-correction results are unsatisfactory, use manual
correction for ne-tuning.
MANUAL GEOMETRIC CORRECTION
Select points and move it to t the projected image into the
screen.
1. Press
/ / < / >
buttons on your remote control to move
focus, and press
OK
button to choose a point you need to
adjust.
2. Long press
/ / < / >
buttons: quick adjustment of the
projected image;
Short press
/ / < / >
buttons: precise adjustment of the
projected image.
3. Press button to save your adjustment, and you can select
other points to adjust the image.
If you want to return the image position to the factory default,
select Reset on the screen.
12
EYE PROTECTION
In order to protect your eyes, keep the Eye Protection on, and do
not look into the lens. If you get too close to the Laser Cinema,
the light output will be temporarily disabled after 5 seconds.
FOCUS ADJUSTMENT
You can adjust the focus parameters by pressing the up and
down buttons on the remote. The focus eect is adjusted in real
time according to the displayed background image card.
Maintenance
• Avoid touching the device when it is running or immediately
after it is turned o, as it may be hot.
• Do not clean the device with oil-based products as they
can deteriorate the exterior or damage the paint. Extended
contact with rubber or ethylene products can cause stains on
the device.
• If the exterior of the Laser Cinema becomes dirty, turn o the
device and wipe it with a damp, soft cloth.
• Lens Care:
◦ Avoid touching the lens with your hands.
◦ Do not use ordinary cleaning cloths to wipe the lens.
◦ Use a dust blower to remove dust from the lens.
• For grease, dirt, and ngerprints, have a professional clean
the lens using optical cleaning cloths, lens wiping paper, or
professional cleaning solutions to avoid damaging the optical
coating and aecting image quality.
3D Mode Content Format Description
Side by Side Two images displayed horizontally
Top & Bottom Two images stacked vertically
Frame Packing Sequential frame-based 3D format
NOTE:
• Always review safety guidelines in the 3D glasses user
manual before use to prevent physical discomfort or property
damage.
• Certain 3D content may not be compatible due to system
limitations.
• Image quality may vary depending on source content and
3D format.
IRIS
Used to adjust the contrast of the image. Increasing the con-
trast makes the image more distinct, with brighter highlights and
deeper shadows, resulting in richer colours and stronger visual
depth. Decreasing the contrast softens the image and balances
out the details.
3D FUNCTIONALITY
This Laser Cinema features 3D capability, allowing users to
enjoy immersive 3D content. A pair of DLP-Link 3D glasses (sold
separately) is required for 3D viewing.
• 3D Mode Setup
Select the 3D format corresponding to your content.
13
Troubleshooting
If you are having trouble with your device, rst try turning it o
and on again. If this does not x the problem, check the tips in
the following.
It takes a few seconds before the picture is displayed after
the device is switched on. Is this normal?
Yes, this is normal. The Laser Cinema is in the process of
initialisation and searching for information on previous settings.
No sound or no picture
1. Check if the power cord is plugged into a working mains
socket.
2. Check if the power indicator is lit or not. If it is, then the Laser
Cinema is in standby mode.
3. Press the Power button on the remote control to activate
the device from 'Standby' mode.
No picture and/or sound after connection to an external
source
1. Check if the output connection of the external source and the
input connection of the Laser Cinema are correct.
2. Make sure you have made the correct selection for the input
mode of the incoming signal.
Picture is normal but there is no sound
1. Check the volume settings.
2. Check if 'Mute' mode is activated.
Sound is normal but there is no picture or only a black and
white picture
1. If the picture is black and white, unplug the device from the
power socket and re-plug it after 60 seconds.
2. Check if the Colour Saturation is set to 50 or higher.
3. Try dierent sources.
Sound and/or Picture are distorted or appear wavy
1. An electric appliance may be aecting the Laser Cinema.
Turn o any appliances nearby and move it farther away from
the Laser Cinema.
2. Insert the power plug of the Laser Cinema into another power
socket.
The plastic housing is emitting a clicking sound
Temperature changes during operation may cause the device
to slightly expand or shrink, which may cause a clicking sound.
This is normal and the device is in perfect working order.
The remote control does not work
1. Ensure that the device is connected to the mains socket and
can be operated.
2. Please recharge by using type-C port and activate the remote
control.
• Always use the Power button on the remote control to turn o
the device. Do not cut o the power directly while the device
is operating.
14
Product Specifications
Disclaimer: All products, product specications, and data are subject to change without notice to improve reliability, function, design or otherwise.
Model Name
Laser Cinema
Dimension (L × D × H)
21.3 × 11.3 × 5.6 inches
(540 × 288 × 142 mm)
Weight
18.3 lbs (8.3 kg)
Active Screen Size (Diagonal)
80 ~ 200 inches
Screen resolution
3840 × 2160
Audio power
2 × 15 W + 2 × 10 W + 2 × 8 W
Power consumption
250 W
Power supply
120-240V ~ 50/60Hz
Environmental conditions
Temperature: 41 °F - 95 °F (5 °C - 35 °C)
Humidity: 20% - 80% RH
Atmospheric pressure: 86 kPa - 106 kPa
HDMI Input
RGB / 60Hz (640×480, 800×600, 1024×768)
YUV / 60Hz (480i, 480p, 720p, 1080i, 1080p)
YUV / 50Hz (576i, 576p, 720p, 1080i, 1080p)
3840×2160 / 24Hz
,
3840×2160 / 25Hz,
3840×2160 / 30Hz, 3840×2160 / 50Hz,
3840×2160 / 60Hz
Network Standby Power Consumption
≤ 2.0 W
Power Consumption in Standby Mode
≤ 0.5 W
15
Recycling / Licenses
This symbol on the product or on its packaging indicates that
this product must not be disposed of with your household
waste. Instead, it is your responsibility to dispose of your
waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling
of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in
a manner that protects human health and the environment.
For more information about where you can drop o your
waste equipment for recycling, please contact your local city
oce, your household waste disposal service or the shop
where you purchased the product.
The terms HDMI, HDMI High-Denition Multimedia
Interface, HDMI Trade dress and the HDMI Logos
are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc.
Dolby, Dolby Vision, Dolby Atmos, and the
double-D symbol are registered trademarks
of Dolby Laboratories Licensing Corporation.
Manufactured under license from Dolby
Laboratories. Confidential unpublished works.
Copyright © 2012–2024 Dolby Laboratories. All
rights reserved.
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE
FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT
DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE
WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT
WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/
OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC
VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE
HTTP://WWW.MPEGLA.COM
Manufactured under license from DTS, Inc. and/or its affiliates. For
patents, see https://xperi.com/dts-patents/. DTS, the DTS logo, DTS:X,
and the DTS:X logo are trademarks or registered trademarks of DTS,
Inc. and/or its aliates in the U.S. and/or other countries. © DTS, Inc.
and/or its aliates. All rights reserved.
Manufactured under license from IMAX Corporation. IMAX
®
is a
registered trademark of IMAX Corporation in the United States and/
or other countries. For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing Limited. DTS and
the DTS logo are registered trademarks or trademarks of DTS, Inc. in
the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS
RESERVED.
The manufacturer declares that, in its opinion, this product has been
manufactured in compliance with the requirements of Part 1 of Schedule 1
of the Cyber Security (Security Standards for Smart Devices) Rules 2025.
For the complete statement, please visit: https://www.hisense.com.au/cyber-
security
Cyber Security Statement of Compliance
16
Back View
Bottom View
NOTE:
This page is used to show the position of the nameplate, and the content is for reference only.
CAUTION
17
