HARBOR BREEZE and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
ITEM #5497064
EASTBROOK LED
CEILING FAN
Español p. 22
MODEL #EST52BNK5LR
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
4007498
Purchase Date
1
AS23379
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could
also contact us at [email protected].
2
TABLE OF CONTENTS
Safety Information
.................................................................................................................
2
Package Contents ................................................................................................................5
Hardware Contents ............................................................................................................
..
.6
Preparation
............................................................................................................................
6
Initial Installation ...................................................................................................................
.
6
Downrod-Style Fan Mounting ..............................................................................................
.
8
Closemount-Style Fan Mounting ........................................................................................10
Wiring ..................................................................................................................................11
Final Installation ...............................................................................................................
.
..14
Operating Instructions ........................................................................................................16
Care and Maintenance .......................................................................................................19
Troubleshooting.................................................................................................................
.
.20
Limited Lifetime Warranty .................................................................................................
..
21
Replacement Parts List ......................................................................................................21
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
3
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 16.98 lbs.
SAFETY INFORMATION
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.87 KG) OR LESS" and
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
WARNING
4
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades, or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly
to ensure that they are secured.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION
5

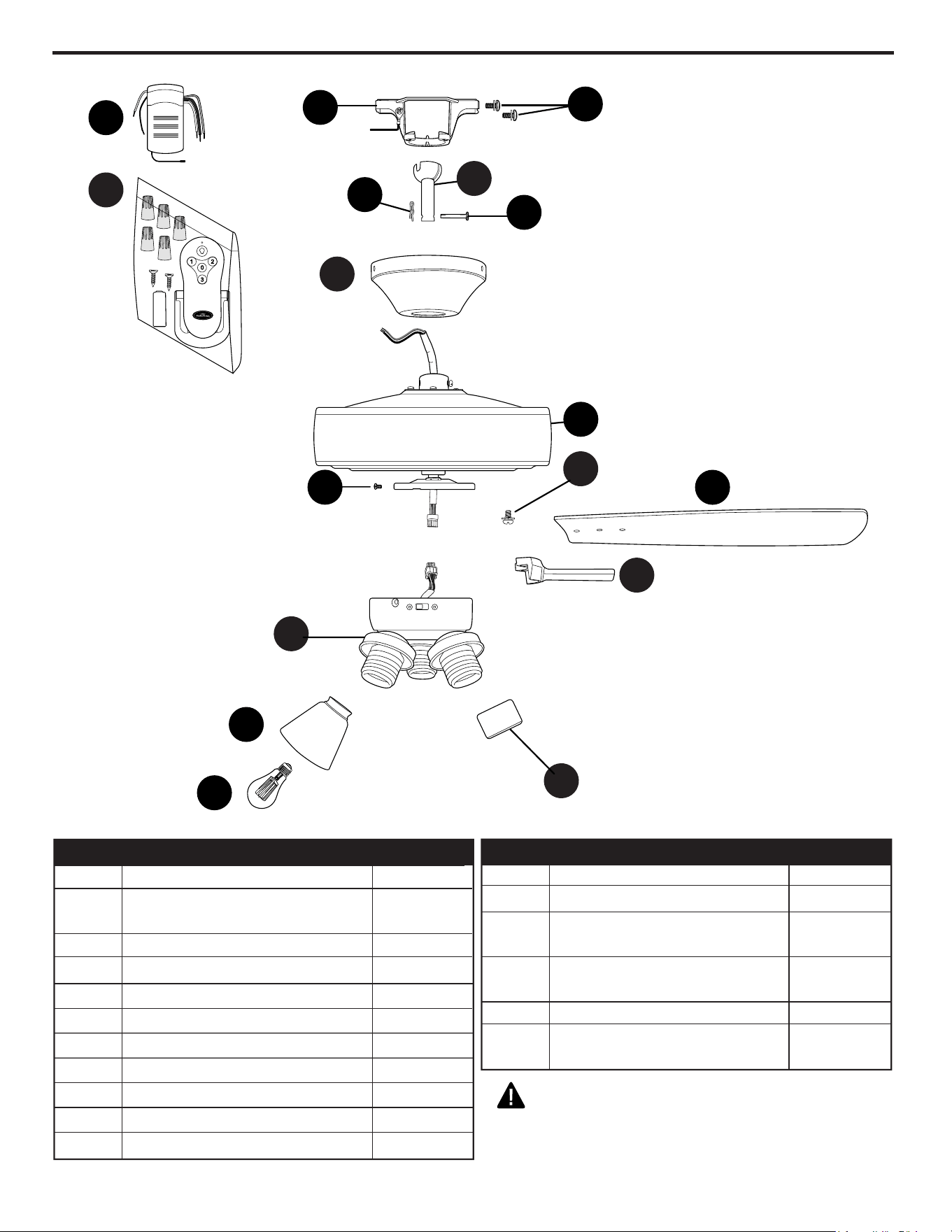

PACKAGE CONTENTS
A Mounting Bracket 1
B Canopy Mounting Screw/ 4
Lock Washer (preassembled)
C Downrod 1
D Pin (preassembled) 1
E Clip (preassembled) 1
F Canopy 1
G Remote Pack 1
H Motor Housing 1
I Light Kit Fitter 1
J Bulb 3
K Blade 5
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
L Remote Control Receiver 1
M Blade Arm 5
N Motor Screw/Lock Washer 10
(preassembled) + 1 extra
O Light Kit Fitter Screw 3
(preassembled)
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
D
E
H
I
G
P
J
N
M
L
F
K
B
A
C
O
P Shade 3
Q Socket Ring 3
(preassembled)
Q
6

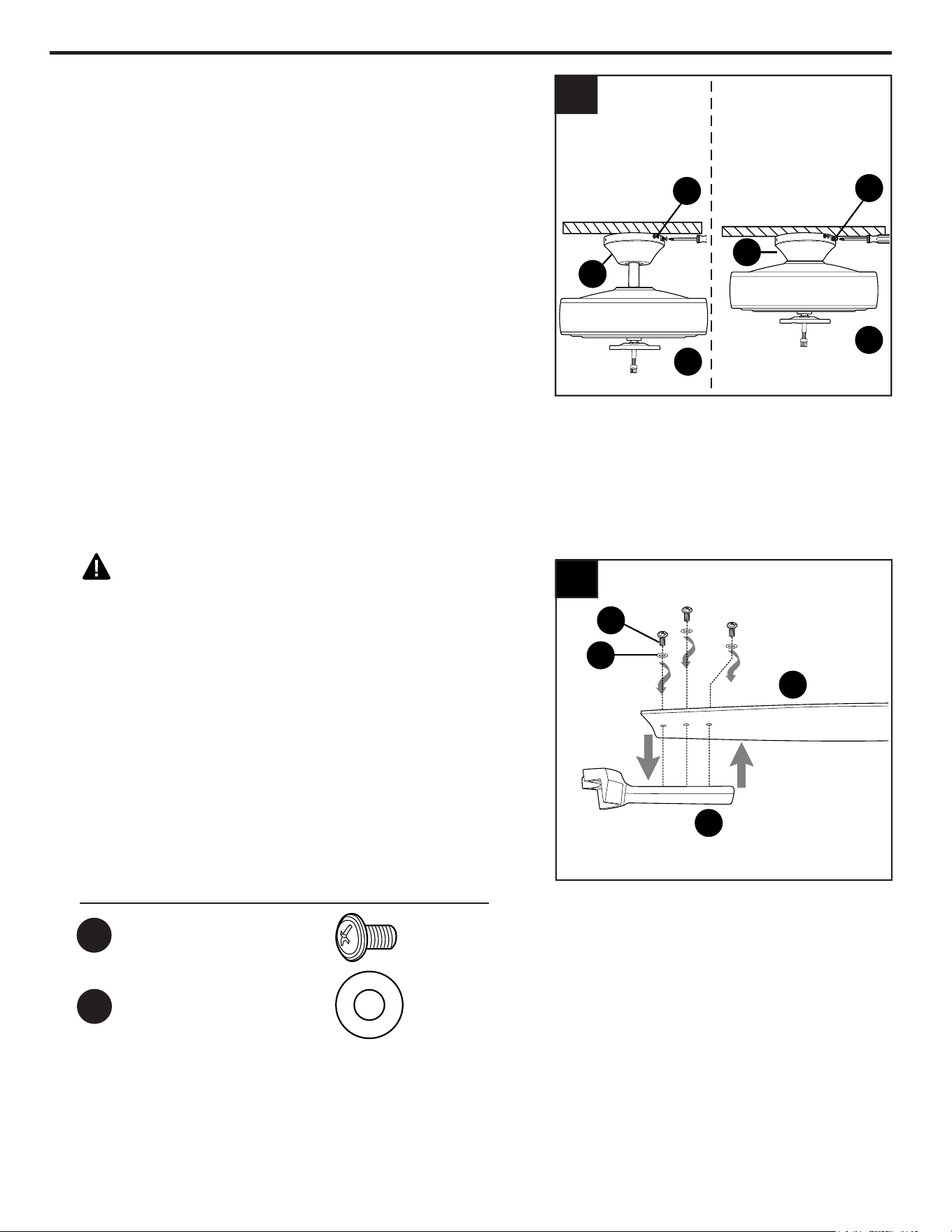

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters

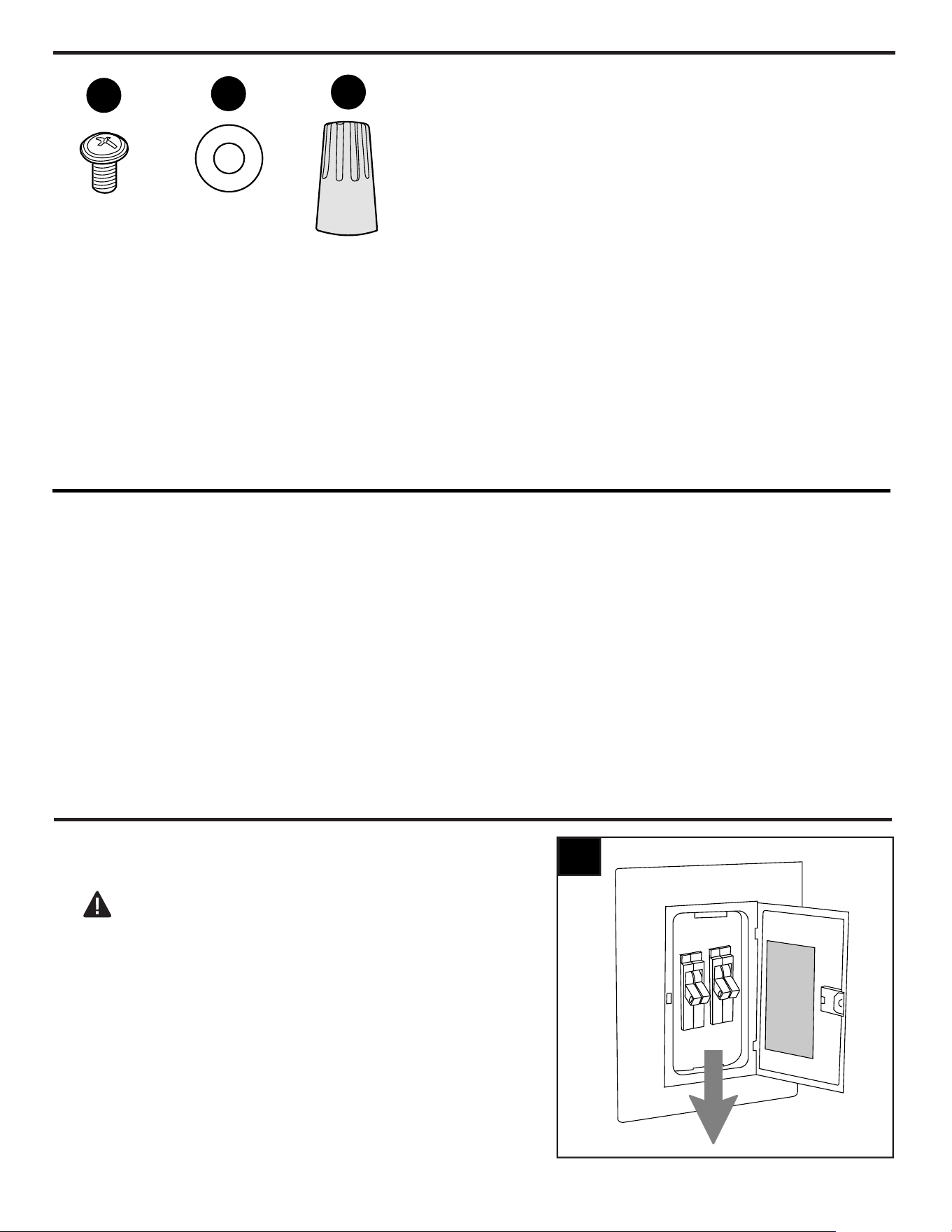

PREPARATION
AA
Blade
Screw
Qty. 15
+ 1 extra
Fiber
Blade
Washer
Qty. 15
+ 1 extra
BB
CC
CC
Wire
Connector
Qty. 4
ON
OFF
ON
OFF
1

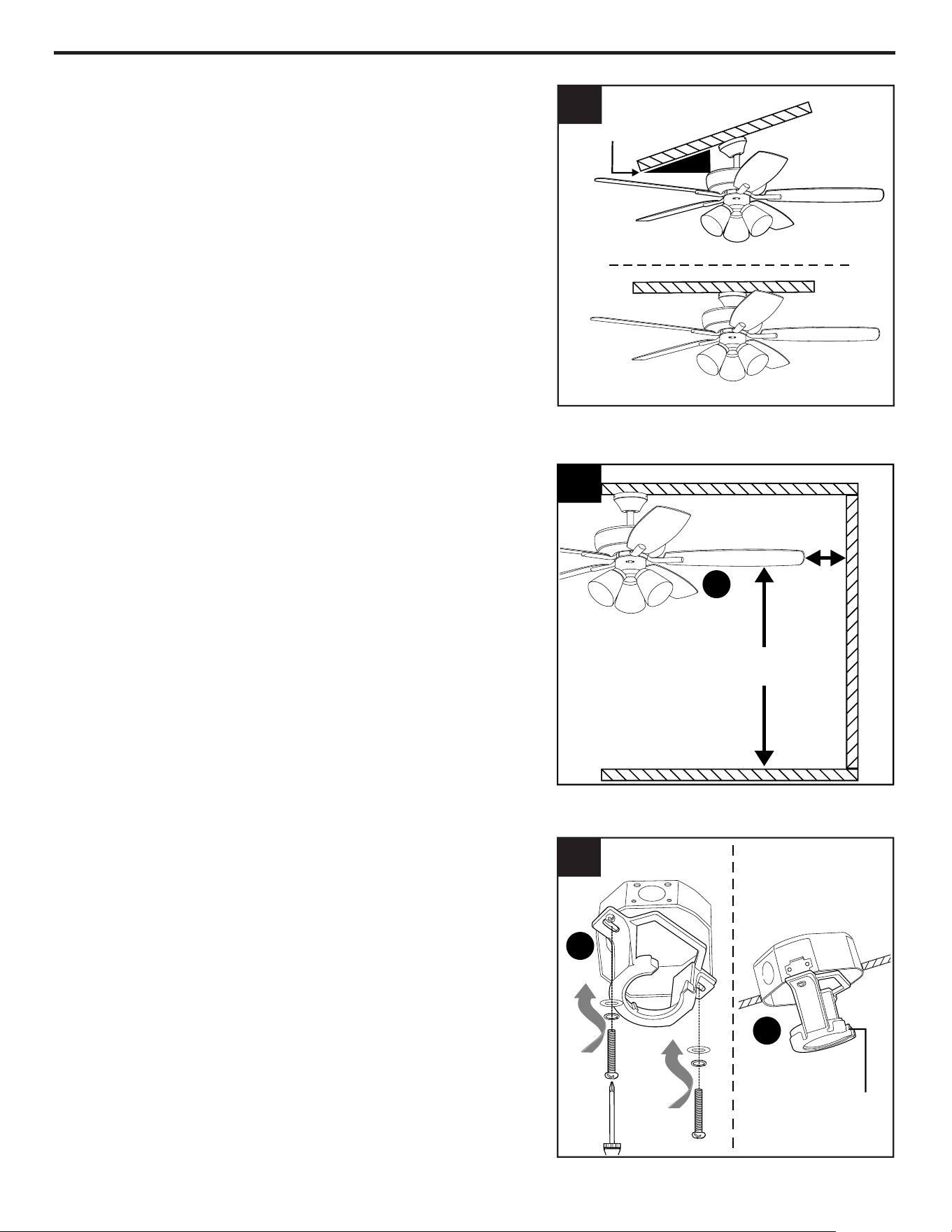

Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
INITIAL INSTALLATION
INITIAL INSTALLATION
7
Check to make sure blades (K) will be at least 7 ft.
above the floor and at least 30 inches from any
obstruction.
3.
7 ft.
min.
30 in.
min.
3
K
2. Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 15°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
A
B
2
15° max.
4.
Secure mounting bracket (A) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (A)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (A) is installed facing
the higher point of the ceiling, and ensure the
ceiling angle is not steeper than 15°.
Open End
4
A
ANGLE MOUNTSTANDARD
MOUNT
4
A
INITIAL INSTALLATION
8

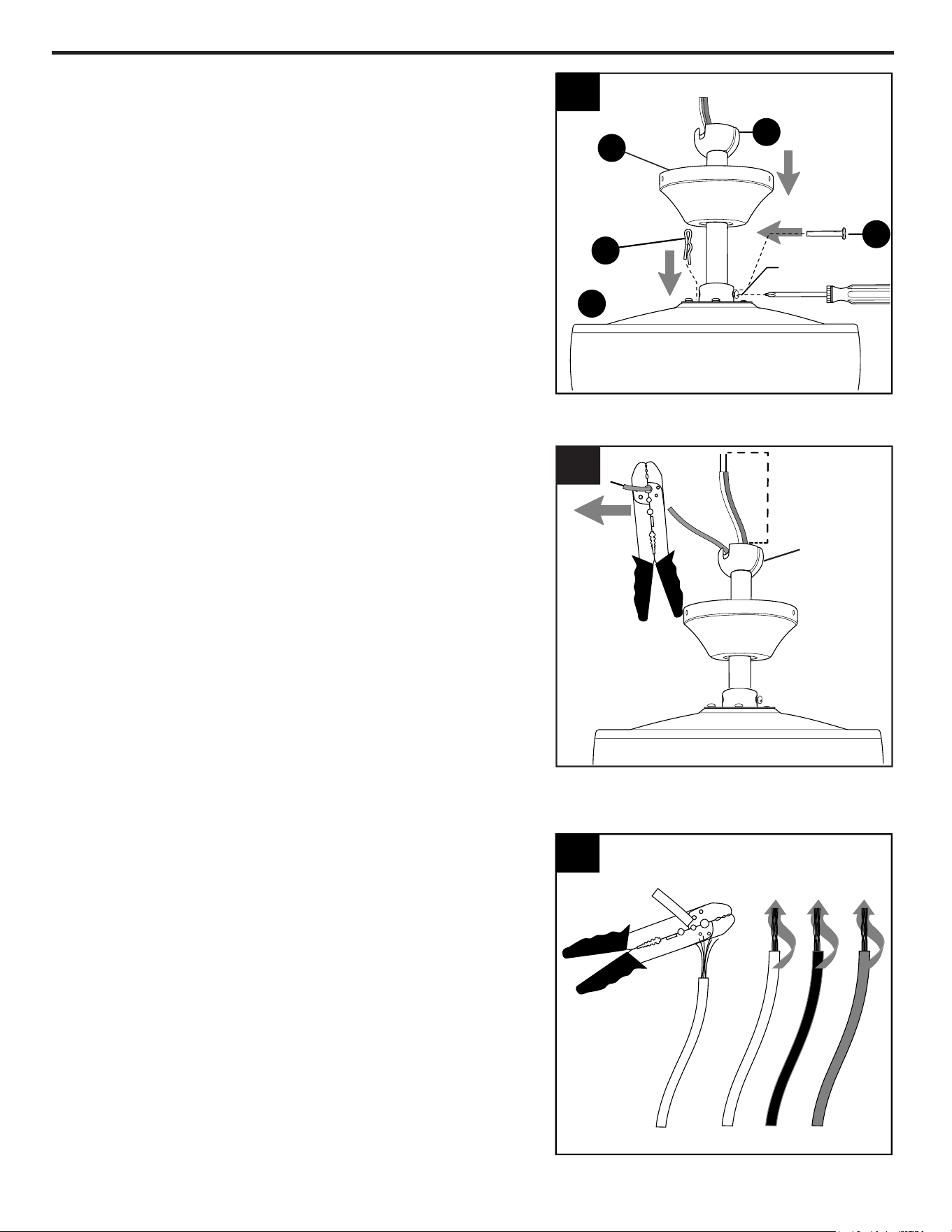

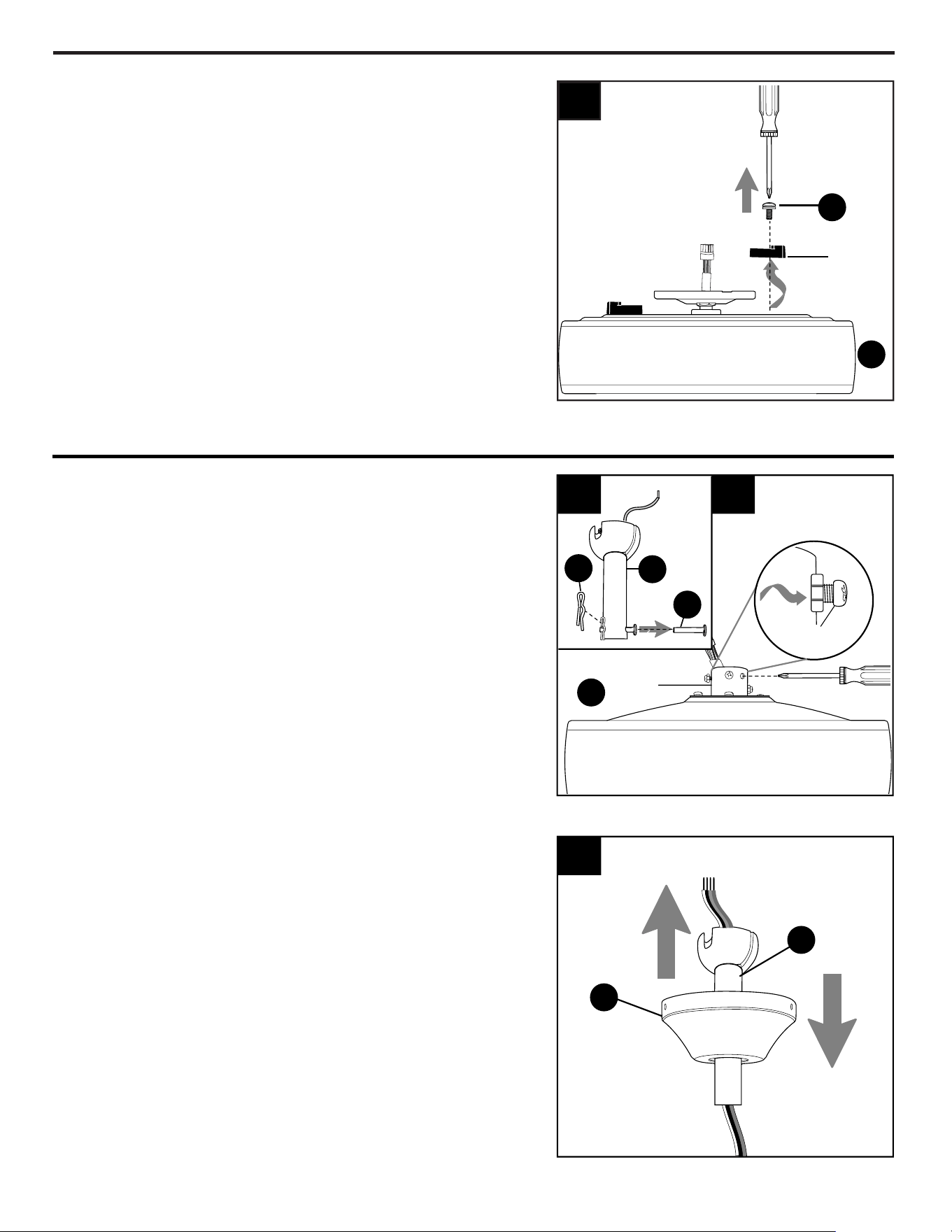

Remove pin (D) and clip (E) from downrod
(C).
Partially loosen preassembled set screws
and nut in yoke at top of motor housing (H).
1a.
1a
E
1b
C
Set Screw
Sideview
D
Yoke
2.
Insert downrod (C) through canopy (F).
Then, thread wiring from motor housing (H)
through downrod (C).
2
F
C
1b.
H
DOWNROD-STYLE FAN MOUNTING
5. Remove motor screws/lock washers (N) from
underside of motor housing (H) and save for
blade arm (M) attachment later on. [If there are
plastic motor blocks installed with the motor
screws/lock washers (N), discard the plastic
motor blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 10.
H
Plastic
Motor
Block
N
5
9
3.
Slip downrod (C) into yoke, align holes and
re-install pin (D) and clip (E). Tighten downrod set
screws and then tighten nut.
3
H
F
E
D
C
DOWNROD-STYLE FAN MOUNTING
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of each wire --
WHITE, BLACK, GREEN and BLUE (if applicable).
Twist stripped ends of each strand of wire within
the insulation with pliers (not included).
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead
wires, it is suggested you do so in the following
manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
5.
4.
5
Set Screw
and Nut
4
Hanging
Ball
8 in.
DOWNROD-STYLE FAN MOUNTING
10

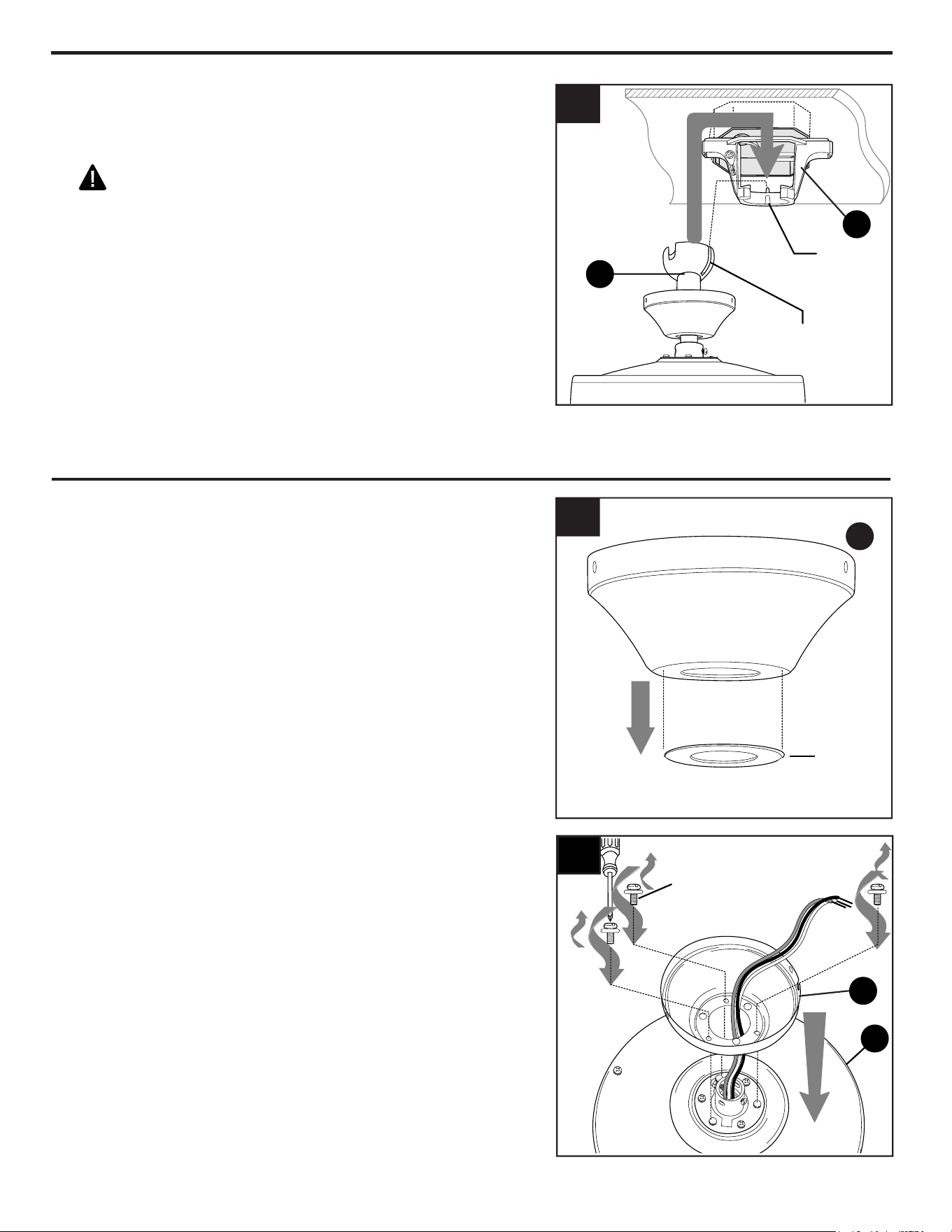

Install hanging ball of downrod (C) into opening of
mounting bracket (A). Align slot in hanging ball
with tab in mounting bracket (A).
DANGER: Failure to align slot in the ball with
the tab may result in serious injury or death.
Continue to WIRING on page 11.
Tab
A
6.
Slot
6
C
Remove preassembled canopy cover from
bottom of canopy (F). NOTE: To remove
canopy cover, twist canopy cover until the two
small protrusions on the inner lip of the canopy
cover align with the two notches on the bottom
of the canopy (F). Pull on canopy cover to
remove.
NOTE: The downrod (C) and canopy cover
are not used in this type of installation.
1.
1
Canopy
Cover
F
Locate the three raised, preassembled
screw/lock washers at top of motor housing
(H) and remove each one.
Pull wires up through hole in the middle of the
canopy (F) and attach canopy (F) to motor
housing (H) using the three previously
removed screws/lock washers.
2.
2
F
H
Screw/Lock Washer
CLOSEMOUNT-STYLE FAN MOUNTING
11
3.
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect
to the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range
dimmer switch to control fan speed.
WIRING
CLOSEMOUNT-STYLE FAN MOUNTING

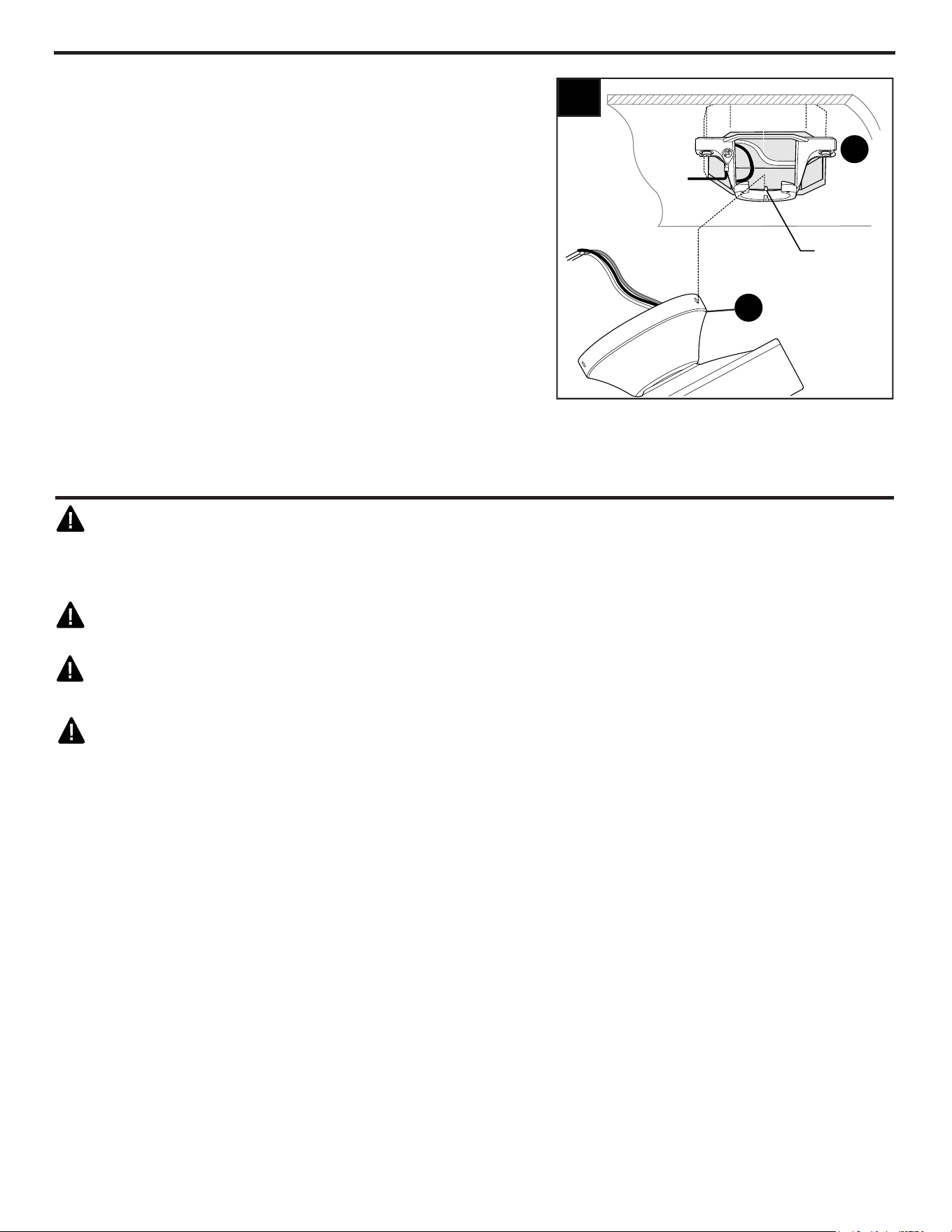

Temporarily hang fan on the tab on the
mounting bracket (A) using one of the
non-slotted holes in the canopy (F).
Tab
F
3
A
12
WIRING
Wire Connectors
G

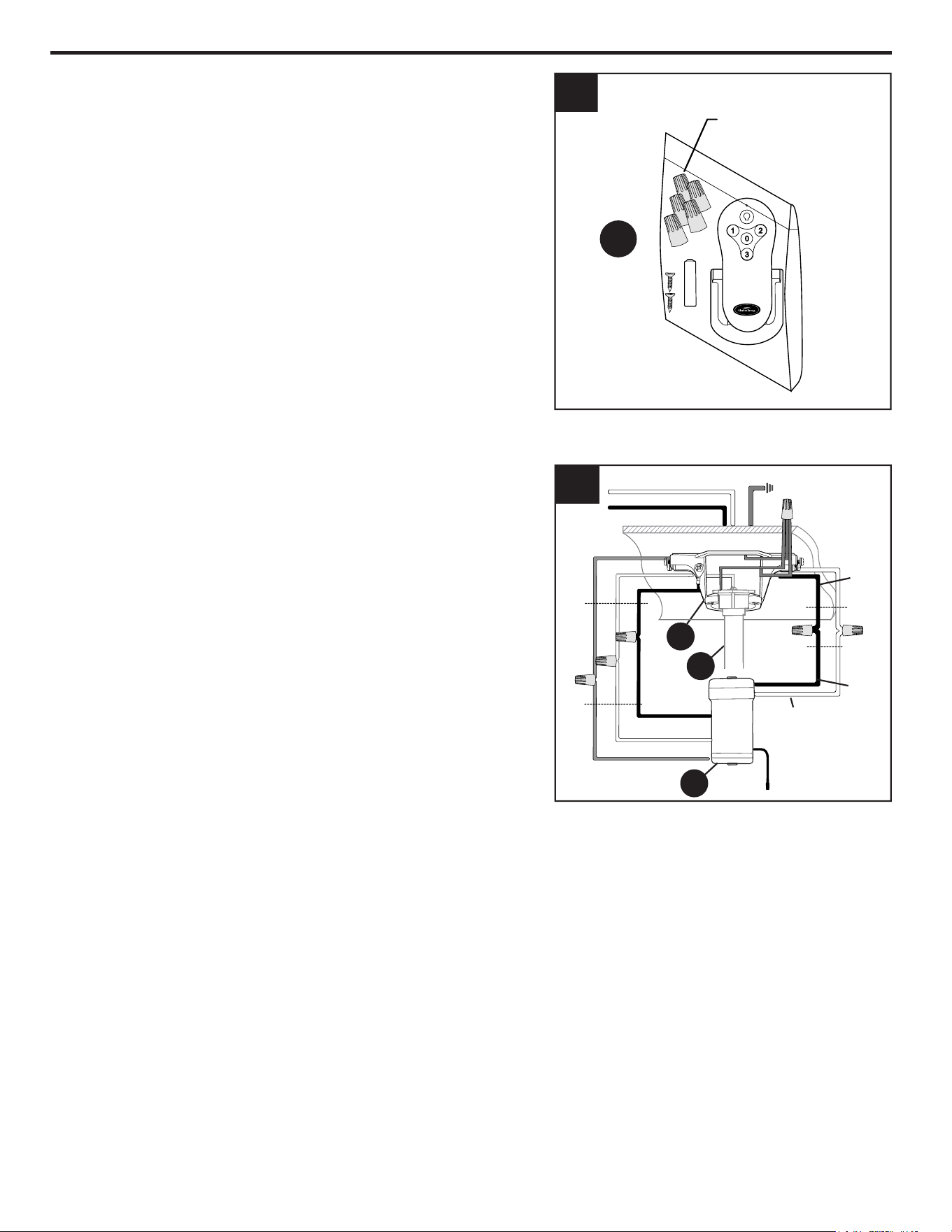

Connect all GROUND (GREEN) wires from
fan (on downrod (C) and mounting bracket
(A)) to BARE/GREEN supply wire from
ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (L) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (L) to WHITE supply
wire from ceiling.
Connect BLUE wire (labeled FOR LIGHT)
from remote control receiver (L) to BLUE wire
from motor housing (H).
Connect BLACK wire (labeled TO MOTOR L)
from remote control receiver (L) to BLACK
wire from motor housing (H).
Connect WHITE wire (labeled TO MOTOR N)
from remote control receiver (L) to WHITE
wire from motor housing (H).
1a.
1b.
C
A
L
1b
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
Wire
Connectors
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
IMPORTANT: Make the necessary wiring
connections for remote control operation as
detailed in Step 1b below. For each wire
connection, use one of the wire connectors
from the remote pack (G), making sure to
screw wire connector on in a clockwise
direction.
1a
Wire
Connectors
13
WIRING

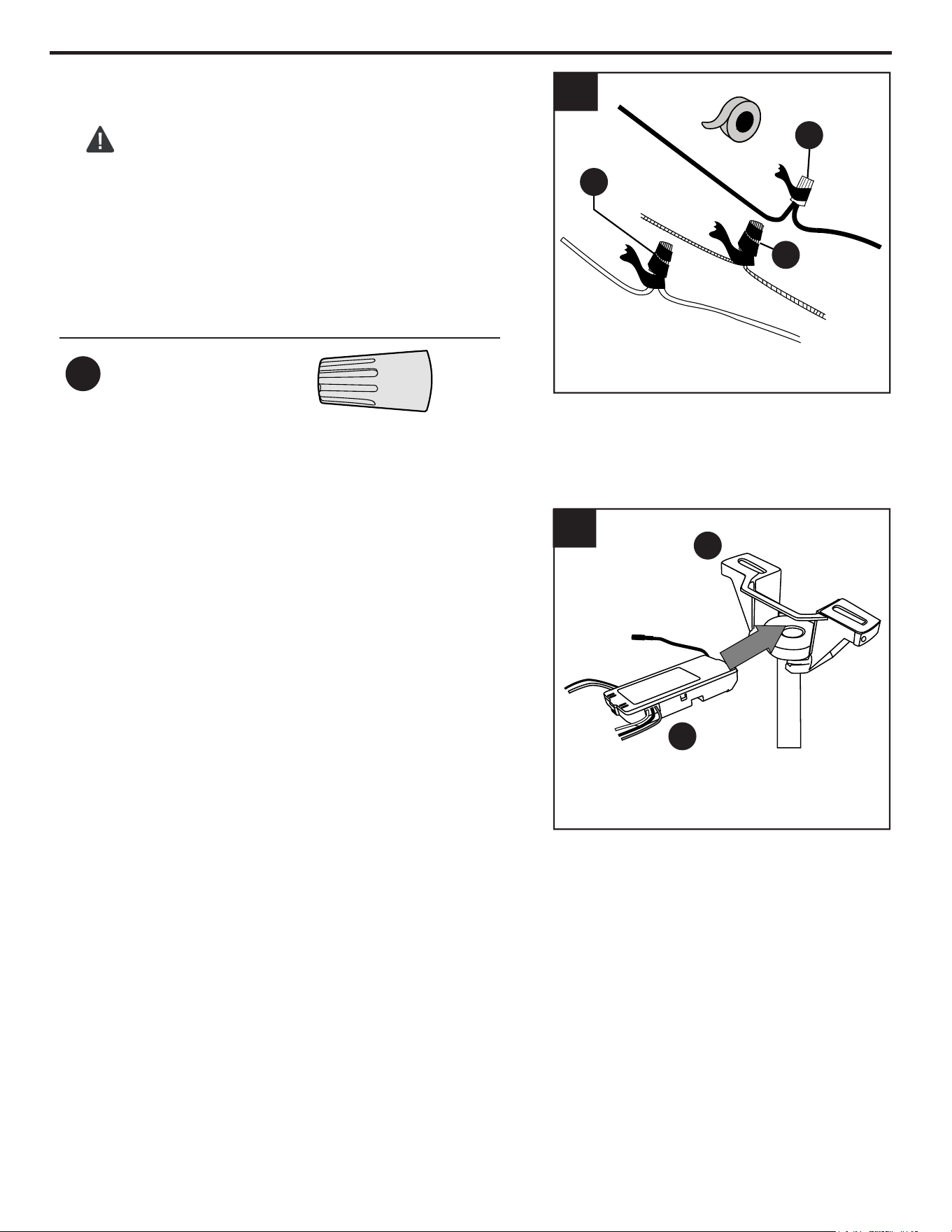

Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of the outlet box from the BLACK
and BLUE (if applicable) connections.
2.
2
3
Gently slide remote control receiver (L) flat-side
up into mounting bracket (A). Turn spliced/taped
wires upward and gently push wires and wire
connectors into outlet box. Let antenna from
remote control receiver (L) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.0 MAX.
3.
Antenna
L
A
CC
CC
CC
Hardware Used
Wire Connector
x 4
CC
14
FINAL INSTALLATION
1.
2.
Hardware Used
AA
Blade Screw x 15
Fiber Blade Washer x 15
BB
1
F
H
B
H
F
Downrod
Option
Closemount
Option
B
Temporarily lift canopy (F) to mounting bracket
(A) to determine which two canopy mounting
screws/lock washers (B) in mounting bracket (A)
align with slotted holes in canopy (F) and
partially loosen these two canopy mounting
screws/lock washers (B). Remove the other two
canopy mounting screws/lock washers (B). Now,
lift canopy (F) to mounting bracket (A) again,
aligning slotted holes in canopy (F) with
loosened canopy mounting screws/lock washers
(B) in mounting bracket (A). Twist canopy (F)
clockwise to lock. Re-insert the two canopy
mounting screws/lock washers (B) that were just
removed and tighten all canopy mounting
screws/lock washers (B) securely.
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (K). If screws are
overtightened, blades (K) may crack and break.

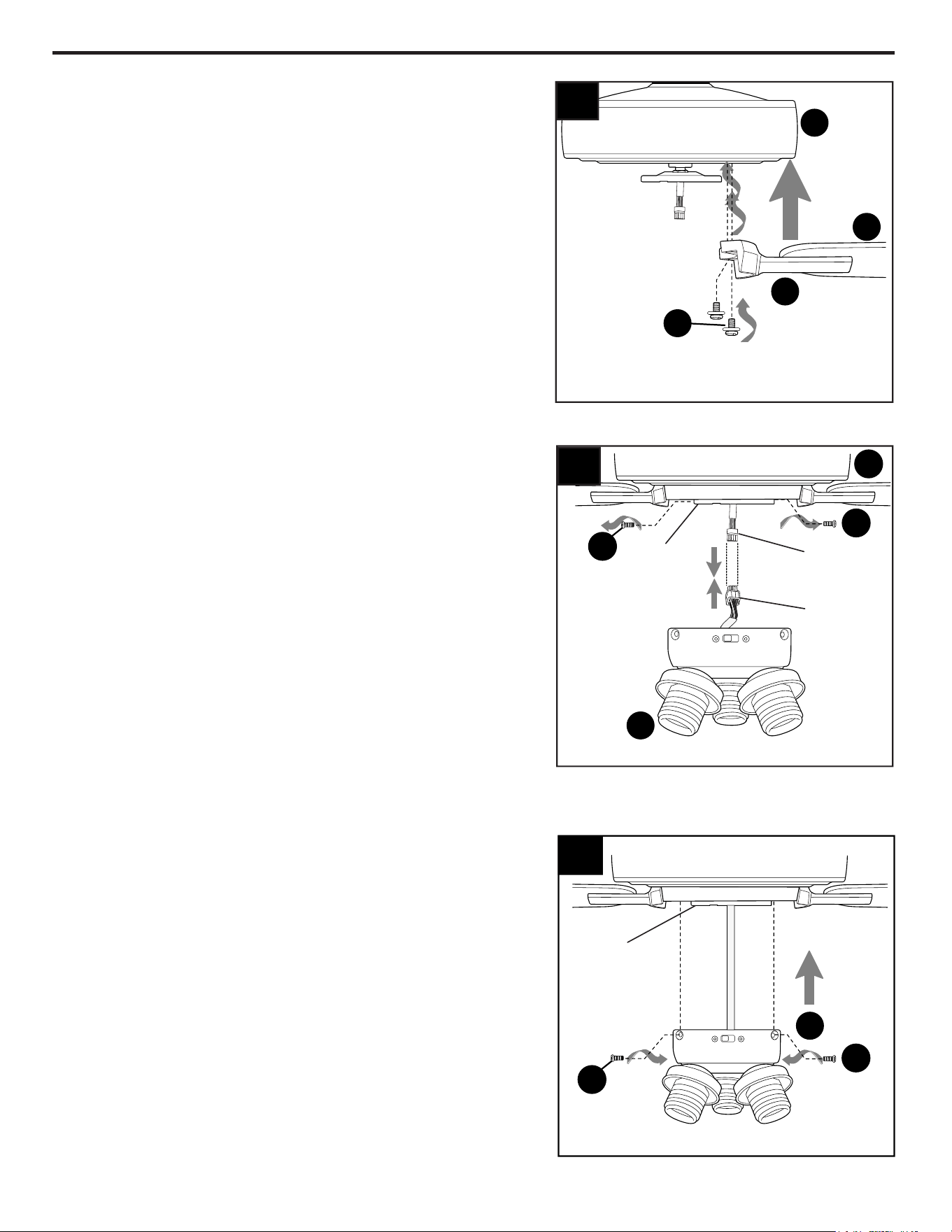

Partially insert three blade screws (AA) along
with three fiber blade washers (BB) into holes in
blade (K) to attach blade arm (M) to blade (K).
Then, tighten each blade screw (AA) starting
with the one in the middle.
Repeat for remaining blades (K) and blade arms
(M).
2
BB
AA
M
K
FINAL INSTALLATION
Carefully arrange wiring within light kit fitter
(I).
Align holes in light kit fitter (I) with holes in
motor plate. Re-insert light kit fitter screws
(O) previously removed and tighten until
secure.
4.
15
5.
3.
Attach blade arms (M) to the bottom of motor
housing (H) with motor screws/lock washers
(N) previously removed (Step 5, page 8).
Tighten motor screws/lock washers (N)
securely. NOTE: Make sure to completely
secure each blade arm (M) before
proceeding to the next.
3
K
M
H
N
Male
plug
Motor
plate
Female
plug
I
Remove three light kit fitter screws (O) from
outer edge of motor plate.
Connect female plug from motor housing (H)
to male plug from light kit fitter (I), matching
up the colors on the plugs for correct fit.
Make sure plugs connect tightly.
4
H
O
5
O
Motor
plate
I
O
O
OPERATING INSTRUCTIONS
FINAL INSTALLATION
16
1
Remote Control
Bracket
Wall
1.
If you wish to use the remote control bracket
from remote pack (G), install screws from remote
pack (G) through bracket and into the desired
installation site. The remote control transmitter from
remote pack (G) rests inside the bracket.
Bracket
Screws
6.
6
Socket
P
7.
7
J
J
Socket
Q
I
I
P
Q

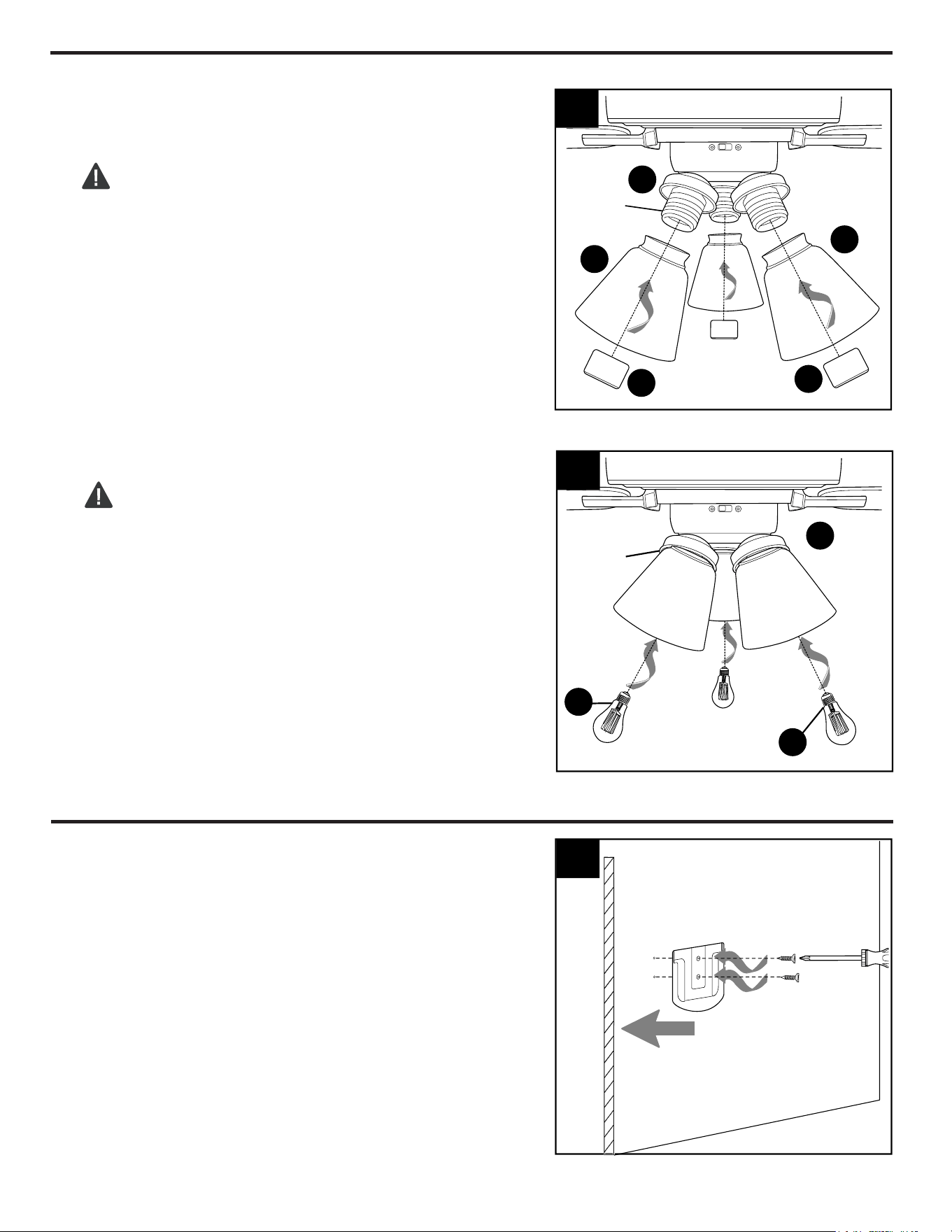

Install bulbs (J).
WARNING: When replacing bulbs, allow bulb(s)
and shade(s) to cool down before touching them.
Remove socket rings (Q) from sockets on light
kit fitter (I). Attach shades (P) to sockets,
securing with socket rings (Q).
WARNING: Do not overtighten socket
rings (Q) as shades (P) may crack or break.
17
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this
is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
Locate battery and remote control transmitter in
remote pack (G). Remove protective covering from
front of remote control transmitter and discard.
Remove battery cover from back of remote control
transmitter. Install battery with positive (+) end toward
top of remote control transmitter.
WARNING: Battery is to be inserted with correct
polarity.
Replace battery cover on remote control transmitter.
WARNING: Choking/Ingestion Hazard - Small
parts.
Keep battery away from children.
NOTE: Battery is NOT rechargeable. Remove battery
with low or no charge and dispose of properly.
2.
(back
side)
2
Battery
Cover
G
Remote
Control
Transmitter
Battery
23A
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and
state recycling or household hazardous waste coordinators concerning the specifics of the program
in your area.
FCC Compliance Notice for Remote Control
Modifications not approved by the party responsible for compliance could void the user's authority to
operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
OPERATING INSTRUCTIONS
18
3.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the
ON/OFF button ( ) on the remote control
transmitter for 5 seconds until fan beeps or until light

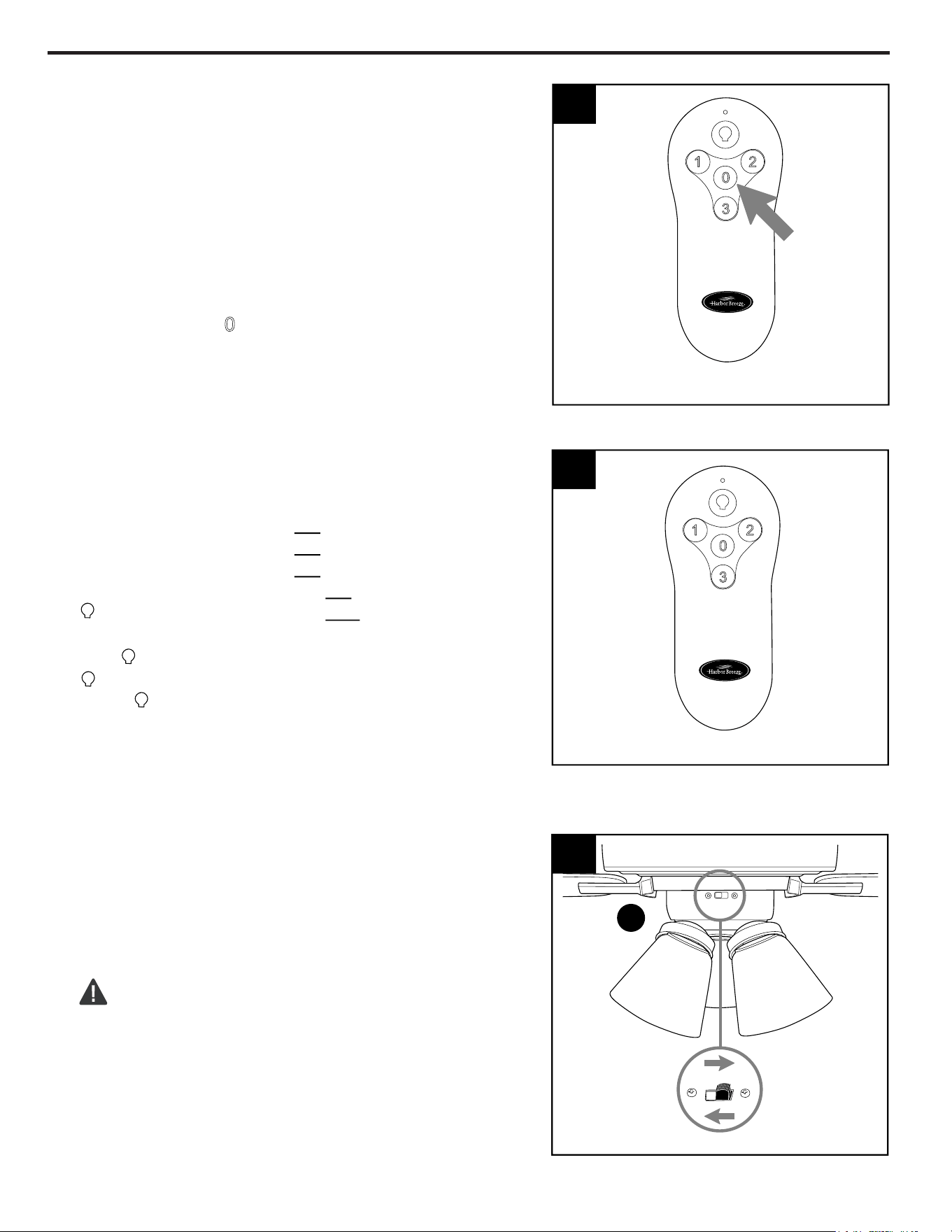

on fan blinks twice. Use the remote control
transmitter to test the light and fan functions to
confirm the learning process is complete.
3
Remote Control Transmitter
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If you
press button in excess of 0.7 seconds, it becomes
a dimmer. The lights vary cyclically in 8 seconds. The
light button has an auto resume function, which keeps
the light at the same brightness as the last time it was
turned off.
4.
4
Remote Control Transmitter
5.
Use the fan reverse switch, located on the light kit
fitter (I), to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (K) come to a complete stop before
manually activating the reverse switch.
5
Reverse Switch
I
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, lower canopy (F) to check downrod (C) assembly, and then tighten all
screws on fan. Clean motor housing (H) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (K) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades (K) for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use three standard-base 5-watt LED bulbs or CFL/incandescent equivalent.
19
6a
6b
6c

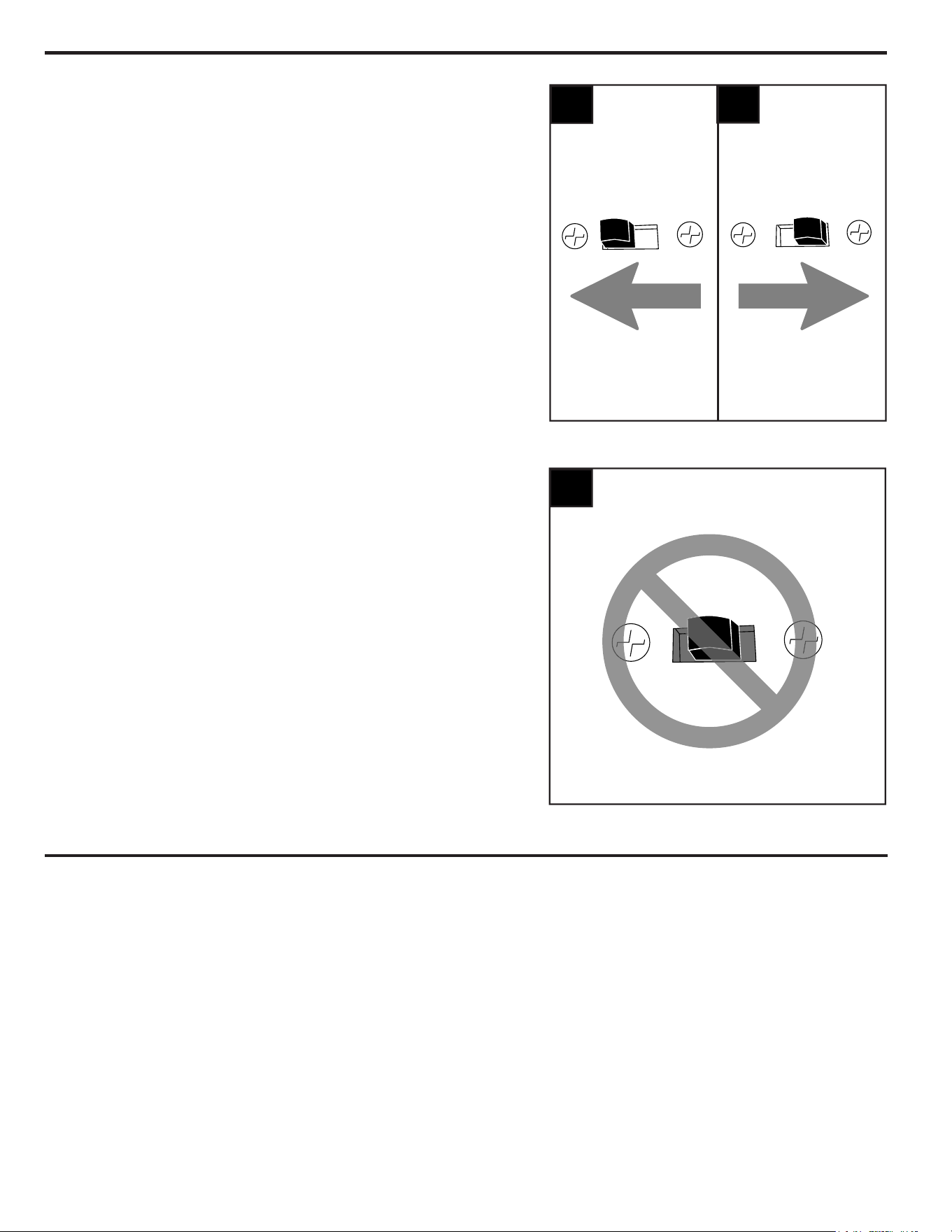

IMPORTANT: Reverse switch must be set either
completely LEFT or completely RIGHT for fan
to function. If the reverse switch is set in the
middle position, fan will not operate.
In warmer weather, setting the reverse switch in
the LEFT position will result in downward airflow
creating a wind chill effect.
In cooler weather, setting the reverse switch in
the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the
ceiling area.
6c.
6b.
6a.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does
not move.
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Reverse switch not engaged.
4. Plugs not connected properly.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3.
Push switch firmly either left or right.
4. Check that male and female plugs in
light kit fitter are connected properly
according to instructions on page
15.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Use only with included speed control
device.
4. Allow fan a “break in” period of a few
days, especially when running the fan
at Medium and High speeds.
Excessive
wobbling.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke is
(are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade from
the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move fan
to another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
TROUBLESHOOTING
Fan operates but
lights fail.
1.
Bulb(s) not installed correctly.
2. Wires in canopy not wired properly.
3. Wall switch to fan is off.
4. Wires in light kit fitter not wired
correctly.
1. Re-install bulb(s).
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 12 and 13.
2. Make sure wall switch to fan is on.
3. Check that male/female plugs in light
kit fitter are connected properly
according to instructions on page 15.
Remote control
fails to operate.
1. Remote control transmitter not synced
with fan.
2. Battery not installed correctly.
3. Battery no longer working.
1. Refer to instructions in Step 3 on
page 18.
2. Check that battery has been installed
with correct polarity.
3. Replace battery according to
instructions on page 17.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
20
Printed in China
DRLI2307
21
A
F
C
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
I
M
Q
K
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one
year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the
date of purchase. Parts made in whole or in part with glass and the finishes of metal and other
surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any
service performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach of
warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees to
replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable
or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to
you.

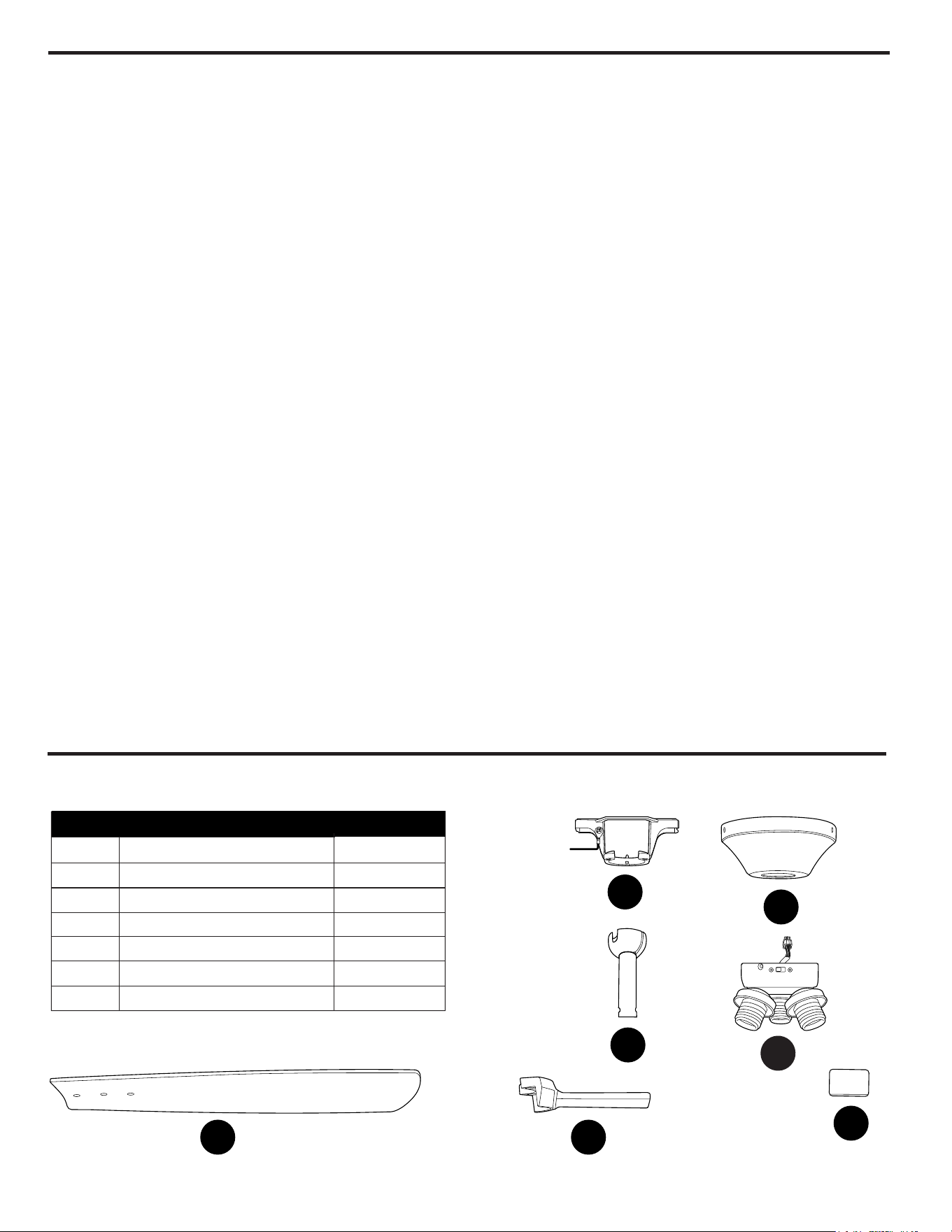

PART DESCRIPTION PART#
5497064-A
5497064-C
5497064-F
5497064-L
5497064-K
5497064-M
5497064-Q
A Mounting Bracket
C Downrod
F Canopy
I Light Kit Fitter
K Blade
M Blade Arm
Q Socket Ring
