ITEM #5497061/5497062
Español p. 22
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
Purchase Date
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
MODEL #SOH52MW3LR/SOH52BNK3LR
AFTONSHIRE CEILING FAN
4009218
APPROVED FOR USE IN
DAMP LOCATIONS
2
Safety Information ...........................................................................................................................
....
. 2
Package Contents ...........................................................................................................................
....
. 5
Hardware Contents
..........................................................................................................................................
6
Preparation ......................................................................................................................................... 6
Initial Installation ................................................................................................................................. 6
Downrod-Style Fan Mounting ............................................................................................................. 8
Closemount-Style Fan Mounting ...................................................................................................
.
.. 10
Wiring ............................................................................................................................................... 11
Final Installation ............................................................................................................................... 14
Operating Instructions ...................................................................................................................... 17
Care and Maintenance ................................................................................................................
.
.... 19
Troubleshooting ............................................................................................................................... 20
Limited Lifetime Warranty ................................................................................................................ 21
Replacement Parts List .................................................................................................................... 21
TABLE OF CONTENTS
CAUTION: Changes or modifications not approved by the party responsible for compliance could void the
user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 18.48 lbs.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
4
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Read all instructions and safety information before installing your new fan. Review the accompanying
assembly diagrams.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
PACKAGE CONTENTS
5
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.

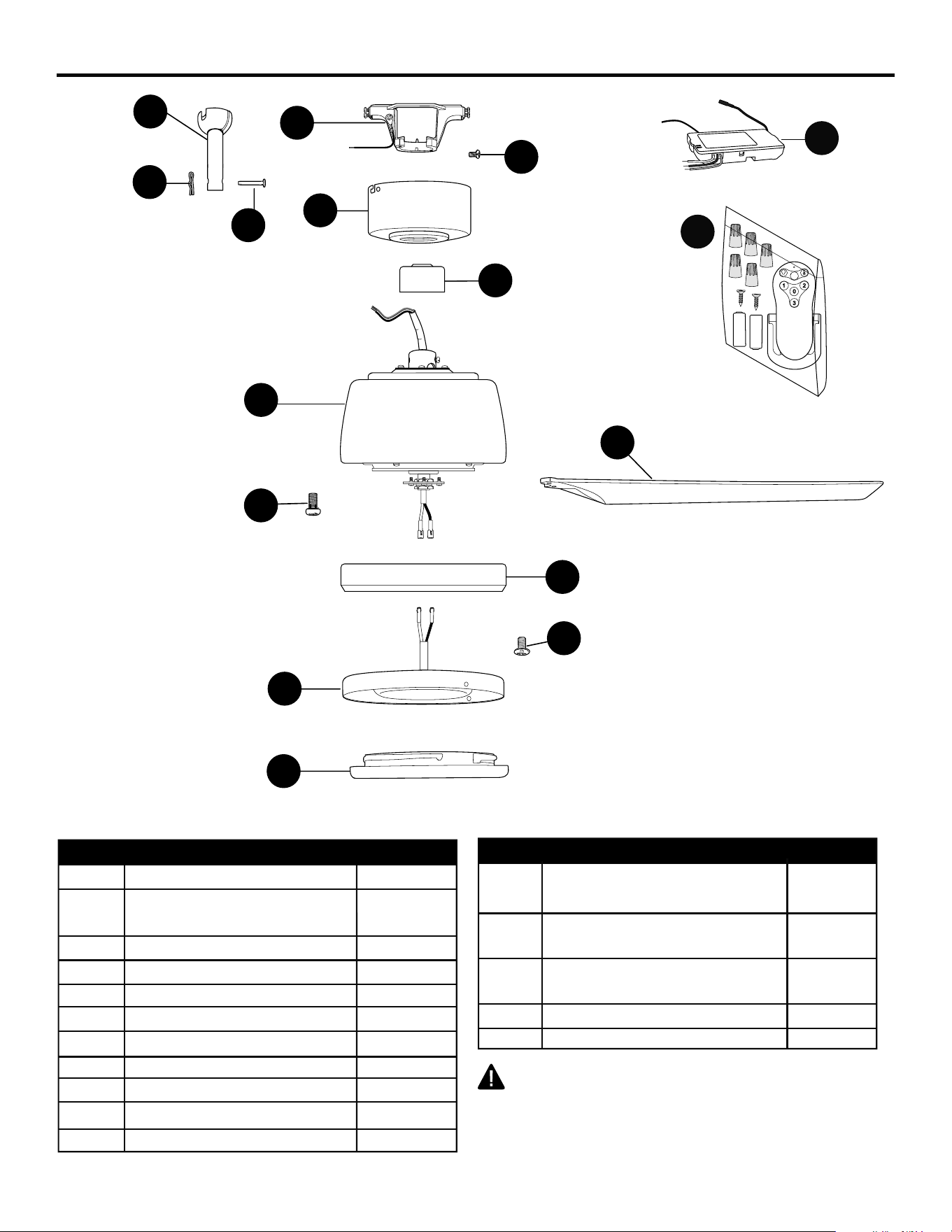

A Downrod 1
B Mounting Bracket 1
(preassembled)
C Canopy 1
D Yoke Cover 1
E Motor Housing 1
F Shade 1
G LED Light Kit 1
H Fitter Plate 1
I Blade 3
J Pin (preassembled) 1
K Clip (preassembled) 1
DESCRIPTIONPART
QUANTITY
L Motor Plate Screw 3
(preassembled)
M Fitter Plate Screw 3
(preassembled)
N Canopy Mounting Screw 4
(preassembled)
O Remote Control Receiver 1
P Remote Pack 1
DESCRIPTION
QUANTITY
PART
G
F
N
I
H
C
B
D
E
M
K
J
A
L
O
P
6
HARDWARE CONTENTS (shown actual size)
ON
OFF
ON
OFF
1

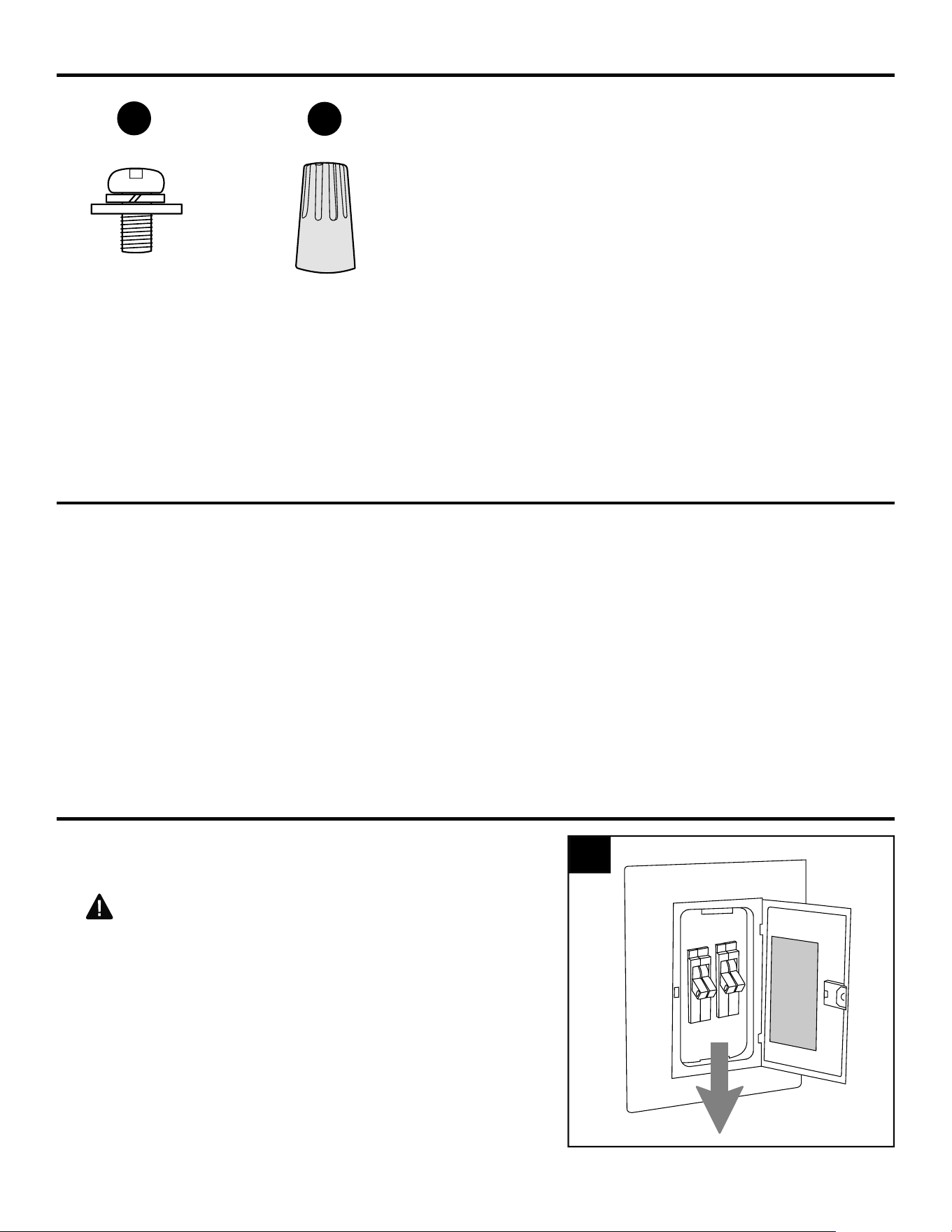

Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
PREPARATION
Blade Screw/
Lock Washer/
Flat Washer
Qty. 6
+ 1 extra
Wire
Connector
Qty. 4
AA
BB
INITIAL INSTALLATION
4.
Loosen canopy mounting screws (N) in slotted
holes of canopy (C) and remove the other two
canopy mounting screws (N); save for later use.
Remove mounting bracket (B) from canopy (C).
4
B
C
N
N
7
2.

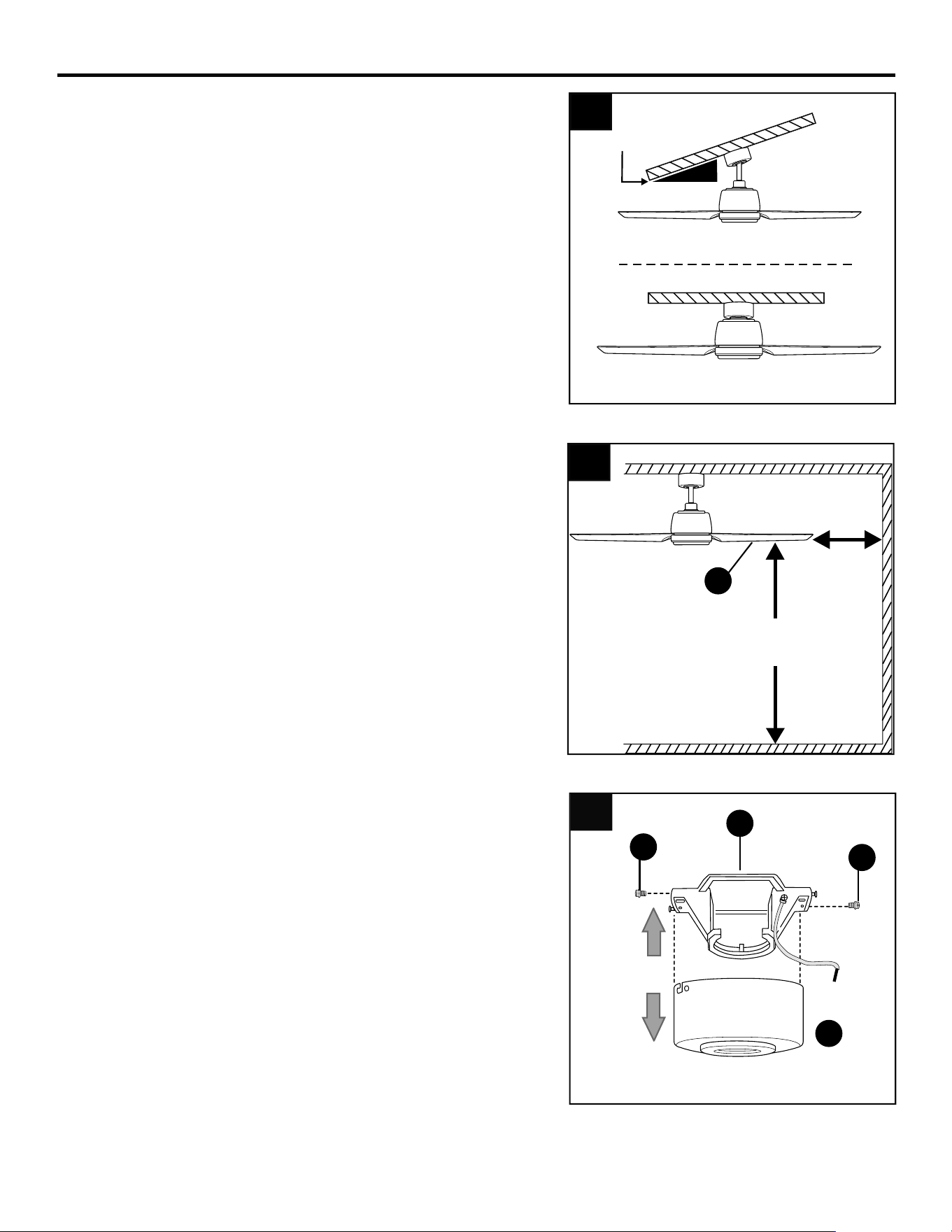

Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (I) will be at least
30 inches from any obstruction. Check
downrod (A) length to ensure blades (I) will be
at least 7 ft. above the floor.
3.
A
B
19° max.
7 ft.
min.
30 in.
min.
I
2
3
DOWNROD-STYLE FAN MOUNTING
INITIAL INSTALLATION
8
5
Open End
B
B
2.

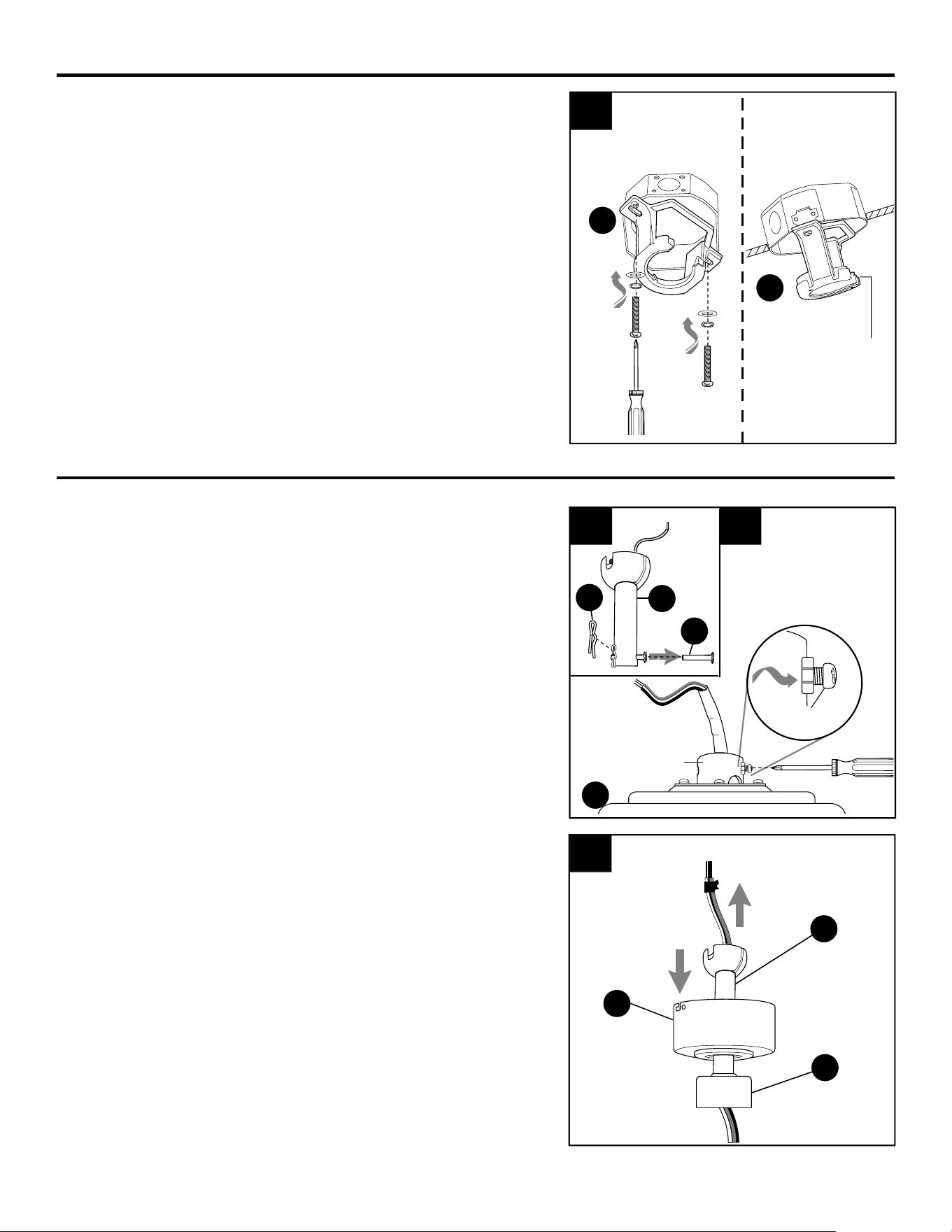

Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(B) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (B) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 10.
5.

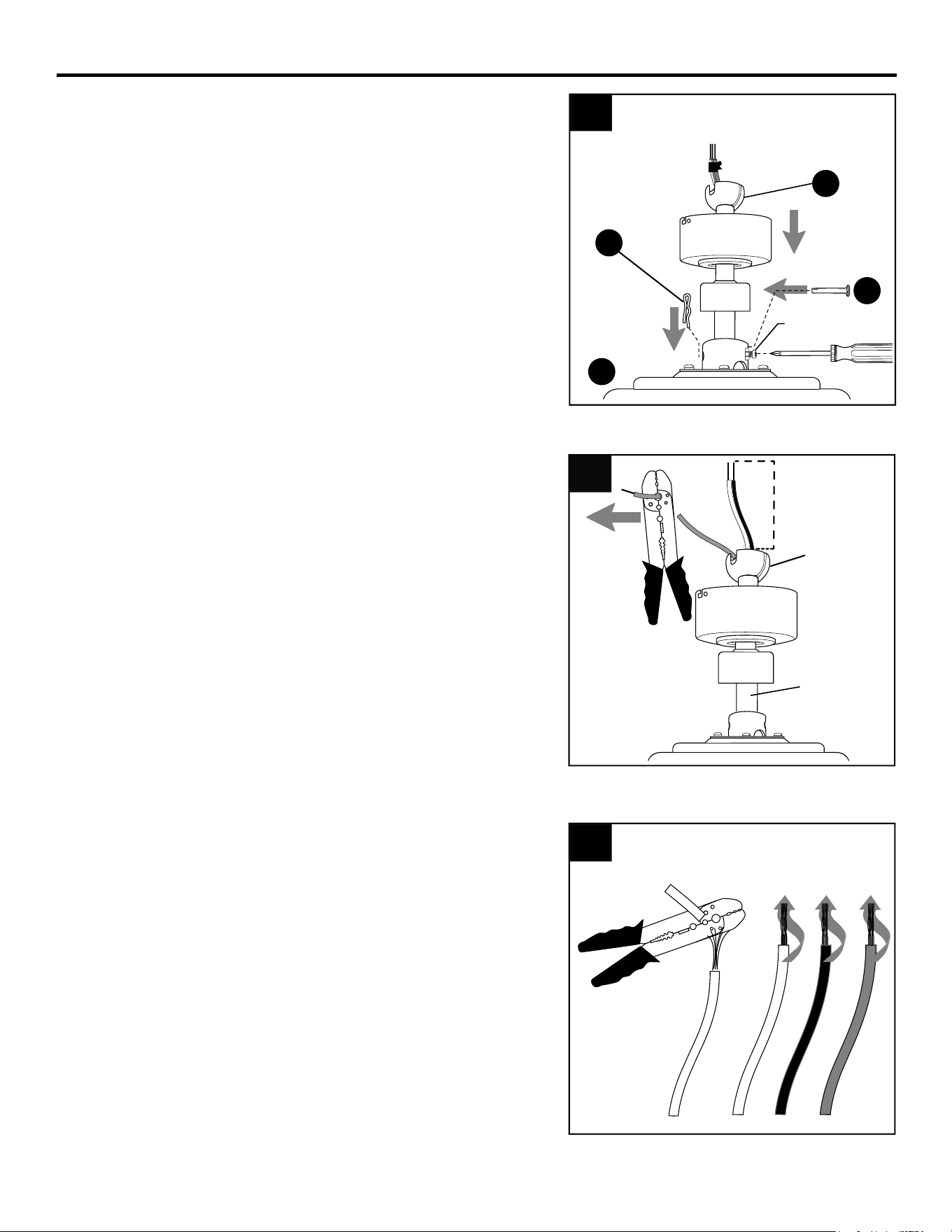

Insert downrod (A) through yoke cover (D) and
canopy (C). Thread wires from motor housing
(E) up through downrod (A).
Remove pin (J) and clip (K) from downrod (A).
Partially loosen preassembled set screws and nut
in yoke at top of motor housing (E).
1a.
1b.
1a
K
E
J
1b
A
Yoke
Set Screw
& Nut
Sideview
ANGLE
MOUNT
STANDARD
MOUNT
A
2
C
D
DOWNROD-STYLE FAN MOUNTING
9
4.
5.
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
If you cut back the lead wires in Step 4, strip 3/4 in.
of insulation from end of each wire -- WHITE,
BLACK, GREEN and BLUE (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
4
Hanging
Ball
Downrod
8 in.
5
3.
Slip downrod (A) into yoke, align holes and
re-install pin (J) and clip (K). Tighten downrod set
screws and then tighten nut.
3
K
J
Set Screw
and Nut
E
A
CLOSEMOUNT-STYLE FAN MOUNTING
DOWNROD-STYLE FAN MOUNTING
10

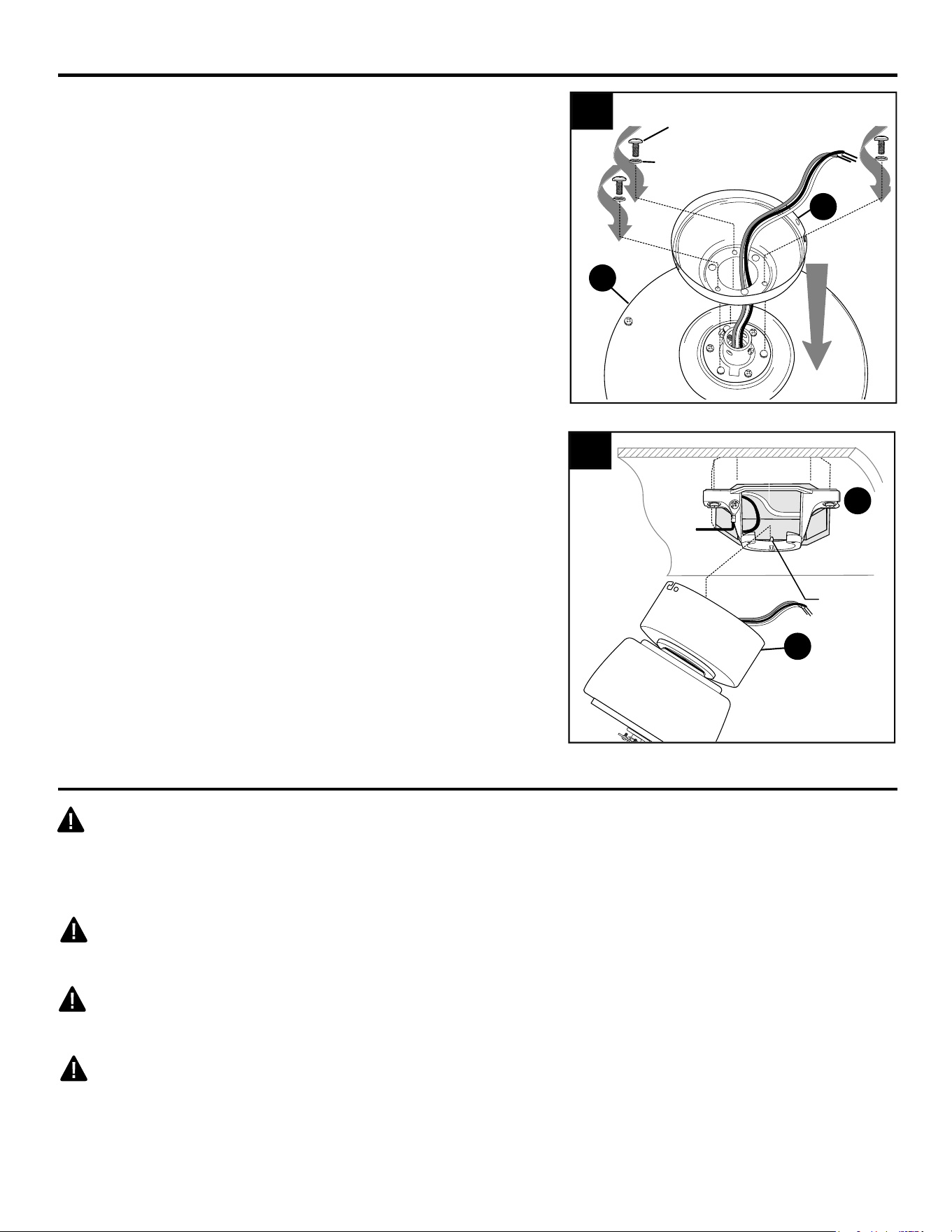

Remove preassembled canopy cover from
bottom of canopy (C).
NOTE: It may be necessary to use the
handle end of a screwdriver (not included) to
remove the canopy cover by tapping on the
canopy cover from the inside of the canopy
(C).
NOTE: The downrod (A), yoke cover (D) and
canopy cover are not used in this type of
installation.
1.
Canopy
Cover
1
C

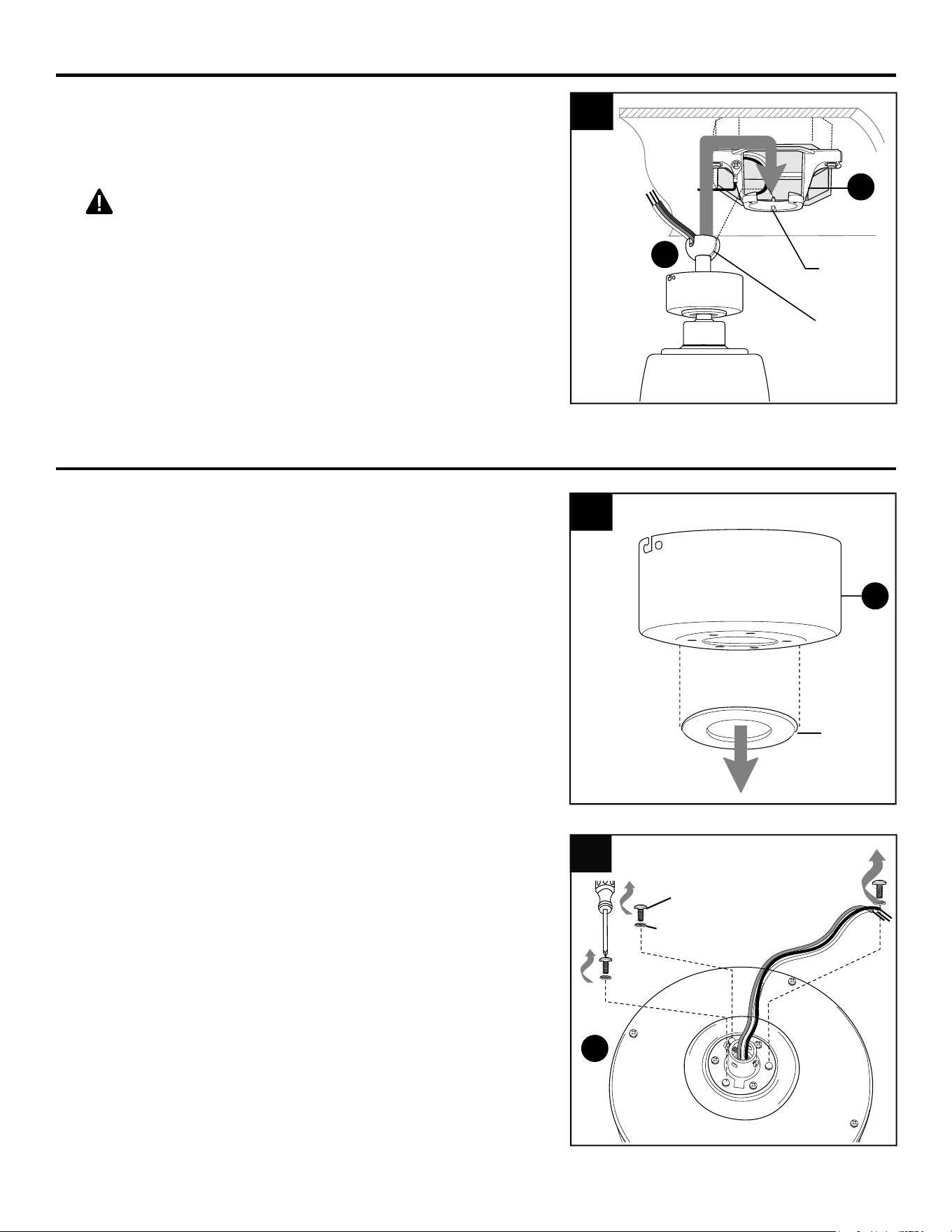

6.
Install hanging ball of downrod (A) into
opening of mounting bracket (B). Align one of
the slots in hanging ball with the tab in
mounting bracket (B).
DANGER: Failure to align one of the slots
in hanging ball with the tab in mounting
bracket (B) may result in serious injury or
death.
Continue to WIRING on page 11.
Tab
B
6
A
Slot
2.
Remove every other preassembled screw/lock
washer from top of motor housing (E).
2
E
Screw
Lock Washer
CLOSEMOUNT-STYLE FAN MOUNTING
11
Temporarily hang fan on the tab on the
mounting bracket (B) using one of the
non-slotted holes in the canopy (C).
Continue to WIRING below.
4.
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
WIRING
Tab
3.
Pull wires up through hole in the middle of the
canopy (C) and attach canopy (C) to motor
housing (E) using the three screws/lock
washers previously removed.
C
4
B
3
C
E
Screw
Lock
Washer
12
WIRING
1b.
1a.

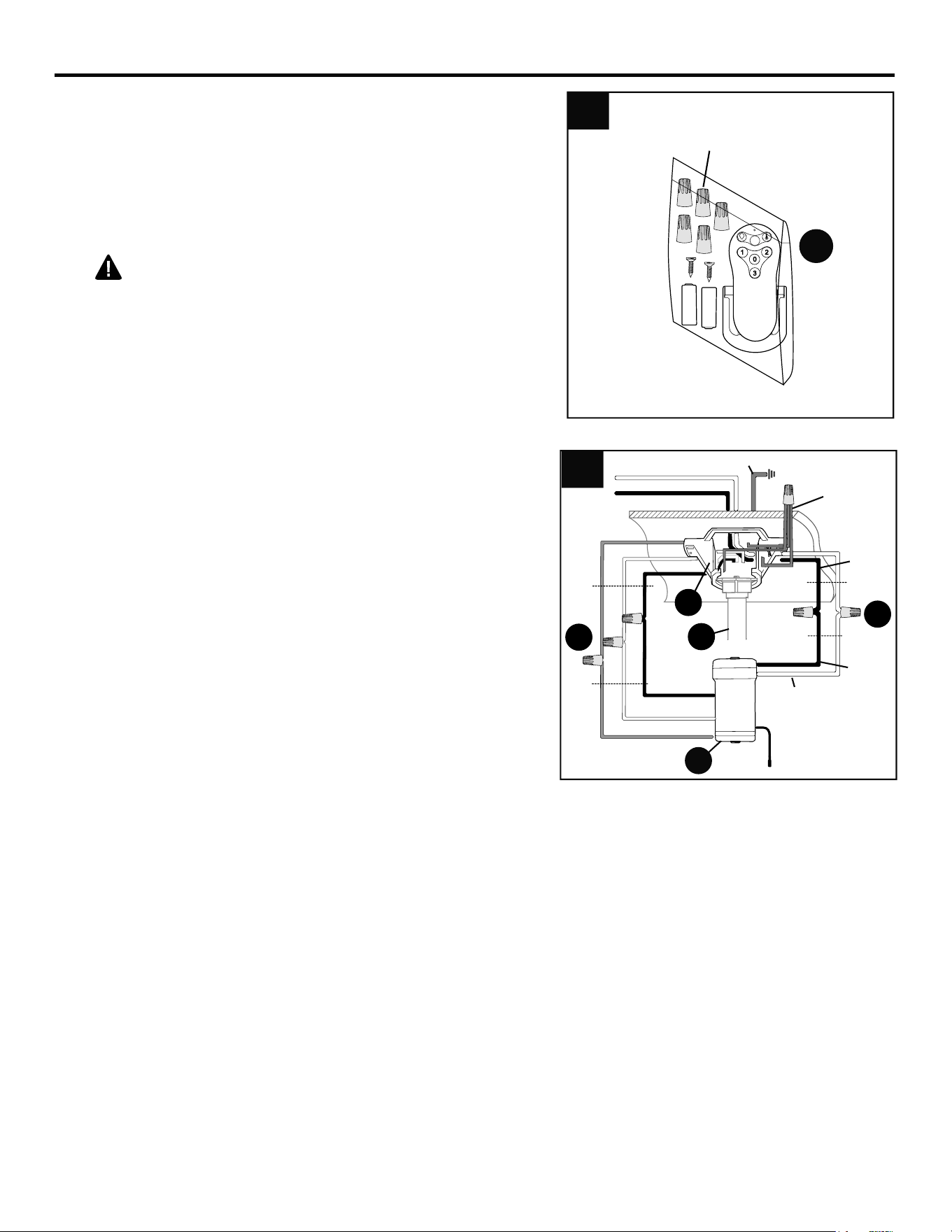

Make the necessary wiring connections for
remote control operation as detailed below
and in the accompanying drawing. To make
wire connections, use wire connectors in
hardware pack and wire connectors in remote
pack (P), making sure to screw each wire
connector on in a clockwise direction.
CAUTION: Assistance from another
person is recommended for this step.
Connect all GROUND (GREEN) wires from fan
(on downrod (A), if applicable, and mounting
bracket (B)) to BARE/GREEN supply wire from
ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (O) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (O) to WHITE supply
wire from ceiling.
Connect WHITE wire (labeled TO MOTOR N)
from remote control receiver (O) to WHITE wire
from motor housing (E).
Connect BLACK wire (labeled TO MOTOR L)
from remote control receiver (O) to BLACK wire
from motor housing (E).
Connect BLUE wire (labeled FOR LIGHT) from
remote control receiver (O) to BLUE wire from
motor housing (E).
O
1b
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
A
B
GROUND
(GREEN
OR BARE)
P
Wire
Connectors
1a
WIRE
CONNECTORS
BB
BB
WIRING
13

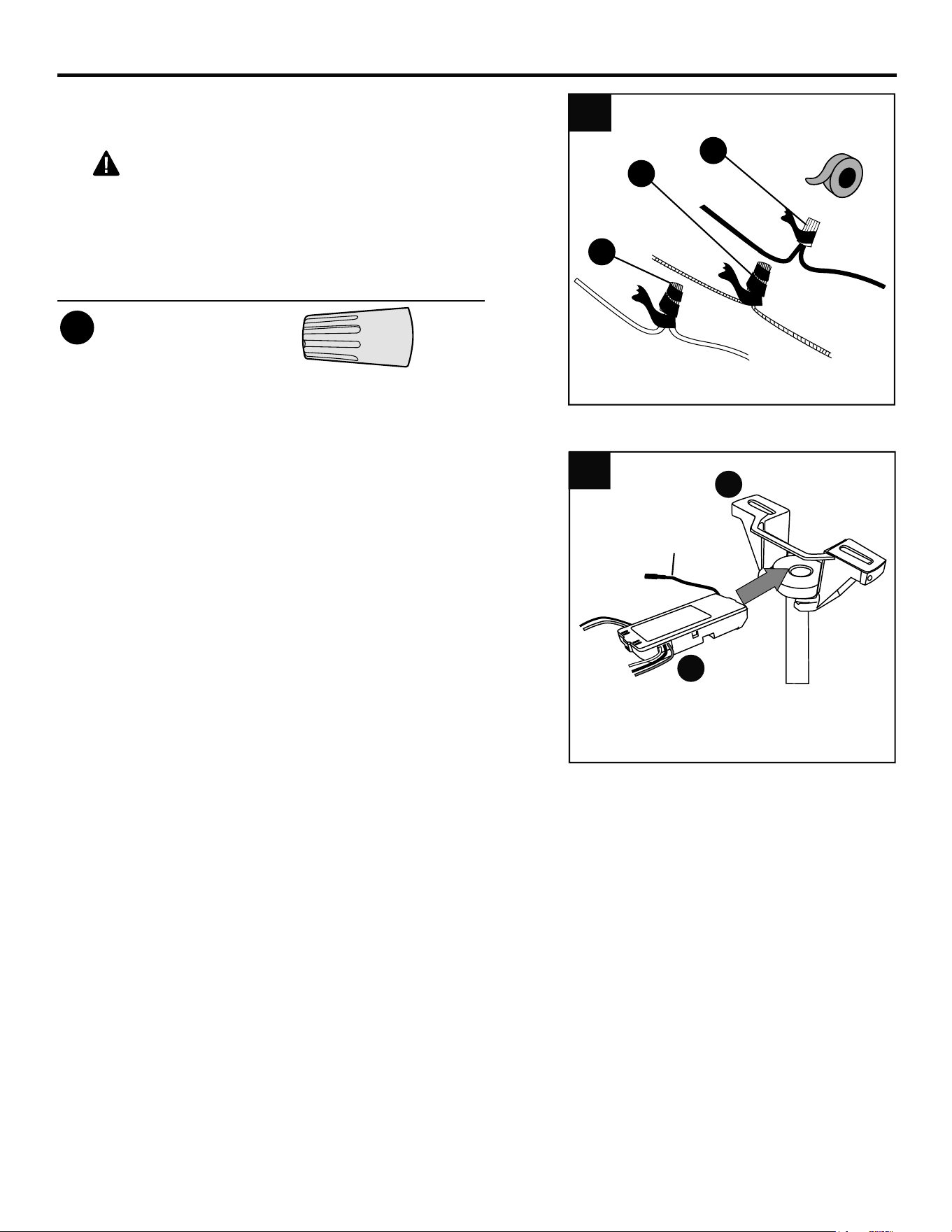

Wrap electrical tape (not included) around each
individual wire connector down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
2
3
Gently slide remote control receiver (O) flat-side up
into mounting bracket (B). Turn spliced/taped wires
upward and gently push wires and wire connectors
into outlet box. Let antenna from remote control
receiver (O) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote control
with this fan, it must also meet these same
requirements.
3.
Antenna
O
B
Wire Connector x 4
Hardware Used
BB
BB
BB
BB
14

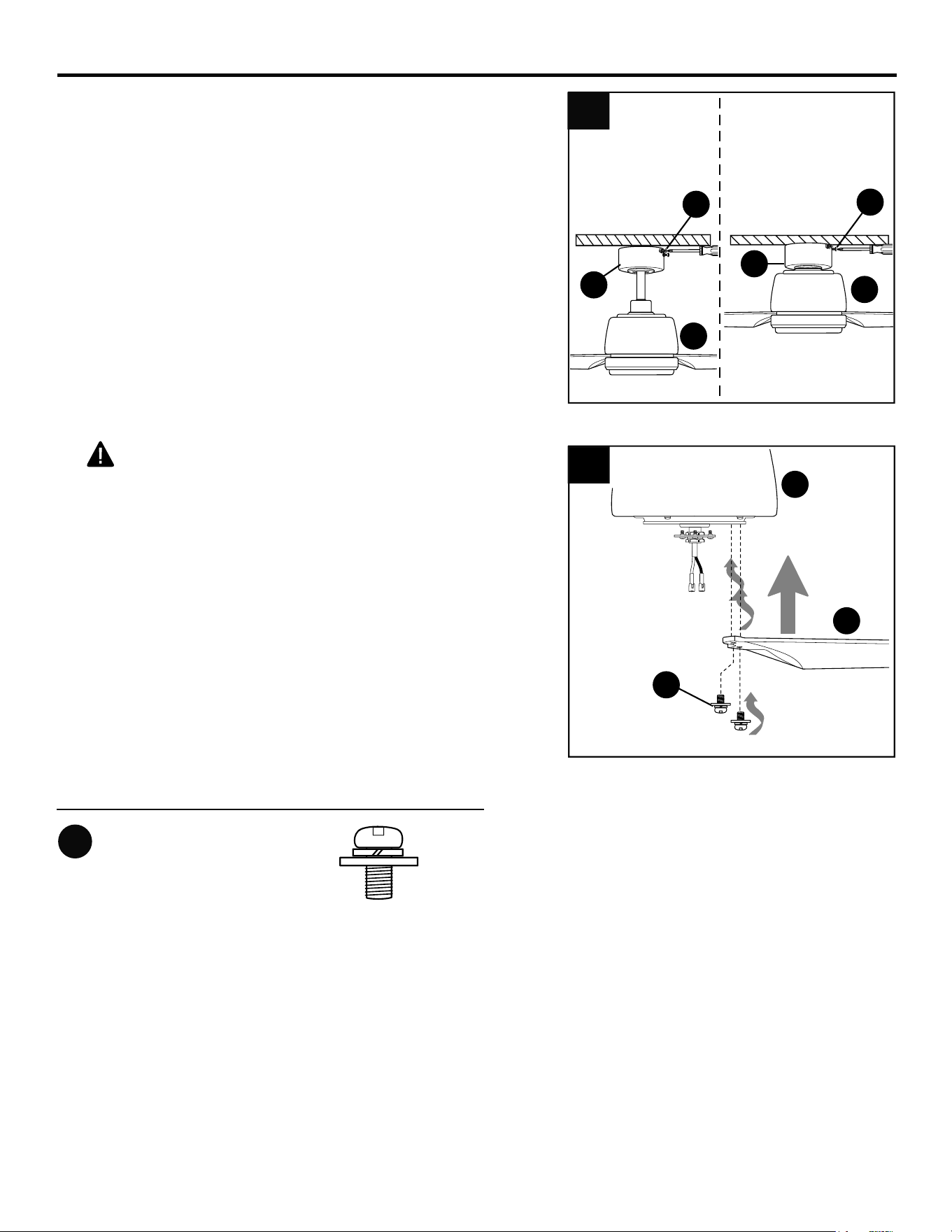

1.
FINAL INSTALLATION
2.
Lift canopy (C) to mounting bracket (B)
aligning slotted holes in canopy (C) with
loosened canopy mounting screws (N) in
mounting bracket (B). Twist canopy (C)
clockwise to lock. Re-insert the two canopy
mounting screws (N) that were previously
removed (Step 4, Page 7) and tighten all
canopy mounting screws (N) securely.
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (I). If screws are
overtightened, blades (I) may crack and break.
Noting the THIS SIDE UP label on blade (I), align
holes in blade (I) with holes on the bottom of
motor housing (E). Partially insert two blade
screws/lock washers/flat washers (AA) to attach
blade (I) to motor housing (E). Tighten blade
screws/washers (AA) securely. Repeat Step 2 for
remaining blades (I).
NOTE: Make sure to completely secure each
blade (I) before proceeding to the next.
2
AA
1
C
E
N
E
C
Downrod
Option
Closemount
Option
N
Hardware Used
Blade Screw/ x 6
Lock Washer/
Flat Washer
AA
I
E
FINAL INSTALLATION
15

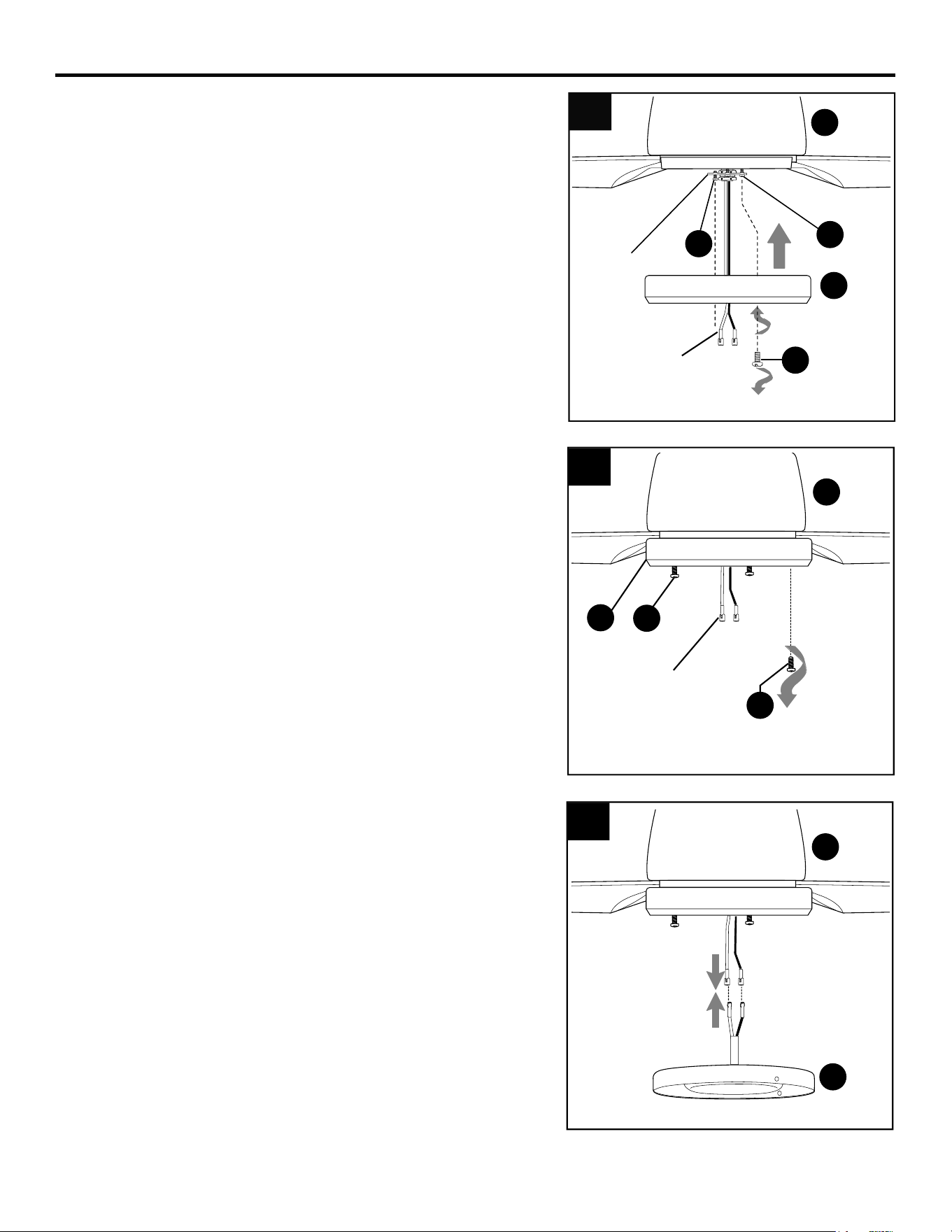

3.
Partially loosen two motor plate screws (L) in motor
plate on underside of motor housing (E) and
remove the other motor plate screw (L). Align
slotted holes in fitter plate (H) with loosened motor
plate screws (L), allowing molex connections from
motor housing (E) to come through hole in fitter
plate (H). Twist fitter plate (H) to lock. Re-insert the
motor plate screw (L) previously removed and
securely tighten all three motor plate screws (L).
3
Motor
Plate
Molex
Connections
I
H
E
I
L
I
L
I
L
4.
Partially loosen two fitter plate screws (M) in metal
posts on underside of the fitter plate (H) and
remove the other fitter plate screw (M).
Locate molex connections from motor housing (E)
and remove plastic that holds these wires together.
H
4
Molex
Connections
M
E
5.
Connect WHITE wire from LED light kit (G) to
WHITE wire from motor housing (E). Connect
BLACK wire from LED light kit (G) to BLUE (or
BLACK) wire from motor housing (E). Make sure
molex connections snap together securely.
NOTE: It may be necessary to pull back the sleeve
on the wires to observe the wire color.
G
5
WHITE
BLUE (or BLACK)
WHITE
BLACK
E
M
H
G
M
FINAL INSTALLATION
16

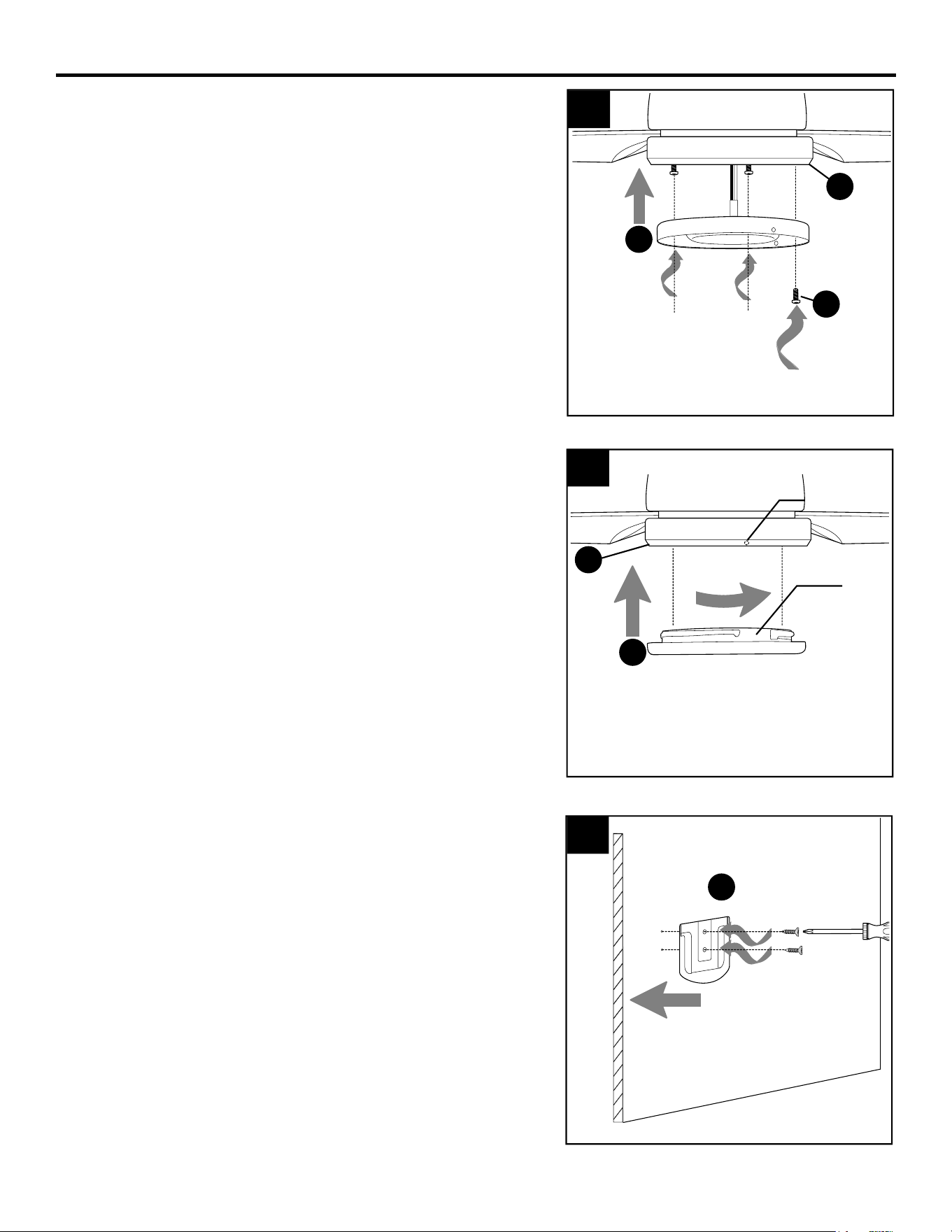

6.
Carefully arrange wiring within the fitter plate (H) to
ensure wires do not get pinched when attaching the
LED light kit (G).
Align slotted holes in LED light kit (G) with loosened
fitter plate screws (M) on posts on fitter plate (H).
Twist LED light kit (G) to lock. Re-insert the
previously removed fitter plate screw (M) (step 4,
Page 15) and securely tighten all fitter plate screws
(M).
6
7.
Align slots on shade (F) with protrusions on inside
of fitter plate (H). Turn shade (F) clockwise until it
no longer turns.
NOTE: Pull down gently on the shade (F) to make
sure it is secured completely.
7
H
Slot
F
Protrusion
8
Remote Control
Bracket
Wall
8.
If you wish to use the remote control bracket from
remote pack (P), install screws from remote pack (P)
through bracket and into the desired installation site.
The remote control transmitter from remote pack (P)
rests inside the bracket.
Bracket
Screws
P
17
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.

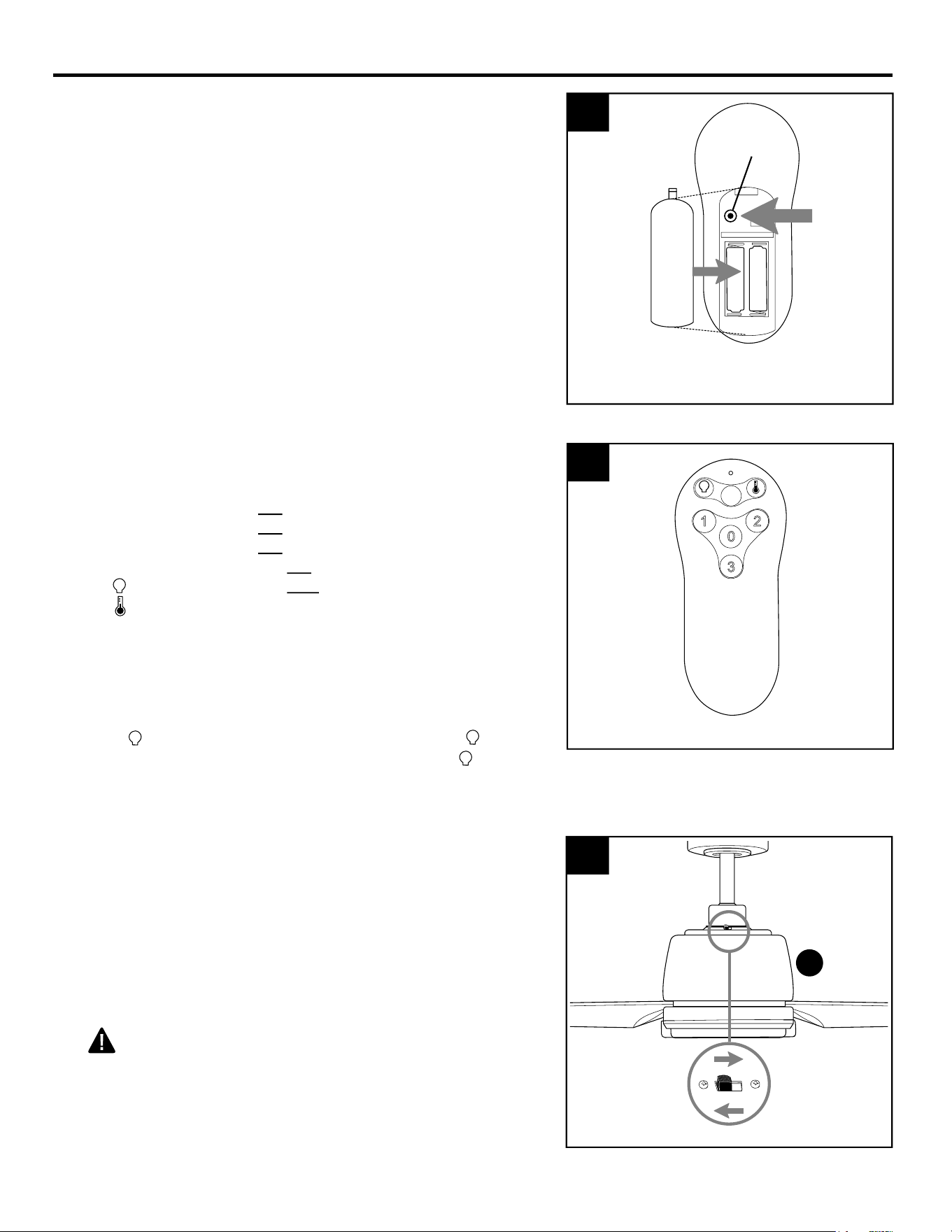

OPERATING INSTRUCTIONS
Locate batteries and remote control transmitter in
remote pack (P). Remove protective covering from
each one and discard protective covering. Remove
battery cover from back of remote control transmitter.
Install two AAA batteries (included).
WARNING:Batteries are to be inserted with
correct polarity.
WARNING: Choking Hazard - Small parts. Keep
batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
P
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.” -
When disposing of household alkaline batteries, it is best to check with your local and state recycling or
household hazardous waste coordinators concerning the specifics of the program in your area.
OPERATING INSTRUCTIONS
18
(back side)
LEARN
button
2.
Restore electrical power. Within 30 seconds of
powering fan, press and hold LEARN button on the
back of remote control transmitter for 5 seconds (or
until light turns on) in order to synchronize remote
with fan motor. Use the remote control transmitter to
test the light and fan functions to confirm the learning
process is complete.
Replace battery cover on remote control transmitter
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Remote Control Transmitter
2
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
button to change/select color mode:
– warm white
– bright warm white
– natural white
– bright white
– daylight
Tap button quickly to turn light off or on. Hold button
down to increase or decrease light. If you press button
in excess of 0.7 seconds, it becomes a dimmer. The light
varies cyclically in 8 seconds. The light button has an auto
resume function, which keeps the light at the same
brightness as the last time it was turned off.
3.
3
Remote Control Transmitter
4.

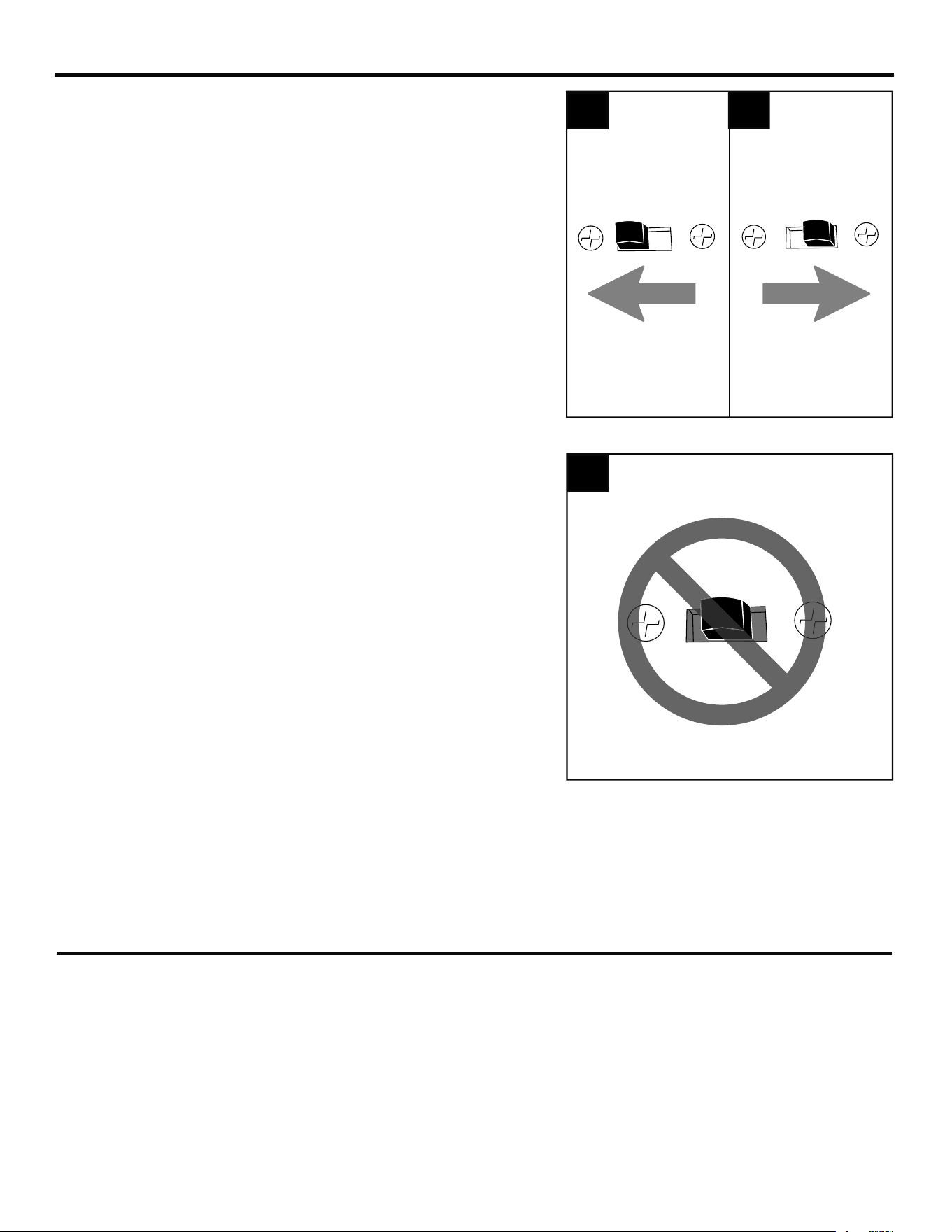

Use the fan reverse switch, located on the top of the
motor housing (E), to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a difference
in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (I) come to a complete stop before manually
activating the reverse switch.
4
Reverse Switch
E
OPERATING INSTRUCTIONS
19
4A
4B
4A. In warmer weather, setting the reverse switch in
the LEFT position will result in downward airflow
creating a wind chill effect.
4B. In cooler weather, setting the reverse switch in
the RIGHT position will result in upward airflow that
can help move stagnant, hot air off the ceiling area.
4C
4C. IMPORTANT: Reverse switch must be
set either completely LEFT or completely
RIGHT for fan to function. If the reverse
switch is set in the middle position, fan will not
operate.
CARE AND MAINTENANCE
At least twice each year, lower canopy (C) to check downrod (A) assembly and tighten all screws on
fan. Clean motor housing (E) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (I) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for the LED light kit on this fan is 18 watts; do not attempt to replace the LEDs.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive wobbling.
1. Blades are loose.
2. Blades incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blades.
3. Switch one blade with a blade from
the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move fan
to another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy
and verify that set screw on
hanging ball is tightened securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
20
Fan operates but
light fails
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires from LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 and 13.
2. Make sure that wall switch to fan
is on.
3. Check wires from LED light kit
and, if necessary, re-wire
according to instructions on page
15.
Printed in China
GGLI2305
21
PART DESCRIPTION PART#
A Downrod
B
Mounting Bracket
C Canopy
I Blade
5303207-A
5303207-B
5303207-C
5303207-I
A
B
C
I
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
The distributor warrants this fan to be free from defects in workmanship and materials present at time of
shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to
the original purchaser. The distributor agrees to correct any defect at no charge or, at our option, replace
the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of removal
and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling fan by
accident, misuse or improper installation, or by using parts not produced by the manufacturer of this fan
or affixing accessories not produced by the manufacturer of this fan, are the purchaser's own
responsibility. The distributor assumes no responsibility whatsoever for fan installation during the limited
lifetime warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting, pitting,
tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from varying
weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the date
of purchase. For the balance of the warranty, call our customer service department (at 1-800-527-1292)
for return authorization and shipping instructions so that we may repair or replace the ceiling fan. Any
fan or parts returned improperly packaged is/are the sole responsibility of the purchaser. There is no
further express warranty. The distributor disclaims any and all implied warranties. The duration of any
implied warranty which cannot be disclaimed is limited to the limited lifetime period as specified in our
warranty. The distributor shall not be liable for incidental, consequential or special damages arising at or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives you specific legal rights and you may also have other rights which vary from state to
state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
