ITEM #5709391
5709389
MODEL #BLL52MBK5LR
BLL52BNK5LR
Español p. 21
Purchase Date
ATTACH YOUR RECEIPT HERE
1
BELLA LED CEILING FAN
Questions, problems, missing parts? Before returning, contact us on:
800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
5018413
2
Safety Information ..................................................................................................................................... 2
Package Contents ...........................................................................................................................
.
......... 5
Hardware Contents
..................................................................................................................................................
6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Downrod-Style Fan Mounting ................................................................................................................... 8
Closemount-Style Fan Mounting ............................................................................................................ 10
Wiring ...................................................................................................................................................... 11
Final Installation ...................................................................................................................................... 13
Operating Instructions ............................................................................................................................. 16
Care and Maintenance .......................................................................................................................
.
.... 18
Troubleshooting ...................................................................................................................................... 19
Limited Lifetime Warranty ....................................................................................................................... 20
Replacement Parts List ........................................................................................................................... 20
TABLE OF CONTENTS
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or packing material. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 14.77 lbs.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
WARNING
4
DESCRIPTION
QUANTITY
PART
L Motor Plate Screw 3
(preassembled)
M Fitter Plate Screw 3
(preassembled)
N Canopy Mounting Screw/Star 4
Washer (preassembled)
O Remote Control Receiver 1
P Remote Pack 1
Q Additional Lead Wiring 1
R Balancing Kit 1
L

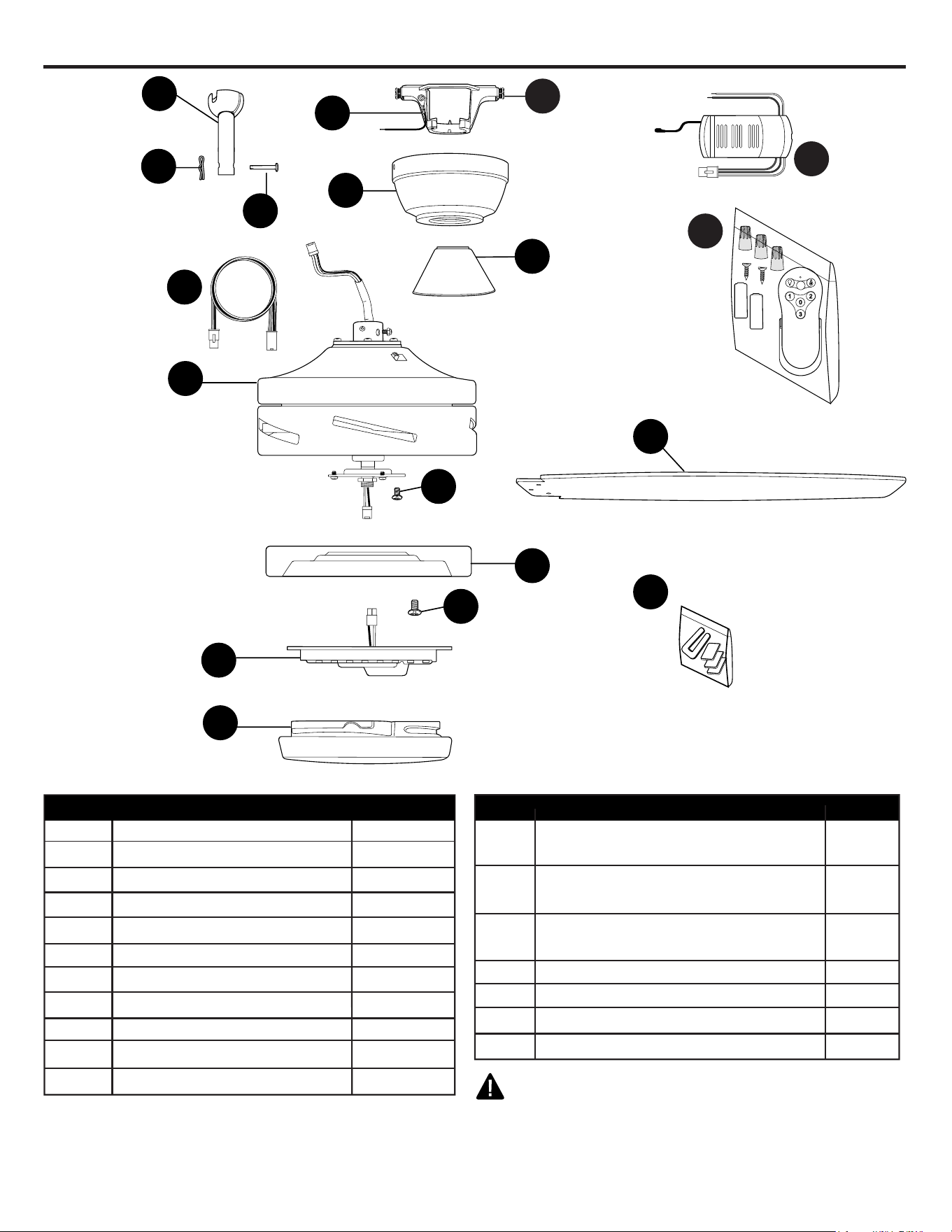

PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Downrod 1
B Mounting Bracket 1
C Canopy 1
D Yoke Cover 1
E Motor Housing 1
F Blade 5
G Fitter Plate 1
H LED Light Kit 1
I Shade 1
J Pin (preassembled) 1
K Clip (preassembled) 1
DESCRIPTIONPART
QUANTITY
G
R
F
M
I
H
C
B
Q
D
E
K
J
A
N
P
O
5

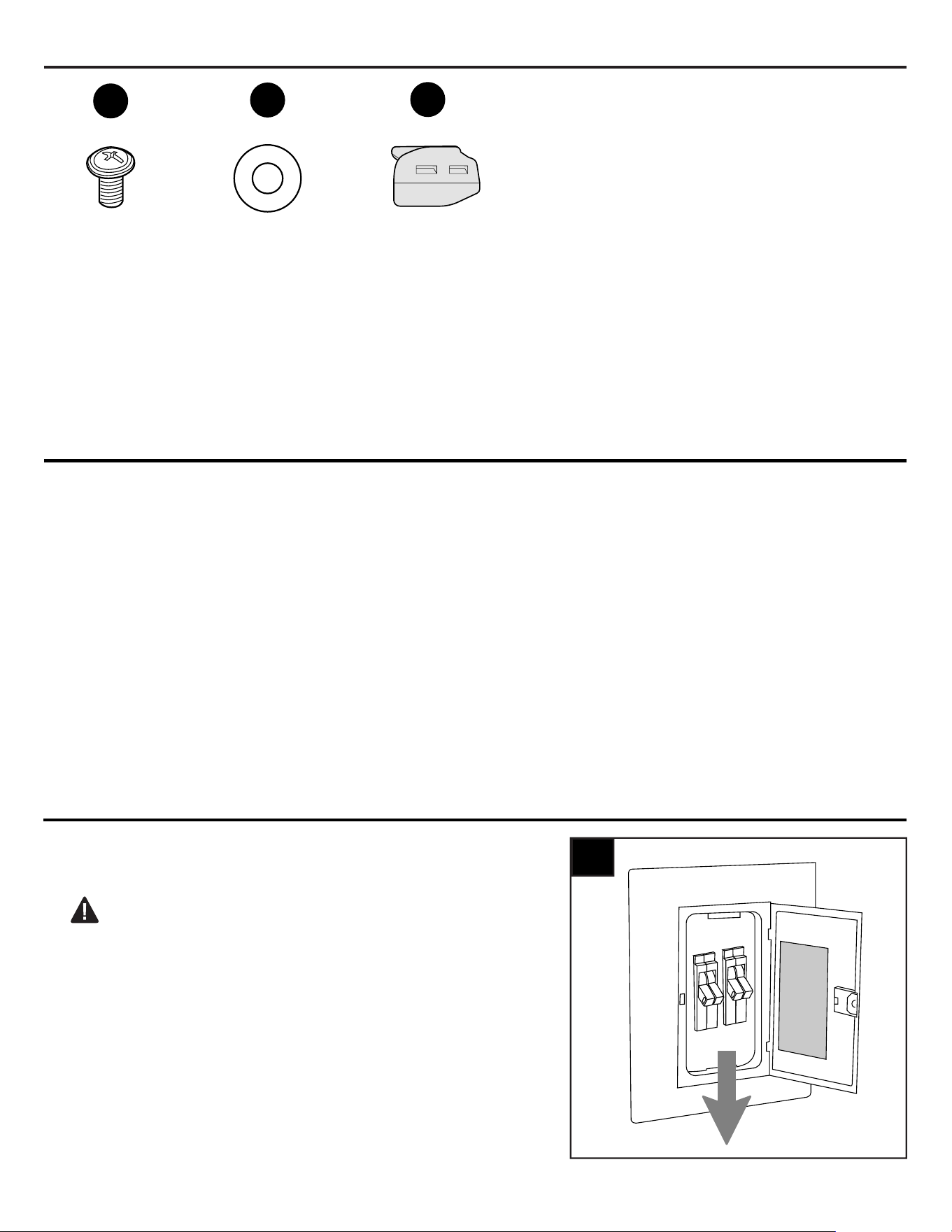

Lever Wire
Connector
Qty. 3
HARDWARE CONTENTS (shown actual size)
AA
BB
CC
Fiber Blade
Washer
Qty. 15
+ 1 extra
Blade
Screw
Qty. 15
+ 1 extra
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers.
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters.
PREPARATION
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
6
7

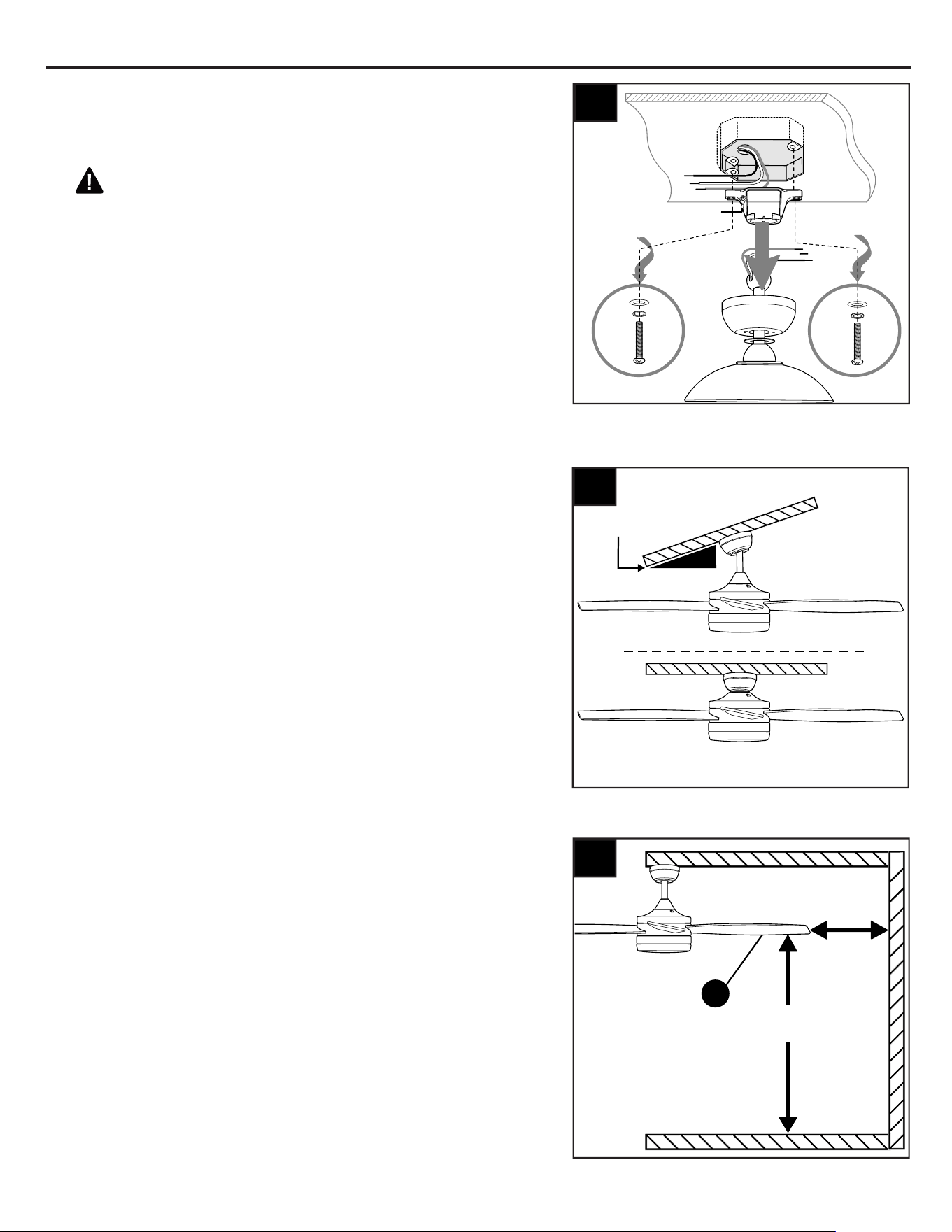

INITIAL INSTALLATION
2.
Check to make sure blades (F) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
3.
A
19° max.
7 ft.
min.
30 in.
min.
F
3
4.
4
B
2
Determine mounting method to use.
A. Downrod mount (standard or angled
ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure
the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best
suited for angled or vaulted ceilings. A longer
downrod is sometimes necessary to ensure
proper blade clearance.
If applicable, remove existing fan, including the
mounting bracket, from outlet box and
disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers (provided with the outlet box) to be
used for fan installation.
8

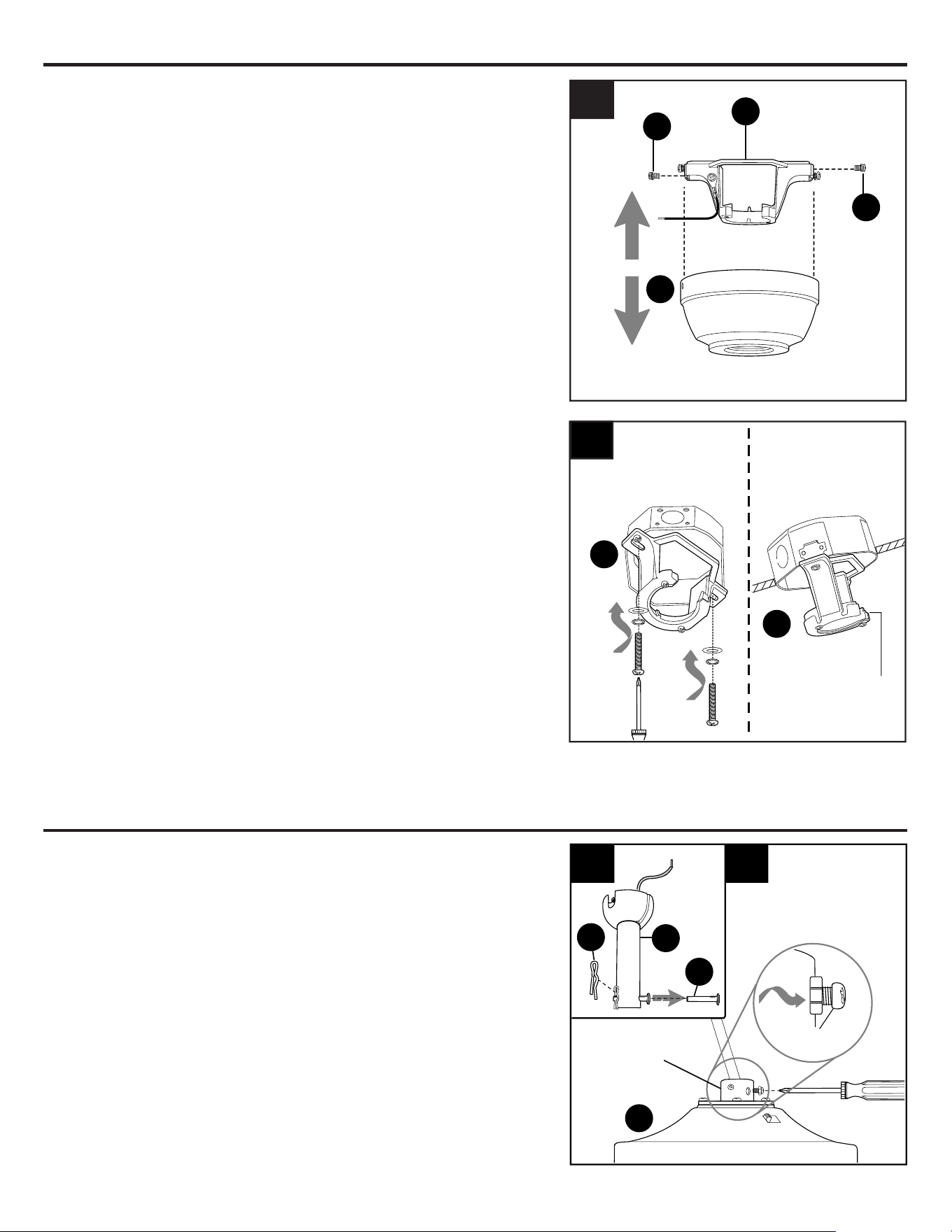

DOWNROD-STYLE INSTALLATION
INITIAL INSTALLATION
1b.
1a. Remove pin (J) and clip (K) from downrod (A).
Partially loosen preassembled set screws and
nut in yoke at top of motor housing (E).
6.
1a
K
E
J
1b
A
Set Screw
& Nut
6
Yoke
Open End
B
B
Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(B) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (B) is
installed facing the higher point of the ceiling,
and ensure the ceiling angle is not steeper than
19°.
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 10.
ANGLE
MOUNT
STANDARD
MOUNT
Sideview
5
B
C
N
N
5.
Loosen canopy mounting screws/star washers
(N) in slotted holes of canopy (C) and remove
the other two canopy mounting screws/star
washers (N); save save canopy mounting
screws/star washers (N) for later use.
Remove mounting bracket (B) from canopy (C).
9

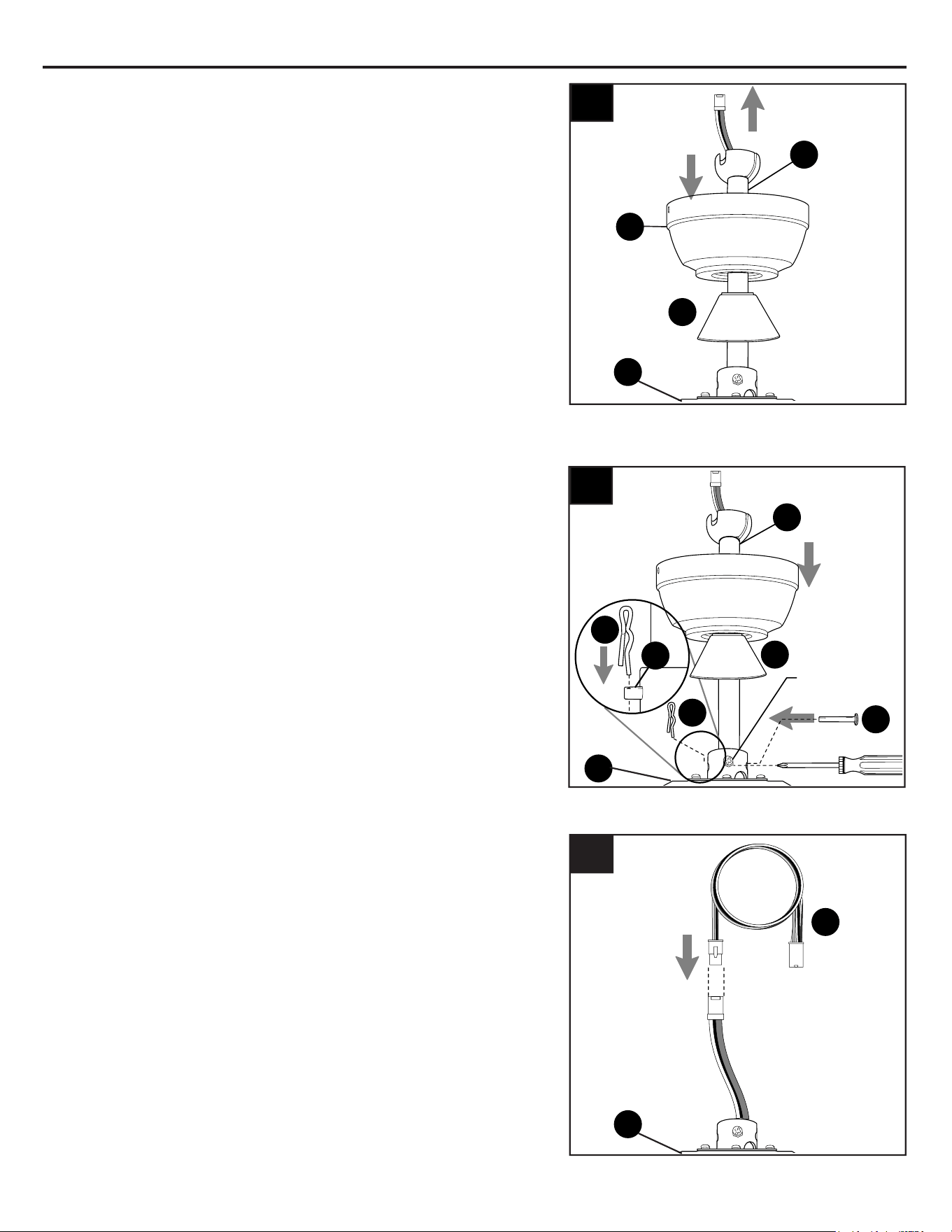

2.
Slip downrod (A) into yoke, align holes and
re-install pin (J) and clip (K). Tighten downrod
set screws and then tighten nut. Then slide yoke
cover (D) down until it rests on top of motor
housing (E).
3.
Insert downrod (A) through canopy (C) and yoke
cover (D).
Then, thread wiring from motor housing (E)
through downrod (A).
DOWNROD-STYLE INSTALLATION
R
E
A
2
C
3
K
J
Set Screw
and Nut
E
A
K
J
D
E
D
Depending on the length of downrod you use,
you may need to use the additional lead wiring
(Q).
Connect male plug from motor housing (E) to the
end of additional lead wiring (Q) with female
plug. Make sure plugs connect tightly.
NOTE: If you do not use additional lead wiring
(Q), Step 4 is not necessary and you may
proceed to Step 5 instead.
4.
4
10
5.
Install hanging ball of downrod (A) into opening
of mounting bracket (B). Align the slot in hanging
ball with the tab in mounting bracket (B).
DANGER: Failure to align slot in hanging
ball with the tab in mounting bracket (B) may
result in serious injury or death.
Continue to WIRING on page 11.
DOWNROD-STYLE INSTALLATION

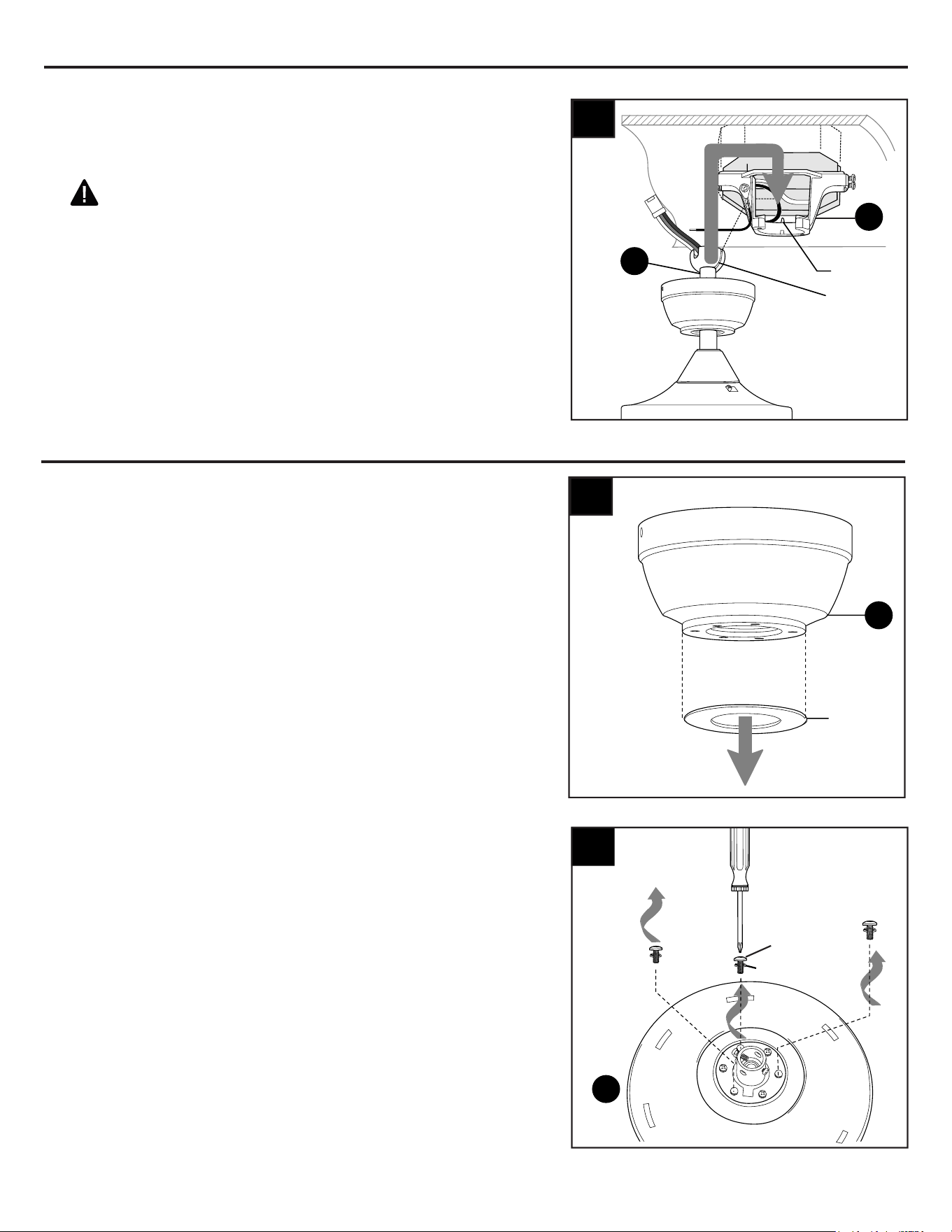

Remove canopy cover from bottom of canopy
(C). [NOTE: It may be necessary to use the
handle end of a screwdriver (not included) to
remove the canopy cover by tapping gently on
the canopy cover from the inside of the canopy
(C).]
NOTE: The downrod (A), yoke cover (D) and
canopy cover are not used in this type of
installation.
1.
CLOSEMOUNT-STYLE INSTALLATION
2. Remove every other preassembled screw/lock
washer from top of motor housing (E).
B
5
A
Slot
Canopy
Cover
1
C
E
2
Screw
Lock Washer
Tab
11
WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and one lead wires from the
fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.

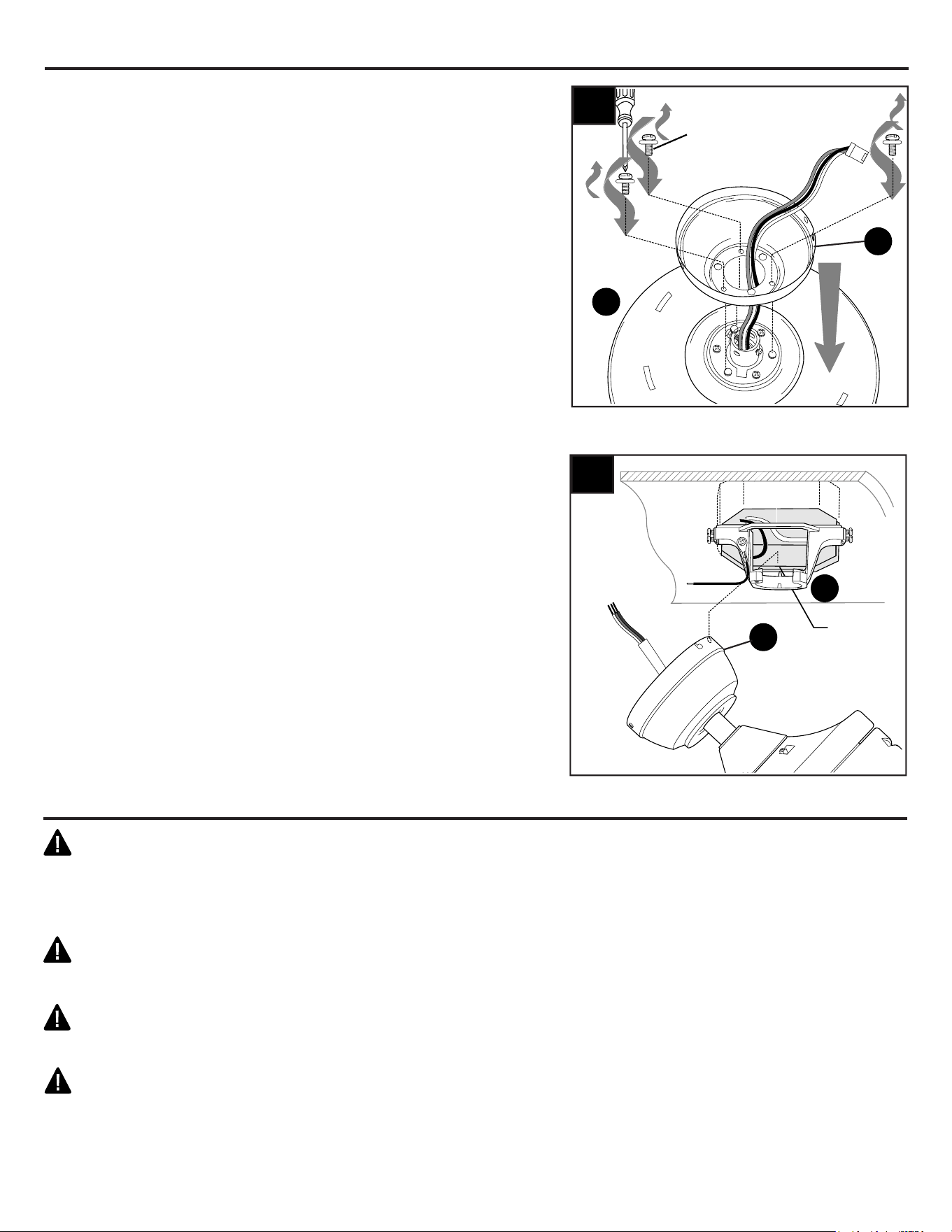

Pull wires up through hole in the middle of the
canopy (C) and attach canopy (C) to motor
housing (E) using the three previously removed
screws/lock washers.
3.
3
C
CLOSEMOUNT-STYLE INSTALLATION
Temporarily hang fan on the tab on the mounting
bracket (B) using one of the non-slotted holes in
the canopy (C).
Continue to WIRING below.
4.
WIRING
E
C
4
B
Tab
Screw/Lock Washer
12

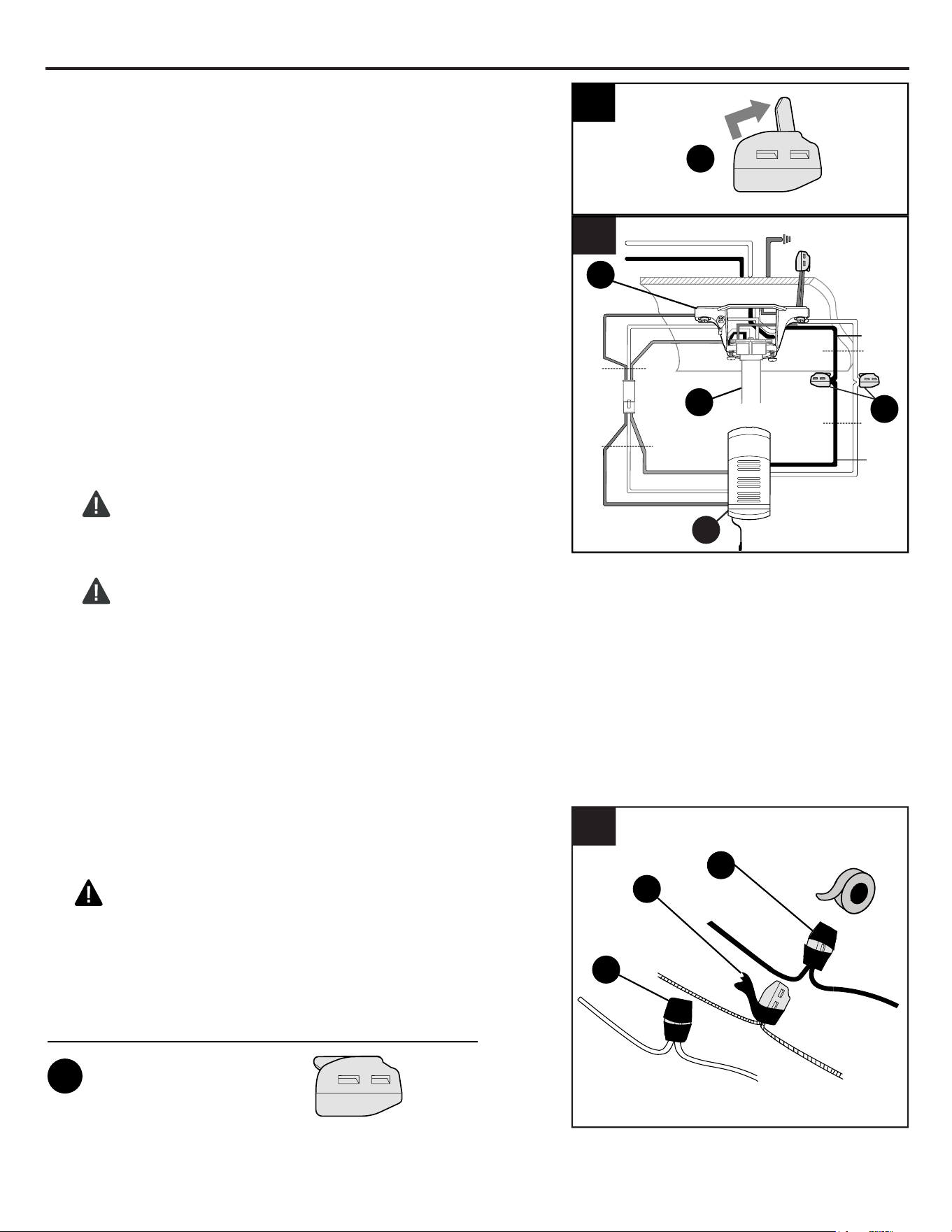

Wrap electrical tape (not included) around each
individual lever wire connector (CC) down to the
wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of the outlet box from the BLACK
and BLUE (if applicable) connections.
2.
Hardware Used
CC
1b
O
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
AC IN L
WHITE AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
B
CC
A
2
CC
CC
CC
CC
1b.
1a.
IMPORTANT: Each wire connection is made by
firmly raising the levers on each lever wire
connector (CC), as shown. Then, ONE wire is
inserted into each opening.
Insert each GROUND (GREEN) wire from fan
(on downrod (A) and mounting bracket (B)) and
the BARE/GREEN wire from ceiling into
openings in lever wire connector (AA) with three
levers.
Insert BLACK wire from remote control receiver
(O) and BLACK wire from ceiling into openings
in lever wire connector (CC).
Insert WHITE wire from remote control receiver
(O) and WHITE wire from ceiling into openings
in lever wire connector (CC).
Connect plug from remote control receiver (O) to
plug from motor housing (E).
WARNING: GENTLY pull on wires in each
lever wire connector (CC) to confirm the lock is
engaged and that wires are secure.
WARNING: In order for wire connections to
be secure, all levers on the lever wire
connectors (CC) must be completely returned to
their original position as shown in Step 1b.
NOTE: Black wire is hot power for fan. White
wire is common for fan and light kit. Green or
bare wire is ground.
1a
Lever Wire Connector x 3
WIRING
13
3

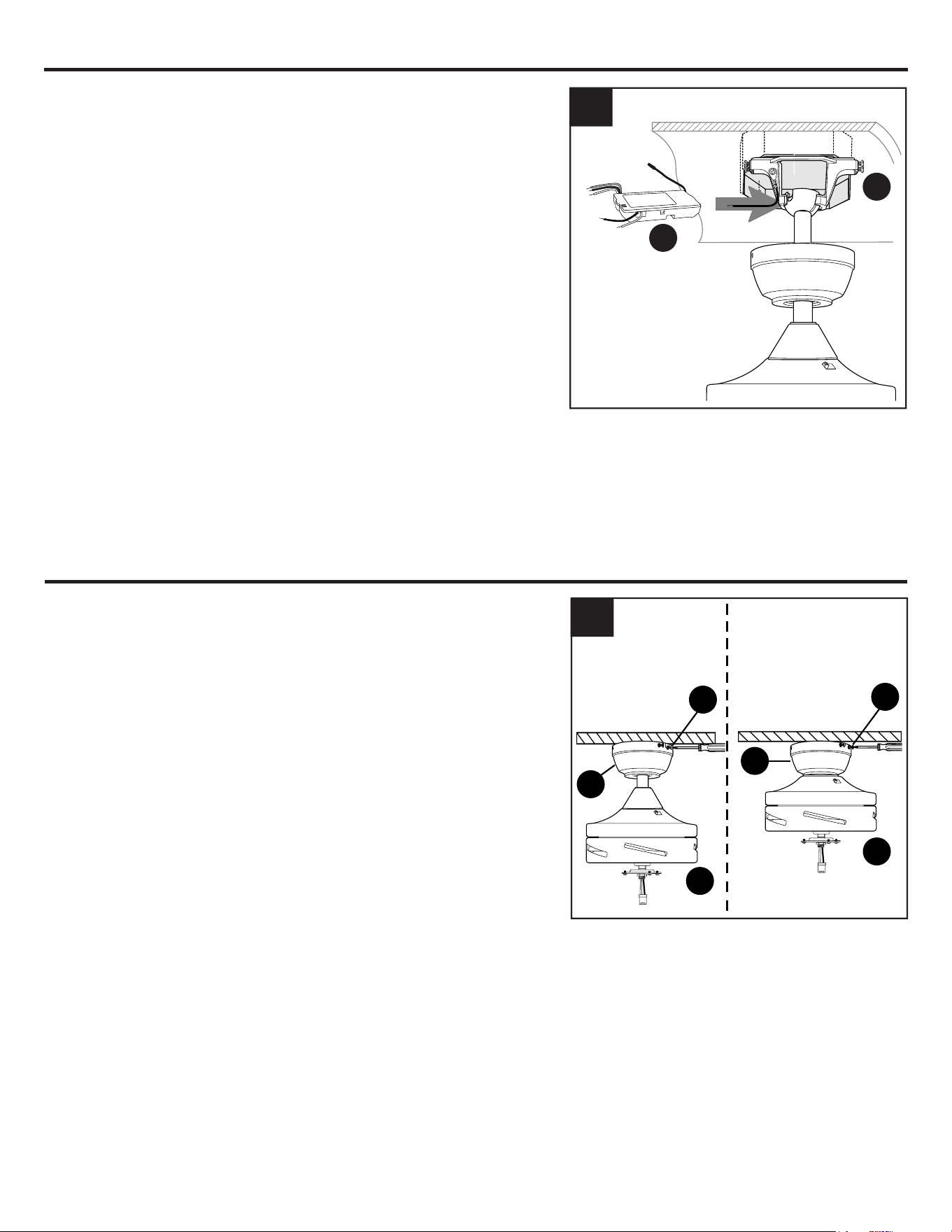

Gently slide remote control receiver (O) flat-side
up into mounting bracket (B). Turn spliced/taped
wires upward and gently push wires and lever wire
connectors (CC) into outlet box. Let antenna from
remote control receiver (O) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor wattage: 65W MAX.
Should you choose to use a different remote
control with this fan, it must also meet these same
requirements.
3.
Antenna
O
B
WIRING
1
C
N
C
Downrod
Option
Closemount
Option
N
E
E
FINAL INSTALLATION
1.
Lift canopy (C) to mounting bracket (B), aligning
slotted holes in canopy (C) with loosened
canopy mounting screws/star washers (N) in
mounting bracket (B). Twist canopy (C)
clockwise to lock. Re-insert the two canopy
mounting screws/star washers (N) that were
previously removed (Step 5, page 8) and tighten
all canopy mounting screws/star washers (N)
securely.
BB
I
F
AA
E
14
FINAL INSTALLATION
3
Motor
Plate
E
I
L
I
L
I
G
2.
Hardware Used
AA
Blade Screw x 15
Fiber Blade Washer x 15
BB
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (F). If screws are
overtightened, blades (F) may crack and break.

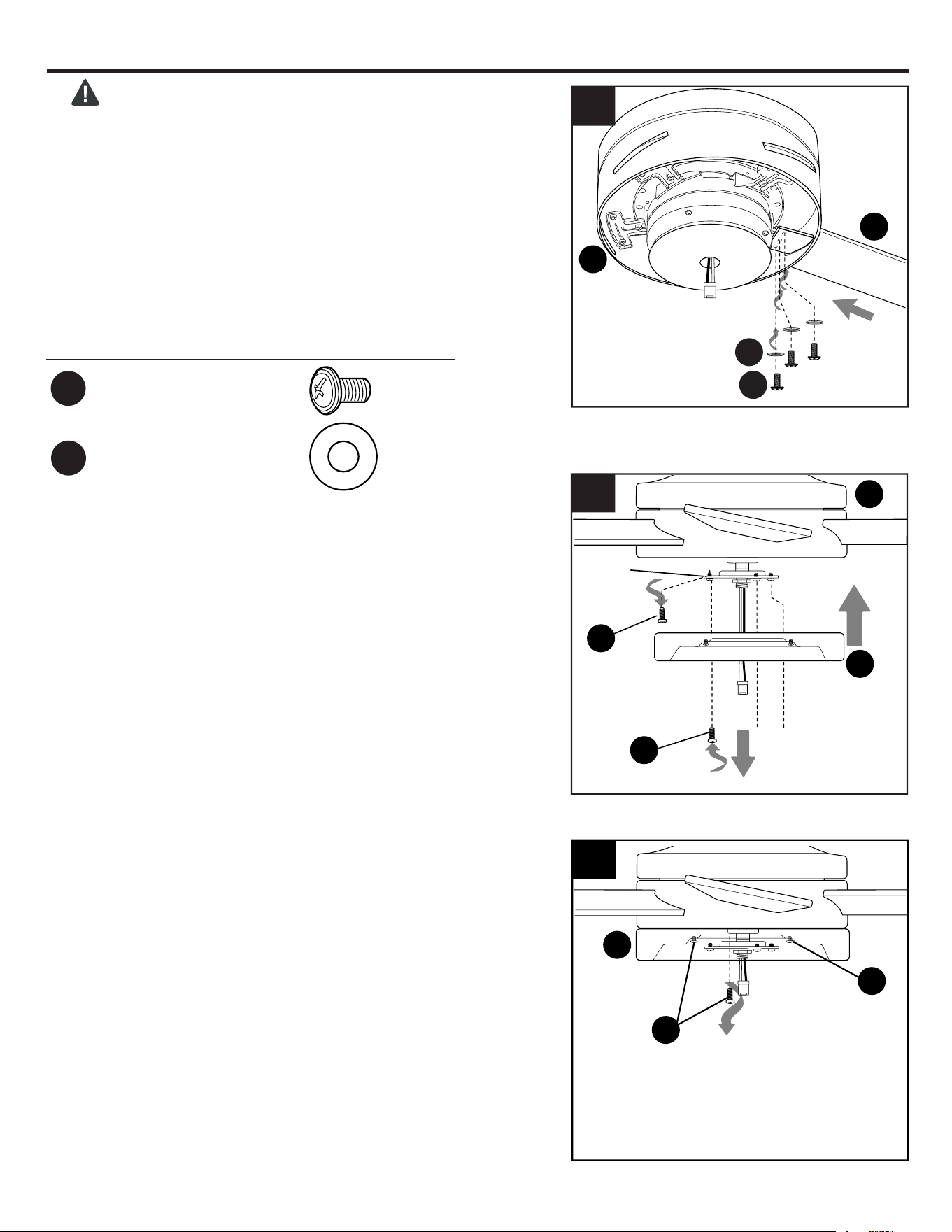

Slide one blade (F) through one of the
rectangular openings on center band of motor
housing (E). Align holes in blade (F) with holes in
blade arm located inside of motor housing (E).
Attach the blade (F) with 3 blade screws (AA)
and fiber blade washers (BB). Repeat for
remaining blades (F).
3.
Remove one motor plate screw (L) from motor
plate on underside of motor housing (E) and
partially loosen the other two motor plate screws
(L). Align slotted holes in fitter plate (G) with
loosened motor plate screws (L), allowing plug
from motor housing (E) to come through hole in
fitter plate (G). Twist fitter plate (G) to lock.
Re-insert the motor plate screw (L) that was
removed and securely tighten all three motor
plate screws (L).
G
M
M
4
4.
Remove one fitter plate screw (M) from
underside of fitter plate (G) and partially loosen
the other two fitter plate screws (M).
3
2
15
FINAL INSTALLATION

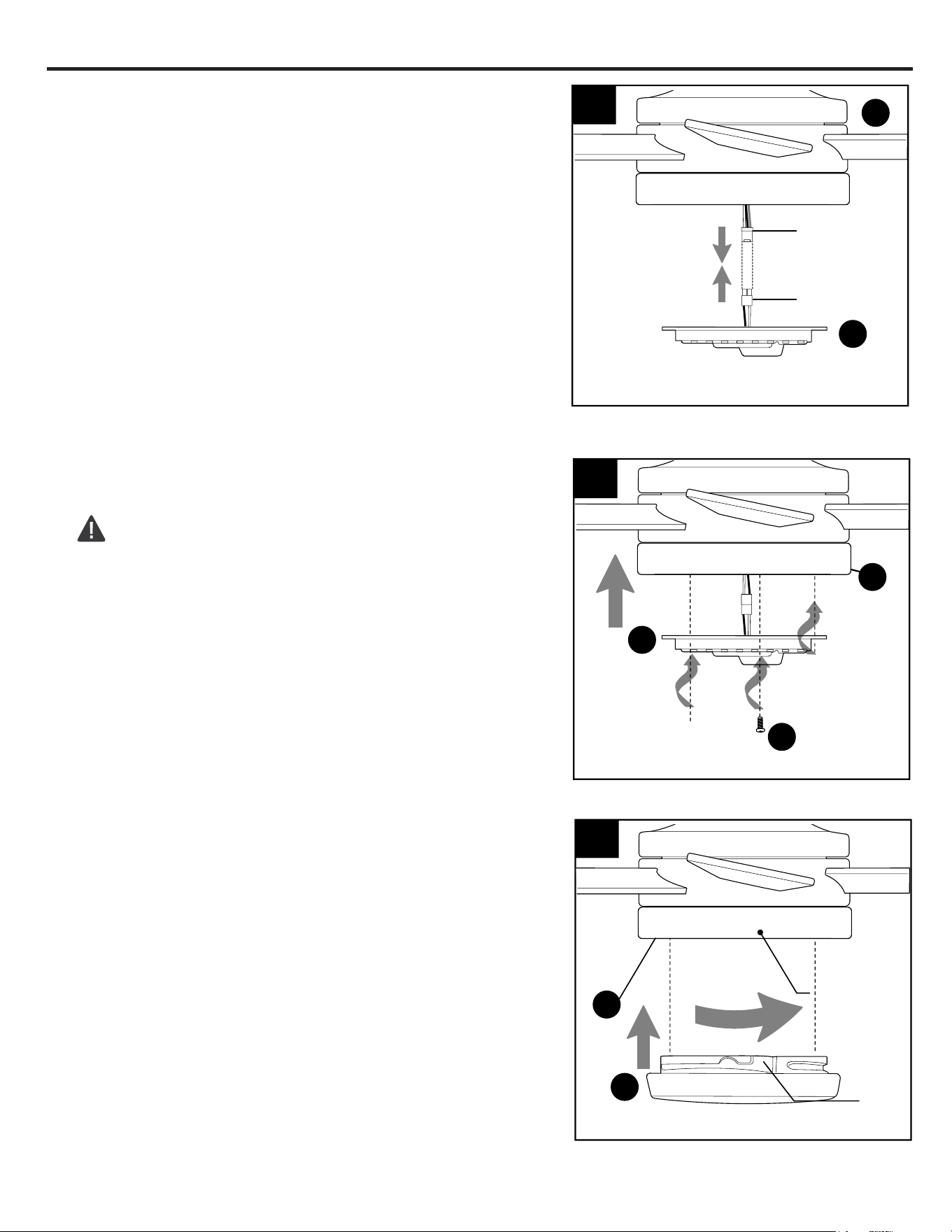

7.
Align slots on shade (I) with protrusions on the
inside border of fitter plate (G). Turn shade (I)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (I) to
make sure it is completely secured.
7
Slot
Protrusion
I
G
E
H
5
female
plug
male
plug
6.
Carefully arrange wiring within the fitter plate
(G).
CAUTION: Make sure no wires are being
pinched before attaching the LED light kit (H).
Align slotted holes in LED light kit (H) with
loosened fitter plate screws (M) on fitter plate
(G). Twist LED light kit (H) to lock in place.
Re-insert the previously removed fitter plate
screw (M) and securely tighten all fitter plate
screws (M).
5.
Connect female plug from motor housing (E) to
male plug from LED light kit (H), matching up the
colors on the plugs for correct fit. Make sure
plugs connect tightly.
G
L
6
H
16
OPERATING INSTRUCTIONS
Locate batteries and remote control transmitter in remote
pack (O). Remove battery cover. Install two AAA batteries
(included). Observe diagram inside battery compartment to
install batteries correctly.
WARNING: Batteries are to be inserted with correct
polarity.
Replace battery cover on remote control transmitter.
WARNING: Choking/Ingestion Hazard - Small parts.
Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT mix
alkaline, standard (carbon - zinc) or rechargeable (nickel -
cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove batteries
with low or no charge and dispose of properly.
1.
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.” - When
disposing of household alkaline batteries, it is best to check with your local and state recycling or household
hazardous waste coordinators concerning the specifics of the program in your area. You may also locate a
recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or
www.earth911.org for more information.
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not
desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, (2) this device must accept any interference received, including
interference that may cause undesired operation.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
(back
side)
1
Battery
Cover
O
Remote
Control
Transmitter
Batteries
AAA
AAA
17
OPERATING INSTRUCTIONS

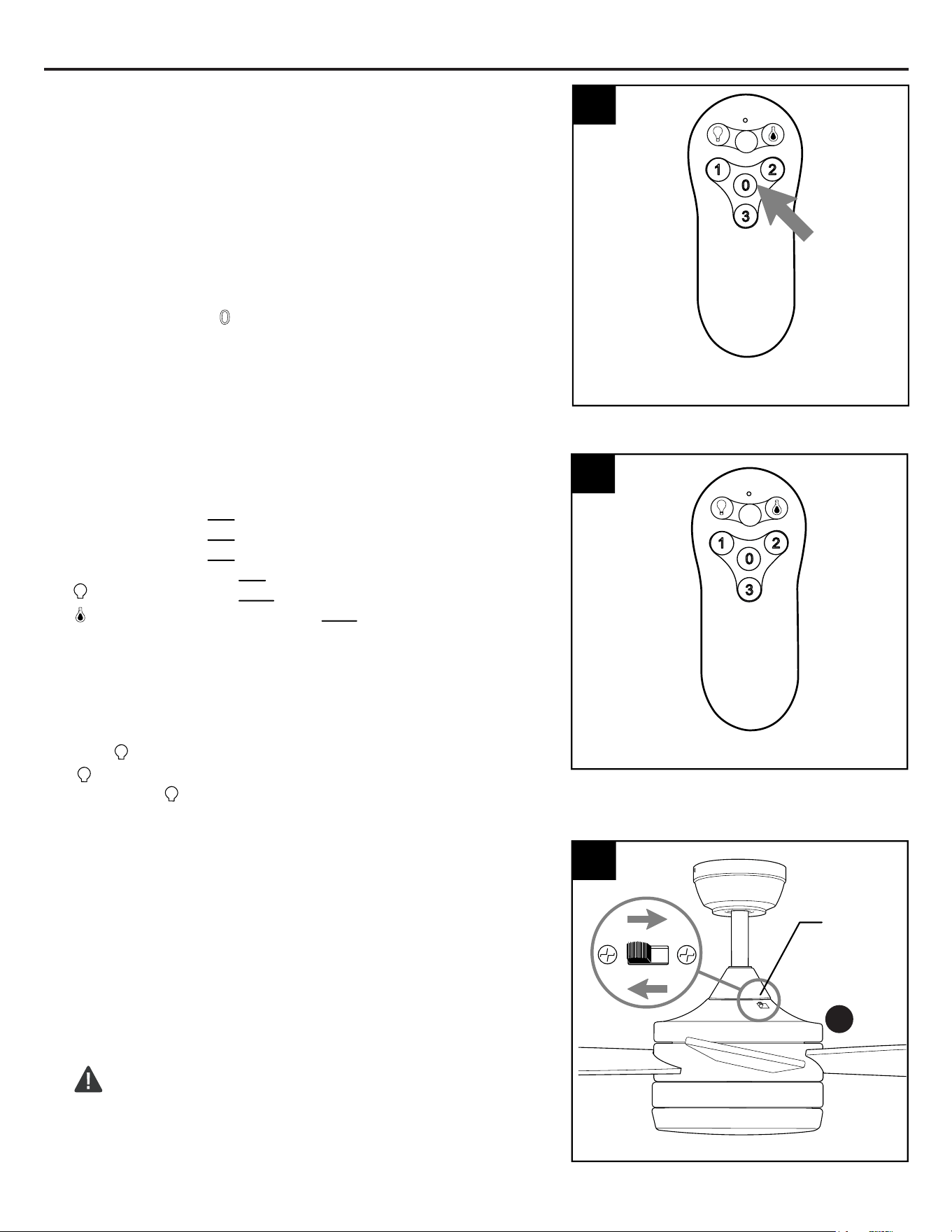

2.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the
ON/OFF button ( ) on the remote control
transmitter for 5 seconds until fan beeps. Use the
remote control transmitter to test the light and fan
functions to confirm the learning process is
complete.
2
Remote Control Transmitter
Operation buttons on the panel of the remote
control transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
button to change/select light color mode:
– soft white
– warm white
– cool white
– daylight
– cool daylight
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If
you press button in excess of 0.7 seconds, it
becomes a dimmer. The lights vary cyclically in
8 seconds. The light button has an auto resume
function, which keeps the light at the same
brightness as the last time it was turned off.
3.
3
Remote Control Transmitter
4.
Use the fan reverse switch located on the top
part of the motor housing (E) to optimize the fan
for seasonal performance. A ceiling fan will
allow you to raise your thermostat setting in
summer and lower your thermostat setting in
winter without feeling a difference in your
comfort.
CAUTION: Turn fan off at wall switch and let
blades (F) come to a complete stop before
manually activating the reverse switch.
4
Reverse
Switch
E
18
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, lower canopy (C) to check downrod (A) assembly, canopy mounting
screws/star washers (N) and then tighten all screws on the fan. Clean motor housing (E) with only a soft
brush or lint-free cloth to avoid scratching the finish. Clean blades (F) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for the light kit for this fan is 18 watts; do not attempt to replace the LEDs.
4a
4b
4c

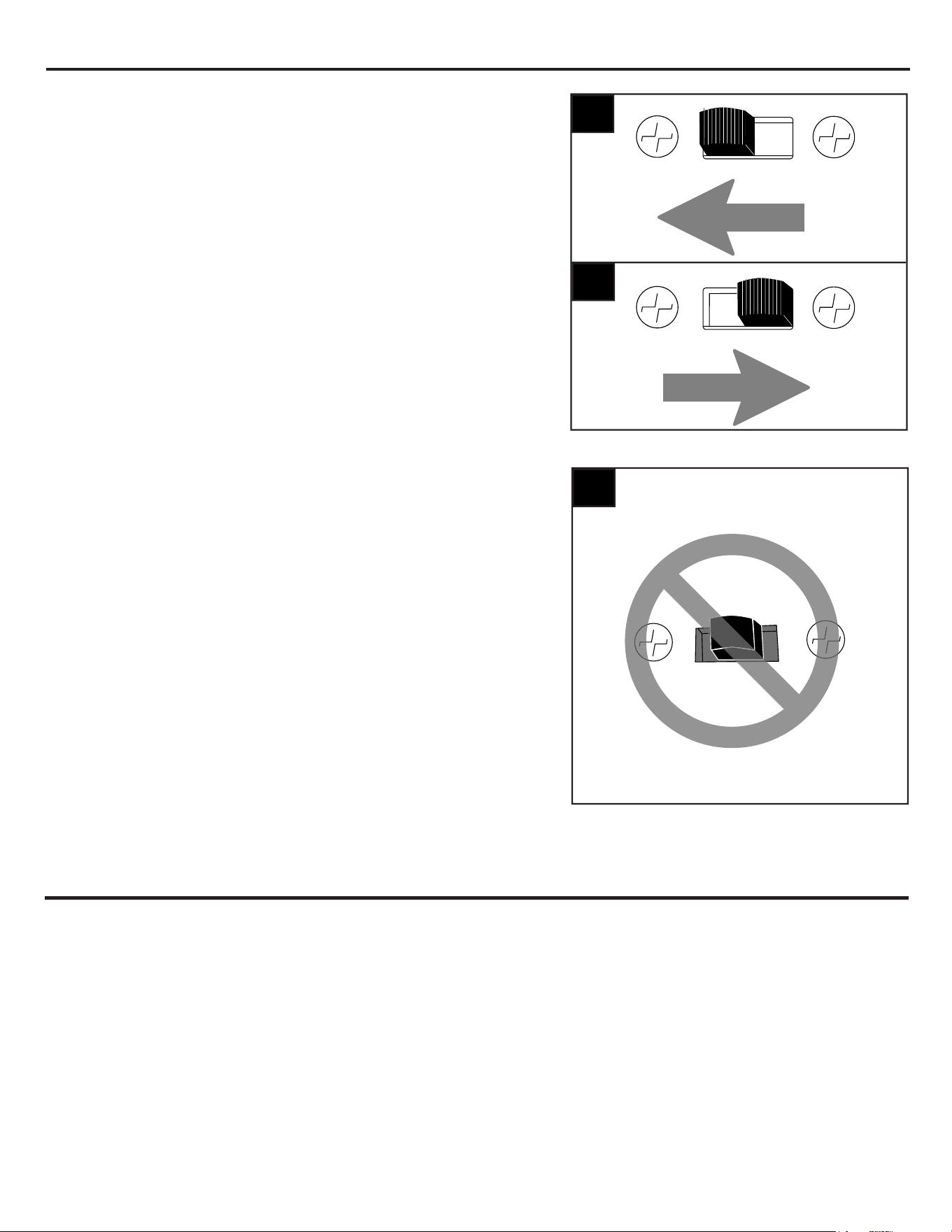

IMPORTANT: Reverse switch must be set either
completely LEFT or completely RIGHT for fan
to function. If the reverse switch is set in the
middle position, fan will not operate.
In warmer weather, setting the reverse switch in
the LEFT position will result in downward airflow
creating a wind chill effect.
In cooler weather, setting the reverse switch in
the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the
ceiling area.
4a.
4b.
4c.
19
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires in LED light kit not wired
correctly.
TROUBLESHOOTING
1. Check wires in outlet box and, if
necessary, re-wire according to
instructions on page 12.
2. Make sure wall switch to light is on.
3. Check that connections in LED light
kit are connected properly according
to instructions on page 15.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
1. Refer to instructions in Step 2 on
page 17.
2. Check that batteries have been
installed with correct polarity.
3. Replace battery/batteries according
to instructions on page 16.
Fan operates but
light fails
Remote control fails
to operate.
1. Remote control transmitter not synced
with fan.
2. Batteries are not installed correctly.
3. Battery/Batteries no longer working.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3. Push switch firmly either left or right.
4. Attach blades to fan.
5. Turn off power and repeat
instructions in Step 2 on page 17.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move.
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Reverse switch not engaged.
4. Blades are not installed.
5. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
Noisy operation.
Excessive wobbling.
1. Blades are loose.
2. Fan not securely mounted.
3. Fan too close to vaulted ceiling.
4. Set screw(s) on motor housing yoke is
(are) not tightened properly.
5. Set screw on hanging ball is not
tightened properly.
6. Unbalanced blades.
1. Tighten all blade screws.
2. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
3. Use a longer downrod or move fan to
another location.
4. Tighten yoke set screw(s) securely.
5. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
6. Switch one blade with a blade from
the opposite side or use balancing
kit (R).
1. Tighten all blade screws.
2. Replace blade.
3. Use only with included speed control
device.
4. Allow fan a “break in” period of a few
days, especially when running the
fan at Medium and High speeds.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
20
LIMITED LIFETIME WARRANTY
Printed in China
DRLI2402
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
A
B
C

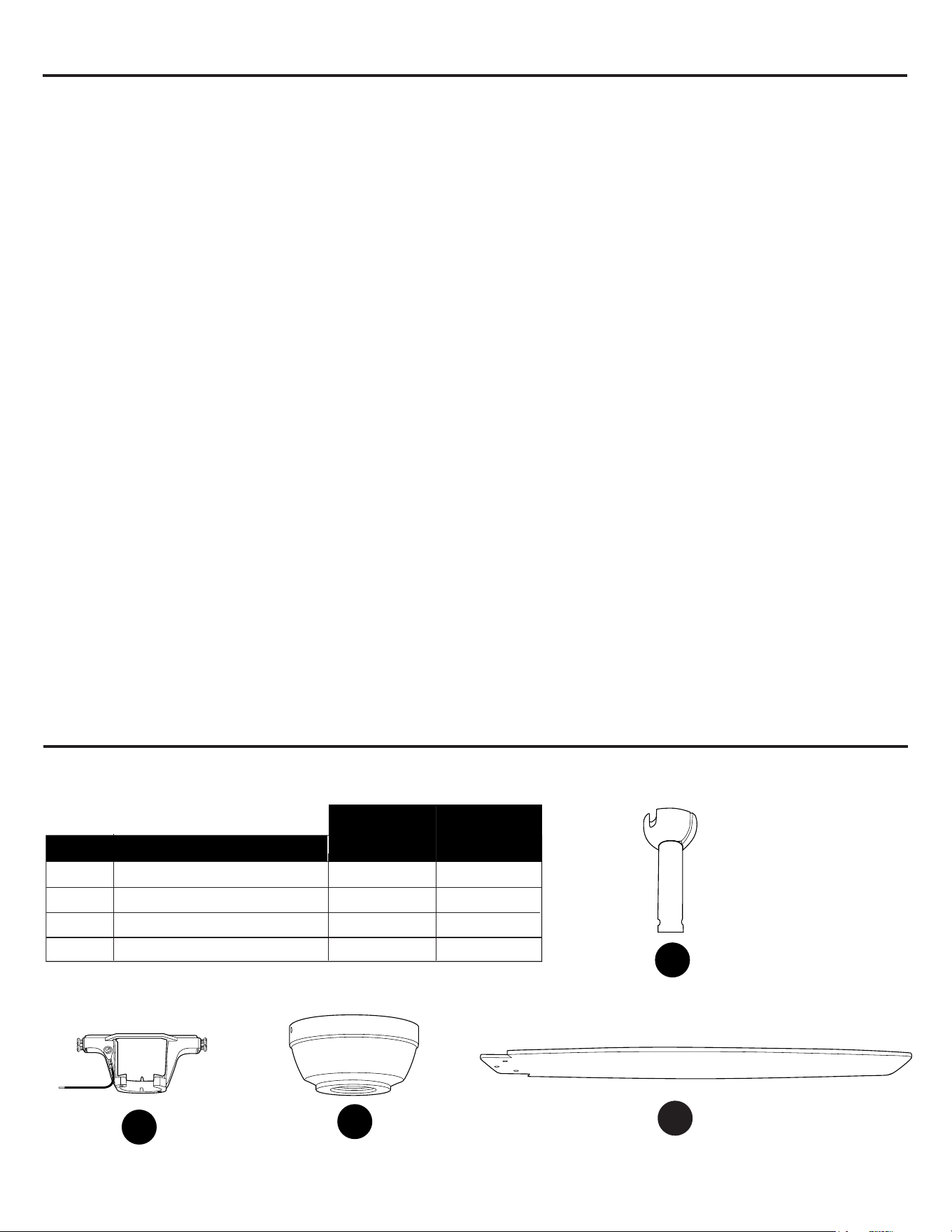

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
F
PART DESCRIPTION
A Downrod
B Mounting Bracket
C Canopy
F Blade
5709391-A
5709391-C
5709391-F
5709391-J
#
5709391
PART #
#
5709389
PART #
5709389-A
5709389-C
5709389-F
5709389-J
