Art. No.: 88926
GB Shiatsu Massage Seat Cover MC 826
TR Shiatsu Masaj Minderi MC 826
Certified Quality
Kalite Sertifikalı
2 Years Warranty
2 Yıl Garanti
2
Please fold out this page and leave it folded out for quick reference.
GB Instruction Manual
1 Safety Information.......................
2 Useful Information.......................
3 Operating....................................
4 Miscellaneous.............................
5 Warranty......................................
4
5
6
11
13
14
18
19
21
23
TR Kullanım Talimatı

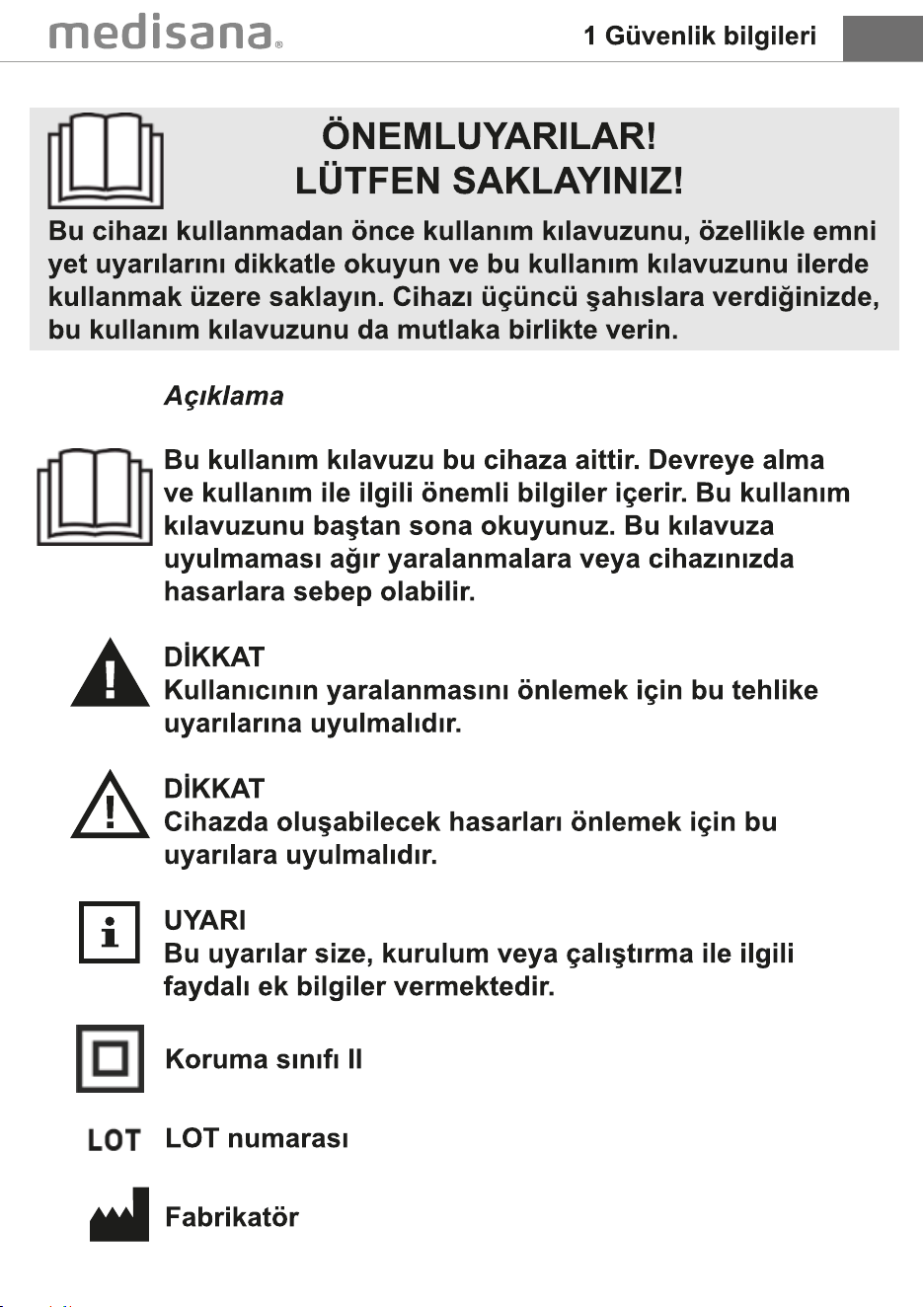

1 Güvenlik bilgileri..........................

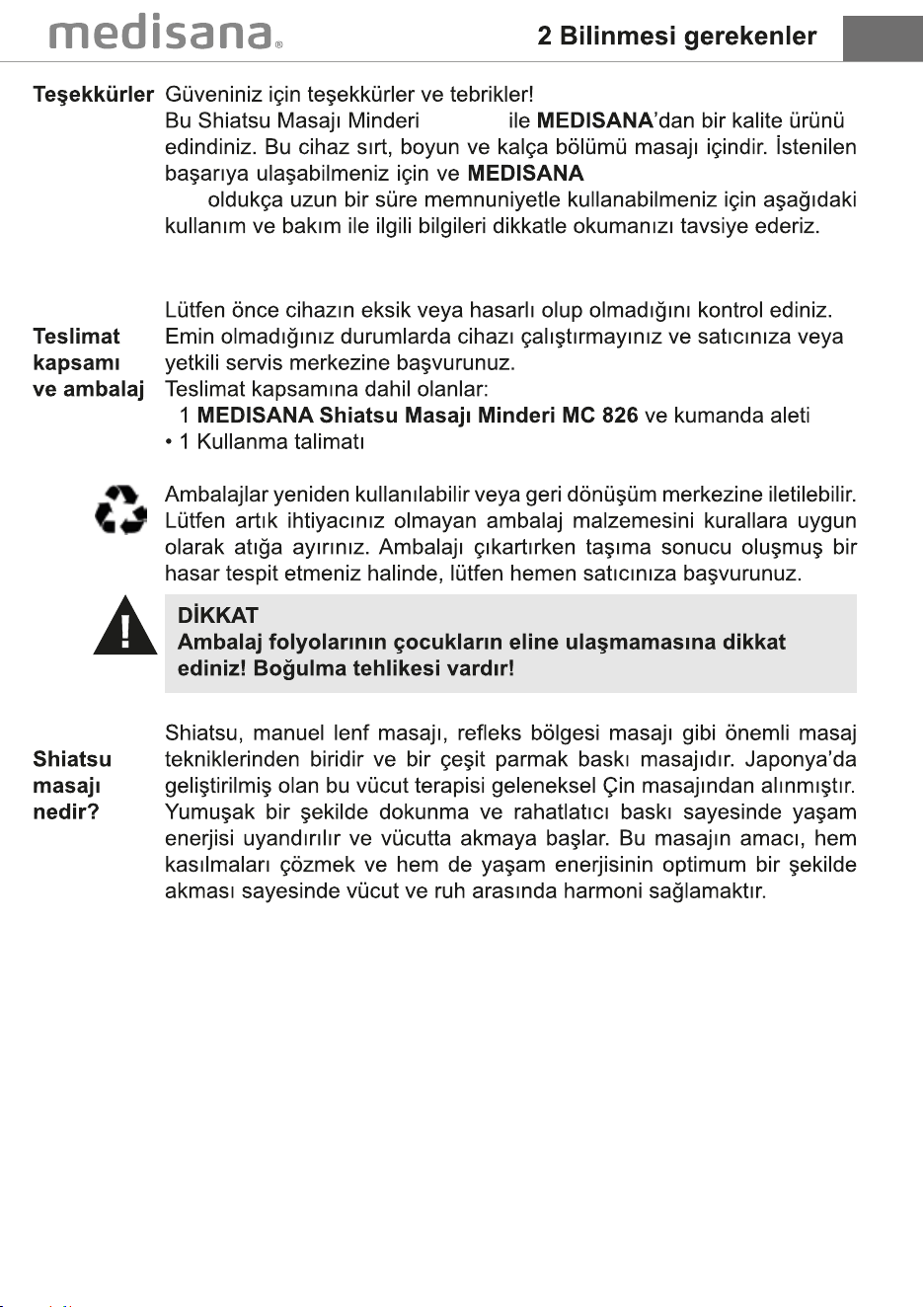

2 Bilinmesi gerekenler....................

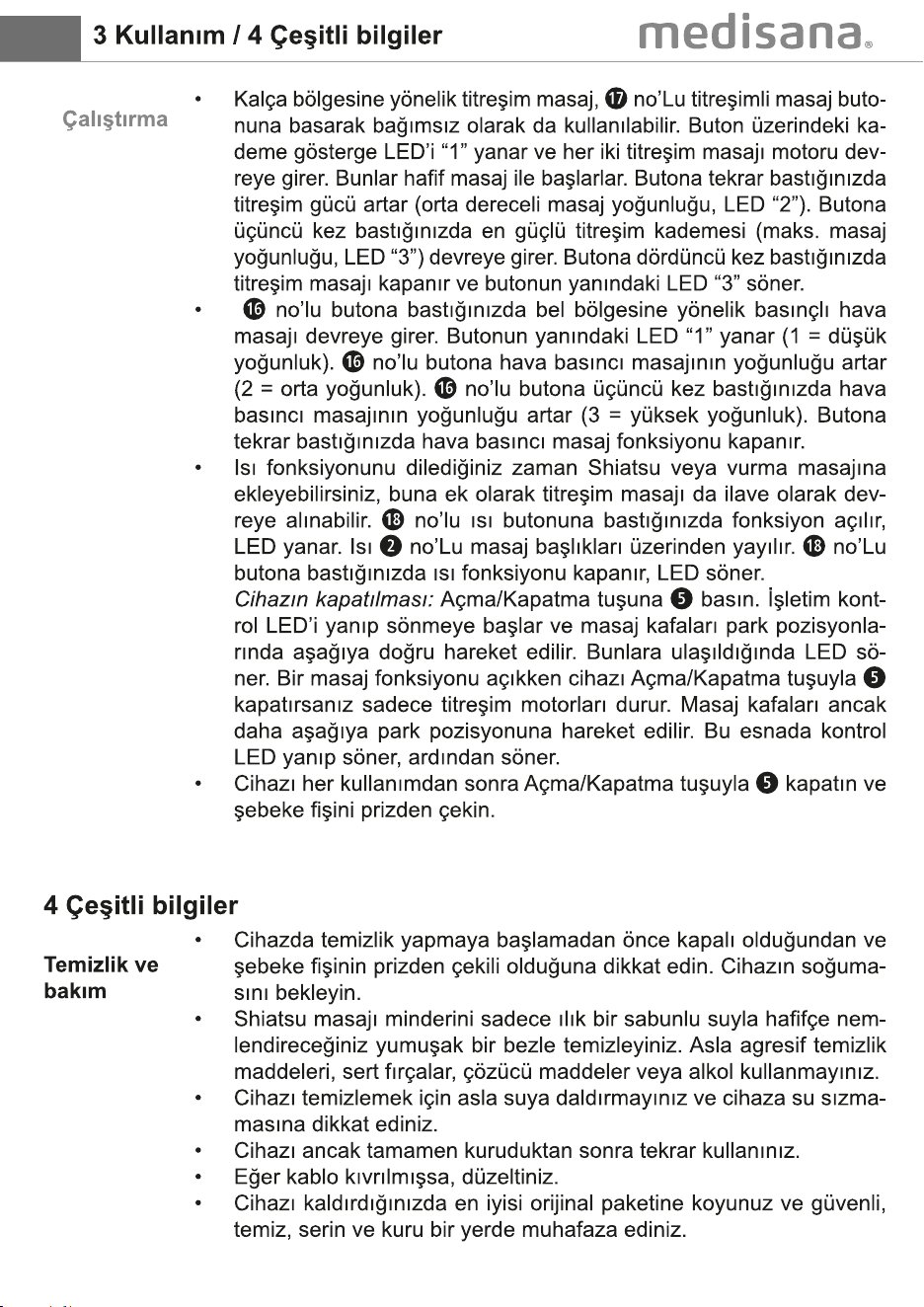

3 Kullanım......................................

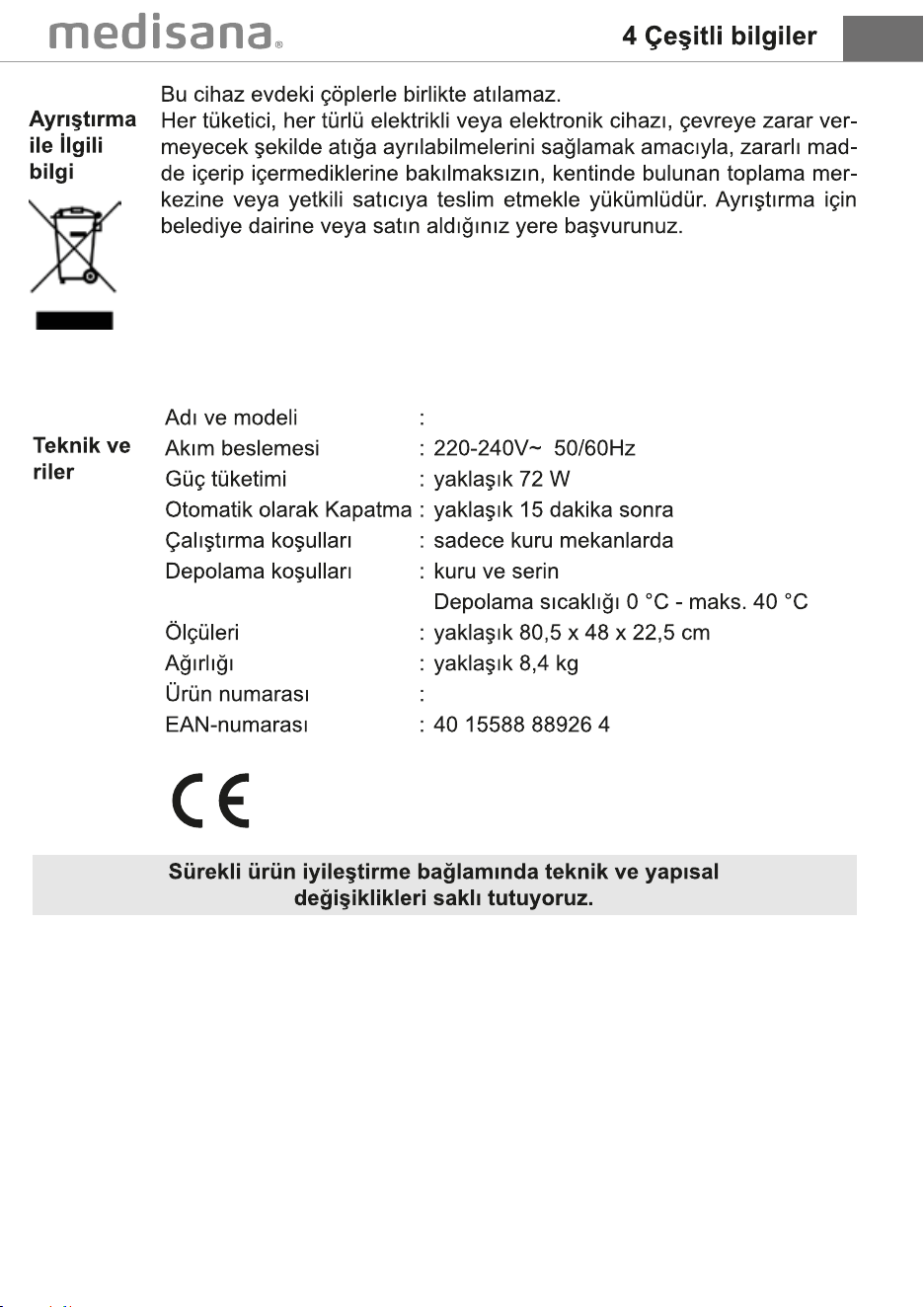

4 Çeşitli bilgiler...............................

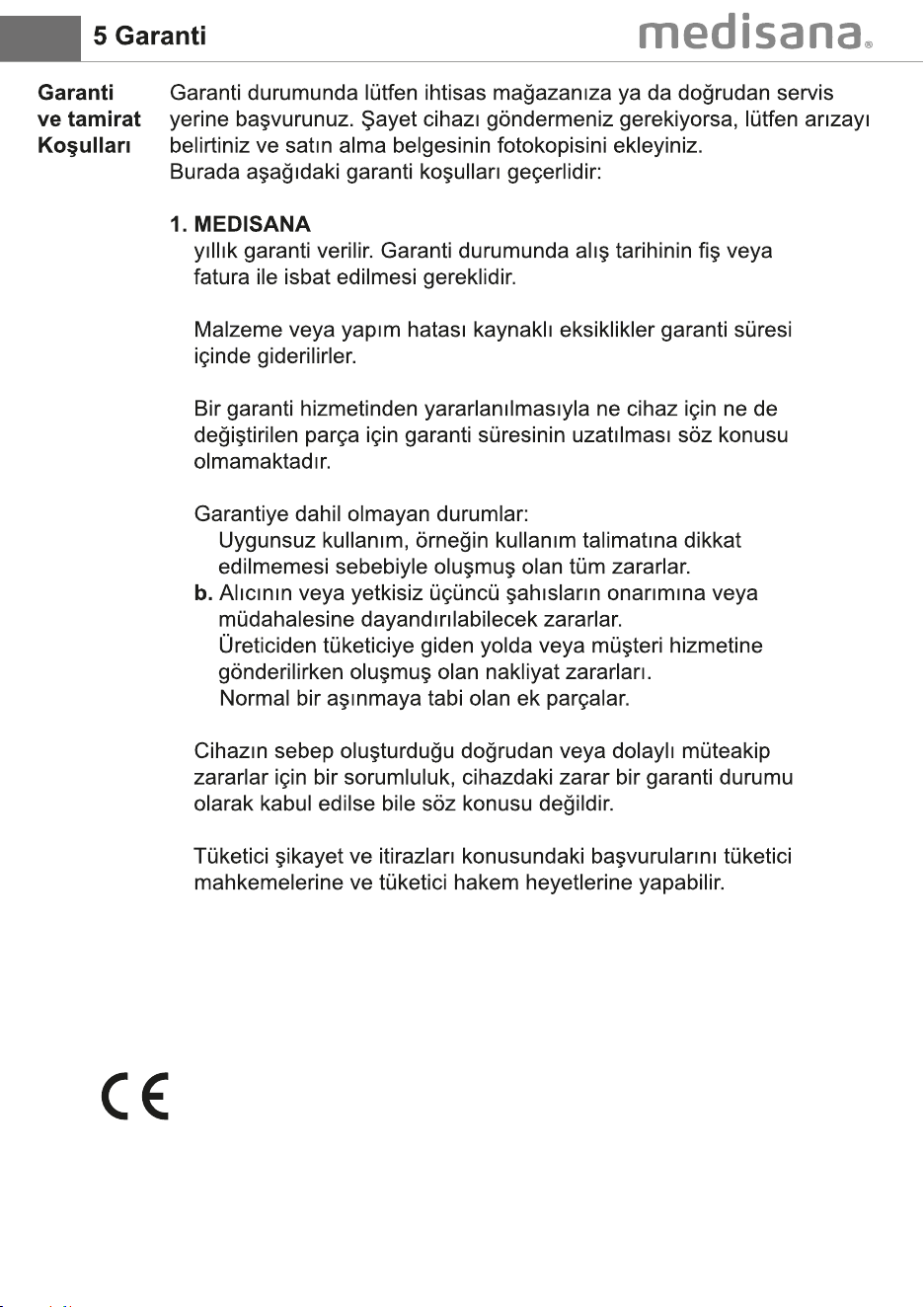

5 Garanti .......................................
1
2
2 massage heads for neck massage
4 rotating massage heads for back area
Connection cable
2 vibrating massage motors in the upper thigh area
On/Off button
Massage head adjustment upwards for neck massage
Massage head adjustment downwards for neck massage
Neck massage with right rotation with LED
Neck massage with left rotation with LED
Button/LED for “Upper Back” massage
Button/LED for “Full Back” massage
Button/LED for “Lower Back” massage
Button/Mode adjustment for tapping massage
Button/3 LEDs for intensity setting of tapping massage
Button spot massage (only with tapping massage)
Button/3 LEDs for air massage
Button/3 LEDs for vibration massage
Button for heat function
GB
TR
Boyun masajı için 2 masaj başlığı
Sırt bölümünde 4 dönen masaj başlığı
Bağlantı kablosu
Kalça bölümünde 2 titreşimli masaj motoru
Açma/Kapama butonu
Boyun masajı için masaj başlığı yukarı ayarı
Boyun masajı için masaj başlığı aşağı ayarı
LED’li sağ dönüş yönlü boyun masajı
LED’li sol dönüş yönlü boyun masajı
“Üst sırt” masajı butonu/LED
“Tüm sırt” masajı butonu/LED
“Alt sırt” masajı butonu/LED
Vurmalı masajı butonu/mod ayarı
Vurmalı masajı yoğunluk ayarı butonu
Spot masajı butonu
Basınçlı hava masajı butonu/3 LED
Titreşimli masaj butonu/3 LED
Isı fonksiyonu butonu
3
4
1 Safety Information
GB
IMPORTANT INFORMATION!
RETAIN FOR FUTURE USE!
Read the instruction manual carefully before using this device,
especially the safety instructions, and keep the instruction
manual for future use.
Should you give this device to another person, it is vital that you
also pass on these instructions for use.
Explanation of symbols
This instruction manual belongs to this device.
It contains important information about starting
up and operation. Read the instruction manual
thoroughly. Non-observance of these instructions
can result in serious injury or damage to the device.
WARNING
These warning notes must be observed to prevent
any injury to the user.
CAUTION
These notes must be observed to prevent any
damage to the device.
NOTE
These notes give you useful additional information
on the installation and operation.
Protection category II
LOT number
Manufacturer
5
about the power supply
• Before connecting the device to your power supply, please en-
sure that the supply voltage stated on the rating plate is com-
patible with your mains supply.
• Only connect the mains plug to the wall socket when the device
is switched off.
• Do not operate this unit near high frequency electromagnetic
sources.
• Keep the power cord and the device itself away from heat, hot sur-
faces, damp and liquids. Avoid touching the plug or power switch
with wet or even damp hands, or when you are standing in water.
• Parts that conduct electricity on the device must not come into
contact with liquid.
• If the device falls into water, do not try to pick it up. Instead pull the
plug out immediately.
• Always make sure that the plug is easily accessible when the de-
vice is connected.
• Disconnect the plug from the socket immediately after using the
device.
• Never pull on the power cord to disconnect the appliance from the
mains. Always pull out the mains plug!
• Do not carry, pull or rotate the device by its power cord.
• Ensure that the cable will not cause tripping. The cable must not
be kinked, trapped or twisted.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• The surface of the appliance is hot. People who are insensitive to
heat must be careful when using the appliance.
1 Safety Information
GB
6
• Do not use this unit to supplement or replace medical treatment.
Chronic complaints and symptoms may be made worse.
• You should refrain from using the Shiatsu Massage Seat Cover
MC 826 , or should consult your doctor before using it, if
- you are pregnant,
implants,
- you suffer from one or more of the following illnesses and
complaints: Circulation disorders, varicose veins, open
• If you experience any pain or discomfort during the massage,
stop immediately and consult your doctor.
before using the unit
• Always carefully inspect the cable, the control unit and the
massage cushion for damage before use. Do not attempt to
use a defective unit.
• Do not use the unit if there are visible signs of damage on the unit
or the cable components, the unit does not work properly or the
seat or the control unit have been dropped or become damp.
In order to prevent hazards, always send the unit in to the service
centre.
operating the unit
• The massage seat cover must only be used for its intended
purpose as described in the instruction manual.
• Using the seat cover for any other purpose invalidates the warranty.
• Never leave the unit unattended if it is connected to the power
supply.
• Do not allow the massage seat cover to come into contact
with pointed or sharp objects.
• Never put the unit down next to an electric stove or other
sources of heat.
• Do not stand on the unit.
1 Safety Information
GB
7
1 Safety Information
GB
•
• If you feel unwell or experience pain when using the unit, stop the
treatment immediately.

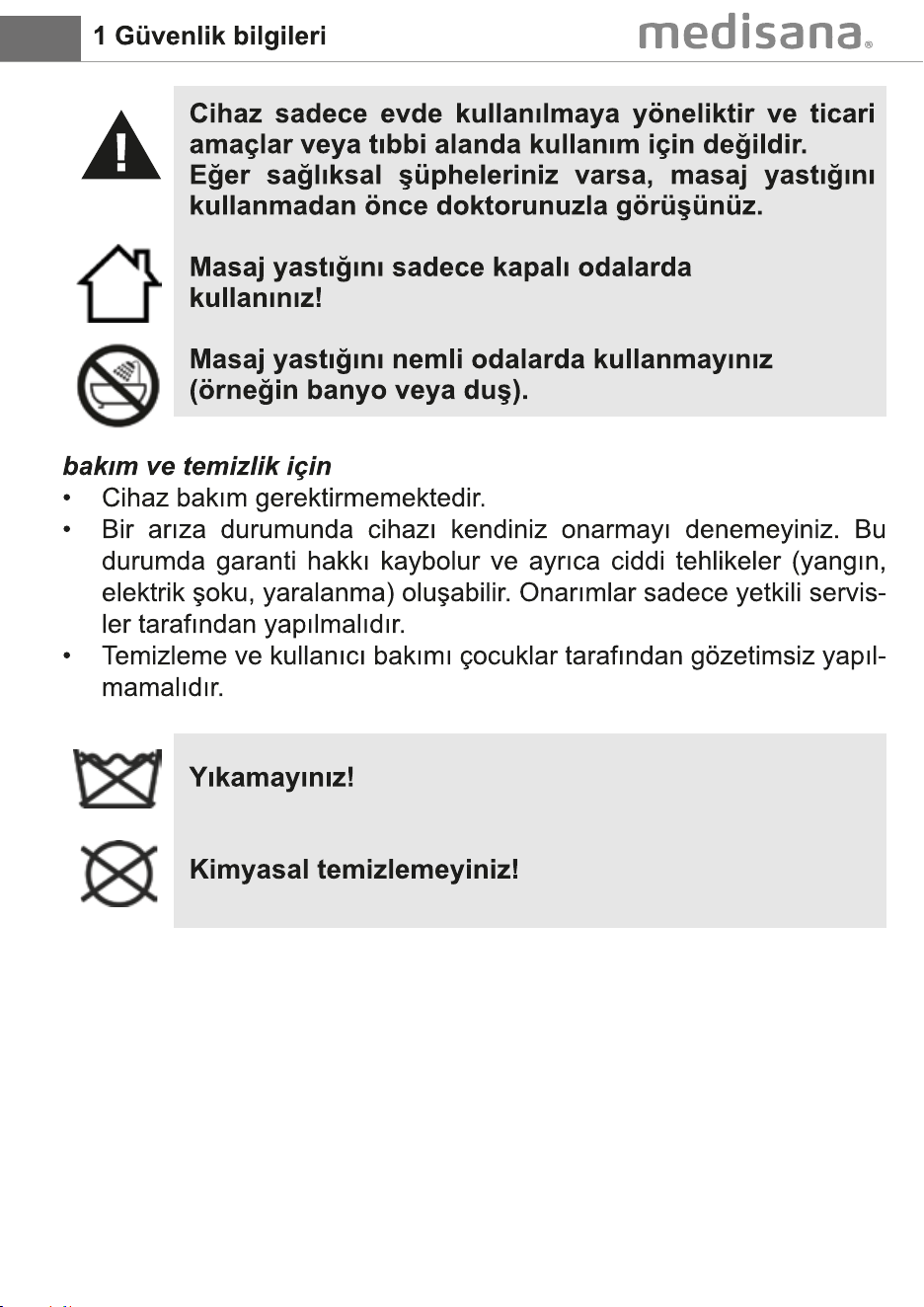

maintenance and cleaning
• The unit is maintenance free.
• Do not attempt to repair the unit yourself in the event of any defects.
Not only does this render the warranty null and void but you can also
repairs carried out by authorised service points.
• Cleaning and user maintenance shall not be made by children with-
out supervision.
The device is only intended for household use
and must not be used for commercial or medical
purposes. If you have health concerns, consult
your doctor before using the Shiatsu massage
seat cover.
The massage seat cover must only be used in
enclosed spaces!
Do not use the massage seat cover in damp rooms
(e.g. when bathing or showering).
Do not wash!
Do not dry clean!
8
2 Useful Information
GB
in any way. In case of doubt, do not use the appliance and contact your
supplier or your service centre.
The following parts are included:
• 1 MEDISANA Shiatsu Massage Seat Cover MC 826 with control unit
• 1 Instruction manual
The packaging can be reused or recycled. Please dispose properly of
any packaging material no longer required. If you notice any transport
damage during unpacking, please contact your supplier without delay.
2.1
Items
supplied
and
packaging
WARNING
Please ensure that the polythene packing is kept away from
the reach of children! Risk of suffocation!
Thank you
very much
nd congratulations!
You have acquired a MEDISANA quality product with this Shiatsu
Massage Seat Cover MC 826.
This unit is designed for massaging the back, neck and upper thigh
areas. We recommend that you carefully read the following in-
formation on use and care of the product so that you experi-
en MEDISANA Shiatsu
-
tant massaging techniques along with manual lymphatic drainage and
This form of physical therapy was developed in Japan but stems from
application techniques are used to awaken life forces and encourage
The object of the massage is not just to ease tension, but also to opti-
2.2
What is
Shiatsu
massage?
Massage Seat Cover MC 826 for many years.
9
2 Useful Information / 3 Operating
GB
3 Operating
In the MEDISANA Shiatsu Massage Seat Cover MC 826 you have a
modern device for genuine Shiatsu or tapping style back massages
in the back area. The MEDISANA Shiatsu Massage Seat Cover
MC 826 has 4 rotating massage heads for Shiatsu massage of the
three zones “Upper Back”, “Lower Back” and “Full Back” as well as
2 massage heads for the neck area. The device also offers the
possibility of an air massage (with 3 different intensities) for the lumbar
area. The device is equipped with an additional 3-level vibration function
and a red light heat function in the massage heads. The unique
combination of intensive shiatsu and vibration massage with heat
makes the massage seat cover an effective and relaxing treatment.
Their settings can be comfortably adjusted by means of the easy-to-
handle control unit.
2.3
How does
the
MEDISANA
Shiatsu
Massage
Seat Cover
work?
The use of the Shiatsu Massage Seat Cover will improve your
well-being after a stressful day. The massage effect is particularly
useful for tense muscles and tired tissue. The unit provides pleasant
relaxation for overcoming everyday stress.
3.1
Usage
Start-up
• Place the massage seat cover on a high chair or armchair and
attach it to this by means of the fasteners on the back.
• Insert plug into the mains socket. Ensure that the power supply
is easily accessible.
• Take a seat on the Shiatsu massage seat cover and familiarize
yourself with the functions.
Operating the unit
The Shiatsu Massage Seat Cover MC 826 offers a soothing
massage for back, neck and thighs as well as an air massage for
the lumbar area. The additional selectable heat function can only
be used together with the Shiatsu or tapping massage, during which
the vibration massage (with 3 selectable intensity levels) can also
be activated. Do not use the unit for more than 15 minutes at a time.
The unit will switch off automatically after max. approx. 15 minutes.
Always allow the unit to cool down fully before you use it again.
3.2
Operation
10
3 Operating
GB
3.2
Operation • Switch on the device by pressing On/Off button . The power LED
illuminates.
• The buttons , , and control the neck massage. You may
adjust the position and the rotation direction of the both massage
heads. The LEDs next to the buttons and indicate, which ro-
tating direction is active.
• The buttons , , , , and allow a Shiatsu- or tapping
massage for the back area. With the button you may activate a
spot massage (only with tapping massage).
• When the “Upper Back” massage button is pressed, the LED
next to the button illuminates and the Shiatsu massage heads
move from the “Park” position at the base of the backrest, up to the
shoulder area, massaging the back in a circular motion whilst doing
so. Once the uppermost position has been reached, the direction of
rotation of the massaging heads is reversed. The heads then travel
down to the centre of the back. Once the heads reach this point, the
direction of rotation is reversed again and then travel up the back
again. If you press button during the massage, this function is
switched off and the massage heads remain stationary in their cur-
rent position.
• If you press the “Lower Back” massage button , the LED next to
the button illuminates. The Shiatsu massage heads travel up and
down the lower half of the back in a circular motion. The reversal of
the direction of rotation takes place when the respective end posi-
tions are reached. Pressing button during the massage, switches
off this function and the massage heads remain stationary in their
current position.
• If you press the “Full Back” massage button the function proce-
dure is similar to pressing buttons and , except that it is for the
entire back.
• To activate a tapping massage for the selected back area, press
the button . By repeatedly pressing this button, you can change
the tapping massage mode (mode 1 = constant massage, mode 2
= massage with pauses, mode 3 = alternating mode 1 and mode 2
with change of moving direction). If mode 3 is active and you press
the button again, the tapping massage will be switched off.
• The button (level) controls the intensity of the tapping massage.
After switching on the tapping massage the LED “1” next to the but-
ton lights up (1 = low intensity). A press on the button increases
the intensity (2 = medium intensity). A second press on the button
increases the intensity again (3 = high intensity). After button is
pressed a third time, the tapping massage intensity is set back to
intensity 1.
• During the tapping massage, press button to activate spot mas-
sage.
11
GB
3 Operating / 4 Miscellaneous
• You can enhance the Shiatsu massage at any time with a vibration
massage for your thighs by pressing the vibration massage button
.
• The vibration massage in the upper thigh area can also be operated
separately by pressing vibration massage button . Level indica-
tor LED “1” next to the button lights up and both vibration massage
motors are switched on. They begin with a gentle massage. Press
button again and the vibration level increases (medium intensity
massage LED “2”). Press button a third time and the maximum vibra-
tion level (highest intensity massage, LED “3”) is switched on. After
button is pressed a fourth time, the vibration massage is switched off
and LED “3” next to the button goes out.
• To switch on the air massage for the lumbar area press button .
The LED “1” next to the button lights up (1 = low intensity). A second
press on the button increases the intensity (2 = medium inten-
sity). A third press on the button increases the intensity again (3 =
high intensity). After button is pressed a fourth time, the air massage
is switched off.
• The heat function can be activated at any time with the Shiatsu or
tapping massage, during which the vibration massage can also be
activated. Press the heat button to activate the function; the
LED lights up. The heat is radiated through the massage heads .
Press the button again to de-activate the heat function; the LED
goes out.
• Press the On/Off button . The pow-
down to the “Park” position. When this position is reached,
the LED extinguishes. If you press the On/Off button
when one of the massage functions is switched on, the vibration
motors just stop immediately. First the massage heads travel down-
then extinguishes.
• After each use, switch the device off using the On/Off switch
and remove the plug from the mains socket.
3.2
Operation
• Before cleaning the device, make sure that it is turned off and the
mains plug is removed from the socket. Allow the unit to cool down.
• Only clean the Shiatsu massage seat cover with a soft cloth slightly
dampened with a mild detergent (e.g. soap suds). Under no circum-
stances should you use aggressive detergents, strong brushes, sol-
vents or alcohol.
• When cleaning, never immerse the unit in water and make sure that
no water gets into the unit.
4.1
Cleaning
and
main-
tenance
4 Miscellaneous
12
GB
4 Miscellaneous
• Wait until the device is completely dry before using it again.
• Undo any kinks in the cable.
• You should ideally store the device in its original packaging and
keep it in a clean, dry place.
4.1
Cleaning
and
main-
tenance
Name and model
Voltage supply
Power consumption
Automatic switch off
Operating conditions
Storage conditions
Dimensions
Weight
Article No.
EAN Code
:
:
:
:
:
:
:
:
:
:
MEDISANA Shiatsu Massage Seat Cover MC 826
220-240V~ 50/60Hz
approx. 72 W
after approx. 15 minutes
only use in dry rooms
in a cool, dry place
Storage temperature 0 °C - max. 40 °C
approx. 80.5 x 48 x 22.5 cm
approx. 8.4 kg
88926
40 15588 88926 4
In accordance with our policy of continual product improvement,
we reserve the right to make technical and optical changes
without notice.
4.3
Technical
-
tions
4.2
Disposal
This product must not be disposed of together with domestic waste.
All users are obliged to hand in all electrical or electronic devices, re-
gardless of whether or not they contain toxic substances, at a municipal
or commercial collection point so that they can be disposed of in an
environmentally acceptable manner.
Consult your municipal authority or your dealer for information about
disposal.
13
5 Warranty
GB
Warranty
and
repair
terms
Please contact your supplier or the service centre in case of a claim
under the warranty. If you have to return the unit, please enclose a
copy of your receipt and state what the defect is.
The following warranty terms apply:
1. The warranty period for MEDISANA products is two years from date
of purchase. In case of a warranty claim, the date of purchase has to
be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be corrected free of charge
within the warranty period.
3. Repairs under warranty do not extend the warranty period either
for the unit or for the replacement parts.
4. The following is excluded under the warranty:
a. All damage which has arisen due to improper treatment, e.g.
non-observance of the user instructions.
b. All damage which is due to repairs or tampering by the customer or
unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to
the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.
5. Liability for direct or indirect consequential losses caused by the unit
are excluded even if the damage to the unit is accepted as a warranty
claim.
14
TR
-
15
TR
16
TR
Shiatsu Masaj Minderi MC 826
17
TR
18
•
2.1
MC 826
826
2.2
TR
Shiatsu Masaj Minderi MC
19
MC 826
2.3
-
3.1
3.2
TR
Shiatsu Masaj Minderi MC 826
Shiatsu Masaj Minderi MC 826
20
3.2
TR
21
•
3.2
4.1
TR
22
88926
4.3
-
TR
4.2
Shiatsu Masaj Minderi MC 826
23
TR
2.
3.
4.
a.
c.
d.
5.
6.
İthalatçı Firma:
KALE ELEKTRONİK VE DIŞ TİCARET A.Ş.
Bakir Ve Pirincciler San. Sit. Menekşe Cad. No:2
Beylikdüzü/İstanbul/TURKEY
34520
Tel: 0850 532 5666
www.medisanaturkiye.com.tr
Shiatsu Massage Seat Cover
Art. No.: 88926
Model No.: MC 826
Made in P.R.C
ürünleri için satış tarihinden geçerli olmak üzere iki
İthalatçı Firma:
KALE ELEKTRONİK VE DIŞ TİCARET A.Ş.
Bakir Ve Pirincciler San. Sit. Menekşe Cad. No:2
Beylikdüzü/İstanbul/TURKEY
34520
Tel: 0850 532 5666
Medisana
Shiatsu Massage Seat Cover
Art. No.: 88926
Model No.: MC 826
Made in P.R.C
Üretici Firma:
Zhangzhou Easepal Industrial Co., Ltd
No.228 JiaoSong Road, Taiwanese Investment Zone,
Zhangzhou City, Fujian Province, P.R. China
88926_MC 826_manual_GB-TR_202305_L8
