Introduction
BG-USX-WP150HC is a professional-grade 2×1 HDBaseT extension system
designed to transmit high-bandwidth HDMI and USB-C video signals over long
distances using a single CAT6/6A cable. The wall-plate transmitter supports dual
inputs—1× HDMI and 1× USB-C—with resolutions up to 4K2K@60Hz (4:4:4) and full
18Gbps bandwidth, ensuring compatibility with modern high-resolution video
sources, including HDR formats such as HDR10, HDR10+, Dolby Vision, and HLG.
The system is compliant with HDMI 2.0b and HDCP 2.2 standards, providing secure
and reliable signal transmission for commercial and residential AV environments.
The extender supports transmission distances of up to 120m (394ft) for 4K60
signals and up to 150m (492ft) for 1080p over HDBaseT, making it suitable for
large-scale installations such as classrooms, conference rooms, and control
centers. It features bi-directional PoC (Power over Cable), allowing either the
transmitter or receiver to power the entire system, as well as bi-directional IR and
RS-232 pass-through for flexible remote control integration. Additional functionality
includes auto and manual input switching, CEC control support, and analog audio
de-embedding at the receiver, ensuring seamless integration into complex AV
distribution systems.
Features
● HDMI 2.0b & HDCP 2.2 Compliance: Ensures secure, high-quality transmission of
modern protected HDMI content with full compatibility for professional AV systems.
● 4K60 4:4:4 Video Support: Delivers ultra-high-definition video up to 4K2K@60Hz
with full 4:4:4 chroma sampling for maximum image clarity and color accuracy.
● Dual Input Wall Plate Transmitter: Provides 1× HDMI and 1× USB-C inputs in a
1-gang wall plate design for flexible source connectivity.
● 18Gbps High Bandwidth Processing: Supports full HDMI 2.0 bandwidth for
uncompressed video performance and high-fidelity signal transmission.
● Long-Distance HDBaseT Transmission: Extends signals up to 120m for 4K or
150m for 1080p over a single CAT6/6A cable.
● Auto & Manual Input Switching: Enables seamless switching between HDMI and
USB-C sources via button control or automatic signal detection.
● Bi-directional PoC Support: Allows power to be supplied from either transmitter or
receiver, reducing installation complexity and cabling requirements.
● Bi-directional IR Pass-through: Supports remote control of source and display
devices using IR signal extension in both directions.
● RS-232 Control Extension: Enables full serial command pass-through for
integration with third-party control systems.
● CEC Control Support: Allows connected HDMI devices to communicate and be
controlled through HDMI CEC commands.
● HDR Format Support: Compatible with HDR10, HDR10+, Dolby Vision, and HLG
for enhanced dynamic range and color performance.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
● Audio De-embedding Output: Provides analog audio extraction via 3.5mm output
on the receiver for integration with external audio systems.
● Wide Audio Format Compatibility: Supports LPCM up to 7.1 channels and
advanced formats including Dolby TrueHD and DTS-HD Master Audio.
● Low Power & Efficient Design: Optimized power consumption with compact
hardware suitable for continuous professional operation.
Packing List
● 1× 4K60 2x1 HDBaseT Extender (Transmitter,
Wall Plate Unit)
● 1× 18Gbps HDBaseT Extender (Receiver Unit)
(included in full kit version)
● 1× 24V/1A Multinational Power Supply
● 1× IR Blaster Cable (1.5m) (Receiver kit only)
● 1× IR Wideband Receiver Cable (1.5m)
(Receiver kit only)
● 1× 2-pin 3.5mm Phoenix Connector (Male)
● 2× 3-pin 3.5mm Phoenix Connector (Male)
● 1× 3-pin 3.81mm Phoenix Connector (Male)
(Receiver kit only)
● 2× Mounting Ears (Receiver kit only)
● 4× Machine Screws (KM3×4) (Receiver kit only)
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
Specifications
TECHNICAL SPECIFICATIONS
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
Video Bandwidth
18Gbps
Maximum Video Resolution
Up to 4K2K@60Hz (4:4:4), supports 1080p and PC resolutions
up to 1920×1200
Color Depth
8-bit / 10-bit / 12-bit
Color Space
RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR Support
HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio Formats
LPCM 2.0–7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD,
DTS-ES, DTS-HD HRA, DTS-HD Master Audio, DTS-X
Analog Audio Output
LPCM 2.0CH (via receiver 3.5mm output)
IR Frequency Range
20–60kHz (wideband)
IR Level
5Vp-p
Transmission Distance
Up to 120m (4K@60Hz), up to 150m (1080p) over CAT6/6A
ESD Protection
IEC 61000-4-2: ±8kV air discharge, ±4kV contact discharge
INTERFACES (TRANSMITTER)
HDMI Input
1× HDMI Type-A (Female), up to 4K60
USB-C Input
1× USB-C (video input support up to 4K60)
HDBaseT Output
1× RJ45 port
RS-232
1× 3-pin Phoenix connector
IR Input
1× 3-pin Phoenix connector
IR Output
1× 2-pin Phoenix connector
DC Power Input
24V/1A
PoC Switch
ON/OFF selectable bi-directional PoC
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
INTERFACES (RECEIVER)
HDBaseT Input
1× RJ45 port
HDMI Output
1× HDMI Type-A (Female)
Audio Output
1× 3.5mm stereo jack (analog de-embedded audio)
IR Input
1× 3.5mm stereo jack
IR Output
1× 3.5mm stereo jack
RS-232
1× 3-pin Phoenix connector
Service Port
1× Mini-USB (firmware update)
DC Power Input
24V/1A
HARDWARE SPECIFICATIONS
Housing
Metal enclosure
Transmitter Dimensions
69.8 × 39 × 114 mm
Receiver Dimensions
140 × 65 × 18 mm
Transmitter Weight
203 g
Receiver Weight
155 g
Color
Transmitter: White + Black / Receiver: Black
POWER SPECIFICATIONS
Power Supply
AC 100–240V, 50/60Hz to DC 24V/1A
Power Consumption (TX)
Max 4.5W
Power Consumption (RX)
Max 4.7W
PoC Support
Bi-directional Power over Cable
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operating Humidity
20%–80% RH non-condensing
Storage Humidity
10%–90% RH non-condensing
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
Operation Controls and Functions
Transmitter Panel (Wall Plate Unit)

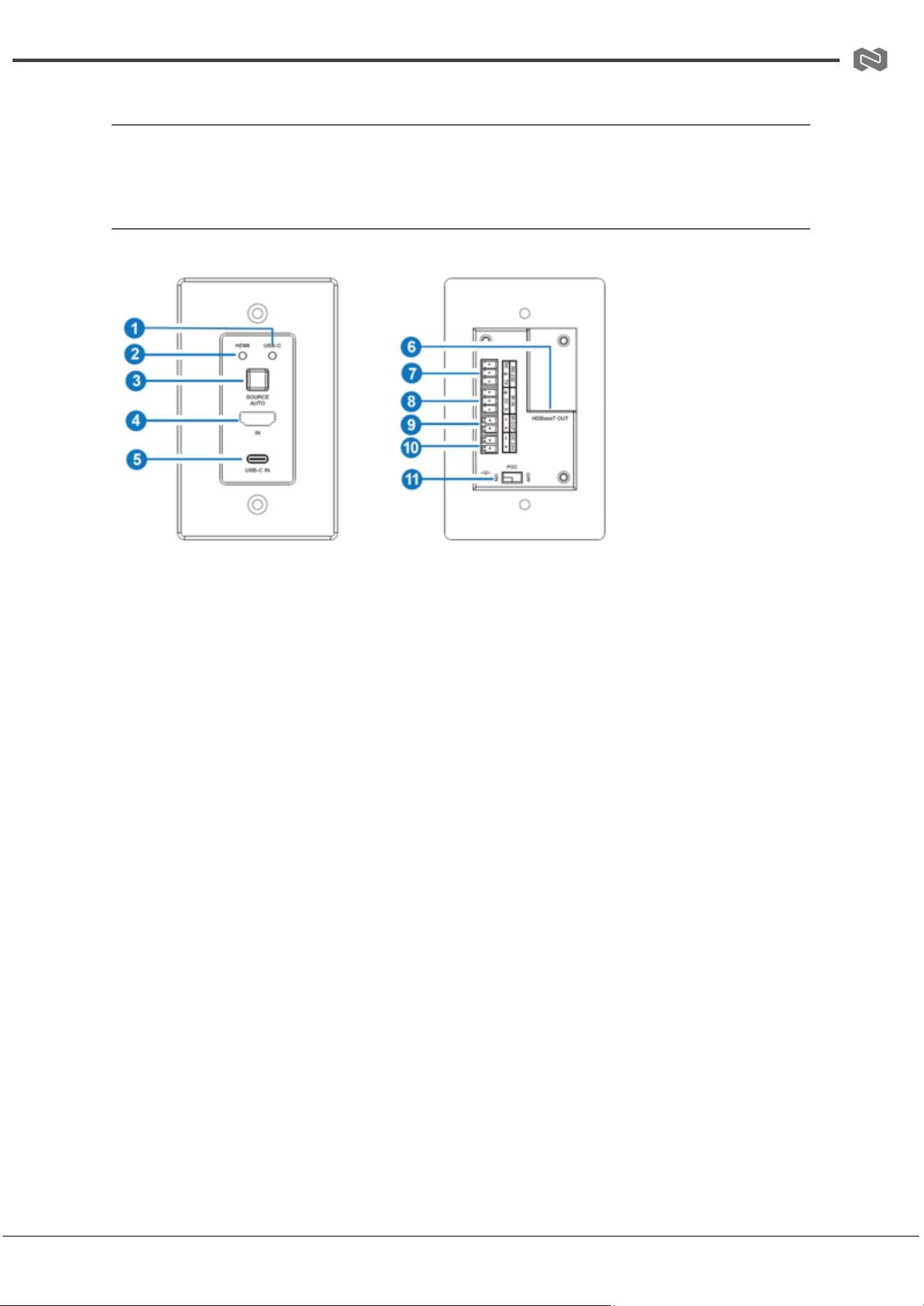

1. USB-C LED
Indicates USB-C input is currently selected as the active source (green LED ON).
2. HDMI LED
Indicates HDMI input is currently selected as the active source (green LED ON).
3. SOURCE / AUTO Button & Indicator
Used to switch between HDMI and USB-C inputs manually. Long press (3 seconds) toggles
Auto Switching mode. Blue indicator ON confirms Auto mode is active.
4. HDMI IN
HDMI Type-A input port supporting video signals up to 4K@60Hz (4:4:4).
5. USB-C IN
USB-C input port supporting video input up to 4K@60Hz (Alt Mode compatible sources).
6. HDBaseT OUT
RJ45 output port that connects to the receiver via CAT6/6A cable for AV extension.
7. RS-232 Port
3-pin Phoenix connector for RS-232 pass-through control signals between transmitter and
receiver.
8. IR IN
3-pin Phoenix connector for receiving IR control signals from an external IR receiver.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
9. IR OUT
2-pin Phoenix connector used to send IR control signals to source devices.
10. DC 24V Power Input
Connects the 24V/1A power supply. Supports PoC operation so only one side requires
power.
11. PoC ON/OFF Switch
Enables or disables Power over Cable functionality. When OFF, local power must be
supplied directly to the transmitter.
Receiver Panel

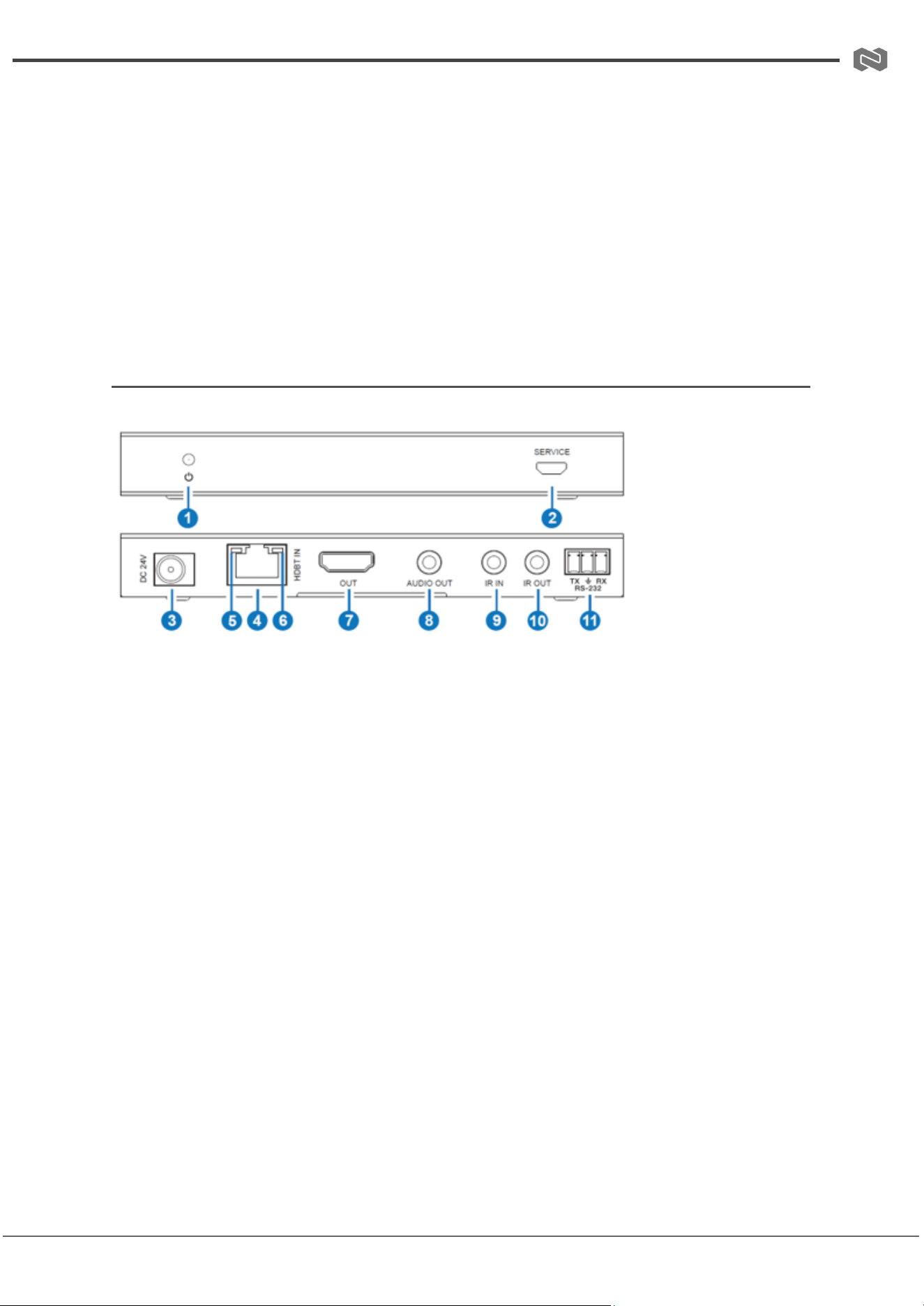

1. Power LED
Red LED indicates the receiver is powered on.
2. SERVICE Port (Mini-USB)
Used for firmware updates and service maintenance.
3. DC 24V Power Input
Connects to the 24V/1A power supply. Required if PoC is not enabled.
4. HDBaseT IN (RJ45)
Receives AV, control, and power signals from the transmitter over CAT6/6A cable.
5. Link Status LED
● Solid ON: Stable connection between transmitter and receiver
● Flashing: Weak or unstable link
● OFF: No HDBaseT connection detected
6. Video Signal LED
● Solid ON: HDMI signal with HDCP detected
● Flashing: HDMI signal without HDCP
● OFF: No HDMI signal detected
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
7. HDMI OUT
HDMI Type-A output port for connecting to display devices (supports up to 4K60).
8. AUDIO OUT
3.5mm stereo analog output for de-embedded audio from HDMI source.
9. IR IN
3.5mm jack for receiving IR signals from external IR receiver.
10. IR OUT
3.5mm jack for sending IR control signals to display devices.
11. RS-232 Port
3-pin Phoenix connector for serial control pass-through between transmitter and receiver.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
IR Pin Definition – BG-USX-WP150HC
The IR system of this extender uses 3.5mm and Phoenix connectors for IR signal
transmission and control. It supports both IR receiver (input) and IR blaster (output)
operation with wideband compatibility.
IR Receiver (IR IN) Pin Definition
Used for receiving IR signals from a remote control via an external IR receiver cable.
Pin
Signal
Tip
IR Signal
Ring
+5V DC
Sleeve
Ground (GND)
IR Blaster (IR OUT) Pin Definition
Used for transmitting IR signals to control source or display devices via an IR emitter cable.
Pin
Signal
Tip
IR Signal
Sleeve
Ground (GND)
Notes
● IR frequency range: 20–60kHz (wideband support)
● Effective IR range depends on environment and alignment:
○ Up to 5m at ±45° angle
○ Up to 8m at ±90° angle
● Ensure correct orientation of IR emitter when attaching to controlled devices for
optimal performance.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL

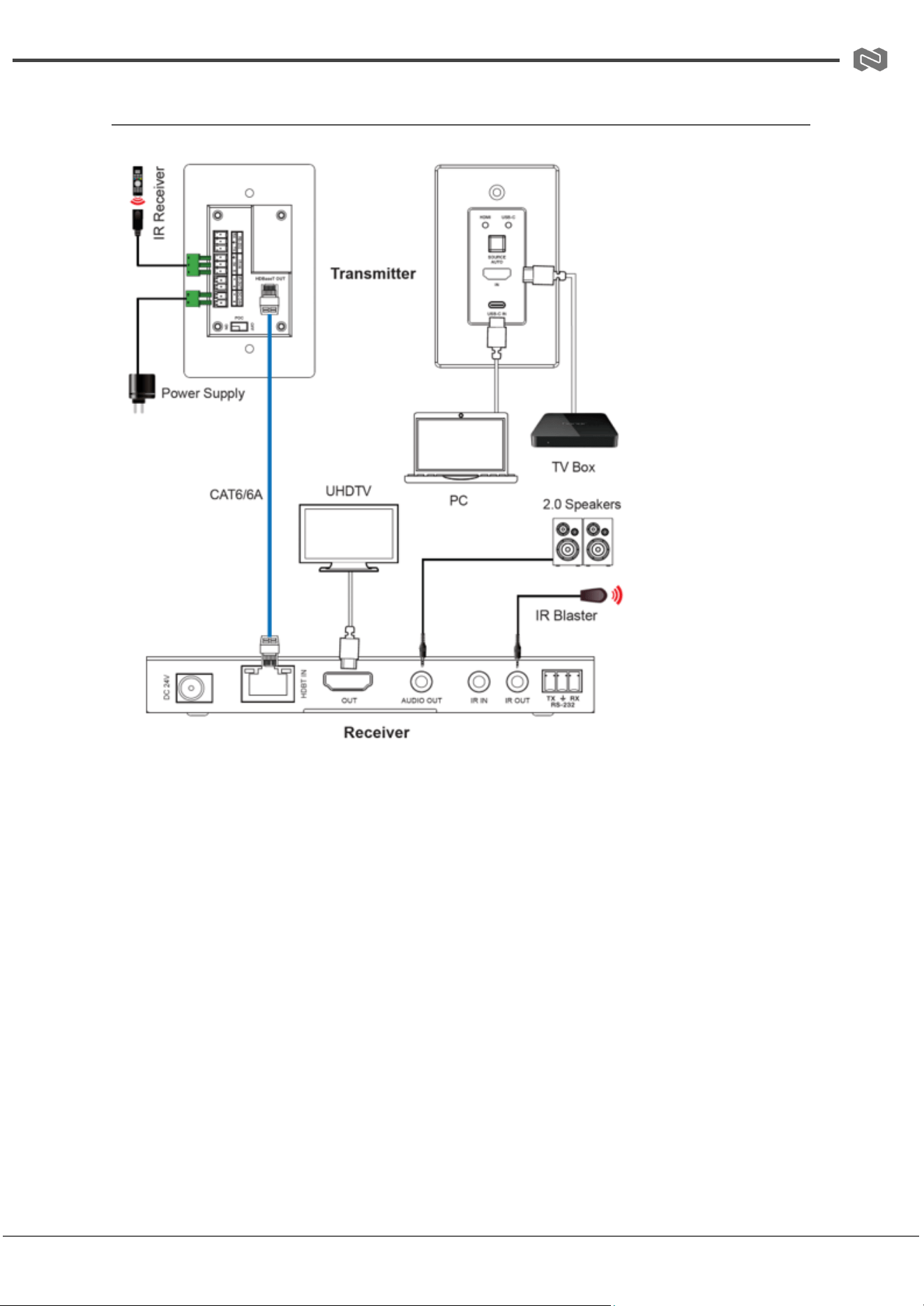

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-USX-WP150HC PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
