BG-EXH-4KFH
4K 18Gbps HDMI 2.0 Fiber Extender Kit up to 10 km
with Included SFP+ Modules
User Manual
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 9
Connection Diagram 11
Troubleshooting 12
Tech Support 13
Limited Product Warranty Terms 13
Mission Statement 14
Copyright 14
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
Introduction
The BG-EXH-4KFH is a high-performance HDMI 2.0b over fiber extender set
designed to transmit uncompressed 4K Ultra HD video signals over extreme
distances. Supporting video resolutions up to 4K@60Hz (4:4:4) with a full 18Gbps
bandwidth, this system ensures pristine image quality with full HDR pass-through,
including HDR10, HDR10+, Dolby Vision, and HLG. Built for demanding professional
AV environments, it delivers reliable long-distance signal extension up to 10km over
single-mode fiber using SFP+ modules, while also supporting multi-mode fiber
(OM4) for distances up to 300m.
Engineered for flexibility and compatibility, the BG-EXH-4KFH supports HDCP 2.2
compliance and a wide range of video formats, including VESA resolutions and
common HDTV standards. It also supports advanced multi-channel audio formats
such as Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X, ensuring
full audio fidelity alongside video performance. With compact metal housing, low
power consumption, and strong anti-interference performance, this extender is ideal
for broadcast, digital signage, control rooms, and long-distance AV distribution
applications.
Features
● HDMI 2.0b Compliance: Supports full HDMI 2.0b specification for high-bandwidth
4K video transmission up to 18Gbps.
● 4K60 4:4:4 Video Support: Transmits up to 4K@60Hz (4096×2160 / 3840×2160)
with full 4:4:4 chroma sampling for maximum image clarity.
● Long-Distance Fiber Transmission: Extends HDMI signals up to 10km over
single-mode fiber or up to 300m over OM4 multi-mode fiber using SFP+ modules.
● HDCP 2.2 Compliance: Ensures compatibility with protected 4K UHD content and
modern source devices.
● HDR Pass-Through Support: Supports HDR10, HDR10+, Dolby Vision, and HLG
for enhanced dynamic range and color performance.
● High-Quality Audio Support: Passes advanced audio formats including Dolby
TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X.
● 18Gbps Video Bandwidth: Maintains full uncompressed video bandwidth for
lossless signal transmission.
● Wide Resolution Compatibility: Supports all standard VESA and HDTV resolutions
for maximum device interoperability.
● SFP+ Fiber Interface: Utilizes 10G SFP+ LC fiber connection for stable and
scalable long-distance transmission.
● Compact Metal Housing: Durable, lightweight enclosure designed for professional
installation environments.
● Low Power Consumption: Efficient power design for reduced heat output and
reliable 24/7 operation.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
● Firmware Upgrade Support: Includes USB-C service port for firmware updates and
system maintenance.
● Strong Anti-Interference Design: Fiber transmission eliminates EMI/RFI
interference for stable signal integrity in demanding environments.
Packing List
● 1× BG-EXH-4KFH HDMI over Fiber Transmitter
● 1× BG-EXH-4KFH HDMI over Fiber Receiver
● 2× 5V/1A Power Adapters (US/EU standards)
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
Video Bandwidth
18Gbps
Supported Resolutions
Up to 4096×2160p60, 3840×2160p60, 3840×2160p50, 3840×2160p30,
1920×1080p60, and other VESA resolutions
Color Space
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth
8-bit, 10-bit, 12-bit
HDR Support
HDR10, HDR10+, Dolby Vision, HLG
Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD
Master Audio, DTS:X
Fiber Interface
10G SFP+ module (LC connector)
Transmission Distance
Up to 10km (single-mode fiber), up to 300m (OM4 multi-mode fiber)
ESD Protection
IEC 61000-4-2: ±8kV (air), ±4kV (contact)
Connection
Transmitter Input
1× HDMI Type A (19-pin female)
Transmitter Output
1× SFP+ OUT (LC fiber)
Transmitter Service
1× USB-C (firmware update port)
Receiver Input
1× SFP+ IN (LC fiber)
Receiver Output
1× HDMI Type A (19-pin female)
Receiver Service
1× USB-C (firmware update port)
Mechanical
Housing
Metal enclosure
Color
Black
Dimensions (WxDxH)
3.2in × 1.9in × 0.98in [81mm × 49mm × 25mm]
Weight
Transmitter: 0.30lb [138g] / Receiver: 0.30lb [138g]
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
Power Supply
DC 5V/1A (AC 100–240V, 50/60Hz)
Power Consumption
TX: 3.05W (Max) / RX: 2.25W (Max)
Operating Temperature
32°F to 104°F / 0°C to 40°C
Storage Temperature
-4°F to 140°F / -20°C to 60°C
Operating Humidity
20%–80% RH (non-condensing)
Storage Humidity
10%–90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
Operation Controls and Functions
Front and Rear Panel

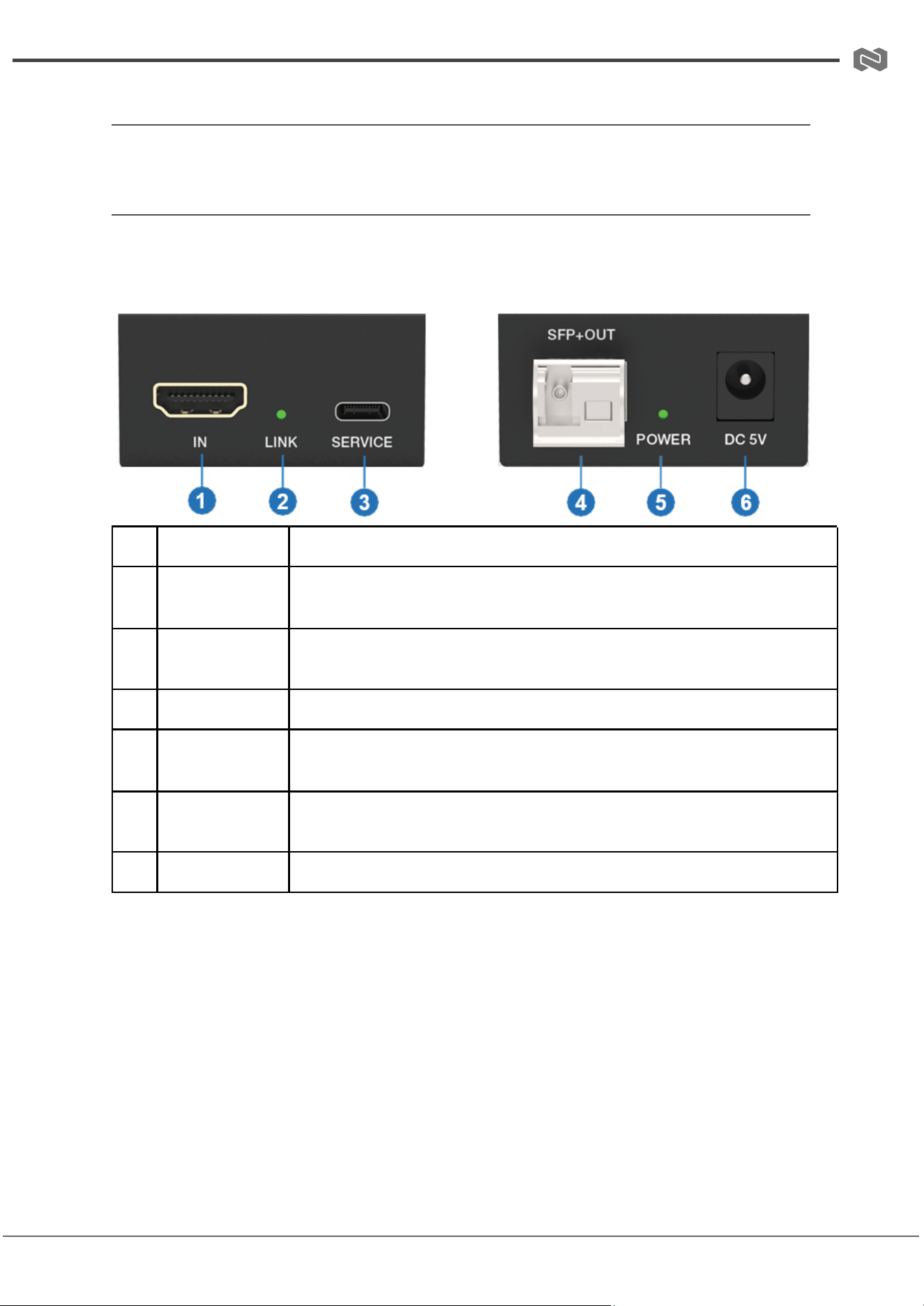

Transmitter Panel
No.
Name
Function Description
1
IN
HDMI input port. Connects to an HDMI source device such as a
Blu-ray player, media player, or PC.
2
LINK Indicator
Green LED indicator. Lights solid when a stable fiber link is
established between transmitter and receiver.
3
SERVICE Port
USB-C port used for firmware updates and service maintenance.
4
SFP+ OUT
LC fiber output port. Connects to the receiver’s SFP+ IN port via
single-mode or multi-mode fiber cable.
5
POWER
Indicator
Green LED indicator. Illuminates when the transmitter is powered on.
6
DC 5V
5V DC power input port (5V/1A power adapter required).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL

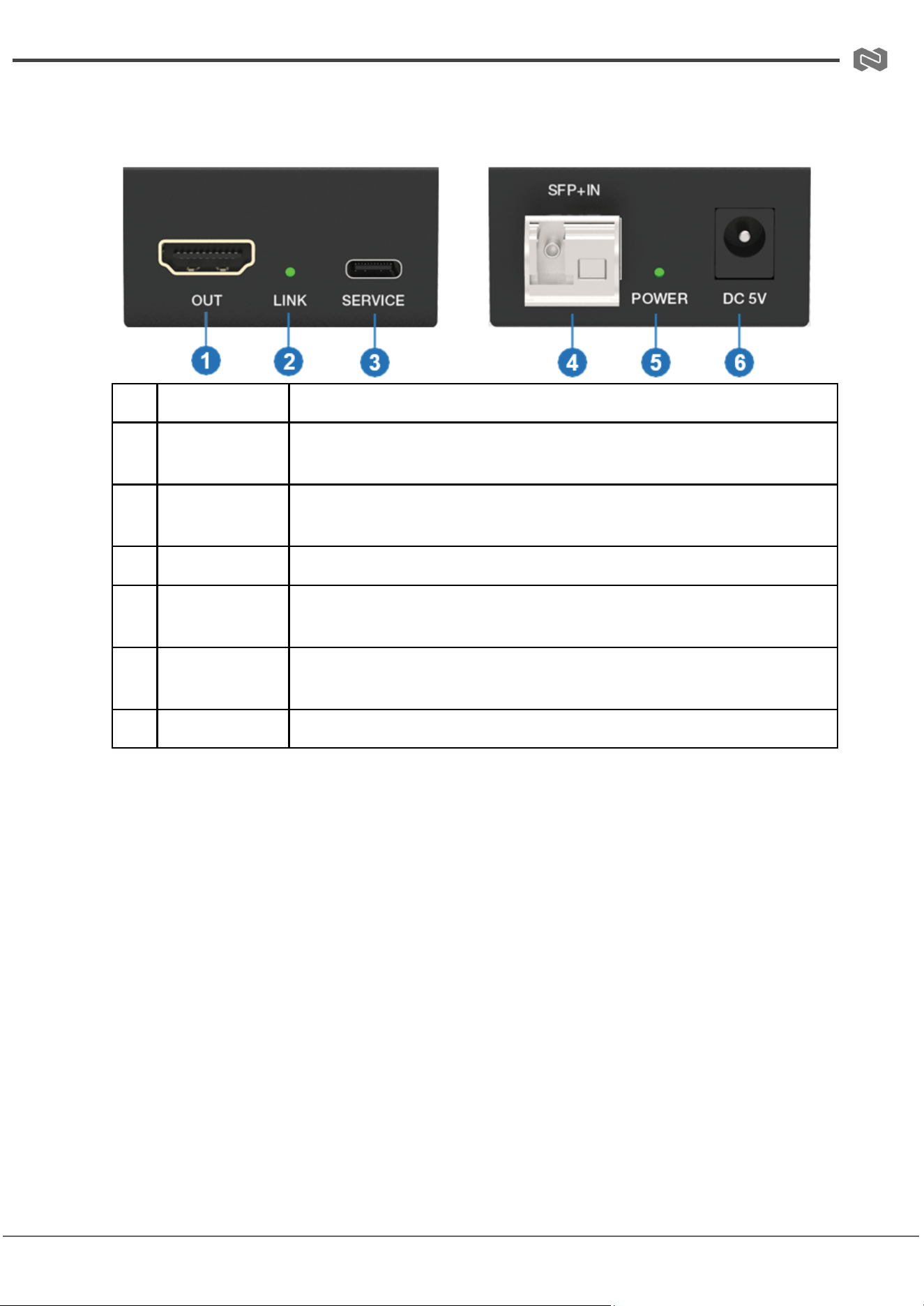

Receiver Panel
No.
Name
Function Description
1
OUT
HDMI output port. Connects to a display device such as a TV,
monitor, or projector.
2
LINK Indicator
Green LED indicator. Lights solid when a stable fiber link is
established between transmitter and receiver.
3
SERVICE Port
USB-C port used for firmware updates and service maintenance.
4
SFP+ IN
LC fiber input port. Connects to the transmitter’s SFP+ OUT port via
fiber cable.
5
POWER
Indicator
Green LED indicator. Illuminates when the receiver is powered on.
6
DC 5V
5V DC power input port (5V/1A power adapter required).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL

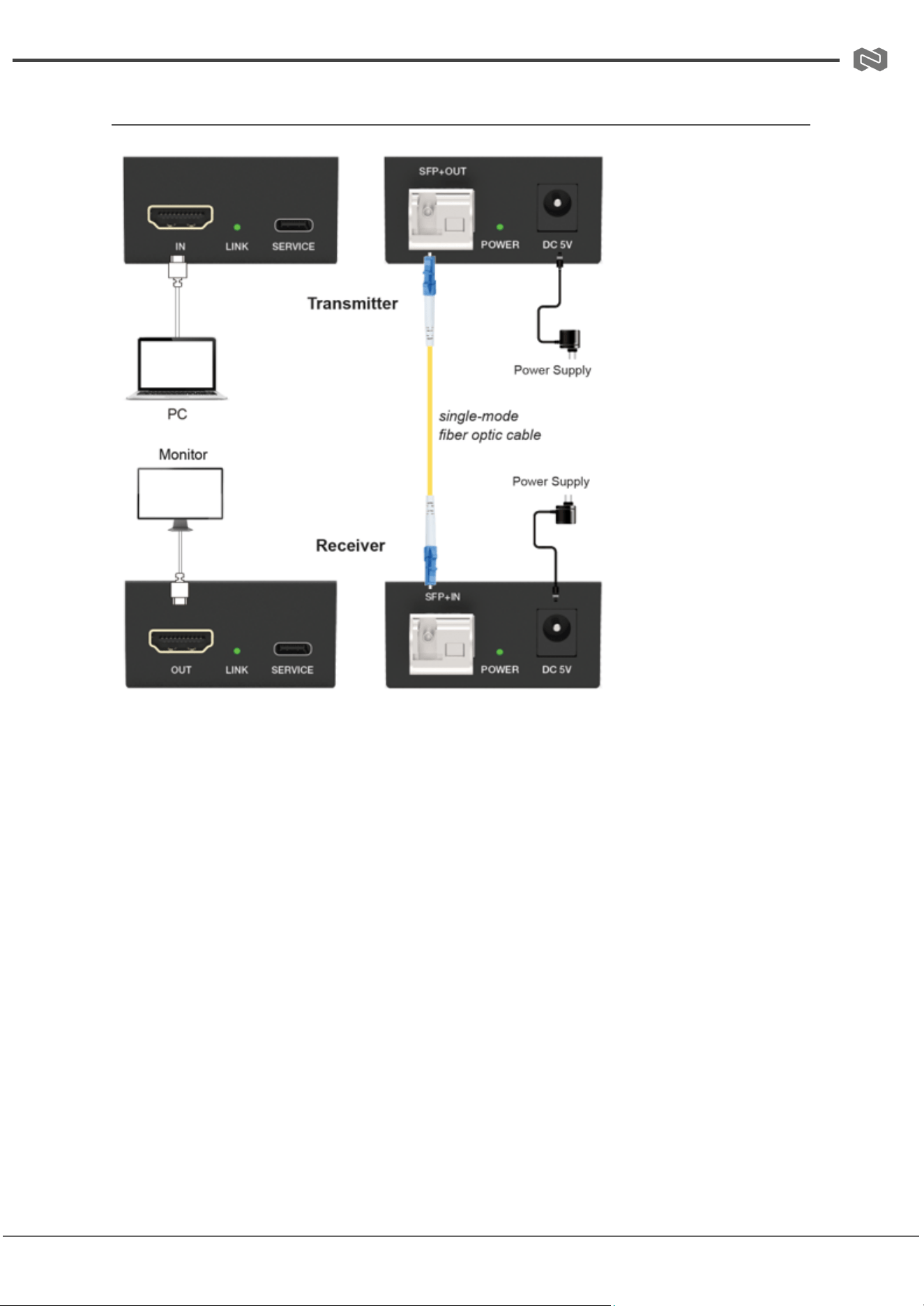

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-EXH-4KFH PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
