CXW-260-52H1S
CXW-260-52H1SW
Range Hood
User Manual
Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can
send e-mail to [email protected], request for an electronic manual.
Safety Precaution..................................................................................................................1
Important Information............................................................................................................6
Product ...............................................................................................................6Description
Packing List...........................................................................................................................7
Installation...............................................................................................................................8
User Manual..........................................................................................................................18
Maintenance.........................................................................................................................20
Removal of Components.......................................................................................................20
Circuit Diagram......................................................................................................................23
Troubleshooting of General faults..........................................................................................23
CONTENTS
Safety Precaution
Subject to harmful or destruct degree
In order to avoid harm or property damage to the users or other person, the following distinction and marks are stipulated.
They are important safety precaution, please comply strictly based on the full understanding.
Danger
If ignore this sign and operate product improperly, it’s highly possible to cause danger, serious
injury or fire.
If ignore this sign and operate product improperly, it’s possible to cause danger, serious injury
or fire.
If ignore this sign and operate product improperly, it’s possible to cause injury or loss.
Please use this product according to manual strictly, or ROBAM shall not take any responsible
caused by improper operation.
Notice and Prohibit Mark
Warning
Notice
Warning
Dear users:
Thank for your buying our range hood. Please accept our best regards.Please read this user manual carefully before
installation and operation.*The pictures in this manual only for your reference. If the picture isn’t accord with object, subject
to object. We keep to right to update appearance, structure or products without notice.
Don't allow children or weakling to use range hood separately, or it may
cause electric shock or other accident.
Prohibit water on motor, switches or other electric parts; Prohibit wash
range hood by water spray. Don’t use range hood if wet or it may cause
electric leakage or shock.
Don’t touch plug, electric parts or button by wet hands, or it may cause
electric shock.
Don’t change, stretch, bind or press electric wire, or it’s possible to cause
electric shock or fire because of broken wire.
Prohibit any change of interior circuit, or it may cause injury or other
danger, for example, electric shock or fire.
Prohibit Touch
by Wet Hand
Prohibit
Prohibit
Prohibit
Prohibit
Danger
Prohibit Prohibit
Flame
Prohibit
Touch
Prohibit
Disassembly
Strict
Execution
Neccessary
Earthed
Caution
Electric Shock
Caution Scald
Prohibit Touch
by Wet Hand
Unplug before cleaning,installing or maintaining,avoiding from electric
shock.
Strict
Execution
READ AND SAVE THESE INSTRUCTIONS
1
Range Hood
Please turn off range hood immediately if pan got fire (range hood
shall aggravate fire if it’s working) and extinguish fire by effective action.
For example, cover flame by metal cover, turn off gas valve immediately
and remove inflammable things.
Any abnormal, please turn off power, take off plug or cut off electric
source, and contact service. It’s possible to cause electric shock or fire if
using range hood under abnormal situation.
Strict
Execution
Strict
Execution
Danger
Range hood must be installed, disassembled or maintained by professional
person.
Stove fire shall be extinguished timely when it is not used; do not
flambe under the range hood and it's prohibited to bake food under
range hood directly to prevent range hood from damaging and causing
accidents.
Prohibit
In order to ensure safety, range hood must be installed by specific
accessory (especially expansion pipe and wooden screws, or it may
cause accidental drop of range hood). The pipe bore and hole must fit
tightly during the installation of metal expansion pipe. It is prohibited to
make excessively large hole to prevent accidental drop of loosening
expansion pipe.
The range hood must be used by specific plug and properly ground it. It’s
possible to cause electric shock, hot plug or fire because of improper
electric wire. Installation must be executed by professional person based
on local electrical regulations. Before connect electricity, power must be
turned off.
Strict
Execution
Strict
Execution
Strict
Execution
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
Warning
Don’t touch lamp when it’s on or just turned off in a short time, or it may
cause scald.
Prohibit
Touch
Prohibit
Disassembly
Strict
Execution
All operation must comply with our safety guidelines as well as local
safety regulations.
2
Range Hood
Strict
Execution
Strict
Execution
There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
For Residential Use Only.And it’s not allowed to exhaust dangerous or
explosive matter or air. It should be put under dry and ventilation
environment without dangerous air.
Strict
Execution
Strict
Execution
The range hood and electric circuit must be installed by skilled and trained
personnel with required qualification. When installation, the related
regulation, standard or instruction on fire must be complied. It may cause
danger because of improper installation, for example, electric shock, drop or
fire accident.
The outlet must be connect with outside. In order to ensure safety and fresh
air, waste gas should be exhaust to outside. Don’t exhaust waste gas to the
wall, loft or garage.
Warning
Strict
Execution
Strict
Execution
Strict
Execution
There is a fire risk if cleaning is not carried out in accordance with the
instructions.
Keep a good habit to turn off gas hob and gas valve if go outside, sleep or
finish operation. Replace or check gas pipe regularly, since gas alarm
device can’t completely avoid accident caused by gas leakage.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF
A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal
tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the
flames do not go out immediately,EVACUATE AND CALL THE FIRE
DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a violent
steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you already know
how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
3
Range Hood
Strict
Execution
Warning
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause
smoking and greasy spillovers that may ignite. Heat oils slowly on low or
medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing
food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe').
c) Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of
the surface element.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified person(s)
in accordance with all applicable codes and standards, including fire-rated
construction.
b) When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
c) Ducted fans must always be vented to the outdoors.
Strict
Execution
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
TO PROVIDE PROTECTION AGAINST ELECTRIC SHOCK, CONNECT
TO PROPERLY GROUNDED OUTLETS ONLY.
GROUNDING INSTRUCTIONS:This appliance must be grounded. In the
event of an electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current. This appliance
is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and
grounded.
Strict
Execution
Strict
Execution
Strict
Execution
Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not
completely understood, or if doubt exists as to whether the appliance is
properly grounded.
Strict
Execution
Strict
Execution
4
Range Hood
Notice
Prohibit
The air must not be discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels, the discharge of air must fulfill
the requirements of local regulations.
Before removing range hood for installation, clean or maintainance, power
must be cut off avoiding from electric shock. When installation, clean or
maintainance, protective gloove must be wear avoiding from injury.
Strict
Execution
Strict
Execution
The temperature for range hood working can’t exceed 40℃.
Strict
Execution
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their
safety.Children should be supervised to ensure that they do not play with the
appliance.
Do not use an extension cord. If the power supply cord is too short, have
a qualified electrician install an outlet near the appliance.
Strict
Execution
Warning
Strict
Execution
Strict
Execution
Don't break electric wire or other invisible equipment when cutting
something or drilling holes on ceiling.
When the oil exceeds 2/3 or near tick mark in the oil cup, clean it in
time. Don't eat waste oil from oil cup.
When range hood is using in well sealed building, it should have air inlet
or open door to ensure good ventilation.
The wall of installing range hood needs enough strength. For hollow walls,
the thickness of solid layer of hollow wall must be more than 30mm, but for
concrete walls, it can be drill holes directly. The range hood must be fixed on
the wall firmly.
Strict
Execution
Strict
Execution
Because the installation is difficult and hood is heavy, the installation
shall be executed by professional person based on manul.
Strict
Execution
5
Range Hood
重要信息
Important Information
Package of Range Hood
Before use Range Hood
Notice
Please settle those packages carefully in order to protect environment.
Don’t allow children to play plastic film and package, it may cause asphyxia. Please avoid children near package material.
Please read this manual and all information carefully before installation and operation. Please comply with our
suggestion. If it’s necessary, please read manual for gas hob. And please keep these manual carefully for future
reference.
If range hood has obvious damage, please don’t electrify and contact operator.
DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
This product must not be disposed together with the domestic waste. This
product has to be disposed at an authorized place for recycling of electrical
and electronic appliances.
By collecting and recycling waste, you help save natural resources, and
make sure the product is disposed in an environmental friendly and healthy
way.
Accessible parts may become hot when used with cooking appliances.
Strict
Execution
Product Description
Technical Data
Dimension (L×W×H)
Rated Main Motor Power Input
Rated Power Input
Net Weight
Model
Power Supply
6
52.9lbs kg(24 )
262W
260W
120V~ 60Hz
CXW-260-52H1S
CXW-260-52H1SW
7 13 3
(29- /8×17- /16×17- /4)”
(759×452×450)mm
Range Hood
The size marked is for reference only.

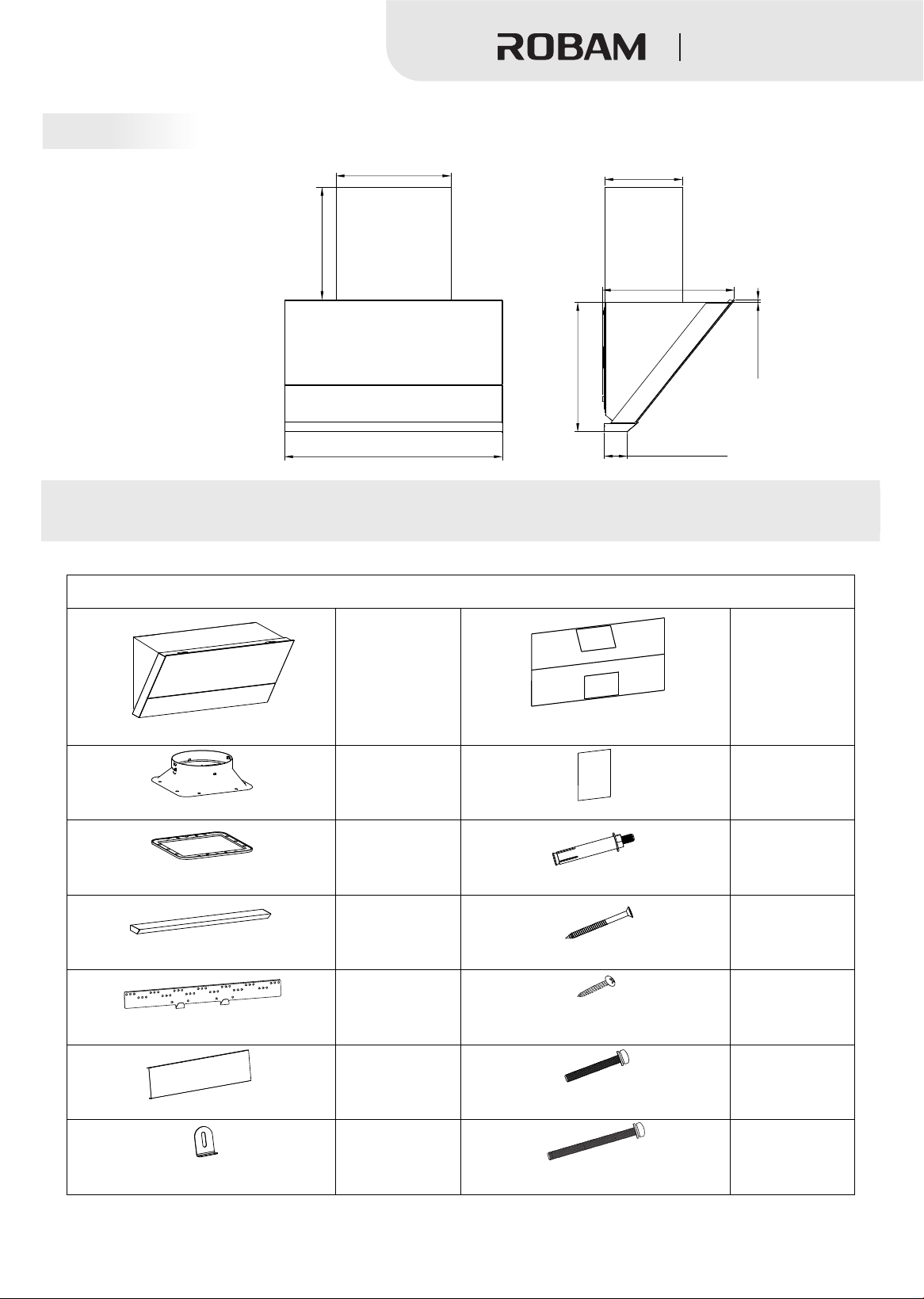

Size
Packing List
Please check the items in the container upon unpacking
Standard Offerings
Range Hood
Check Valve
Gasket
1
1
1
1
1
1
5
4
4
1
1
12
User Manual
Hitching Bracket
1
#8×7- /16”(ST4.2×18mm)
Self Tapping Screw
Oil Cup
5
#8×23- /8”(4×60mm) Wood Screw
7
29- /8”(759mm)
3
18- /16”(462mm)
3
/8”(10mm)
1
3- /8”(80mm)
3
17- /4”(450mm)
3
15- /4”(400mm)
11”(280mm)
Installation Sizing Paper Template
3
#10×15- /4”(M5×40mm)
Cross Recessed Pan Head Screw
3
#10×39- /8”(M5×100mm)
Cross Recess Pan Head Screw ed
7
2.5”Decoration Panel
Hitching Bracket Block
1
M6 Metal Expansion Tube
1
3
Min 19- /8”(490mm)
3
Max 37- /4”(960mm)
Range Hood

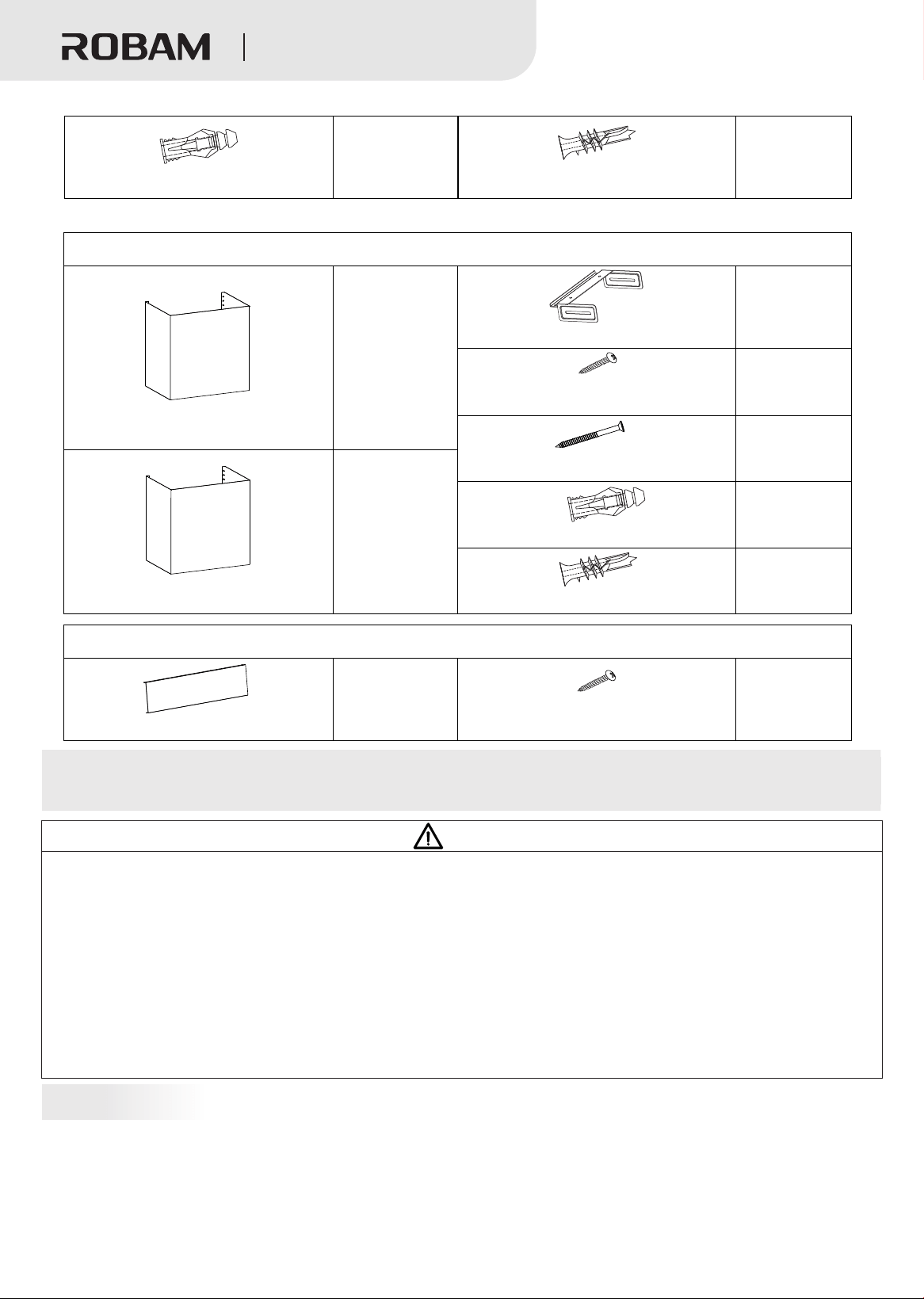

Mainframe panel accessories (optional)
Installation
●Surrounding
Keep the hood away from too many doors and windows, so as to avoid air convection affecting the efficiency.
●Tools preparation
The hood will be installed with the following tools
Preparation for installation
Warning
1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels,
the discharge of air must fulfill the requirements of local regulations.
2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is
prohibited, as it will result in loose pipe and accidental drops.
3.There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas
or other fuels.
4.If the flue aperture is less than air duct aperture, it will influence the fume suction effect and the too long air duct will
influence the fume suction effect, too.
5.This appliance just for household use only.And it’s not allowed to exhaust dangerous or explosive matter or air. It should
be put under dry and ventilation environment without dangerous air.
8
1
1
8
5
1
4
4
4
Main Engine Attached Panel Hanging Foot
2
Mainframe Panel
Attached Panel Of The Mainframe
Decoration panel accessories (optional)
1
#8×7- /16”(ST4.2×18mm)
Self Tapping Screw
6”or12”Decoration Panel
1
#8×7- /16”(ST4.2×18mm)
Self Tapping Screw
Note: Please mount the oil cup in the container on the machine enclosure when to use the machine.
Plastic Expansion Tube (Tile)
Plastic Expansion Tube (Plasterboard)
5
4
5
#8×23- /8”(4×60mm)
Wood Screw
Plastic Expansion Tube (Tile)
Plastic Expansion Tube (Plasterboard)
Range Hood
1
2
3
4
5
6
7
8
9
10
11
1
2
1
3
14
1
5
1
6
1
7
18
1
9
2
0

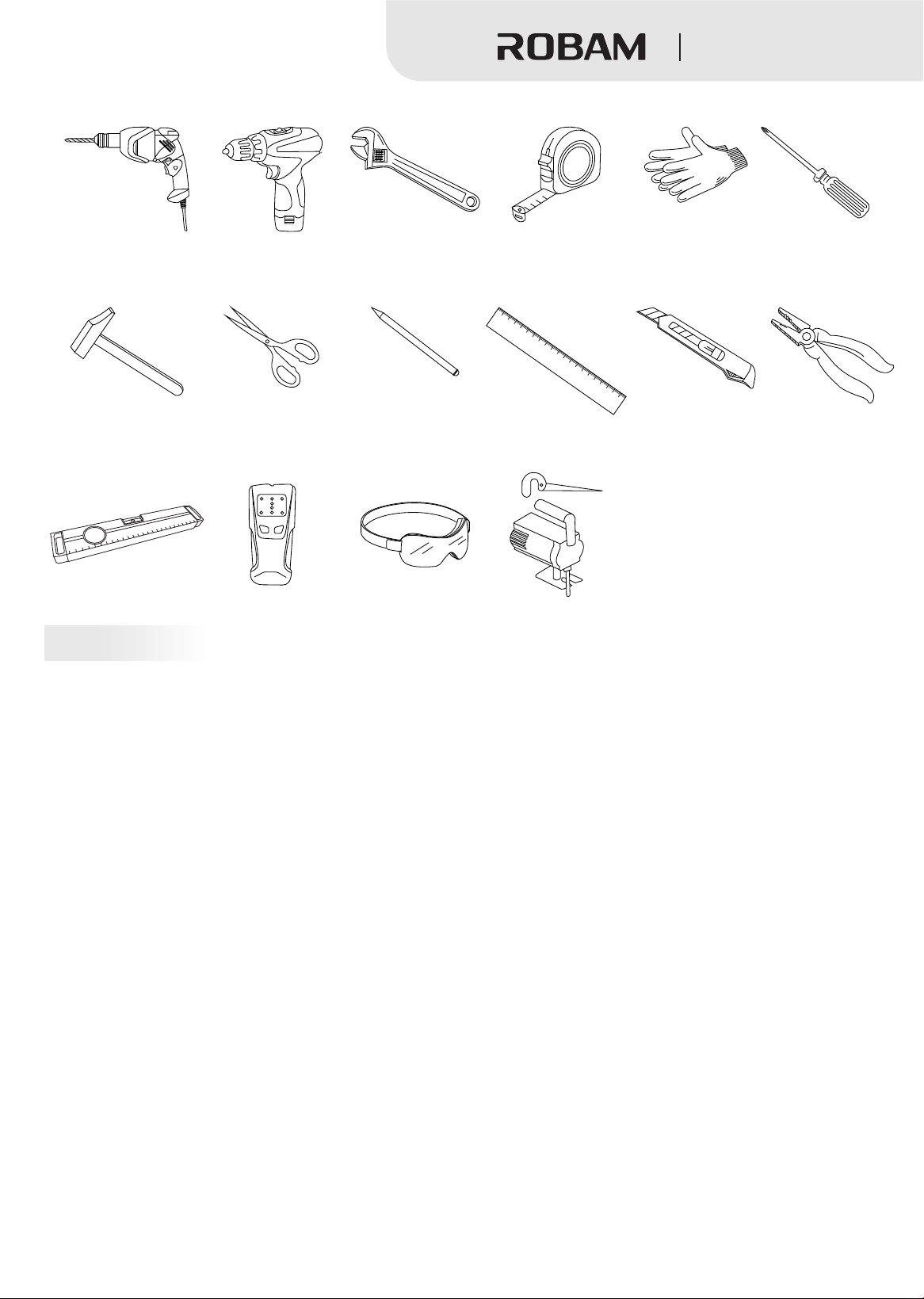

Electric saw
Notice
● Installation and circuit setting must be done by experienced professionals. Only a professionally trained person with an
installation qualification can install the hood. Non-professionals are not allowed to install, dismantle and repair the hood.
●Please do not power on the hood before installation to avoid electric shock.
● Do not expose the hood if your kitchen is under renovation, because construction materials, dusts, paint, coatings, and
emitted gases will corrode and tarnish the hood surface. Therefore, it is recommended to install it after the renovation is
completed.
●If you need move the Gas Hob before installing the Range Hood, please close the main valve before moving the Gas Hob.
●The wall shall be made of noncombustible materials with enough strength and the surface shall be flat.
●The hood may have very sharp edges. So, please wear protective gloves during hood installation, cleaning or repair.
●When drilling on the wall or ceiling board, keep away from embedded wires and other concealed devices to avoid electric
shock and fire.
●Do not install the hood at a too high position as well as keep the hood free from disturbance of ambient airflow lest the
reduction of smoke pumping effect shall occur.
●When making cabinet, please leave space for installation and disassembly of the hood in order to maintain and overhaul
the hood.
●When installing, please keep the machine body remain horizontal.
●Please use single phase grounded socket and the hood shall be well grounded (water pipe grounding is not reliable and
gas pipeline grounding has risks of causing fire disaster and explosion).
● In order to ensure safety and successful installation, please use standard accessories provided with the hood for
installation, otherwise the hood may be at risk of falling down.
● If the power cord is damaged, in order to avoid danger, it must be replaced by manufacturer, professionals of its
maintenance department or similar departments. Please do not carry out restructuring, stretching, knotting and squeezing or
apply heavy objects to the power cord, etc., otherwise it may cause power cord damage easily, leading to accidents such as
electric shock and fire disaster, etc.
●After installation, please clean the surface of the hood, and then supply power for test run.
Electric percussion
drill
Electric screwdriver Wrench Measuring tape
Gloves Cross screwdriver
Hammer
Scissors
Pencil Ruler
Art knife Cutting pliers
Level meter Beam detector
Goggles
9
Range Hood

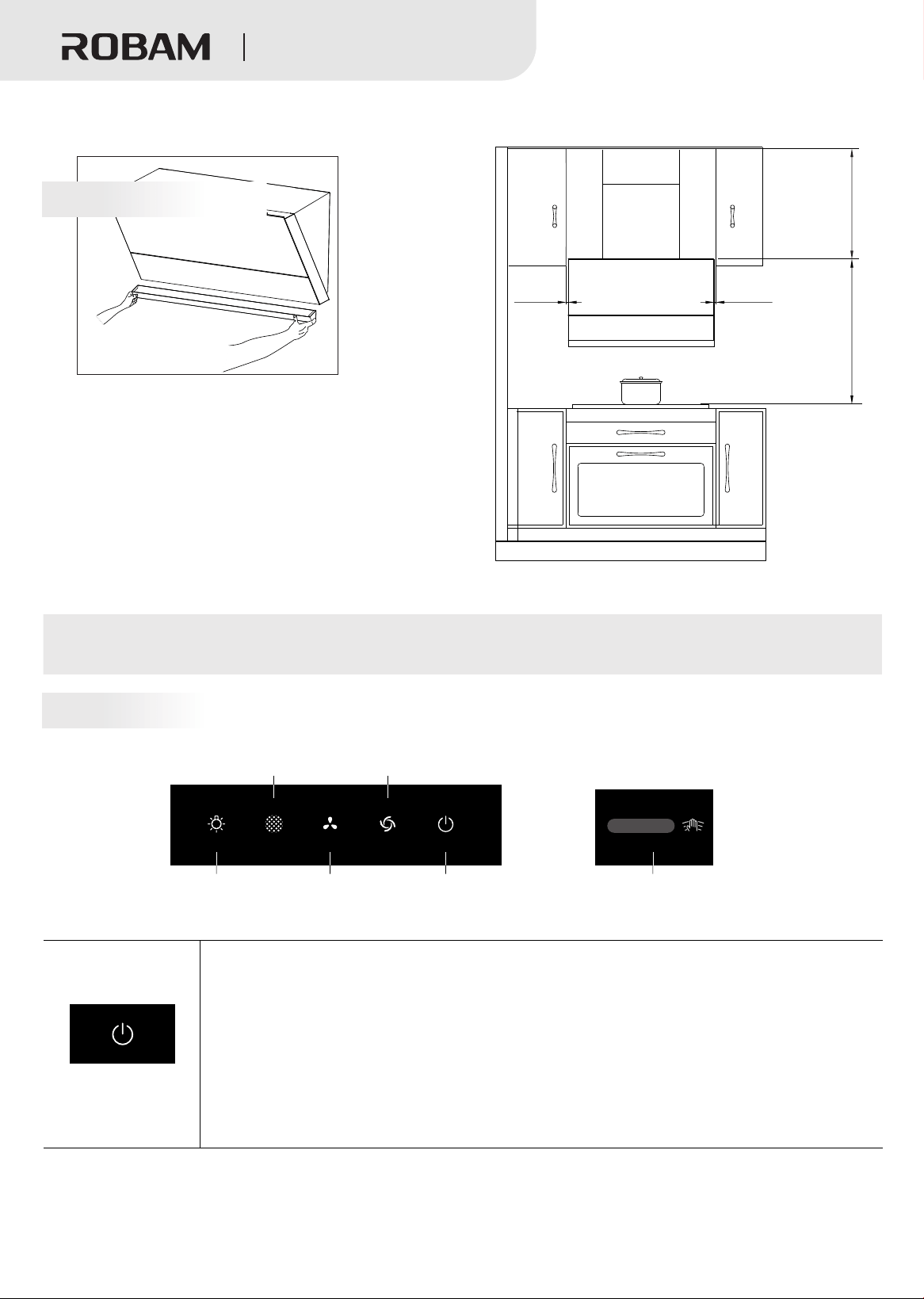

The range hood should be installed directly above the stove. In order to ensure the safety and the best effect of oil
fume suction, it is suggested that the minimum distance between the top of the range hood and the cooker supporting
9 1
surface on the stove should be 29- /16” (750mm) and the maximum should not be greater than 32- /2” (825mm). If the
state or region has laws on installation height of the range hood, please comply with the laws, but the fume suction
effect of the product may be greatly affected.The installation of the range hood can be divided into three installation
modes: no upper cabinet, with upper cabinet and upper cabinet with decoration panel.Note:
1. The hitching leg must be fixed to the beam with a screw.
2. Please operate with protective gloves and goggles.
3. The depth of the upper cabinet of the range hood from the wall shall be less than 15”(380mm).
Installation
Duct diameter
Ø6”(Ø153mm)
Hole diameter
1
Ø6- /2”(Ø165mm)
Wall
1
6- /2”(Ø165mm)
●Installation with upper cabinet
5. Fixed hanging feet
1) When the wall of the hanging machine is tile, use a drill bit of (8mm) in diameter to drill a hole of 2- (60mm)-2-
5 3
/16” /8”
3 5
/4” #8×23- /8”(4×60mm)(70mm) in depth at the mark (not too big), press bulged tube(tile) into the hole, and use the
The wood screw will be fixed reliably, and use a level to ensure the level of the hanging foot.
2) When the wall of the hanging machine is gypsum board, directly screw bulged tube (gypsum board) into the wall
with a screwdriver at the mark, then use wood screw to fix the hanging foot reliably and use a
5
#8×23- /8”(4×60mm)
level to ensure the level of the hanging foot.
Note: The hitching leg must be fixed to the beam with a screw.1.
2. The A area hole in the figure must be fixed, and the B area hole corresponding to the wooden column must be
fixed with the screw.

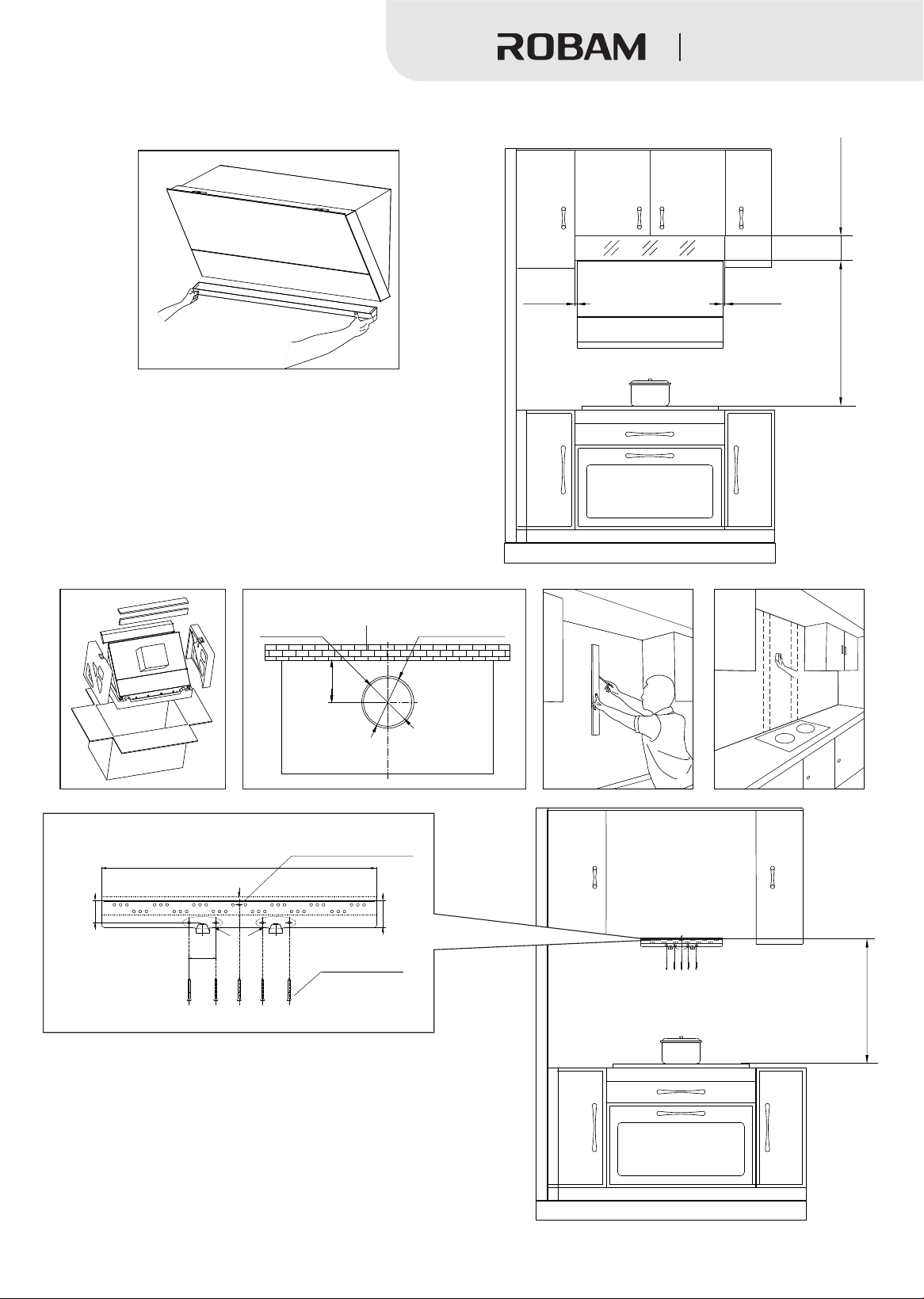

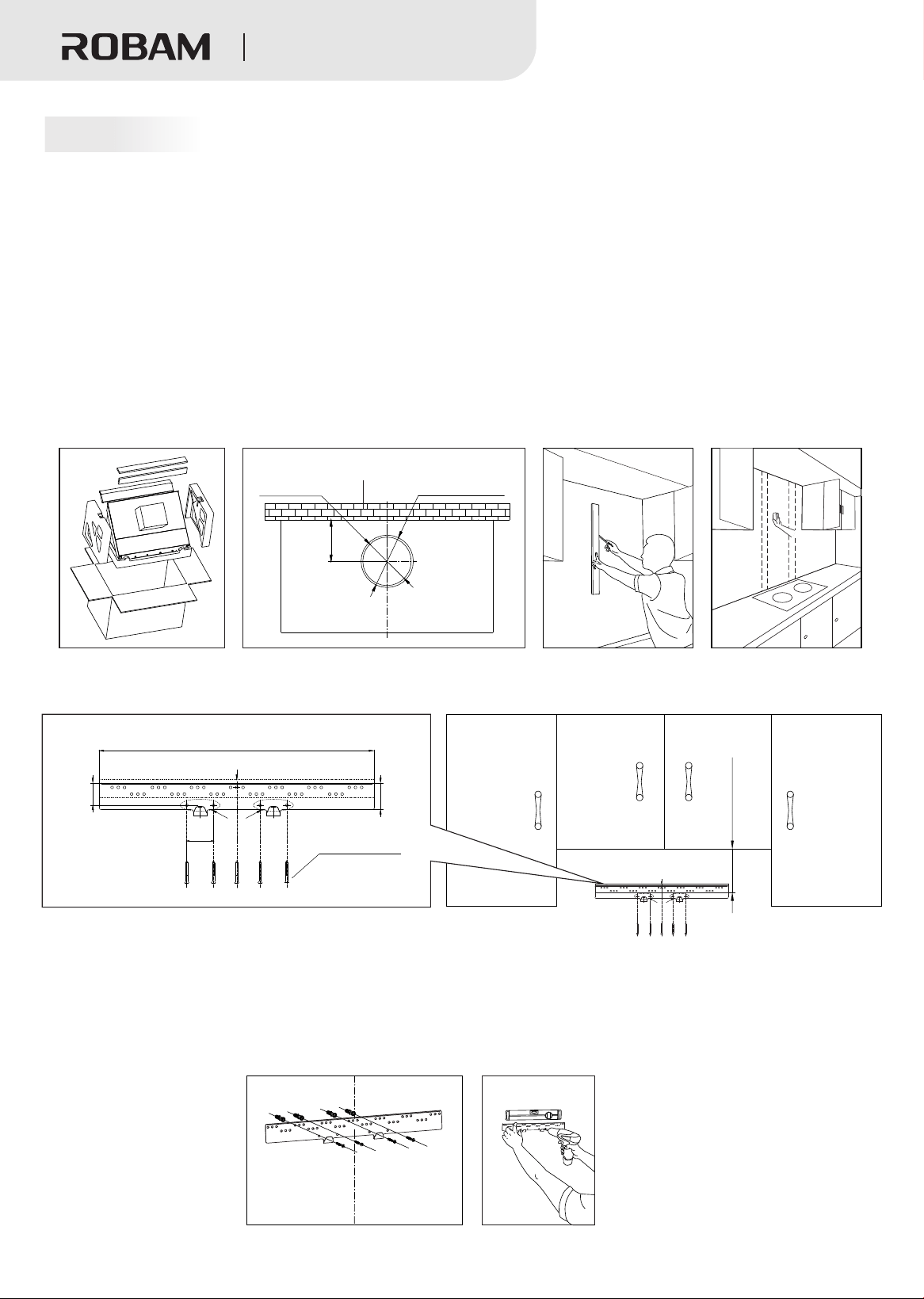

1. Open the container and take out the machine, and check the items inside against the packing list.
2. Open the duct hole at the top of the upper cabinet according to the opening position and size as shown in the picture
below.
3. Draw a vertical center line in the installation position, and then use the beam detector to find the beam to fix the
hitching leg, and mark it with a pencil.
4. Determine the installation position of the body hitching leg: confirm the hitching leg position with the lowest point at the
bottom of the upper cabinet plate as the base and mark the drill holes. The relevant size is given as below: the distance
from the bottom of the upper cabinet plate to the center of the area A of the hitching leg hole is
3
15- /4”(400mm)
10
3
15- /4”(400mm)
3
24- /8”(620mm)
2”
(50mm)
3
2- /8”
(60mm)
3
2- /8”
(60mm)
B area
A area
12
14
16
10
5
#8×23- /8”(4×60mm)
wood screw
B
A
Range Hood

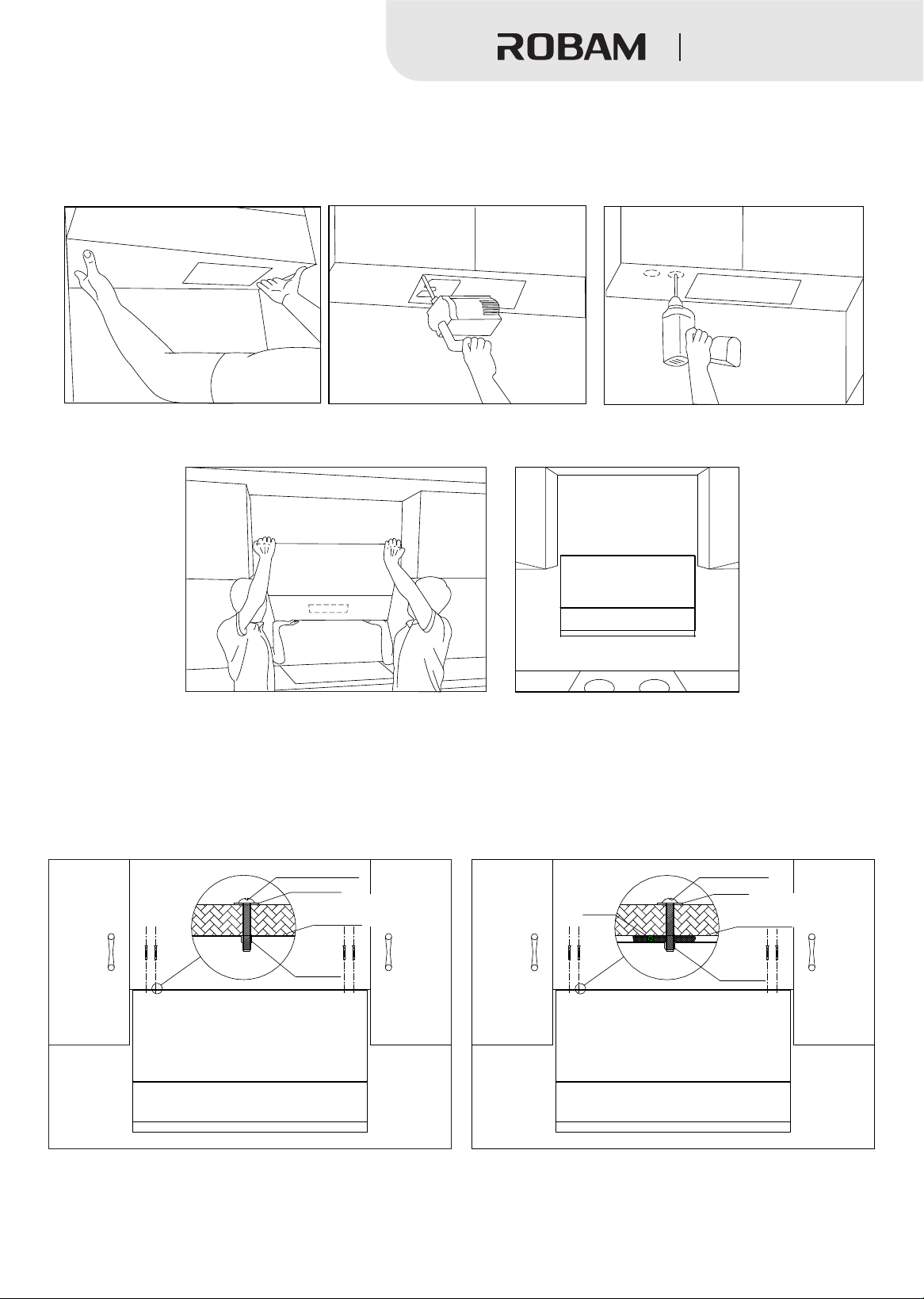

7. Lift up the range hood and hang the hanging foot on the bottom hanging hole, then push the range hood to the wall,
so that the back of the range hood is close to the wall.
11
8. According to the thickness of the cabinet, fix the range hood from the bottom plate of the upper cabinet with 4
3 3
#10×15- /4”(M5×40mm) or #10×39- /8”(M5×100mm) screws, and let go only after at least two screws are fixed.
9. If there is a large gap between the cabinet bottom plate and the range hood, please add cushion block according to
gap size near four screws before installation, so as not to make the
3 3
#10×15- /4”(M5×40mm) or #10×39- /8”(M5×100mm)
range hood enclosure deform and affect use when fastening the screws.
Note: two or more persons are required to install this range hood for safety.
M5 screw
Upper cabinet
bottom plate
Range
hood
Gasket
Block
6. Paste the opening sample plate with the text surface downwards on the bottom plate of the upper cabinet, and use
the electric saw and the drill bit of diameter (7mm) to open holes according to the requirements on the opening
1
/4”
sample plate.
Note: wear the goggles and gloves when opening the holes.
M5 screw
Upper cabinet
bottom plate
Range
hood
Gasket
Range Hood
12

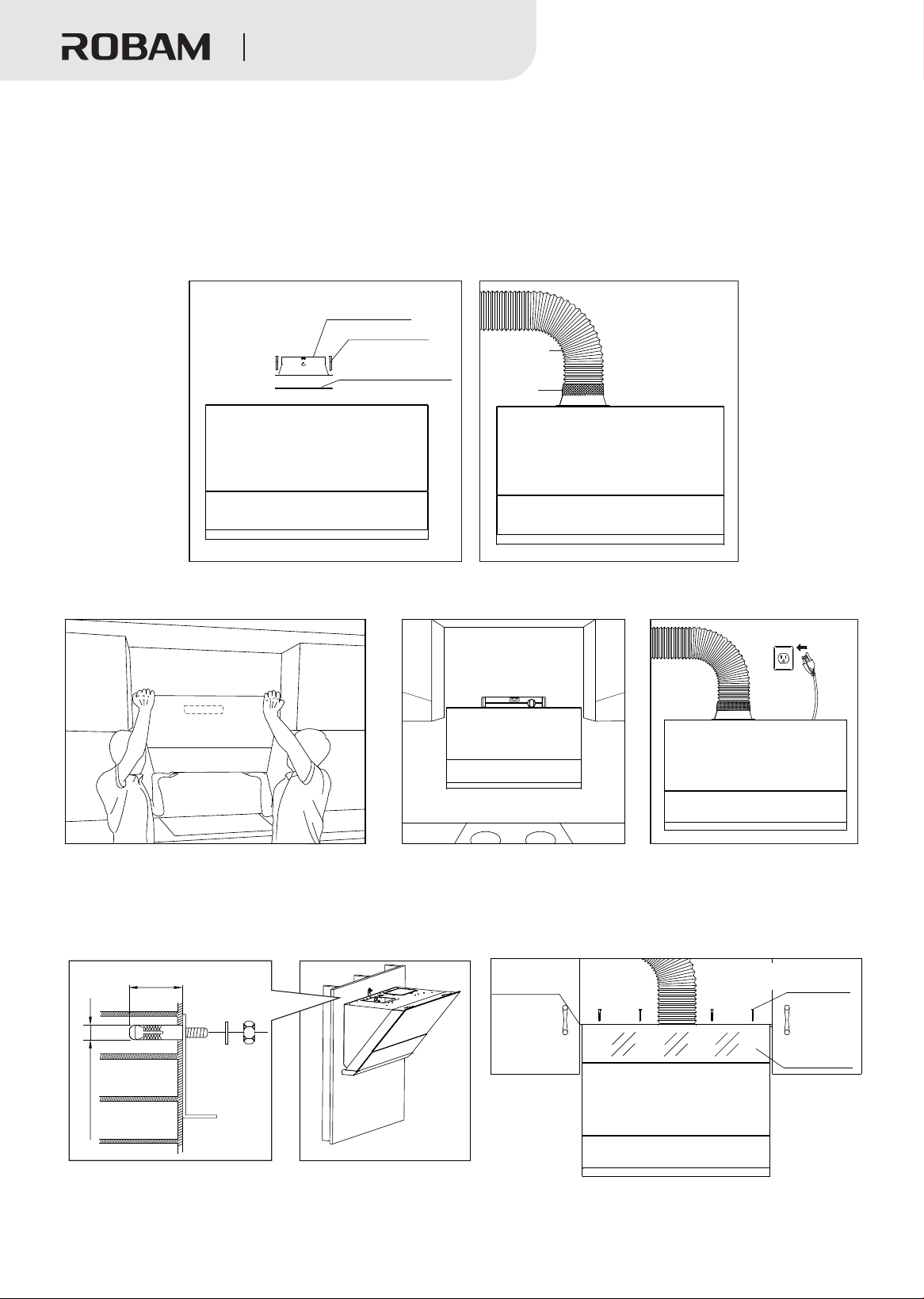

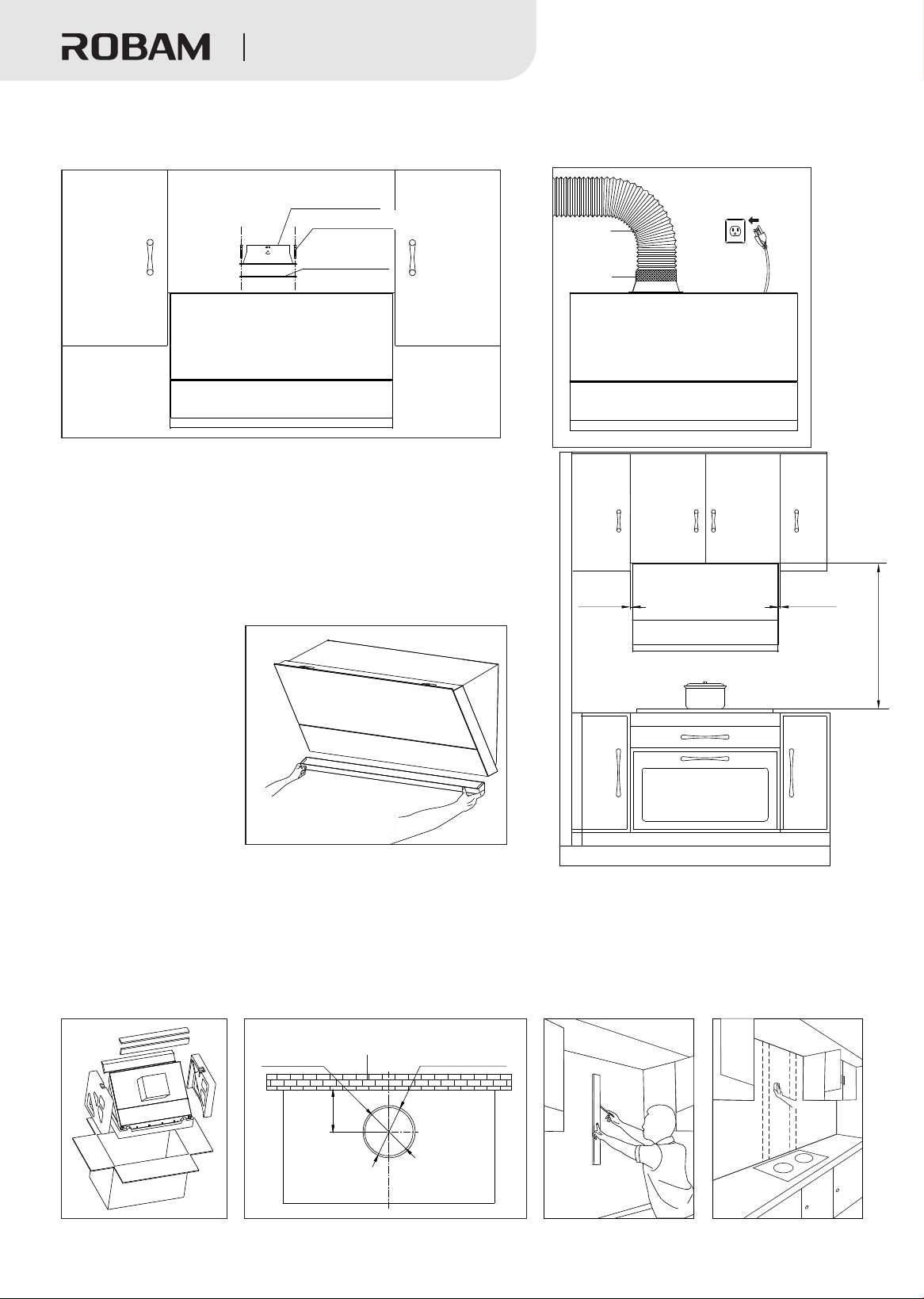

10. Put the sealing gasket at the air outlet of the range hood, and fix the check valve with eight
1
#8×7- /16”(ST4.2×18mm)
screws. Attach the duct to the check valve and seal with aluminum tape, make sure that the duct connection is sealed,
and then plug it in.
11. After installation, the
range hood must be kept
horizontal. In the end,
insert the oil cup and
power it for test run.
9
Min 29- /16”(750mm)
1
Max 32- /2”(825 mm)
3
/8”
(10mm)
3
/8”
(10mm)
Check valve
Check
valve seal
1
#8×7- /16”(ST4.2×18mm) screw
Note: Please straighten the flexible aluminum duct when mounting,
to avoid noise generated when the flexible aluminum duct is semi-
stretched, and cut off the excess parts with wire pliers. The
connection between the air outlet pipe and the wall hole or the
public flue must be tightly sealed to ensure that the air outlet pipe
is firmly connected with the check valve or the public flue, and
ensure that the blade at the connection of the check valve or the
public flue is opened and closed flexibly.
●Installation with upper cabinet and decoration panel
Duct diameter
Ø6”(Ø153mm)
Hole diameter
1
Ø6- /2”(Ø165mm)
Wall
1
6- /2”(Ø165mm)
Duct
(optional)
Aluminum
tape
Note:
1) When the gap between the range hood and the upper cabinet is large, 2.5”(63.5mm) decorative board should be installed;
2) 6”(152.4mm) or 12”(304.8mm) decorative plate fittings shall be selected when the height from the upper cabinet to the
1
supporting surface of the pot exceeds 32- /2”(825mm).
1. Open the container and take out the machine, and check the items inside against the packing list.
2. Open the duct hole at the top of the upper cabinet according to the opening position and size as shown in the picture below;
3. Draw a vertical center line in the installation position, and then use the beam detector to find the beam to fix the hitching leg,
and mark it with a pencil.
Range Hood
13

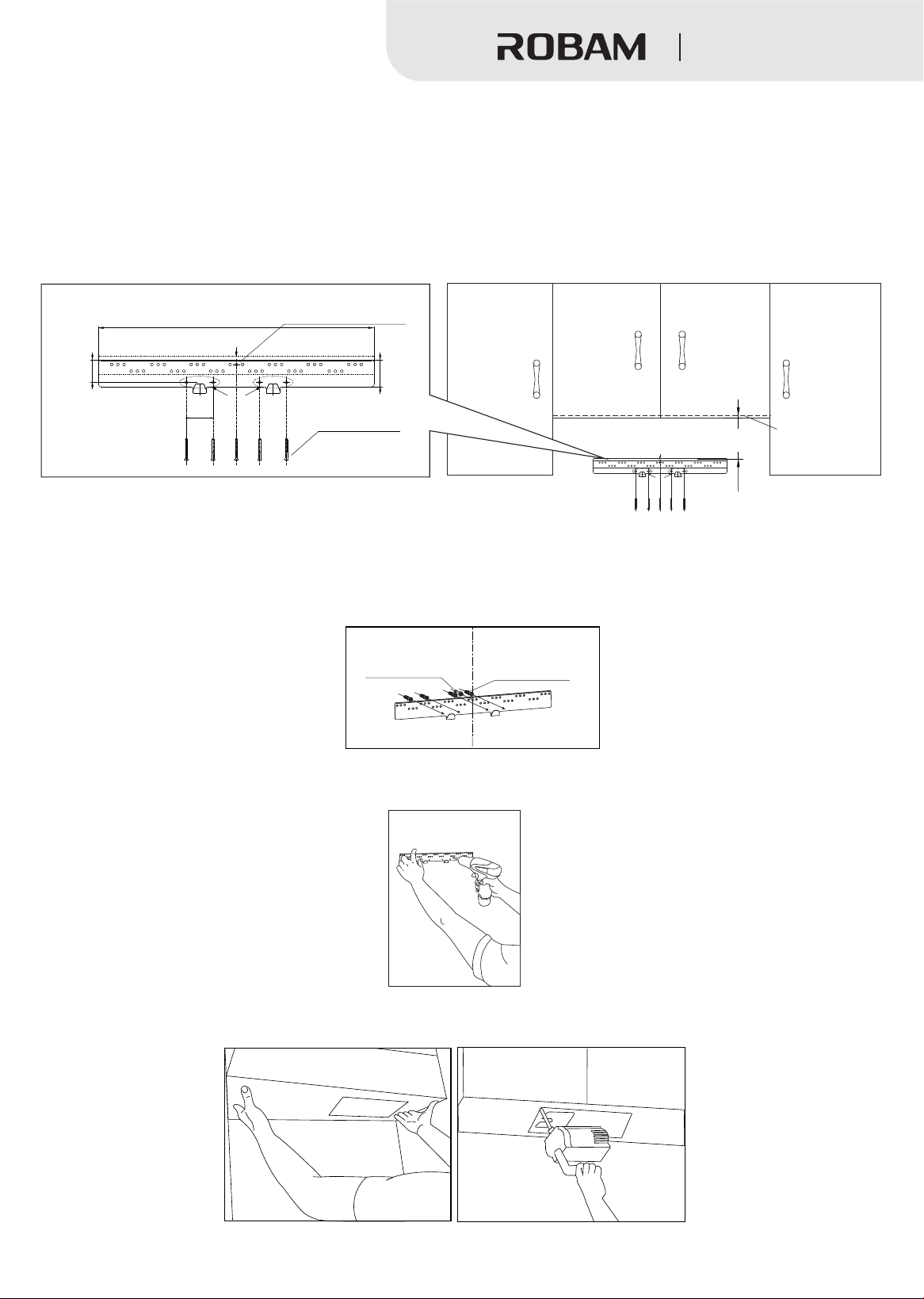

5. Fixed hanging feet
1) When the wall of the hanging machine is tile, use a drill bit of (8mm) in diameter to drill a hole of 2- (60mm)-2-
5 3
/16” /8”
3
/4”(70mm) in depth at the mark (not too big), press bulged tube(tile) into the hole.
2) When the hanging wall is gypsum board, use a screwdriver to screw the bulged tube (gypsum board) into the wall
directly at the mark.
Then, at the mark of the hanging foot stopper fixed orifice, drill a hole with a diameter of (10mm) (not too large) and
3
/8”
a depth of 2 (50mm) -2- (55mm), The M6 metal bulged tube is inserted into the hole.
3
” /16”
4.Determine the installation position of the hitching leg and the hitching leg fixed block: confirm the hitching leg position with
the inside of the upper cabinet plate bottom as the base and mark the drill holes. The relevant size is given as below:
1)When using 2.5”decorative board, the distance from the bottom plate of the upper cabinet board to the top of the hanging
foot is 1”(26 mm);
2)When using the 6” decoration panel, the distance from the inside of the upper cabinet panel bottom to the top of the
1
hanging leg is 4- /2”(115mm) ;
3)When using the 12” decoration panel, the distance from the inside of the upper cabinet panel bottom to the top of the
1
hanging leg is 10- /2”(267mm) ;
3
4) The installment pitch of holes between the center of the hitching leg hole and the hitching leg stop block is 2- /8”(60±2mm).
6. Remove M6 metal expansion pipe, nut and washer,
5
and reliably fix the hitching leg with #8×23- /8”(4×60mm) wood
screws supplied with the machine. Use a level ruler to make sure the hitching leg is in a horizontal position.
Note: The hitching leg must be fixed to the beam with a screw.
7. Paste the opening sample plate with the text surface downwards on the bottom plate of the upper cabinet, and use the
electric saw to open holes according to the requirements on the opening sample plate.
Note: wear the goggles and gloves when opening the holes.
Plane fixing
the decoration
panel inside
the bottom
of the upper
cabinet plate
as the base
1”(26mm)
1
or 4- /2”(115mm)
1
or 10- /2”(267mm)
B
A
3
24- /8”(620mm)
2”
(50mm)
3
2- /8”
(60mm)
3
2- /8”
(60mm)
B area
A area
Hitching leg stop
block mounting hole
5
#8×23- /8”(4×60mm)
wood screw
Plastic
expansion pipe
Metal
expansion pipe
12
14
16
10
Range Hood
14
1
8.Put the sealing gasket at the air outlet of the range hood, and fix the check valve with eight #8×7- /16”(ST4.2×18mm)
screws. Attach the duct to the check valve and seal with aluminum tape, make sure that the duct connection is sealed.
Note: Please straighten the flexible aluminum duct when mounting, to avoid noise generated when the flexible
aluminum duct is semi-stretched, and cut off the excess parts with wire pliers. The connection between the air
outlet pipe and the wall hole or the public flue must be tightly sealed to ensure that the air outlet pipe is firmly
connected with the check valve or the public flue, and ensure that the blade at the connection of the check
valve or the public flue is opened and closed flexibly.
9.Lift the range hood, hang the back hook at the hitching leg and use a level ruler to ensure that the machine is horizontal.
Then plug in the power.
3
2”(50mm)-2- /16”(55mm)
3
Ø /8”(10mm)
10. After the machine is installed in place, install the hitching leg stop block and the gasket on the M6 metal expansion
pipe, and tighten the nut with a wrench (to prevent the machine from decoupling accidentally under external force).
11. Fix the decoration panel at the bottom of the upper cabinet plate with four self tapping
1
#8×7- /16”(ST4.2×18mm)
screws and make sure that the decoration panel is flat.
Cabinet
bottom plate
2.5” or
6” or 12”
decoration
panel
1
#8×7- /16”(ST4.2×18mm)
Self tapping screw
Check valve
Check valve seal
1
#8×7- /16”(ST4.2
×18mm) screw
Aluminum
tape
Duct
(optional)
Range Hood
15
12. After installation, the range hood must be kept horizontal. In the end, insert the oil cup and power it for test run.
●Installation without upper cabinet
1. Open the container and take out the machine, and check
the items inside against the packing list.
2. Open the duct hole at the top of the upper cabinet according
to the opening position and size as shown in the picture below.
3. Draw a vertical center line in the installation position, and
then use the beam detector to find the beam to fix the hitching leg, and mark it with a pencil.
Note: select the mainframe panel accessories if there is no
cabinet above the stove.
7
Min 30- /8”
(785mm)
7
Max 33- /8”
(860 mm)
4. Determine the positions to fix the hitching leg and the hitching leg stop block.
Confirm the hitching leg position with the cooker supporting surface as
the base and mark the drill holes. The relevant size is given as below:
1) The minimum distance between the cooker supporting surface and
7
the top of the hitching leg is 30- /8”(785mm)
2) The maximum distance between the cooker supporting surface and
7
the top of the hitching leg is 33- /8”(860mm);
Duct diameter
Ø6”(Ø153mm)
Hole diameter
1
Ø6- /2”(Ø165mm)
Wall
1
6- /2”(Ø165mm)
9
Min 29- /16”(750mm)
1
Max 32- /2”(825 mm)
3
/8”
(10mm)
3
/8”
(10mm)
2.5”(63.5mm)
6”(152.4mm)
12”(304.8 mm)
3
24- /8”(620mm)
2”
(50mm)
3
2- /8”
(60mm)
3
2- /8”
(60mm)
B area
A area
Hitching leg stop
block mounting hole
5
#8×23- /8”(4×60mm)
wood screw
B
A
Range Hood
16

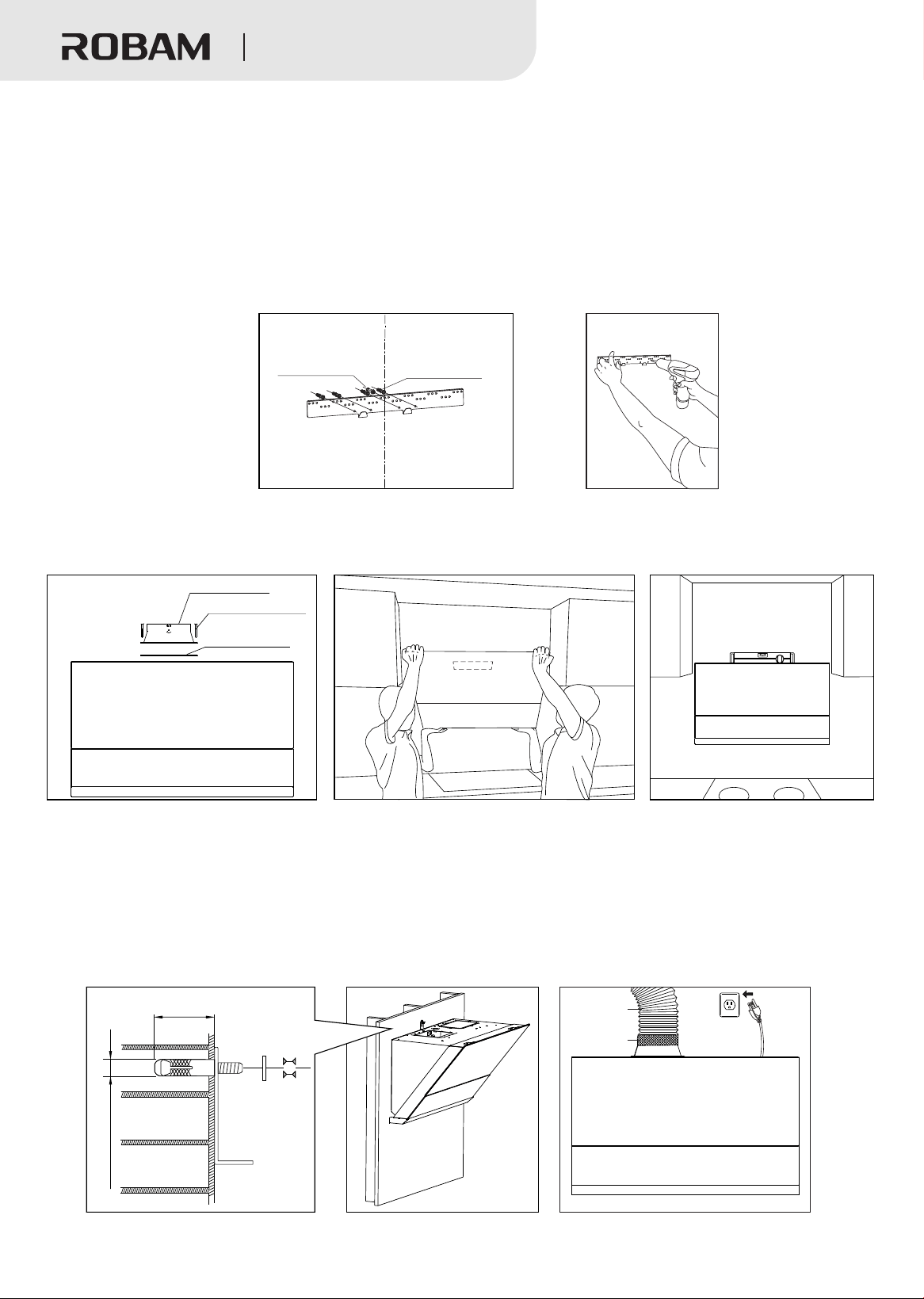

7. Put the sealing gasket at the air outlet of the range hood, and fix the check valve with eight
1
#8×7- /16”(ST4.2×18mm)
screws.
8. Lift the range hood, hang the back hook at the hitching leg and use a level ruler to ensure that the machine is horizontal.
Check valve
1
#8×7- /16”(ST4.2
×18mm) screw
Check valve seal
6. Remove M6 metal expansion pipe, nut and washer,
5
and reliably fix the hitching leg with #8×23- /8”(4×60mm) wood
screws supplied with the machine. Use a level ruler to make sure the hitching leg is in a horizontal position.
Note: The hitching leg must be fixed to the beam with a screw.
Note: Please straighten the flexible aluminum duct when mounting, to avoid noise generated when the flexible
aluminum duct is semi-stretched, and cut off the excess parts with wire pliers. The connection between the air outlet
pipe and the wall hole or the public flue must be tightly sealed to ensure that the air outlet pipe is firmly connected with
the check valve or the public flue, and ensure that the blade at the connection of the check valve or the public flue is
opened and closed flexibly.
9. After the machine is installed in place, install the hitching leg stop block and the gasket on the M6 metal expansion
pipe, and tighten the nut (to prevent the machine from decoupling accidentally under external force). Attach the duct to
the check valve and seal with aluminum tape, make sure that the duct connection is sealed, and then plug it in.
3
Ø /8”(10mm)
3
2”(50mm)-2- /16”(55mm)
Aluminum
tape
Duct
(optional)
5. Fixed hanging feet
1) When the wall of the hanging machine is tile, use a drill bit of (8mm) in diameter to drill a hole of 2- (60mm)-2-
5 3
/16” /8”
3
/4”(70mm) in depth at the mark (not too big), press bulged tube(tile) into the hole.
2) When the hanging wall is gypsum board, use a screwdriver to screw the bulged tube (gypsum board) into the wall
directly at the mark.
Then, at the mark of the hanging foot stopper fixed orifice, drill a hole with a diameter of (10mm) (not too large) and
3
/8”
a depth of 2 (50mm) -2- (55mm), The M6 metal bulged tube is inserted into the hole.
3
” /16”
12
14
16
10
Plastic
expansion pipe
Metal
expansion pipe
Range Hood
17

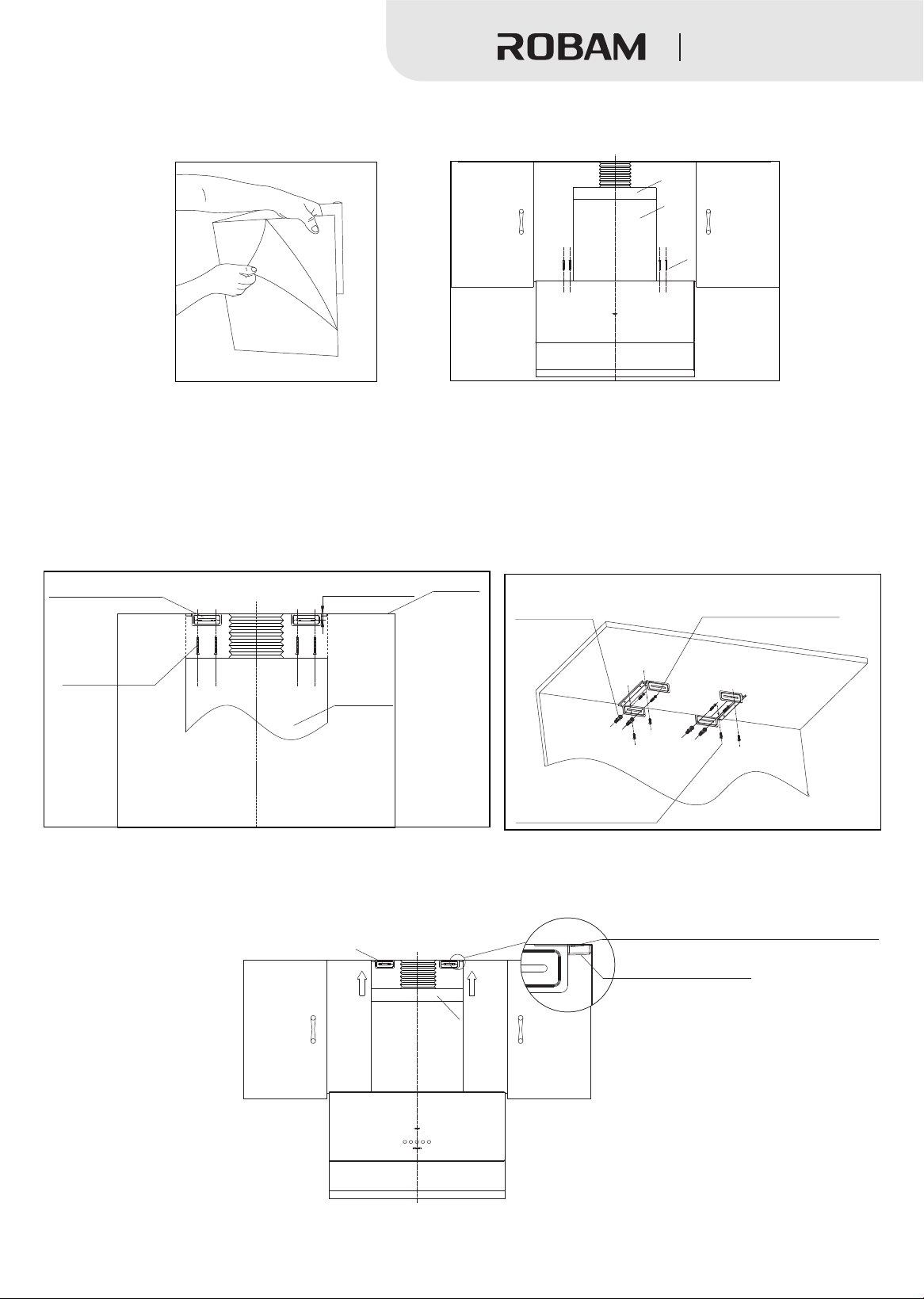

10.Tear off the protective film of the host panel and the host attached panel, insert the host attached panel into the host
1
panel, and then fix the host panel on the top of the range hood with 4 #8×7- /16”(ST4.2×18mm) self-tapping screws.
1
#8×7- /16”
(ST4.2×18mm)
self-tapping
screws
Host panel
Main machine
attached panel
11.Taking the ceiling as a benchmark, mark the holes for the hanging legs of the main panel, so that the distance between
the edges of the two hanging legs is slightly smaller than the width of the main panel.
Main engine attached panel hanging foot
Ceiling
5
/8”(15.9mm)
3 5
12. drill a hole with a depth of 2- /4”(70mm) at the marked place with a drill bit with a diameter of /16” (8mm), press the
expansion pipe into the hole, fix the two hanging feet of the main machine attached panel reliably with #8×23-
5
/8”(4×60mm) wood screws, and then fix the top of the hanging feet of the main machine attached panel and the ceiling
1
reliably with 4 #8×7- /16”(ST4.2×18mm) screws
Note: the hanging foot of the attached panel of the main engine must be fixed on the wooden column with a screw;
The edge distance between the hanging legs of the two main machine attached panels is slightly smaller than the width of
the main machine attached panels.
13.After fixing the hanging feet of the host attached panel, pull out the host attached panel by hand, so that the top hem of
the host attached panel is hung on the edge of the hanging feet, which makes the host attached panel firmly installed.
Note: When installing the main machine attached panel, it should be slightly broken outward, so that the top hem of the
main machine attached panel can be hung on the edge of the hanging foot smoothly.
Main engine attached panel hanging foot
Main machine
attached panel
Main machine
attached panel
Flange of main machine attached panel
Hanging foot edge
5
#8×23- /8”
(4×60mm)
wood screw
5
#8×23- /8”(4×60mm)
wood screw
1
#8×7- /16”
(ST4.2×18mm)
self tapping screw
Plastic expansion pipe
Range Hood
User Manual
Turn on the power and the buzzer will sound, indicating the power state.
18
14. After installation, the range hood must be kept horizontal. In the end, insert the oil cup and power it for test run.
9
Min 29- /16”
(750mm)
1
Max 32- /2”
(825 mm)
3
/8”
(10mm)
3
/8”
(10mm)
Power
Min 20”
(510mm)
1
Max 38- /2”
(980mm)
Range Hood
Press the power key to enter the power-on state, power, lighting, high/turbo icons light up, the fan
starts the high gear work.
①When the fan in not running state, press the power key to enter the shutdown state;
②When the fan in running state, press the power key, the hood into the delayed shutdown state,
automatically shutdown all functions in 1 minute; in the delay process, press the lighting key, the
wind volume gear key can cancel delayed shutdown, if you press the power key, then shut down
all the functions.
③ Only the power key in on state, if 3 minutes without any operation, it will enter the shutdown
state.
High/TurboCleaning Reminder
Lighting Low Power
Hand wave induction
Switch control panel
Switch control panel
19
Range Hood
Lighting
Low
Cleaning Reminder
Pressing the lighting key turns the light on, then pressing the lighting key again turns the light off.
Note:Long press the high/turbo key+ lighting key, you can turn off or turn on the power-on
synchronized lighting function.
①Hover switch function: hover under the off state, enter the on state, and at the same time turn
on the high gear, lighting function; hover under the state of fan running, enter the delayed
shutdown state; hover under the state of fan not running or delayed shutdown state, enter the
shutdown state.
② Wave hand control air volume function: Wave your hand in the on state and the airflow
cycles between High - Turbo - Low. Wave your hand to activate strong gear in no airflow state,
wave your hand to cancel delayed shutdown in delayed shutdown state.
Note: Long press the high/ key + low key at the same time in the off state, can turn off or turbo
turn on the function. hand wave induction
The cleaning reminder icon flashes to remind the user to clean the filter when the hood has run
for a total of 60 hours, at this time:
①Long press the cleaning reminder key, the cleaning reminder icon will light up, and enter the
cleaning mode (the fan stops, the lighting and the wind guide plate open, except the cleaning
reminder key and the lighting key, the rest of the keys are invalid). Users have to clean the filter
by themselves, after cleaning, long press this key to exit the cleaning mode, the accumulated
time is cleared to zero.
② If the user does not clean in the cleaning reminder state, the icon will keep flashing in the
power on state to remind the user to clean.
If the hood has not reached 60 hours of cumulative operation time, you can also enter cleaning
mode by long-pressing the cleaning reminder key.
With the power key on:
① Press the low key, the low icon lights up, and the fan starts working in low gear;
② Press the low key again, the fan stops working and the low icon goes out.
High/Turbo
Only when the power key is on:
①Press the high/turbo key, the high/turbo icon will light up and enter the high gear state;
②Then press the high/turbo key, high/turbo key flashes, the fan starts turbo gear, nearly 3
minutes after the automatic switch to the high gear, at this time the icon is long bright, into the
high gear operation state;
③Press this key repeatedly to change between "high - turbo".
Hand wave induction
● The range hood should be maintained and cleaned on a regular basis to keep the body clean and ensure the use
effect according to the use environment conditions, to extend the service life. You are recommended to wipe the outer
surface of the product after each cooking.
● Do not use strong detergent. It is recommended to clean with neutral detergent and dry with soft cloth. If your range
hood has a mechanical switch, prevent the detergent from touching the control keys.
● Do not keep the stains too long on the surface of the hood.
● Do not use cleaning ball, brush and other coarse materials to clean the hood to prevent scratching the body surface.
● Wear protective gloves when cleaning or maintaining the hood to prevent injury during wiping.
● Check and clean the oil cup regularly. When more than 2/3 oil has accumulated
in the oil cup, hold the oil cup with both hands, pan it out and pour out the waste oil.
● The range hood shall be turned on before cooking.
● Pull out the power plug that is not in use for a long time, but do not pull hard.
Maintenance
Precautions
Warning
1.There is a fire risk if cleaning is not carried out in accordance with the instructions.
2.Cleaning and maintenance shall be conducted under outage. Electrical components such as motor, switch, and
connector shall not be spoiled by water so as to prevent from accidents.
3.It's prohibited to wash with water so as to prevent accidents.
4.Stove fire shall be extinguished timely when it is not used; do not flambe under the range hood and it's
prohibited to bake food under range hood directly to prevent range hood from damaging and causing accidents.
5.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
6.Accessible parts may become hot when used with cooking appliances.
1. As a general rule, the hood body does not need to remove, and removal shall be done by professional maintainers.
Nonprofessionals are forbidden to remove, install and repair the hood.
2. Before cleaning, installation or maintenance for the range hood, cut off the power supply to avoid electric shock.
Note: The installation procedures of the following components are in reverse with the removal. Please wear protective
gloves during operation to prevent the sharp edge of metal hurting your hands.
Warning
Removal of Components
Range Hood
20
21

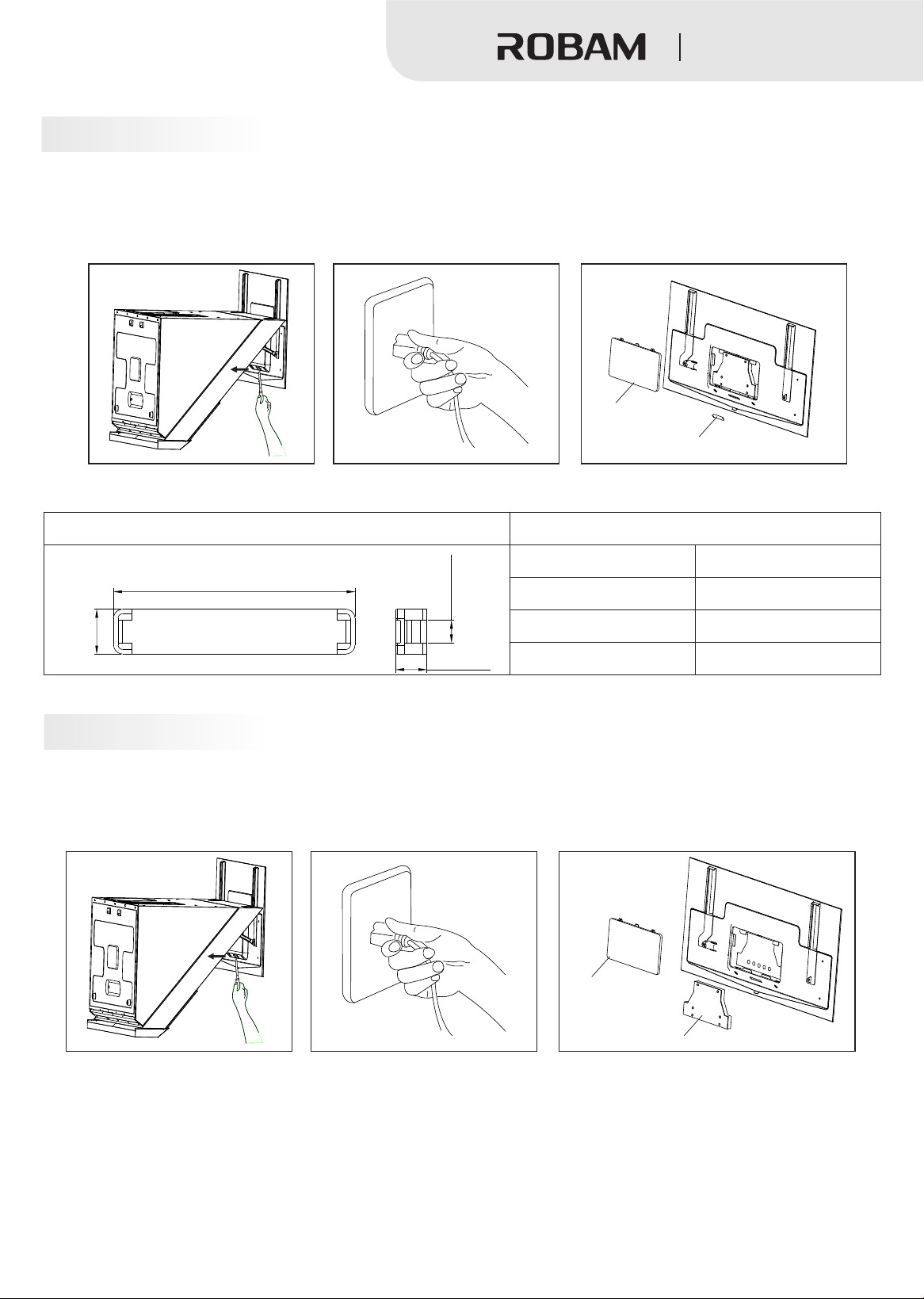

Lamp removal
Lamp information
Lamp image
Lamp Type
Max Power
Voltage
Size
Rectangular LED
2W
12VDC
See the lamp image
1. Long press the cleaning button to open the air deflector, unplug the power, use a cross screwdriver to unscrew the two
screws on the cover plate and take out the cover plate according to the direction of the arrow;
2. Push out the lamp from the inside by hand and unplug the connecting wire for repair and replacement.
1. Long press the cleaning button to open the air deflector, unplug the power, use a cross screwdriver to unscrew the
two screws on the cover plate and take out the cover plate according to the direction of the arrow;
2. Pull out the switch assembly and unplug the connecting wire for repair and replacement.
Switch removal
Switch assembly
3
/8”
(10mm)
1
2- /8”(54mm)
1
/4”(7mm)
3
/16”(5mm)
Cover plate
Lamp
Cover plate
Range Hood
22

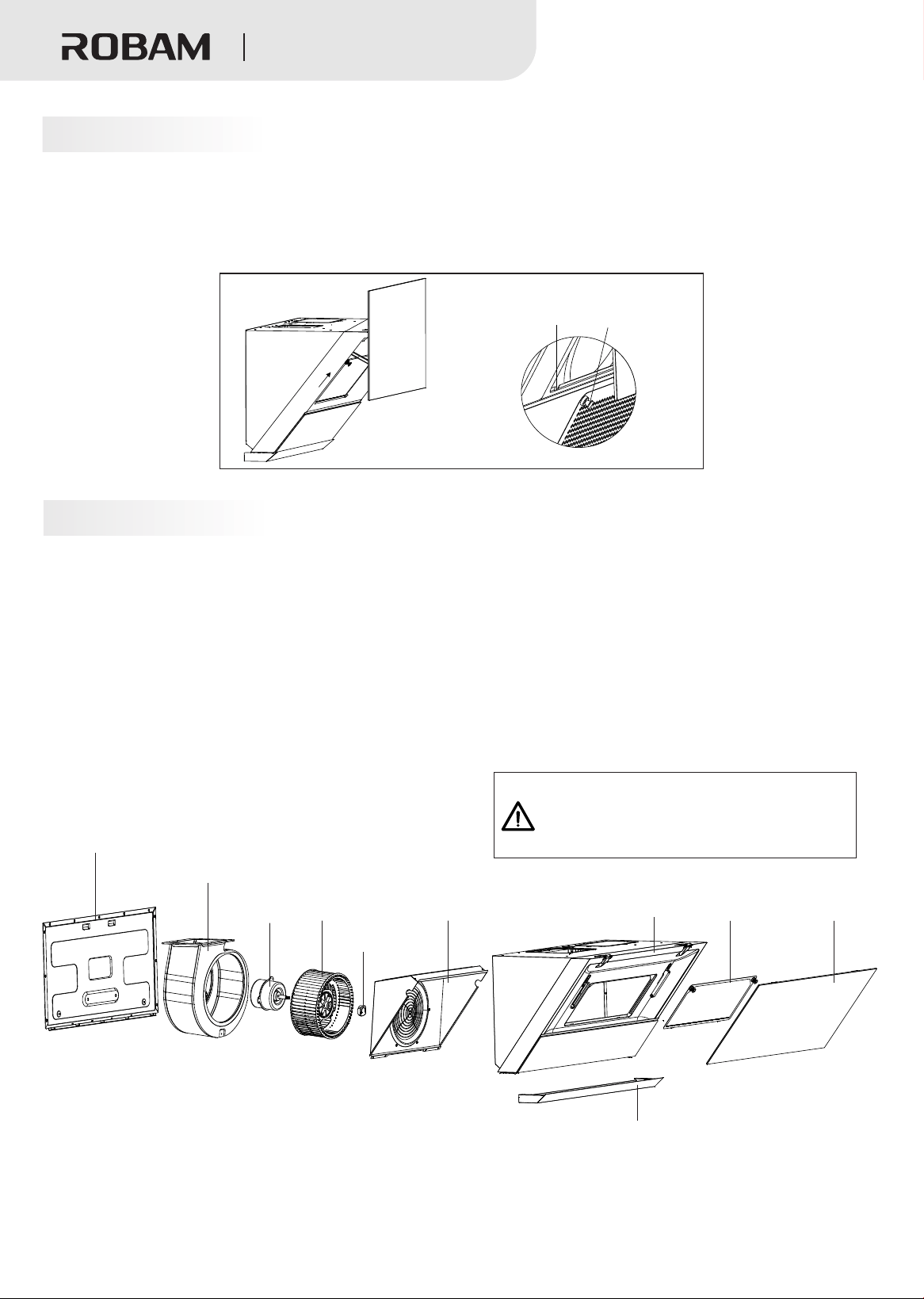

1.Take down the lamp according to the lamp disassembly steps;
2. Take down the switch assembly according to the switch disassembly steps;
3. Take down the filter according to the filter disassembly steps;
4. Unscrews the screw on the back plate, remove the back plate, unscrew the screws on the air duct outlet, remove the
air duct and unscrew the 6 screws on the check ring;
5. Unscrew the cap clockwise and take out the impeller vertically;
The assembly steps are opposite to the disassembly steps.
(When installing the impeller, please apply some lubricating oil in the axle hole of the impeller.)
Hood disassembly
Filer disassembly
Magnetic clasp
Neck
1. Long press the cleaning button to open the air deflector.
2. Hold the two magnetic clasps on the filter with both hands, slightly exert force outwards to make the filter no longer
be absorbed, then lift the filter according to the direction of the arrow to make it separated from the neck, and finally pull
out the filter to clean the filter.
Back plate
Duct
Motor
Impeller
Cap
Check ring
Mainframe
Filter
Air deflector
Oil cup
The body may not be disassembled under
normal circumstances.
The disassembly work should be completed
by professional maintenance personnel.
Range Hood

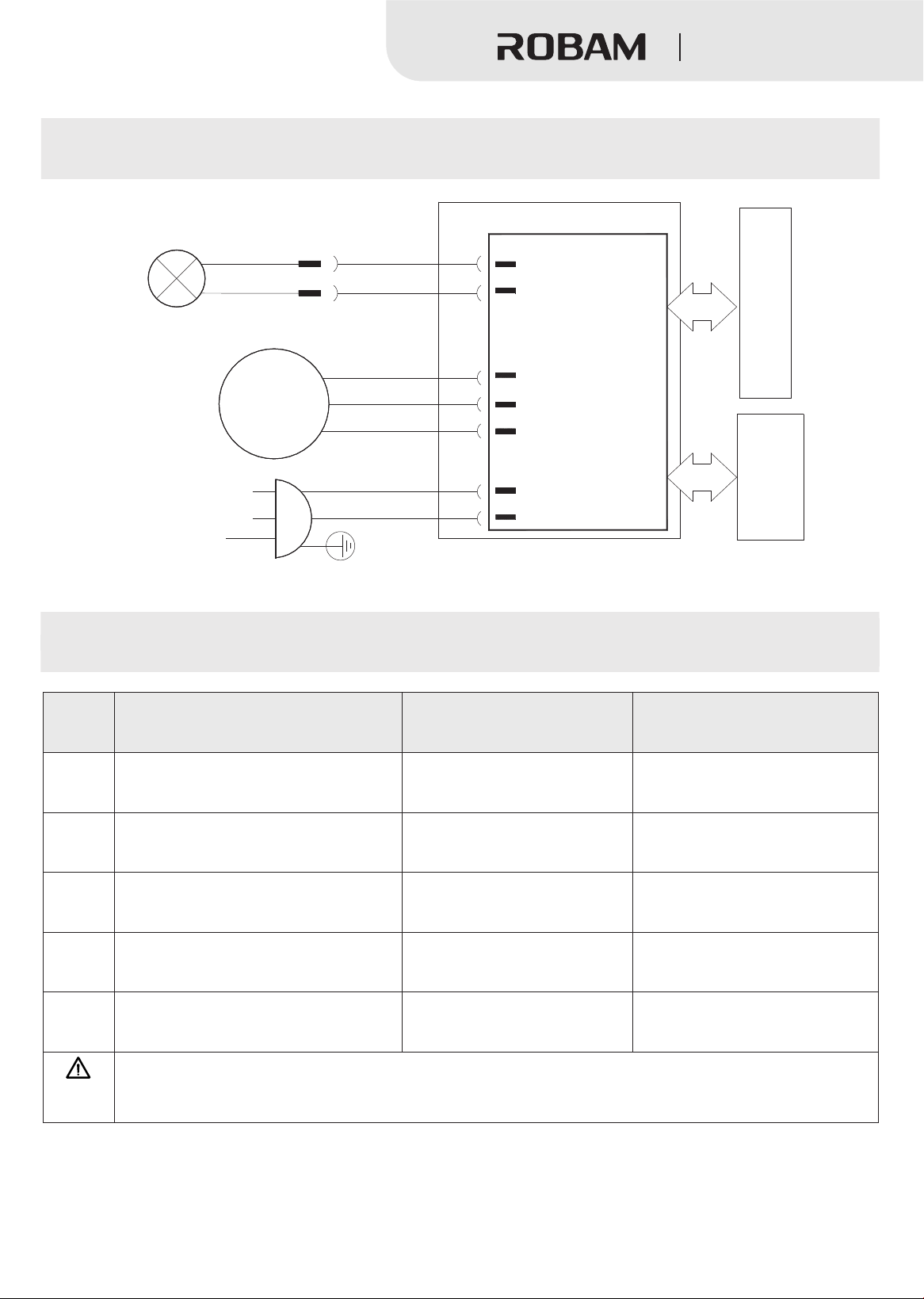

Circuit Diagram
23
Troubleshooting of General faults
Plug in the power plug
Replace the light or plug in the plug
Use single-phase three-pole
socket and well grounded
Tighten the cap
Adjust the body to the horizontal state
Cause
Fault
Serial
number
Warning
The light is damaged or
poorly connected
The impeller is loose, and the
cap is not tightened
The power plug is not connected
properly or there is power failure
The power socket is not
grounded well
No response after pressing any icon
(e.g. the impeller does not rotate,
or the light is off)
Pressing the lighting icon, the
headlamp is not lit
Induced current exists on the hood
body may paralyze hands
Abnormal sound during impeller running
1
2
3
4
No oil in the oil cup after a
period of time
The hood body is tilt
5
Solution
1.When connecting or replacing the plug, please unplug the power plug.
2.If the range hood's power cords are damaged,it must be replaced by our company's professional
maintenance staff.
Range Hood
Yellow/Green
black
white
Operating Circuit
Electric Putter
XP
L
N
W
V
U
Control circuit
EL
120V~ 60Hz
M
