DS900
Automotive Diagnostic Tool
USER MANUAL
Multilingual User Manual
Safety Is Always the First Priority!
Section 1 What's in the Box?
Section 2 Product Overview
Section 3 Getting Started
Section 4 Using Your DS900
Section 6 FAQ
Section 7 Warranty
Section 8 Compliance Information
......................
......................
......................
......................
......................
......................
......................
......................
......................
......................
CONTENTS
4
4
5
6
9
16
34
35
36
37
4
SAFETY IS ALWAYS THE FIRST PRIORITY!
For your safety, the safety of others, and to avoid any
damage to the product and your vehicle, CAREFULLY
READ AND MAKE SURE YOU FULLY UNDERSTAND ALL THE
SAFETY INSTRUCTIONS AND MESSAGES IN THIS MANUAL
BEFORE OPERATING. You must also read the vehicle's
service manual, and observe the stated precautions
or instructions before and during any test or service
procedure.
Keep yourself, your clothing and other objects away
from moving or hot engine parts and avoid contact with
electrical connections.
ONLY OPERATE THE VEHICLE IN A WELL-VENTILATED
AREA, as the vehicle produces carbon monoxide, a toxic
and poisonous gas, and particulate matter when the
engine is running.
READ ALL INSTRUCTIONS BEFORE USE
5
SECTION 1 WHAT'S IN THE BOX?
• DS900 Tablet
• DS900 VCI (Vehicle Communication Interface)
• Power Adapter
• OBD-II Extension Cable
• USB Cable (Type-A to Type-C)
• Quick User Guide
• Carrying Case
ALWAYS WEAR approved SAFETY GOGGLES to prevent
damage from sharp objects and caustic liquids.
DO NOT SMOKE OR HAVE ANY FLAMES NEAR THE VEHICLE
when testing. The fuel and battery vapors are highly
DO NOT ATTEMPT TO INTERACT WITH THE PROUDUCT
WHILE DRIVING. Any distraction may cause an accident.
TURN THE IGNITION OFF BEFORE CONNECTING OR
DISCONNECTING THE PRODUCT FROM THE VEHICLE's
DATA LINK CONNECTOR (DLC) to prevent causing damage
to the product or vehicle's electronic components.
6
SECTION 2 PRODUCT OVERVIEW
2.1 DS900 Tablet
Figure 2-1
1
12
14
13
16
15
32 75 94 86 10 11
DS900
7
Eight-inch Touch Screen
Reset Button
Insert a pin (not included) into the pinhole and press and hold
for 10 seconds to force restart the tablet.
Power Button
Long press the button to turn on the tablet. Long press again
to display the Power off / Restart / Screenshot toolbar, then
tap the desired option.
Short press the button to wake up / lock the screen.
3.5 mm Audio Port
RJ45 Port
USB Type-A Port
Connects the DS900 tablet and the DS900
VCI using the supplied USB cable.
DC Power Supply Input Port (12V, 2 A)
Charges the DS900 tablet using the supplied power
adapter.
HDMI Port
USB
Type-C Port
For data transfer and charging (5V, 2 A)
Screenshot Button
Press and hold for 2 seconds to take a screenshot.
Microphone
TF Card Expansion Slot
Supports hot swap and up to 128 GB storage expansion.
VCI Slot
Camera Lens
Audio Speaker
Collapsible Stand
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
8
1. Indicators
2. OBD-II 16 Pin Connector
Connects the DS900 VCI to vehicle's DLC.
3. USB Type-C Port
Connects the DS900 VCI to the DS900 tablet
using the supplied USB cable.
Solid Blue: Bluetooth connected
Bluetooth
Connection Indicator
Power
Indicator
Communication
Indicator
Solid Red: power on
Flashing Green: communicating with
the vehicle
1
2
3
2.2 DS900 VCI
Figure 2-3
9

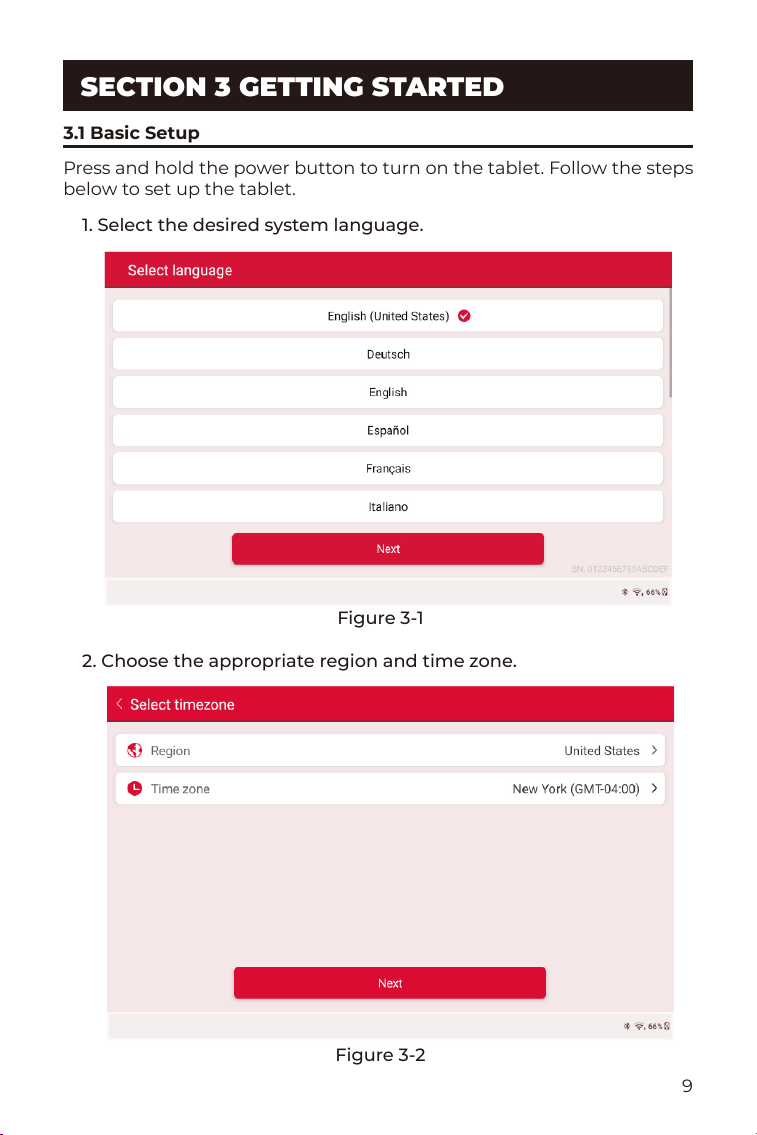

1. Select the desired system language.
2. Choose the appropriate region and time zone.
Figure 3-1
Figure 3-2
SECTION 3 GETTING STARTED
3.1 Basic Setup
Press and hold the power button to turn on the tablet. Follow the steps
below to set up the tablet.
10

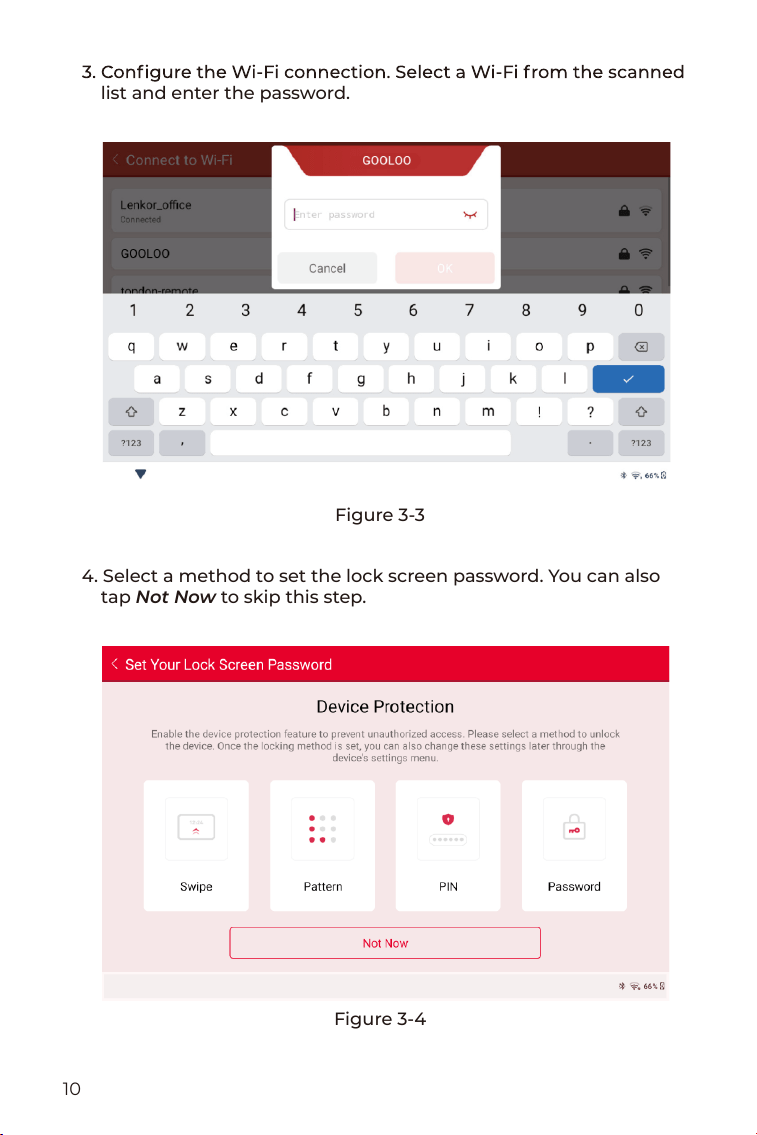

list and enter the password.
4. Select a method to set the lock screen password. You can also
tap Not Now to skip this step.
Figure 3-3
Figure 3-4
11
Start and the system will jump to the
DS900 app automatically.
register with your Email.)
Figure 3-5
Figure 3-6
GOOLOO
GOOLOO
12
3.2 Plug the DS900 VCI into the Vehicle's DLC
3.3 Turn the Ignition to the "ON" Position (see Figure 3-8)
Take the DS900 VCI out from the back slot of the
DS900 tablet and plug it into the vehicle's DLC. The
vehicle's DLC port is usually located under the dashboard.
If you encounter a problem in locating the DLC, please go to Library
> DLC Location for more details, or refer to the vehicle's service
manual.
If your vehicle is equipped with a keyless start system and the
ignition switch is an "Engine Start Stop" button (see Figure 3-9), press
the "Engine Start Stop" button until the car is in "ON" mode. Do not
apply the brake while pressing the "Engine Start Stop" button, or you
will start the car instead of putting it in the "ON" position.
The method of ignition varies by vehicle model. Refer to the vehicle's
service manual for details.
Note: Make sure the ignition is always OFF before plugging in the
DS900 VCI.
Car OBD-II Interface
Figure 3-7
13
3.4 Bind the DS900 VCI
Go to User Info > VCI Management. Tap the icon at the top
right corner of the screen, and the device will ask you to connect the
Connect the Bluetooth as prompted. Then the serial number and
activation code will be automatically obtained.
The red power LED light on the DS900 VCI indicates the
DS900 VCI is powered on.
Figure 3-10
Figure 3-8 Figure 3-9
ENGINE
START
STOP
14
Then tap Activate to bind the DS900 VCI to the
DS900 tablet.
To enable communication between the DS900 tablet and
the vehicle, the DS900 VCI and the DS900 tablet
wireless (Bluetooth) or wired (USB cable) solution.
Tap Diagnostics from the home screen of the DS900 app,
and tap the icon at the upper right of the screen to establish
Bluetooth connection with the DS900 VCI. After the
DS900 VCI is successfully connected, the icon changes
to , and the Bluetooth Connection Indicator on the
DS900 VCI lights solid blue.
3.5 Connect the DS900 VCI to the DS900 Tablet
3.5.1 Wireless VCI Connection
Figure 3-11
DS900
15
Use the supplied USB cable to connect the DS900 VCI to
the DS900 tablet (see Figure 3-6). After the DS900 VCI is
properly connected to the tablet, the icon changes
to .
3.5.2 Wired VCI Connection
Figure 3-12
Note:
Once the DS900 VCI has been successfully connected to
your DS900 via Bluetooth, the connection will be resumed
automatically next time when you open the DS900 app. If
not connected, manually tap of any screen with this icon to
reconnect.
Note:
Once wired connection is applied, Bluetooth will be disconnected
automatically.
USB Type-A
USB Type-C
DS900
16

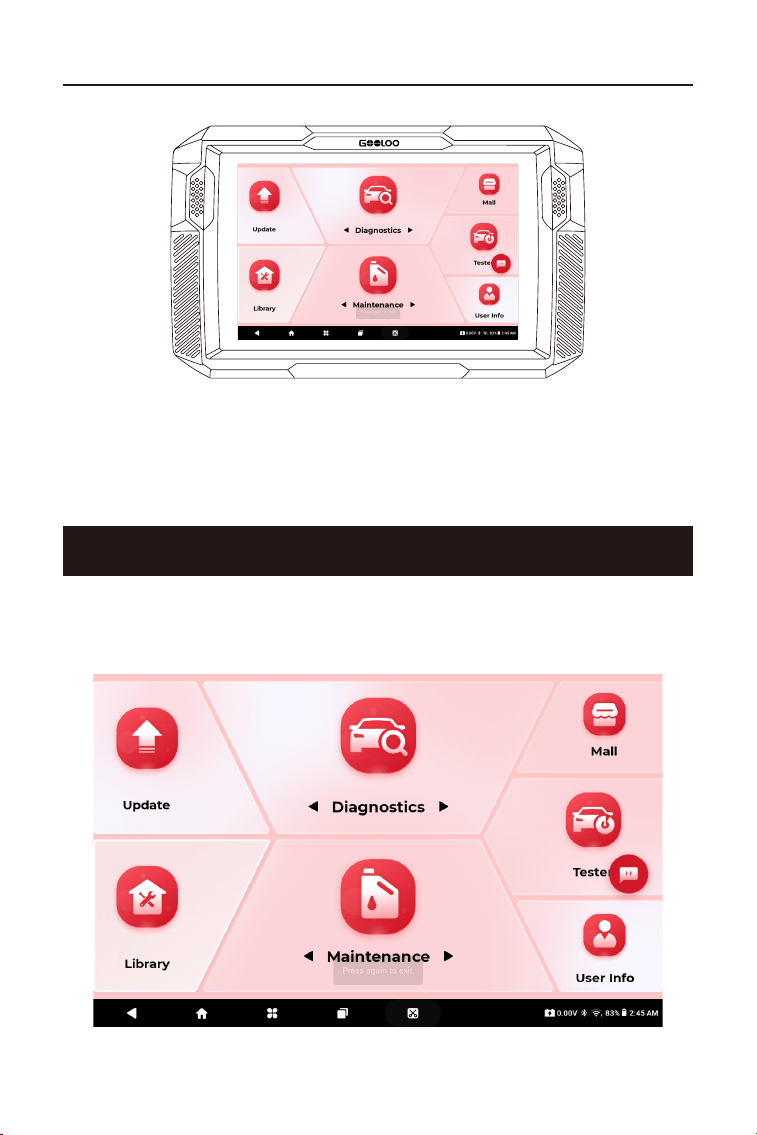

3.6 Your DS900 Is Now Ready for Use
SECTION 4 USING YOUR DS900
Figure 3-13
4.1 Home Screen
Open the DS900 Lite app, and the home screen will display.
Figure 4-1
DS900
17
1. Function Icons
Allows you to perform full-system
diagnostics functions including
reading Diagnostic Trouble Codes
(DTCs), clearing DTCs, viewing data
streams, reading Electronic Control
Unit (ECU) version information, and
performing active test. You can also
access EOBD & OBD-II and Diagnostic
Feedback through this module.
Diagnostics
Provides 8 maintenance services
including Oil Reset, Throttle
Adaptation, EPB Reset, Steering
Angle Reset, DPF Regeneration, ABS
Bleeding, BMS Reset and Airbag
Reset.
Allows you to update the vehicle-
version is available.
Maintenance
Update
Mall
Includes DTC Repair Guide, Technical
Service Bulletins (TSB), DTC Location,
Warning Light Library, and Vehicle
Coverage Lookup, which provides
reference information on vehicle
inspection, diagnostics, and repair.
Library
This function allows you to purchase
software services and products.
18
tablet to operate as a battery tester
(optional).
Provides access to VCI Management,
Firmware Update, Uninstall Diagnostic
Software, User Info, Customer
Feedback, Shop Info, Settings, and
System Update.
Tester
2. Navigation Bar
Selecting this icon returns you to the
previous screen.
Selecting this icon returns you to the
home screen of DS900 app.
Selecting this icon returns you to the
home screen of Android System.
Selecting this icon displays a list of the
opened apps. You can swipe left or
right to view the full list, tap to open
the app, or swipe up to remove the
app.
Selecting this icon captures a
screenshot of the current page.
Opened Apps
App Home
Back
Android Home
Screenshot
DS900
19
4.2 Diagnostics
The Diagnostics module allows you to scan all supported vehicle
systems at one time (Auto Scan) for DTCs or select an individual
system to perform Read DTCs, Clear DTCs, Read Data Stream, Read
ECU Information and Active Test. You can also access EOBD & OBD-II
and Diagnostic Feedback through this module.
Identifying the Vehicle
To perform Auto Scan or Individual System Diagnostics, you need to
Diagnostics from the home screen of
the DS900 app to enter the Diagnostic screen.
4.2.1 Auto Scan and Individual System Diagnostics
Figure 4-2
Identifying via VIN
VIN allows you to identify the vehicle via Auto VIN or Enter VIN.
· Auto VIN - The DS900 tablet automatically reads and
· Enter VIN - manually enter or scan the vehicle VIN to identify the
vehicle.
20
Note:
Systems may vary by vehicle make, model and year.
Figure 4-3
Auto Scan
Auto Scan detects all the systems supported by the vehicle and
retrieves DTCs for all of these systems, providing a complete health
Identifying via Make
1. Tap All, and a list of vehicle makes will display.
2. Select or enter the make of your vehicle.
3. Select Automatic or Manual to identify the vehicle.
Automatic
Manually enter the VIN or tap Read to acquire the VIN. Then tap
. DS900 will automatically decode the VIN to
identify the vehicle.
Manual
Manually select the vehicle information to identify the vehicle.
Note:
A demonstration mode (DEMO option) is provided to help you
become familiar with the Diagnostics functions.
21
Figure 4-4
Button Description
Clear DTCs - tap to clear all the DTCs retrieved.
Report - tap to save the current scan results in report format. (To
view the saved reports, go to User Info > Folder > Reports > System
)Report Show All / Show Actual - tap to toggle between showing
all vehicle systems and showing only the supported systems.
Performing Individual System Diagnostics
Apart from Auto Scan, you can also select an individual system to
perform Read DTCs, Clear DTCs, Read Data Stream, Read ECU
Information and Active Test for that particular system.
check of your vehicle. Performing Auto Scan before and after repair
could help in troubleshooting and validating repairs. Pre and post
scan reports can allow you to record the condition of the vehicle
before and after repair for comparison.
To perform an Auto Scan, tap Auto Scan at the bottom corner. The
DS900 tablet will start scanning all the systems supported
by the vehicle, and DTC retrieval will be automatically proceeded.
Results are displayed progressively as the systems are scanned.
Note:
Depending on the vehicle make, some functions may not be
available.
22
Read DTCs
to retrieve DTCs from the system menu.
2. Tap Read DTCs in the function menu.
DS900 will communicate with the ECU and retrieve and
display DTCs for the currently selected system.
Figure 4-5
Icon Description
When the icon lights up, tap to open a window
that allows you to search on Google for more
information about the DTC.
When the icon lights up, tap to view the detailed
description of the DTC.
When the icon lights up, tap to view the freeze
frame captured at the time when the DTC occurs.
When the icon lights up, tap to view the instructive
repair measures
.
23
Figure 4-6
Button Description
Report - tap to save the DTCs in report format. (To view the saved
reports, go to
User Info > Folder > Reports > Fault Code Report
)
Clear DTCs - tap to clear all the DTCs retrieved.
Clear DTCs
to clear DTCs from the systems menu.
2. Tap Clear DTCs in the function menu.
3. Tap OK when the DTCs are cleared.
Read Data Stream
to read the data stream from the system menu.
2. Tap Data stream in the function menu. A data stream list
displays.
Note:
1. The procedure of clearing DTCs should be performed after the
freeze data stored in the ECU will be cleared.
2. DO NOT START UP THE ENGINE WHILE CLEARING DTCS.
24
Icon Description
Tap to learn the detailed description of the data
stream
Tap to have the real-time data stream displayed
in a wave-pattern graph.
Button Description
Edit - tap to select the data streams to display.
Record - tap to record and save real-time data stream information
for comparison and analysis. To view the recorded data streams, go
to User Info > Folder > Replay Data.
Graph(s) - tap to display up to 6 data streams in graph format.
Combine - tap to combine up to 4 data streams in one graph for
easier comparison and observation.
Report - tap to save the current data stream values in report format.
To view the saved reports, go to User Info > Folder > Reports > Data
stream Report.
Read ECU info
to view the ECU version information from the system menu.
2. Tap ECU info in the function menu. Then you can view the ECU
version information of the selected system.
Active test
- allows you to manually control certain component operations
directly from the app to verify the operations of components.
to perform active test from the system menu.
2. Tap Active test in the function menu. Then you can perform
related active tests as needed.
Note:
IF THE VEHICLE MUST BE DRIVEN TO VIEW THE LIVE DATA
STREAM, ALWAYS HAVE A SECOND PERSON HELPING YOU. DO
NOT WATCH THE DATA STREAM WHILE DRIVING.
Note:
Available active tests vary by vehicle make, year and model.
25
The EOBD & OBD-II function allows you to perform emission-related
diagnostics for your vehicle.
To perform OBD-II Diagnostics:

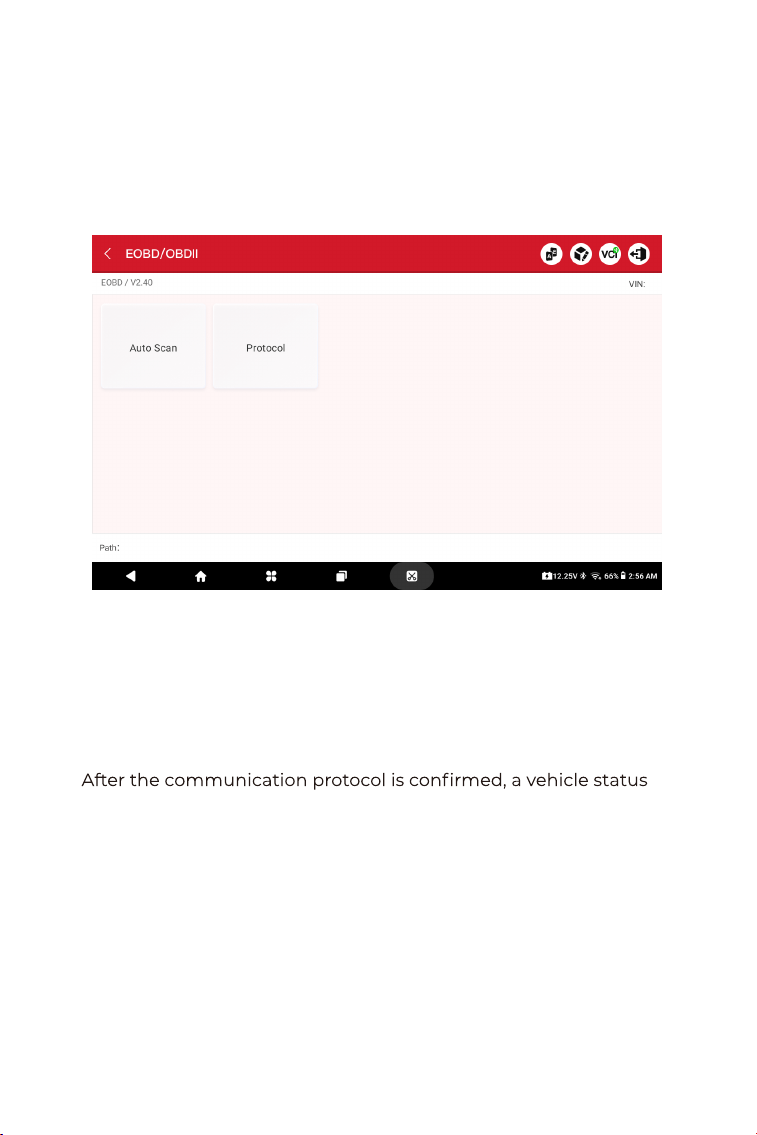

1. Go to Diagnostics > All > EOBD.
2. Select your communication method: Auto Scan or Protocol.
Auto Scan - the DS900 will automatically communicate
with the vehicle and identify which protocol the vehicle is using.
Protocol - allows you to manually select the communication
protocol.
screen displays showing the protocol and other status info of your
vehicle.
4.2.2 EOBD & OBD-II
Figure 4-7
26

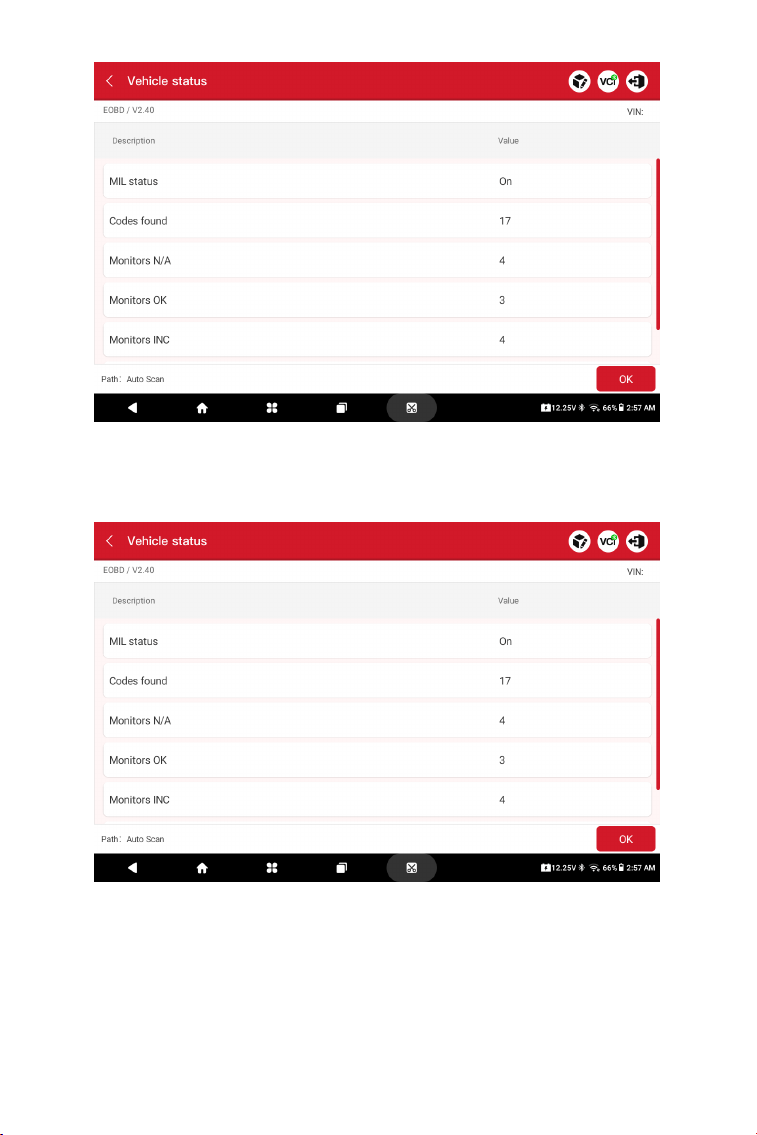

Figure 4-8
Figure 4-9
3. Tap OK to enter the function menu.
27
4. Select a function to continue.
Typical function options may include: DTC&FFD, I/M readiness, Live
data, On-Board monitor, Component test, Vehicle information and
Vehicle status.
Note:
Depending on the vehicle make, some functions may not be
available.
Note:
1. The procedure of clearing DTCs should be performed after the
FFD stored in the ECU will be cleared.
2. DO NOT START UP THE ENGINE WHILE CLEARING DTCS.
DTC & FFD (Freeze Frame Data)
This function helps read DTCs and clear DTCs stored in the vehicle's
ECU and displays FFD of the emission-related systems.
1. Read DTCs
This function displays the DTCs retrieved from the emission-
related systems.
2. Clear DTCs
This function allows you to clear the DTCs retrieved from the
emission-related systems.
3. FFD
This function takes a snapshot of the data and operating
conditions when an emission-related fault occurs.
I/M (Inspection and Maintenance) Readiness
This function checks whether or not the various emission-related
systems on the vehicle are operating properly, and are ready for I/M
testing.
It can also be used to check the monitor running status and to
Live Data
This function displays the real-time live data and parameters from
the vehicle’s ECU.
O2 Sensor Monitor
This function displays O2 sensor monitor test results of the most
recently completed tests from the vehicle’s ECU.
On-Board Monitor
This function displays the test results for emission-related powertrain
28
components and systems that are not continuously monitored.
Component Test
This function helps send control commands to the vehicle's ECU as a
way to test and operate the system parts and components.
Vehicle Information
This function displays a list of information (provided by the vehicle
manufacturer) from the vehicle’s ECU.
The information may include:
• VIN.
• Calibration ID (CID).
• In-use performance tracking for spark ignition engines (IUPR)
Vehicle Status
This function displays the status of the vehicle, including Engine,
Transmission, Codes Found, MIL Status, Monitors and Protocol.
The DS900 allows you to instantly send diagnostic
feedback (with logs of diagnostic data automatically attached)
while you are encountering a software problem with the diagnostics
operations.
To send diagnostic feedback:
1. Tap the icon located at the top right corner of any screen in
the Diagnostics module.
2. Select the type of problem and tap
.
3. Write a description of the problem.
4. Tap Submit to send the feedback.
4.2.3 Diagnostic Feedback
Note:
The Diagnostic Feedback function is only available with the
Diagnostics module.
29
4.3 Maintenance
This function provides you with 8 maintenance services including
Oil Reset, Throttle Adaptation, EPB Reset, Steering Angle Reset, DPF
Regeneration, ABS Bleeding, BMS Reset and Airbag Reset.
Oil (Oil Reset)
This function allows you to reset the oil service lamp for the engine
oil life system. The engine oil light system calculates an optimal oil
change interval depending on the vehicle's driving conditions and
weather events. Oil resets are required every time the engine oil is
changed.
Throttle (Throttle Adaptation)
If the ECU is disconnected accidentally, or if the throttle is replaced
or cleaned, then the throttle actuators need to be initialized via the
Throttle Adaptation function. This resets the ECU's data to its initial
state so that the throttle can accurately regulate the air intake.
EPB (EPB Reset)
This function helps you replace and reset the brake pads.
It needs to be performed in the following cases:
• After the brake pads and brake pad wear sensors are replaced;
• When the brake pad warning light is on;
• After the servo motor is replaced.
Steering (Steering Angle Reset)
If the steering angle sensor is replaced, or the steering angle is
inaccurate or not centered, the steering angle reset function needs
as a reference, the ECU can then calculate the exact angle for left
and right steering.
DPF Regeneration
This function is mainly used for the regeneration of diesel particulate
means of combustion and oxidation.
ABS (ABS Bleeding)
When the brake system is opened to replace components such
inside, which can lead to a soft brake pedal. ABS Bleeding is required
4.3.1 Services Overview
30
BMS (BMS Reset)
After the car battery is replaced, the car battery control unit needs
to be reset. This will clear fault information (such as low battery level)
so that the control unit can match the relevant information of the
newly replaced battery.
Airbag (Airbag Reset)
This function allows you to reset the airbag data to turn off the
airbag light, so that the airbag control module can run normally.
It needs to be performed in the following cases:
• When the airbag deploys;
• When the diagnostic tool reads "Crash data stored";
• When the airbag light is on;
• When relevant DTCs cannot be cleared.
To perform a service reset:
1. Tap Maintenance from the home screen of the DS900
app. A function menu will display.
4.3.2 Steps:
2. Select a desired function that you want to perform.
operations, refer to Identifying the Vehicle in 4.2.1). Then the screen
Figure 4-10
31
for the selected function displays.
4. Follow the on-screen instructions to perform the service reset.
Figure 4-11
2. Look for a desired vehicle software, or search the software by a
keyword.
3. Tap Download / Update to install the software as you like.
4.5 Folder
This function allows you to purchase GOOLOO software services
and products.
4.4 Update
software when there is a new version available.
To use the Update function:
1. Tap Update from the home screen of the DS900 app,
and the Update screen will display.
32
4.6 Library
4.7 Tester
4.6.1 DTC Repair Guide
DTC Repair Guide (Generic OBD-II) is an experience-based database
repair steps for identifying faults.
To use DTC Repair Guide:
Tap Library > DTC Repair Guide. Enter a DTC in the search bar.
4.6.2 TSB (Technical Service Bulletins)
To view Technical Service Bulletins:
Tap Library > TSB. Select vehicle make, model, year, system and
subsystem, and tap Next. A list of OEM technical service bulletins
issued for the selected vehicle will display. Tap the desired bulletin to
view the full content.
4.6.3 DLC Location
To view DLC location:
Tap Library > DLC Location. Select vehicle make, model and year,
and tap Next. A picture of the DLC location for the selected vehicle
will display.
4.6.4 Warning Light Library
The Warning Light Library provides information on dashboard
warning lights, including light descriptions, impacts on driving,
typical causes, responsive measures and relevant FAQs.
To use Warning Light Library:
Tap Library > Warning Light Library. A list of warning lights will
display. Tap the desired warning light to view the details.
4.6.5 Vehicle Coverage Lookup
To view the supported functions and car systems:
Tap Library > Vehicle Coverage Lookup. Select software type, make,
model and year, or enter function/subfunction in the search box,
and then tap Query. Related data issued for the selected vehicle will
display.
battery tester. With this function, you can perform battery tests,
cranking tests, and charging tests.
DS900
33
Note:
To access the Tester function, additional hardware (sold separately)
is required. If you need to purchase the additional hardware,
please contact local dealers for help.
4.8 User Info
4.8.1 VCI Management
Allows you to bind the VCI to the DS900 tablet.
4.8.2 Firmware Update
4.8.3 Uninstall Diagnostic Software
Allows you to uninstall diagnostic software.
4.8.4 User Info
the nickname or password, delete your GOOLOO account, and log
out to your account.
4.8.5 Customer Feedback
This function allows you to write a feedback on the product to the
GOOLOO after-sales team.
4.8.6 Shop Info
This section allows you to save the information of repair shops.
4.8.7 Settings
The Settings function allows you to set languages / unit, clear cache,
view the version information of the DS900 app, update the
DS900 app, view the Terms of Service and Privacy Policy,
and log out to your account.
4.8.8 System Update
Allows you to update the tablet system if a new version is available.
4.8.9 Folder
Allows you to access saved replay data and diagnostic reports.
4.8.10 Order Management
This function helps you to manage orders.
User Info provides access to VCI Management, Folder,Uninstall
Software, User Info , Customer Feedback, Shop Info, Firmware Update,
Order Management , Settings and System Update.
GOOLOO
34
SECTION 5 SPECIFICATIONS
2GB
64GB
8-inch screen, 1280 x 800
USB
Wi-Fi
5 megapixels
Microphone / loudspeaker
Gravity sensor
10,000 mAh
12V DC
USB Type-A
USB Type-C
RJ45
HDIM
DC charging port
Wi-Fi
RJ45
10 x 6.1 x 1.97 in. (255mm x 155mm x 50mm)
32 to 122 (0 to 50 )
-4
to 140 (-20 to 60 )
RAM
Display Screen
Connectivity
Camera
Audio I/O
Sensor
Input Voltage
Ports
Dimension (L x W x H)
35
SECTION 6 FAQ
Q: What should I do if a communication error occurs?
A: Follow the steps below to identify the problem:
1) Check if the ignition is ON.
2) Check if the DS900 VCI is securely plugged into the
vehicle’s DLC port.
3) Turn the ignition off. Then, turn it on again after 10 seconds and
continue the operation.
4) Check if the vehicle’s control module is defective.
Q: What special functions does the DS900 support?
A: DS900 supports 8 special functions including Oil
Reset, Throttle Adaptation, EPB Reset, Steering Angle Reset, DPF
Regeneration, ABS Bleeding, BMS Reset and Airbag Reset.
Q:
A: Yes. Firmware will automatically update to the latest version once
the DS900 VCI is connected with your DS900
tablet via Bluetooth. You can also tap User Info > Firmware Update
Q:
is working?
A: That is a normal occurrence caused by electromagnetic
interference.
Q: How do I capture a screenshot?
A: Long press the Screenshot button at the top right edge of the
DS900 tablet for 3 seconds to capture a screenshot. To
view the saved pictures, go to Gallery from the home screen of the
Android System.
DS900
DS900
36
SECTION 7 WARRANTY
GOOLOO One Year Limited Warranty
GOOLOO warrants to its original purchaser that the company's
products will be free from defects in material and workmanship for 12
months from the date of purchase (Warranty Period).
For the defects reported during the Warranty Period, GOOLOO will
either repair or replace the defective part or product according to its
GOOLOO shall not be liable for any incidental or consequential
damages arising from the device's use, misuse, or mounting.
laws, the local laws shall prevail.
This limited warranty is void under the following conditions:
• Misused, disassembled, altered or repaired by unauthorized stores or
technicians.
• Careless handling and/or improper operation.
Notice:
All information in this manual is based on the latest information
available at the time of publication and no warranty can be made
for its accuracy or completeness. GOOLOO reserves the right to
make changes at any time without notice.
GOOLOO
37
SECTION 8 COMPLIANCE INFORMATION
Regulatory Compliance
FCC ID: 2AVYW-UD900TN
IC: 32511-UD900TN
HVIN: GOOLOO Diagnostic Tool-DS900
FCC & ISED Statement
This device complies with Part 15 of the FCC Rules [and contains
license-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS
standard(s)].
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including
interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le
présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
responsible for compliance could void your authority to operate the
equipment.
This equipment complies with FCC and ISED radiation exposure limits
set forth for an uncontrolled environment without restriction.
Cet équipement respecte les limites d’exposition aux rayonnements
restriction.
FCC VOC
This equipment has been tested and found to comply with the limits
this equipment does cause harmful interference to radio or television
38
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Absorption Rate) exposure test, this equipment is designed to meet
the requirements for exposure to radio waves established by the FCC
and ISED. These requirements set a SAR limit of 1.6 W/kg averaged
over one gram of tissue. The highest SAR value reported under this
FCC Caution:
The device for operation in the band 5150-5250 MHz is only for indoor
use to reduce the potential for harmful interference to co-channel
mobile satellite systems;
IC Caution:
1. The device for operation in the band 5150-5250 MHz is only for indoor
use to reduce the potential for harmful interference to co-channel
mobile satellite systems;
2. for devices with detachable antenna(s), the maximum antenna gain
permitted for devices in the band 5725-5850 MHz shall be such that
to-point and non-point-to-point operation as appropriate.
1. les dispositifs fonctionnant dans la bande 5150-5250 MHz sont
les risques de brouillage préjudiciable aux systèmes de satellites
mobiles utilisant les mêmes canaux;
2. le gain maximal d’antenne permis (pour les dispositifs utilisant la
pour l’exploitation point à point et non point à point, selon le cas.
fi[email protected](for the US)
WWW.gooloo.COM
EMAIL
TEL
WEBSITE
1-888-886-1805 Mon-Fri PST 9:00a.m.-5:00p.m.
[email protected](for the EU)
