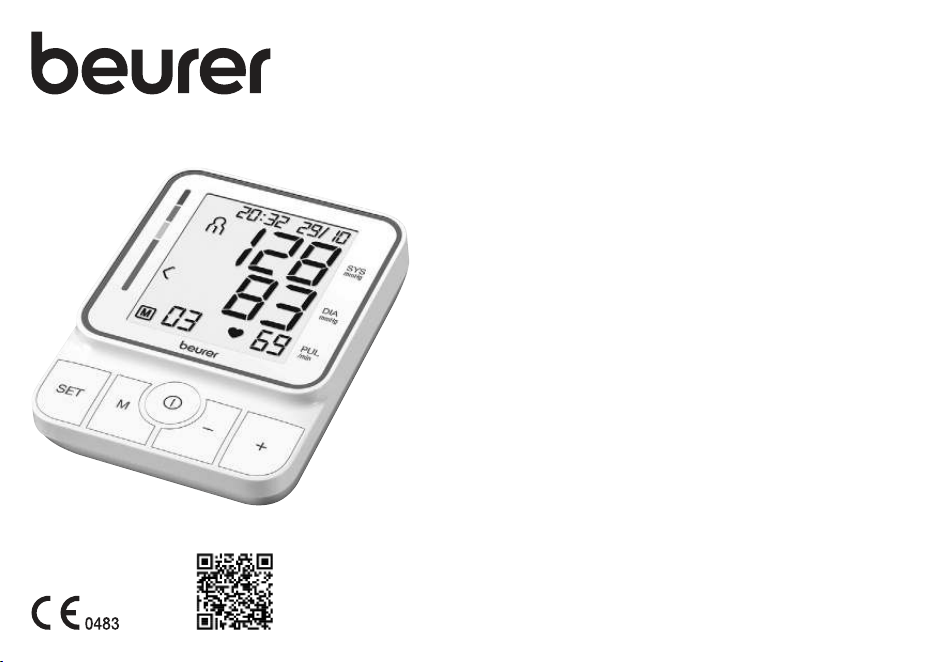

BM 51 easyClip
EN Blood pressure monitor
Instructions for use
2
ENGLISH
Read these instructions for use carefully and keep
them for later use, be sure to make them accessible to
other users and observe the information they contain.
Dear customer,
Thank you for choosing a product from our range. Our name stands for high-quality, thoroughly tested products for applications
in the areas of heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage, beauty, baby and air.
With kind regards,
Your Beurer team
Table of contents
1. Included in delivery ...............................................................3
2. Signs and symbols ................................................................3
3. Intended use .........................................................................4
4. Warnings and safety notes .................................................... 5
5. Device description ................................................................7
6. Initial use ............................................................................... 8
7. Usage .................................................................................... 9
8. Cleaning and maintenance ................................................ 14
9. Accessories and replacement parts .................................. 14
10. What if there are problems? .............................................. 14
11. Disposal ............................................................................15
12. Technical specifications .................................................... 15
13. Warranty/service ............................................................... 17
3
1. Included in delivery
Check that the exterior of the cardboard delivery packaging
is intact and make sure that all contents are present. Before
use, ensure that there is no visible damage to the device or
accessories and that all packaging material has been removed.
If you have any doubts, do not use the device and contact your
retailer or the specified Customer Service address.
1
x upper arm blood pressure monitor
1
x easyClip upper arm cuff (22–42 cm)
1
x instructions for use
1
x storage bag
4
x 1.5V AA LR6 batteries
2. Signs and symbols
The following symbols are used on the device, in these
instructions for use, on the packaging and on the type plate
for the device:
WARNING
Warning notice indicating a risk of injury
or damage to health
IMPORTANT
Safety note indicating possible damage
to the device/accessory
Note
Note on important information
Observe the instructions
Read the instructions before starting work
and/or operating devices or machines
Isolation of applied parts
Type BF
Galvanically isolated applied part (F stands
for “floating”); meets the requirements for
leakage currents for type B
Direct current
The device is suitable for use with direct
current only
Disposal in accordance with the Waste
Electrical and Electronic Equipment EC
Directive – WEEE
Do not dispose of batteries containing
hazardous substances with household waste
Separate the packaging elements and
dispose of them in accordance with local
regulations.
B
A
Marking to identify the packaging material.
A = Material code, B = Material number:
1-7 = Plastics, 20-22 = Paper and cardboard
Separate the product and packaging ele-
ments and dispose of them in accordance
with local regulations.
Manufacturer
Storage/Transport
Permissible storage and
transport temperature and humidity
4
Operating
Permissible operating temperature and
humidity
S
N
Serial number
IP 22
Device protected against foreign objects
≥ 12.5 mm and against water dripping at
an angle
This product satisfies the requirements of the
applicable European and national directives.
3. Intended use
Intended use
The blood pressure monitor is intended for the fully automatic,
non-invasive measurement of arterial blood pressure and pulse
values on the upper arm.
It is designed for self-measurement by adults in the home
environment.
Target group
The blood pressure measurement is suitable for adult users
whose upper arm circumference is within the range printed on
the cuff.
Clinical benefits
The user can record their blood pressure and pulse values
quickly and easily using the device. The recorded values are
classified according to internationally applicable guidelines and
evaluated graphically. Furthermore, the device can detect any
irregular heart beats that occur during measurement and in-
form the user via a symbol in the display. The device saves the
recorded measurements and can also output average values of
previous measurements.
The recorded data can provide healthcare service providers
with support during the diagnosis and treatment of blood
pressure problems, and therefore plays a part in the long-term
monitoring of the user’s health.
Indication
In the event of hypertension or hypotension, the user can in-
dependently monitor their blood pressure and pulse values as
well as arrhythmia at home. However, the user does not need
to be suffering from hypertension or arrhythmia in order to use
the device.
Contraindications
•
Do not use the blood pressure monitor on newborns, chil-
dren or pets.
•
People with restricted physical, sensory or mental skills
should be supervised by a person responsible for their safety
and receive instructions from this person on how to use the
device.
•
If you have any of the following conditions, it is essential
you consult your doctor before using the device: cardiac
arrhythmia, circulatory problems, diabetes, pregnancy, pre-
eclampsia, hypotension, chills, shaking.
•
People with pacemakers or other electrical implants should
consult their doctor before using the device.
•
Do not use the cuff on people who have undergone a mas-
tectomy.
5
•
Do not place the cuff over wounds as this may cause further
injury.
•
Make sure that the cuff is not placed on an arm in which the
arteries or veins are undergoing medical treatment, e.g. intra-
vascular access or intravascular therapy, or an arteriovenous
(AV) shunt.
•
Do not use the device with persons with sensitive skin or al-
lergies.
4. Warnings and safety notes
General warnings
•
The measured values taken by you are for your information
only – they are no substitute for a medical examination. Dis-
cuss the measured values with your doctor and never make
your own medical decisions based on them (e.g. regarding
dosages of medicines).
•
The device is only intended for the purpose described in
these instructions for use. The manufacturer is not liable for
damage resulting from improper or incorrect use.
•
Using the blood pressure monitor outside your home envi-
ronment or whilst on the move (e.g. whilst travelling in a car,
ambulance or helicopter, or whilst undertaking physical ac-
tivity such as playing sport) can influence the measurement
accuracy and cause incorrect measurements.
•
Cardiovascular diseases may lead to incorrect measure-
ments or have a detrimental effect on measurement accu-
racy.
•
Do not use the device at the same time as other medical
electrical devices (ME equipment). This could lead to a mal-
function of the device and/or an inaccurate measurement.
•
Do not use the device outside of the specified storage and
operating conditions. This could lead to incorrect measure-
ments.
•
Only use the cuffs included in delivery or cuffs described in
these instructions for use for the device. Using another cuff
may lead to measurement inaccuracies.
•
Please note that when inflating the cuff, the functions of the
limb in question may be impaired.
•
Do not perform measurements more frequently than neces-
sary. Due to the restriction of blood flow, some bruising may
occur.
•
During the blood pressure measurement, the blood circula-
tion must not be stopped for an unnecessarily long time. If
the device malfunctions remove the cuff from the arm.
•
Place the cuff on your upper arm only. Do not place the cuff
on other parts of the body.
•
The air line poses a risk of strangulation for small children.
Furthermore, included small parts pose a risk of suffocation
for small children if swallowed. They should therefore always
be supervised.
General precautions
•
The blood pressure monitor is made from precision and elec-
tronic components. The accuracy of the measurements and
service life of the device depend on its careful handling.
•
Protect the device from impacts, humidity, dirt, marked tem-
perature fluctuations and direct sunlight.
6
•
Ensure the device is at room temperature before measuring.
If the measuring device has been stored close to the maxi-
mum or minimum storage and transport temperatures and is
placed in an environment with a temperature of 20°C, it is
recommended that you wait approx. 2 hours before using the
measuring device.
•
Do not drop the device.
•
Do not use the device in the vicinity of strong electromag-
netic fields and keep it away from radio systems or mobile
telephones.
•
We recommend that the batteries be removed if the device is
not to be used for a prolonged period of time.
•
Avoid any mechanical restriction, compression or bending of
the cuff line.
Measures for handling batteries
•
If your skin or eyes come into contact with battery fluid,
rinse the affected areas with water and seek medical
assistance.
•
Choking hazard! Small children may swallow and choke
on batteries. Therefore, store batteries out of the reach
of small children.
•
Risk of explosion! Do not throw batteries into a fire.
•
If a battery has leaked, put on protective gloves and
clean the battery compartment with a dry cloth.
•
Do not disassemble, open or crush the batteries.
•
Observe the plus (+) and minus (-) polarity signs.
•
Protect the batteries from excessive heat.
•
Do not charge or short-circuit batteries.
•
If the device is not to be used for a relatively long pe-
riod, take the batteries out of the battery compartment.
•
Use identical or equivalent battery types only.
•
Always replace all batteries at the same time.
•
Do not use rechargeable batteries!
Notes on electromagnetic compatibility
• The device is suitable for use in all environments listed in
these instructions for use, including domestic environments.
• The use of the device may be limited in the presence of
electromagnetic disturbances. This could result in issues
such as error messages or the failure of the display/device.
• Avoid using this device directly next to other devices or
stacked on top of other devices, as this could lead to faulty
operation. If, however, it is necessary to use the device in
the manner stated, this device as well as the other devices
must be monitored to ensure they are working properly.
• The use of accessories other than those specified or
provided by the manufacturer of this device can lead to an
increase in electromagnetic emissions or a decrease in the
device’s electromagnetic immunity; this can result in faulty
operation.
• Failure to comply with the above can impair the performance
of the device.
7
5. Device description
1. Bracket
2. Cuff line
3. Cuff
4. Cuff connector
5. Display
6. Connection for mains part (right side)
7. -/+ function buttons
8. START/STOP button
9. SET setting button
10. M memory button
11. Risk indicator
12. Connection for cuff connector (left-hand side)
Information on the display:
1. Date/time
2. Systolic pressure
3. Diastolic pressure
4. Calculated pulse rate
5. Pulse symbol
6. Battery replacement
symbol
7. Number of memory
spaces / memory
display for average
value ( ),
morning ( ),
evening( )
8. Release air ( )
9. Cardiac arrhythmia
symbol
10. User memory
11. Risk indicator
1 2 3 4
11
9
12
6
5
7
8
10
8
11
10
1
2
3
4
567
9
8
6. Initial use
Inserting the batteries
•
Remove the battery
compartment lid on the rear
of the device.
•
Insert four 1.5V AA (alkaline
type LR6) batteries. Make
sure that the batteries are
inserted the correct way round
in accordance with the markings. Do not use rechargeable
batteries.
•
Carefully close the battery compartment lid again.
•
All display elements are briefly displayed, flashes in
the display. Now set the date and time as described below.
If the battery replacement symbol
is permanently
displayed, you can no longer perform any measurements
and must replace all batteries. Once the batteries have been
removed from the device, the date and time must be set again.
Any saved measured values are retained.
Setting the hour format, date and time
It is essential that you set the date and time. Otherwise, you
will not be able to save your measured values correctly with
a date and time and access them again later.
There are two different ways to access the menu from
which you can adjust the settings:
• Before initial use and after each time you replace the battery:
When inserting batteries into the device, you will be taken to
the relevant menu automatically.
• If the batteries have already been inserted:
Press and hold the SET setting button on the device
for approx. 5 seconds with the device switched off.
In this menu you can adjust the following settings in
succession:
Hour format
➔
Date
➔
Time
Hour format
The hour format flashes on the display.
•
Use the
-/+
function buttons to select the
relevant hour format and confirm using the
SET
setting button.
Date
The year flashes on the display.
•
Using the
-/+
function buttons, select the
relevant year and confirm using the
SET
setting button.
The month flashes on the display.
•
Use the
-/+
function buttons to select the
relevant month and confirm using the
SET
setting button.
4
x 1.5 V AA (LR6)
9
Date
The day flashes on the display.
•
Use the
-/+
function buttons to select the
relevant day and confirm using the
SET
setting button.
If the hour format is set as 12h, the day/month display
sequence is reversed.
Time
The hour flashes on the display.
•
Using the -/+
function buttons, select the
relevant hour and confirm using the SET
setting button.
The minute flashes on the display.
•
Using the -/+
function buttons, select the
relevant minute and confirm using the SET
setting button.
Operation with the mains part
You can also operate this device with a mains part (not
included in delivery). The mains part can be obtained from
specialist retailers or from the service address using order
number 071.95. However, before connecting the device with
the mains part, please ensure that you have removed the
batteries from the device. During mains operation, there must
not be any batteries in the battery compartment, as this could
damage the device.
•
To avoid any potential damage, the device may only be
operated with a mains part that meets the specifications
described in chapter “Technical specifications”.
•
Furthermore, the mains part must only be connected to
the mains voltage that is specified on the type plate.
•
Insert the mains part into the connection provided for
this purpose on the right-hand side of the blood pressure
monitor.
•
Then insert the mains plug of the mains part into the mains
socket.
•
After using the blood pressure monitor, unplug the mains
part from the mains socket first and then disconnect it from
the blood pressure monitor. As soon as you unplug the
mains part, the blood pressure monitor loses the date and
time setting but the saved measured values are retained.
7. Usage
Please ensure the unit is at room temperature before
measuring. The measurement can be performed on the left or
right arm. Circulation in the arm must not be restricted by tight
clothing or similar.
Attaching the cuff
1. Place the cuff onto the
bare upper arm. Press the
bracket together using
your fingers, in such a
way that the area where
the upper arm should be
placed opens.
10
2. The cuff must be placed
on the upper arm so
that the bottom edge is
positioned 2-3cm above
the elbow and over the
artery. The line should
point to the centre of the
palm.
2 – 3 cm
3. Close the hook-and-loop
fastener. In doing so, the
cuff should be fastened so
that two fingers fit under
the cuff.
4. Now fold the protruding
part down. Secure the
protruding part using the
additional hook-and-loop
fastener on the cuff.
5. Now insert the cuff line
into the connection for the
cuff connector.
Ensure that your arm is not pressing on the line.
Blood pressure may vary between the right and left arm,
which may mean that the measured blood pressure values are
different. Always perform the measurement on the same arm.
If the values between the two arms are significantly different,
please consult your doctor to determine which arm should be
used for the measurement.
Important: The device may only be operated with the original
cuff. The cuff is suitable for an arm circumference of 22 to
42 cm.
Adopting the correct posture
•
Before the initial blood pressure measurement, always make
sure to rest for about 5 minutes! Otherwise deviations can
occur.
•
You can take the measurement while sitting or lying. Always
make sure that the cuff is at heart level.
•
To carry out a blood pressure measurement, make sure you
are sitting comfortably, with your arms and back leaning on
something. Do not cross your legs. Place your feet flat on the
ground.
•
To avoid falsifying the measurement, it is important to remain
still during the measurement and not to speak.
•
Wait at least 1 minute before taking another measurement!
11
Selecting memory
Press the SET setting button. Select the relevant user memory
(
or
2
) by pressing the
-/+
function buttons.
You have 2 memories, each with 100 memory spaces, to
enable the separate storage of measurements for 2 different
people. Confirm your selection with the START/STOP button
or wait for 3 seconds. Your selection is then automatically
stored.
Performing the blood pressure measurement
Measurement
As described above, attach the cuff and adopt the
posture in which you want to perform the measurement.
•
Press the START/STOP button to start
the blood pressure monitor. All display val-
ues light up briefly. After the full-screen dis-
play, the last stored measurement appears.
If there is no measurement in the memory,
the unit displays the value .
The blood pressure monitor will begin
measurement automatically after 5 seconds.
Measurement
The cuff automatically inflates. The measurement itself is
taken during the inflation phase.
As soon as a pulse is found, the pulse symbol will be
displayed.
You can cancel the measurement at any time by
pressing the
START/STOP
button .
•
Systolic pressure, diastolic pressure and
pulse measurements are displayed.
•
appears if the measurement has
not been performed properly. Refer to
chapter “10. What if there are problems?”
in these instructions for use and repeat the
measurement.
•
Press the START/STOP button to switch off the
blood pressure monitor. The measurement is then
stored in the selected user memory.
If you forget to turn off the device, it will switch off
automatically after approx. 1 minute. Even in this event,
the value is stored in the selected or most recently used
user memory.
•
Wait at least 1 minute before taking another
measurement!
12
Evaluating results
Cardiac arrhythmia:
This device can identify potential disruption of the heart rhythm
when measuring and, if necessary, indicates this after the
measurement with the symbol
.
This can be an indicator for arrhythmia. Arrhythmia is a
condition in which the heart rhythm is abnormal because of
flaws in the bioelectrical system that regulates the heartbeat.
The symptoms (skipped or premature heart beats, pulse
being slow or too fast) can be caused by factors such as heart
disease, age, physical make-up, excess stimulants, stress or
lack of sleep. Arrhythmia can only be determined through an
examination by your doctor.
If the symbol is shown on the display after the measure-
ment has been taken, repeat the measurement. Please ensure
that you rest for 5 minutes beforehand and do not speak or
move during the measurement.
If the symbol appears
frequently, please consult your doctor.
Self-diagnosis and treatment
based on the measurements can
be dangerous. Always follow your doctor’s instructions.
Risk indicator:
The measurements can be classified and evaluated in
accordance with the following table.
However, these standard values serve only as a general
guideline, as the individual blood pressure varies in different
people and different age groups etc.
It is important to consult your doctor regularly for advice. Your
doctor will tell you your individual values for normal blood
pressure as well as the value above which your blood pressure
is classified as dangerous.
The bar chart on the display and the scale on the device show
which category the recorded blood pressure values fall into.
If the values of systole and diastole fall into two different
categories (e.g. systole in the High normal category and
diastole in the Normal category), the graphical classification on
the device always shows the higher category; for the example
given this would be High normal.
Blood pressure
value category
Systole
(in mmHg)
Diastole
(in mmHg)
Action
Level 3:
severe
hypertension
red ≥ 180 ≥ 110
Seek medical
attention
Level 2:
moderate
hypertension
orange 160 – 179 100 – 109
Seek medical
attention
Level 1: mild
hypertension
yellow 140 – 159 90 – 99
Regular
monitoring by
doctor
High normal green 130 – 139 85 – 89
Regular
monitoring by
doctor
Normal green 120 – 129 80 – 84
Self-monito-
ring
Optimal green < 120 < 80
Self-monito-
ring
Source:
13
Saving, displaying and deleting measured values
User memory
The results of every successful measurement are stored
together with the date and time. If there are more than
100 measurements, the oldest measurements are lost.
•
Press the SET setting button. Select the relevant user
memory ( or
2
) by pressing the
-/+
function buttons.
Confirm your selection using the START/STOP button
.
Average values
Press the M memory button.
lights up on the display.
The average value of all saved measured
values in this user memory is displayed.
Press the M memory button.
lights up on the display.
The average value of the morning
measurements for the last 7 days is
displayed (morning: 5 a.m. – 9 a.m.).
Press the M memory button.
lights up on the display.
The average value of the evening
measurements for the last 7 days is
displayed (evening: 6 p.m. – 8 p.m.).
Individual measured values
When the M memory button is pressed
again, the last individual measured
values in each case are displayed
with the date and time (for example
measurement 03).
When the memory button M is pressed again, you can
view your individual measured values.
To switch the device off again, press the START/STOP
button
. If you forget to switch off the unit, it will switch
off automatically after 1 minute.
You can exit the menu at any time by pressing the
START/STOP button .
Deleting measured values
To delete the memory of the selected user memory,
press the M memory button in switched-off state.
The average value of all measurements appears on
the display; in parallel, lights up.
Press and hold down both function buttons -/+
simultaneously for 5 seconds.
appears on the display. All the
values in the selected user memory have
now been deleted.
14
8. Cleaning and maintenance
•
Clean the device and cuff carefully using only a slightly
damp cloth.
•
Do not use any cleaning agents or solvents.
•
Under no circumstances hold the device and cuff under
water, as this can cause liquid to enter and damage the
device and cuff.
•
If you store the device and cuff, do not place heavy objects
on the device and cuff. Remove the batteries. The cuff line
should not be bent sharply.
9. Accessories and replacement parts
Accessories and replacement parts are available from the
corresponding service address (according to the service
address list). Please state the corresponding order number.
Designation Item number and/or
order number
easyClip universal cuff
(22–42 cm)
164.161
Mains part (EU) 071.95
Mains part (UK) 072.05
10. What if there are problems?
Error
message
Possible cause Solution
Unable to record
a pulse.
Please wait one minute
and repeat the measure-
ment.
Ensure that you do not
speak or move during the
measurement.
The cuff was
not attached
correctly.
Please observe the infor-
mation in chapter 7 under
the heading “Attaching
the cuff”.
An error occurred
during measure-
ment.
Please wait one minute
and repeat the measure-
ment.
Ensure that you do not
speak or move during the
measurement.
An error occurred
while pumping up
the cuff.
Please take another
measurement to check
whether the cuff can be
correctly inflated.
Make sure that neither
your arm nor other heavy
objects are pressing on
the line, and that the line
is not bent.
15
Error
message
Possible cause Solution
System error Please contact customer
service.
The batteries are
almost empty.
Insert new batteries into
the device.
11. Disposal
Repairing and disposing of the device
•
Do not repair or adjust the device yourself. Proper operation
can no longer be guaranteed in this case.
•
Do not open the device. Failure to comply will invalidate the
warranty.
•
Repairs must only be carried out by Customer Services or
authorised retailers. Before making a claim, please check the
batteries first and replace them if necessary.
•
For environmental reasons, do not dispose of the
device in the household waste at the end of its useful
life. Dispose of the device at a suitable local collection
or recycling point in your country. Dispose of the device in
accordance with EC Directive – WEEE (Waste Electrical and
Electronic Equipment). If you have any questions, please
contact the local authorities responsible for waste disposal.
Disposing of the batteries
• Empty, completely flat batteries must be disposed of through
specially designated collection boxes, recycling points or
electronics retailers. You are legally required to dispose of
the batteries.
• The codes below are printed on batteries
containing harmful substances:
Pb = Battery contains lead, Cd = Battery contains
cadmium, Hg = Battery contains mercury.
12. Technical specifications
Device
Model no. BM 51
Type BPM51
Measurement me-
thod
Oscillometric, non-invasive
blood pressure measurement
on the upper arm
Measurement range Cuff pressure 0–300 mmHg,
systolic 60–255mmHg,
diastolic 40–200mmHg,
pulse 40 –199 beats/minute
Display accuracy Systolic ± 3 mmHg,
diastolic ± 3 mmHg,
pulse ± 5 % of the value shown
Measurement uncer-
tainty
Max. permissible standard deviation
according to clinical testing:
Systolic 8mmHg /
diastolic 8mmHg
16
Memory 2 x 100 memory spaces
Dimensions L 138 mm x W 103 mm x H 46 mm
Weight Approximately 570 g
(without batteries, with cuff)
Cuff size 22 to 42 cm
Permissible operating
conditions
+ 10 °C to + 40 °C, ≤ 85 % relative
humidity (non-condensing),
700 hPa–1060 hPa environmental
pressure
Permissible storage
conditions
- 20 °C to + 50 °C, ≤ 85 % relative
humidity (non-condensing),
700 hPa–1060 hPa environmental
pressure
Power supply
4 x 1.5 V
AA batteries
Battery life For approx. 500 measurements,
depending on levels of blood pressure
and inflation pressure
Classification Internal supply, IP22, no AP or APG,
continuous operation, application part
type BF
The serial number is located on the device or in the battery
compartment.
Technical information is subject to change without notification
to allow for updates.
•
This device complies with the European standard EN 60601-1-2
(in compliance with CISPR 11, IEC 61000-4-2,
IEC 61000-4-3,
and IEC 61000-4-8
) and is subject to special precautionary
measures with regard to electromagnetic compatibility.
Please note that portable and mobile HF communication
systems may interfere with this device.
•
This device complies with the EU Medical Devices
Directive 93/42/EEC, the German Medical Devices
Act (Medizinproduktgesetz) and the standards
EN 1060-1 (Non- invasive sphygmomanometers –
Part1: General requirements), EN1060-3 (Non-invasive
sphygmomanometers – Part 3: Supplementary requirements
for electro-mechanical blood pressure measuring systems)
and IEC IEC 80601-2-30 (Medical electrical equipment –
Part 2 – 30: Particular requirements for the basic safety
and essential performance of automated non-invasive
sphygmomanometers).
•
The accuracy of this blood pressure monitor has been
carefully checked and developed with regard to a long useful
life. If the device is used for commercial medical purposes, it
must be regularly tested for accuracy by appropriate means.
Precise instructions for checking accuracy may be requested
from the service address.
17
Mains part
Model no. LXCP12-006060BEH
Input 100 – 240 V, 50 – 60 Hz, 0.5 A max
Output 6 V DC, 600 mA, in conjunction with
Beurer blood pressure monitors only
Manufacturer Shenzhen Iongxc power supply co., ltd.
Protection The device is double protected and
has a primary-side cutout switch
which disconnects the device from
the mains in case of malfunction.
Ensure that you have removed the
batteries from the battery compartment
before you use the mains part.
Polarity of the DC voltage connection
Insulated/protection class 2
Housing and
protective covers
The housing of the mains part protects
users from touching live parts or parts
that could be live (for example with
finger, needle, checking hook).
Do not touch the patient and the output
connector of the AC/DC mains part at
the same time.
13. Warranty/service
Further information on the guarantee and guarantee conditions
can be found in the guarantee leaflet supplied.
Subject to errors and changes
18
19
20
652.04_BM51_2022-02-07_06_IM2_BEU_EN
Beurer GmbH • Söflinger Straße 218 • 89077 Ulm, Germany
www.beurer.com • www.beurer-healthguide.com
